Electric Powered Tuggers (E-TUG, E-TUG-HD)

Table Search, not an entire site search.

Model #			Description	Attributes	Net Wt. (lbs)

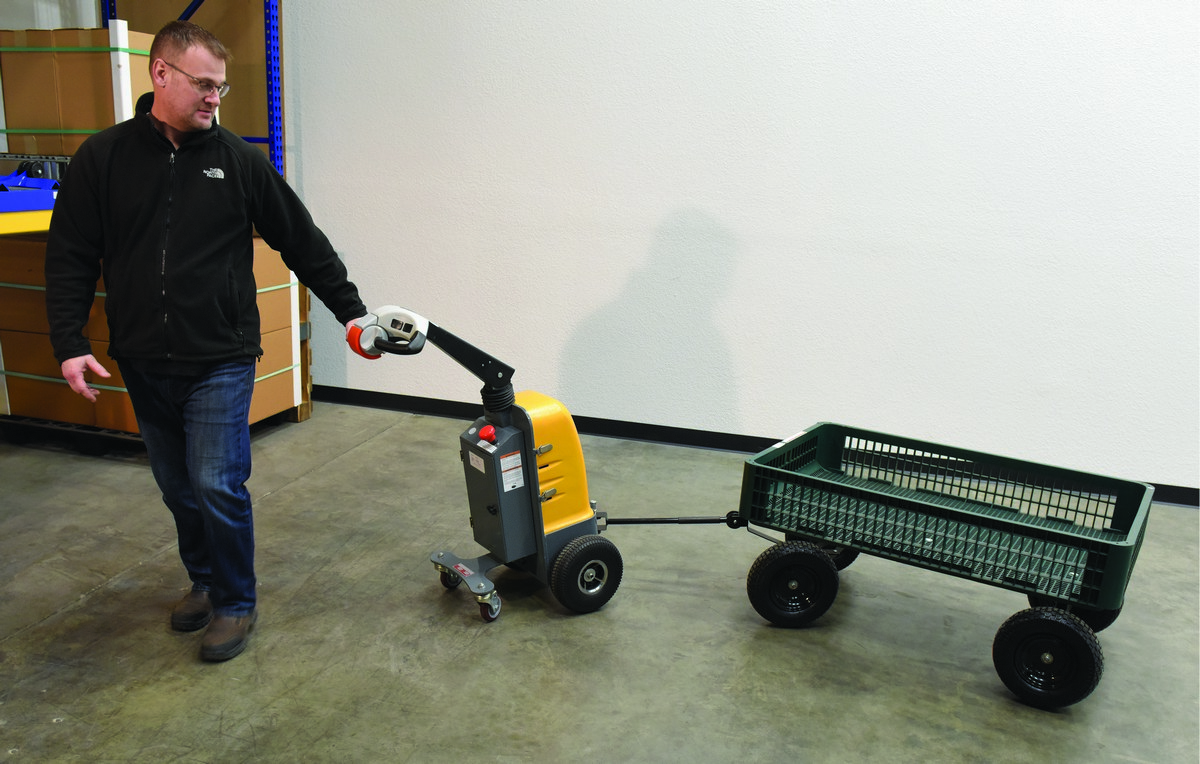

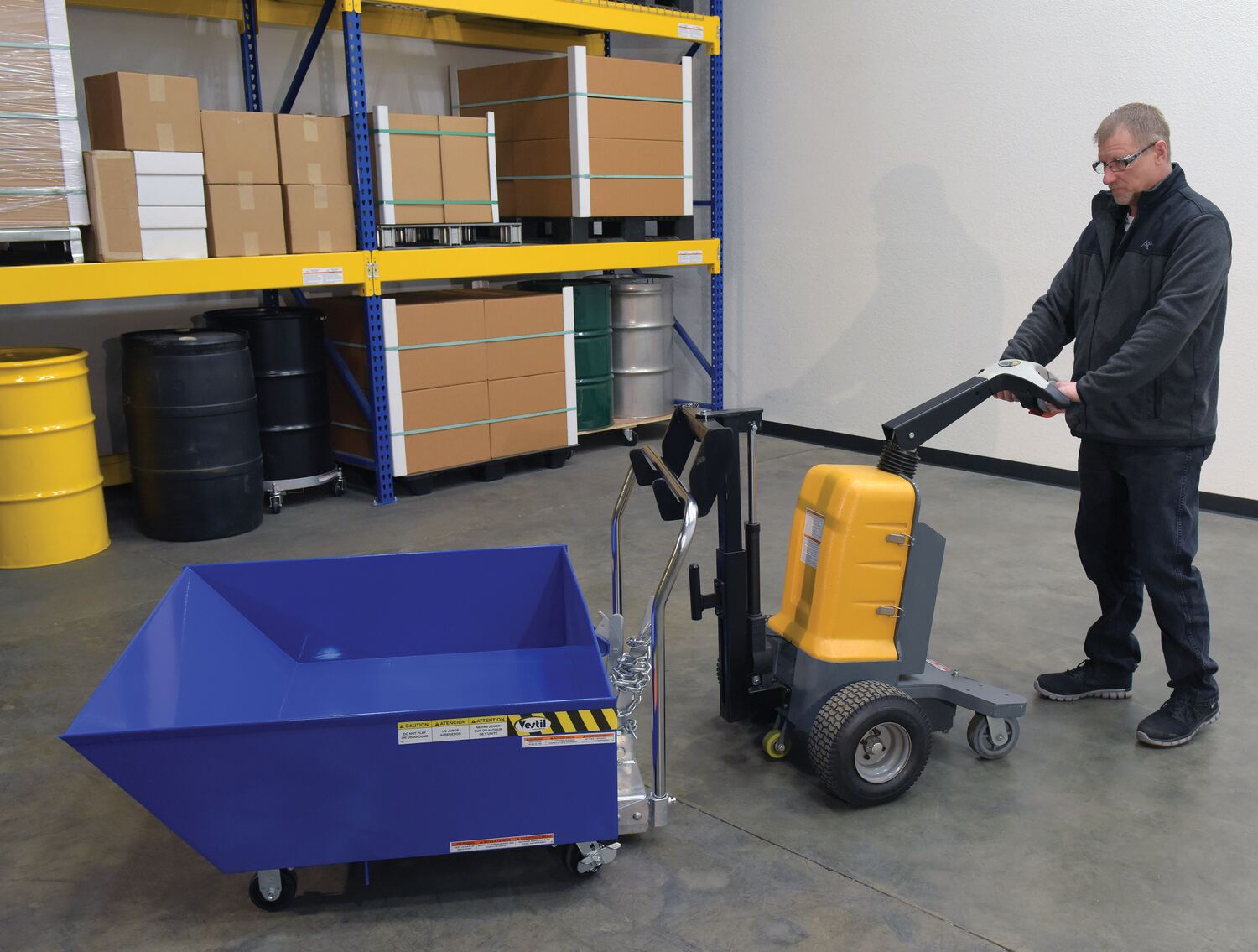

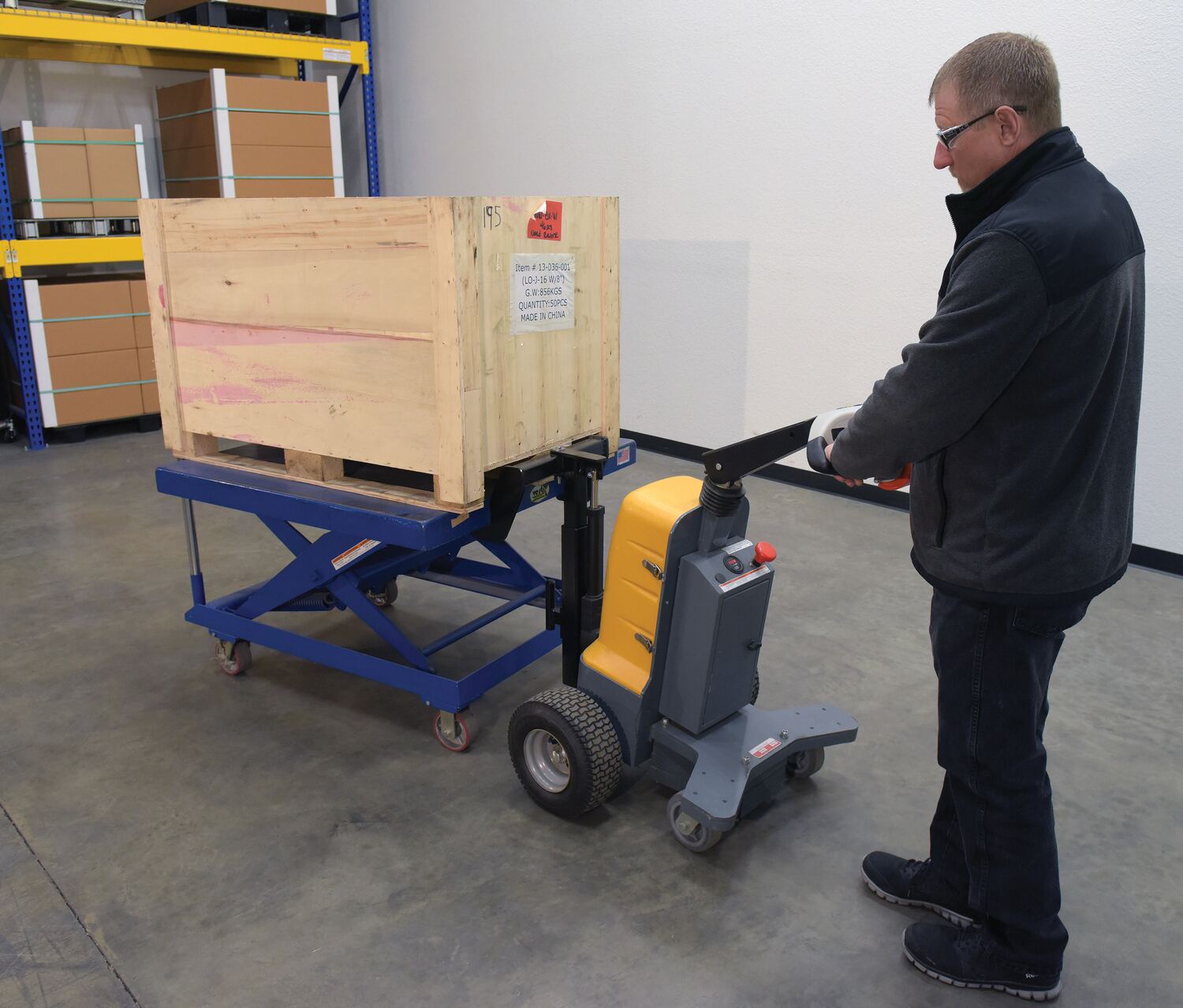

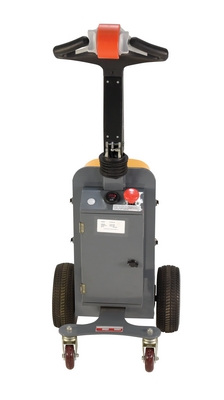

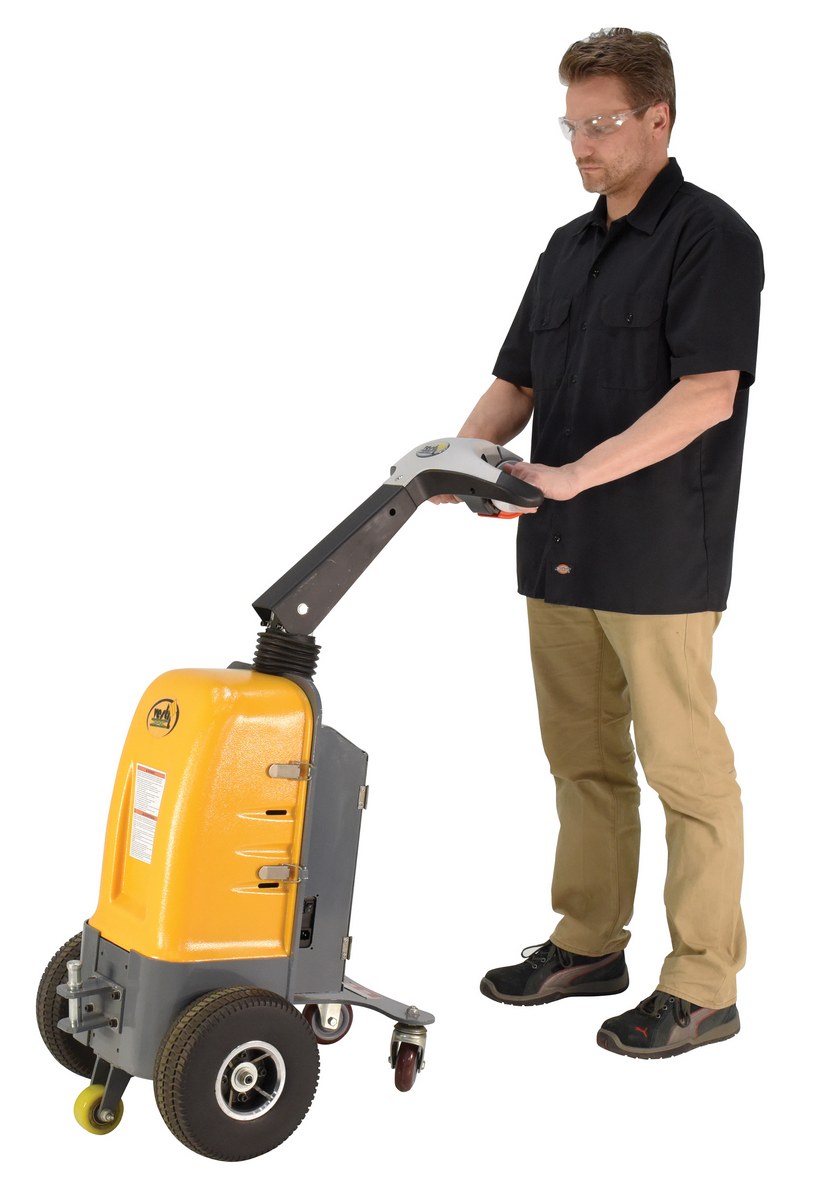

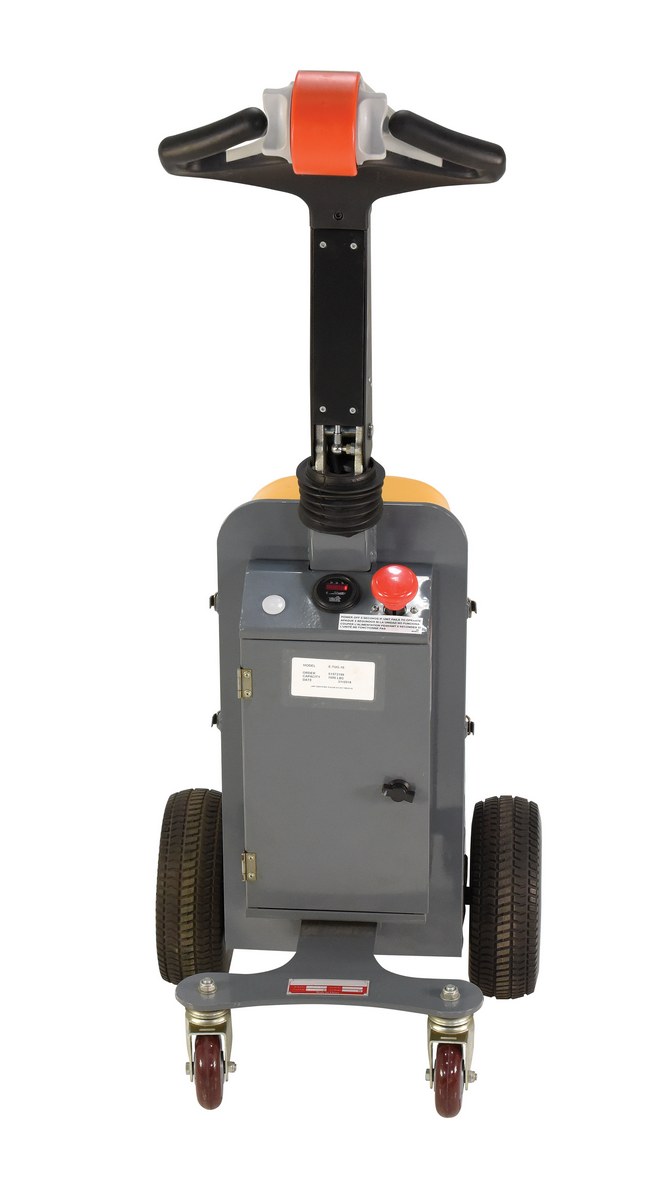

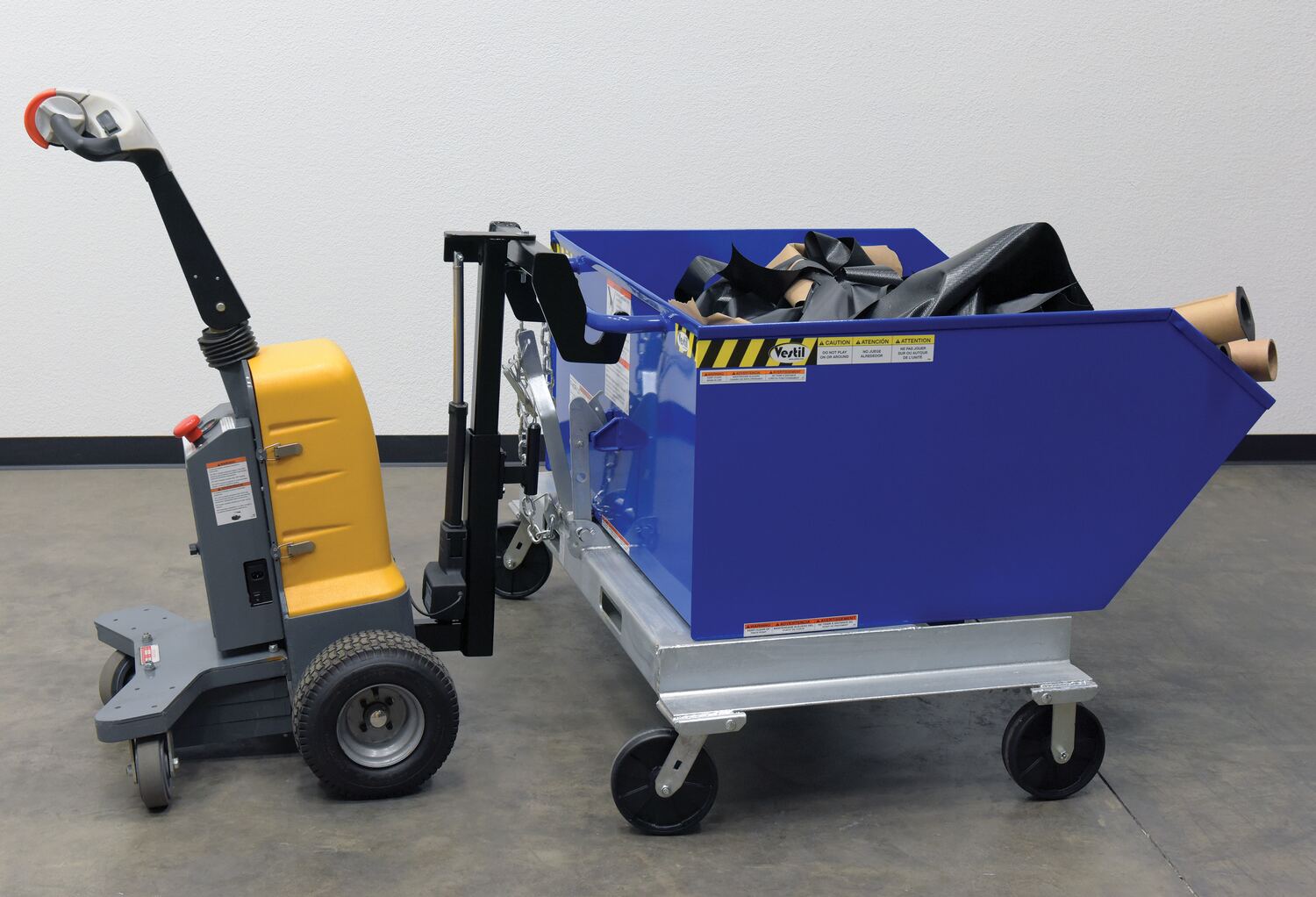

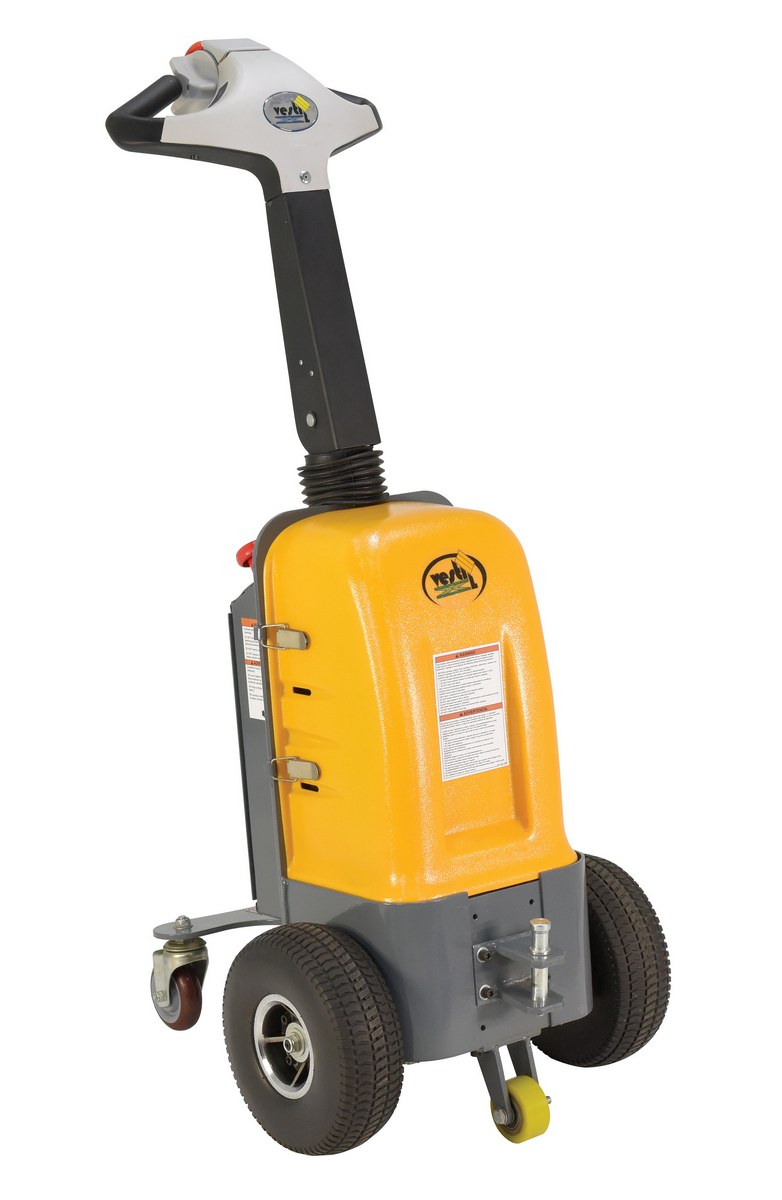

E-TUG-10		1 Year Limited Warranty	Steel Electric Powered Tugger 1000 Lb. Pull Capacity Yellow/Black	Uniform Pull Capacity (lb.): 1,000 Drive Motor: 24V DC	258

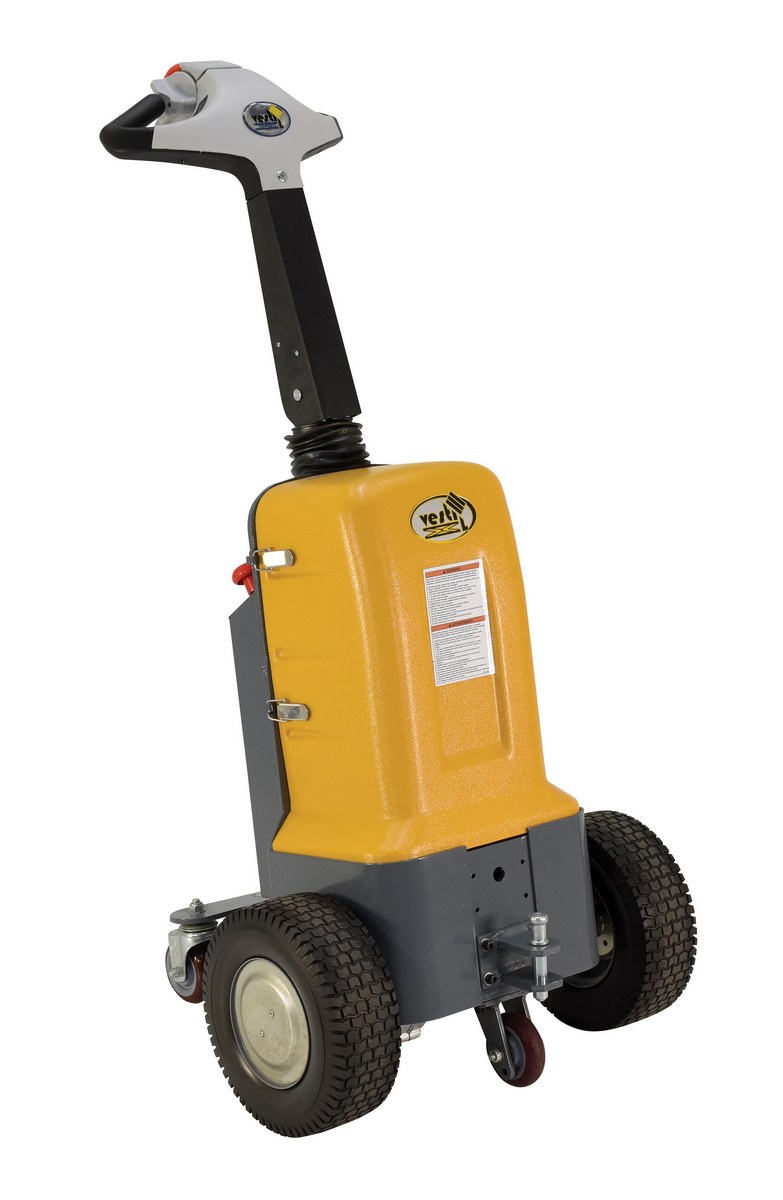

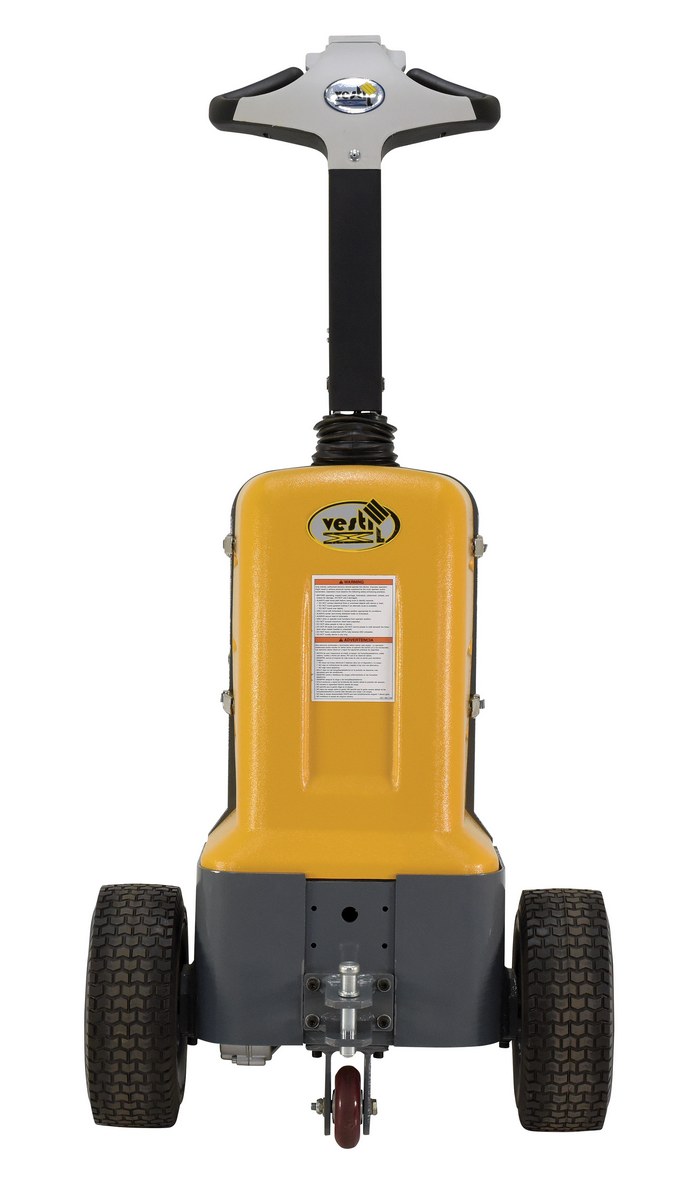

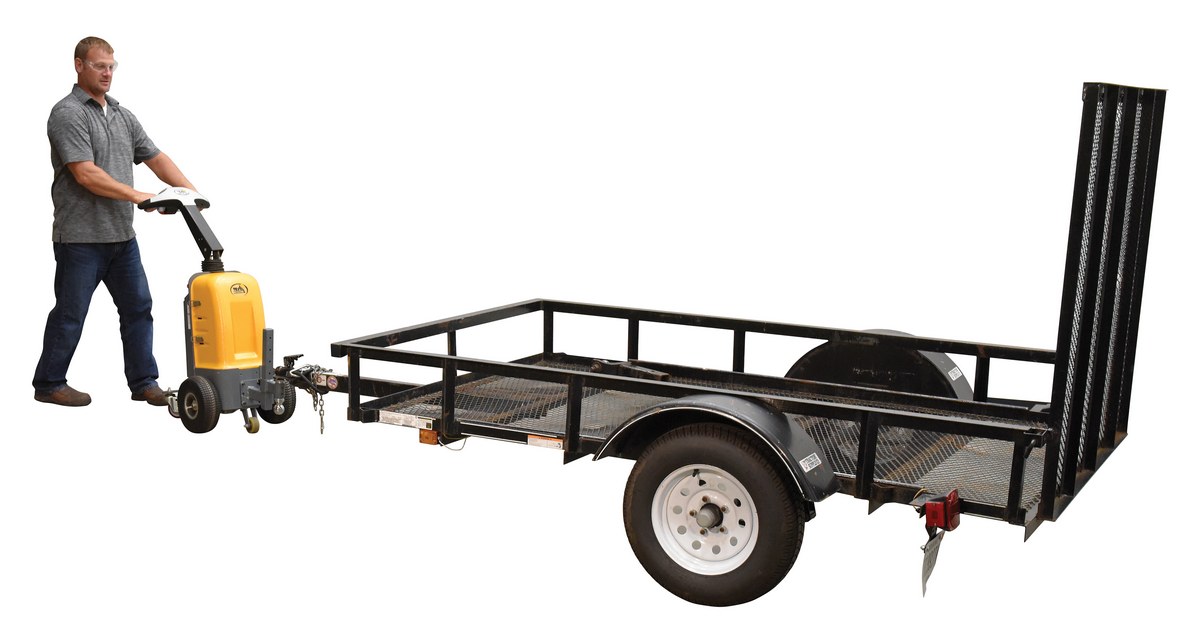

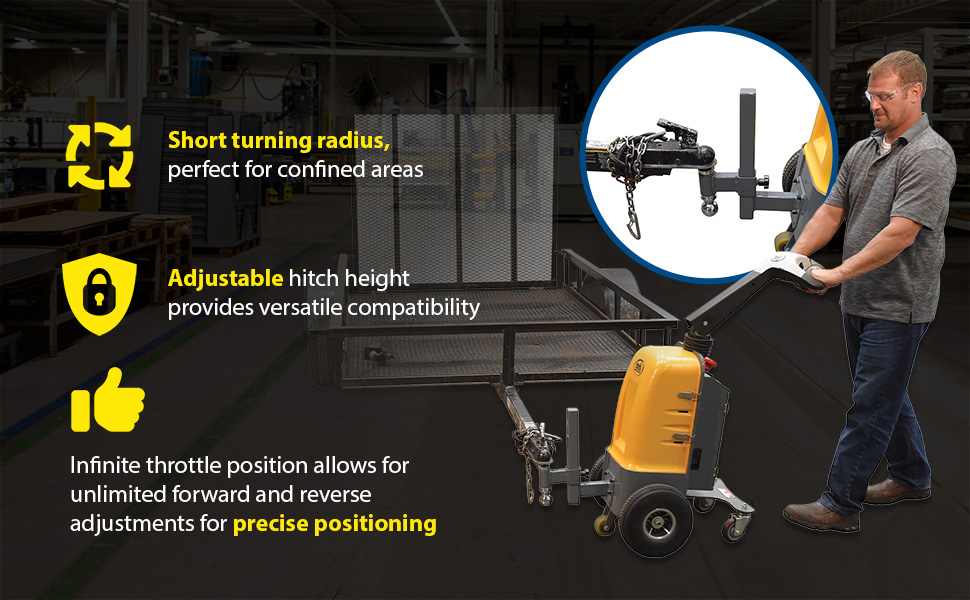

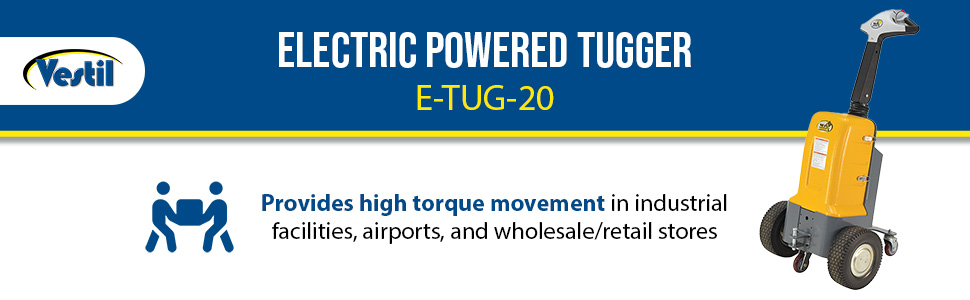

E-TUG-20	POPULAR	1 Year Limited Warranty	Steel Electric Powered Tugger 2000 Lb. Pull Capacity Yellow/Black	Uniform Pull Capacity (lb.): 2,000 Drive Motor: 24V DC	282

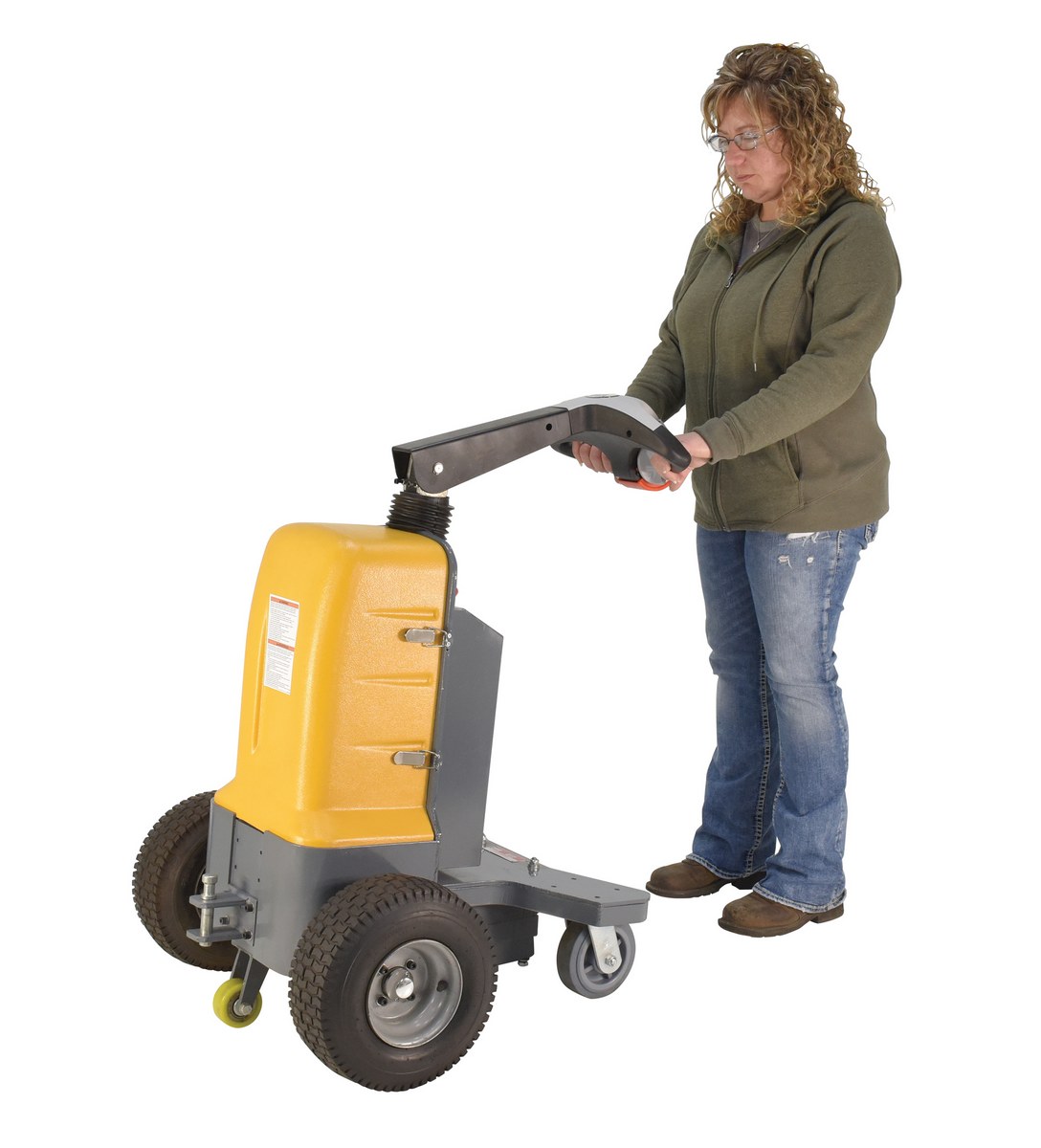

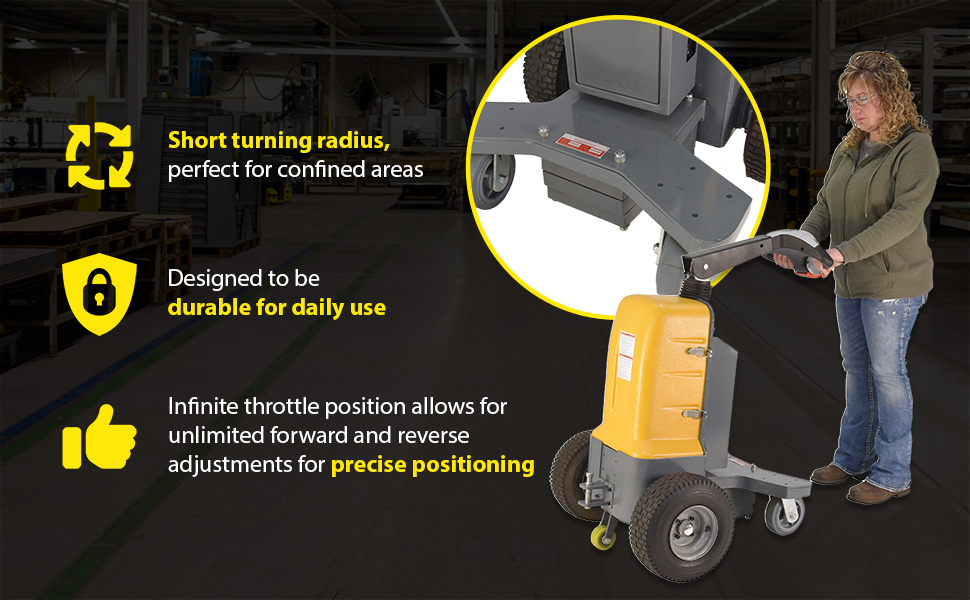

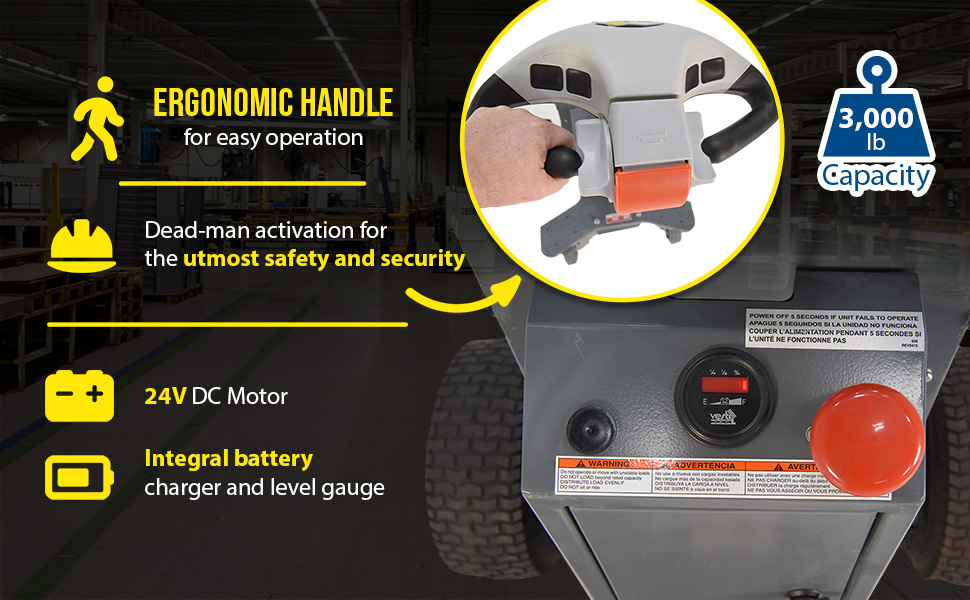

E-TUG-30		1 Year Limited Warranty	Electric Powered Tugger with 3000 Lb. Pull Capacity Yellow/Black	Uniform Pull Capacity (lb.): 3,000 Drive Motor: 24V DC	434

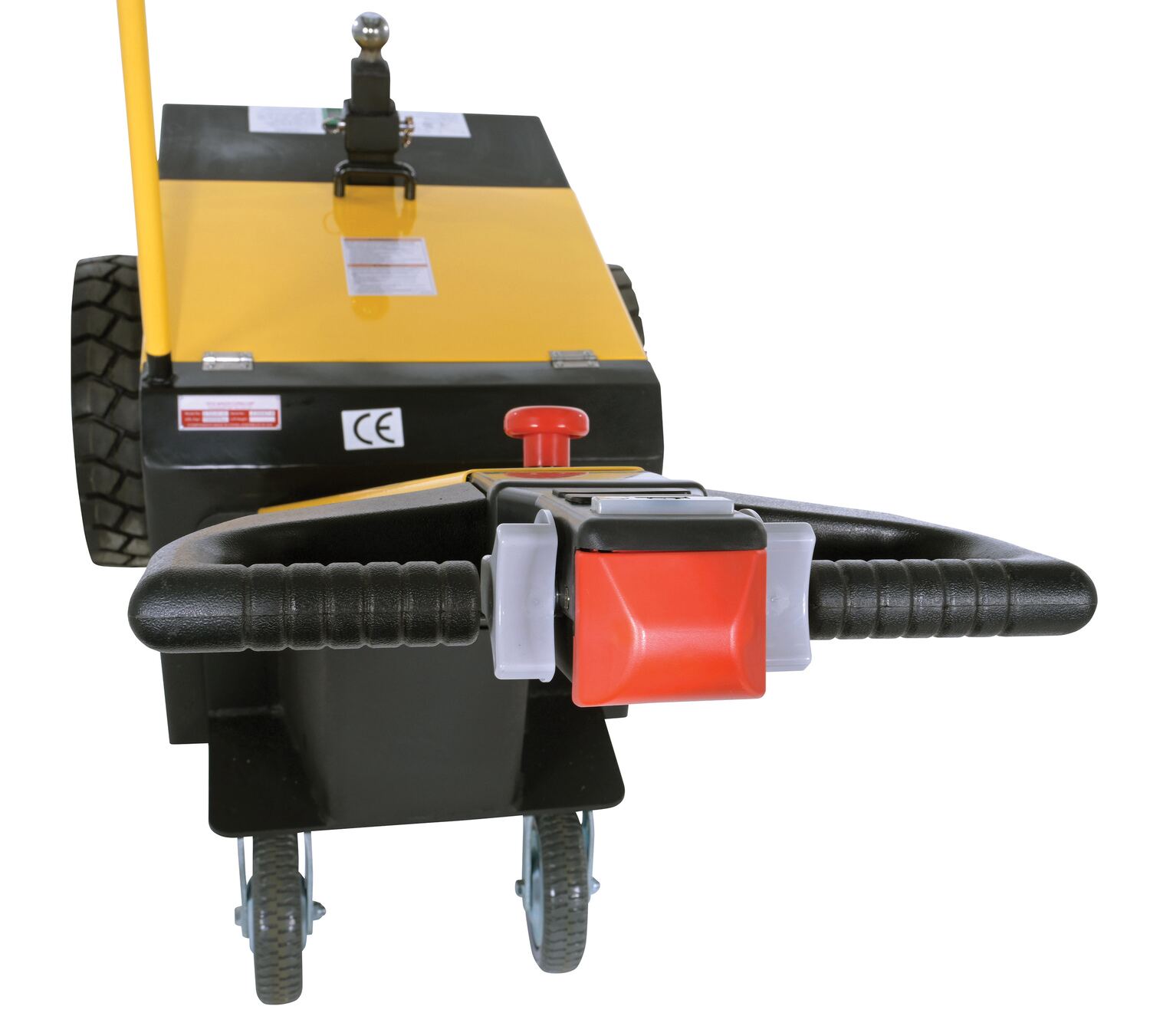

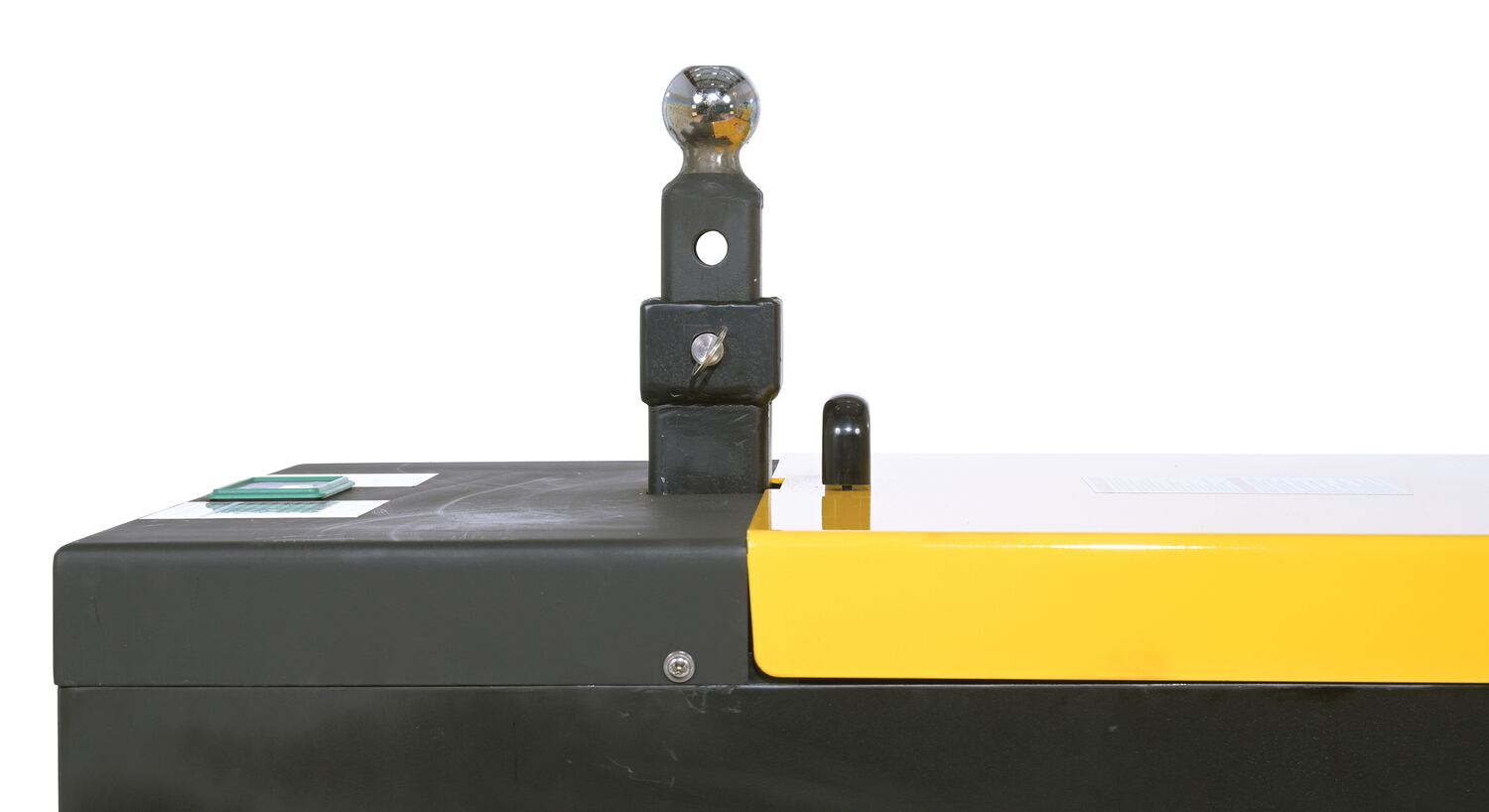

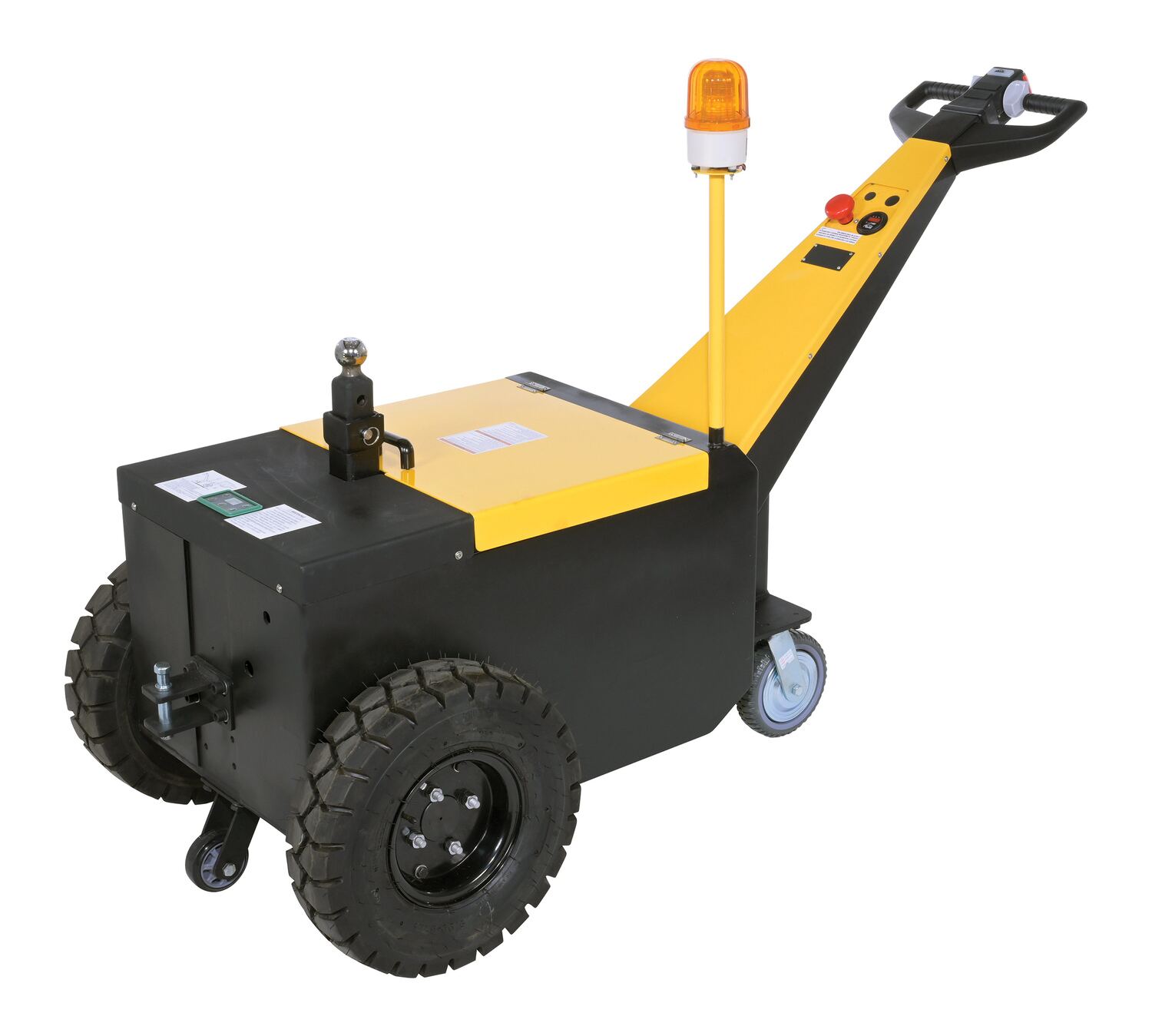

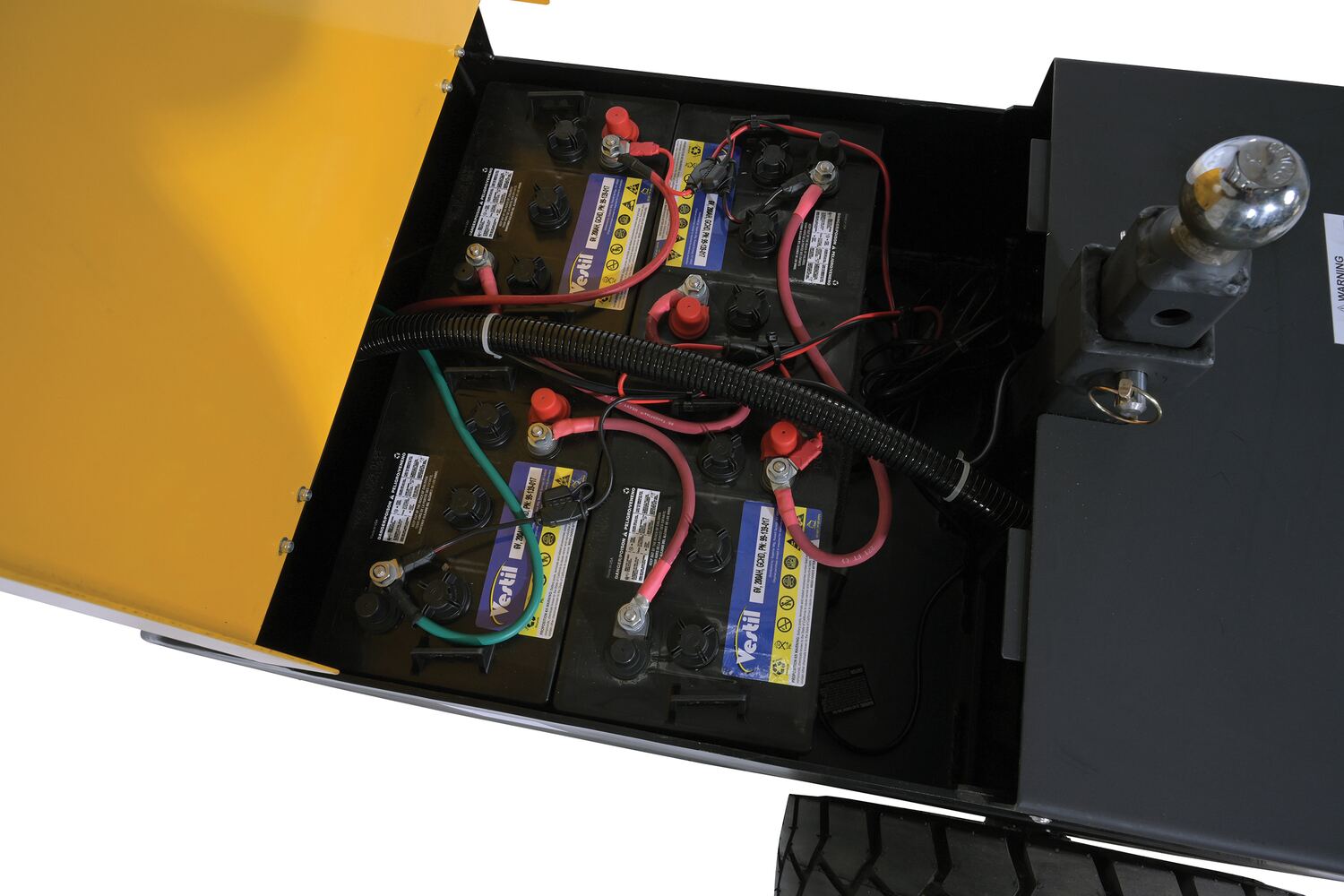

E-TUG-HD-100		1 Year Limited Warranty	Steel Heavy Duty Electric Powered Tugger 10,000 Lb. Pulling Capacity Yellow	Uniform Capacity (lb.): 10000 DCV: 4-6V Non-Spillable	1072

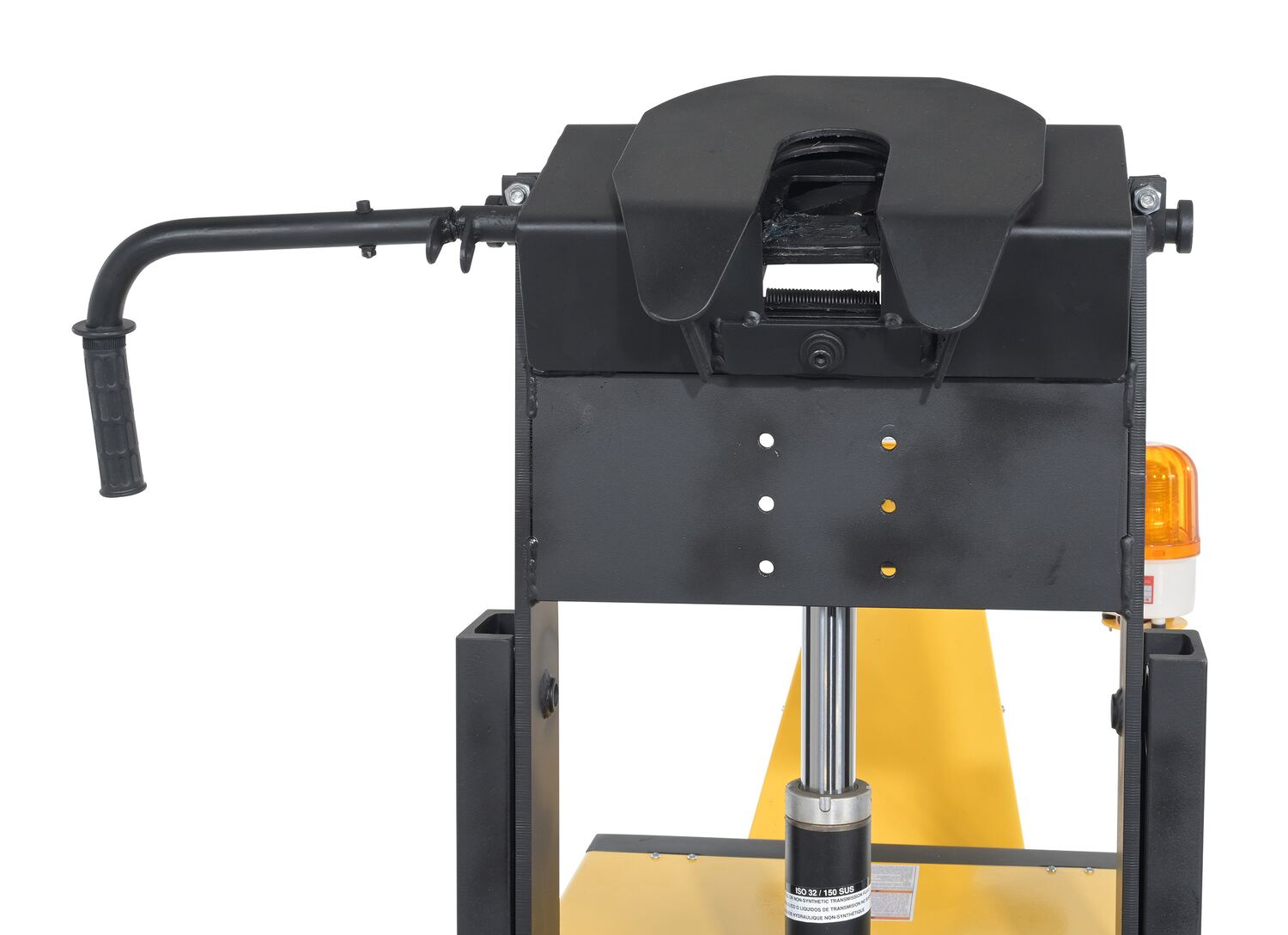

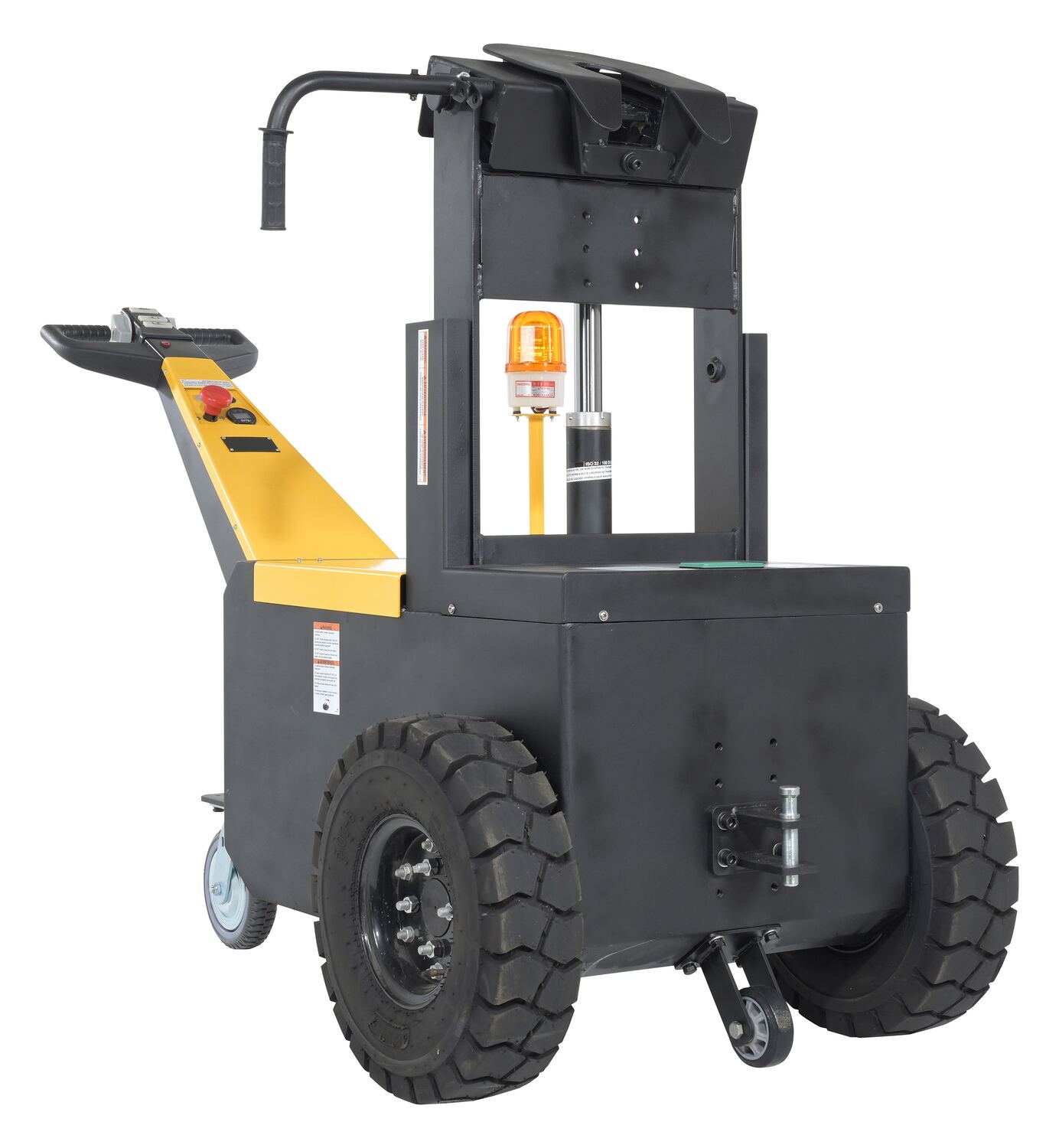

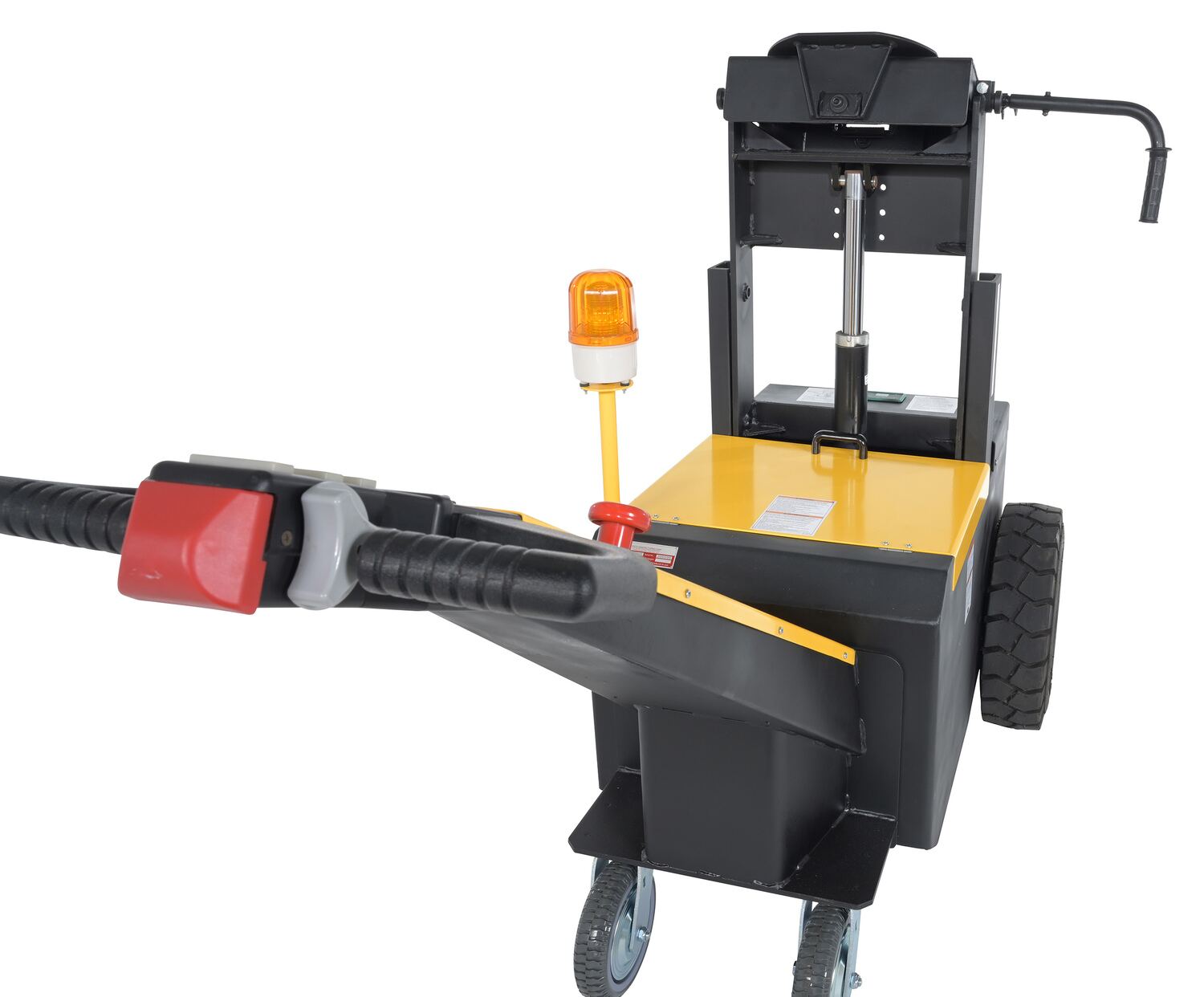

E-TUG-HD-100-RV	NEW	1 Year Limited Warranty	Steel Heavy Duty Electric Powered Tugger With Fifth Wheel Attachment 10,000 Lb. Pulling Capacity Yellow	Uniform Capacity (lb.): 10000 DCV: 4-6V Non-Spillable	1300

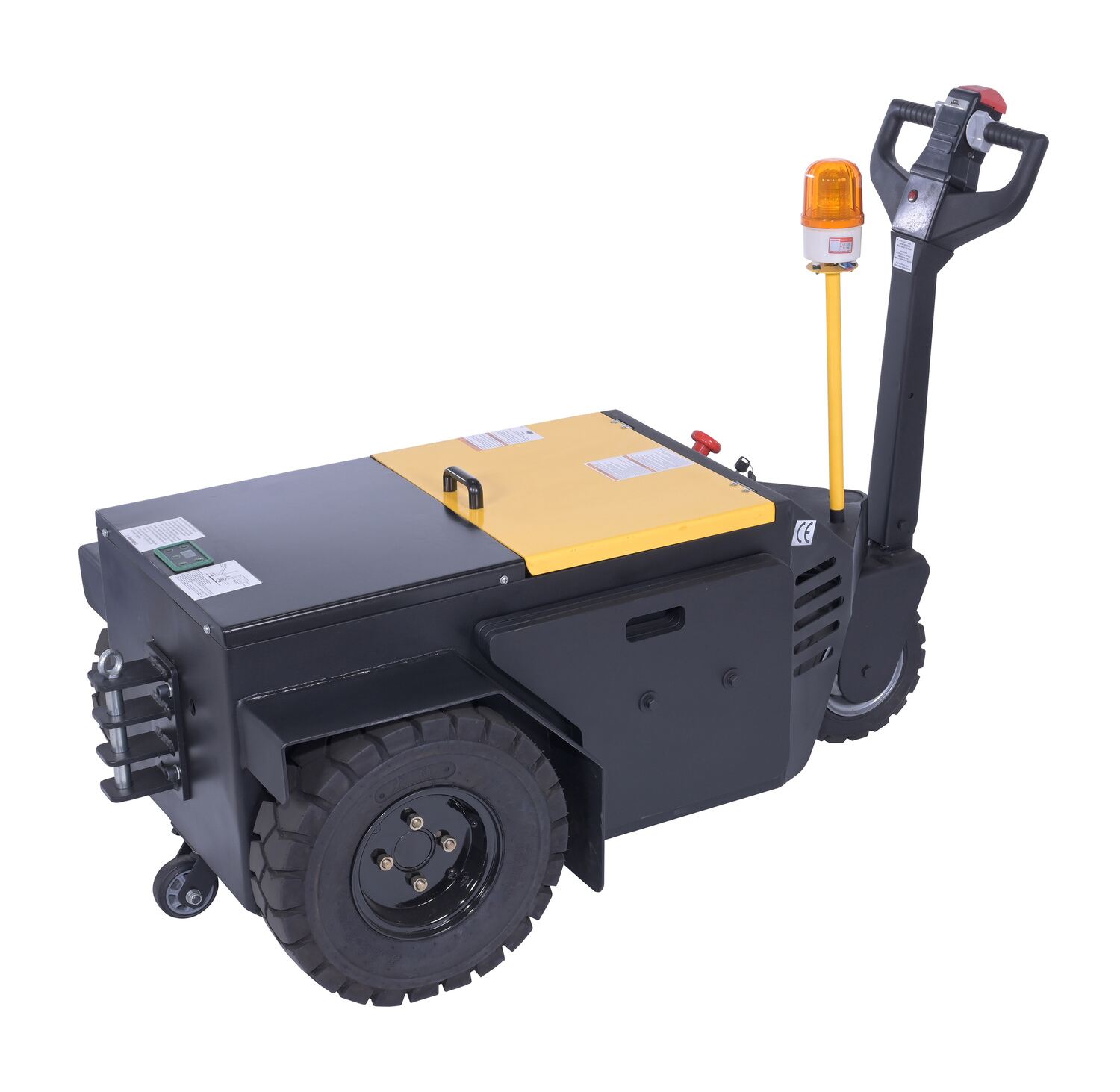

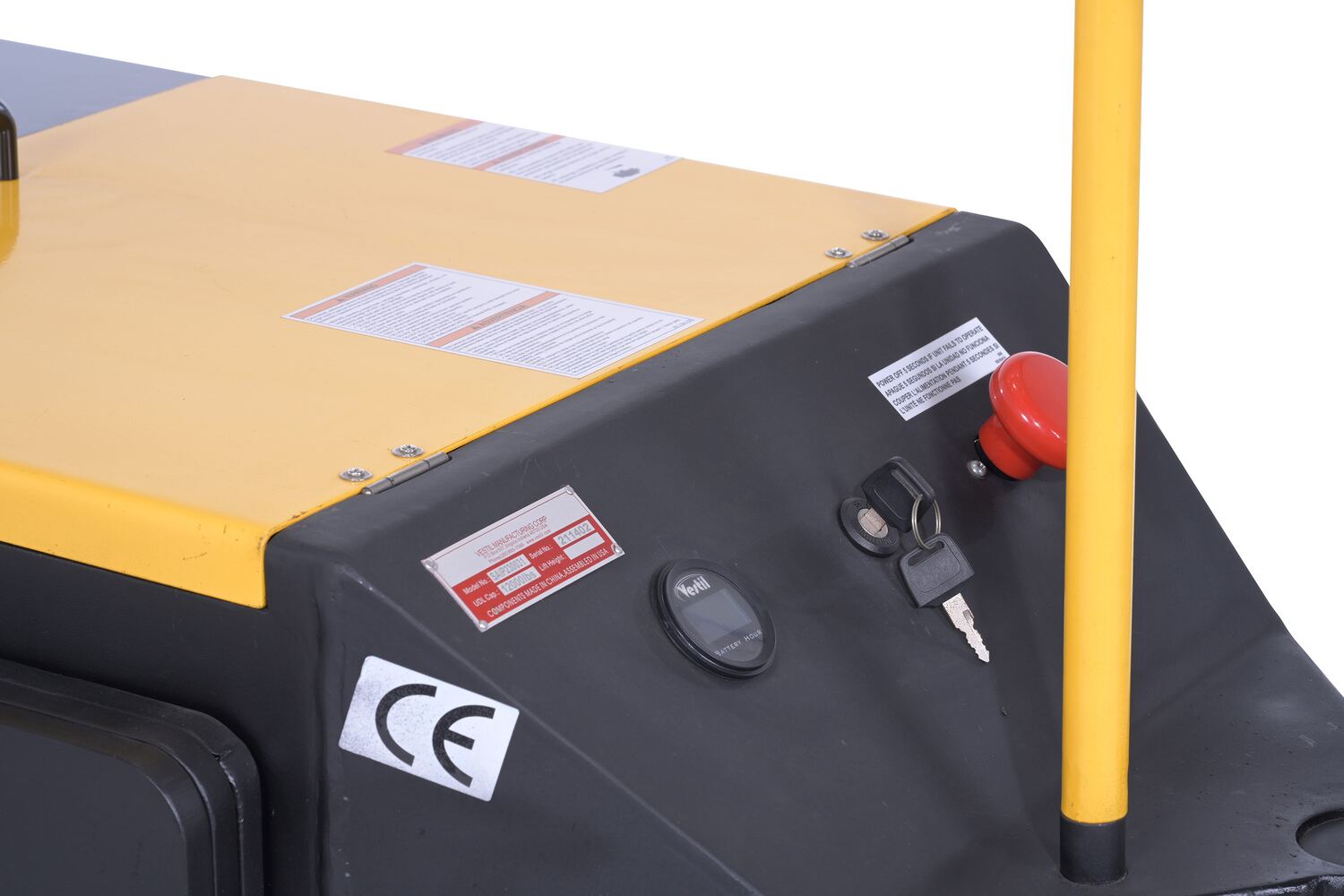

E-TUG-HD-120	NEW	1 Year Limited Warranty	Steel Heavy Duty Electric Powered Tugger 12,000 Lb. Pulling Capacity Yellow	Uniform Capacity (lb.): 12000 DCV: 4-6V Non-Spillable	1190

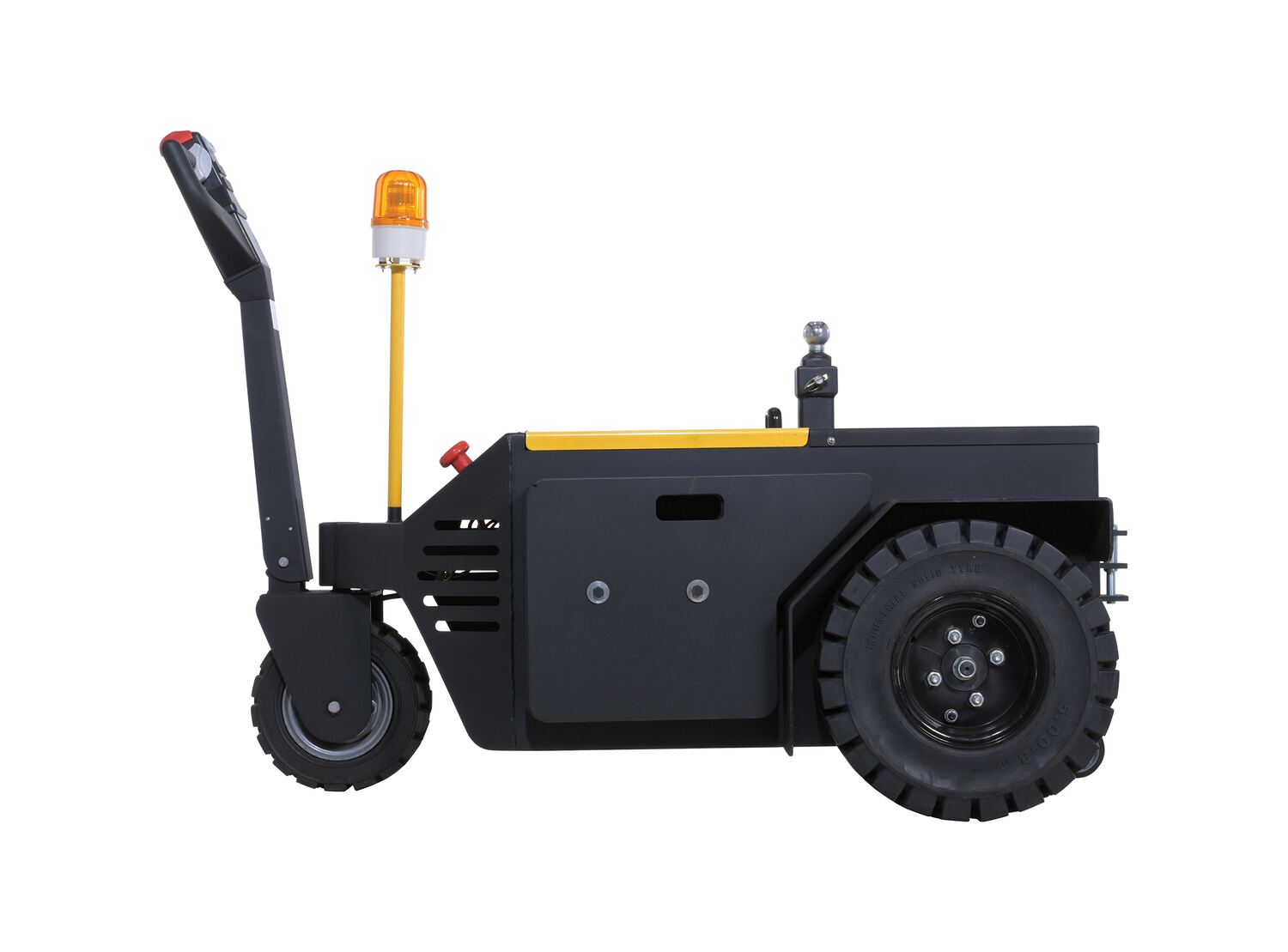

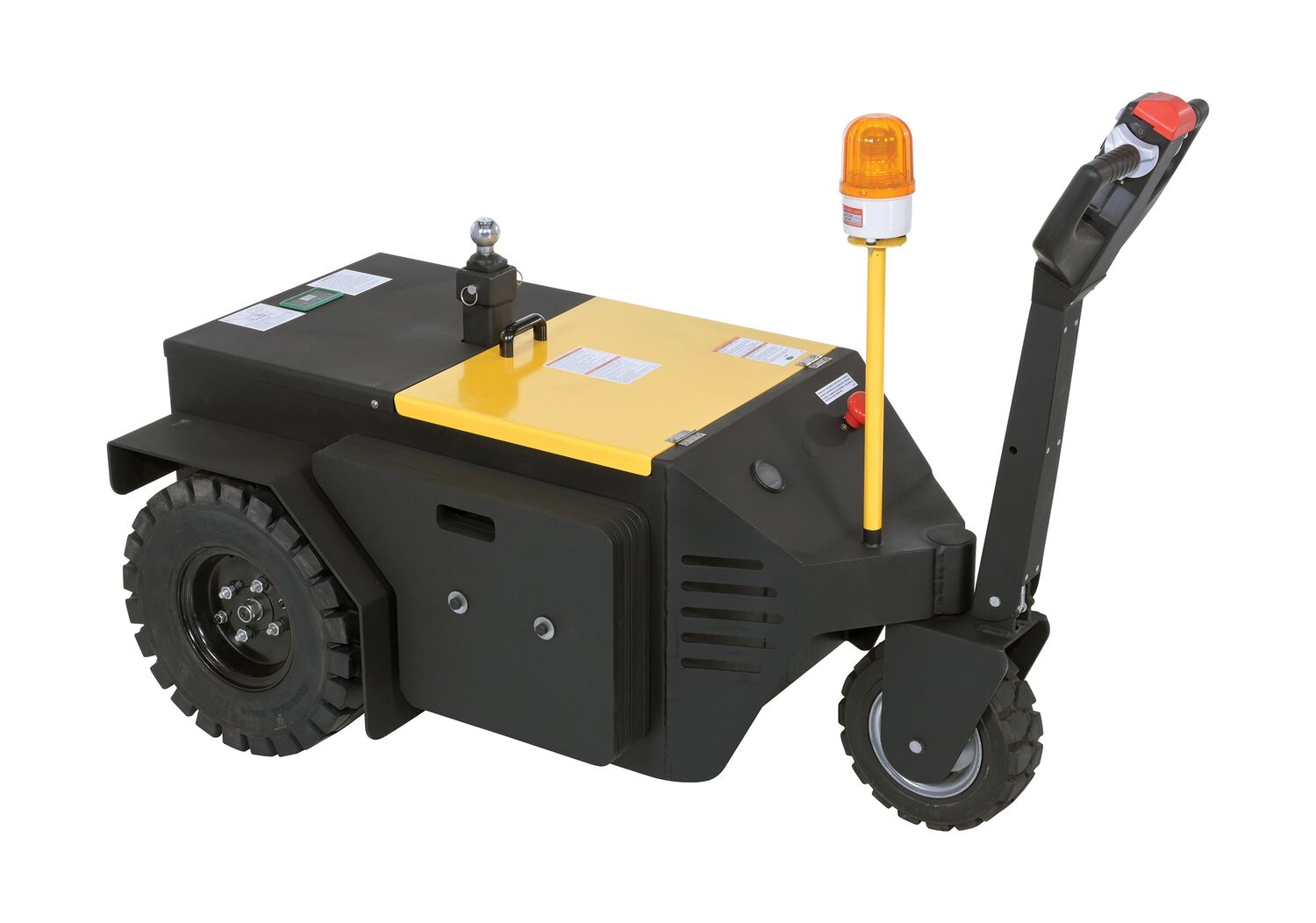

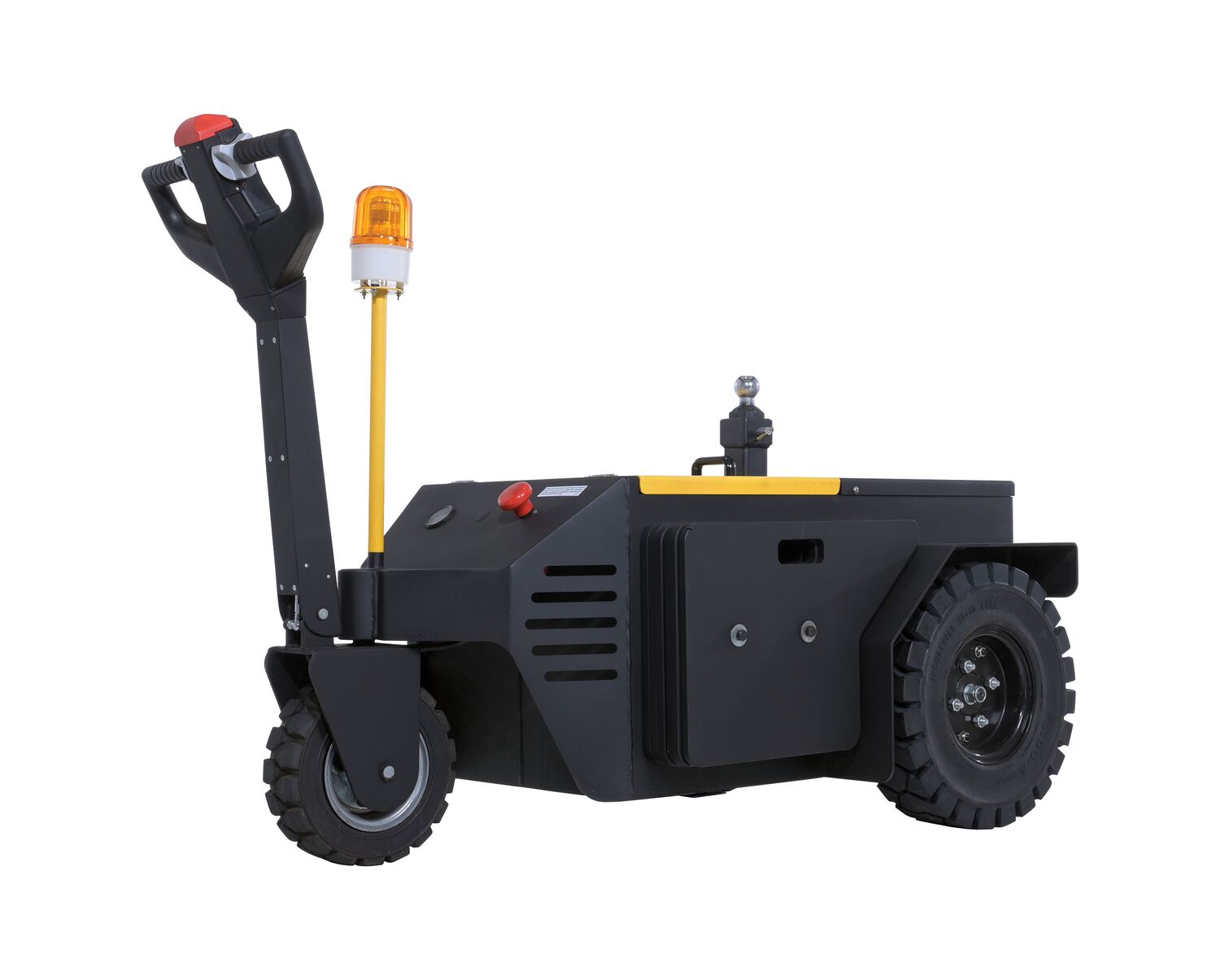

E-TUG-HD-180	NEW	1 Year Limited Warranty	Steel Heavy Duty Electric Powered Tugger 18,000 Lb. Pulling Capacity Black	Uniform Capacity (lb.): 18000 Drive Motor: 24V DC	1550

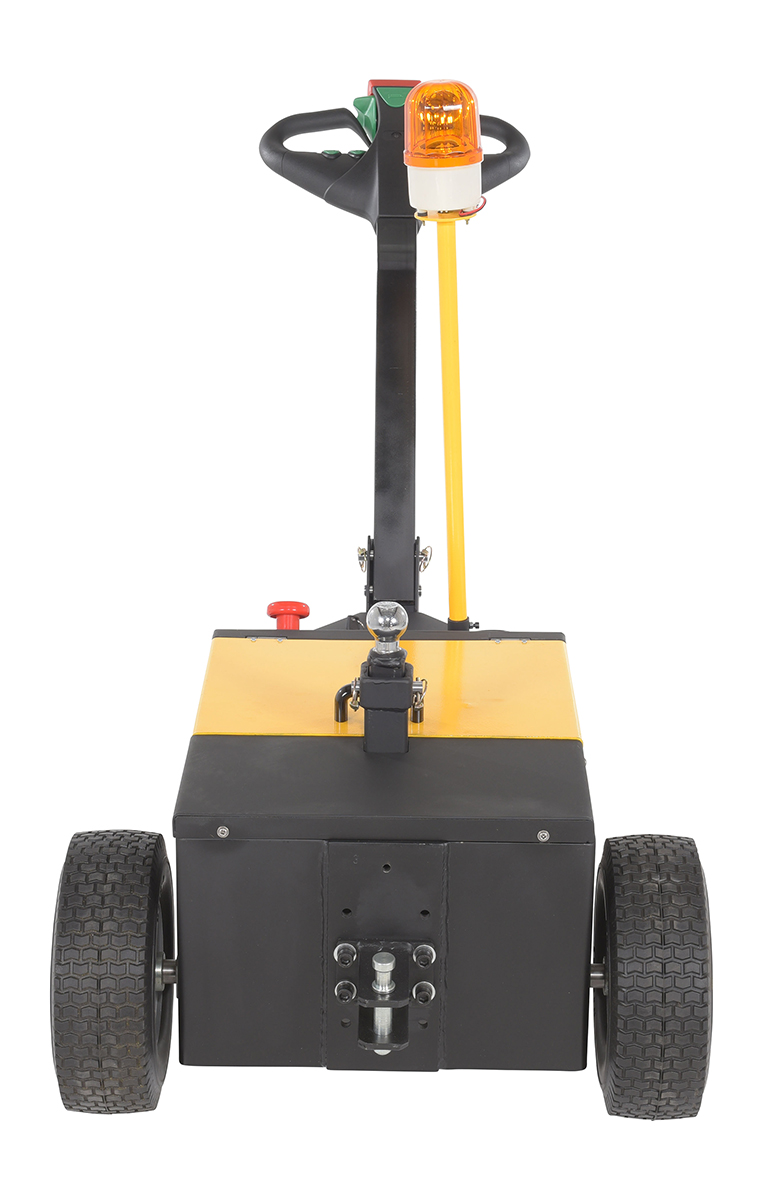

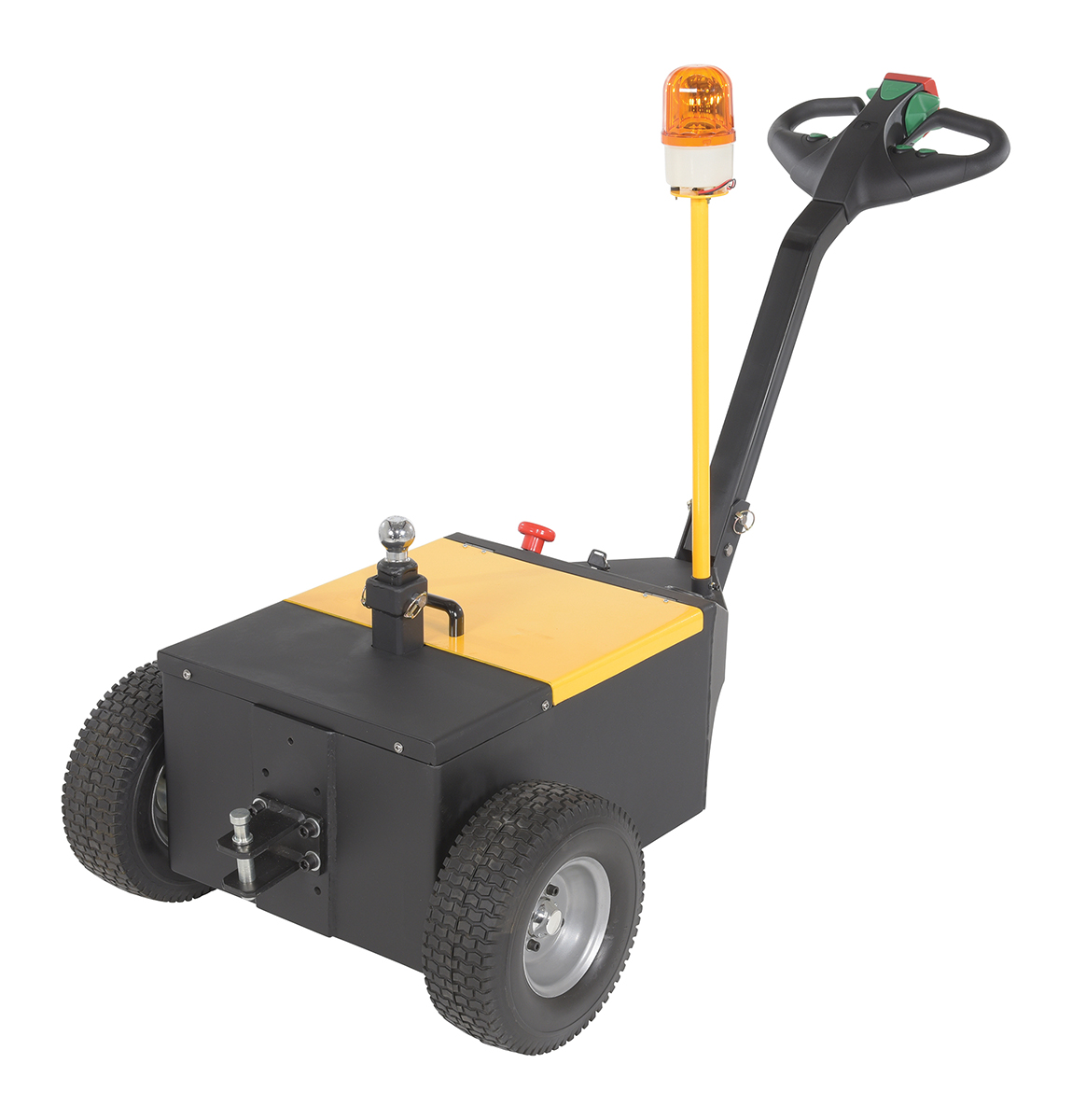

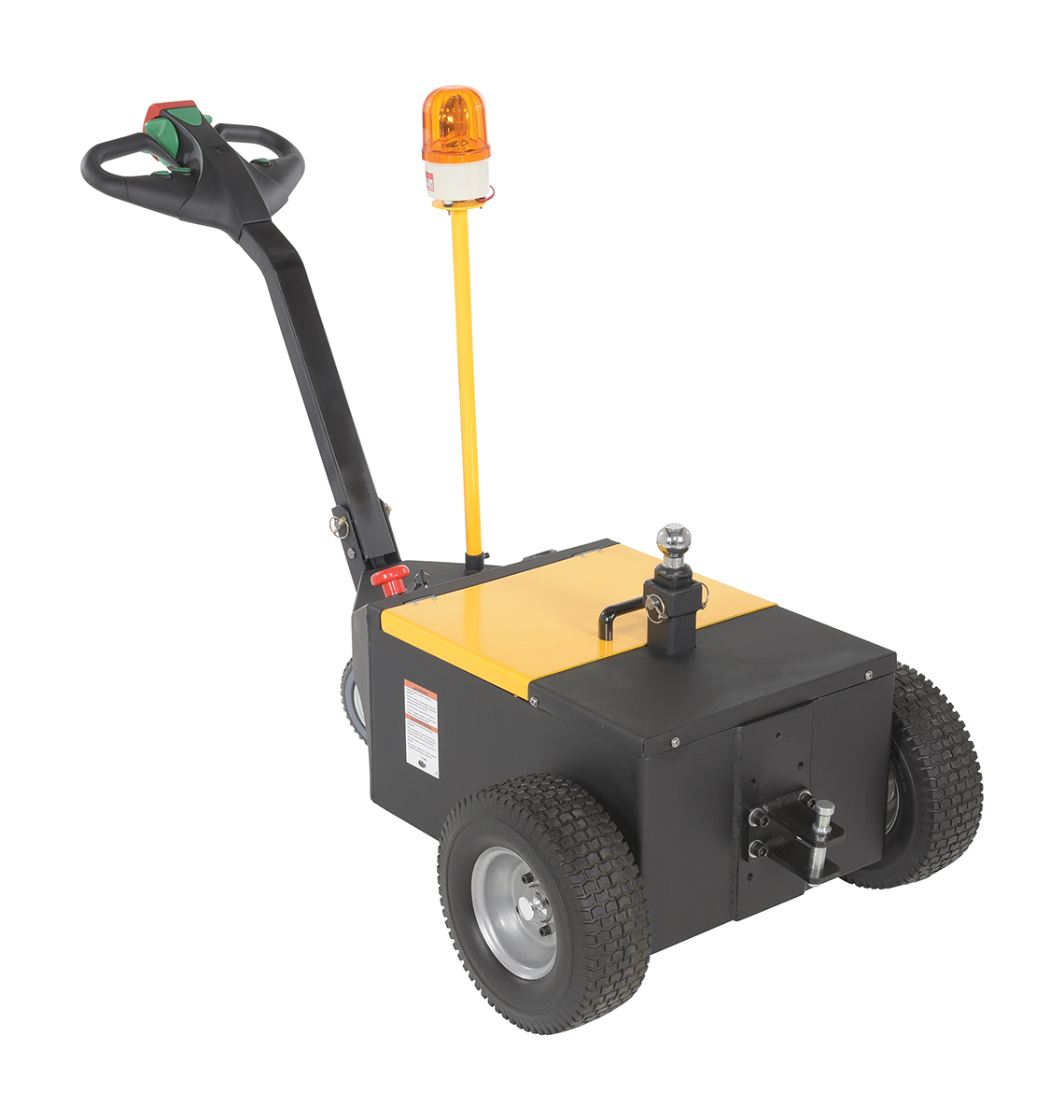

E-TUG-HD-30		1 Year Limited Warranty	Steel Heavy Duty Electric Powered Tugger 3000 Lb. Pull Capacity Yellow/Black	Uniform Capacity (lb.): 3000 Drive Motor: 24V DC	420

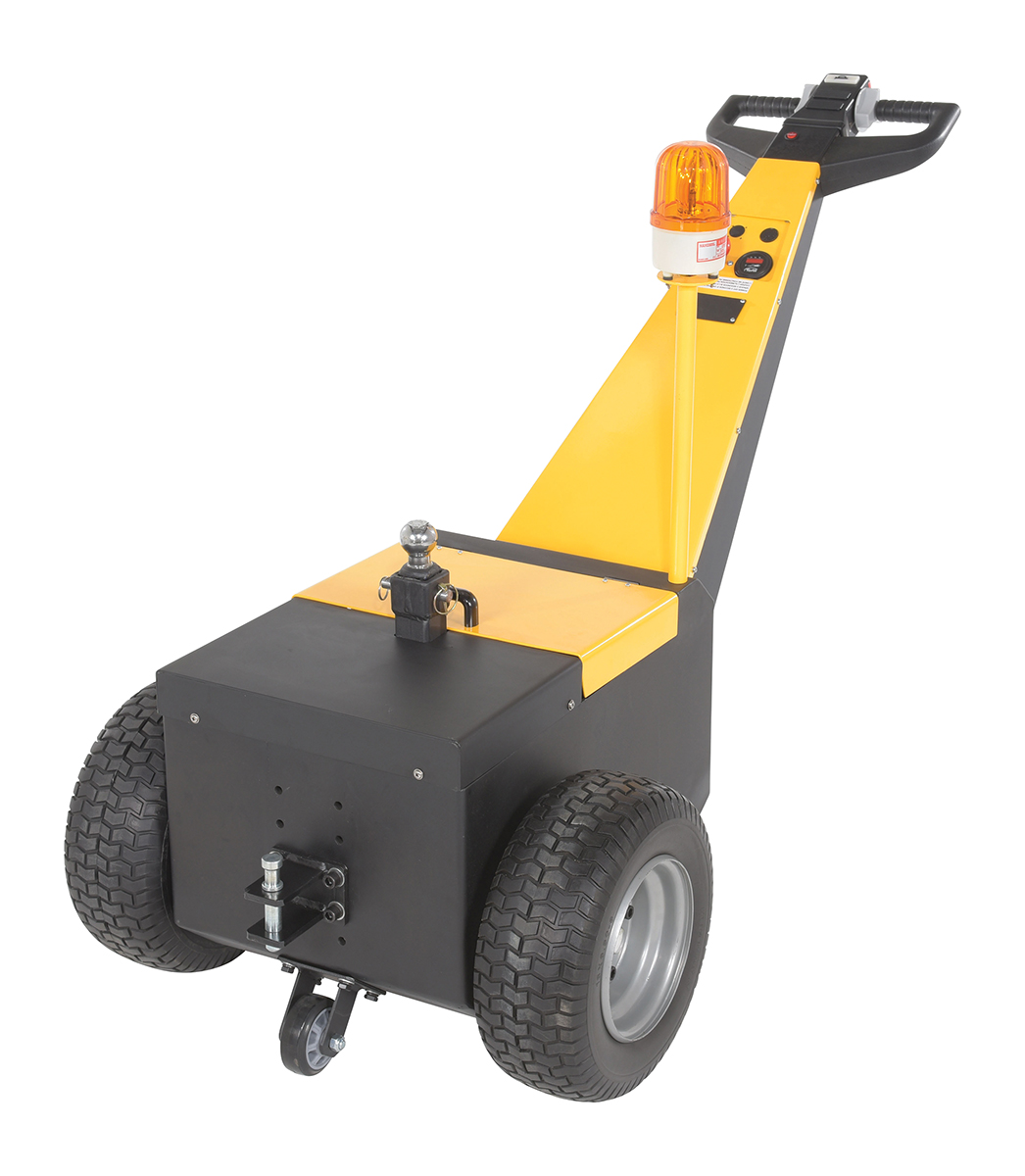

E-TUG-HD-50		1 Year Limited Warranty	Steel Heavy Duty Electric Powered Tugger 5000 Lb. Pull Capacity Yellow/Black	Uniform Capacity (lb.): 5000 Drive Motor: 24V DC	606

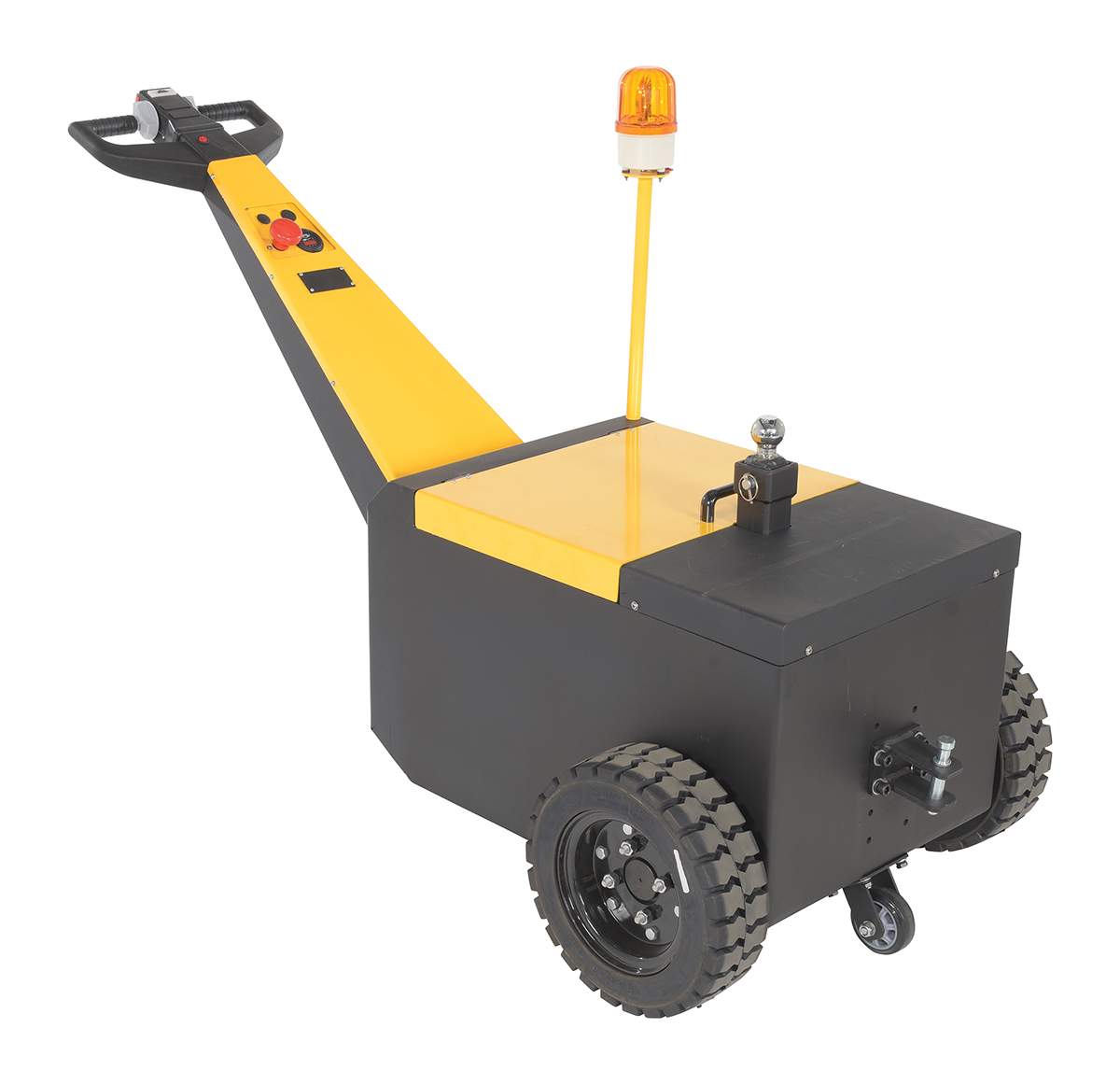

E-TUG-HD-70		1 Year Limited Warranty	Steel Heavy Duty Electric Powered Tugger 7000 Lb. Pull Capacity Yellow/Black	Uniform Capacity (lb.): 7000 Drive Motor: 24V DC	1012

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

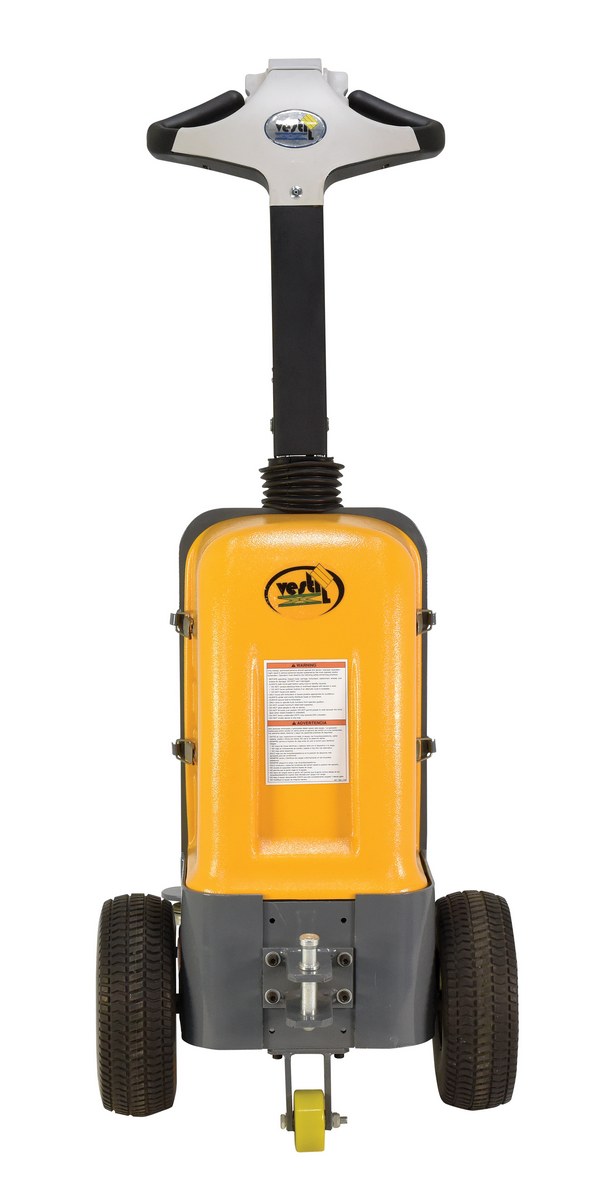

E-TUG-10

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pull Capacity (lb.): 1,000
Drive Motor: 24V DC
Uniform Pull Capacity (lb.): 1,000
Drive Motor: 24V DC

E-TUG-20

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pull Capacity (lb.): 2,000
Drive Motor: 24V DC
Uniform Pull Capacity (lb.): 2,000
Drive Motor: 24V DC

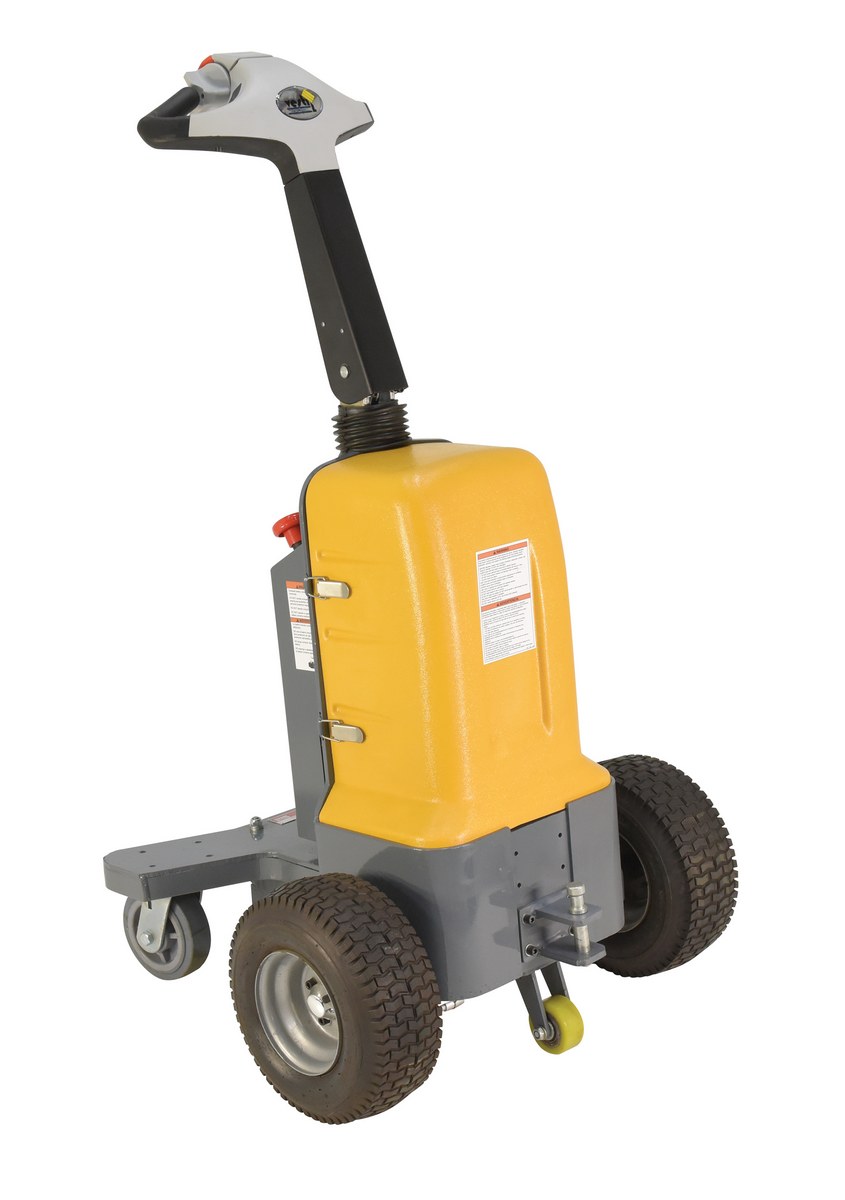

E-TUG-30

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Pull Capacity (lb.): 3,000
Drive Motor: 24V DC
Uniform Pull Capacity (lb.): 3,000
Drive Motor: 24V DC

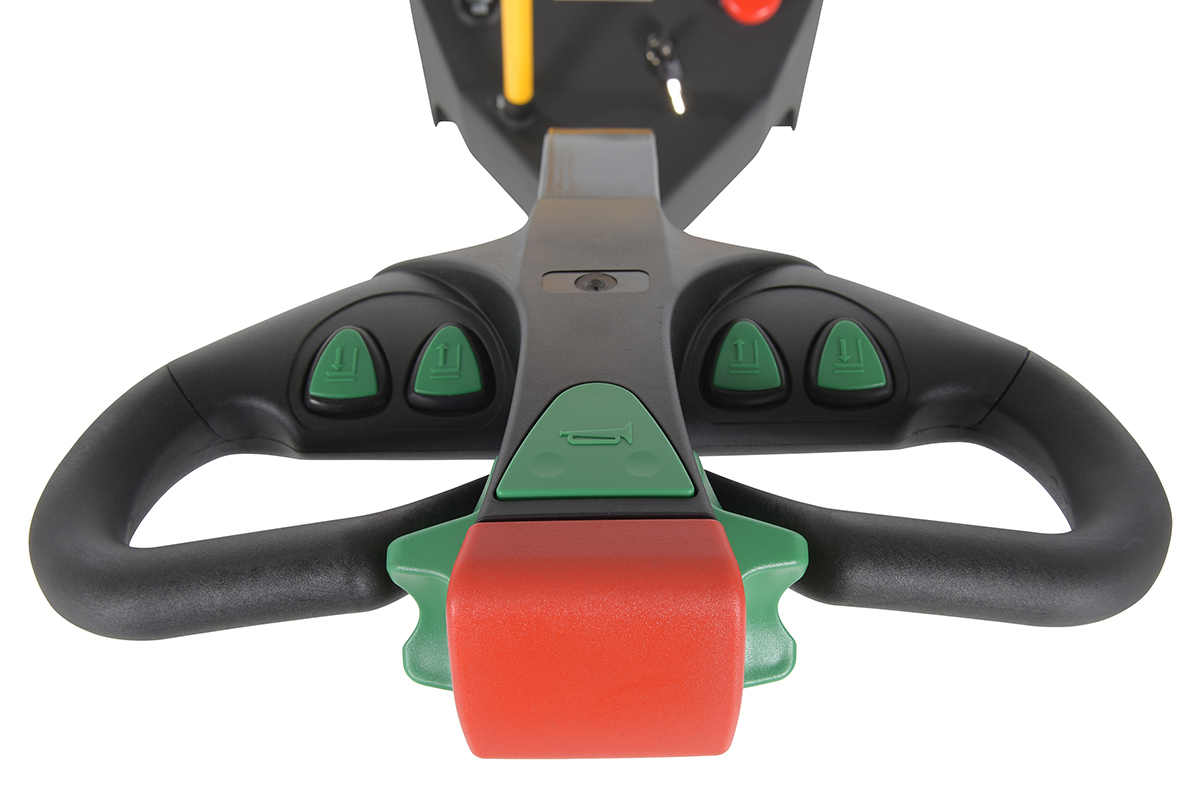

E-TUG-HD-30

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Drive Motor: 24V DC
Uniform Capacity (lb.): 3000
Drive Motor: 24V DC

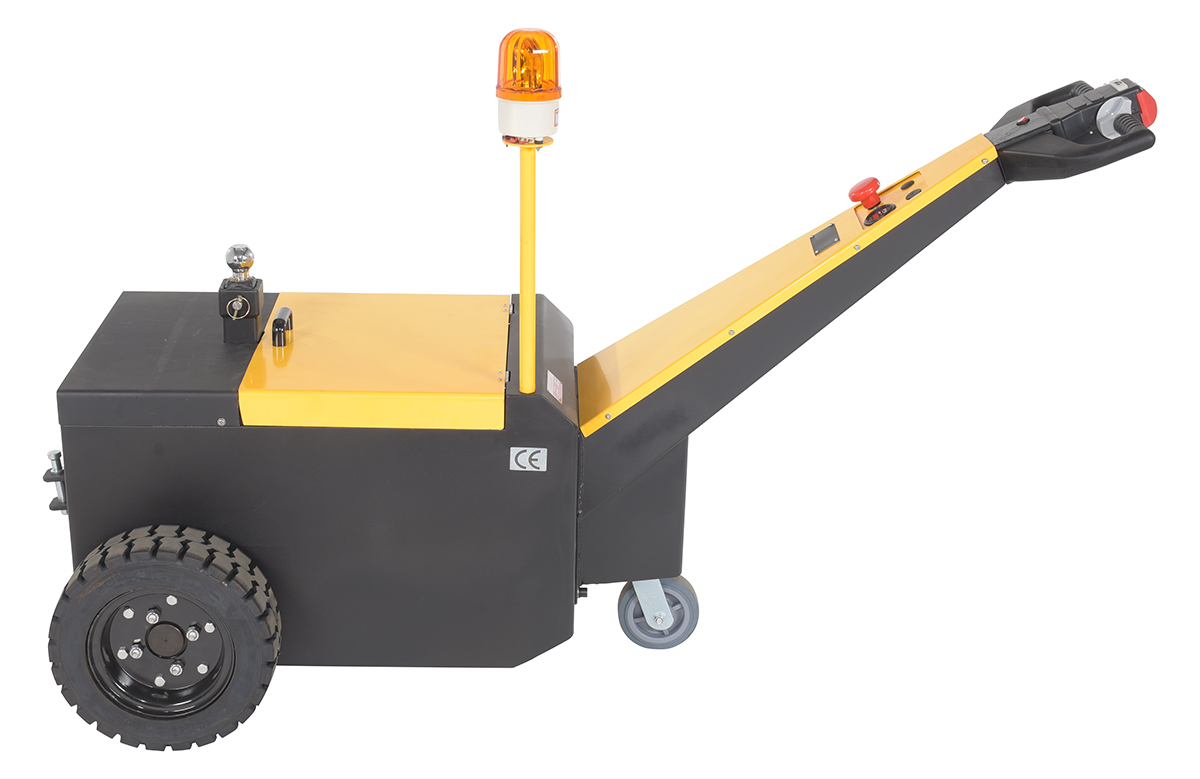

E-TUG-HD-70

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 7000
Drive Motor: 24V DC
Uniform Capacity (lb.): 7000
Drive Motor: 24V DC

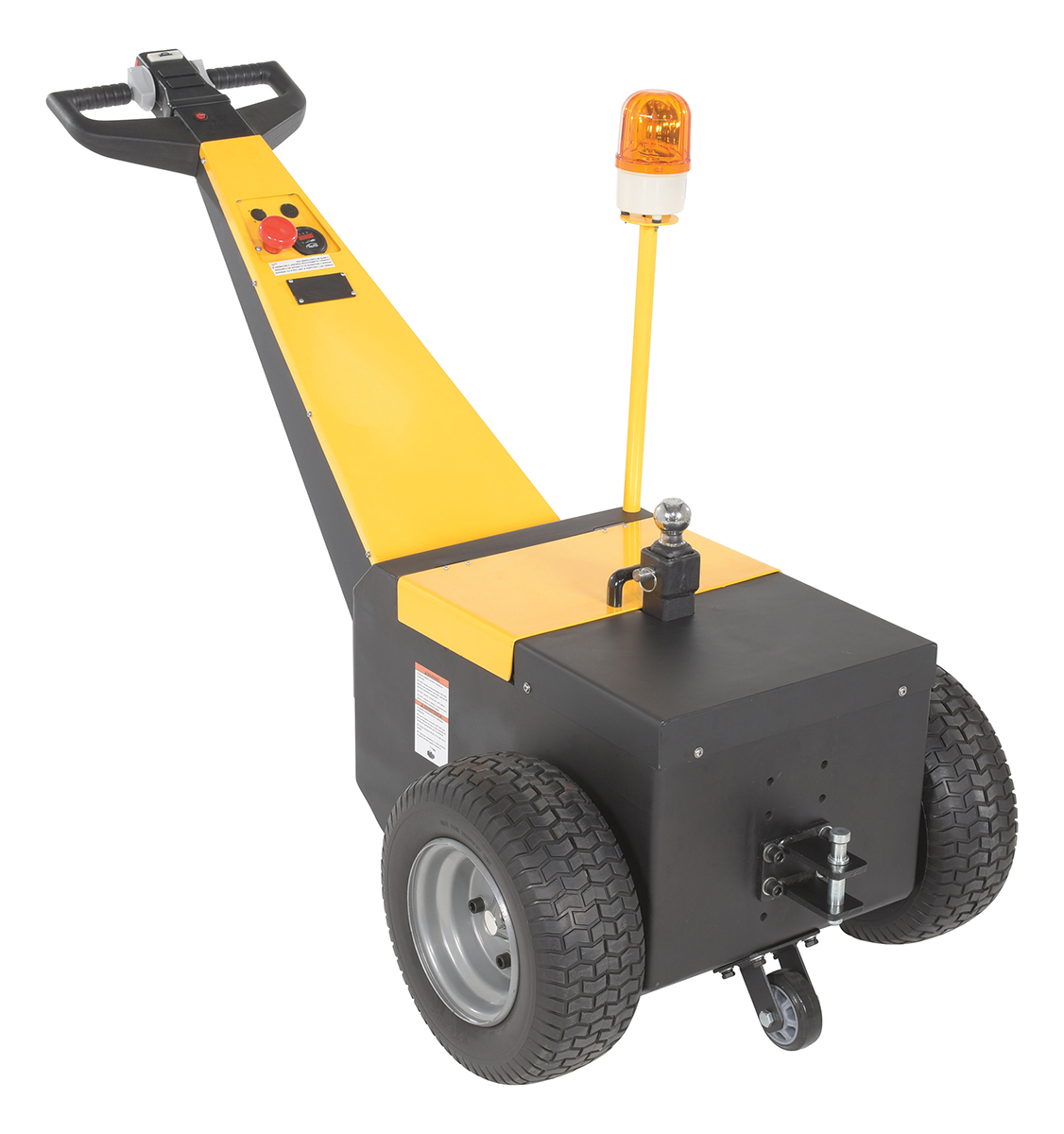

E-TUG-HD-50

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5000
Drive Motor: 24V DC
Uniform Capacity (lb.): 5000
Drive Motor: 24V DC

E-TUG-HD-100

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
DCV: 4-6V Non-Spillable
Uniform Capacity (lb.): 10000
DCV: 4-6V Non-Spillable

E-TUG-HD-100-RV

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
DCV: 4-6V Non-Spillable
Uniform Capacity (lb.): 10000
DCV: 4-6V Non-Spillable

E-TUG-HD-120

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 12000
DCV: 4-6V Non-Spillable
Uniform Capacity (lb.): 12000
DCV: 4-6V Non-Spillable

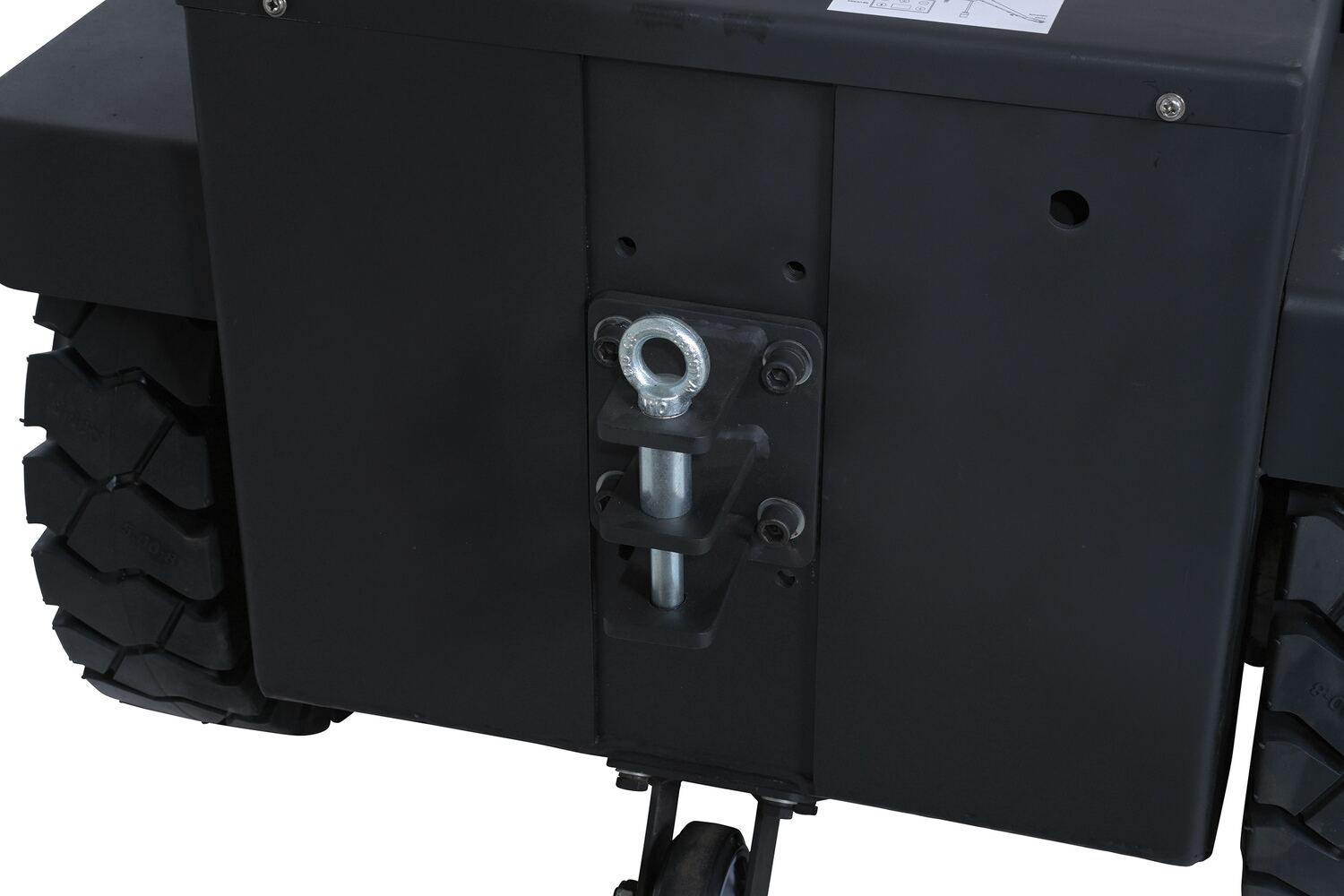

E-TUG-HD-180

Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 18000
Drive Motor: 24V DC
Uniform Capacity (lb.): 18000
Drive Motor: 24V DC

For More Details of the Option Click the Red Model Button

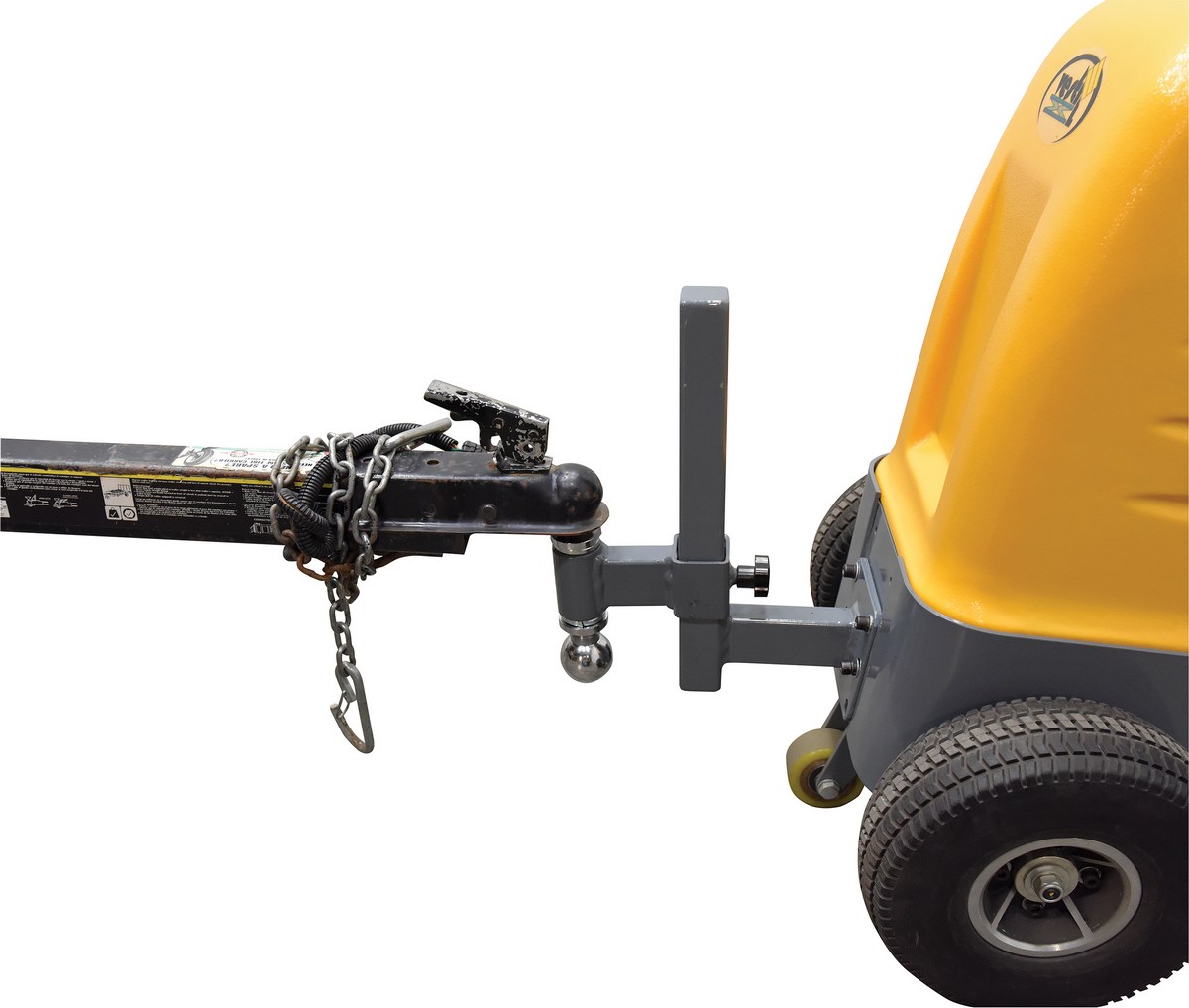

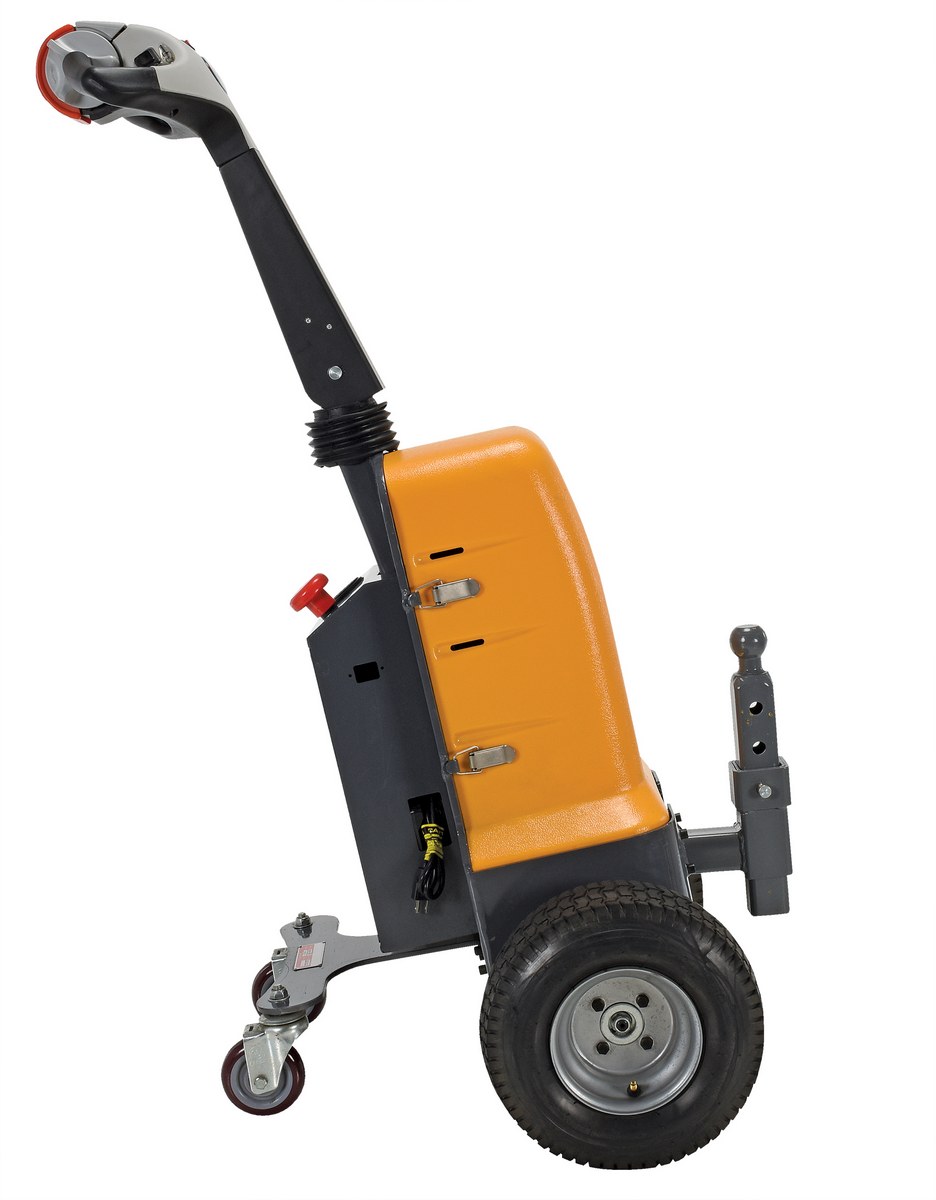

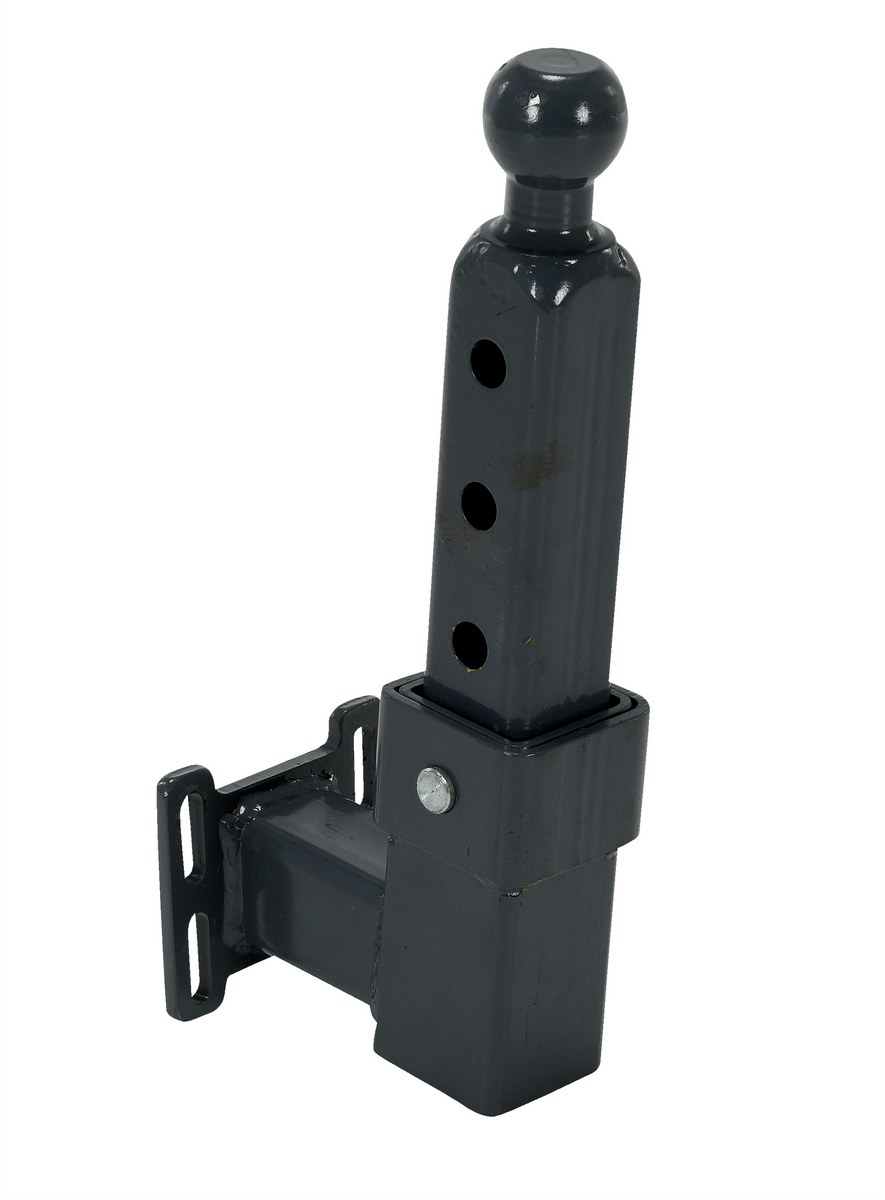

E-TUG-ABMH		90 Days Limited Warranty	Steel Adjustable Ball Mount Hitch For E-Tug Models	Installation Hardware Included: No Number of Casters / Wheels: No Wheels / Casters	12

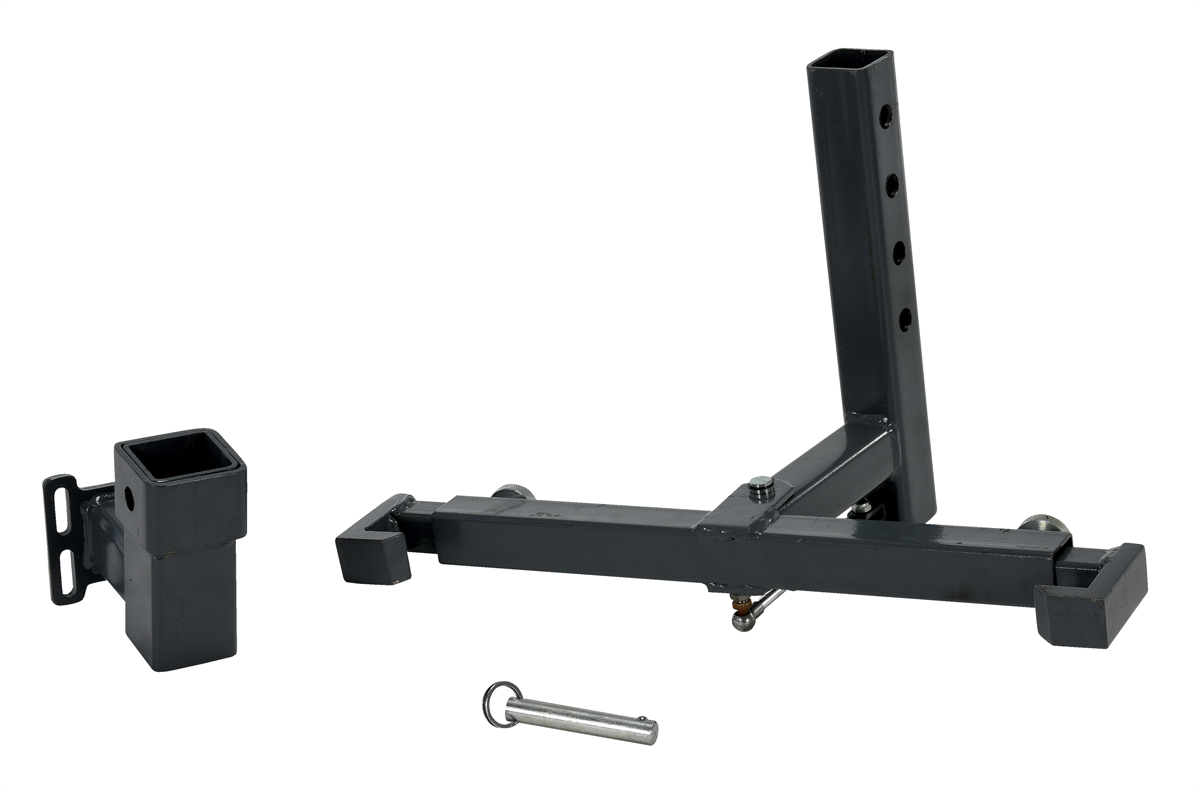

E-TUG-ADSH		90 Days Limited Warranty	Steel Adjustable Double Sided Hook For E-Tug Models	Installation Hardware Included: Yes Number of Casters / Wheels: No Wheels / Casters	22

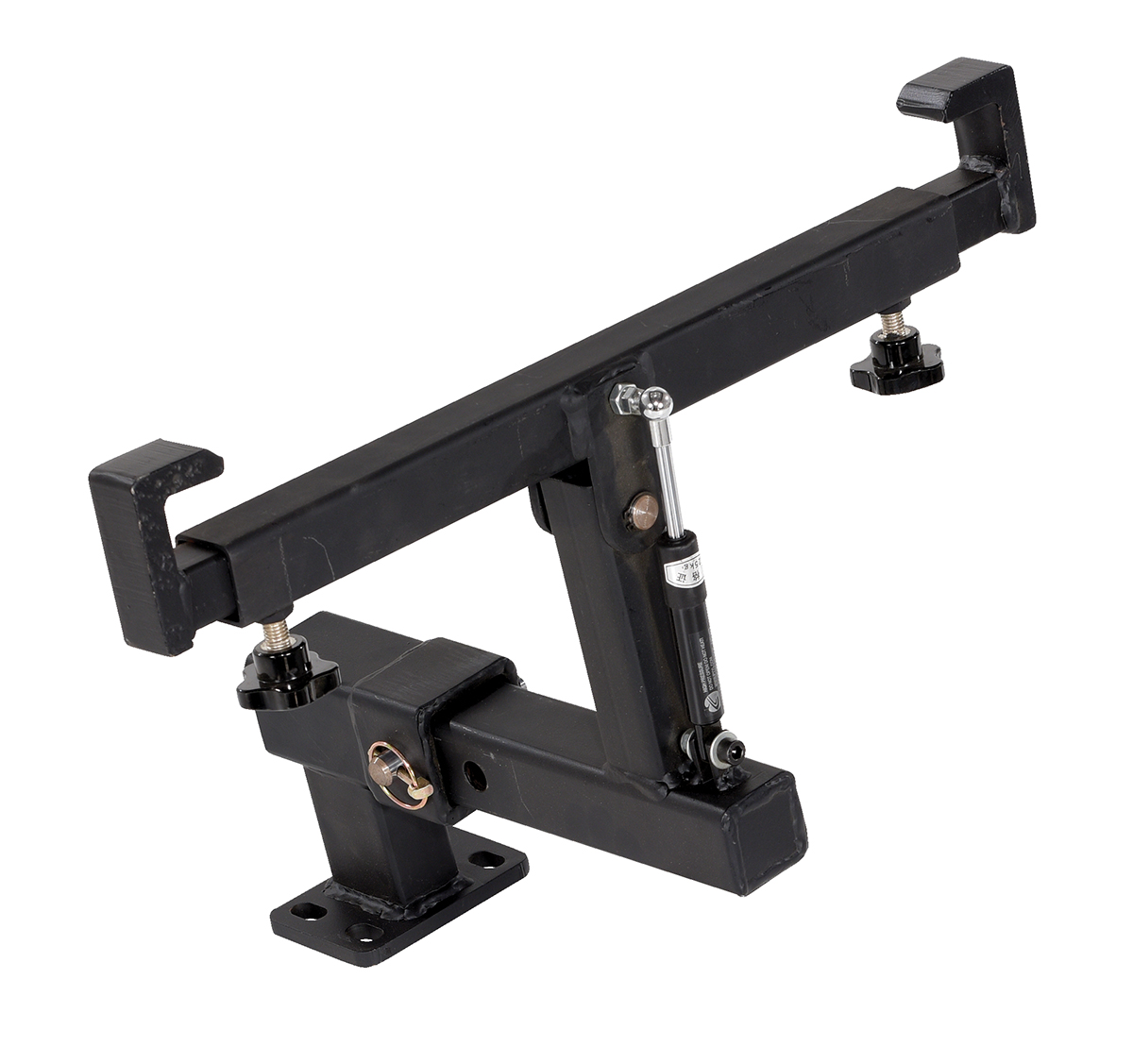

E-TUG-HD-ADSH		90 Days Limited Warranty	Steel Adjustable Double Sided Hook For E-Tug-HD Models Black	-	25

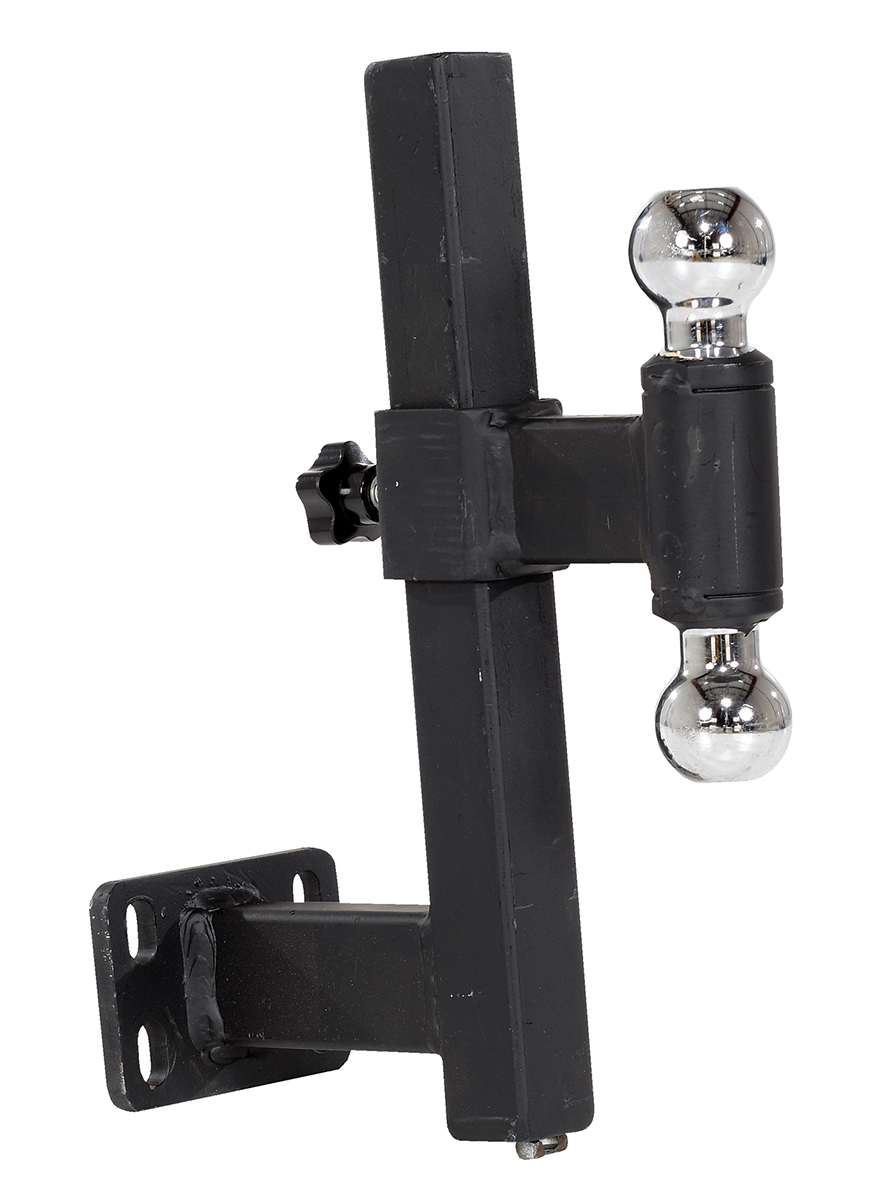

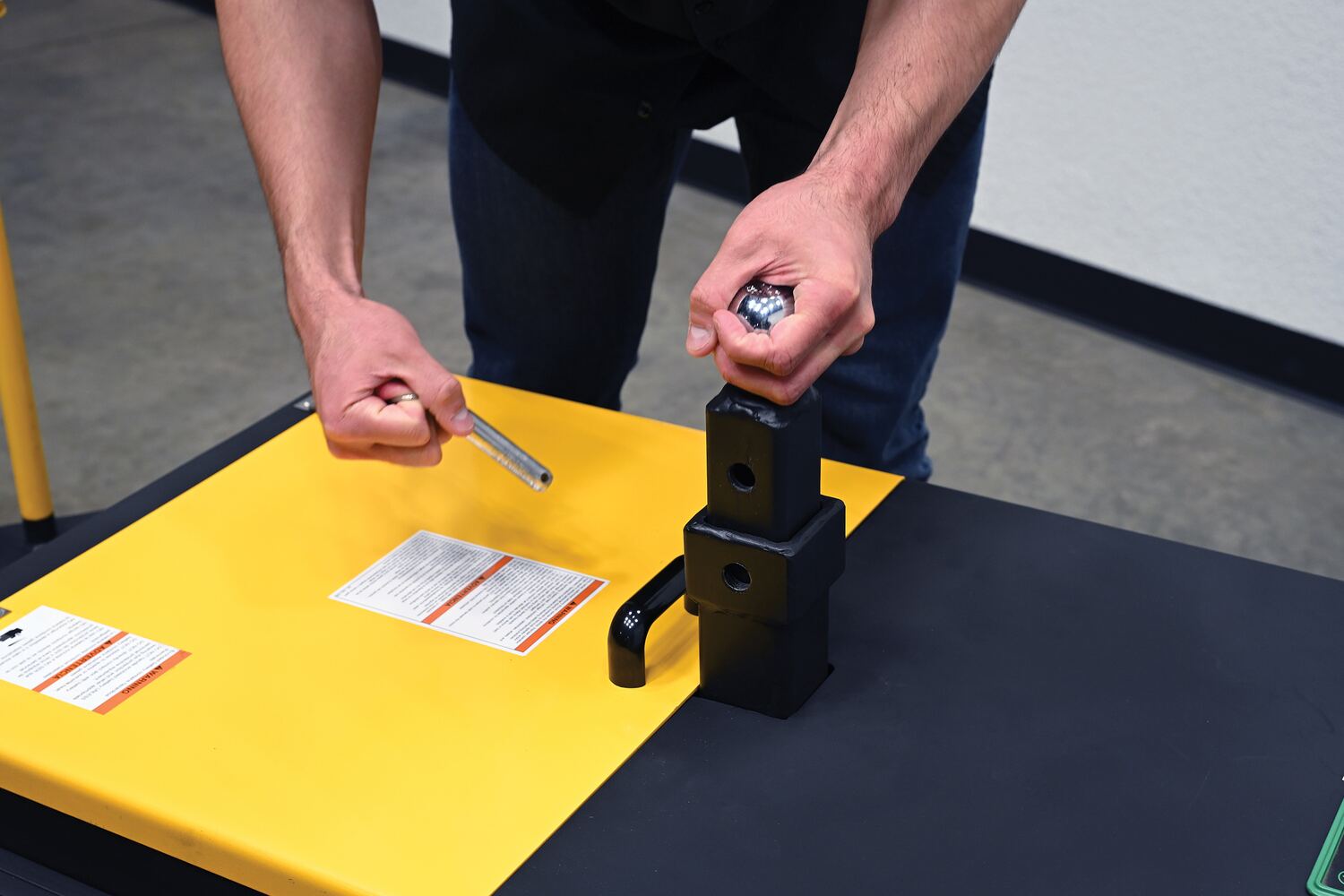

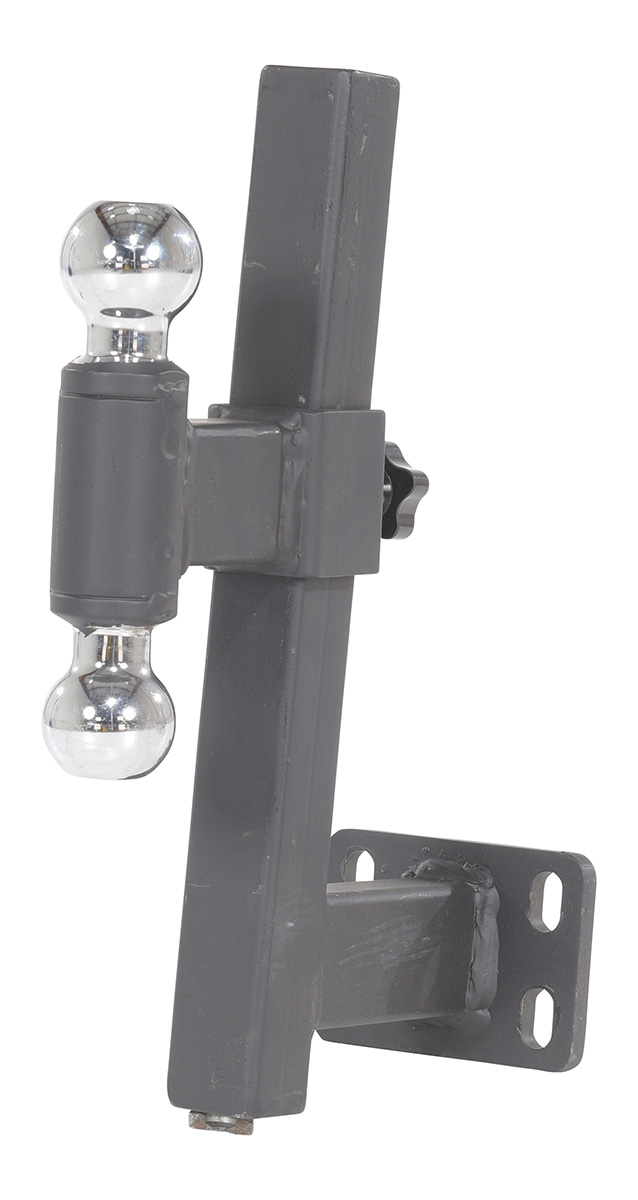

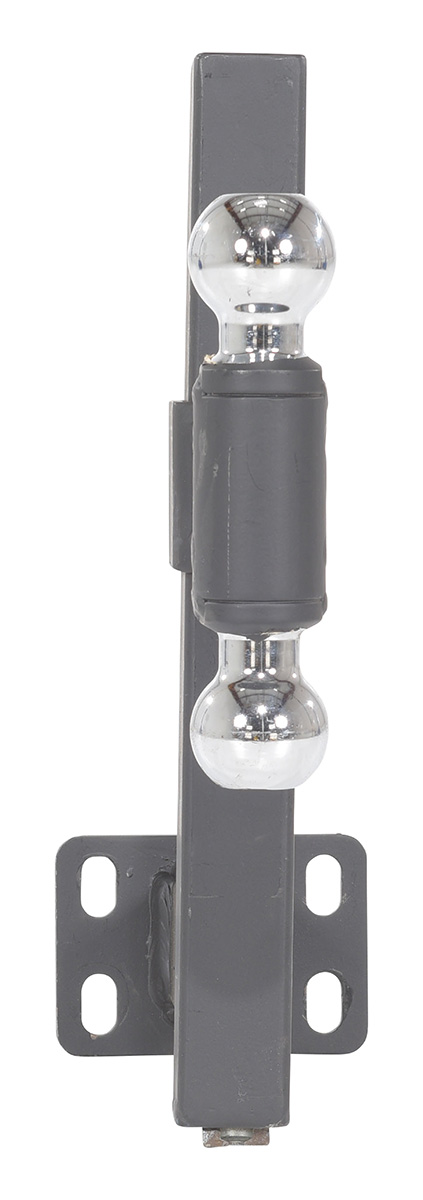

E-TUG-HD-DABH		90 Days Limited Warranty	Steel Double Ball Hitch Mount For E-Tug-HD Models Black	Ball sizes: 1-7/8" & 2"	13

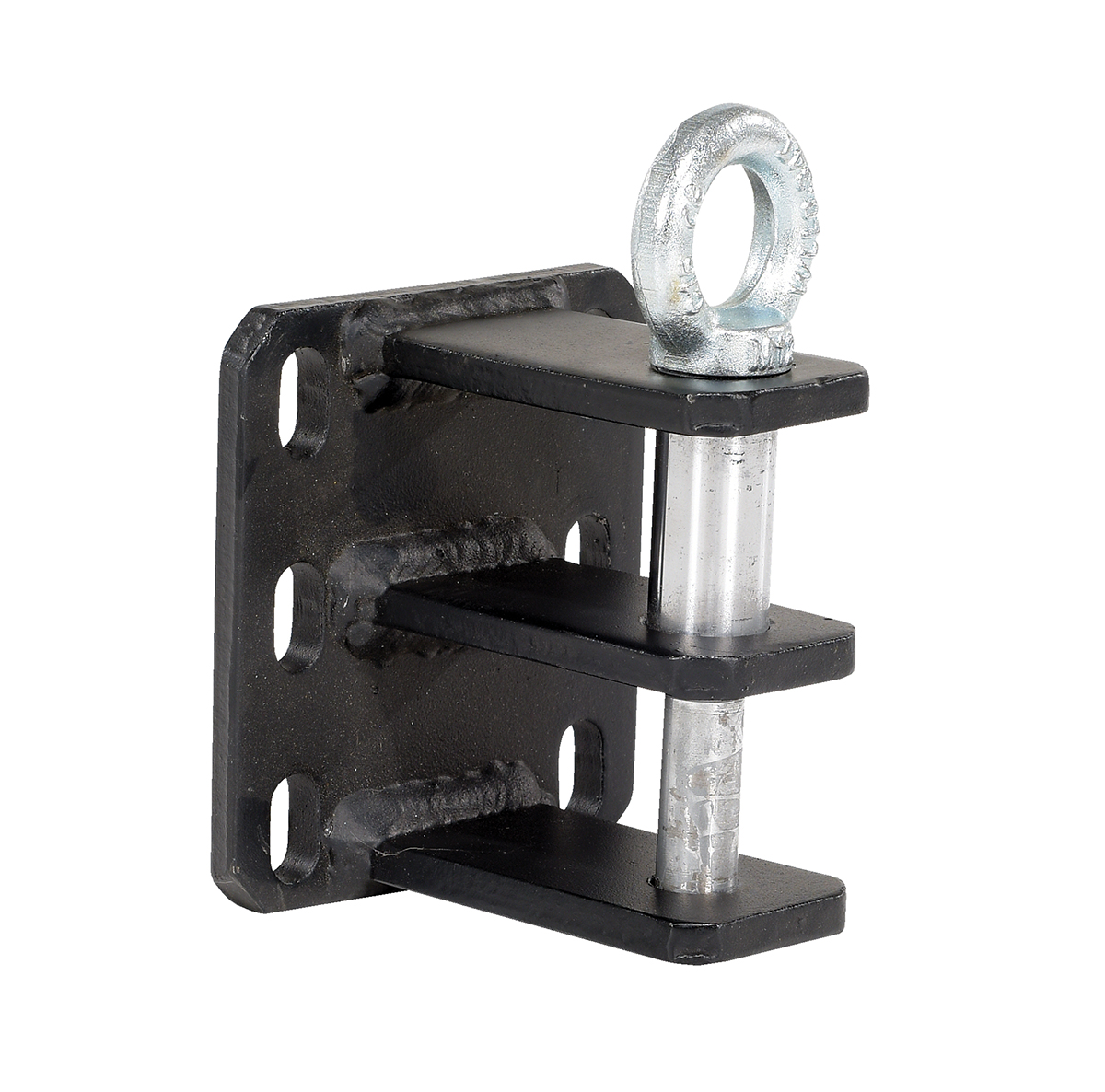

E-TUG-HD-DPINH		90 Days Limited Warranty	Steel Double Pin Hitch For E-Tug-HD Models Black	-	8

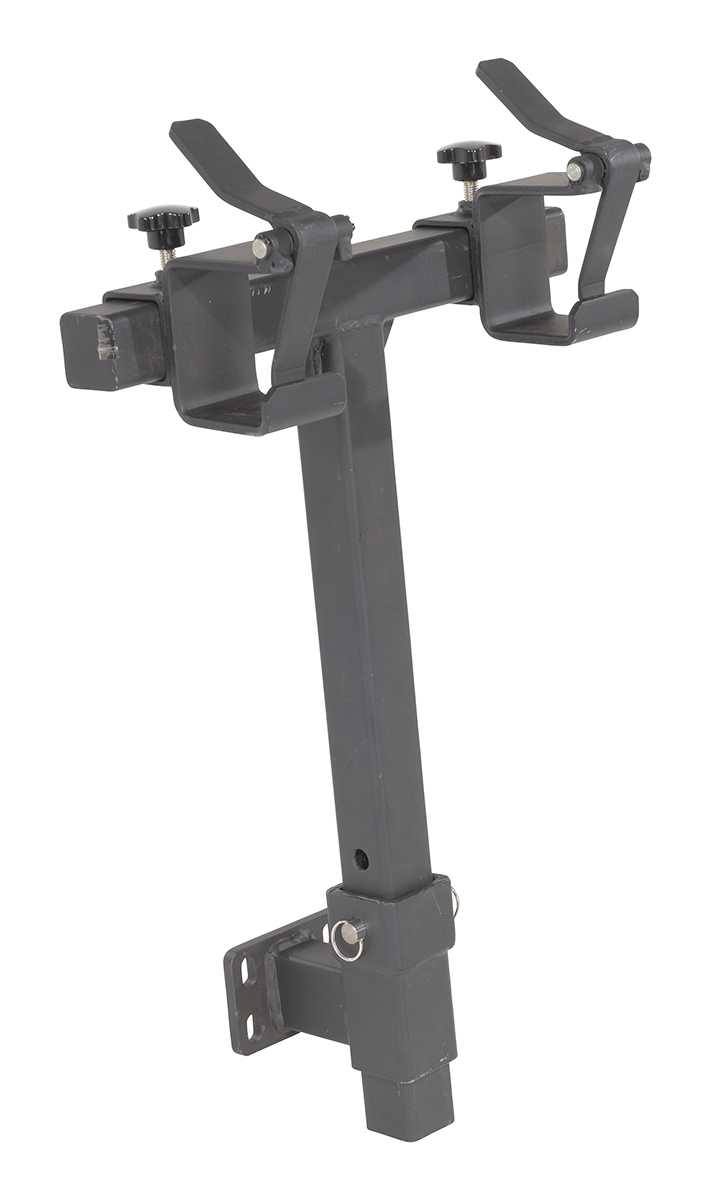

E-TUG-HD-MM		90 Days Limited Warranty	Steel Multi Mover For E-Tug-HD Models Black	-	31

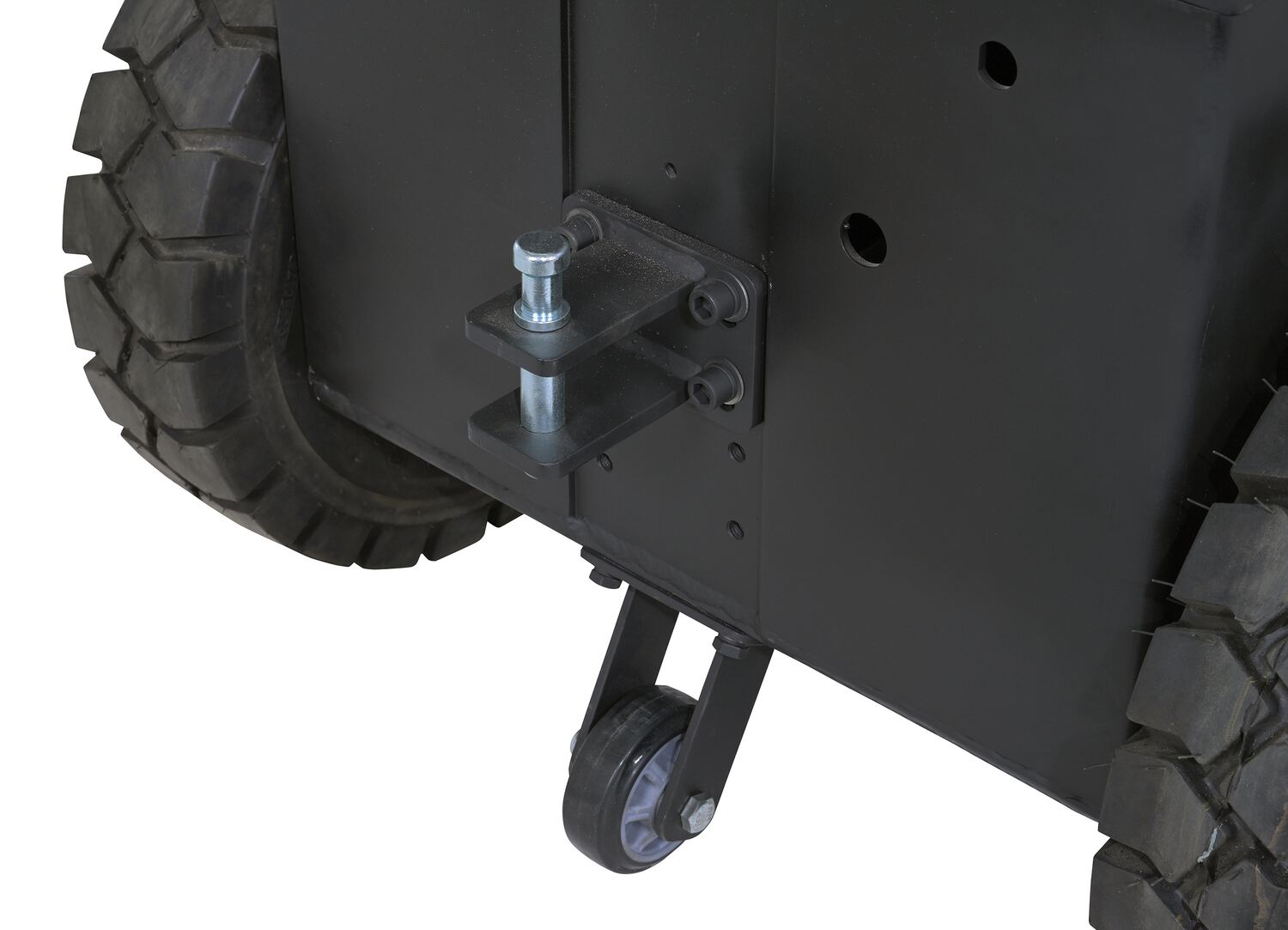

E-TUG-HD-PINH		90 Days Limited Warranty	Steel Pin Hitch For E-Tug-HD Models Black/Silver	-	6

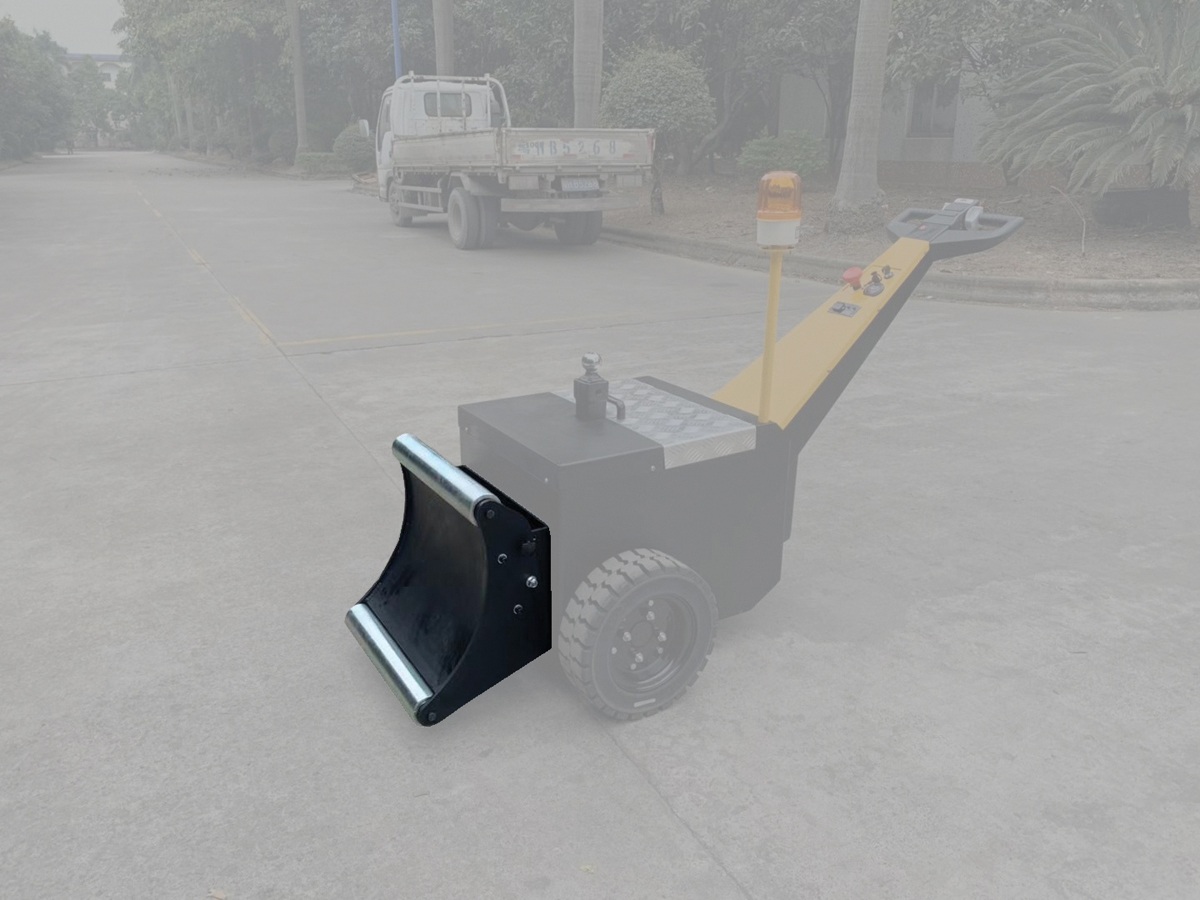

E-TUG-HD-RP-16		90 Days Limited Warranty	Steel Roller/Pusher Attachment 16 In. Width For E-Tug-HD Models Black	-	76
E-TUG-HD-RP-20		90 Days Limited Warranty	Steel Roller/Pusher Attachment 20 In. Width For E-Tug-HD Models Black	-	93

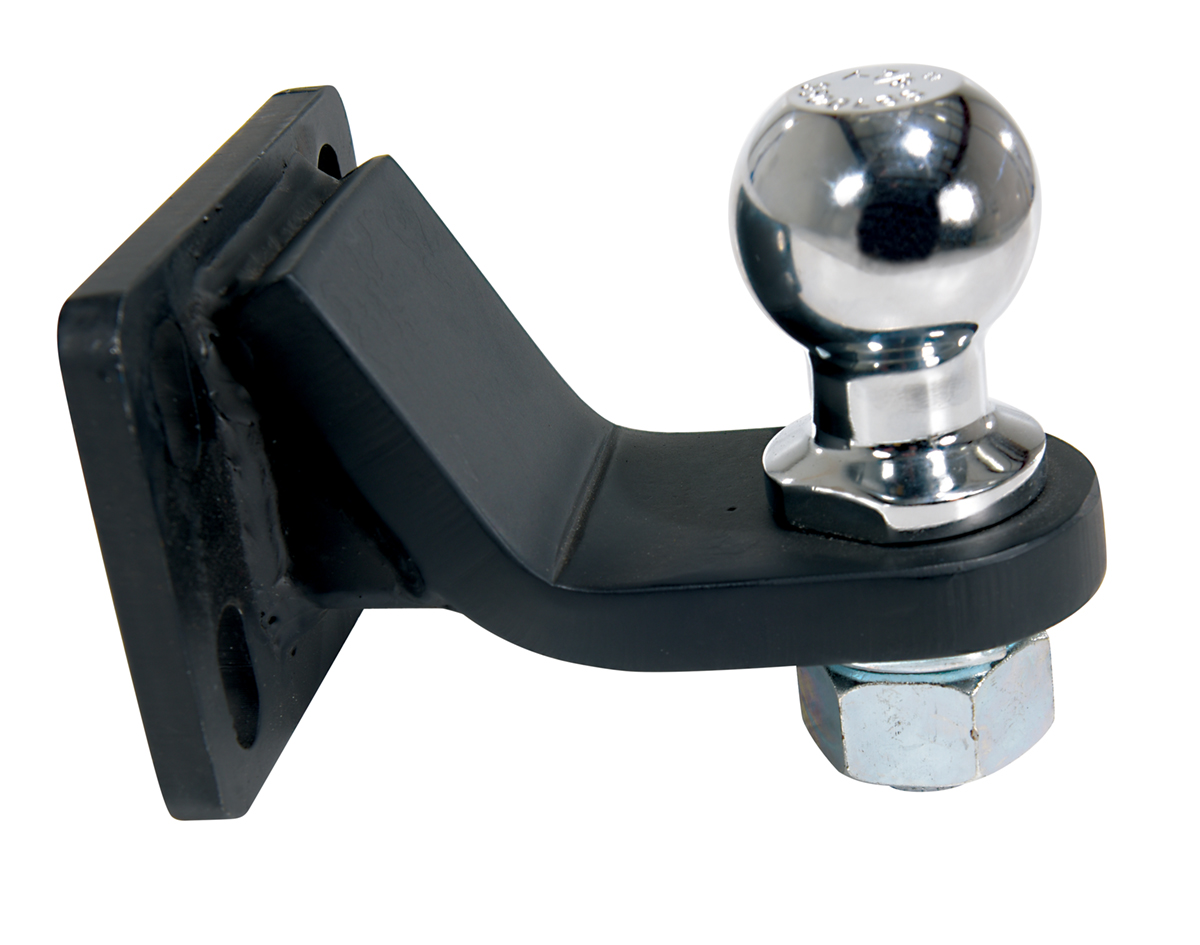

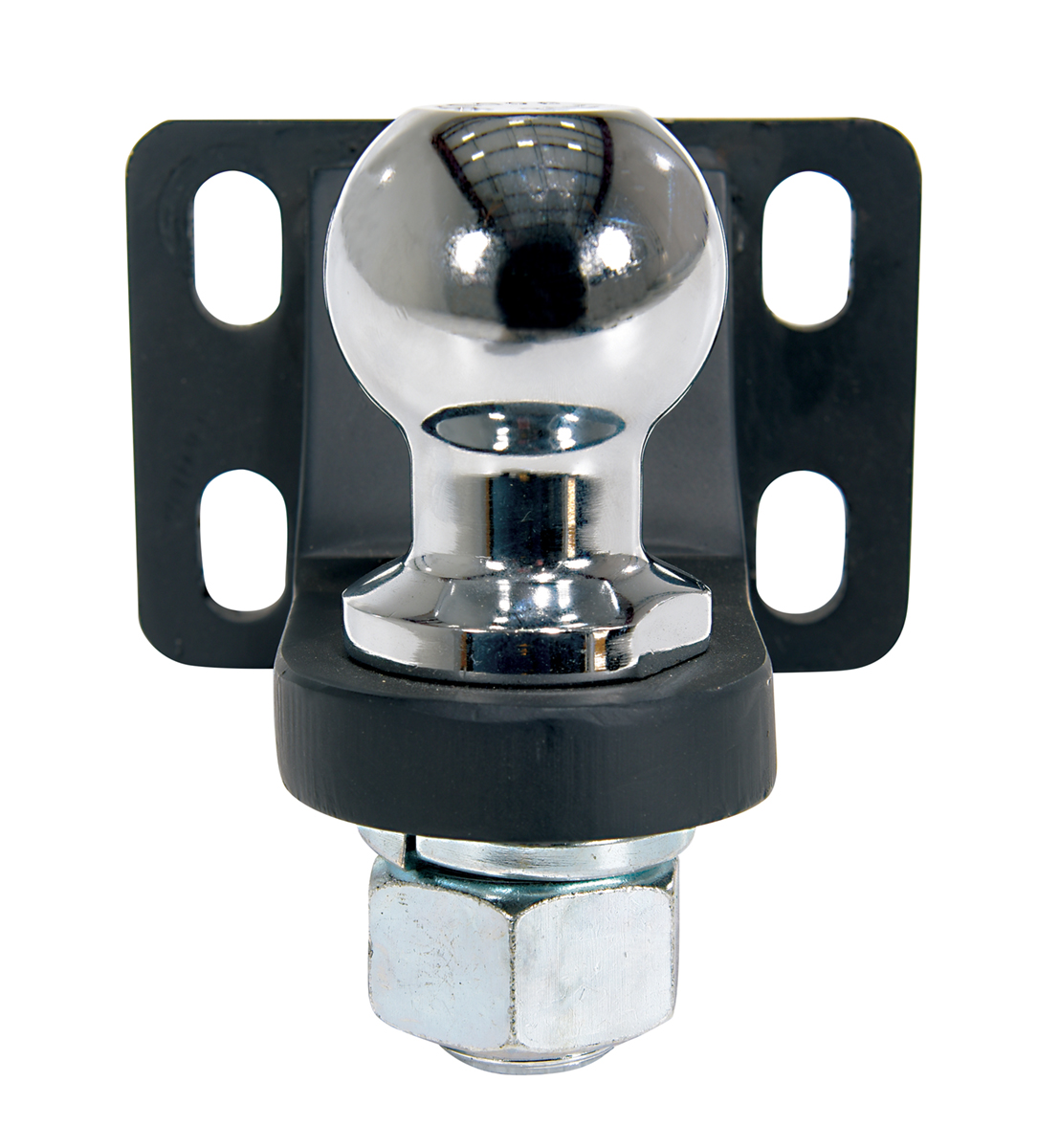

E-TUG-HD-SBH-4		90 Days Limited Warranty	Steel Single Ball Hitch Mount 4 In. Length For E-Tug-HD Models Black	-	8

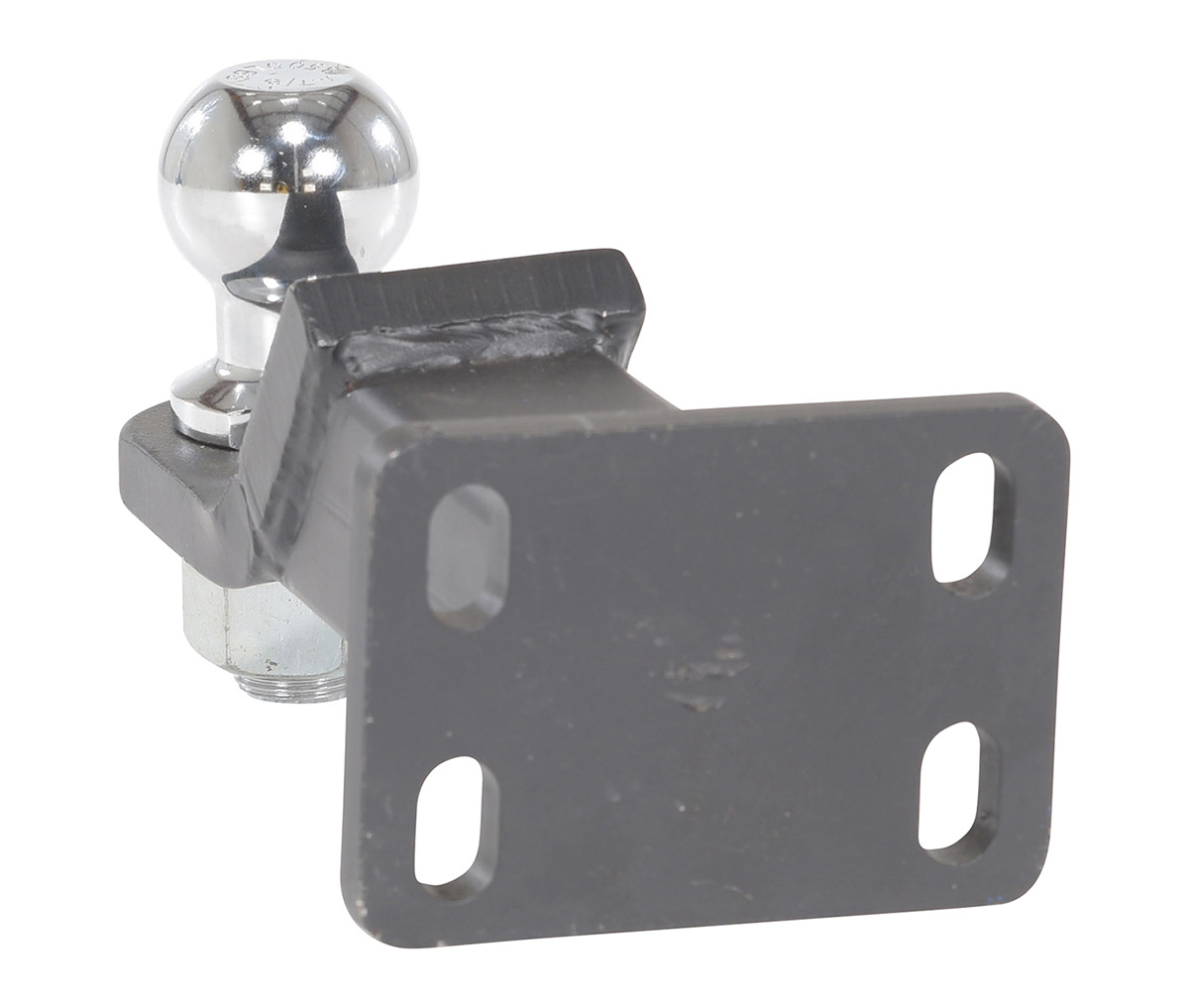

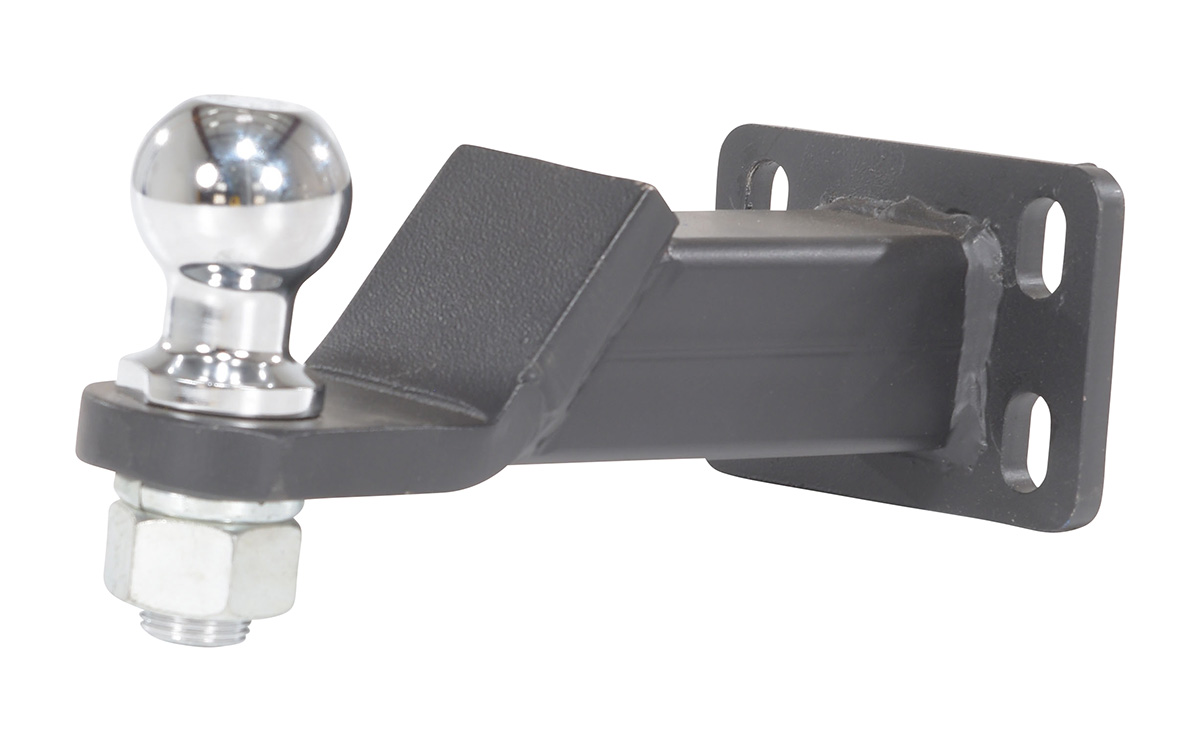

E-TUG-HD-SBH-8		90 Days Limited Warranty	Steel Single Ball Hitch Mount 8 In. Length For E-Tug-HD Models Black	-	9

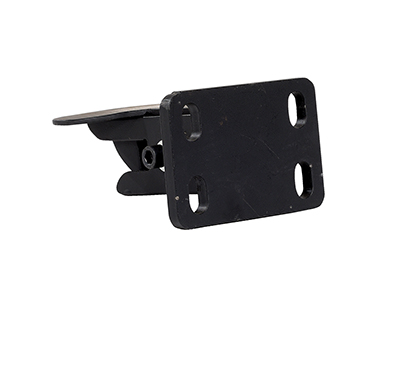

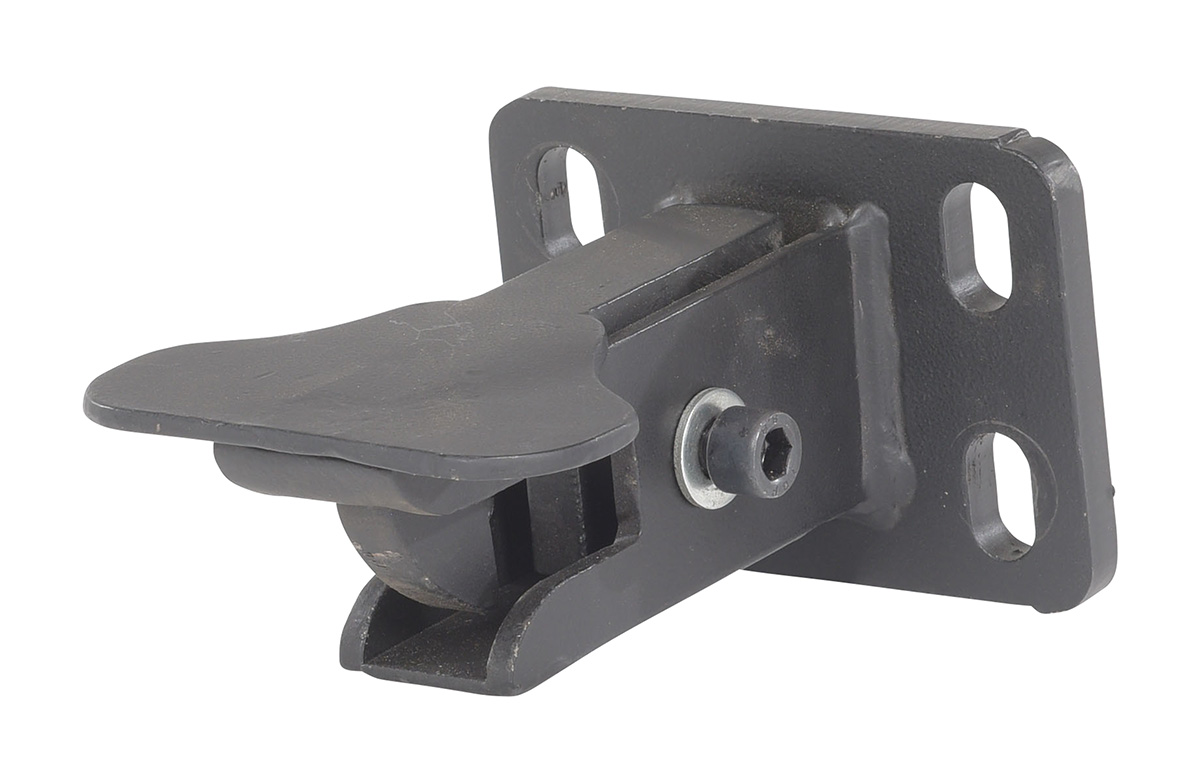

E-TUG-HD-SLH		90 Days Limited Warranty	Steel Self Locking Hitch For E-Tug-HD Models Black	-	5

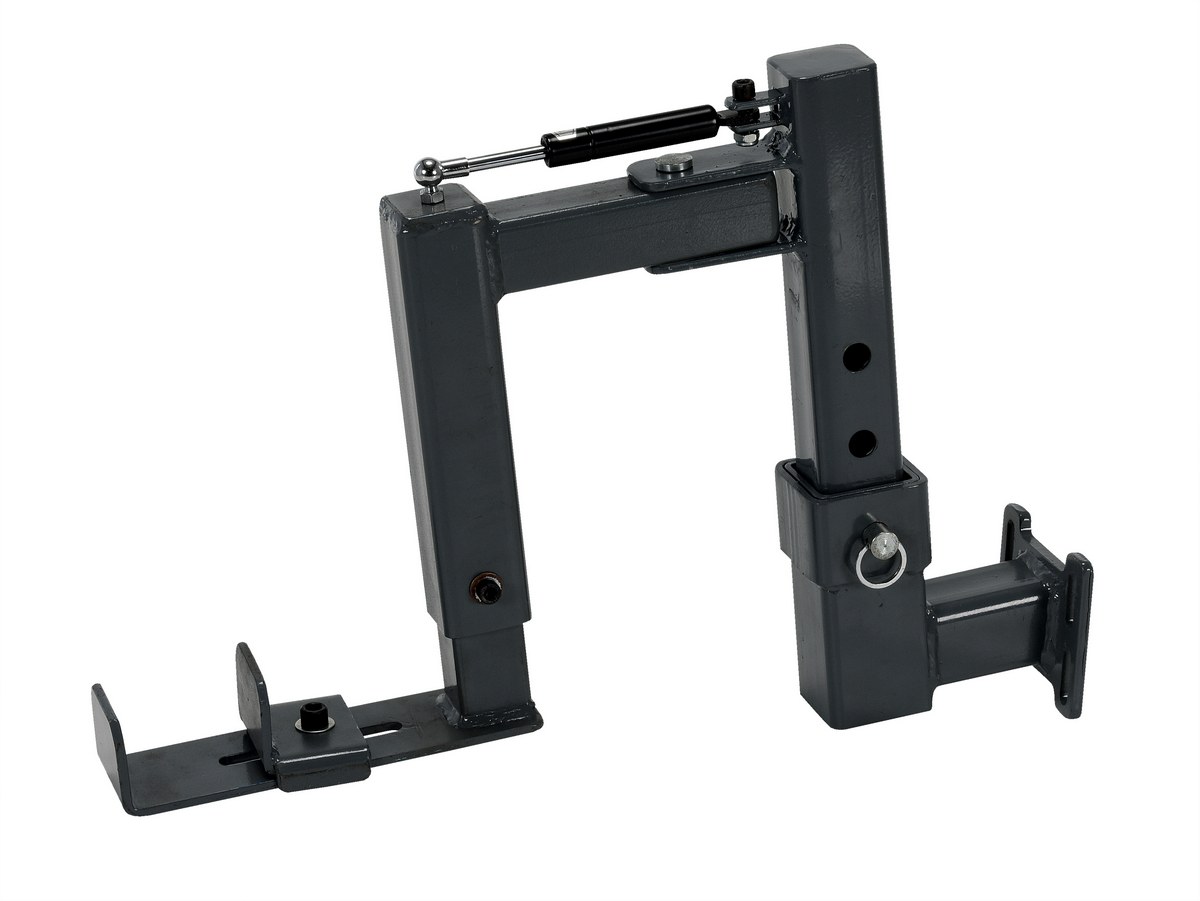

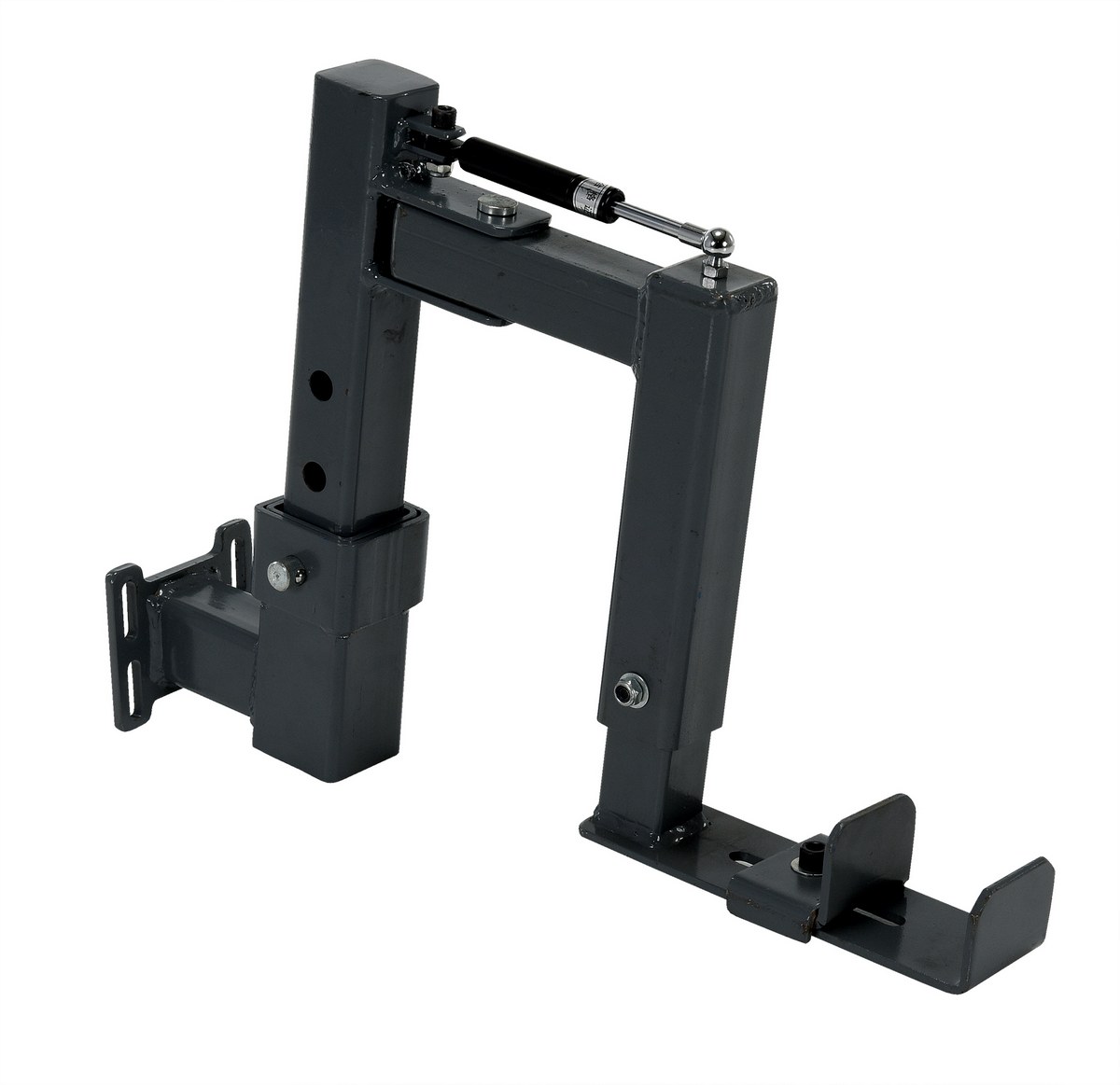

E-TUG-MCLA		90 Days Limited Warranty	Steel Spring Loaded Manual Channel Lift For E-Tug Models Black	Installation Hardware Included: Number of Casters / Wheels: No Wheels / Casters	22

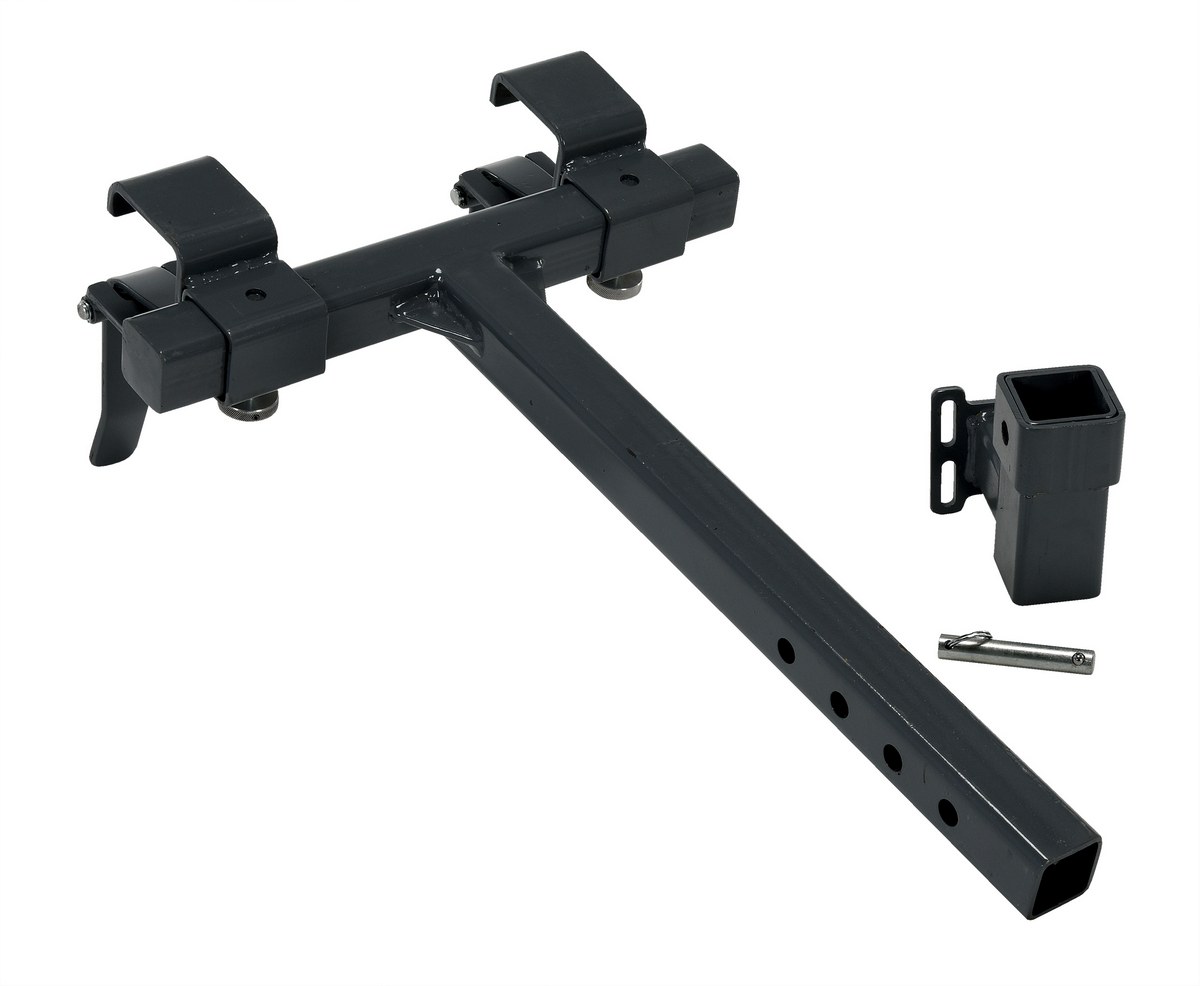

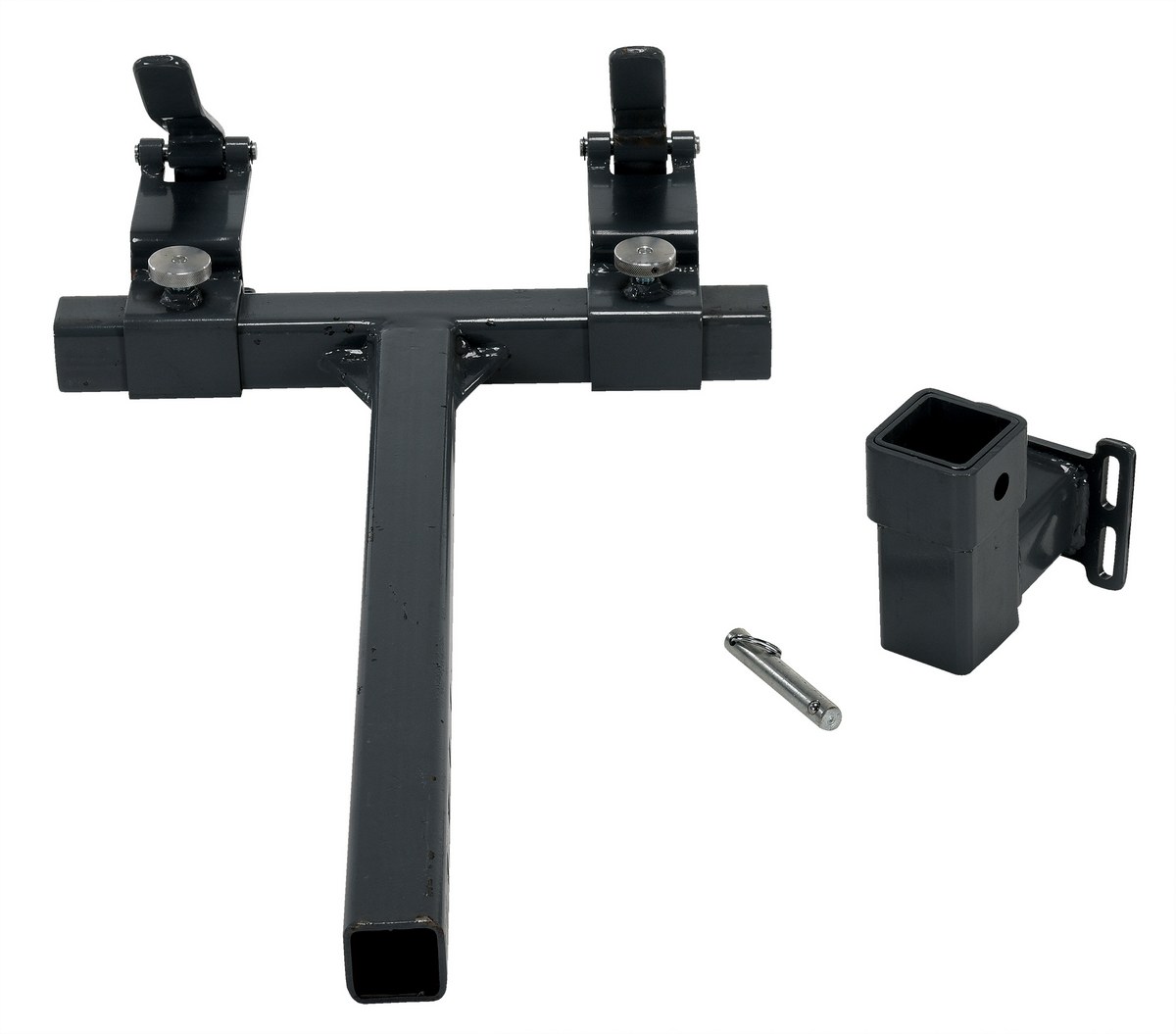

E-TUG-MM		90 Days Limited Warranty	Steel Multi Mover For E-Tug Models Black	Installation Hardware Included: Number of Casters / Wheels:	31

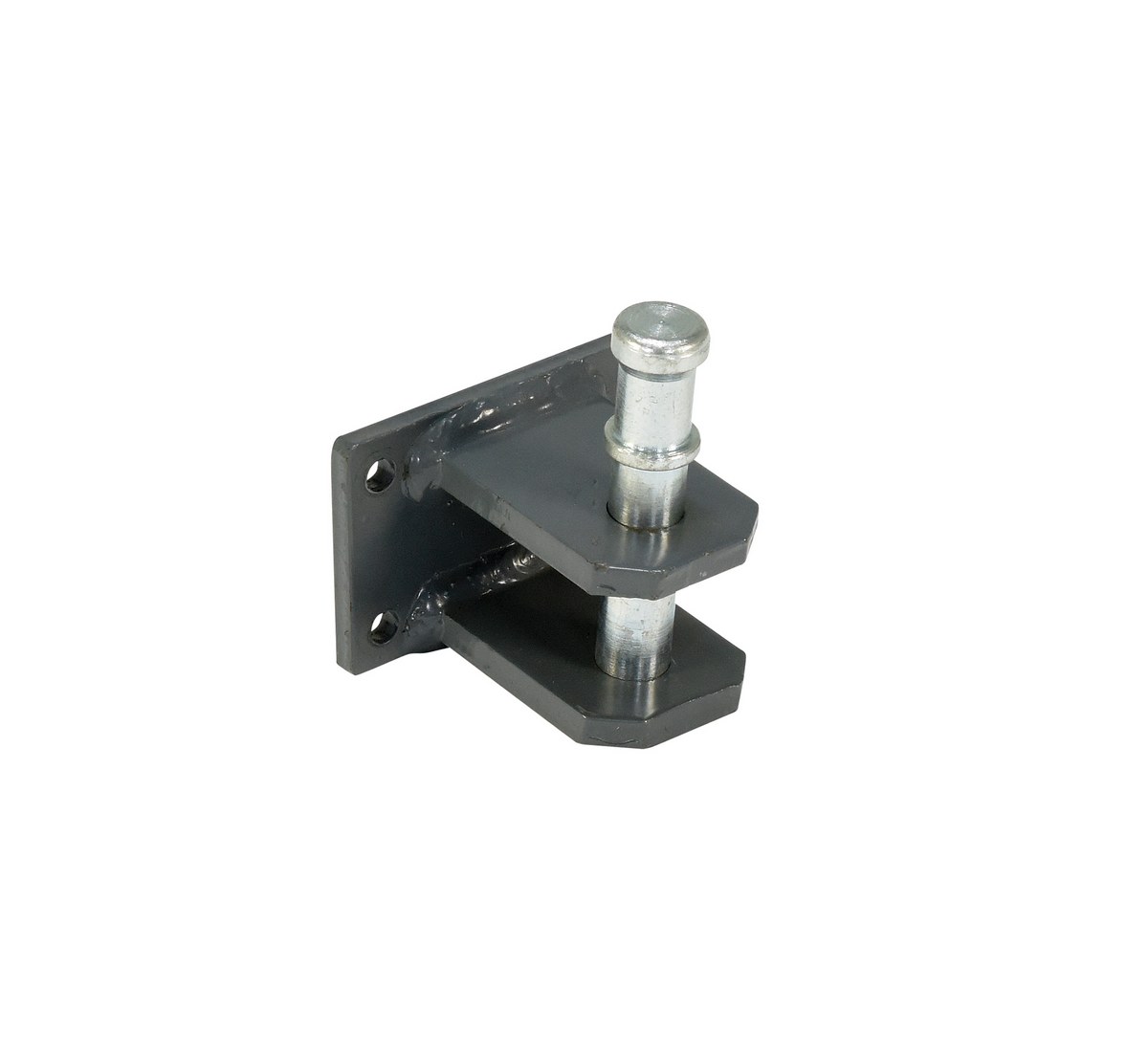

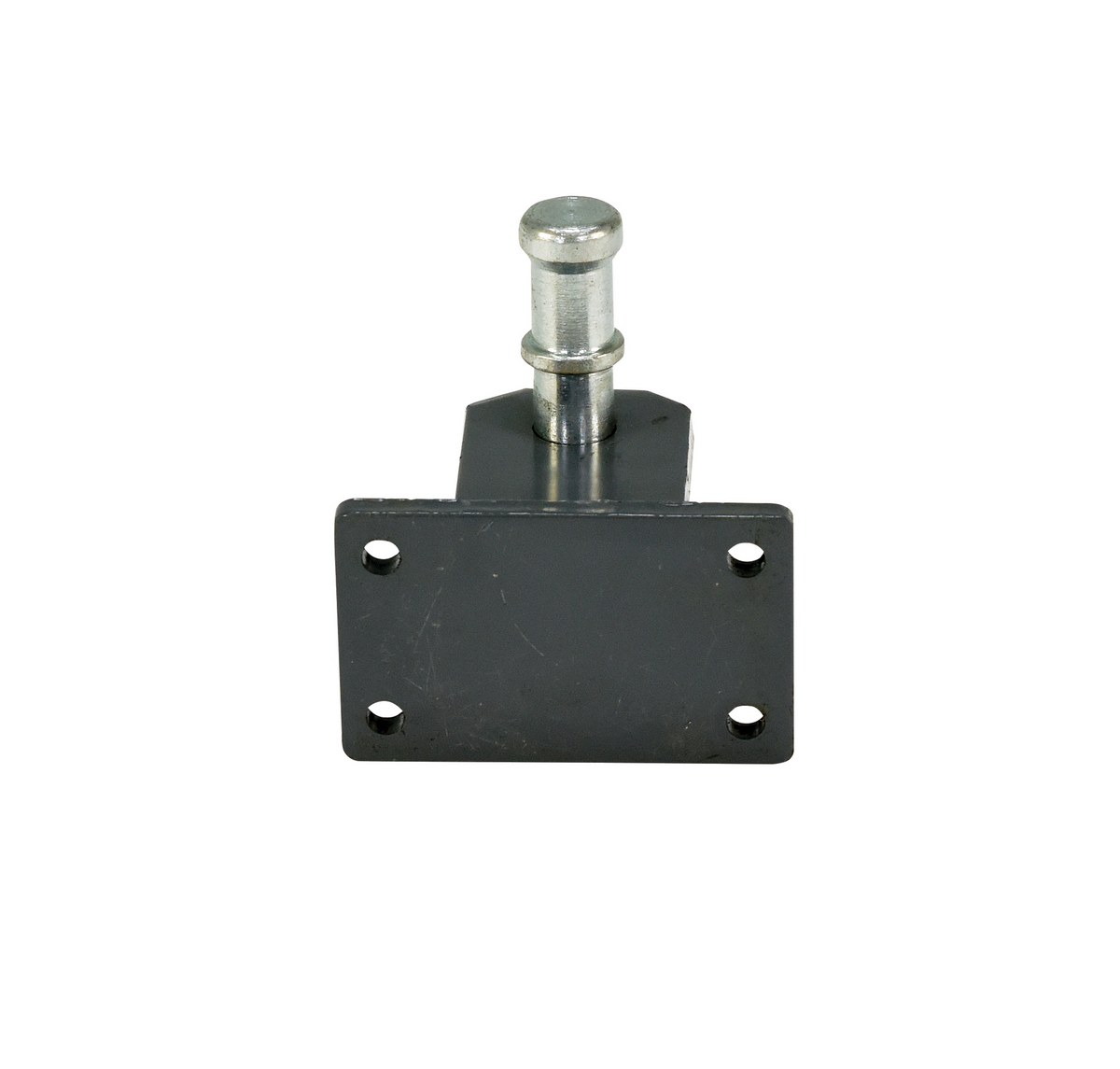

E-TUG-PINH		90 Days Limited Warranty	Steel Pin Hitch For E-Tug Models Black/Silver	Pin Shaft Diameter (In): 3/4 Pin Shaft Length (In): 4-5/8	4

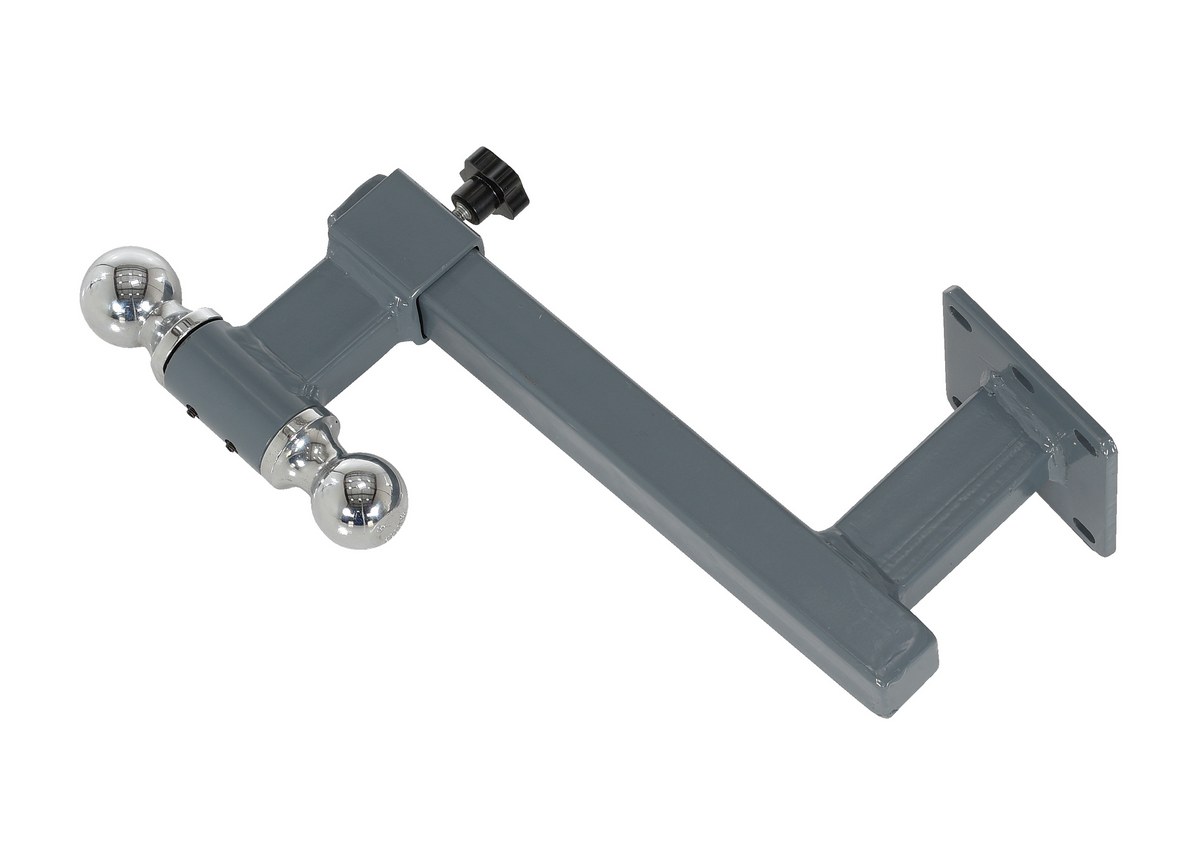

E-TUG-SABH		90 Days Limited Warranty	Steel Adjustable Single Side Hook Double Ball Hitch Mount For E-Tug Models Black	Ball sizes: 1-7/8" & 2" Attachment Method: Bolt On	14

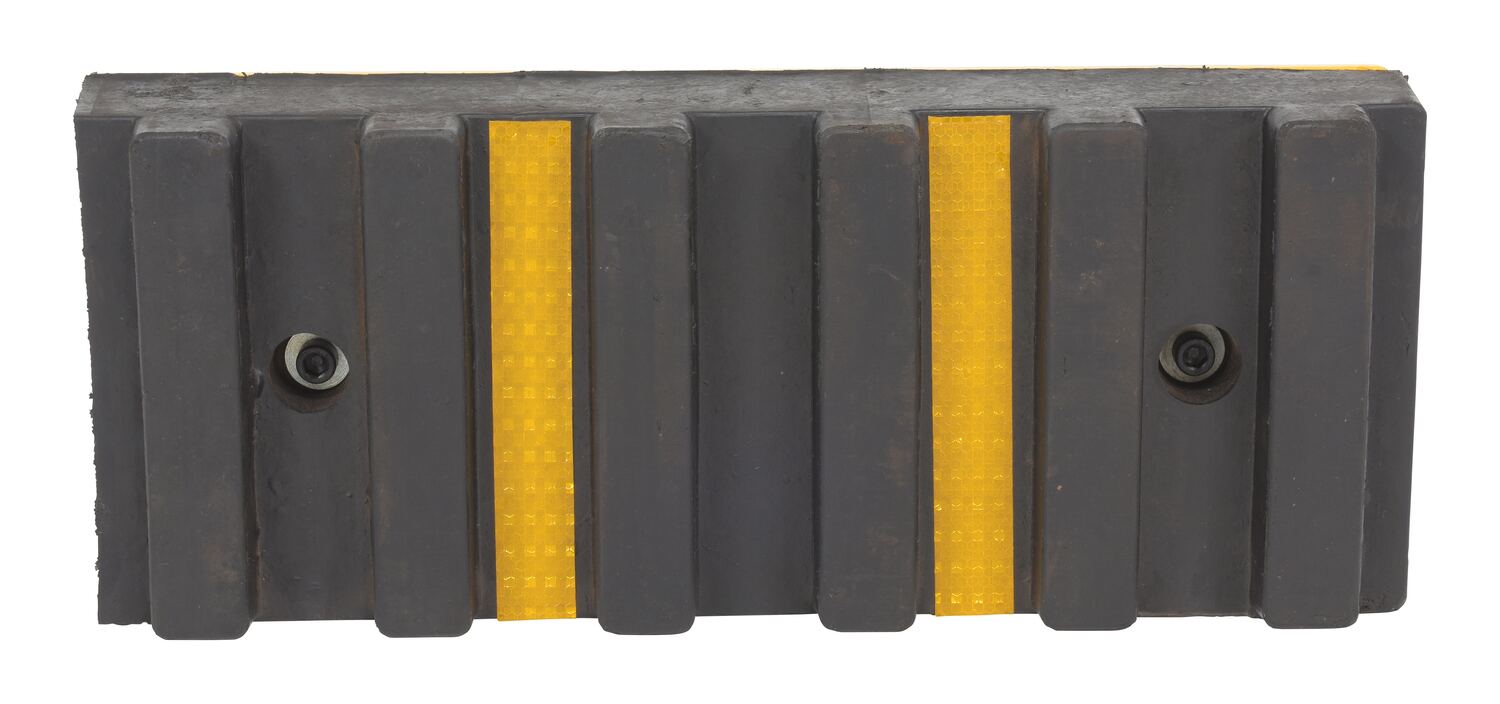

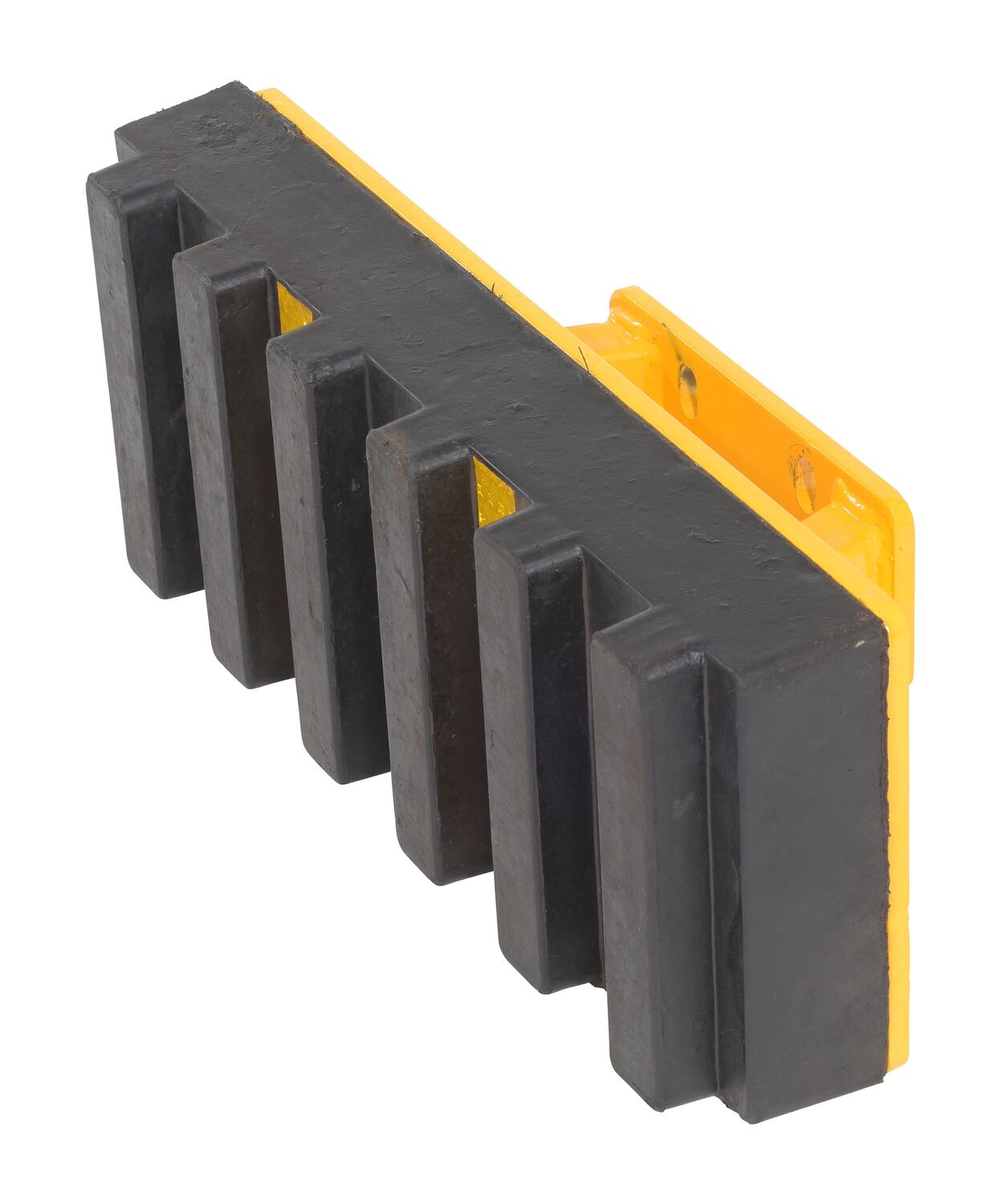

E-TUG-HD-RPB-19	NEW	90 Days Limited Warranty	Rubber Bumper Attachment 19 In.	Installation Hardware Included: Yes Number of Casters / Wheels: No Wheels / Casters	21

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Electric Powered Tuggers PDF's will open in a new window when clicked.

Manuals

E-TUG
Owners Manual

E-TUG-HD
Owners Manual

Survey Sheets

No Survey Sheets For This Product

Approval Drawings

E-TUG-10

E-TUG-20

E-TUG-30

E-TUG-HD-30

E-TUG-HD-70

E-TUG-HD-SLH

E-TUG-HD-50

E-TUG-MCLA

Testing Certificates

E-TUG-10

E-TUG-20

E-TUG-30

E-TUG-ABMH

E-TUG-ADSH

E-TUG-HD-100

E-TUG-HD-100-RV

E-TUG-HD-120

E-TUG-HD-180

E-TUG-HD-30

E-TUG-HD-50

E-TUG-HD-70

E-TUG-HD-ADSH

E-TUG-HD-DABH

E-TUG-HD-DPINH

E-TUG-HD-MM

E-TUG-HD-PINH

E-TUG-HD-RP-16

E-TUG-HD-RP-20

E-TUG-HD-SBH-4

E-TUG-HD-SBH-8

E-TUG-HD-SLH

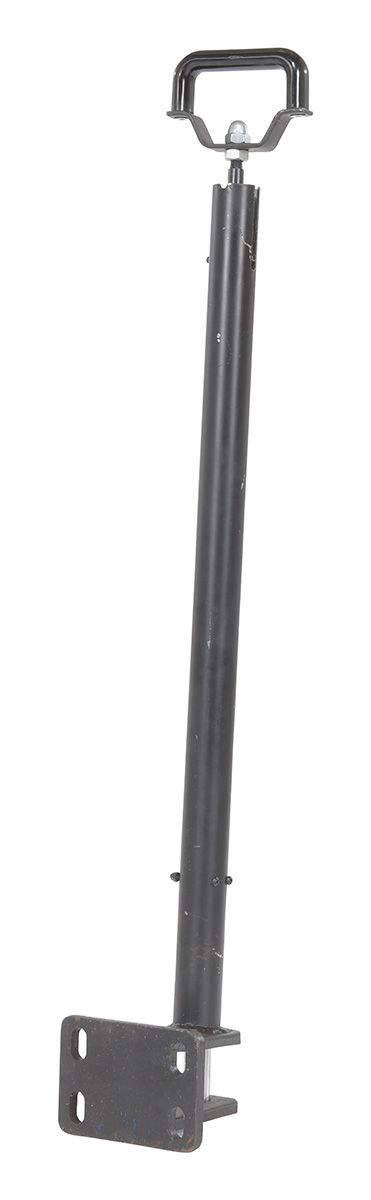

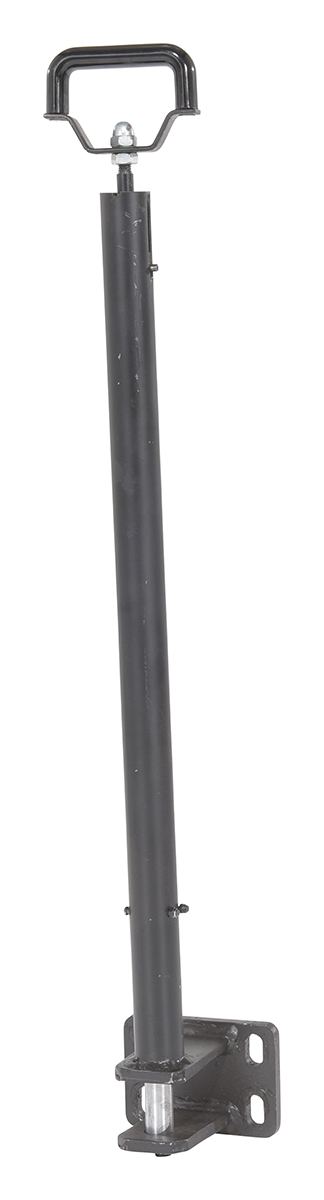

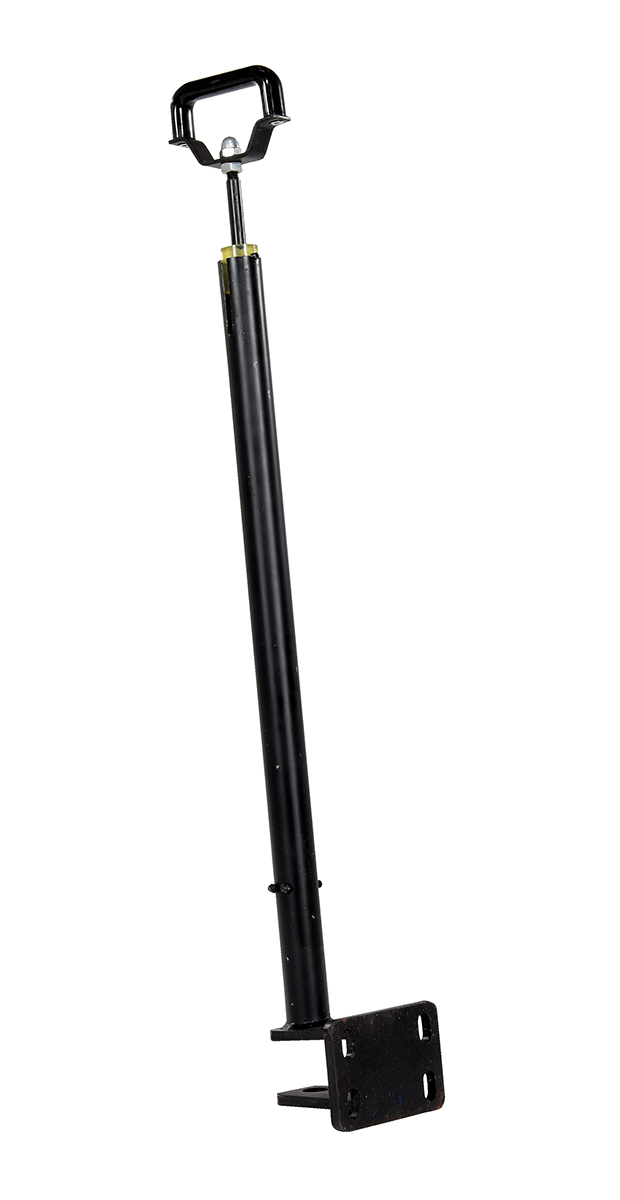

E-TUG-HD-SLPINH

E-TUG-MCLA

E-TUG-MM

E-TUG-PINH

E-TUG-SABH

SDS Sheets

Valve-Regulated Lead Acid Battery Series SDS Sheet for: E-TUG-10

Hydraulic Oil SDS Sheet for: E-TUG-10

Valve-Regulated Lead Acid Battery Series SDS Sheet for: E-TUG-20

Hydraulic Oil SDS Sheet for: E-TUG-20

Valve-Regulated Lead Acid Battery Series SDS Sheet for: E-TUG-30

Hydraulic Oil SDS Sheet for: E-TUG-30

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: E-TUG-HD-30

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: E-TUG-HD-50

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: E-TUG-HD-70

Hydraulic Oil SDS Sheet for: E-TUG-HD-100-RV

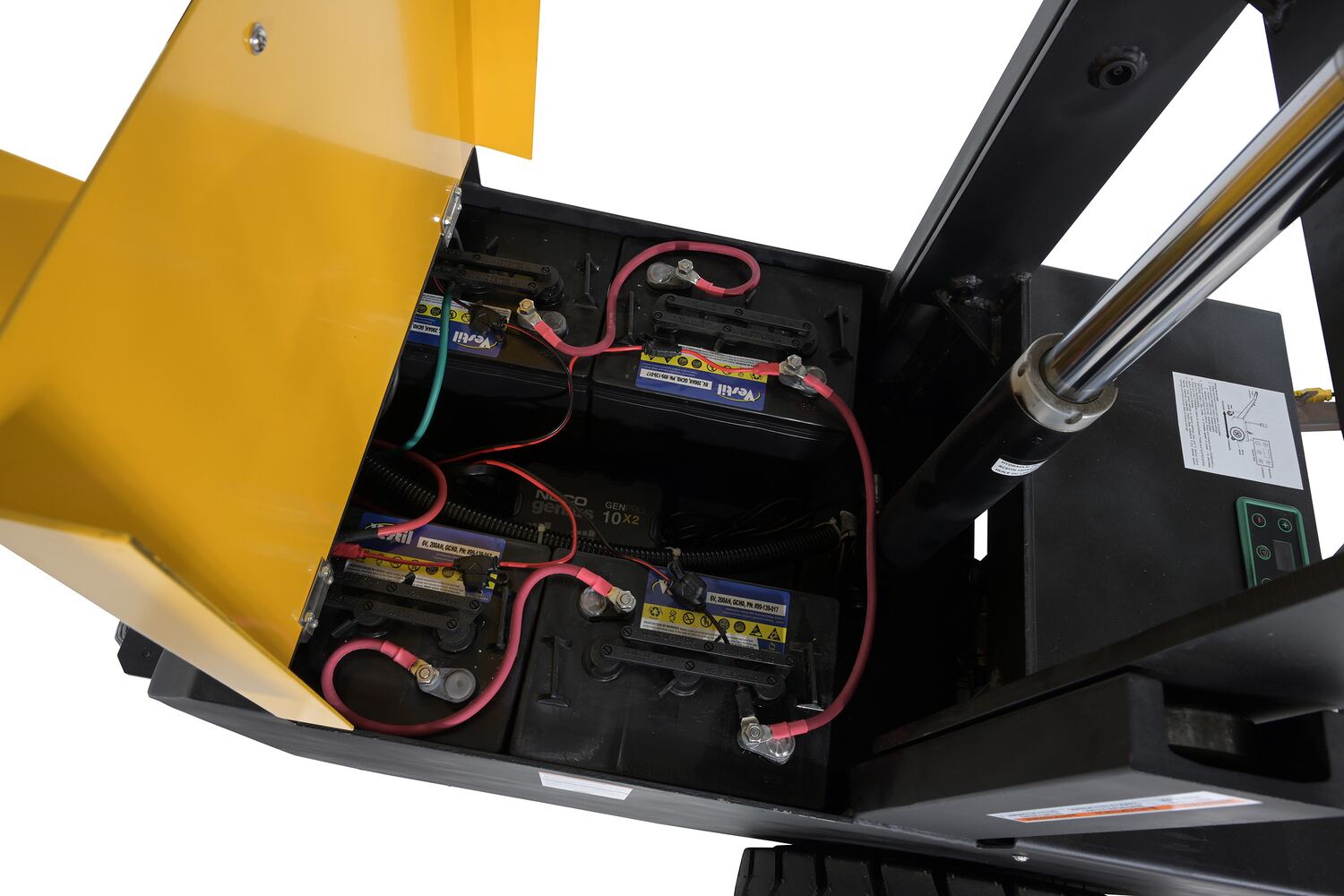

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: E-TUG-HD-100-RV

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: E-TUG-HD-100

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: E-TUG-HD-120

Other PDF's

MODEX Welded Security Cart Brochure

Directory Links Of Available PDF's For All Products

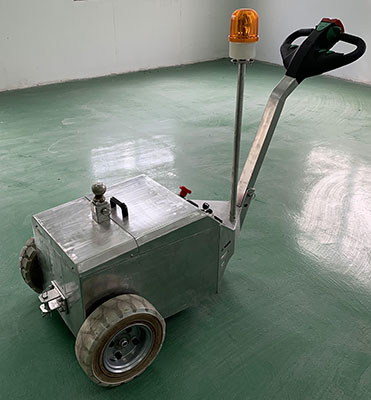

Reference #: CF-5937 SS Electric Tugger

Reference #: CF-5937 SS Electric Tugger

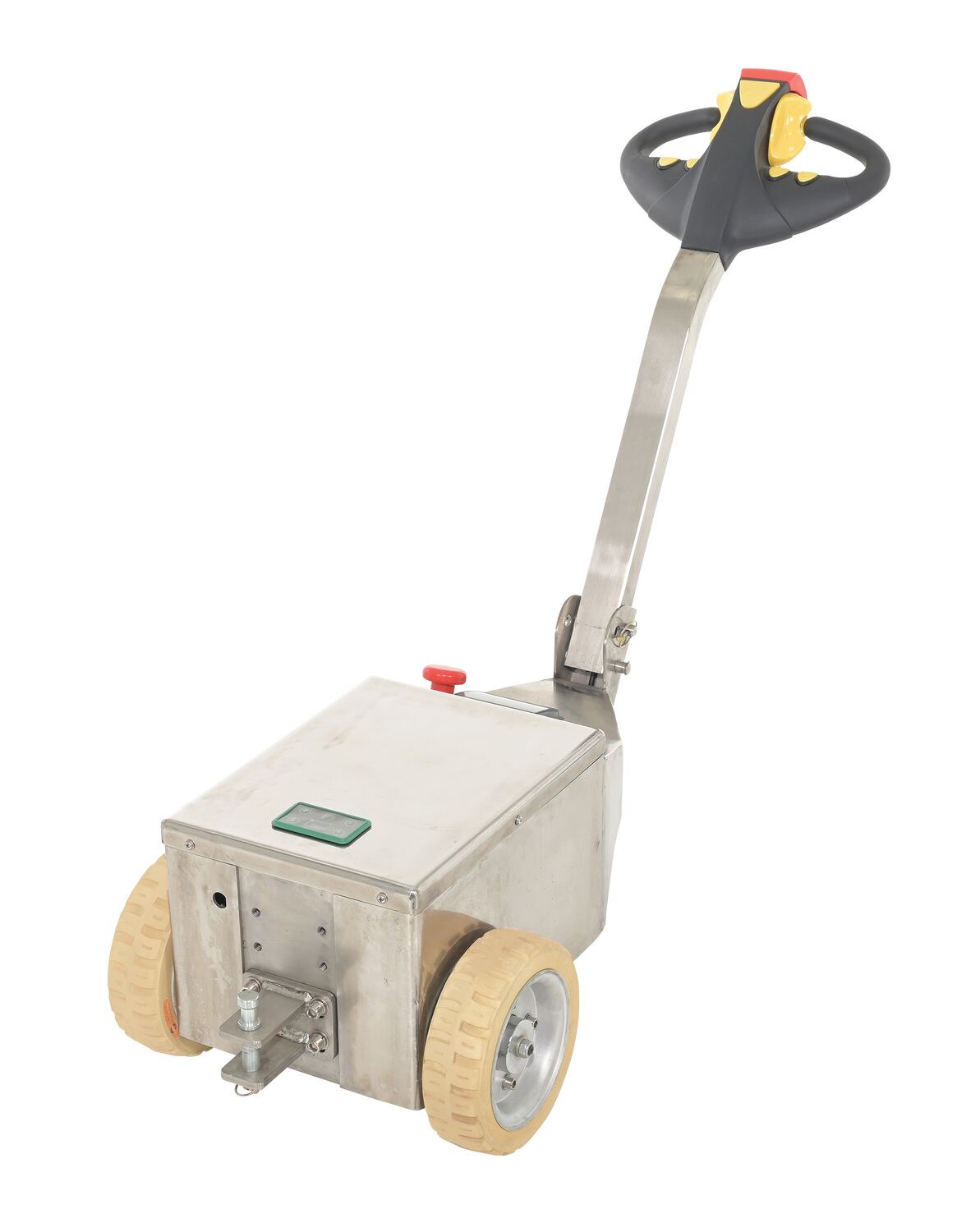

Special Stainless Steel Electric Tugger

Reference #: CF-6349 Tugger with Dump Option

Reference #: CF-6349 Tugger with Dump Option
Special Tugger with Dump Option

For more Specialty Designs similar to these... Click Here

Q: How long does it take to charge the battery for the E-TUG-30 ?

A: The battery for the E-TUG-10, E-TUG-20, and E-TUG-30 will be fully charged in approximately 5 hours. If the battery is dead it may take up to 8 hours to be fully charged.

Q: How long will the E-TUG-10 run?

A: The E-TUG-10, E-TUG-20, and E-TUG-30 will operate approximately 4 hours of continuous use on a fully charged battery. For intermittent use, you can expect 8 hours .

Q: What is the diameter of the E-TUG-PINH?

A: The diameter of the pin (E-TUG -PINH) is approximately 3/4".

Q: Can the tugger be used on an incline?

A: The E-TUG-10, E-TUG-20, and E-TUG-30 will operate efficiently on a slope of 2-3 °.

Q: What is the service range of the ball hitches?

A: The service range of the E-TUG-SABH is 14-15/16 to 23-5/8. The service range of the E-TUG-ABMH is 15-1/2 to 21-1/2.

Q: What is the life cycle of spring on the E-TUG-HD-SLH?

A: The life cycle of spring for moderate use is approximately 1 to 2 years.

Q: Is the orientation of the hitch E-TUG-HD-SLH relevant?

A: Yes. The hitch is designed for horizontal pulling only.

Q: What is the life cycle of the hitch E-TUG-HD-SLH ?

A: The life cycle of the hitch is approximately one year with moderate use.

Q: The wheels on the tugger are foam filled. What material are the front casters?

A: The front casters are poly on poly.

Q: What is the IP rating of the E-TUG-20?

A: The IP rating is IP54.

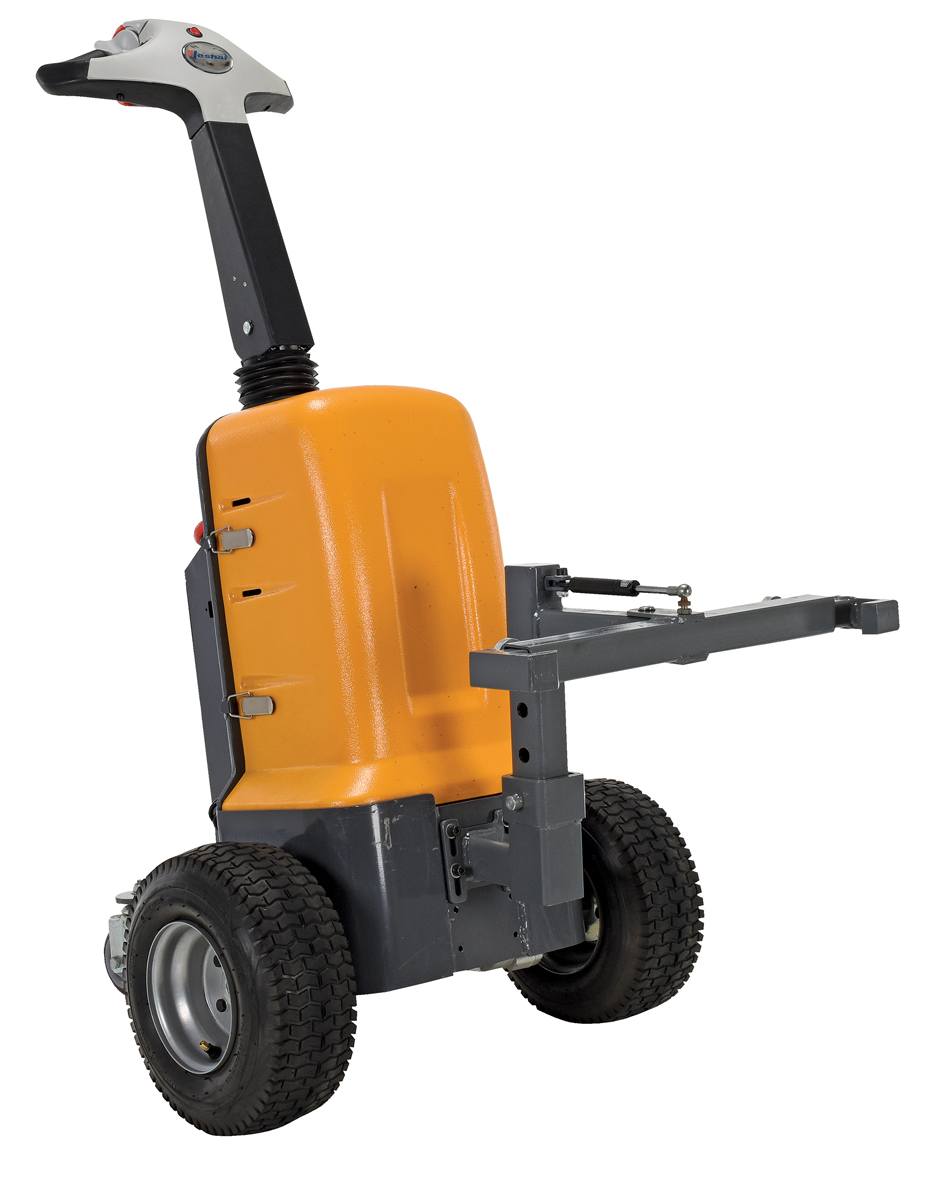

Q: What is the adjustment range for E-TUG-ADSH?

A: The E-TUG-ADSH adjustment range is from 18-1/2" - 26".

Q: What are the dims of the hitch pin on the unit?

A: The dimensions of the hitch pin are E-TUG-PINH 3/4" SHAFT / 15/16" HEAD / 4 5/8" LONG.

Q: What is the speed of this unit?

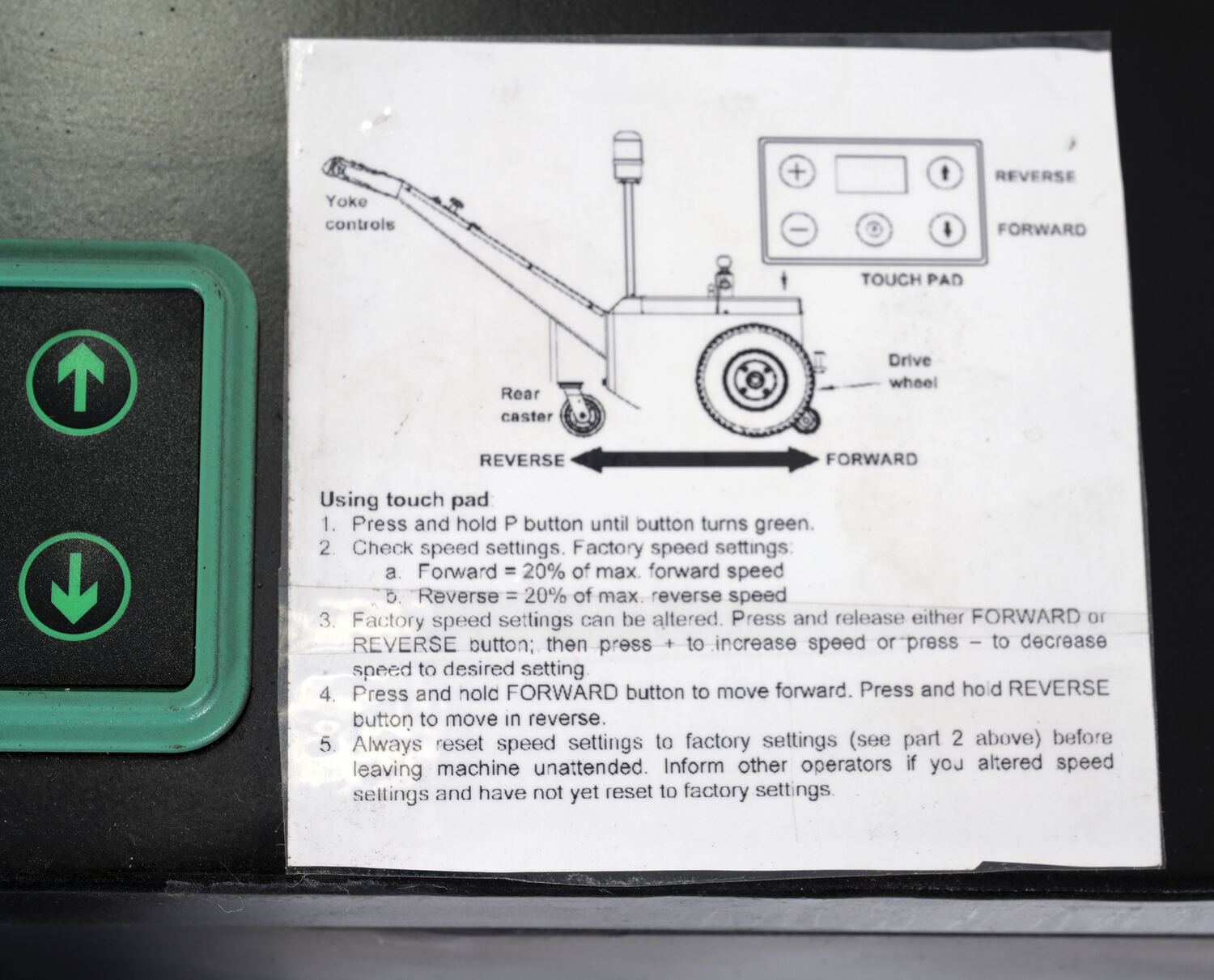

A: Factory speed is set at 2.8MPH unloaded and 2.2MPH loaded.

Q: Are the E-TUG models CSA, UL or ELT compliant?

A: Yes the E-TUG models are CSA, UL and ELT compliant.

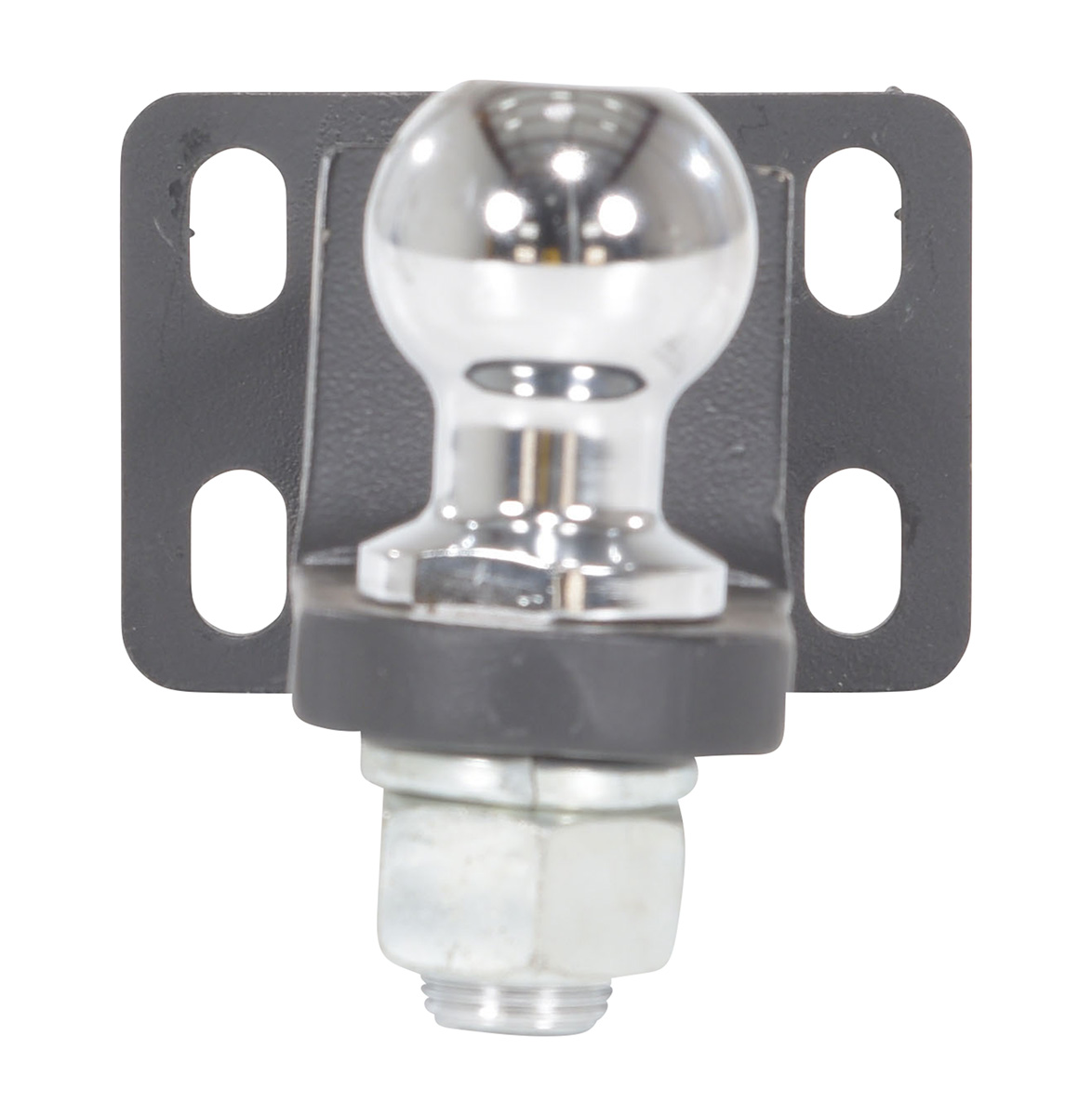

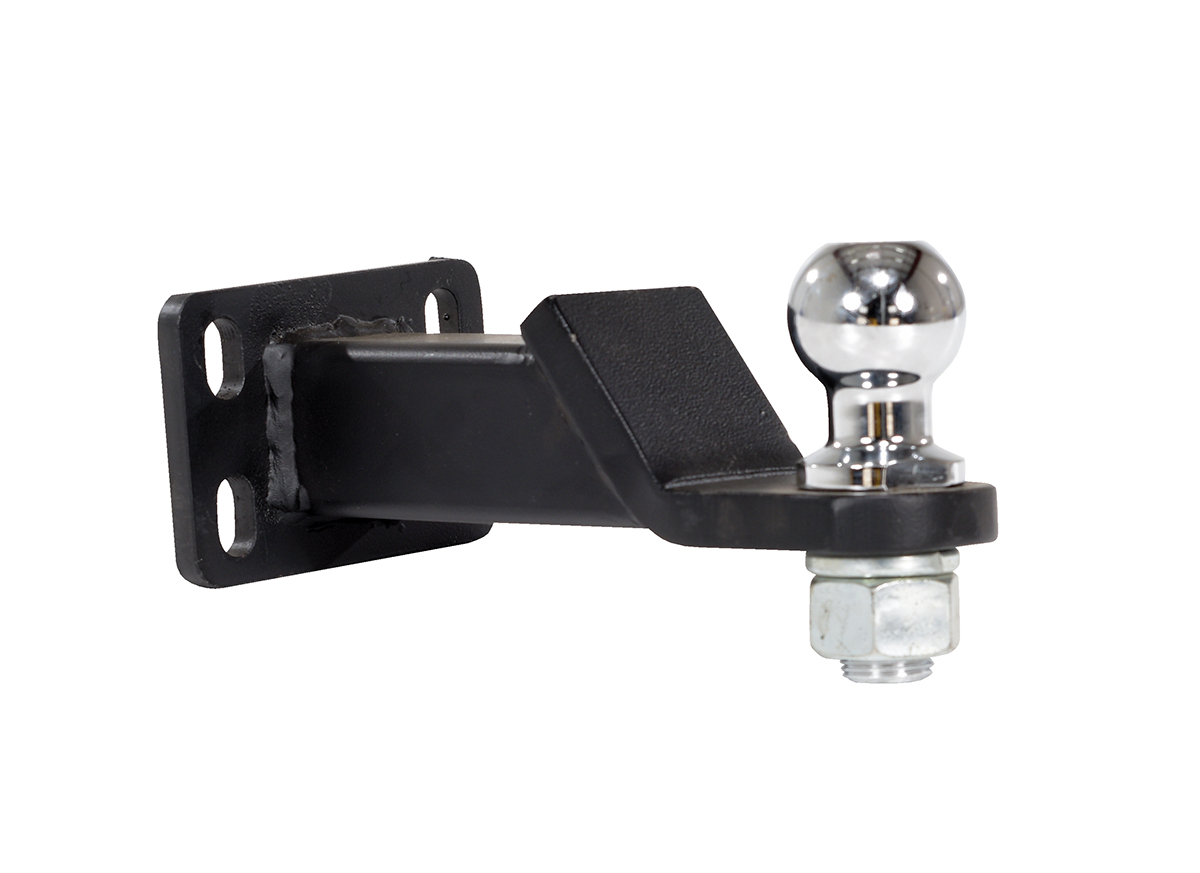

Q: Can you tell me what the distance is between each hole is going vertical and horizontal on the E-TUG-HD-SBH-8?

A: Horizontal- 2 7/8 in (3 3/8 in on center) Vertical- 7/8 in (1 3/4 in on center)

Q: What are the mounting hole dimensions for the E-TUG-HD-SLH?

A: The mounting hole dimensions are as follows: 3 1/2 in wide on center x 1 7/8 in tall on center Holes are 1/2 in wide x 7/8 in tall

Q: What are the ball sizes on E-TUG-SABH and E-TUG-HD-DABH?

A: Both hitches have a double ball that are 1-7/8" & 2"

Q: What is the distance between the two horizontal plates on E-TUG-HD-PINH?

A: 1-3/4"
