Back Guards for Pallet Rack| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| RBG-104 |  | 1 Year Limited Warranty | Steel Welded Wire Panel 120 In. x 1-1/4 In. x 48 In. Gray | Mesh square dimension (in.): 2 x 2 Welded wire gauge: 10 | 102 | ||
| RBG-105 |  | 1 Year Limited Warranty | Steel Welded Wire Panel 120 In. x 1-1/4 In. x 60 In. Gray | Mesh square dimension (in.): 2 x 2 Welded wire gauge: 10 | 111 | ||

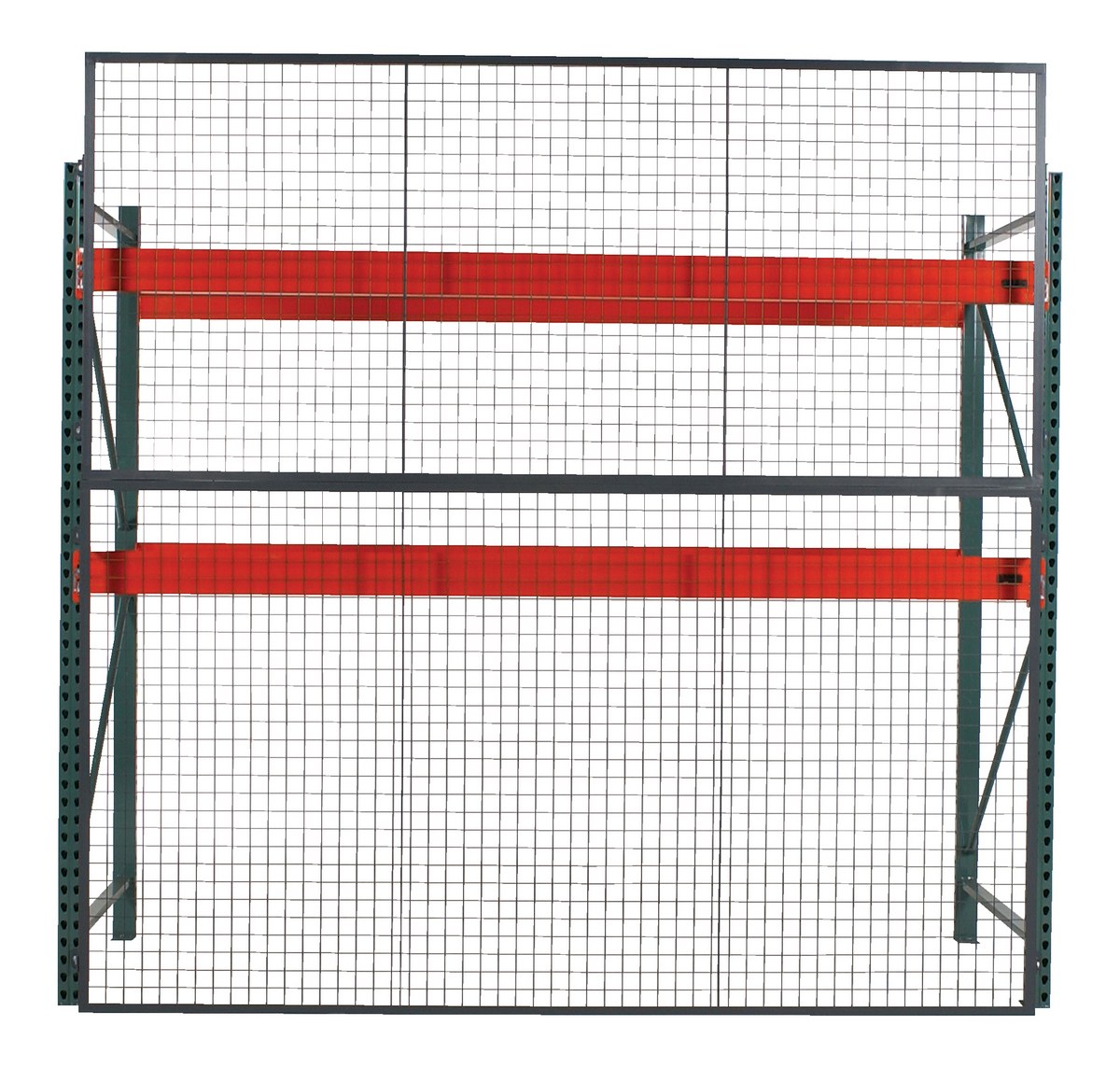

| RBG-124 |  | 1 Year Limited Warranty | Steel Welded Wire Panel 144 In. x 1-1/4 In. x 48 In. Gray | Mesh square dimension (in.): 2 x 2 Welded wire gauge: 10 | 115 | ||
| RBG-125 |  | 1 Year Limited Warranty | Steel Welded Wire Panel 144 In. x 1-1/4 In. x 60 In. Gray | Mesh square dimension (in.): 2 x 2 Welded wire gauge: 10 | 125 | ||

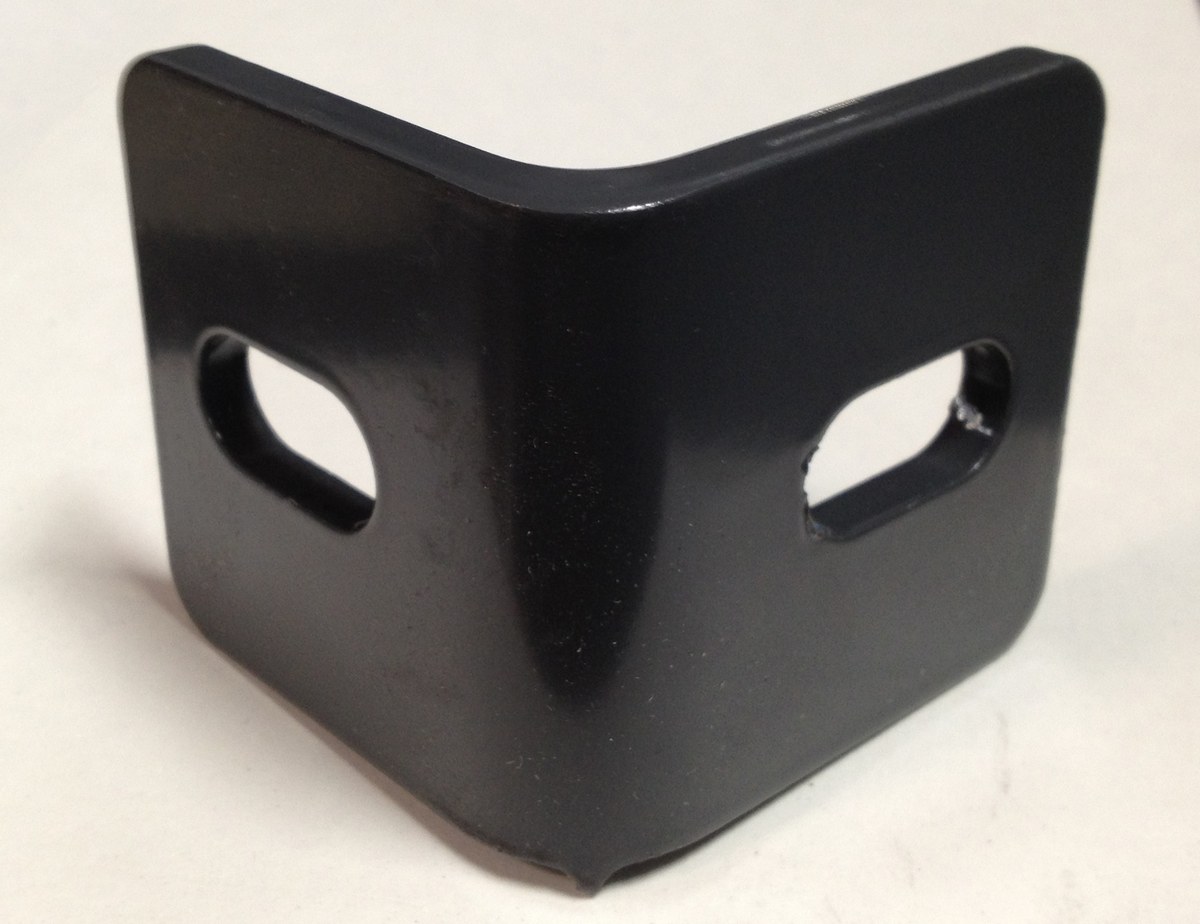

| RBG-1FMC |  | 1 Year Limited Warranty | Steel Flush Mount Clips for Teardrop Uprights 1-1/4 In. x 1-1/4 In. x 1-1/4 In. Quantity of 4 Gray | Package Quantity: 4 | 3 | ||

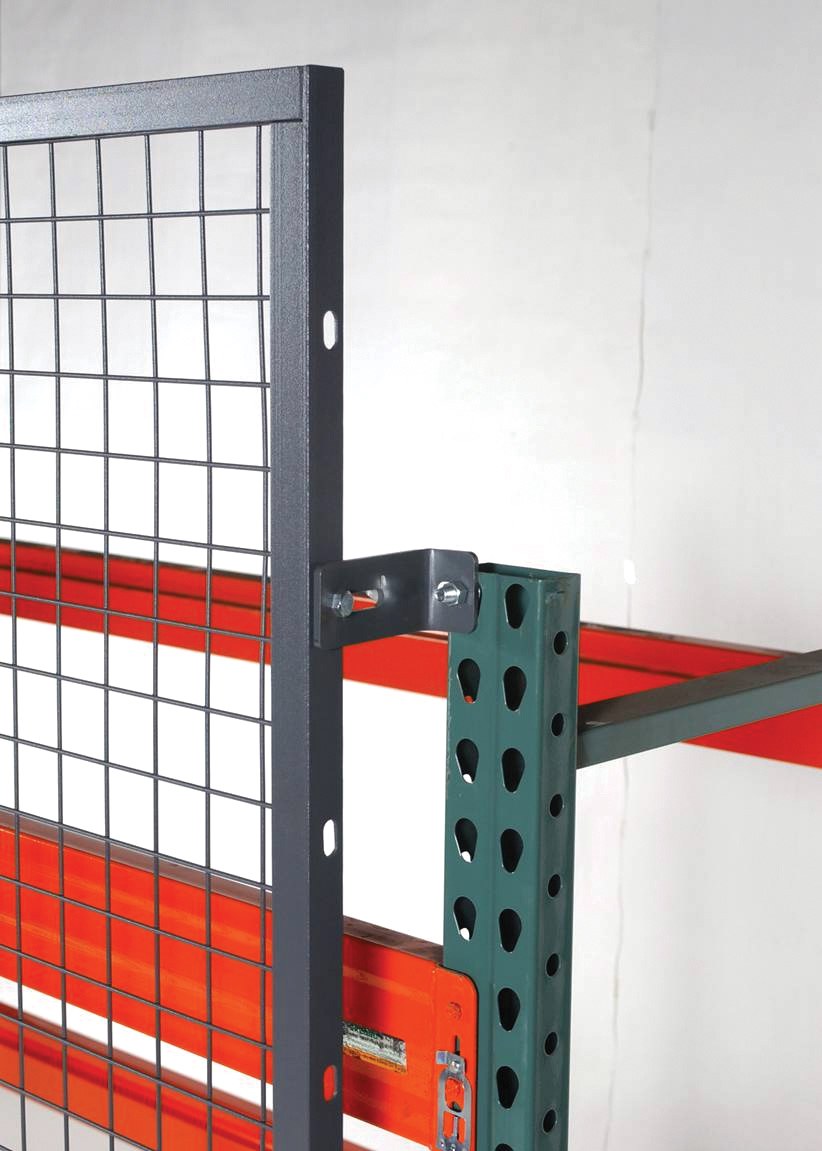

| RBG-43-OC |  | 1 Year Limited Warranty | Steel 1 to 3 In. Offset Clips for Teardrop Uprights 1-1/2 In. x 4-1/2 In. x 2 In. Quantity of 4 Gray | Package Quantity: 4 Offset Range (in.): 1 to 3 | 5 | ||

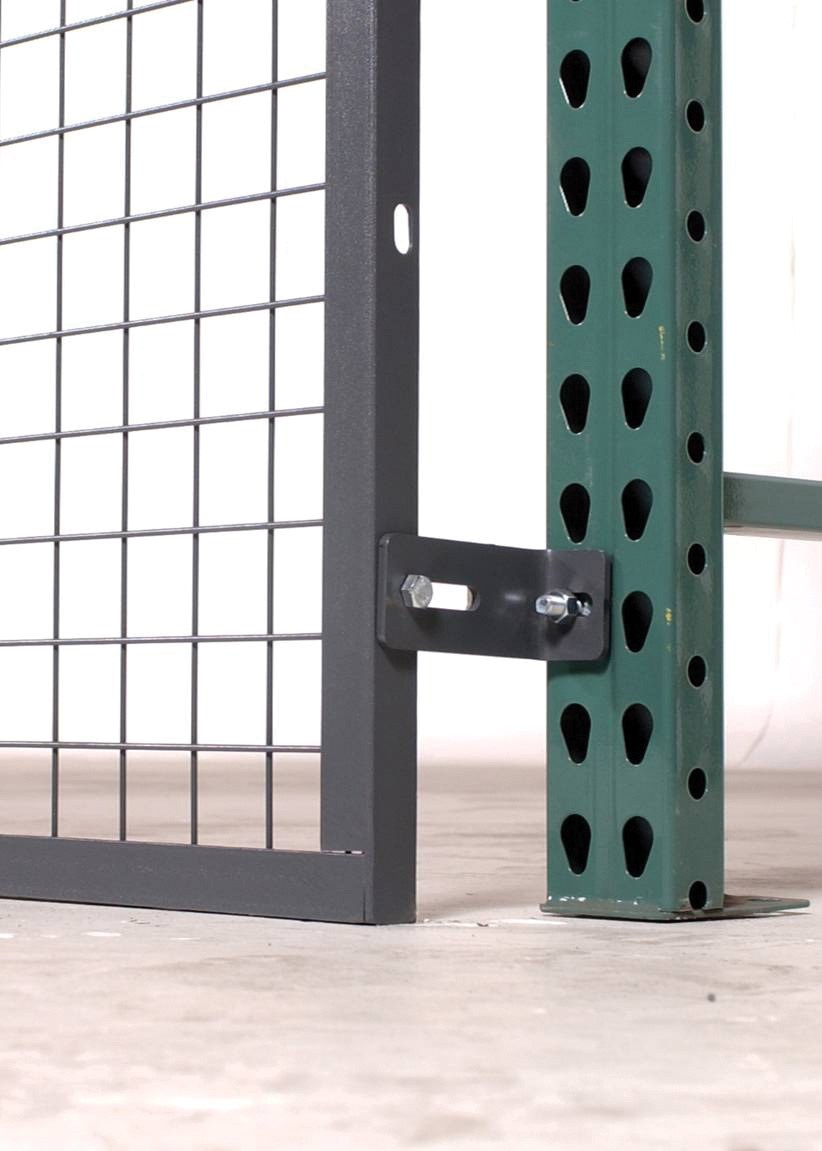

| RBG-46-OC |  | 1 Year Limited Warranty | Steel 4 to 6 In. Offset Clips for Teardrop Uprights 1-1/2 In. x 7-1/4 In. x 2 In. Quantity of 4 Gray | Package Quantity: 4 Offset Range (in.): 4 to 6 | 6 | ||
| RBG-84 |  | 1 Year Limited Warranty | Steel Welded Wire Rack Back Panel 96 In. x 1-1/4 In. x 48 In. Gray | Mesh square dimension (in.): 2 x 2 Welded wire gauge: 10 | 79 | ||

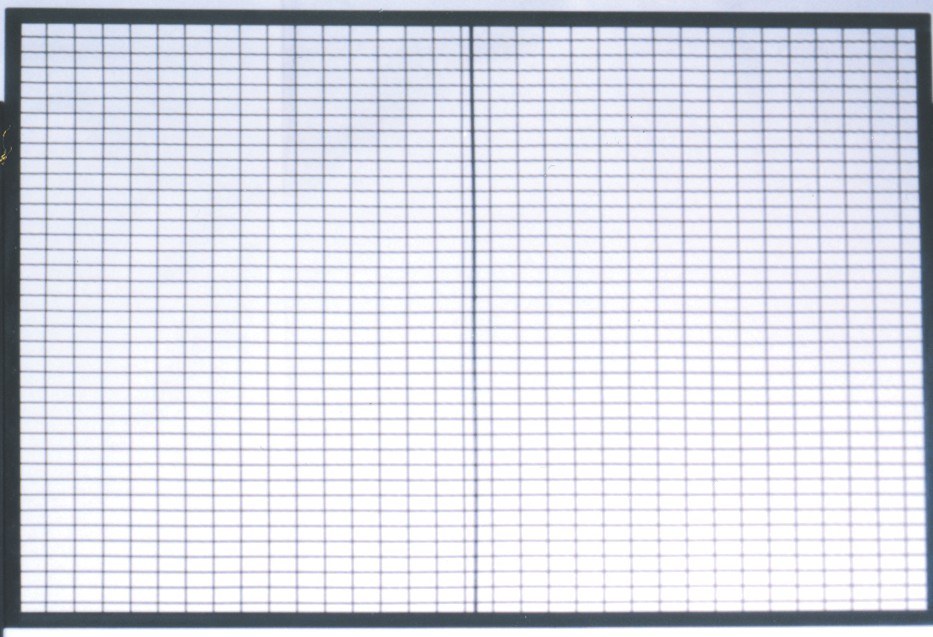

| RBG-85 |  | 1 Year Limited Warranty | Steel Welded Wire Rack Back Panel 96 In. x 1-1/4 In. x 60 In. Gray | Mesh square dimension (in.): 2 x 2 Welded wire gauge: 10 | 85 | ||
| RBG-94 |  | 1 Year Limited Warranty | Steel Welded Wire Rack Back Panel 108 In. x 1-1/4 In. x 48 In. Gray | Mesh square dimension (in.): 2 x 2 Welded wire gauge: 10 | 99 | ||

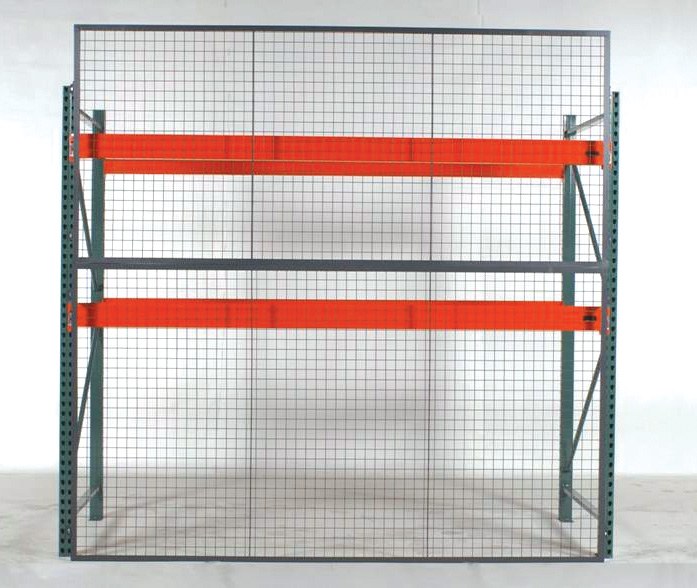

| RBG-95 |  | 1 Year Limited Warranty | Steel Welded Wire Rack Back Panel 108 In. x 1-1/4 In. x 60 In. Gray | Mesh square dimension (in.): 2 x 2 Welded wire gauge: 10 | 107 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Back Guards for Pallet Rack |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Contain and minimize the potential hazard of falling items with Pallet Rack Back Guards. Modular sized panels mount directly to pallet rack system which installs quickly and provides safety. System is made of 2"x2"x 10 gauge steel welded wire mesh, welded into a 1-1/4" x 1-1/4" x 13 gauge steel angle frame. Panels have mounting holes on 6" centers and have the option of flush mount or offset brackets to allow for panels that overhang the beams.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
