Product Family Overview


Single/Dual Sided Bar Stock Trees
SERIES: BAR

Starter unit includes two uprights and one set of cross braces. Storage room is increased when the add-on unit is ordered. Add-on unit consists of one upright and one set of cross braces for joining to the starter set. Capacity is 500 pounds per arm. Distance between levels is 10". There are 7 storage levels. Choose either single sided or double sided steel racks. Each upright requires four (4) anchor bolts, sold separately. Painted finish.

Starter unit includes two uprights and one set of cross braces. Storage room is increased when the add-on unit is ordered. Add-on unit consists of one upright and one set of cross braces for joining to the starter set. Capacity is 500 pounds per arm. Distance between levels is 10". There are 7 storage levels. Choose either single sided or double sided steel racks. Each upright requires four (4) anchor bolts, sold separately. Painted finish.

Additional Models In This Family

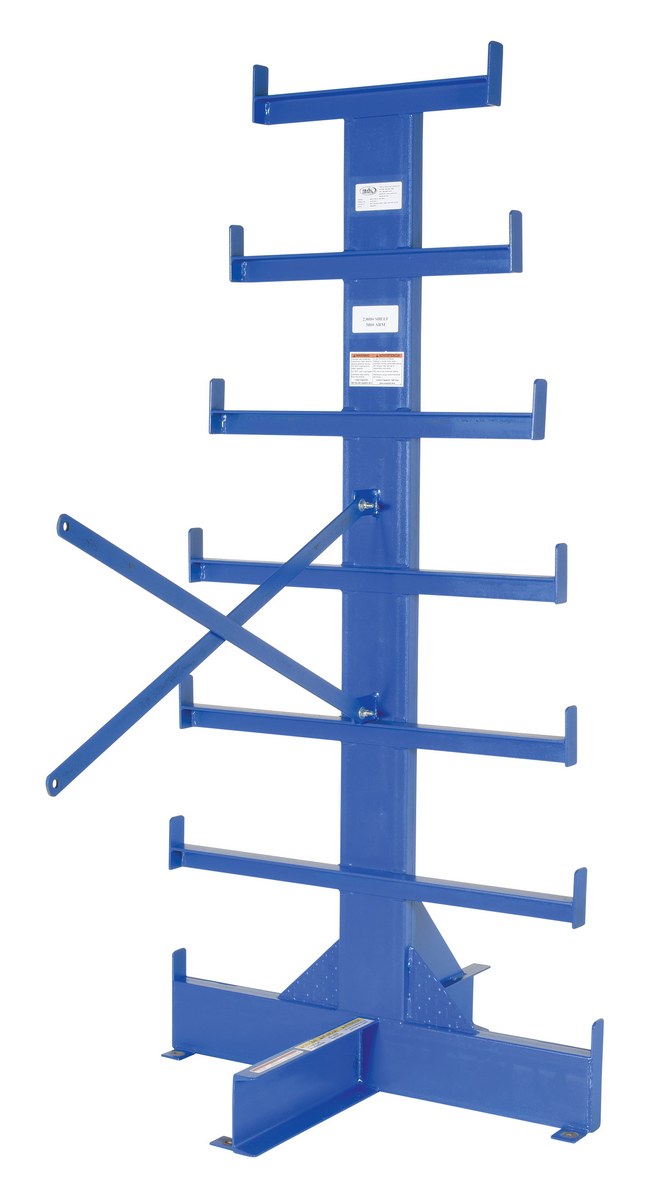

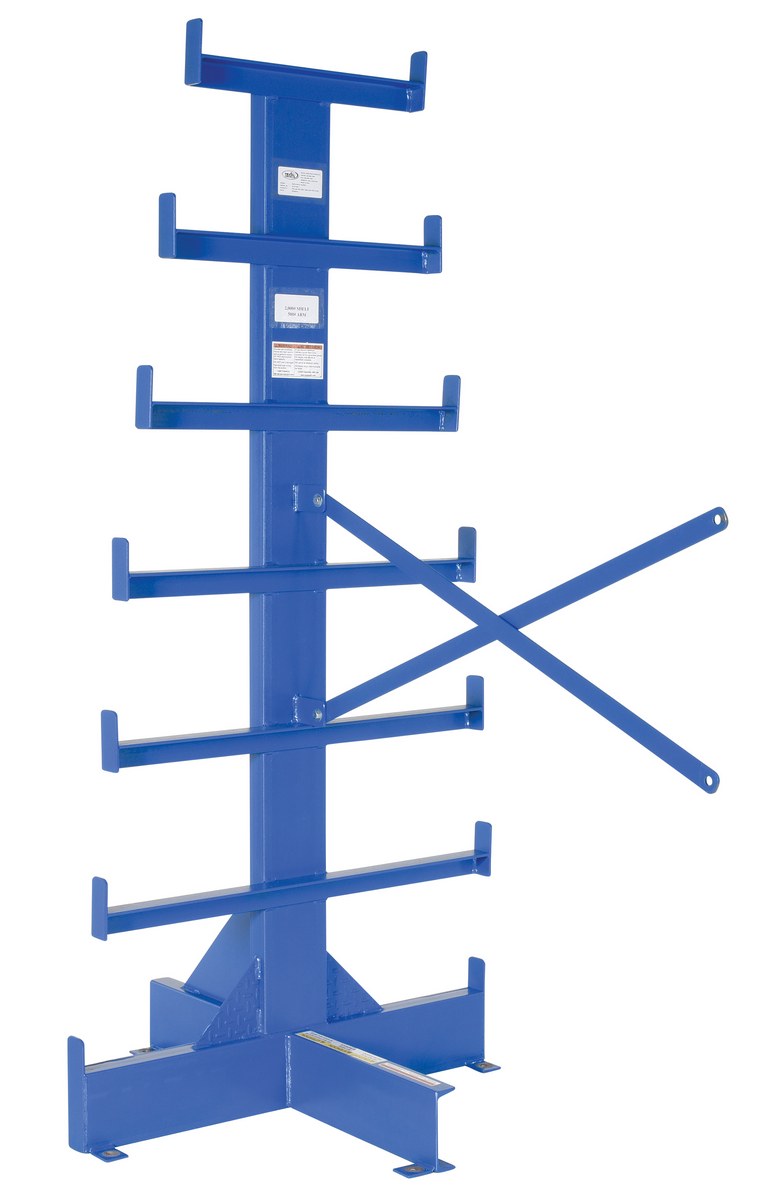

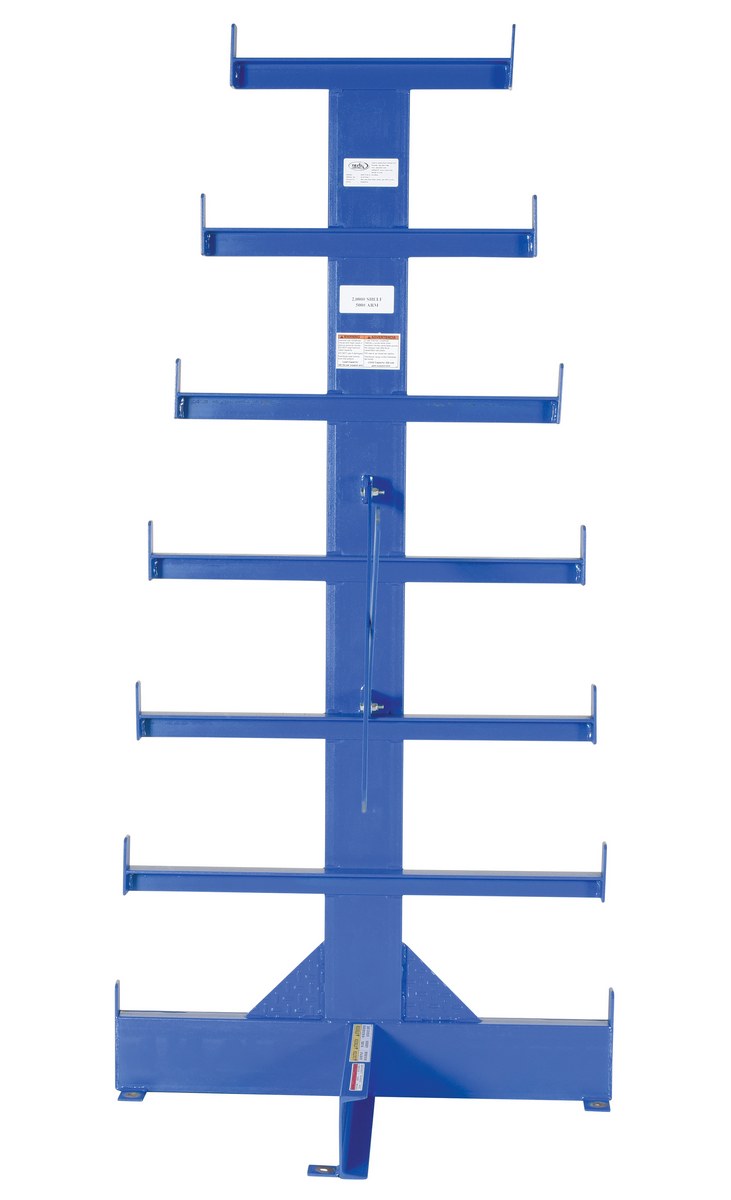

BAR-A-84-D

model BAR-A-84-D

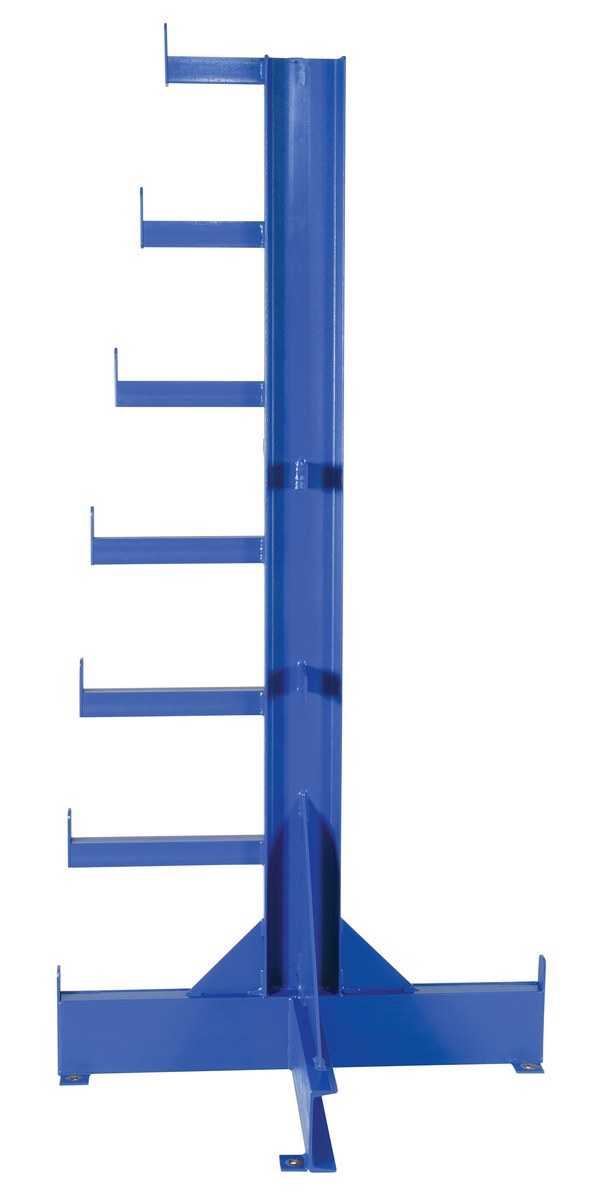

BAR-A-84-S

model BAR-A-84-S

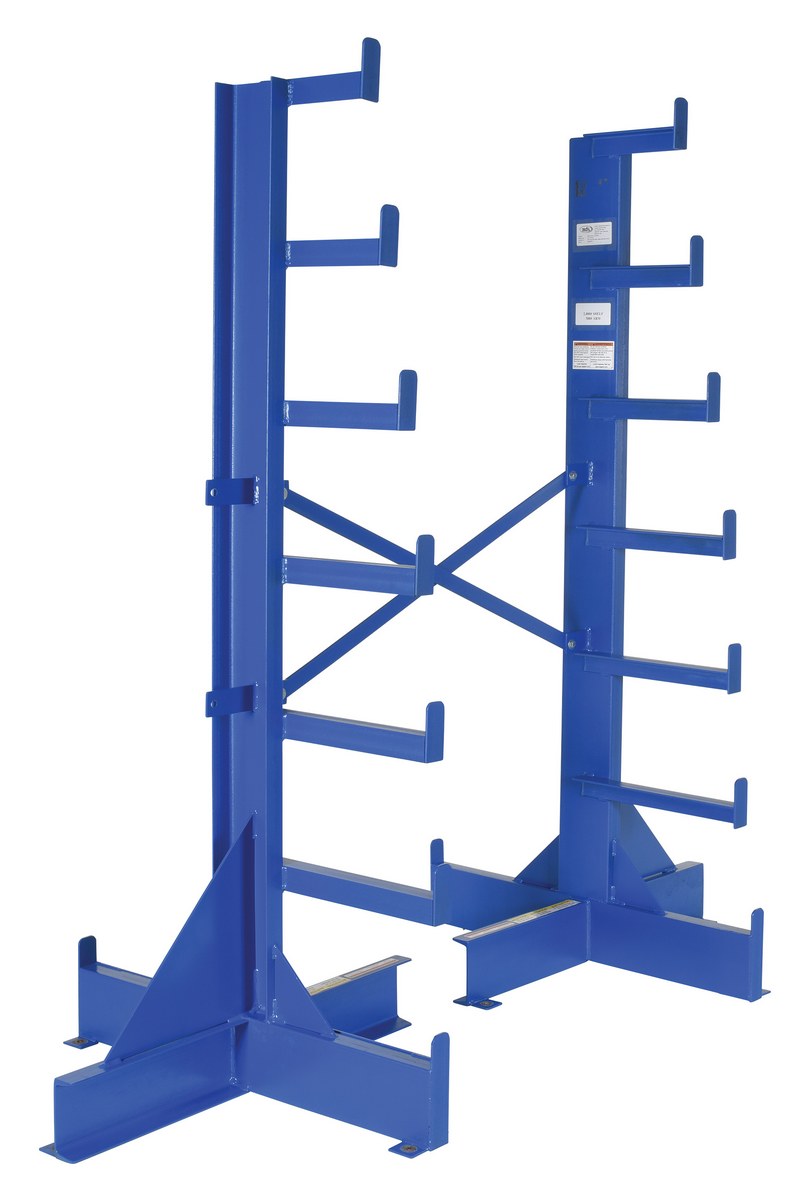

BAR-R-84-S

model BAR-R-84-S

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

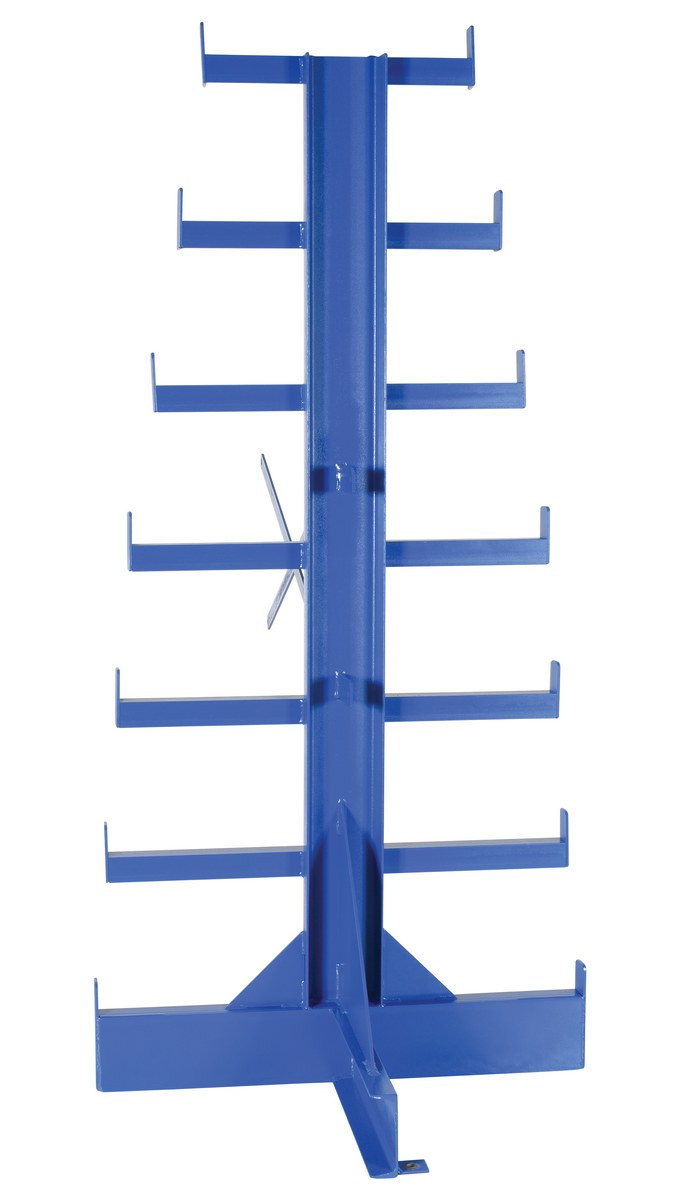

BAR-A-84-D BAR-A-84-D1 Year Limited WarrantySteel Bar Stock Tree Add On Double Sided 38-1/2 In. x 62 In. x 80-1/2 In. 500 Lb. Capacity BlueUniform Capacity per Arm (lb.): 500
Storage Level (qty.): 7
235

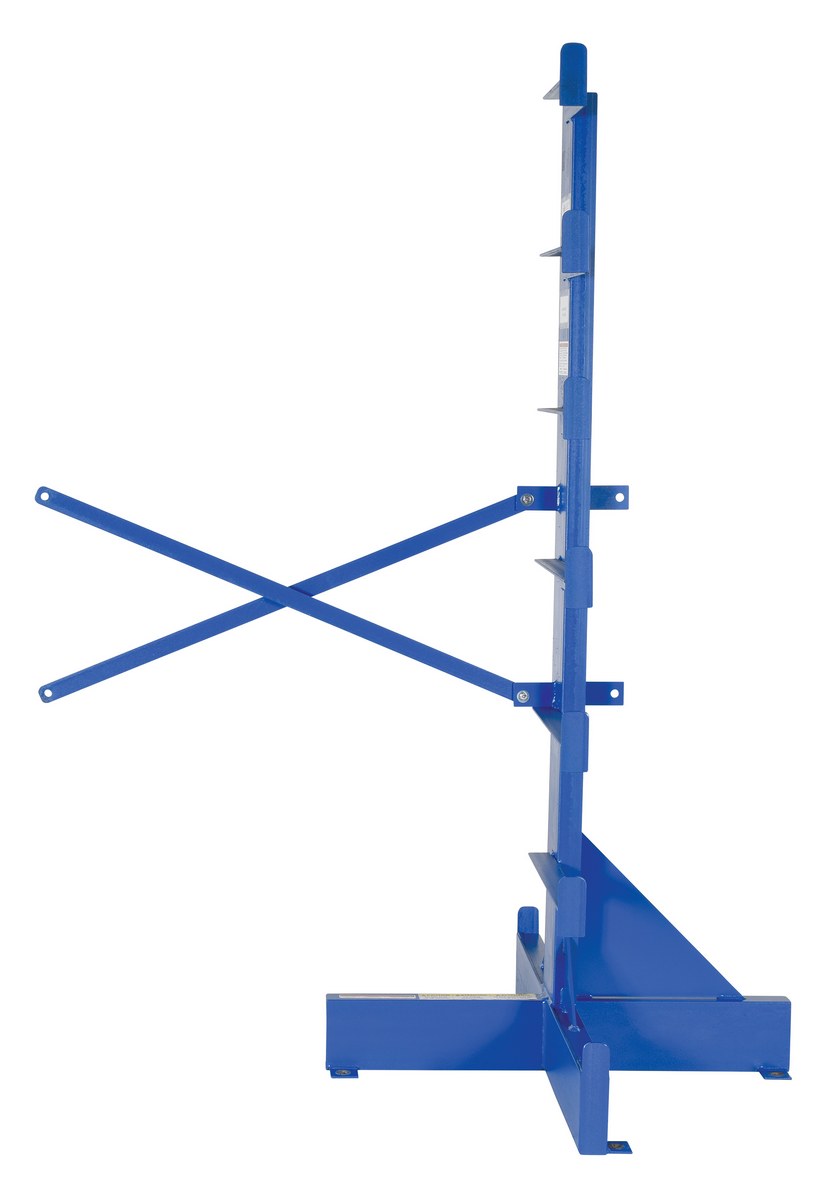

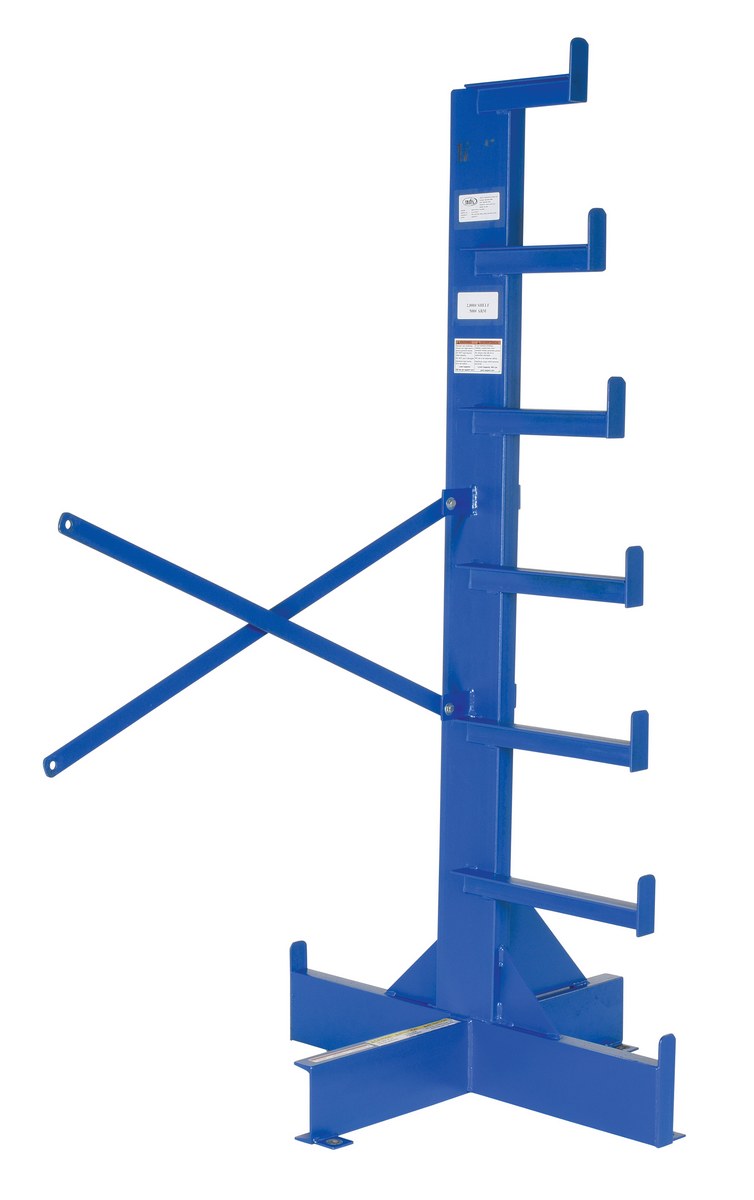

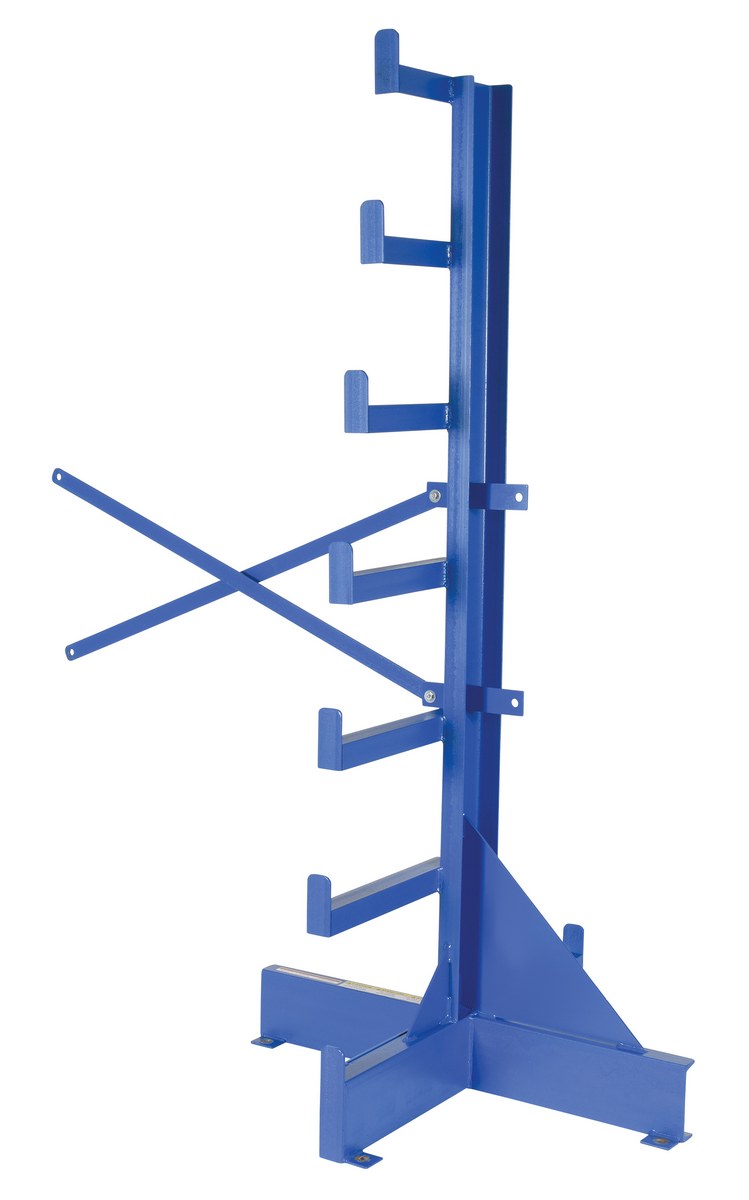

BAR-A-84-S BAR-A-84-S1 Year Limited WarrantySteel Bar Stock Tree Add On Single Sided 38-1/2 In. x 62 In. x 80-1/2 In. 500 Lb. Capacity BlueUniform Capacity per Arm (lb.): 500
Storage Level (qty.): 7
225

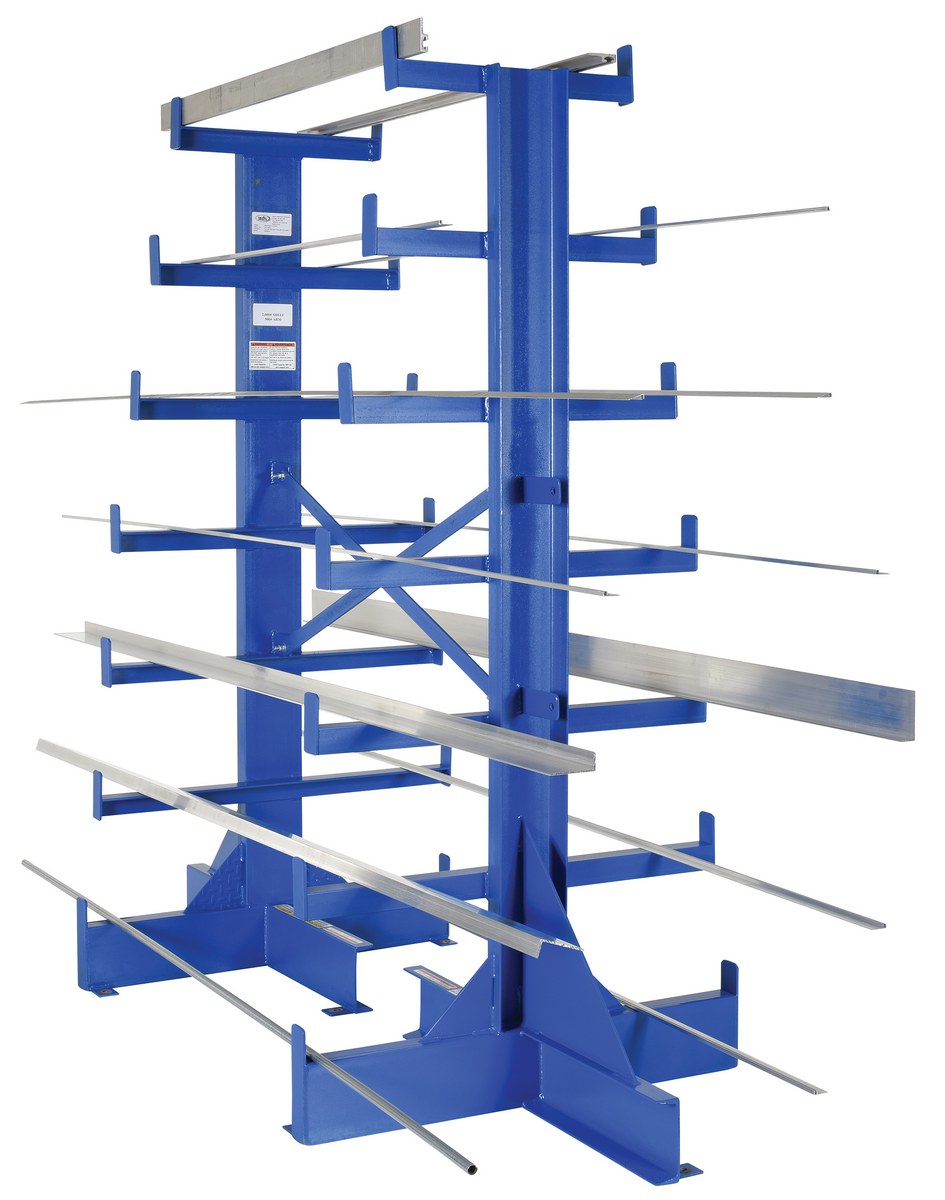

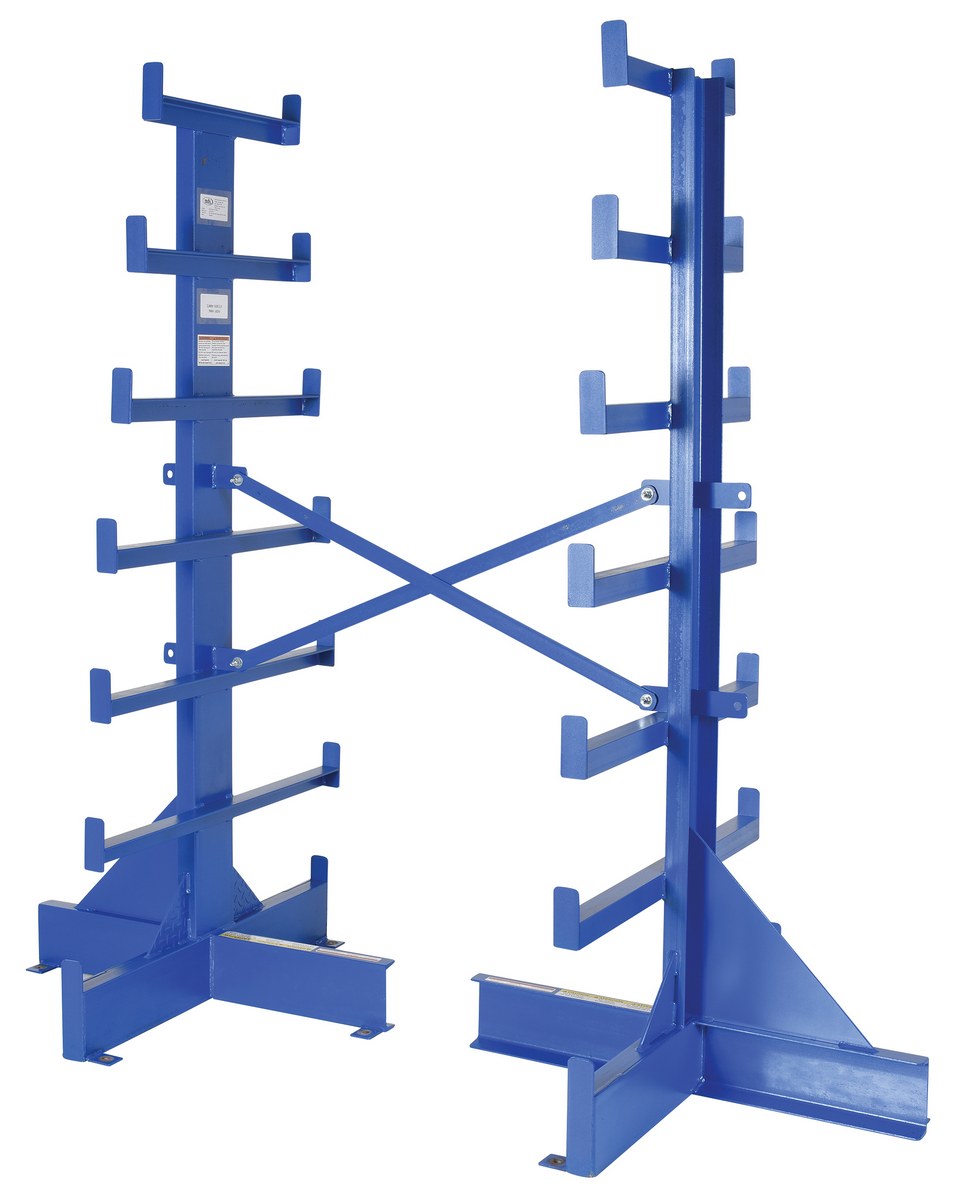

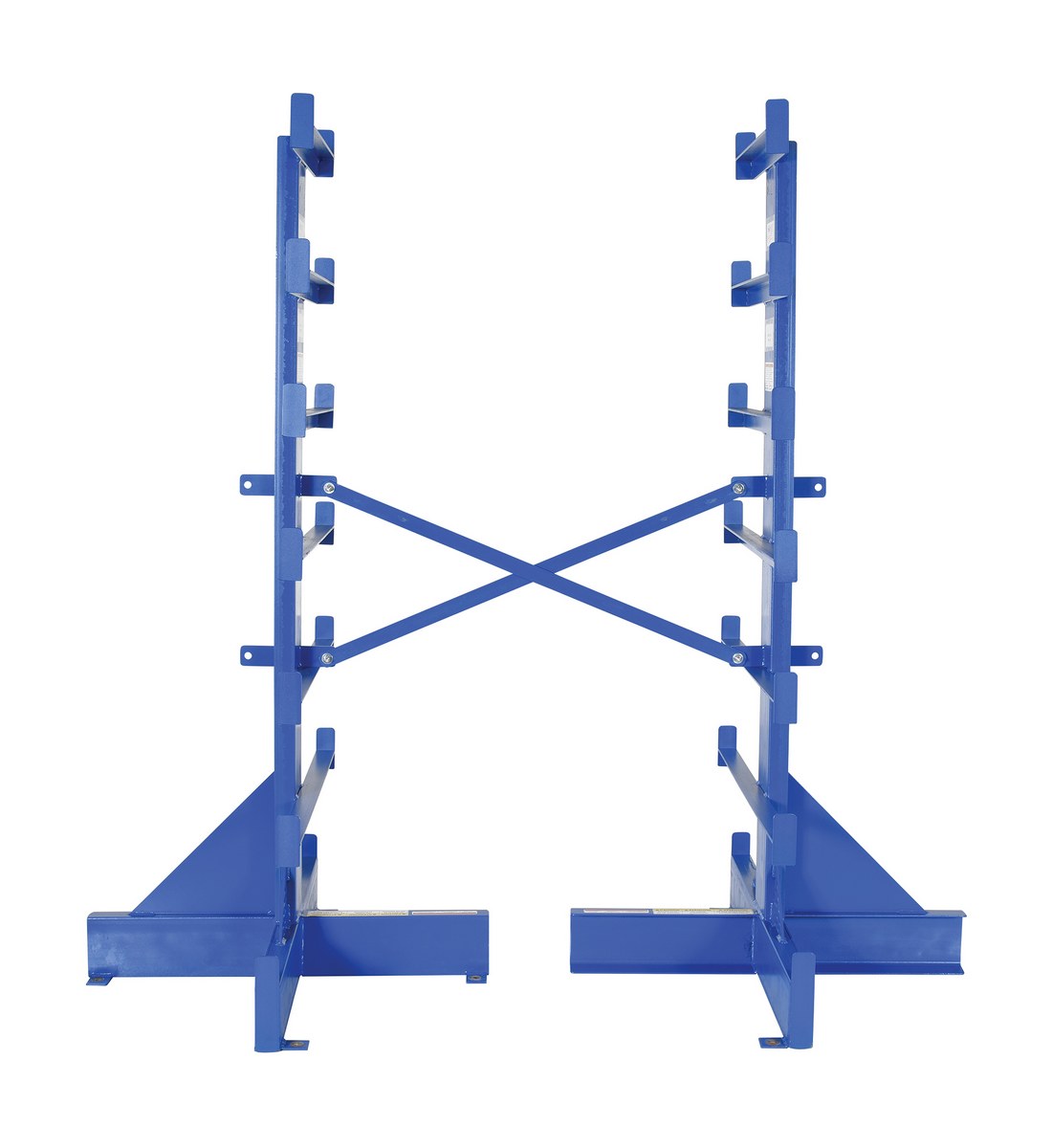

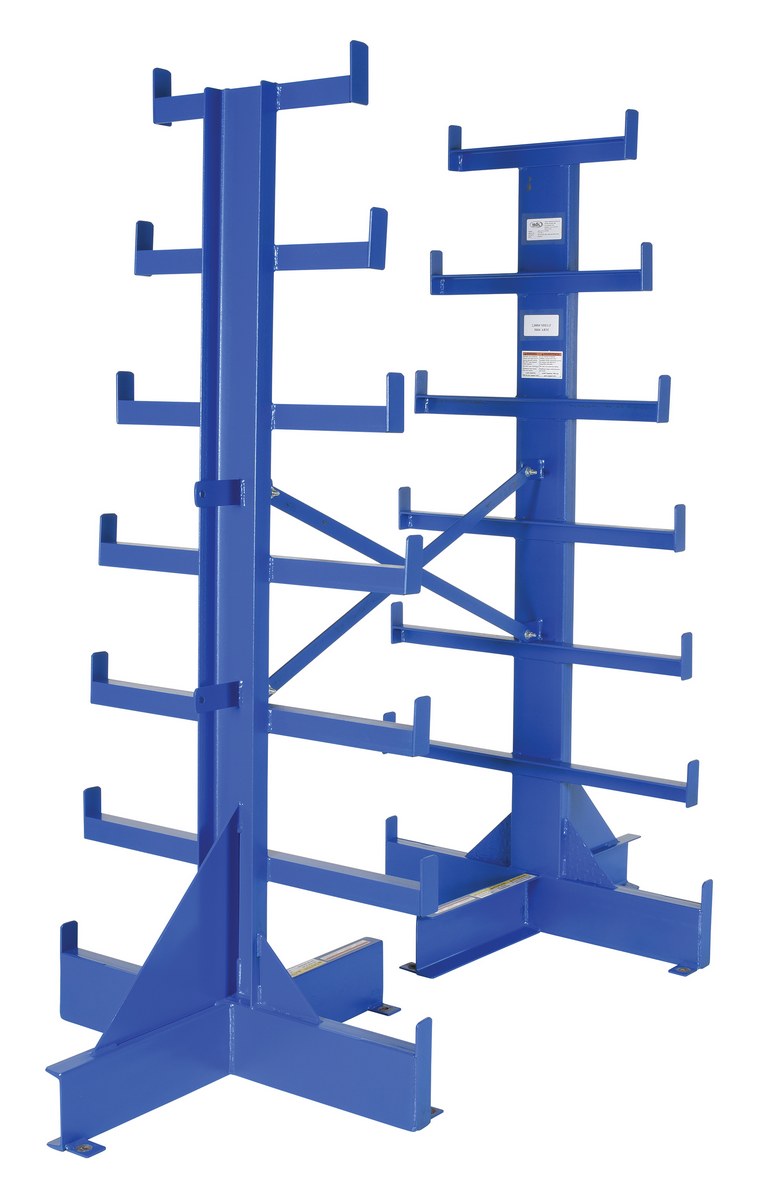

BAR-R-84-D BAR-R-84-D1 Year Limited WarrantySteel Dual Sided Bar Stock Tree Starter Unit 7 Levels 500 Lb. Capacity Per Arm BlueUniform Capacity per Arm (lb.): 500
Storage Level (qty.): 7
2690

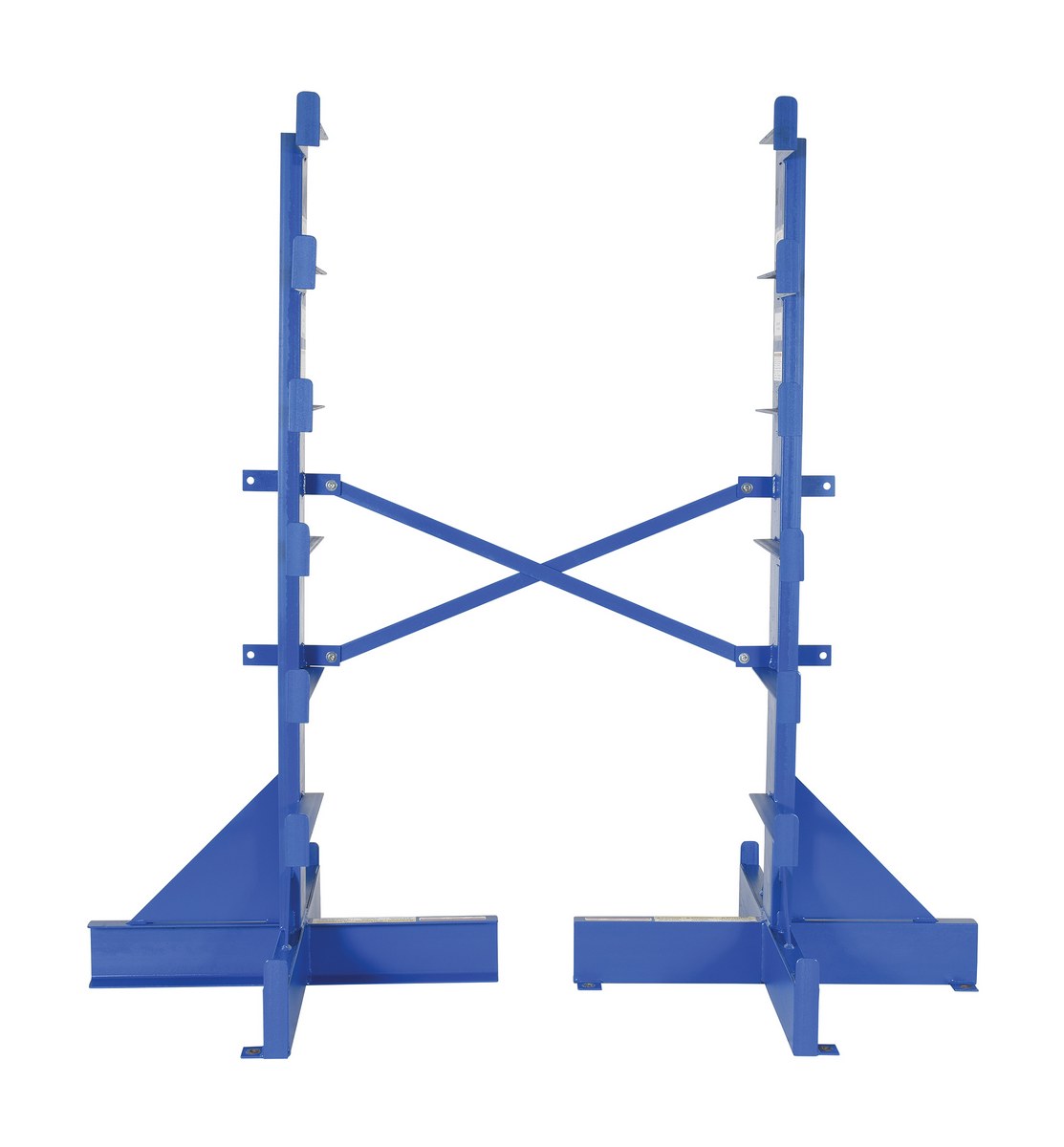

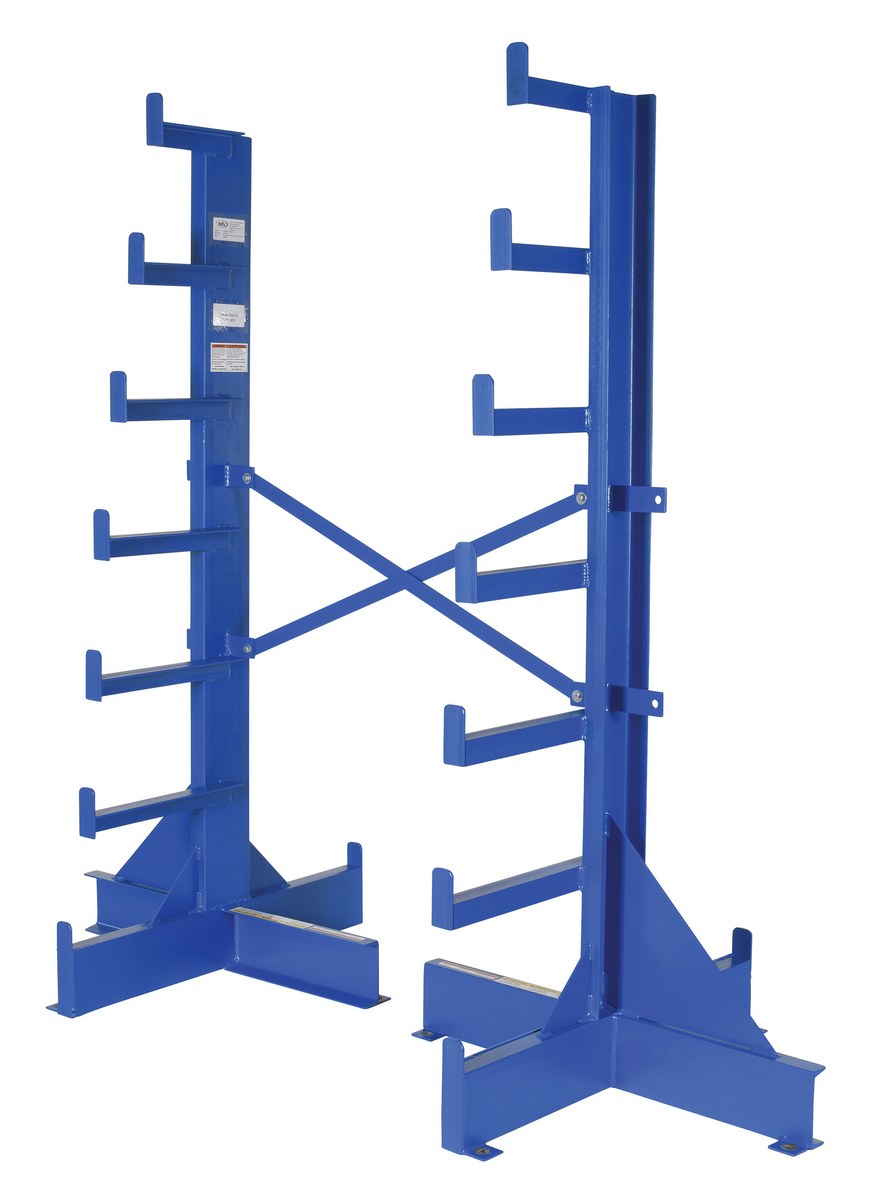

BAR-R-84-S BAR-R-84-S1 Year Limited WarrantySteel Single Sided Bar Stock Tree Starter Unit 7 Levels 500 Lb. Capacity Per Arm BlueUniform Capacity per Arm (lb.): 500
Storage Level (qty.): 7
2420

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

BAR-A-84-D
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Arm (lb.): 500
Storage Level (qty.): 7
Uniform Capacity per Arm (lb.): 500
Storage Level (qty.): 7

BAR-A-84-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Arm (lb.): 500
Storage Level (qty.): 7
Uniform Capacity per Arm (lb.): 500
Storage Level (qty.): 7

BAR-R-84-D
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Arm (lb.): 500
Storage Level (qty.): 7
Uniform Capacity per Arm (lb.): 500
Storage Level (qty.): 7

BAR-R-84-S
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity per Arm (lb.): 500
Storage Level (qty.): 7
Uniform Capacity per Arm (lb.): 500
Storage Level (qty.): 7
For More Details of the Option Click the Red Model Button
Model Image Description Quantity
AS-124-4PK Anchor bolts for concrete (4) 1/2" x 4" 4
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Single/Dual Sided Bar Stock Trees PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


BAR-A-84-D

BAR-A-84-S

BAR-R-84-D

BAR-R-84-S

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Single/Dual Sided Bar Stock Trees




Starter unit includes two uprights and one set of cross braces. Storage room is increased when the add-on unit is ordered. Add-on unit consists of one upright and one set of cross braces for joining to the starter set. Capacity is 500 pounds per arm. Distance between levels is 10". There are 7 storage levels. Choose either single sided or double sided steel racks. Each upright requires four (4) anchor bolts, sold separately. Painted finish.



Model # Description Attributes Net Wt.
(lbs)
BAR-A-84-D BAR-A-84-DSteel Bar Stock Tree Add On Double Sided 38-1/2 In. x 62 In. x 80-1/2 In. 500 Lb. Capacity BlueUniform Capacity per Arm (lb.): 500
Storage Level (qty.): 7
235
BAR-A-84-S BAR-A-84-SSteel Bar Stock Tree Add On Single Sided 38-1/2 In. x 62 In. x 80-1/2 In. 500 Lb. Capacity BlueUniform Capacity per Arm (lb.): 500
Storage Level (qty.): 7
225
BAR-R-84-D BAR-R-84-DSteel Dual Sided Bar Stock Tree Starter Unit 7 Levels 500 Lb. Capacity Per Arm BlueUniform Capacity per Arm (lb.): 500
Storage Level (qty.): 7
460
BAR-R-84-S BAR-R-84-SSteel Single Sided Bar Stock Tree Starter Unit 7 Levels 500 Lb. Capacity Per Arm BlueUniform Capacity per Arm (lb.): 500
Storage Level (qty.): 7
210

Options


Model Image Description Quantity
AS-124-4PK Anchor bolts for concrete (4) 1/2" x 4" 4
