Product Family Overview


Polyurethane Casters
SERIES: CST-VE-PUA

Polyurethane is ideal for most environments. It is resistant to a variety of chemicals, and produces an easy roll for ergonomic applications. It also provides good floor preservation and works effectively in both indoor and outdoor environments. In this series, the polyurethane is bonded to a lightweight, water resistant aluminum core for longer lasting durability.

  • Non-marking
  • Lightweight rust resistant aluminum core
  • Sealed raceway
  • Chemical & moisture resistant
  • Anti-corrosive & rust resistant zinc plated finish
  • Hardened bearing raceway
  • Precision ball bearings

Polyurethane is ideal for most environments. It is resistant to a variety of chemicals, and produces an easy roll for ergonomic applications. It also provides good floor preservation and works effectively in both indoor and outdoor environments. In this series, the polyurethane is bonded to a lightweight, water resistant aluminum core for longer lasting durability.

  • Non-marking
  • Lightweight rust resistant aluminum core
  • Sealed raceway
  • Chemical & moisture resistant
  • Anti-corrosive & rust resistant zinc plated finish
  • Hardened bearing raceway
  • Precision ball bearings

Additional Models In This Family

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size
Type Capacity
(lbs.)
Overall
Height
Top Plate
Size
Net Wt.
(lbs)

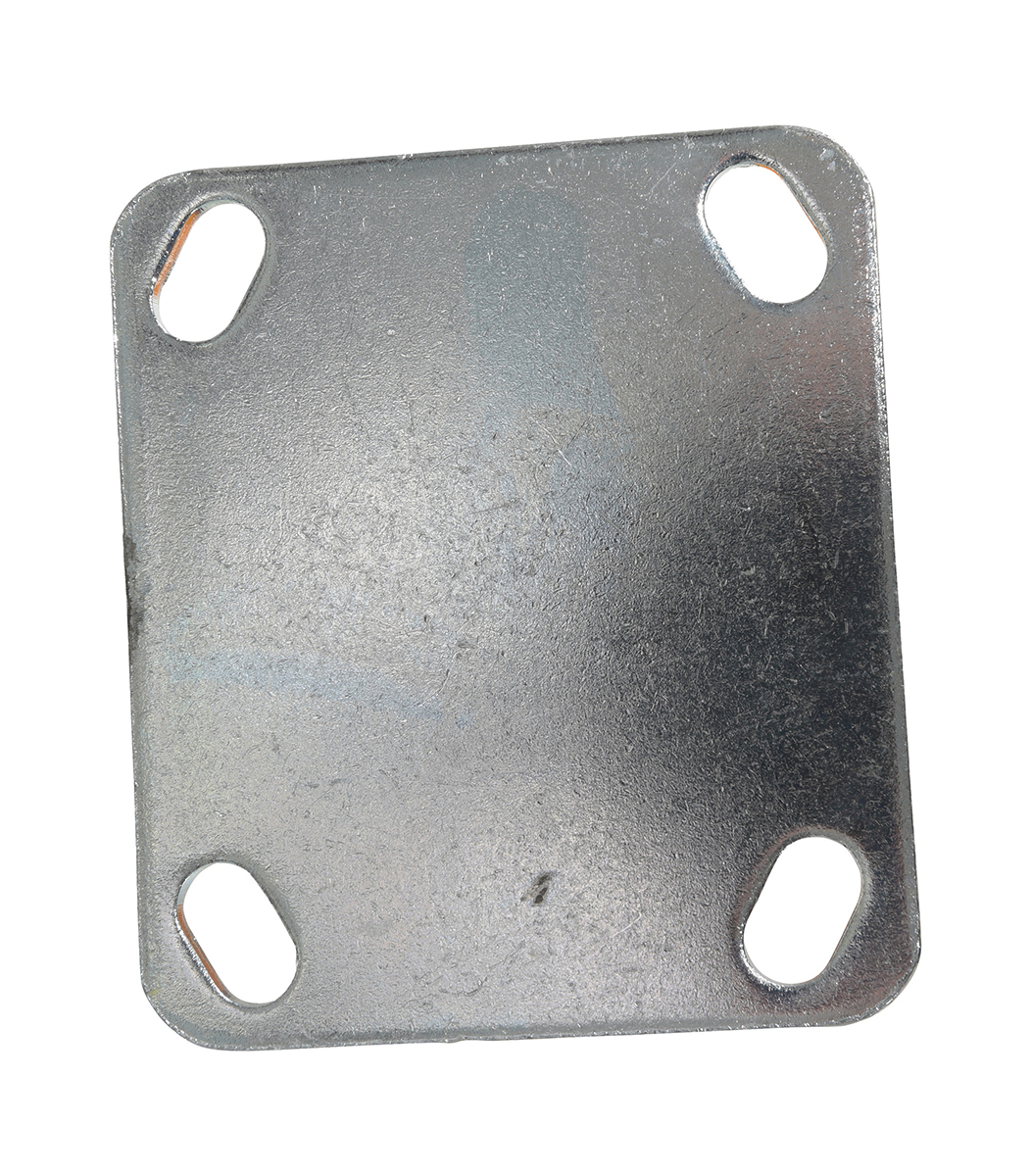

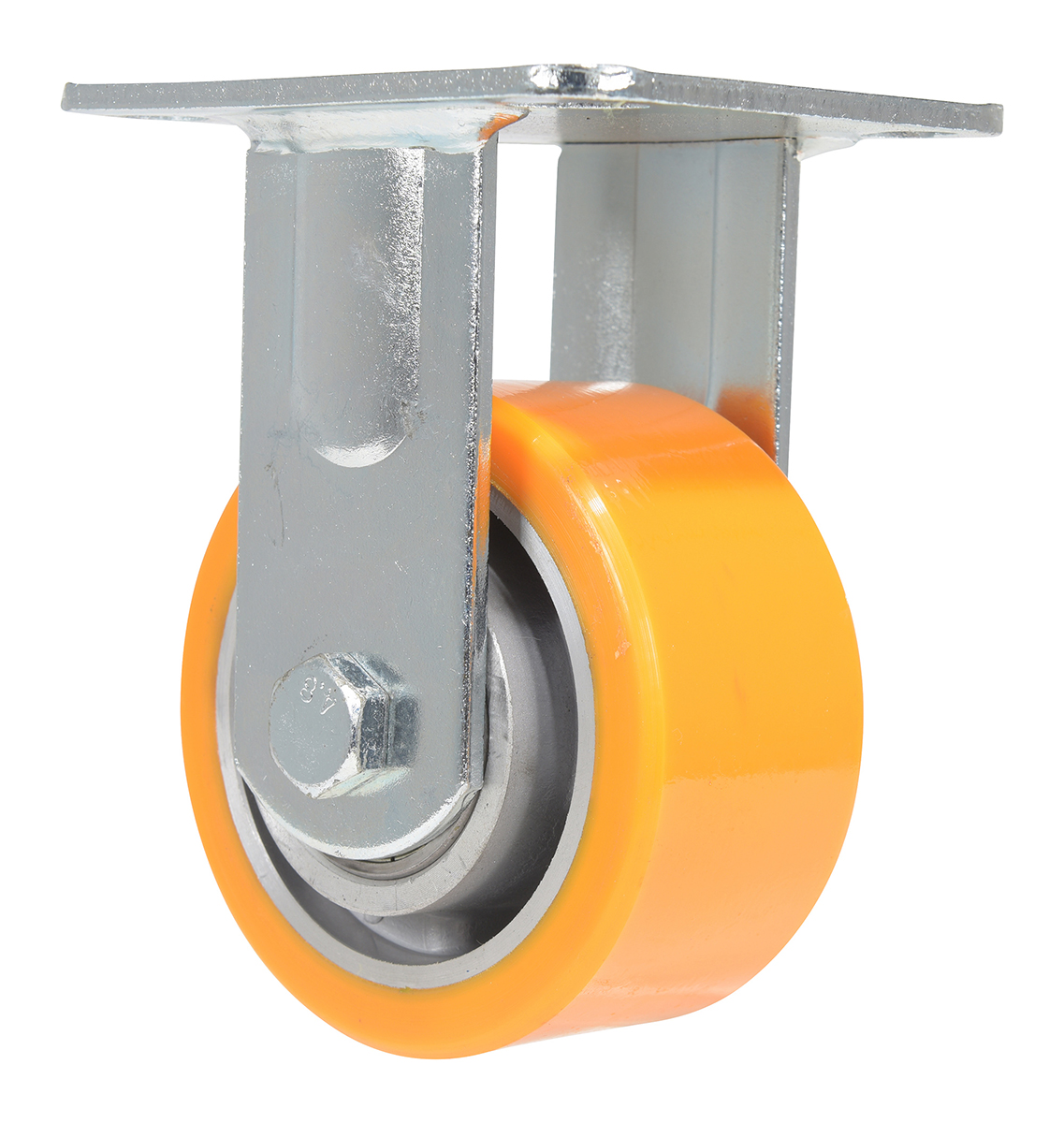

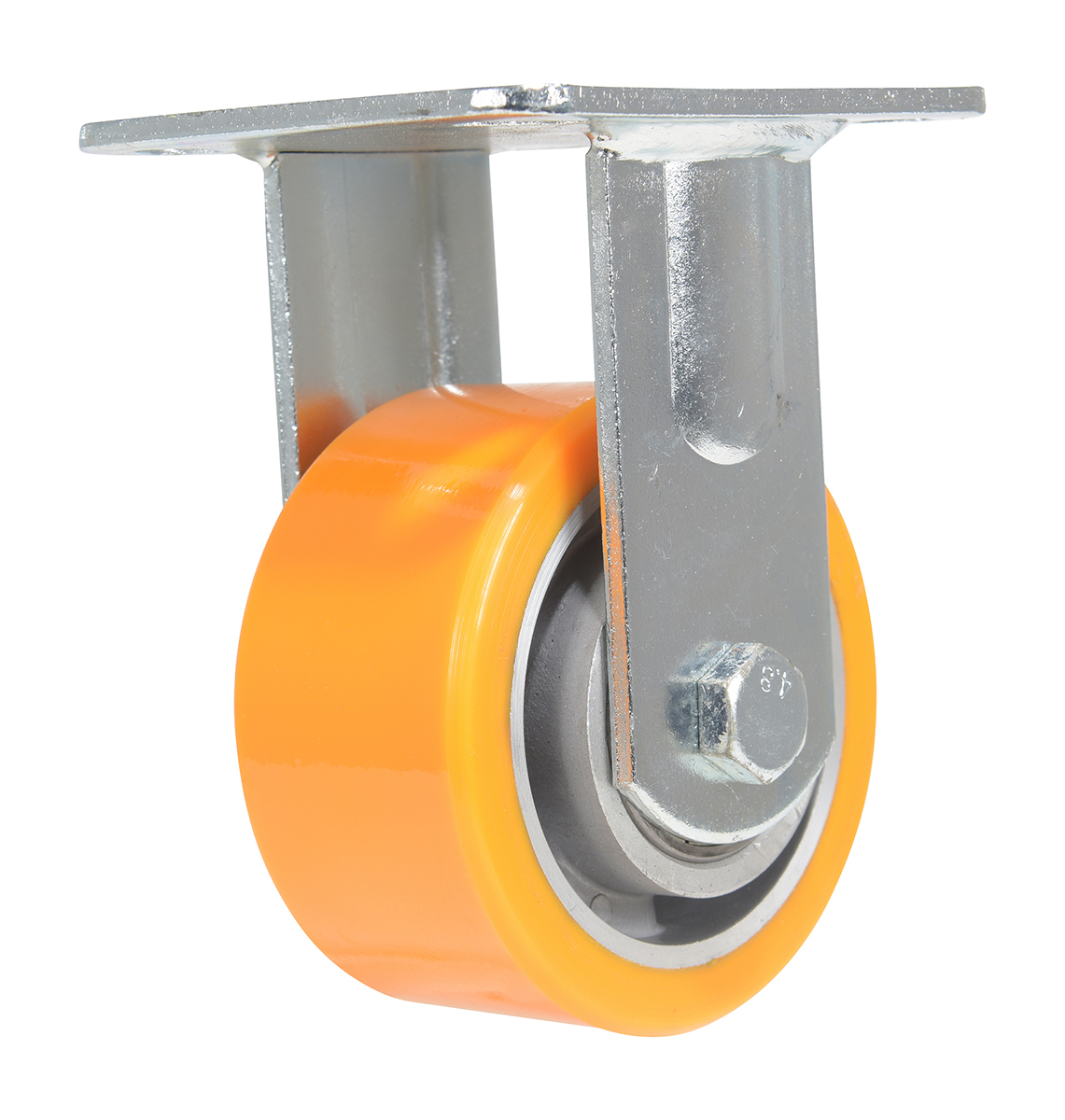

CST-VE-4X2PUA-R CST-VE-4X2PUA-R1 YEAR Limited Warranty4 x 2RIGID6605-1/2 4 x 4-1/23.59

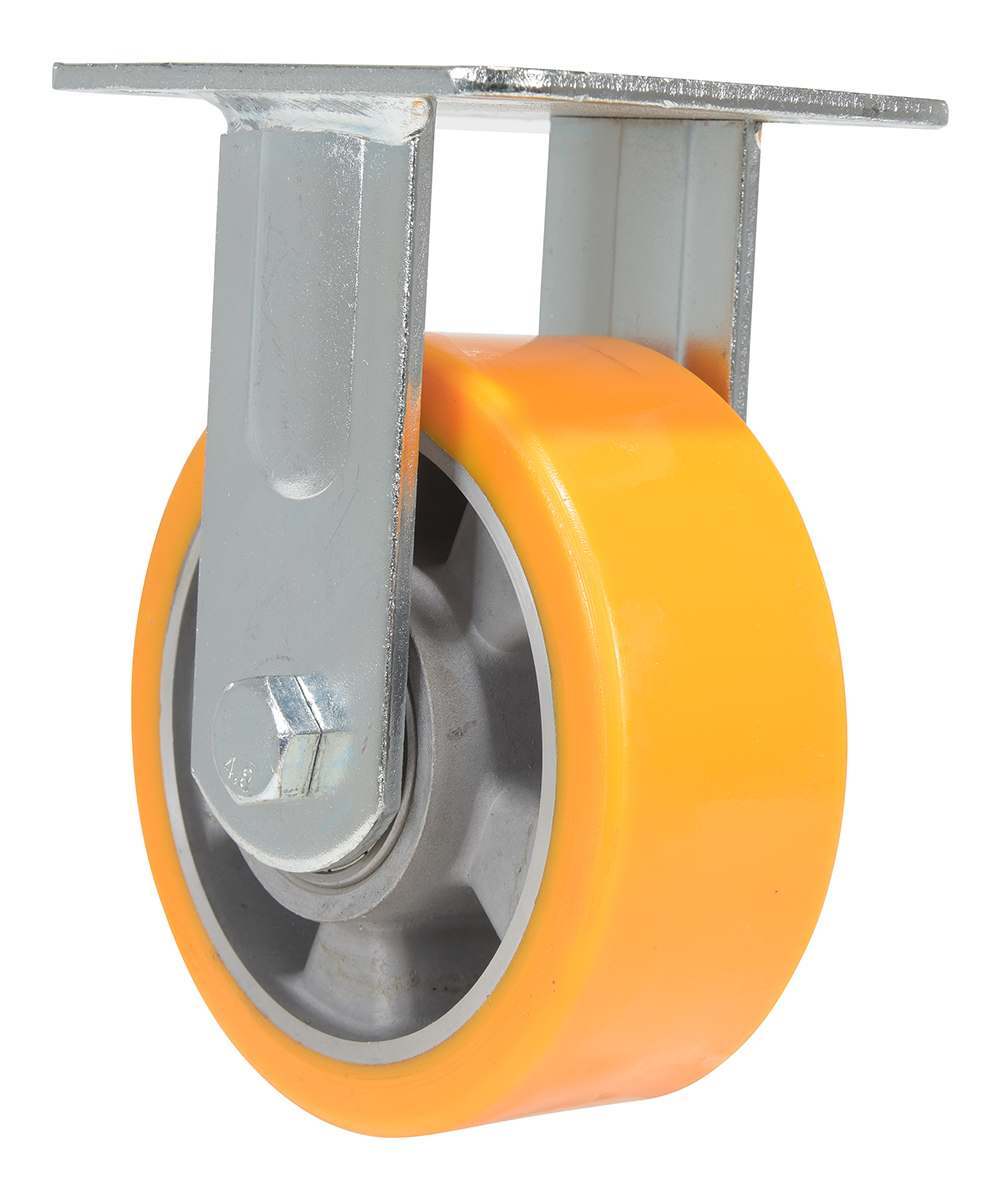

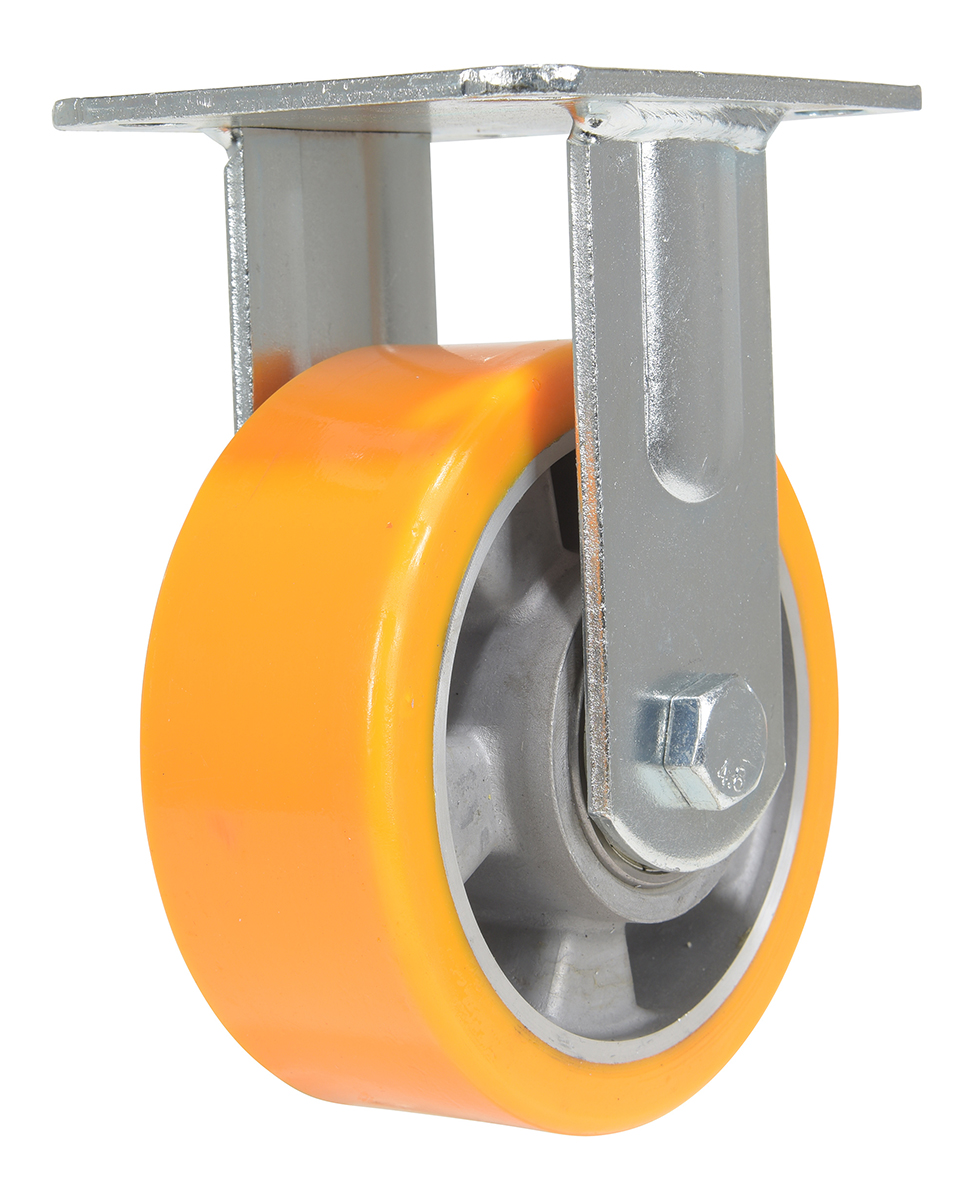

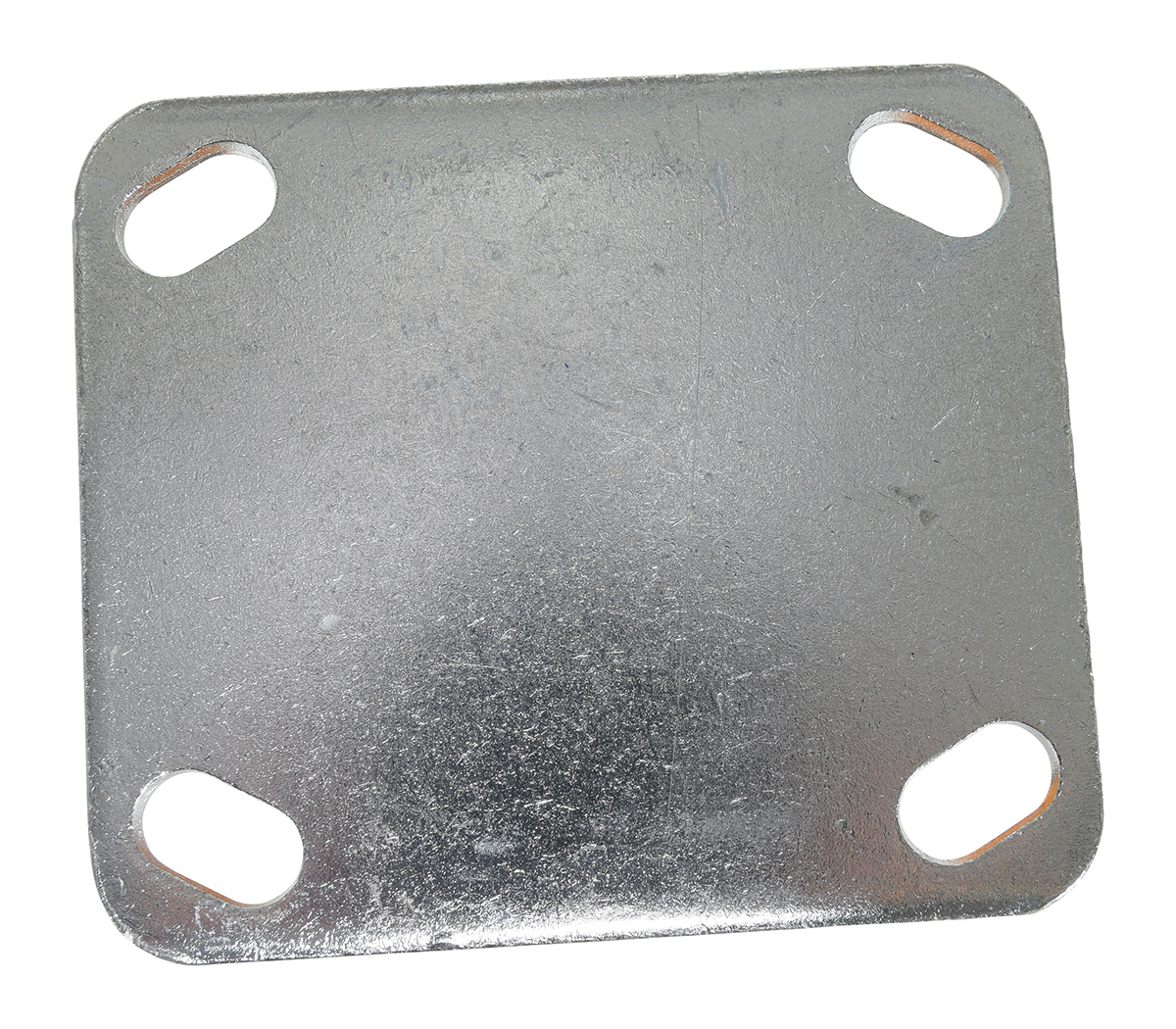

CST-VE-5X2PUA-R CST-VE-5X2PUA-R1 YEAR Limited Warranty5 x 2RIGID9906-1/2 4 x 4-1/24.04

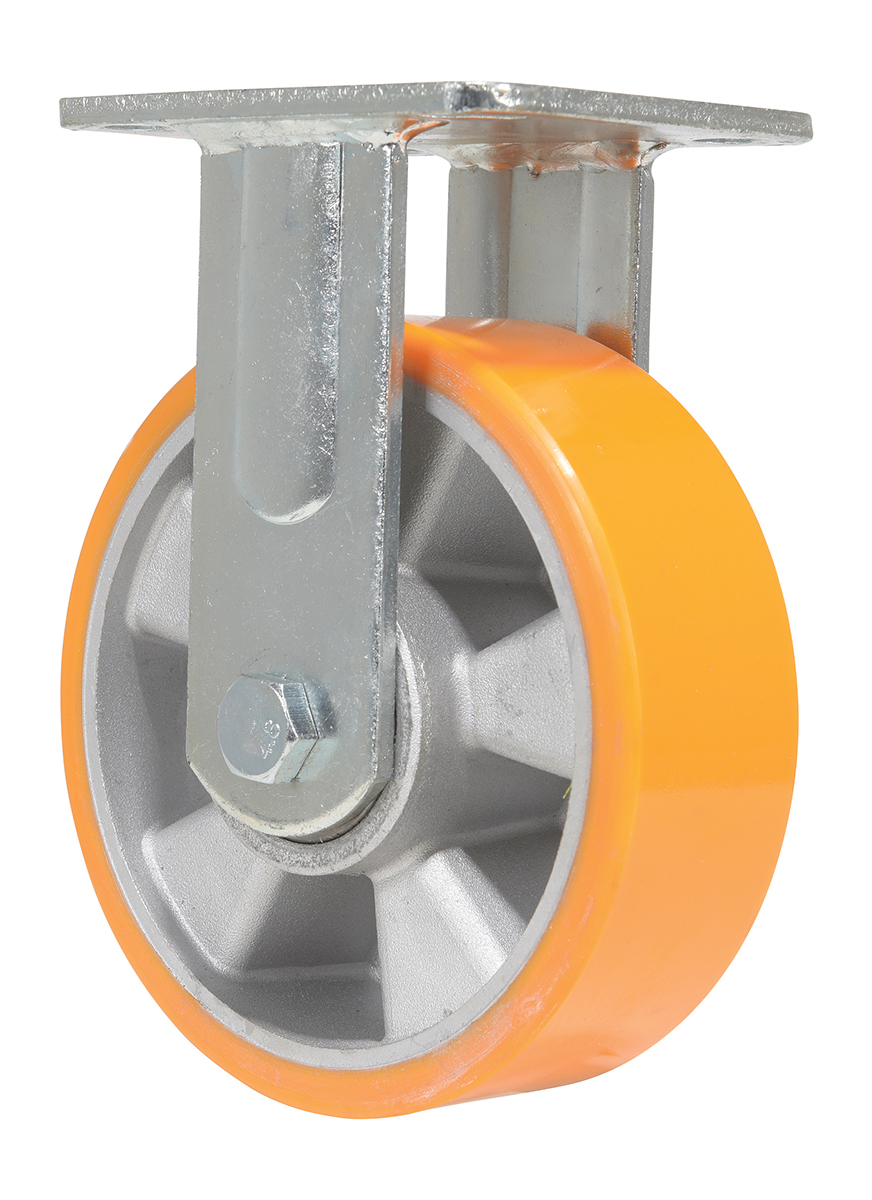

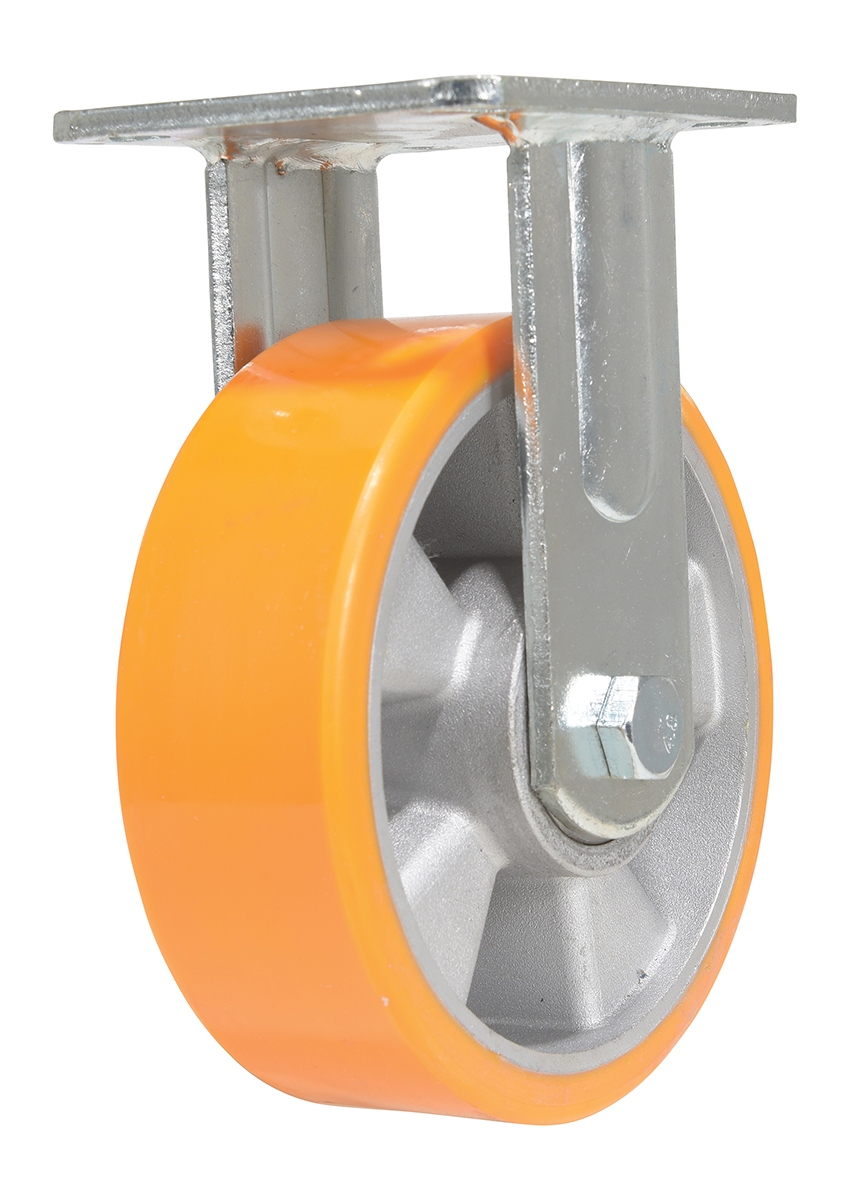

CST-VE-6X2PUA-R CST-VE-6X2PUA-R1 Year Limited Warranty6 x 2RIGID12127-1/2 4 x 4-1/27.06

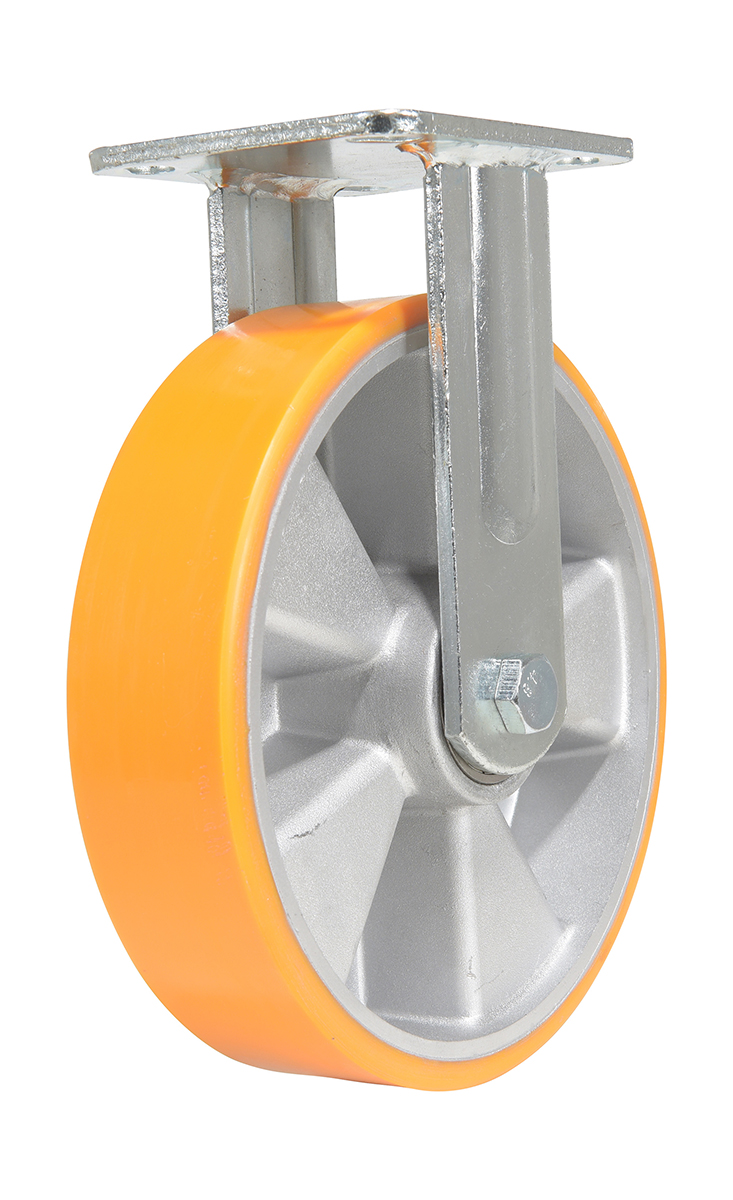

CST-VE-8X2PUA-R CST-VE-8X2PUA-R1 Year Limited Warranty8 x 2RIGID15439-7/16 4 x 4-1/29.9

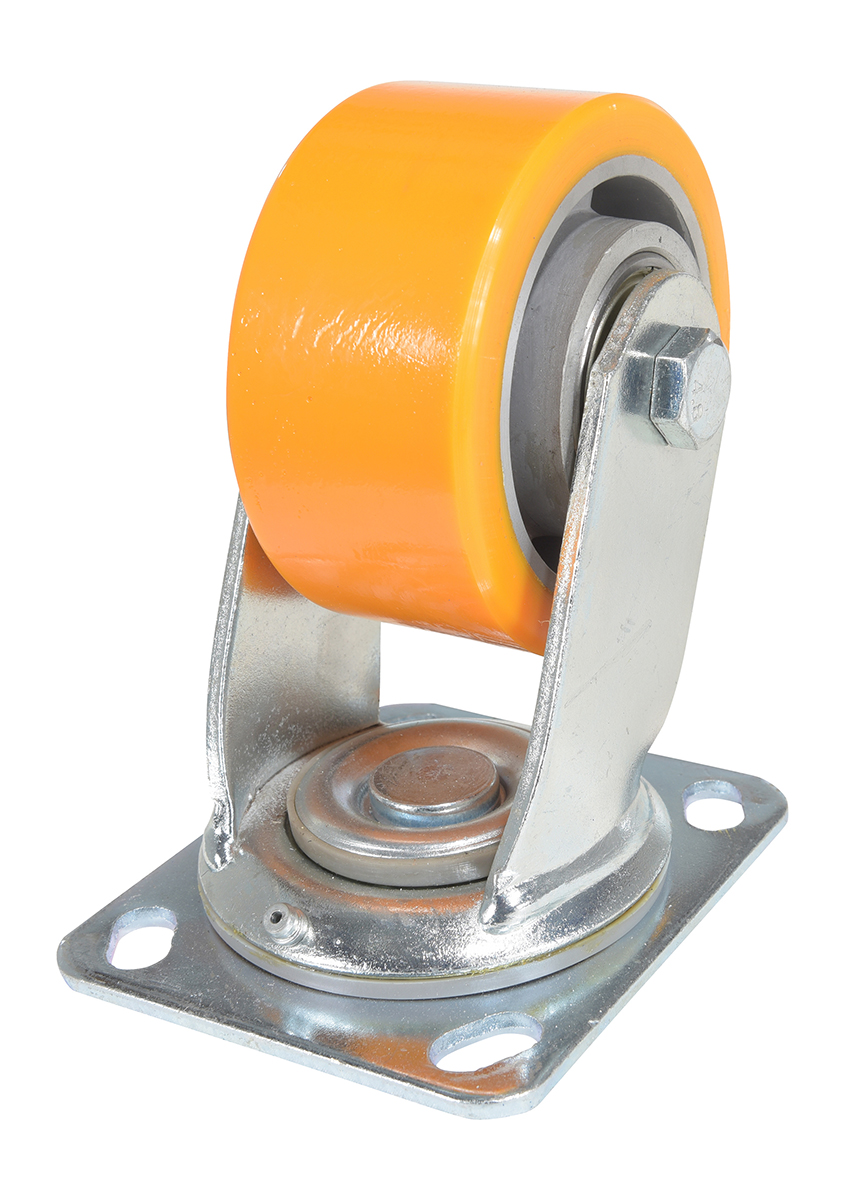

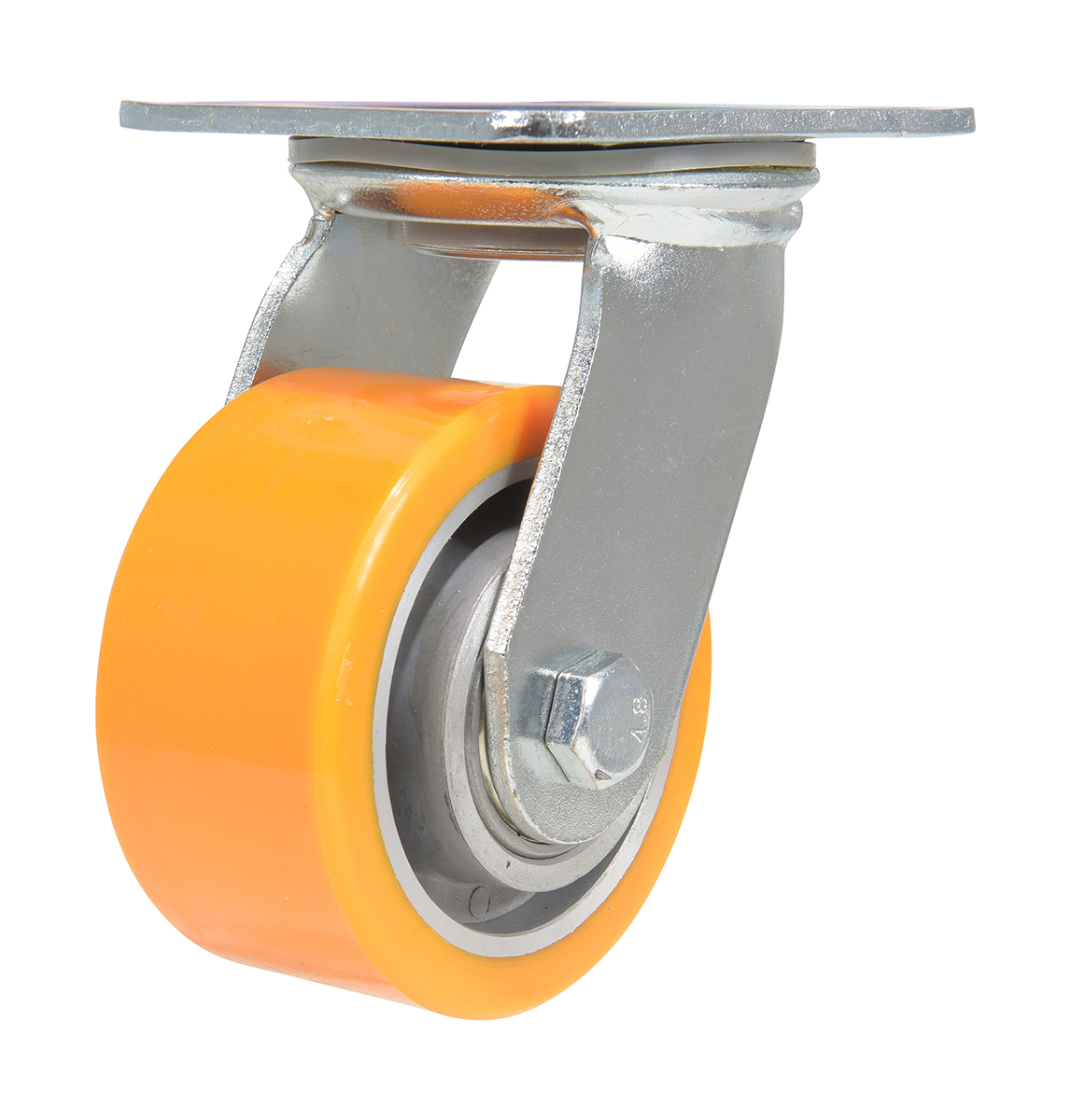

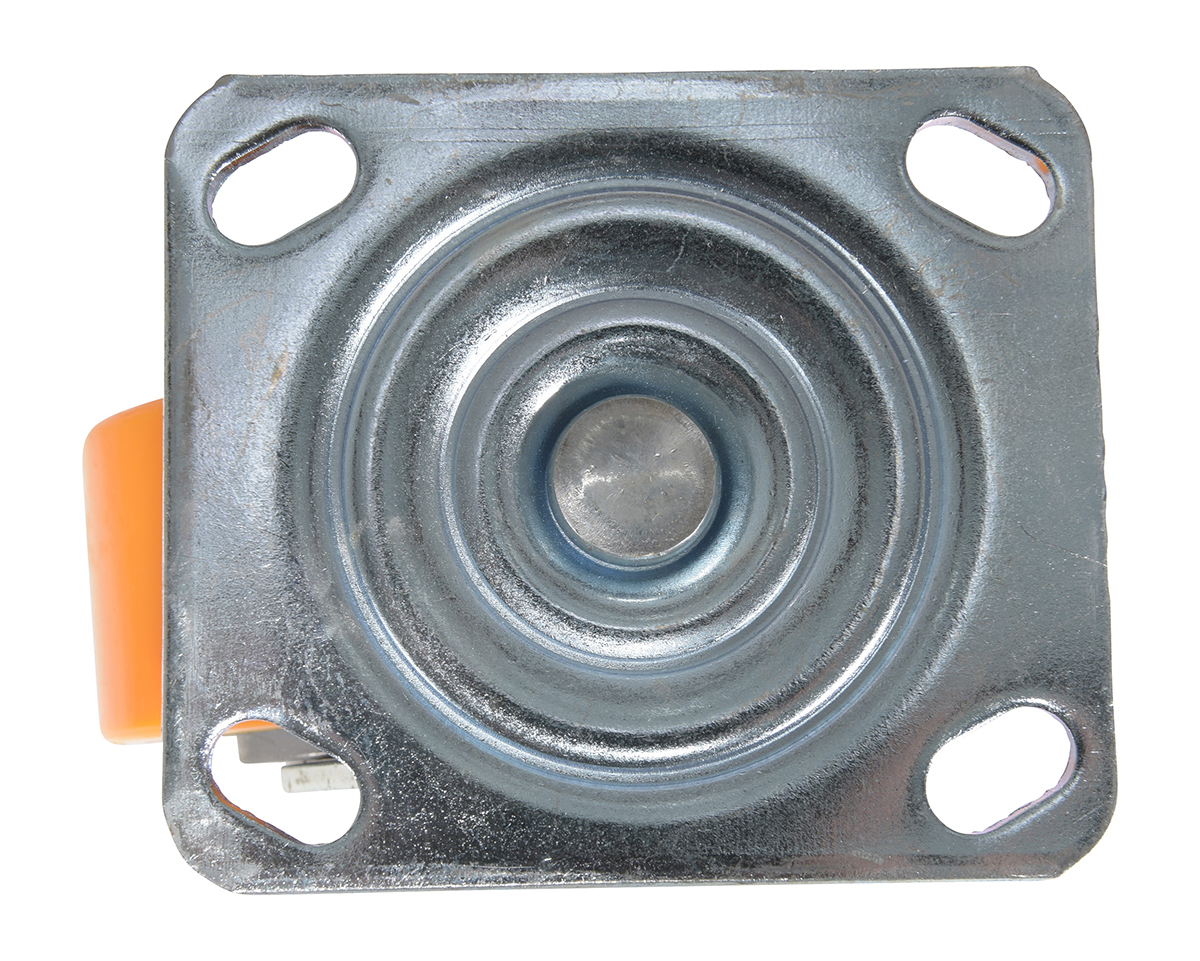

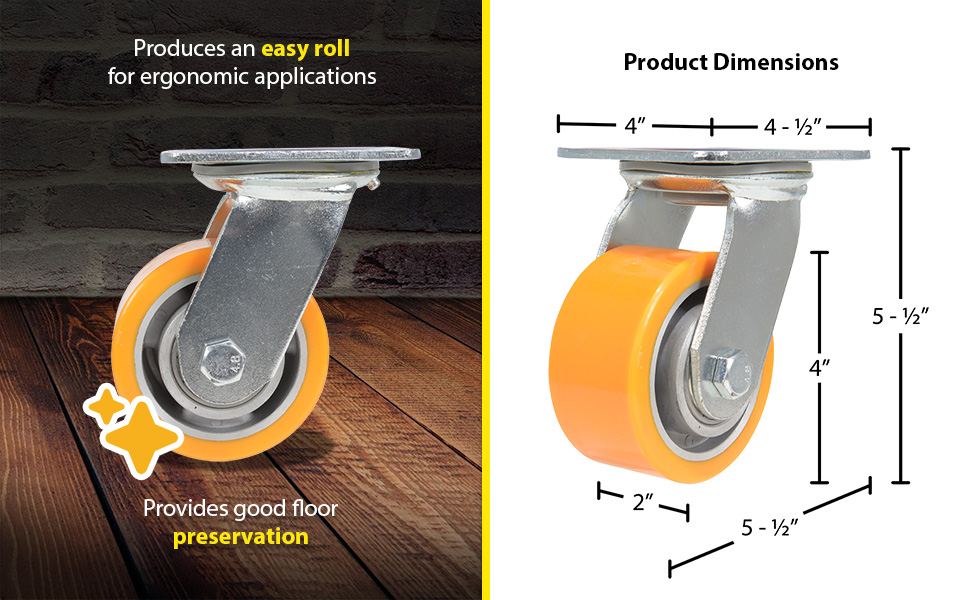

CST-VE-4X2PUA-S CST-VE-4X2PUA-S1 YEAR Limited Warranty4 x 2SWIVEL6605-1/2 4 x 4-1/24.4

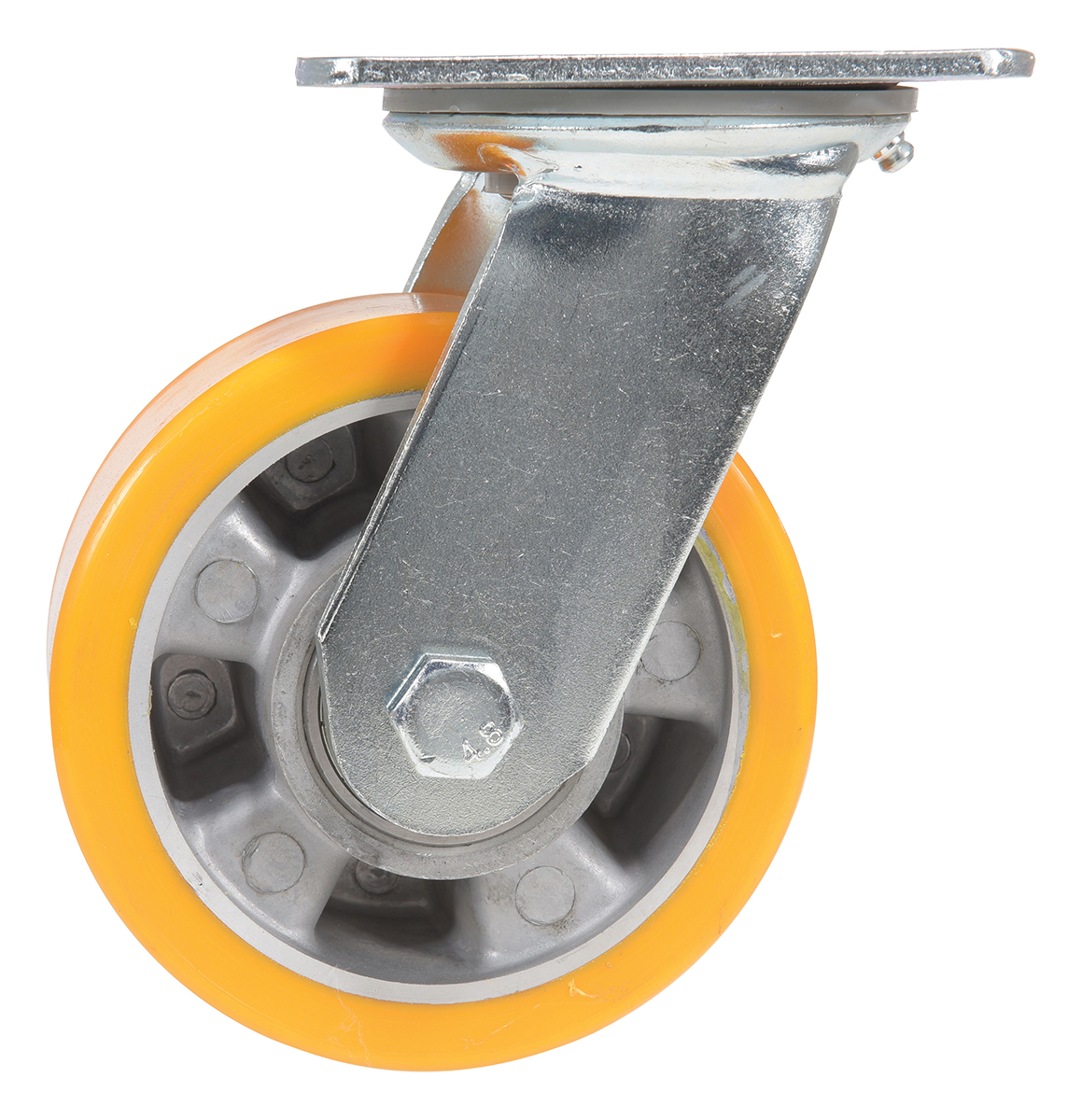

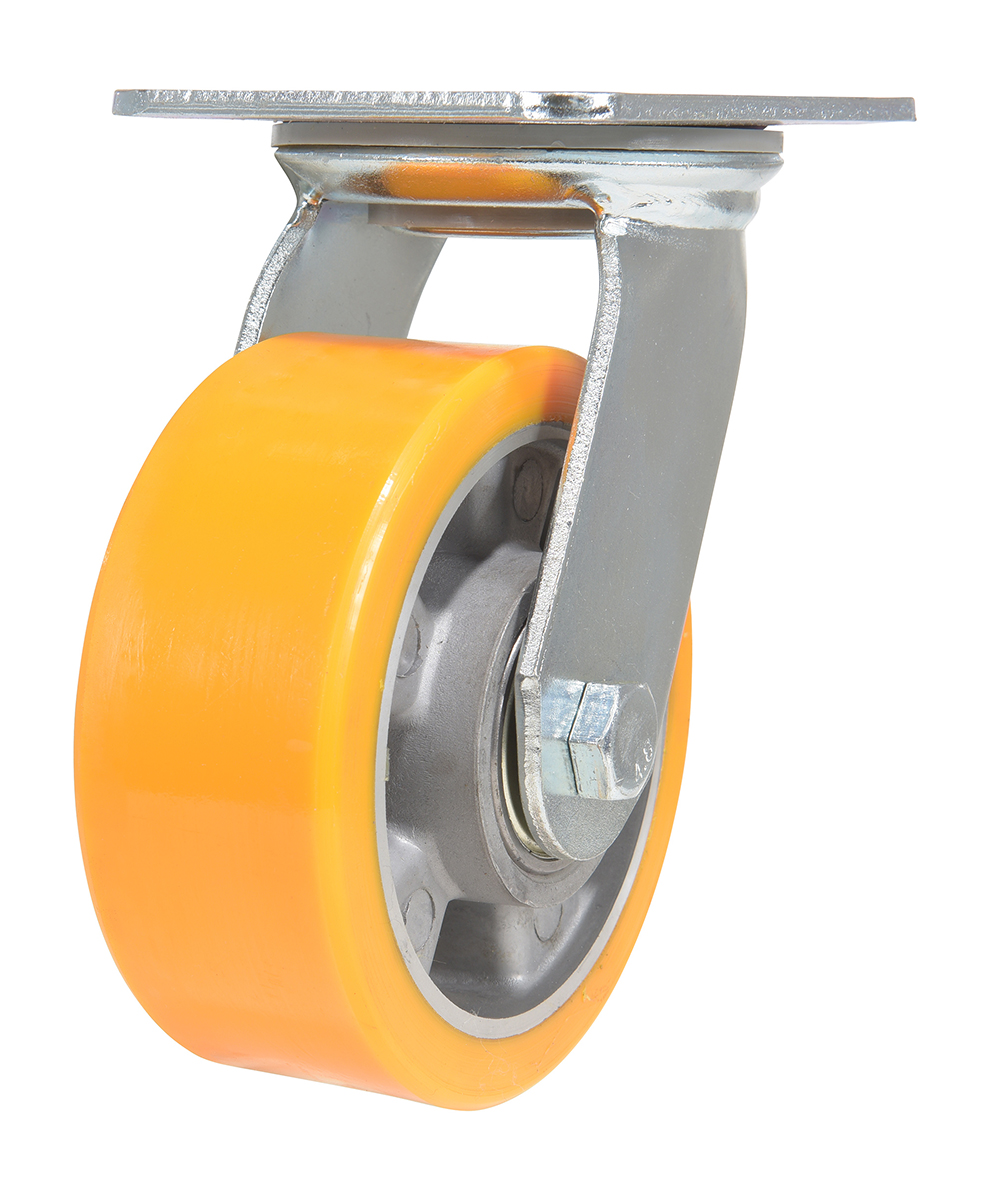

CST-VE-5X2PUA-S CST-VE-5X2PUA-S1 YEAR Limited Warranty5 x 2SWIVEL9906-1/2 4 x 4-1/24.84

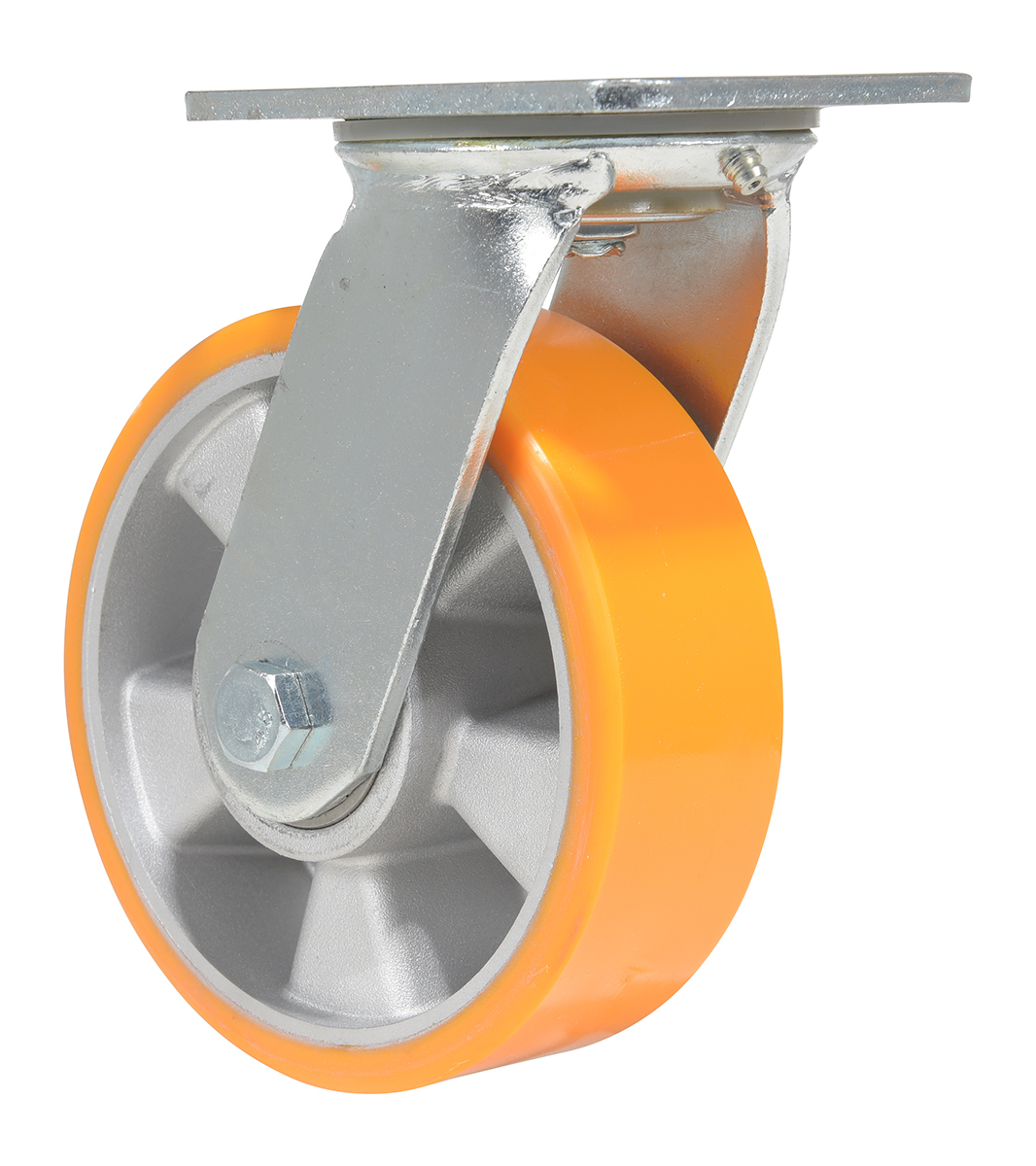

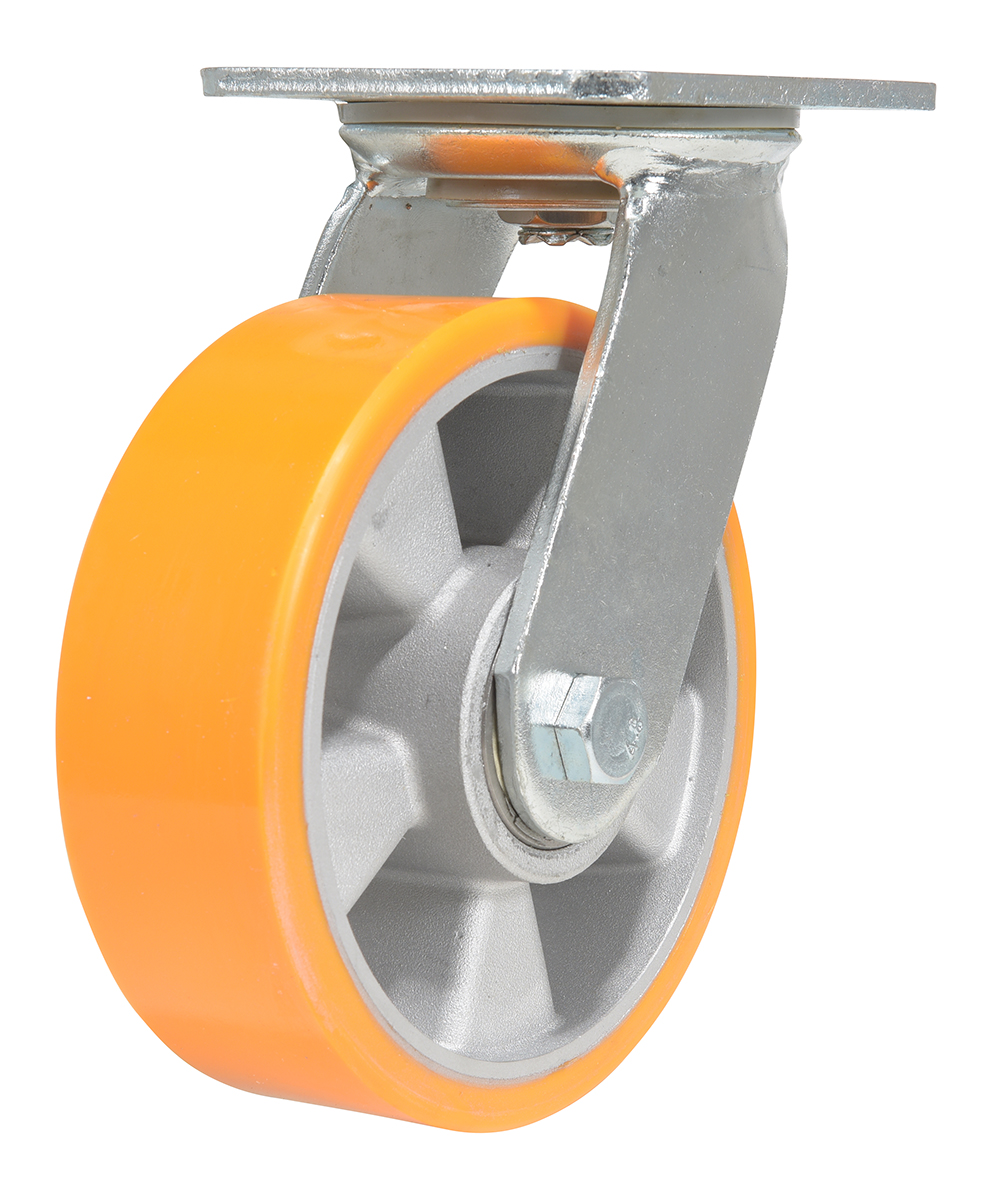

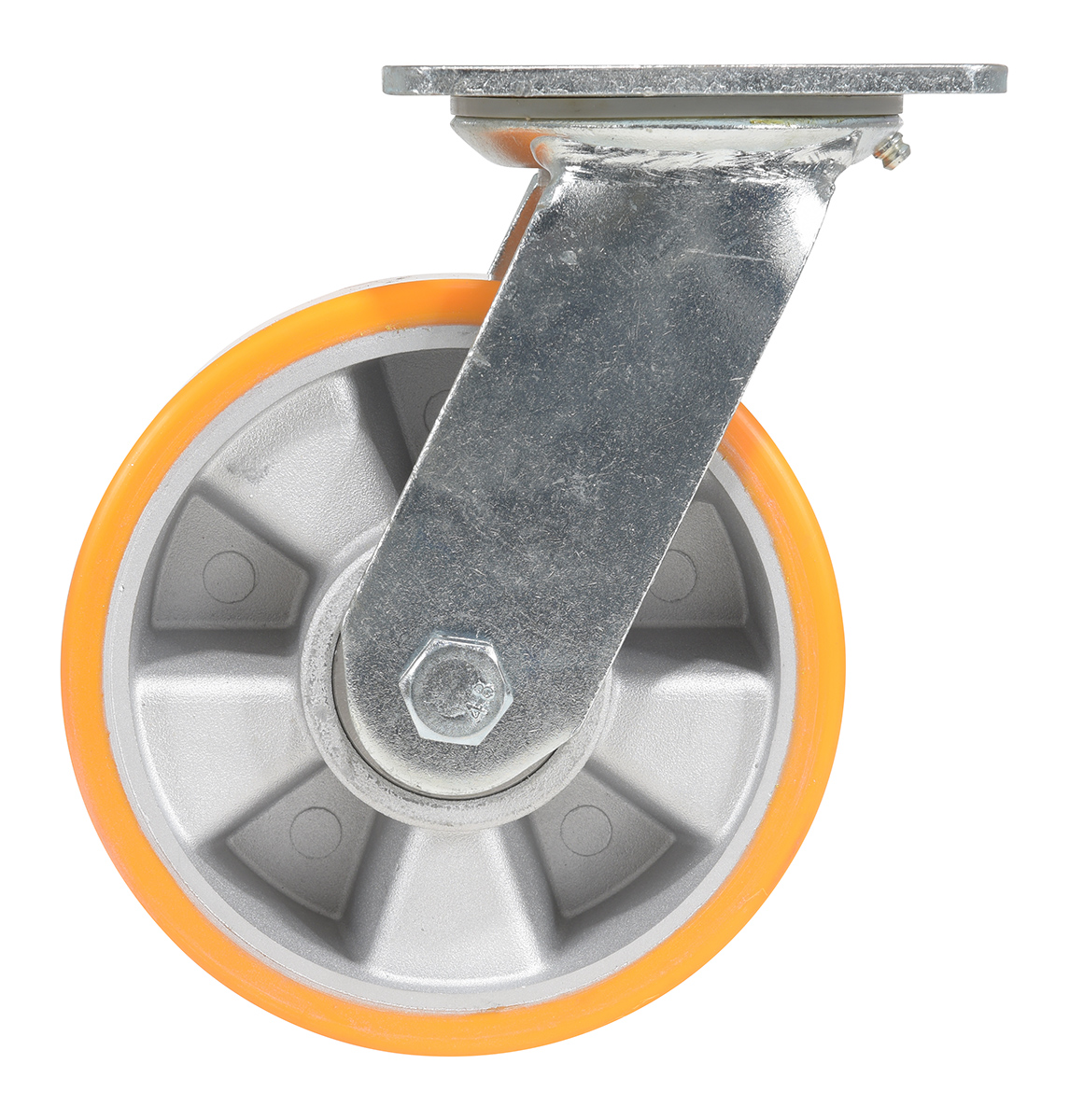

CST-VE-6X2PUA-S CST-VE-6X2PUA-S1 Year Limited Warranty6 x 2SWIVEL12127-1/2 4 x 4-1/28

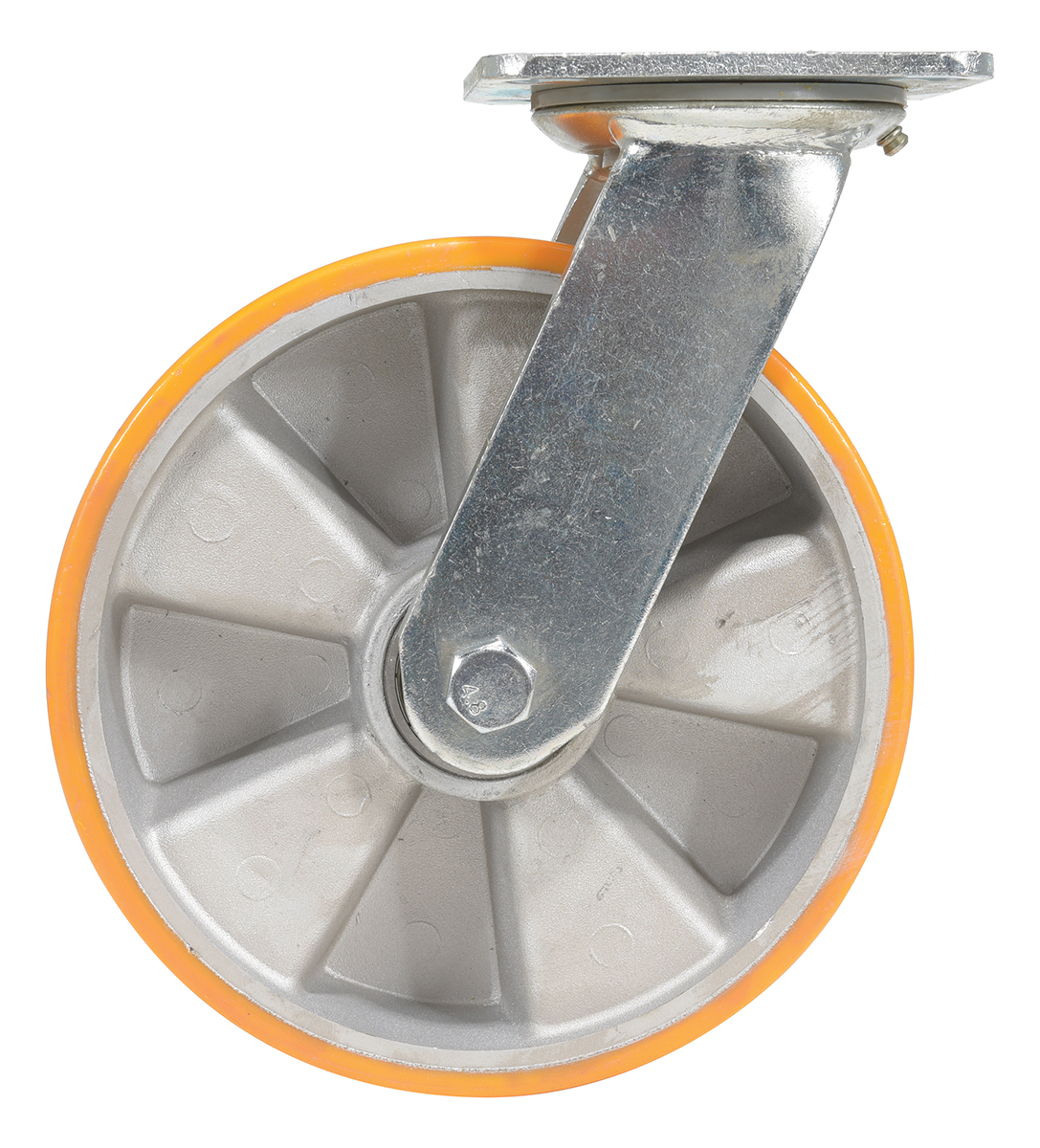

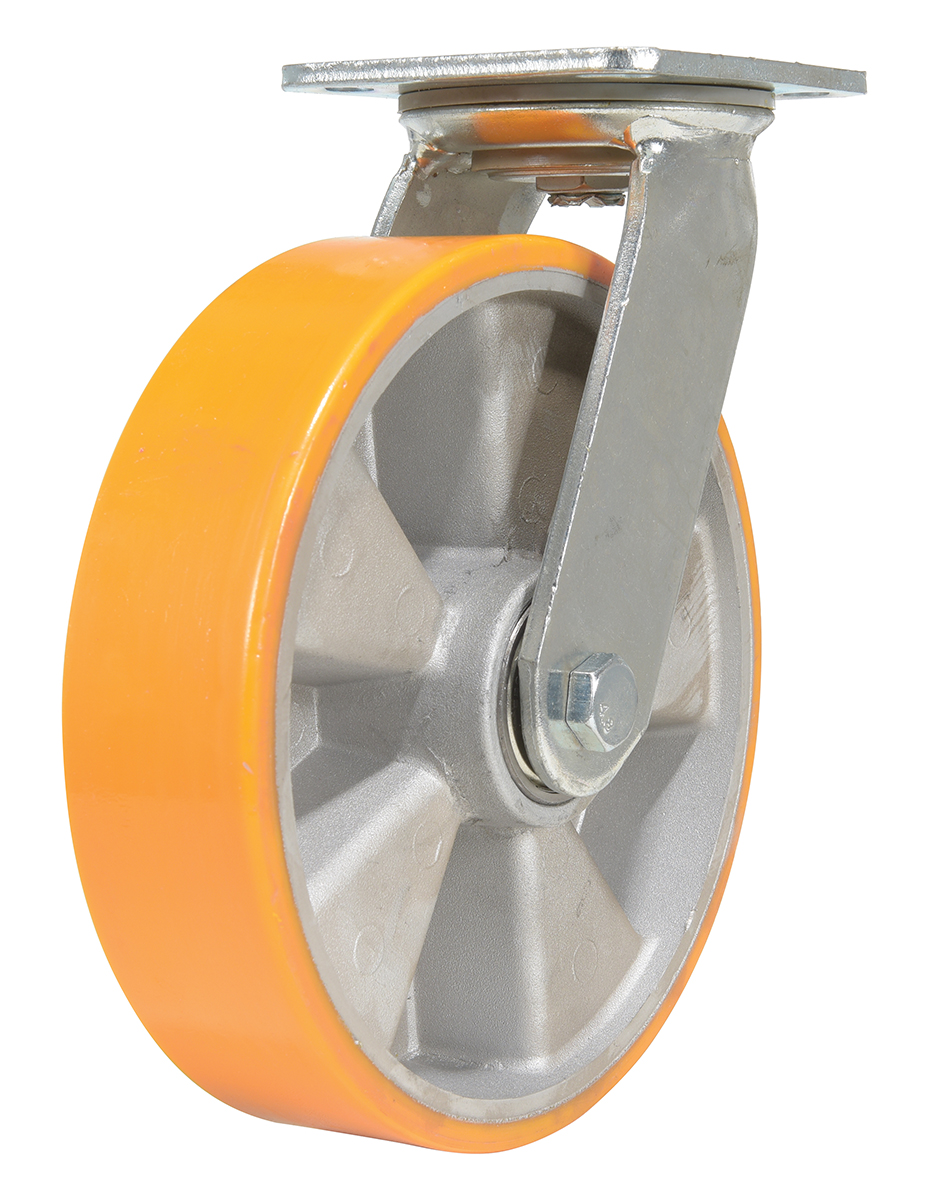

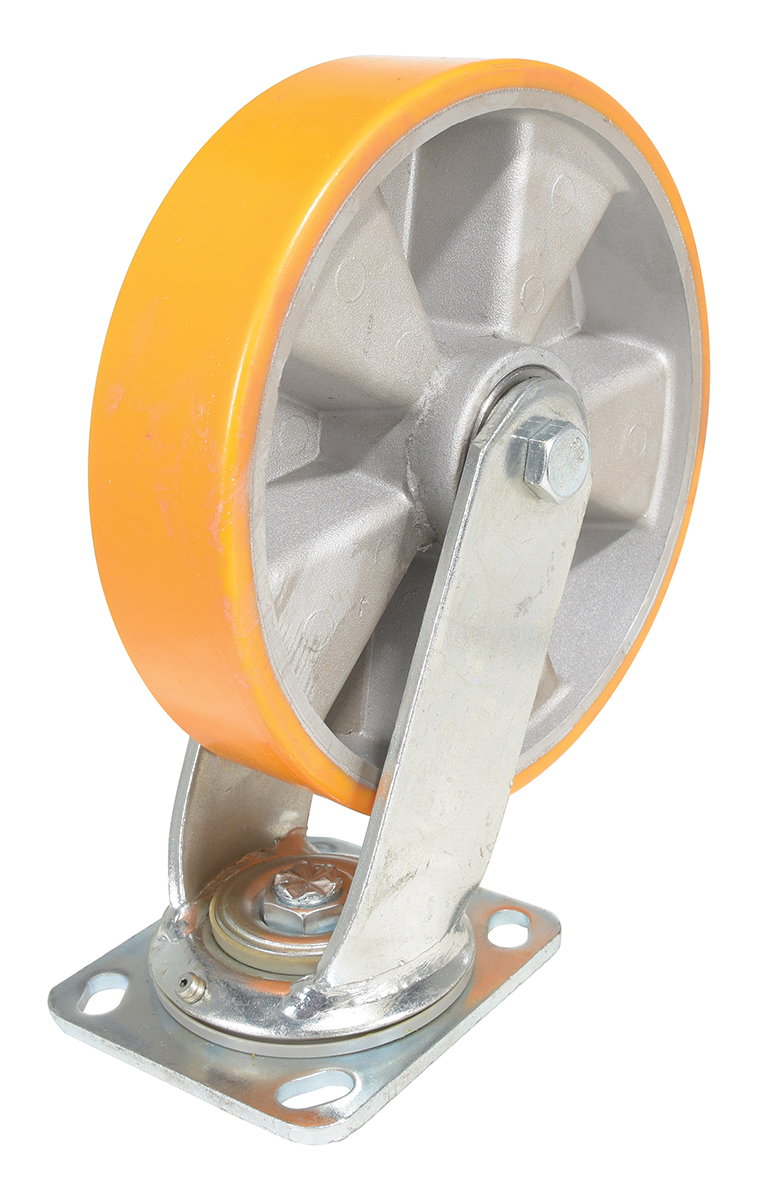

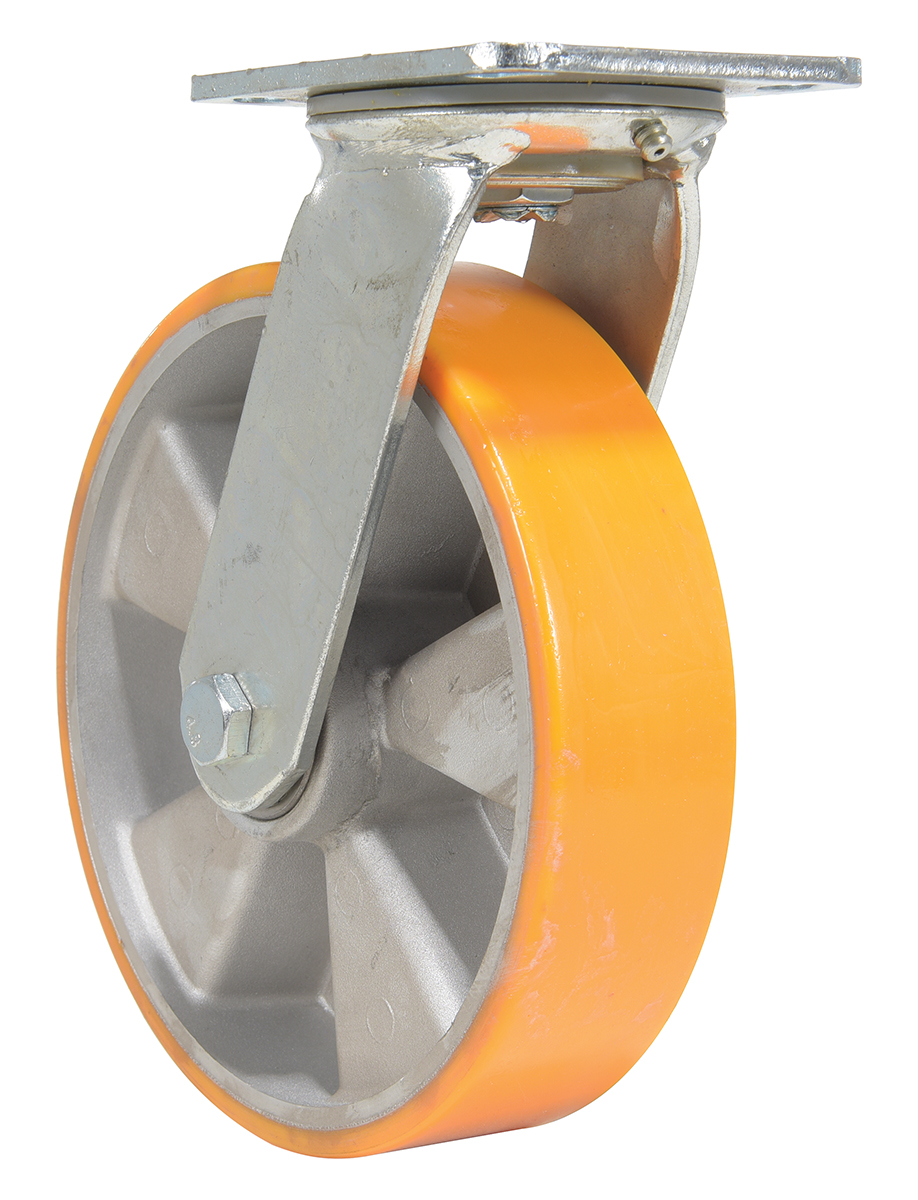

CST-VE-8X2PUA-S CST-VE-8X2PUA-S1 Year Limited Warranty8 x 2SWIVEL15439-7/16 4 x 4-1/210.66

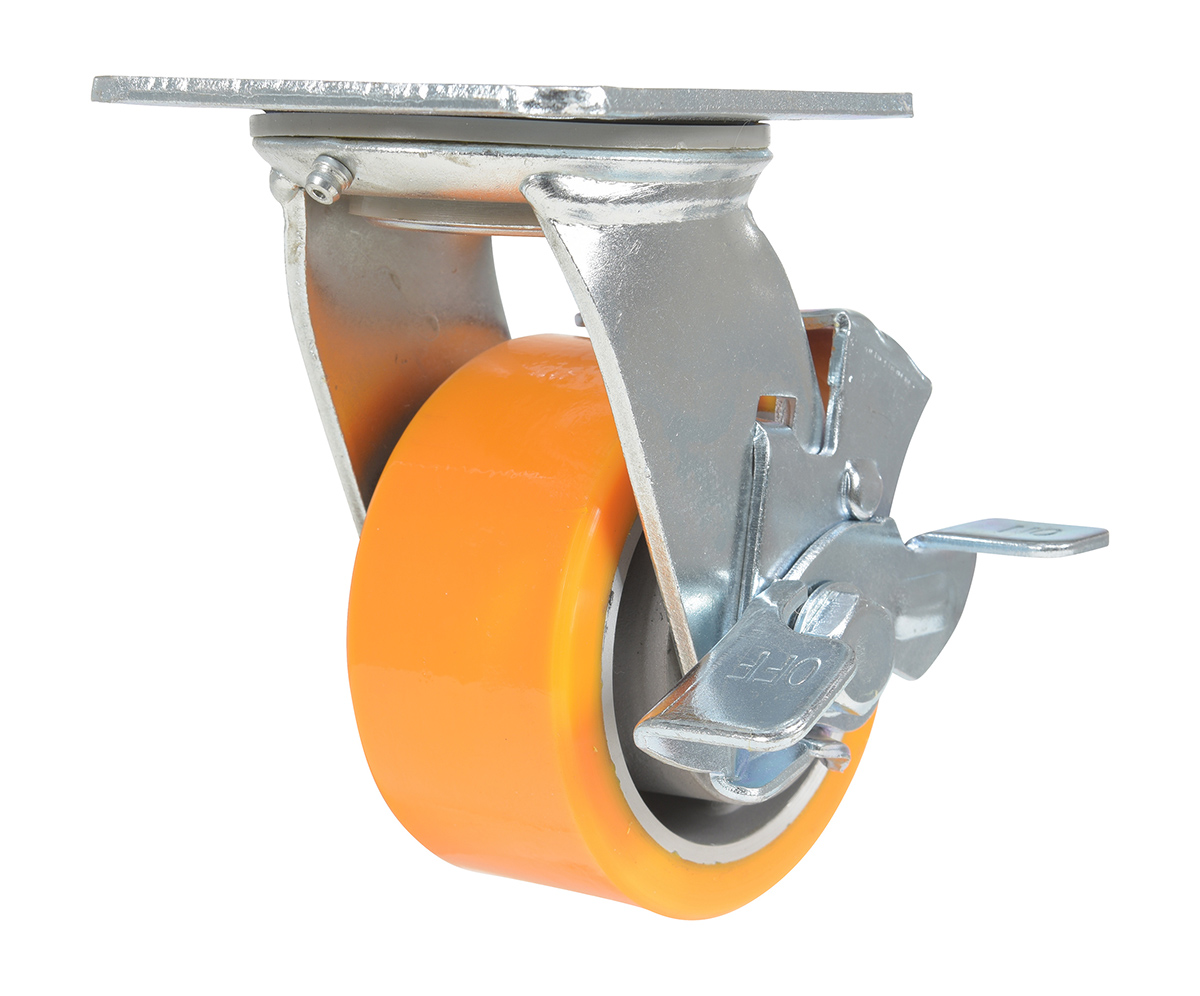

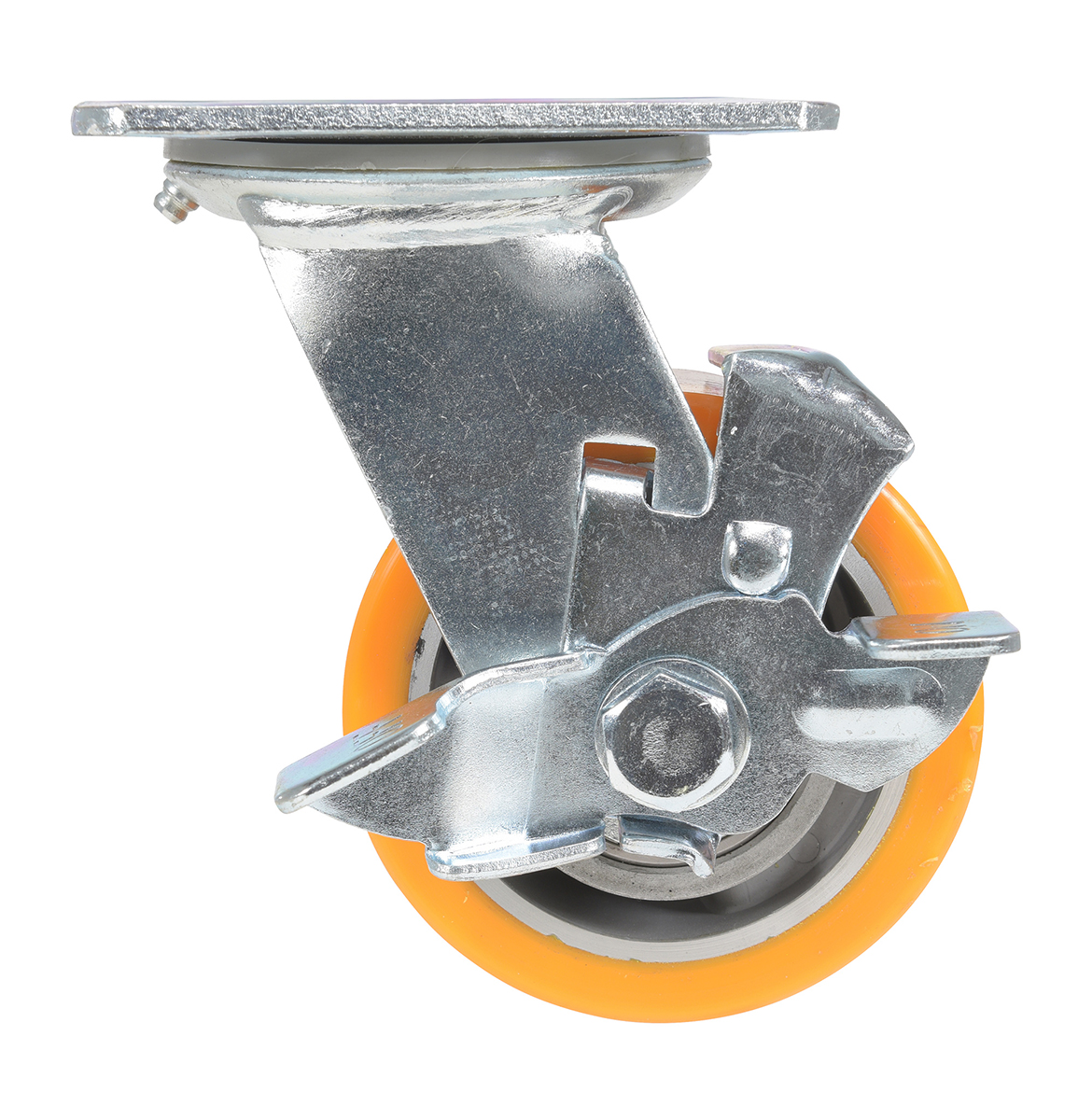

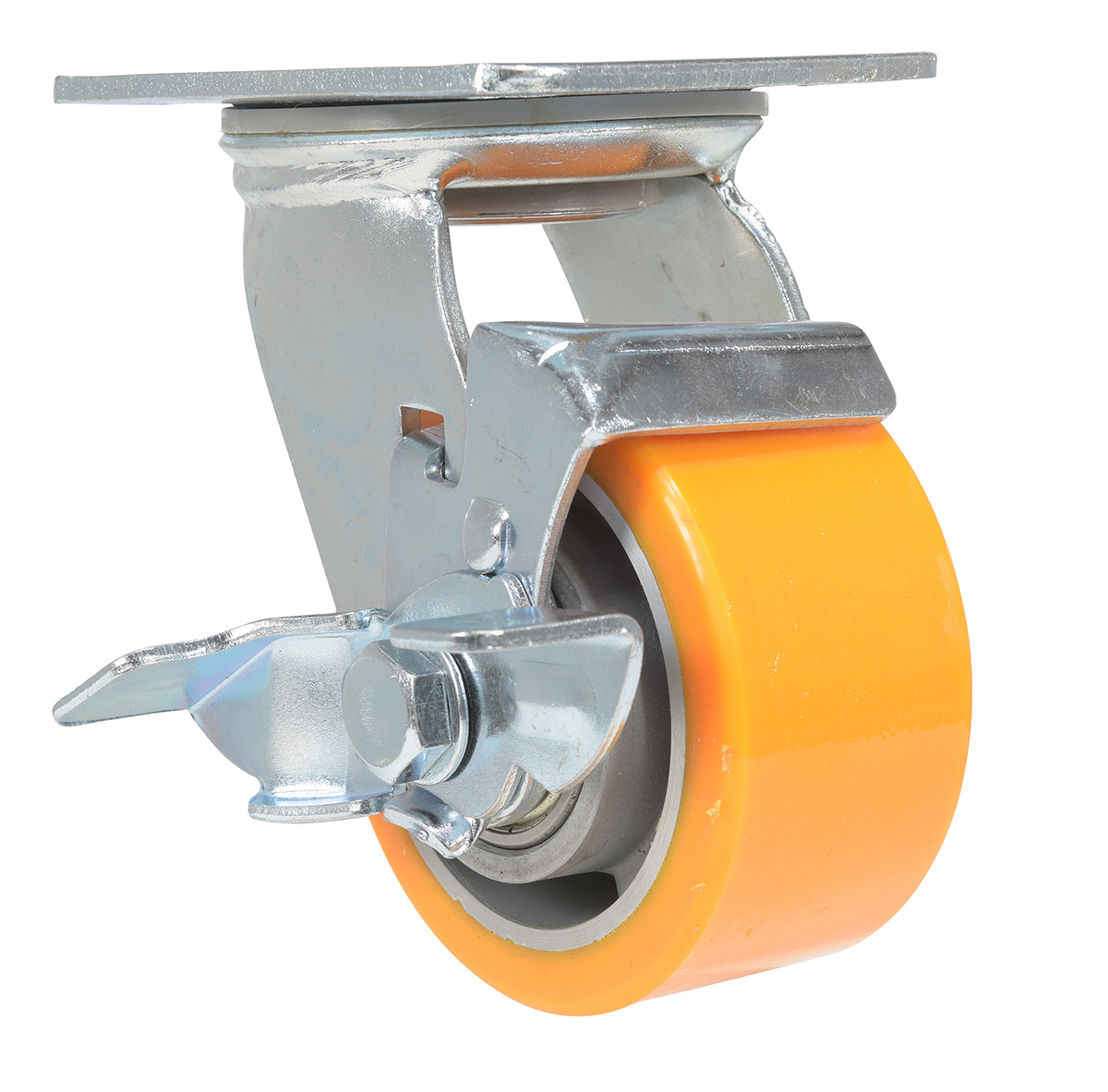

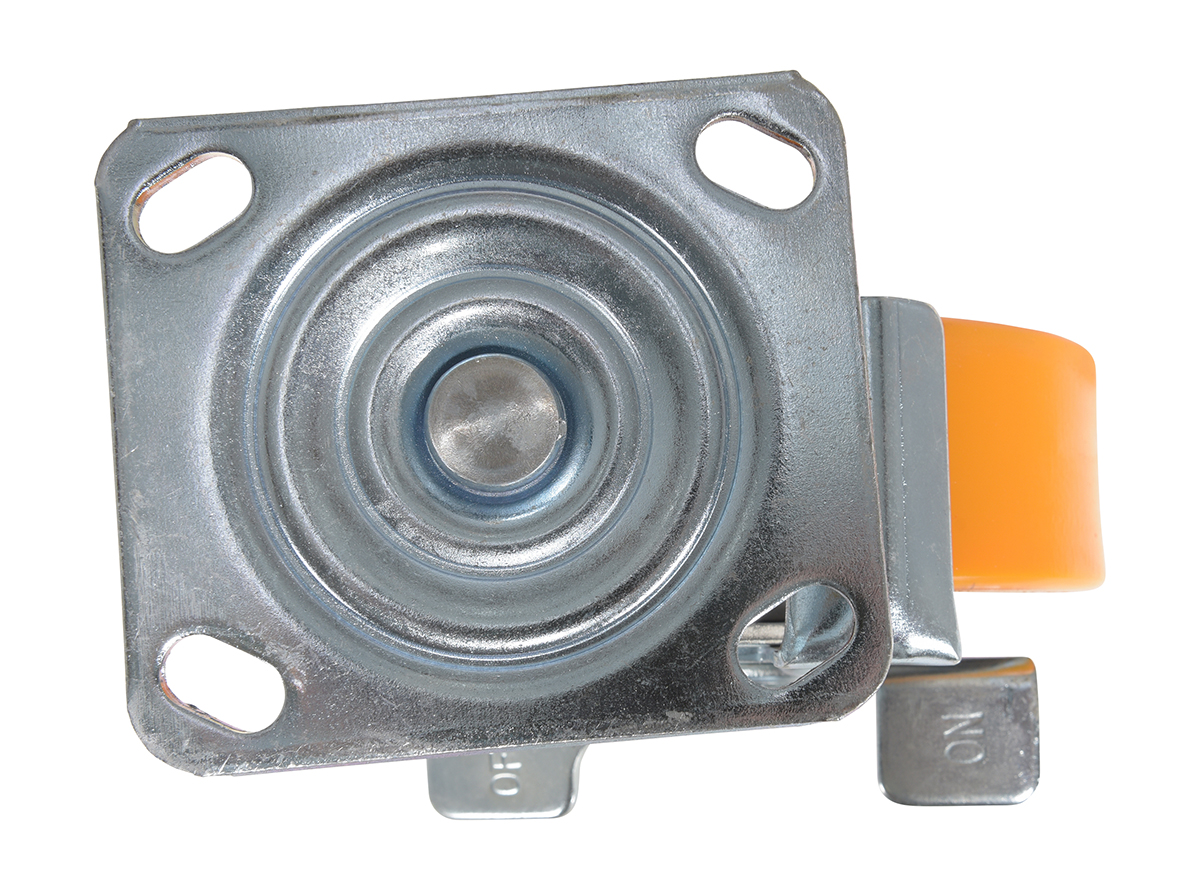

CST-VE-4X2PUA-SWB CST-VE-4X2PUA-SWB1 YEAR Limited Warranty4 x 2SWIVEL W/BRAKE6605-1/4 4 x 4-1/24.81

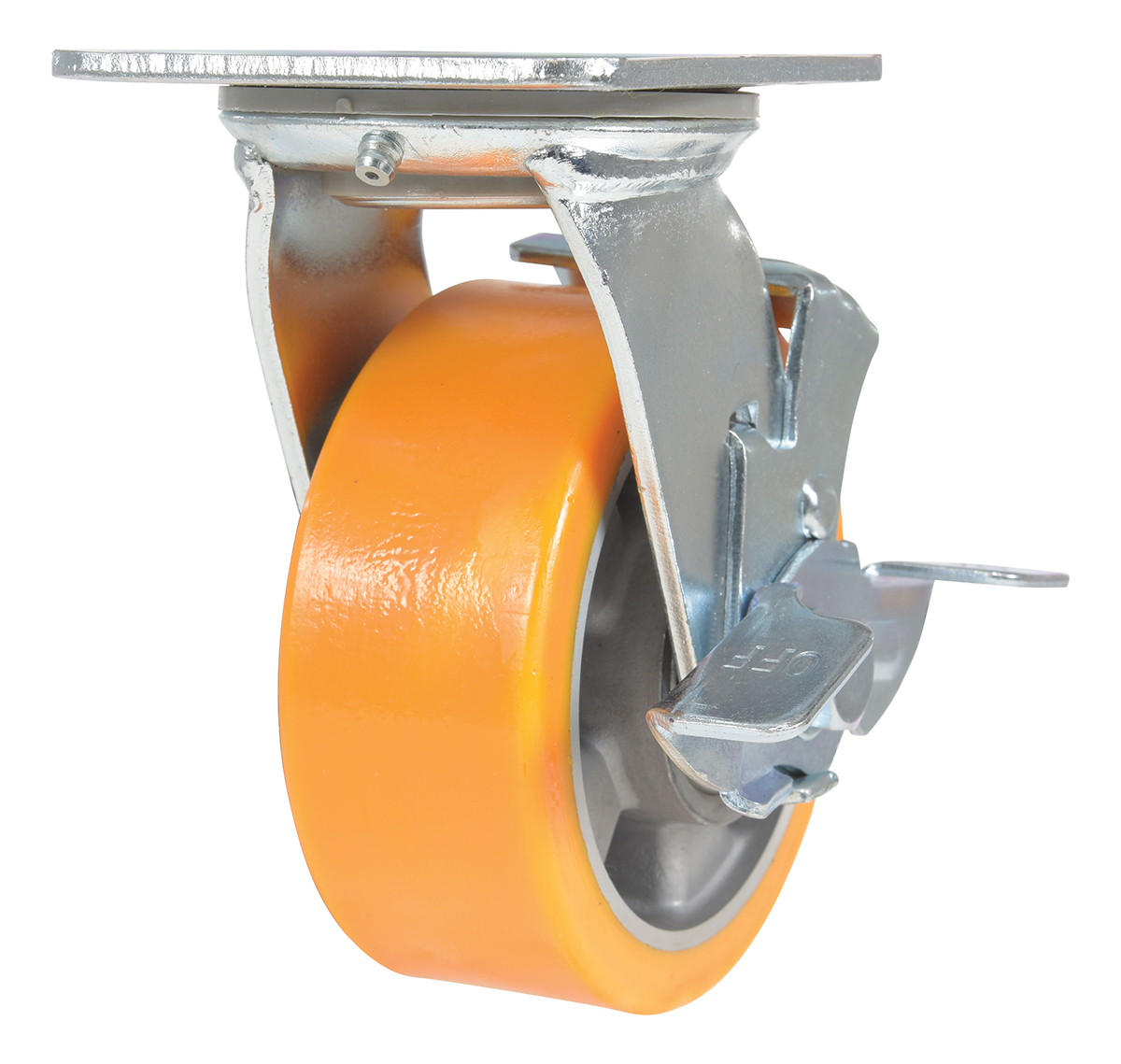

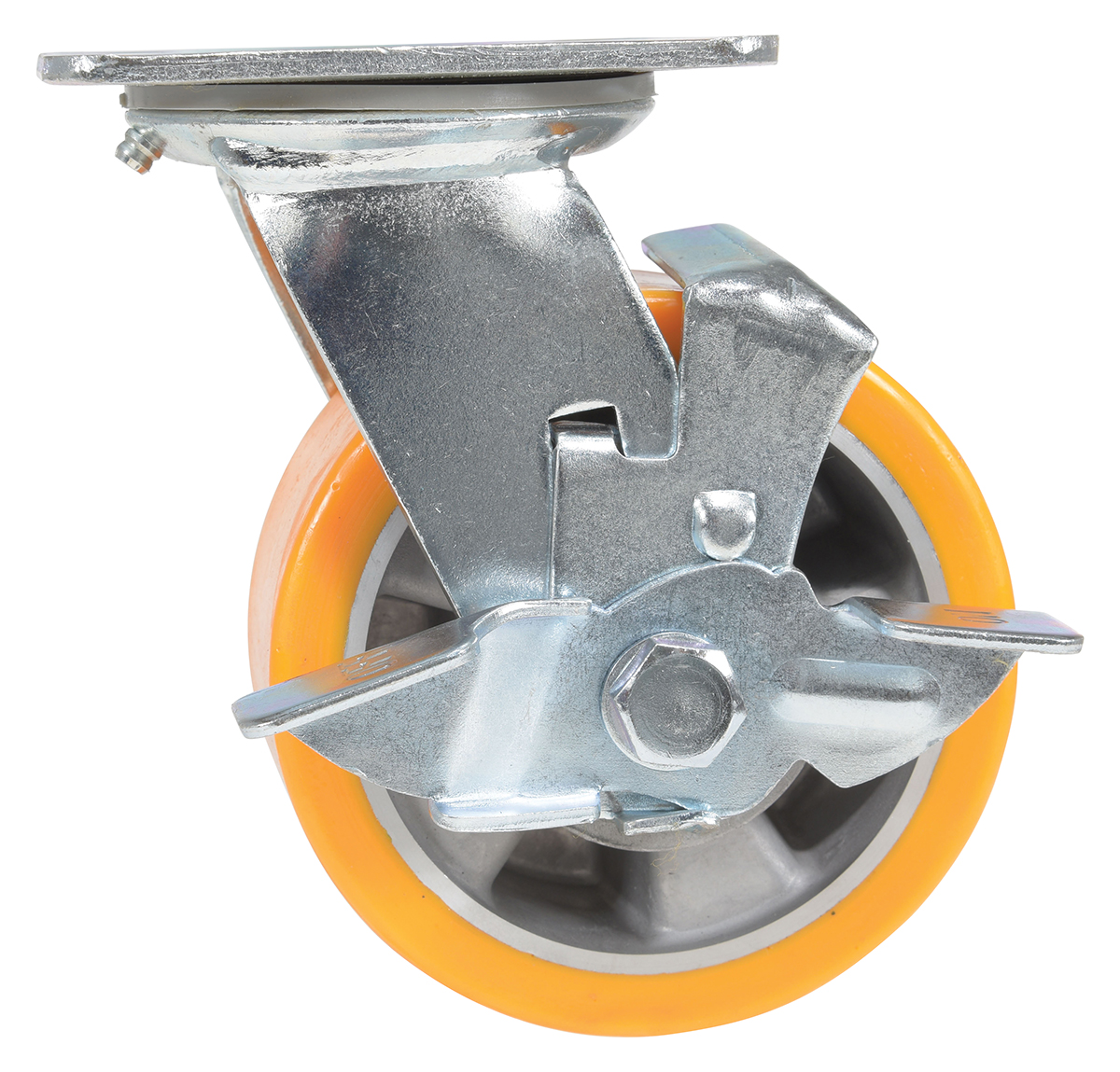

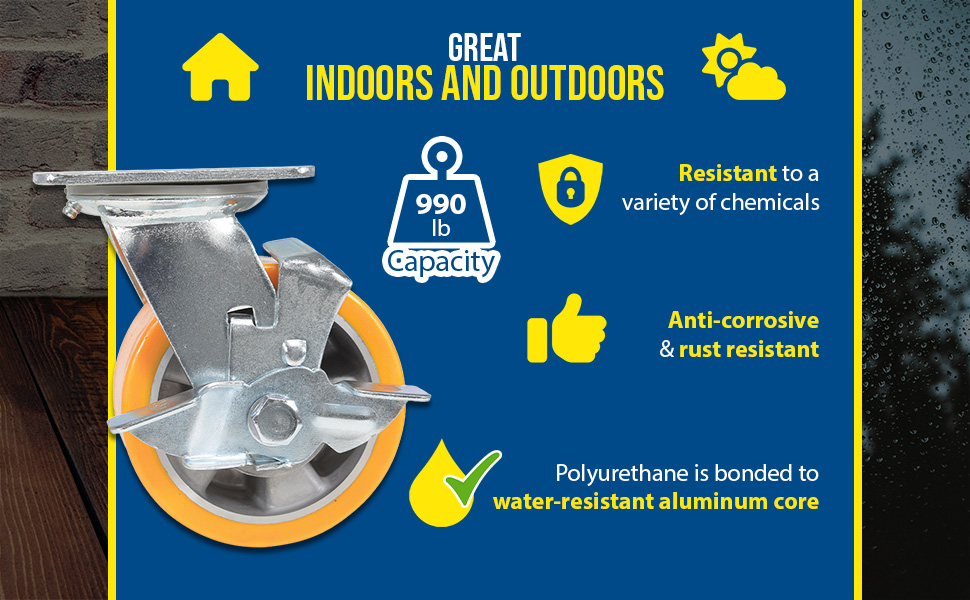

CST-VE-5X2PUA-SWB CST-VE-5X2PUA-SWB1 YEAR Limited Warranty5 x 2SWIVEL W/BRAKE9906-1/2 4 x 4-1/25.32

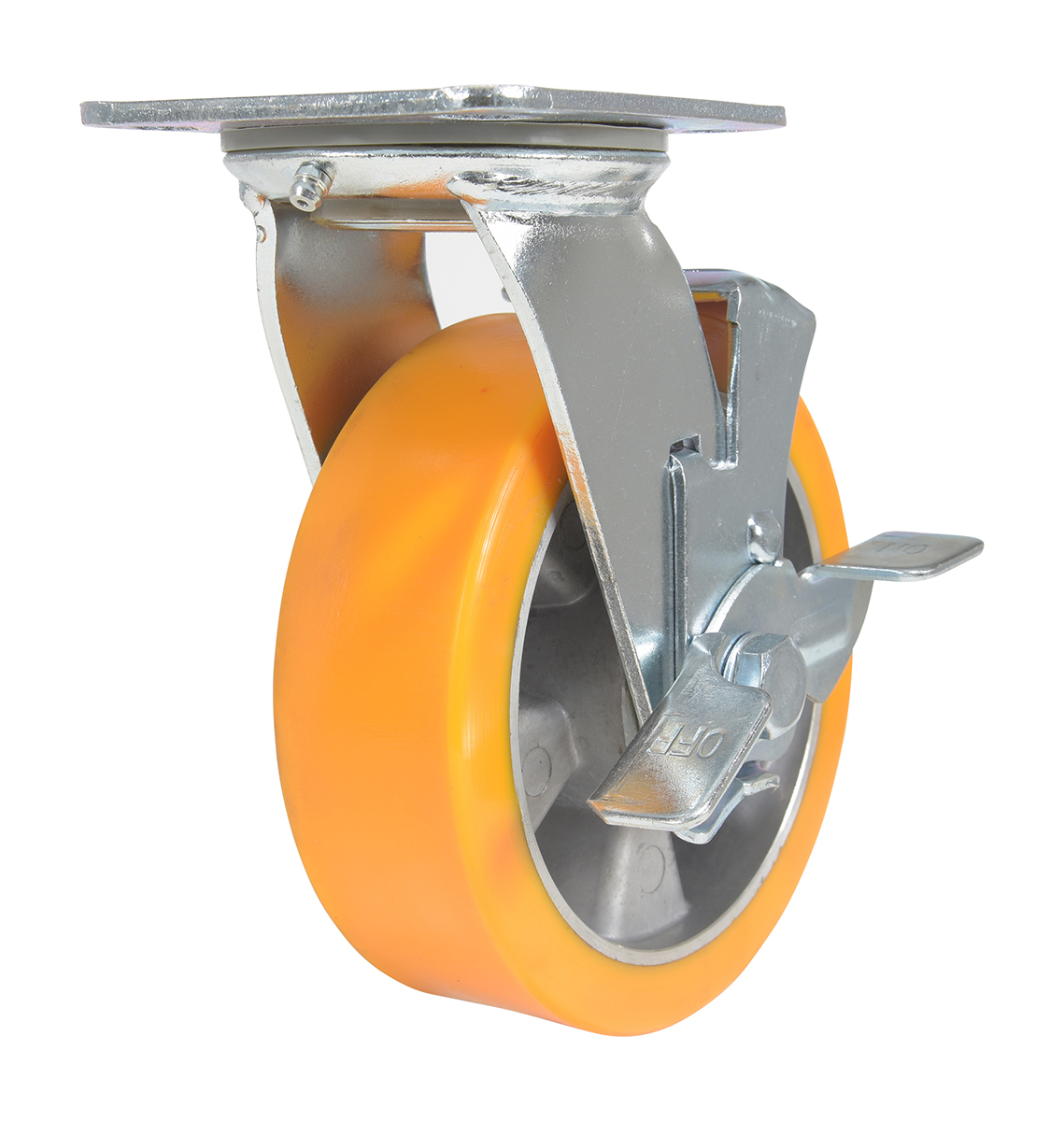

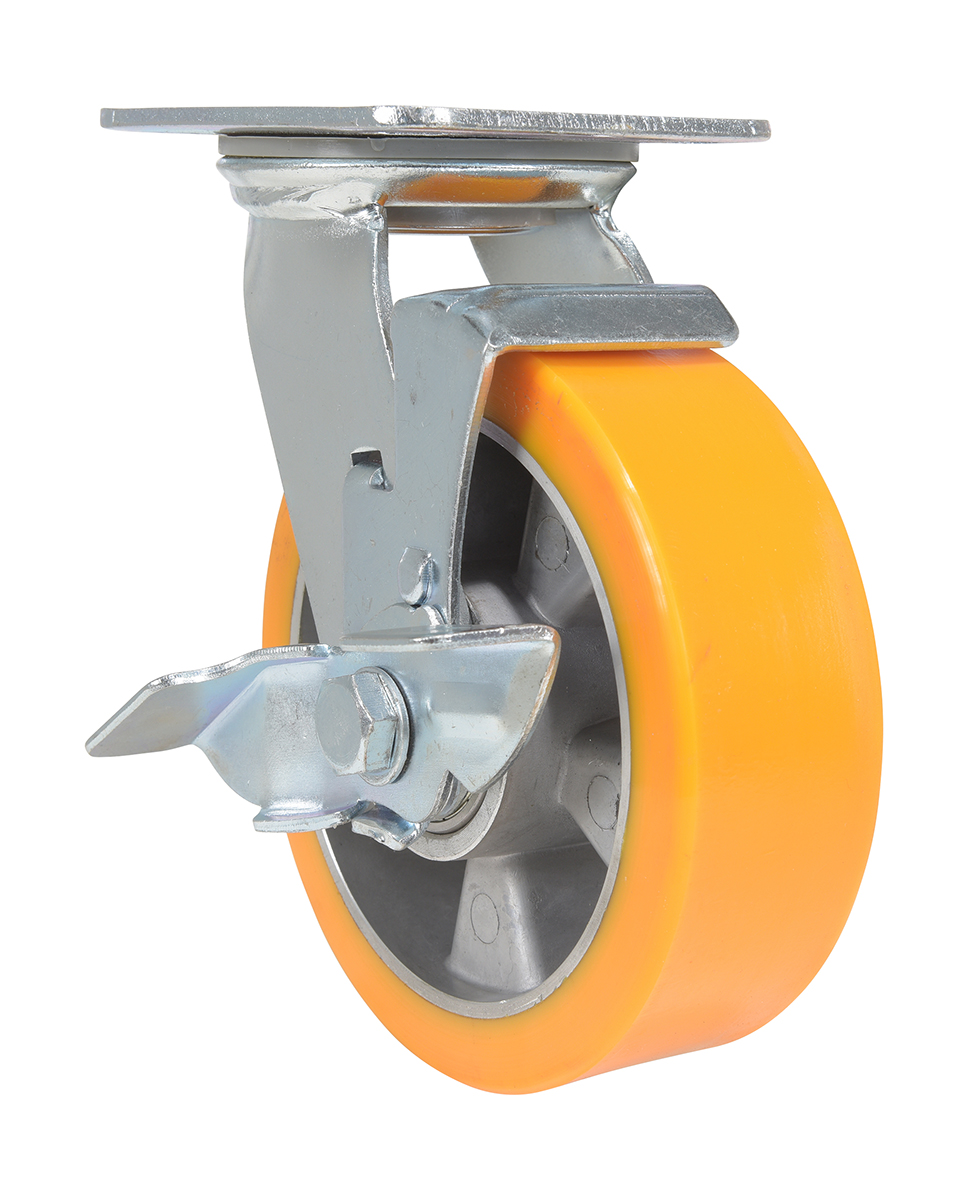

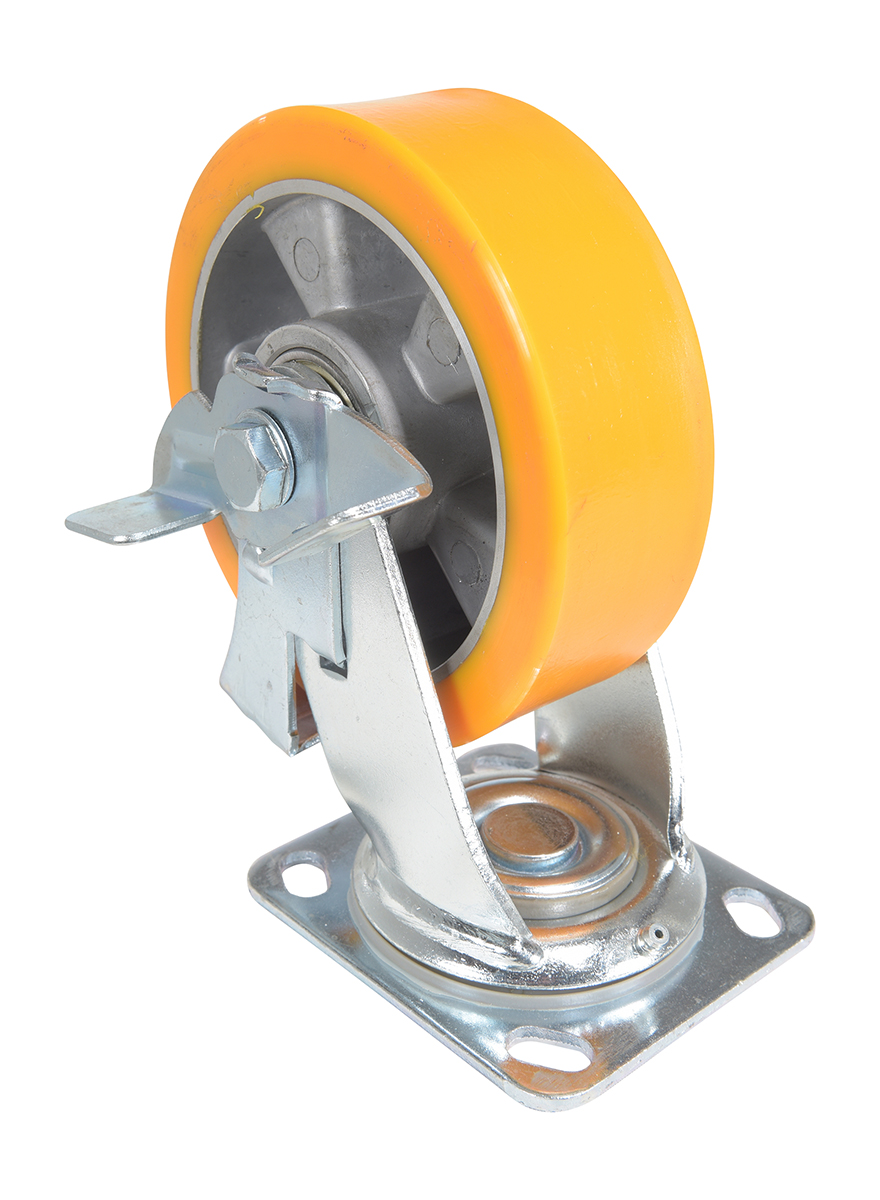

CST-VE-6X2PUA-SWB CST-VE-6X2PUA-SWB1 Year Limited Warranty6 x 2SWIVEL W/BRAKE12127-1/2 4 x 4-1/25.93

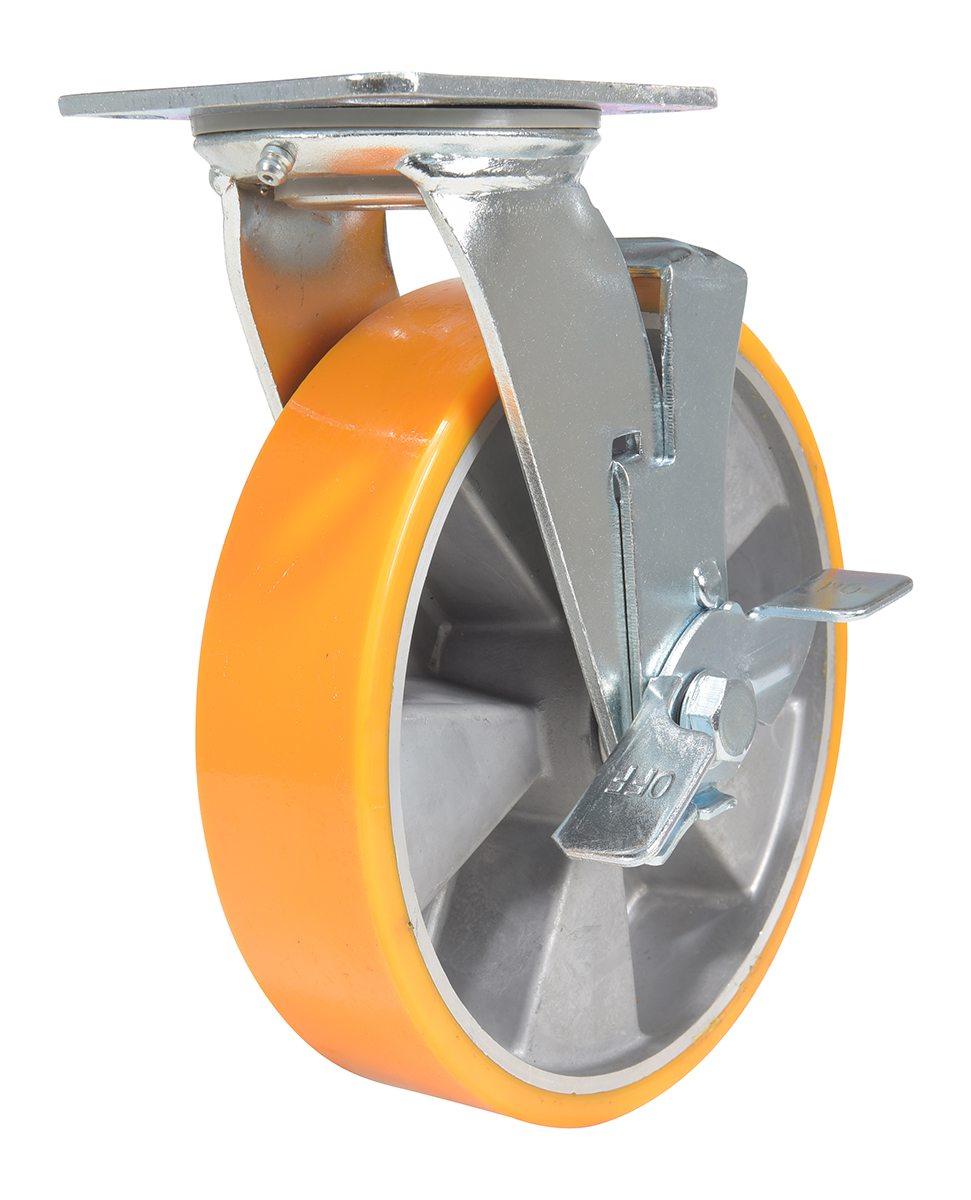

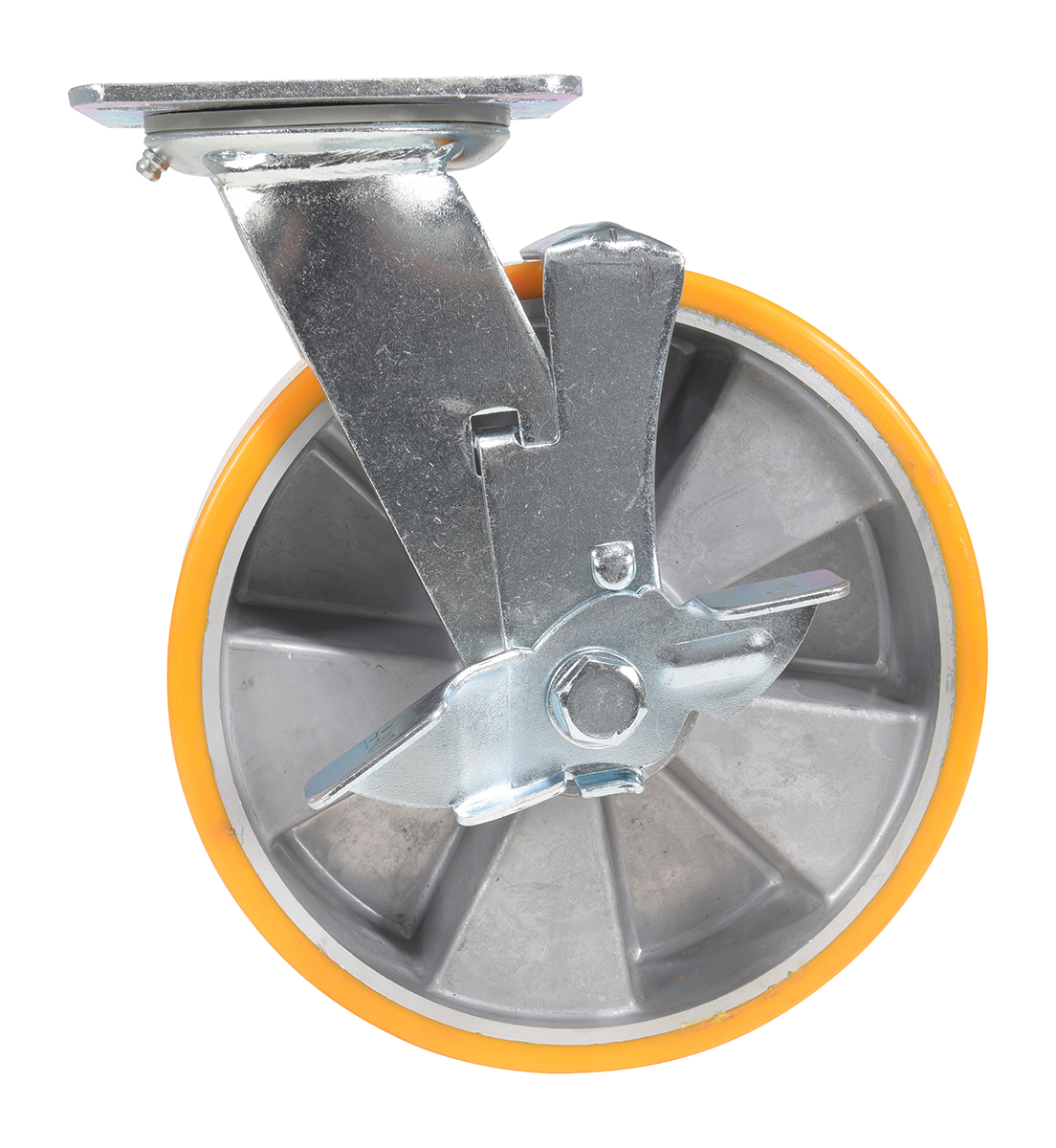

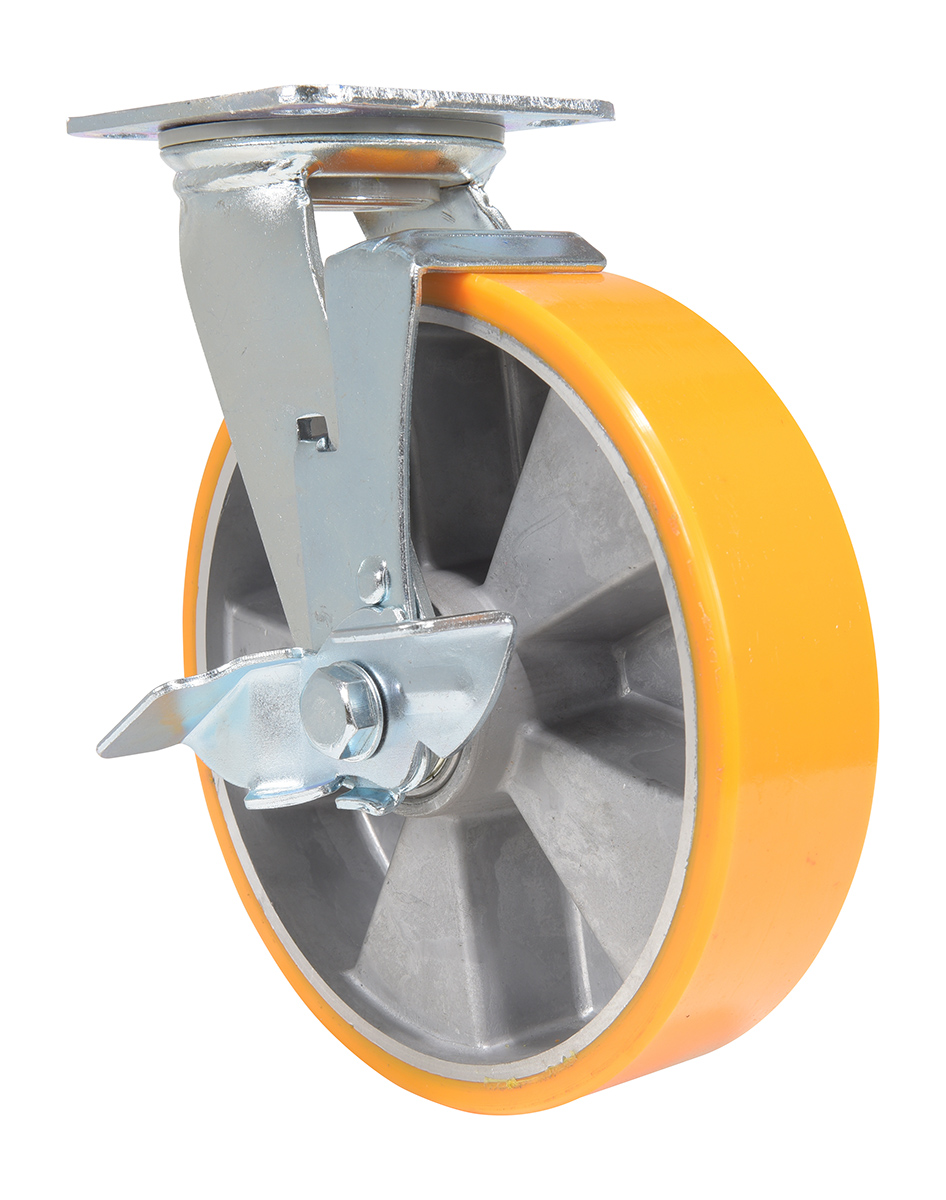

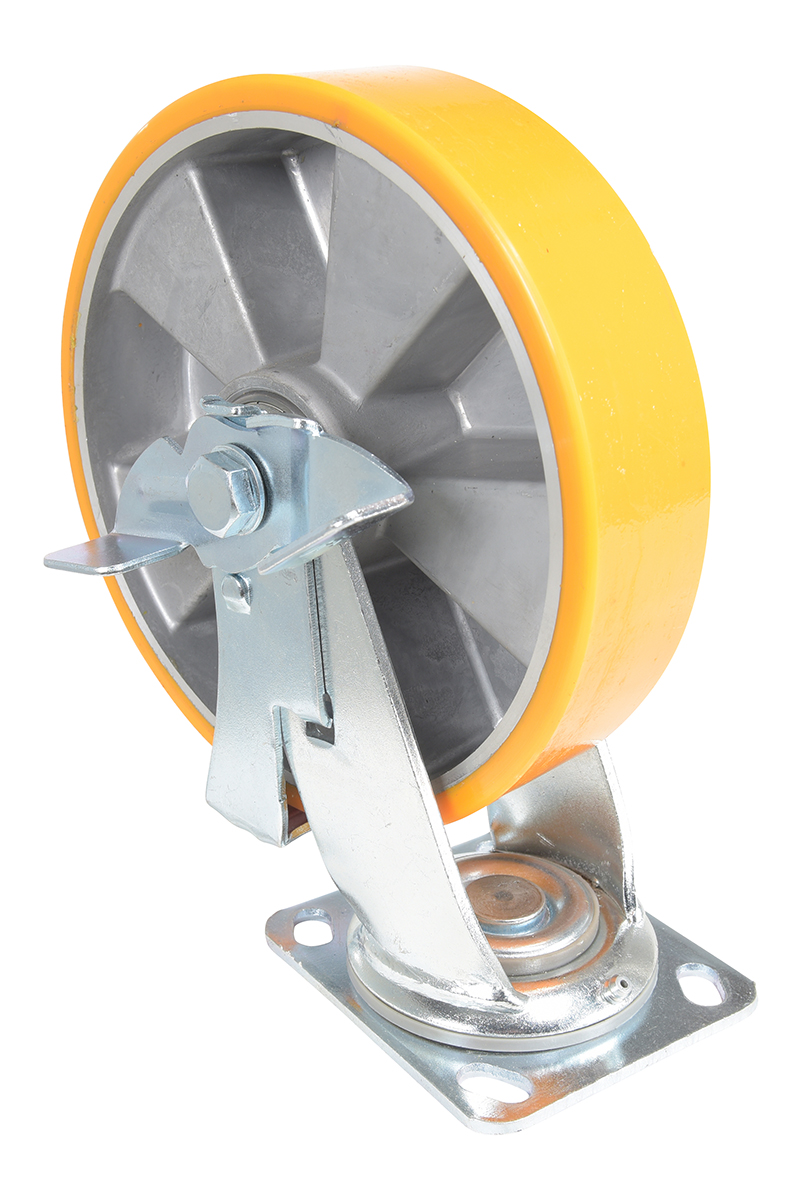

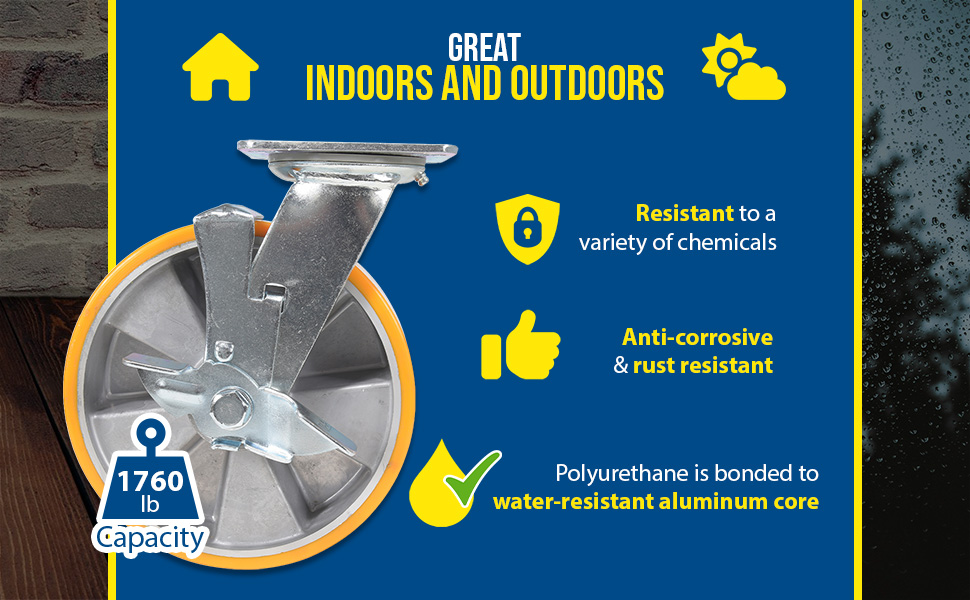

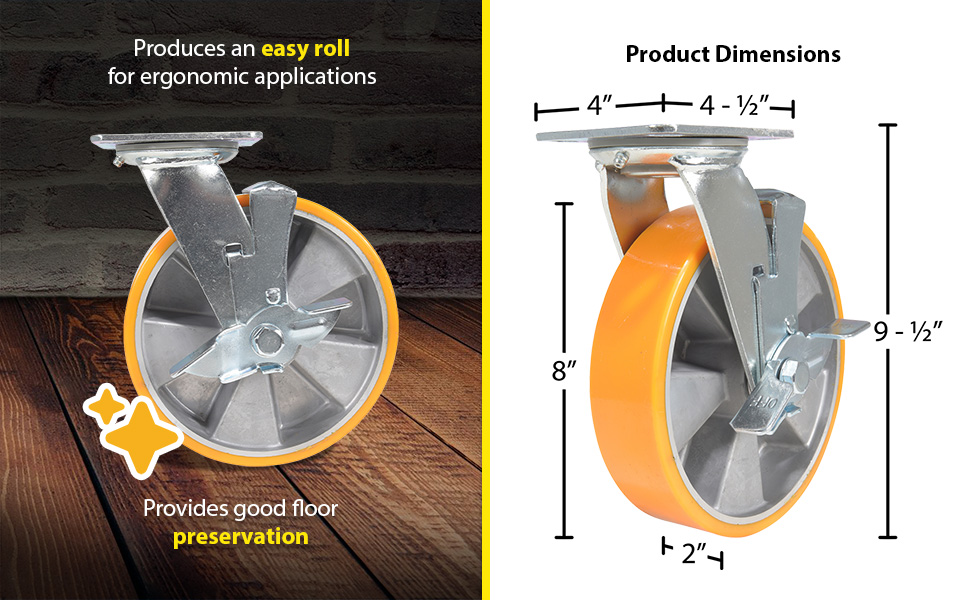

CST-VE-8X2PUA-SWB CST-VE-8X2PUA-SWB1 YEAR Limited Warranty8 x 2SWIVEL W/BRAKE17609-1/2 4 x 4-1/26.83

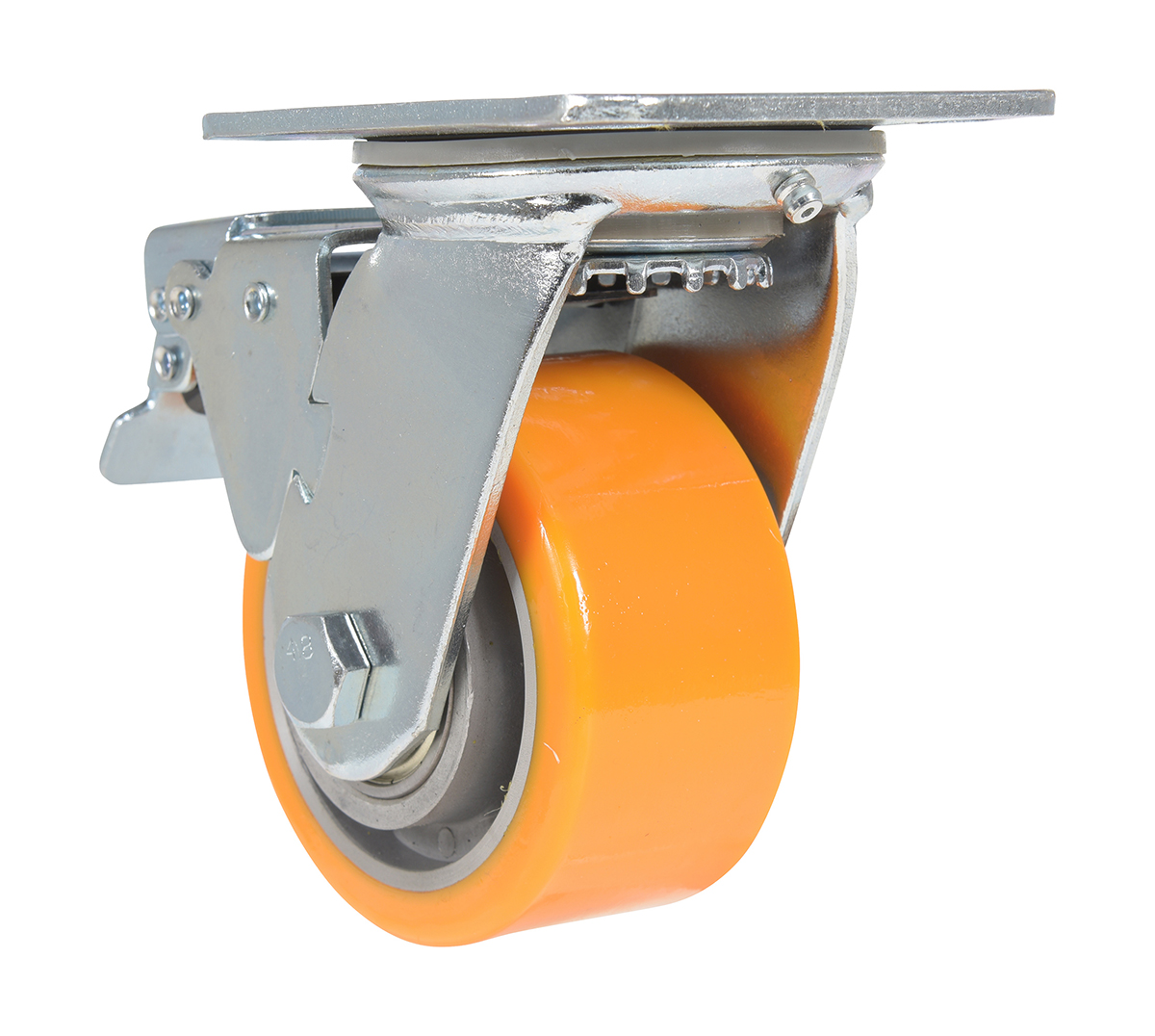

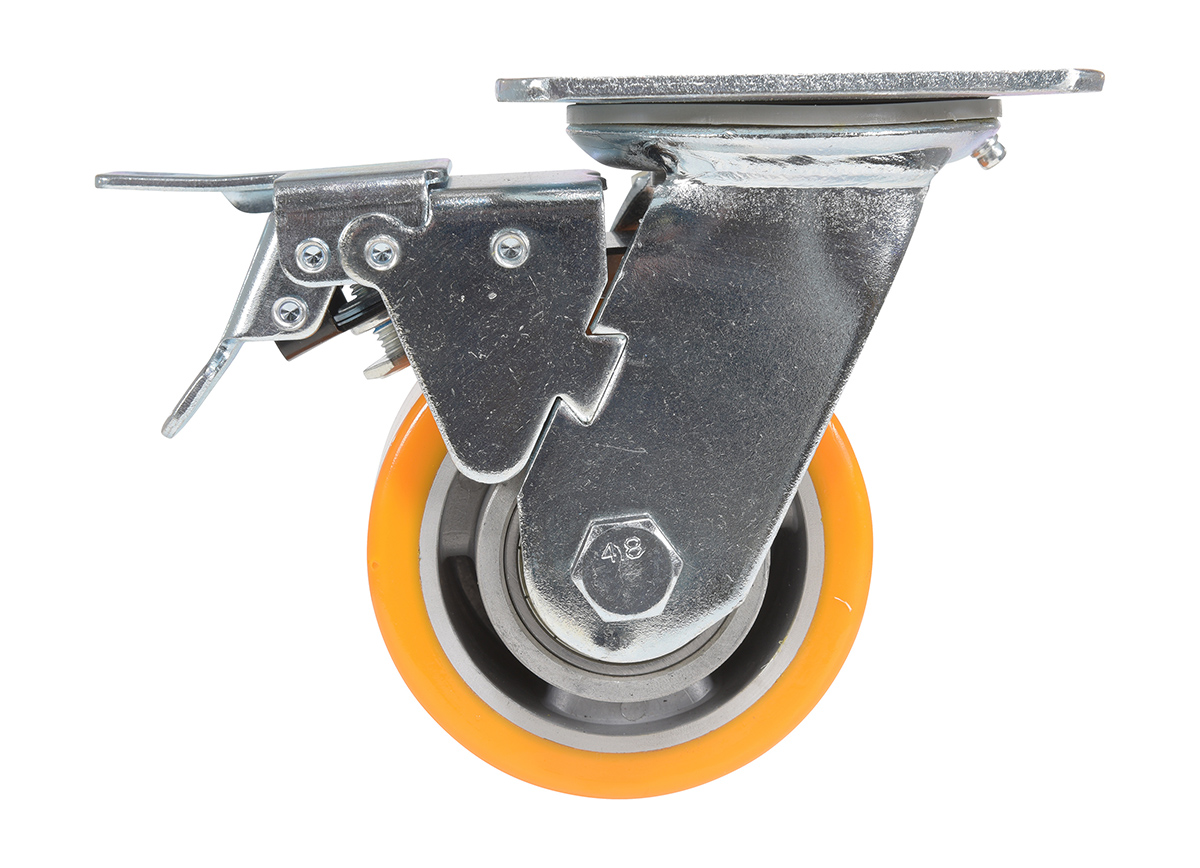

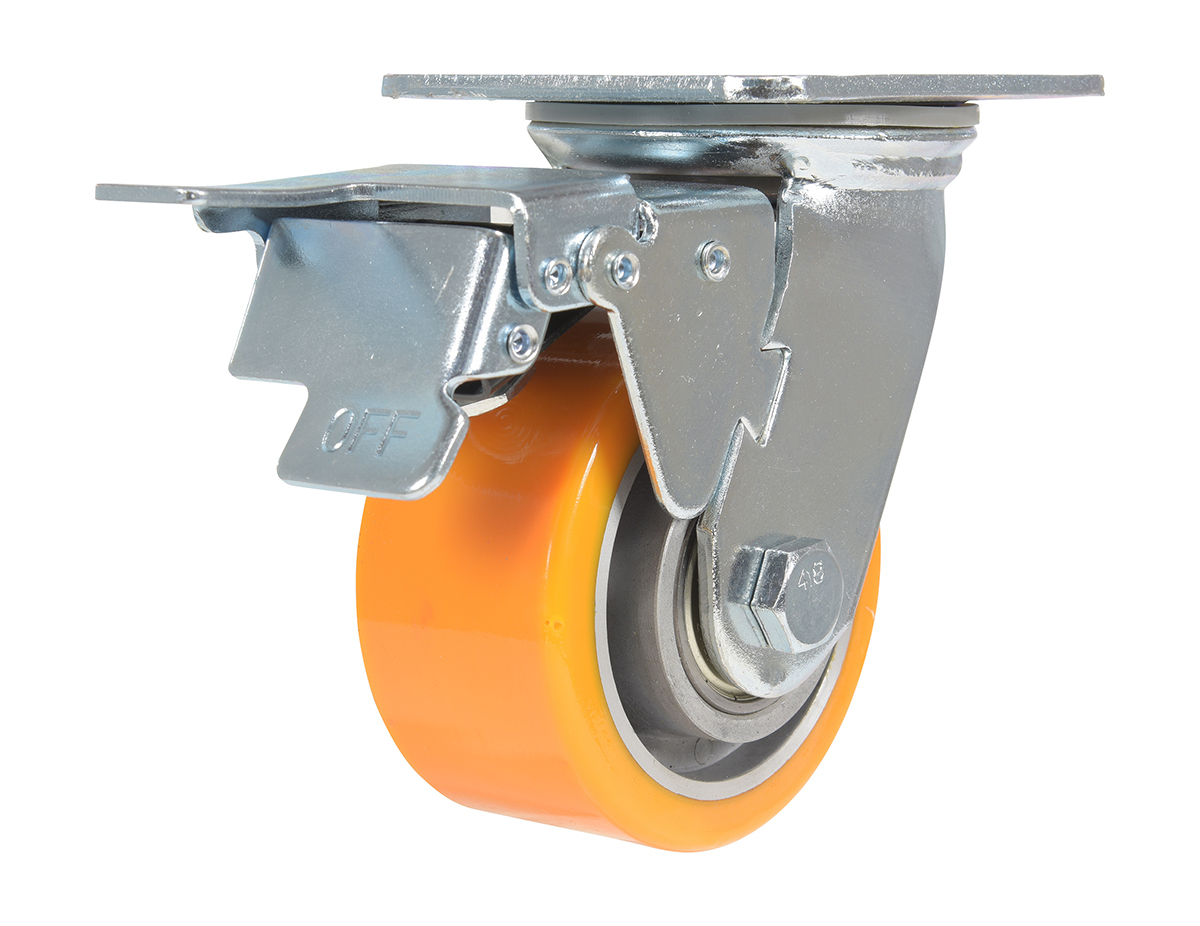

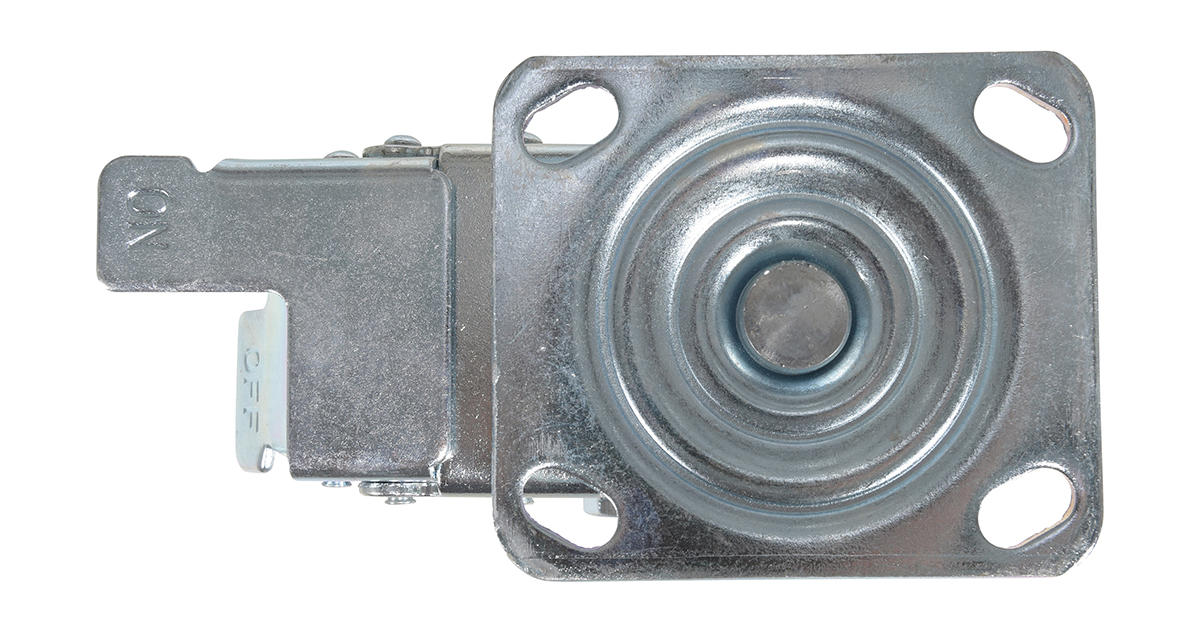

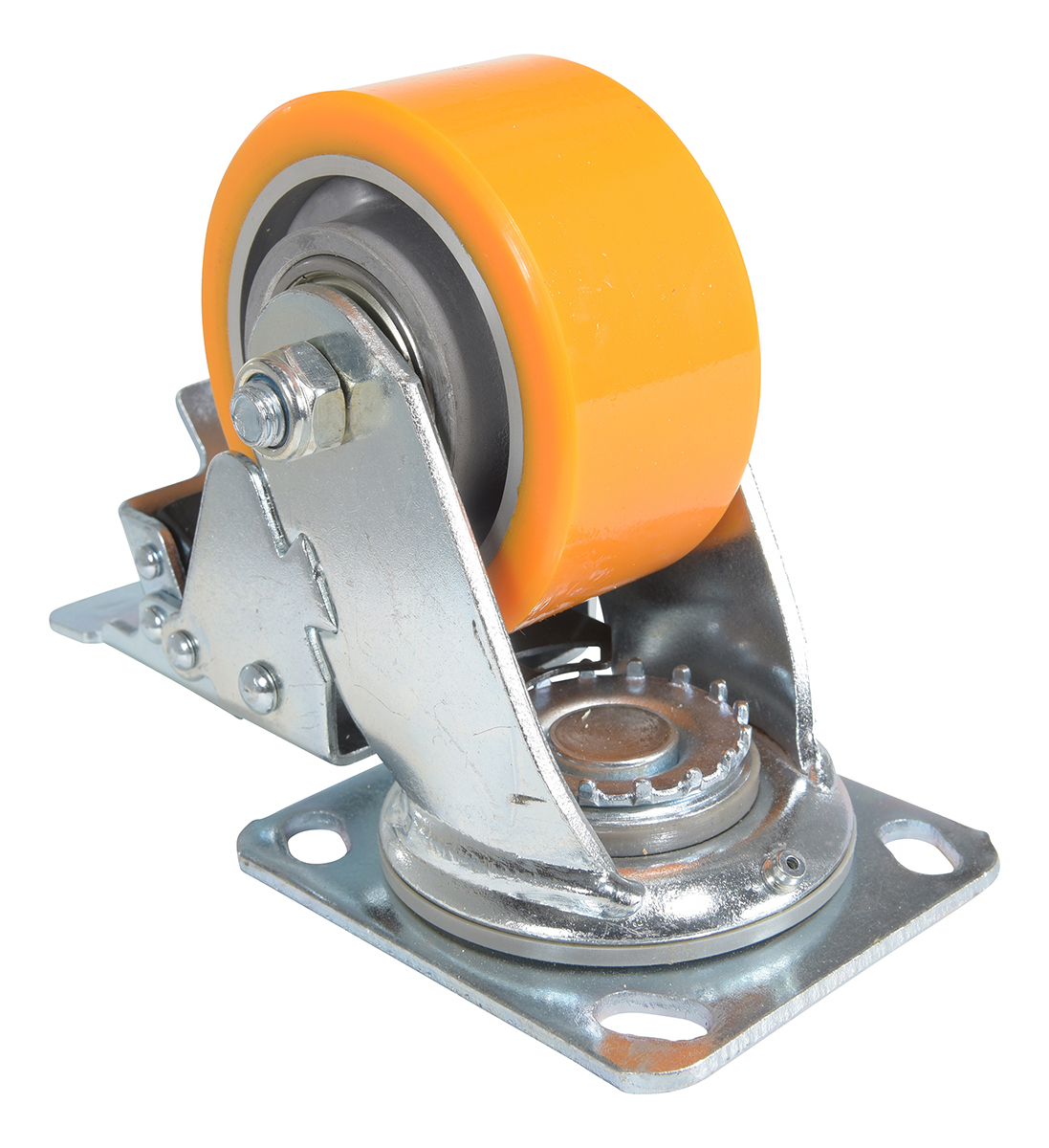

CST-VE-4X2PUA-SWTB CST-VE-4X2PUA-SWTB1 YEAR Limited Warranty4 x 2SWIVEL W/TOTAL BRAKE6605-1/2 4 x 4-1/25.37

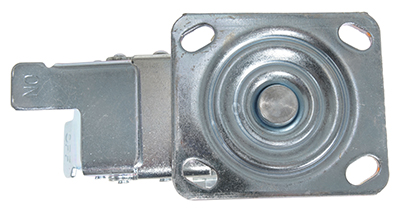

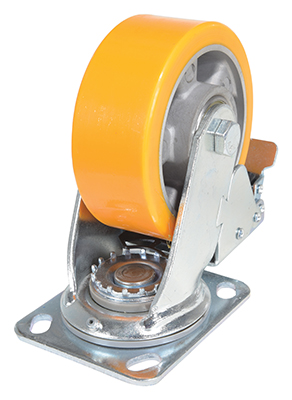

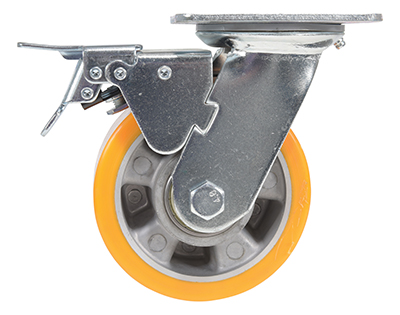

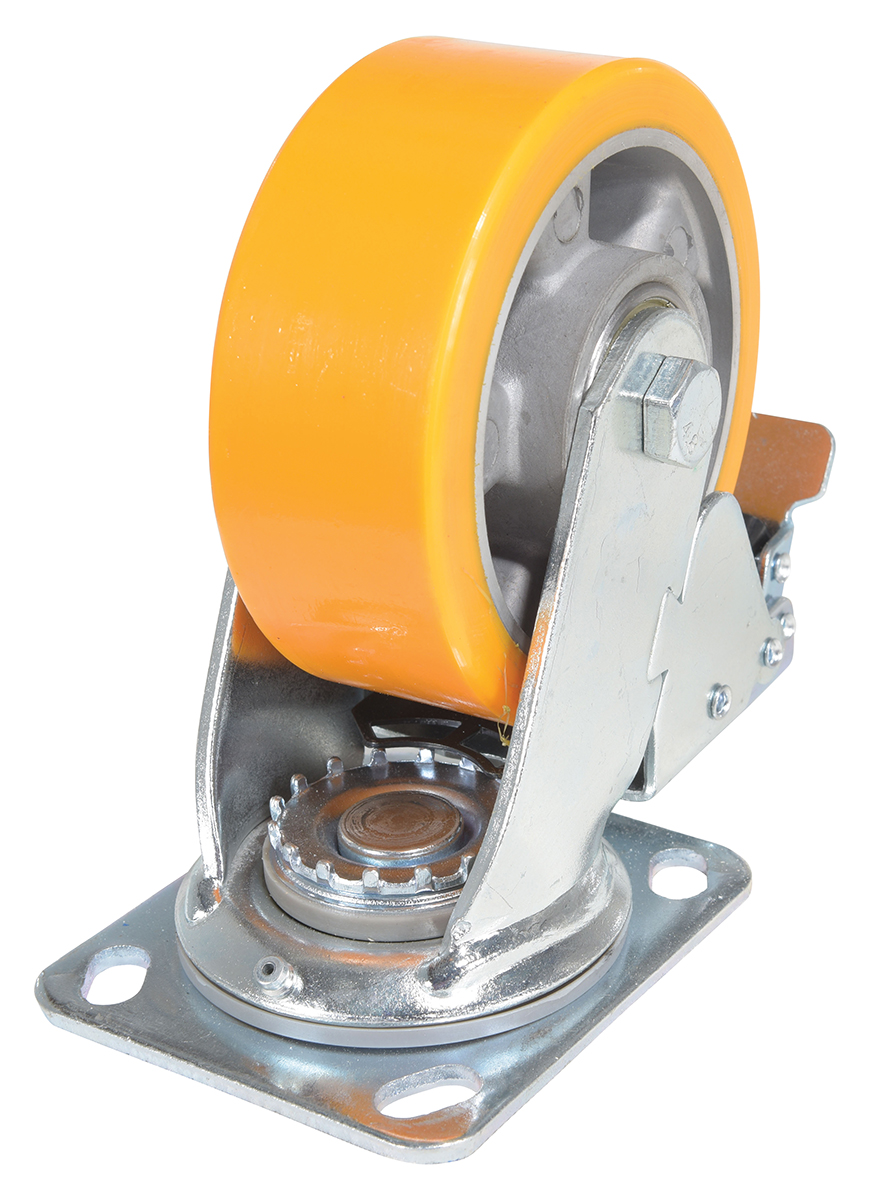

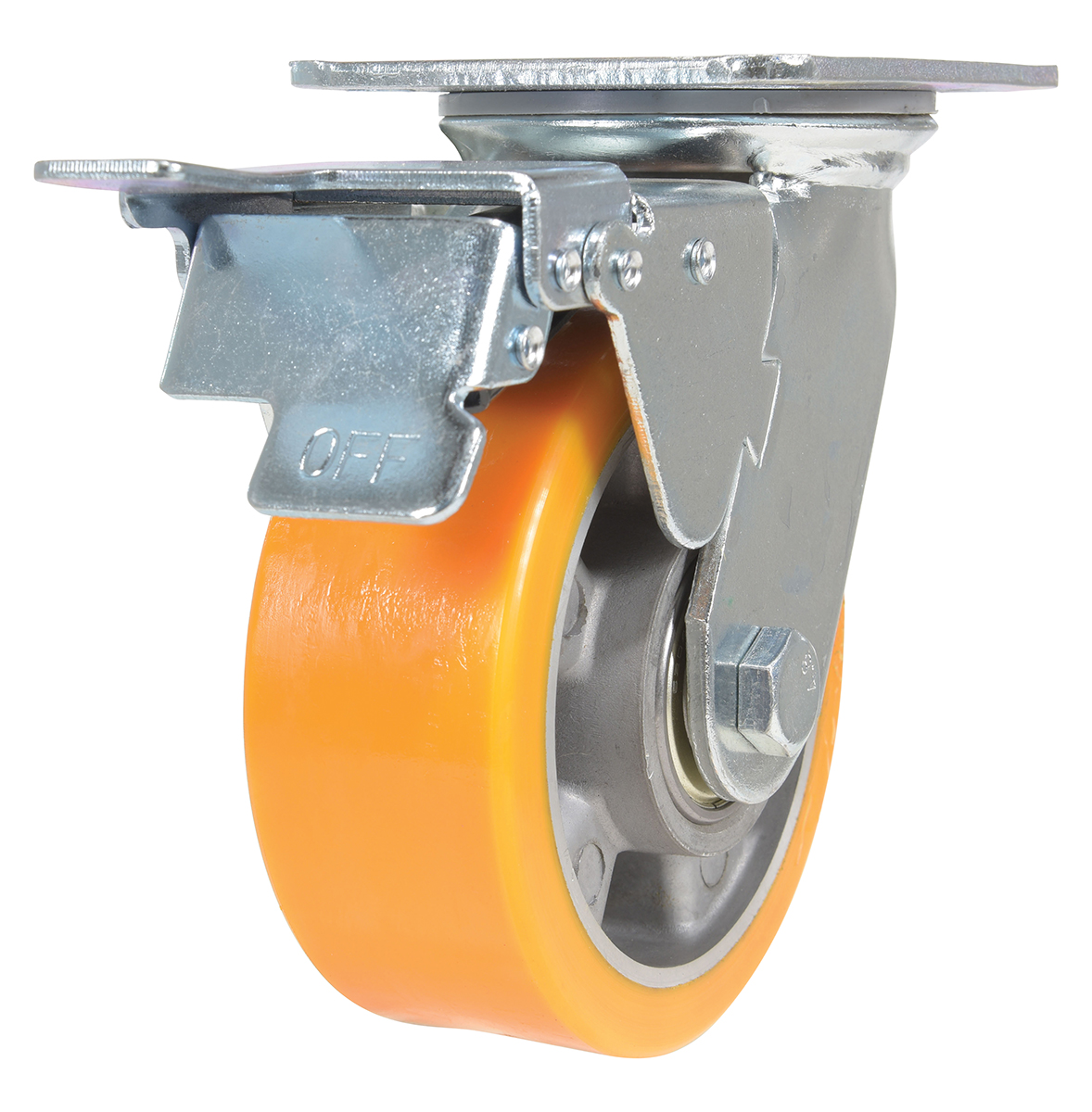

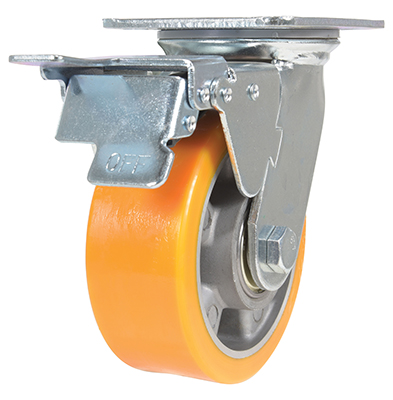

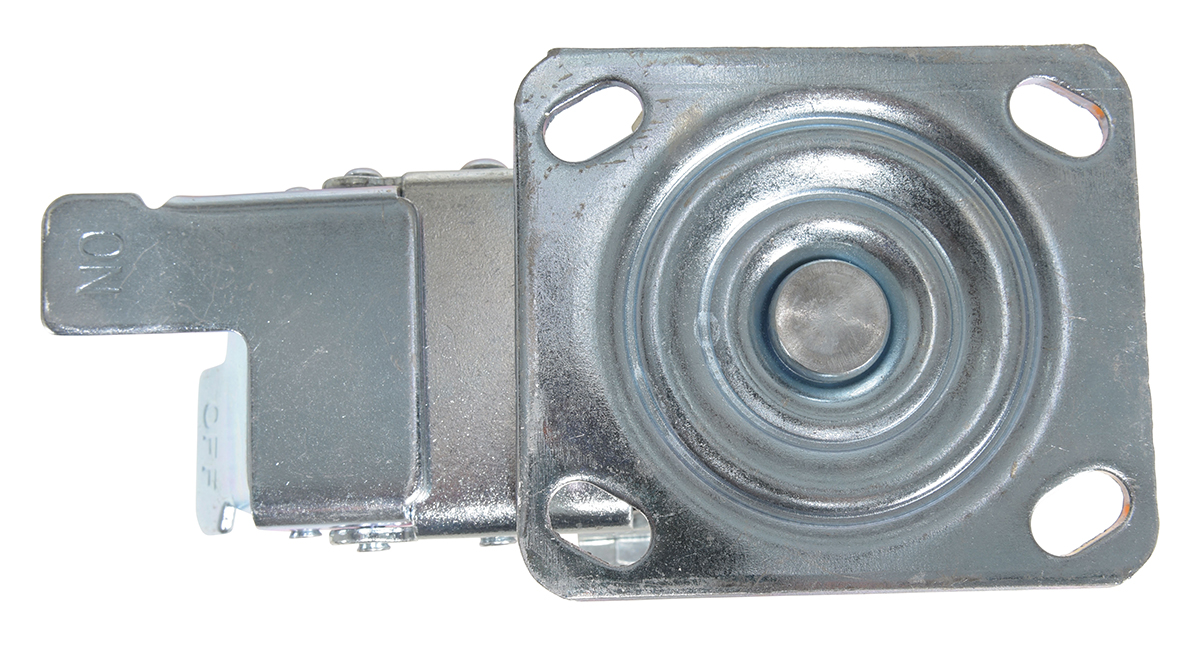

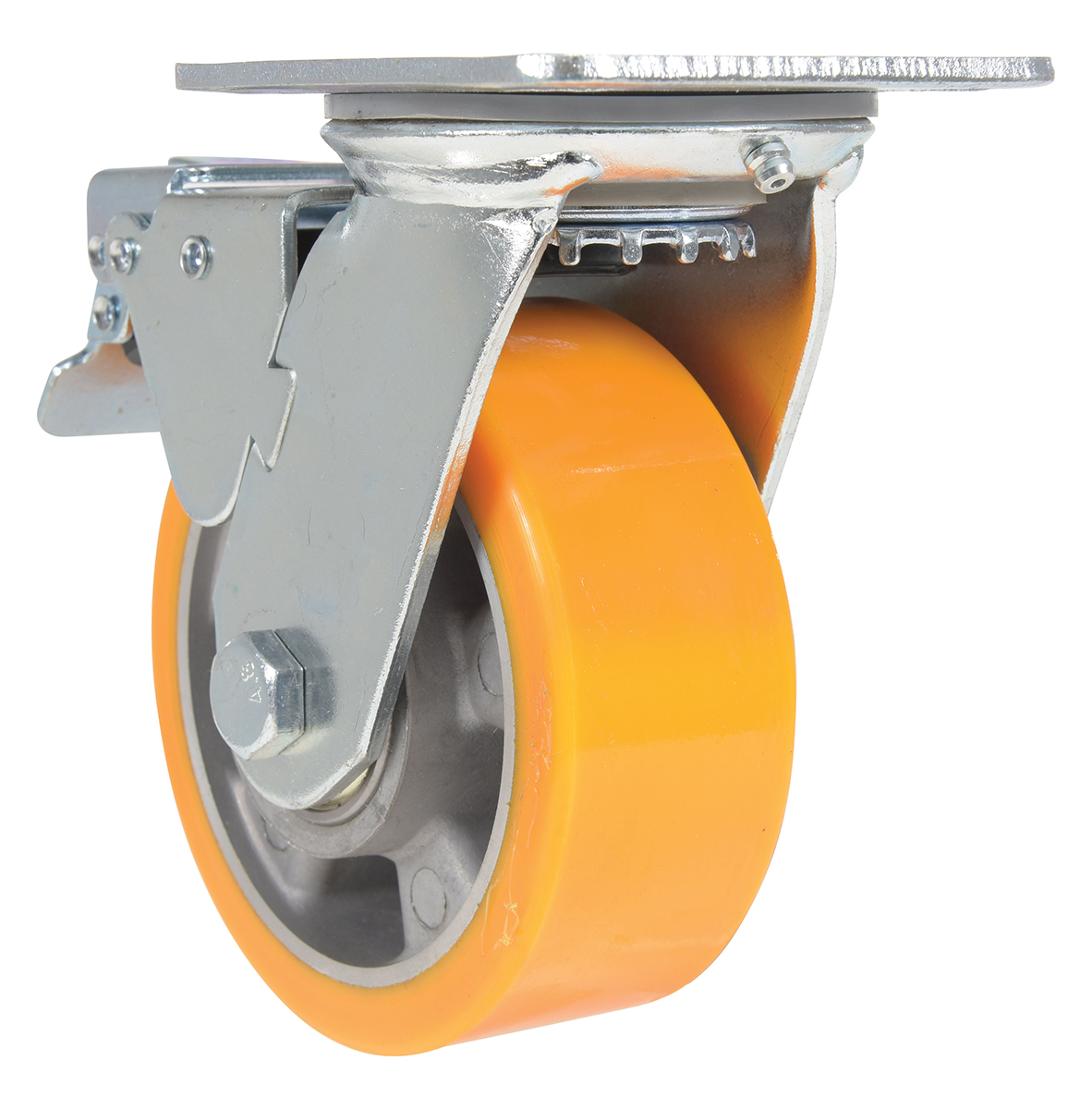

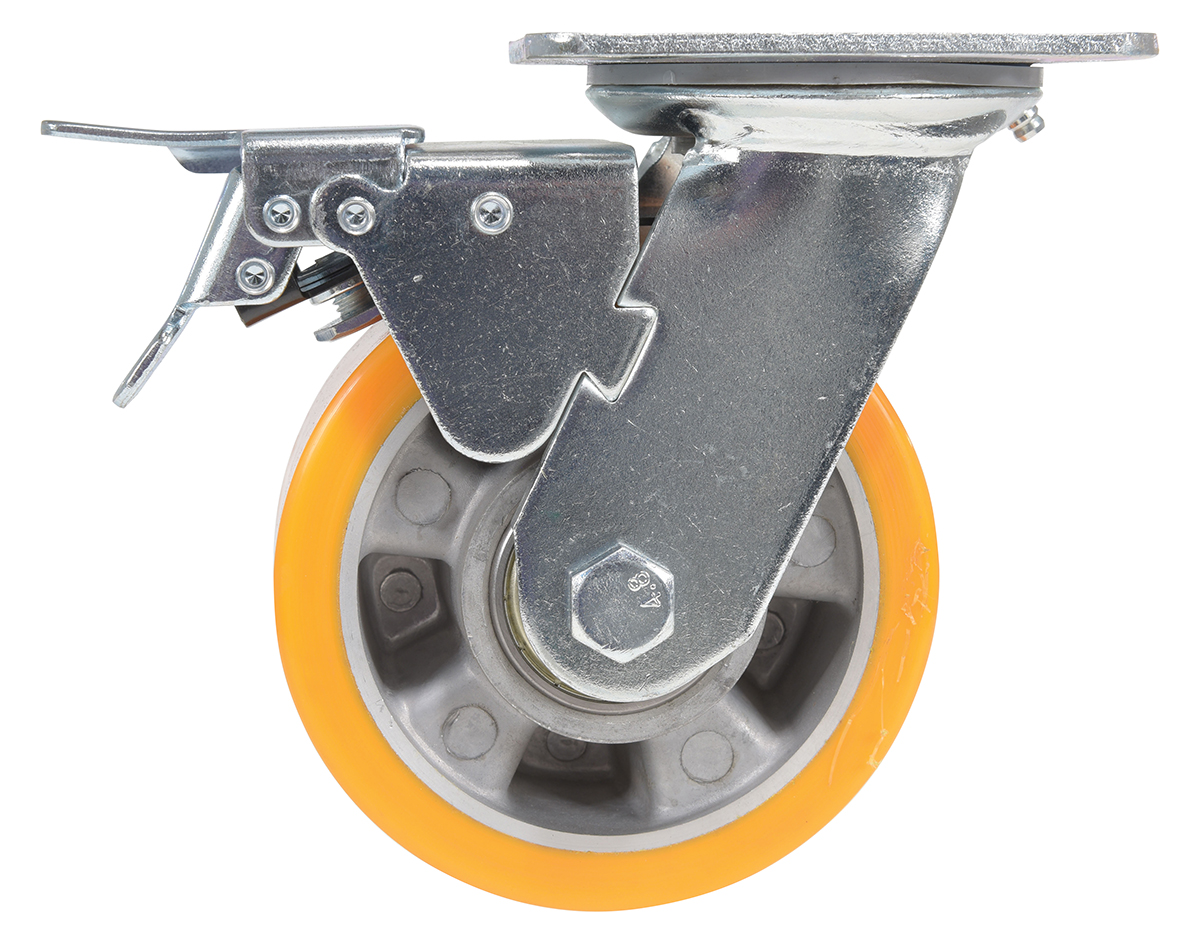

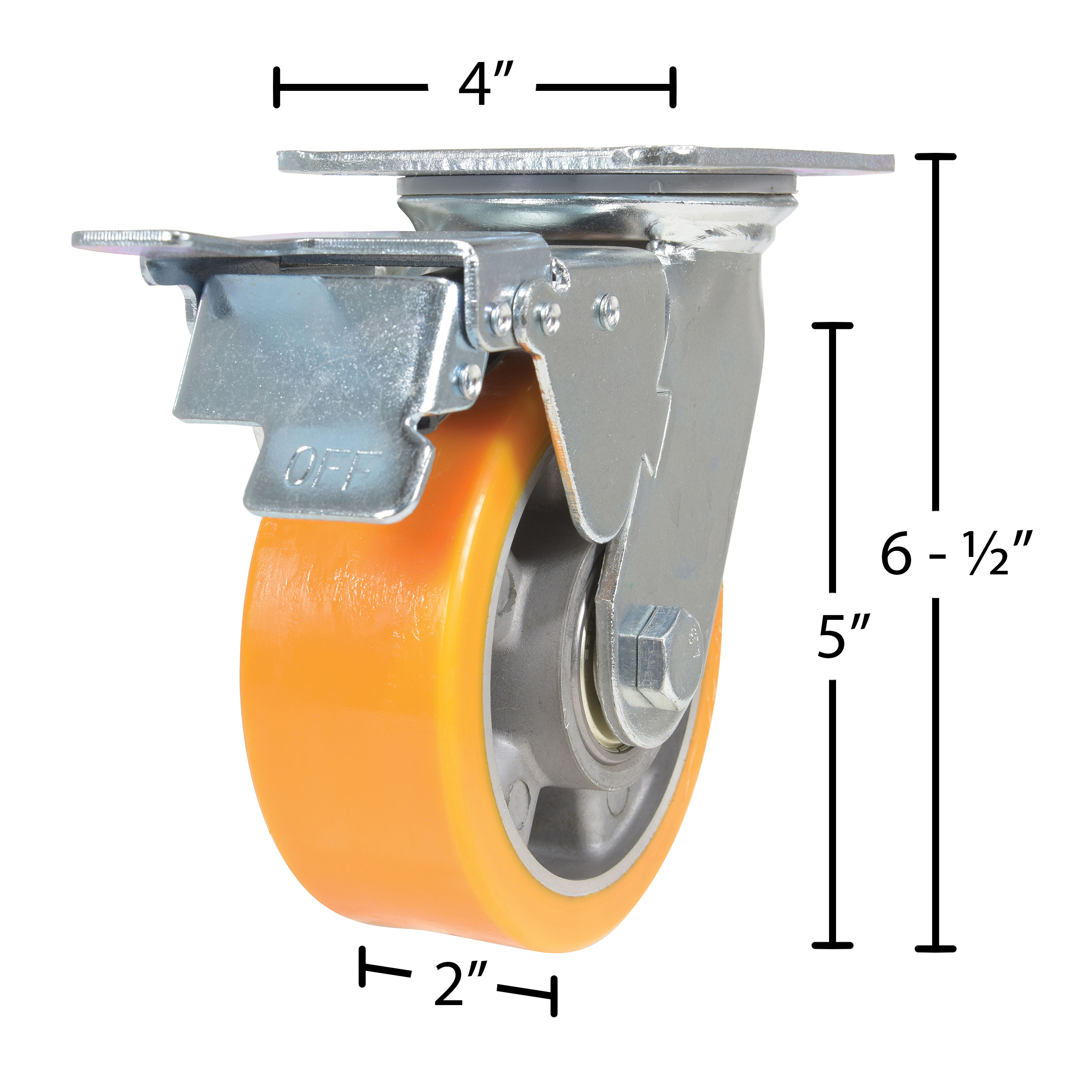

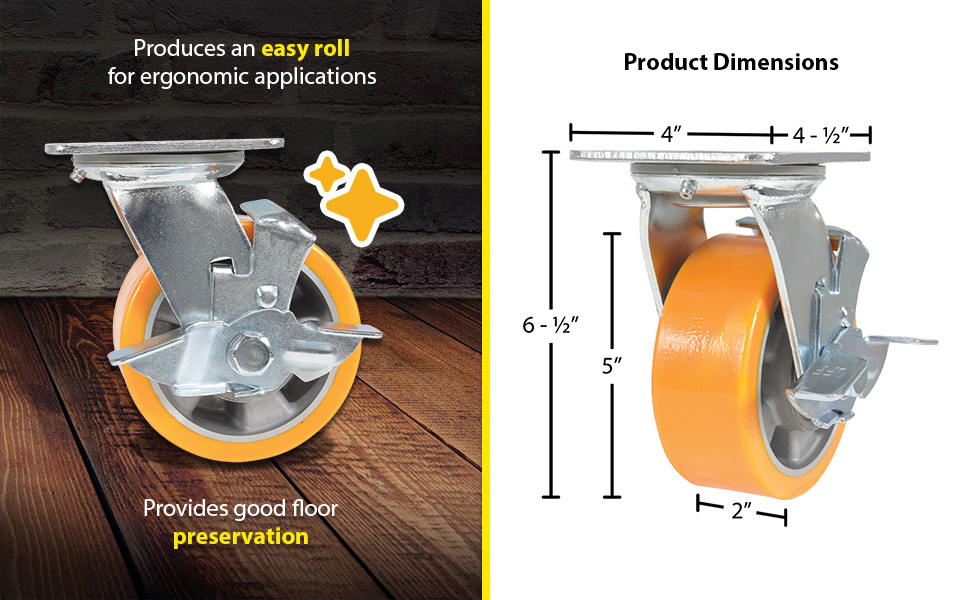

CST-VE-5X2PUA-SWTB CST-VE-5X2PUA-SWTB1 YEAR Limited Warranty5 x 2SWIVEL W/TOTAL BRAKE9906-1/2 4 x 4-1/25.9

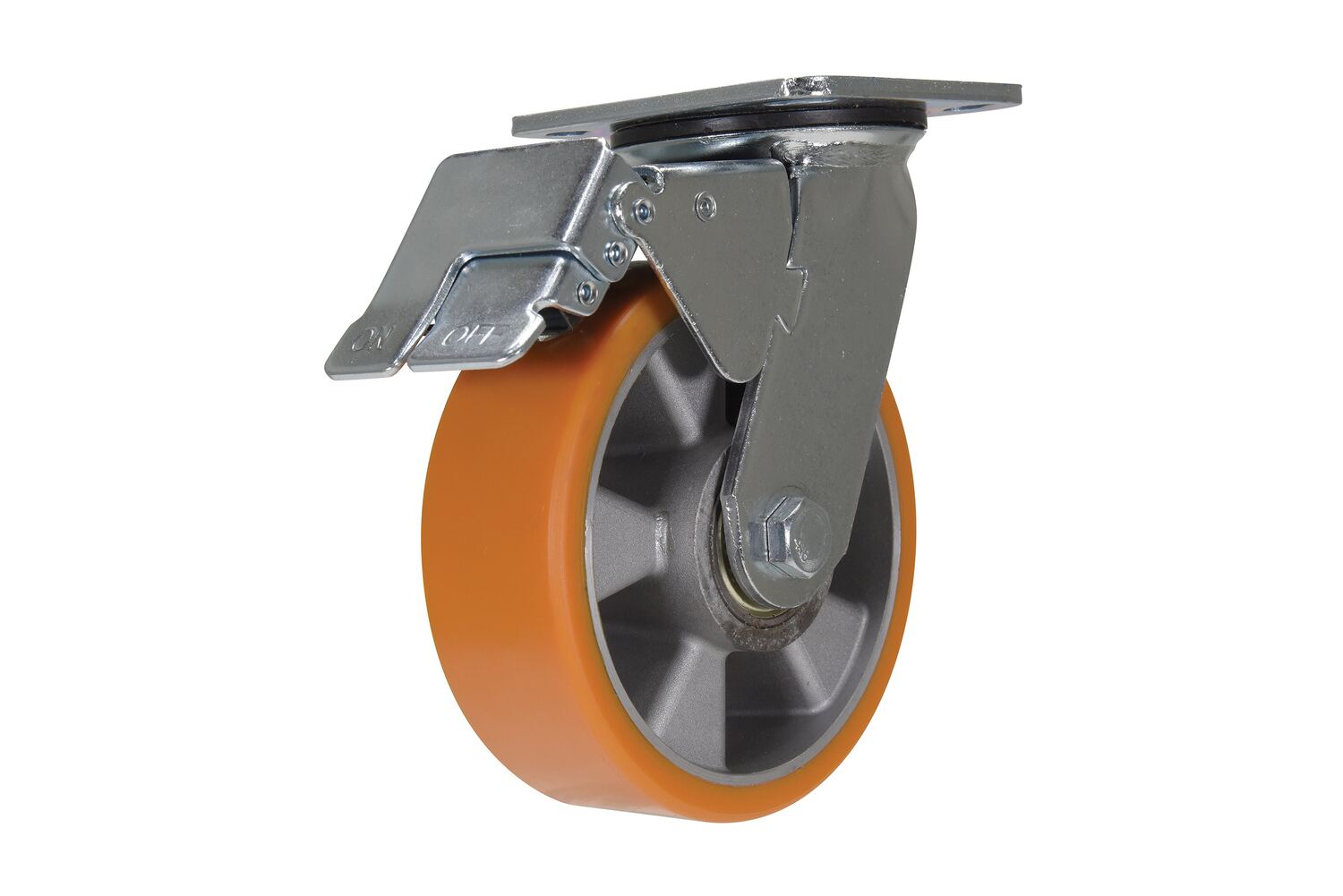

CST-VE-6X2PUA-SWTB CST-VE-6X2PUA-SWTB1 Year Limited Warranty6 x 2SWIVEL W/TOTAL BRAKE12107-1/2 4 x 4-1/28.6

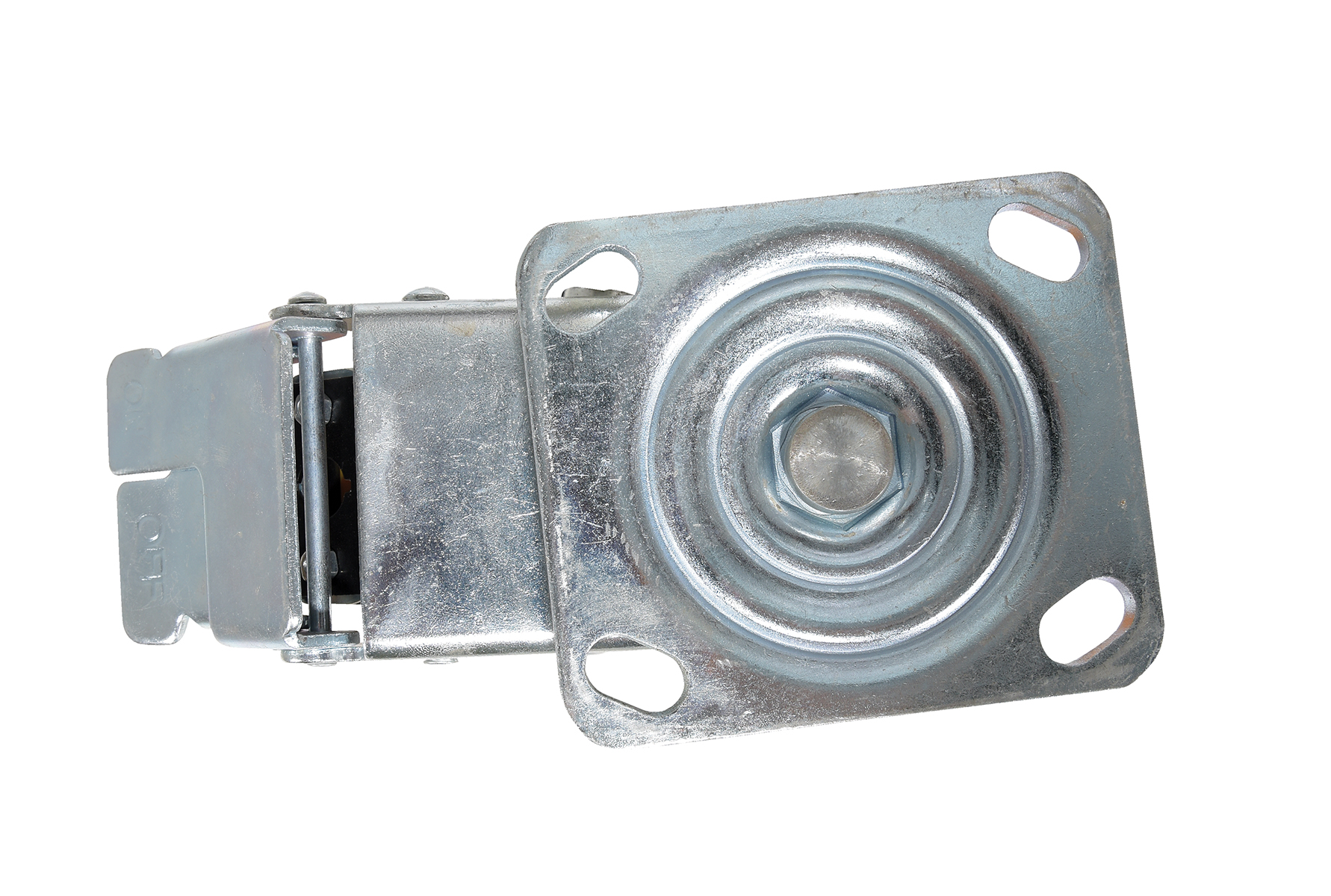

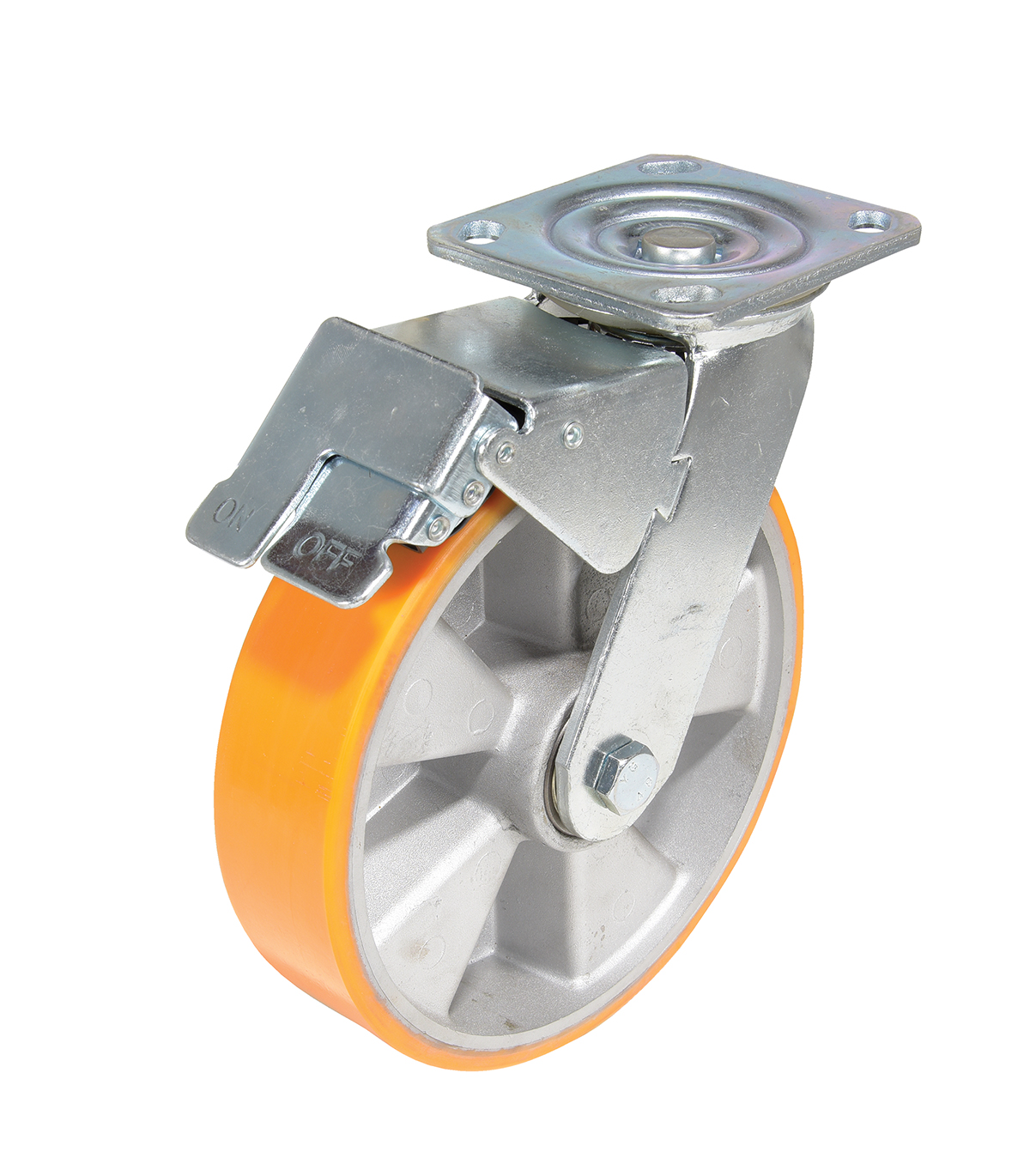

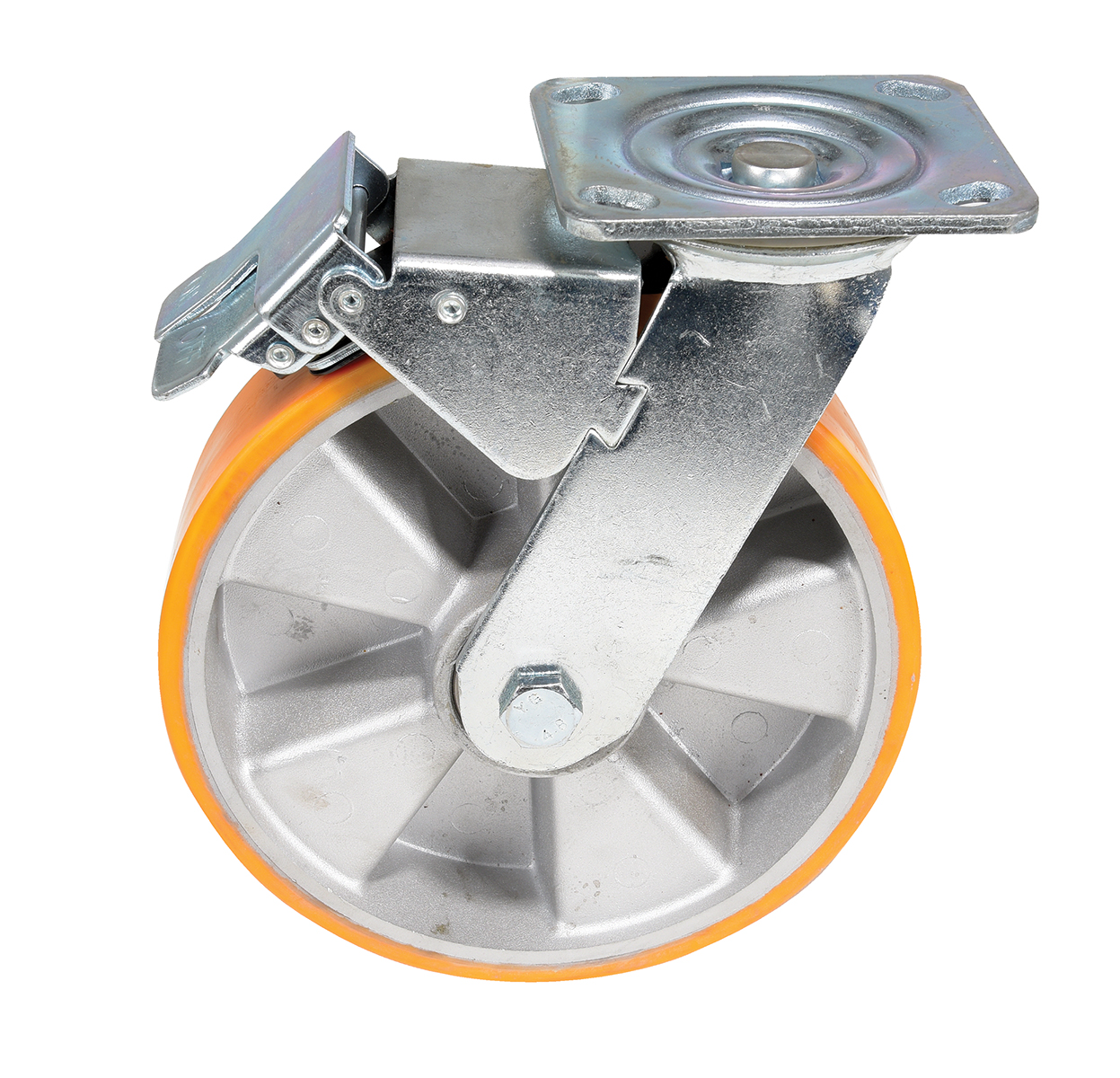

CST-VE-8X2PUA-SWTB CST-VE-8X2PUA-SWTB1 Year Limited Warranty8 x 2SWIVEL W/TOTAL BRAKE15439-1/2 4 x 4-1/211.4

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty


Polyurethane Casters PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CST-VE-4X2PUA-R

CST-VE-4X2PUA-S

CST-VE-4X2PUA-SWB

CST-VE-4X2PUA-SWTB

CST-VE-5X2PUA-R

CST-VE-5X2PUA-S

CST-VE-5X2PUA-SWB

CST-VE-5X2PUA-SWTB

CST-VE-6X2PUA-R

CST-VE-6X2PUA-S

CST-VE-6X2PUA-SWB

CST-VE-6X2PUA-SWTB

CST-VE-8X2PUA-R

CST-VE-8X2PUA-S

CST-VE-8X2PUA-SWB

CST-VE-8X2PUA-SWTB

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products
