Full Featured Pallet Trucks

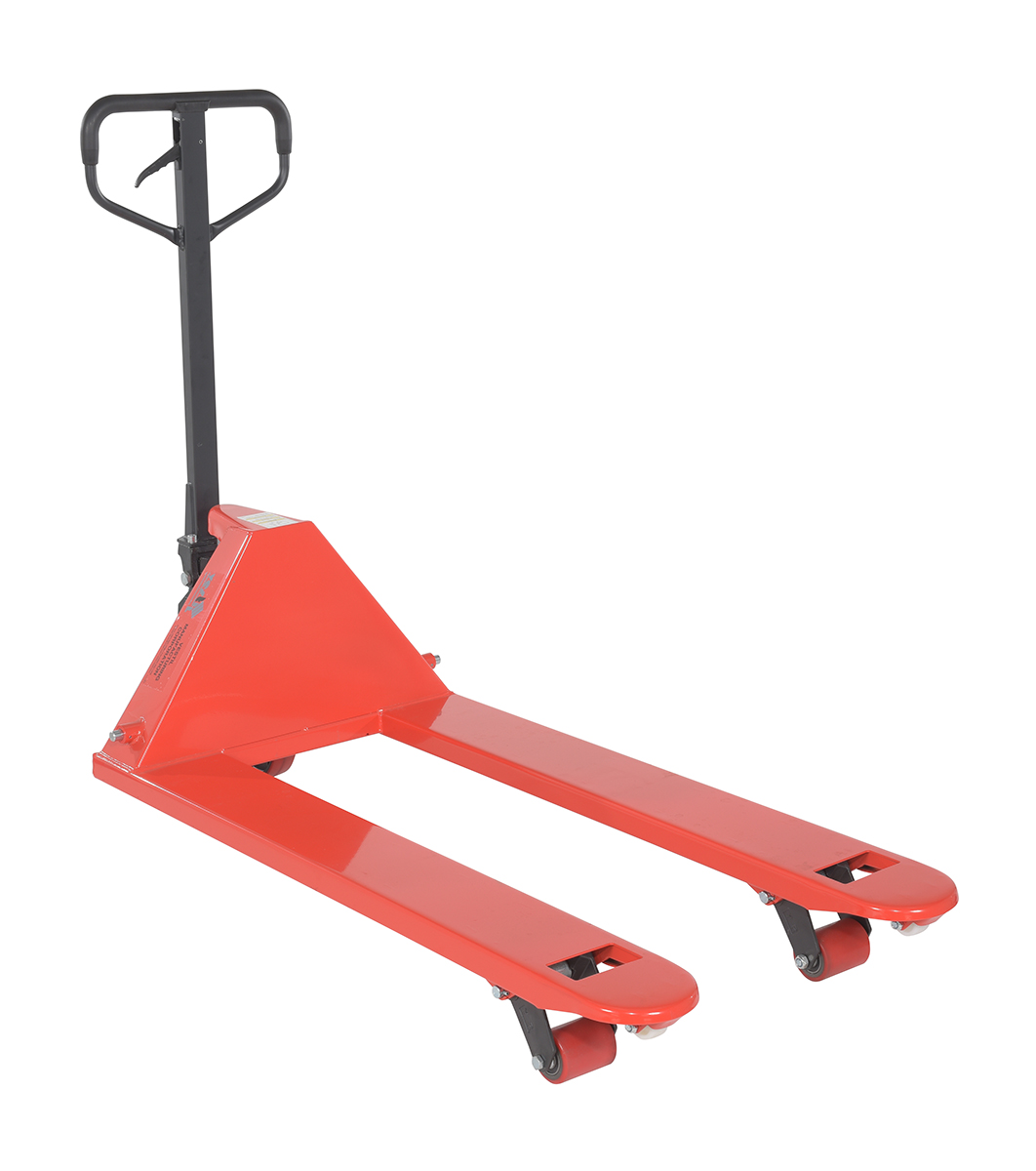

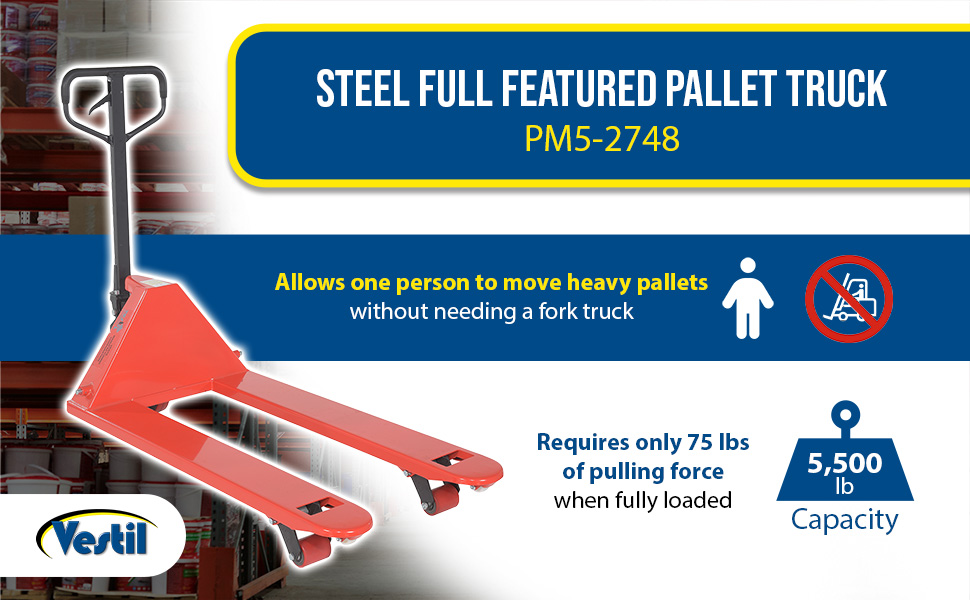

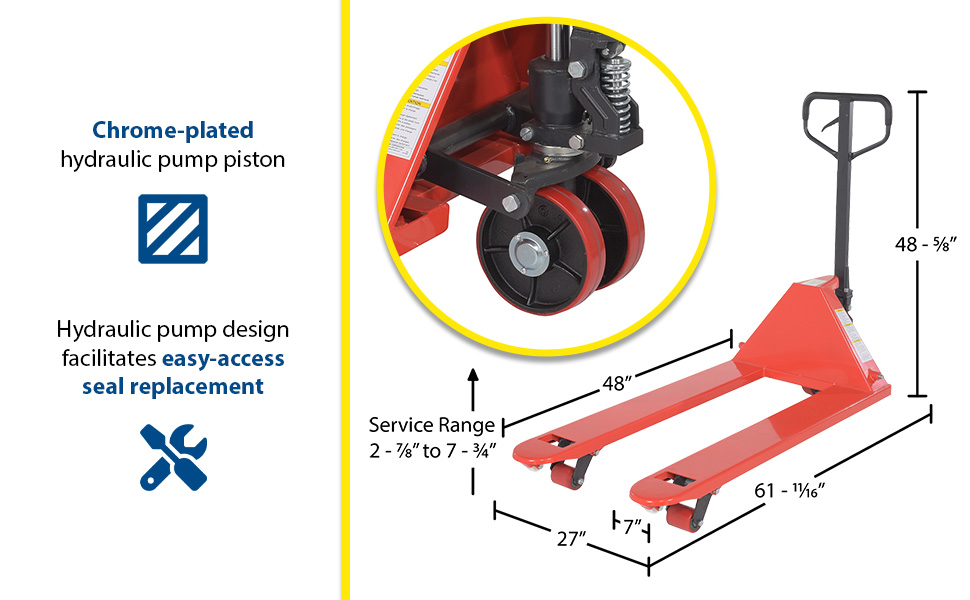

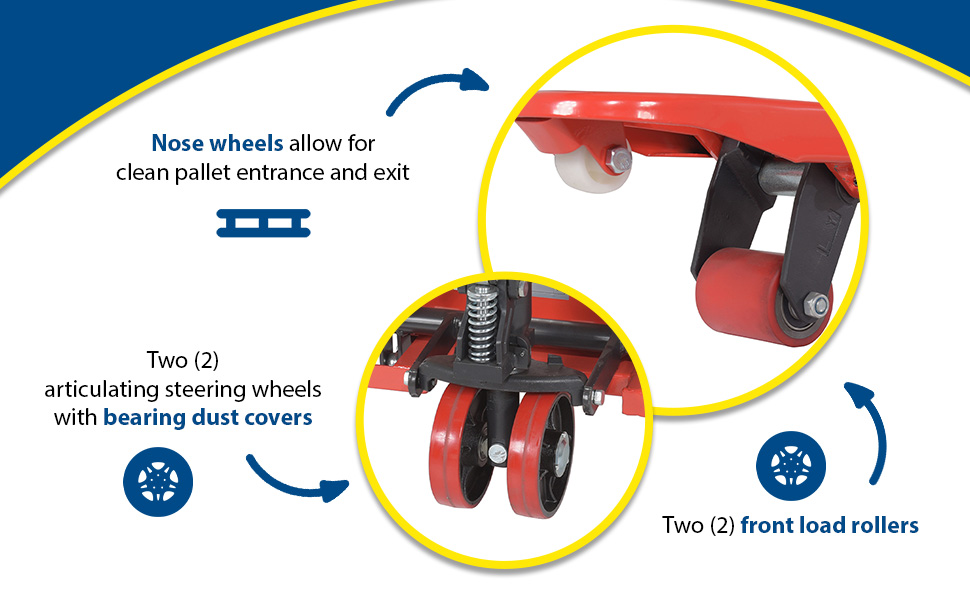

model: PM5-2748

PM5-2748_A.jpg PM5-2748_B.jpg PM5-2748_C.jpg PM5-2748_D.jpg PM5-2748_E.jpg PM5-2748_F.jpg PM5-2748_G.jpg PM5-2748_H.jpg PM5-2748_I.jpg PM5-2748_J.jpg PM5-2748_Z.gif More Images +
Full Featured Pallet Trucks
SERIES: PM5,PM4,PM6,PM10   29Products 2Options
Best Seller Powder Coat Quick Ship

Heavy-Duty Manual Pallet Jacks and Industrial Pallet Trucks for Warehouse Material Handling

Full-featured pallet trucks provide a dependable, cost-effective solution for moving palletized loads without the need for a forklift. Designed for daily use in warehouses, distribution centers, and manufacturing facilities, these manual pallet jacks combine rugged construction with ergonomic operation. With a wide range of capacities, fork sizes, and configurations, they are built to handle everything from standard pallets to oversized or heavy-duty loads with ease.

Ships with the Handle Detached

Key Features & Benefits

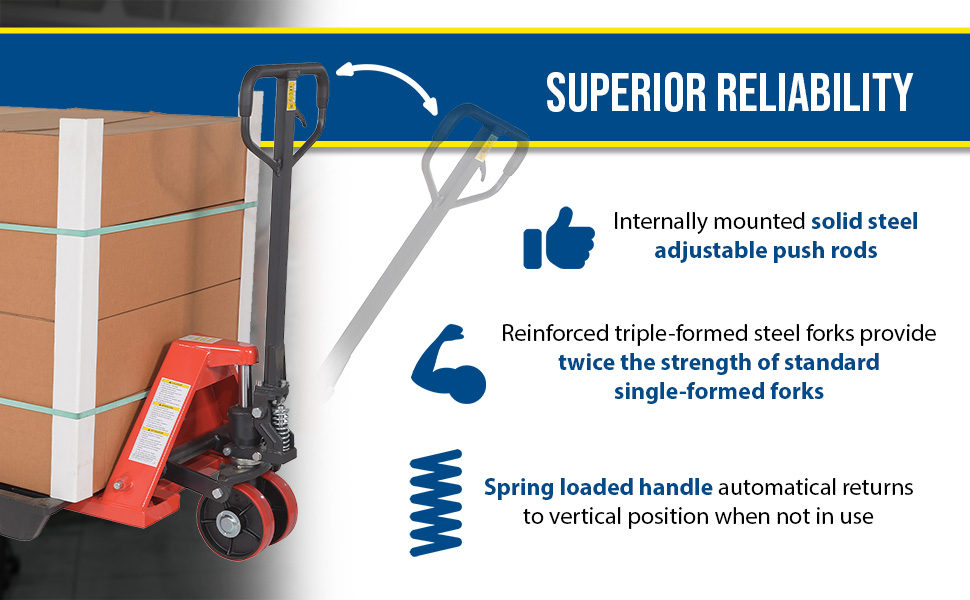

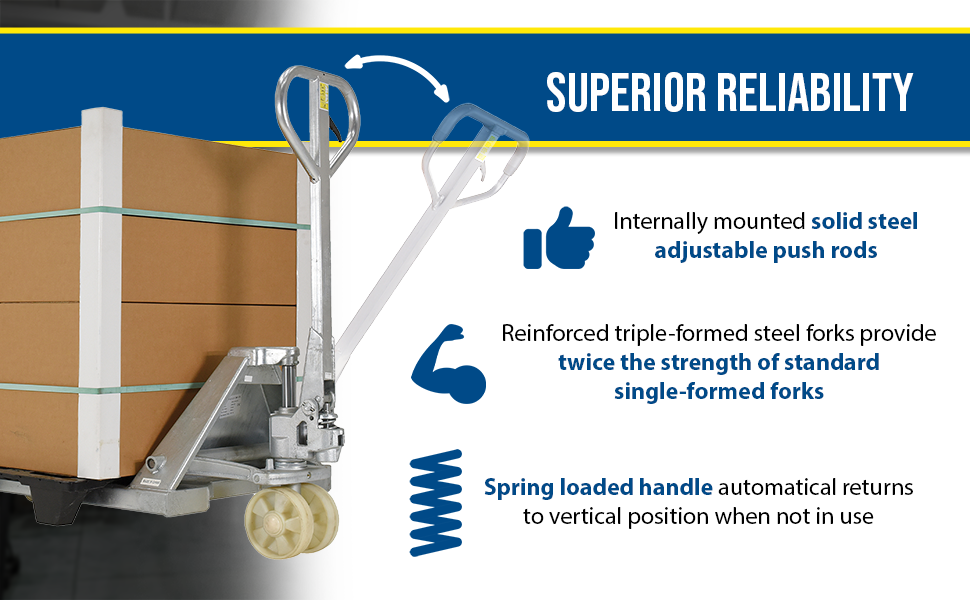

Constructed with reinforced triple-formed steel forks for superior strength, these pallet trucks are engineered to withstand demanding applications. Ergonomic handle design minimizes operator effort, requiring minimal force to move fully loaded units. Smooth-rolling poly-on-steel wheels and entry rollers ensure easy pallet engagement and controlled movement. Precision hydraulic pump systems with chrome-plated pistons enhance durability and simplify maintenance. Additional features such as automatic return handles, sealed bearings, and optional towing capabilities on select models further improve usability and longevity.

Applications

Ideal for shipping, receiving, order picking, and general material transport, these pallet jacks are essential tools across warehouses, retail backrooms, and production floors. They are well-suited for short-distance load movement, truck loading and unloading, and tight aisle navigation where forklifts may not be practical.

Configurations & Options

This product family includes multiple capacity ratings ranging up to heavy-duty applications, with a variety of fork lengths, widths, and spacing options to match different pallet types. Specialty configurations include extended forks, high-capacity models, and units designed for towing or freezer environments. Optional accessories such as foot brake kits and low-temperature oil packages allow users to tailor the pallet truck to specific operational needs.

Need longer forks for certain jobs? Check to see if your pallet truck is compatible with Vestil's NEW Pallet Master Fork Extensions!

PM-FE-7-48

Full Featured Pallet Trucks

model: PM5-2748

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
PM10-2245
PM4-2072
PM4-2096
PM4-2772
PM4-2796
PM5-2036
PM5-2048
PM5-2048-6PKG
PM5-2736
PM5-2742
PM5-2742-6PKG
PM5-2748
PM5-2748-6PKG
PM5-2748-BK
PM5-2748-BL
PM5-2748-BL-6PKG
PM5-2748-FP
PM5-2748-GYSG
PM5-2748-N
PM5-2748-OR
PM5-2748-PINK
PM5-2748-RD
PM5-2748-S
PM5-2748-SL
PM5-2748-WT
PM5-2748-YL
PM5-FB
PM6-2748
PM6-2748-6PKG
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

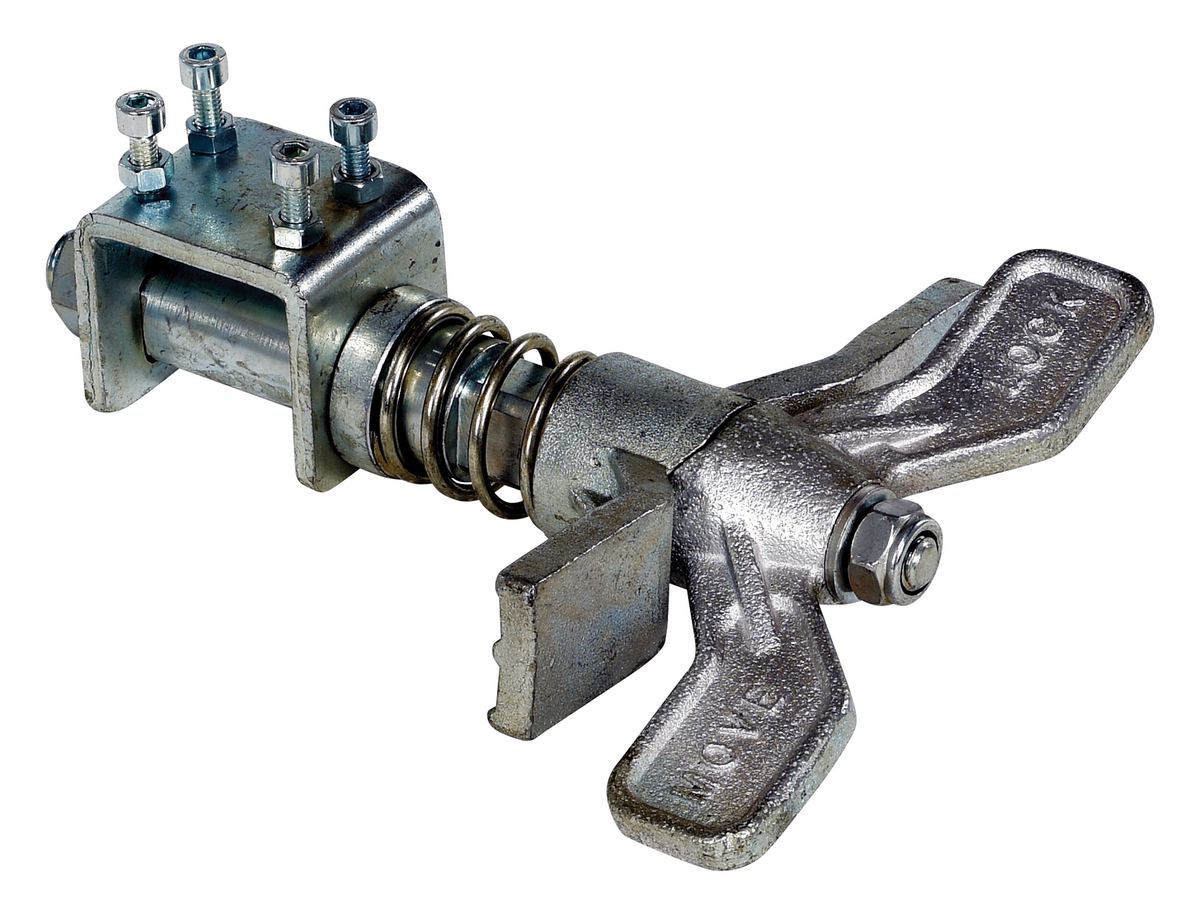

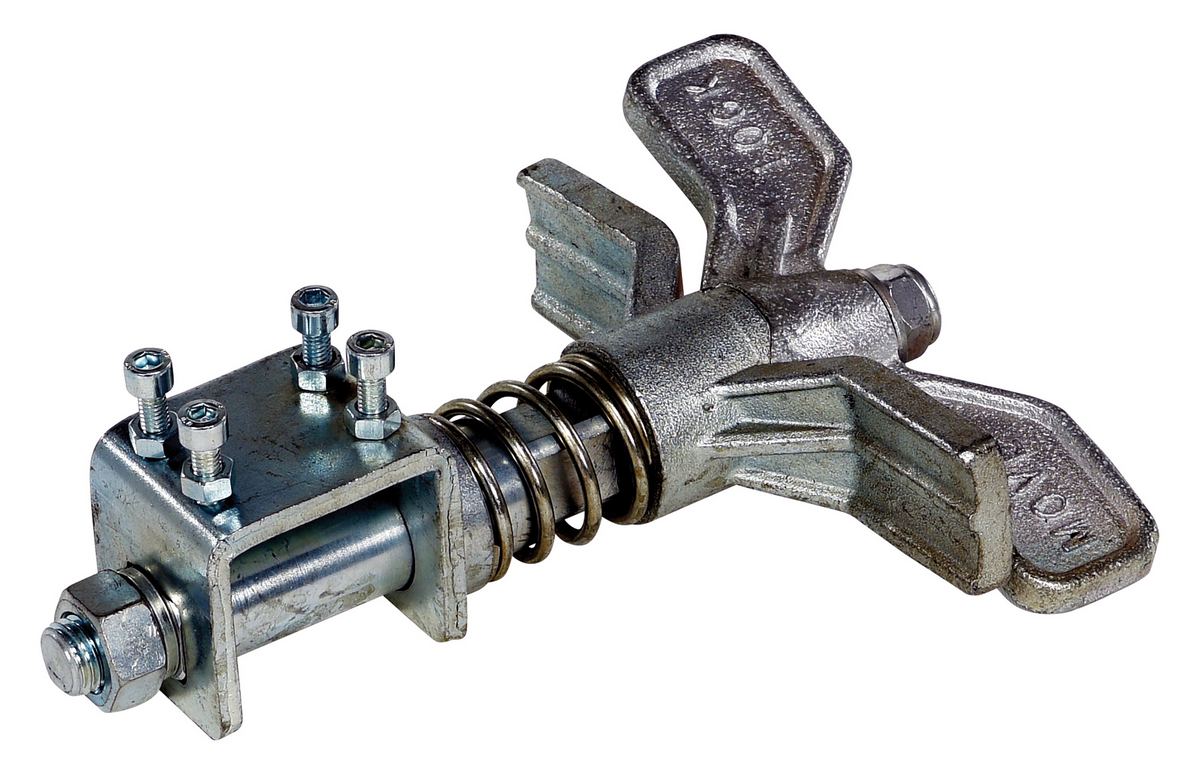

PM5-FB PM5-FB Foot Brake Kit For PM5/PM4/PM6 Models 90 Days Limited Warranty 5
Model Number Image Description Wt.
(lbs)
CWHF-SM Low Temp Oil for Freezer Applications -
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

PM5-2748

PM10

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

PM10-2245

PM4-2072

PM4-2096

PM4-2772

PM4-2796

PM5-2036

PM5-2048

PM5-2736

PM5-2748

PM5-2748-N

PM5-2748-S

PM6-2748

Testing Certificates

PM10-2245

PM4-2072

PM4-2096

PM4-2772

PM4-2796

PM5-2036

PM5-2048

PM5-2048-6PKG

PM5-2736

PM5-2742

PM5-2742-6PKG

PM5-2748

PM5-2748-6PKG

PM5-2748-BK

PM5-2748-BL

PM5-2748-BL-6PKG

PM5-2748-FP

PM5-2748-GYSG

PM5-2748-N

PM5-2748-OR

PM5-2748-PINK

PM5-2748-RD

PM5-2748-S

PM5-2748-SL

PM5-2748-WT

PM5-2748-YL

PM5-FB

PM6-2748

PM6-2748-6PKG

SDS Sheets


Hydraulic Oil
PM10-2245 SDS


Hydraulic Oil
PM4-2072 SDS


Hydraulic Oil
PM4-2096 SDS


Hydraulic Oil
PM4-2772 SDS


Hydraulic Oil
PM4-2796 SDS


Hydraulic Oil
PM5-2036 SDS


Hydraulic Oil
PM5-2048 SDS


Hydraulic Oil
PM5-2048-6PKG SDS


Hydraulic Oil
PM5-2736 SDS


Hydraulic Oil
PM5-2748 SDS


Hydraulic Oil
PM5-2748-6PKG SDS


Hydraulic Oil
PM5-2748-FP SDS


Hydraulic Oil
PM5-2748-N SDS


Hydraulic Oil
PM5-2748-PINK SDS


Hydraulic Oil
PM5-2748-S SDS


Hydraulic Oil
PM5-FB SDS


Hydraulic Oil
PM6-2748 SDS


Hydraulic Oil
PM6-2748-6PKG SDS

Other PDFs

MEZZ-R5
Full Featured Pallet Jack Mailing Brochure







Visit Our Youtube Channel For All Available Videos For All Products

Enhanced Product Content

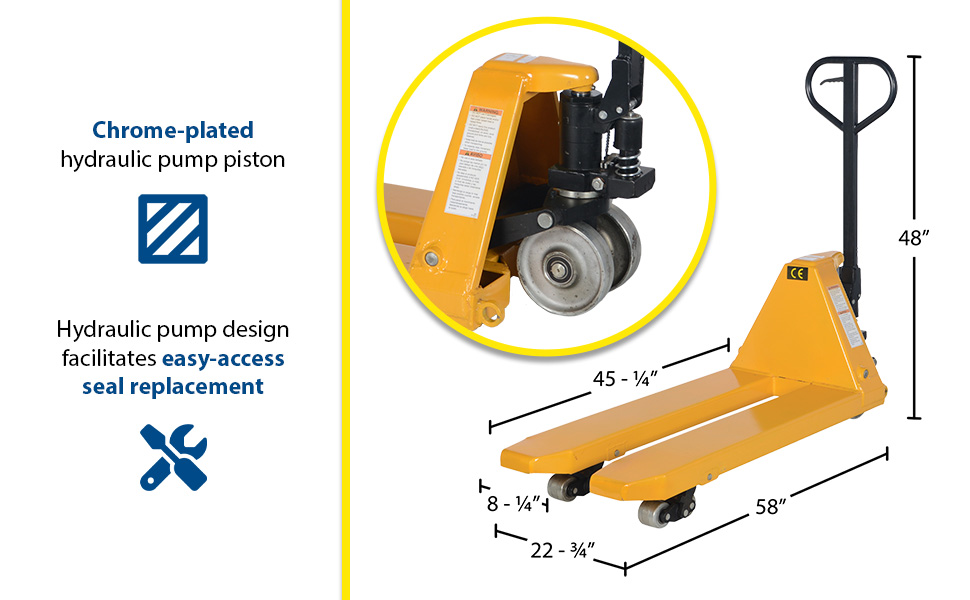

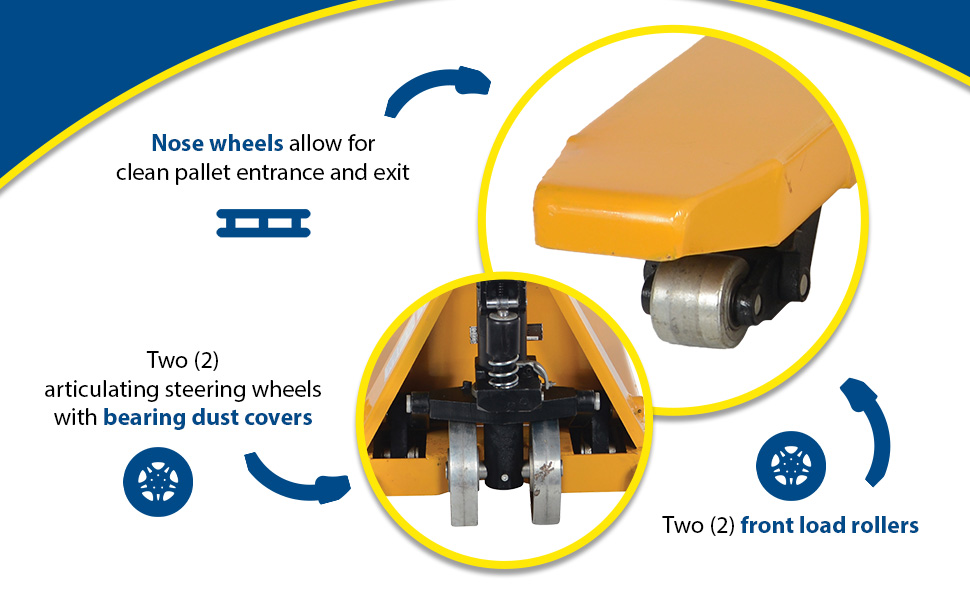

PM10-2245

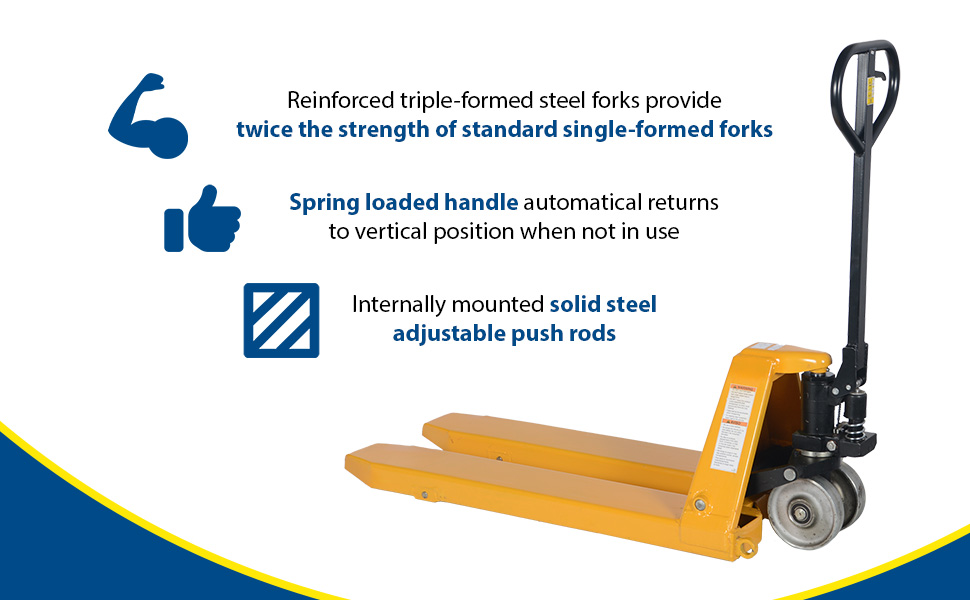

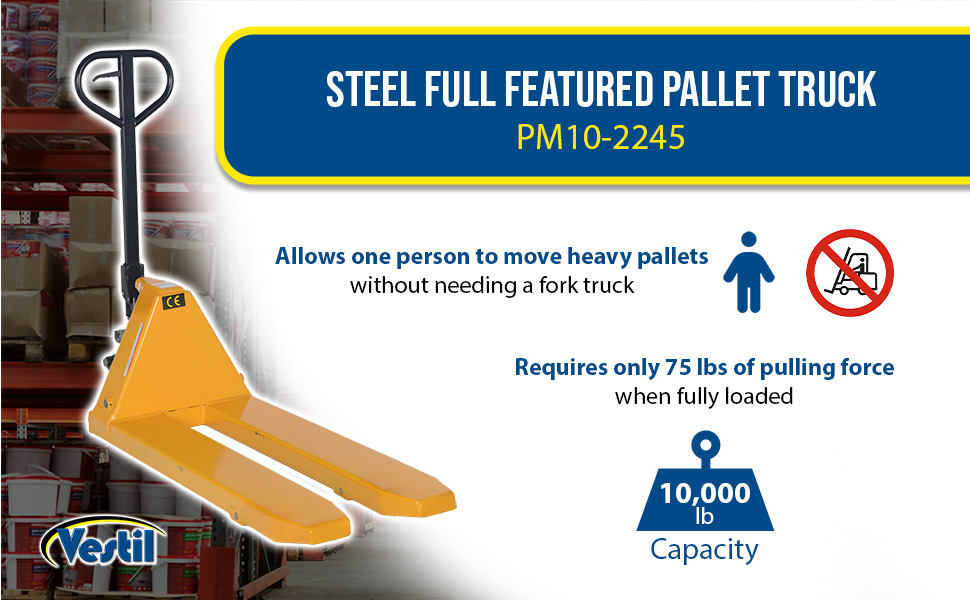

PM10-2245 PM10-2245 A+ Content - 4
PM10-2245 PM10-2245 A+ Content - 3
PM10-2245 PM10-2245 A+ Content - 1
PM10-2245 PM10-2245 A+ Content - 2
PM4-2796

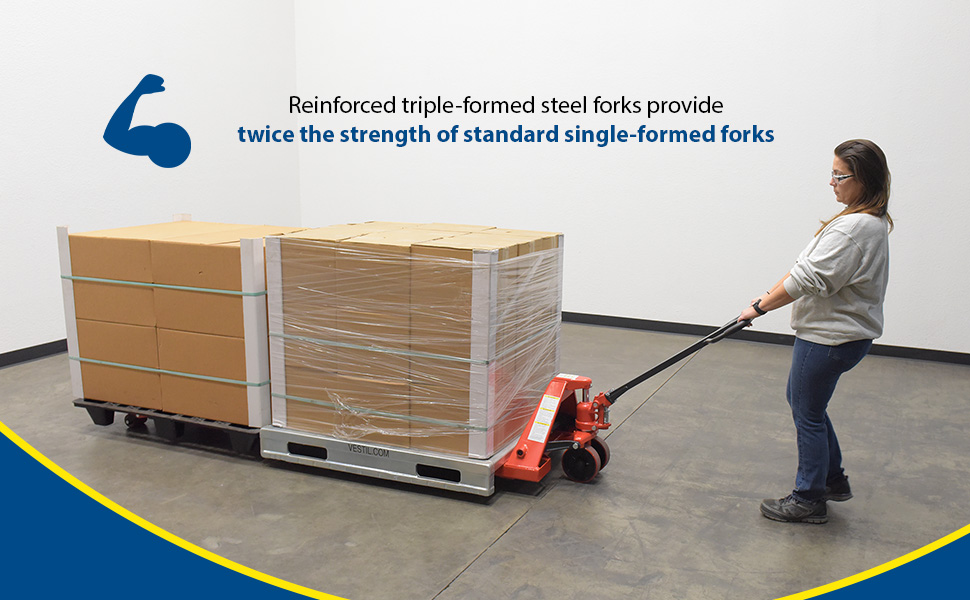

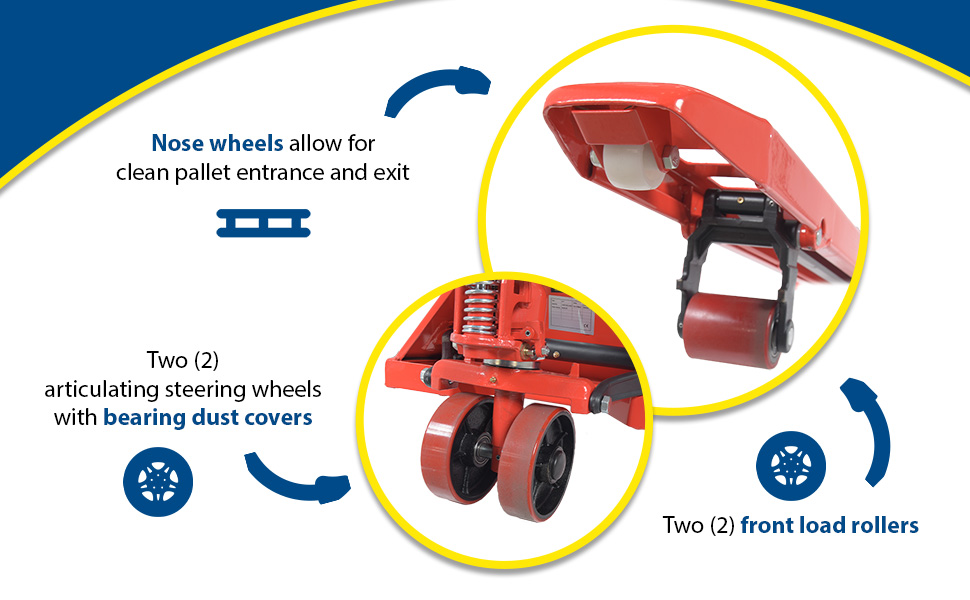

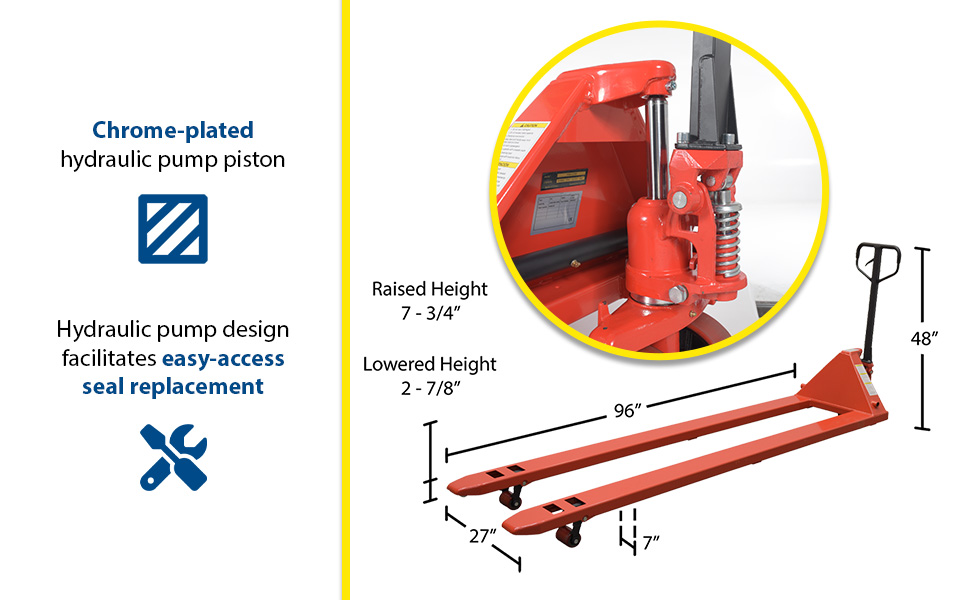

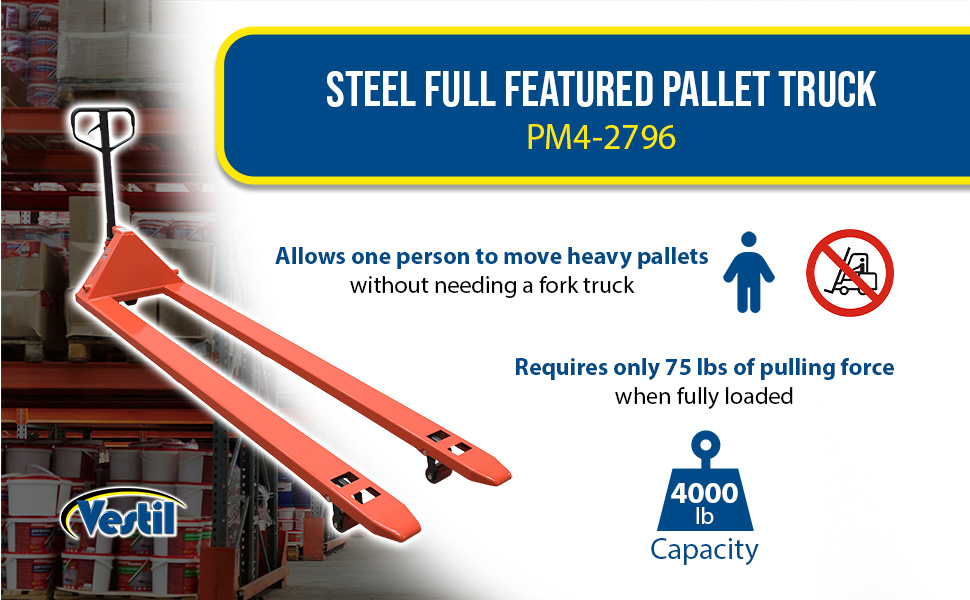

PM4-2796 PM4-2796 A+ Content - 3
PM4-2796 PM4-2796 A+ Content - 2
PM4-2796 PM4-2796 A+ Content - 1
PM4-2796 PM4-2796 A+ Content - 4

PM5-2748 Specialty Colors Available!

RED

PM5-2748-RD

RED
Model Suffix: -RD

WHITE

PM5-2748-WT

WHITE
Model Suffix: -WT

GRAY


GRAY
Model Suffix: -GYSG

BLUE

PM5-2748-BL

BLUE
Model Suffix: -BL

YELLOW

PM5-2748-YL

YELLOW
Model Suffix: -YL

ORANGE

PM5-2748-OR

ORANGE
Model Suffix: -OR

BLACK

PM5-2748-BK

BLACK
Model Suffix: -BK

SILVER

PM5-2748-SL

SILVER
Model Suffix: -SL

PINK

PM5-2748-PINK

PINK
Model Suffix: -PINK


Notice These swatches are a representation of the colors available, and may not be exact.

Applications



Trucking Companies

Warehouses

Gas Stations

Superstores

Moving Companies

Postal Services

Loading Docks

Packaging Areas

Related or Similar Products:

More From Manual Pallet Trucks





Full Featured Pallet Trucks




Heavy-Duty Manual Pallet Jacks and Industrial Pallet Trucks for Warehouse Material Handling

Full-featured pallet trucks provide a dependable, cost-effective solution for moving palletized loads without the need for a forklift. Designed for daily use in warehouses, distribution centers, and manufacturing facilities, these manual pallet jacks combine rugged construction with ergonomic operation. With a wide range of capacities, fork sizes, and configurations, they are built to handle everything from standard pallets to oversized or heavy-duty loads with ease.

Ships with the Handle Detached

Key Features & Benefits

Constructed with reinforced triple-formed steel forks for superior strength, these pallet trucks are engineered to withstand demanding applications. Ergonomic handle design minimizes operator effort, requiring minimal force to move fully loaded units. Smooth-rolling poly-on-steel wheels and entry rollers ensure easy pallet engagement and controlled movement. Precision hydraulic pump systems with chrome-plated pistons enhance durability and simplify maintenance. Additional features such as automatic return handles, sealed bearings, and optional towing capabilities on select models further improve usability and longevity.

Applications

Ideal for shipping, receiving, order picking, and general material transport, these pallet jacks are essential tools across warehouses, retail backrooms, and production floors. They are well-suited for short-distance load movement, truck loading and unloading, and tight aisle navigation where forklifts may not be practical.

Configurations & Options

This product family includes multiple capacity ratings ranging up to heavy-duty applications, with a variety of fork lengths, widths, and spacing options to match different pallet types. Specialty configurations include extended forks, high-capacity models, and units designed for towing or freezer environments. Optional accessories such as foot brake kits and low-temperature oil packages allow users to tailor the pallet truck to specific operational needs.

Need longer forks for certain jobs? Check to see if your pallet truck is compatible with Vestil's NEW Pallet Master Fork Extensions!

PM-FE-7-48


Model # Description Attributes Net Wt.
(lbs)

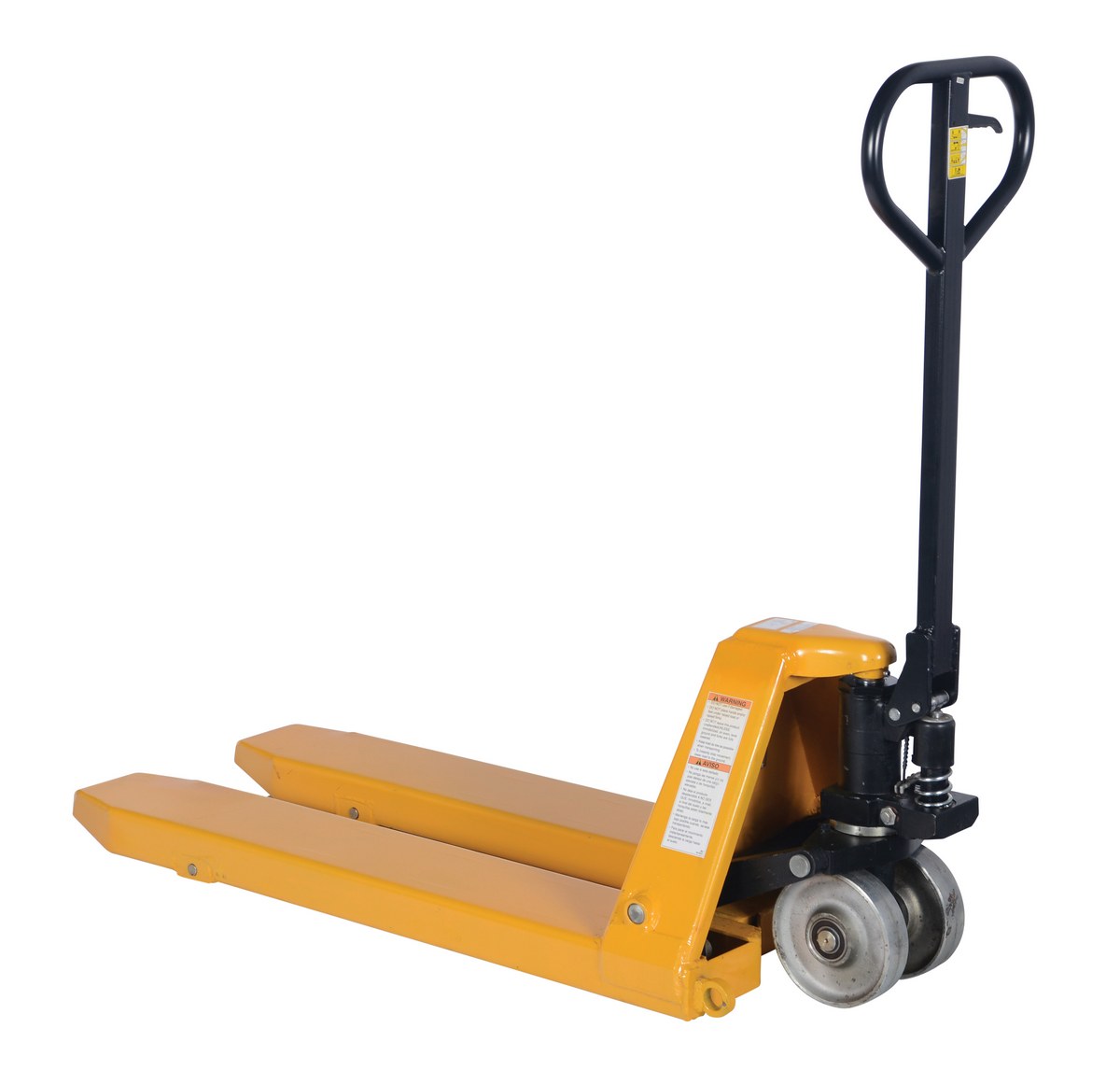

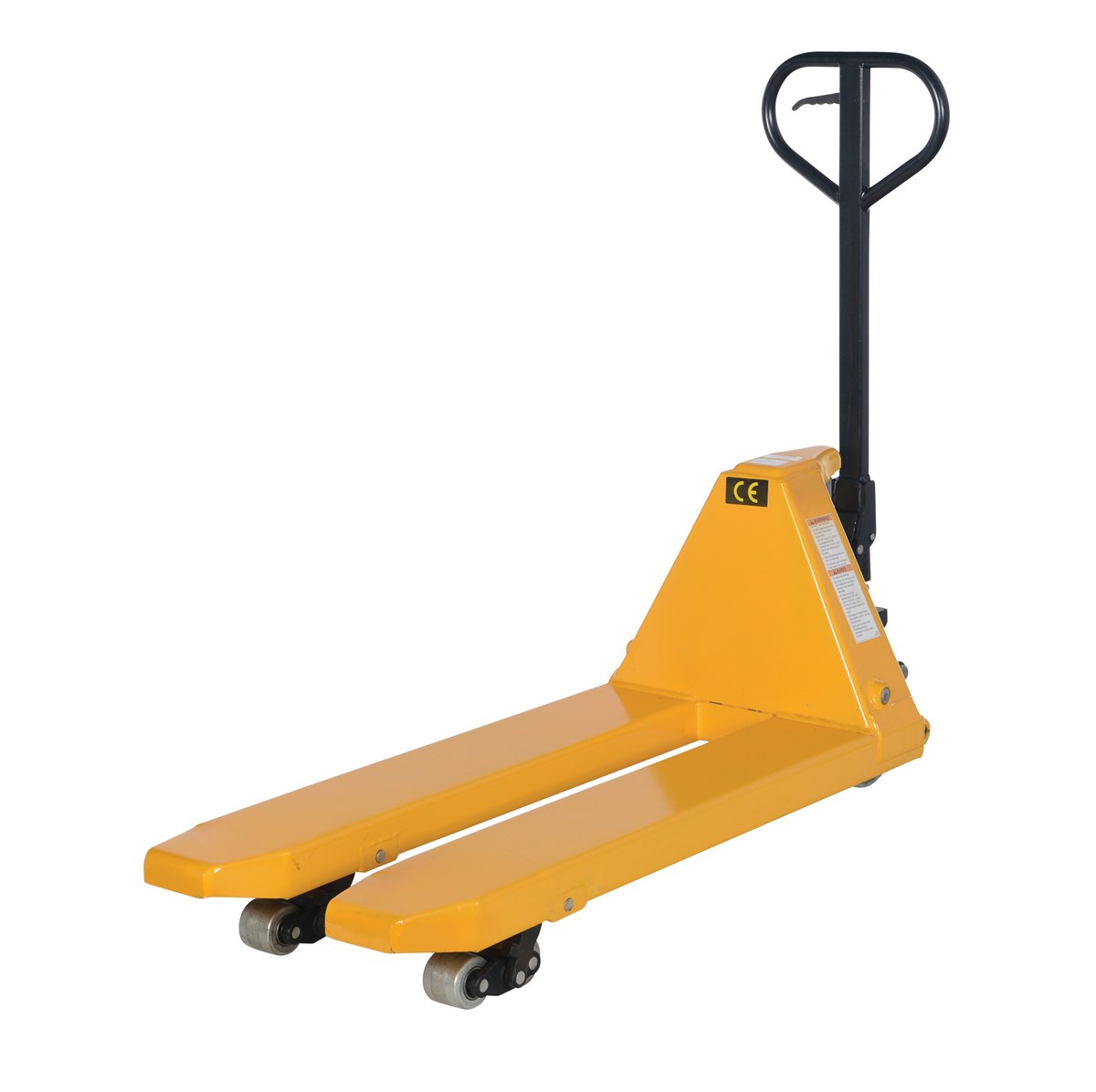

PM10-2245 PM10-2245Steel Full Featured Pallet Truck 58 In. x 22-3/4 In. x 48 In. 10000 Lb. Capacity YellowUniform Capacity (lb.): 10,000
Fork Width/Length (in.): 8-1/2 x 45-1/4		423

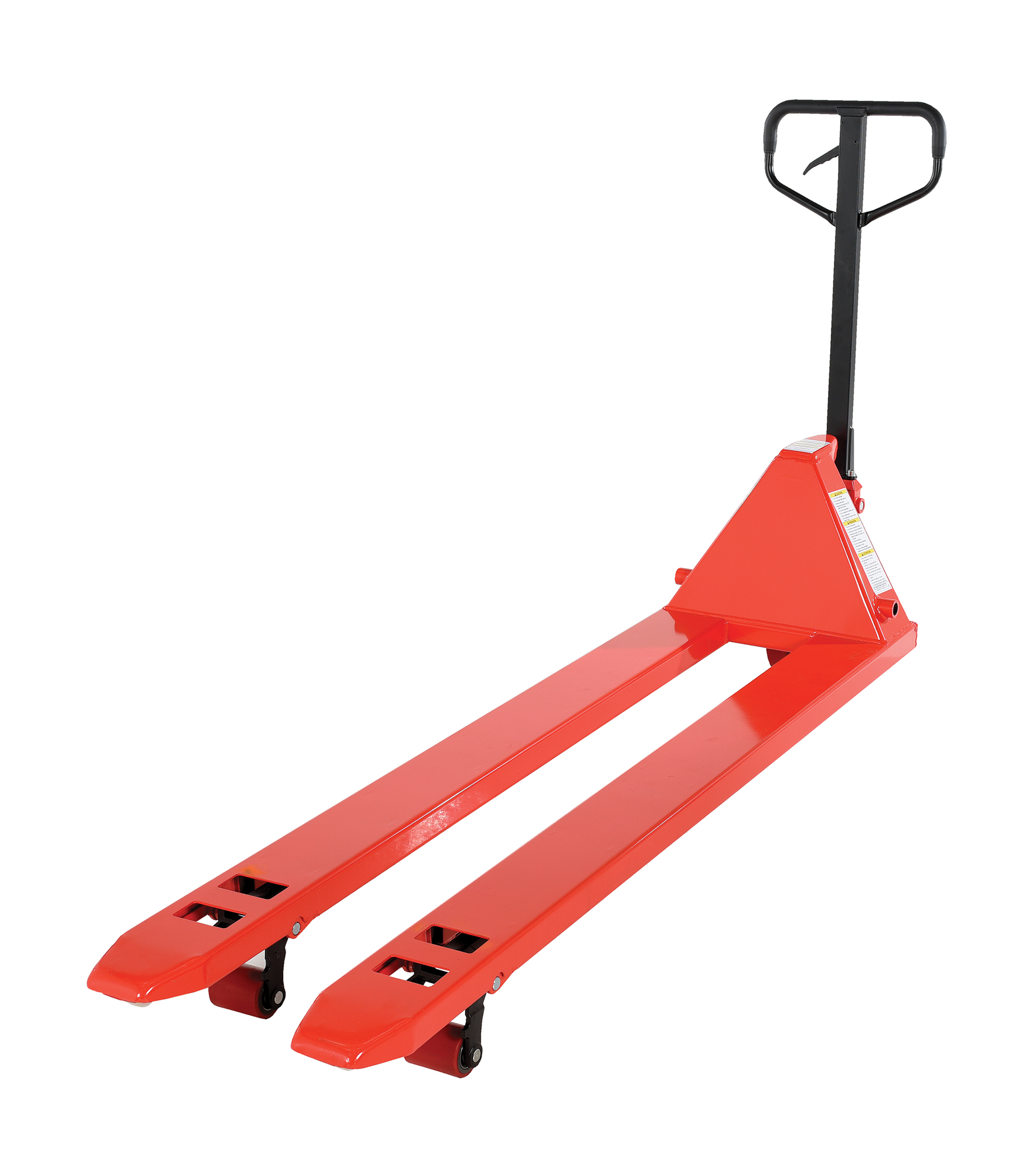

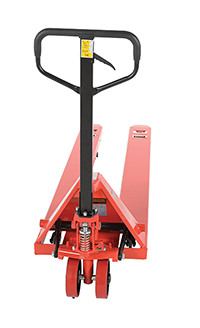

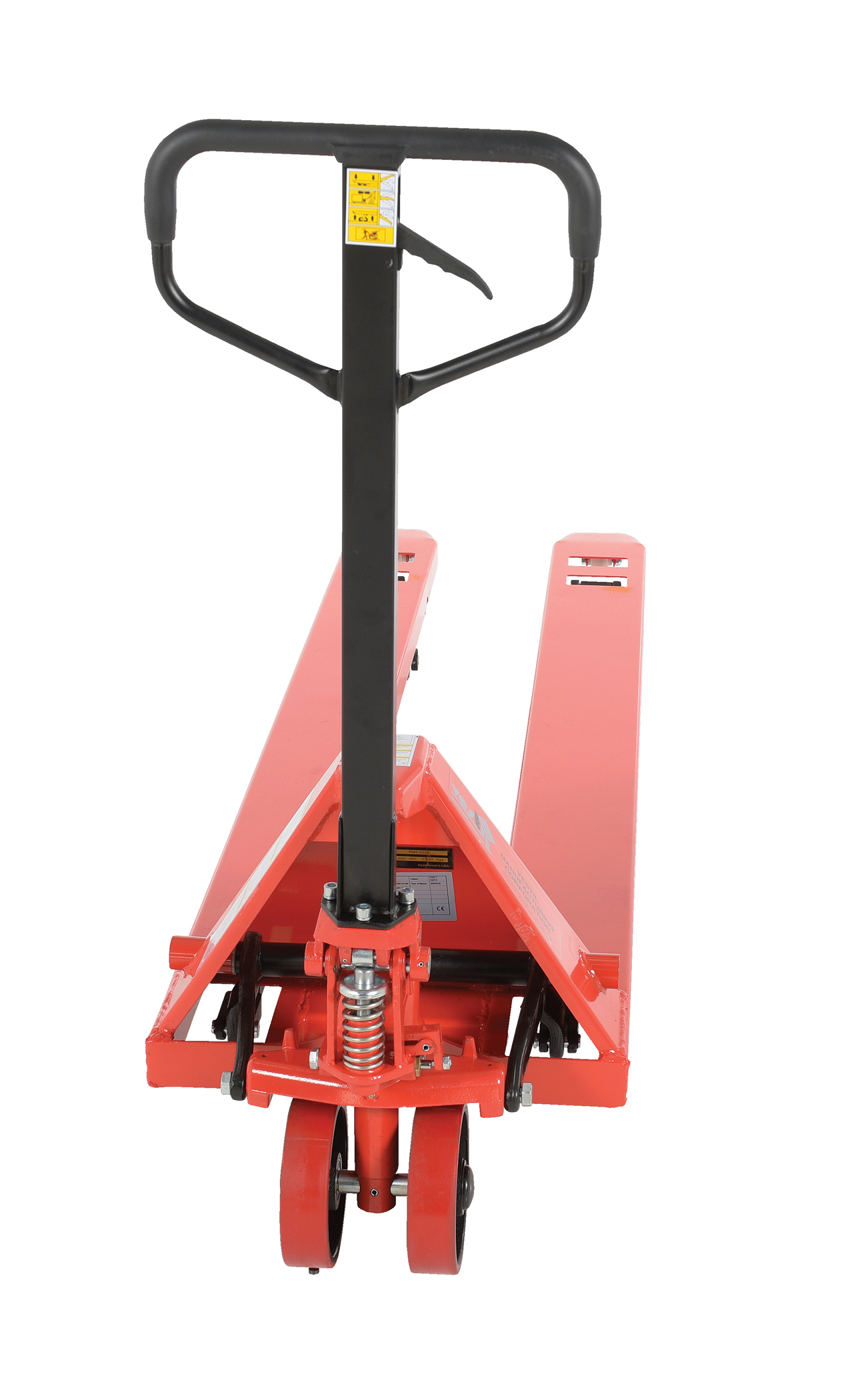

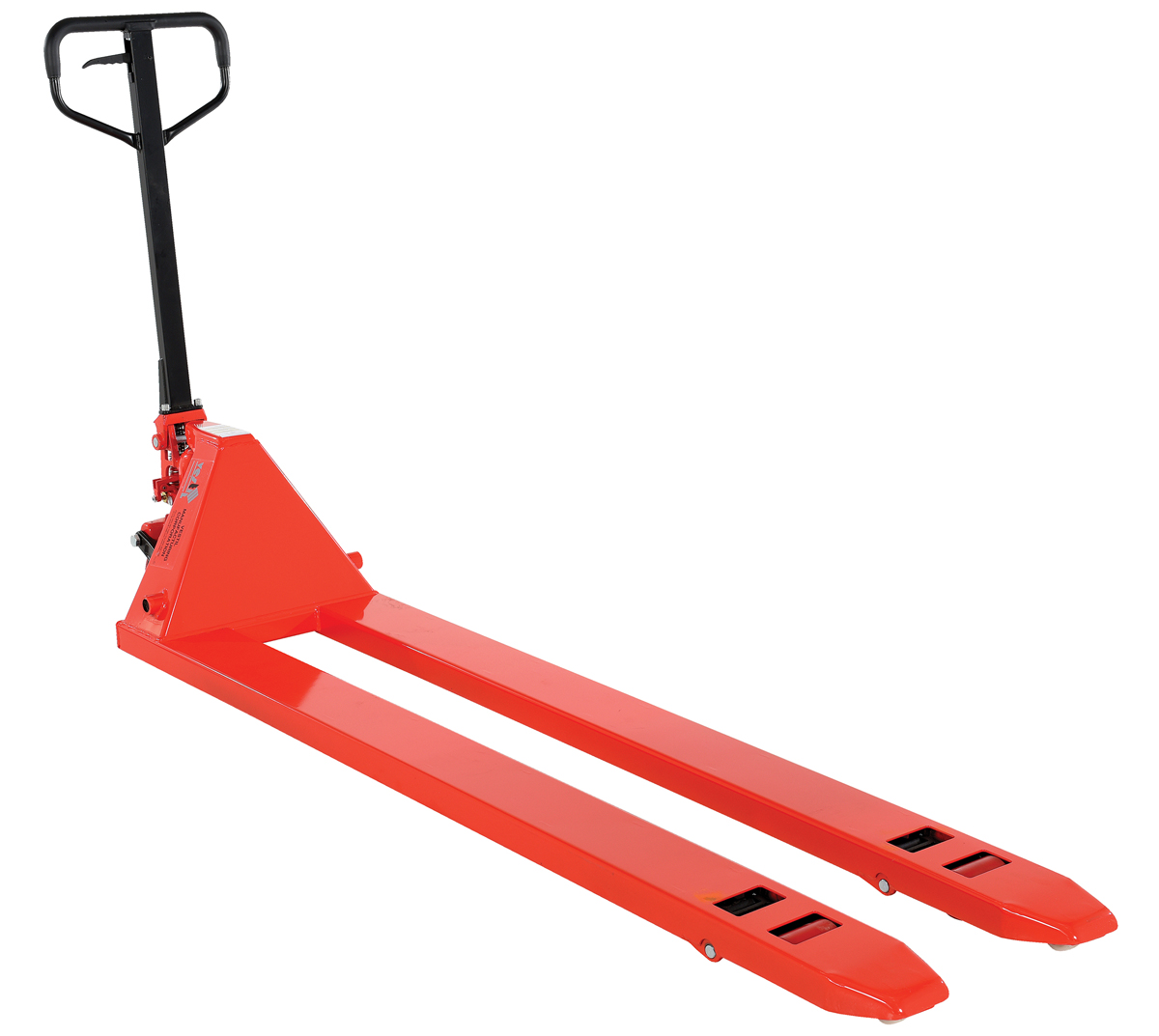

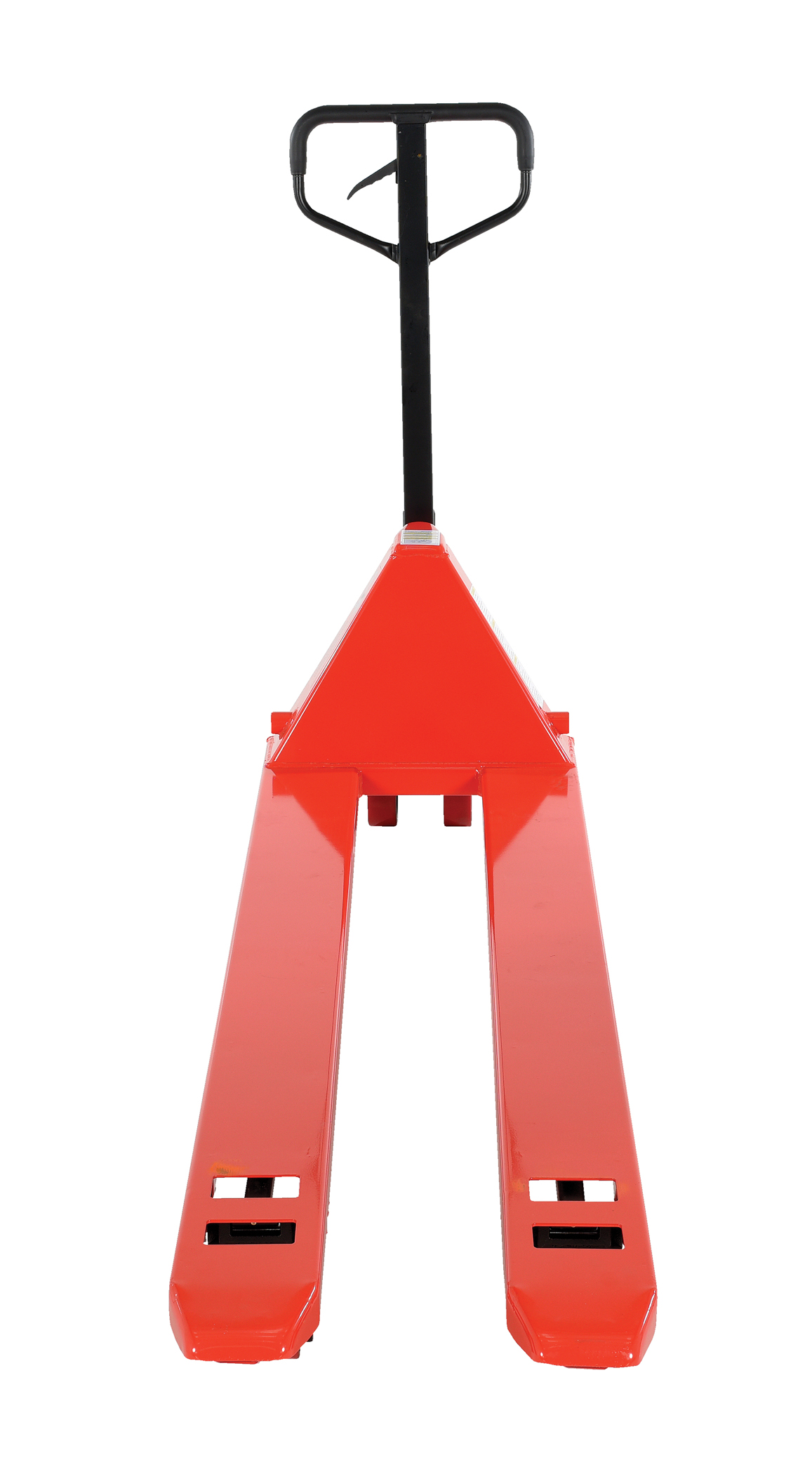

PM4-2072 PM4-2072Steel Low Profile Pallet Truck 88 In. x 20-5/8 In. x 48 In. 4400 Lb. Capacity RedUniform Capacity (lb.): 4,400
Fork Width/Length (in.): 7 x 72		258

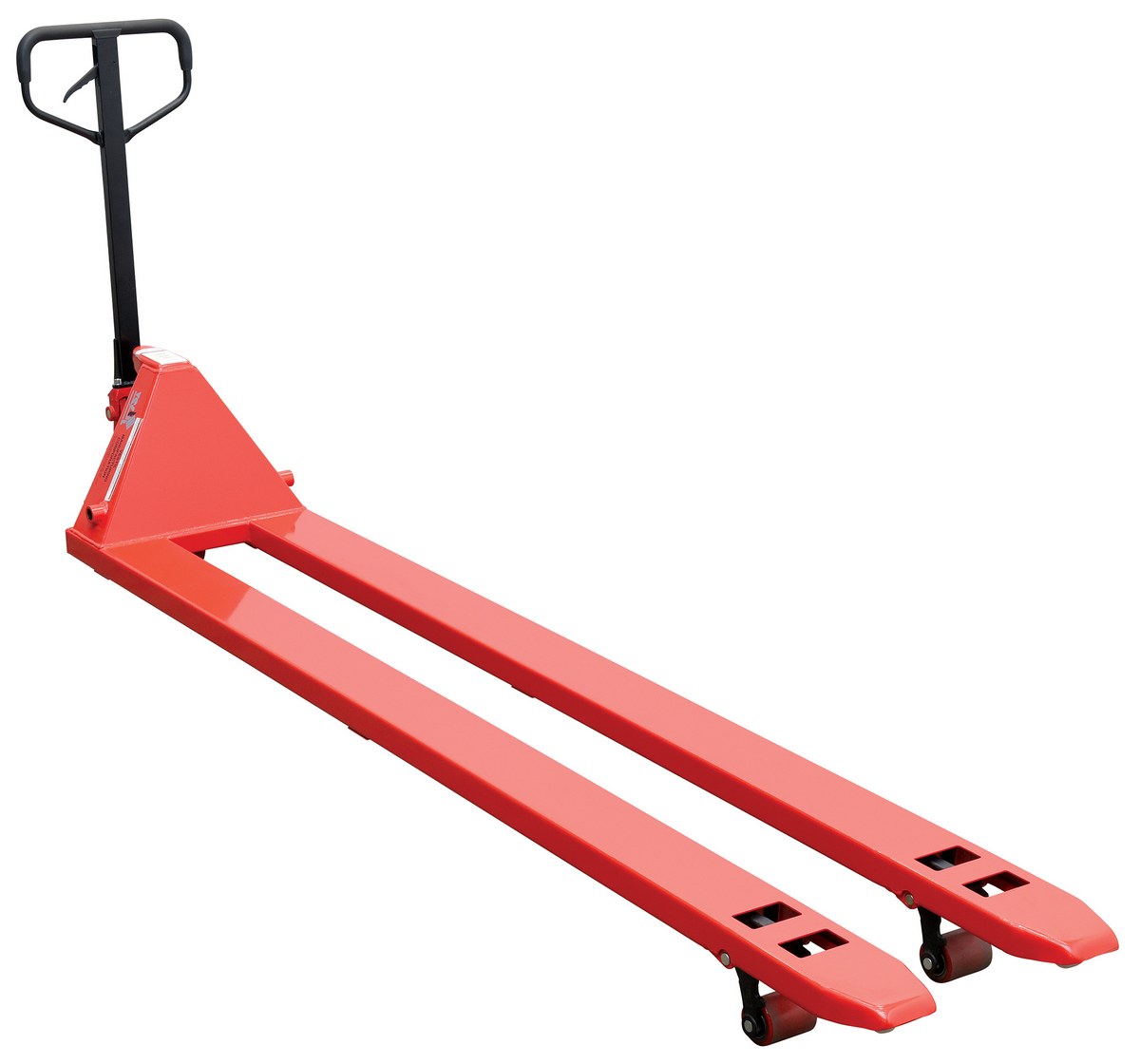

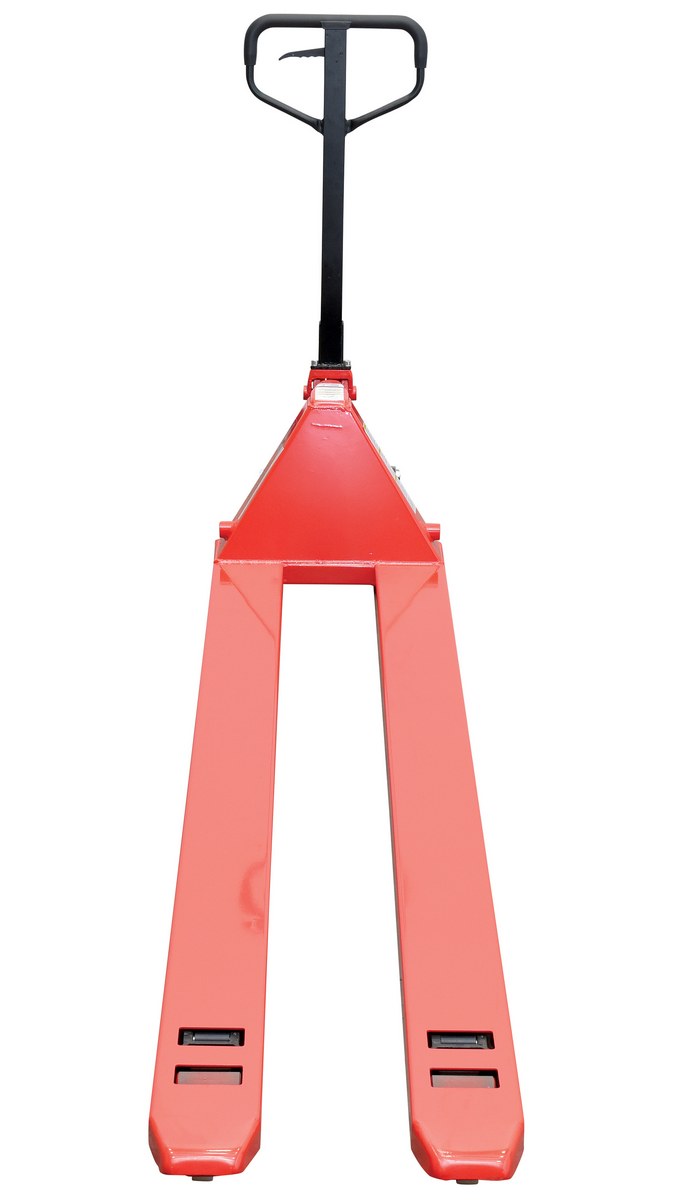

PM4-2096 PM4-2096Steel Low Profile Pallet Truck 112 In. x 20-5/8 In. x 48 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4,000
Fork Width/Length (in.): 7 x 96		292

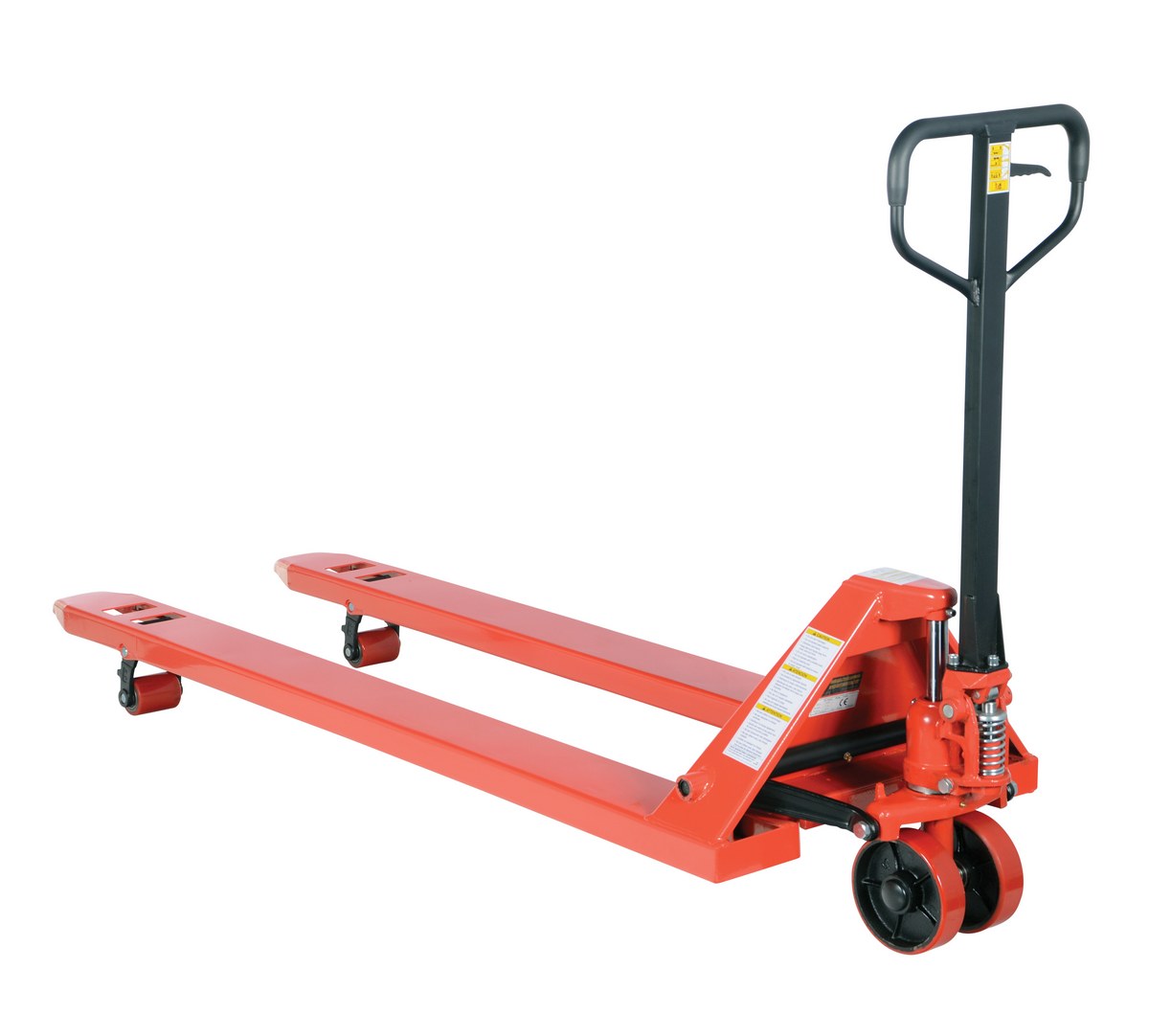

PM4-2772 PM4-2772Steel Full Featured Pallet Truck 84 In. x 27 In. x 48 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4,400
Fork Width/Length (in.): 7 x 72		264

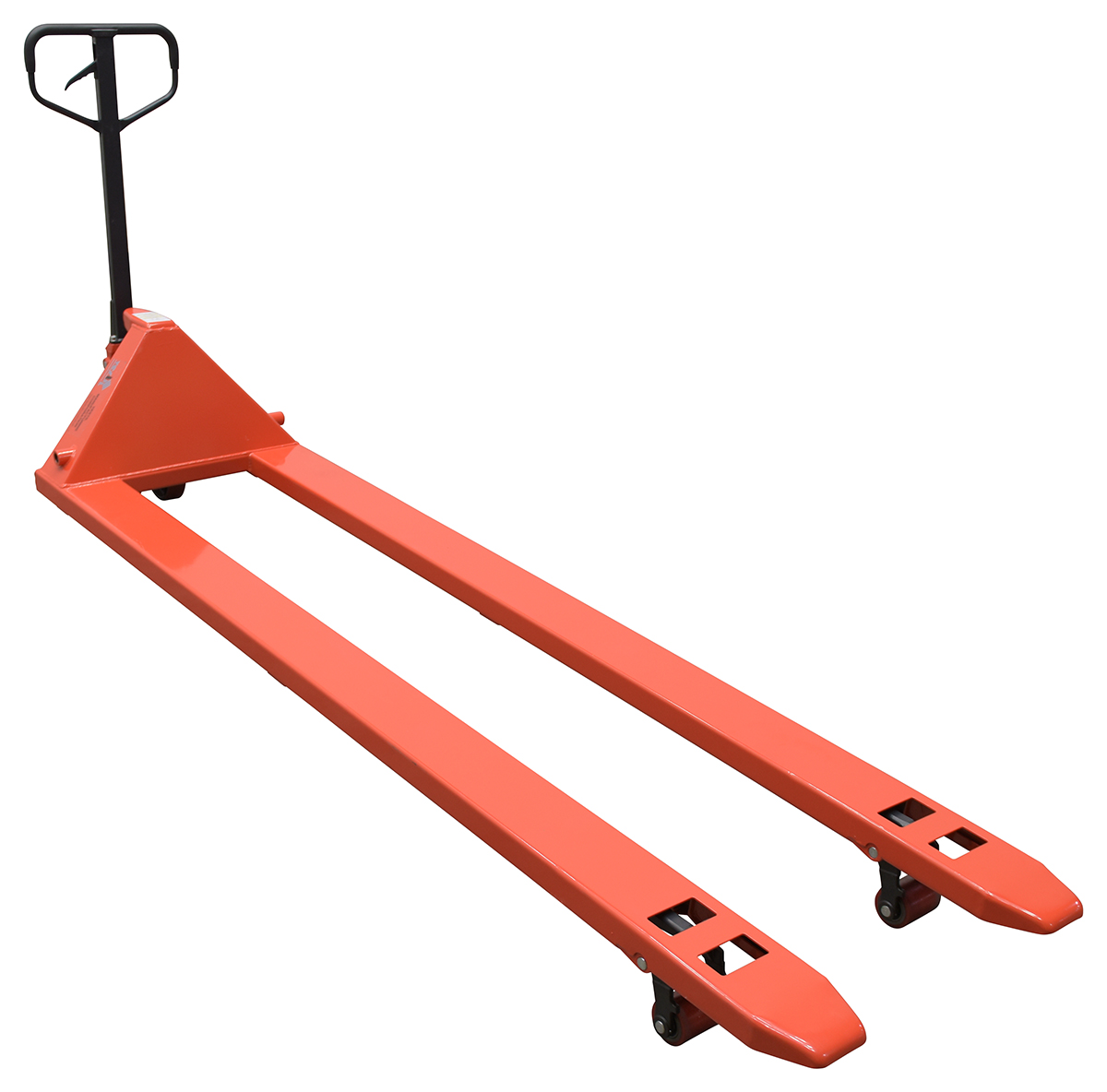

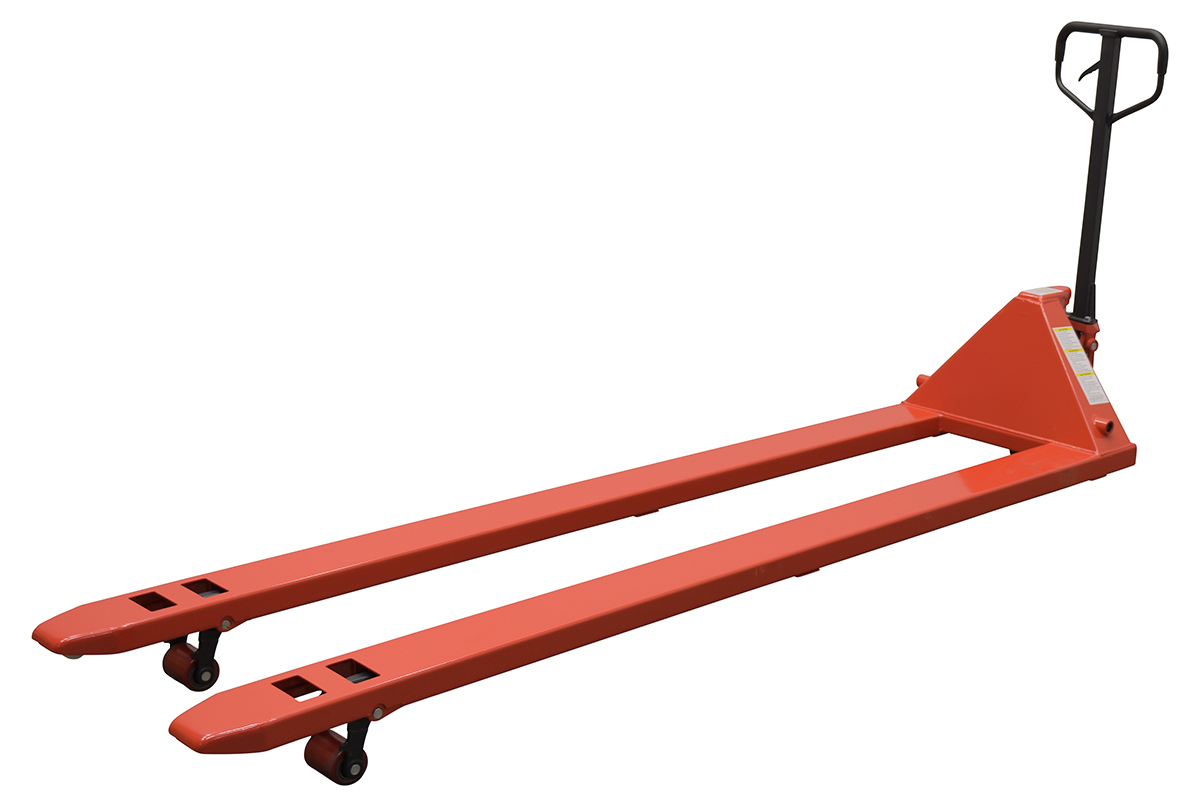

PM4-2796 PM4-2796Steel Full Featured Pallet Truck 112 In. x 27 In. x 48 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4,000
Fork Width/Length (in.): 7 x 96		382

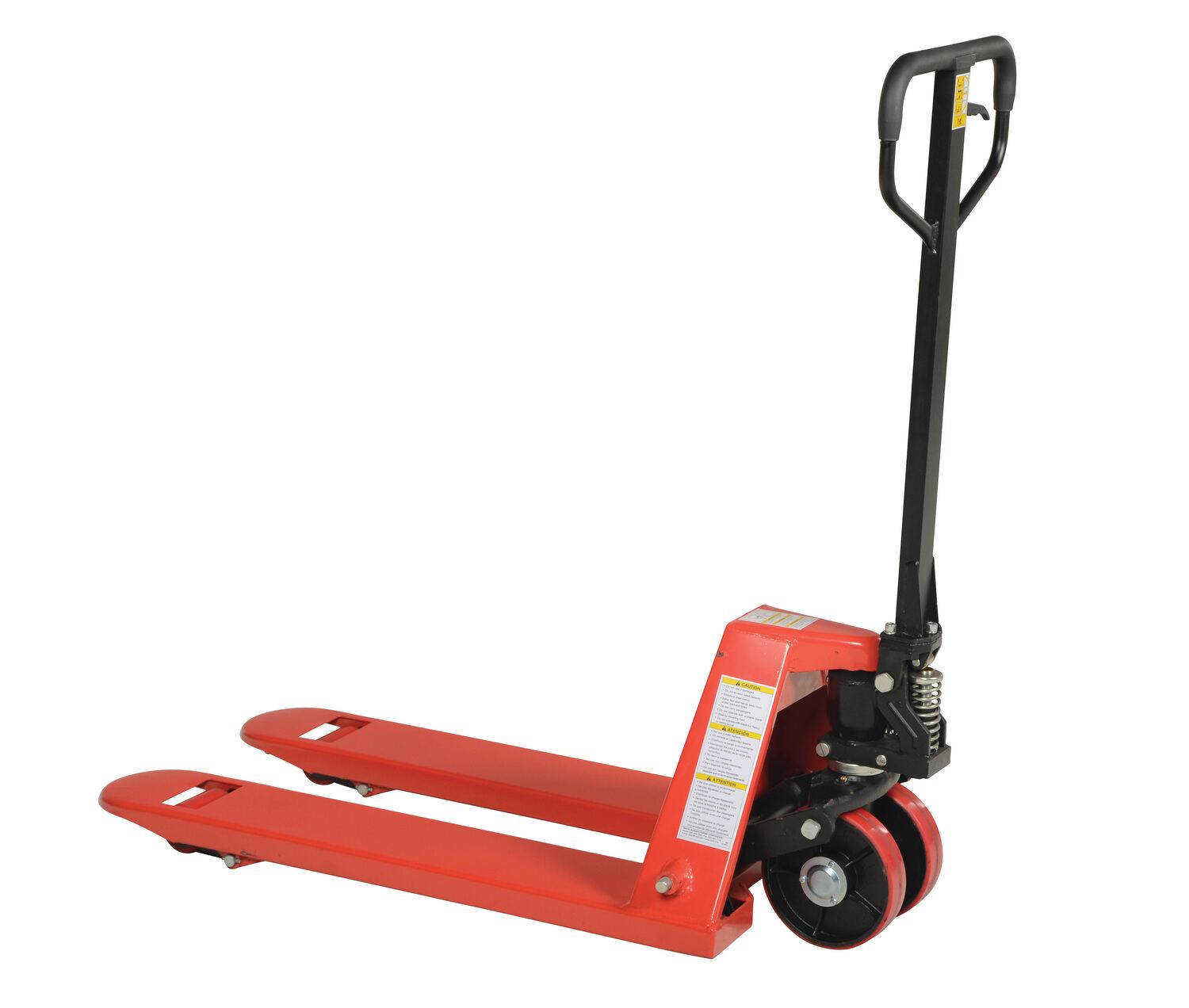

PM5-2036 PM5-2036Steel Full Featured Pallet Truck 49-11/16 In. x 20 In. x 48-9/16 In. 5500 Lb. Capacity RedUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 7 x 36		210
PM5-2048 PM5-2048Steel Full Featured Pallet Truck 61-11/16 In. x 22 In. x 49 In. 5500 Lb. Capacity RedUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 7 x 48		210

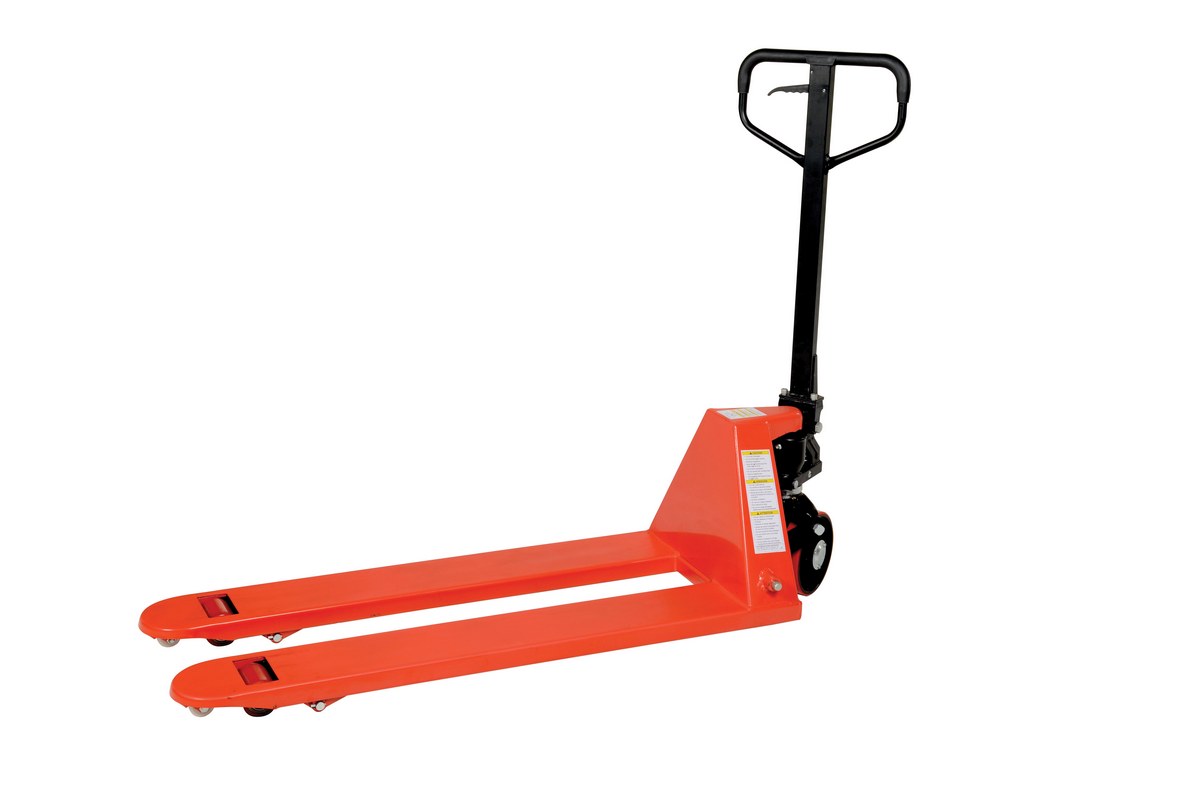

PM5-2048-6PKG PM5-2048-6PKGSteel (Quantity 6) Full Featured Pallet Truck 61-11/16 In. x 22 In. x 49 In. 5500 Lb. Capacity RedUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 7 x 48		1134

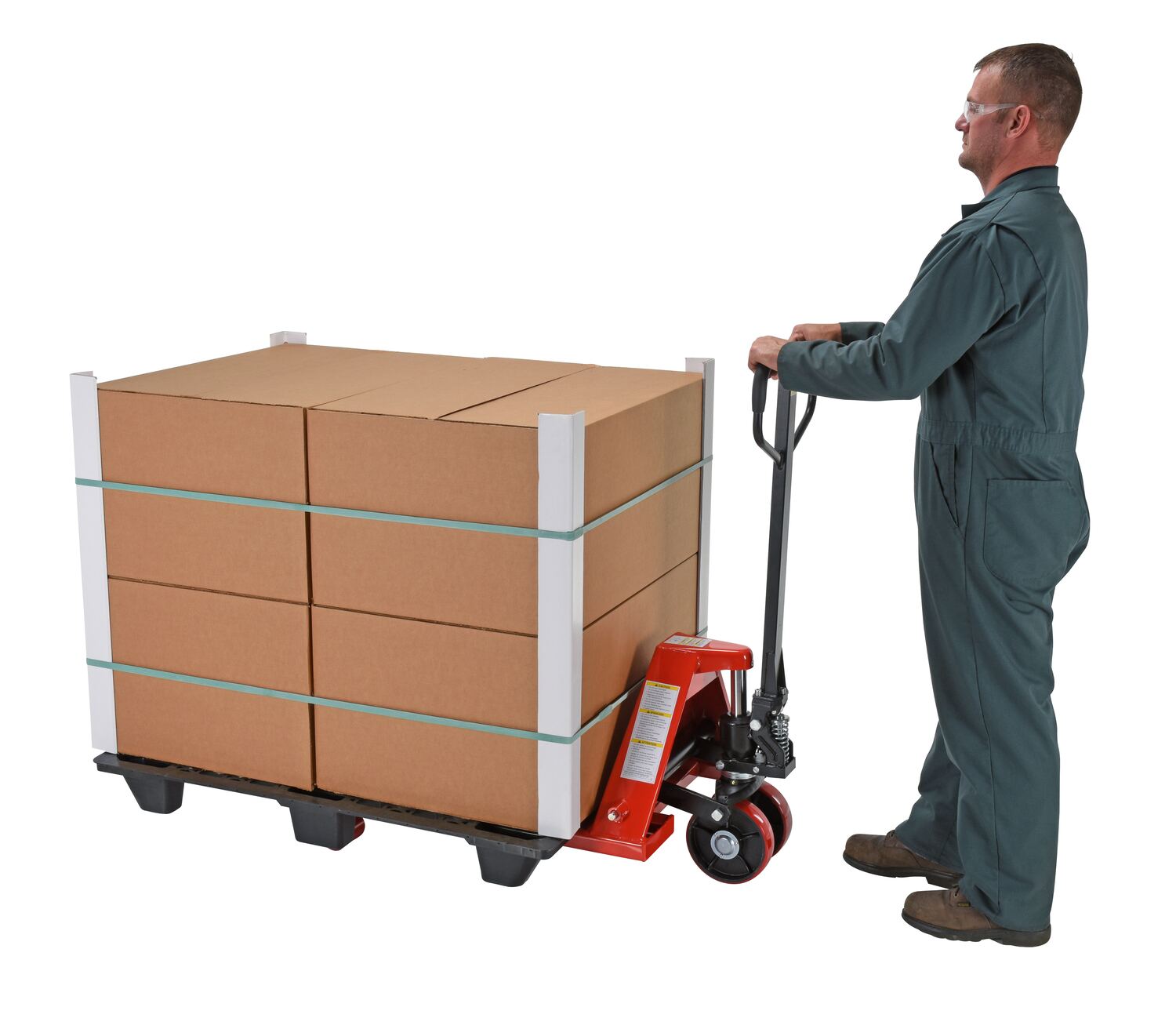

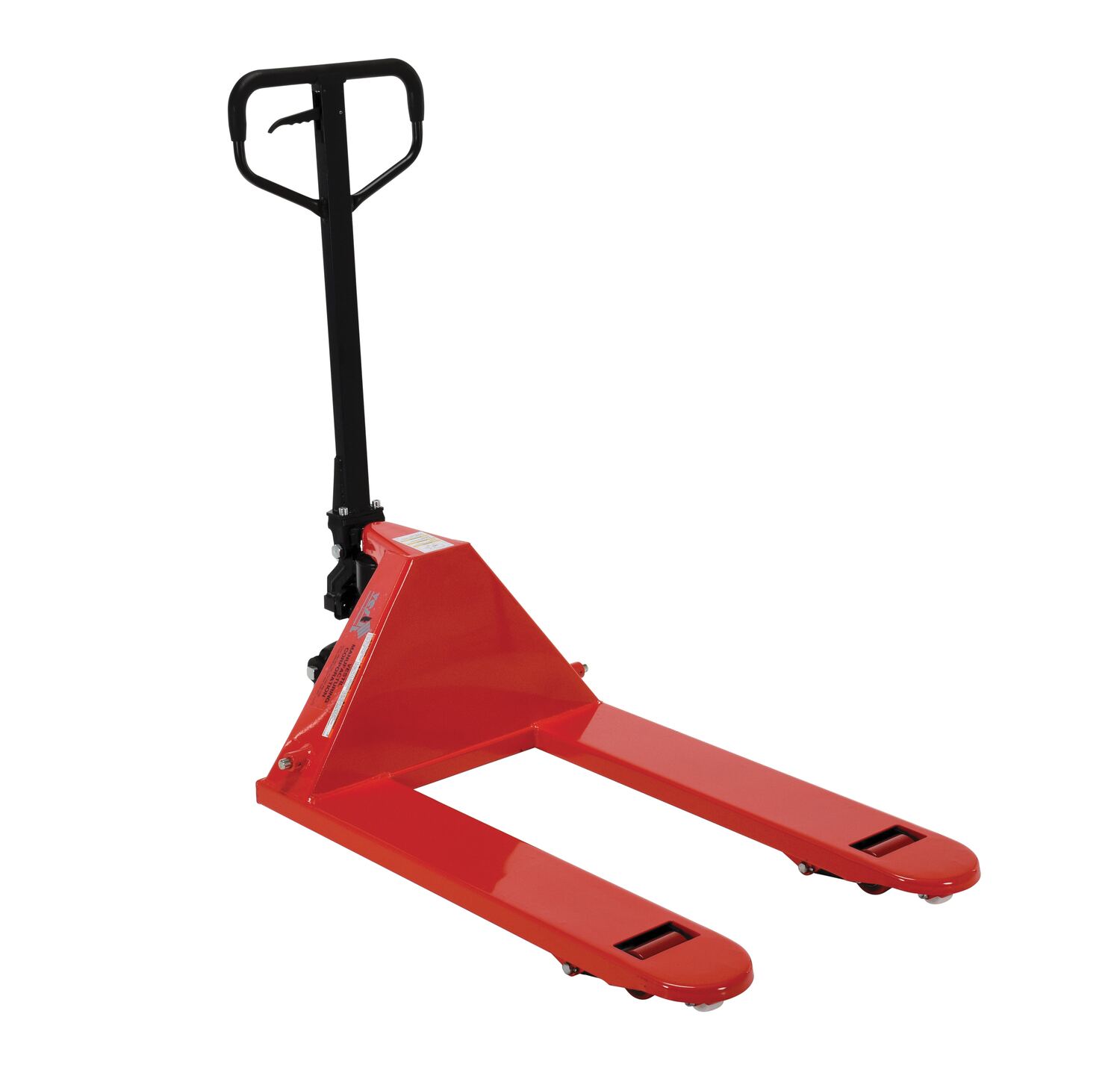

PM5-2736 PM5-2736Steel Full Featured Pallet Truck 49-1/2 In. x 27 In. x 48-1/2 In. 5500 Lb. Capacity RedUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 7 x 36		222

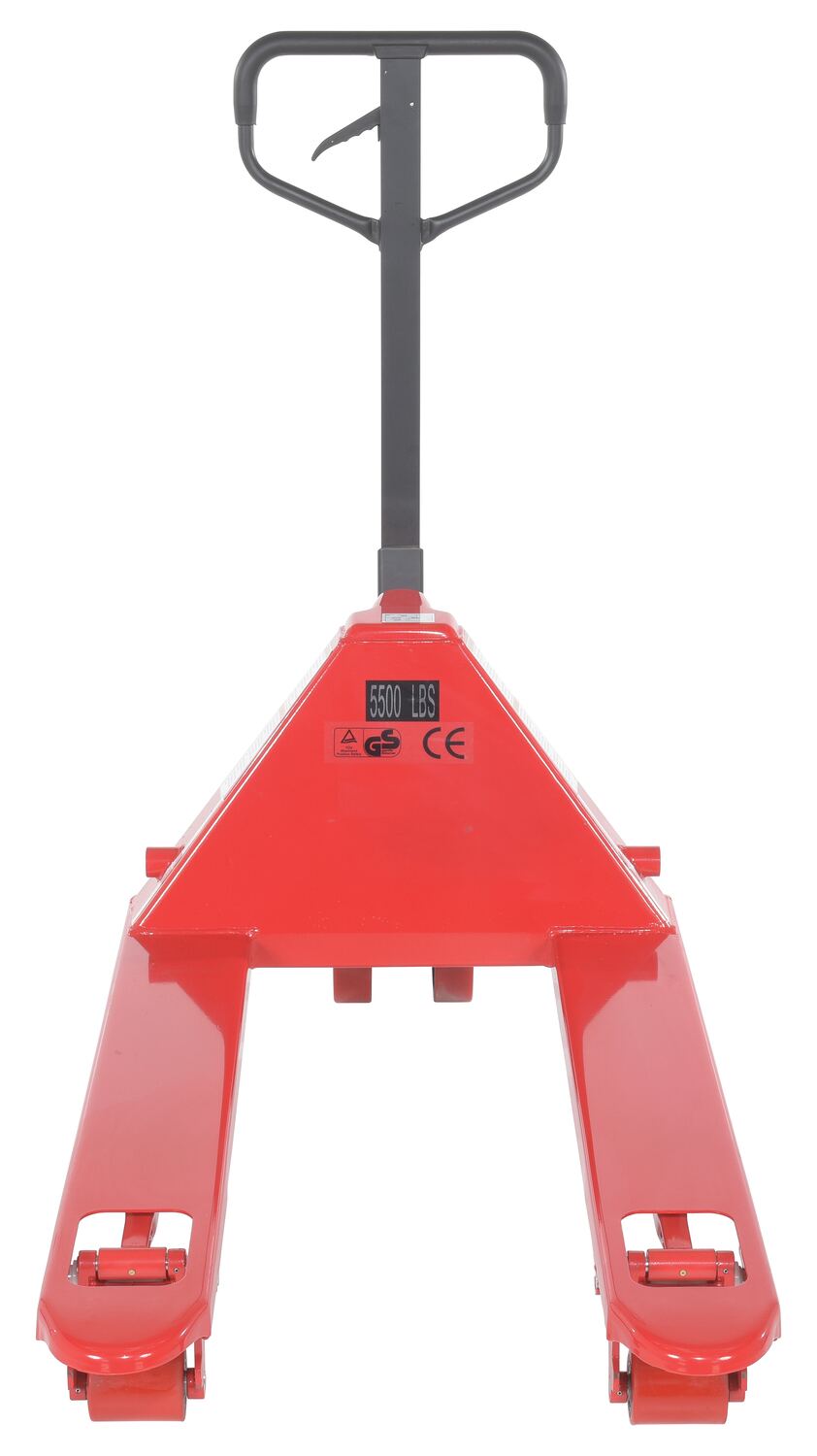

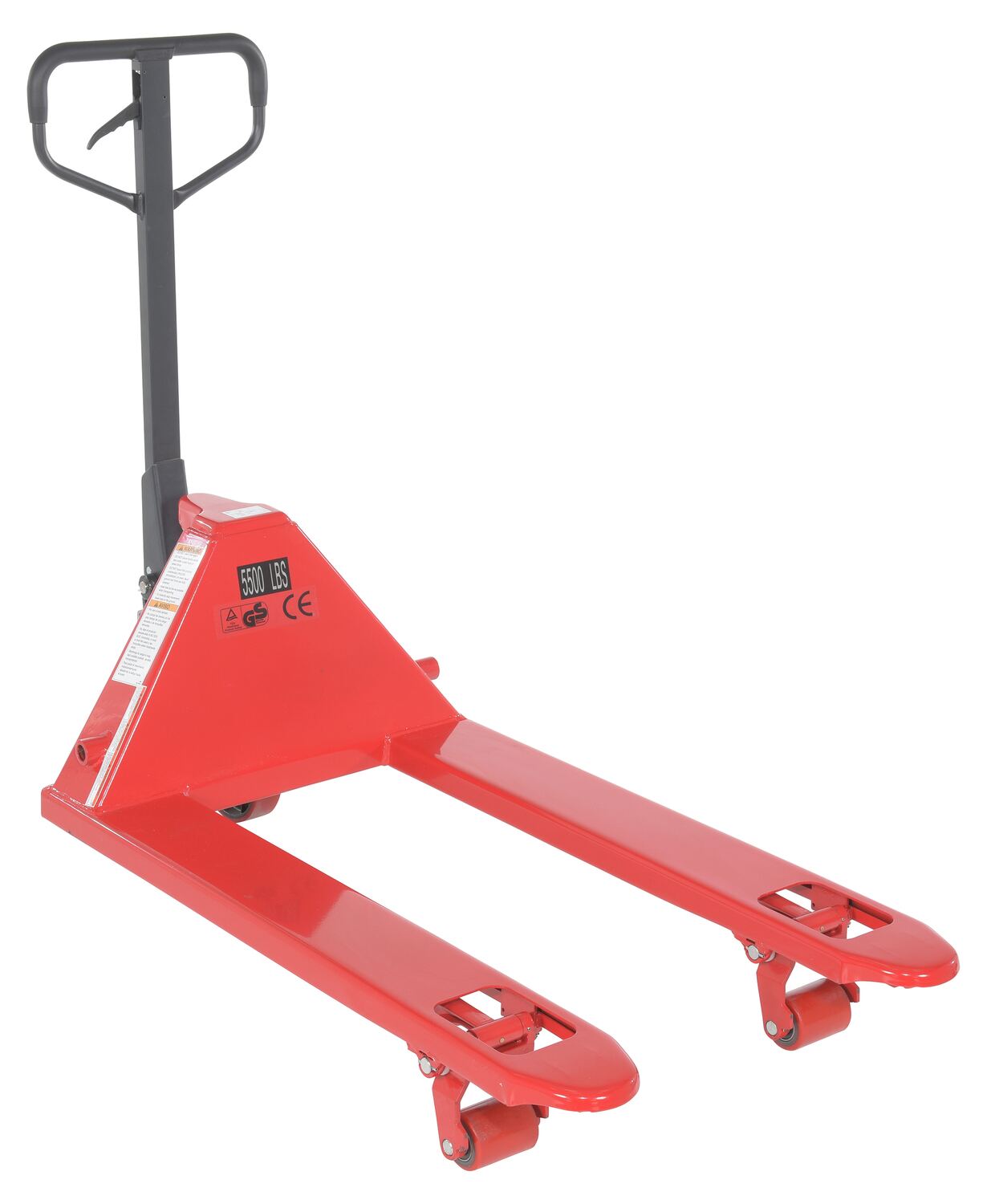

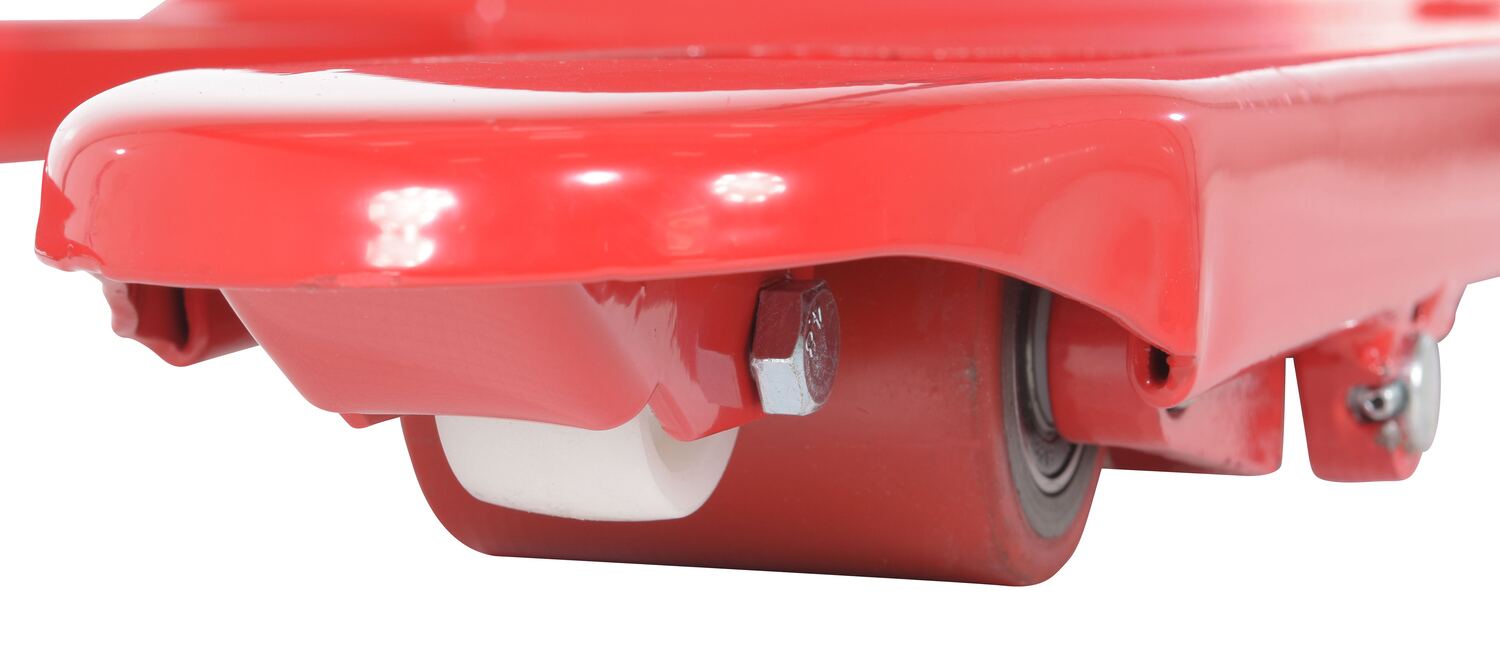

PM5-2742 PM5-2742Steel Full Featured Pallet Truck 27 In. x 42 In. 5,500 Lb. Capacity RedUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 6-1/4 x 42		215

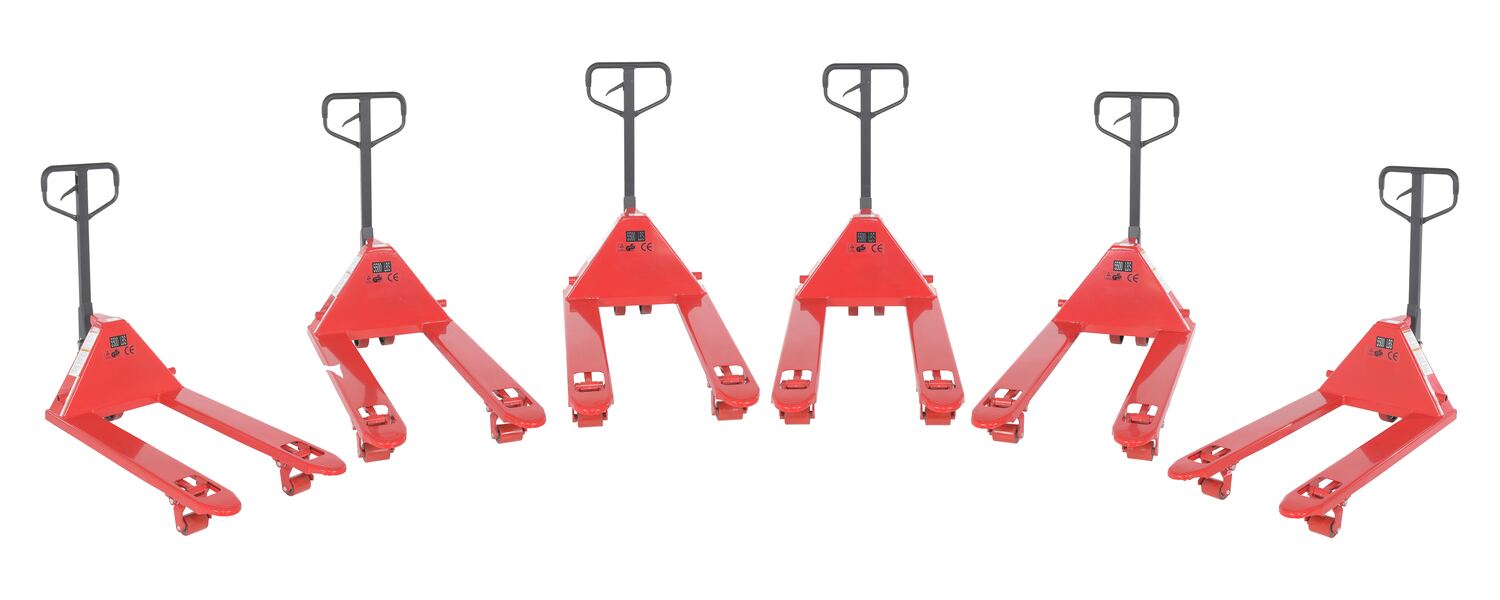

PM5-2742-6PKG PM5-2742-6PKGSteel Full Featured Pallet Trucks 6 Pack 27 In. x 42 In. 5,500 Lb. Capacity RedUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 6-1/4 x 42		985

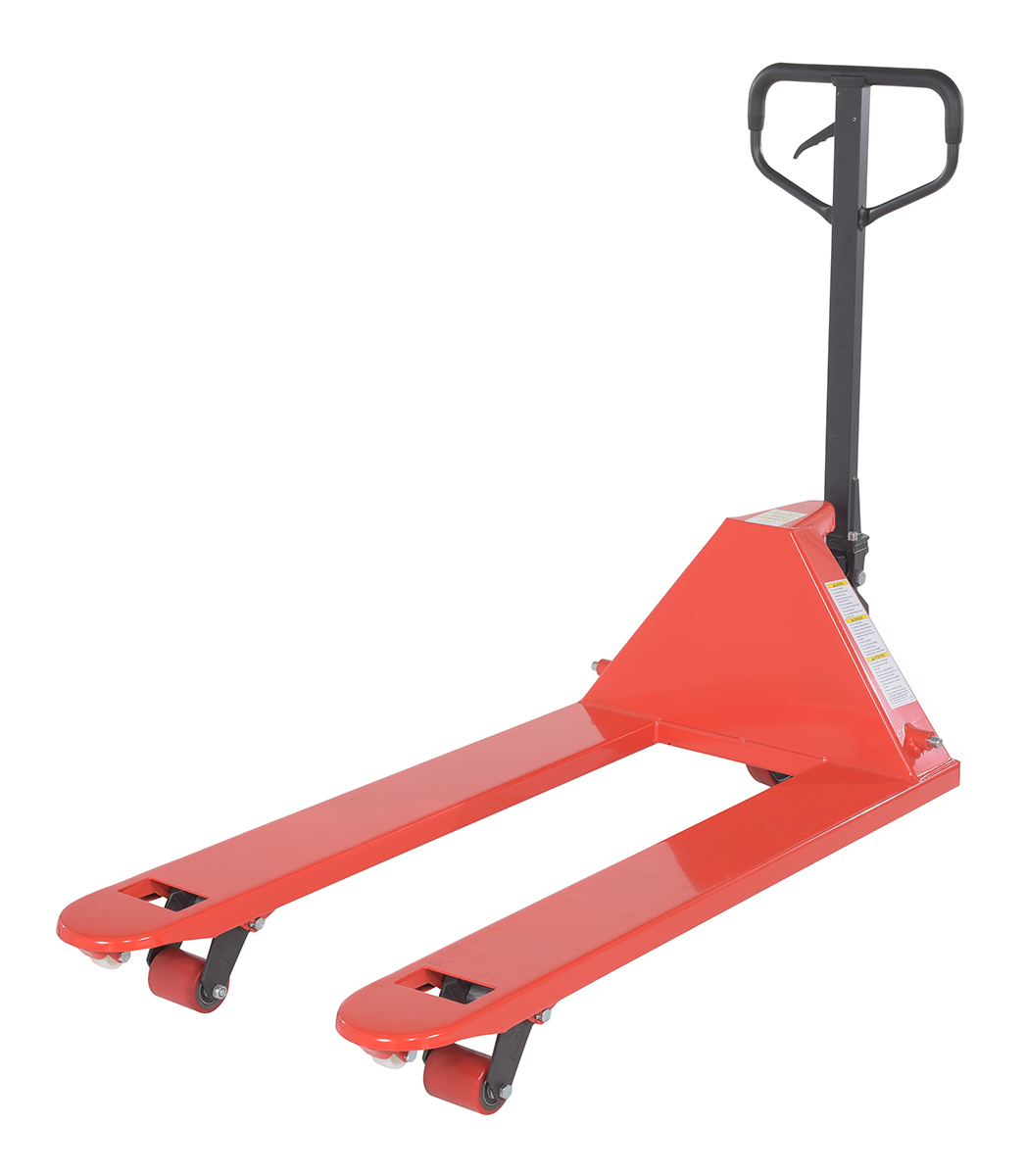

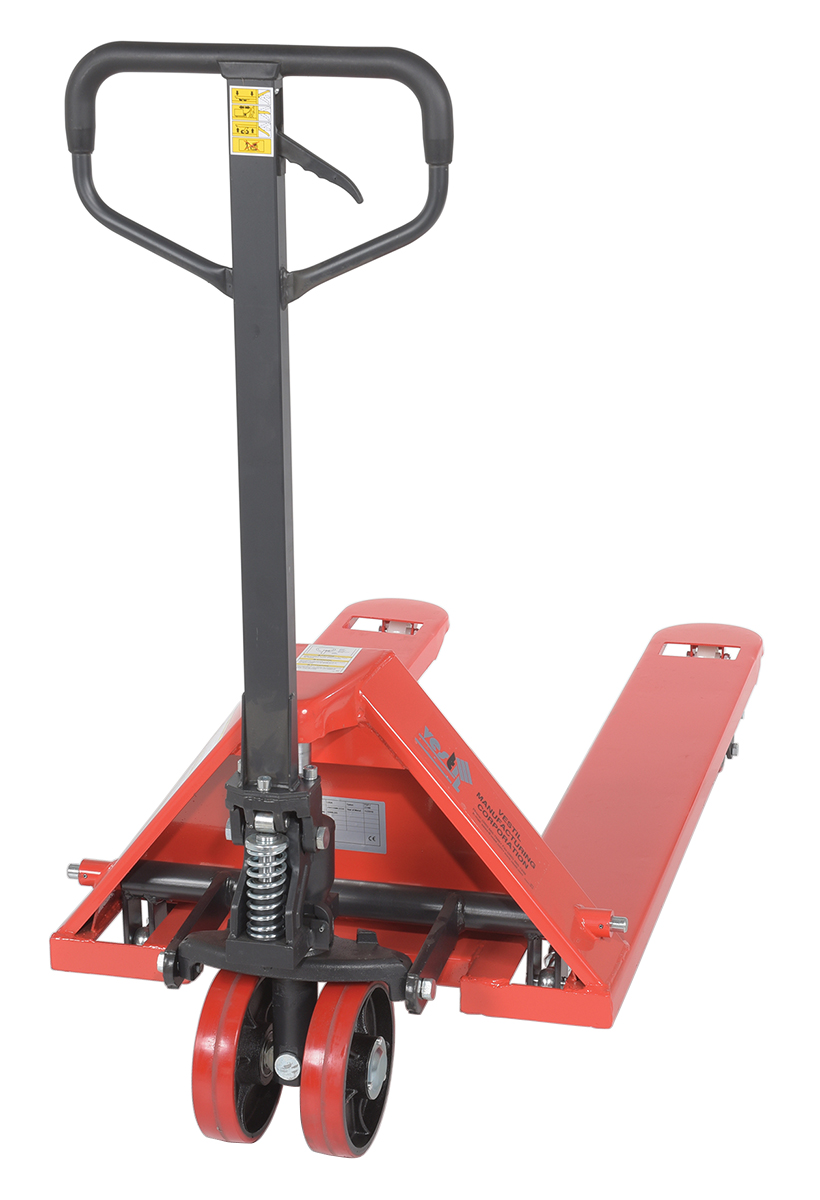

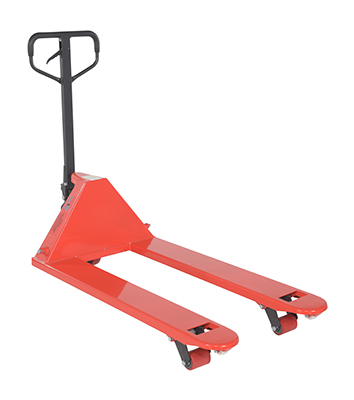

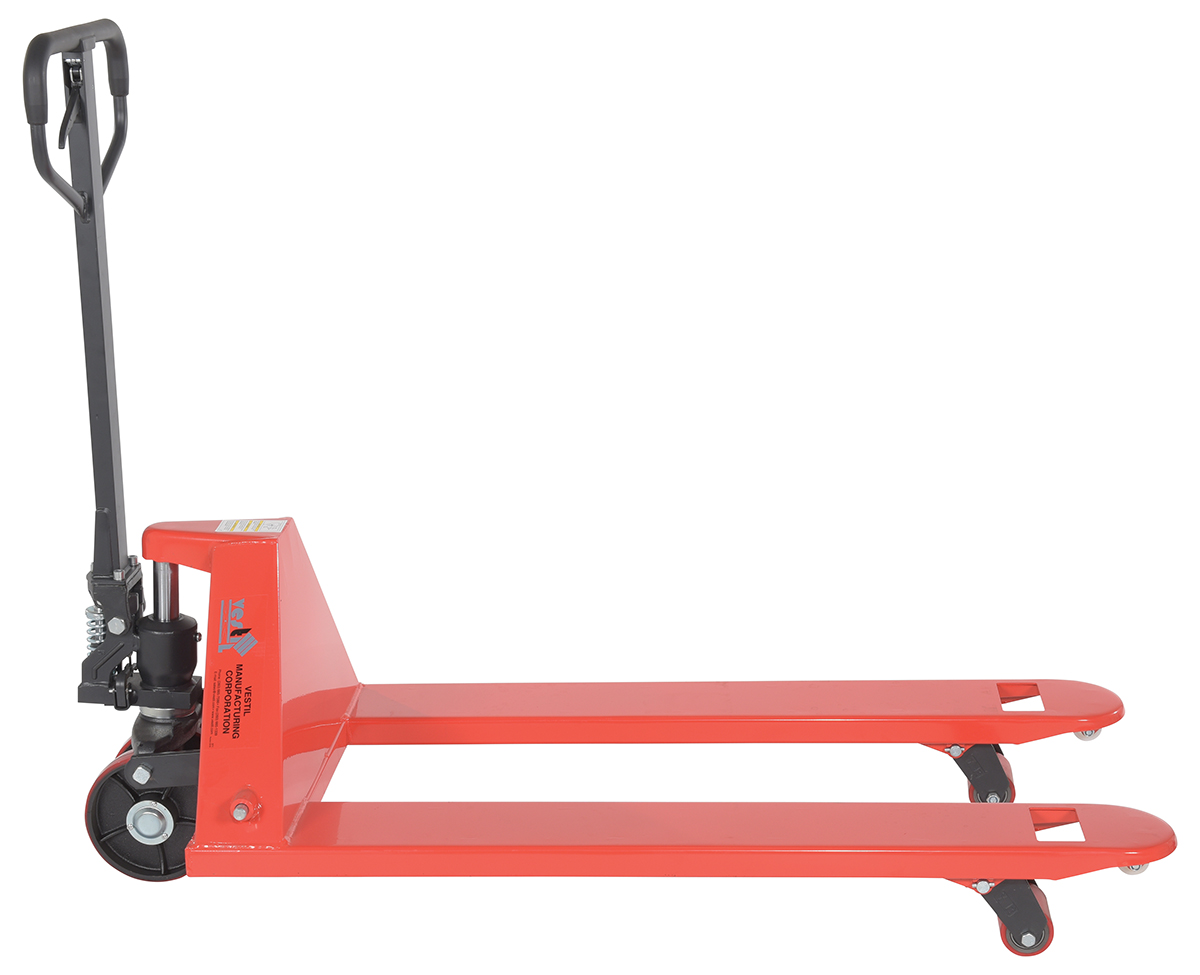

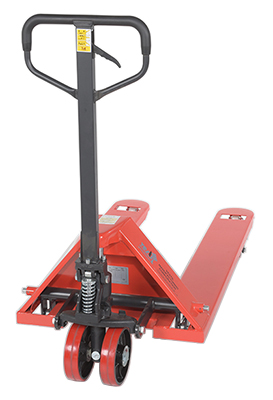

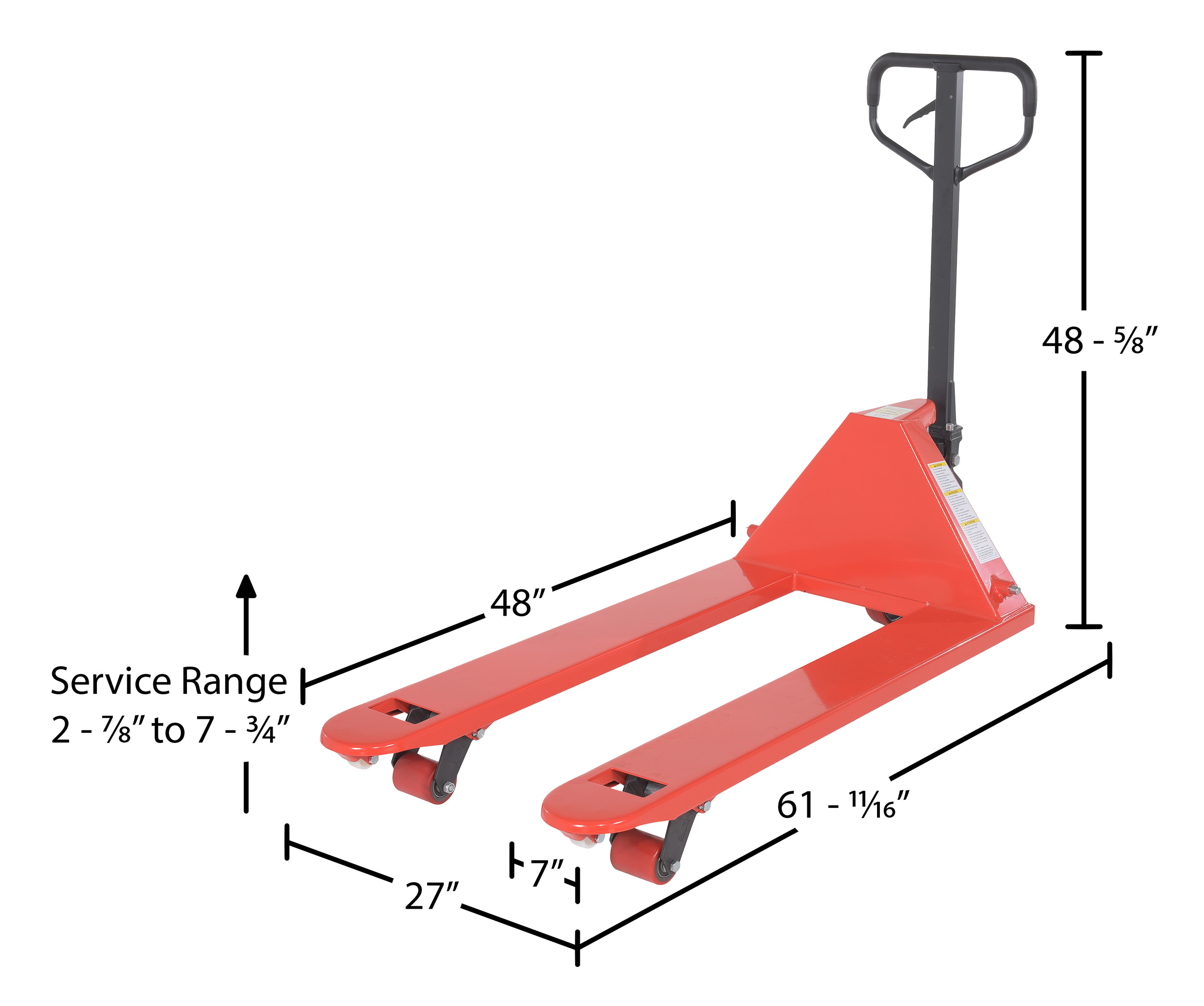

PM5-2748 PM5-2748Steel Pallet Truck 61-11/16 In. x 27 In. x 48-5/8 In. 5500 Lb. Capacity RedUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 7 x 48		210

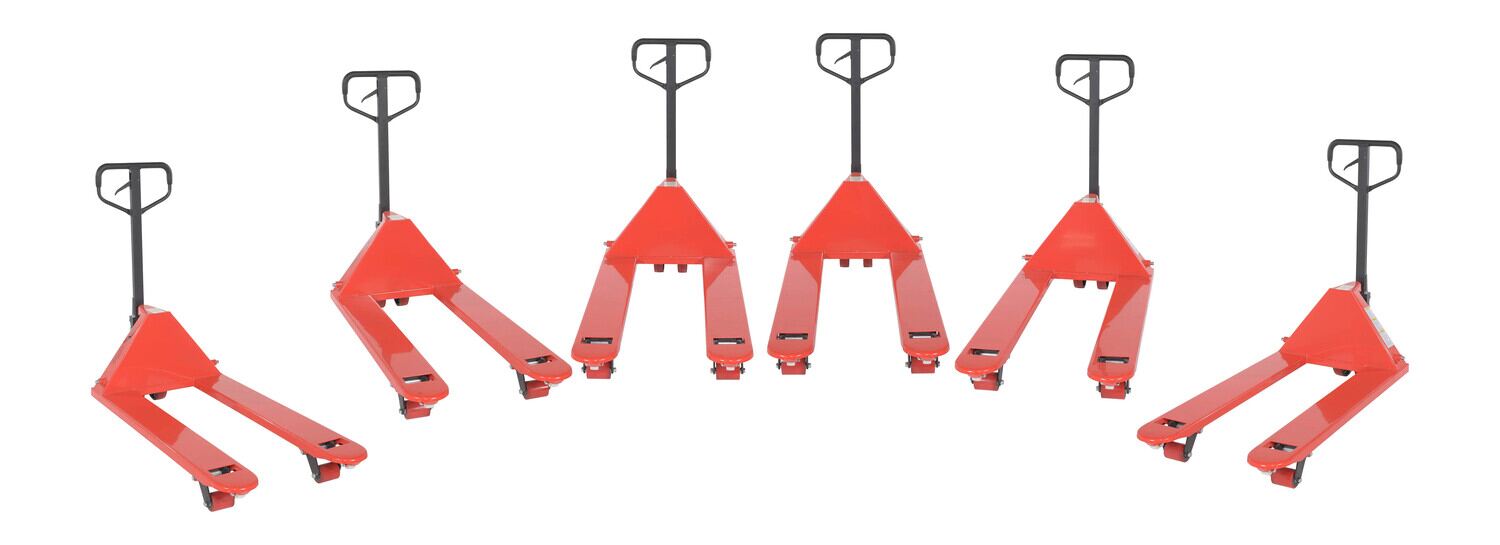

PM5-2748-6PKG PM5-2748-6PKGSteel (Quantity 6) Pallet Truck 61-11/16 In. x 27 In. x 48-5/8 In. 5500 Lb. Capacity RedUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 7 x 48		1190

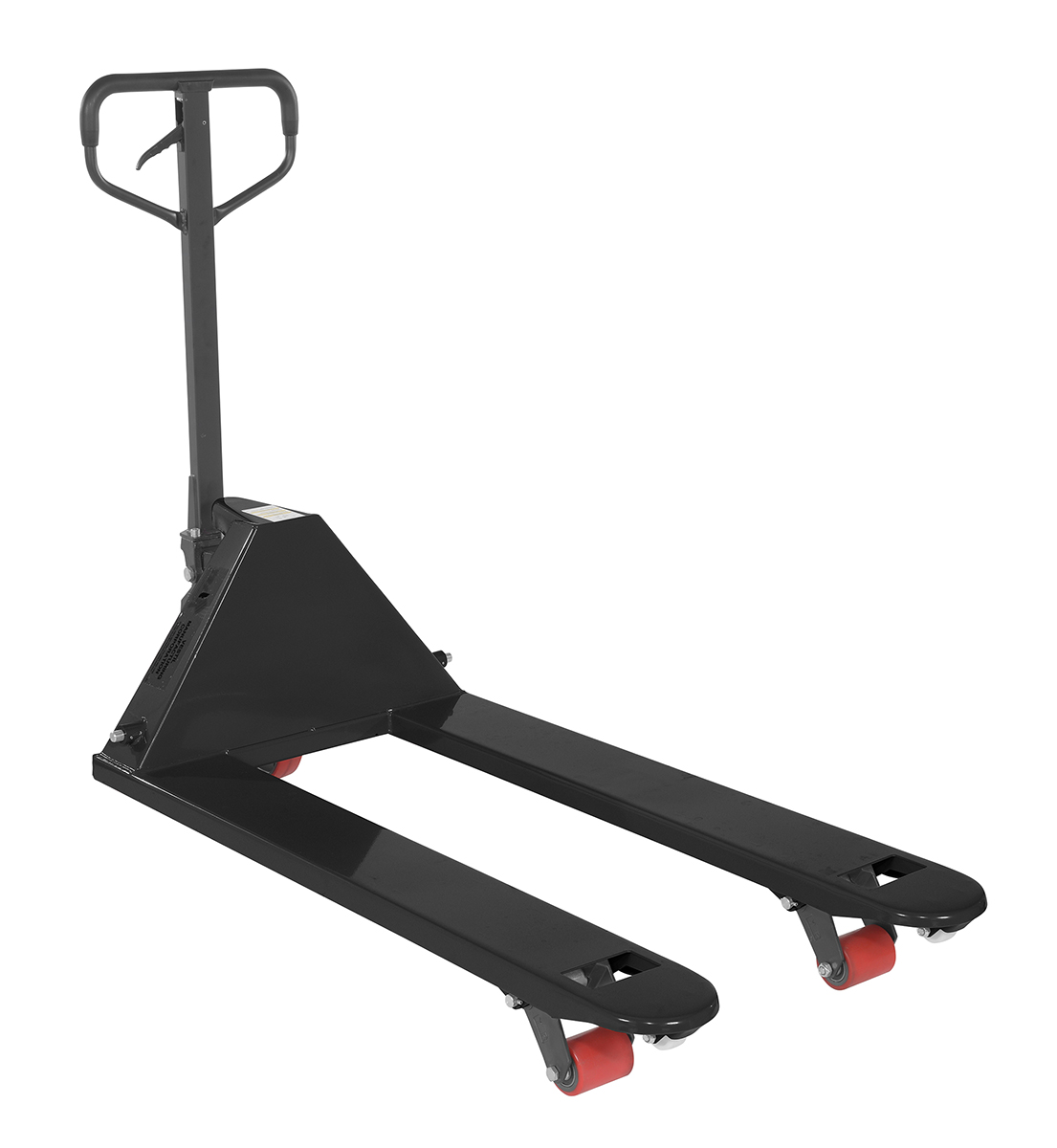

PM5-2748-BK PM5-2748-BKSteel Full Featured Pallet Truck 27 in x 48 in 5500 lb Capacity BlackUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 7 x 48		210

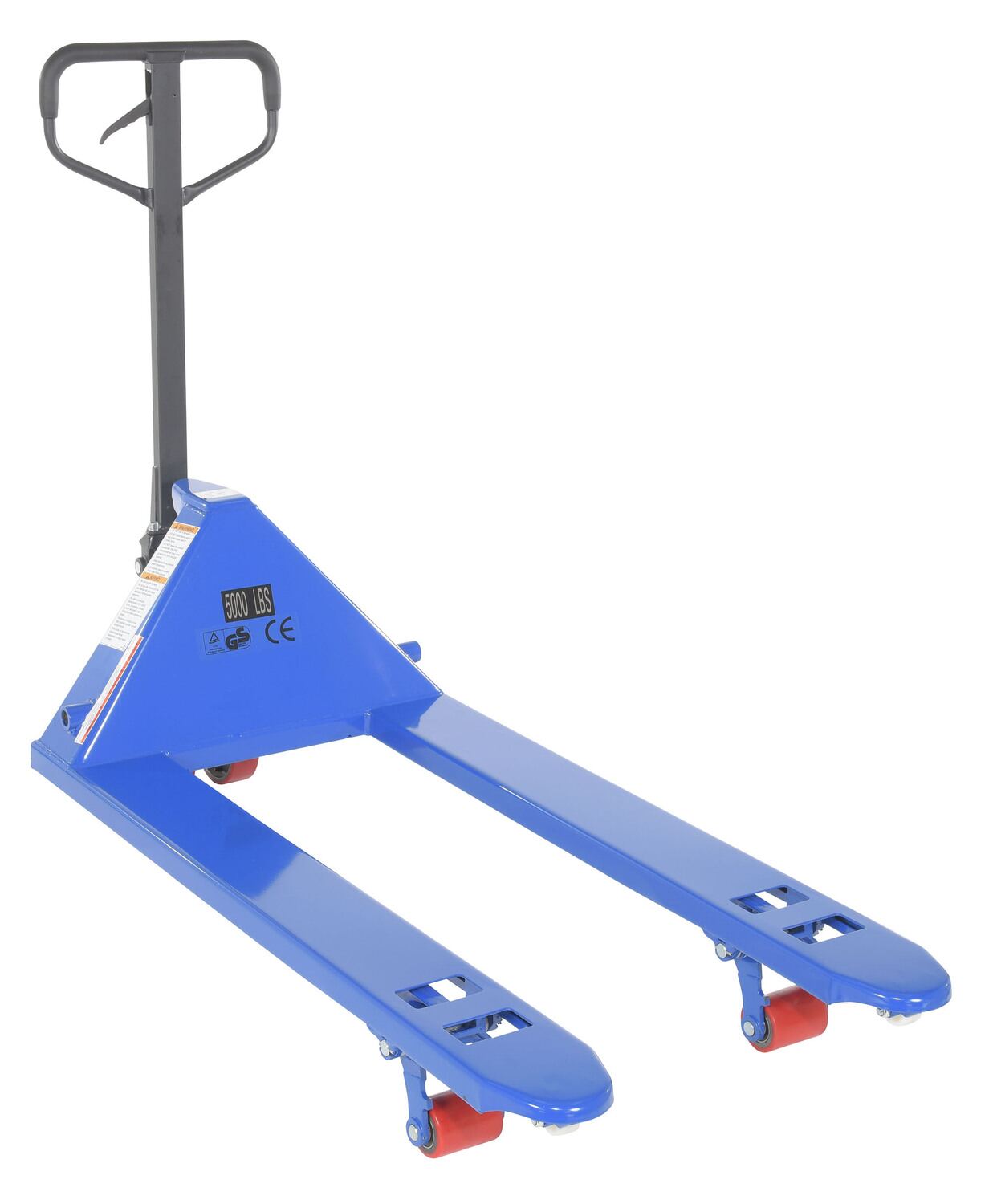

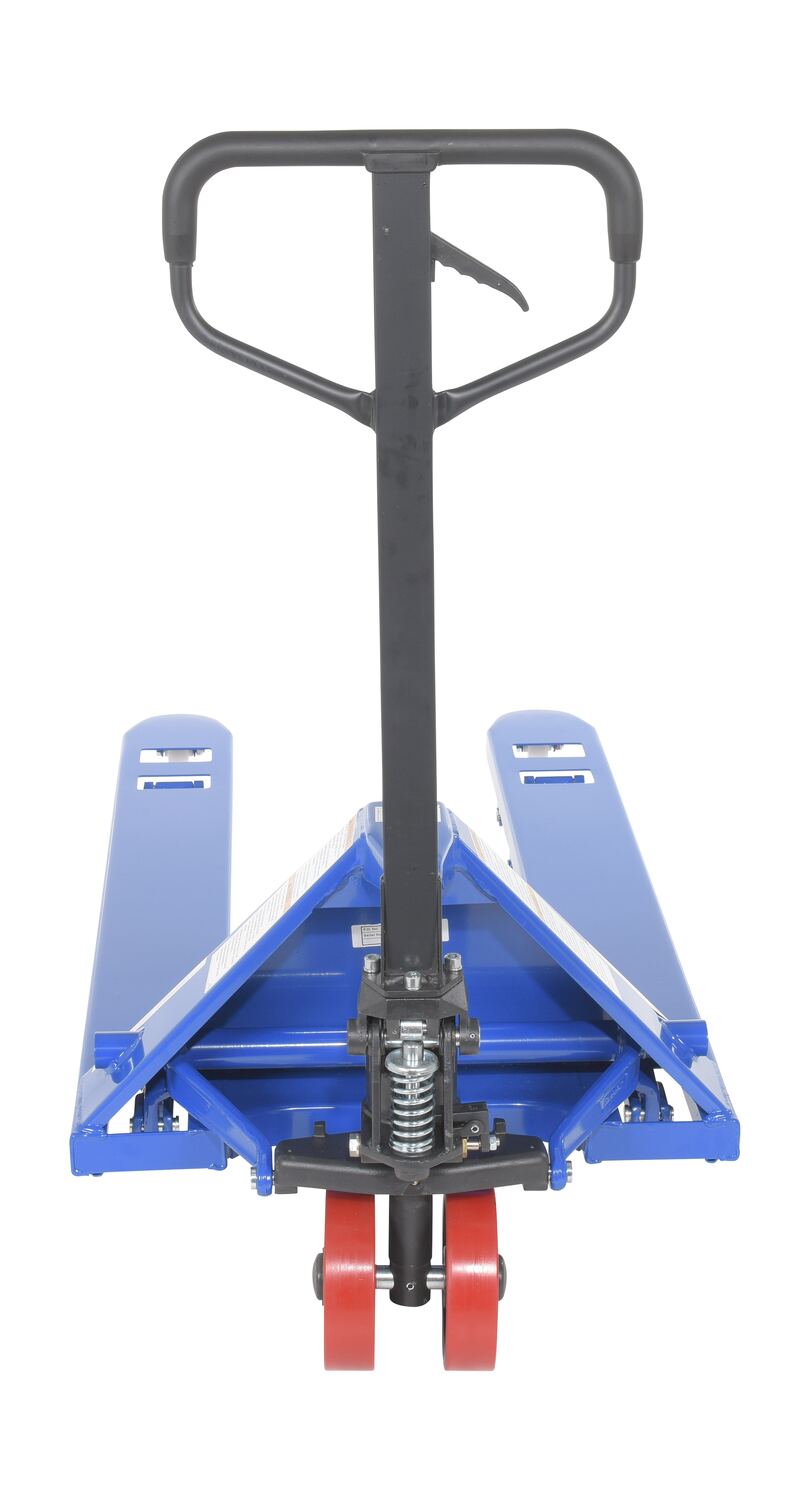

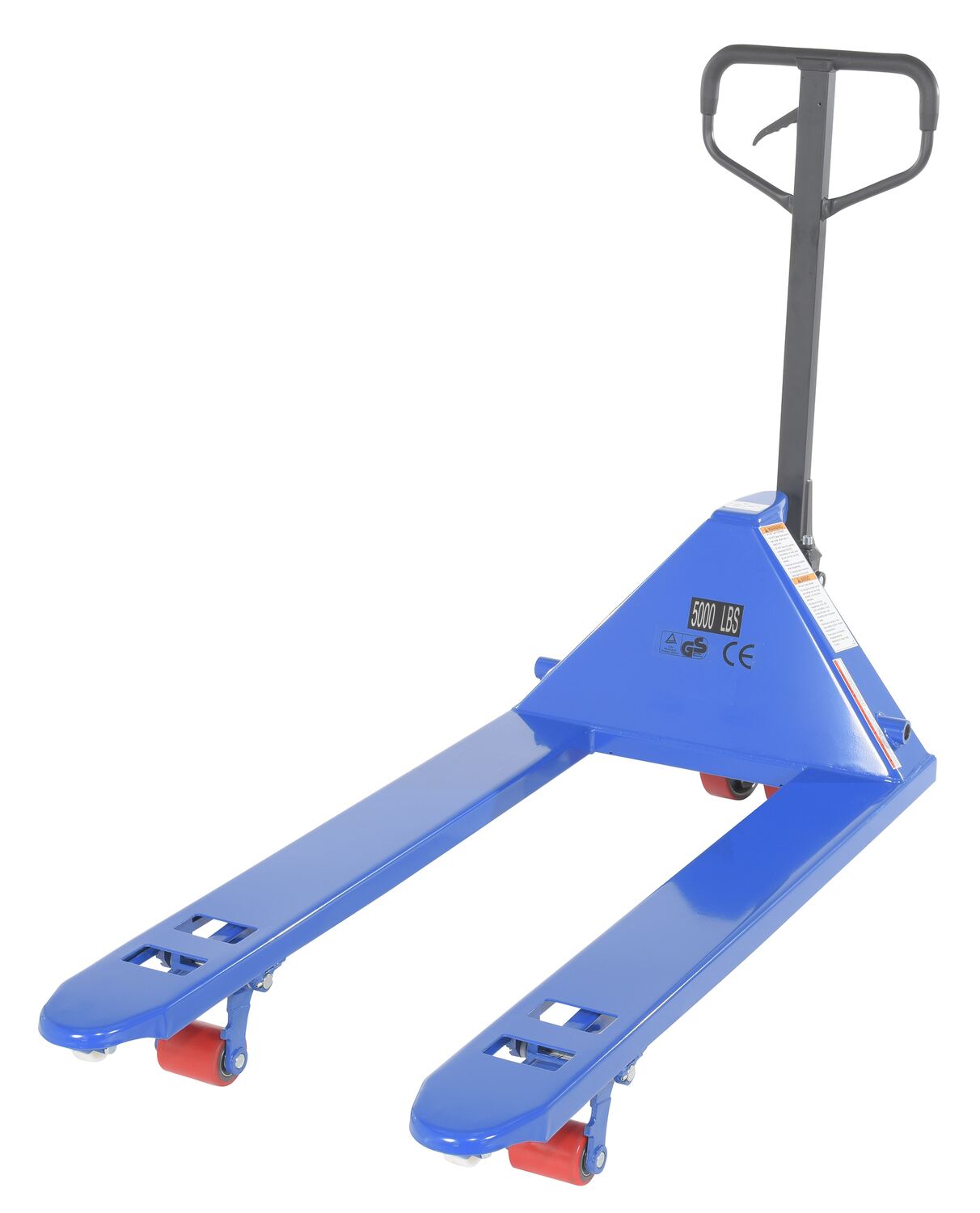

PM5-2748-BL PM5-2748-BLSteel Full Featured Pallet Truck 27 In. x 48 In. 5,000 Lb. Capacity BlueUniform Capacity (lb.): 5,000
Fork Width/Length (in.): 7 x 48		210

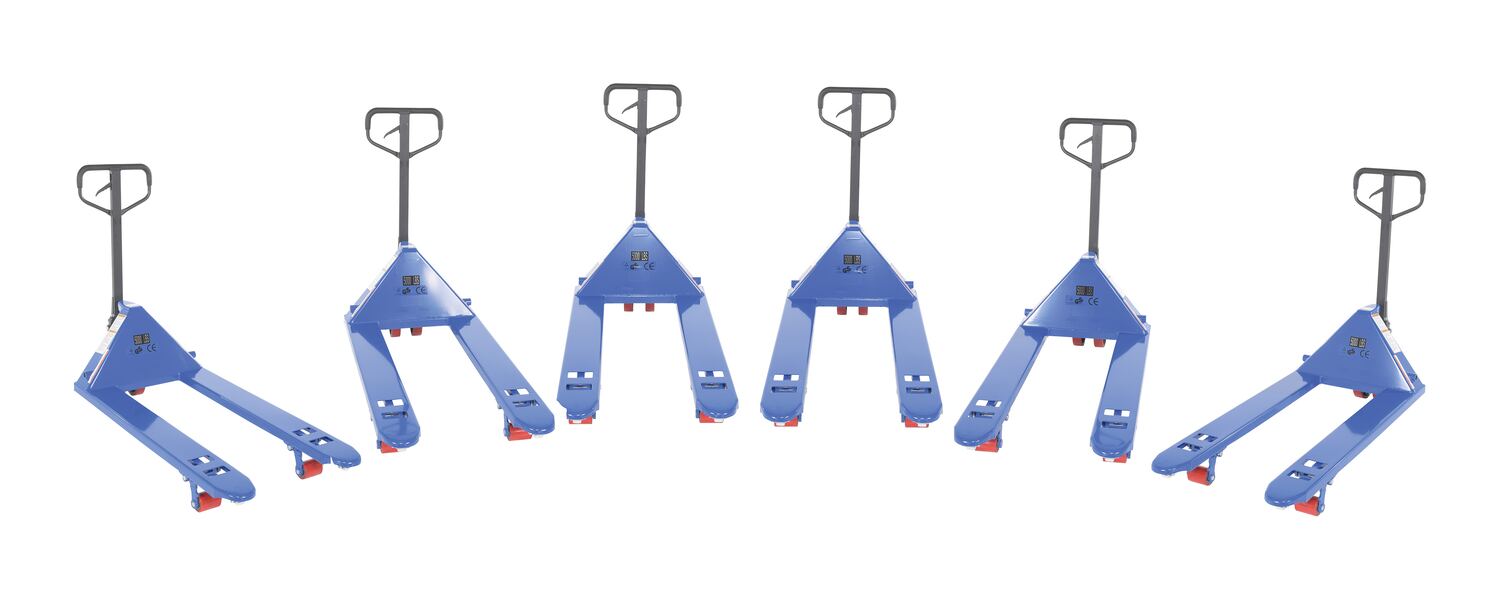

PM5-2748-BL-6PKG PM5-2748-BL-6PKGSteel Full Featured Pallet Trucks 6 Pack 27 In. x 48 In. 5,000 Lb. Capacity BlueUniform Capacity (lb.): 5,000
Fork Width/Length (in.): 7 x 48		950

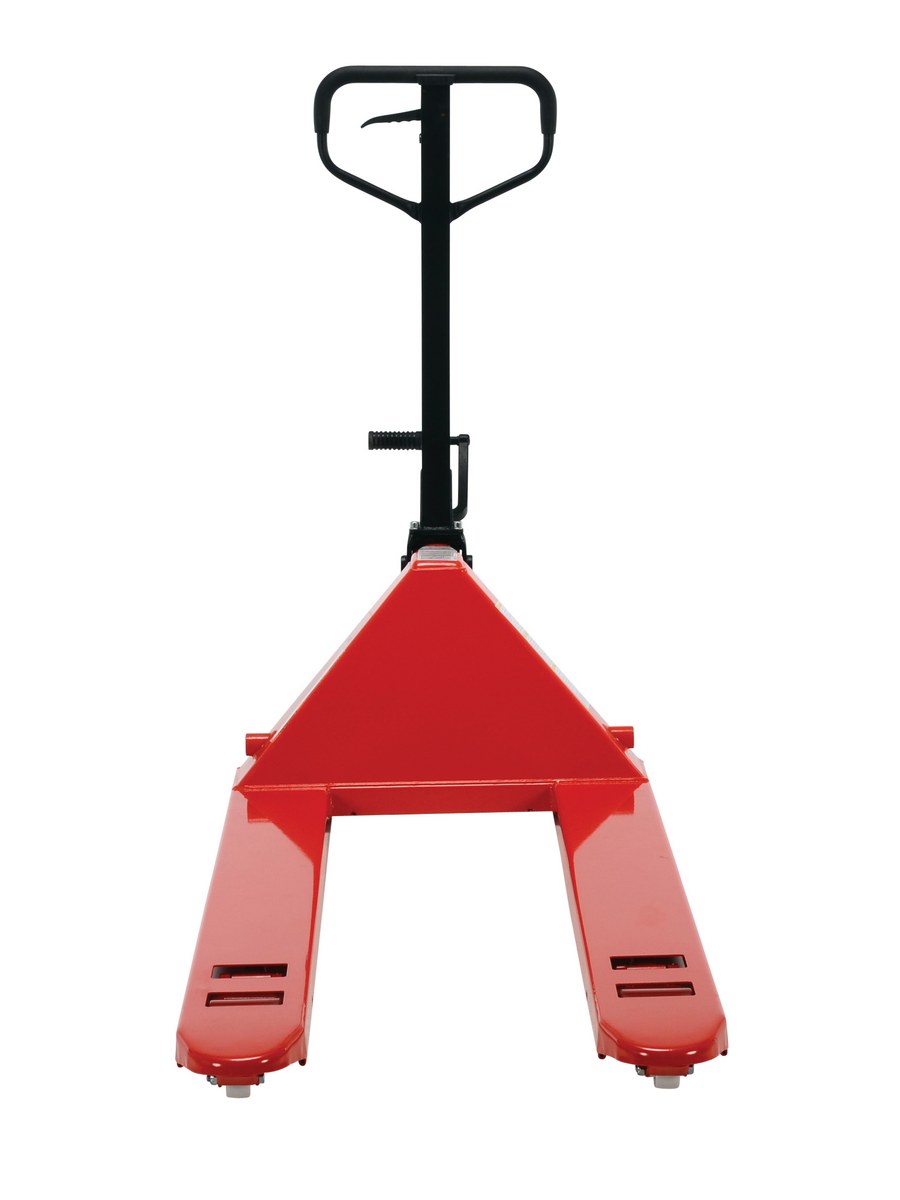

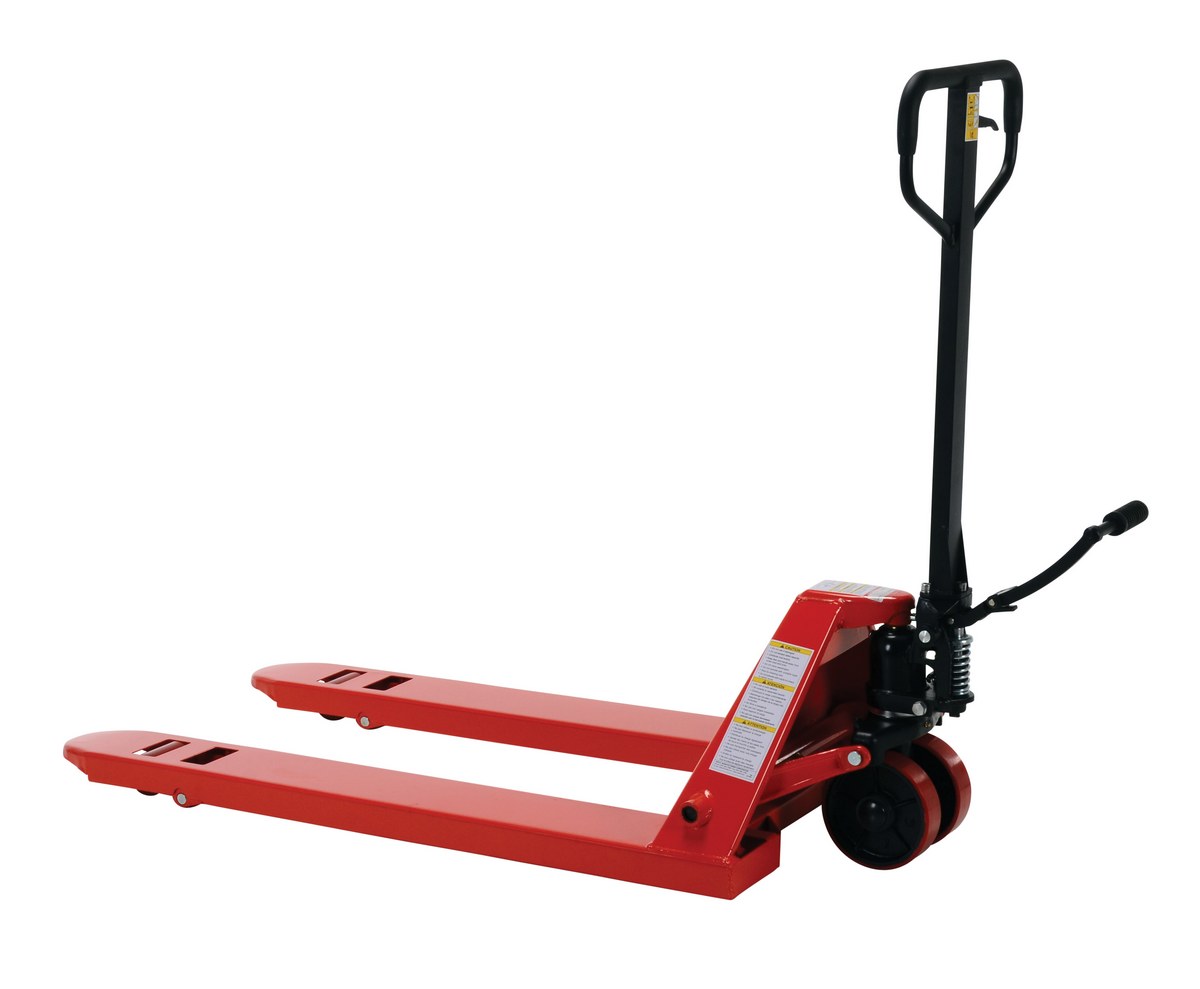

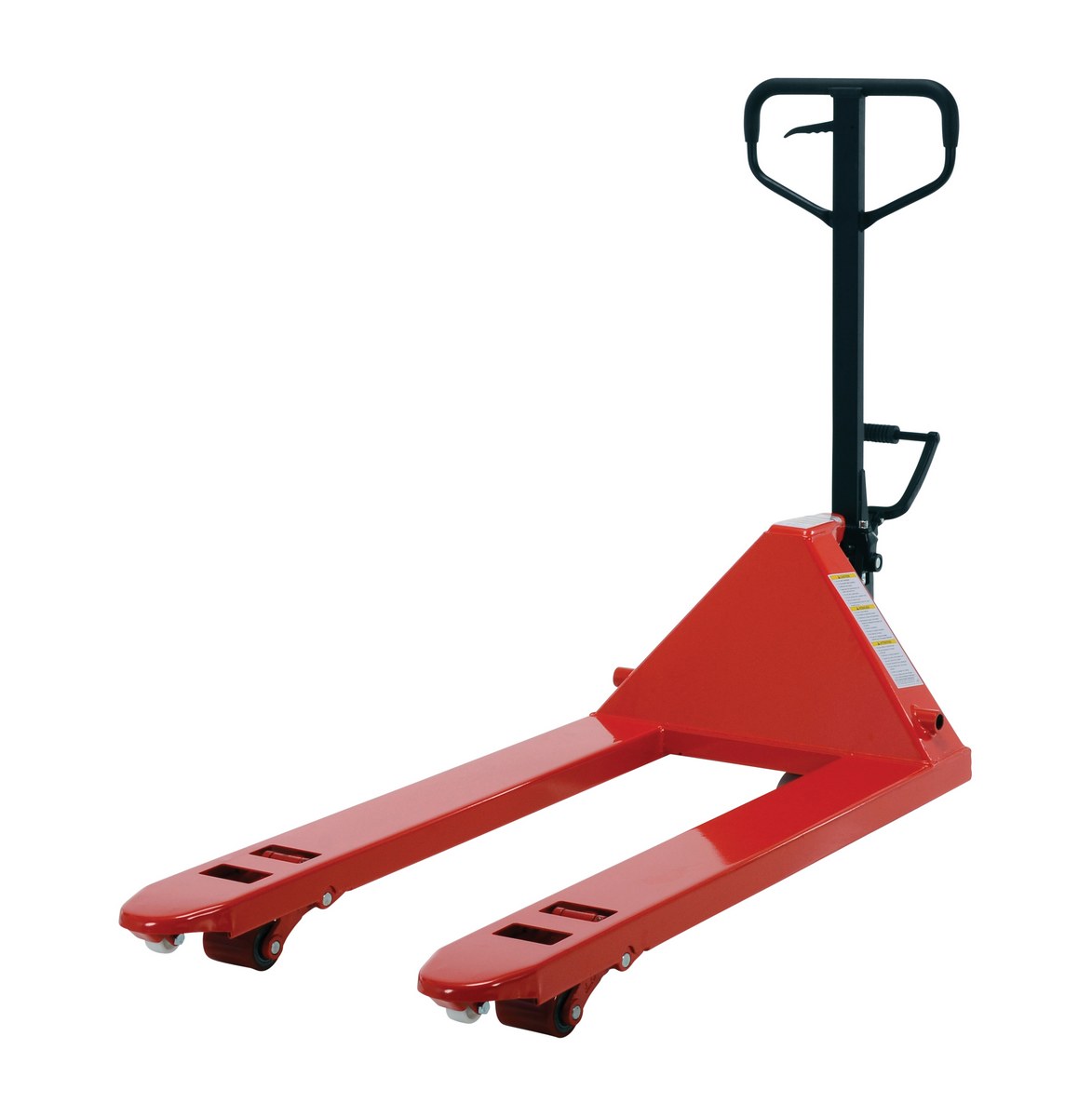

PM5-2748-FP PM5-2748-FPWheel Nose Pallet Truck with Foot Pedal 27 In. x 48 In. 5500 Lb. Capacity RedUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 7 x 48		222

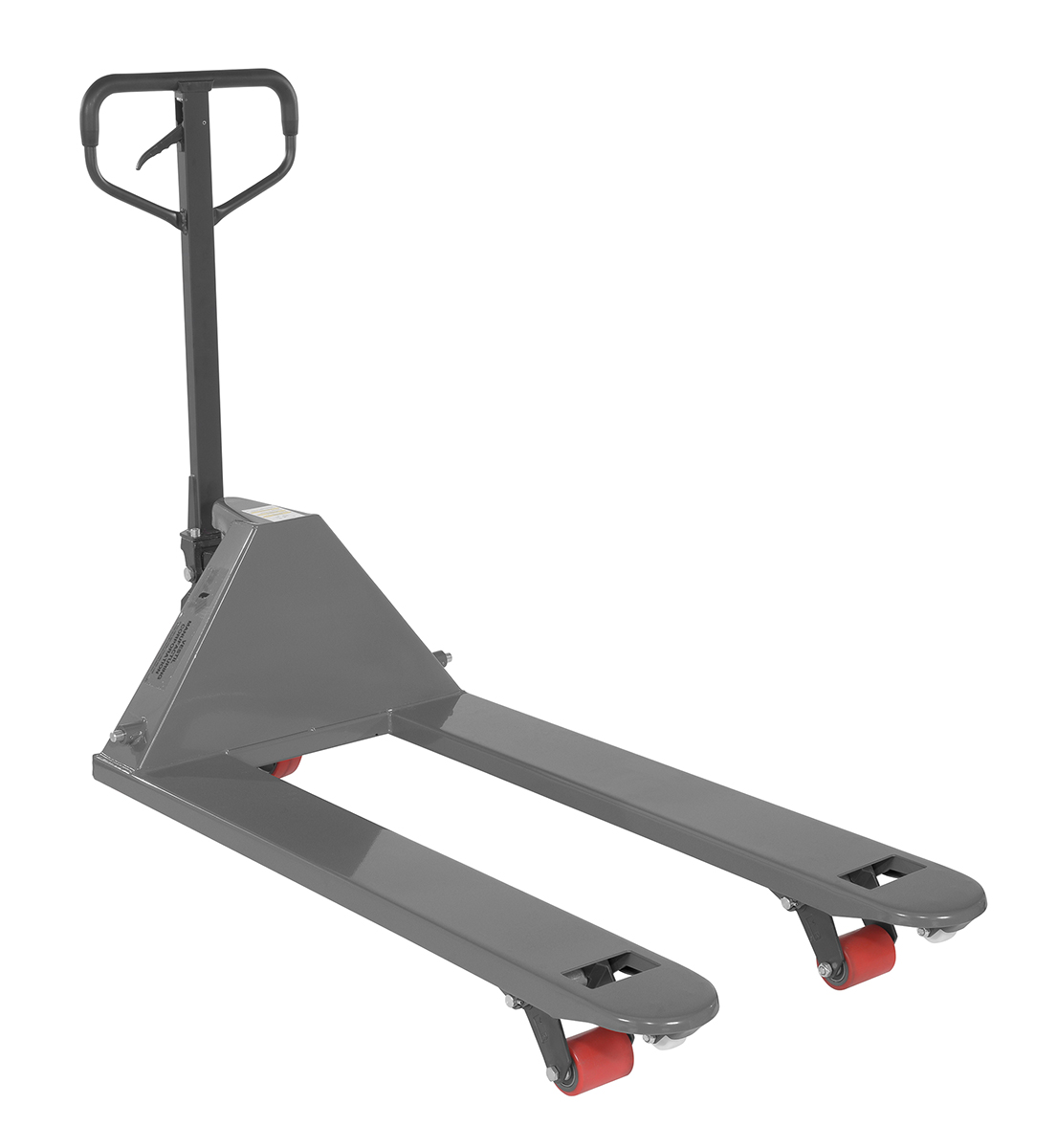

PM5-2748-GYSG PM5-2748-GYSGSteel Full Featured Pallet Truck 27 in x 48 in 5500 Lb. Capacity Gray Semi GlossUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 7 x 48		210

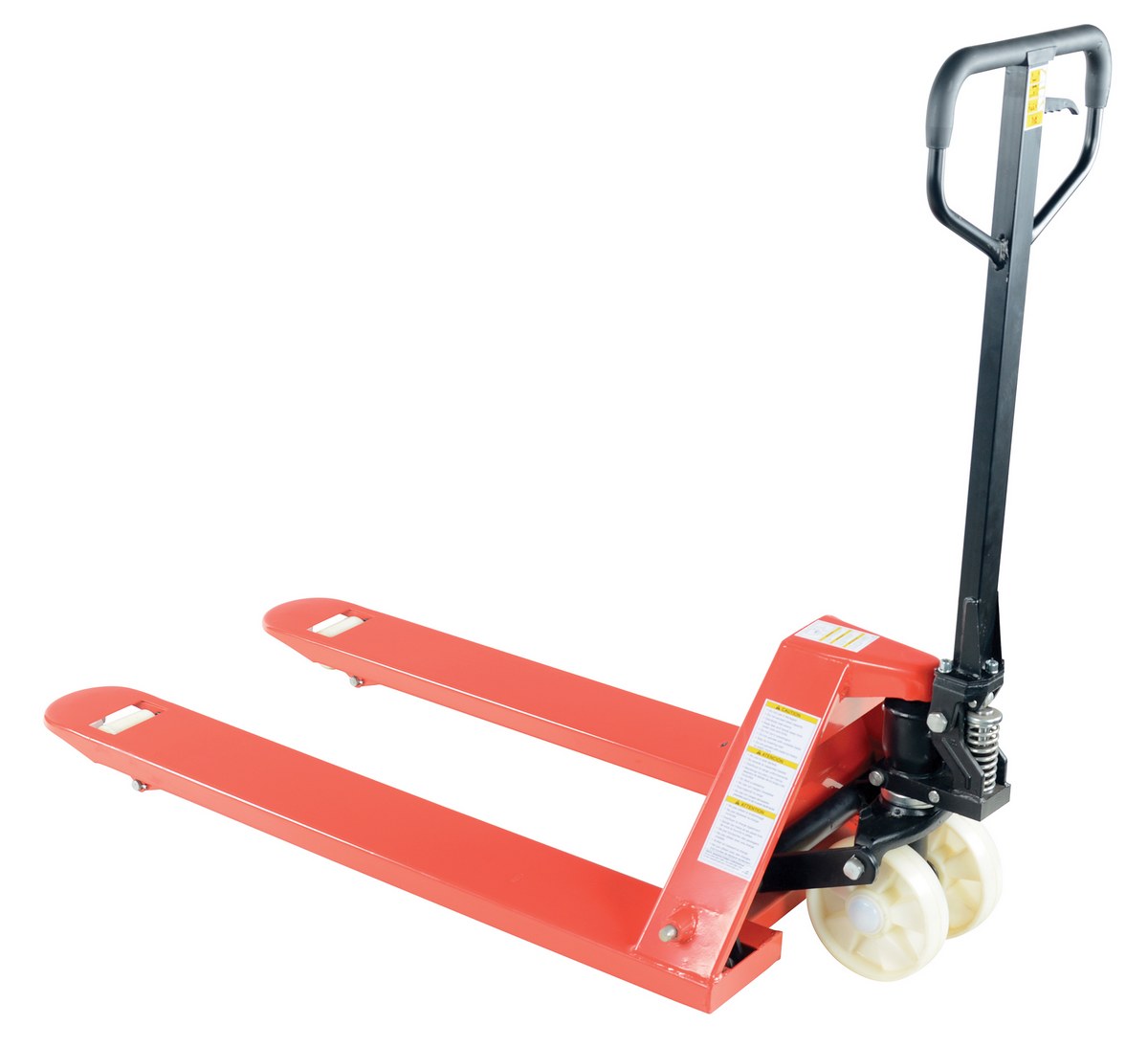

PM5-2748-N PM5-2748-NSteel Economic Pallet Truck with Nylon Wheel 61 In. x 27 In. x 48 In. 5500 Lb. Capacity RedUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 7 x 48		227

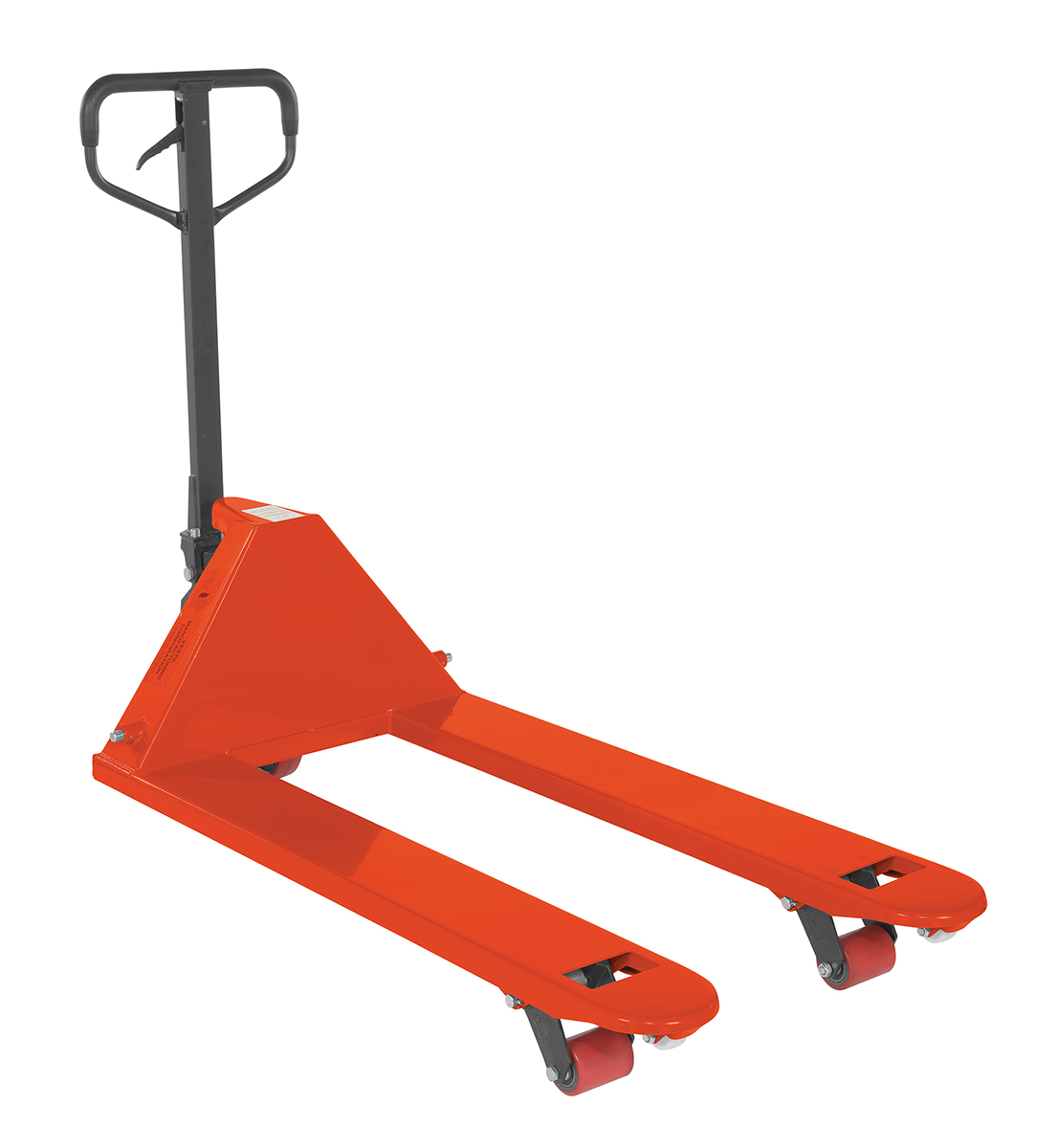

PM5-2748-OR PM5-2748-ORSteel Full Featured Pallet Truck 27 In. x 48 In. 5500 Lb. Capacity OrangeUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 7 x 48		210

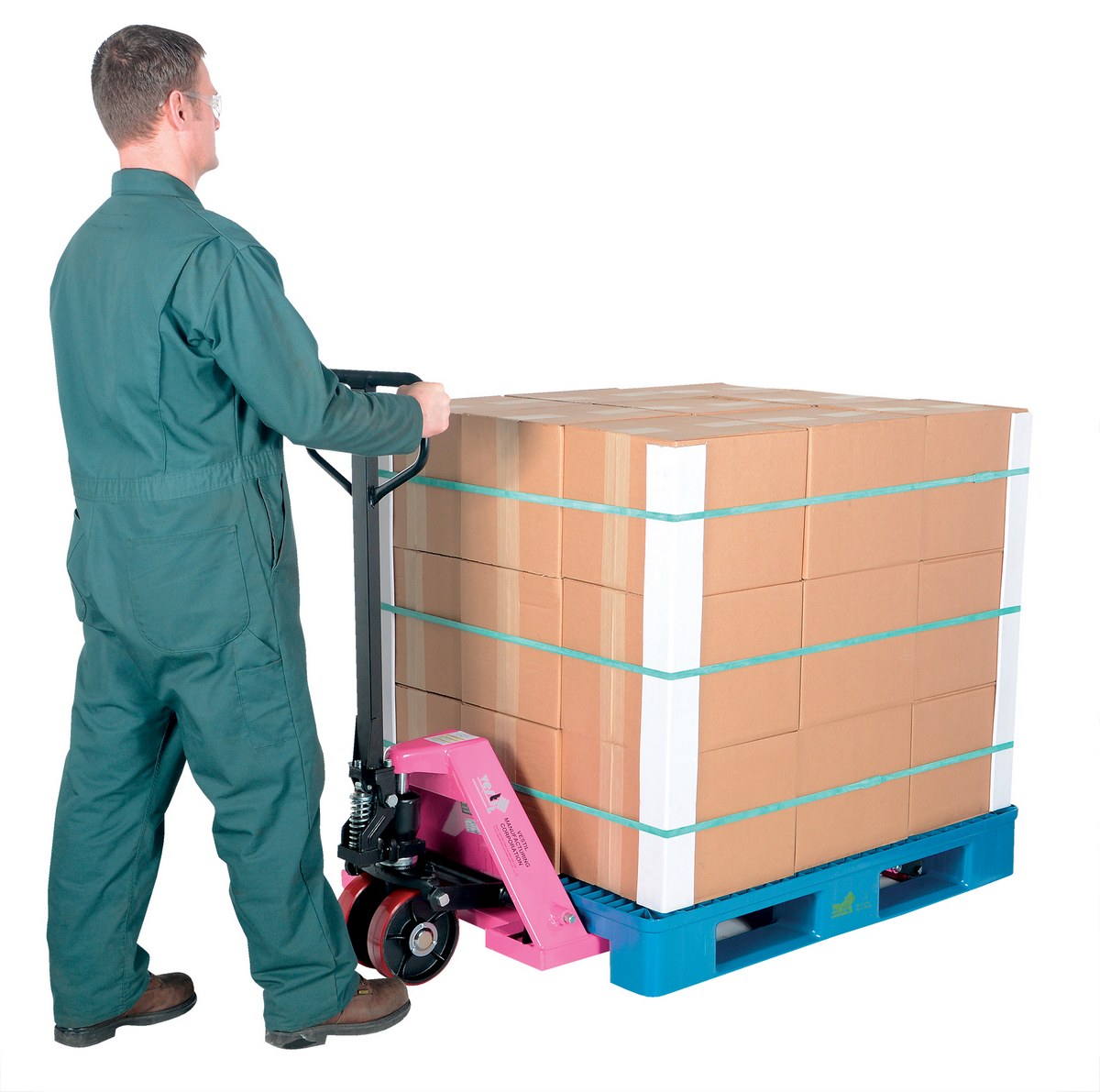

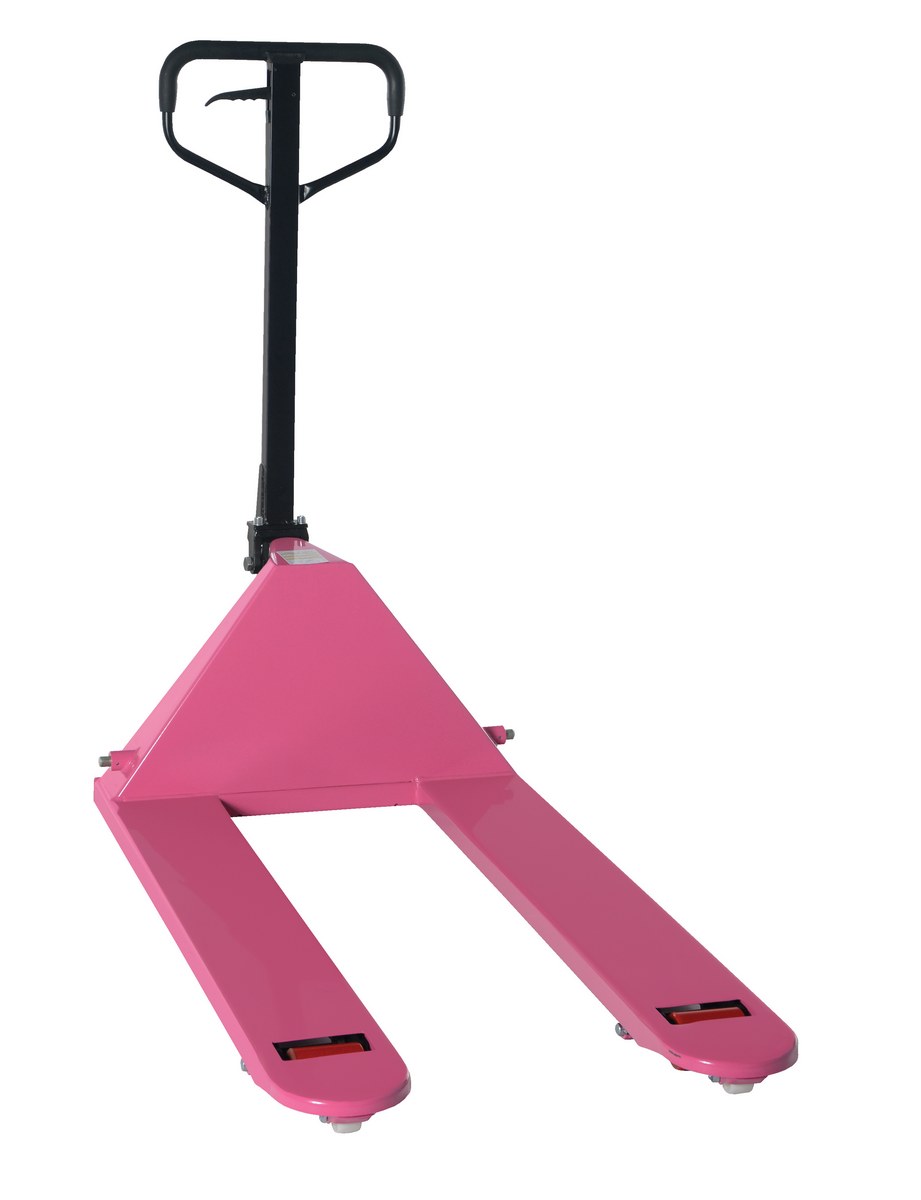

PM5-2748-PINK PM5-2748-PINKSteel Pallet Truck 63 In.x 27 In. x 48 In. 5500 Lb. Capacity PinkUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 7 x 48		216

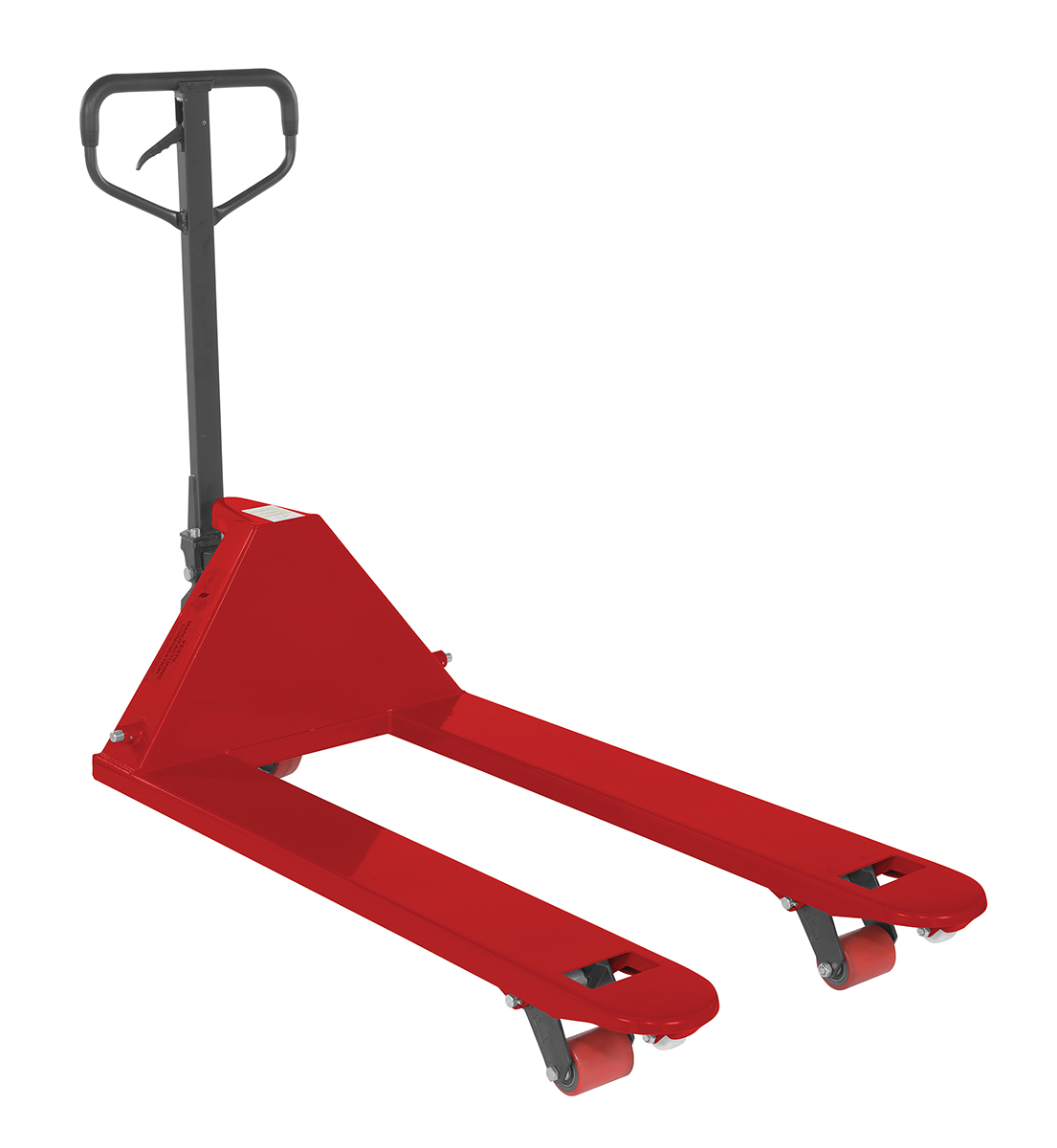

PM5-2748-RD PM5-2748-RDSteel Full Featured Pallet Truck 27 In. x 48 In. 5500 Lb. Capacity RedUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 7 x 48		210

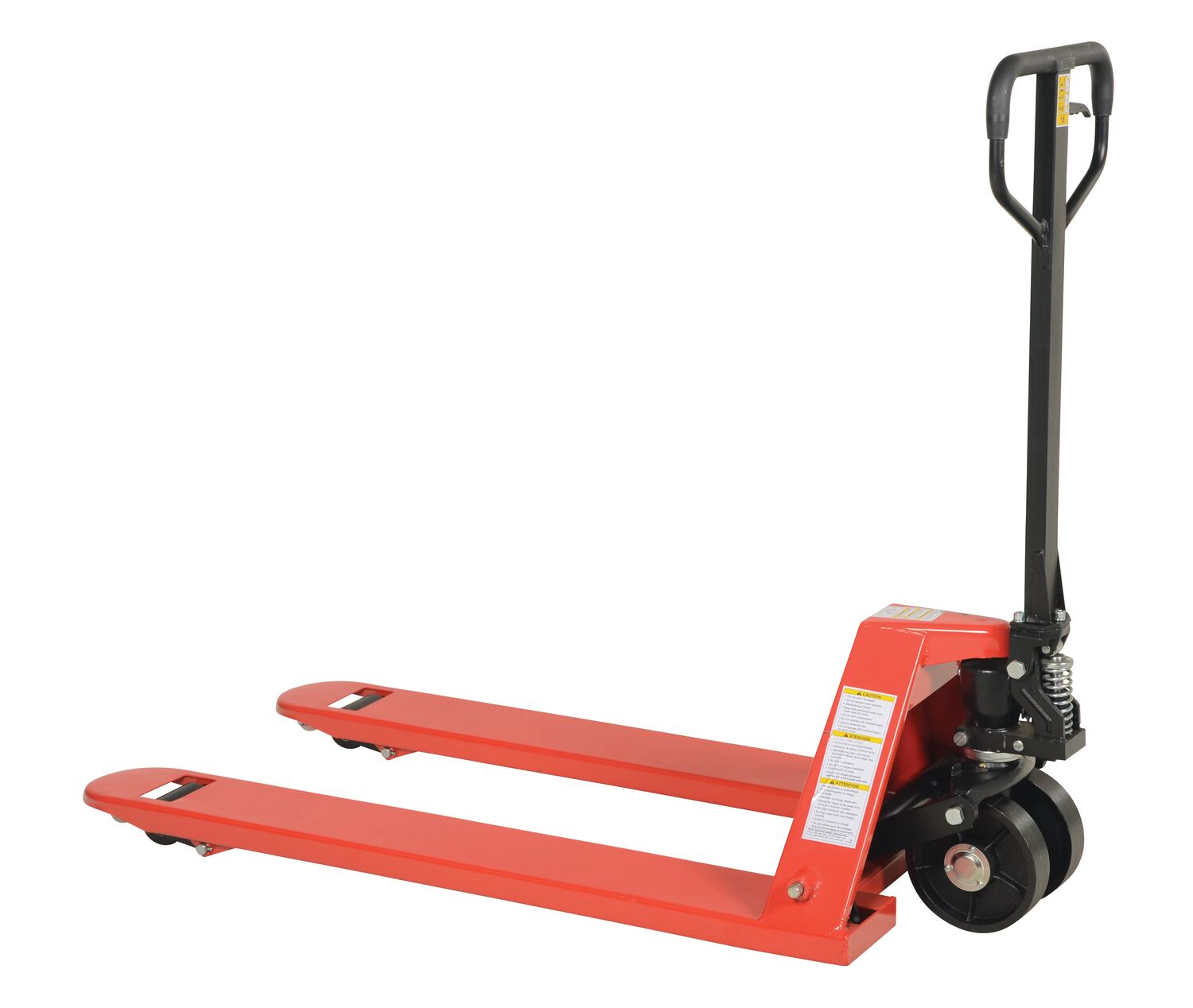

PM5-2748-S PM5-2748-SSteel Pallet Truck with Steel Wheels 61 In. x 27 In. x 48 In. 5500 Lb. Capacity RedUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 7 x 48		222

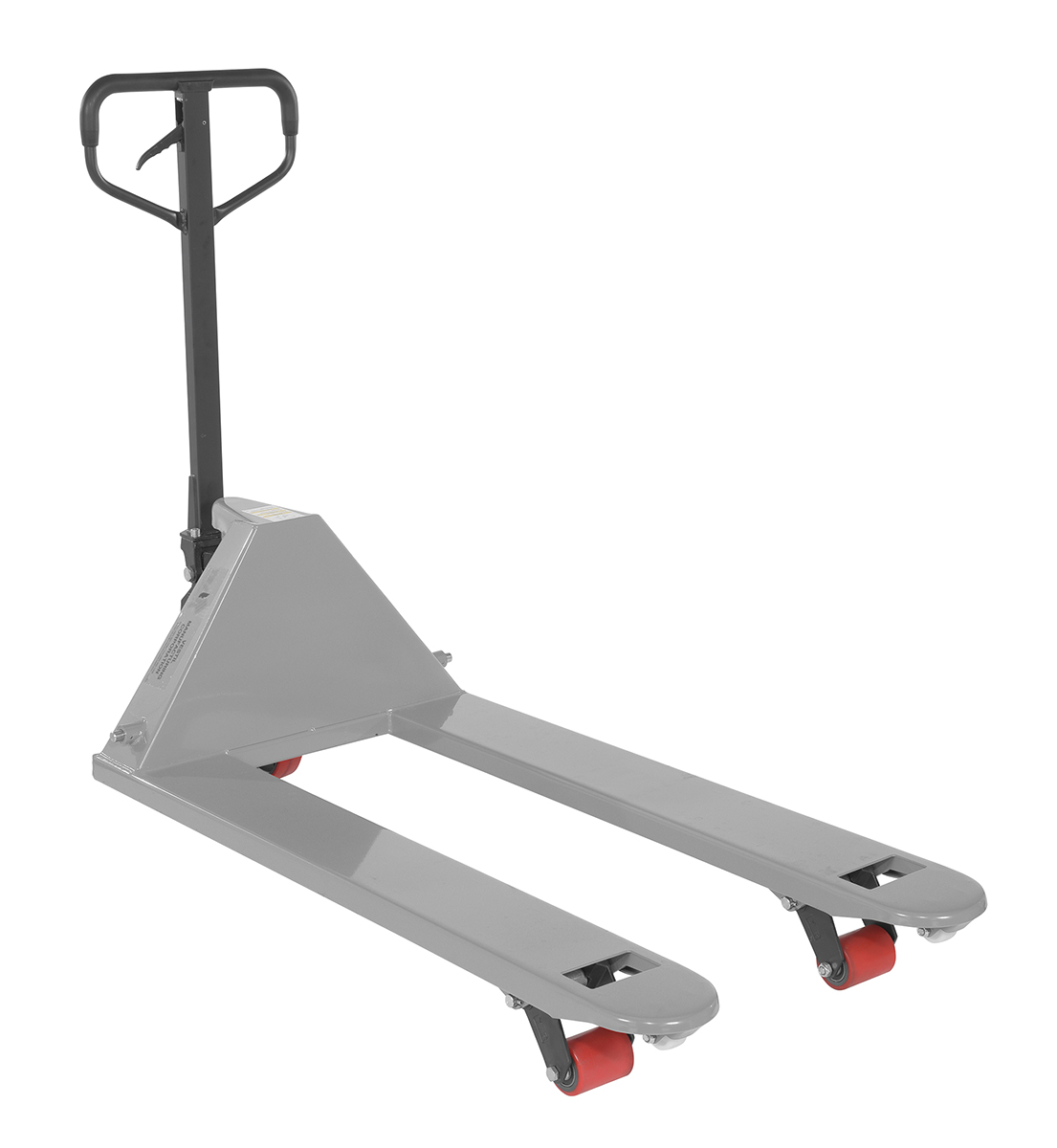

PM5-2748-SL PM5-2748-SLSteel Full Featured Pallet Truck 27 In. x 48 In. 5500 Lb. Capacity SilverUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 7 x 48		210

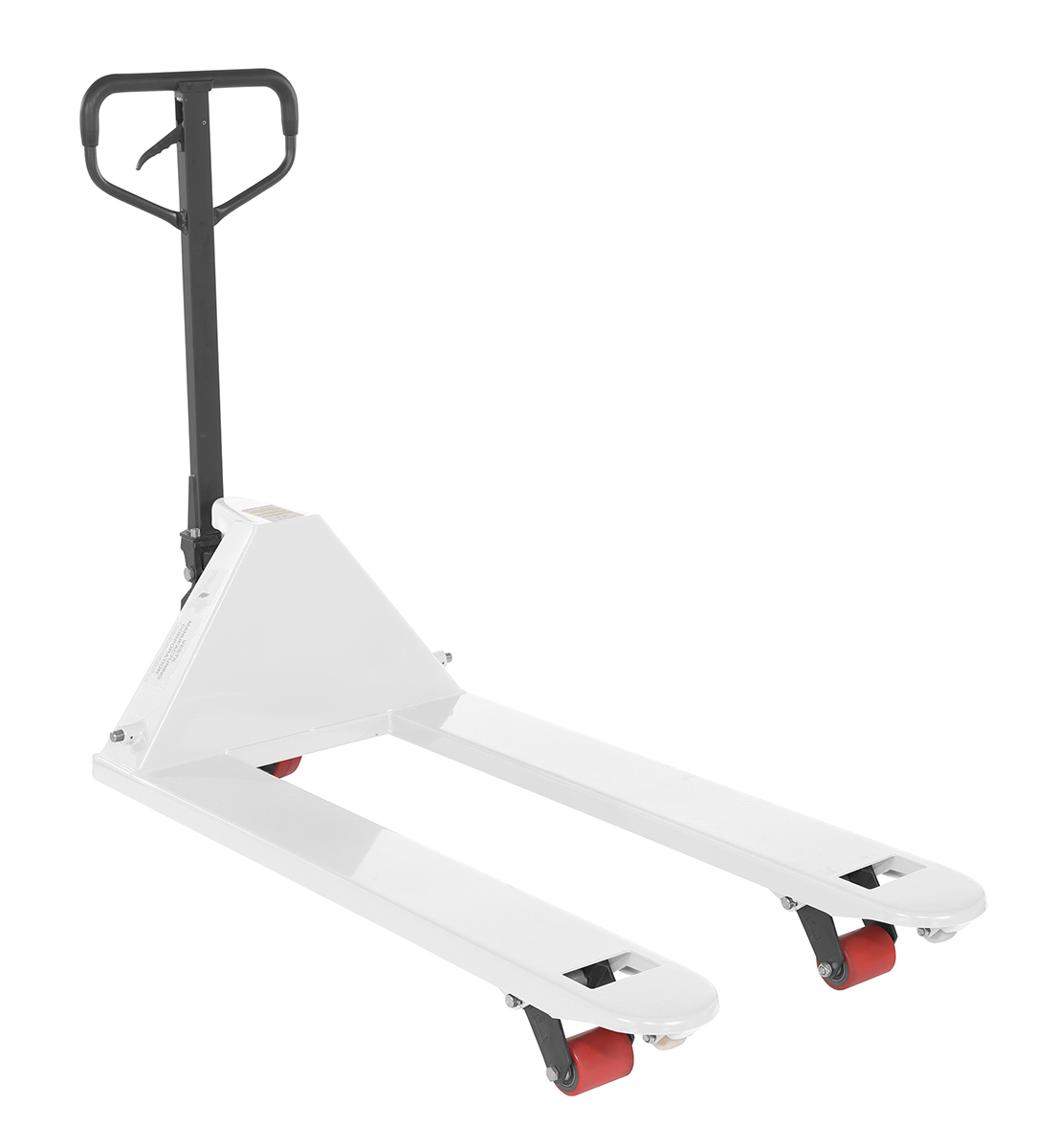

PM5-2748-WT PM5-2748-WTSteel Full Featured Pallet Truck 27 In. x 48 In. 5500 Lb. Capacity WhiteUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 7 x 48		210

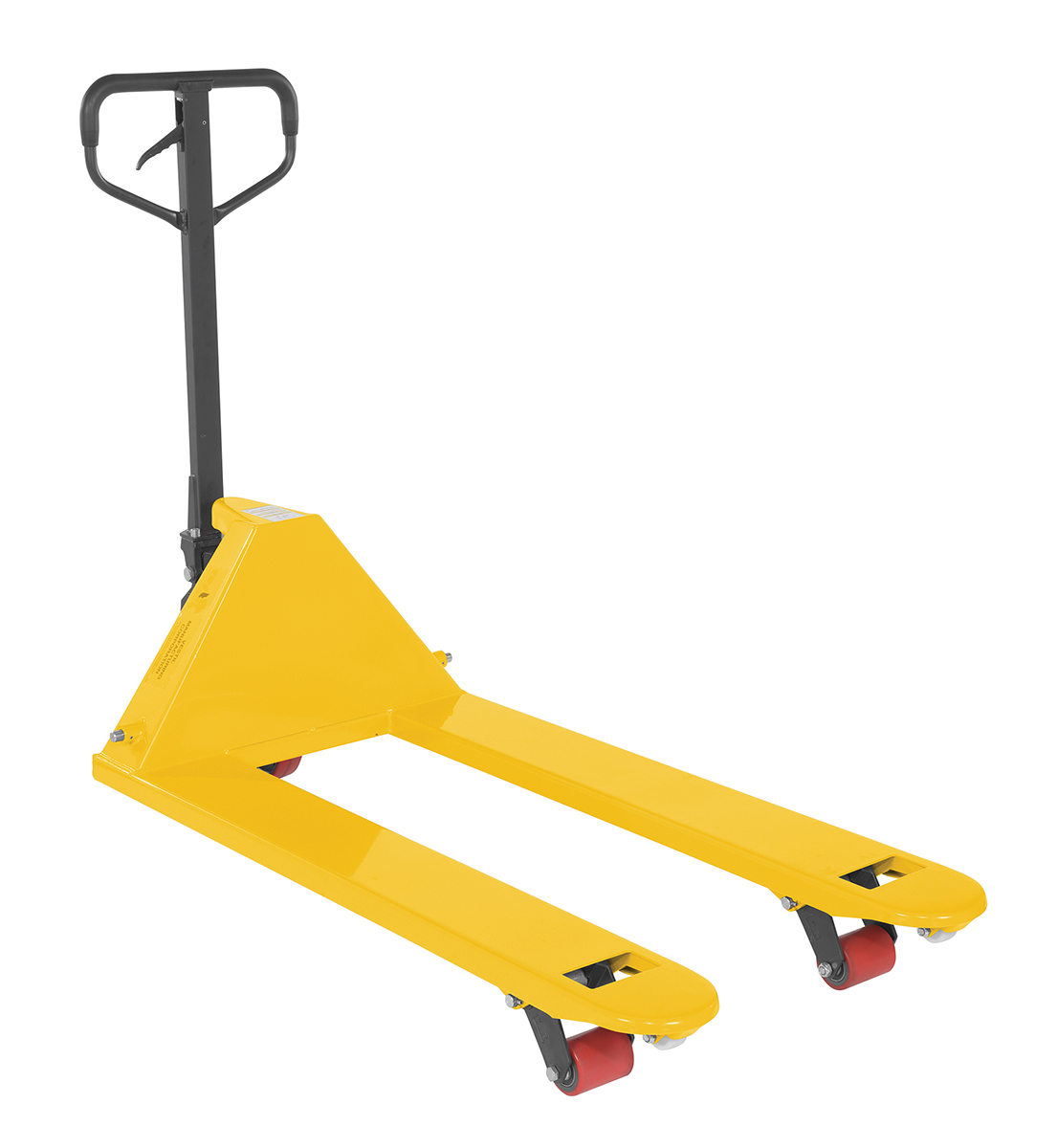

PM5-2748-YL PM5-2748-YLSteel Full Featured Pallet Truck 27 In. x 48 In. 5500 Lb. Capacity YellowUniform Capacity (lb.): 5,500
Fork Width/Length (in.): 7 x 48		210

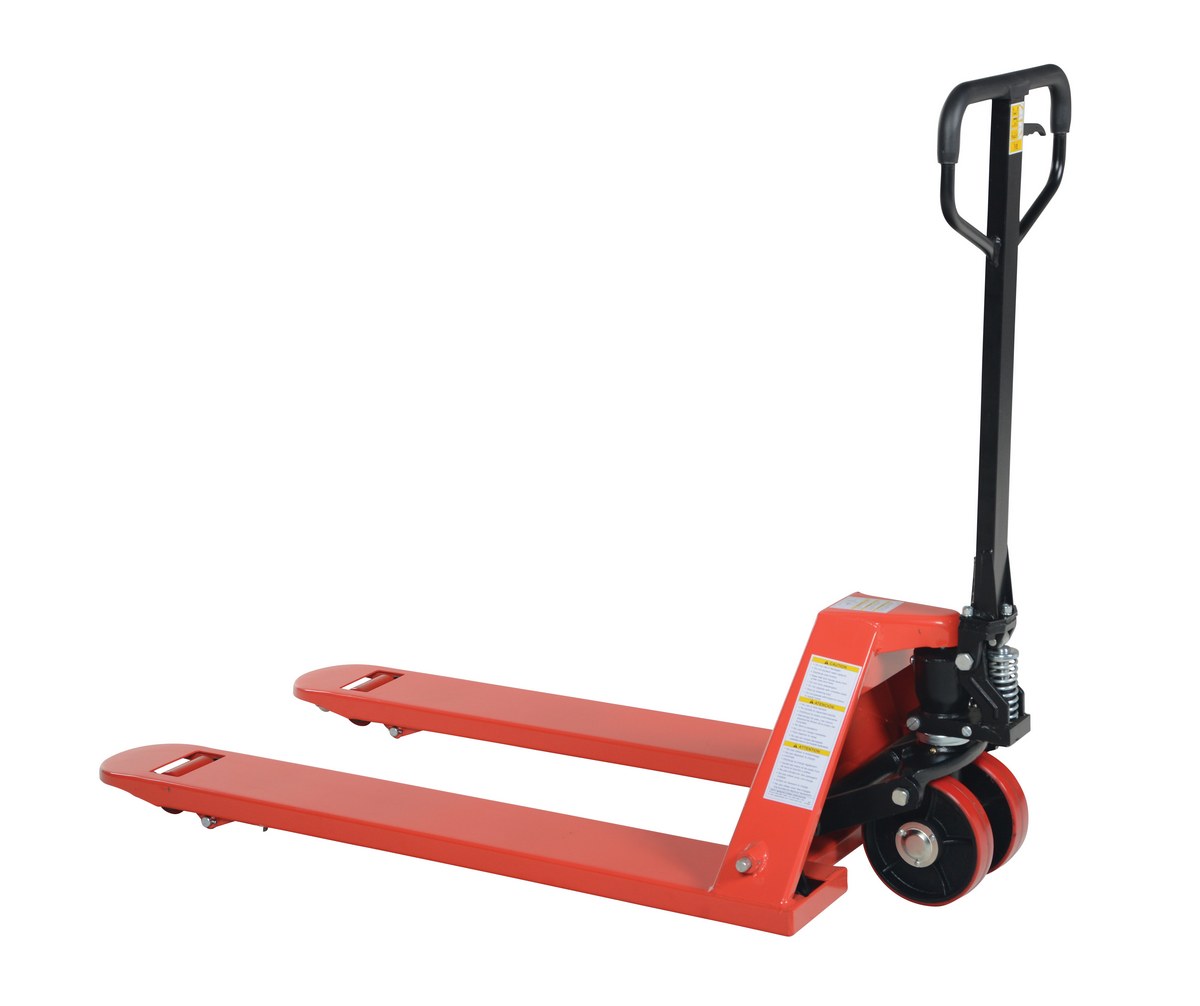

PM6-2748 PM6-2748Steel Full Featured Pallet Truck 61 In. x 27 In. x 48 In. 6000 Lb. Capacity RedUniform Capacity (lb.): 6,000
Fork Width/Length (in.): 7 x 48		212
PM6-2748-6PKG PM6-2748-6PKGSteel (Quantity 6) Full Featured Pallet Truck 61 In. x 27 In. x 48 In. 6000 Lb. Capacity RedUniform Capacity (lb.): 6,000
Fork Width/Length (in.): 7 x 48		1444

Options


Model Number Image Description Wt.
(lbs)
CWHF-SM Low Temp Oil for Freezer Applications -
