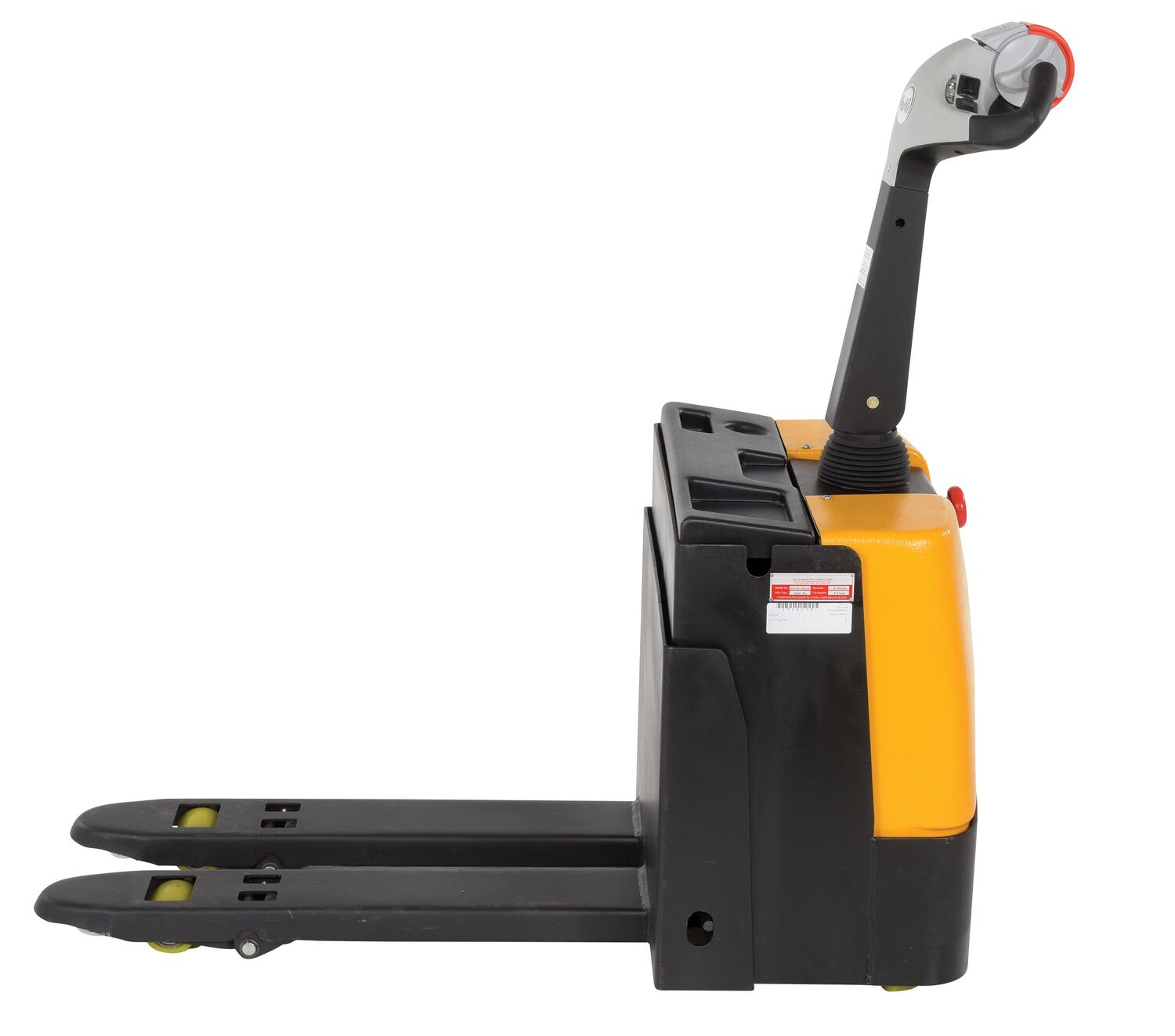

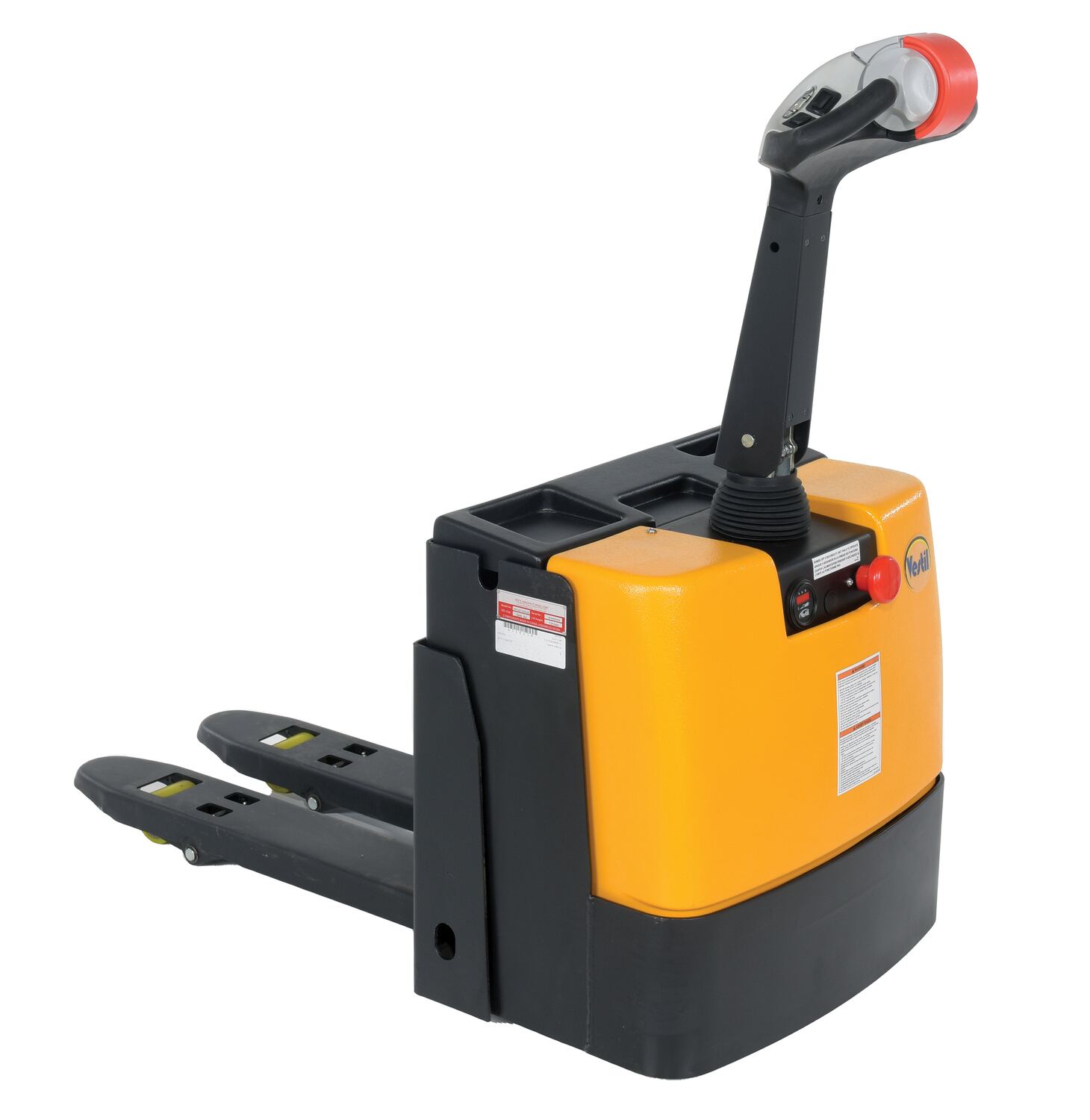

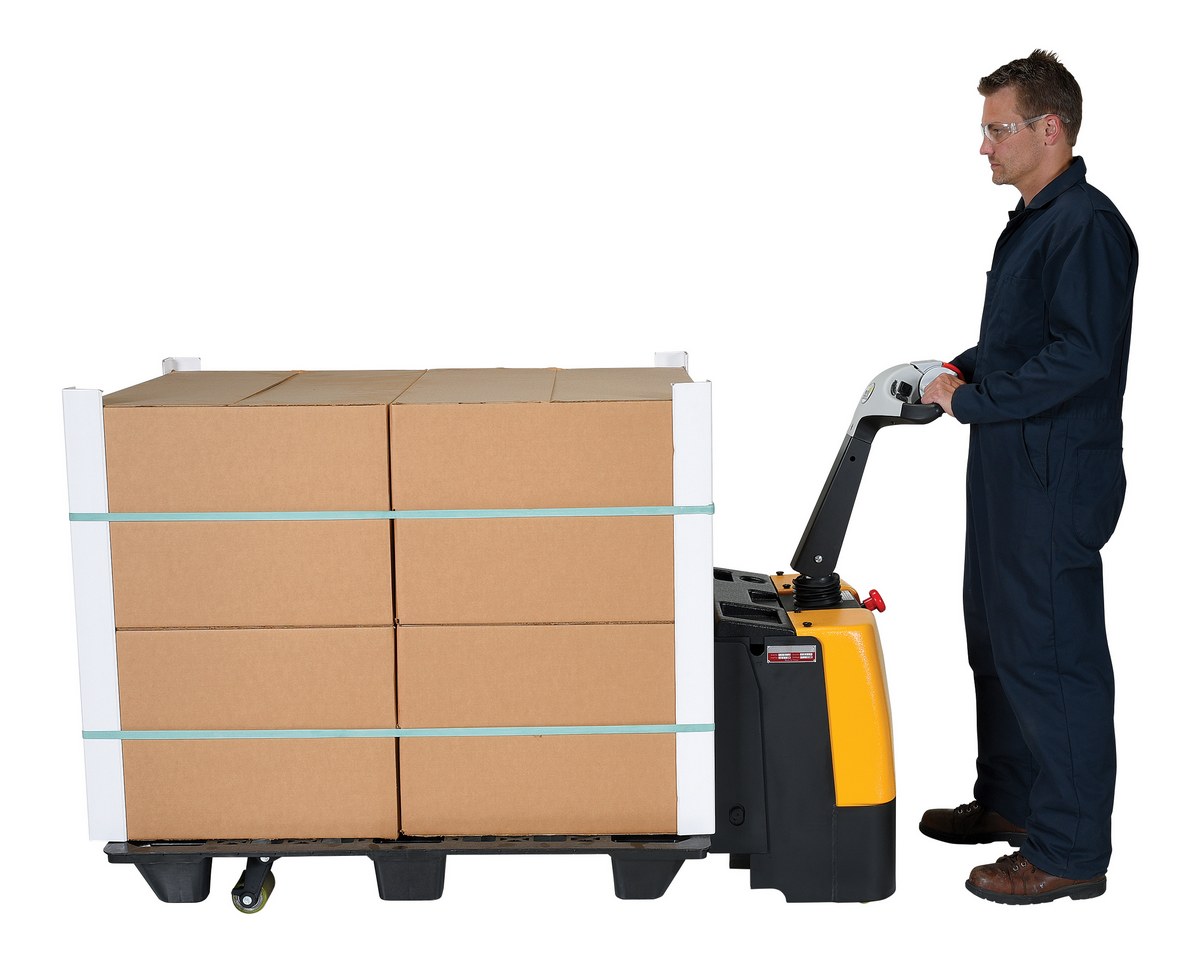

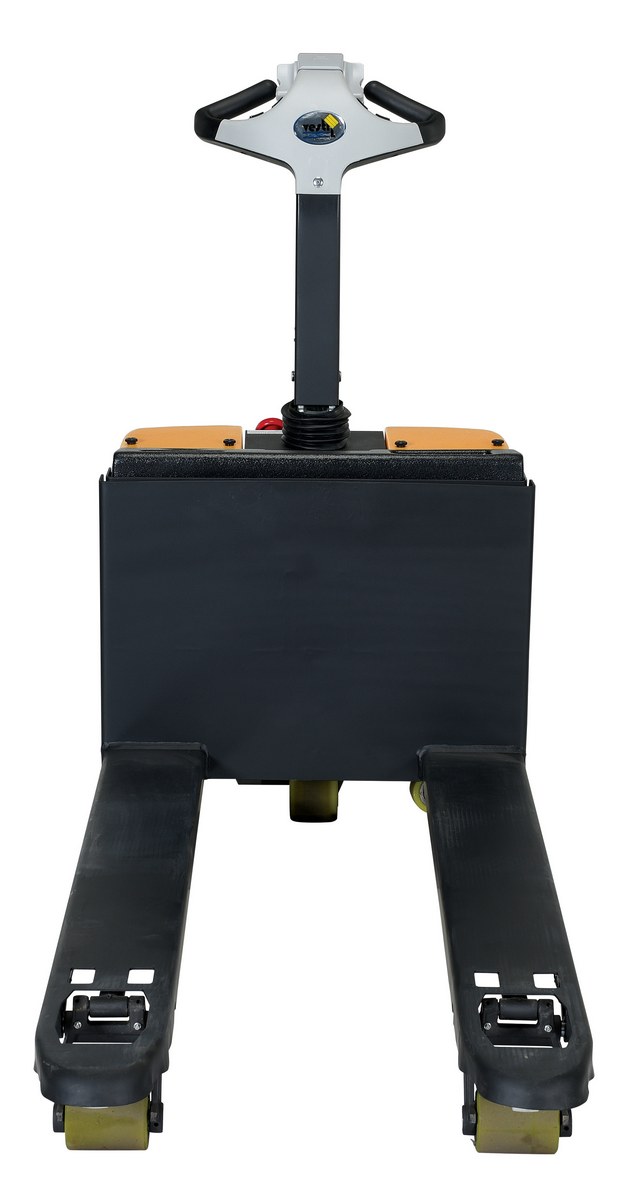

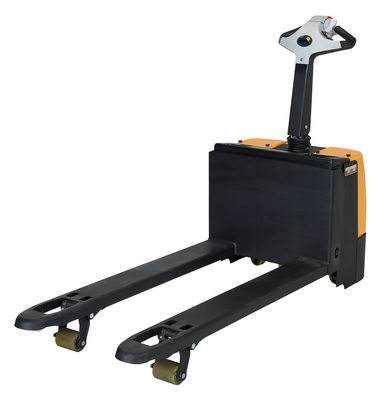

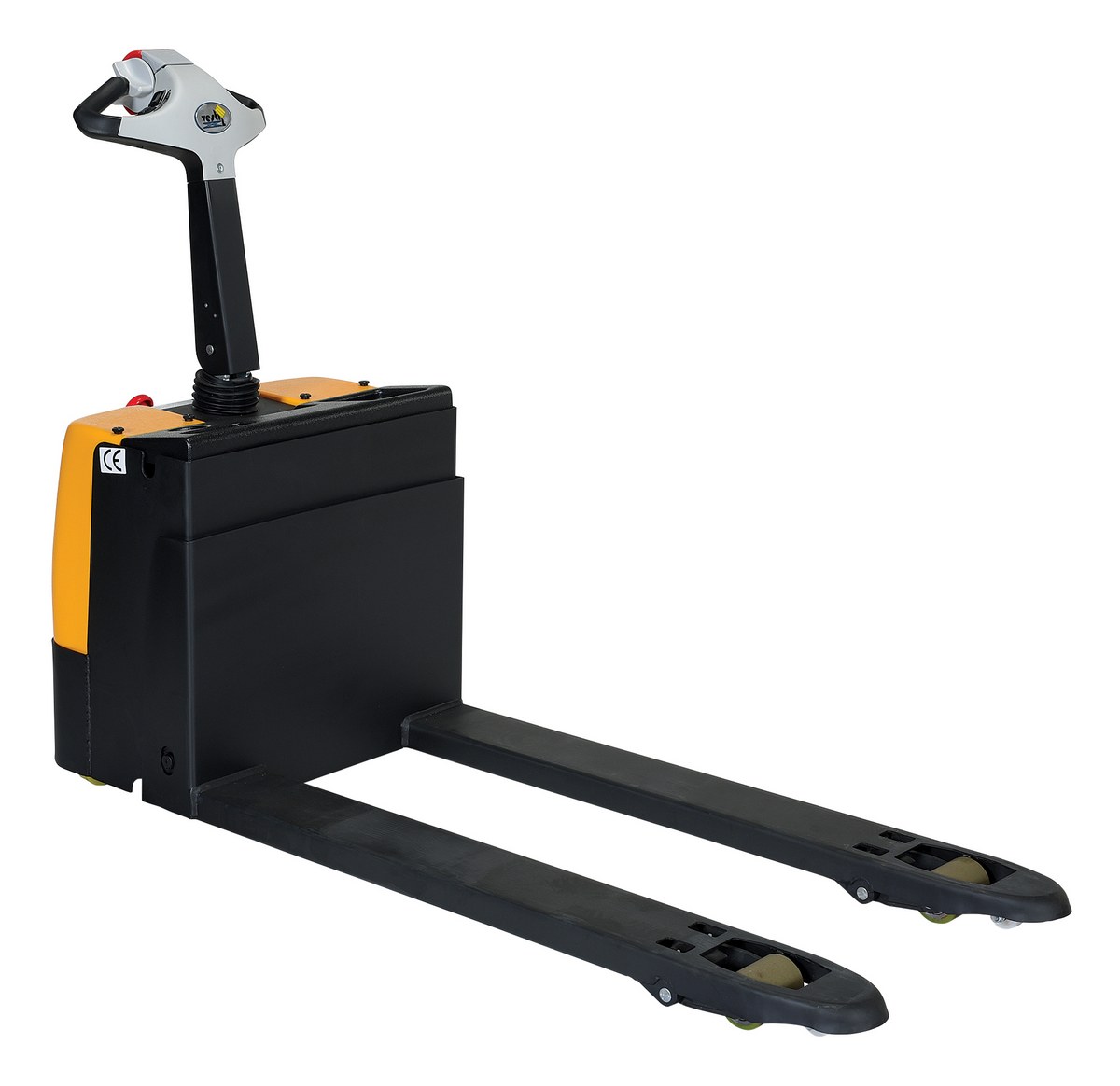

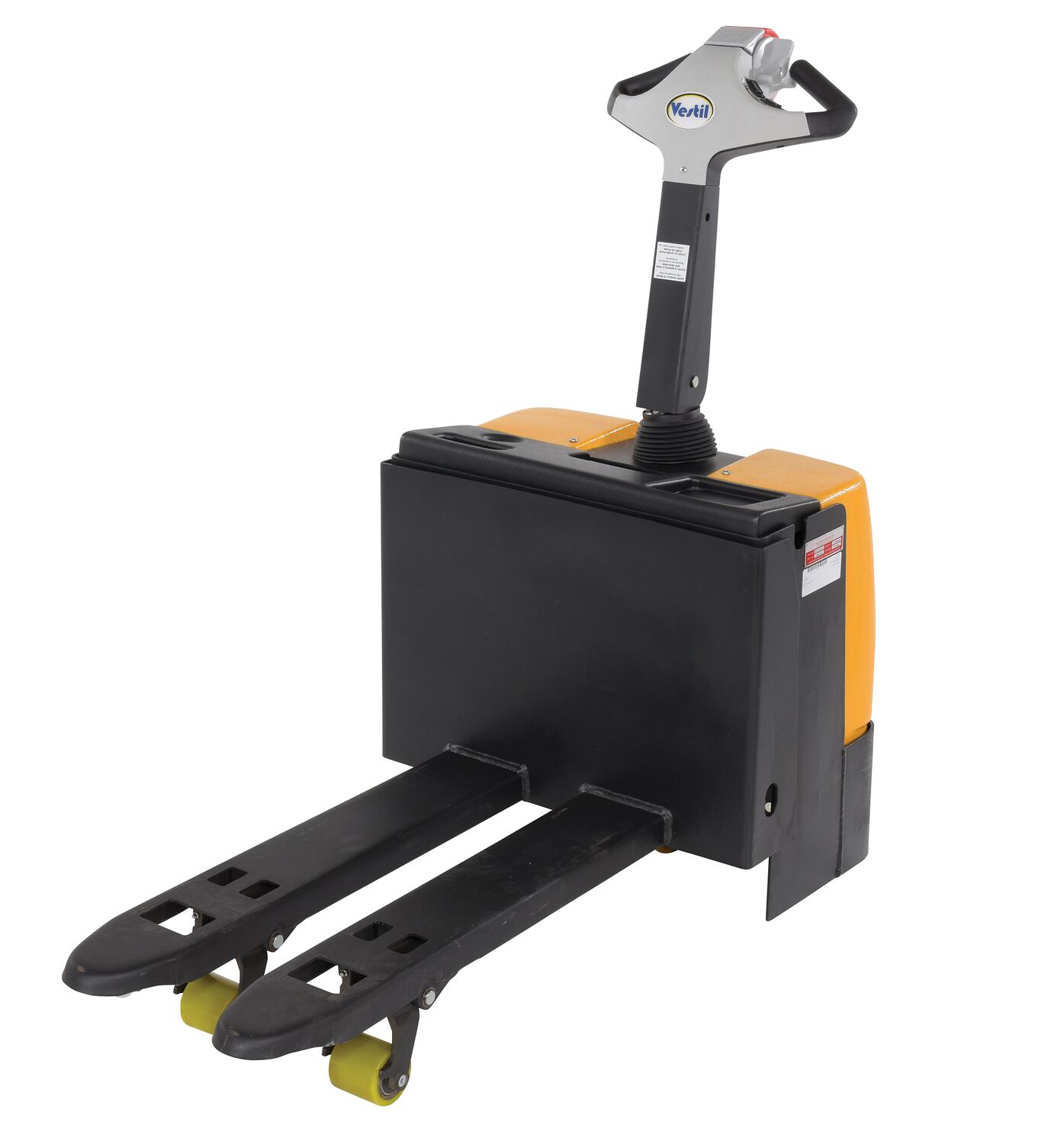

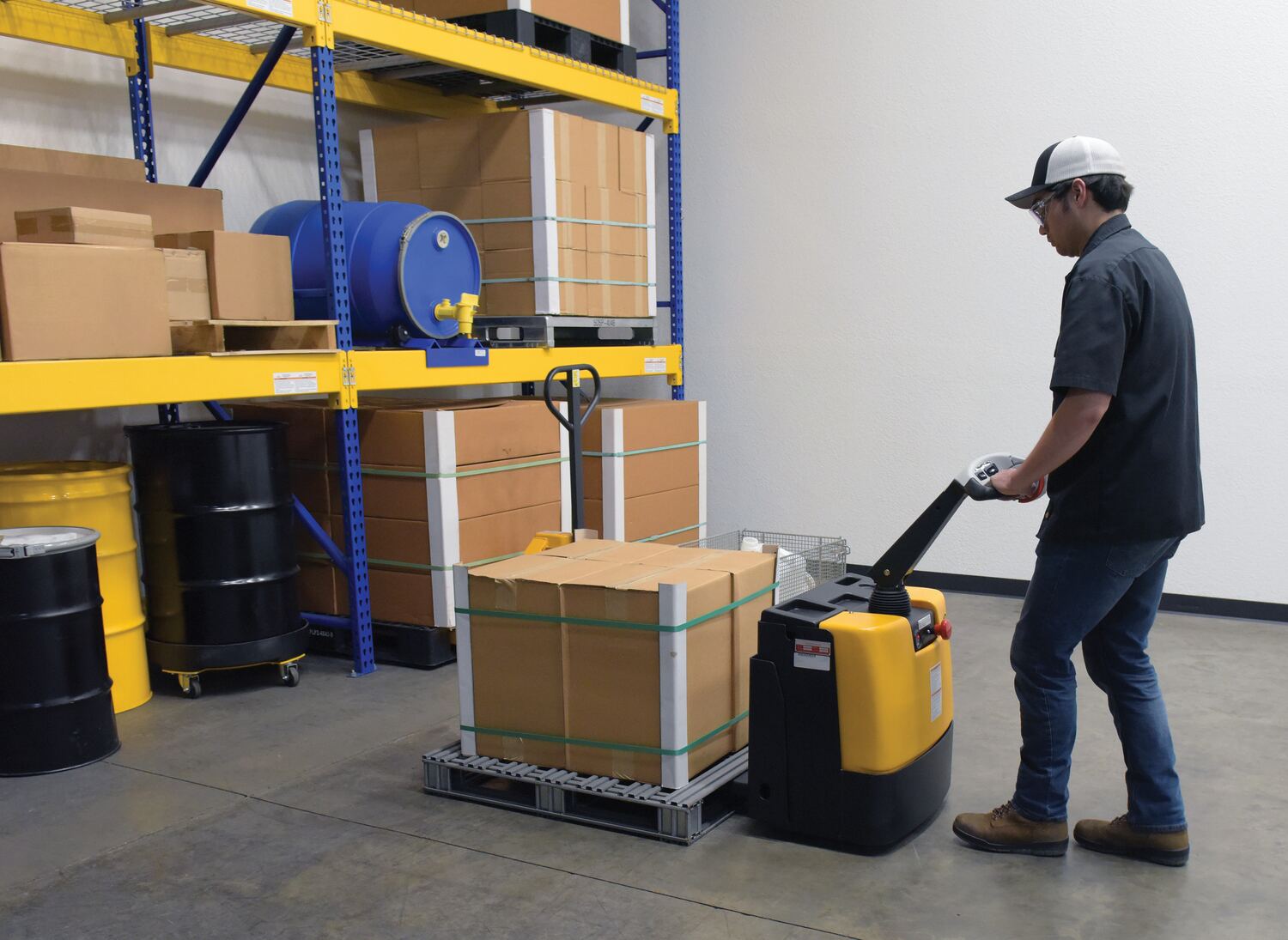

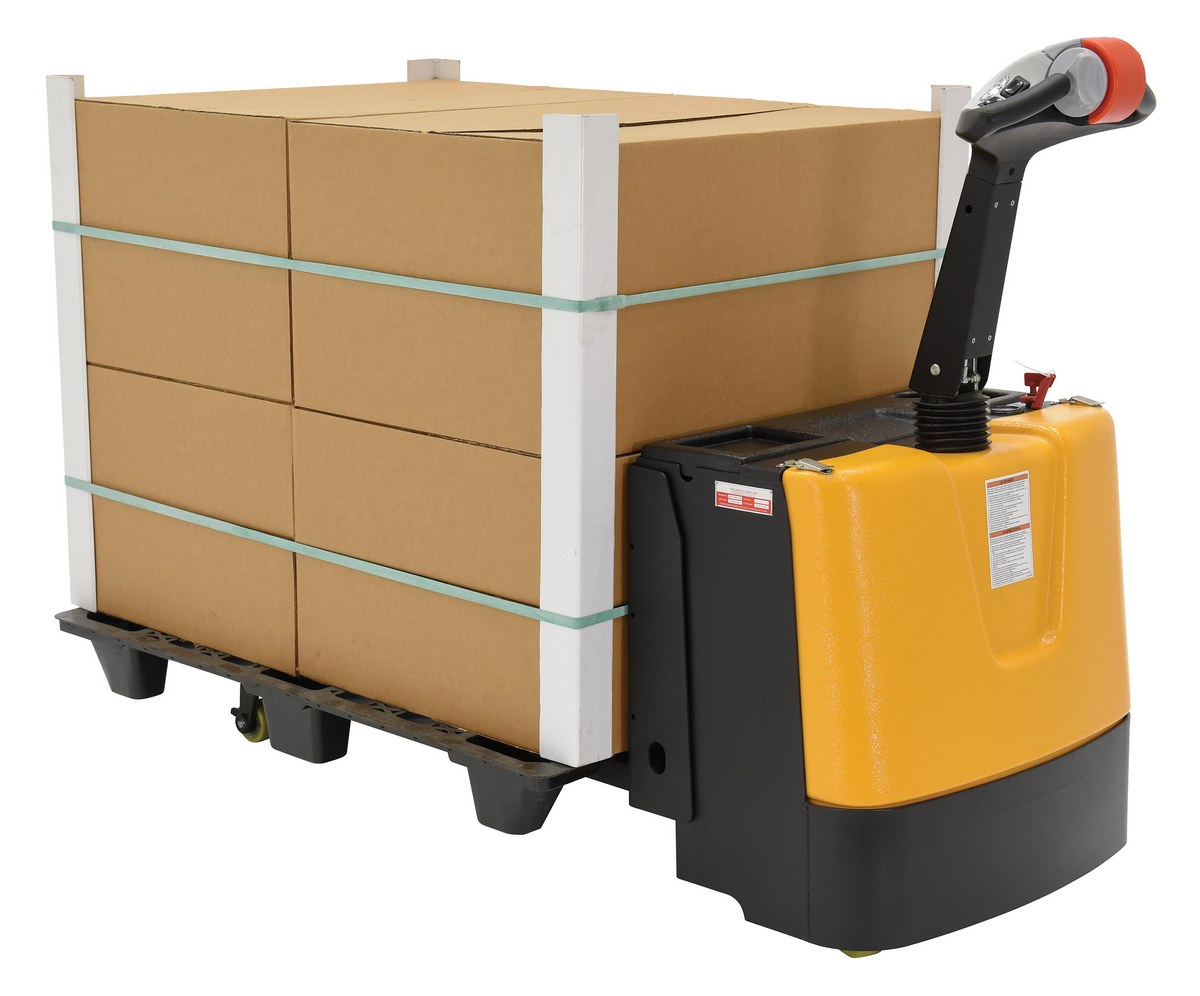

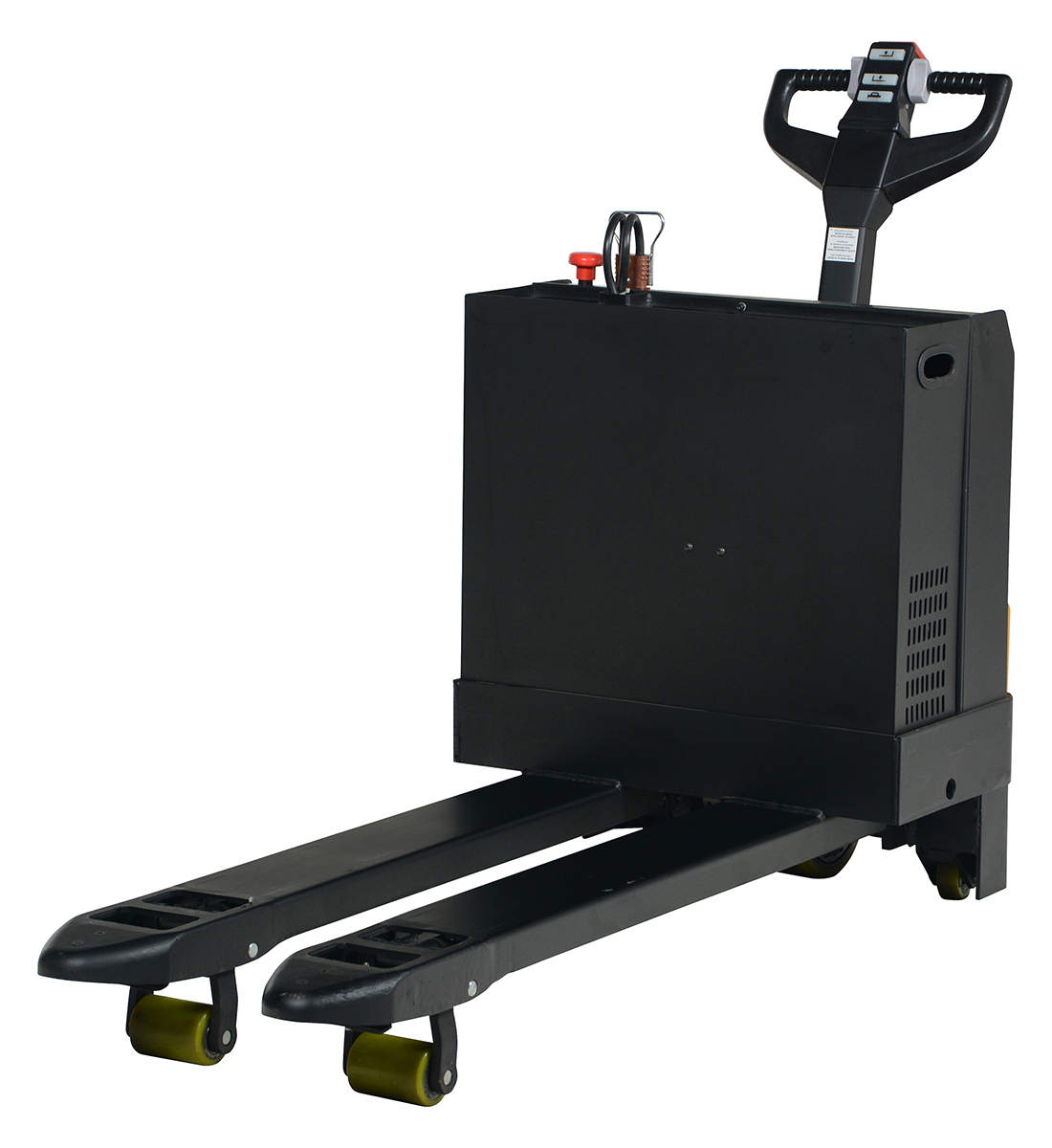

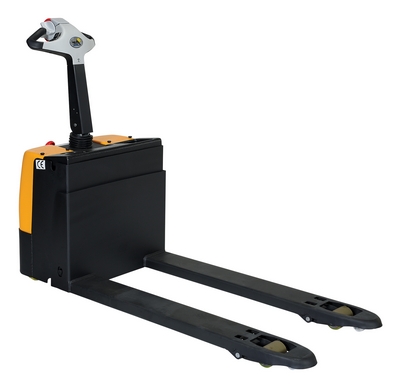

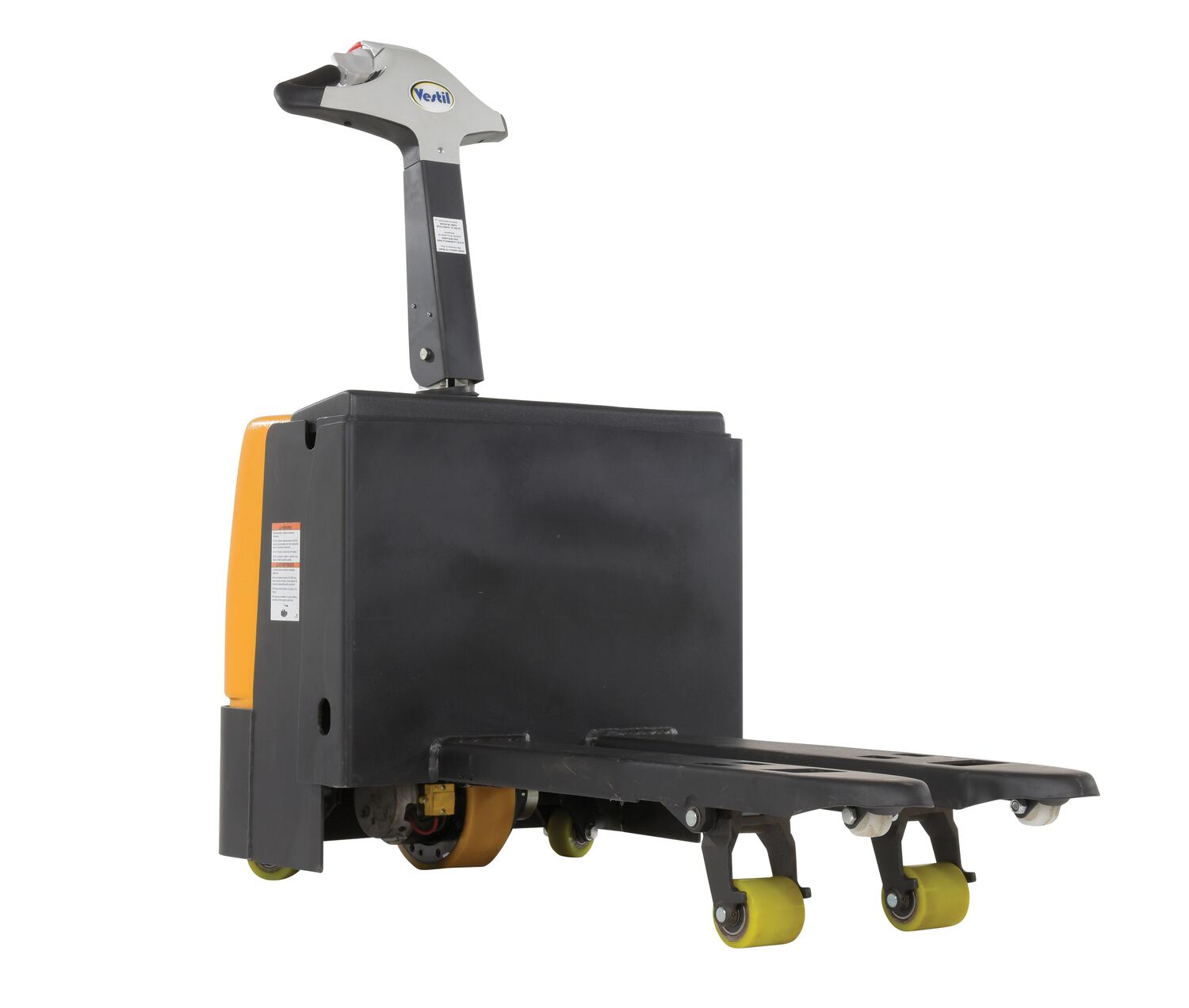

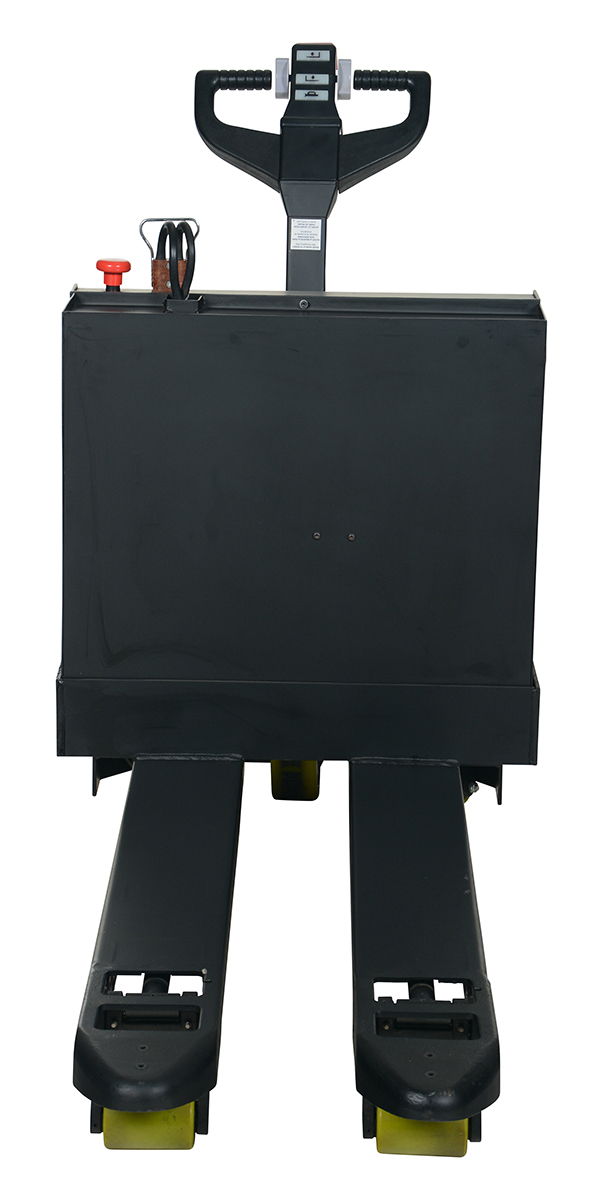

Fully Powered Electric Pallet Jacks for Warehouse and Trailer Material Handling

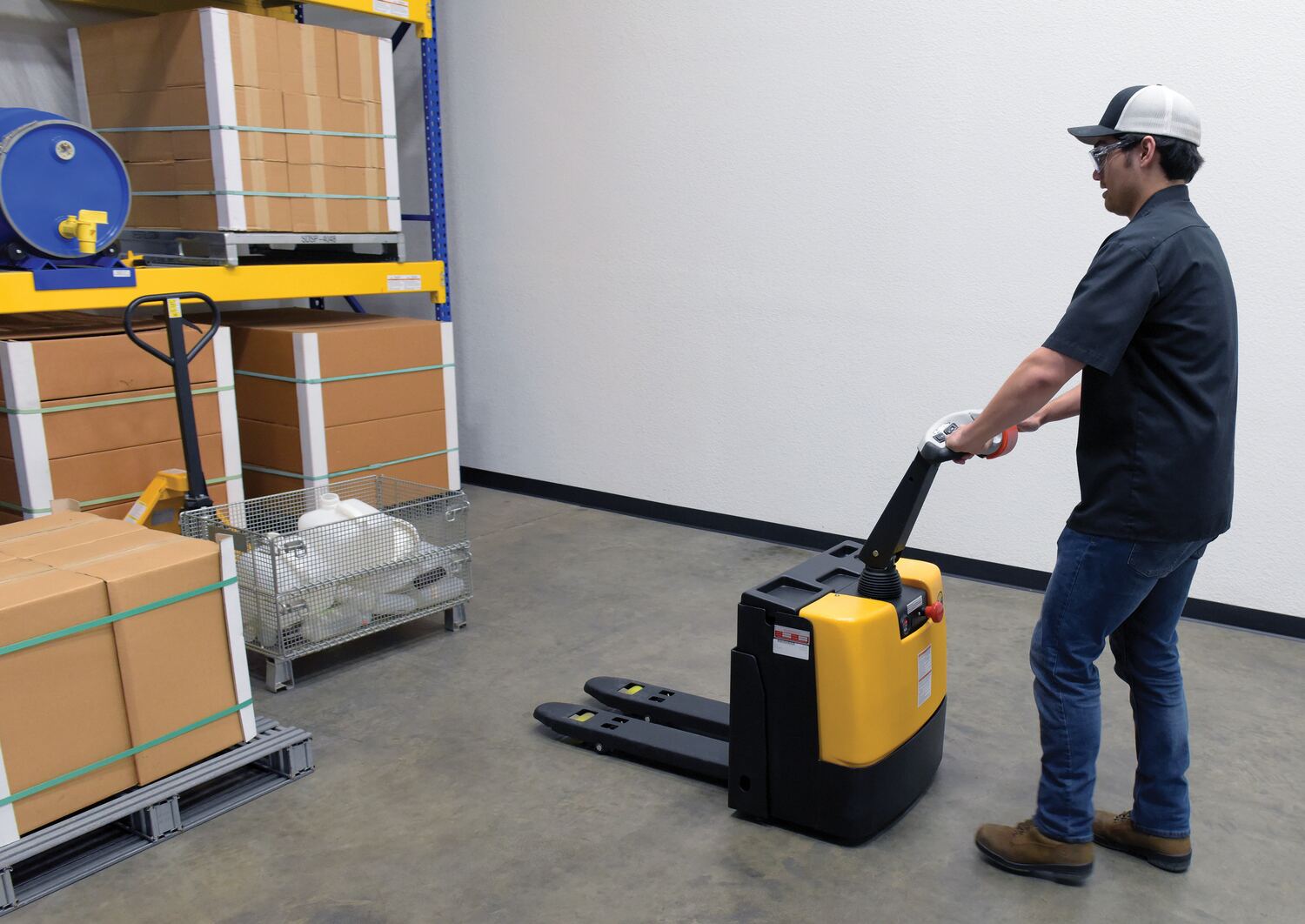

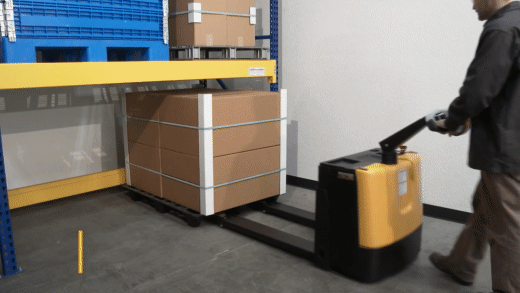

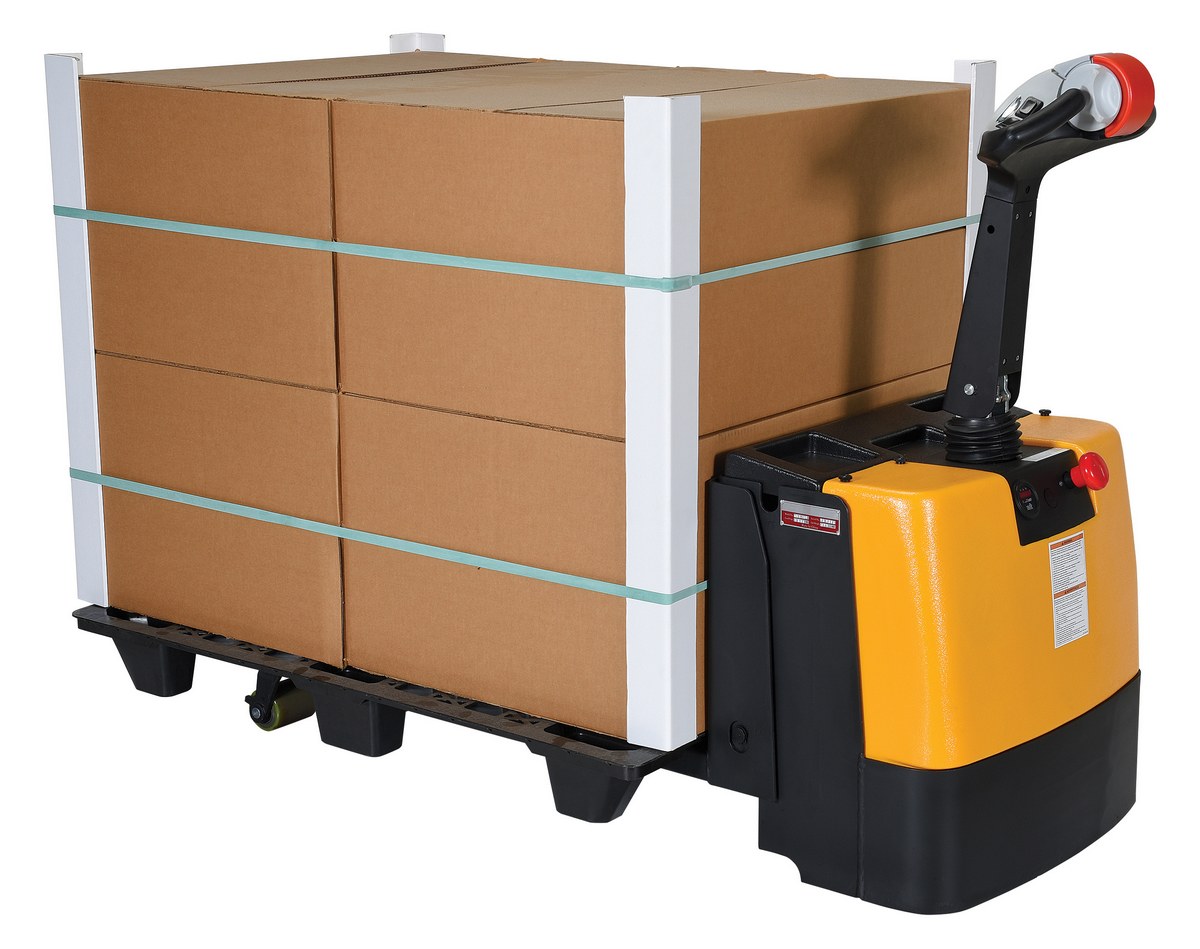

Fully powered electric pallet trucks provide fast, efficient movement of palletized loads in warehouses, distribution centers, trailers, and manufacturing facilities. Designed to reduce operator fatigue and improve productivity, these battery-powered pallet jacks combine powered travel and powered lifting for smooth operation in demanding material handling environments.

Key Features & Benefits

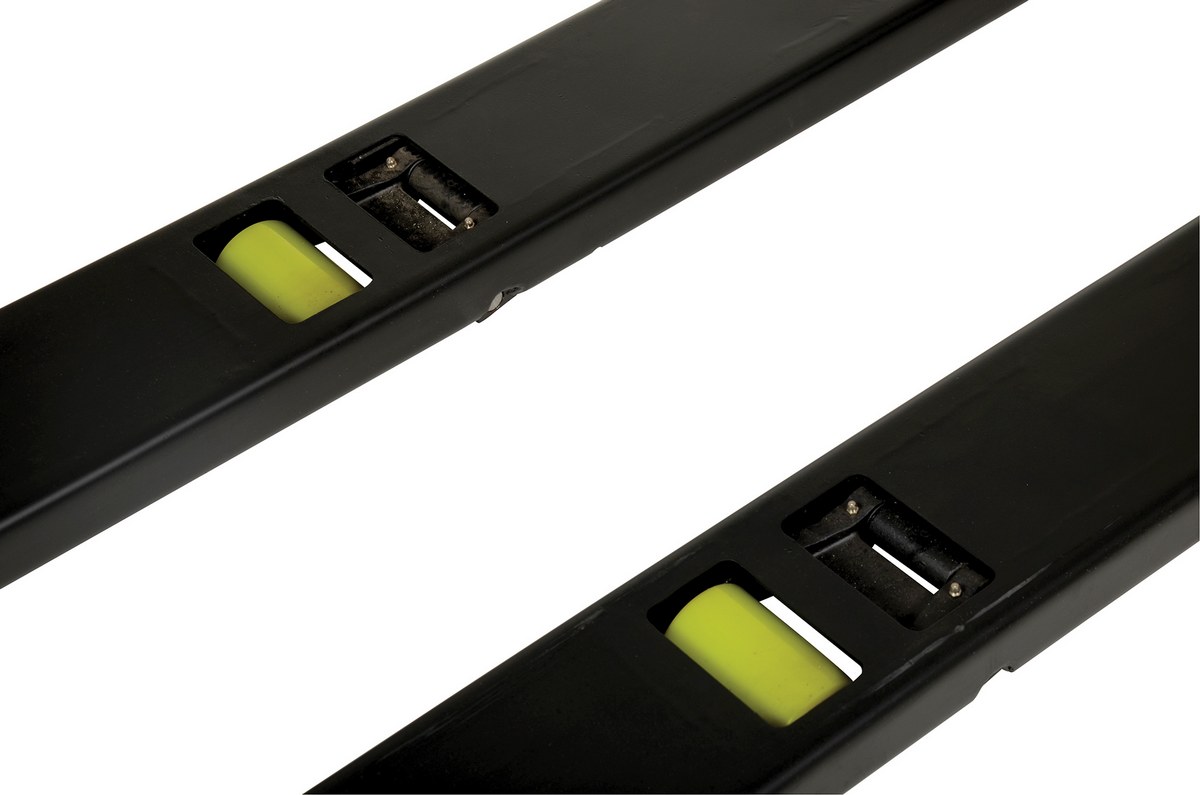

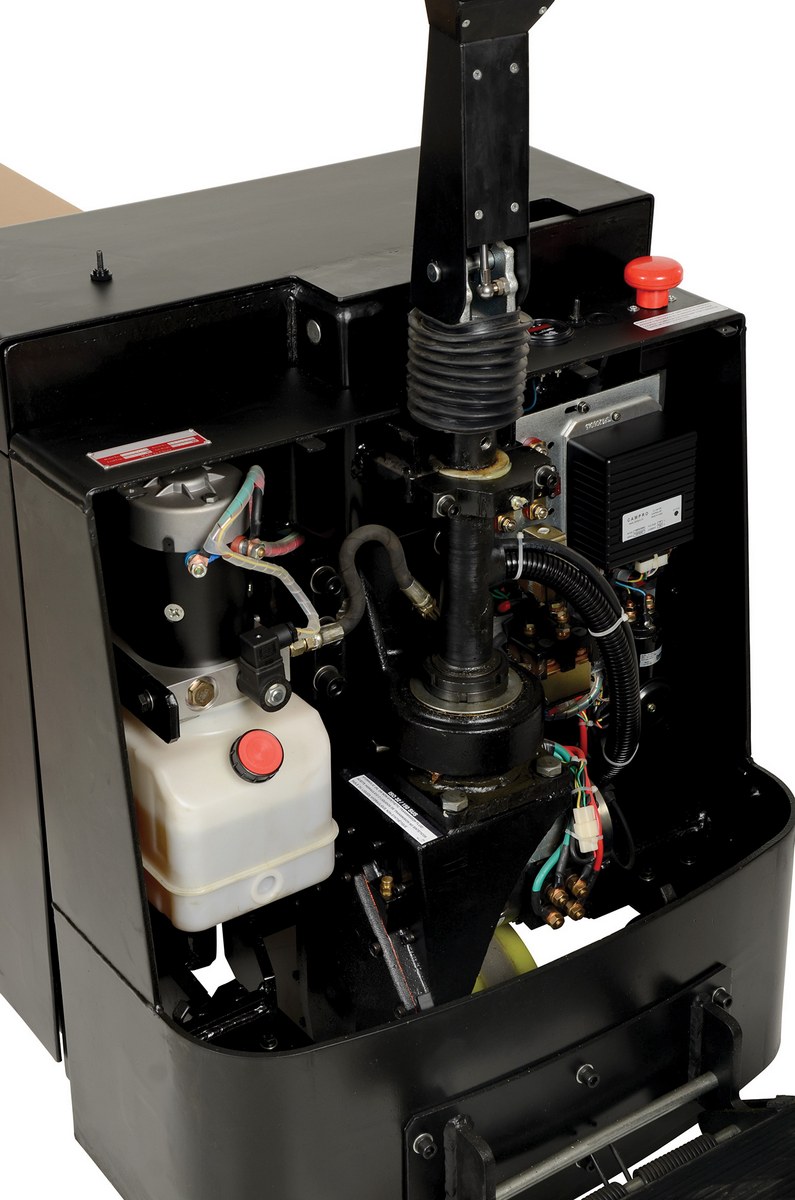

Equipped with high-torque 24V DC drive and lift motors, these electric pallet jacks deliver dependable performance for heavy-duty applications. Ergonomic controls feature variable forward and reverse travel speeds, push-button lift and lower functions, integrated horn controls, and an emergency reverse belly switch for enhanced operator safety. An automatic electromagnetic dead-man brake engages when the handle is released, helping improve control and workplace protection. Reinforced welded forks and durable poly-on-steel wheels provide long service life and reliable maneuverability throughout warehouses and loading trailers.

Applications & Configurations

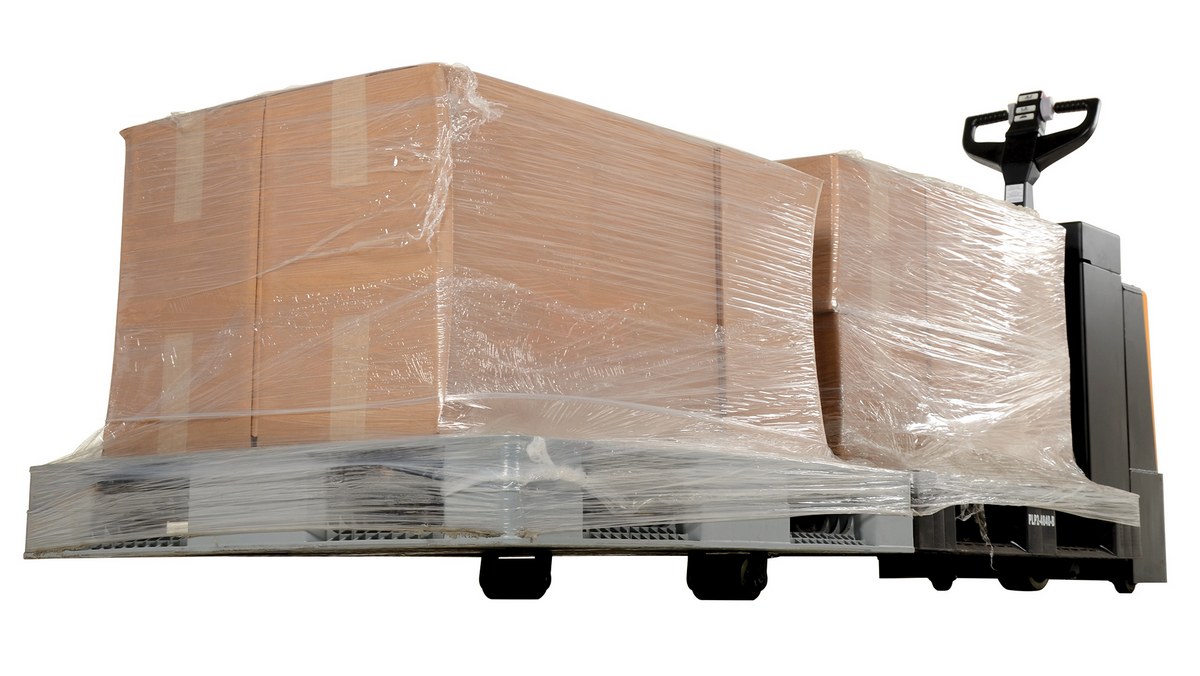

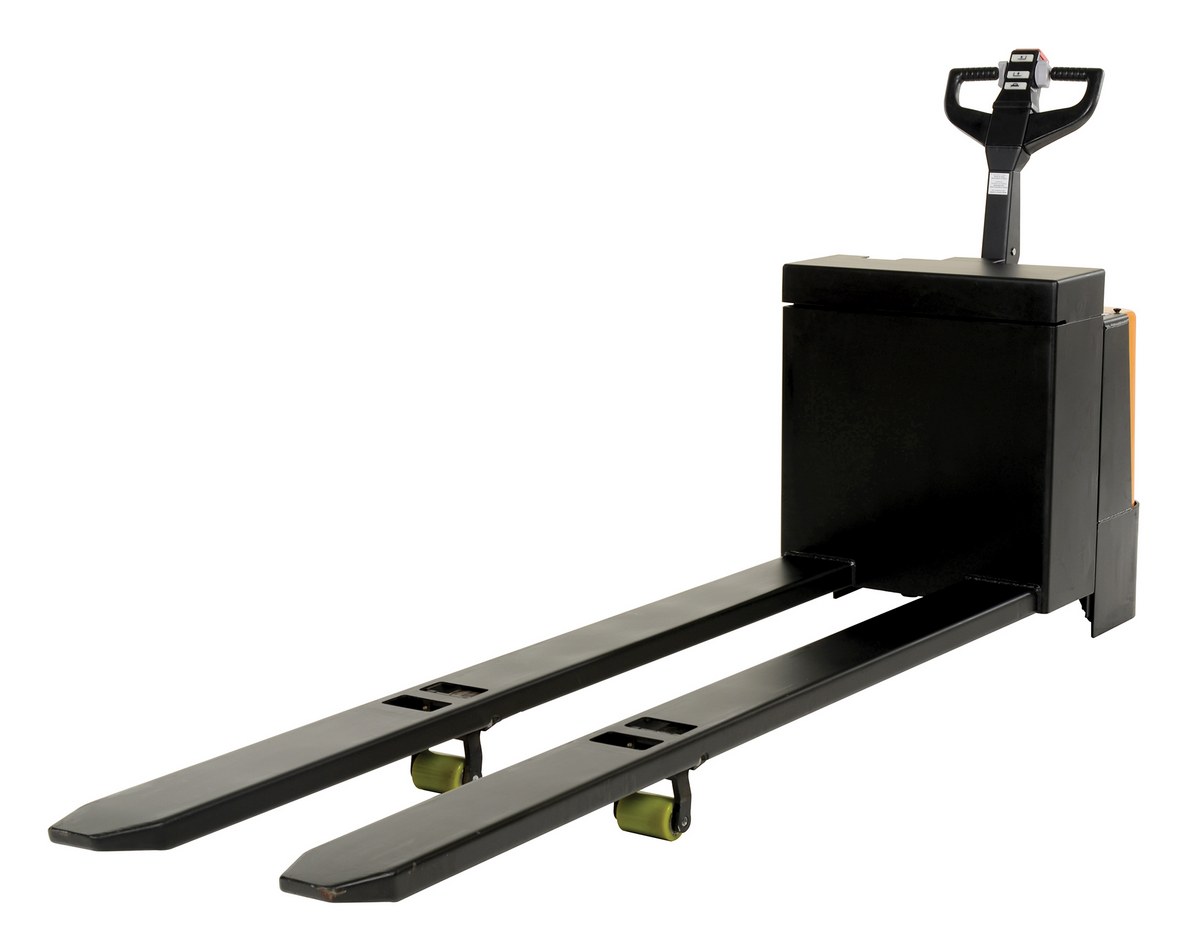

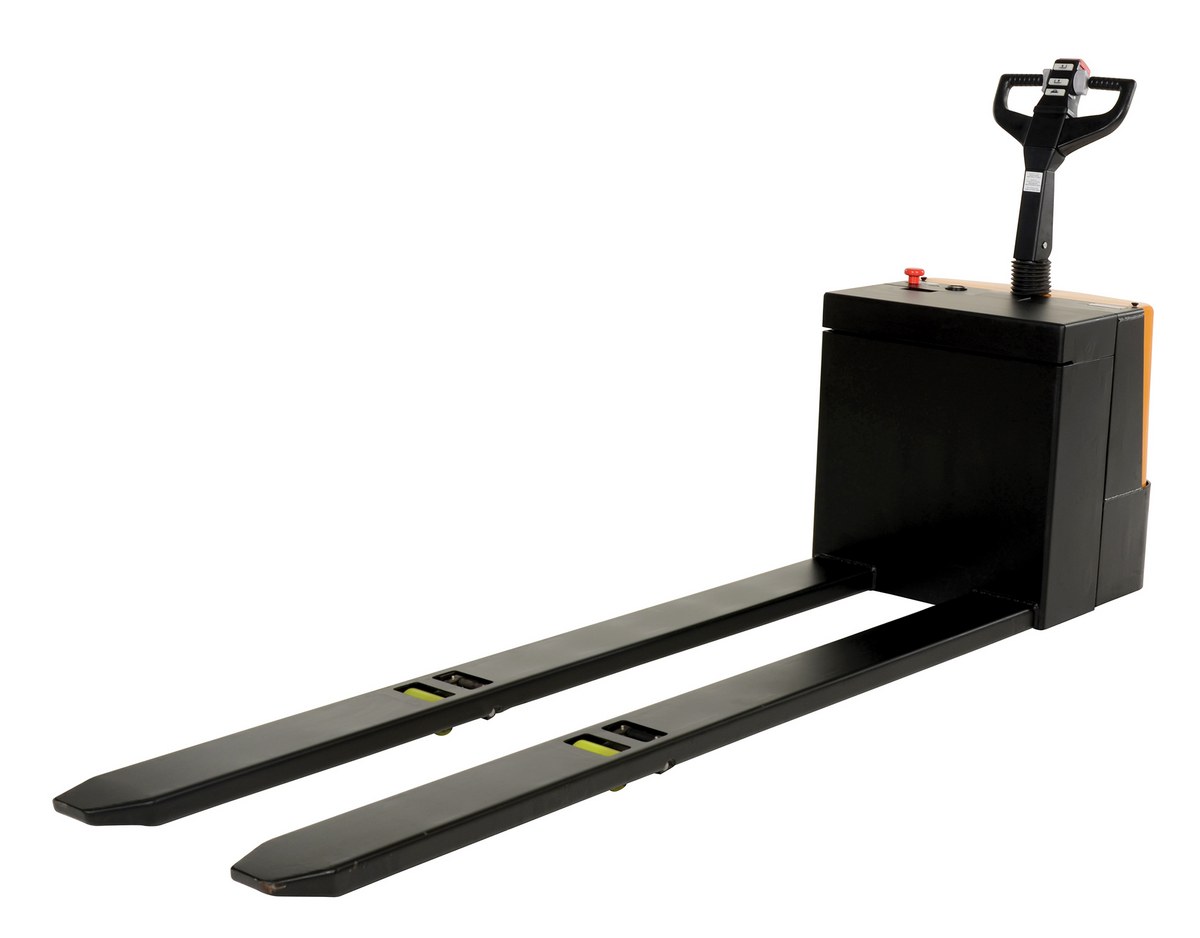

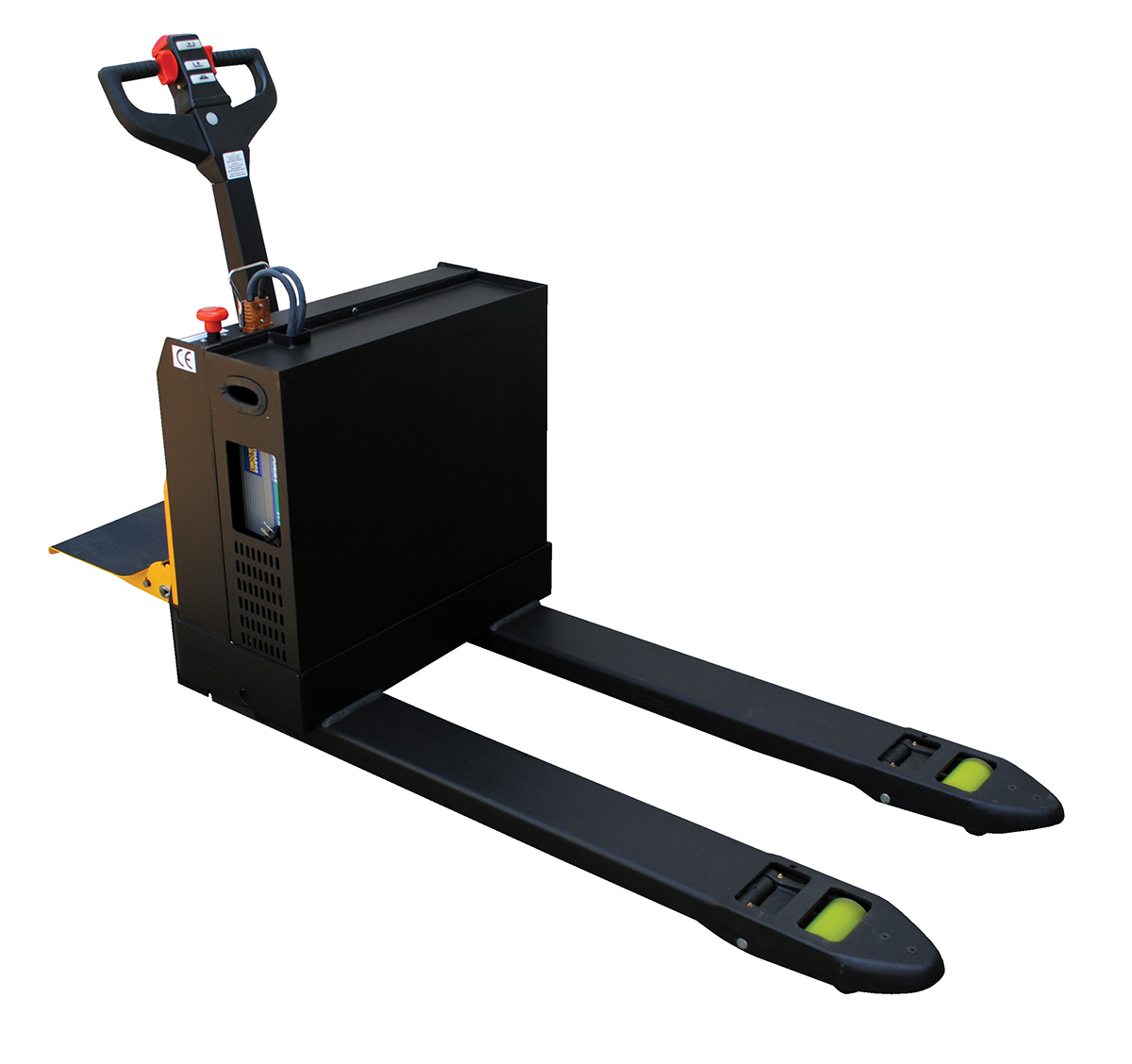

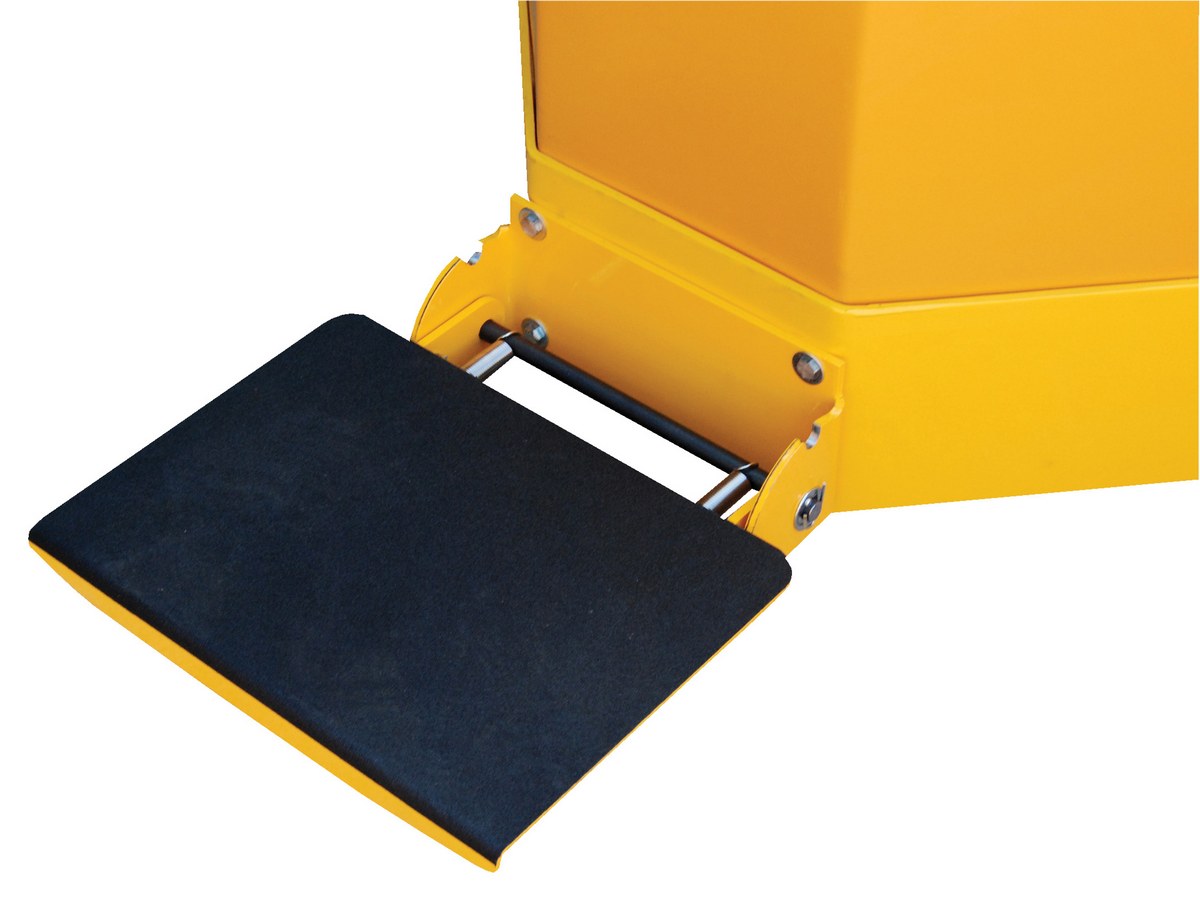

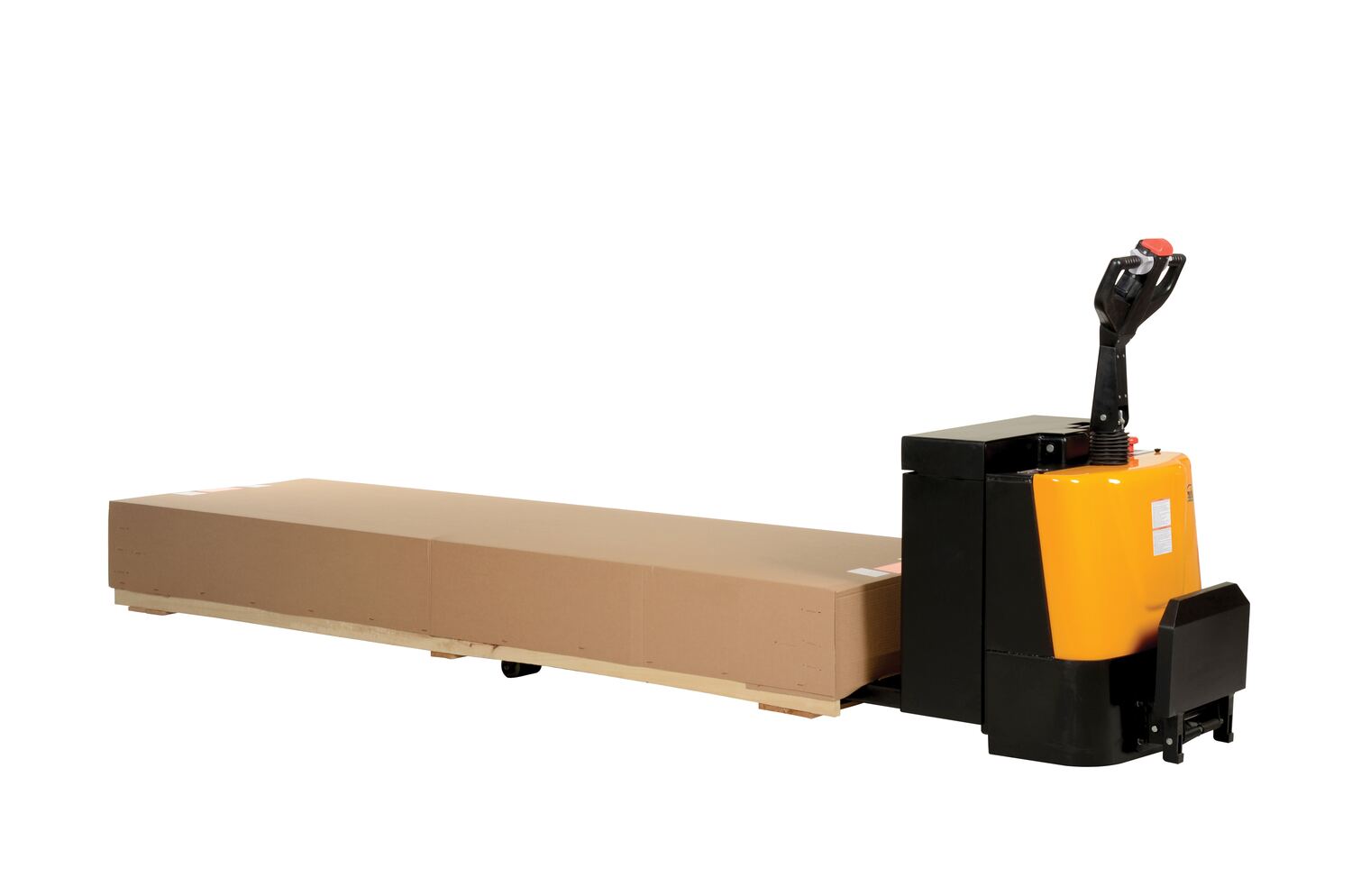

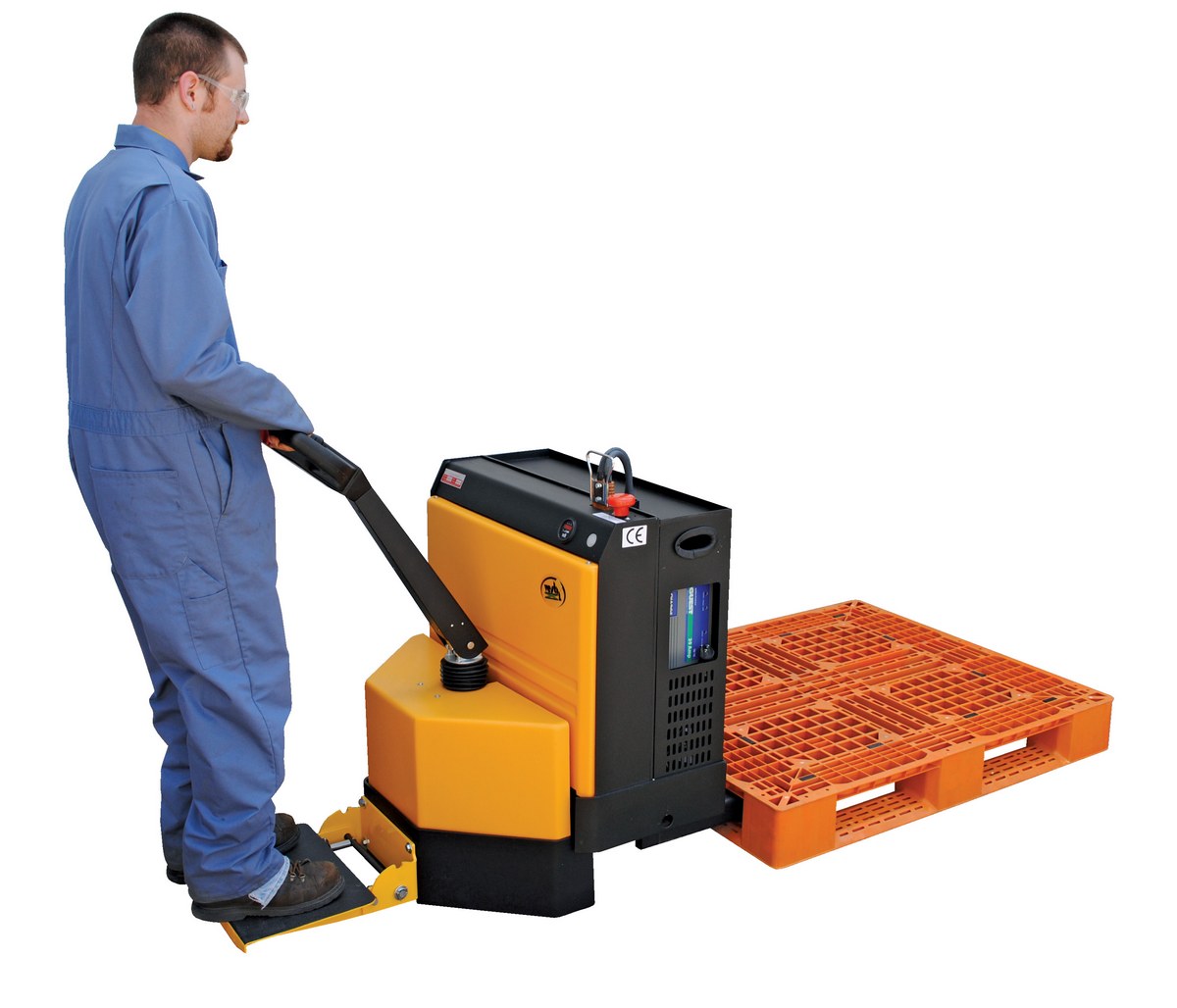

Available in multiple fork widths, fork lengths, and load capacities, these powered pallet trucks support a wide range of pallet handling applications. Rider platform models improve efficiency during longer transport runs, while extra-long fork configurations accommodate oversized pallets and specialized loads. Integral battery chargers, battery level gauges, and optional rider platform kits provide added operational convenience for high-volume material handling operations.

24V DC Standard

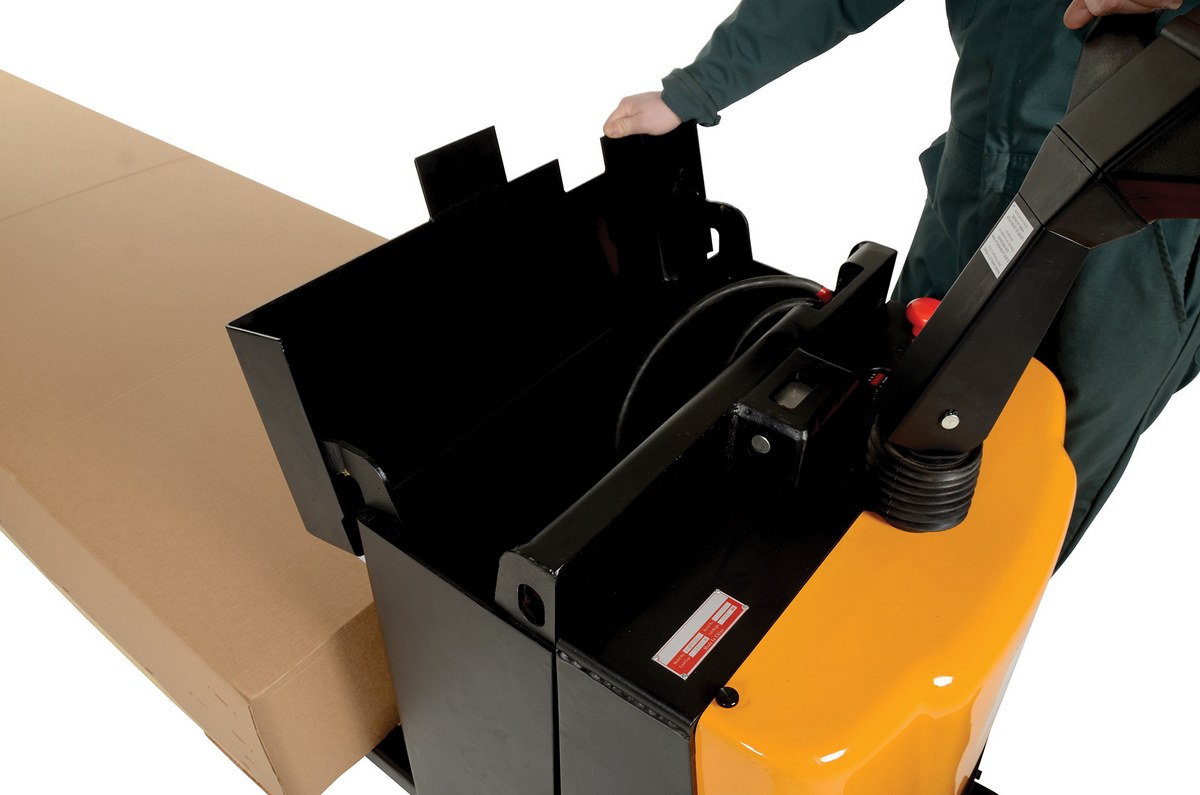

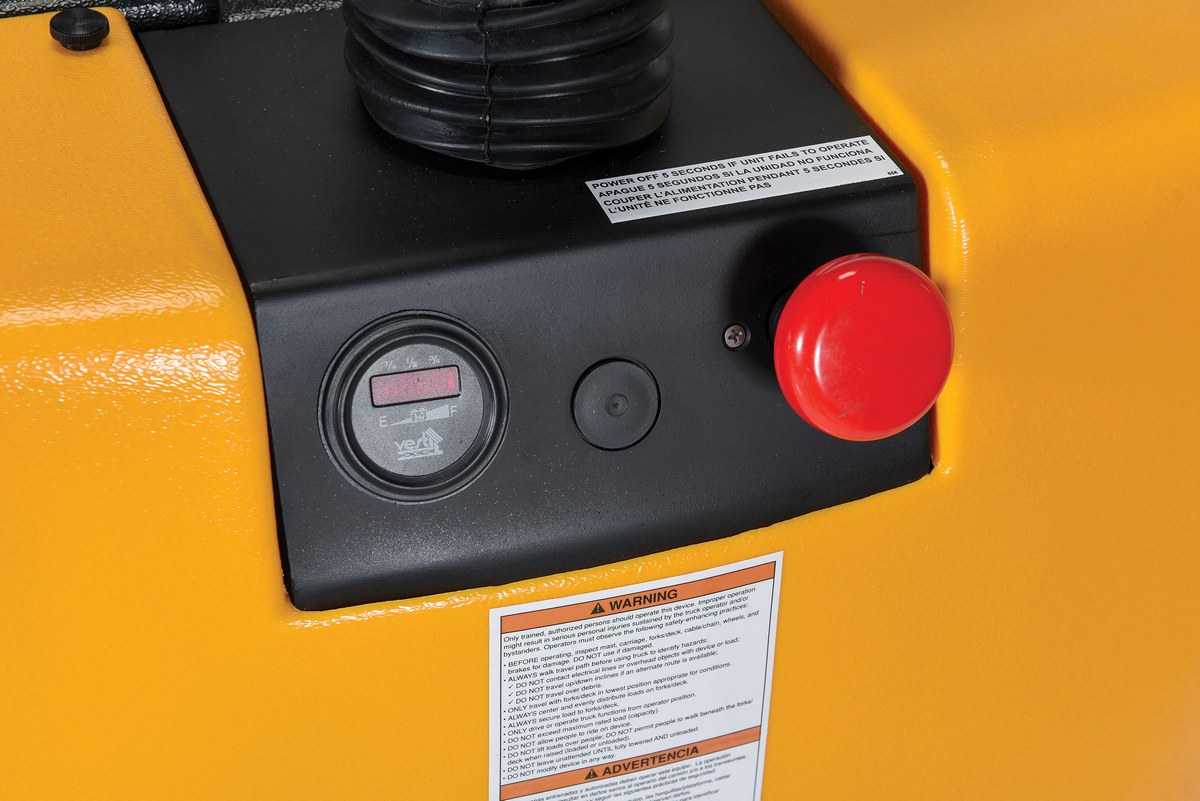

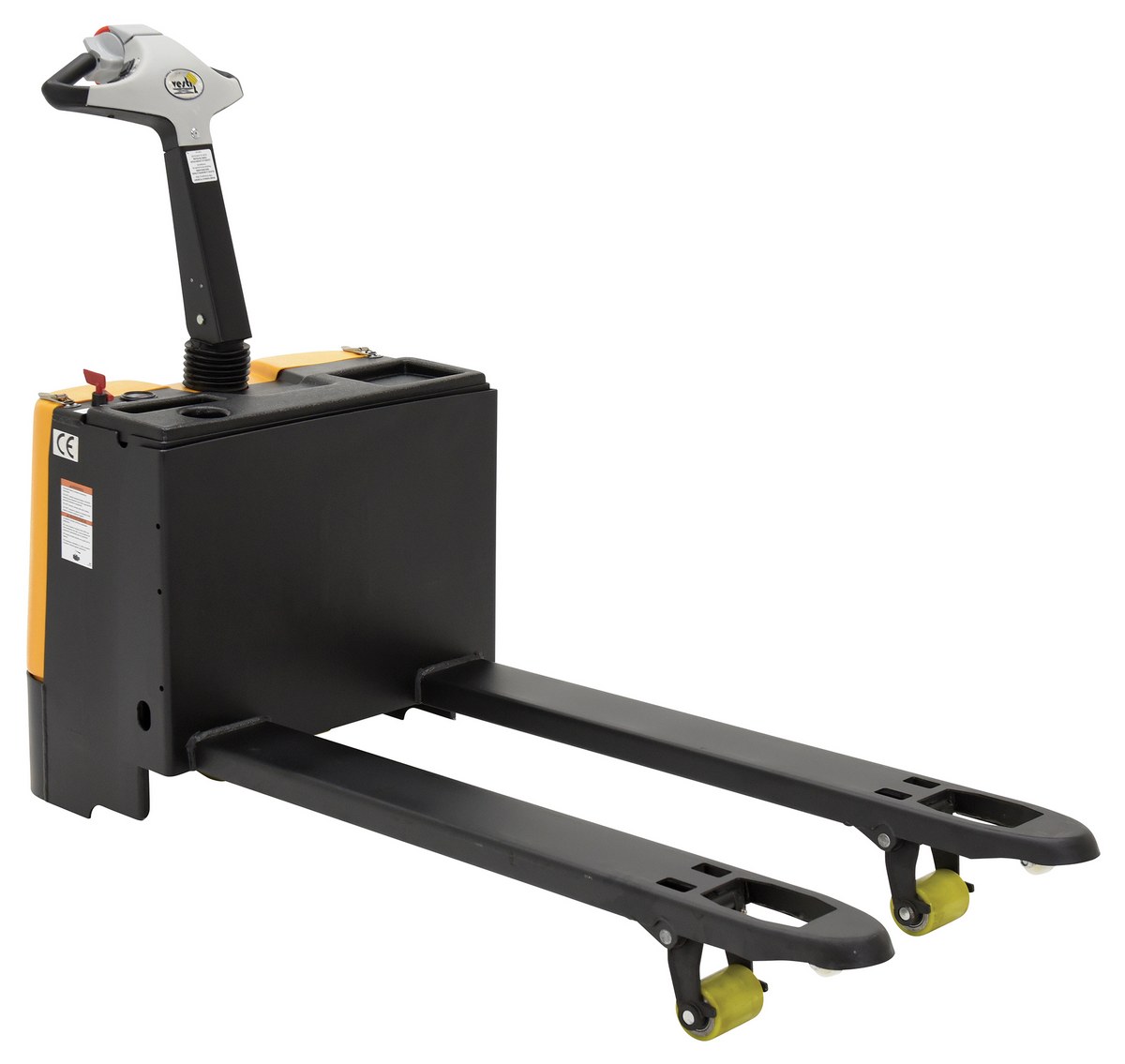

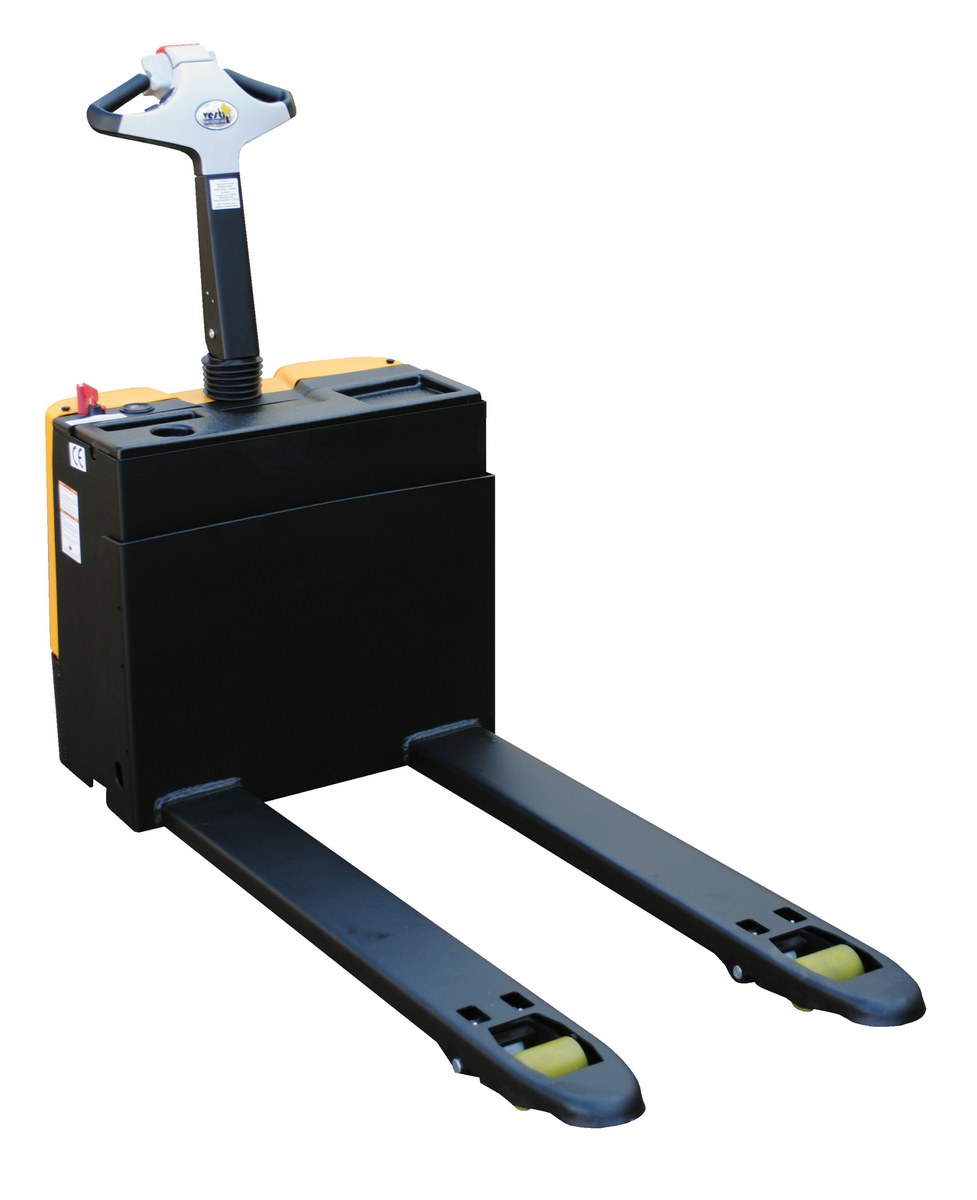

3,000 and 3,300 pound unit uses two (2) 12V batteries, integral battery charger, and battery level gauge. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 0.7 KW drive and 1.3 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.

4,500 pound unit uses four (4) 6V batteries, integral battery charger, battery level gauge, and emergency battery disconnect. The truck rolls smoothly on poly-on-steel steer and load wheels. Features 1.2 KW drive and 1.3 KW lift motor. 6-7 hours operation at full charge - 8 hours when used intermittently.

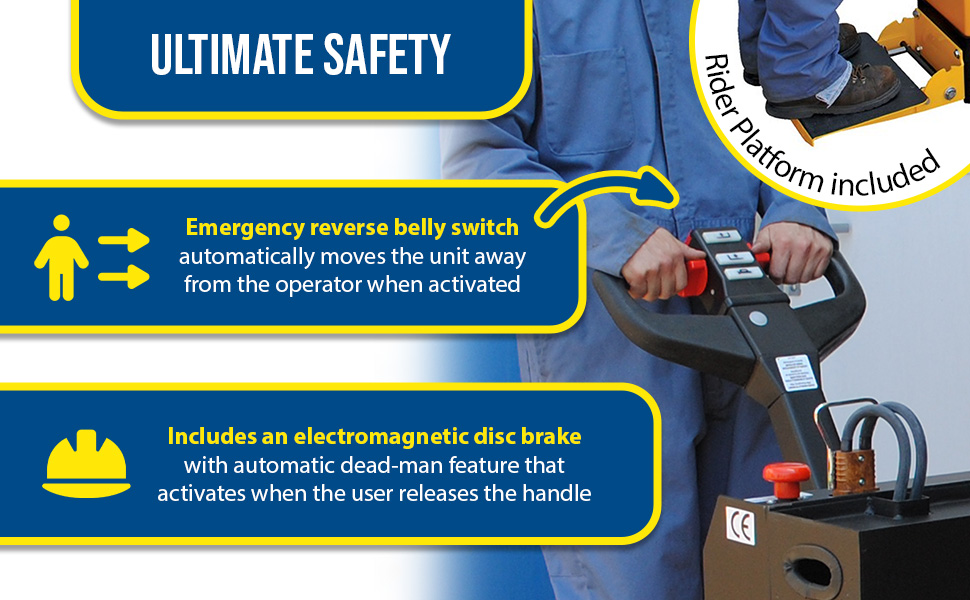

When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after 1.5 seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 1.5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.
