Product Family Overview


Powered Stretch Wrap Machines
SERIES: SWA

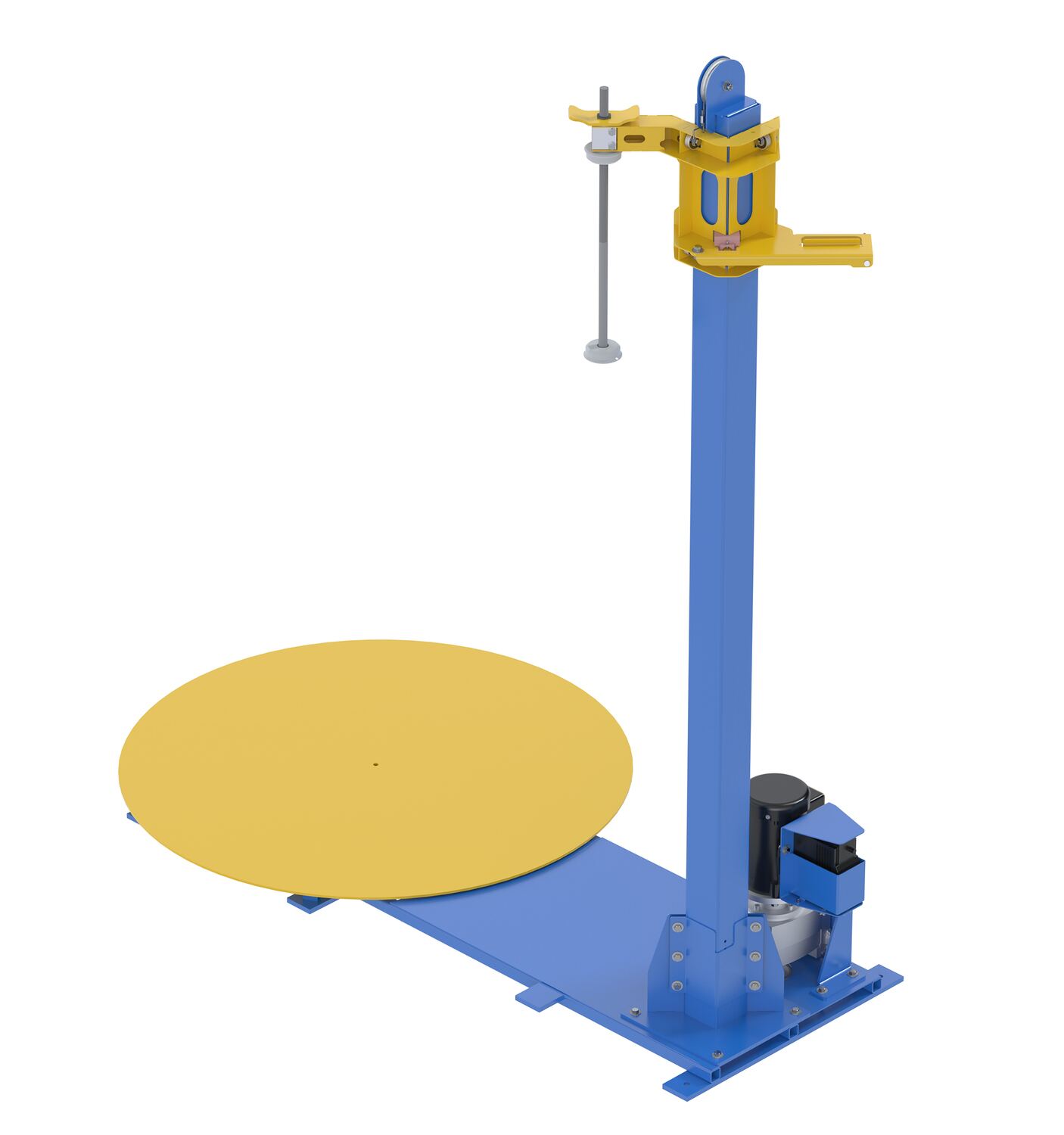

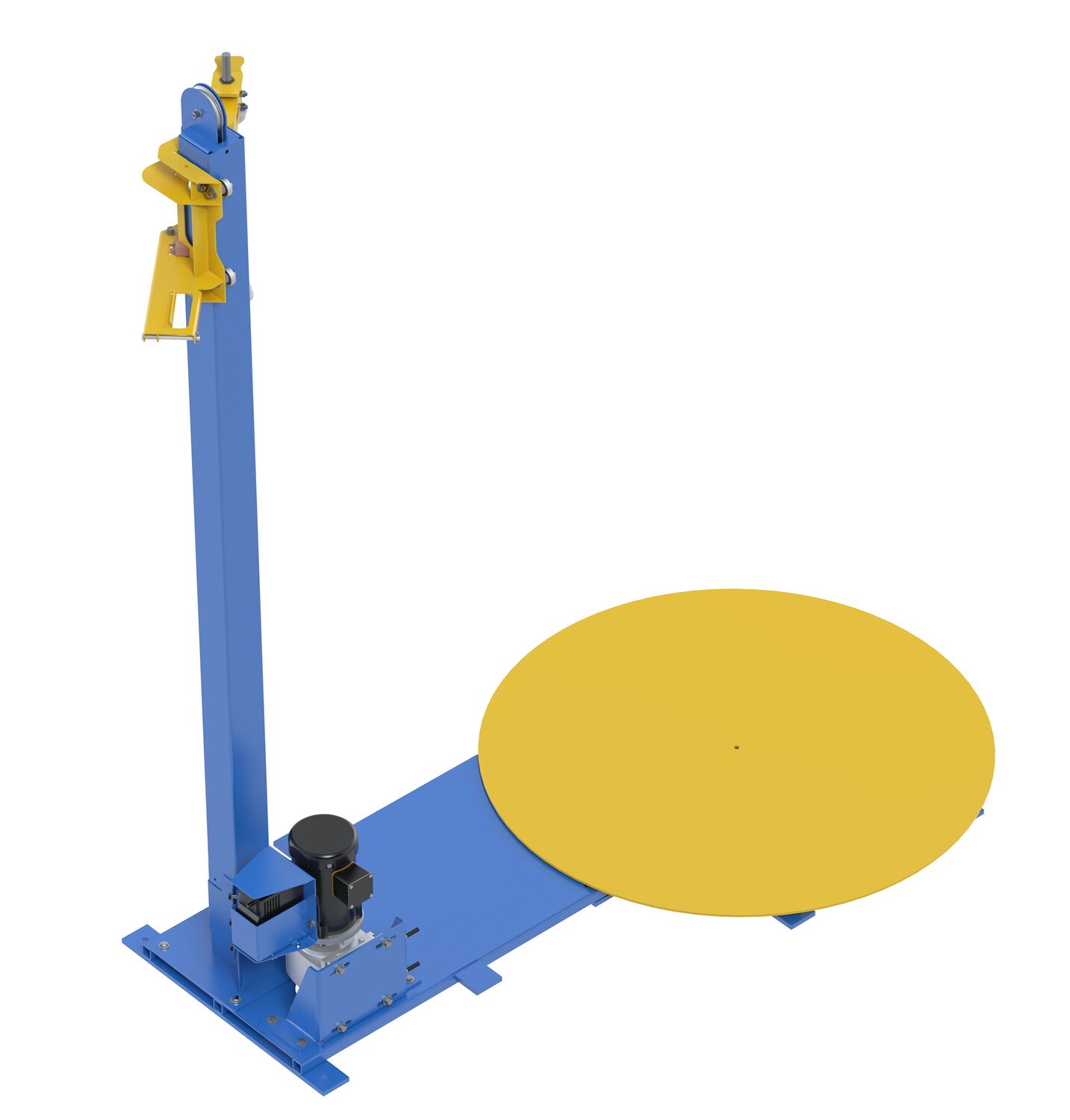

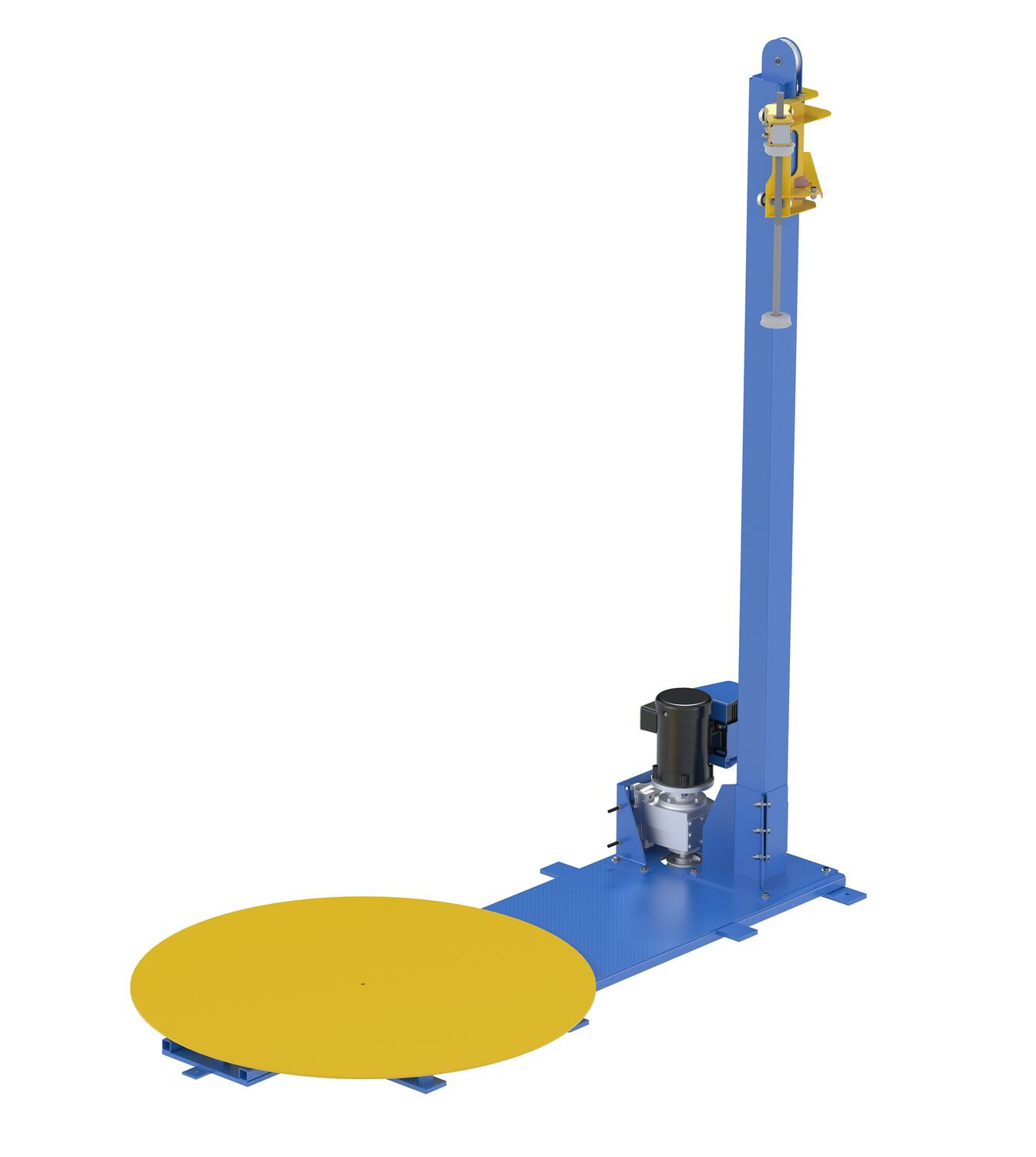

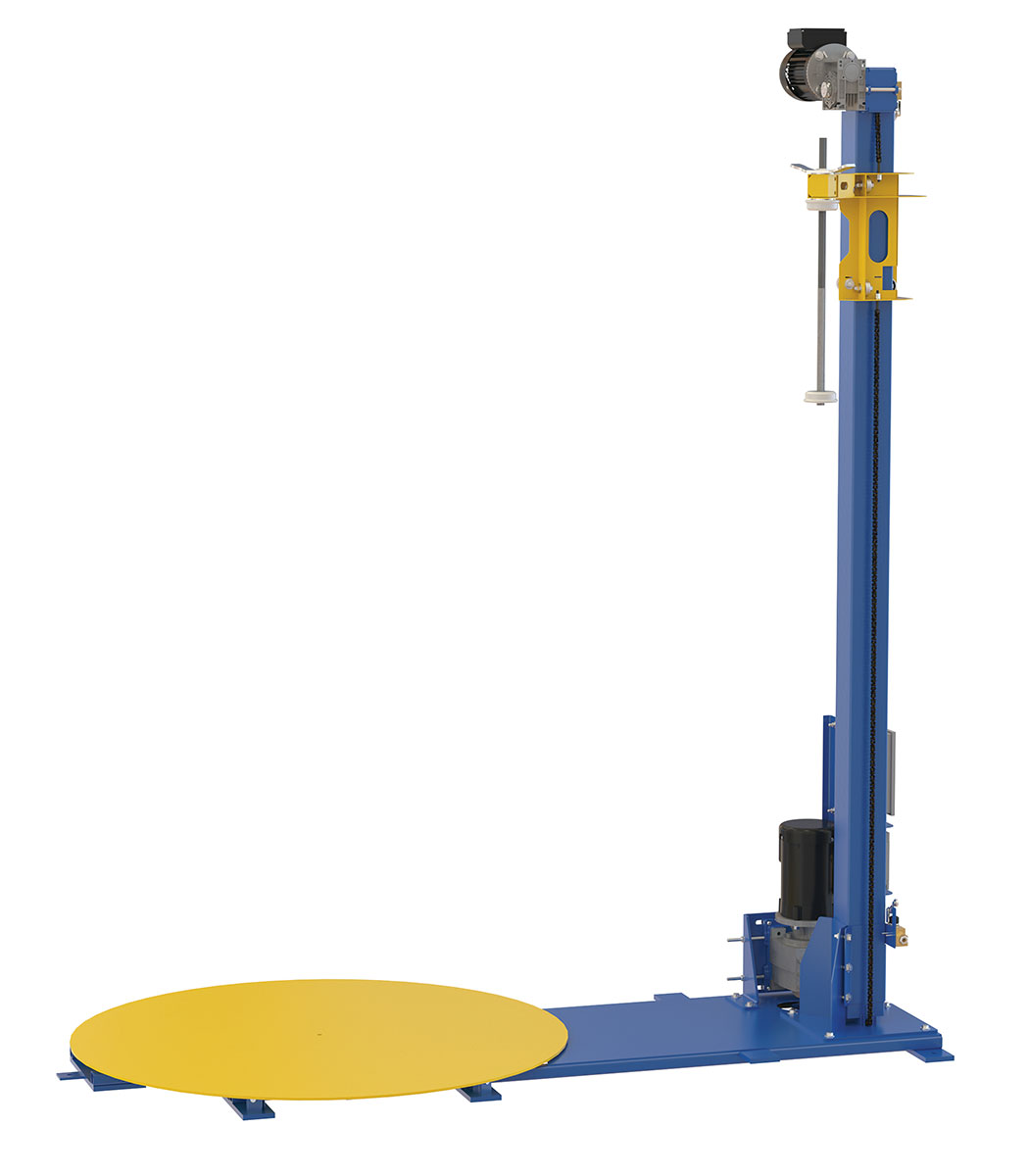

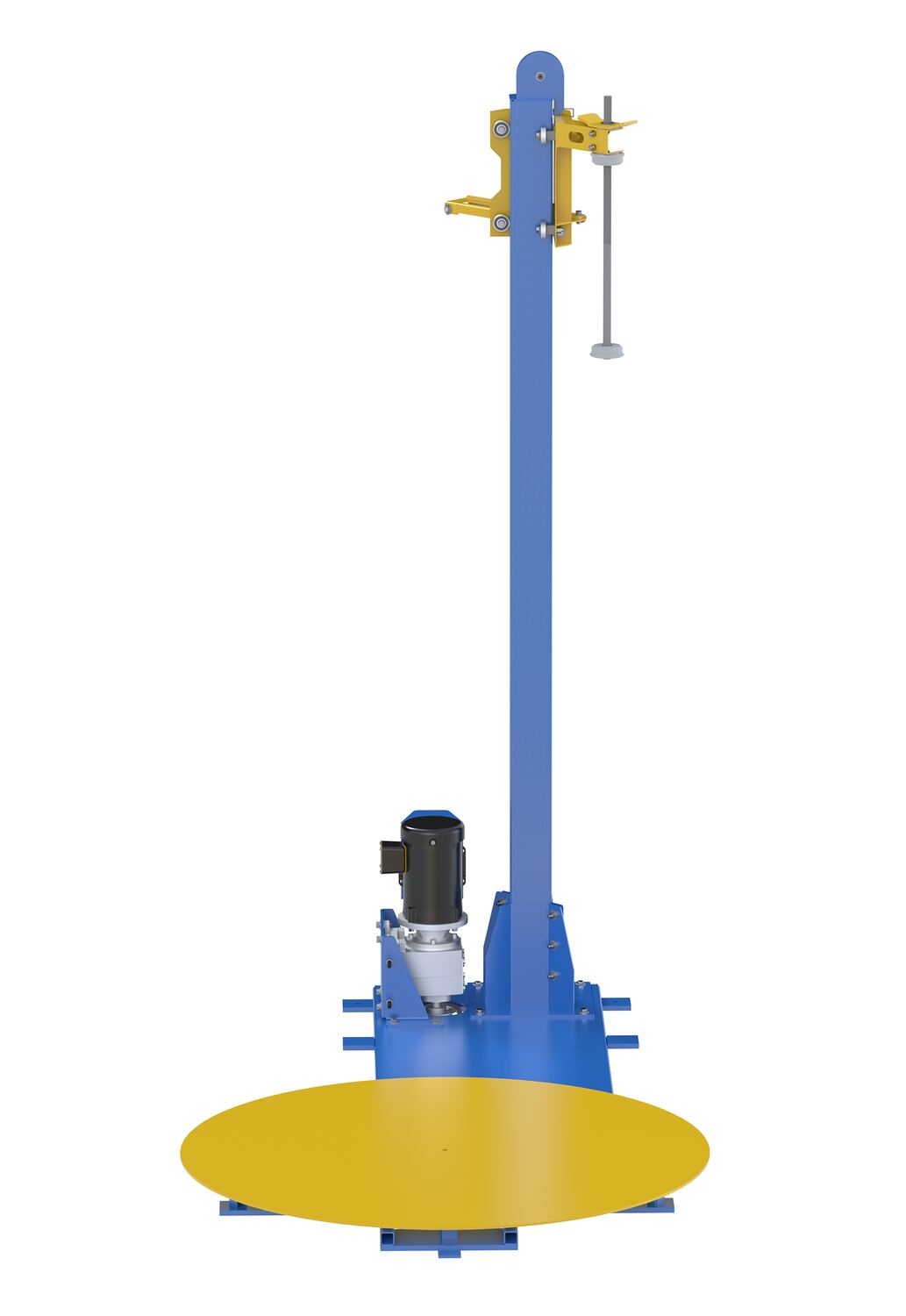

Increase productivity in the shipping department or at the end of a production line. These units come complete with a 48" diameter powered turntable and counter-balanced stretch film mast. Easy to operate, simply depress the foot pedal and manually move the mast up and down. Powered by a 115V, 1/2 HP motor with soft start/stop and variable speed control. Variable R.P.M. 3-12. Unit comes with one film rod with special spacers that can be used with any height roll of stretch wrap material between 10" and 20". Ships with mast knock-down. Some assembly required. The Approach Ramp option allows the operator to load and unload the machine with a pallet truck (model SWA-48 only). SWA-48-PMO is the SWA-48 with a powered mast. Comes with a 24V hand control to work with those taller loads. The hand held control is used to raise/lower the film while the foot control is used to operate the turntable.

  • Stretch wrap design increases shipping productivity
  • Simple depress foot pedal powers turntable
  • Manual mast allows user to wrap the needed areas
  • Steel construction provides a long lasting rugged use

Increase productivity in the shipping department or at the end of a production line. These units come complete with a 48" diameter powered turntable and counter-balanced stretch film mast. Easy to operate, simply depress the foot pedal and manually move the mast up and down. Powered by a 115V, 1/2 HP motor with soft start/stop and variable speed control. Variable R.P.M. 3-12. Unit comes with one film rod with special spacers that can be used with any height roll of stretch wrap material between 10" and 20". Ships with mast knock-down. Some assembly required. The Approach Ramp option allows the operator to load and unload the machine with a pallet truck (model SWA-48 only). SWA-48-PMO is the SWA-48 with a powered mast. Comes with a 24V hand control to work with those taller loads. The hand held control is used to raise/lower the film while the foot control is used to operate the turntable.

  • Stretch wrap design increases shipping productivity
  • Simple depress foot pedal powers turntable
  • Manual mast allows user to wrap the needed areas
  • Steel construction provides a long lasting rugged use

Additional Models In This Family

SWA-FILM

model SWA-FILM

SWA-PMO-RF

model SWA-PMO-RF

SWA-R-4836

model SWA-R-4836

SWA-COUNT

model SWA-COUNT

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)

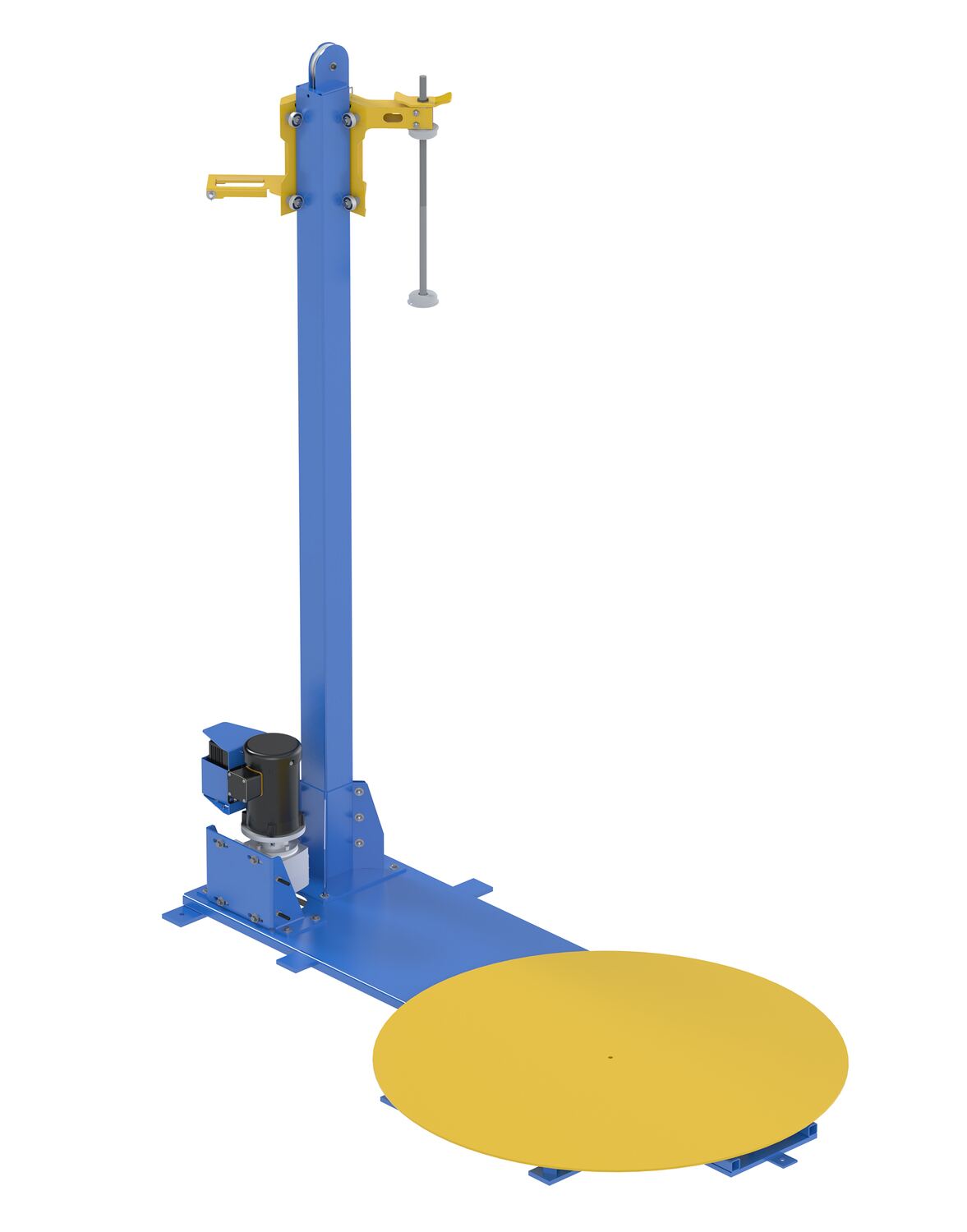

SWA-48 SWA-481 Year Limited WarrantySteel Semi-Automatic Stretch Wrap Machine 48 In. Turntable Diameter 4,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 4,000
Turntable Diameter (in.): 48
594
SWA-48-PMO SWA-48-PMO1 Year Limited WarrantySteel Wrap Machine with Powered Mast 48 In. Turntable Diameter 4,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 4,000
Turntable Diameter (in.): 48
619

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SWA-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 48
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 48

SWA-48-PMO
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 48
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 48
For More Details of the Option Click the Red Model Button
Model # PDFs Description Net Wt.
(lbs)

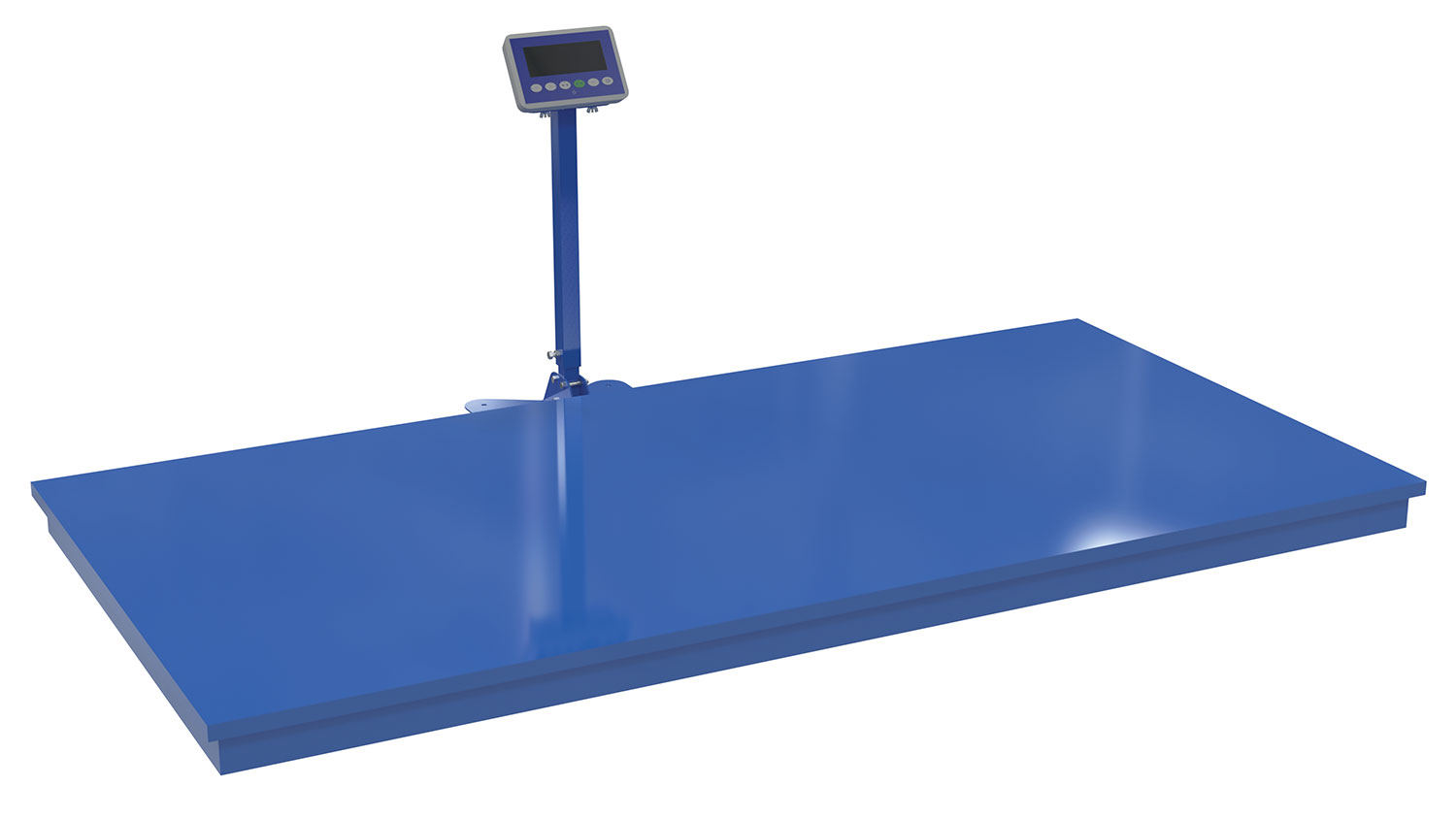

SWA-48-SCALE SWA-48-SCALE1 Year Limited WarrantyFactory Installed Digital Stretch Wrap Scale For Use With SWA-48339

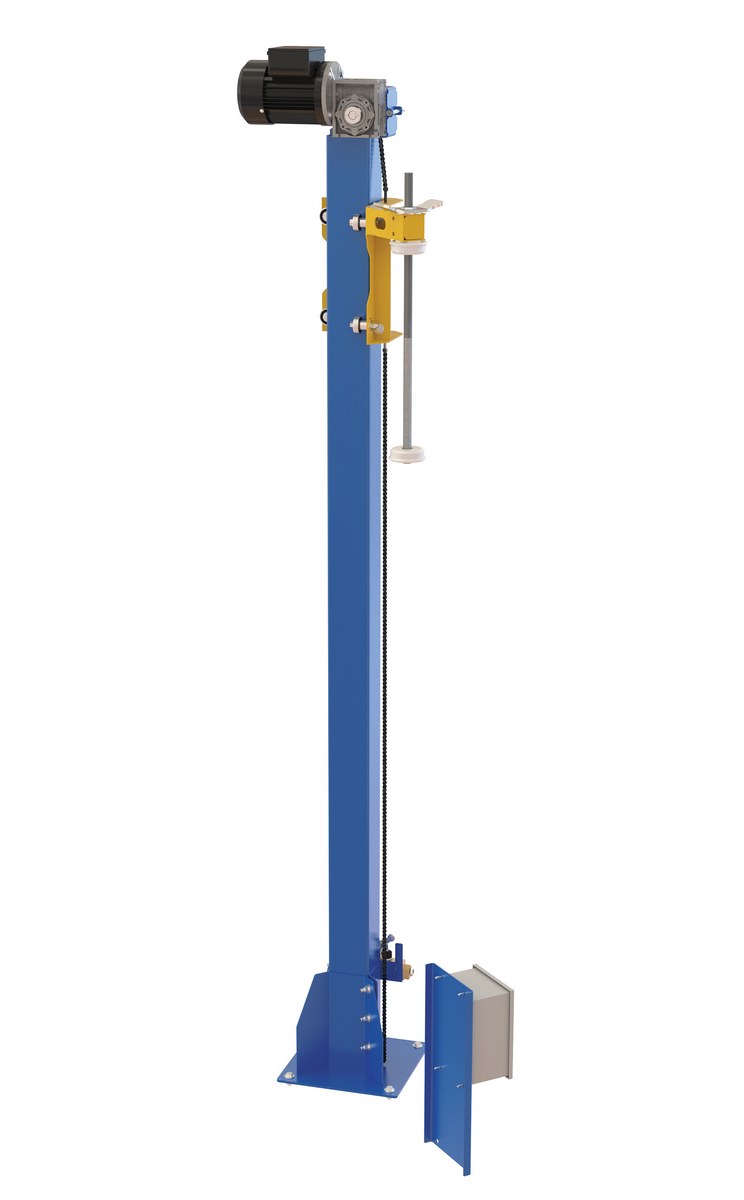

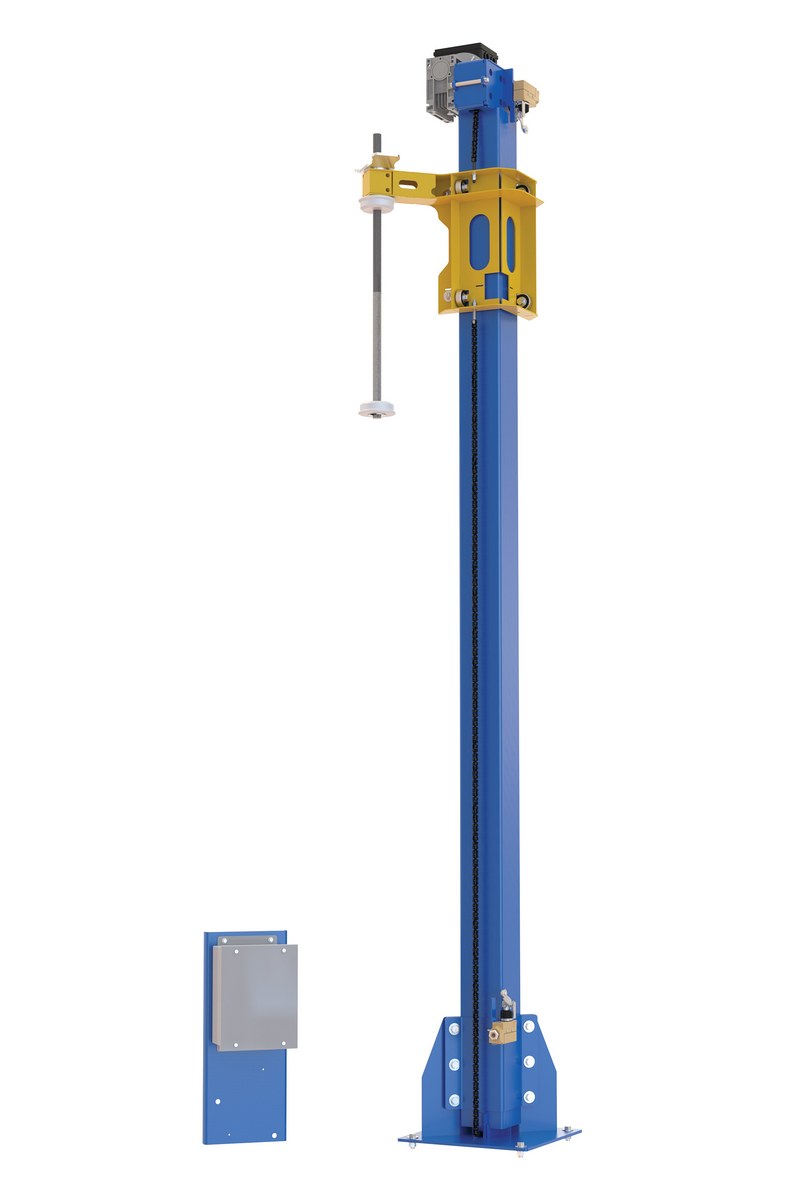

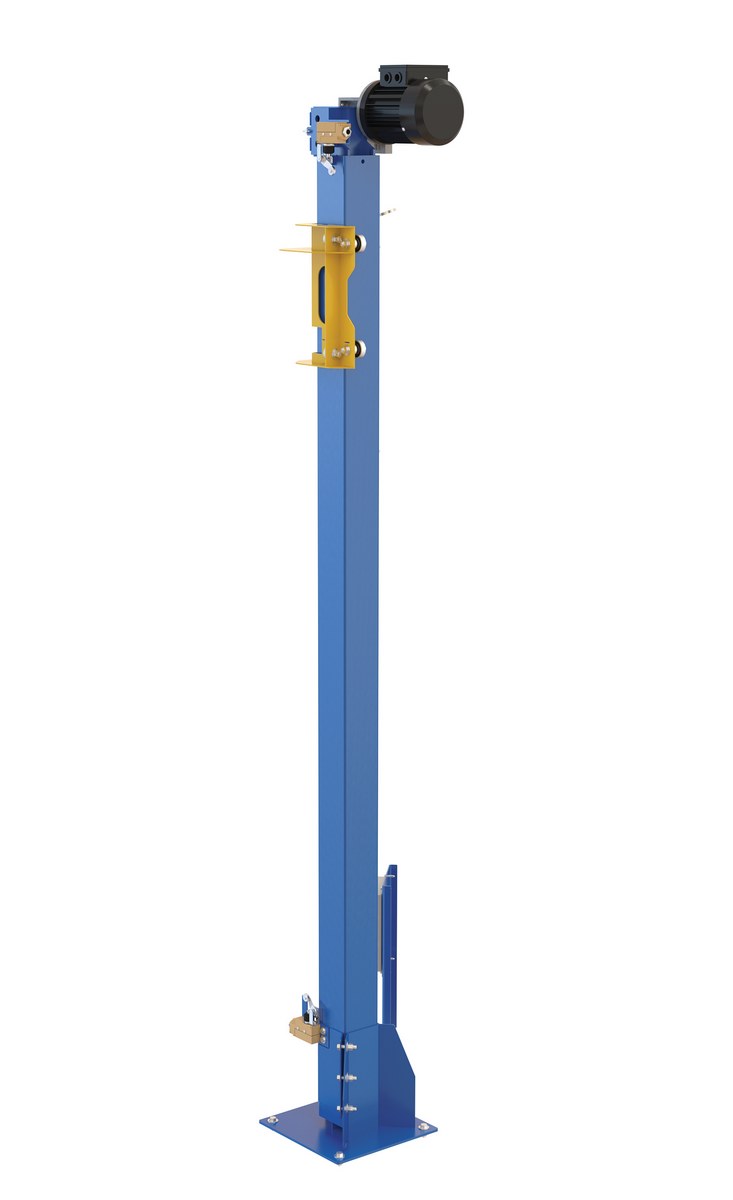

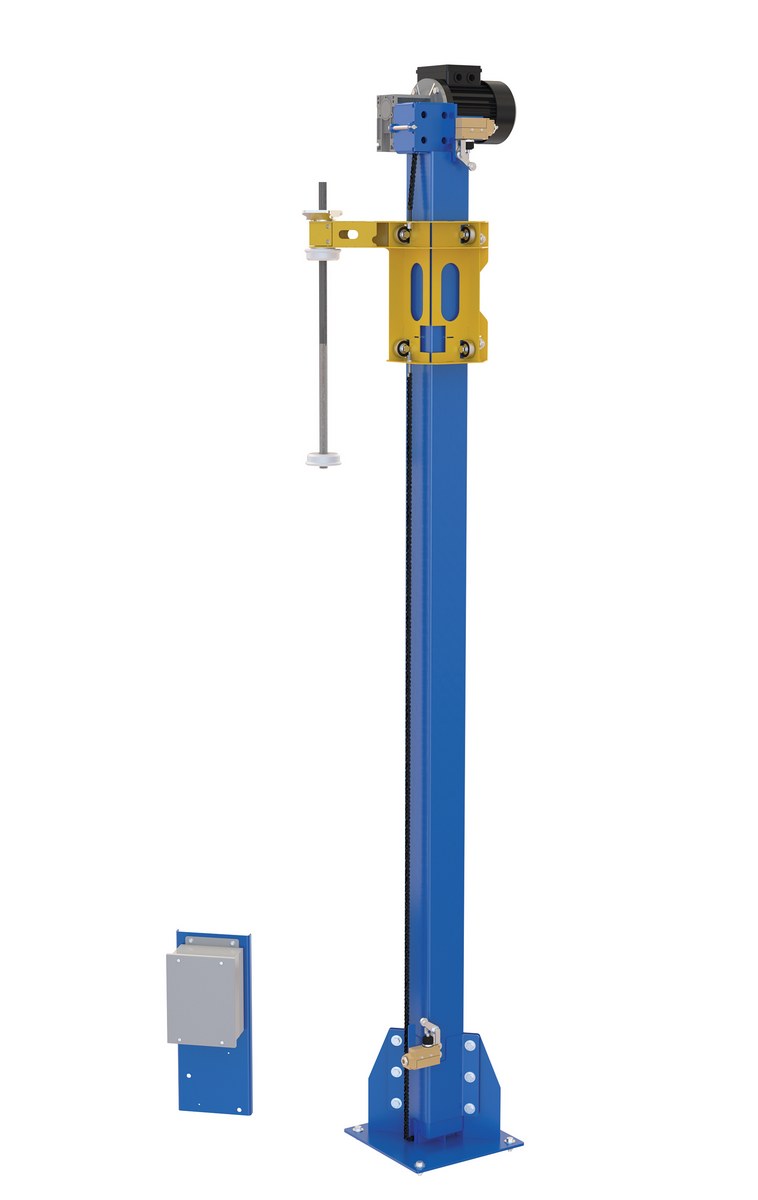

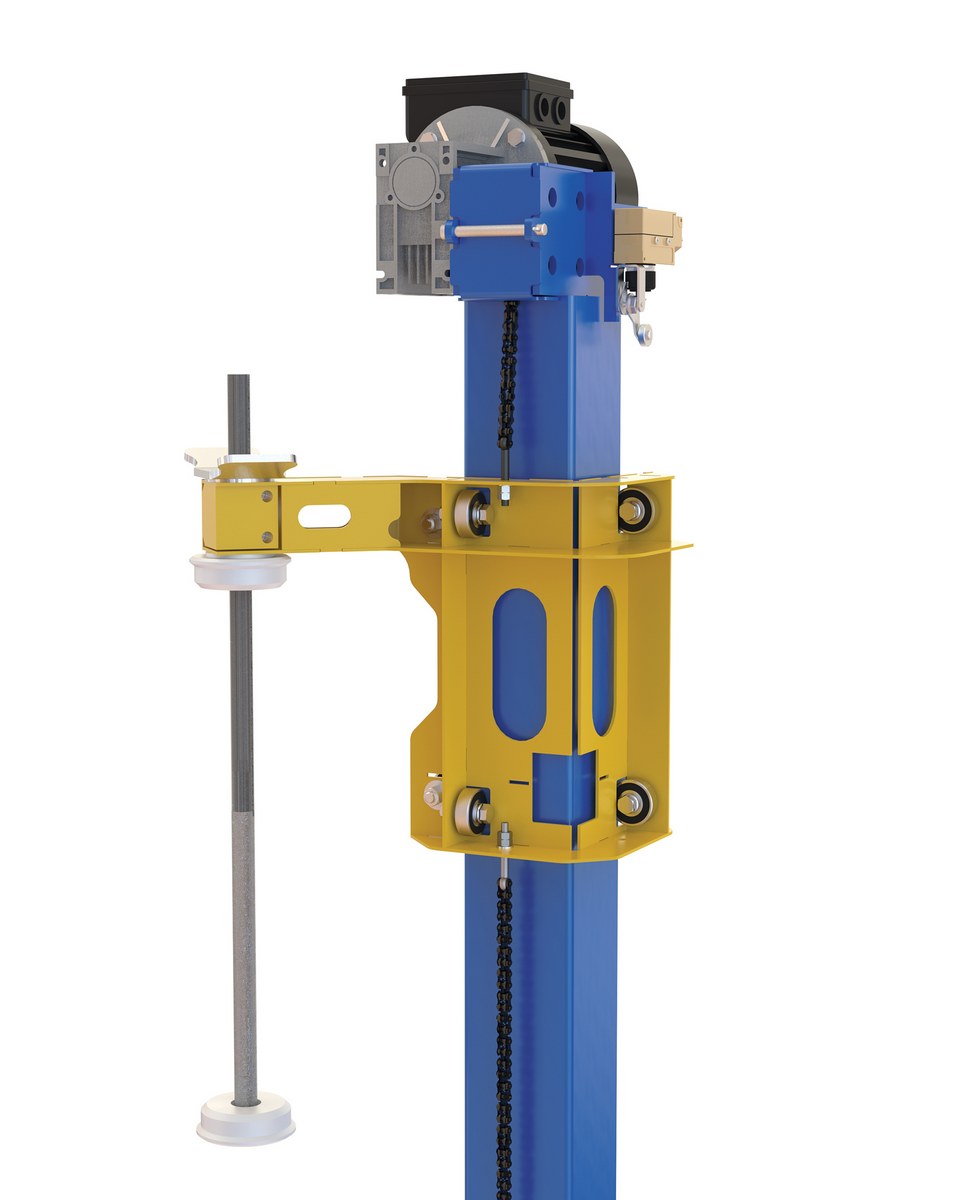

SWA-PMO-RF SWA-PMO-RF1 Year Limited WarrantySteel Retrofit Power Mast Wrap Machine 80-13/16 In. Wrap Height Blue / Yellow194

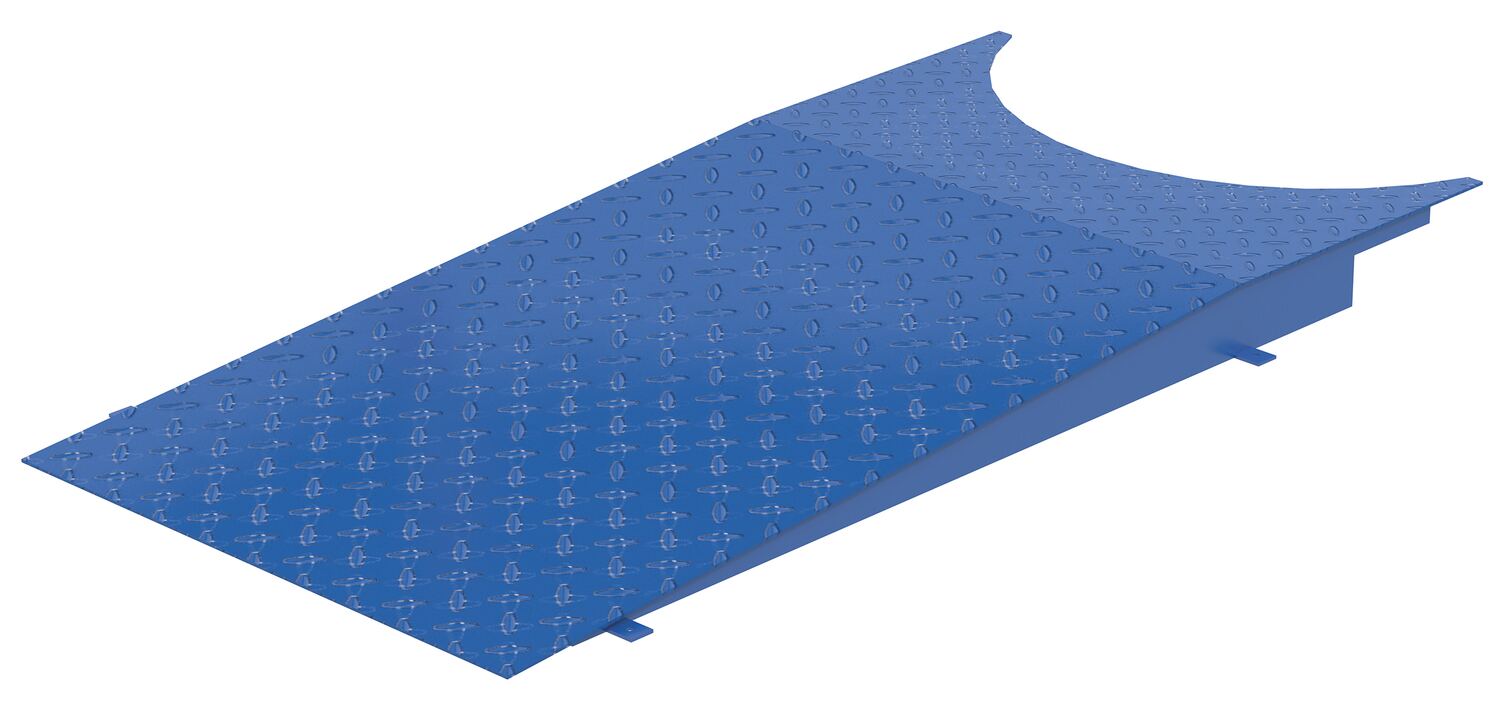

SWA-R-48100-SCL 90 Days Limited WarrantySteel Approach Ramp with Scale Wrap Machine 48 In. x 100 In. 4000 Lb. Capacity Blue600

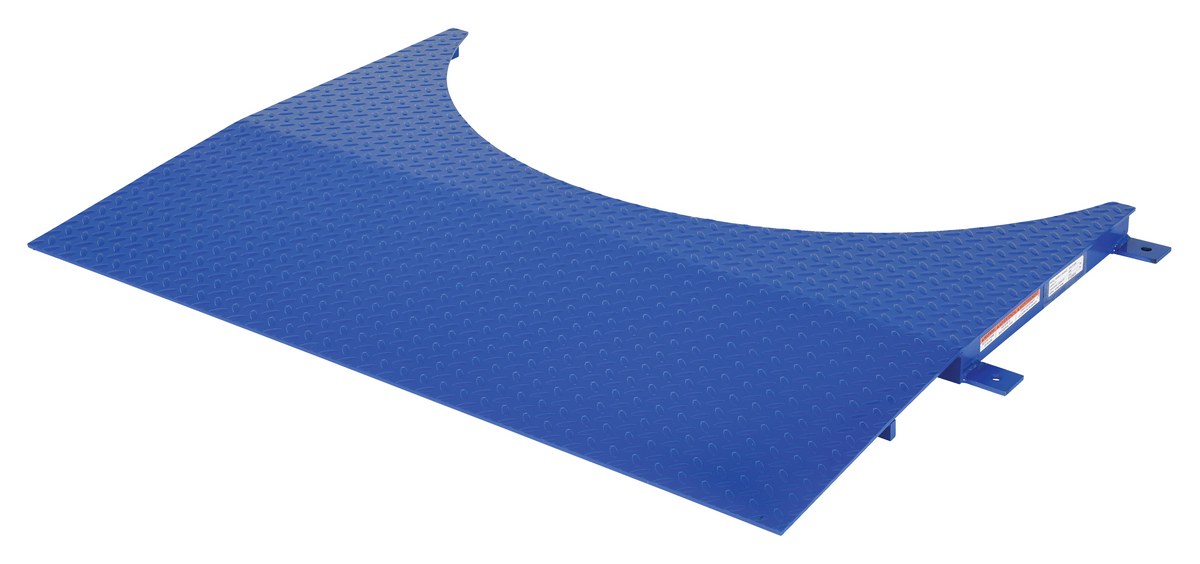

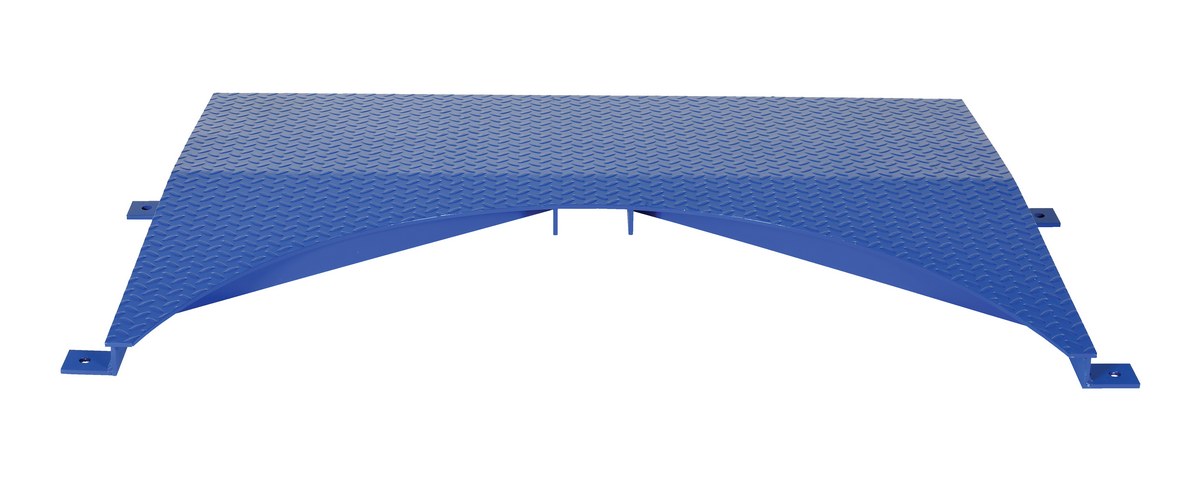

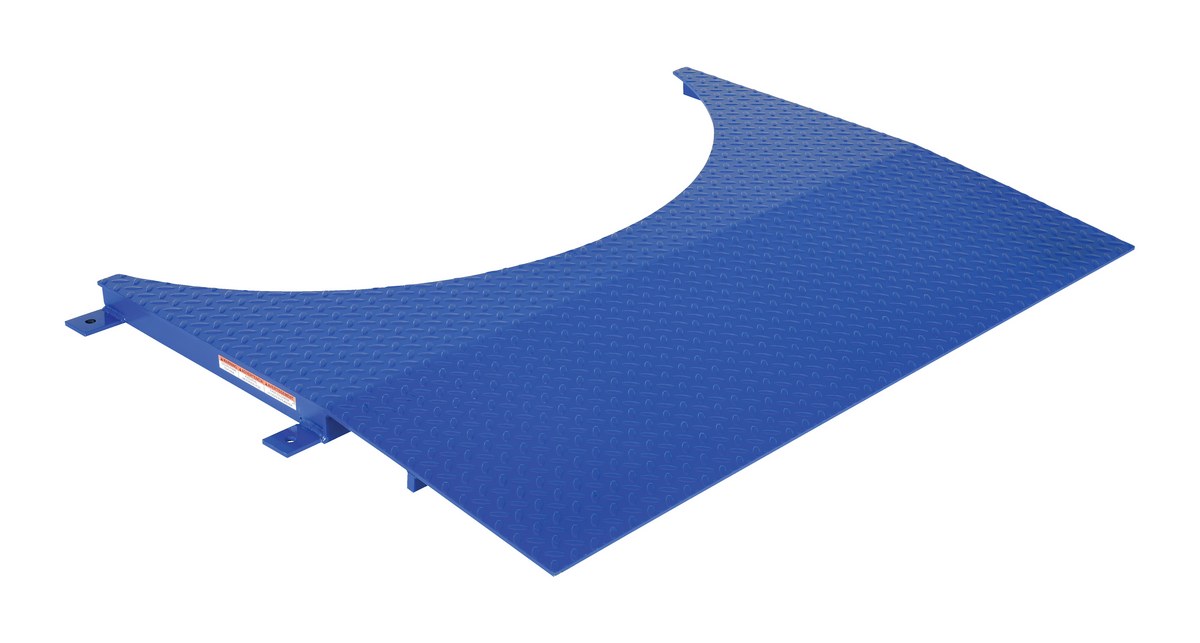

SWA-R-4836 SWA-R-483690 Days Limited WarrantySteel Approach Ramp Wrap Machine 48 In. x 36 In. 4,000 Lb. Capacity Blue170

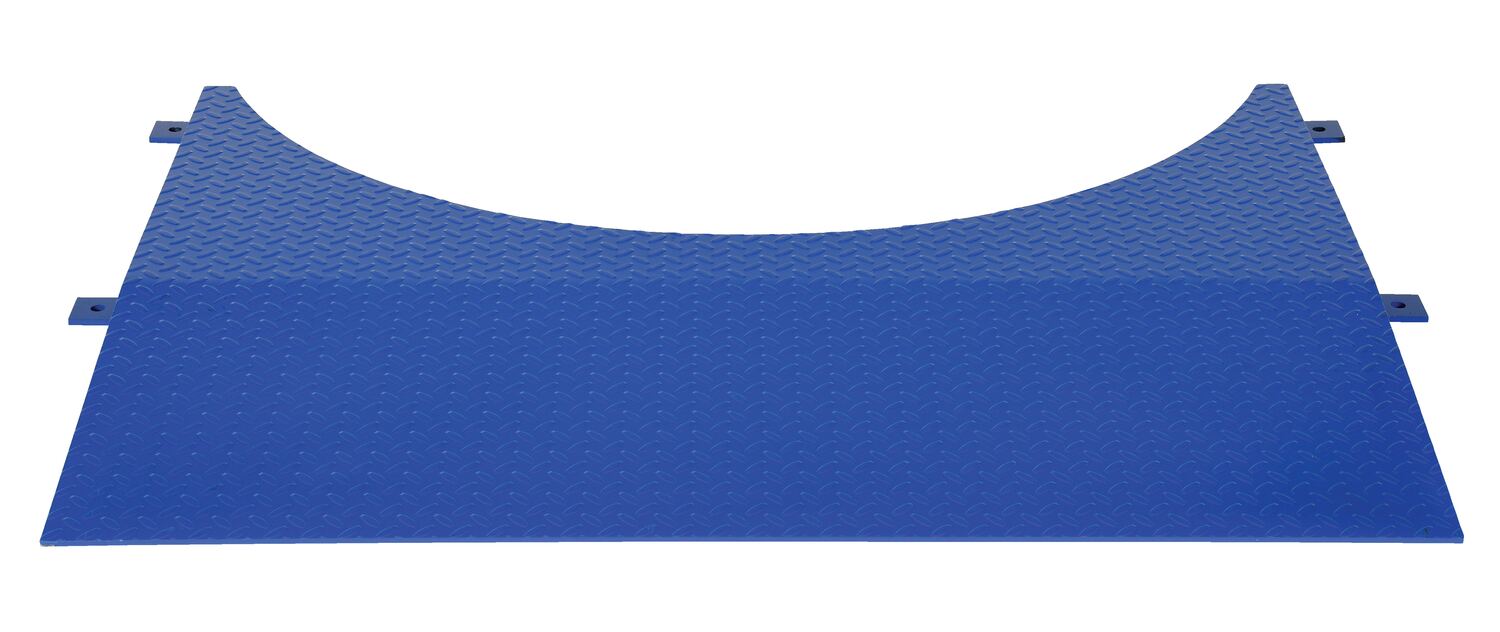

SWA-R-4848 SWA-R-484890 Days Limited WarrantySteel Approach Ramp Wrap Machine 48 In. x 48 In. 4,000 Lb. Capacity Blue212
Model Image PDF Description Wt.
(lbs)
SWA-VCC-208/230-1 - VOLTAGE CHANGE TO 208/230 VOLT, SINGLE (1) PHASE -
SWA-VCC-208/230-3 - VOLTAGE CHANGE TO 208/230 VOLT, THREE (3) PHASE -
SWA-VCC-460-3 - VOLTAGE CHANGE TO 460 VOLT, THREE (3) PHASE -

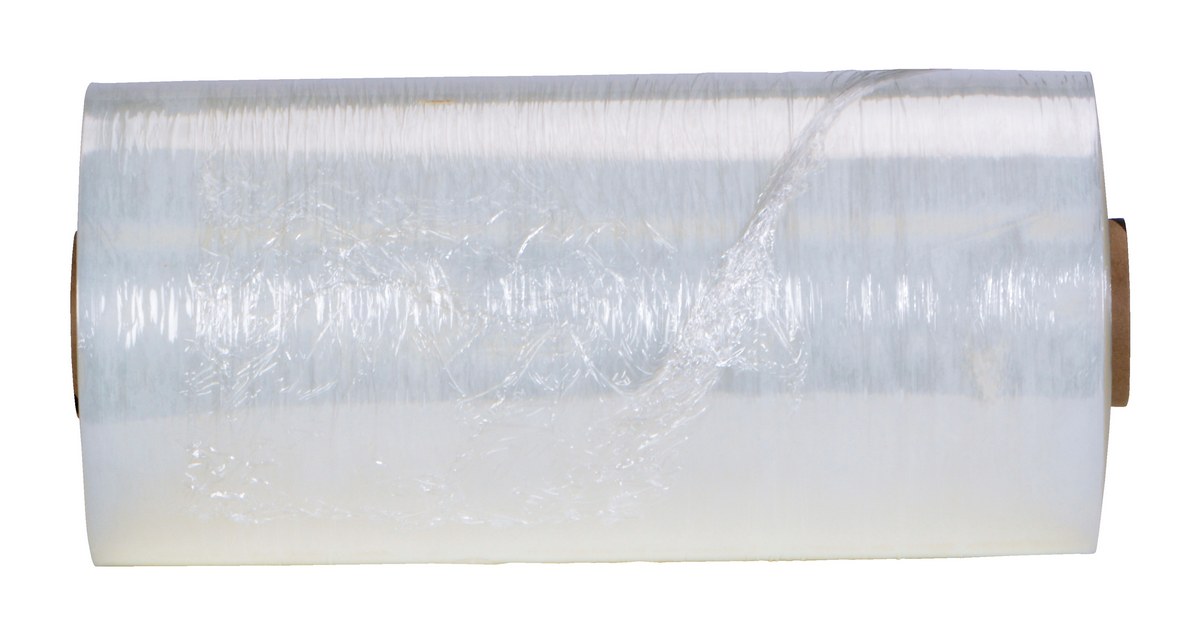

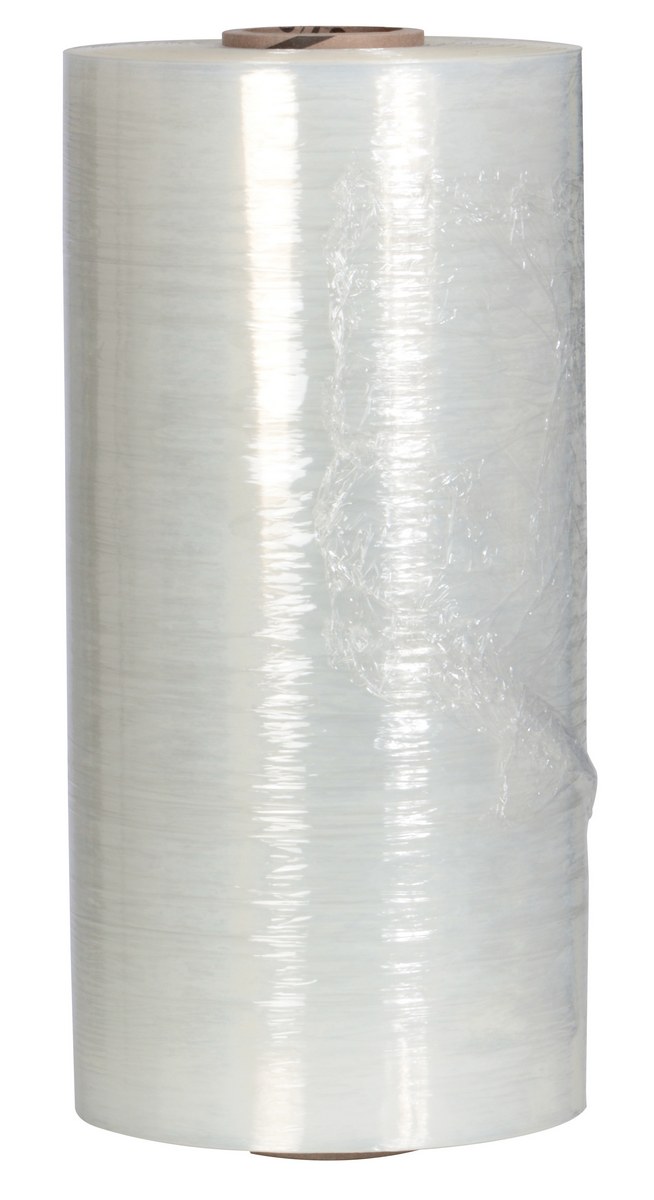

SWA-FILM tilt_m4.jpg 20"Wx80ga. x 6,000 FT x 3" Core (one roll) 42

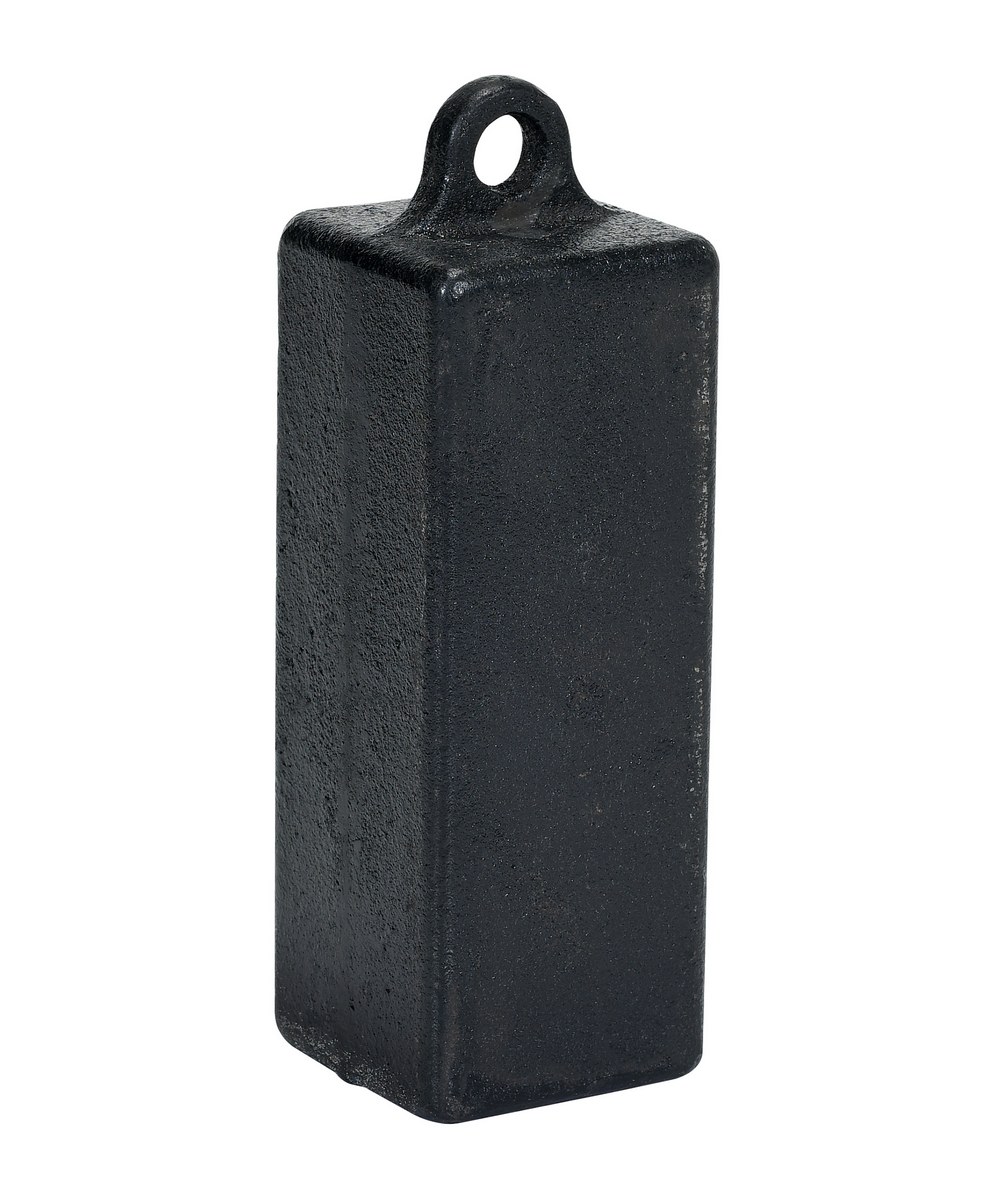

SWA-COUNT tilt_m4.jpg Counter Option 1
SWA-NRTL-COMP tilt_m4.jpg INCLUDES COMPONENTS APPROVED BY A NATIONALLY-RECOGNIZED TESTING LAB (NRTL) -
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Powered Stretch Wrap Machines PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


SWA-48

SWA-48-PMO

SWA-48-SCALE

SWA-PMO-RF

SWA-R-4836

SWA-R-4848

SWA-R-48100-SCL

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: Are there leveling feet on the scale?

A: The scale does have adjustable leveling feet.


Q: What is the outside diameter of the roll?

A: The outside diameter is 8".
