Aluminum Pallets & Skids
model: AP-4048-4W
A welded Aluminum Pallet is a great asset for a variety of industries. The open design enables quick and simple cleaning. This pallet is durable and re-usable with a two-way entry for pallet and fork truck use. Large static capacity allows for load both big and small.

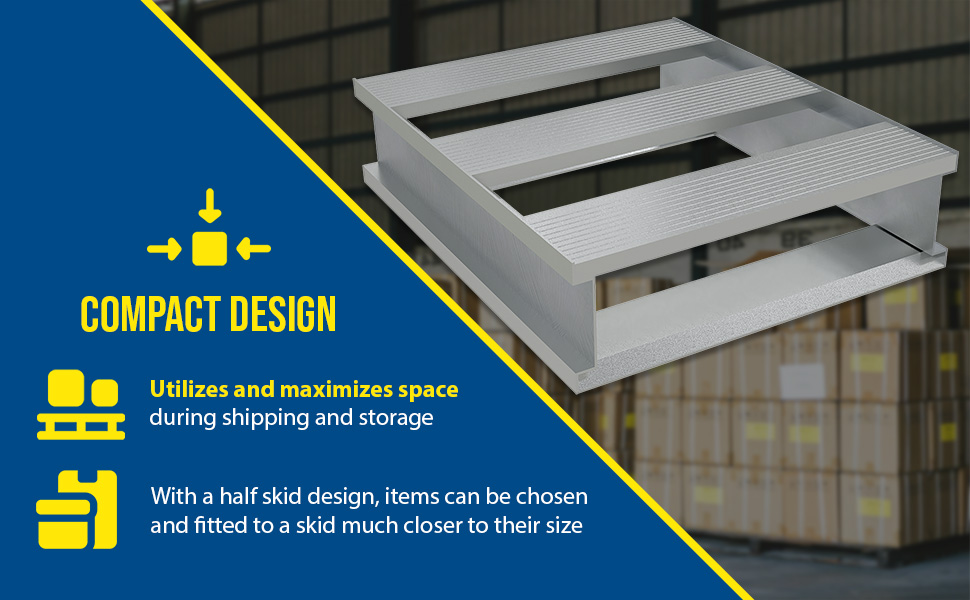

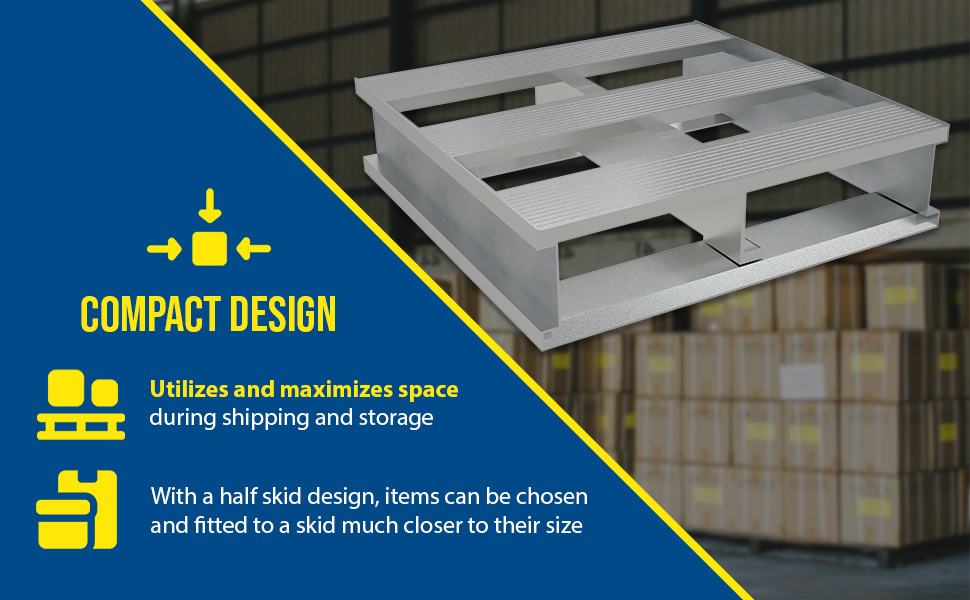

An Aluminum Half Pallet is a great asset for a variety of industries. With the half pallet design, items can be chosen and fitted to a pallet much closer to their size. This utilizes and maximizes space during shipping and floor space during any storage. The open design enables quick and simple cleaning.
A welded Aluminum Pallet is a great asset for a variety of industries. The open design enables quick and simple cleaning. This pallet is durable and re-usable with a two-way entry for pallet and fork truck use. Large static capacity allows for load both big and small.
An Aluminum Half Pallet is a great asset for a variety of industries. With the half pallet design, items can be chosen and fitted to a pallet much closer to their size. This utilizes and maximizes space during shipping and floor space during any storage. The open design enables quick and simple cleaning.
AP-3624-4W

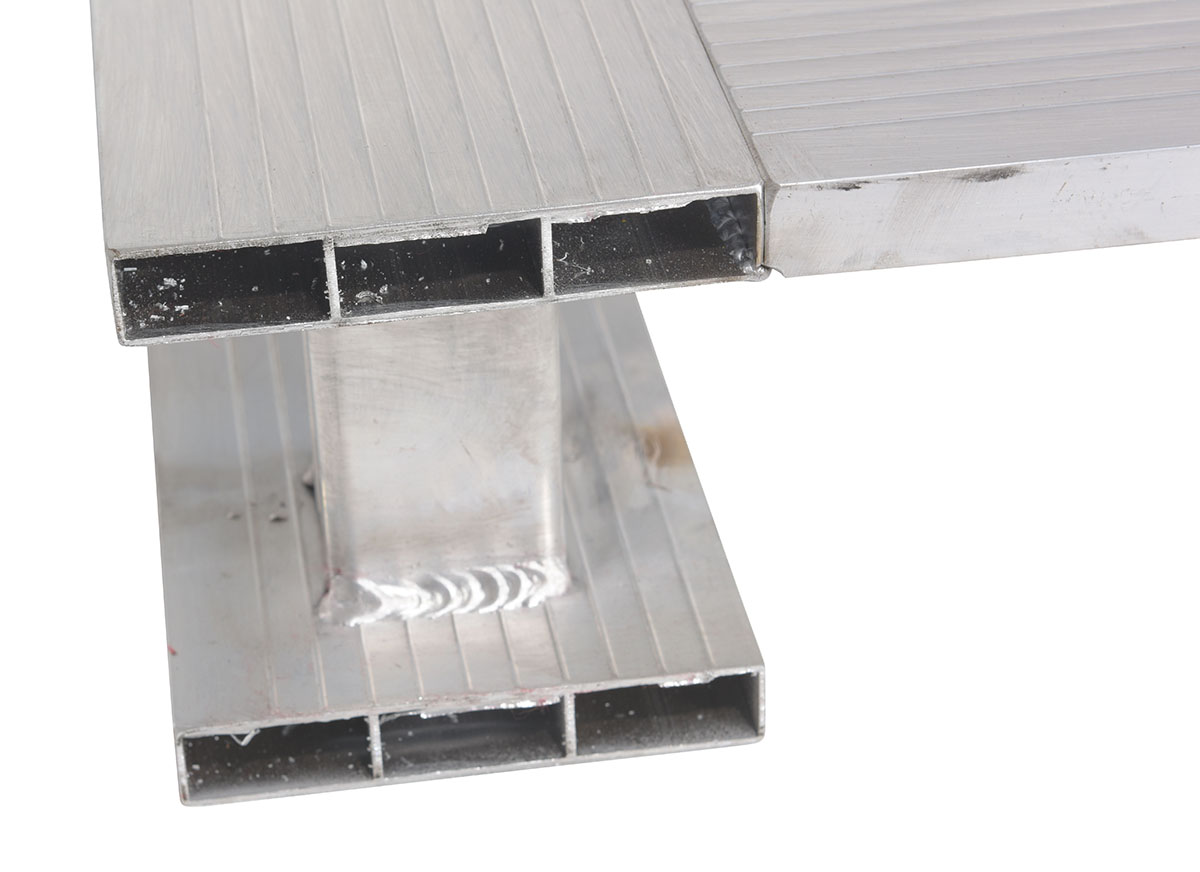

AP-2424-SB
AP-2424-SB
SKID-4248-A
AP-ST-2424-SB
AP-4048-SB
AP-4824
AP-4248-4W
AP-2024
AP-ST-2424
AP-4048-4W
AP-4824-4W
AP-ST-4024
AP-ST-4248
AP-4024
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

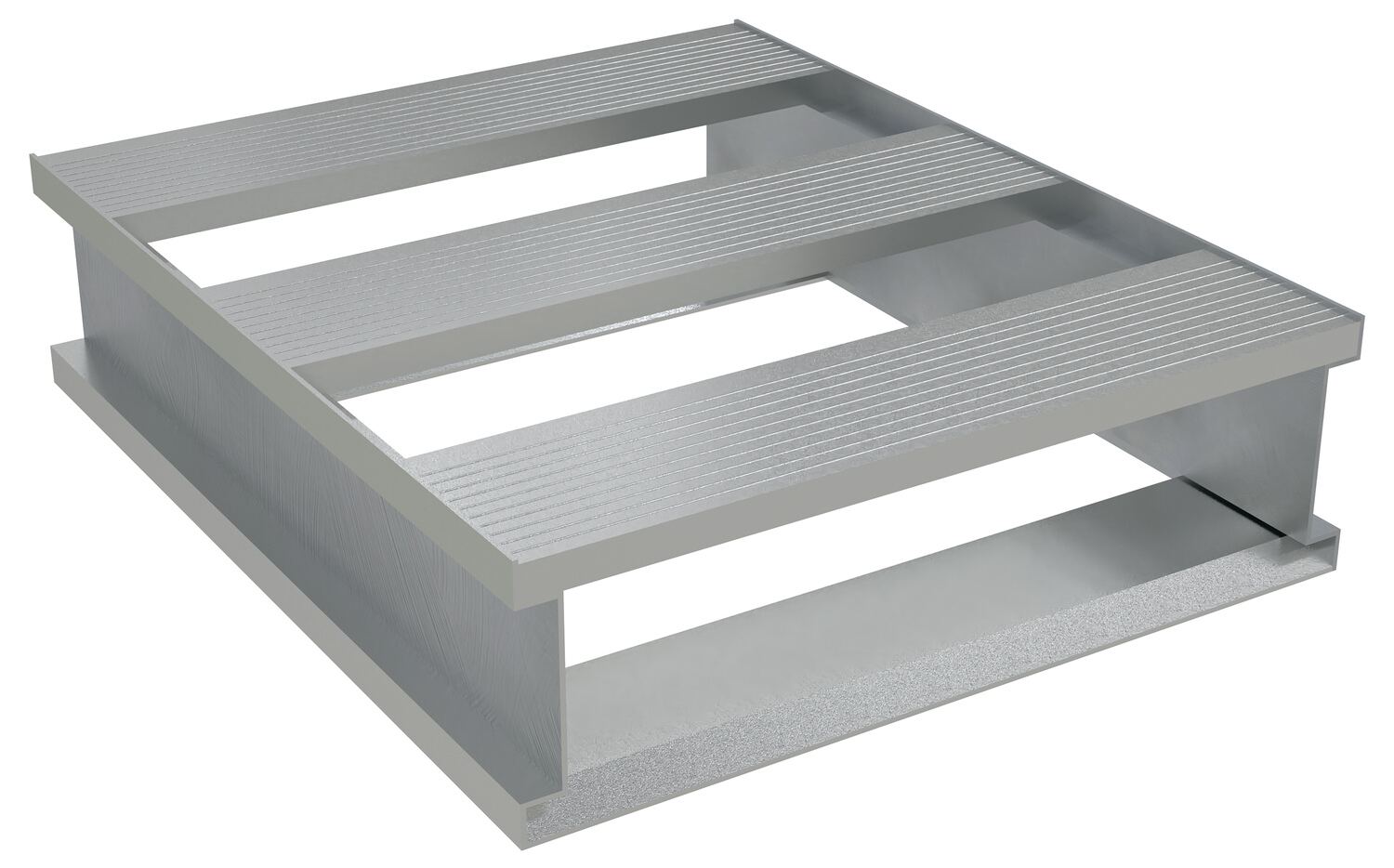

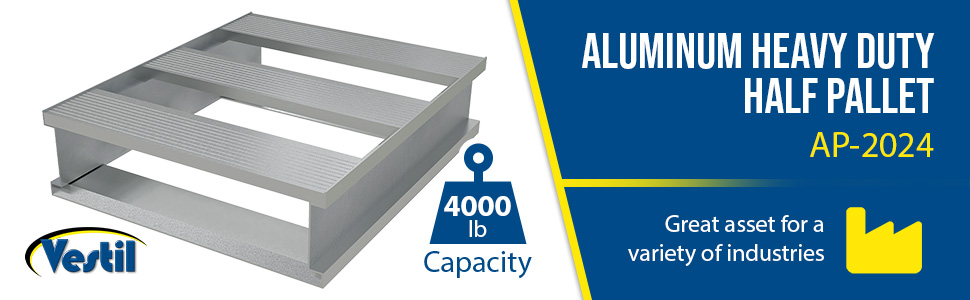

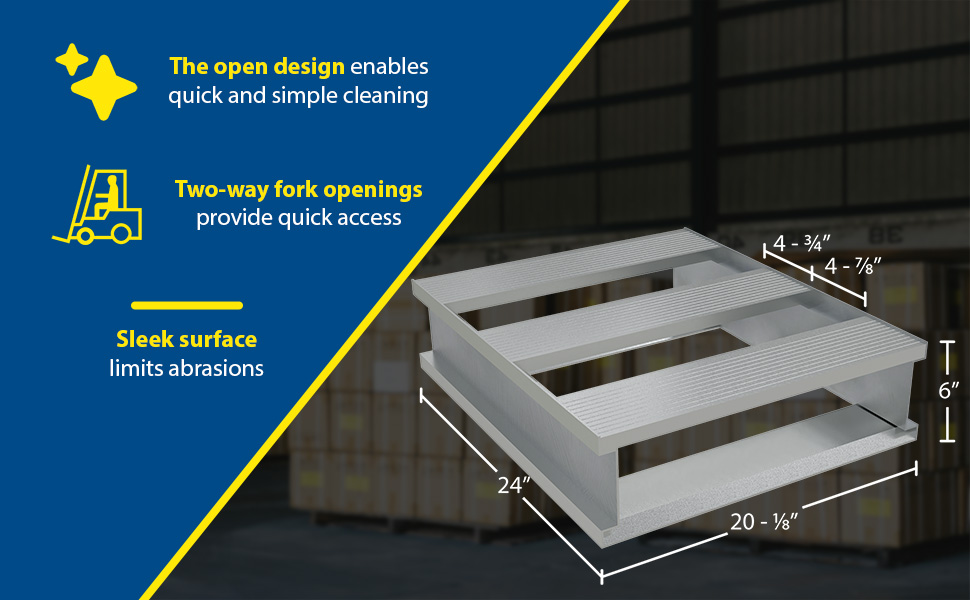

| AP-2024 |
| 90 Days Limited Warranty | Aluminum Heavy Duty Half Pallet 20 In x 24 In x 6 In 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 22.5625 | 12 | ||

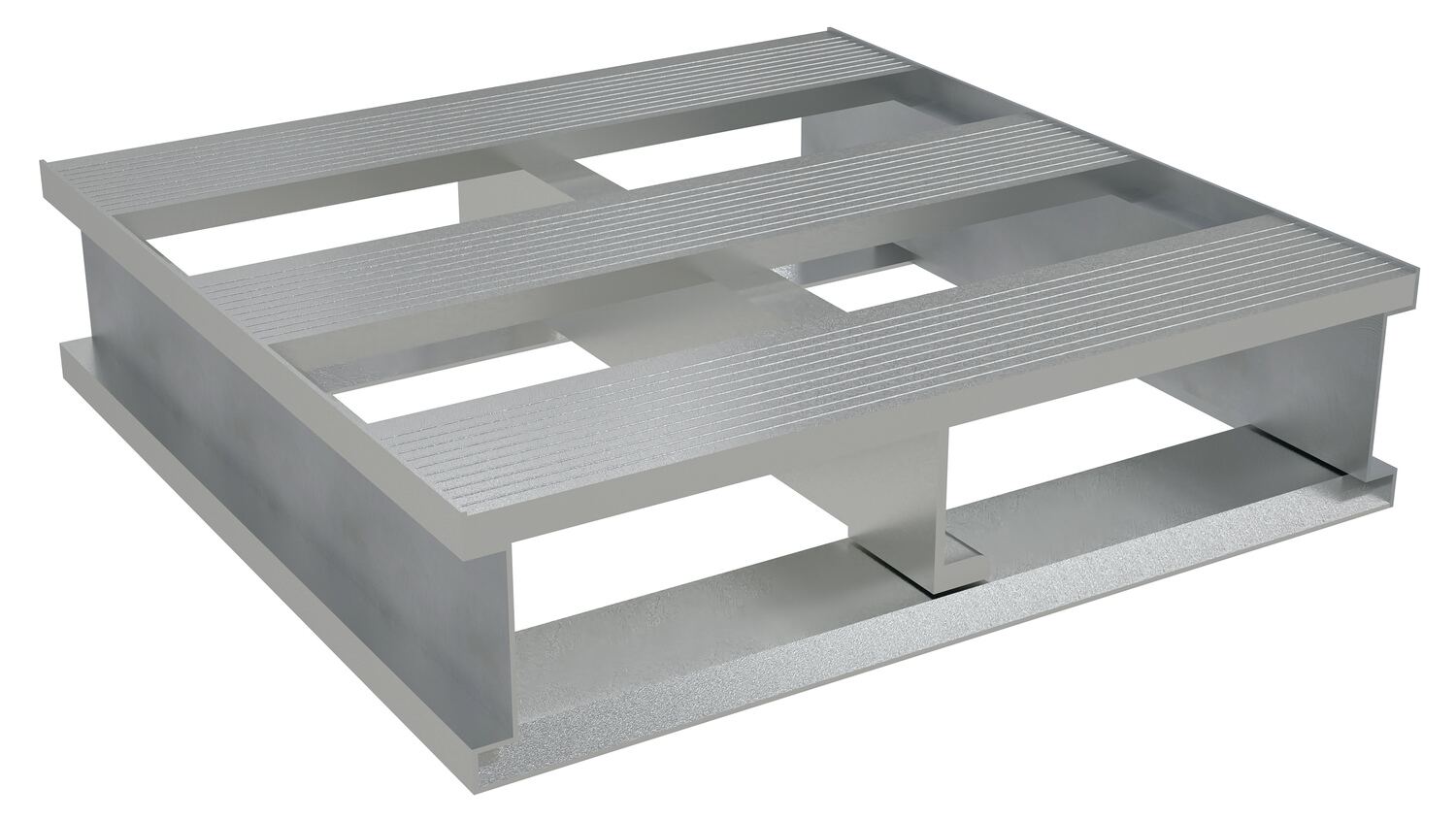

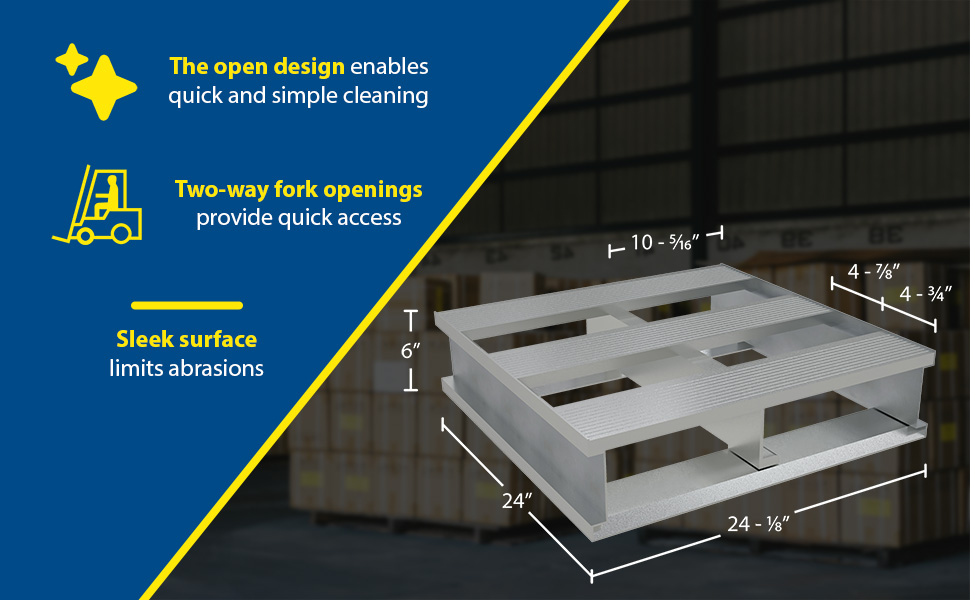

| AP-2424 |
 | 90 Days Limited Warranty | Aluminum Heavy Duty Half Pallet 24 In. x 24 In. x 6 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 22.5625 | 13 | ||
| AP-2424-4W |
 | 90 Days Limited Warranty | Aluminum Four Way Entry Heavy Duty Half Pallet 24 In. x 24 In. x 5-1/16 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 19.5625 | 13 | ||

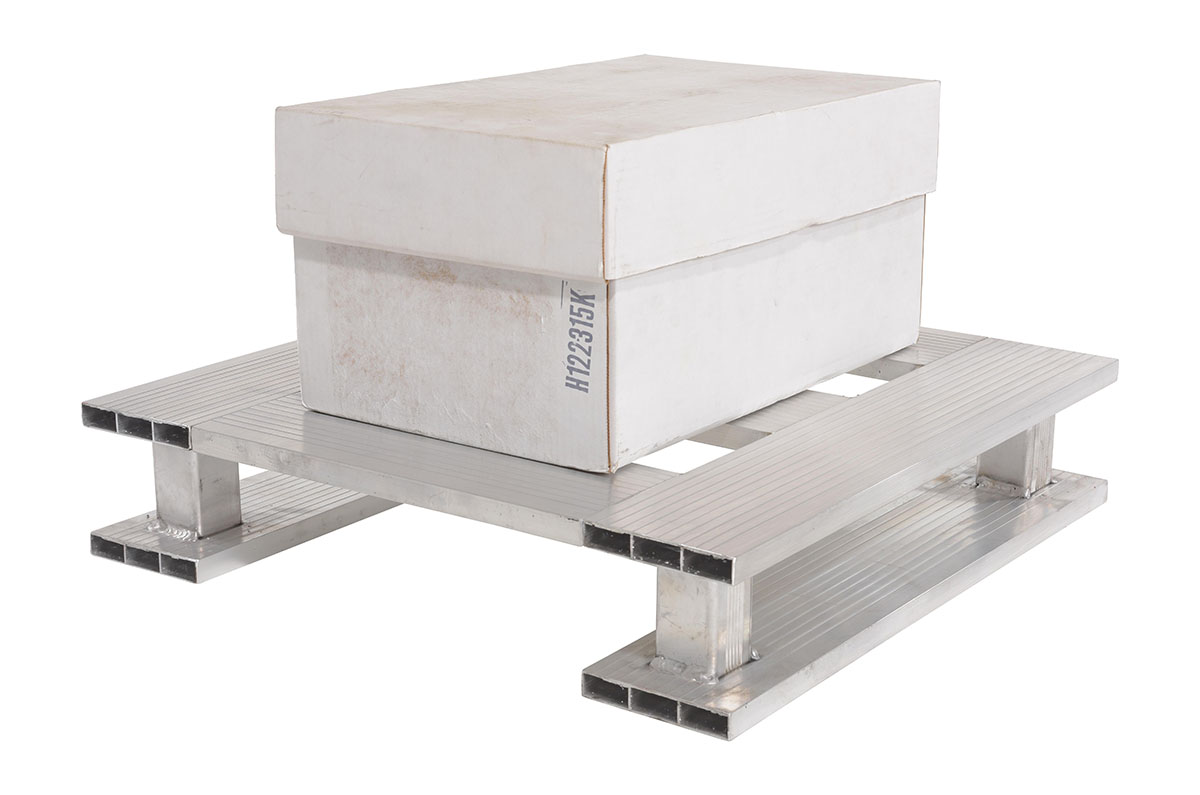

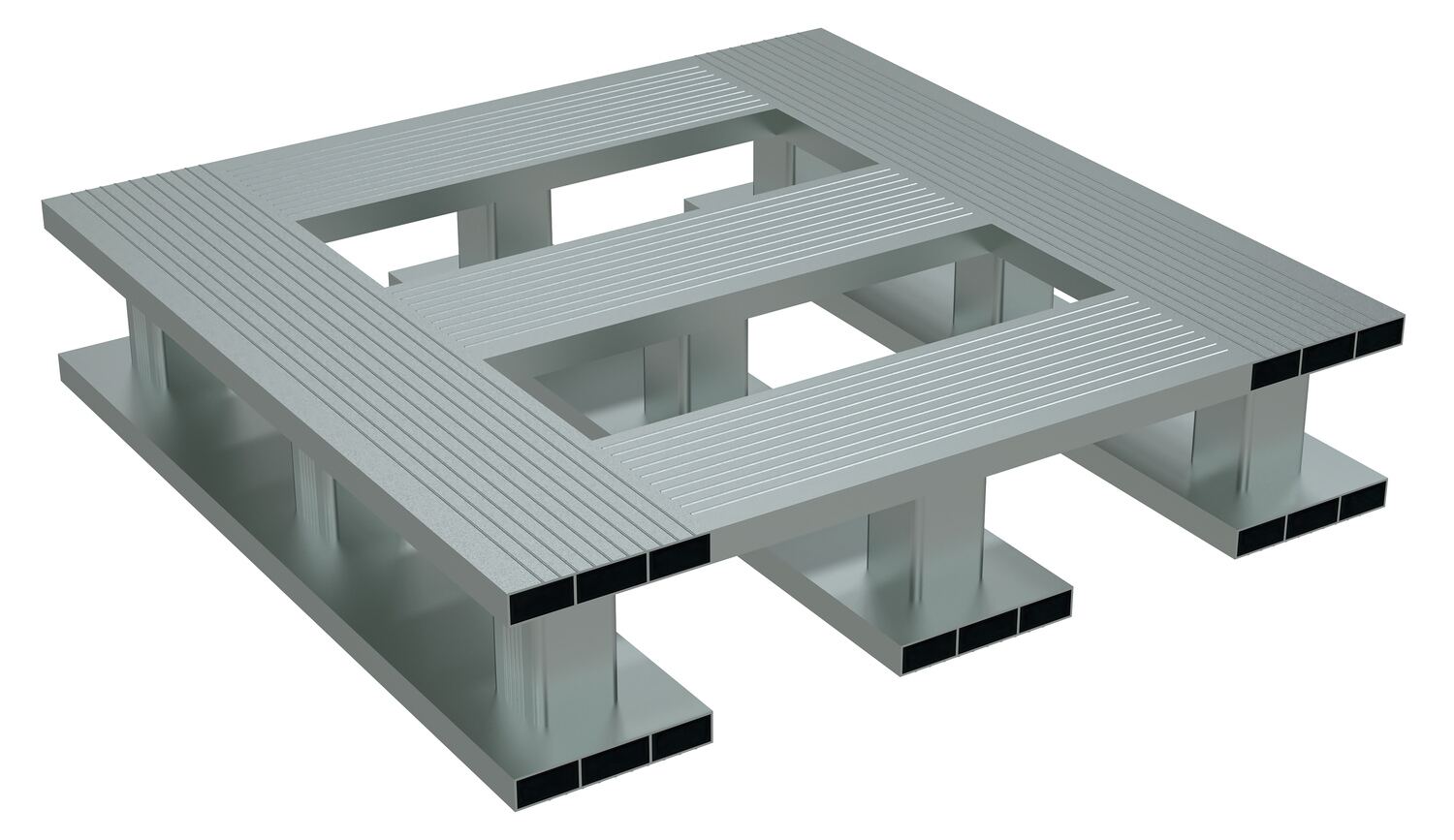

| AP-2424-SB |
| 90 Days Limited Warranty | Aluminum Half Skid Bottom Pallet 24 In. x 24 In. x 5-1/16 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 19.5625 | 12 | ||

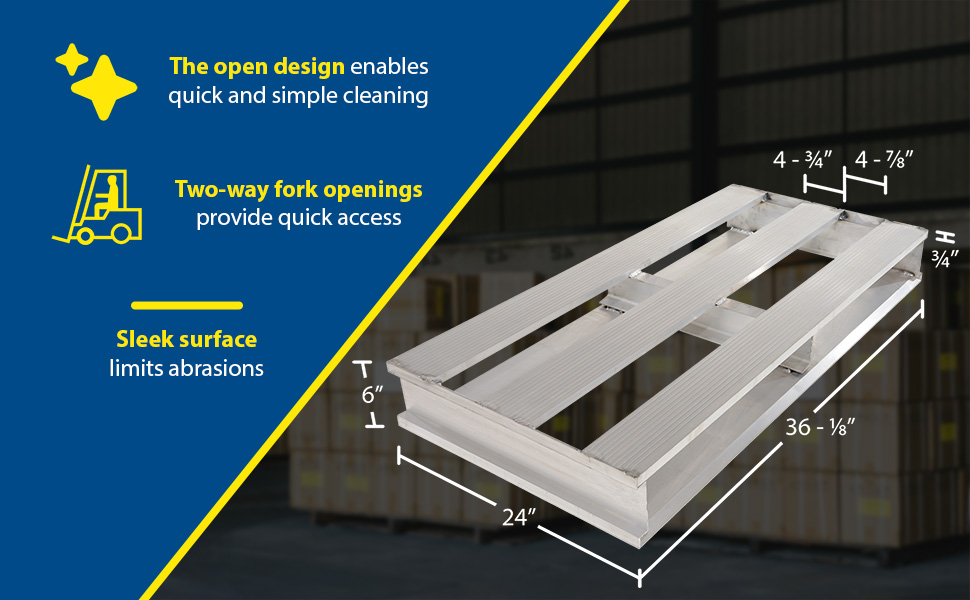

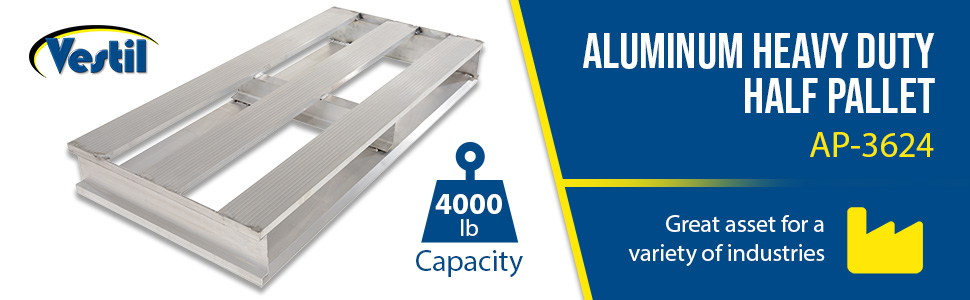

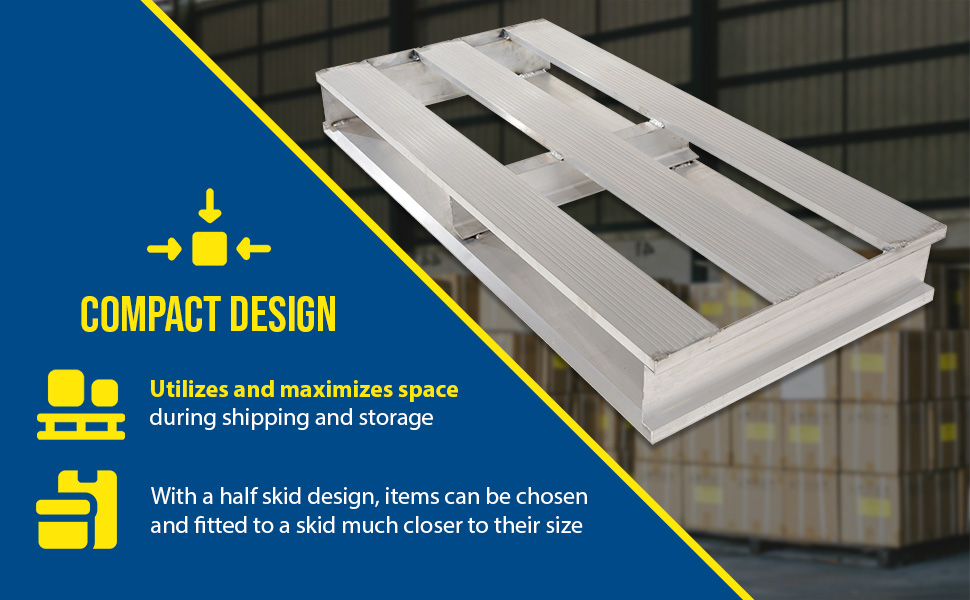

| AP-3624 |
 | 90 Days Limited Warranty | Aluminum Heavy Duty Half Pallet 24 In. x 36 In. x 6 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 8.3125 | 17 | ||
| AP-3624-4W |
| 90 Days Limited Warranty | Aluminum Four Way Entry Heavy Duty Half Pallet 24 In. x 36 In. x 5-1/16 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 11.625 | 24 | ||
| AP-3624-SB |
 | 90 Days Limited Warranty | Aluminum Half Skid Bottom Pallet 24 In. x 36 In. x 5-1/16 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 11.625 | 16 | ||

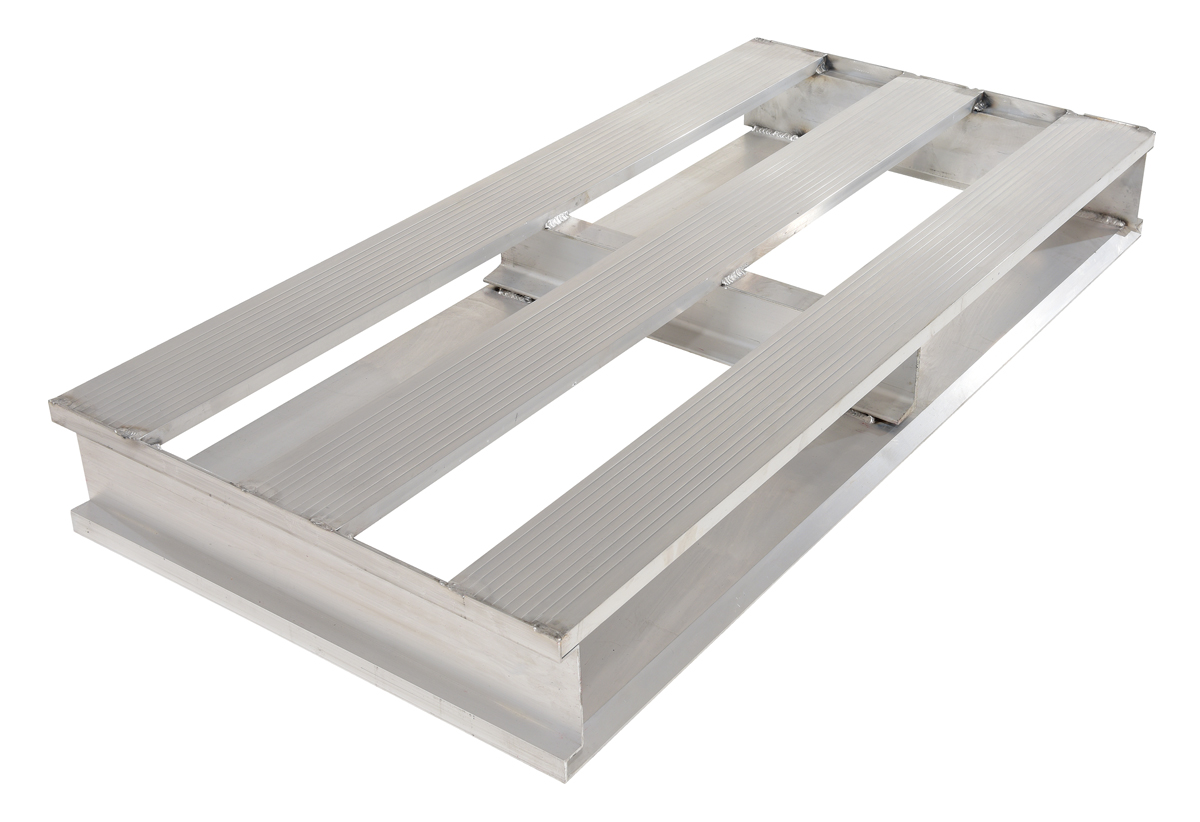

| AP-4024 |
| 90 Days Limited Warranty | Aluminum Heavy Duty Half Pallet 24 In. x 40 In. x 6 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 16.5625 | 21 | ||
| AP-4024-4W |
 | 90 Days Limited Warranty | Aluminum Four Way Entry Heavy Duty Half Pallet 24 In. x 40 In. x 5-1/16 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 15.5625 | 21 | ||

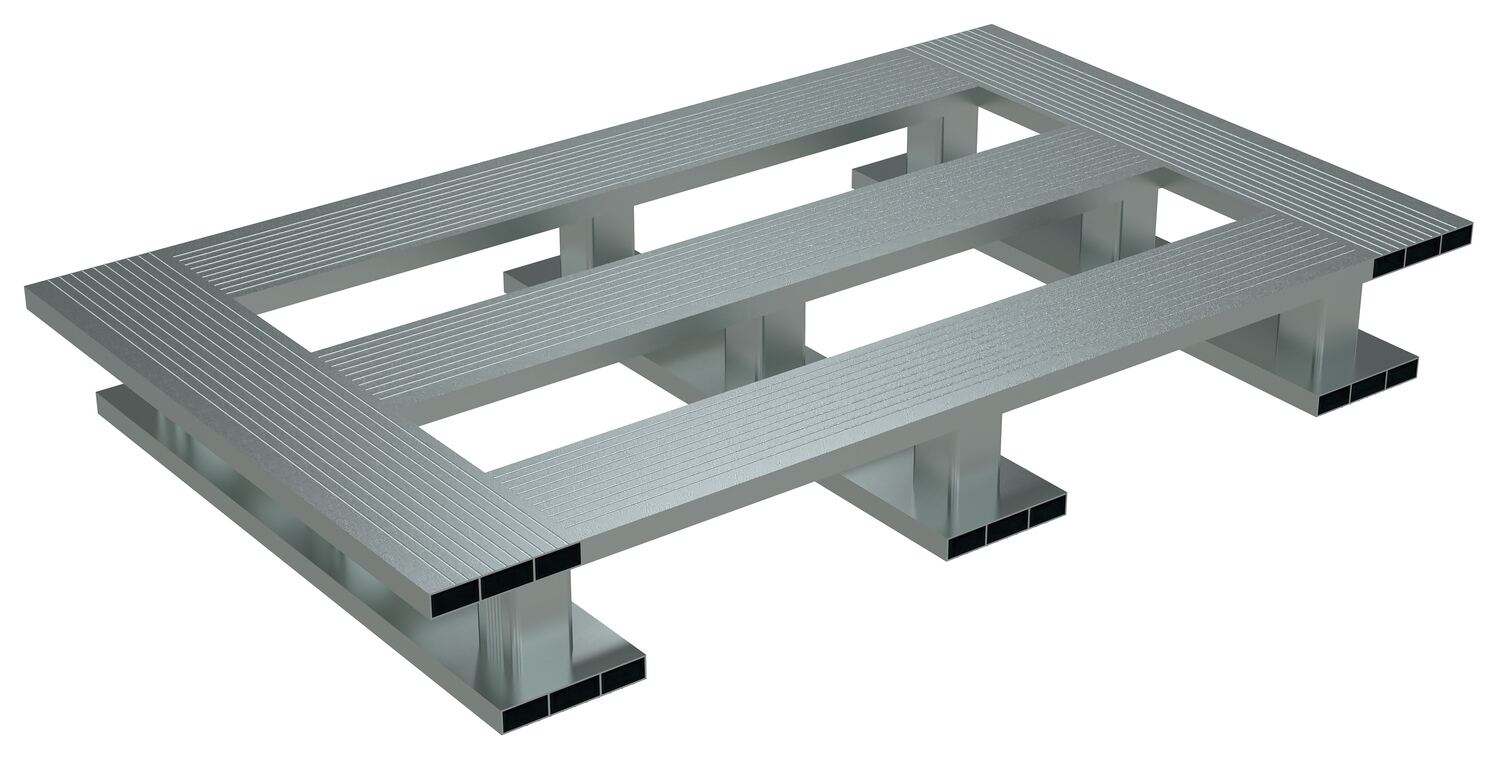

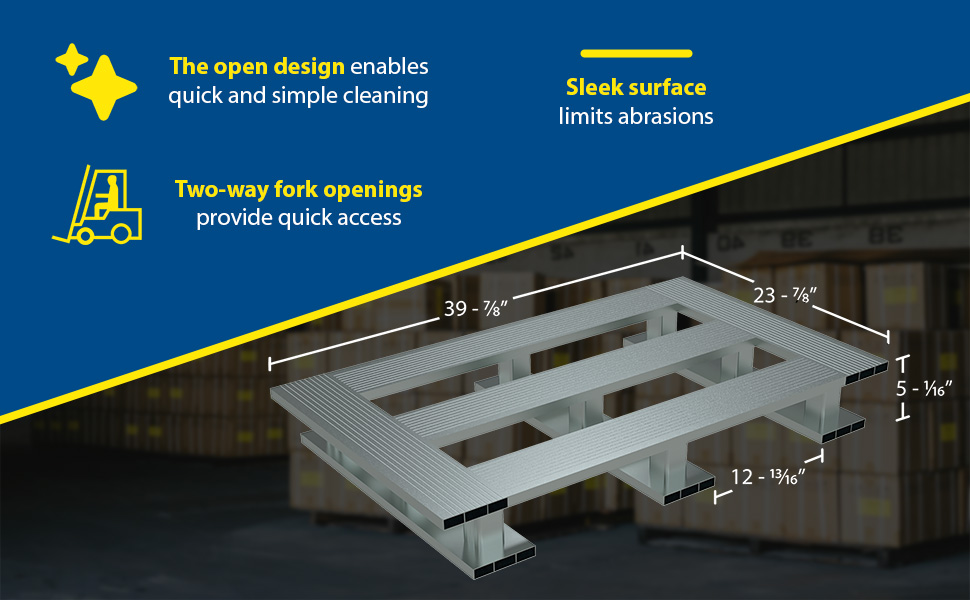

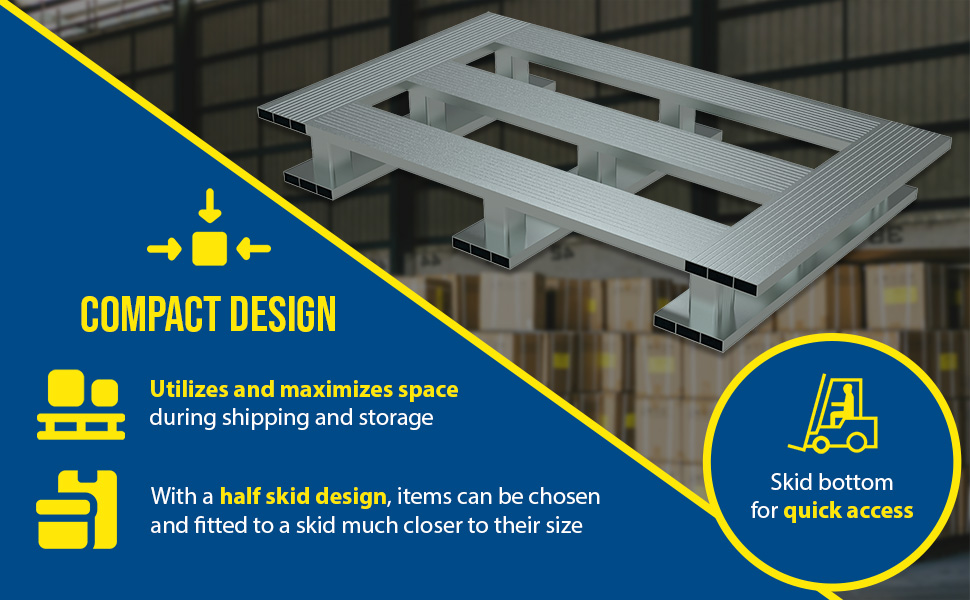

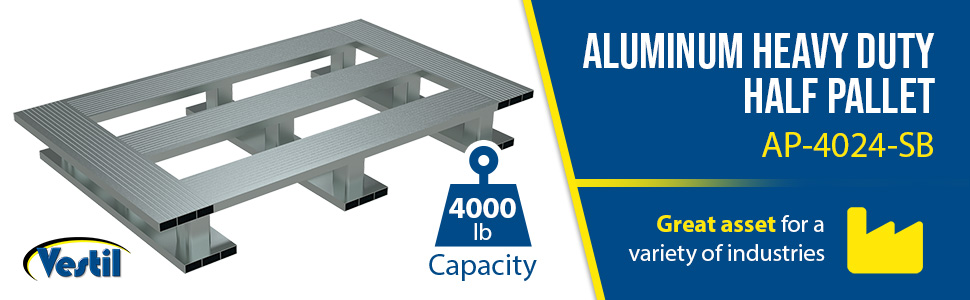

| AP-4024-SB |
 | 90 Days Limited Warranty | Aluminum Skid Bottom Half Pallet 24 In. x 40 In. x 5-1/16 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 15.625 | 19 | ||

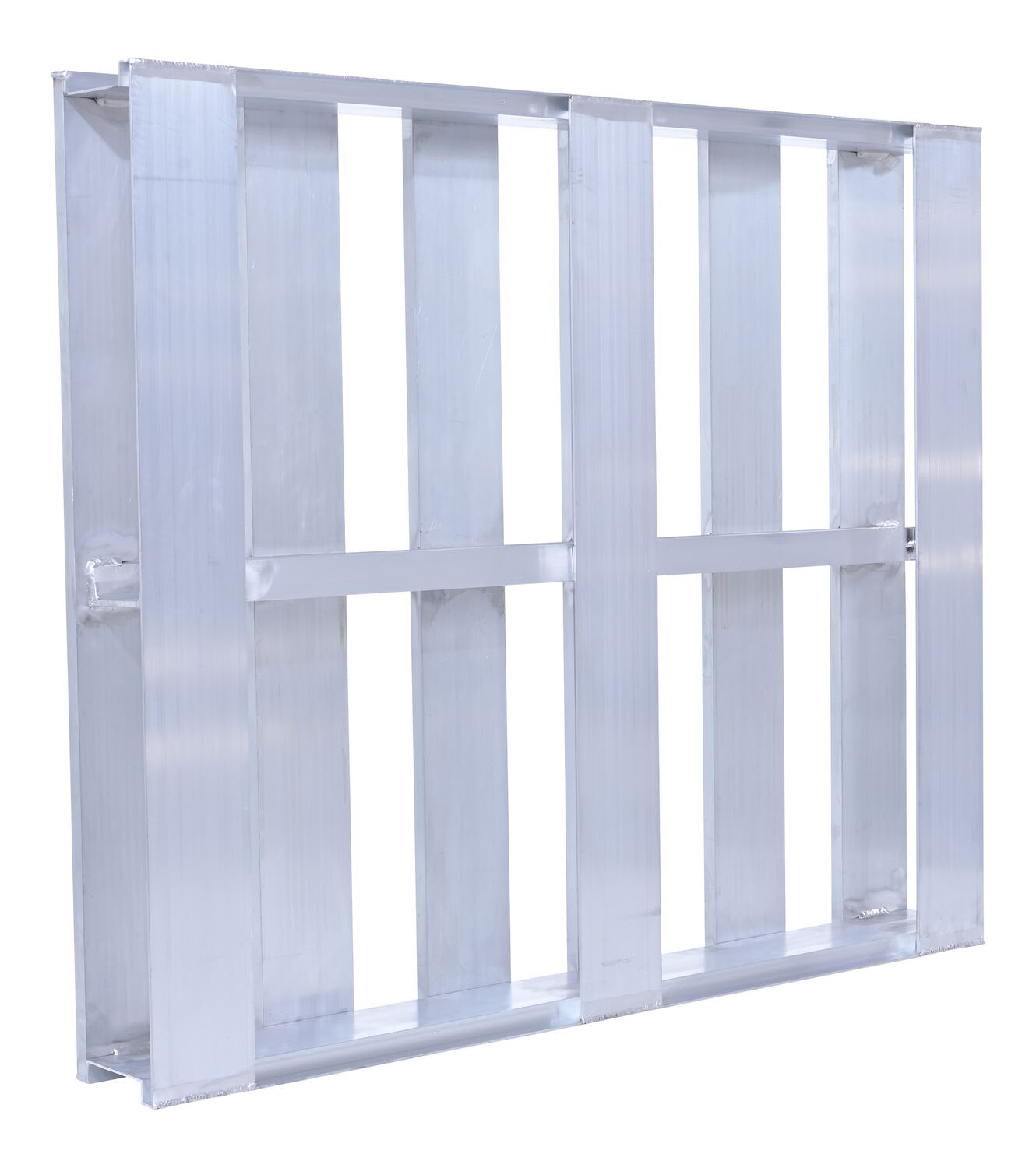

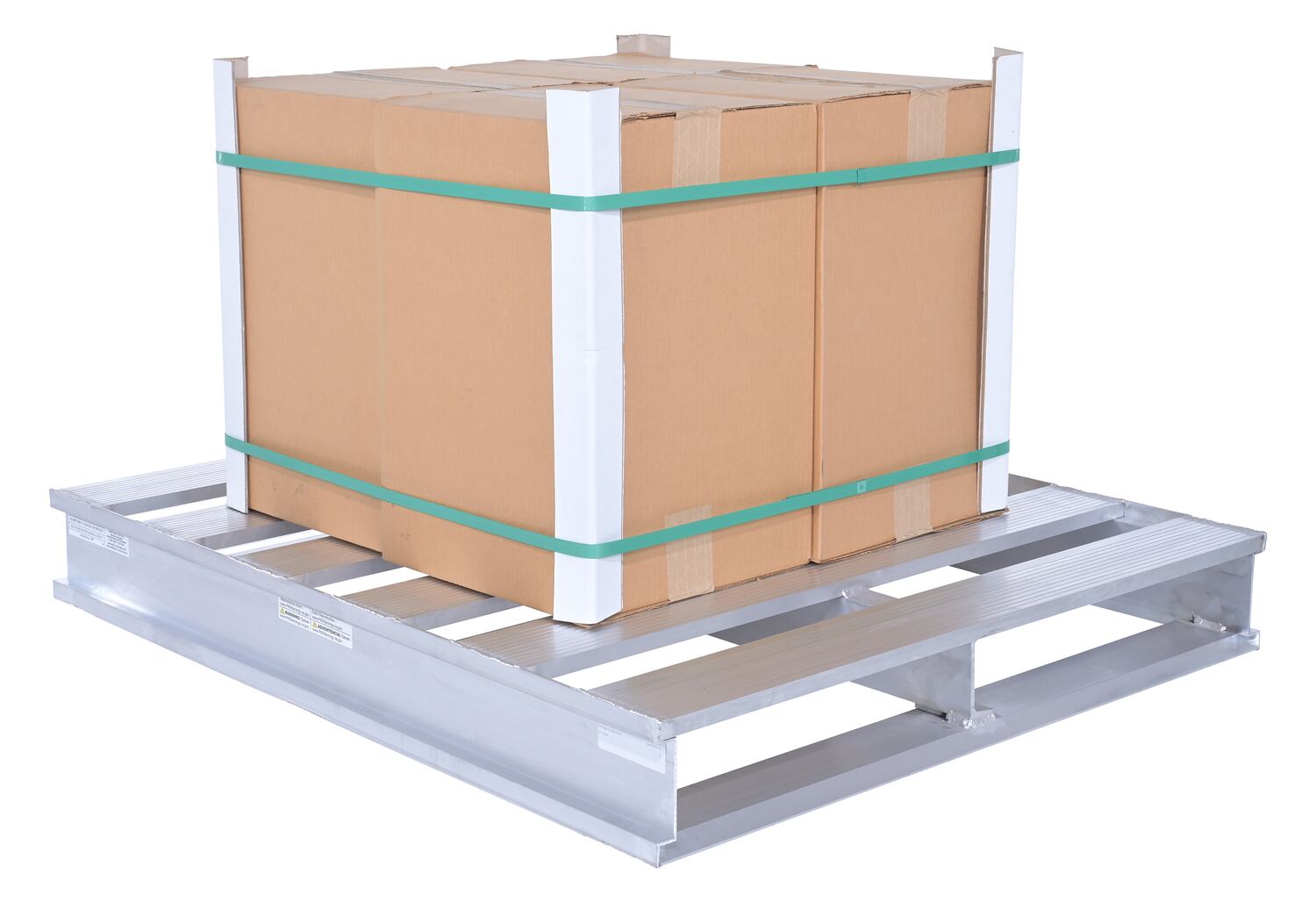

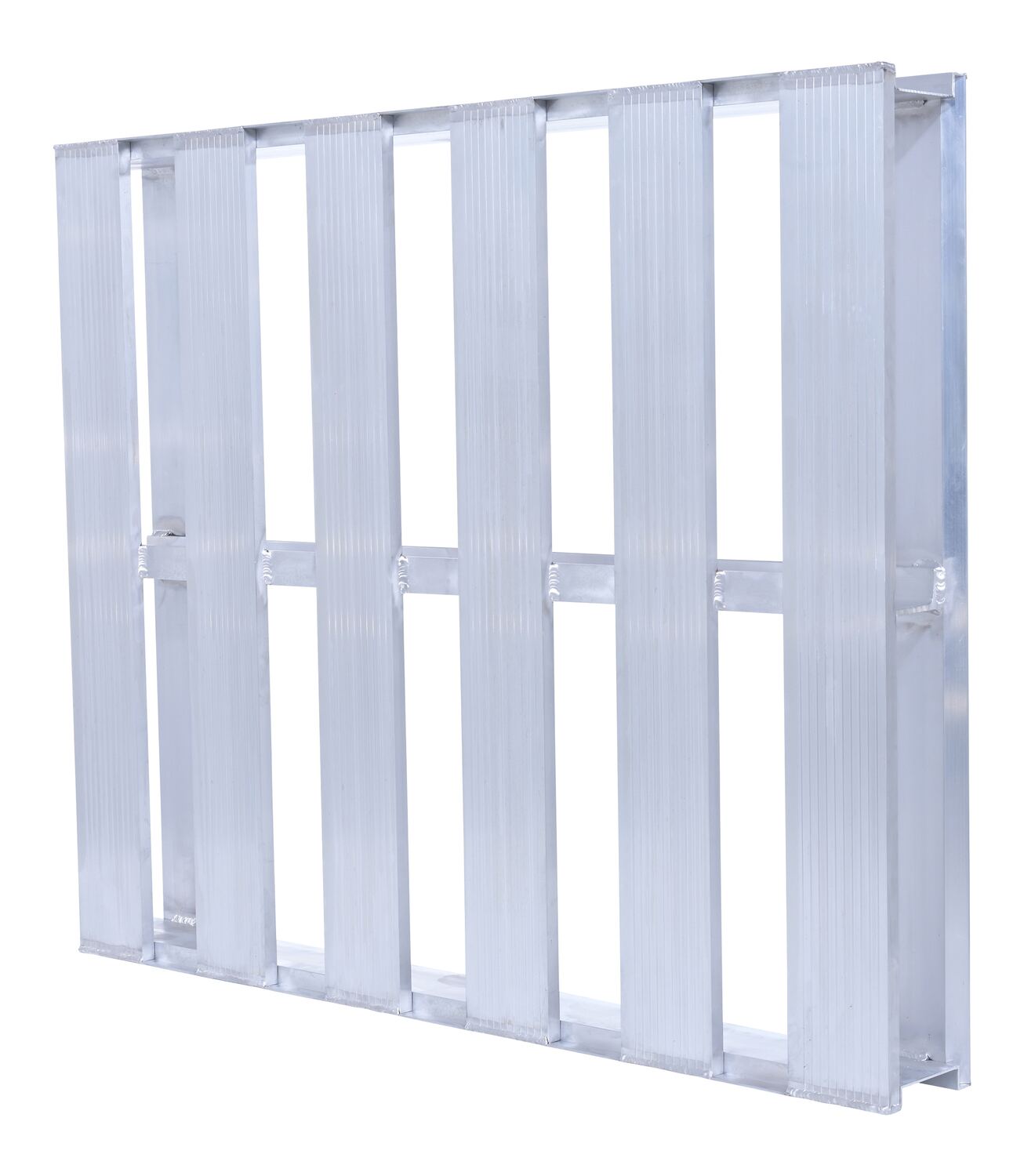

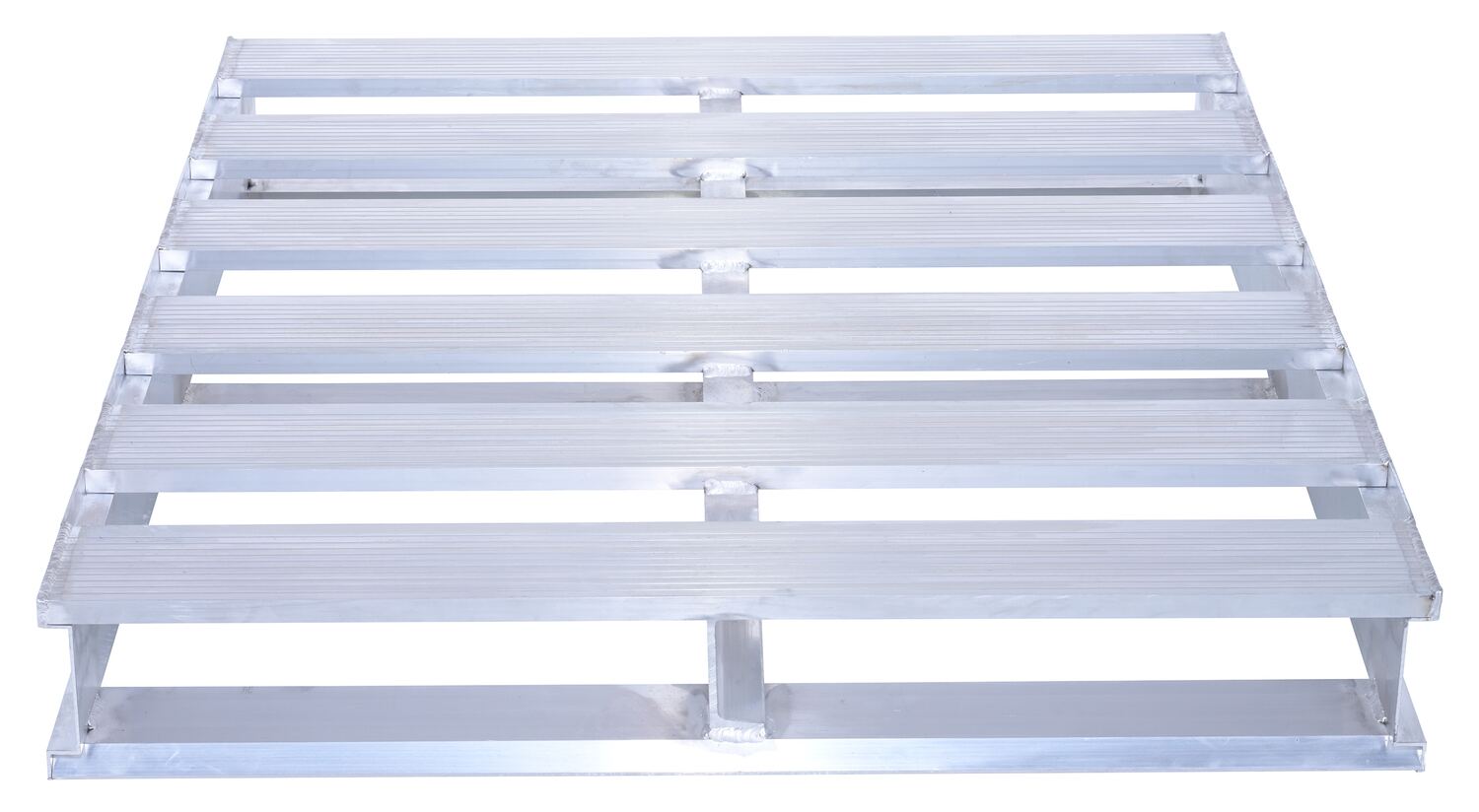

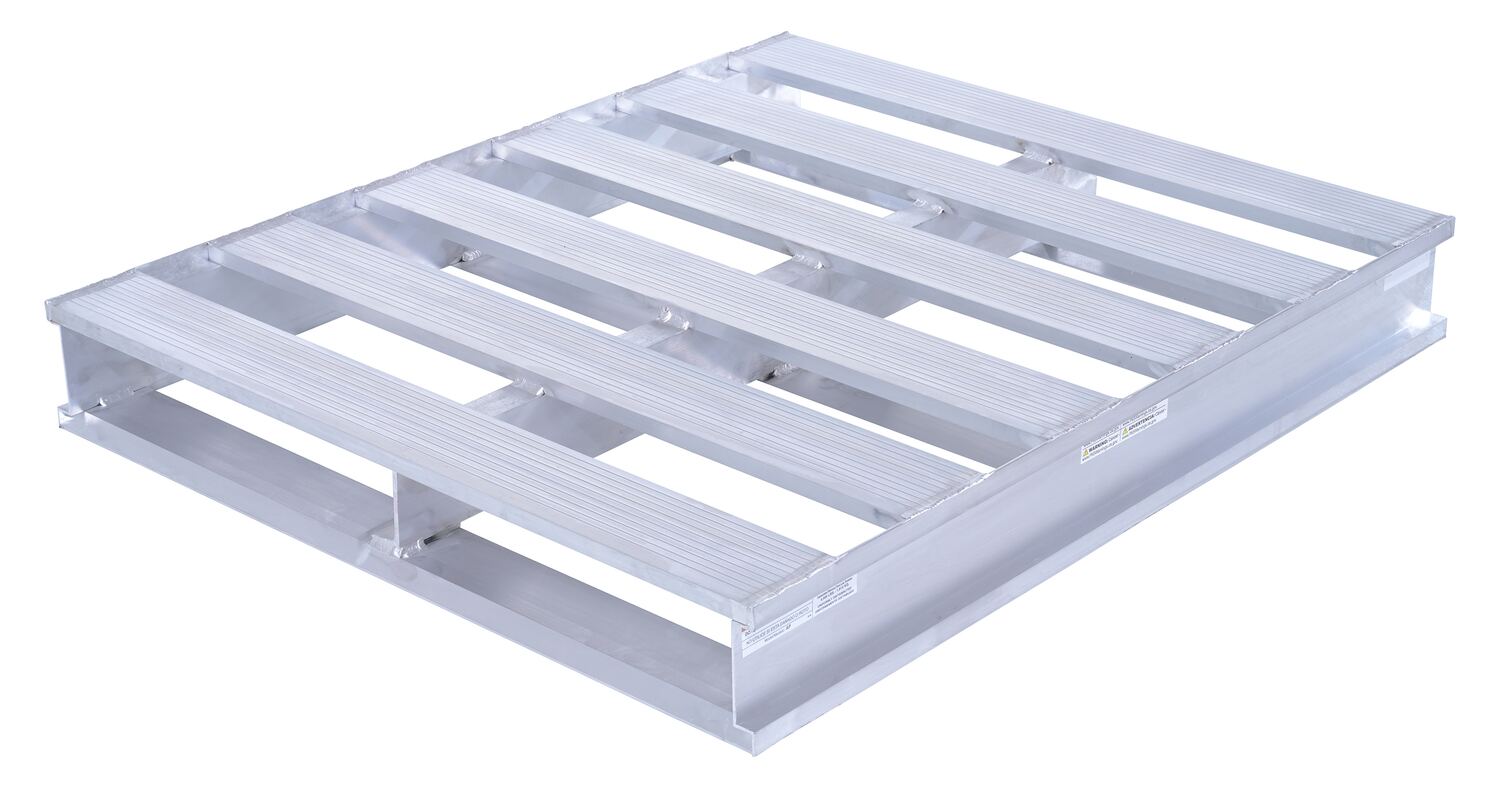

| AP-4048 |
 | 90 Days Limited Warranty | Aluminum Heavy Duty Pallet 48 In. x 40-1/8 In. x 6 In. 6000 Lb. Capacity Silver | Top Board Width (in.): 4-3/4 Fork Opening Width (in.): 18-5/16 | 85 | ||
| AP-4048-4W |
| 90 Days Limited Warranty | Aluminum Four Way Entry Heavy Duty Pallet 47-7/8 In. x 40 In. x 5-1/16 In. 6000 Lb. Capacity Silver | Top Board Width (in.): 4-3/4 Fork Opening Widths (in.): 19-5/8, 15-13/16 | 86 | ||
| AP-4048-SB |
| 90 Days Limited Warranty | Aluminum Skid Bottom Pallet 47-7/8 In. x 40 In. x 5-1/16 In. 6000 Lb. Capacity Silver | Top Board Width (in.): 4-3/4 Fork Opening Widths (in.): 19-9/16, 15-5/8 | 85 | ||

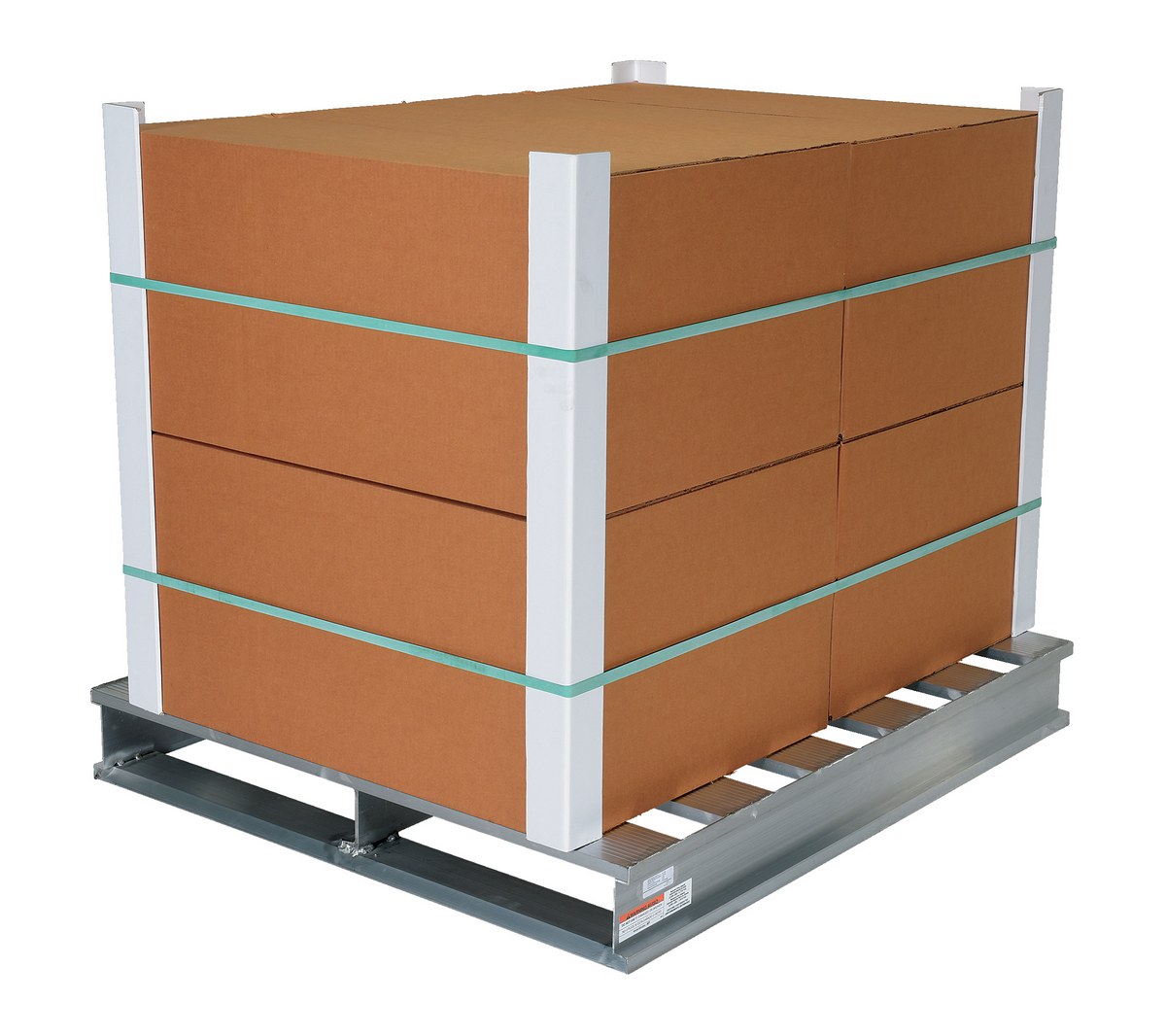

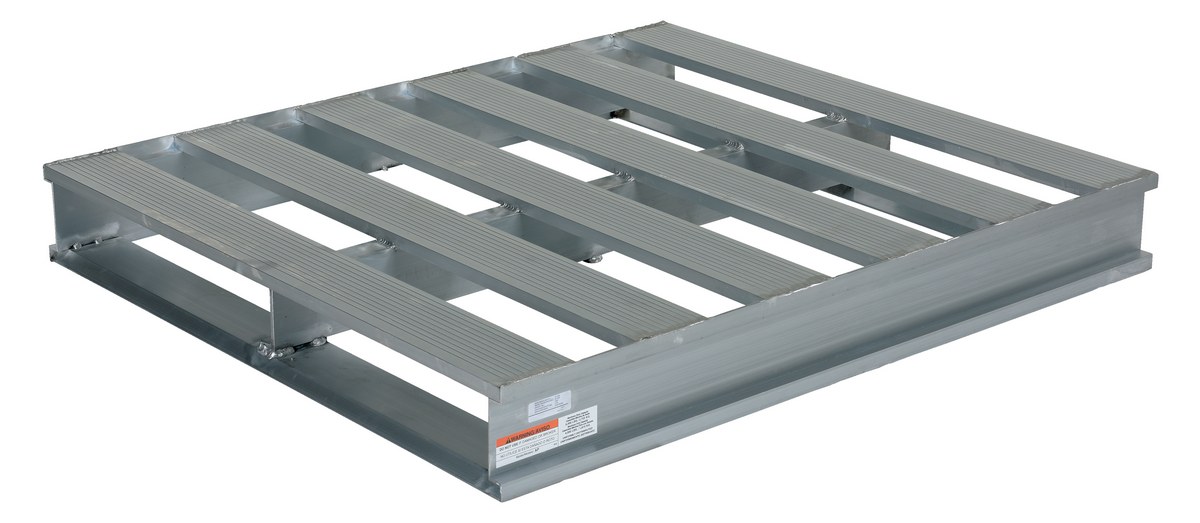

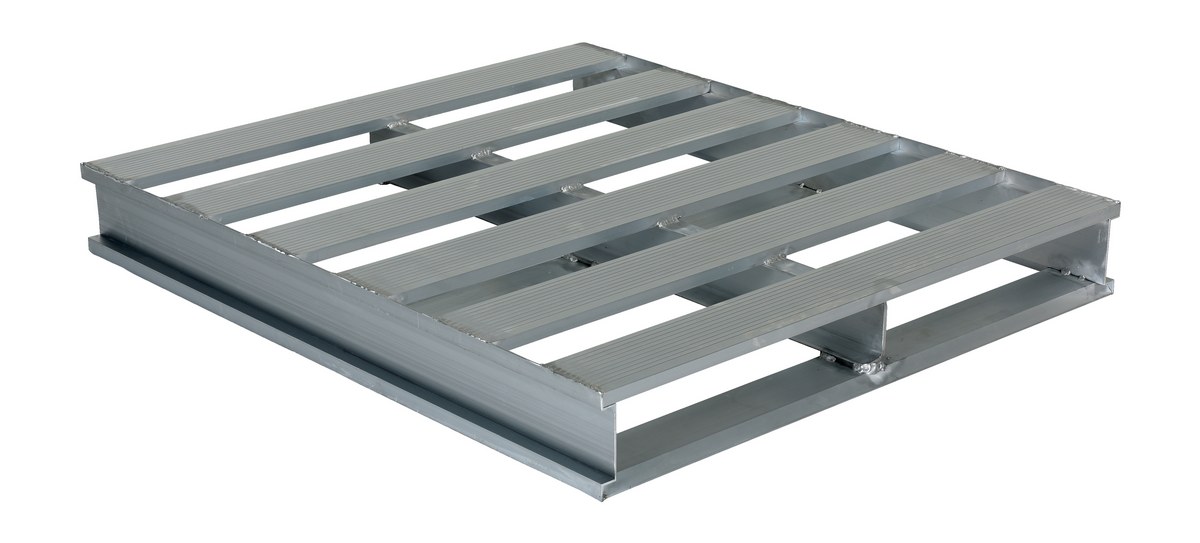

| AP-4248 |
 | 90 Days Limited Warranty | Aluminum Heavy Duty Pallet 48 In. x 42-1/8 In. x 6 In. 6000 Lb. Capacity Silver | Top Board Width (in.): 4-3/4 Fork Opening Width (in.): 19-5/16 | 86 | ||
| AP-4248-4W |
| 90 Days Limited Warranty | Aluminum Four Way Entry Heavy Duty Pallet 47-7/8 In. x 42 In. x 5-1/16 In. 6000 Lb. Capacity Silver | Top Board Width (in.): 4-3/4 Fork Opening Widths (in.): 19-5/8, 16-5/8 | 87 | ||

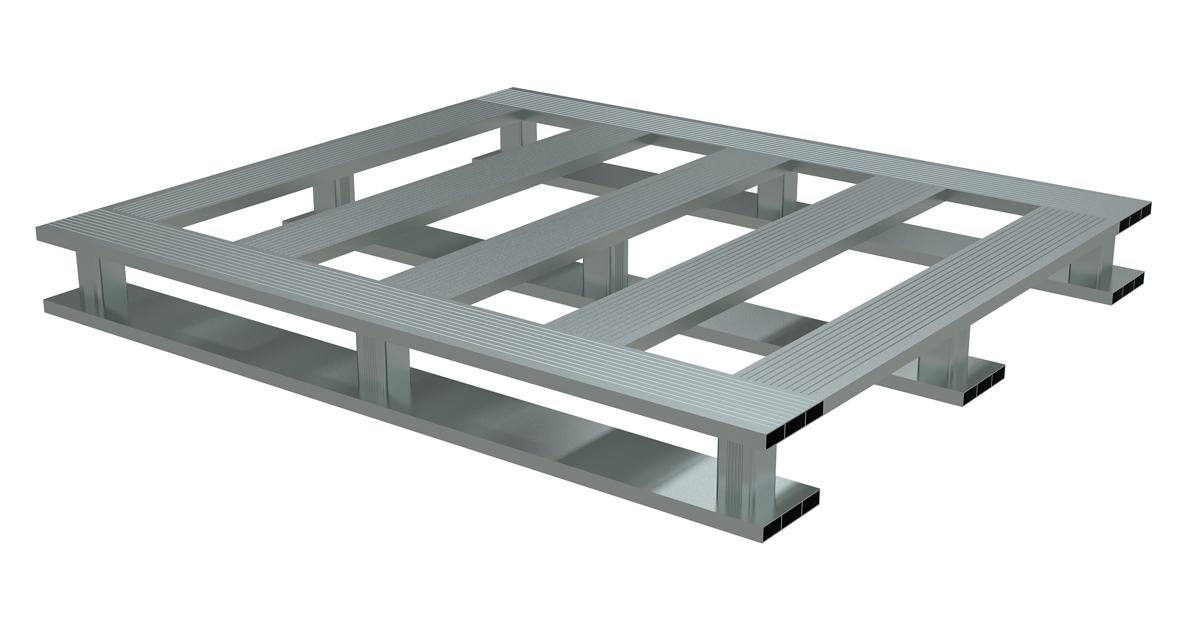

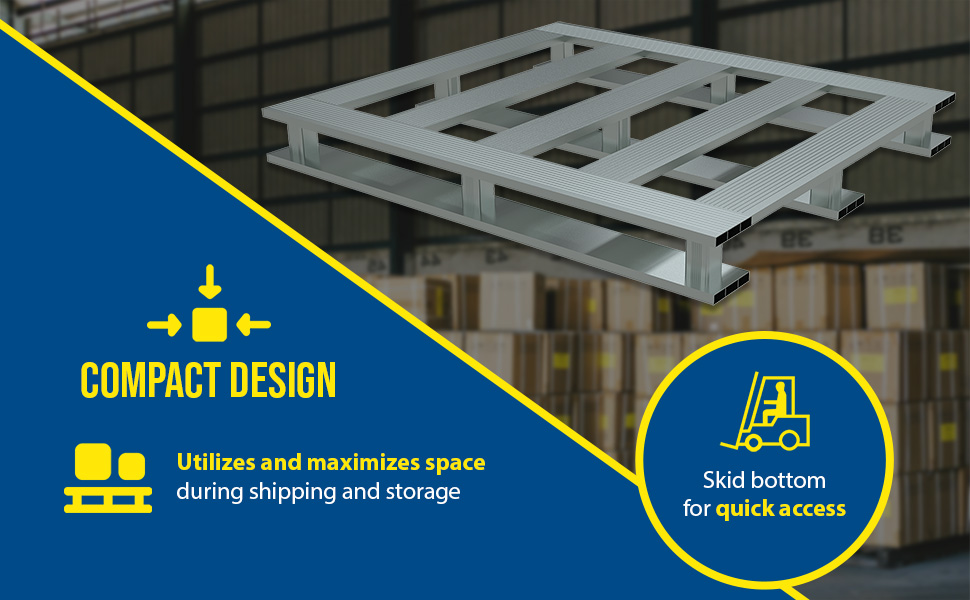

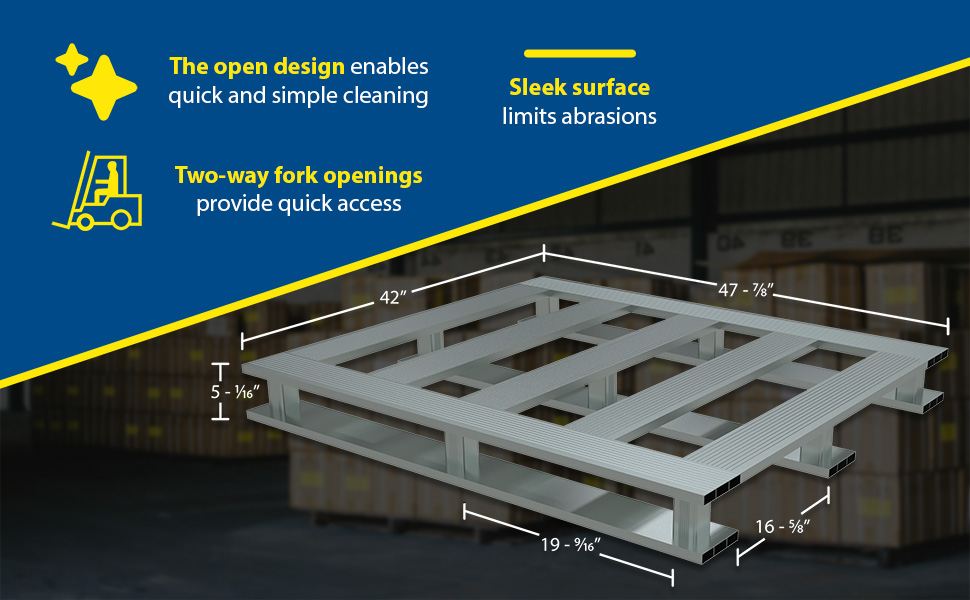

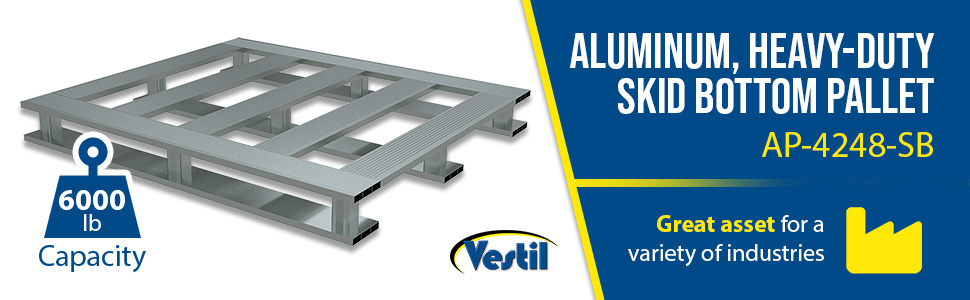

| AP-4248-SB |
 | 90 Days Limited Warranty | Aluminum Skid Bottom Pallet 47-7/8 In. x 42 In. x 5-1/16 In. 6000 Lb. Capacity Silver | Top Board Width (in.): 4-3/4 Fork Opening Widths (in.): 19-9/16, 15-5/8 | 87 | ||

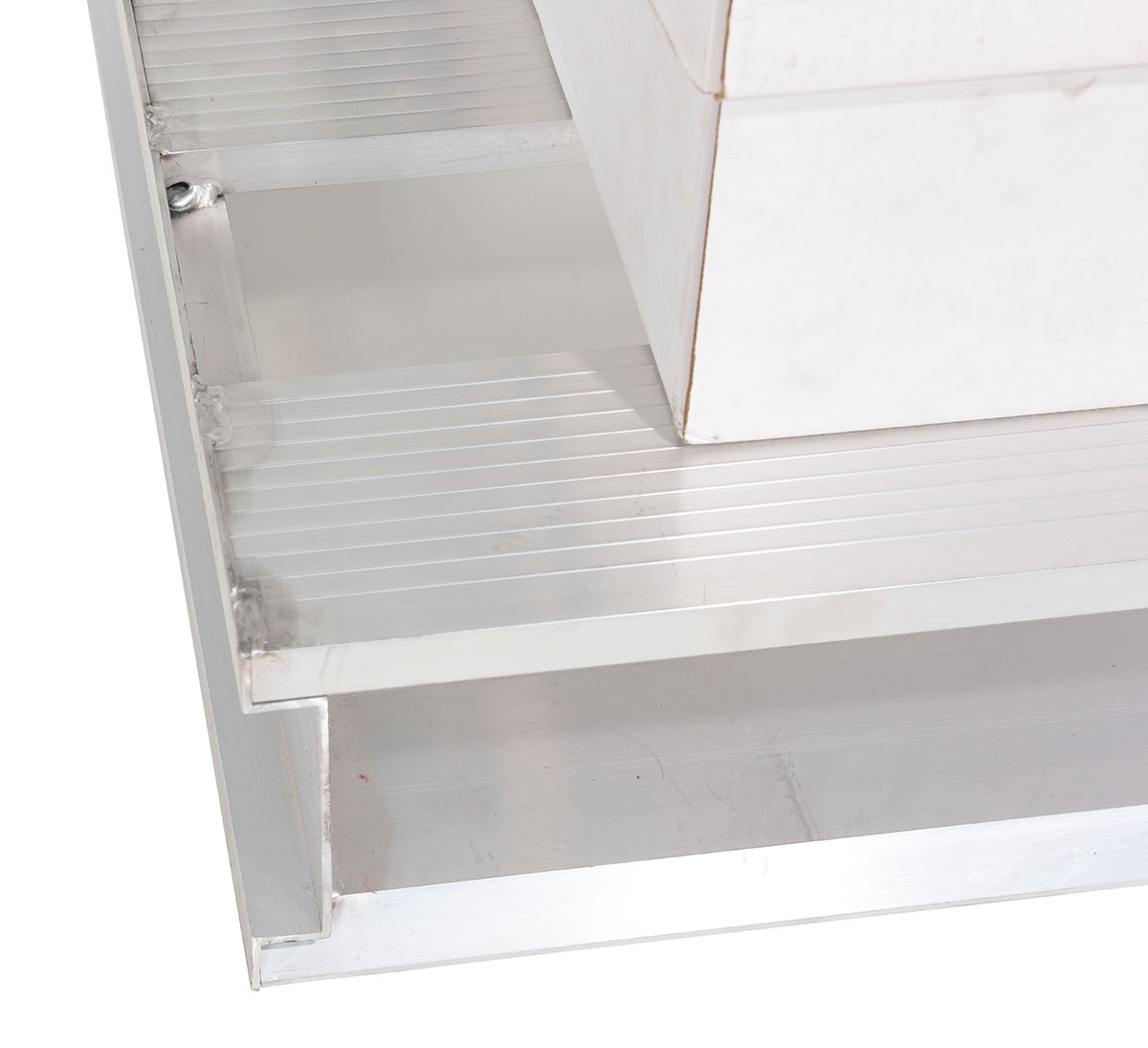

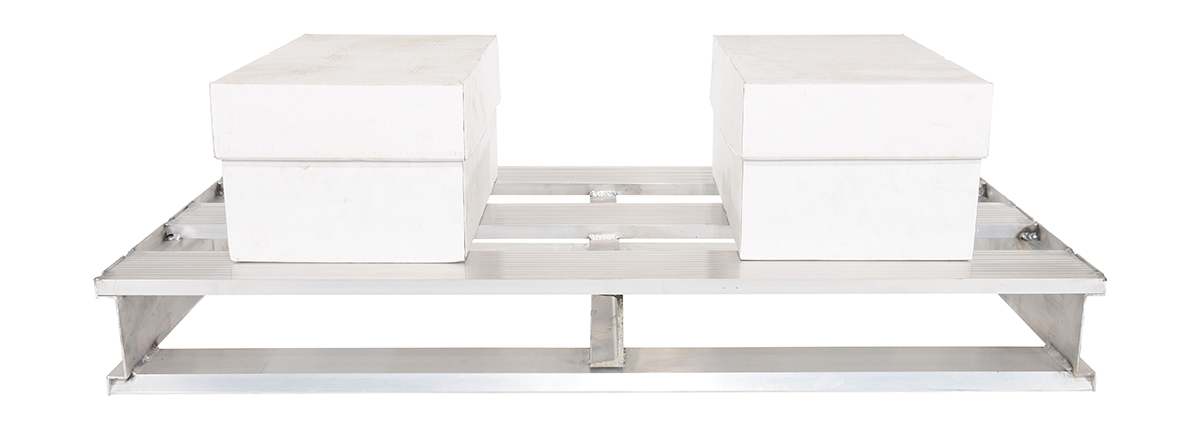

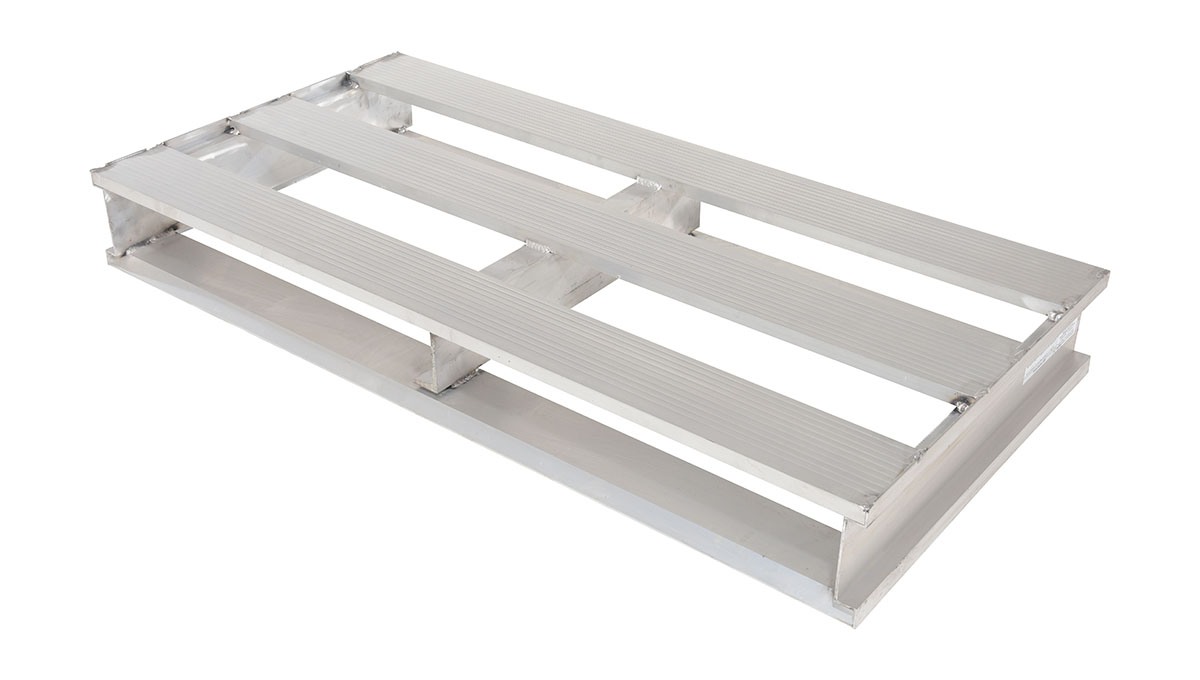

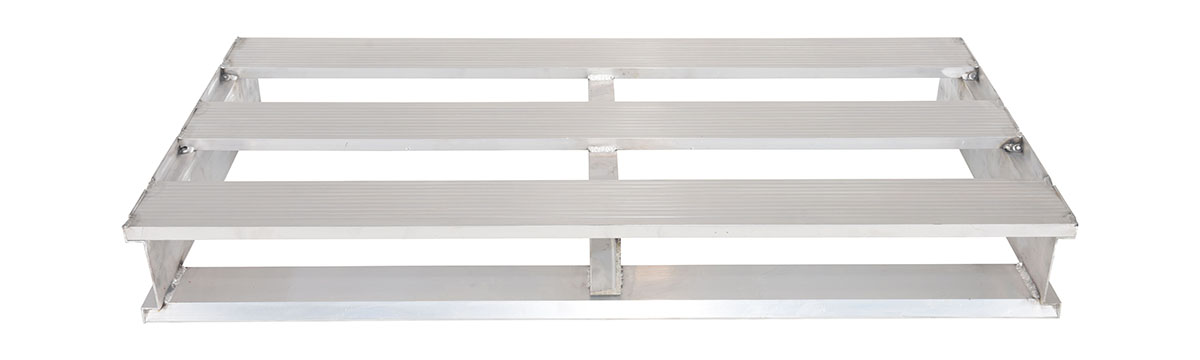

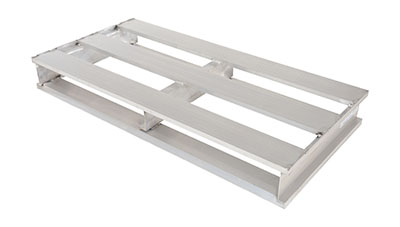

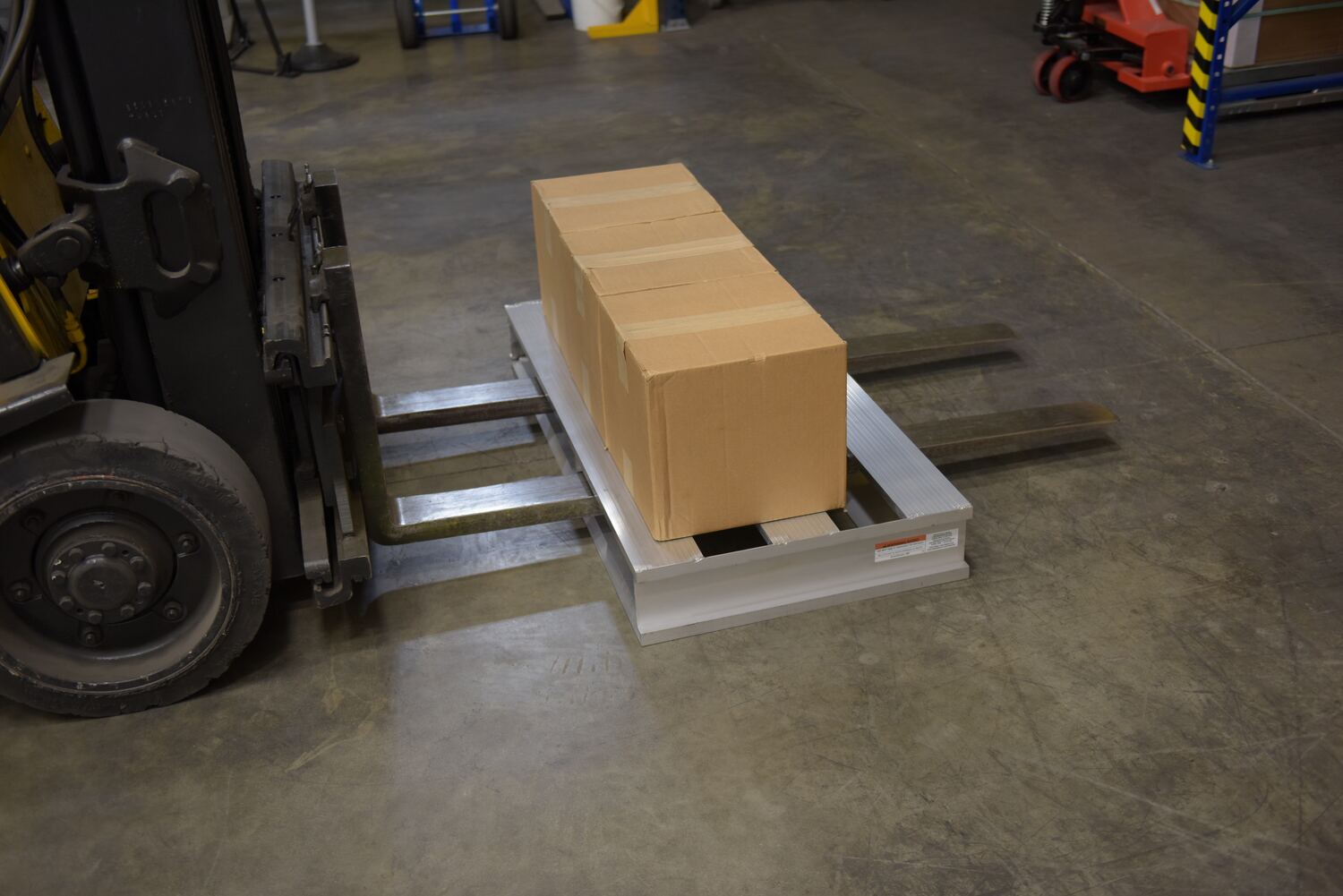

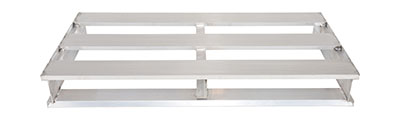

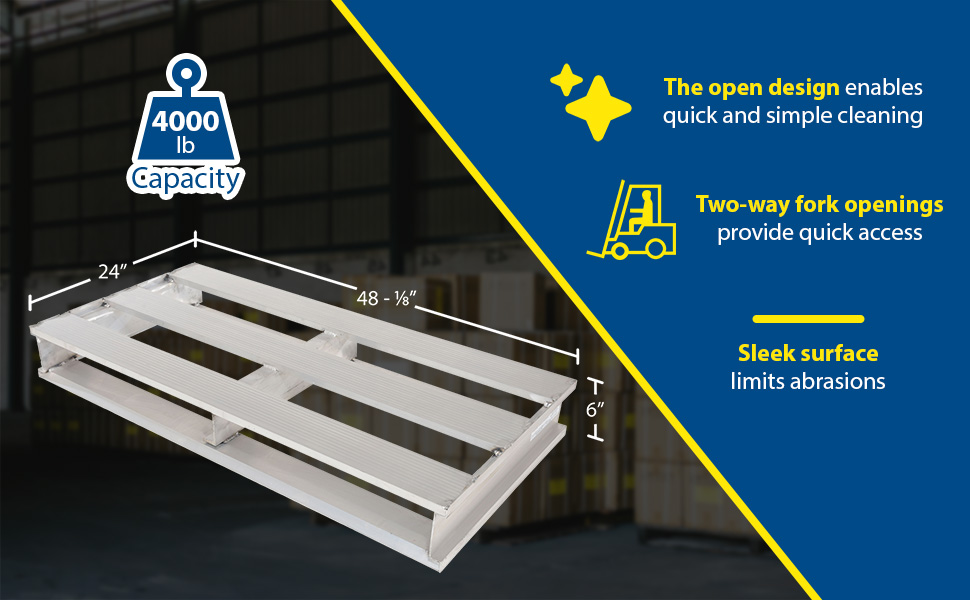

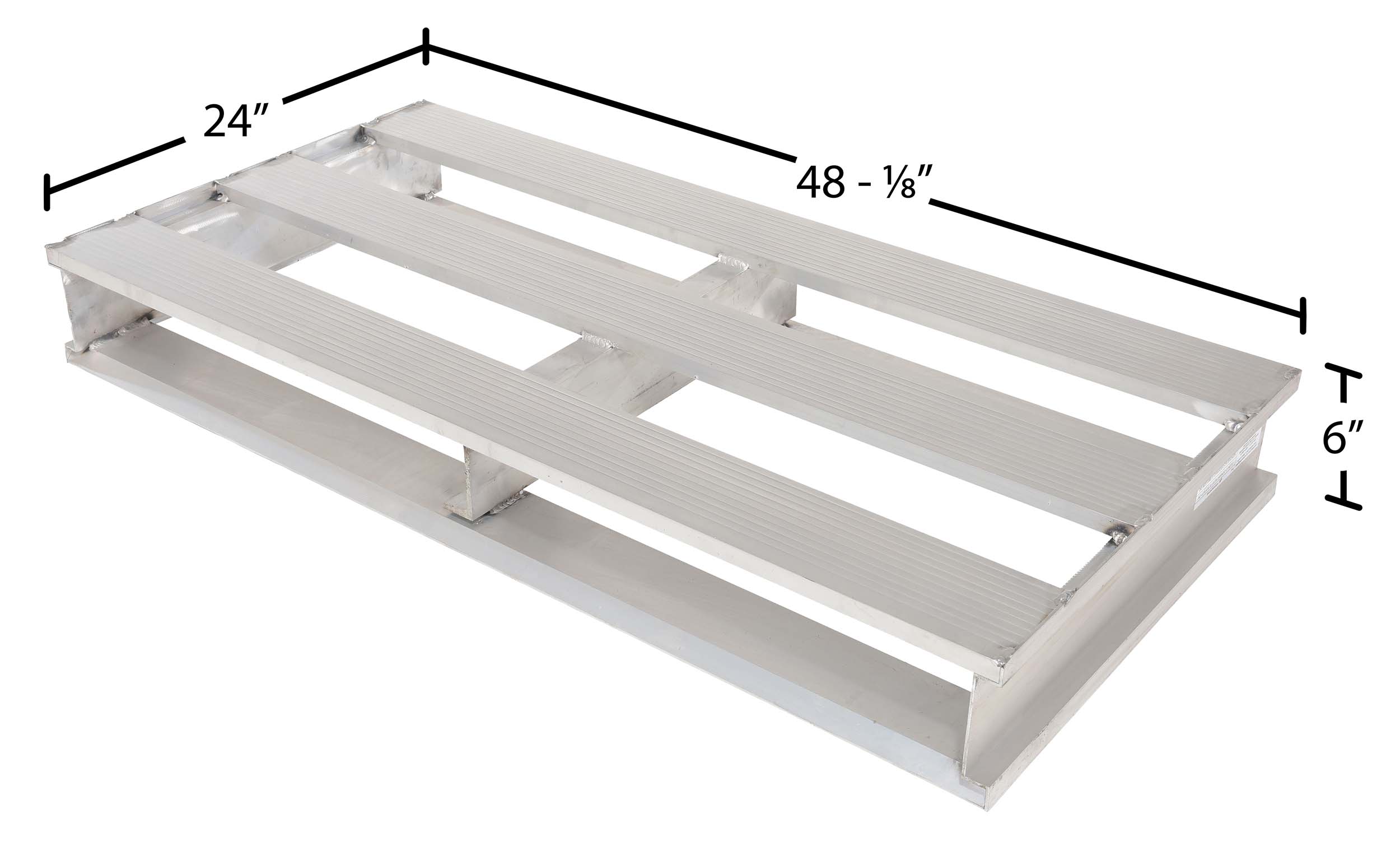

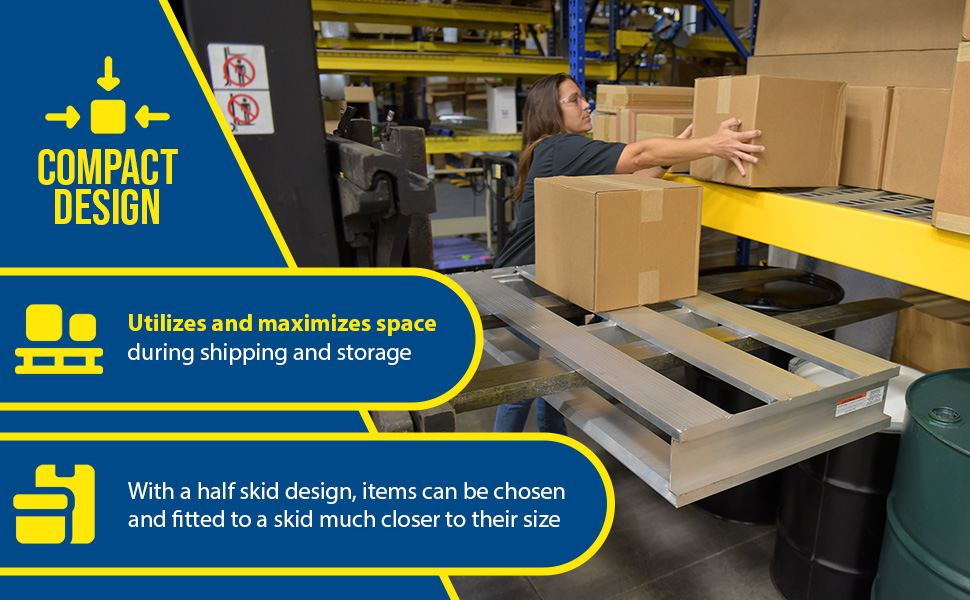

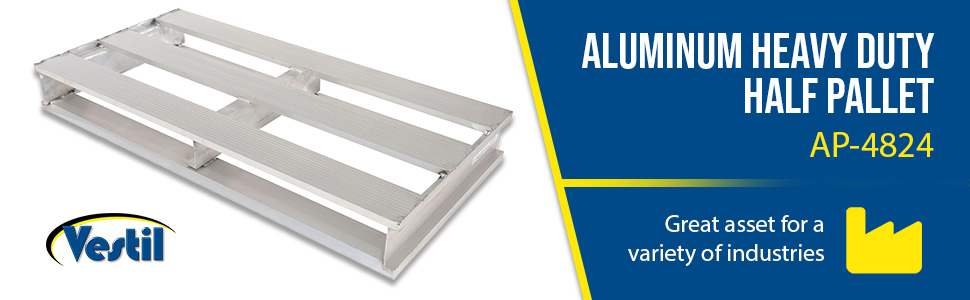

| AP-4824 |
 | 90 Days Limited Warranty | Aluminum Heavy Duty Pallet 24 In. x 48 In. x 6 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 22.5625 | 26 | ||
| AP-4824-4W |
| 90 Days Limited Warranty | Aluminum Four Way Entry Heavy Duty Pallet 24 In. x 48 In. x 5-1/16 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 19.5625 | 24 | ||

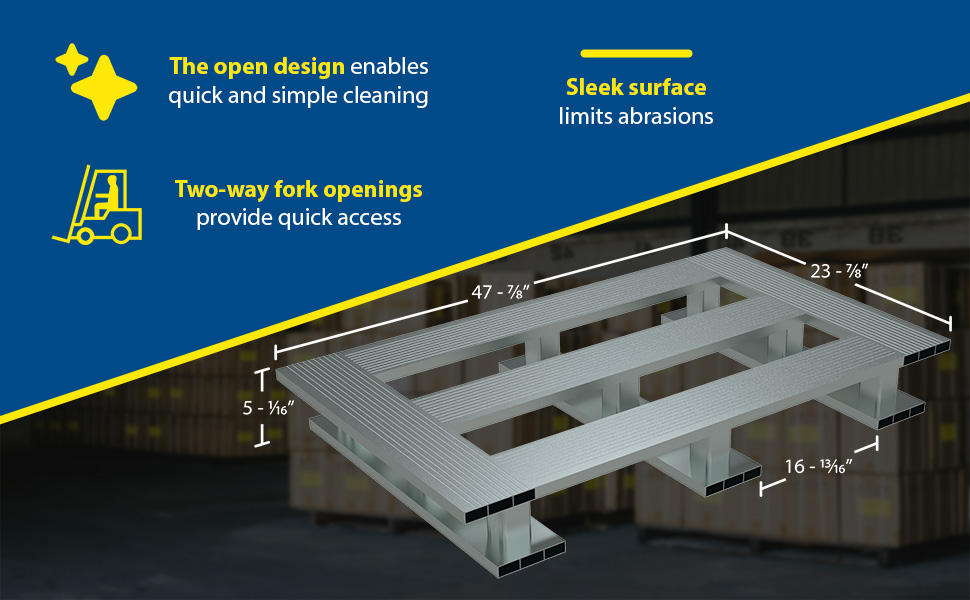

| AP-4824-SB |
 | 90 Days Limited Warranty | Aluminum Skid Bottom Pallet 24 In. x 48 In. x 5-1/16 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 19.5625 | 23 | ||

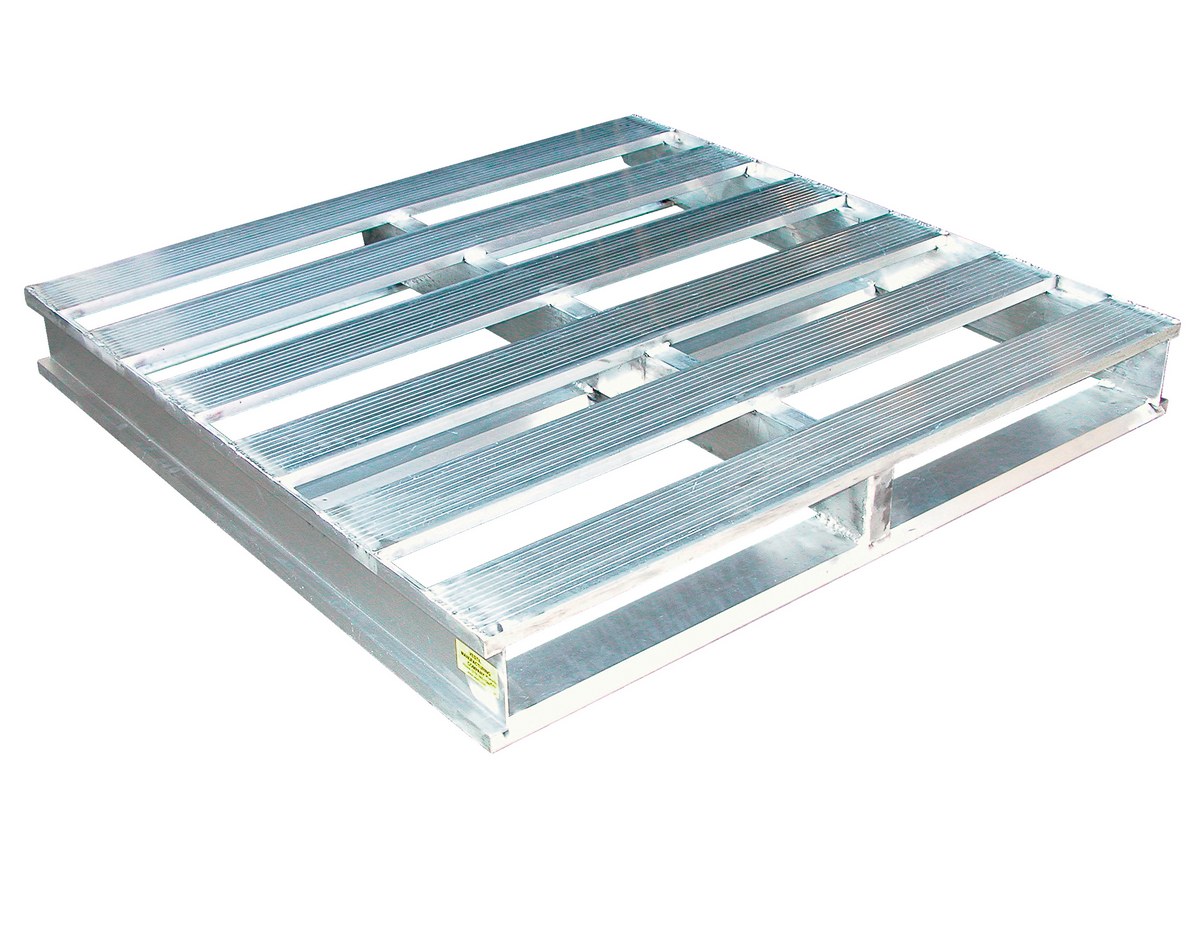

| AP-4848 |
 | 90 Days Limited Warranty | Aluminum Heavy Duty Pallet 48 In. x 48-1/8 In. x 6 In. 6000 Lb. Capacity Silver | Top Board Width (in.): 4-3/4 Fork Opening Width (in.): 22-5/16 | 89 | ||
| AP-4848-4W |
 | 90 Days Limited Warranty | Aluminum Four Way Entry Heavy Duty Pallet 47-7/8 In. x 47-7/8 In. x 5-1/16 In. 6000 Lb. Capacity Silver | Top Board Width (in.): 4-3/4 Fork Opening Widths (in.): 19-5/8, 19-5/8 | 90 | ||

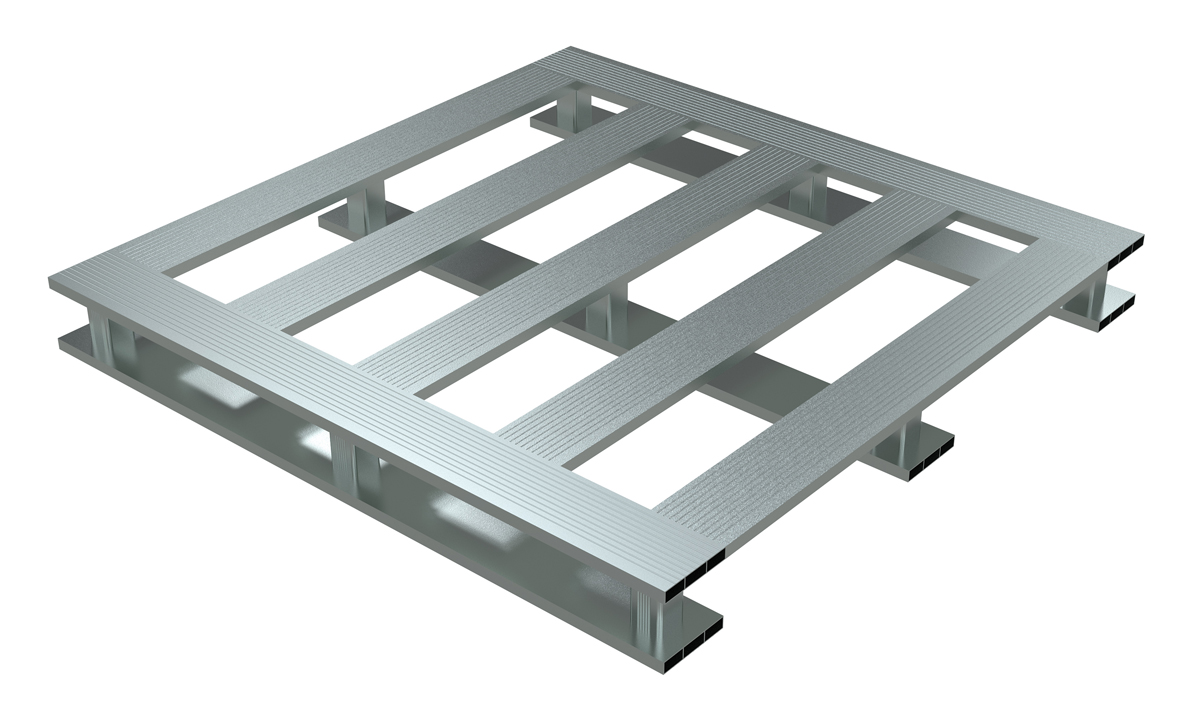

| AP-4848-SB |
 | 90 Days Limited Warranty | Aluminum Skid Bottom Pallet 47-7/8 In. x 47-7/8 In. x 5-1/16 In. 6000 Lb. Capacity Silver | Top Board Width (in.): 4-3/4 Fork Opening Widths (in.): 19-9/16, 19-9/16 | 89 | ||

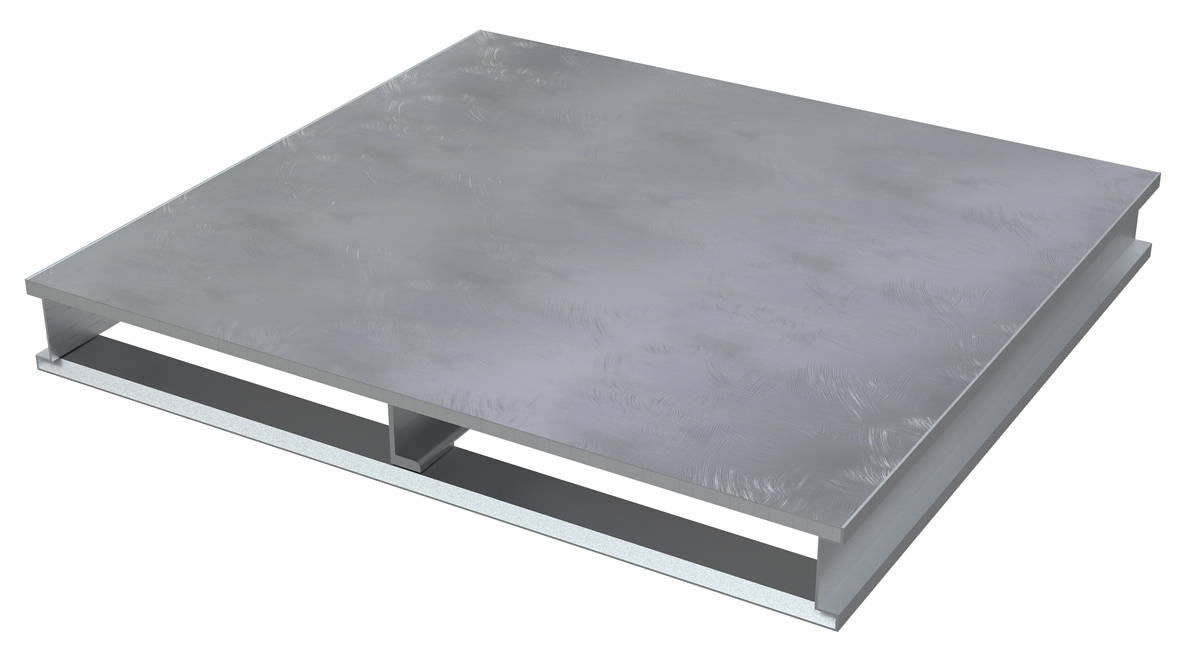

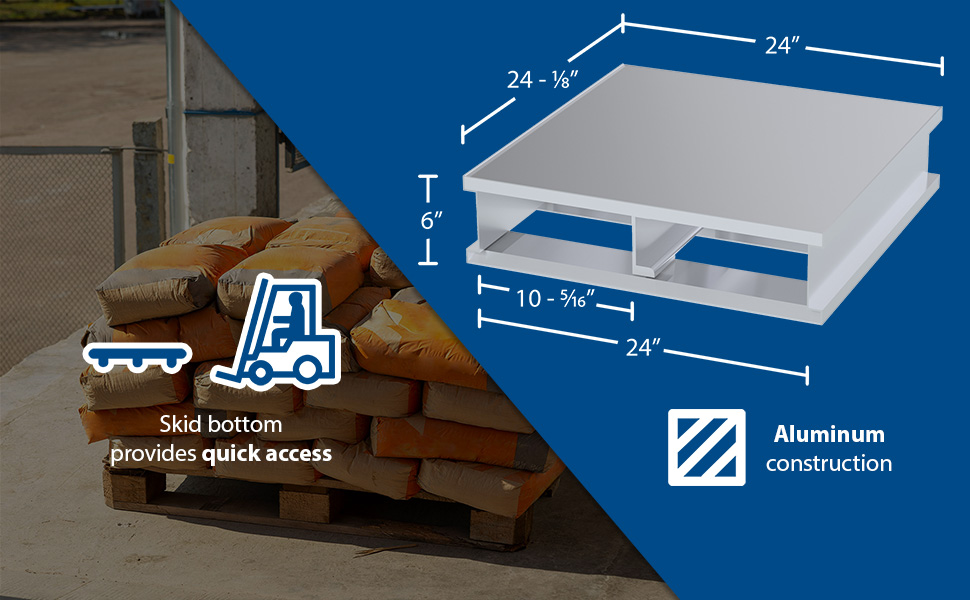

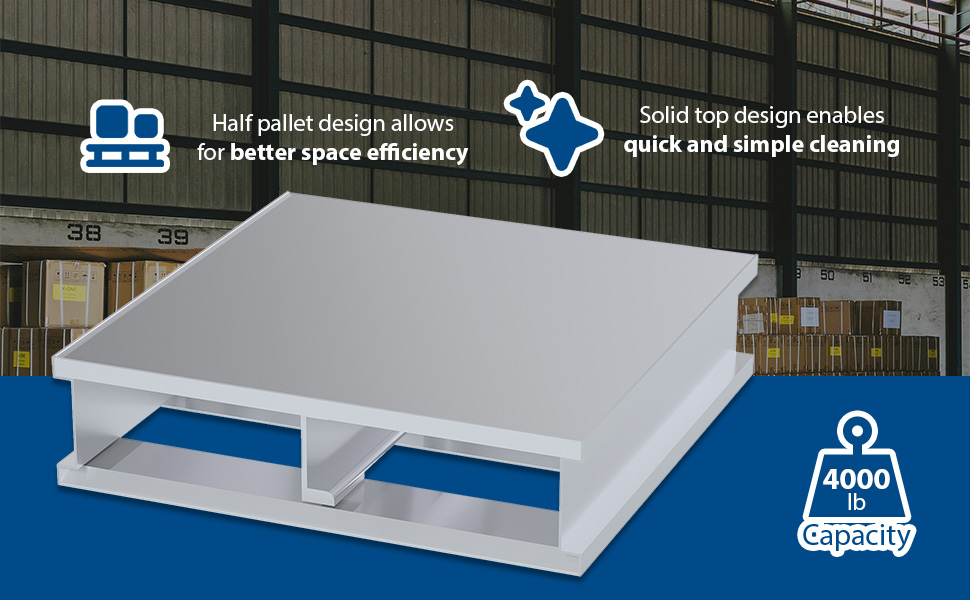

| AP-ST-2424 |
| 90 Days Limited Warranty | Aluminum Heavy Duty Solid Top Half Pallet 24 In. x 24 In. x 6 In. 4000 Lb. Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 22.5625 | 18 | ||
| AP-ST-2424-4W |
 | 90 Days Limited Warranty | Aluminum Four Way Entry Half Pallet Solid Top 24 In. x 24 In. x 5-1/16 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 19.5625 | 18 | ||

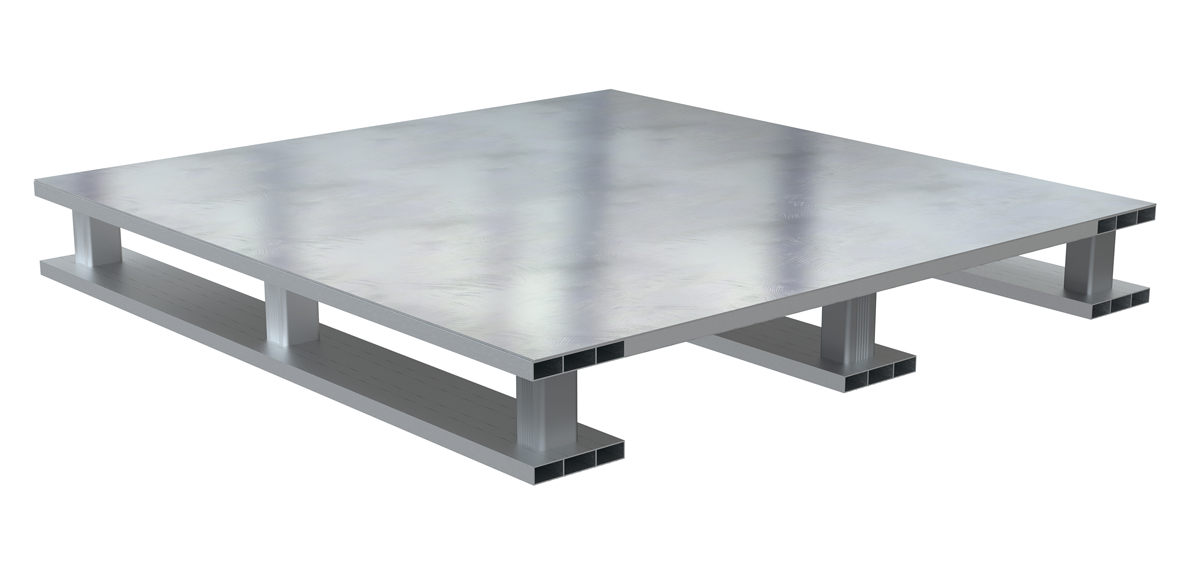

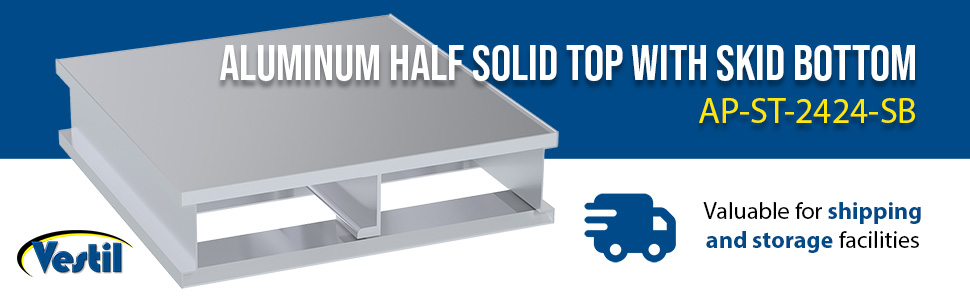

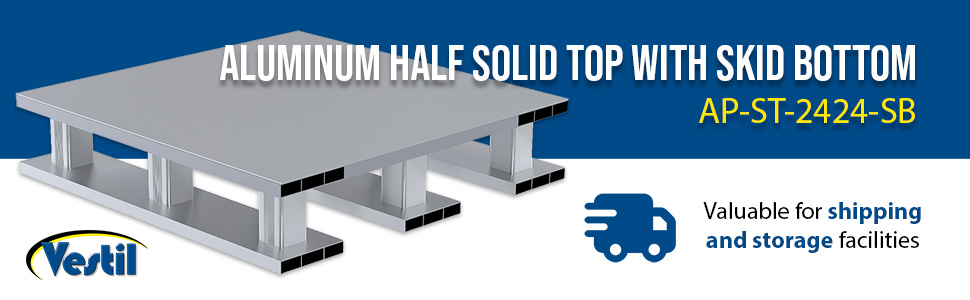

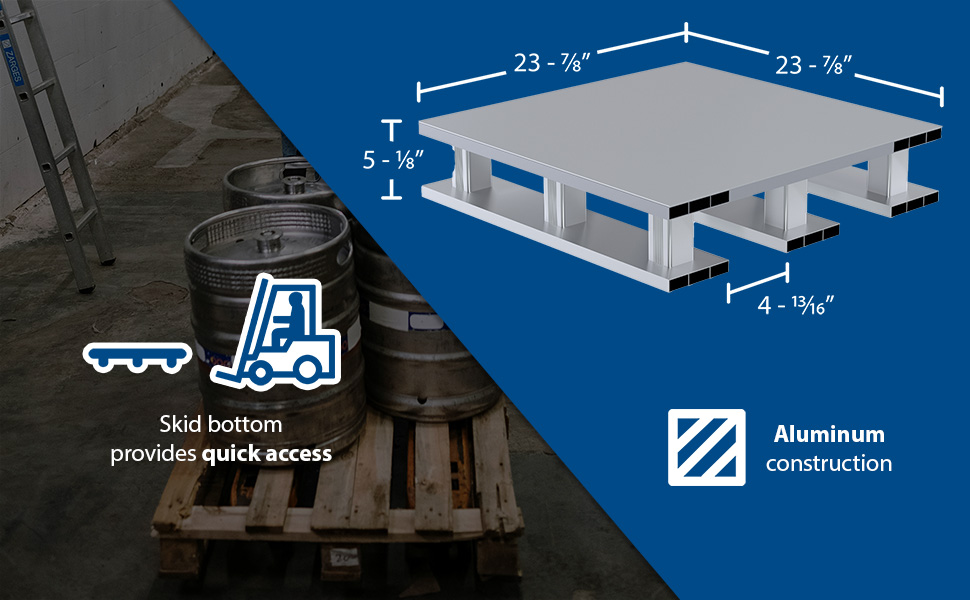

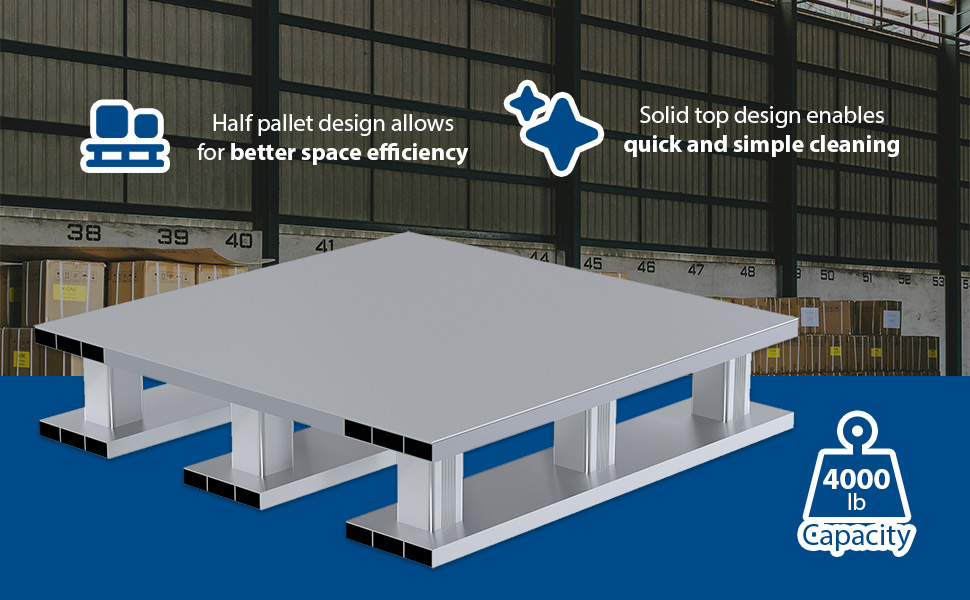

| AP-ST-2424-SB |
| 90 Days Limited Warranty | Aluminum Half Solid Top with Skid Bottom 24 In. x 24 In. x 5-1/16 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 19.5625 | 17 | ||

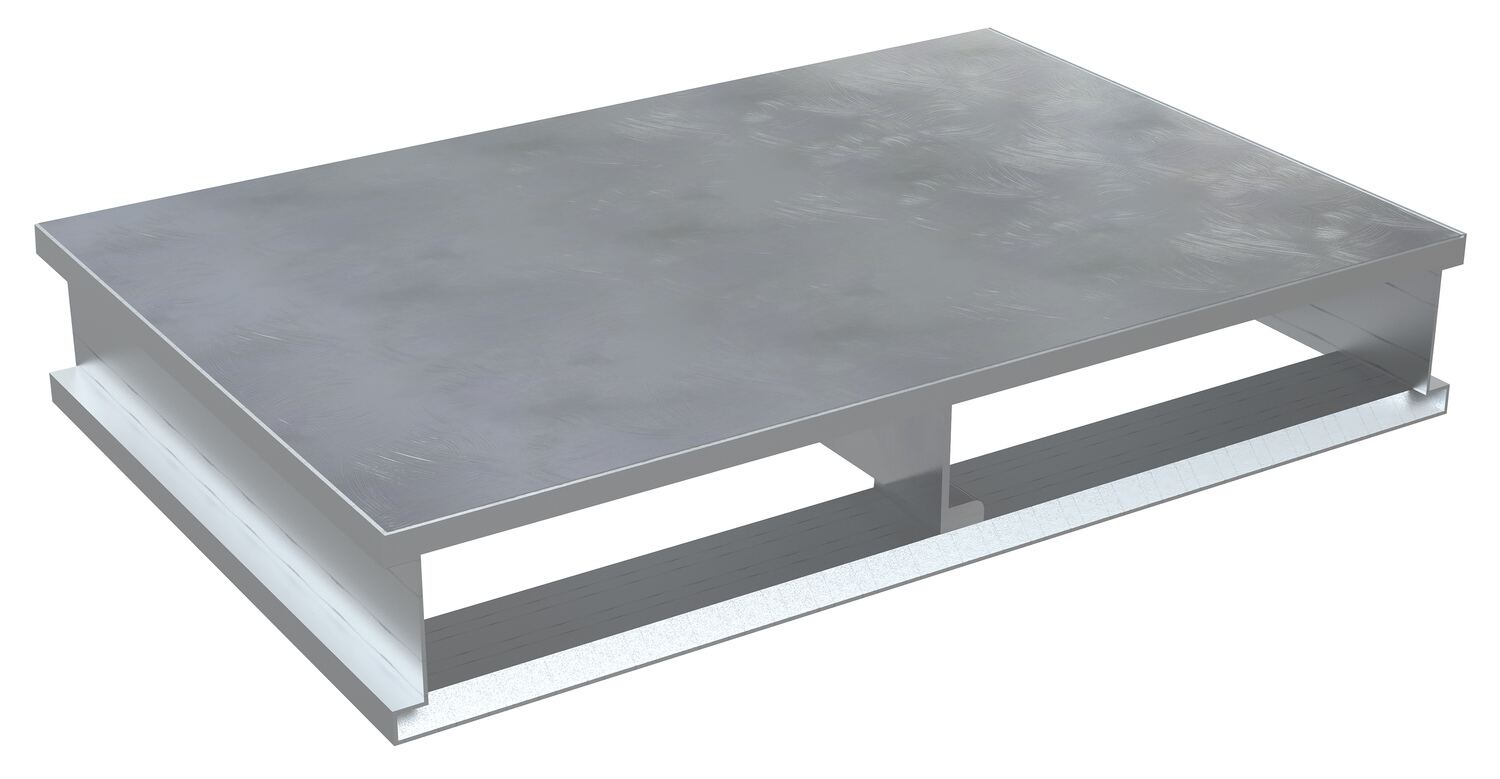

| AP-ST-3624 |
 | 90 Days Limited Warranty | Aluminum Heavy Duty Solid Top Pallet 36 In. x 24 In. x 6 In. 4000 Lb. Silver | Uniform Capacity: 4000 Fork Pocket Width (in.): 16-5/16 | 26 | ||
| AP-ST-3624-4W |
 | 90 Days Limited Warranty | Aluminum Solid Top 4 Way Pallet 36 In. x 24 In. x 6 In. 4000 Lb. Silver | Uniform Capacity (lbs.): 4,000 Fork Pocket Width (in.): 7-9/16 & 13-9/16 | 26 | ||

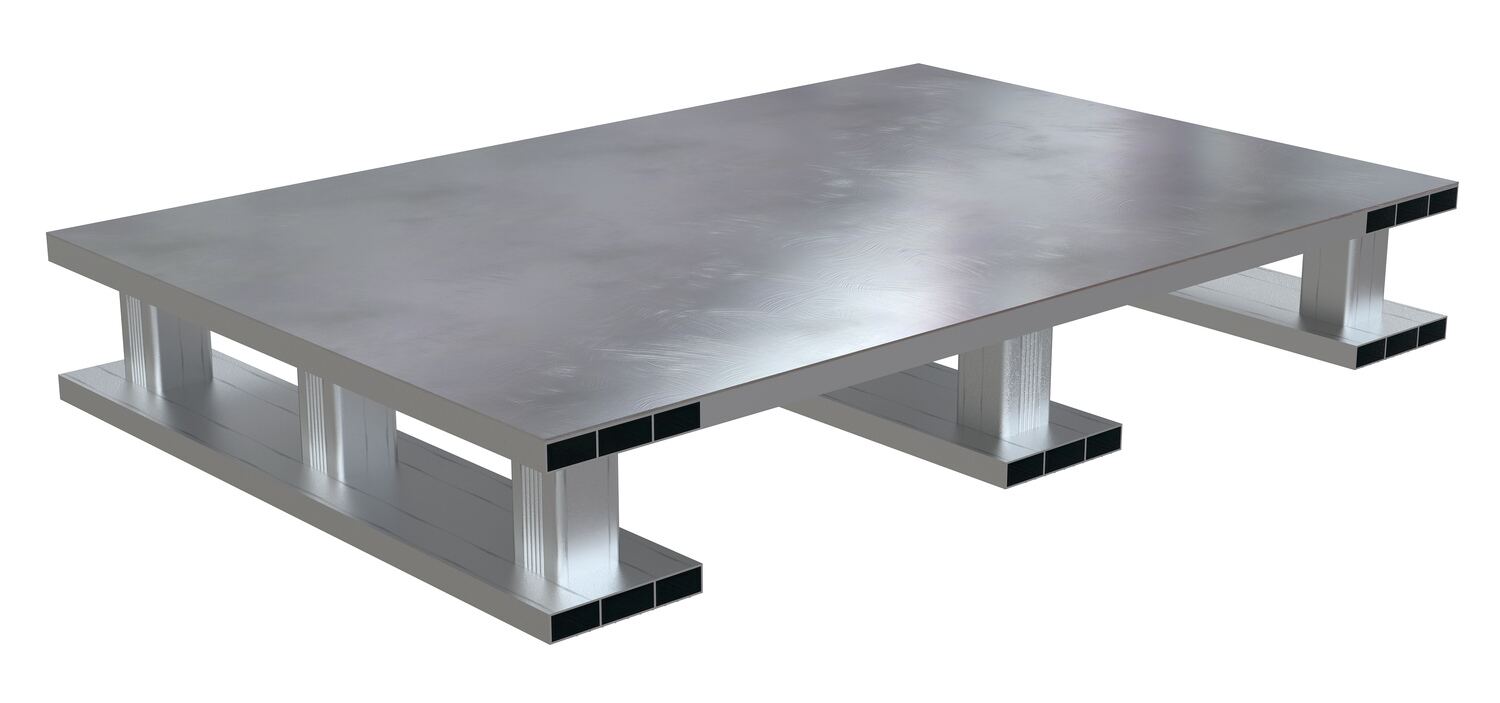

| AP-ST-3624-SB |
 | 90 Days Limited Warranty | Aluminum Solid Top Skid Bottom Pallet 36 In. x 24 In. x 6 In. 4000 Lb. Silver | Uniform Capacity (lbs.): 4,000 Fork Pocket Width (in.): 10-13/16 | 24 | ||

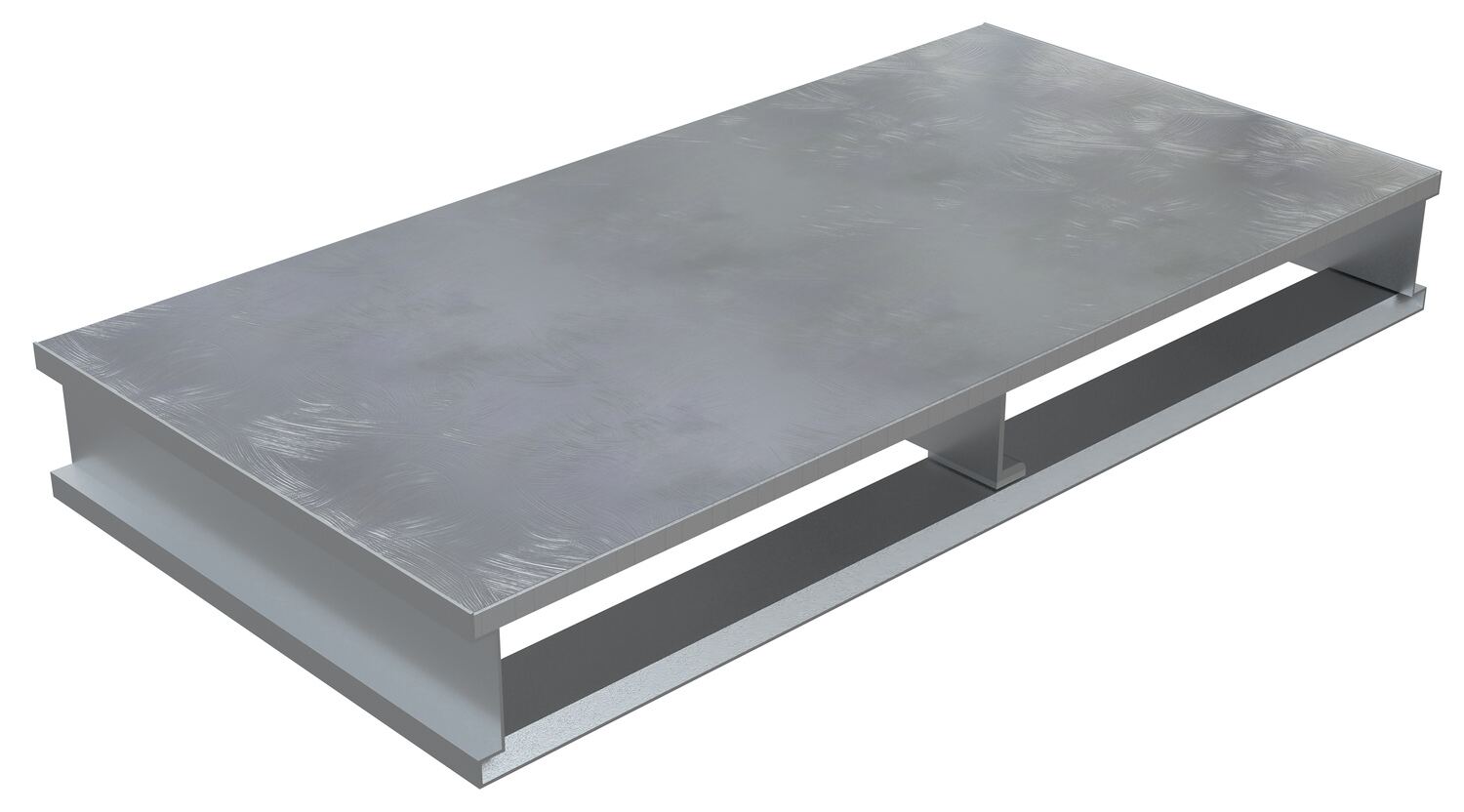

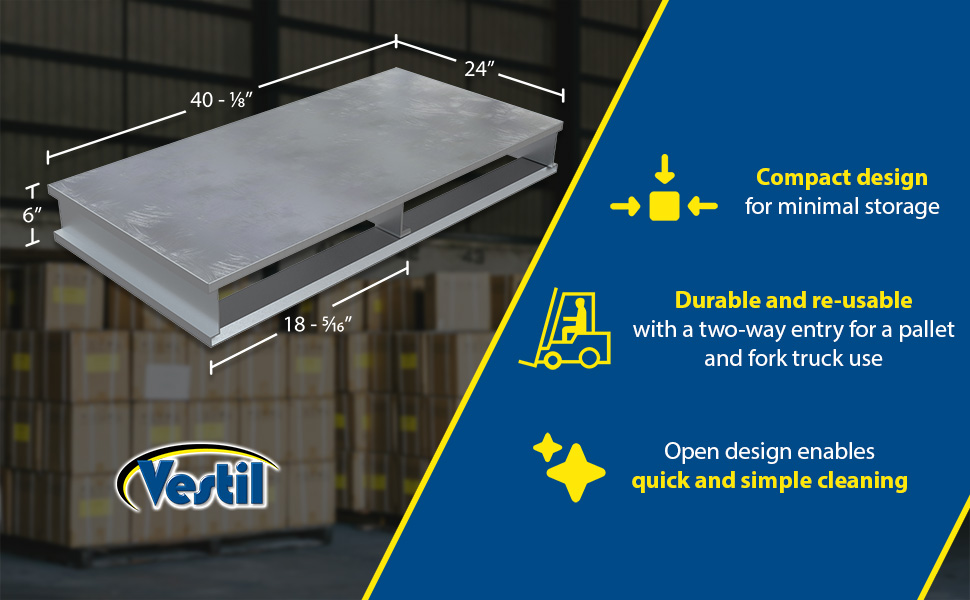

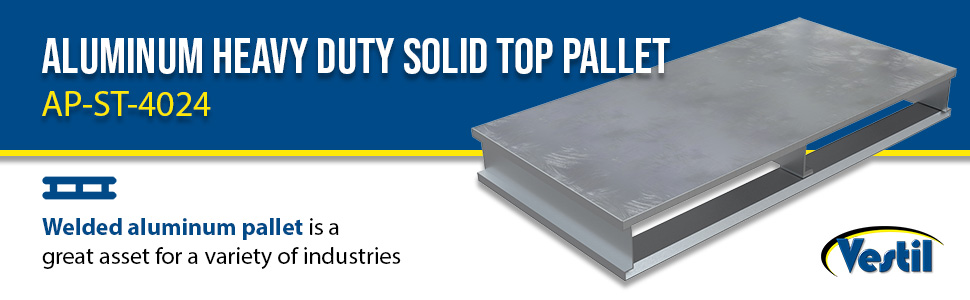

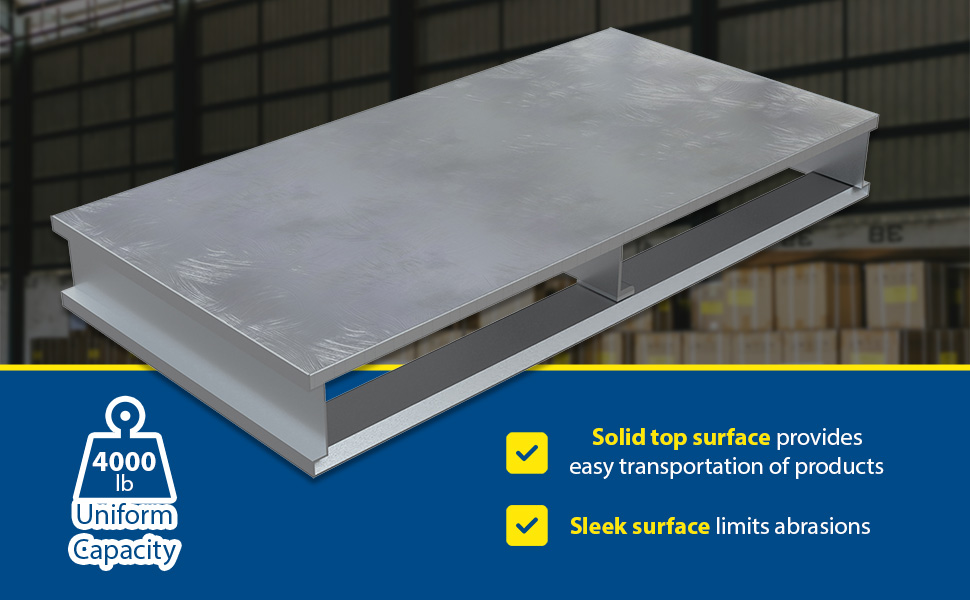

| AP-ST-4024 |
| 90 Days Limited Warranty | Aluminum Heavy Duty Solid Top Half Pallet 24 In. x 40 In. x 6 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 18.312 | 33 | ||
| AP-ST-4024-4W |
 | 90 Days Limited Warranty | Aluminum Four Way Entry Half Pallet Solid Top 24 In. x 40 In. x 5-1/16 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 15.5625 | 30 | ||

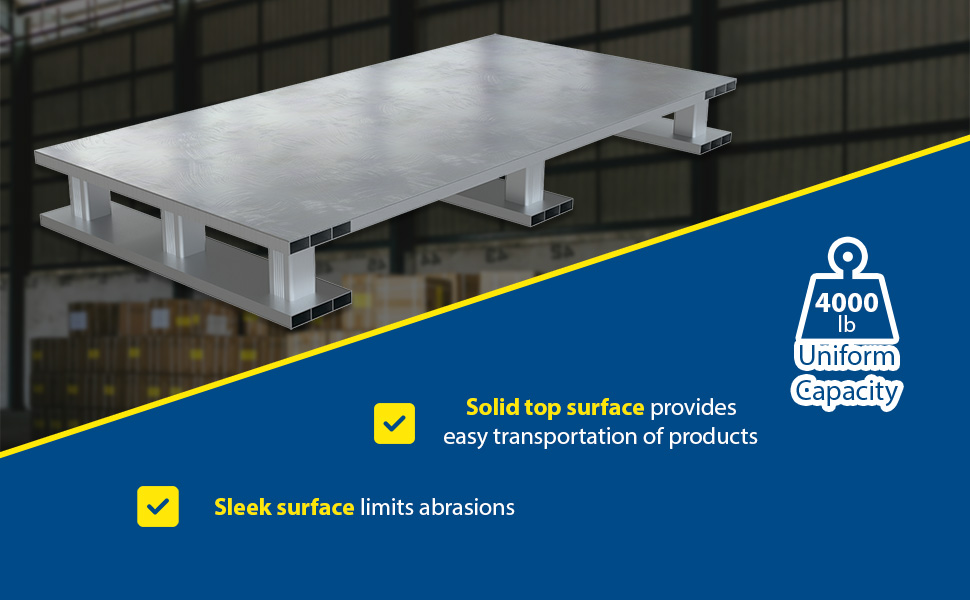

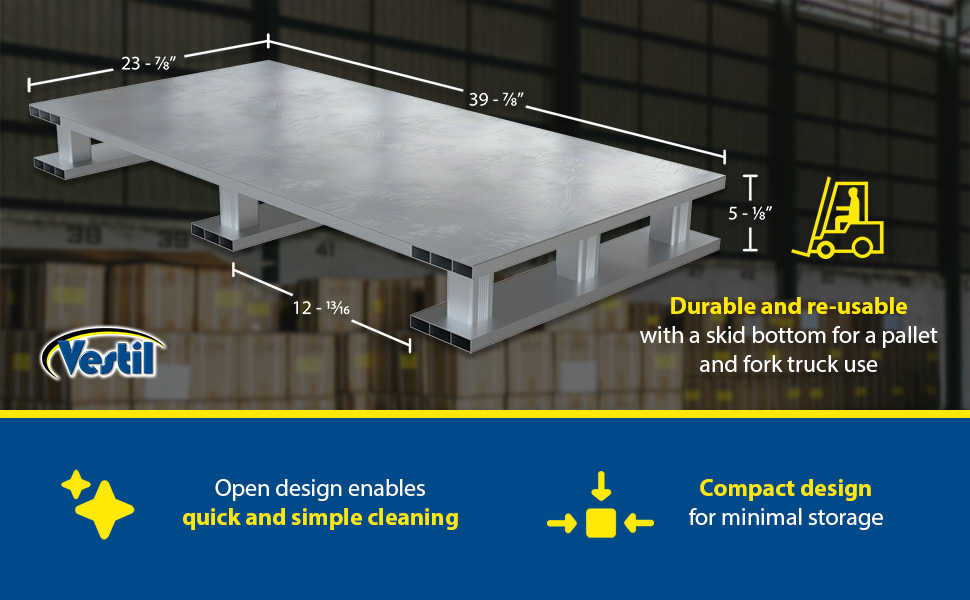

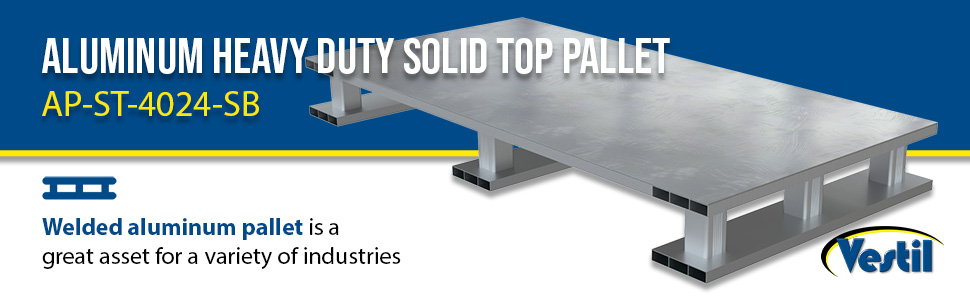

| AP-ST-4024-SB |
 | 90 Days Limited Warranty | Aluminum Half Solid Top with Skid Bottom 24 In. x 40 In. x 5-1/16 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 15.625 | 28 | ||

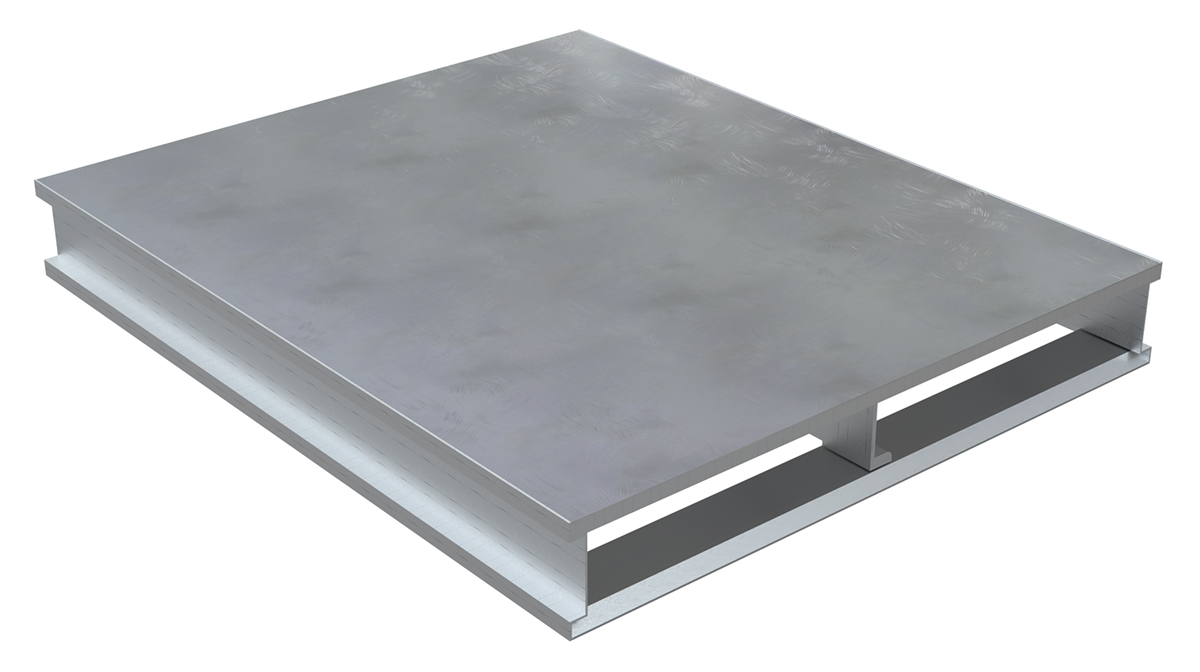

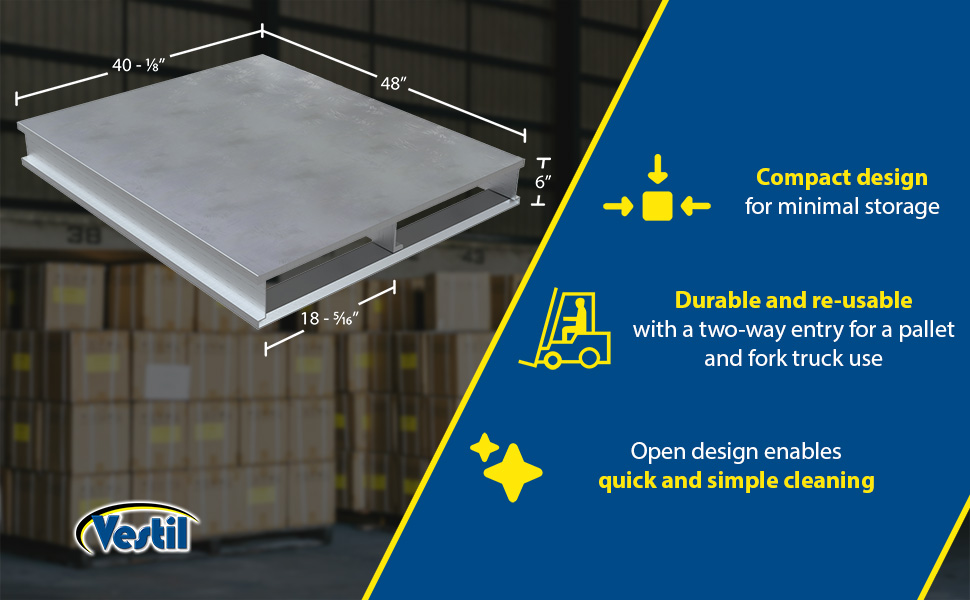

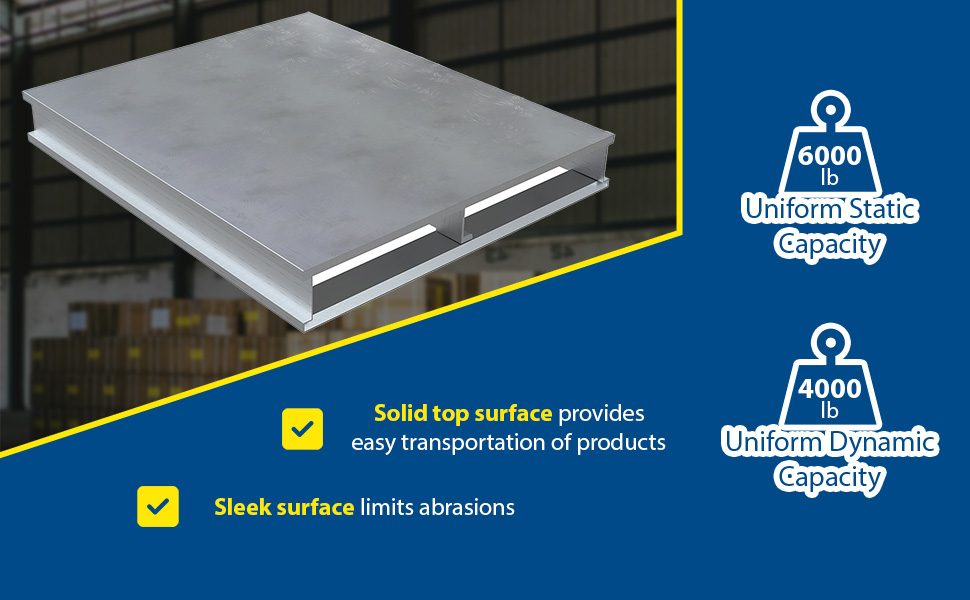

| AP-ST-4048 |
 | 90 Days Limited Warranty | Aluminum Heavy Duty Solid Top Pallet 48 In. x 40-1/8 In. x 6 In. 6000 Lb. Capacity Silver | Entry: 2-Way Fork Opening Width (in.): 18-5/16 | 113 | ||
| AP-ST-4048-4W |
 | 90 Days Limited Warranty | Aluminum Four Way Entry Pallet Solid Top 47-7/8 In. x 40 In. x 5-1/16 In. 6000 Lb. Capacity Silver | Uniform Floor (static) Capacity (lb.): 6000 Uniform Fork (dynamic) Capacity (lb.): 4000 | 114 | ||

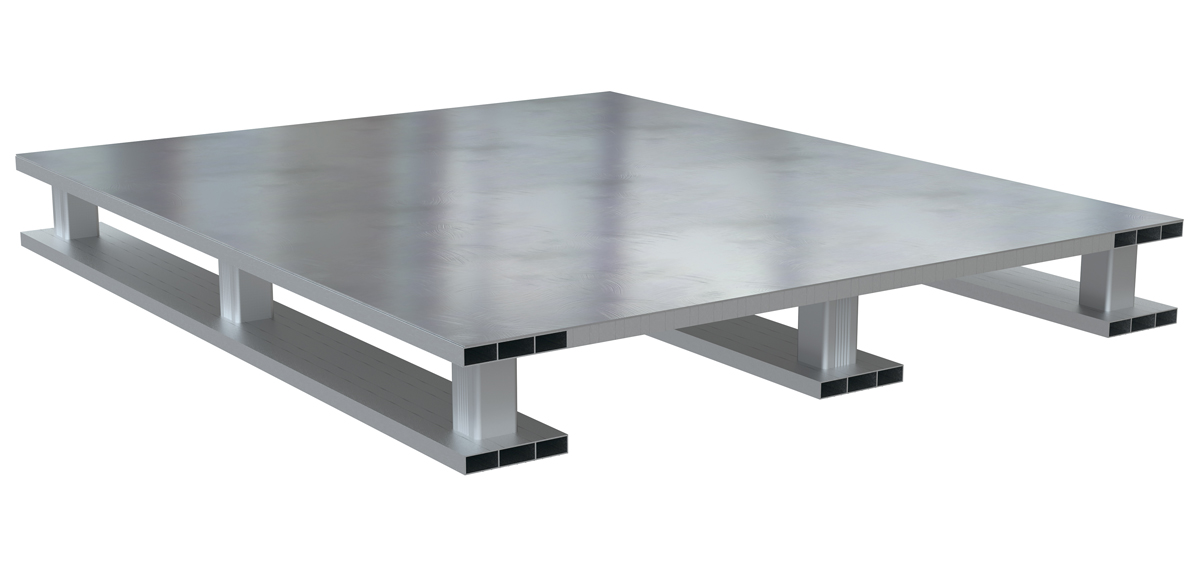

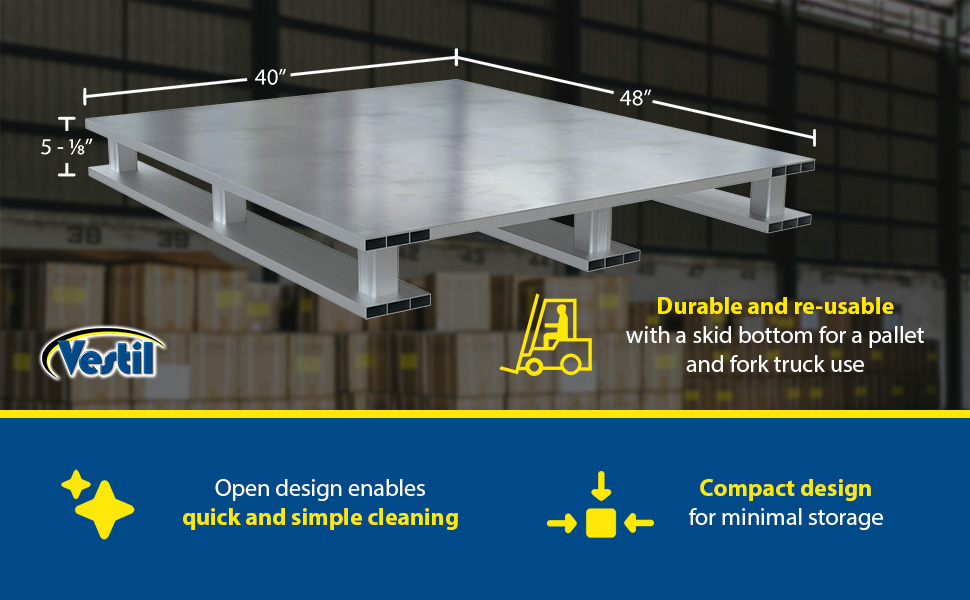

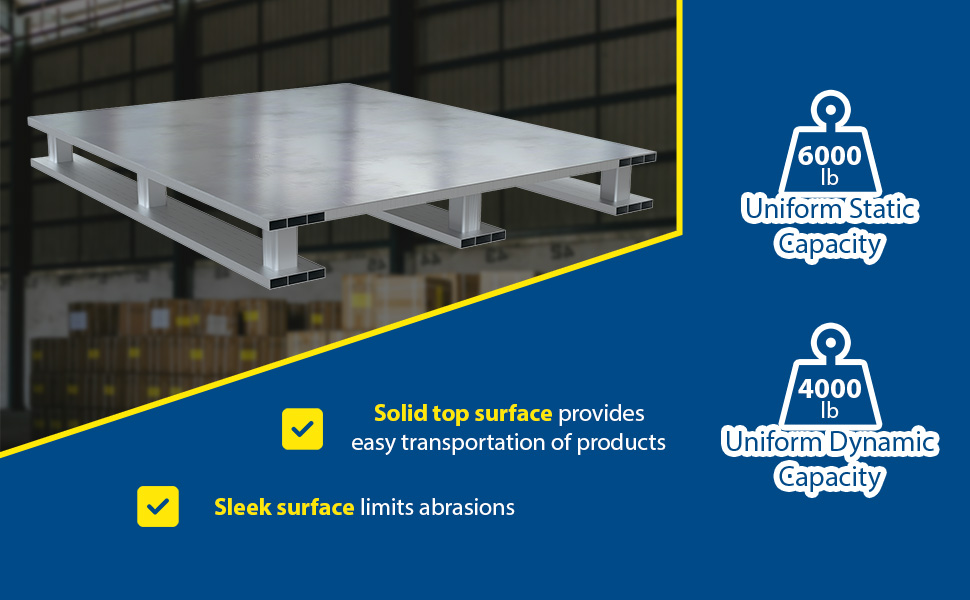

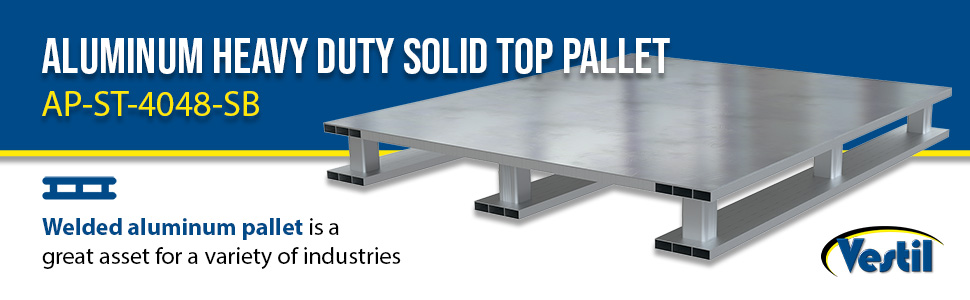

| AP-ST-4048-SB |
 | 90 Days Limited Warranty | Aluminum Solid Top with Skid Bottom 47-7/8 In. x 40 In. x 5-1/16 In. 6000 Lb. Capacity Silver | Entry: Skid Bottom Fork Opening Widths (in.): 19-9/16, 15-5/8 | 113 | ||

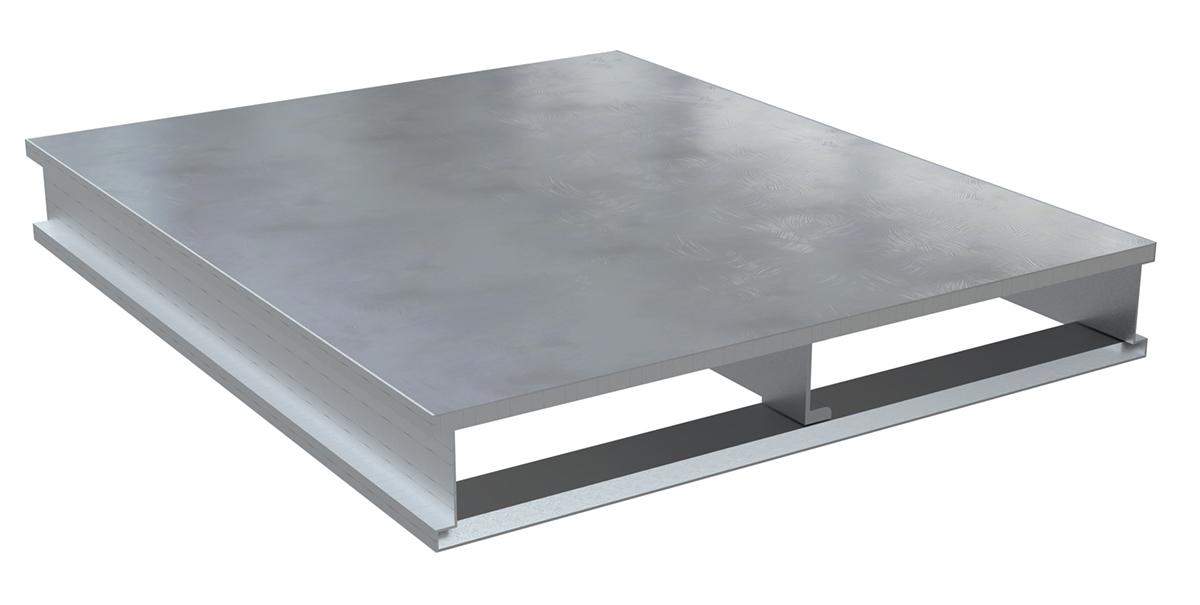

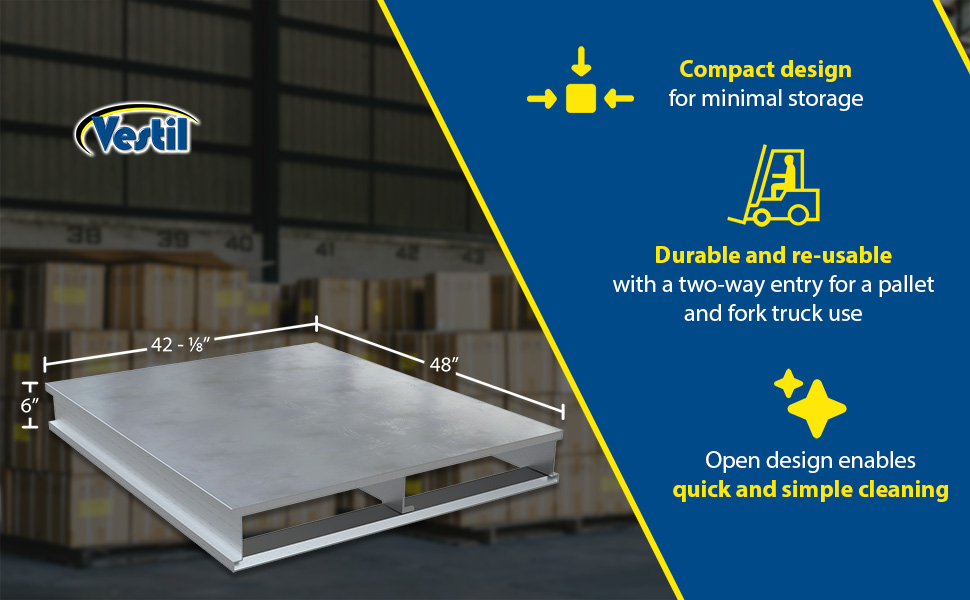

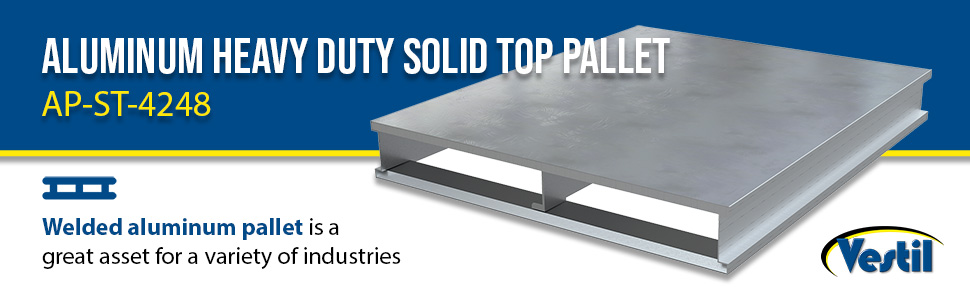

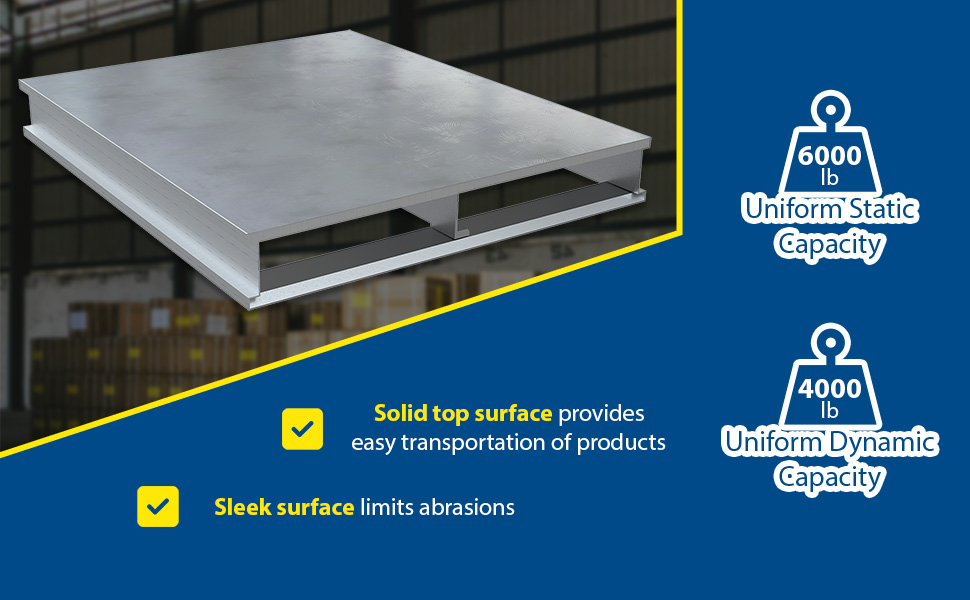

| AP-ST-4248 |
| 90 Days Limited Warranty | Aluminum Heavy Duty Solid Top Pallet 48 In. x 42-1/8 In. x 6 In. 6000 Lb. Capacity Silver | Entry: 2-Way Fork Opening Width (in.): 19-5/16 | 114 | ||
| AP-ST-4248-4W |
 | 90 Days Limited Warranty | Aluminum Four Way Entry Pallet Solid Top 47-7/8 In. x 42 In. x 5-1/16 In. 6000 Lb. Capacity Silver | Entry: 4-Way Fork Opening Widths (in.): 19-5/8, 16-5/8 | 115 | ||

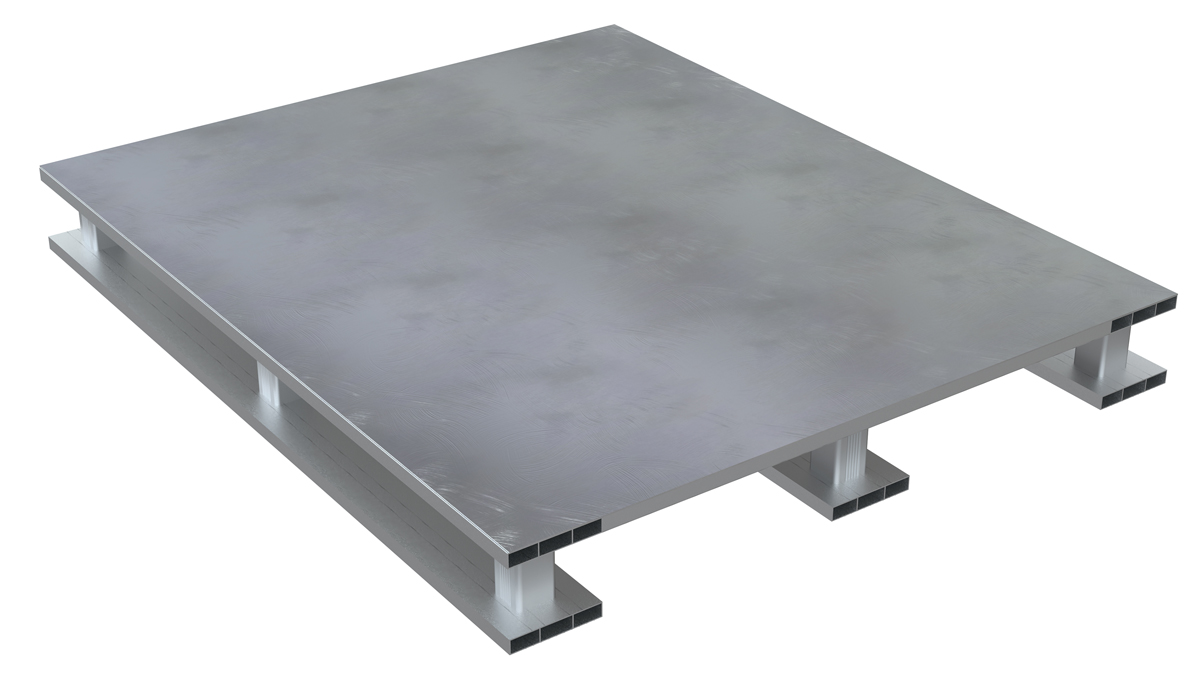

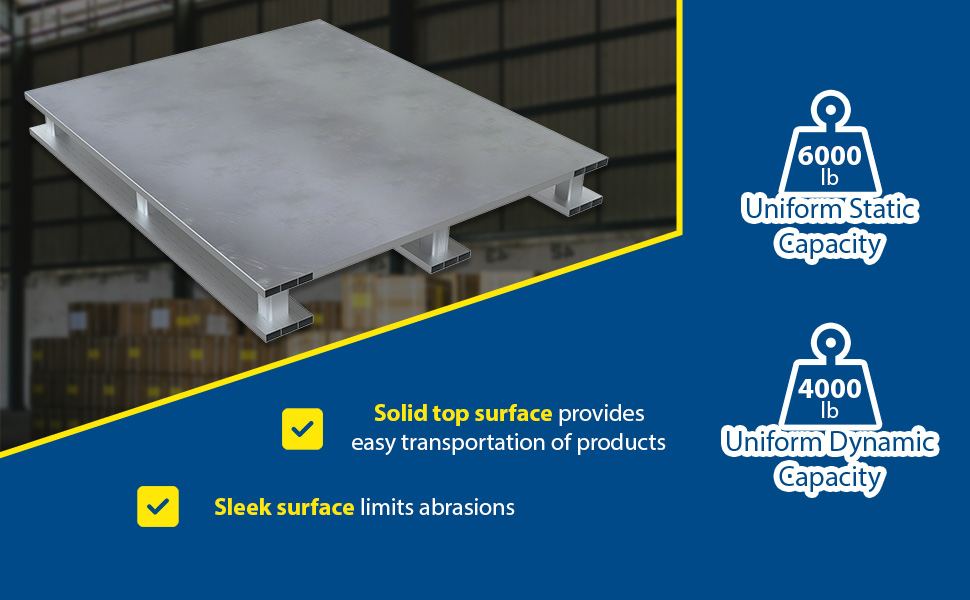

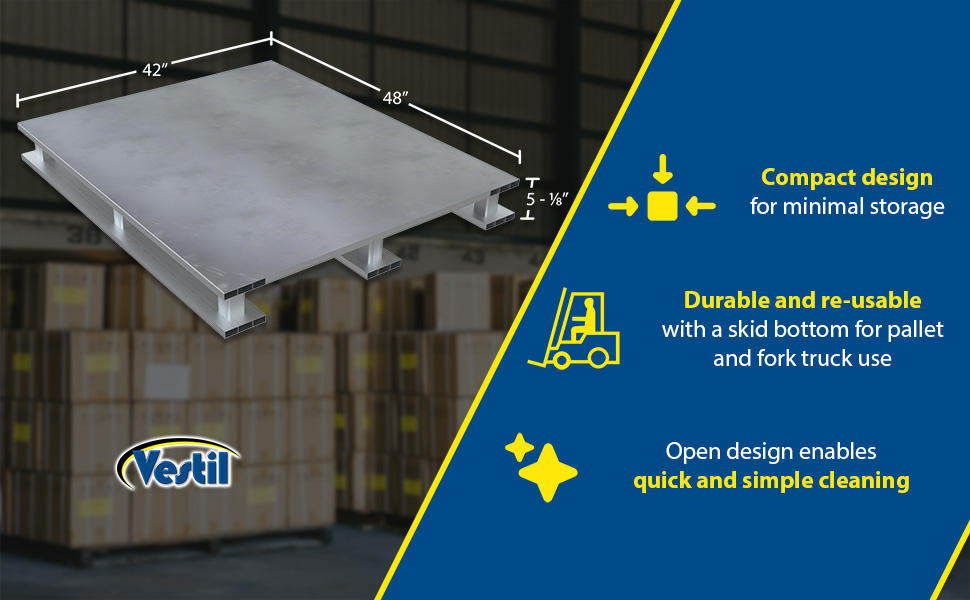

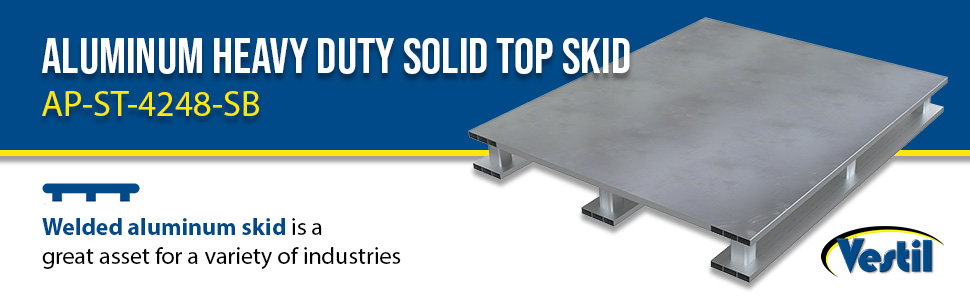

| AP-ST-4248-SB |
 | 90 Days Limited Warranty | Aluminum Solid Top with Skid Bottom 47-7/8 In. x 42 In. x 5-1/16 In. 6000 Lb. Capacity Silver | Entry: Skid Bottom Fork Opening Widths (in.): 19-9/16, 15-5/8 | 115 | ||

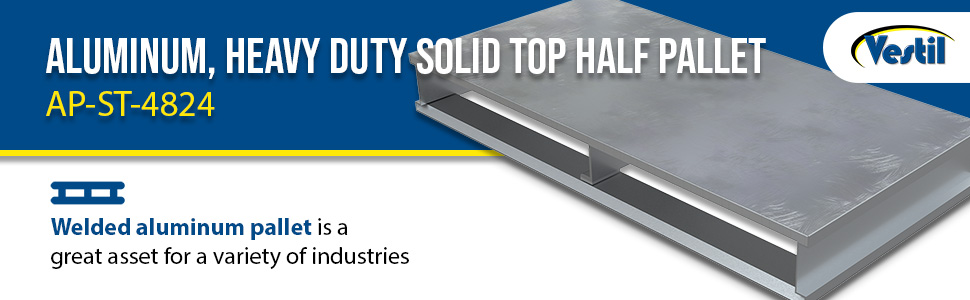

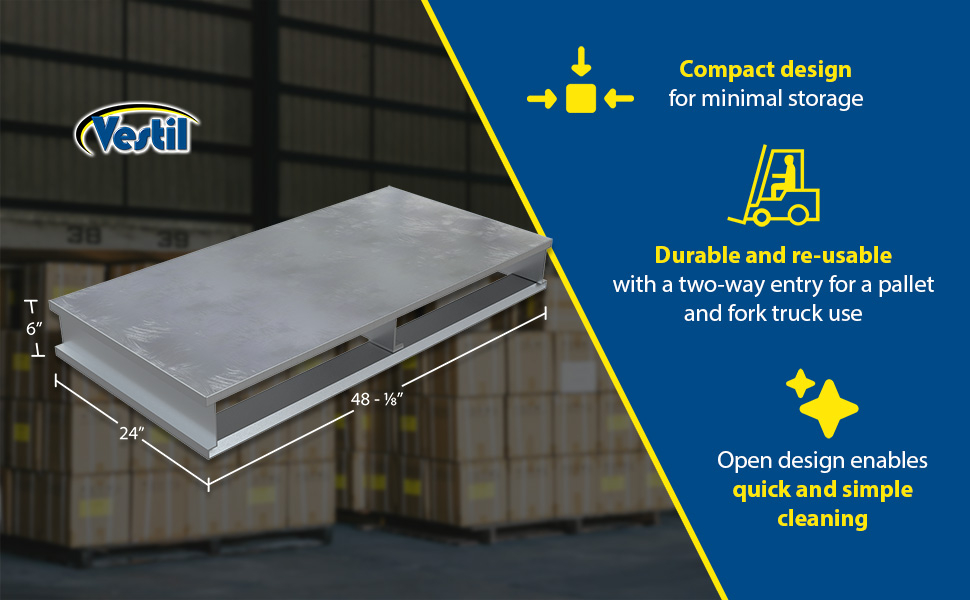

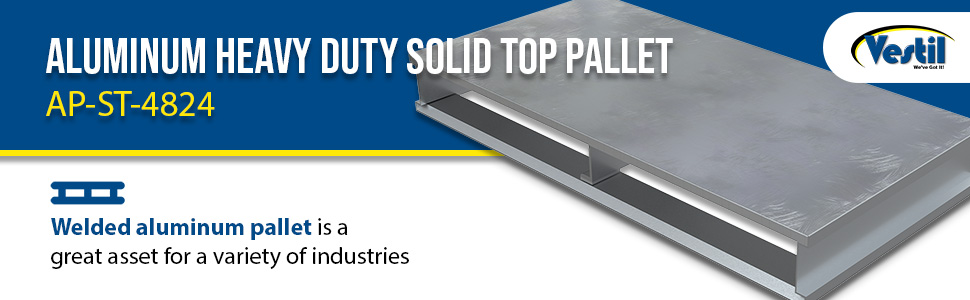

| AP-ST-4824 |
 | 90 Days Limited Warranty | Aluminum Heavy Duty Solid Top Pallet 24 In. x 48 In. x 6 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 22.5625 | 36 | ||
| AP-ST-4824-4W |
 | 90 Days Limited Warranty | Aluminum Four Way Entry Pallet Solid Top 24 In. x 48 In. x 5-1/16 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 19.5625 | 33 | ||

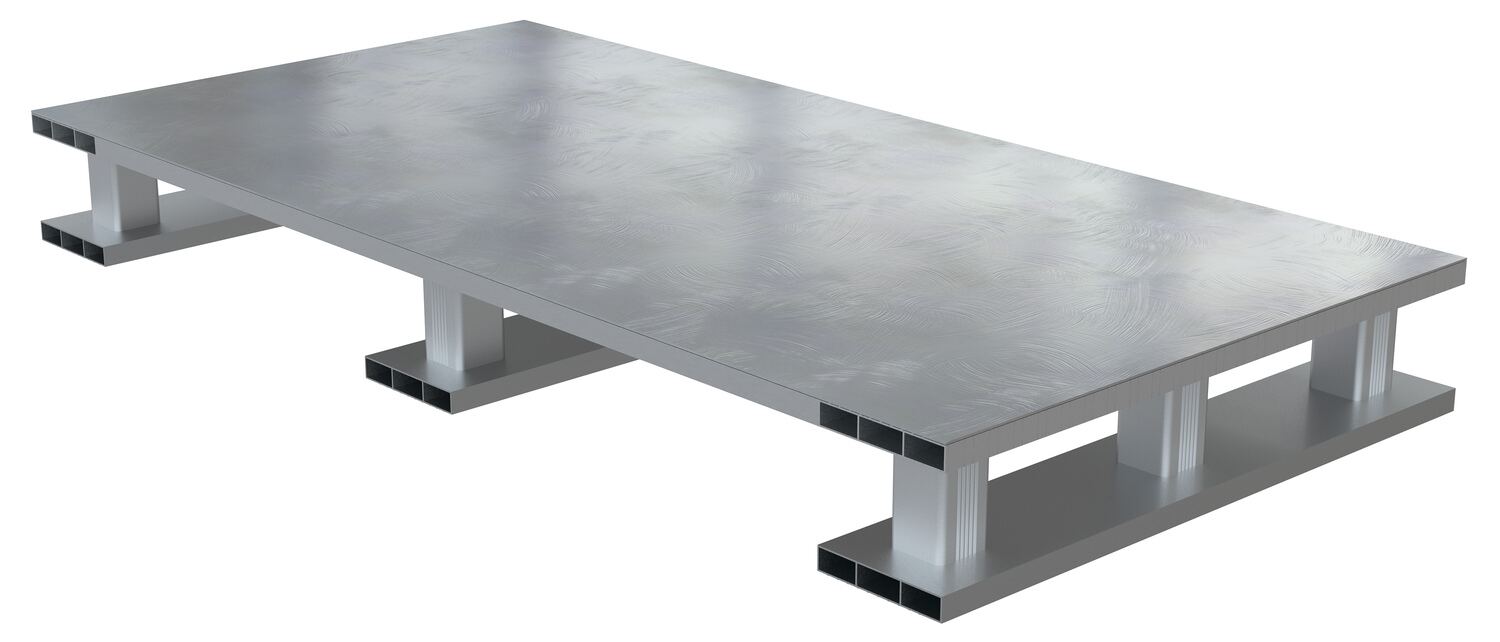

| AP-ST-4824-SB |
 | 90 Days Limited Warranty | Aluminum Solid Top with Skid Bottom 24 In. x 48 In. x 5-1/16 In. 4000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 19.5625 | 32 | ||

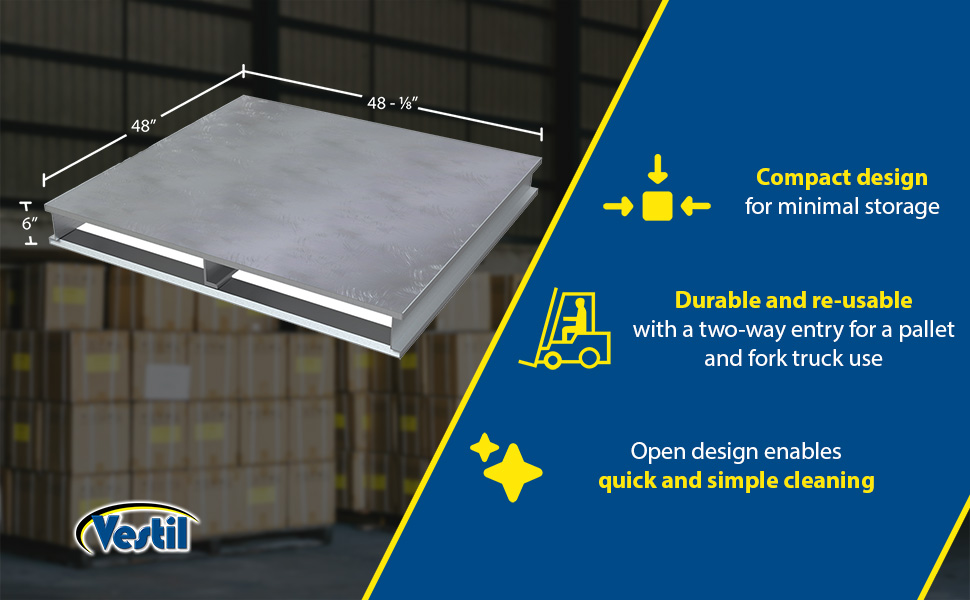

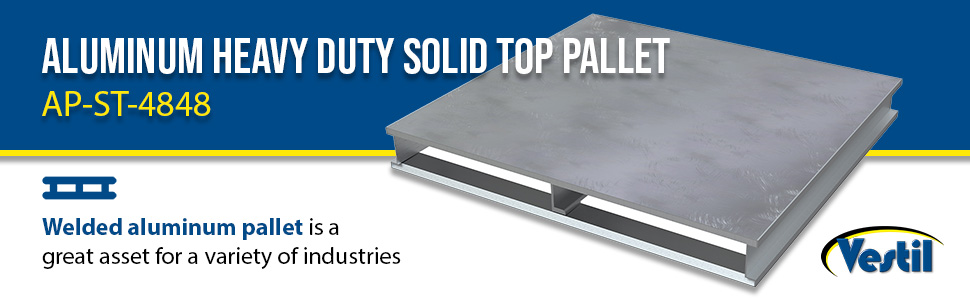

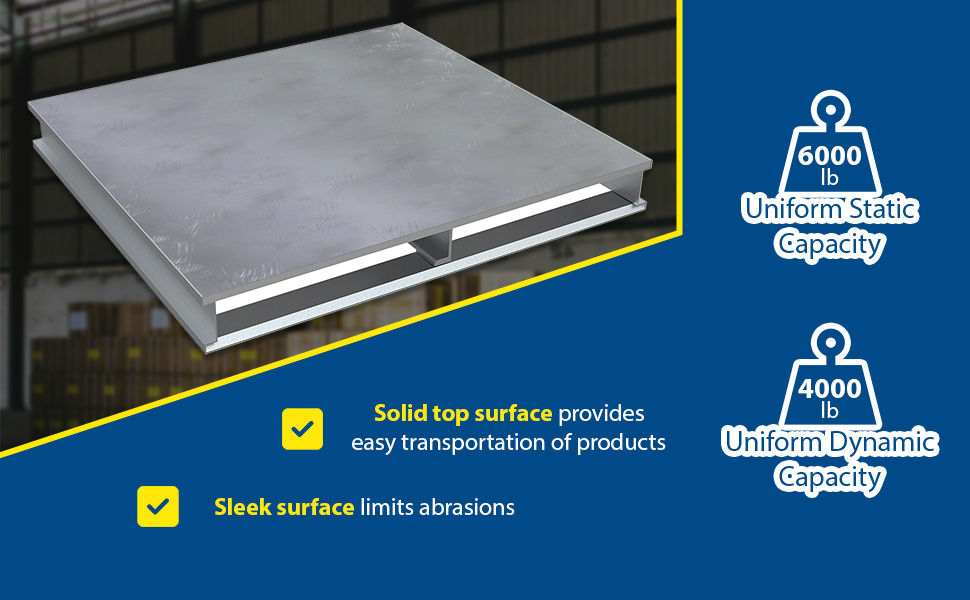

| AP-ST-4848 |
 | 90 Days Limited Warranty | Aluminum Heavy Duty Solid Top Pallet 48 In. x 48-1/8 In. x 6 In. 6000 Lb. Capacity Silver | Uniform Floor (static) Capacity (lb.): 6000 Uniform Fork (dynamic) Capacity (lb.): 4000 | 117 | ||
| AP-ST-4848-4W |
 | 90 Days Limited Warranty | Aluminum Four Way Entry Pallet Solid Top 47-7/8 In. x 47-7/8 In. x 5-1/16 In. 6000 Lb. Capacity Silver | Entry: 4-Way Fork Opening Widths (in.): 19-5/8, 19-5/8 | 118 | ||
| AP-ST-4848-SB |
 | 90 Days Limited Warranty | Aluminum Solid Top with Skid Bottom 47-7/8 In. x 47-7/8 In. x 5-1/16 In. 6000 Lb. Capacity Silver | Entry: Skid Bottom Fork Opening Widths (in.): 19-9/16, 19-9/16 | 117 | ||
| SKID-2024-A |
 | 90 Days Limited Warranty | Aluminum Skid 20 In x 24 In 4,000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 12.375 | 7 | ||
| SKID-2424-A |
 | 90 Days Limited Warranty | Aluminum Half Skid 24 In. x 24 In. x 3-3/4 In. 4,000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 12.375 | 8 | ||
| SKID-3624-A |
 | 90 Days Limited Warranty | Aluminum Half Skid 24 In. x 36 In. x 3-3/4 In. 4,000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 24.375 | 11 | ||

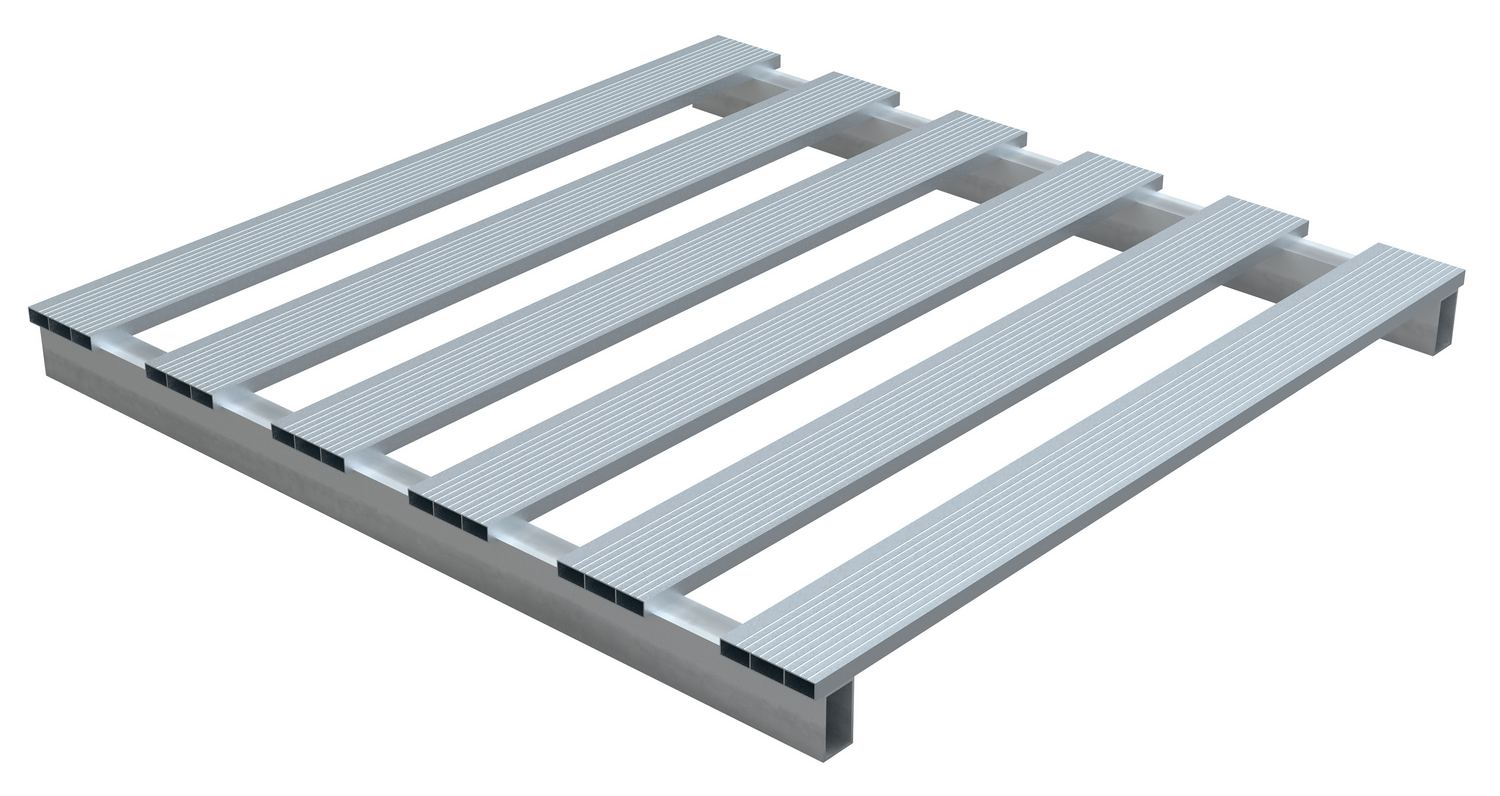

| SKID-4024-A |
 | 90 Days Limited Warranty | Aluminum Half Skid 24 In. x 40 In. x 3-3/4 In. 4,000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 28.375 | 13 | ||

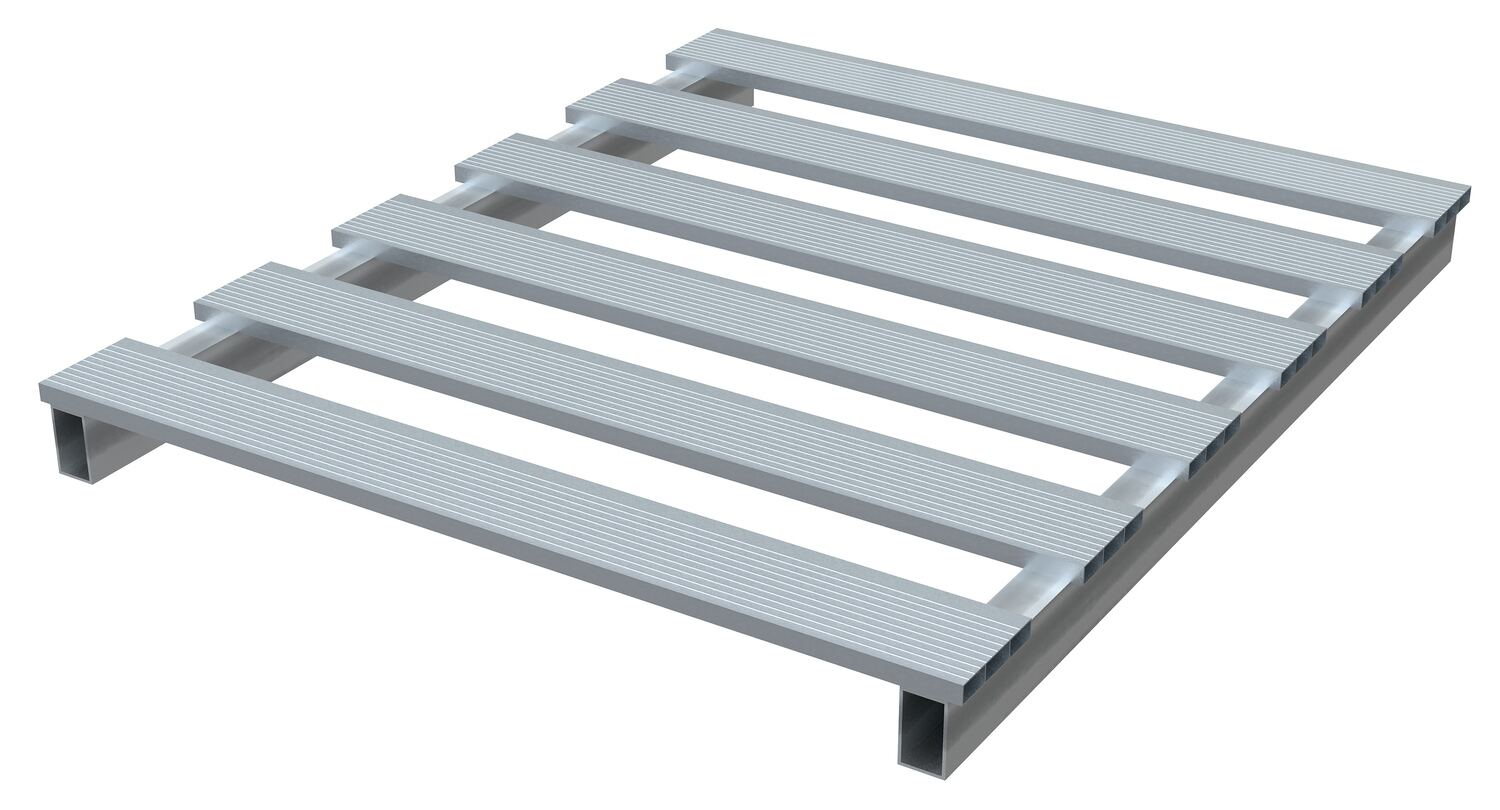

| SKID-4048-A |
 | 90 Days Limited Warranty | Aluminum Skid 48 In. x 39-7/8 In. x 4 In. 4,000 Lb. Capacity Silver | Uniform Capacity (lb.): 4000 Fork Pocket Width (in.): 28 3/8 | 28 | ||
| SKID-4248-A |
| 90 Days Limited Warranty | Aluminum Skid 48 In. x 41-7/8 In. x 4 In. 4,000 Lb. Capacity Silver | Uniform Capacity (lb.): 4000 Fork Pocket Width (in.): 30 3/8 | 29 | ||
| SKID-4824-A |
 | 90 Days Limited Warranty | Aluminum Half Skid 24 In. x 48 In. x 3-3/4 In. 4,000 Lb. Capacity Silver | Uniform Capacity: 4000 Fork Pocket Width(in.): 36.375 | 15 | ||
| SKID-4848-A |
 | 90 Days Limited Warranty | Aluminum Skid 48 In. x 47-7/8 In. x 4 In. 4,000 Lb. Capacity Silver | Uniform Capacity (lb.): 4000 Fork Pocket Width (in.): 36 3/8 | 31 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: The top plate on the solid top units is aluminum tread plate with the tread pattern facing down. It is 3003-H22 aluminum. The frame cross members are extruded aluminum - 6063-T6 The riser tubes in the middle are extruded aluminum - 6105-T5
