Hook Plates
Hook Plates

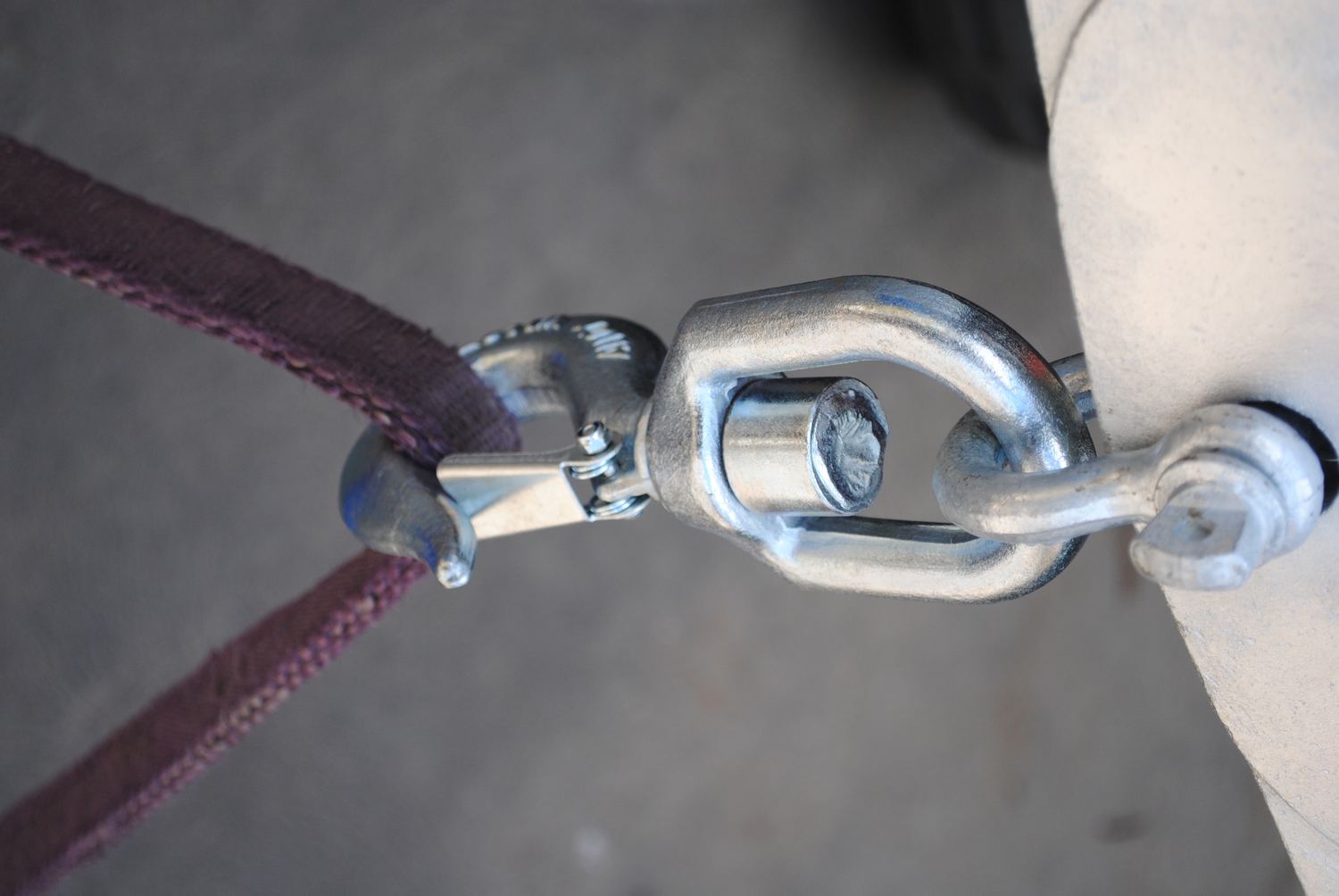

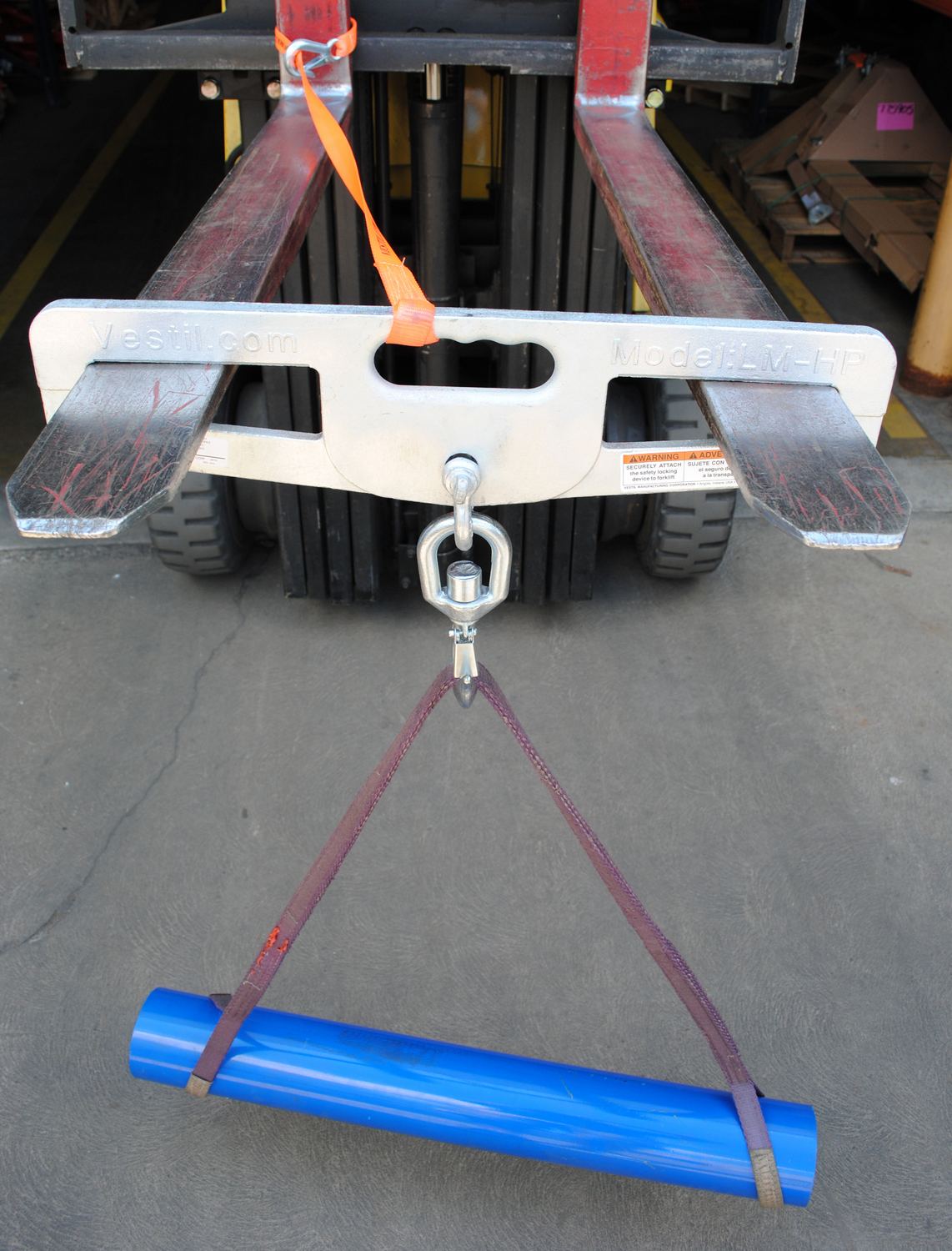

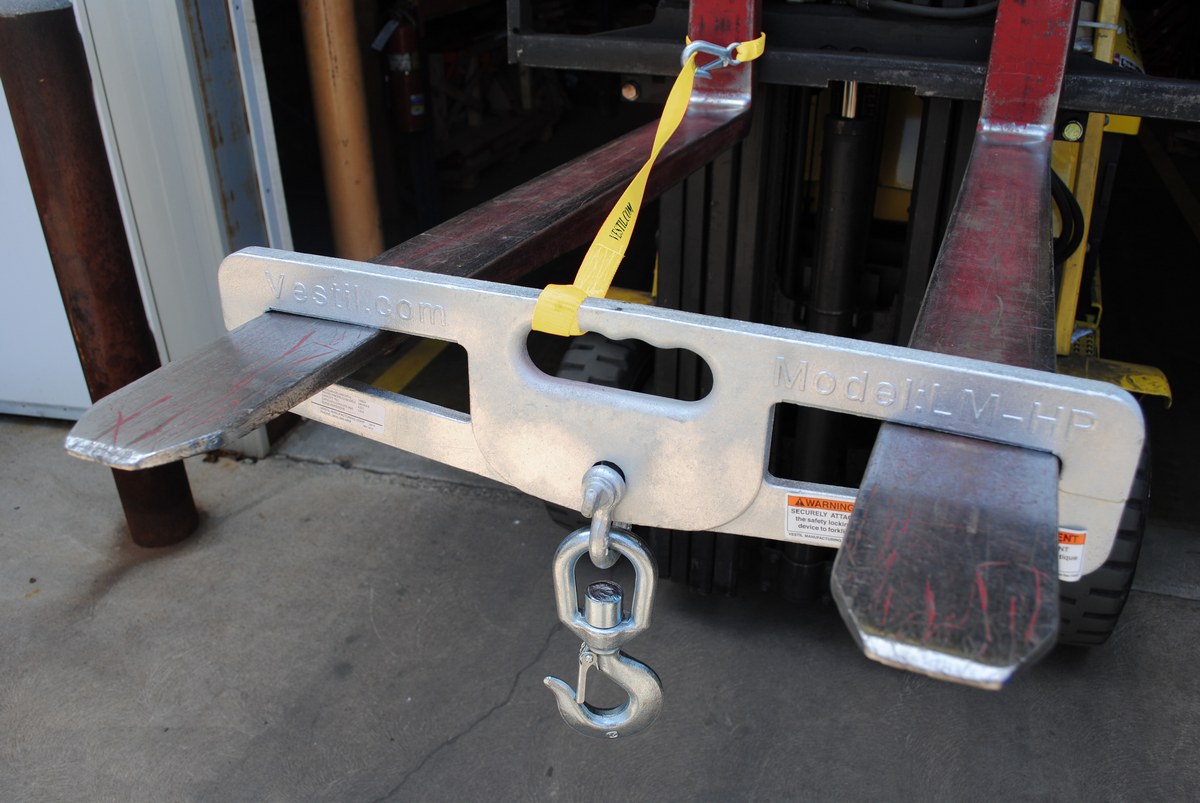

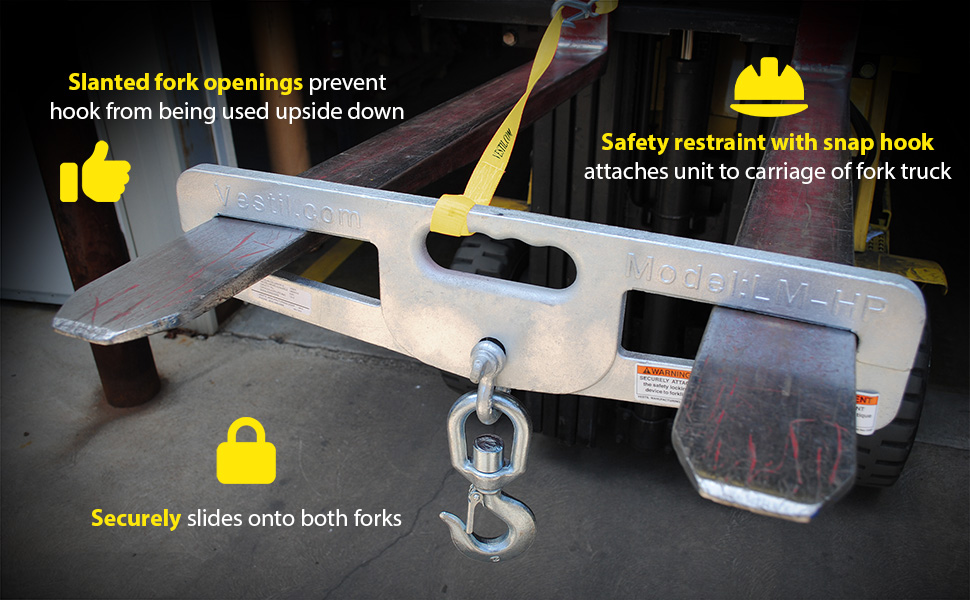

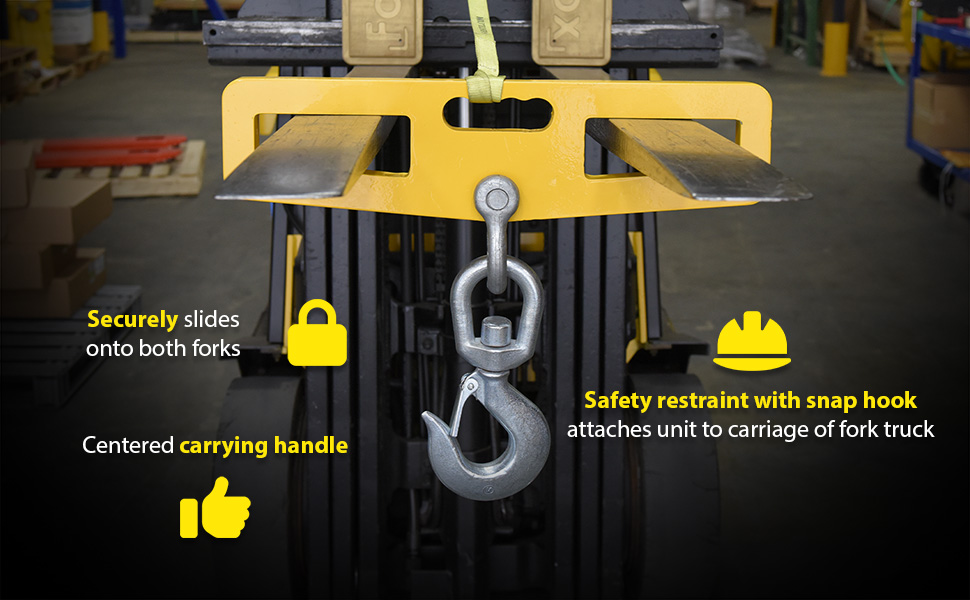

Hook Plates enable any fork truck to safely lift a load using chains, cables, or slings. Features slanted fork openings measuring 6-1/2" wide by 1-3/4" high to prevent the hook plate from being used upside down. A hook with anchor shackle is included. A safety restraint secures the unit to the fork truck. Model LM-HP10-SL has fork openings measuring 7"x2" and includes a swivel lifting hook with a latch.
Hook plates are not designed for overhead lifting.
| Model # | Description | Attributes | Net Wt. (lbs) | ||||
|---|---|---|---|---|---|---|---|

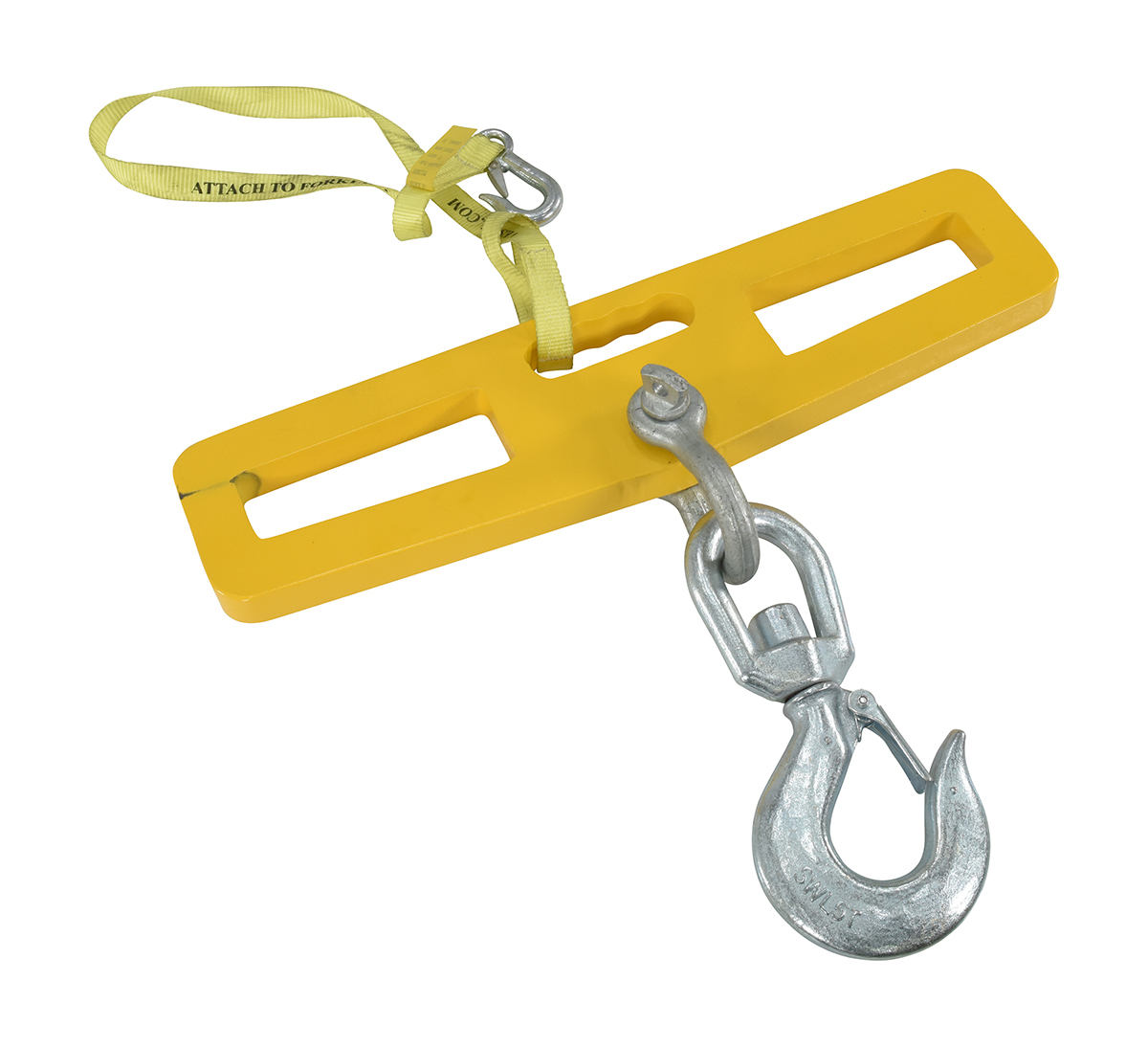

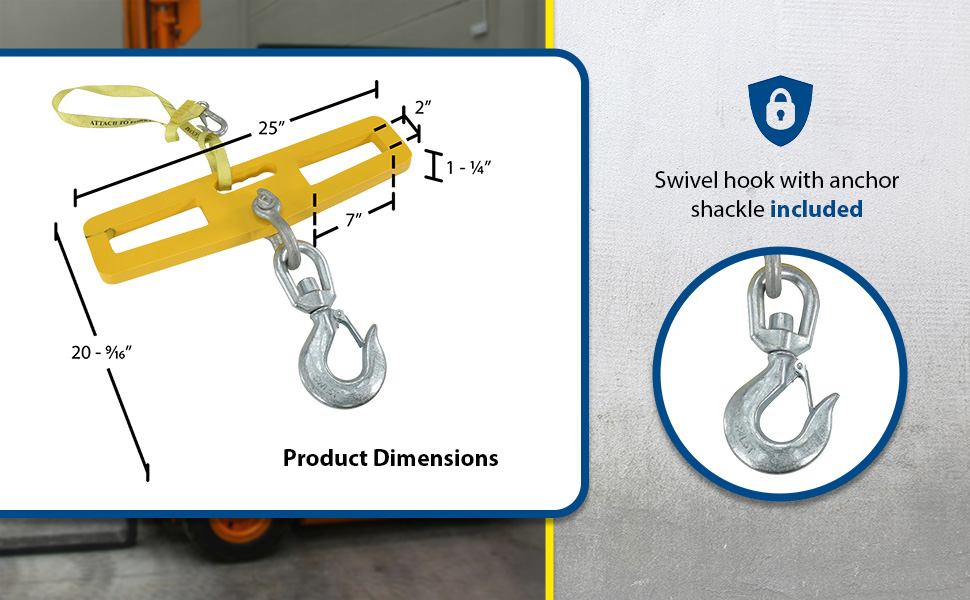

| LM-HP10-SL |  | 90 Days Limited Warranty | Steel Fork Truck Hook Plate Swivel with Latch 10,000 Lb. Capacity Yellow | Uniform Capacity (lb.): 10,000 Fork Pocket WxH (in.): 7x2 | 52 | ||

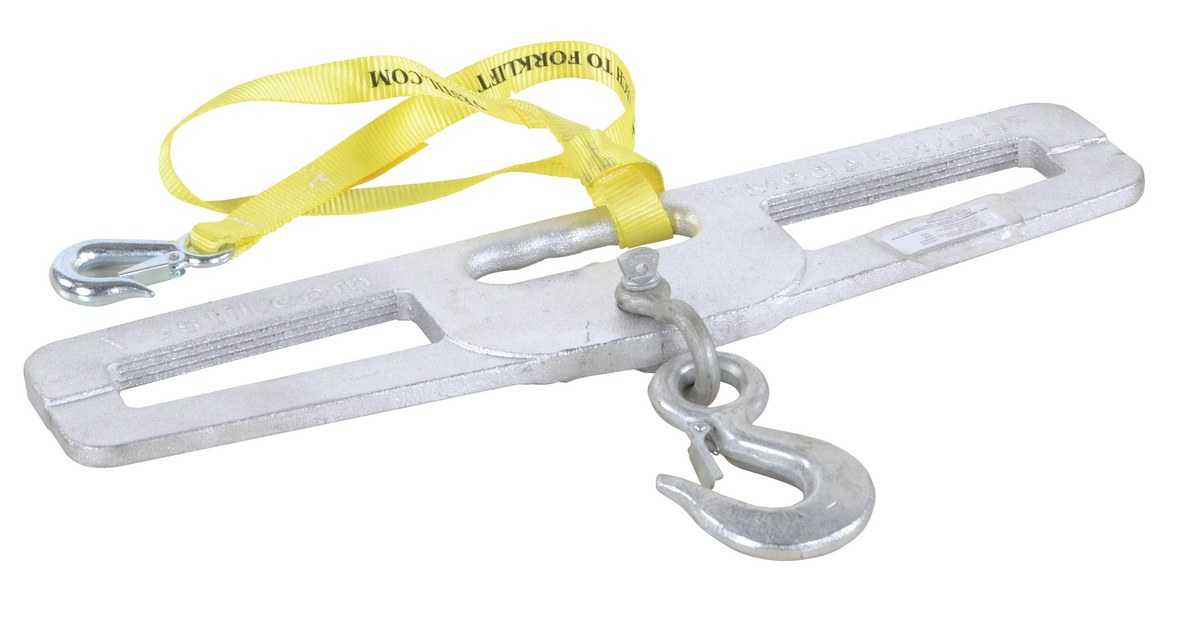

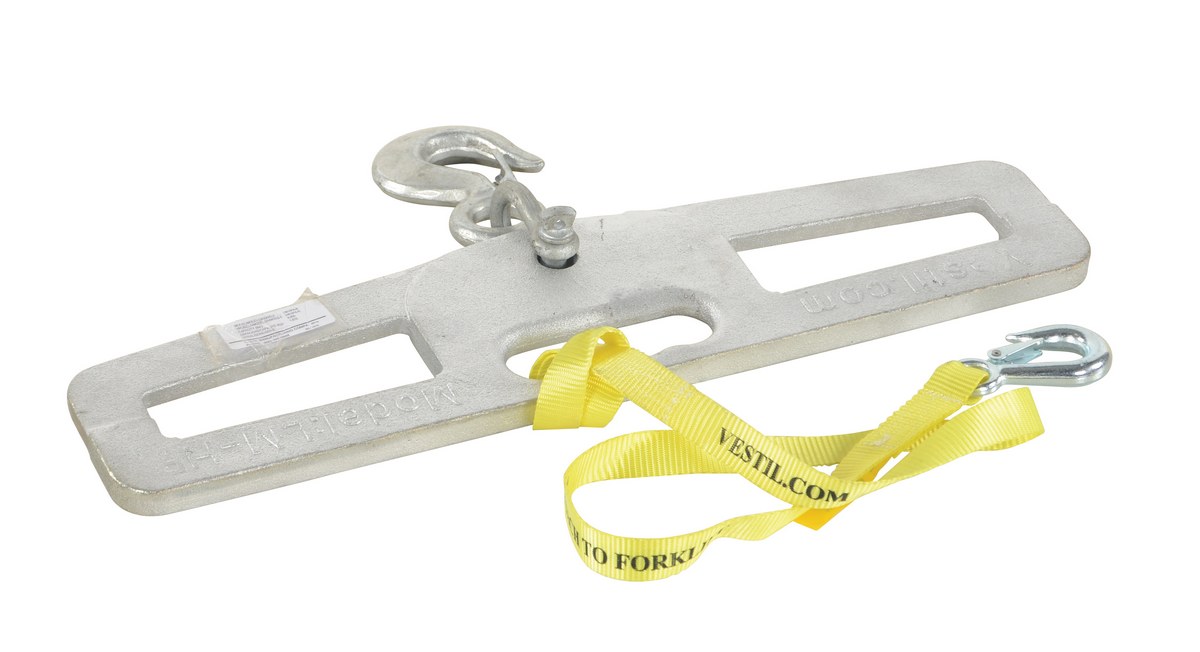

| LM-HP4-R |  | 90 Days Limited Warranty | Steel Fork Truck Hook Plate Rigid 4,000 Lb. Capacity Silver | Uniform Capacity (lb.): 4,000 Height without Hook (in.): 6 | 23 | ||

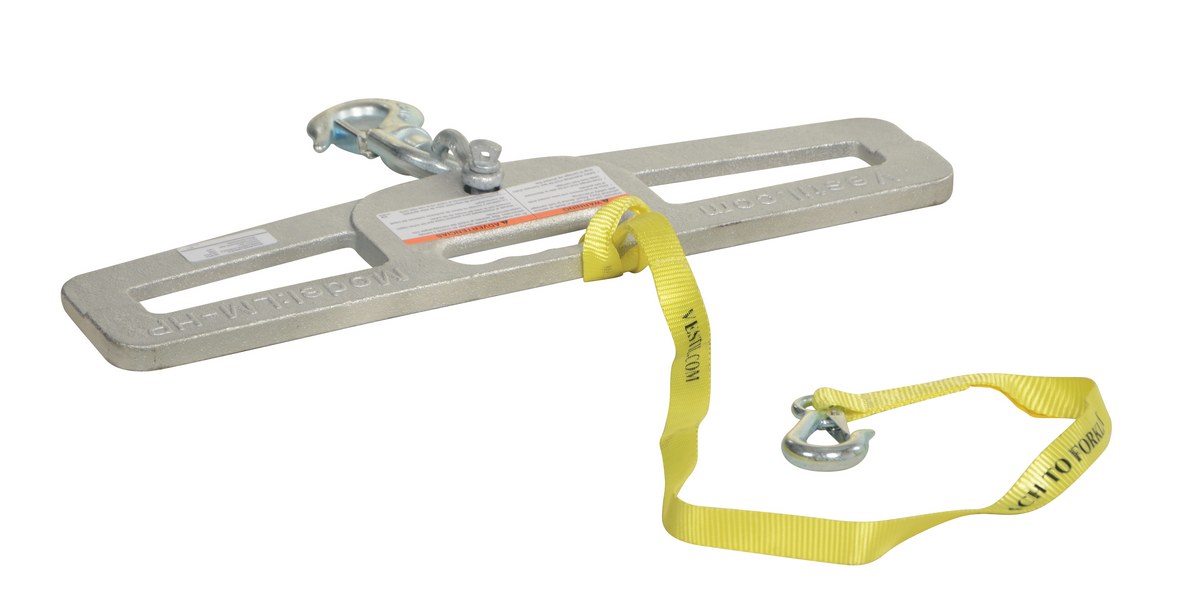

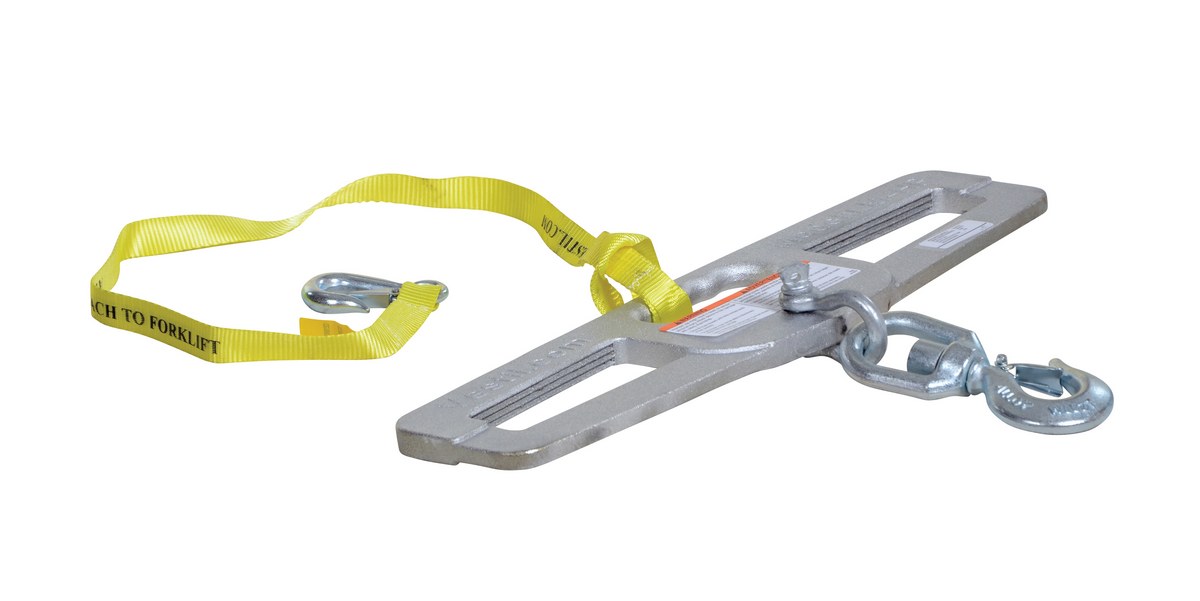

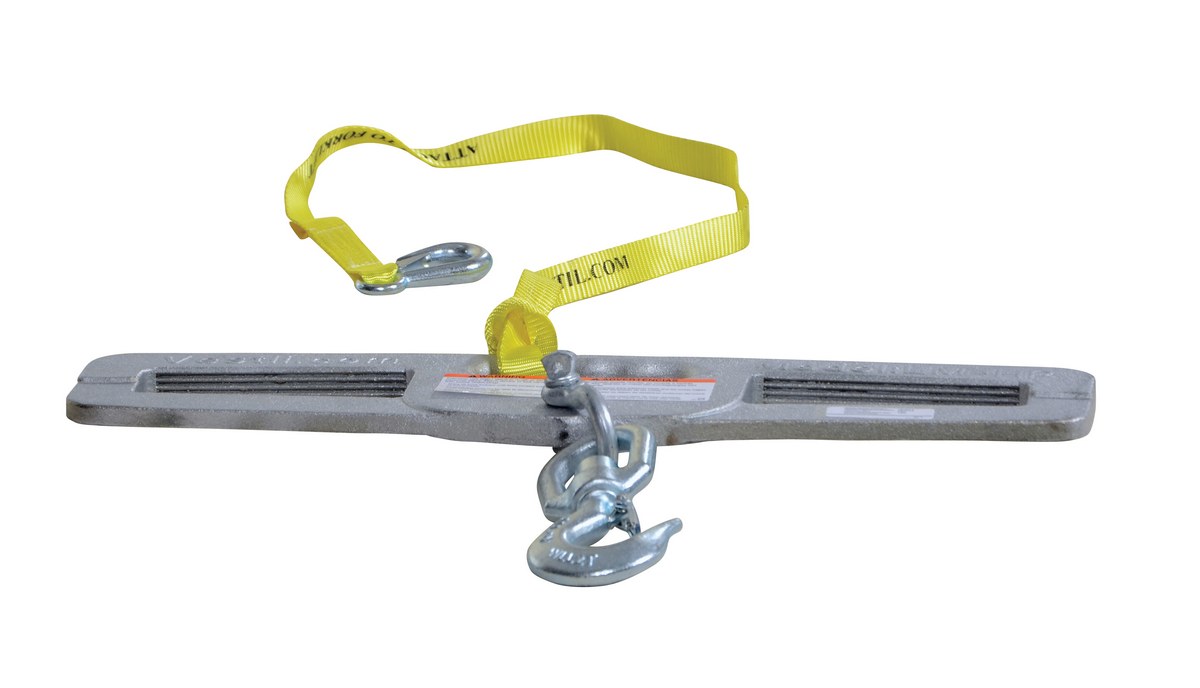

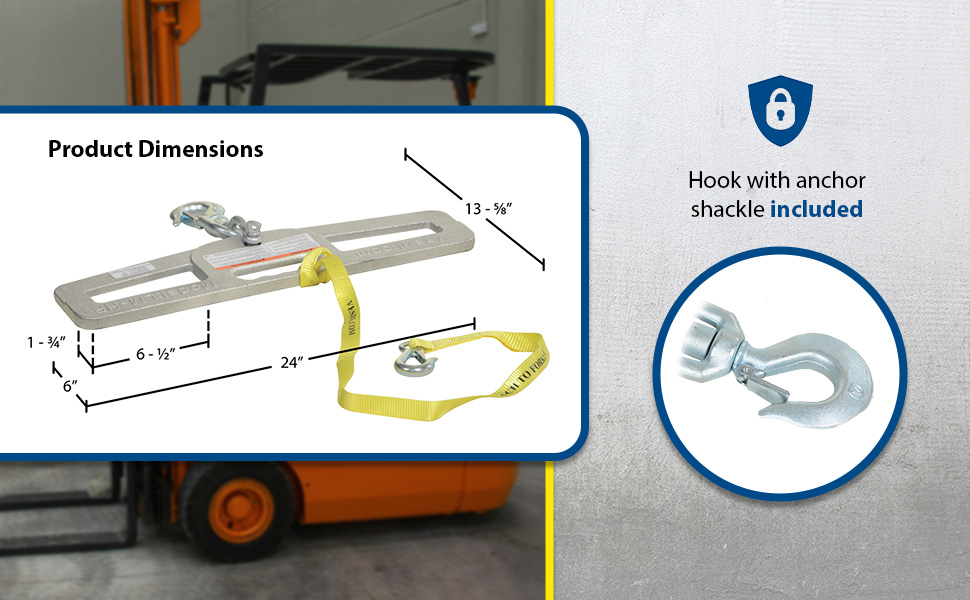

| LM-HP4-S |  | 90 Days Limited Warranty | Steel Fork Truck Hook Plate Swivel 4,000 Lb. Capacity Silver | Uniform Capacity (lb.): 4,000 Height without Hook (in.): 6 | 22 | ||

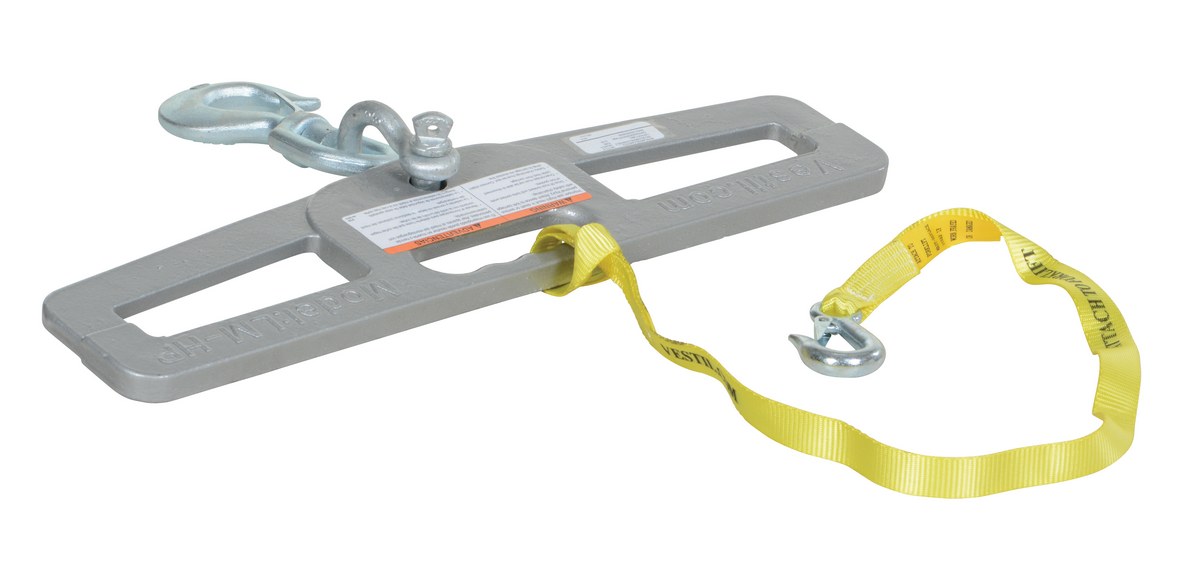

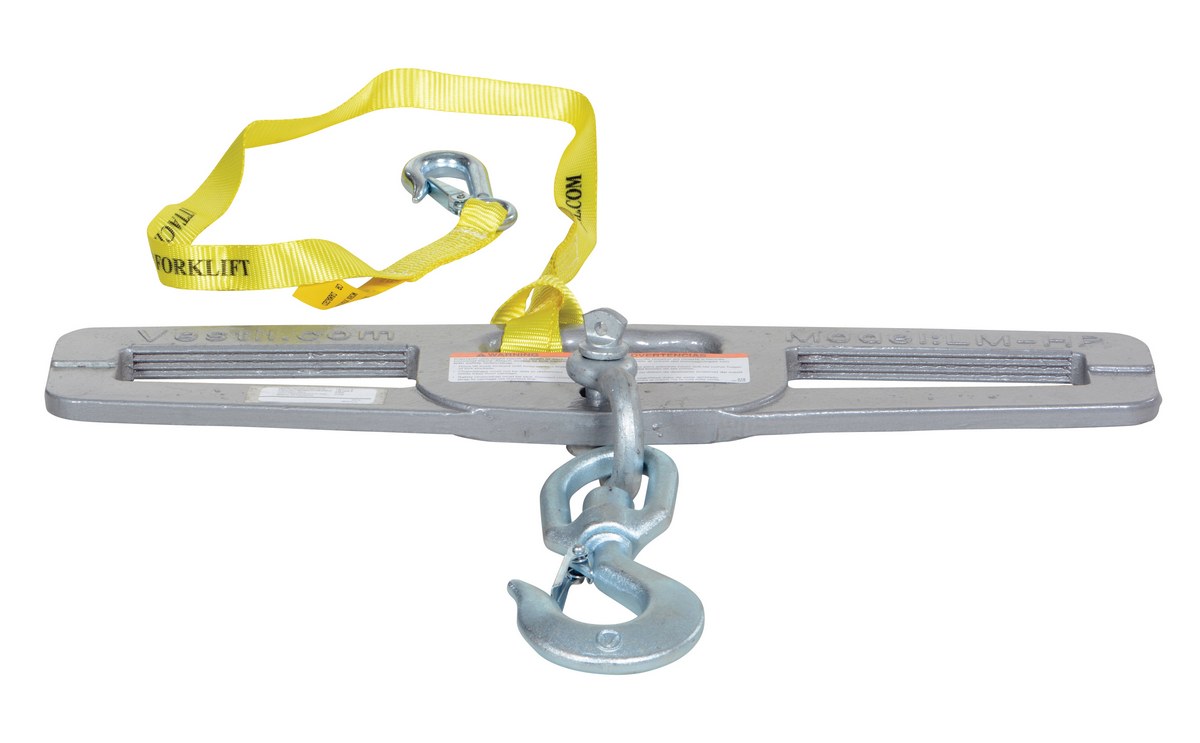

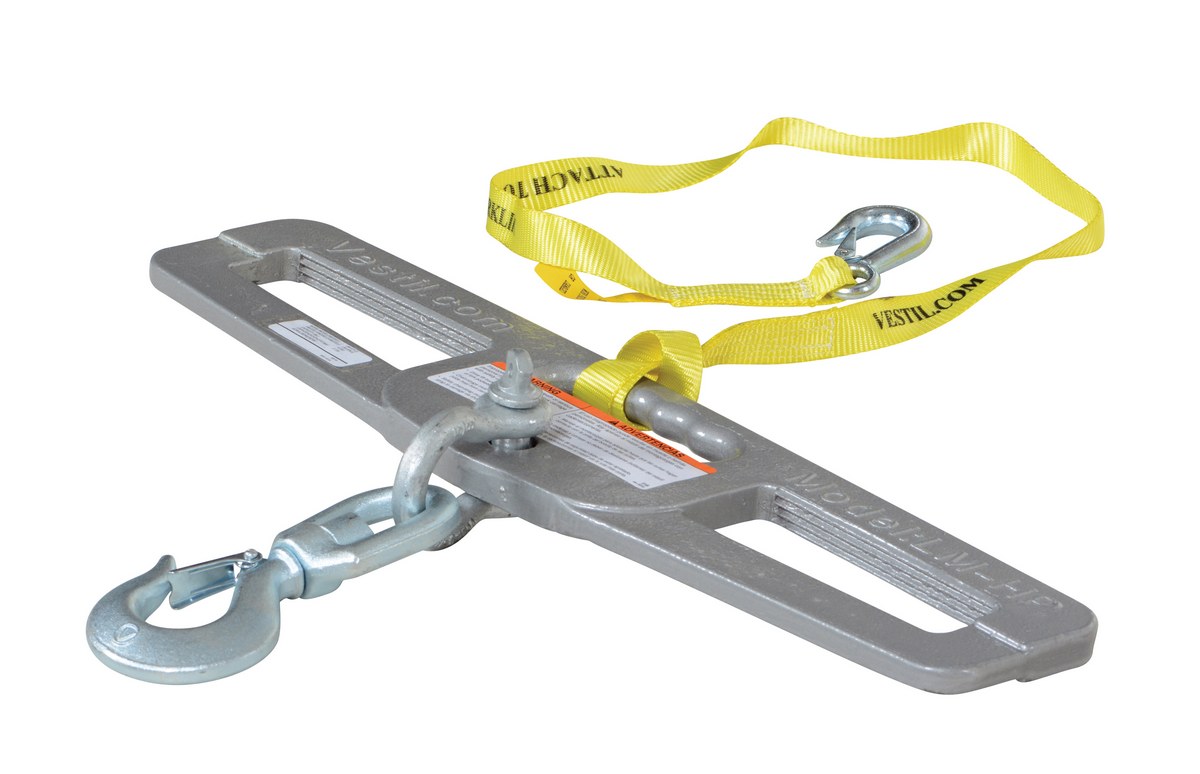

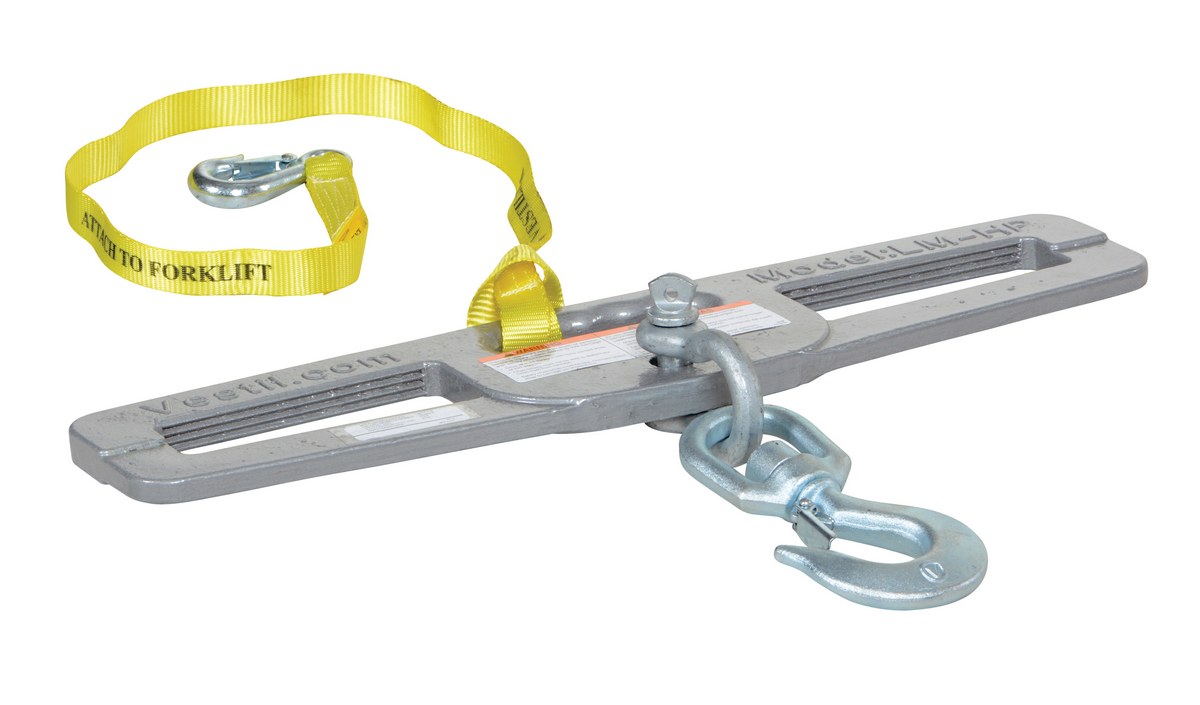

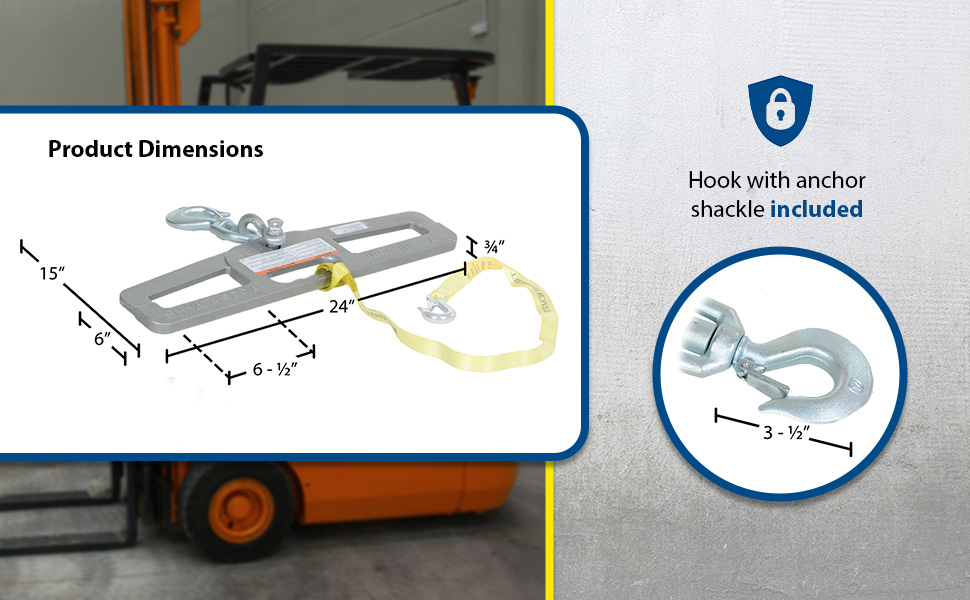

| LM-HP6-S |  | 90 Days Limited Warranty | Steel Fork Truck Hook Plate Swivel 6,000 Lb. Capacity Silver | Uniform Capacity (lb.): 6,000 Height without Hook (in.): 6 | 25 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: The hook opening measurers 7/8".
A: The strap is 48" long.
|
|||||||||||||||||||||||||||
Hook Plates |
|||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||
Hook Plates enable any fork truck to safely lift a load using chains, cables, or slings. Features slanted fork openings measuring 6-1/2" wide by 1-3/4" high to prevent the hook plate from being used upside down. A hook with anchor shackle is included. A safety restraint secures the unit to the fork truck. Model LM-HP10-SL has fork openings measuring 7"x2" and includes a swivel lifting hook with a latch. Hook plates are not designed for overhead lifting. |
|||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
