Beam Clamps
Beam Clamps

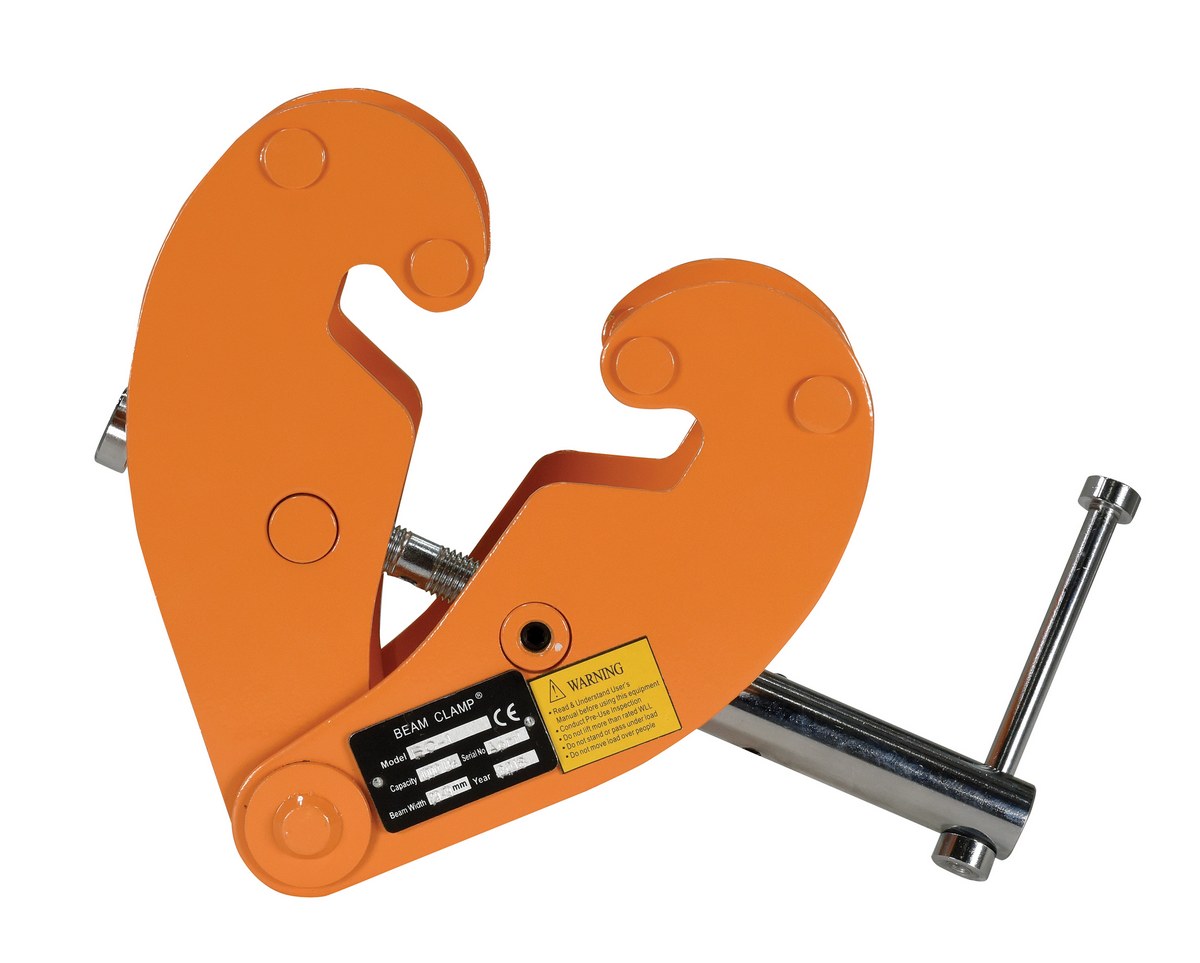

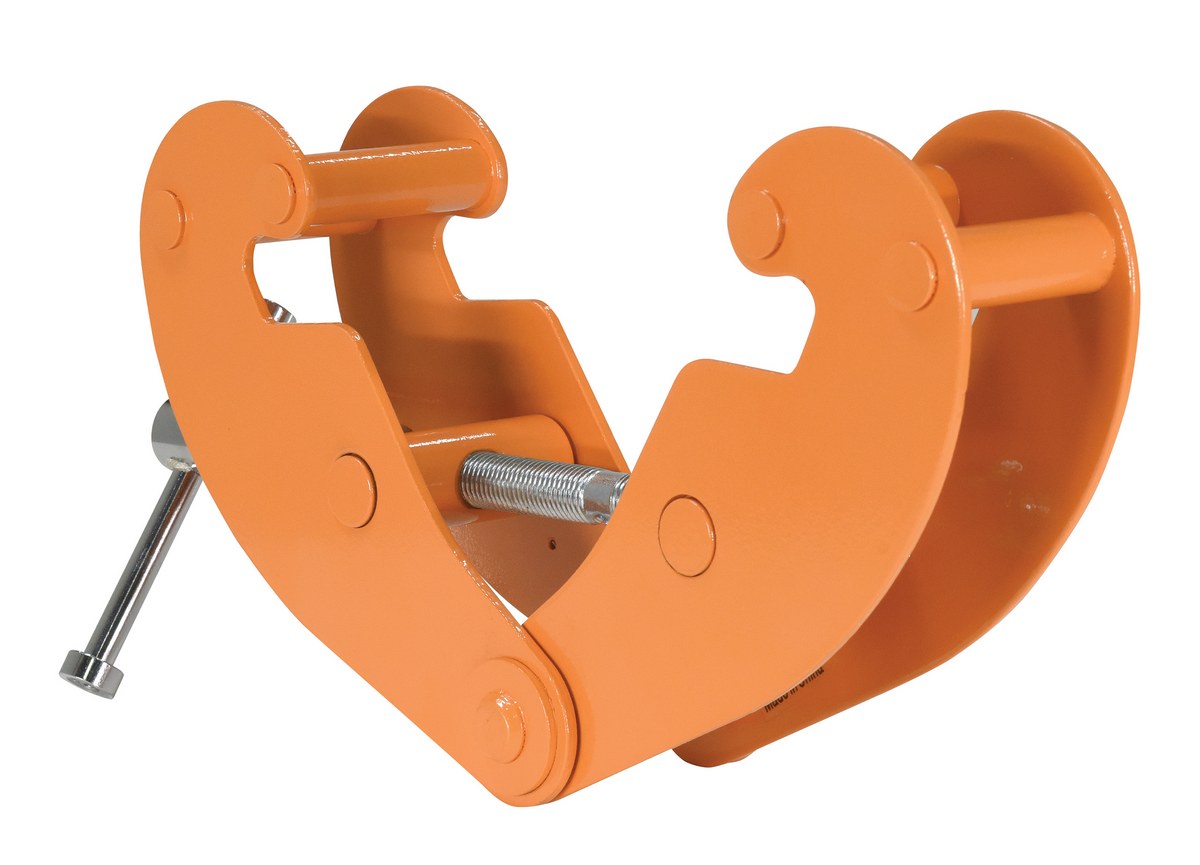

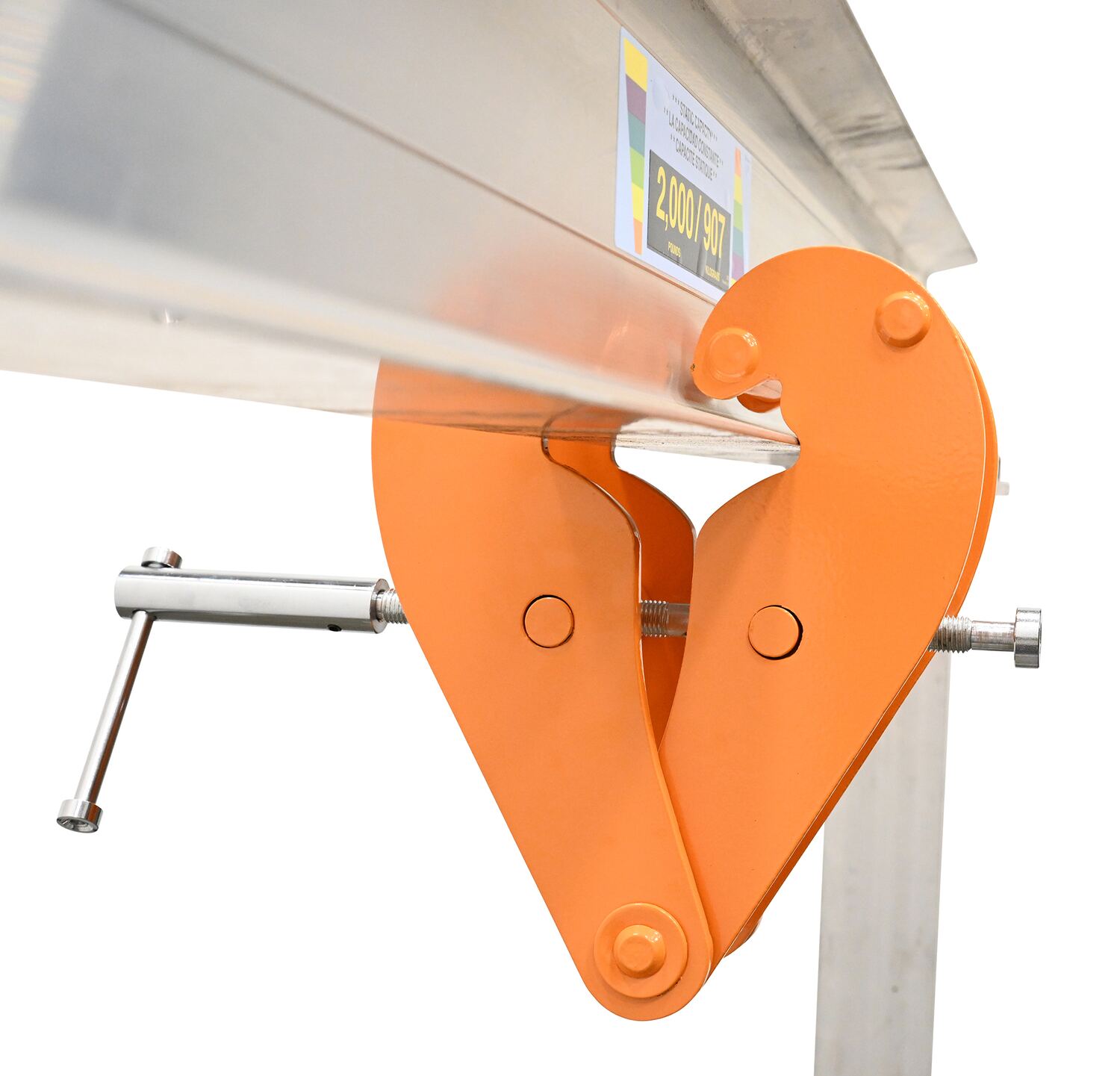

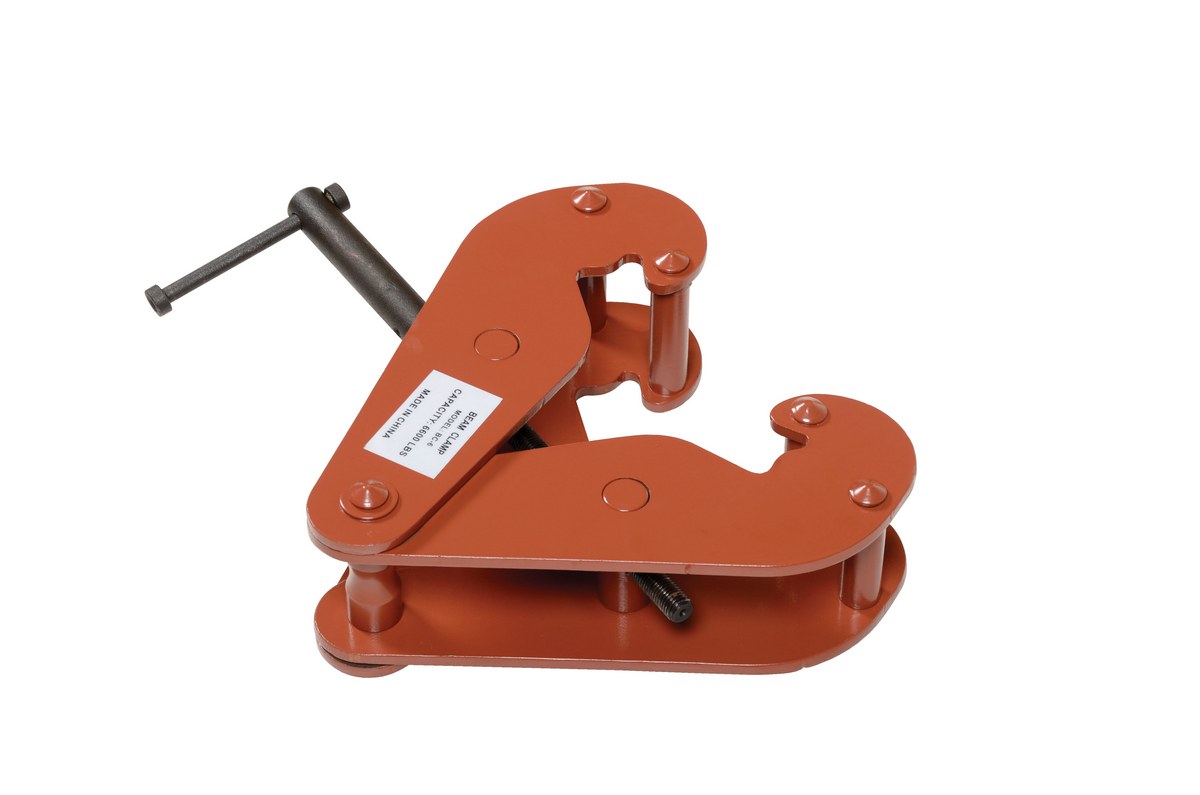

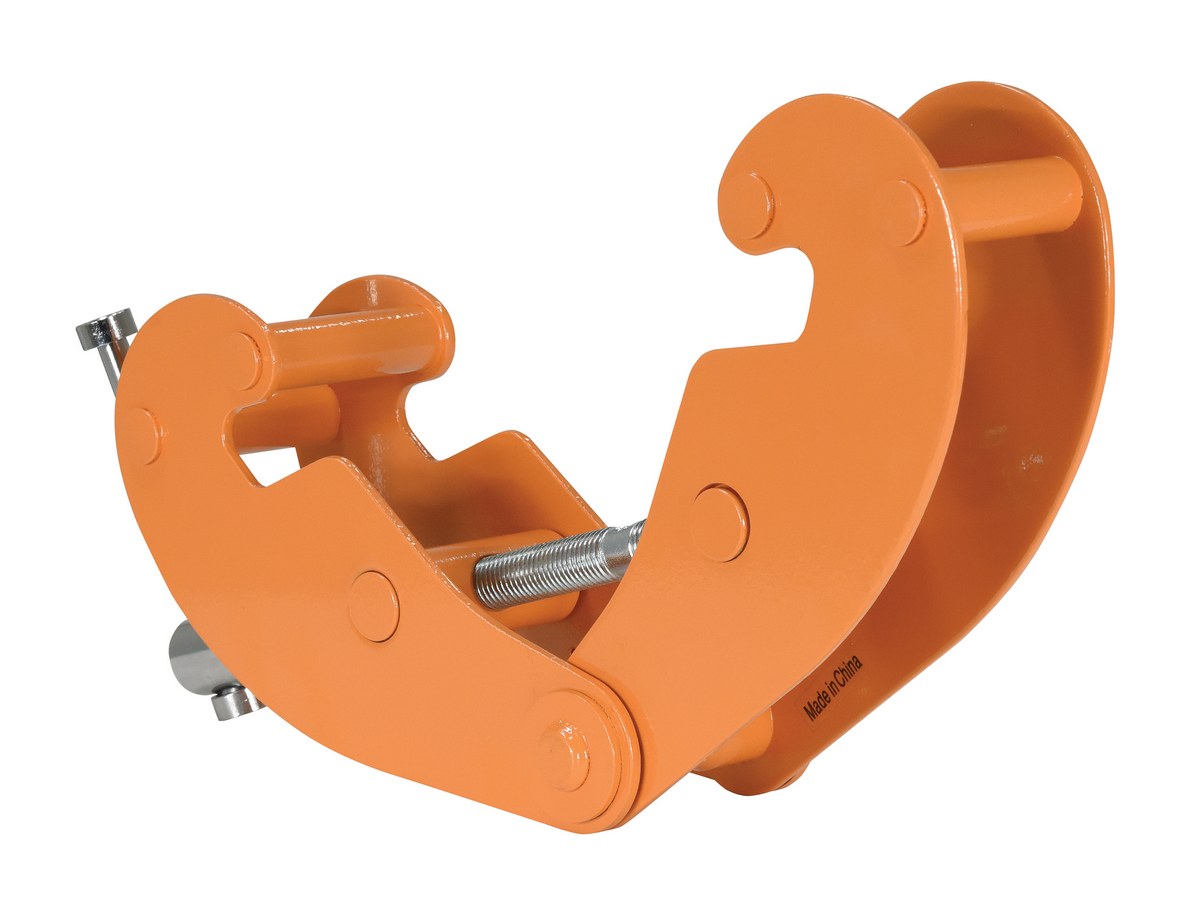

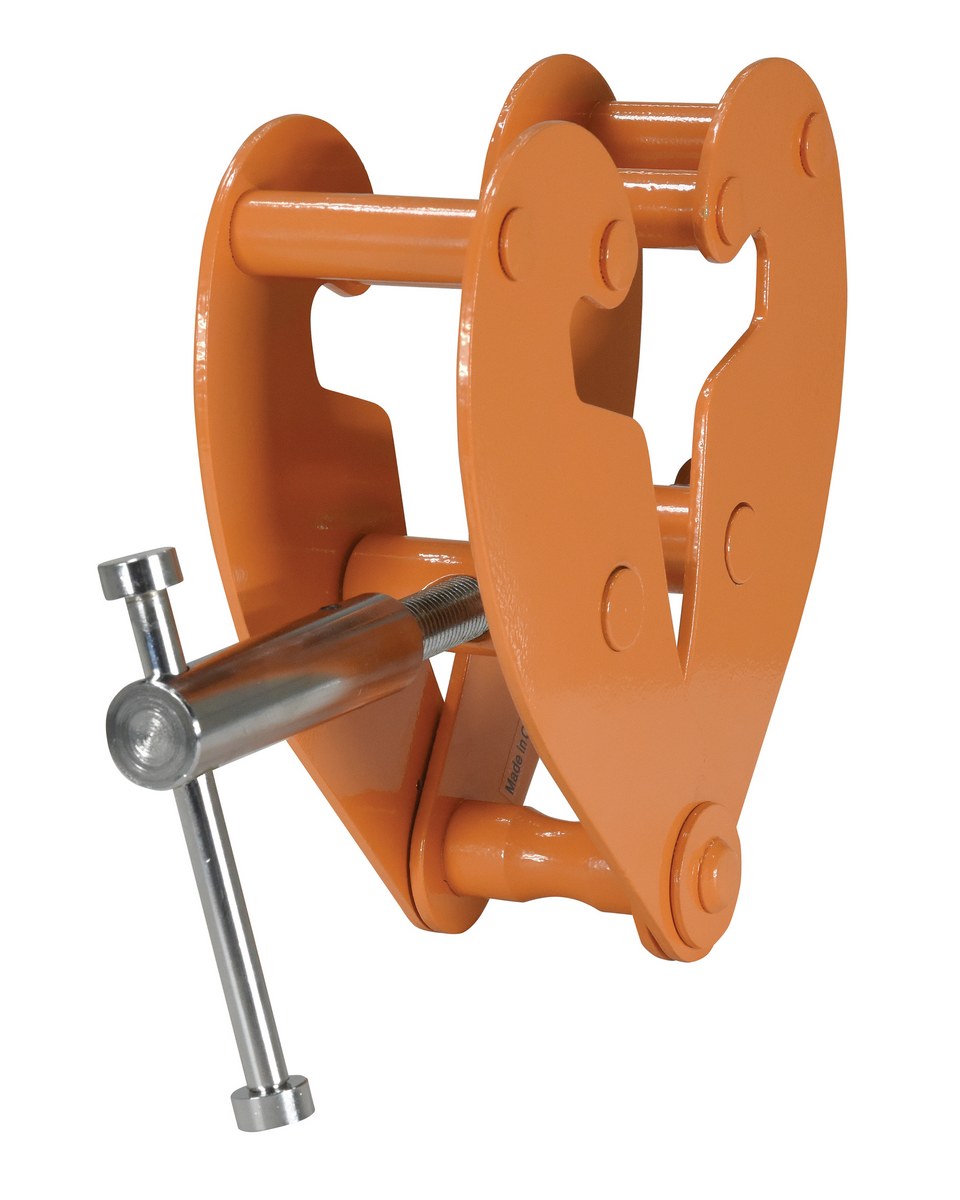

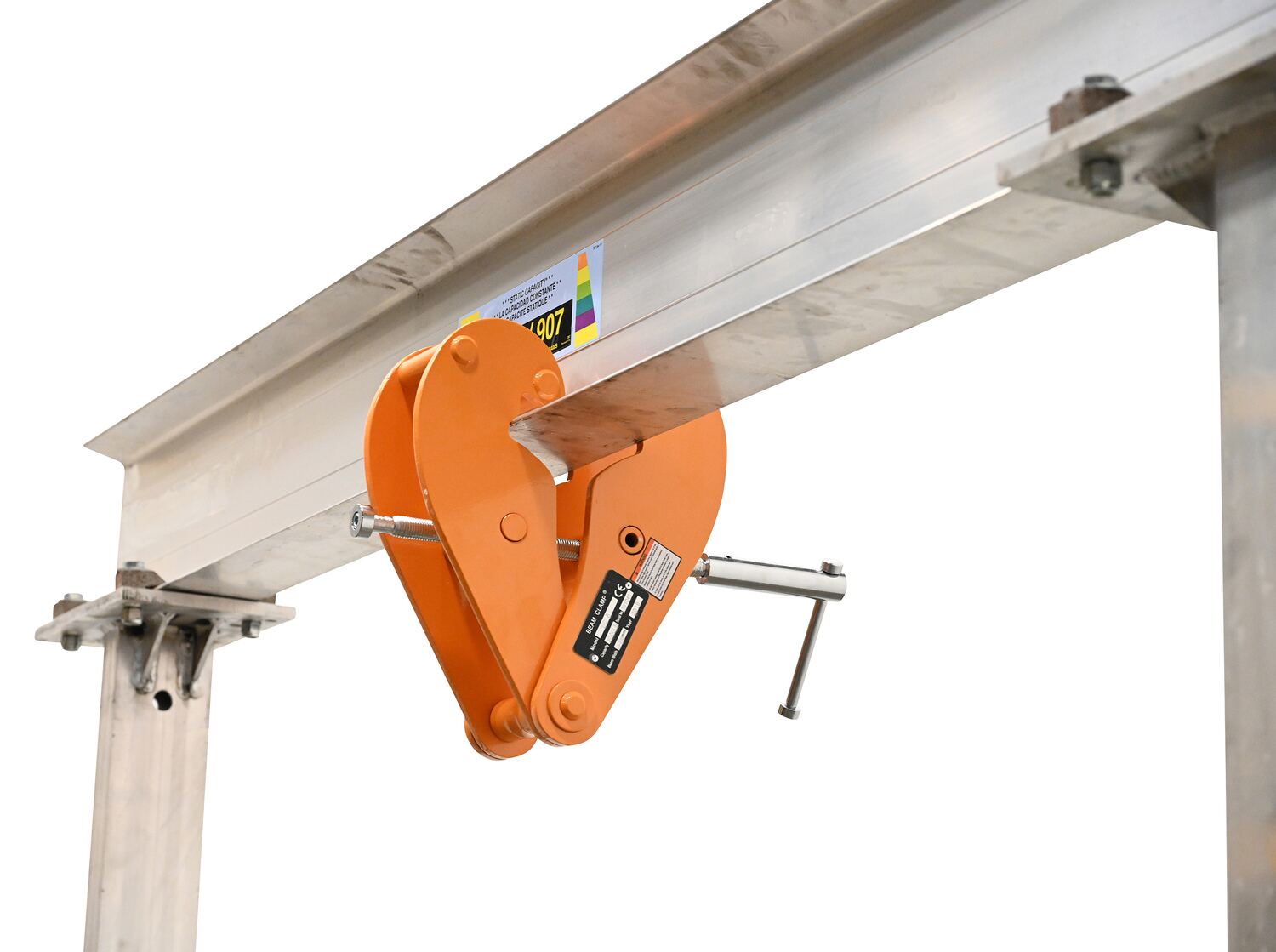

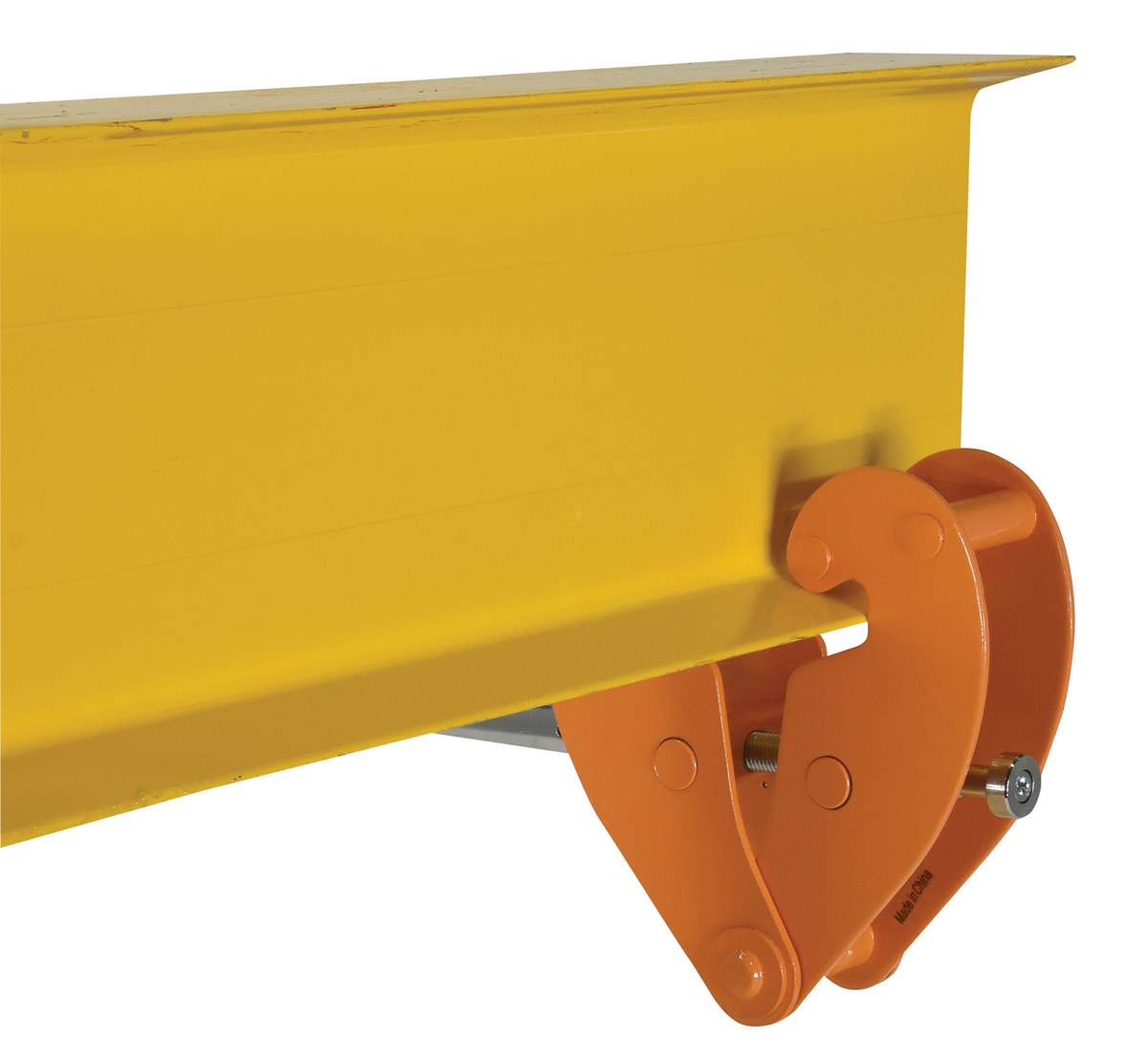

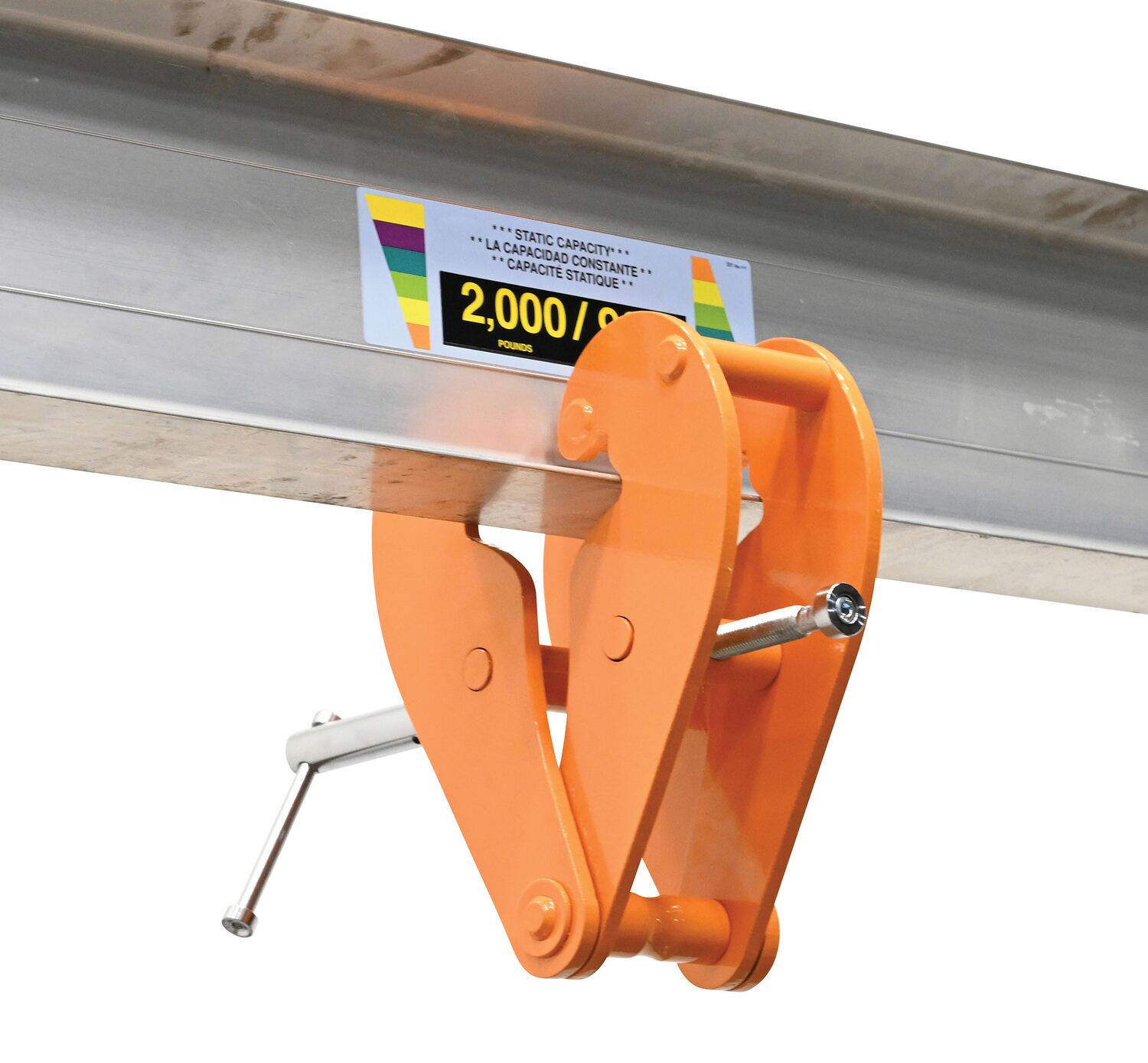

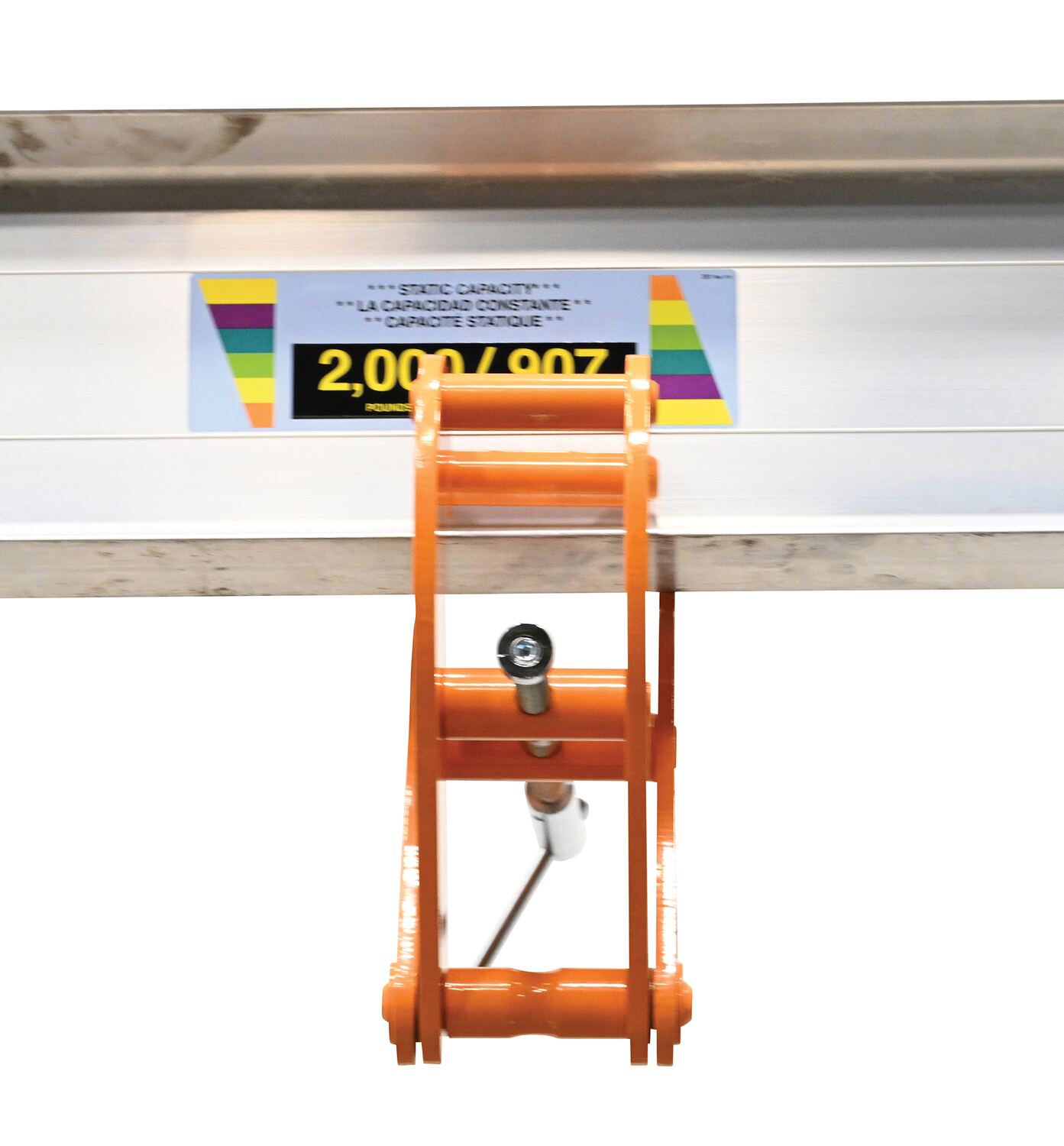

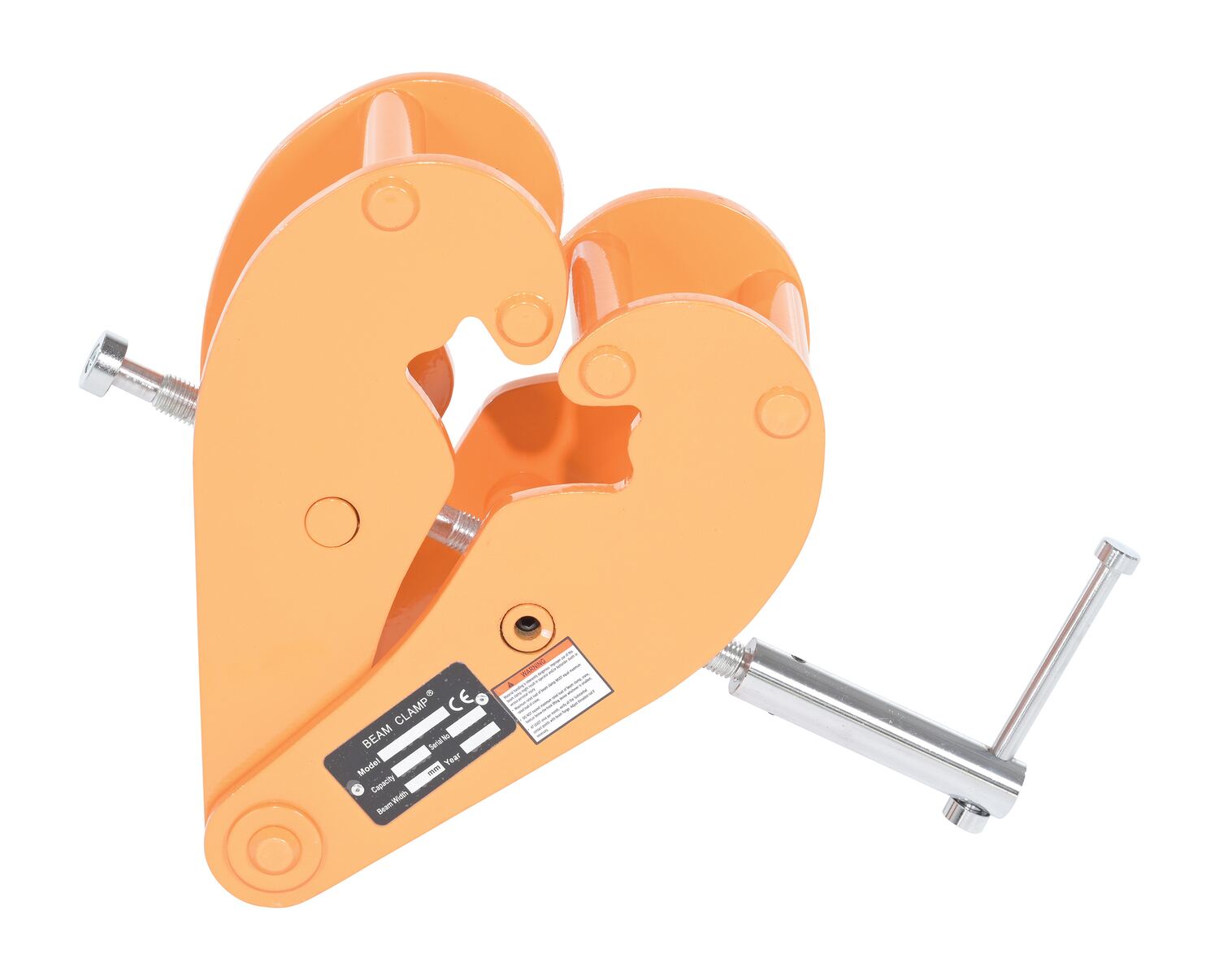

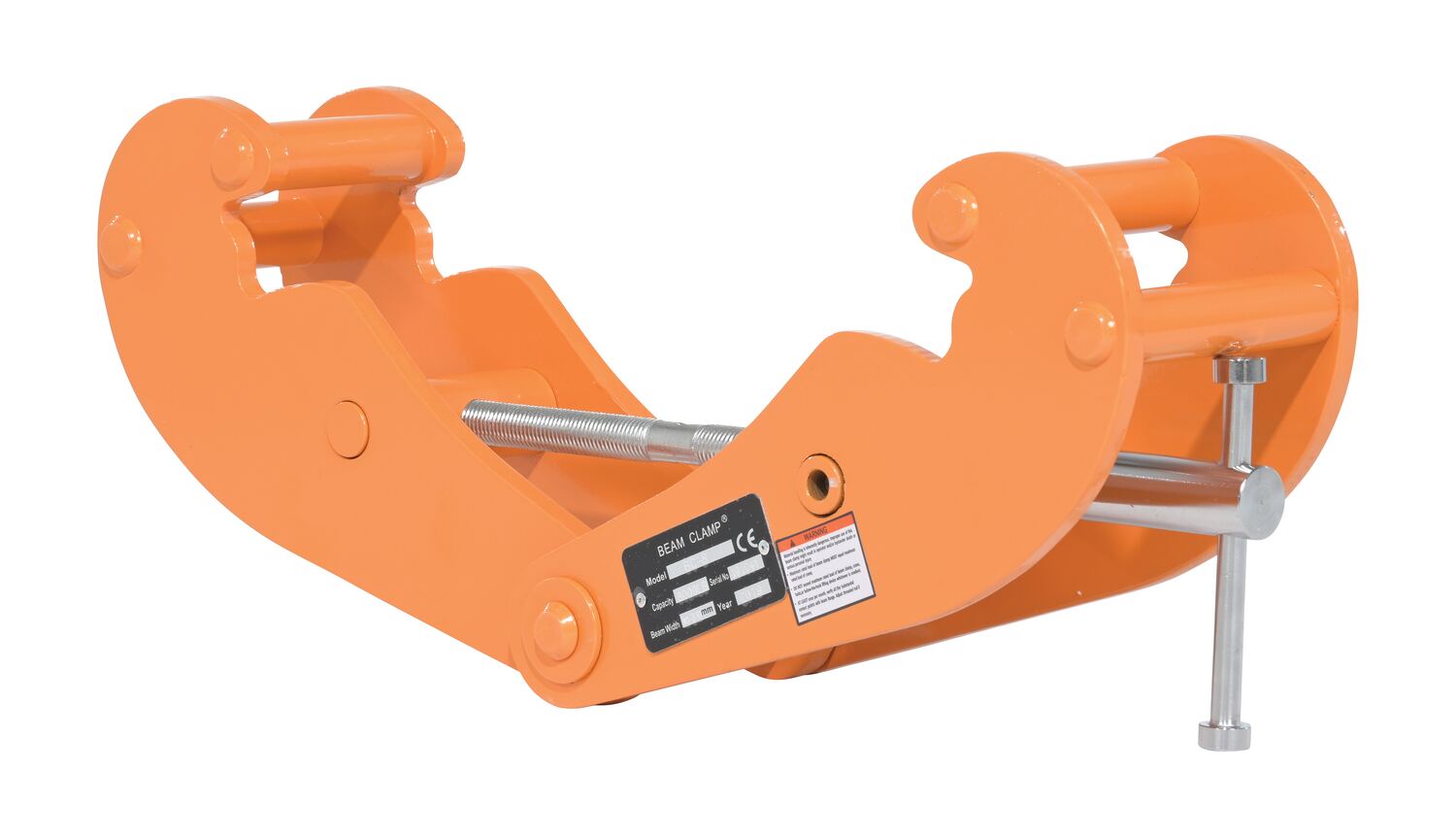

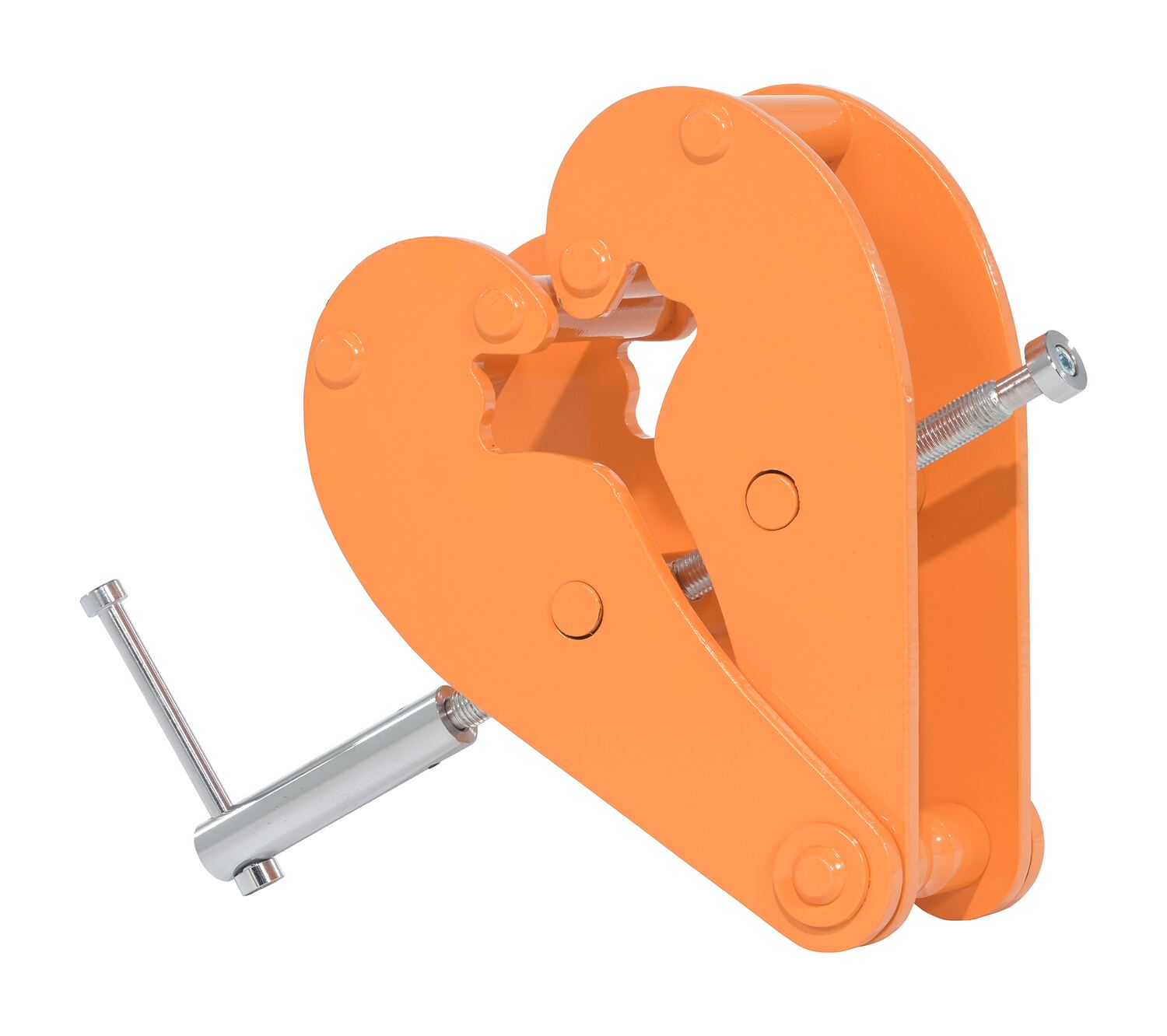

Designed to reduce the I-beam flange stress by distributing loads away from the flange edges during overhead lifting applications. These versatile units can be interchanged from one gantry to another in a matter of seconds with its easy mechanical adjustment mechanism. A bar is located at the bottom of the beam clamp for attaching a hoist (sold separately). Steel construction and painted finish.
BC-1

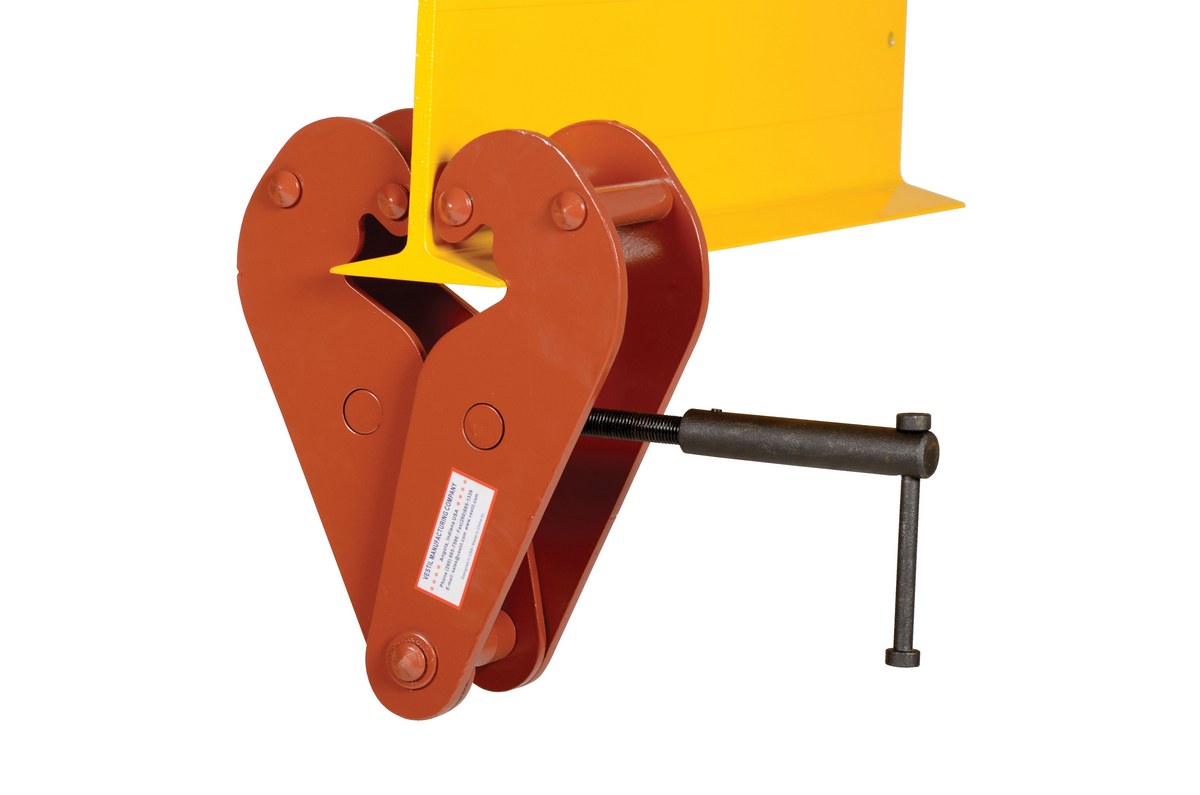

BC-6
BC-1

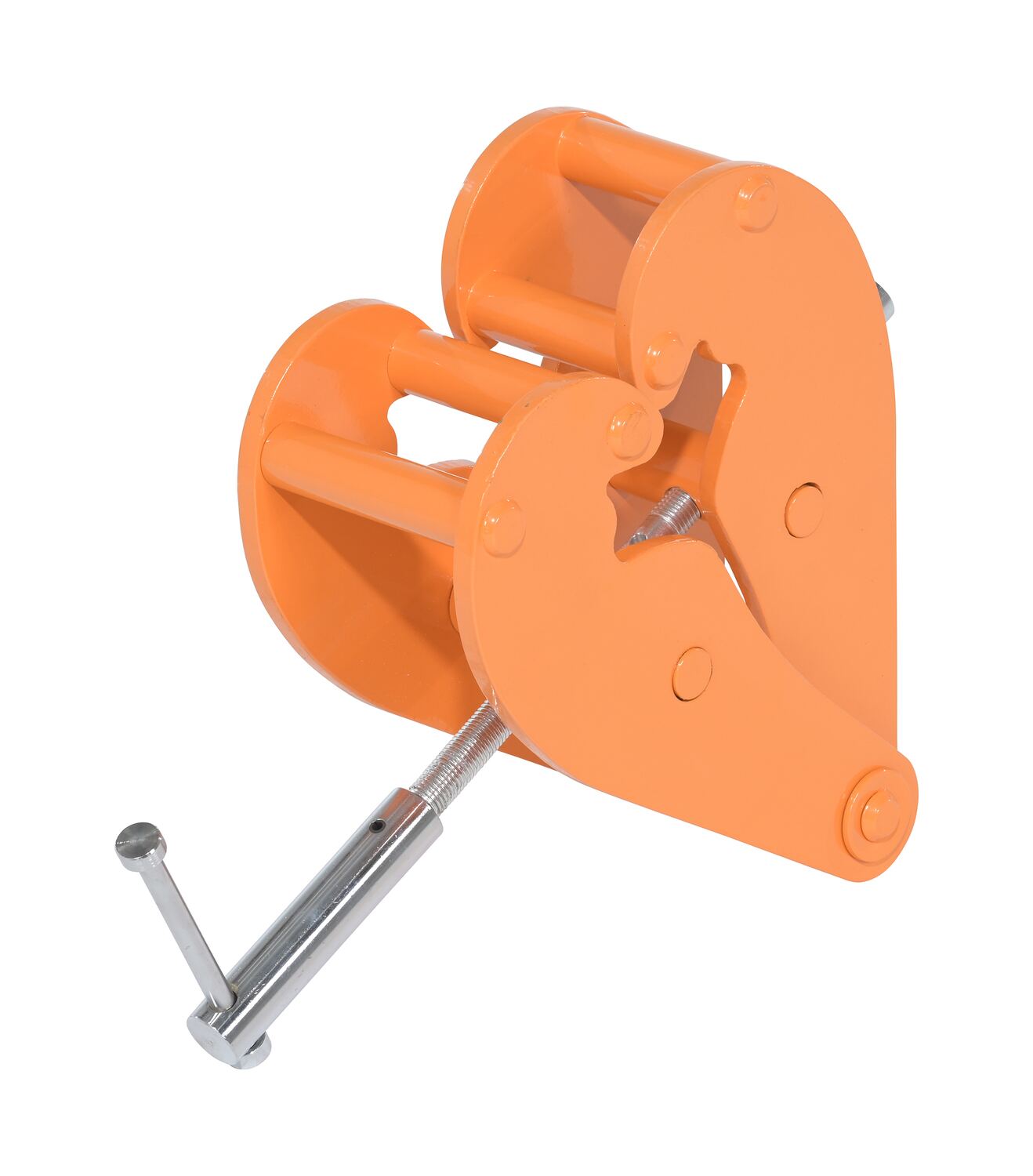

BC-10
BC-6
BC-10

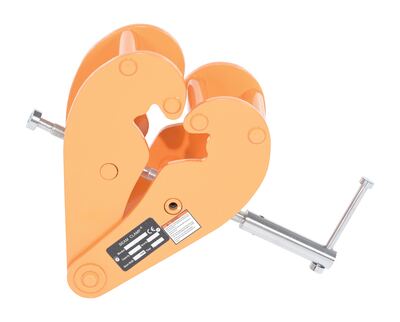

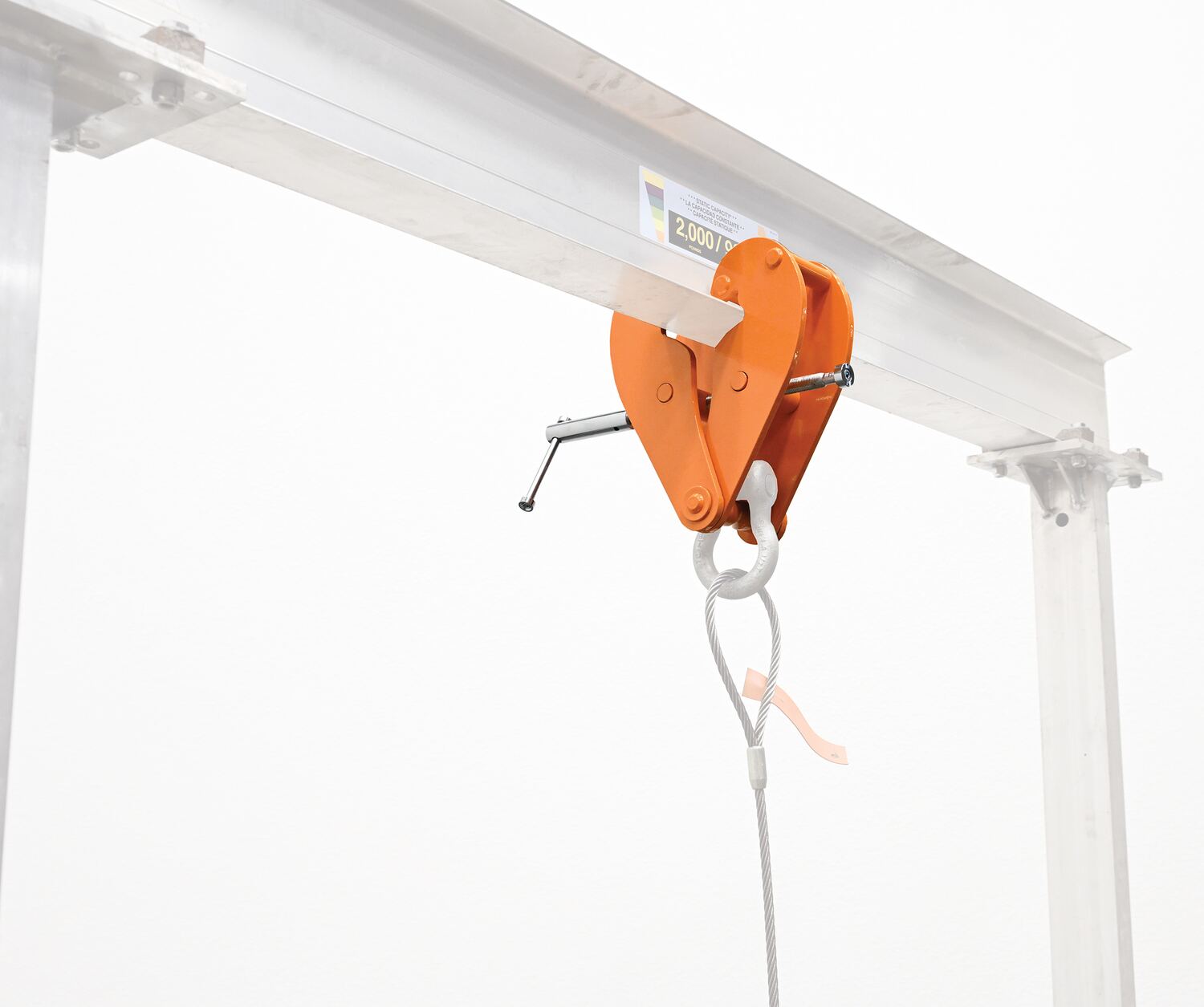

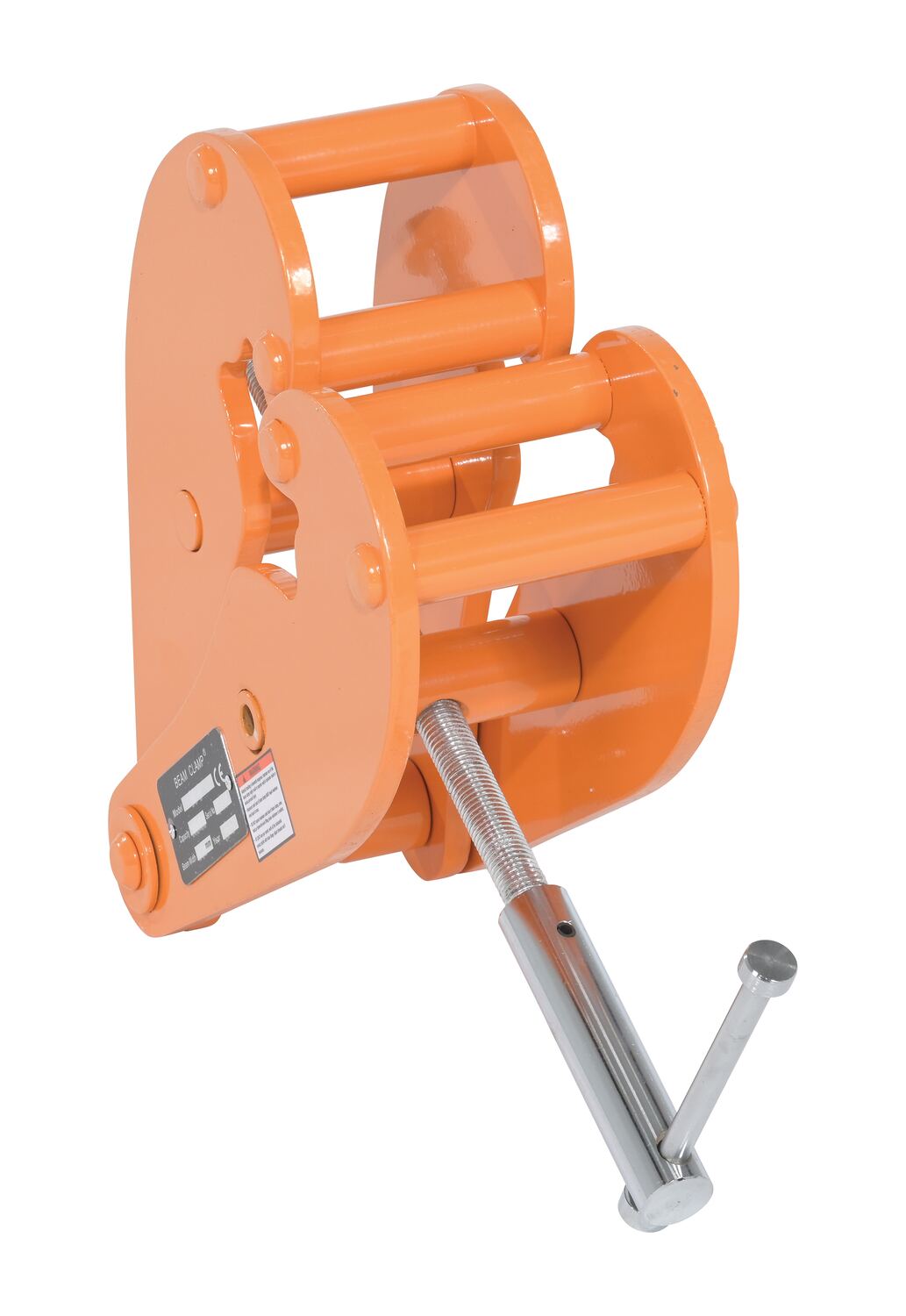

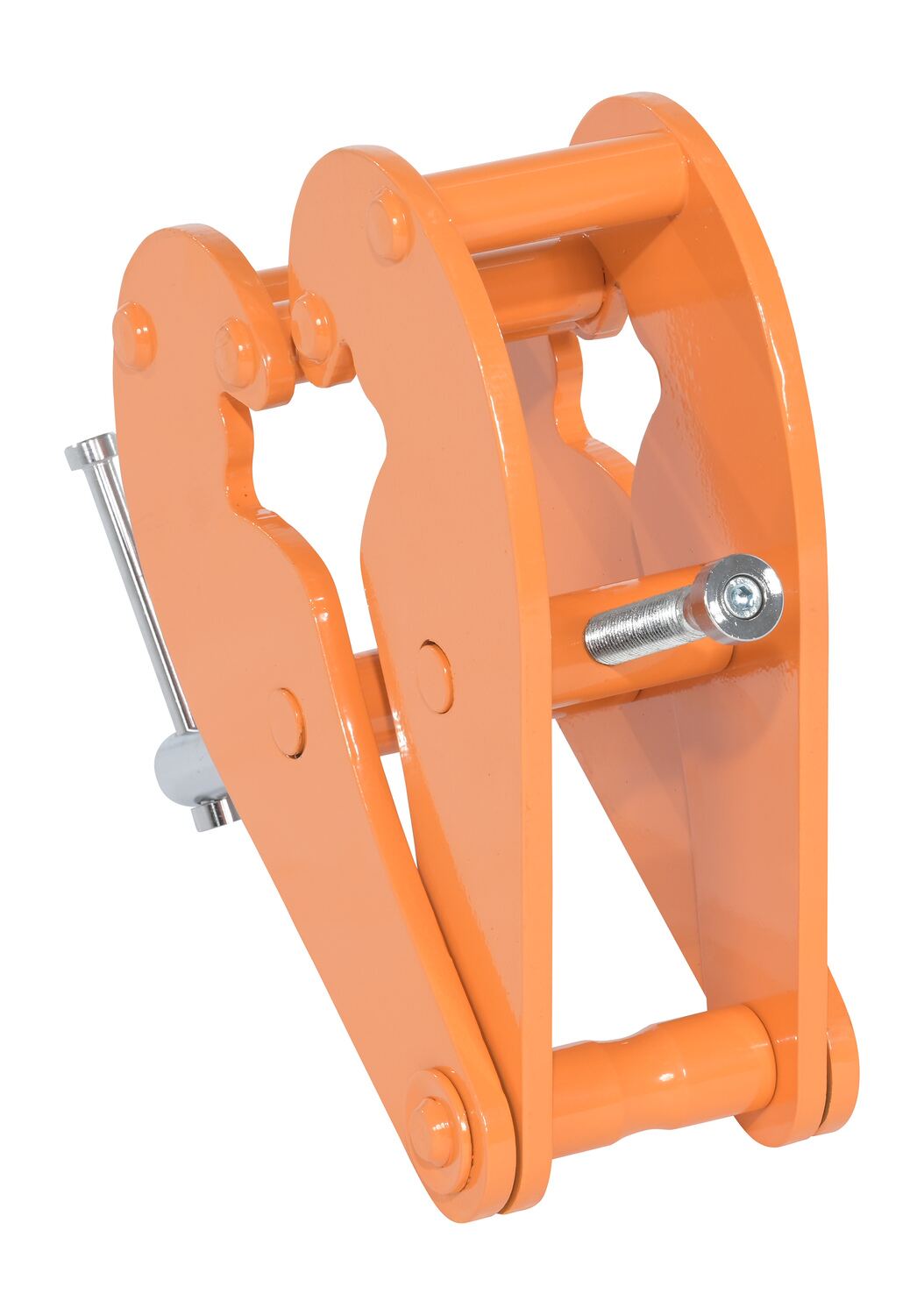

BC-8
BC-8
BC-8
BC-1
BC-10
BC-10

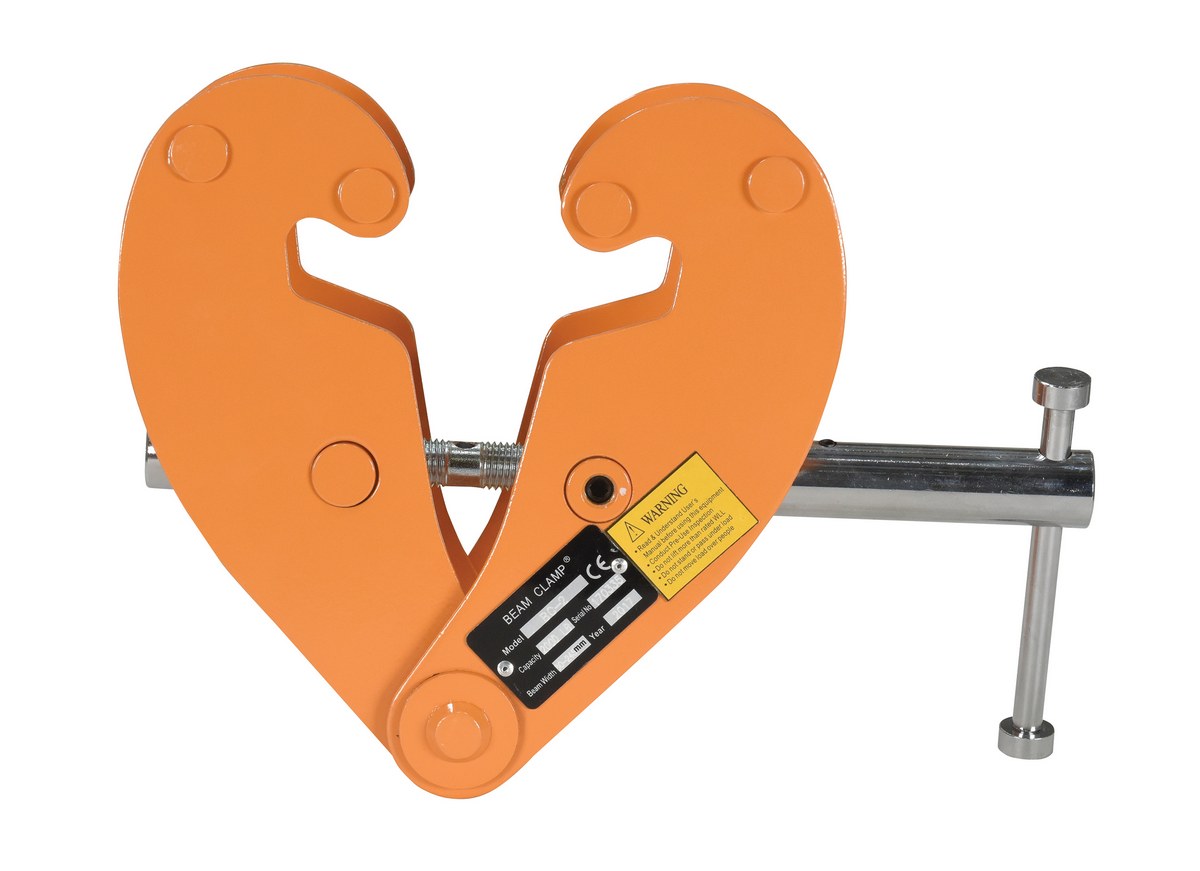

BC-2
BC-2
BC-2
| Model # | Description | Attributes | Net Wt. (lbs) | ||||
|---|---|---|---|---|---|---|---|
| BC-1 |  | 90 Days Limited Warranty | Steel Beam Clamp Horizontal Lift Style 16-1/2 In. x 3-1/2 In. x 6-1/4 In. 1000 Lb. Capacity Orange | Uniform Capacity (lb.): 1,000 Fits Beam Flange Width (in.): 3-1/8 to 9-5/8 | 10 | ||
| BC-10 | | 90 Days Limited Warranty | Steel Beam Clamp Horizontal Lift Style 21-1/4 In. x 5-1/4 In. x 7-3/4 In. 10000 Lb. Capacity Orange | Uniform Capacity (lb.): 10000 Fits Beam Flange Width (in.): 3-1/2 to 12-1/4 | 38 | ||
| BC-2 | | 90 Days Limited Warranty | Steel Beam Clamp Horizontal Lift Style 16-1/2 In. x 3-1/2 In. x 6-1/4 In. 2000 Lb. Capacity Orange | Uniform Capacity (lb.): 2,000 Fits Beam Flange Width (in.): 3-1/8 to 9-5/8 | 10 | ||

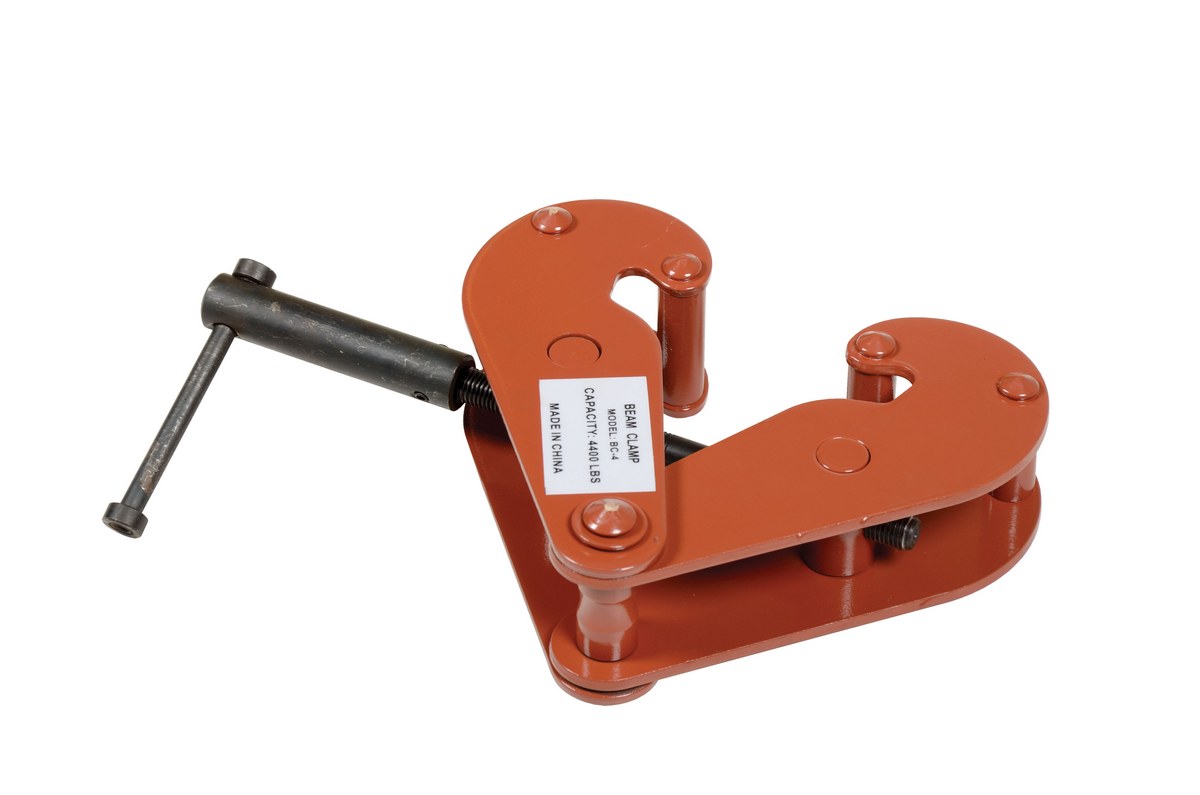

| BC-4 |  | 90 Days Limited Warranty | Steel Beam Clamp Horizontal Lift Style 16 In. x 4 In. x 6-1/2 In. 4000 Lb. Capacity Orange | Uniform Capacity (lb.): 4,000 Fits Beam Flange Width (in.): 3-1/8 to 9-5/8 | 12 | ||
| BC-6 | | 90 Days Limited Warranty | Steel Beam Clamp Horizontal Lift Style 20-1/4 In. x 5-1/4 In. x 7-3/4 In. 6000 Lb. Capacity Orange | Uniform Capacity (lb.): 6,000 Fits Beam Flange Width (in.): 3-1/2 to 12-1/4 | 28 | ||
| BC-8 |  | 90 Days Limited Warranty | Steel Beam Clamp Horizontal Lift Style 21-1/4 In. x 5-1/4 In. x 7-3/4 In. 8000 Lb. Capacity Orange | Uniform Capacity (lb.): 8,000 Fits Beam Flange Width (in.): 3-1/2 to 12-1/4 | 38 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: The dimension is dependent on the width of beam that it is installed on. Here are some measurements as reference. Closed end of range 6". In the middle of its range 5". Open end of range 4".
|
|||||||||||||||||||||||||||||||||||||
