Non-Marring Plate Clamps

- - - -

Description
Model Chart
PDF's
Image Gallery

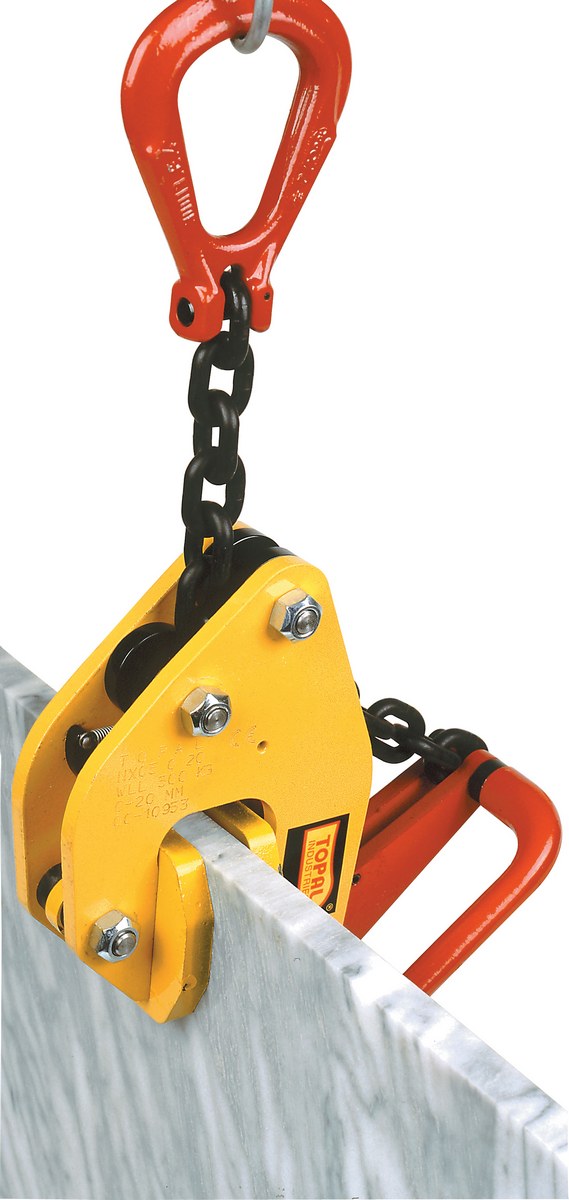

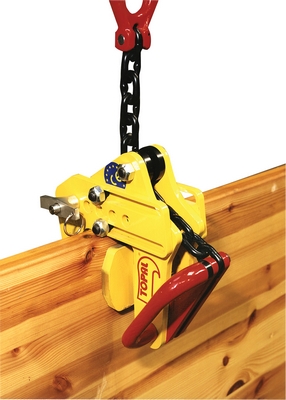

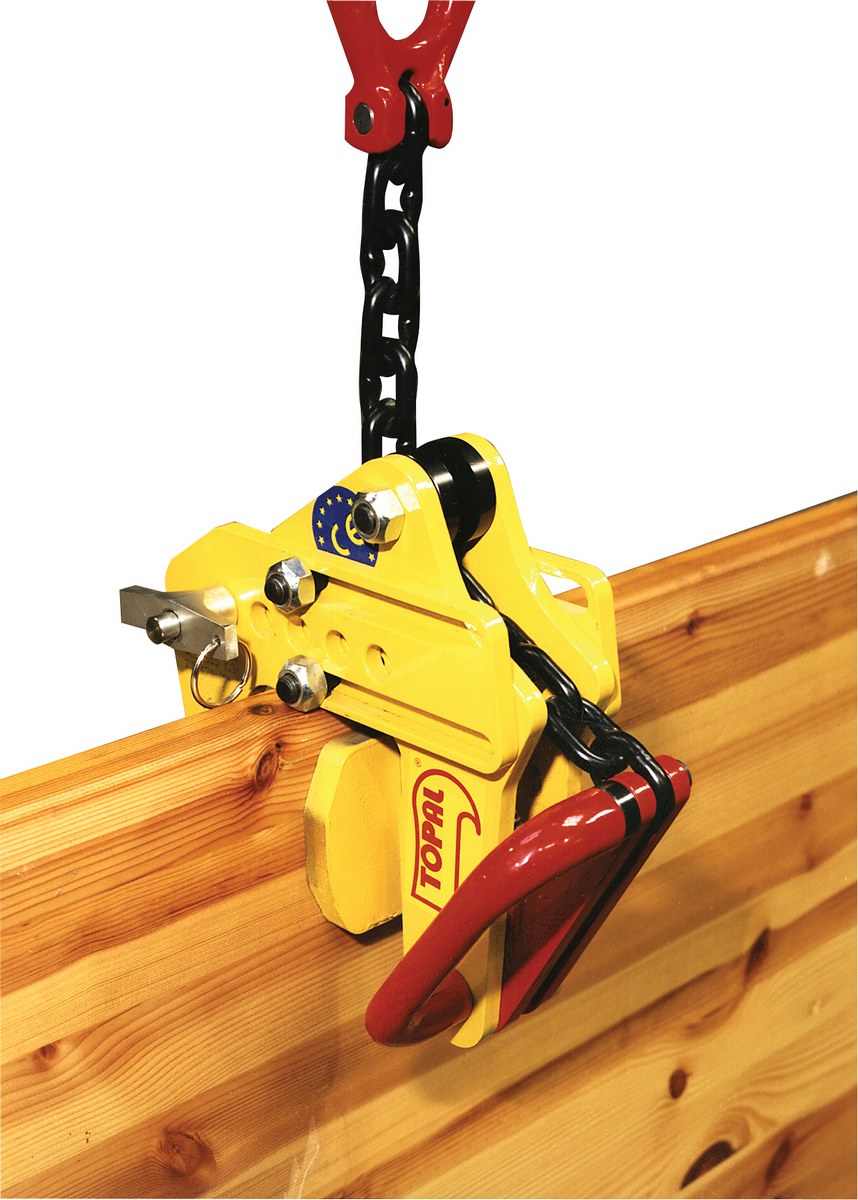

NMPC-11_A.jpg NMPC-11-4_A.jpg
Non-Marring Plate Clamps

model: NMPC-11



Featured Overhead Lifting


Air Powered Chain Hoists
Bar Stock Material Positioners
Adjustable Height Aluminum Gantry Cranes with Total Locking Casters
Fixed Steel Gantry Cranes with V-Groove Casters
Gantry Cranes
Horizontal Plate Clamps
Professional Lever Hoists (disc brake)
Economy Spreader Beams
Overhead Load Lifters
model chart

Product Family Overview

Print Friendly
Non-Marring Plate Clamps
SERIES: NMPC

These Non-Marring Plate Clamps are designed for lifting and revolving without marring of smooth or polished plates such as stainless steel, aluminum, pre-lacquered plates, wood, marble, concrete, glass, plastic or other fragile surfaces.

  • Design to meet ANSI B30.20-24 standards.
  • Lift only one plate at a time.
  • Permanently attached chain sling with a large oval suspension ring
  • Non-marring Polyurethane coated jaws
  • Automatic clamping (manual clamping recommended for fragile materials)

These Non-Marring Plate Clamps are designed for lifting and revolving without marring of smooth or polished plates such as stainless steel, aluminum, pre-lacquered plates, wood, marble, concrete, glass, plastic or other fragile surfaces.

  • Design to meet ANSI B30.20-24 standards.
  • Lift only one plate at a time.
  • Permanently attached chain sling with a large oval suspension ring
  • Non-marring Polyurethane coated jaws
  • Automatic clamping (manual clamping recommended for fragile materials)

Other Clamps & Tongs

 Heavy-Duty Die Lifting Tongs Vertical Plate Clamps Horizontal Plate Clamps Vertical Plate Clamps with Chain

How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
NMPC-11 NMPC-111 Year Limited WarrantySteel Non Marring Plate Clamp 6 In. x 5 In. x 8 In. 1100 Lb. Capacity YellowUniform Capacity (lb.): 1100
Minimum Opening (in.): 0		11
NMPC-11-3 NMPC-11-31 Year Limited WarrantySteel Non Marring Plate Clamp 7 In. x 5 In. x 10 In. 1100 Lb. Capacity YellowUniform Capacity (lb.): 1100
Minimum Opening (in.): 0		15
NMPC-11-4 NMPC-11-41 Year Limited WarrantySteel Non Marring Plate Clamp 6 In. x 5 In. x 10 In. 1100 Lb. Capacity YellowUniform Capacity (lb.): 1100
Minimum Opening (in.): 13/16		15
NMPC-11-5 NMPC-11-51 Year Limited WarrantySteel Non Marring Plate Clamp 8 In. x 5 In. x 8 In. 1100 Lb. Capacity YellowUniform Capacity (lb.): 1100
Minimum Opening (in.): 1-9/16		15

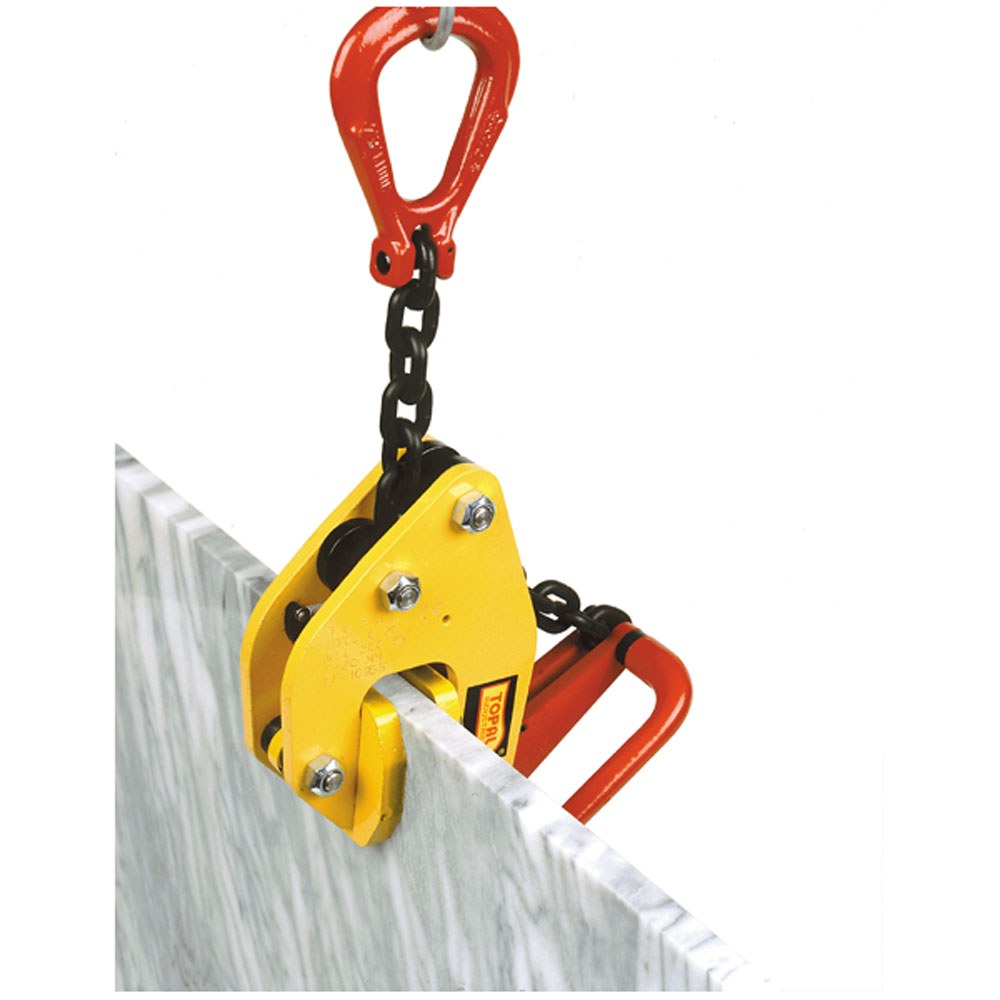

NMPC-33 NMPC-331 Year Limited WarrantySteel Non Marring Plate Clamp 7 In. x 5 In. x 10 In. 3300 Lb. Capacity YellowUniform Capacity (lb.): 3300
Minimum Opening (in.): 0		26

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

NMPC-11
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1100
Minimum Opening (in.): 0
Uniform Capacity (lb.): 1100
Minimum Opening (in.): 0

NMPC-11-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1100
Minimum Opening (in.): 0
Uniform Capacity (lb.): 1100
Minimum Opening (in.): 0

NMPC-11-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1100
Minimum Opening (in.): 13/16
Uniform Capacity (lb.): 1100
Minimum Opening (in.): 13/16

NMPC-11-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1100
Minimum Opening (in.): 1-9/16
Uniform Capacity (lb.): 1100
Minimum Opening (in.): 1-9/16

NMPC-33
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3300
Minimum Opening (in.): 0
Uniform Capacity (lb.): 3300
Minimum Opening (in.): 0
Non-Marring Plate Clamps PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Related or Similar Products:

Positive Locking Plate Clamps
Product

Positive Locking Plate Clamps

Vertical Plate Clamps with Chain
Product

Vertical Plate Clamps with Chain

Vertical Plate Clamps
Product

Vertical Plate Clamps

Horizontal Plate Clamps
Product

Horizontal Plate Clamps

Heavy-Duty Beam Tongs
Product

Heavy-Duty Beam Tongs

Heavy-Duty Die Lifting Tongs
Product

Heavy-Duty Die Lifting Tongs

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Non-Marring Plate Clamps




These Non-Marring Plate Clamps are designed for lifting and revolving without marring of smooth or polished plates such as stainless steel, aluminum, pre-lacquered plates, wood, marble, concrete, glass, plastic or other fragile surfaces.

  • Design to meet ANSI B30.20-24 standards.
  • Lift only one plate at a time.
  • Permanently attached chain sling with a large oval suspension ring
  • Non-marring Polyurethane coated jaws
  • Automatic clamping (manual clamping recommended for fragile materials)

Model # Description Attributes Net Wt.
(lbs)
NMPC-11 NMPC-11Steel Non Marring Plate Clamp 6 In. x 5 In. x 8 In. 1100 Lb. Capacity YellowUniform Capacity (lb.): 1100
Minimum Opening (in.): 0		11
NMPC-11-3 NMPC-11-3Steel Non Marring Plate Clamp 7 In. x 5 In. x 10 In. 1100 Lb. Capacity YellowUniform Capacity (lb.): 1100
Minimum Opening (in.): 0		15
NMPC-11-4 NMPC-11-4Steel Non Marring Plate Clamp 6 In. x 5 In. x 10 In. 1100 Lb. Capacity YellowUniform Capacity (lb.): 1100
Minimum Opening (in.): 13/16		15
NMPC-11-5 NMPC-11-5Steel Non Marring Plate Clamp 8 In. x 5 In. x 8 In. 1100 Lb. Capacity YellowUniform Capacity (lb.): 1100
Minimum Opening (in.): 1-9/16		15
NMPC-33 NMPC-33Steel Non Marring Plate Clamp 7 In. x 5 In. x 10 In. 3300 Lb. Capacity YellowUniform Capacity (lb.): 3300
Minimum Opening (in.): 0		26
