Product Family Overview


Tripod Hoist Stands
SERIES: TRI

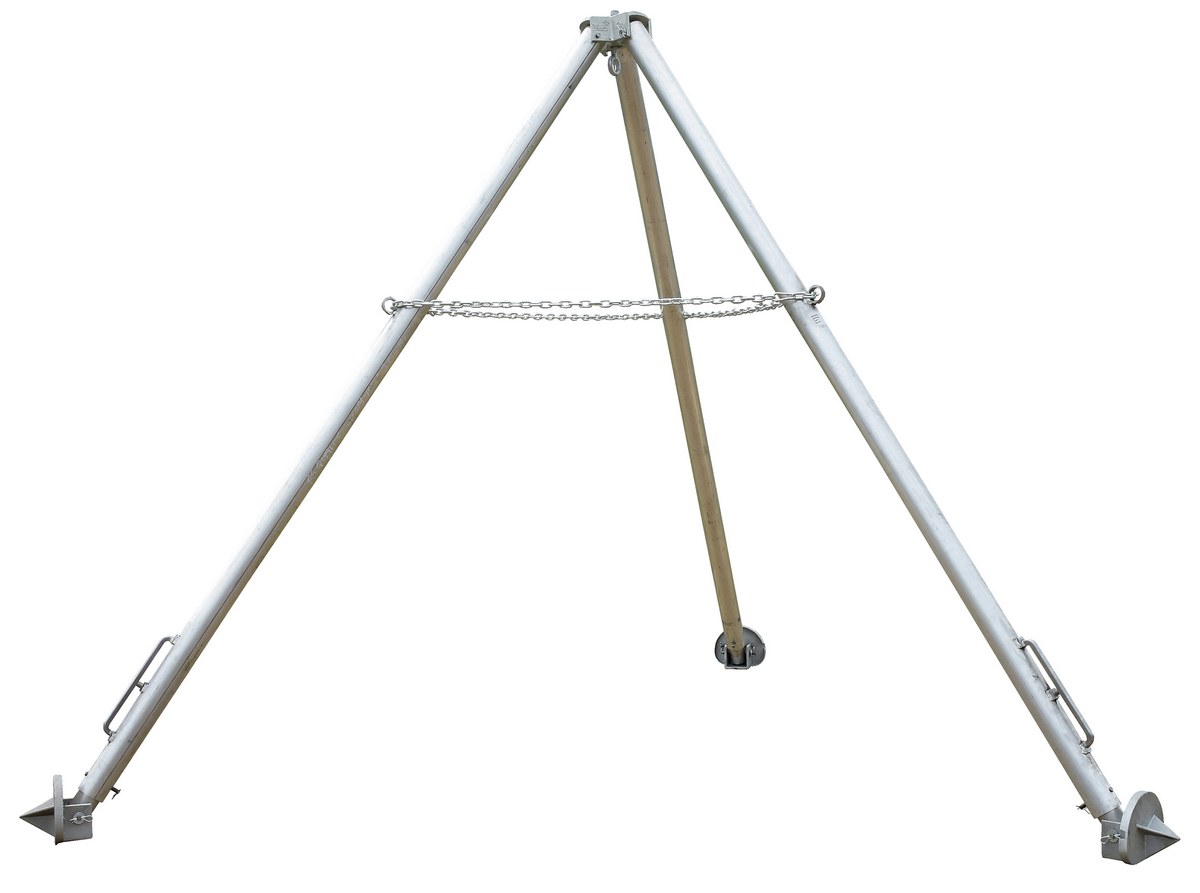

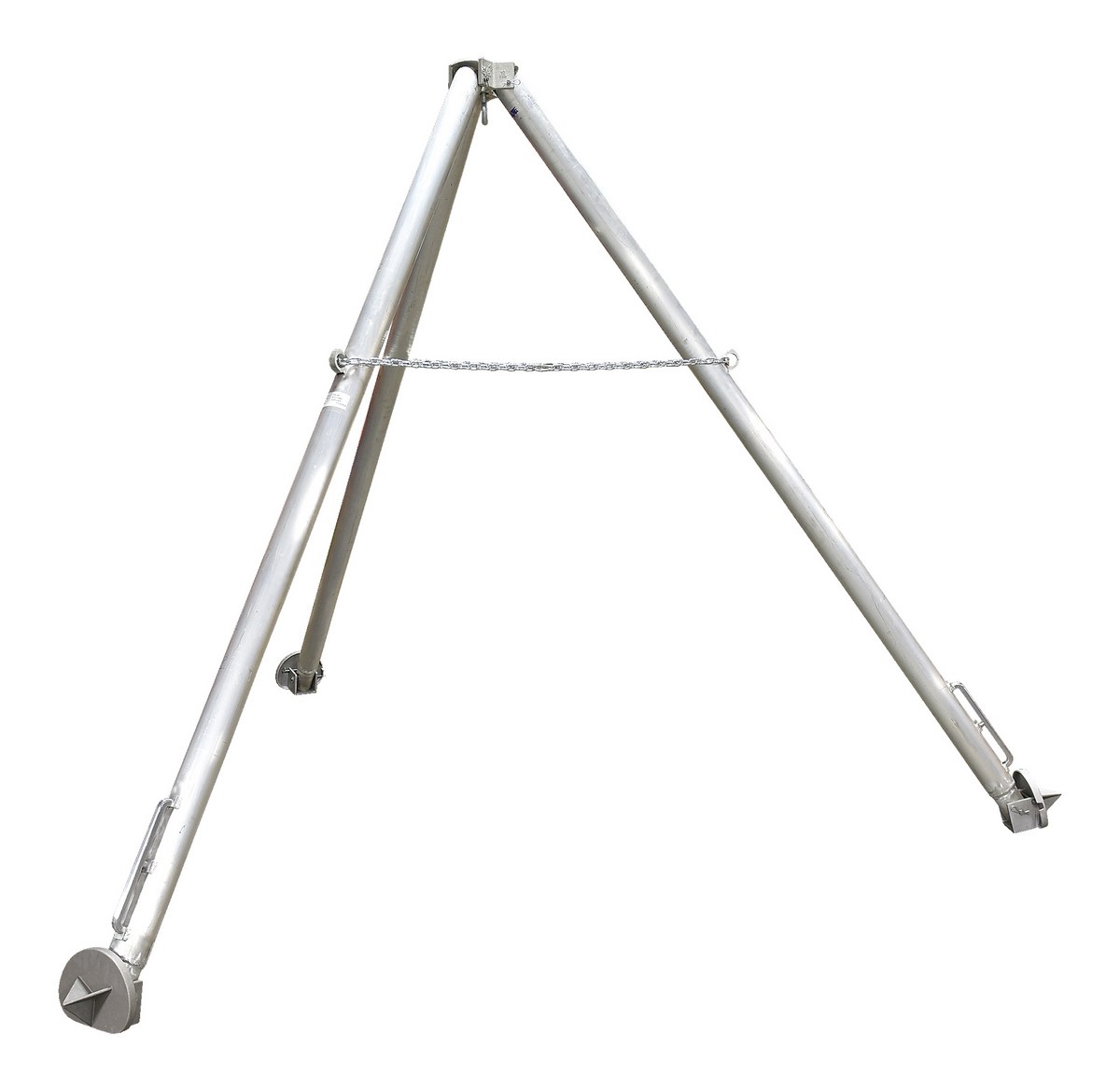

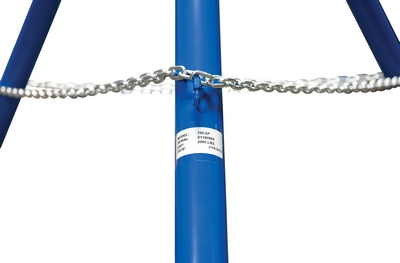

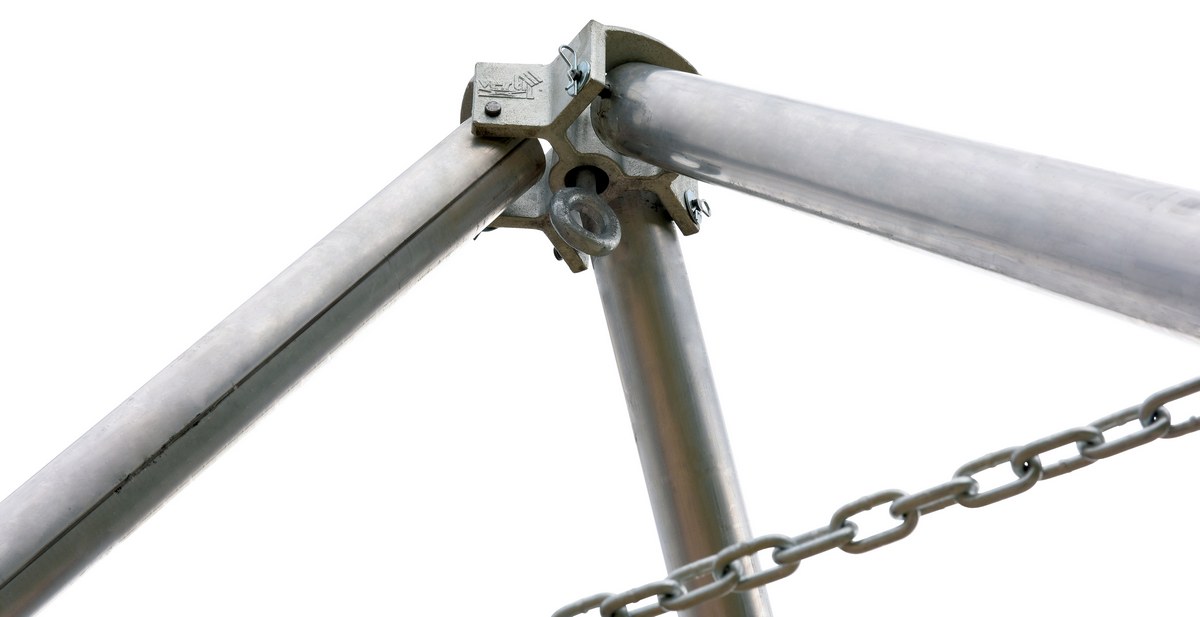

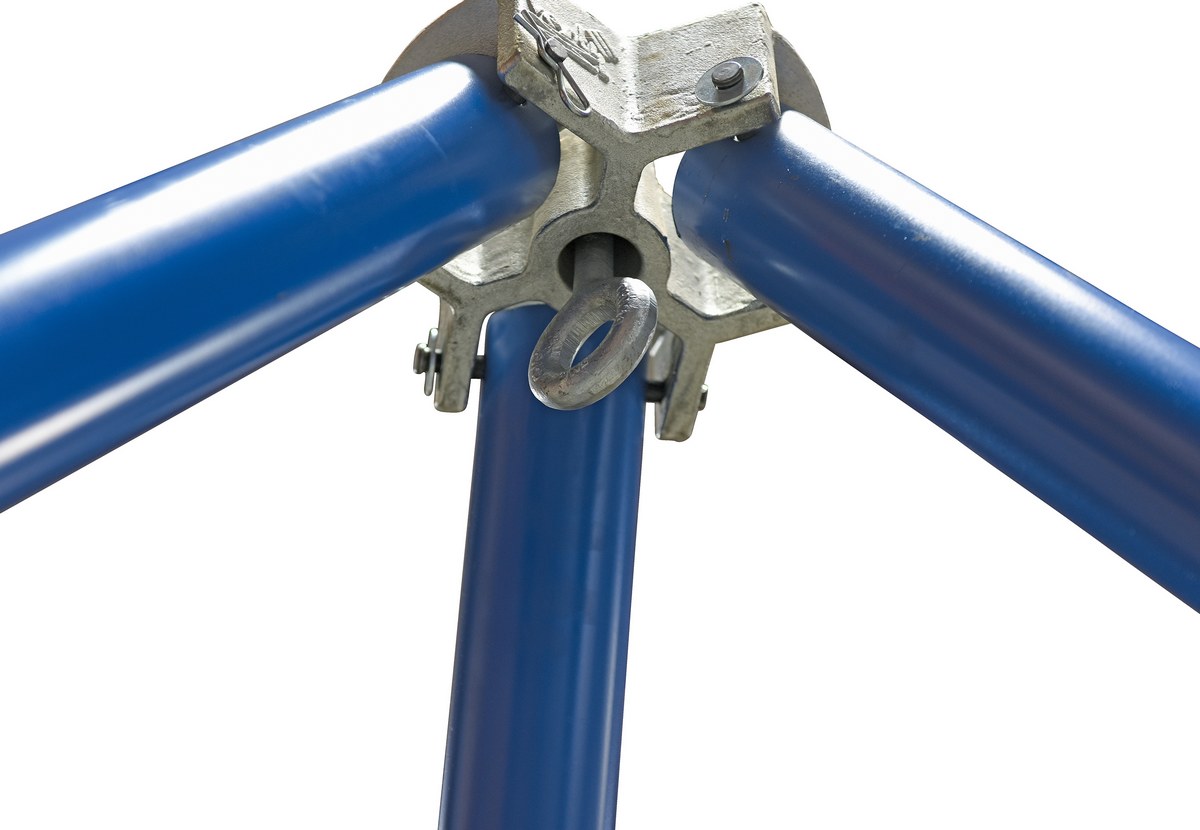

This portable steel or aluminum tripod hoist stand provides a convenient and economical lifting support stand. Available in adjustable or fixed height versions. The unit folds for convenient portability and storage. Great for access to confined spaces. Features padded pivots for smooth or spiked feet. The spiked feet are designed to be used in rough terrain. A swivel eye bolt and safety chain are standard. Chain hoist not included. Meets ANSI safety requirements for confined space Z117.1.

  • Provides a convenient and economical lifting support stand
  • Unit folds for convenient portability and storage

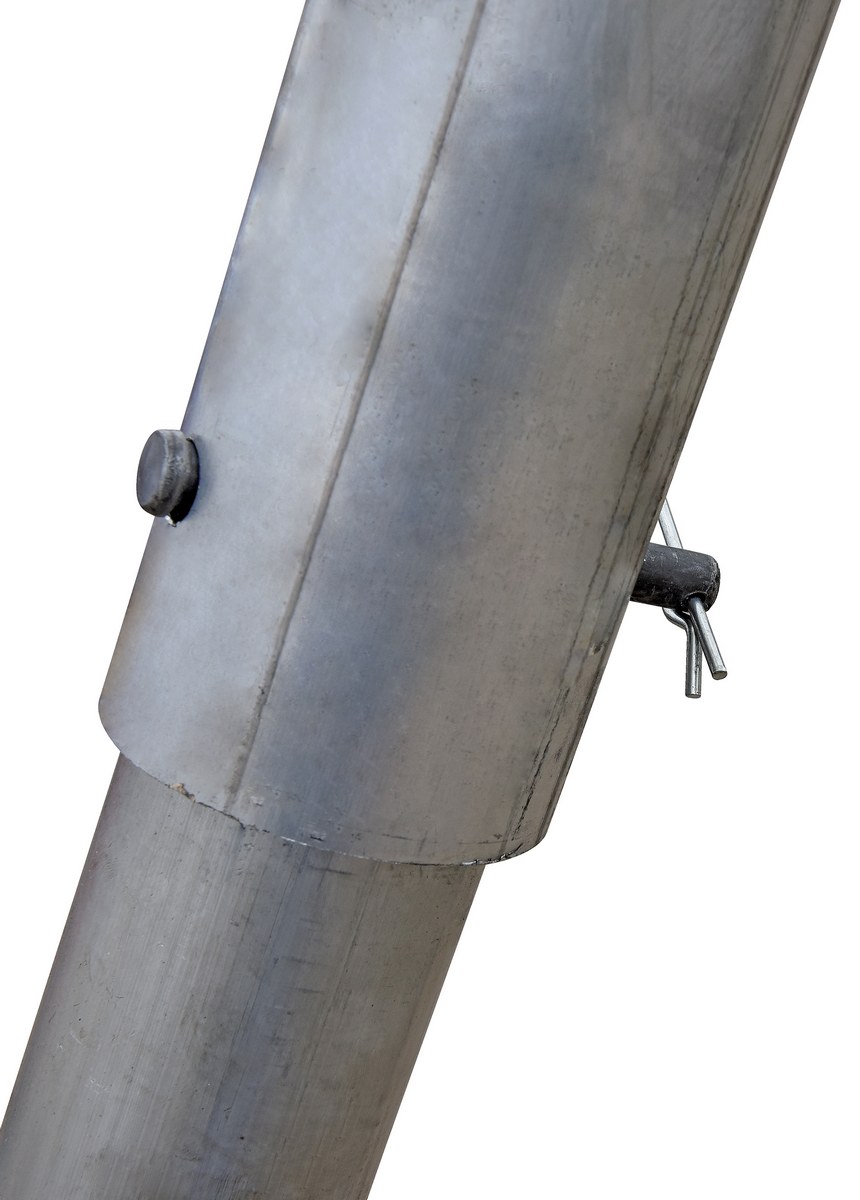

  • Great for access to confined spaces with adjustable height legs

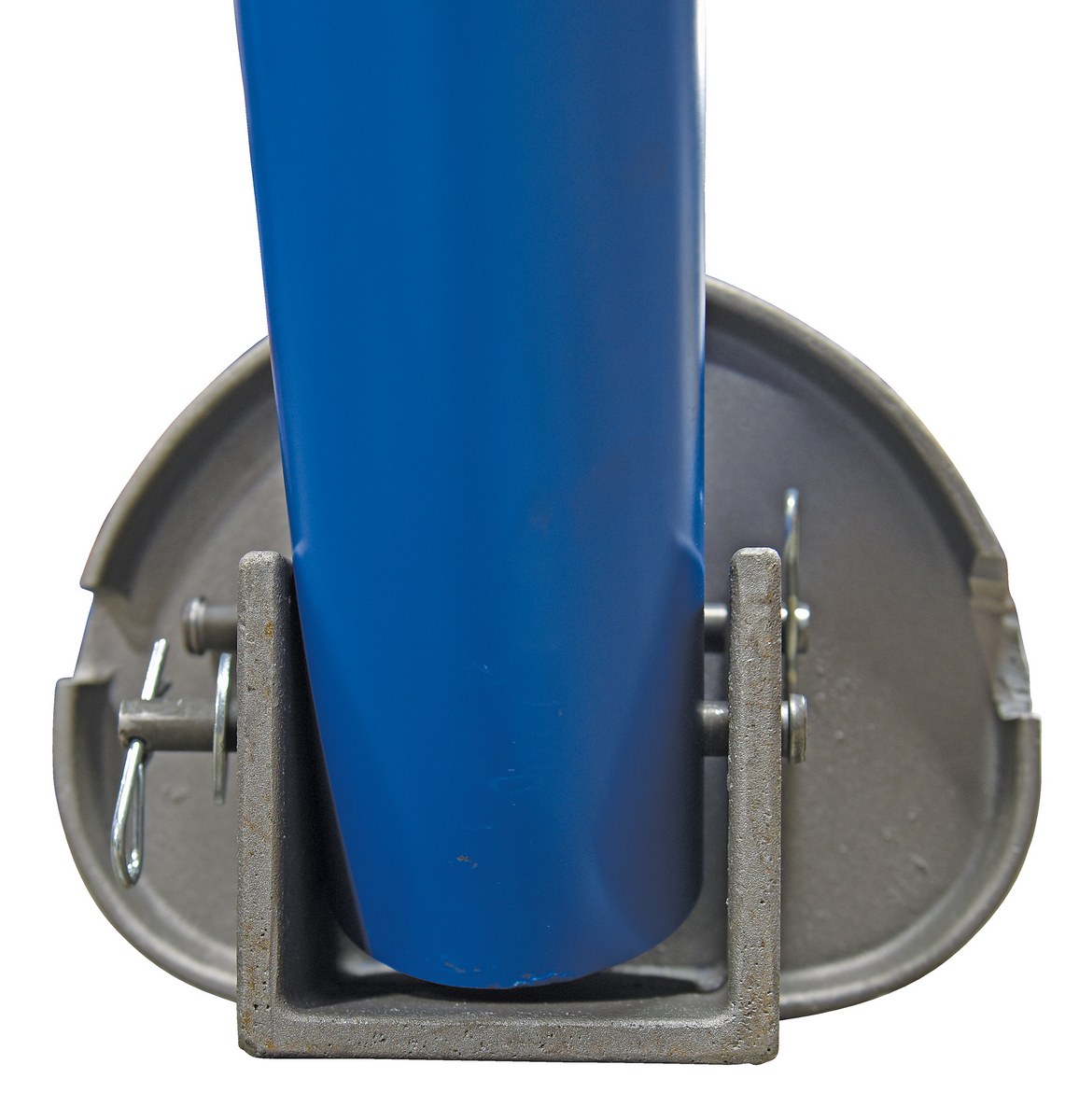

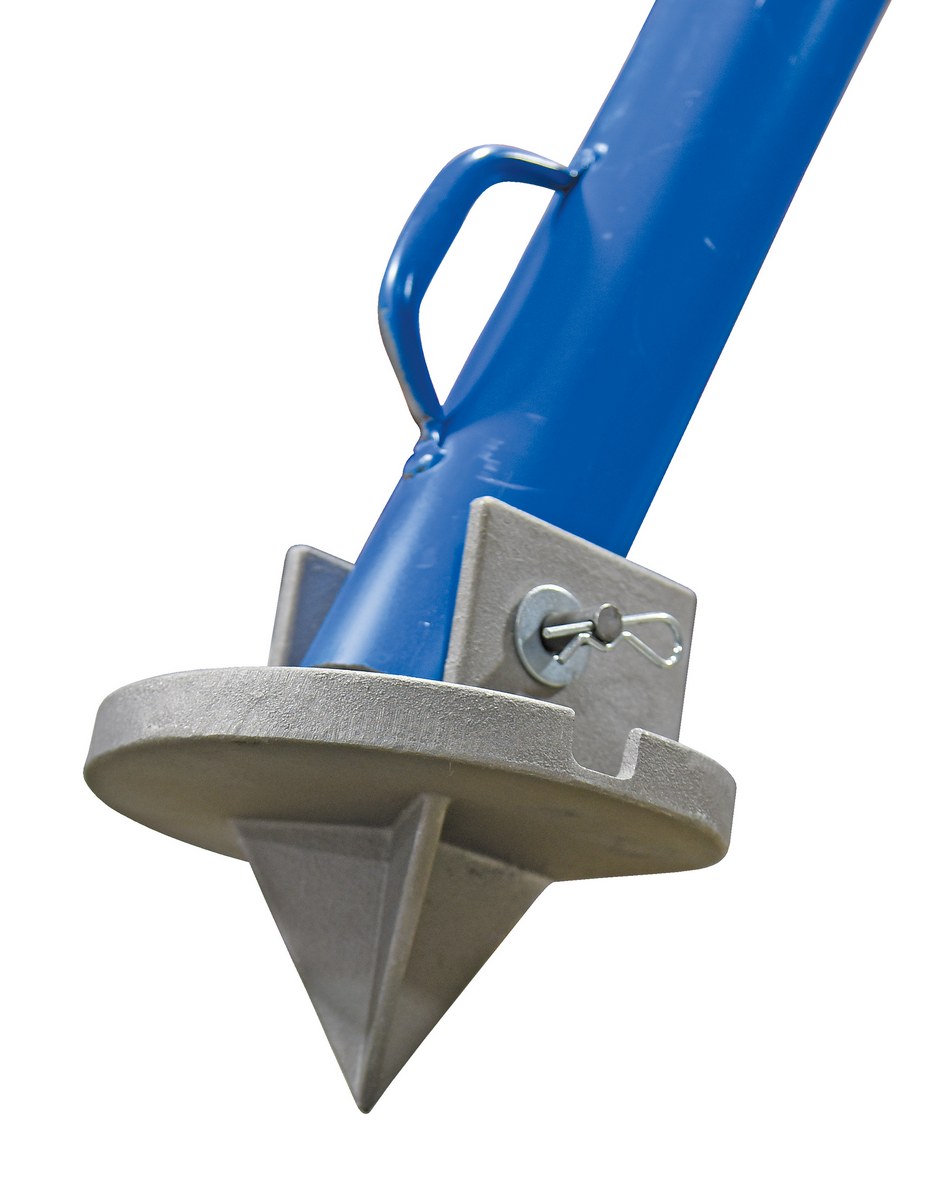

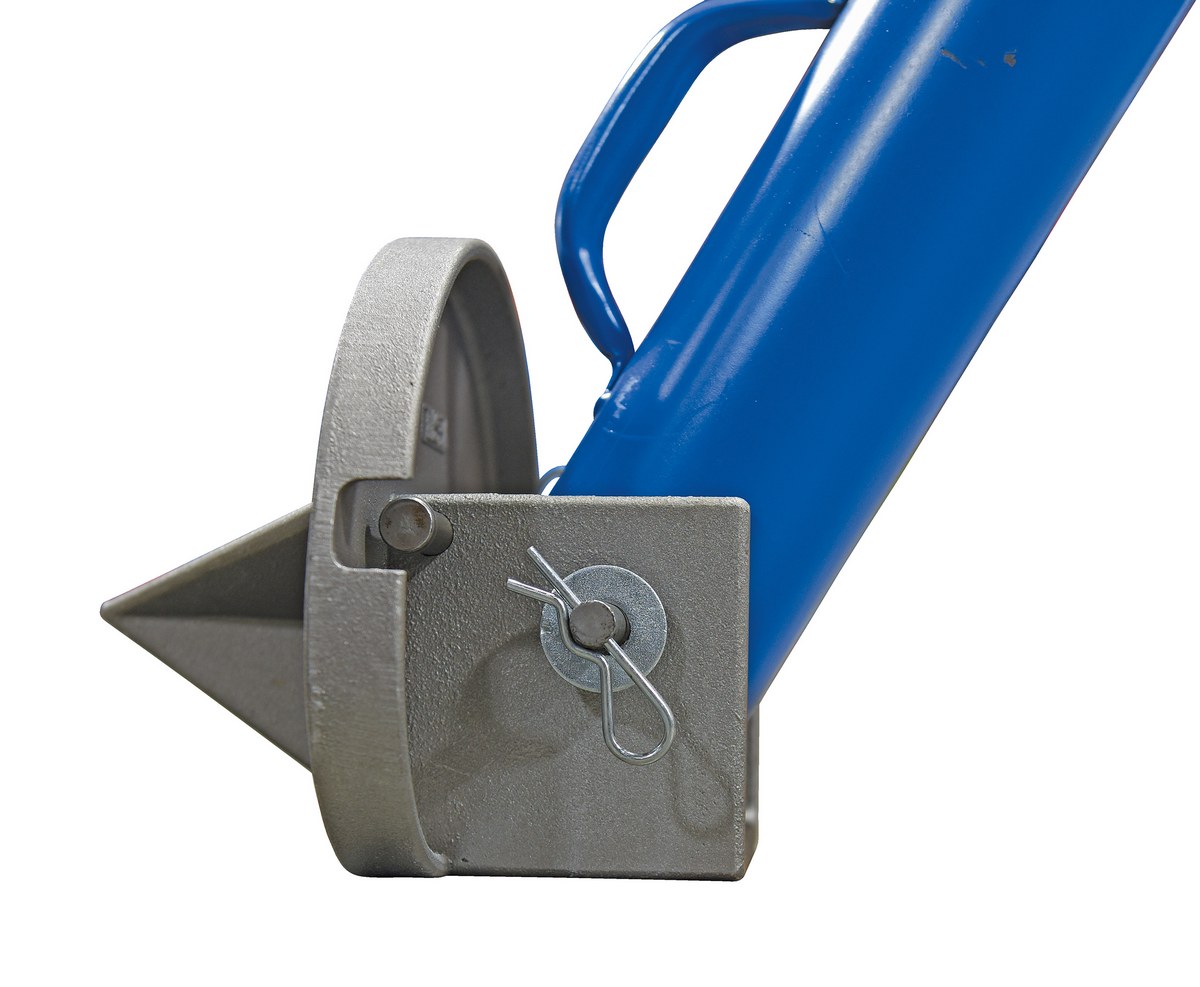

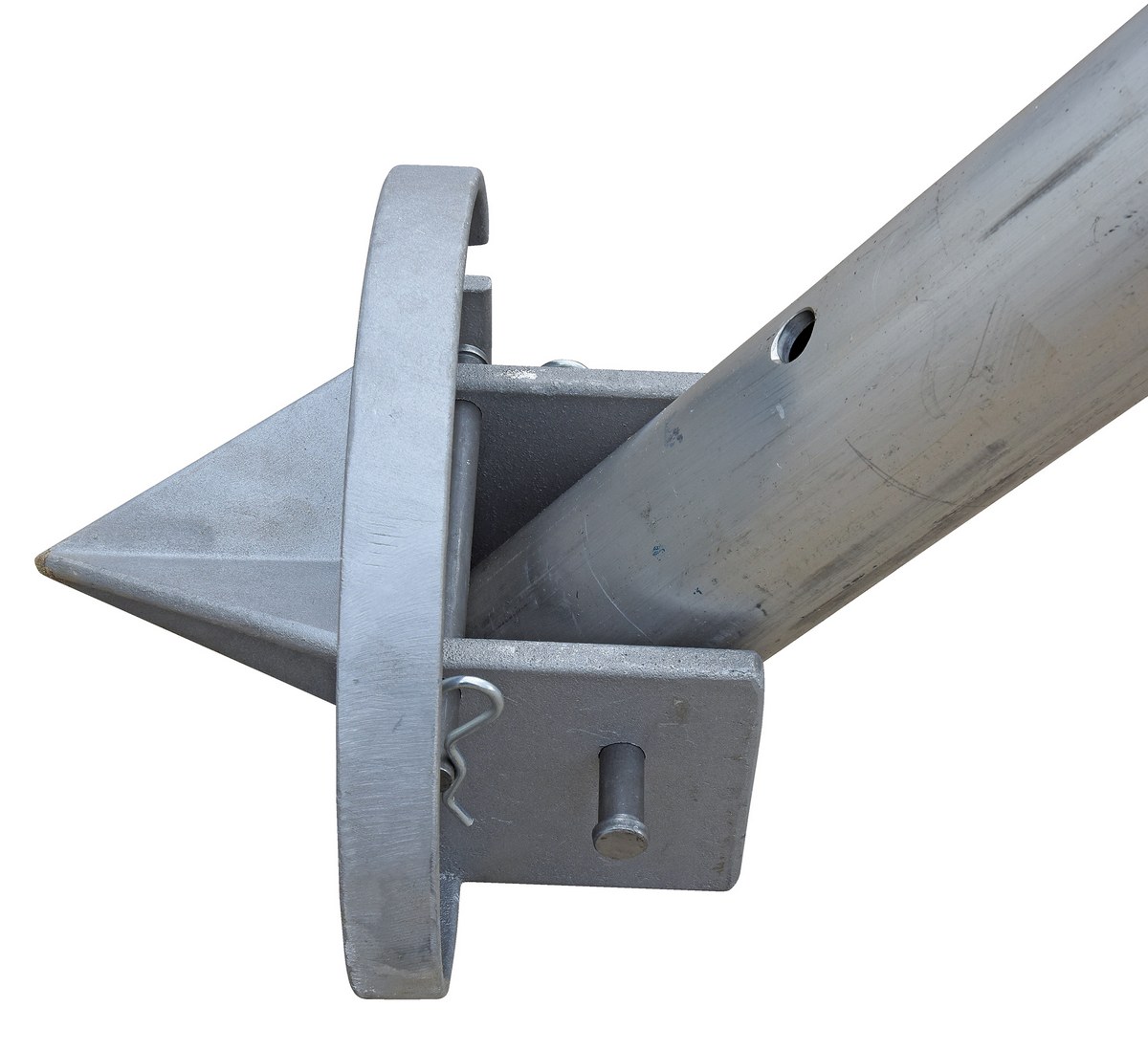

  • Features padded pivots for smooth or spiked feet for use in rough terrain

This portable steel or aluminum tripod hoist stand provides a convenient and economical lifting support stand. Available in adjustable or fixed height versions. The unit folds for convenient portability and storage. Great for access to confined spaces. Features padded pivots for smooth or spiked feet. The spiked feet are designed to be used in rough terrain. A swivel eye bolt and safety chain are standard. Chain hoist not included. Meets ANSI safety requirements for confined space Z117.1.

  • Provides a convenient and economical lifting support stand
  • Unit folds for convenient portability and storage
  • Great for access to confined spaces with adjustable height legs
  • Features padded pivots for smooth or spiked feet for use in rough terrain

Additional Models In This Family

TRI-AA

model TRI-AA

TRI-AF

model TRI-AF

TRI-SA

model TRI-SA

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

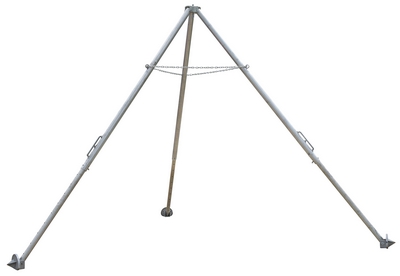

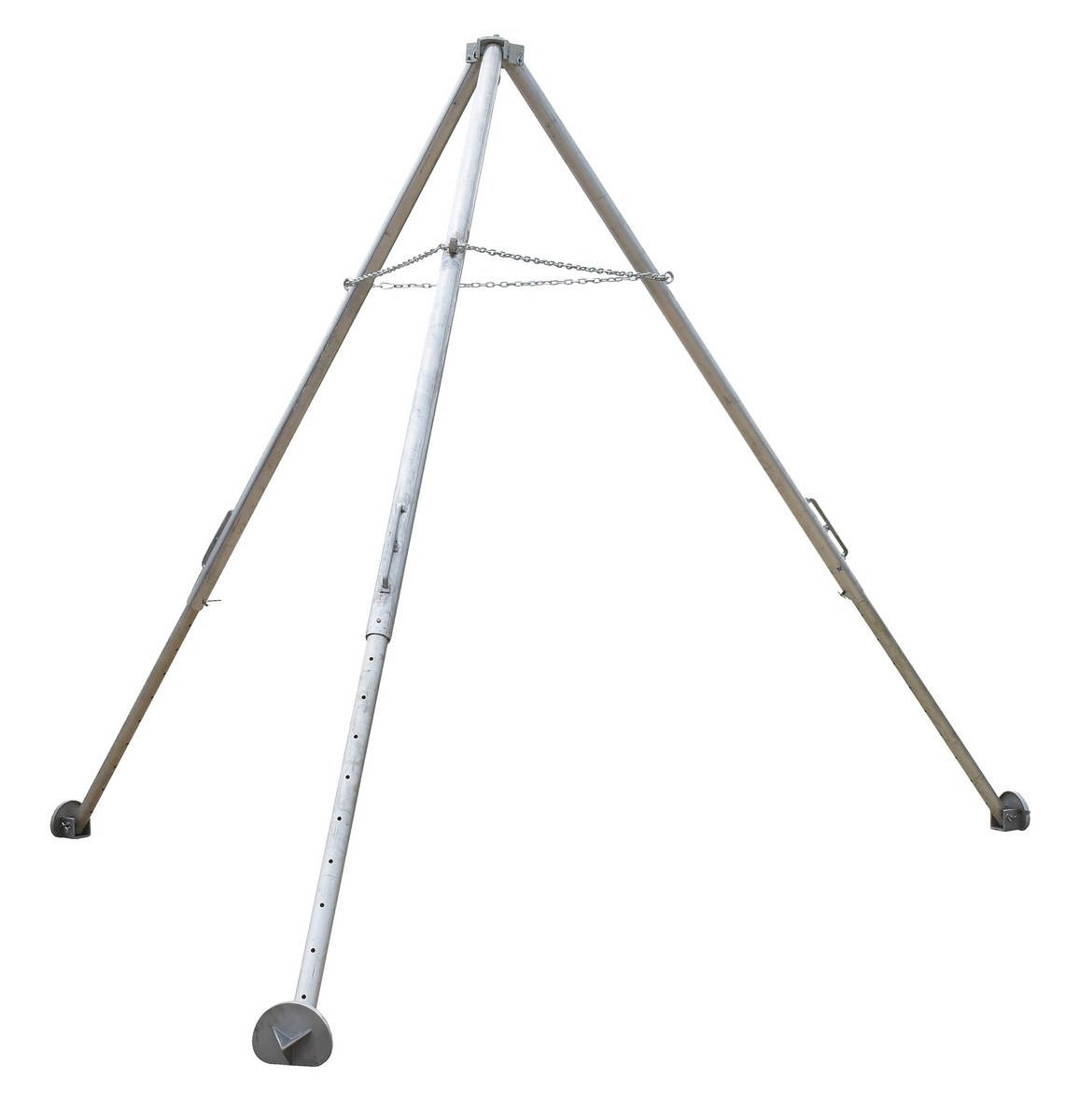

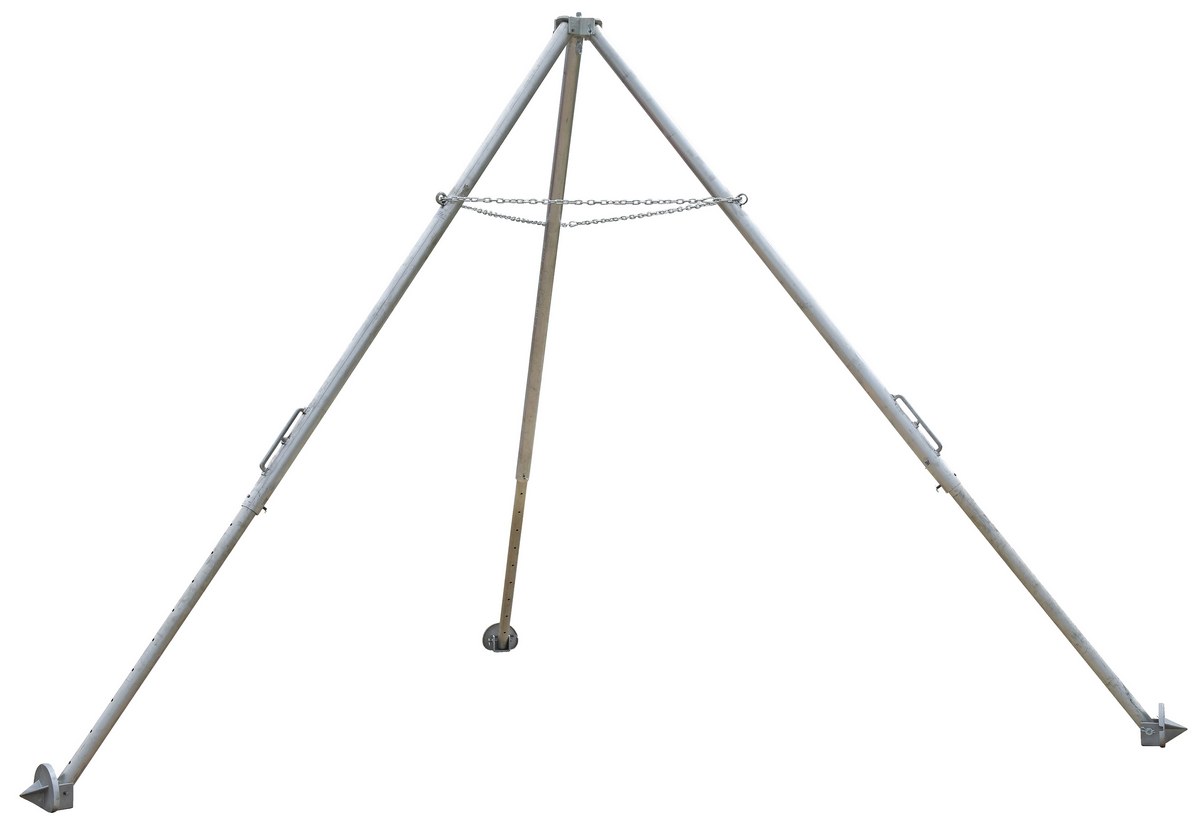

TRI-AA TRI-AA90 Days Limited WarrantyAluminum Adjustable Height Tripod Stand 115-5/8 In. x 115-5/8 In. x 111-5/8 In. 1,000 Lb. Capacity SilverUniform Capacity (lb.): 1,000
Eyelet Height Min./Max. (in.): 104-1/4 to 164-1/2
247

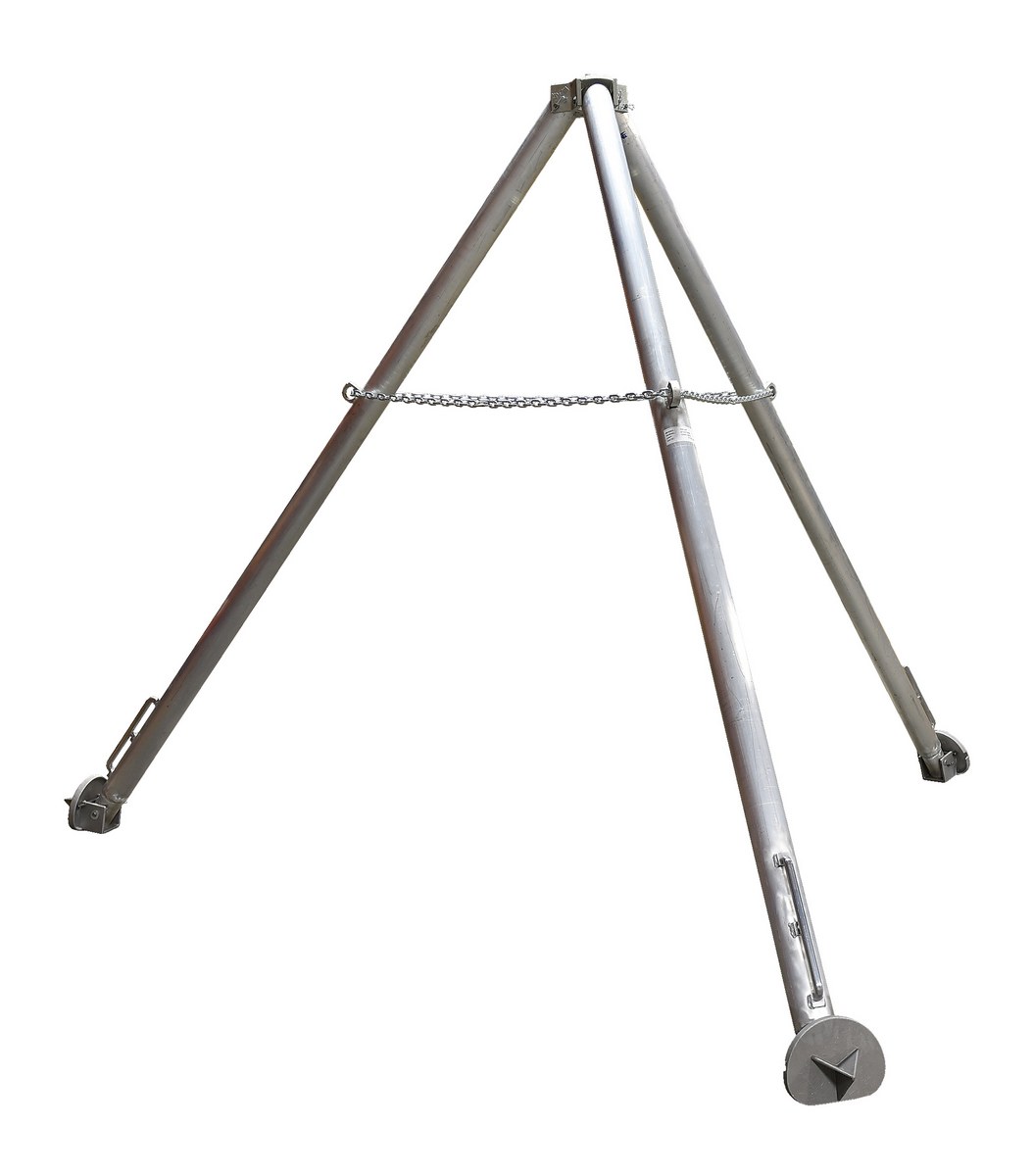

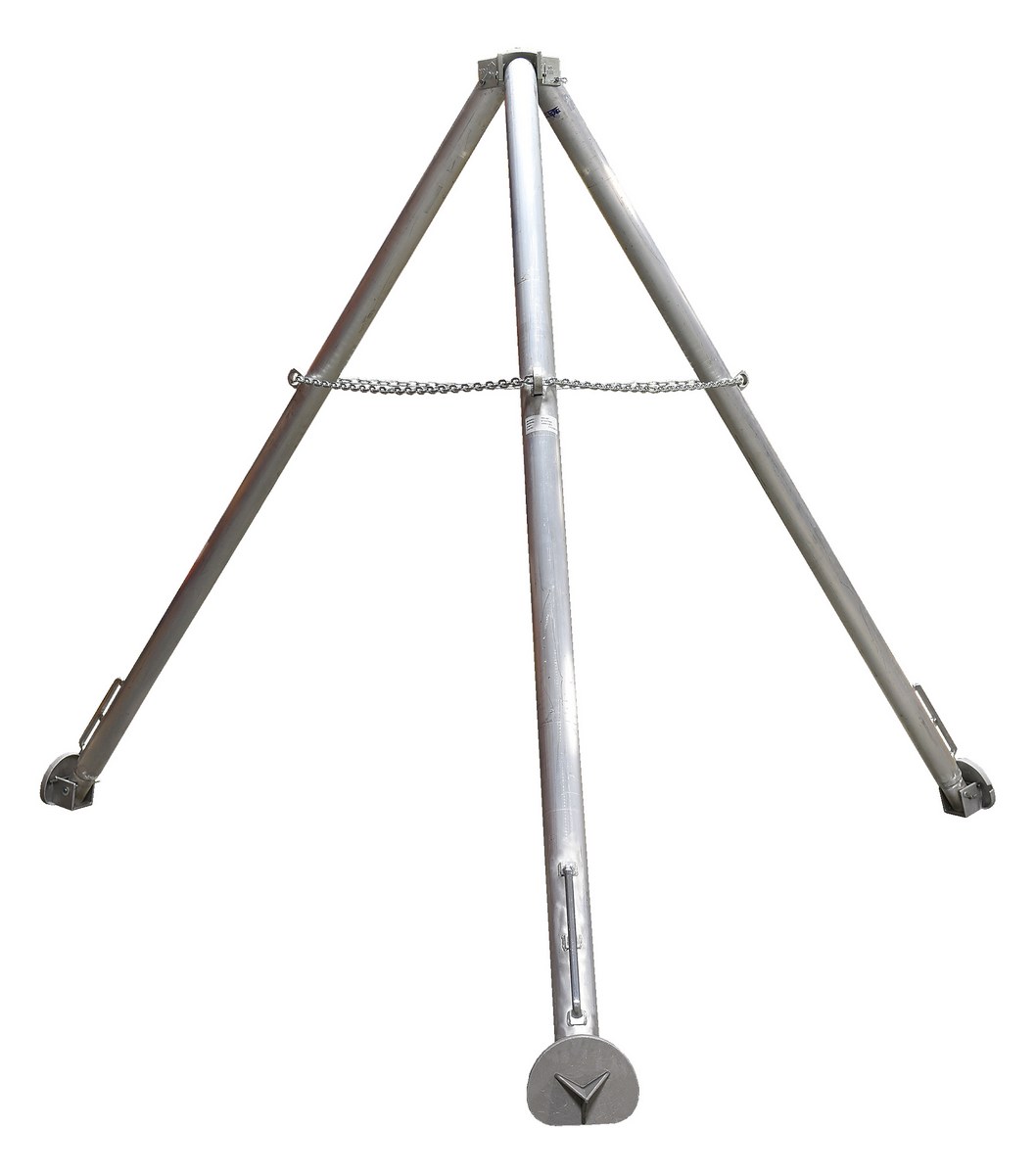

TRI-AF TRI-AF90 Days Limited WarrantyAluminum Fixed Tripod Stand 114-1/8 In. x 114-1/8 In. x 112 In. 1,000 Lb. Capacity SilverUniform Capacity (lb.): 1,000
Eyelet Height (in.): 104-1/2
215

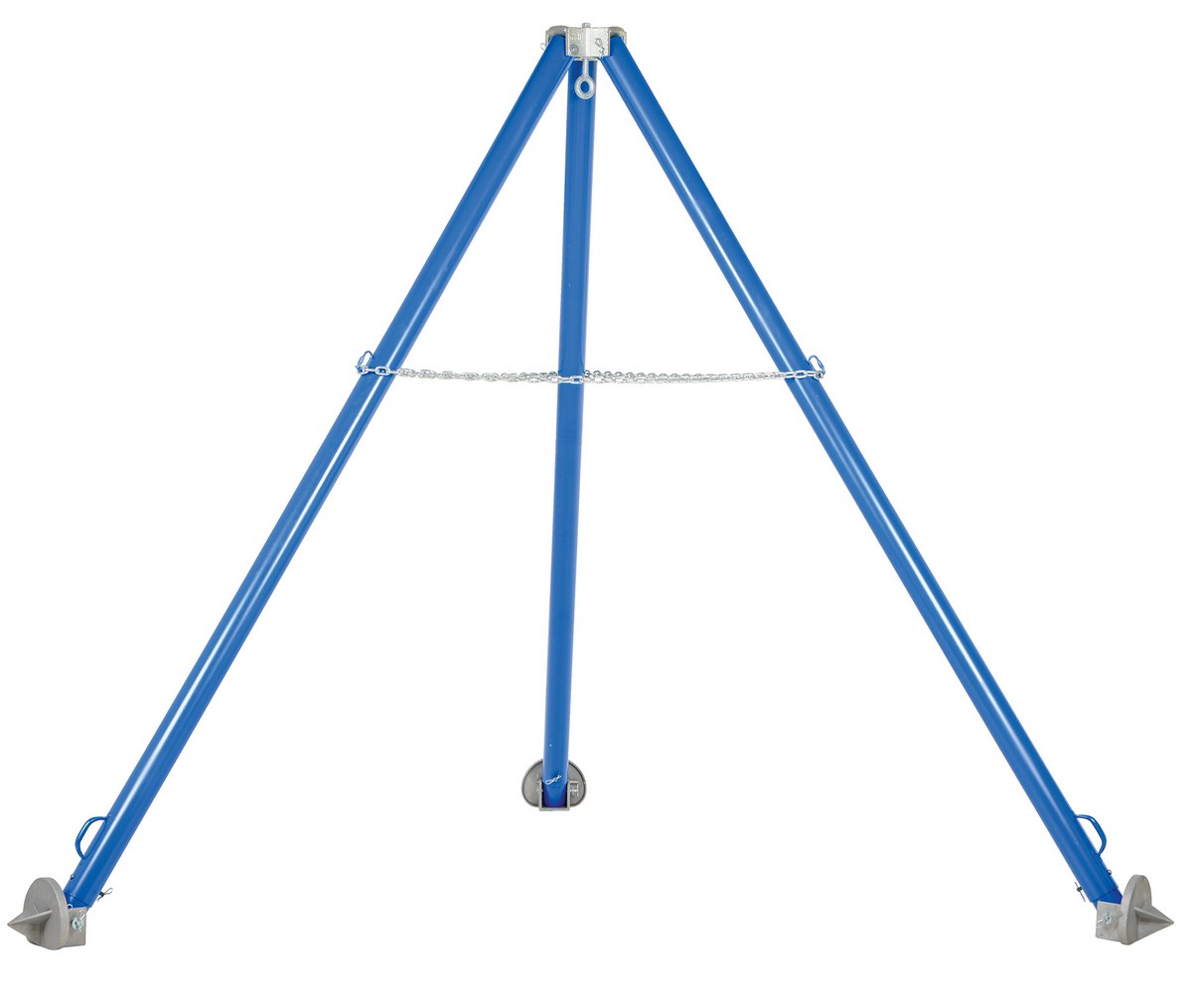

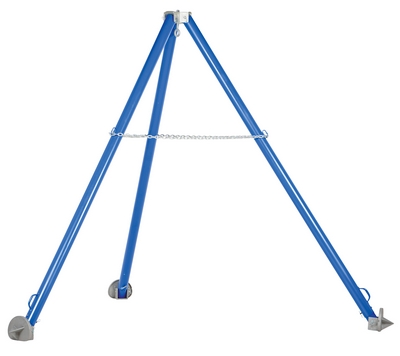

TRI-SA TRI-SA90 Days Limited WarrantySteel Adjustable Height Tripod Stand 113 In. x 113 In. x 112-3/8 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Eyelet Height Min./Max. (in.): 105 to 165-3/4
322

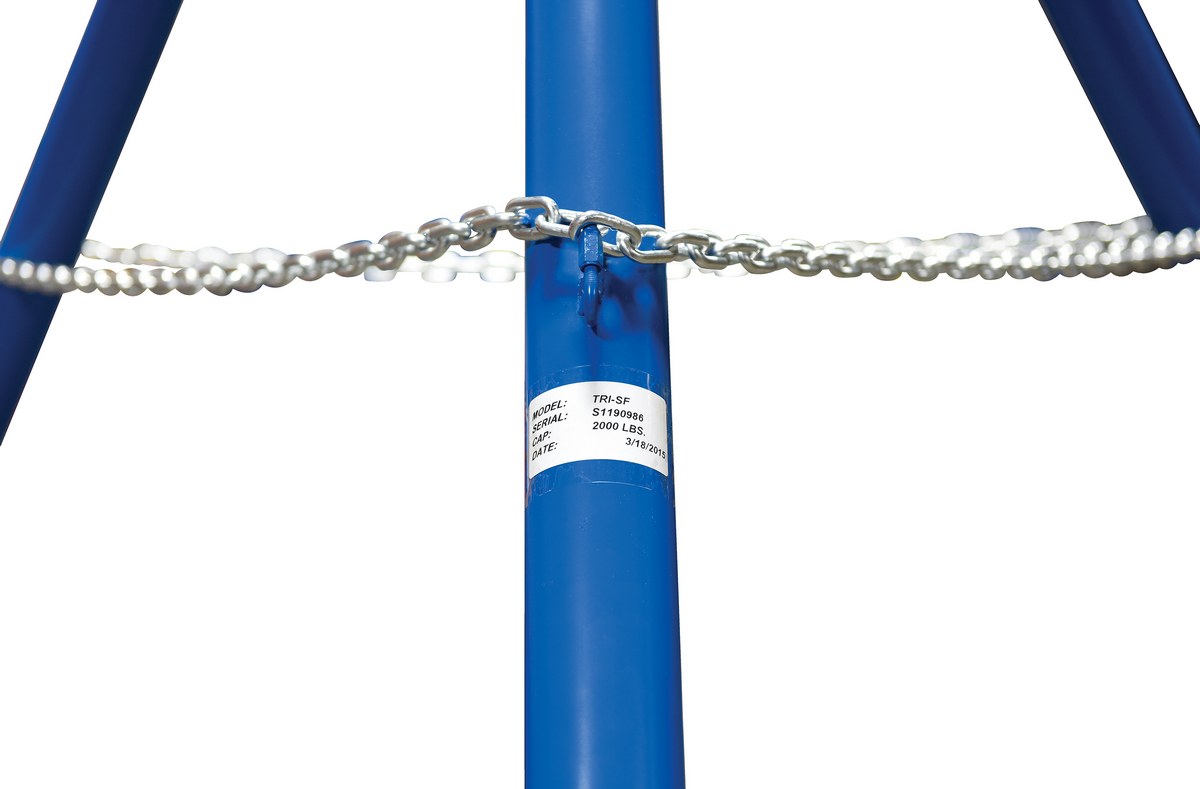

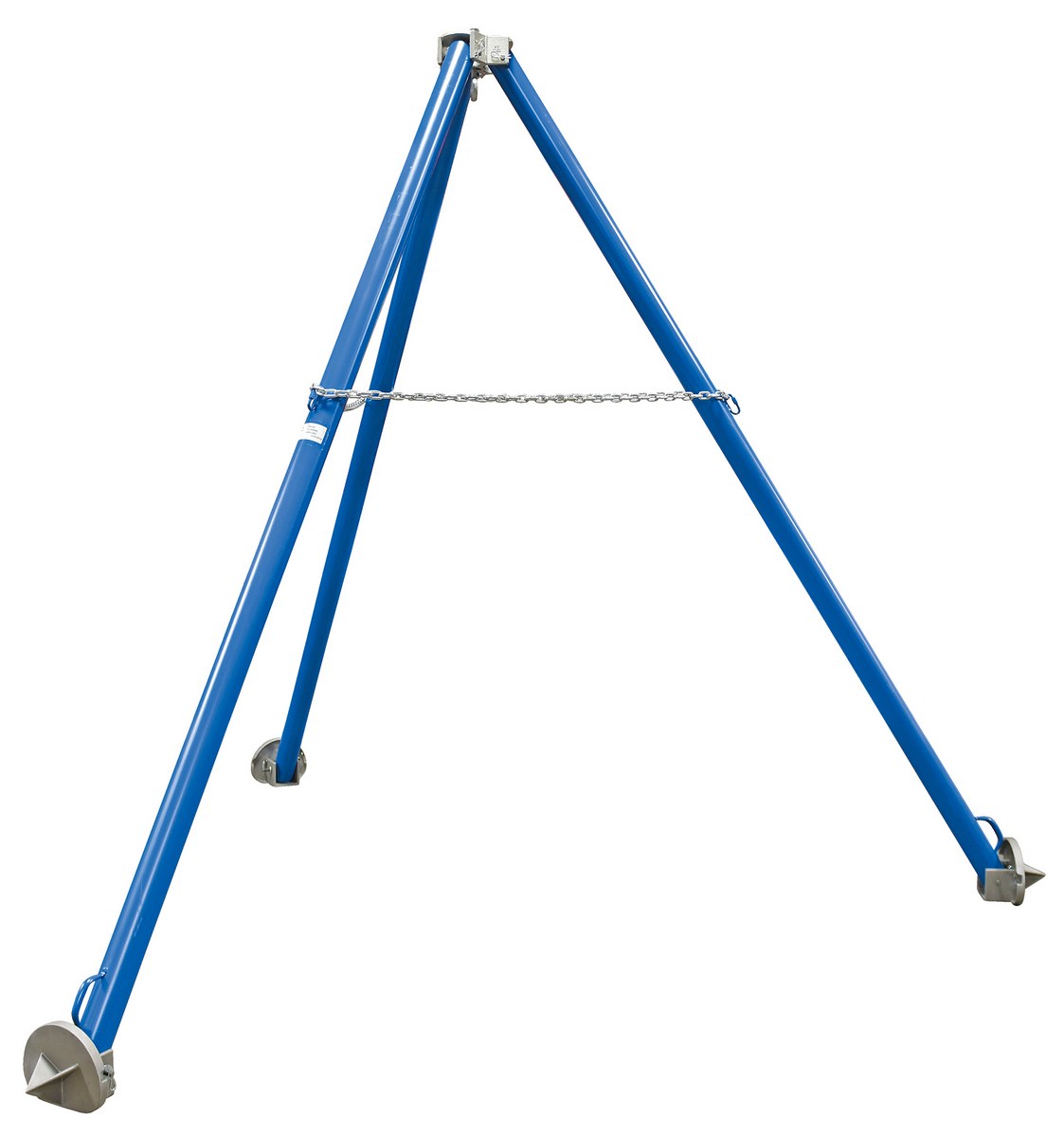

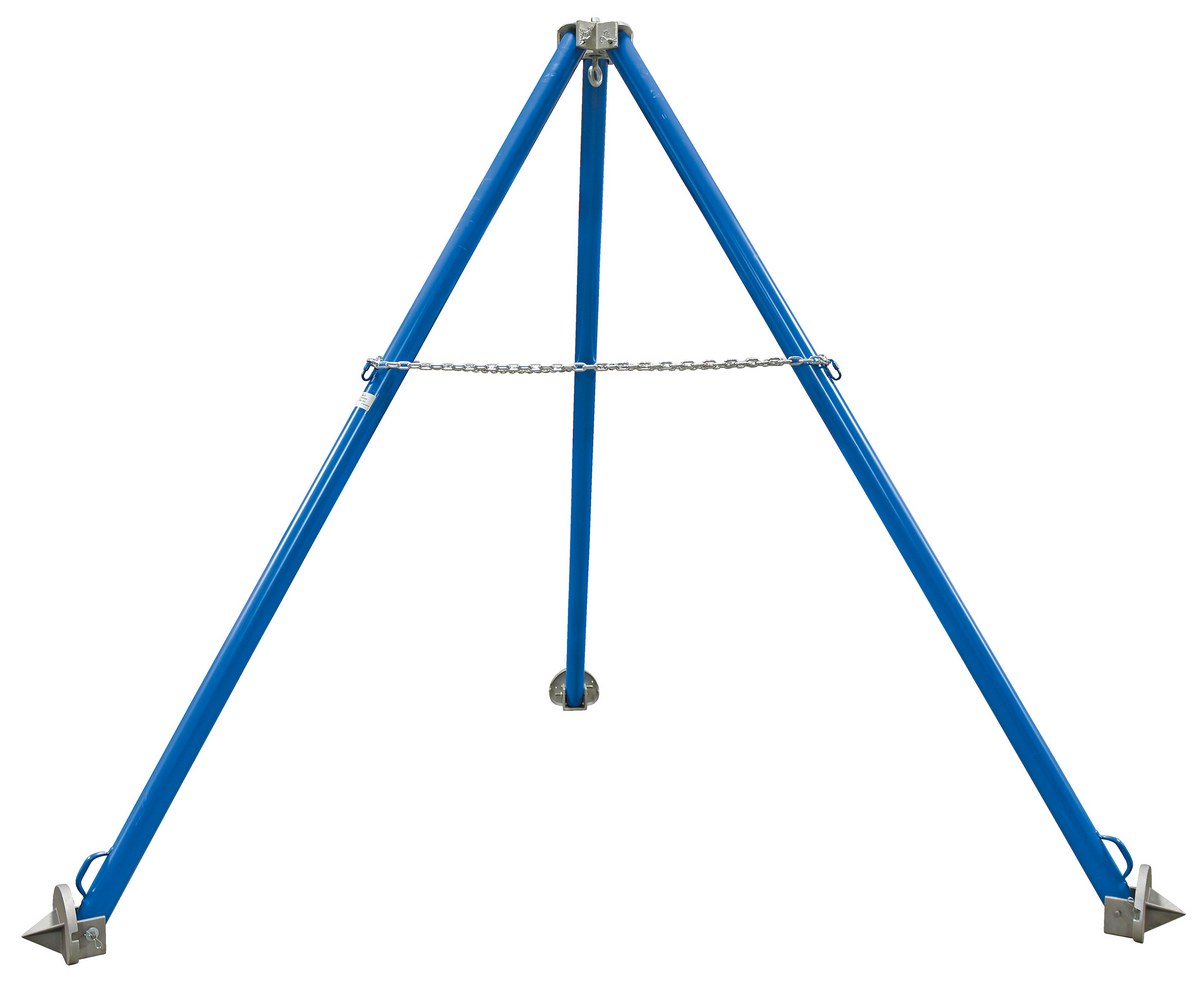

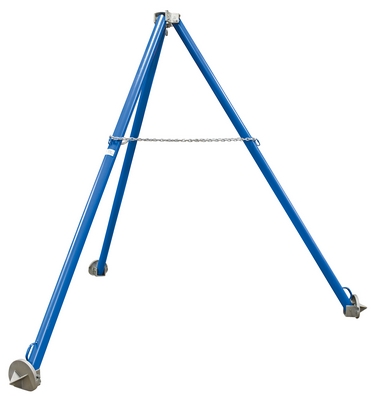

TRI-SF TRI-SF90 Days Limited WarrantySteel Fixed Tripod Stand 106-3/4 In. x 106-3/4 In. x 115-1/8 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Eyelet Height (in.): 107-3/4
250

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

TRI-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Eyelet Height Min./Max. (in.): 104-1/4 to 164-1/2
Uniform Capacity (lb.): 1,000
Eyelet Height Min./Max. (in.): 104-1/4 to 164-1/2

TRI-AF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Eyelet Height (in.): 104-1/2
Uniform Capacity (lb.): 1,000
Eyelet Height (in.): 104-1/2

TRI-SA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Eyelet Height Min./Max. (in.): 105 to 165-3/4
Uniform Capacity (lb.): 2,000
Eyelet Height Min./Max. (in.): 105 to 165-3/4

TRI-SF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Eyelet Height (in.): 107-3/4
Uniform Capacity (lb.): 2,000
Eyelet Height (in.): 107-3/4

Tripod Hoist Stands PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


TRI-AA

TRI-AF

TRI-SA

TRI-SF

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Tripod Hoist Stands




This portable steel or aluminum tripod hoist stand provides a convenient and economical lifting support stand. Available in adjustable or fixed height versions. The unit folds for convenient portability and storage. Great for access to confined spaces. Features padded pivots for smooth or spiked feet. The spiked feet are designed to be used in rough terrain. A swivel eye bolt and safety chain are standard. Chain hoist not included. Meets ANSI safety requirements for confined space Z117.1.

  • Provides a convenient and economical lifting support stand
  • Unit folds for convenient portability and storage
  • Great for access to confined spaces with adjustable height legs
  • Features padded pivots for smooth or spiked feet for use in rough terrain


Model # Description Attributes Net Wt.
(lbs)
TRI-AA TRI-AAAluminum Adjustable Height Tripod Stand 115-5/8 In. x 115-5/8 In. x 111-5/8 In. 1,000 Lb. Capacity SilverUniform Capacity (lb.): 1,000
Eyelet Height Min./Max. (in.): 104-1/4 to 164-1/2
247
TRI-AF TRI-AFAluminum Fixed Tripod Stand 114-1/8 In. x 114-1/8 In. x 112 In. 1,000 Lb. Capacity SilverUniform Capacity (lb.): 1,000
Eyelet Height (in.): 104-1/2
215
TRI-SA TRI-SASteel Adjustable Height Tripod Stand 113 In. x 113 In. x 112-3/8 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Eyelet Height Min./Max. (in.): 105 to 165-3/4
322
TRI-SF TRI-SFSteel Fixed Tripod Stand 106-3/4 In. x 106-3/4 In. x 115-1/8 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Eyelet Height (in.): 107-3/4
250
