Product Family Overview

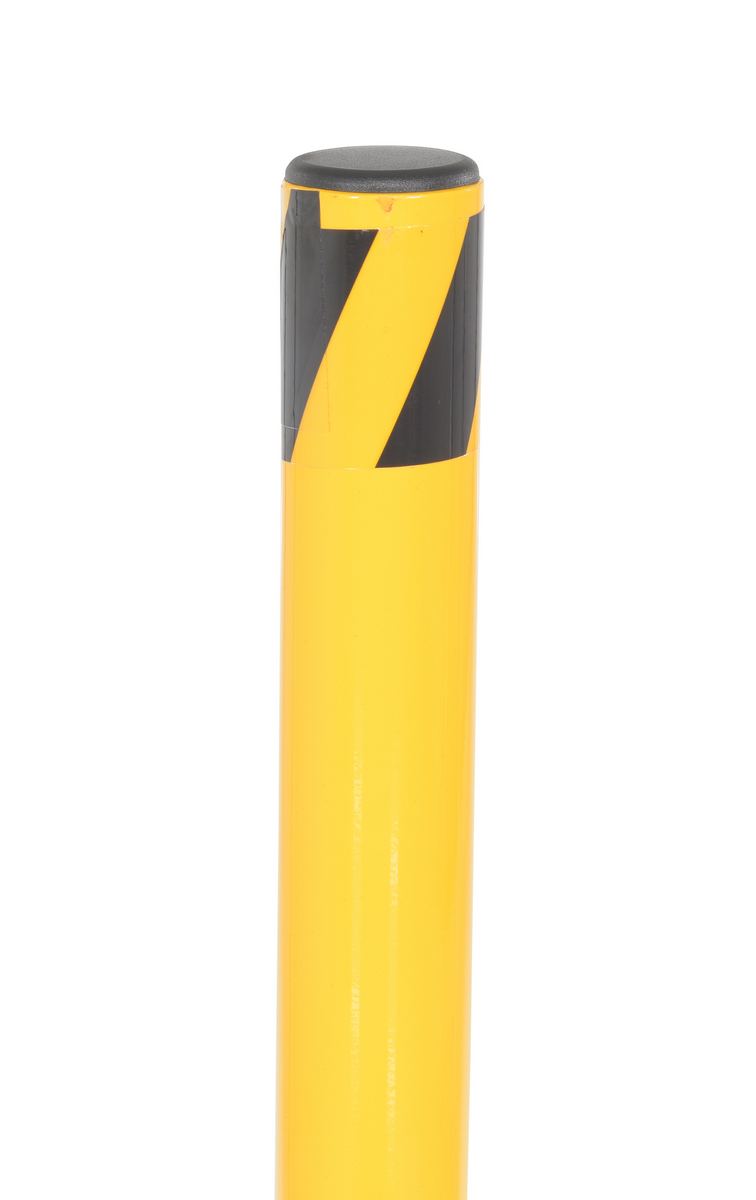

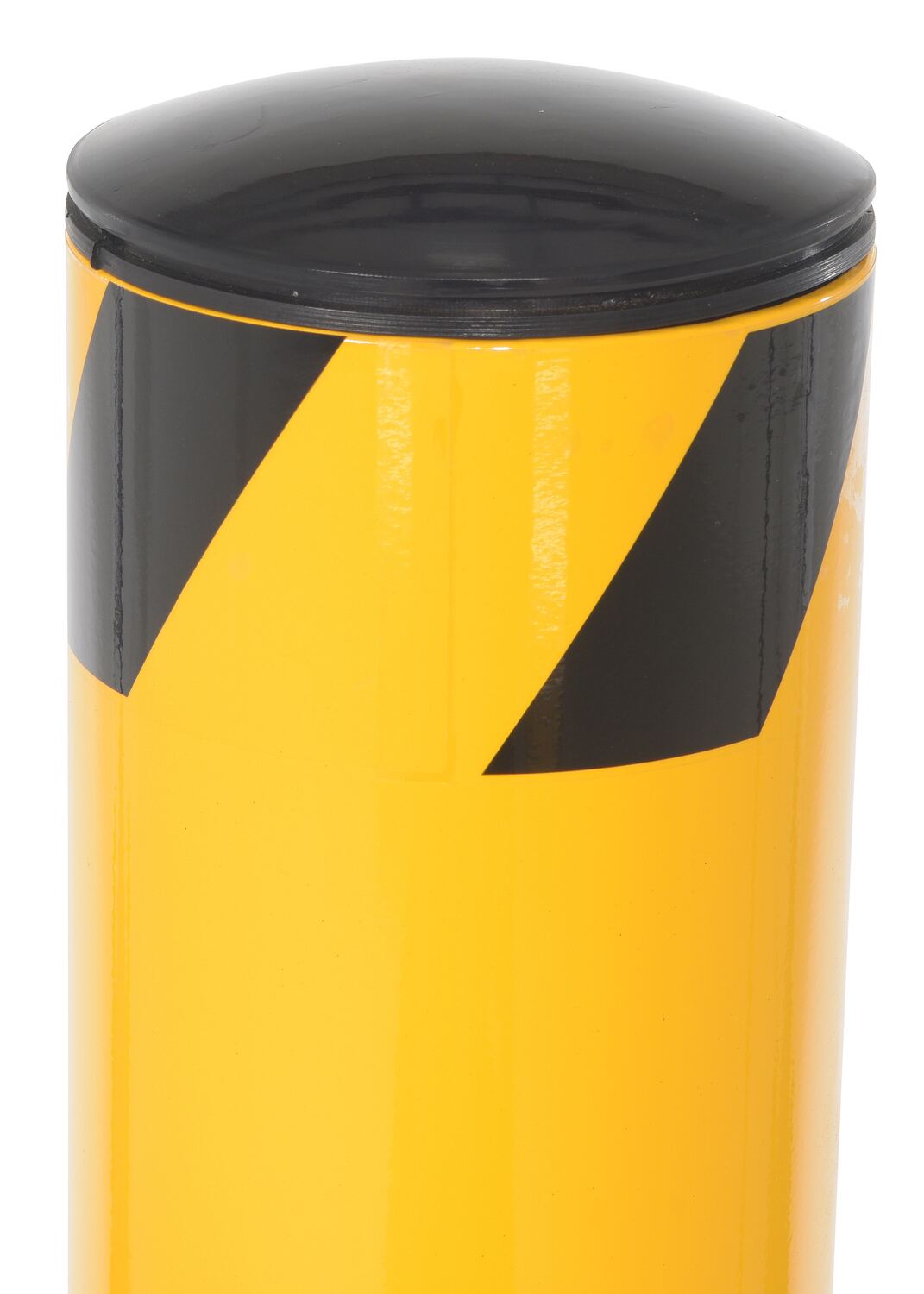

Steel Pipe Safety Bollards
SERIES: BOL

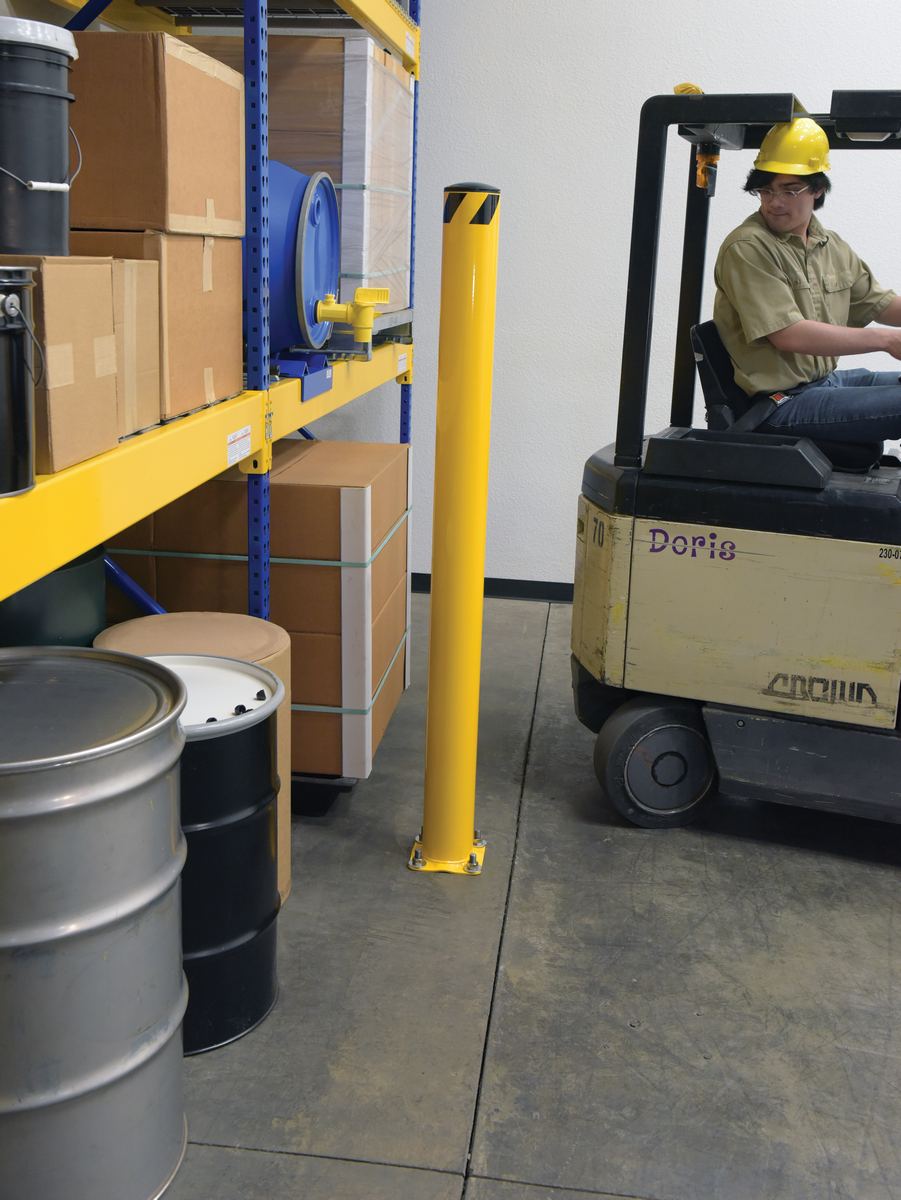

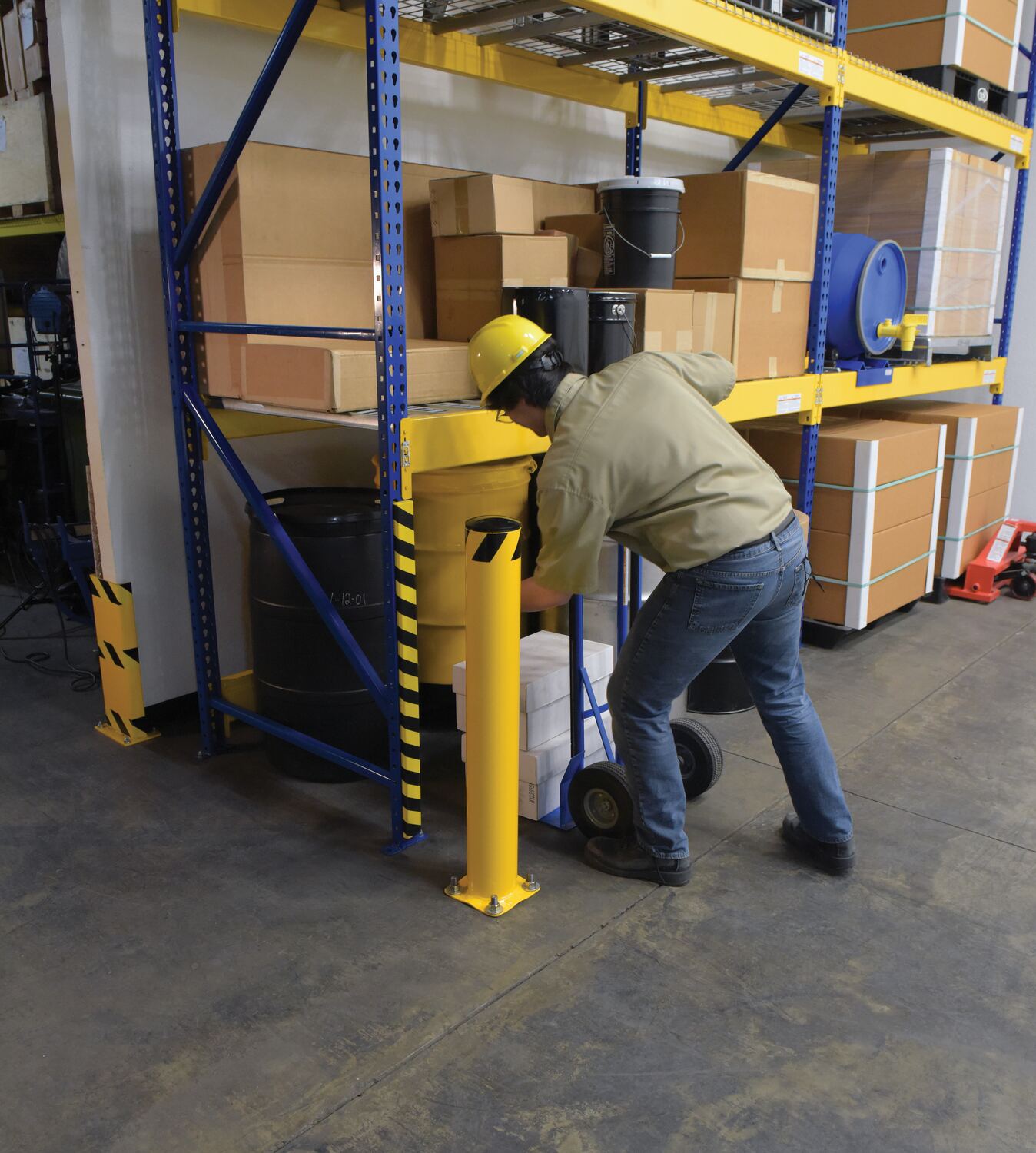

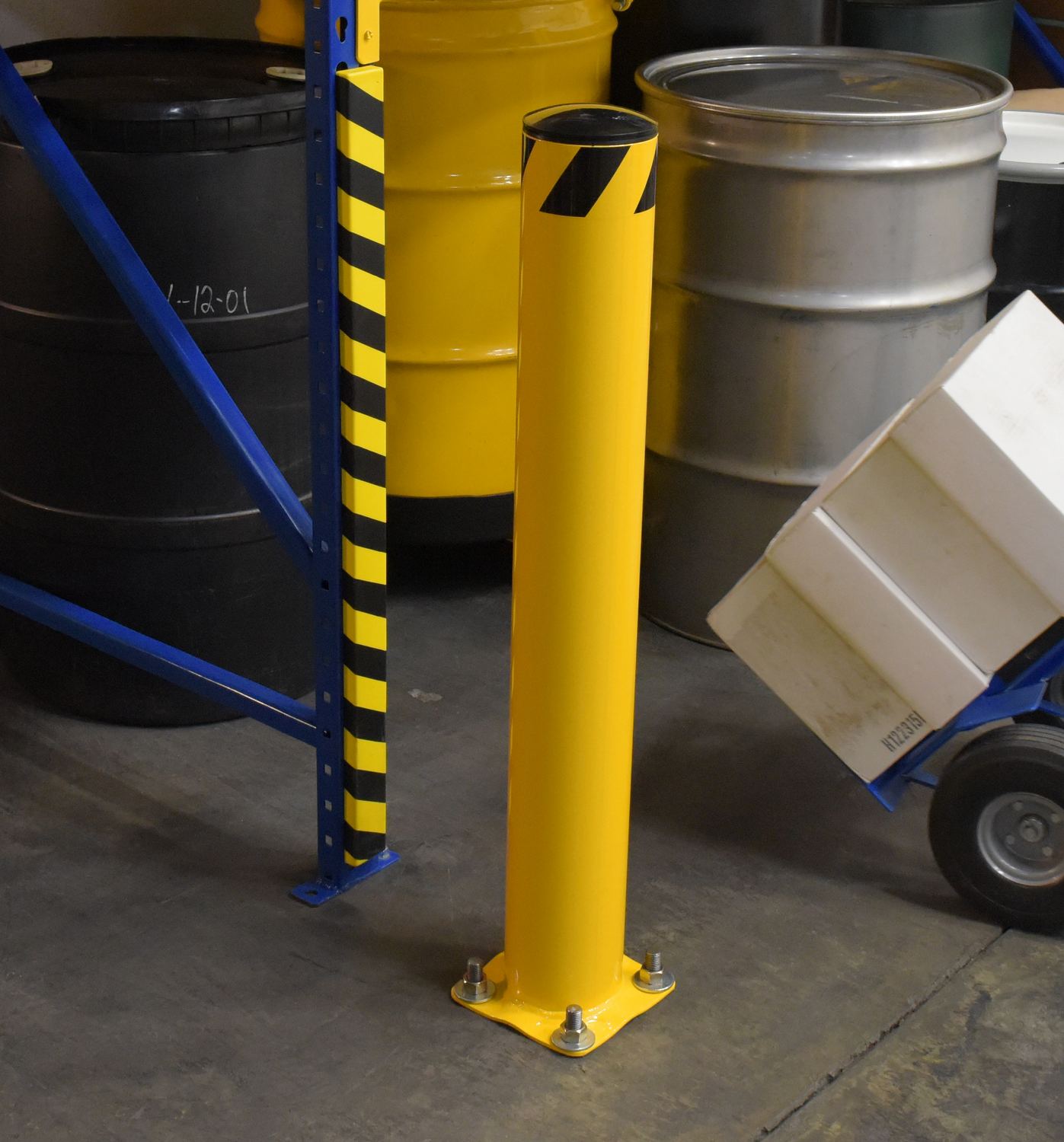

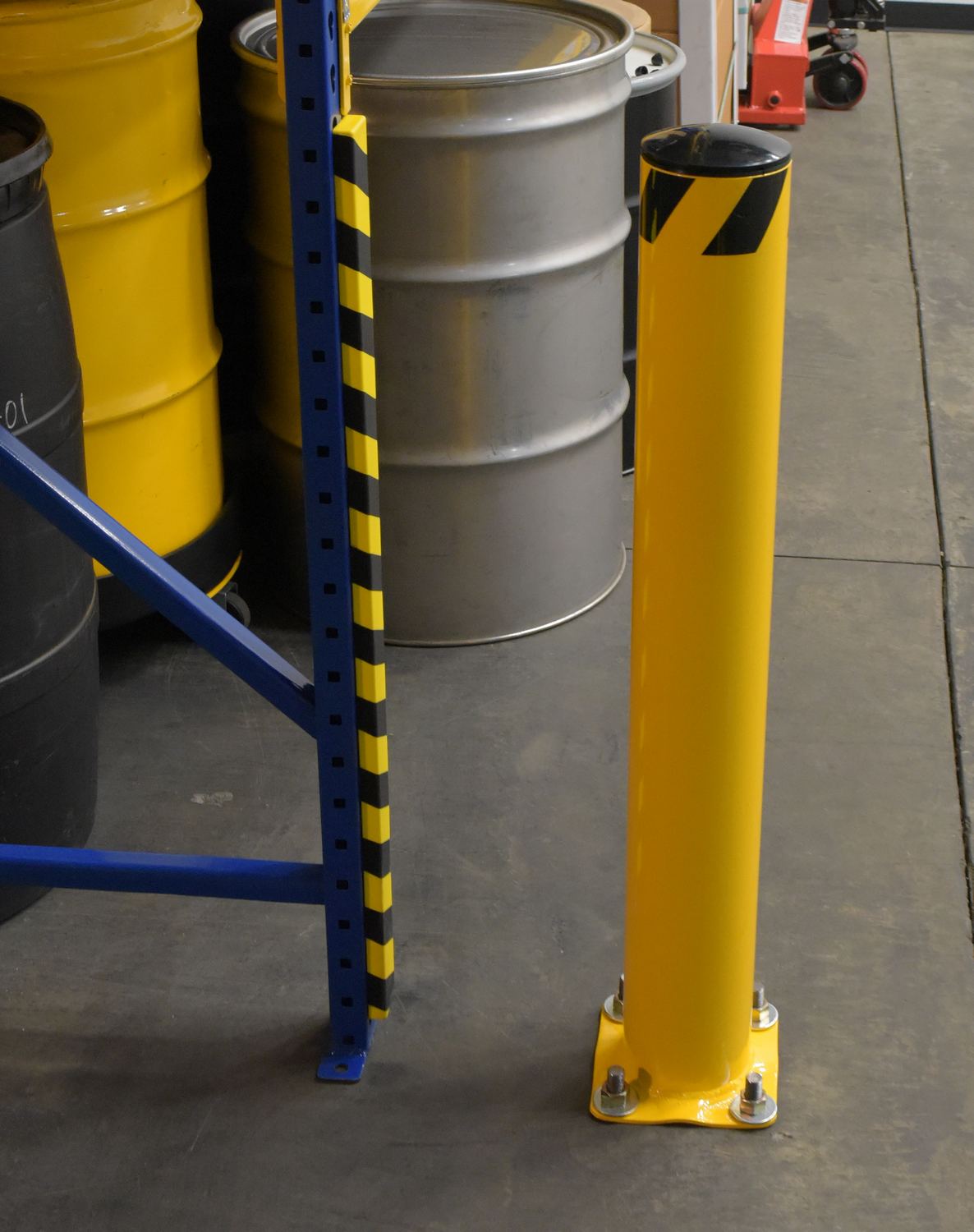

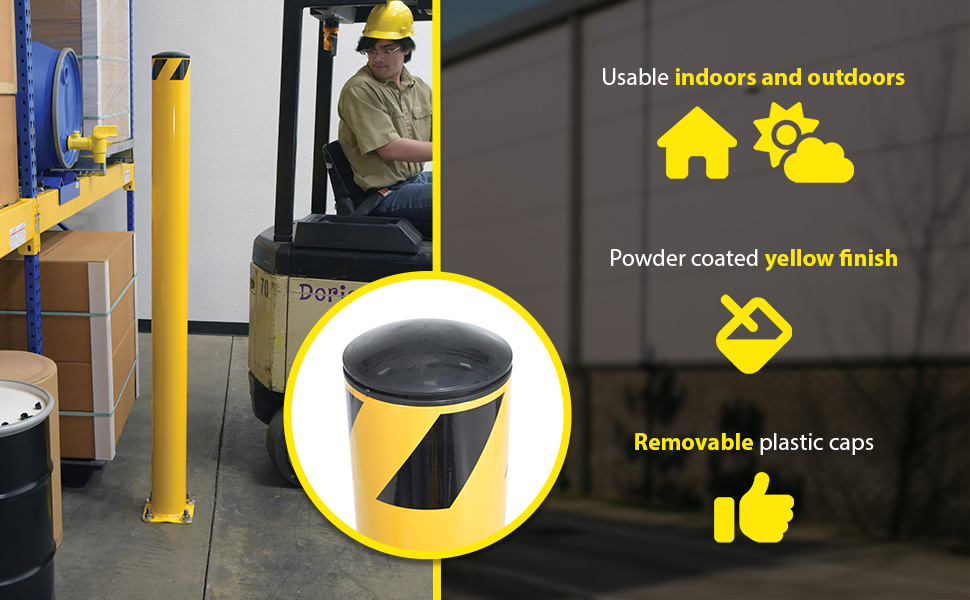

Bollards can be used both indoors and outdoors to protect work areas, racking and personnel. Plastic caps are removable on ,1-3/4", 4-1/2" and 5-1/2" diameter units and bollard may be filled with concrete. Steel caps are welded on the 6-5/8, 8-5/8" diameter units. Base plate includes four (4) pre-drilled mounting holes. Mounting kits and replacement caps available. Baked in powder coat or hot dipped galvanized finish for added toughness.

  • Safety pipe design can be used either inside or out
  • Powder coat safety yellow finish offers an attractive long lasting look
  • Heavy-duty welded steel construction provides long lasting protection

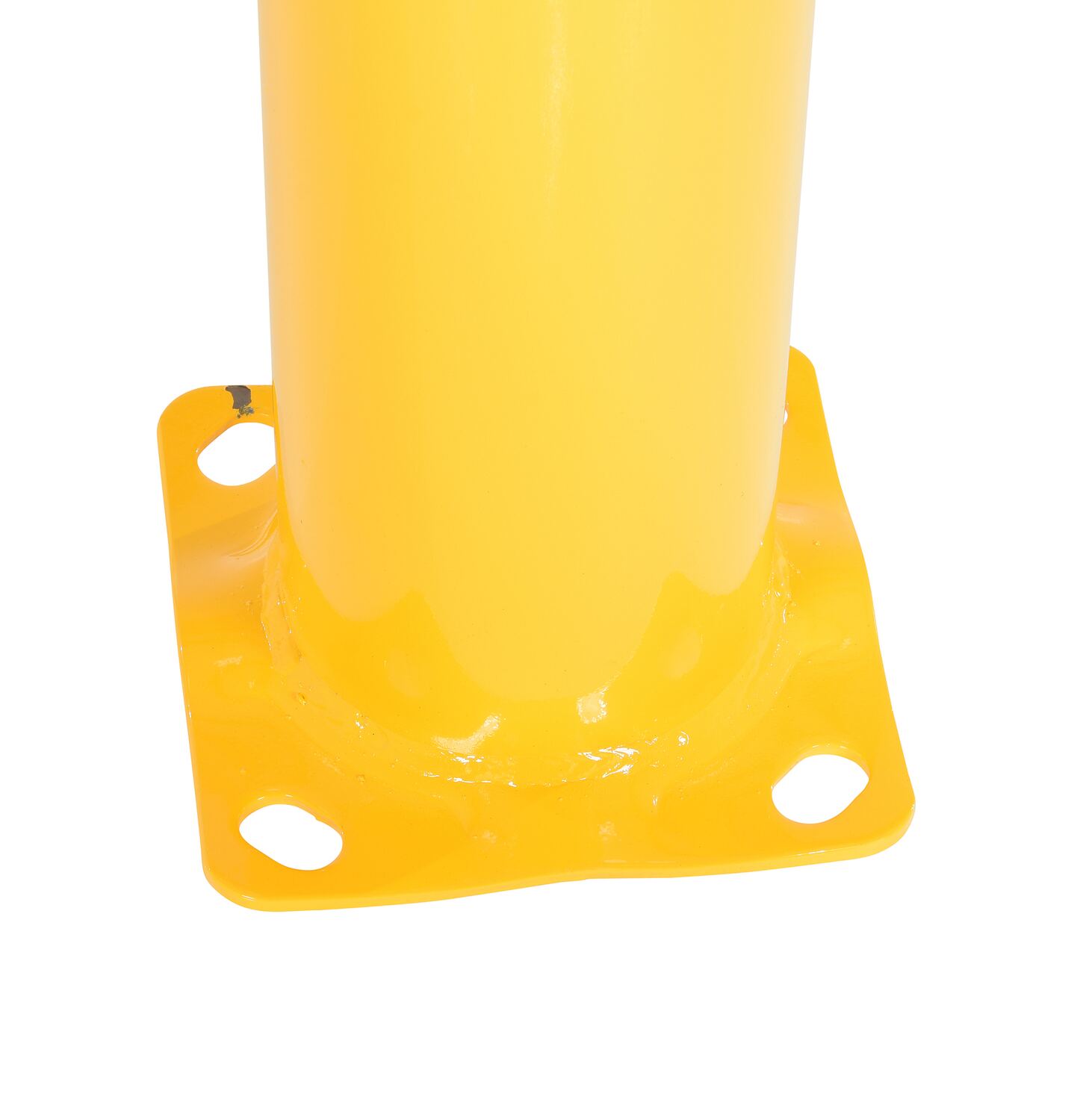

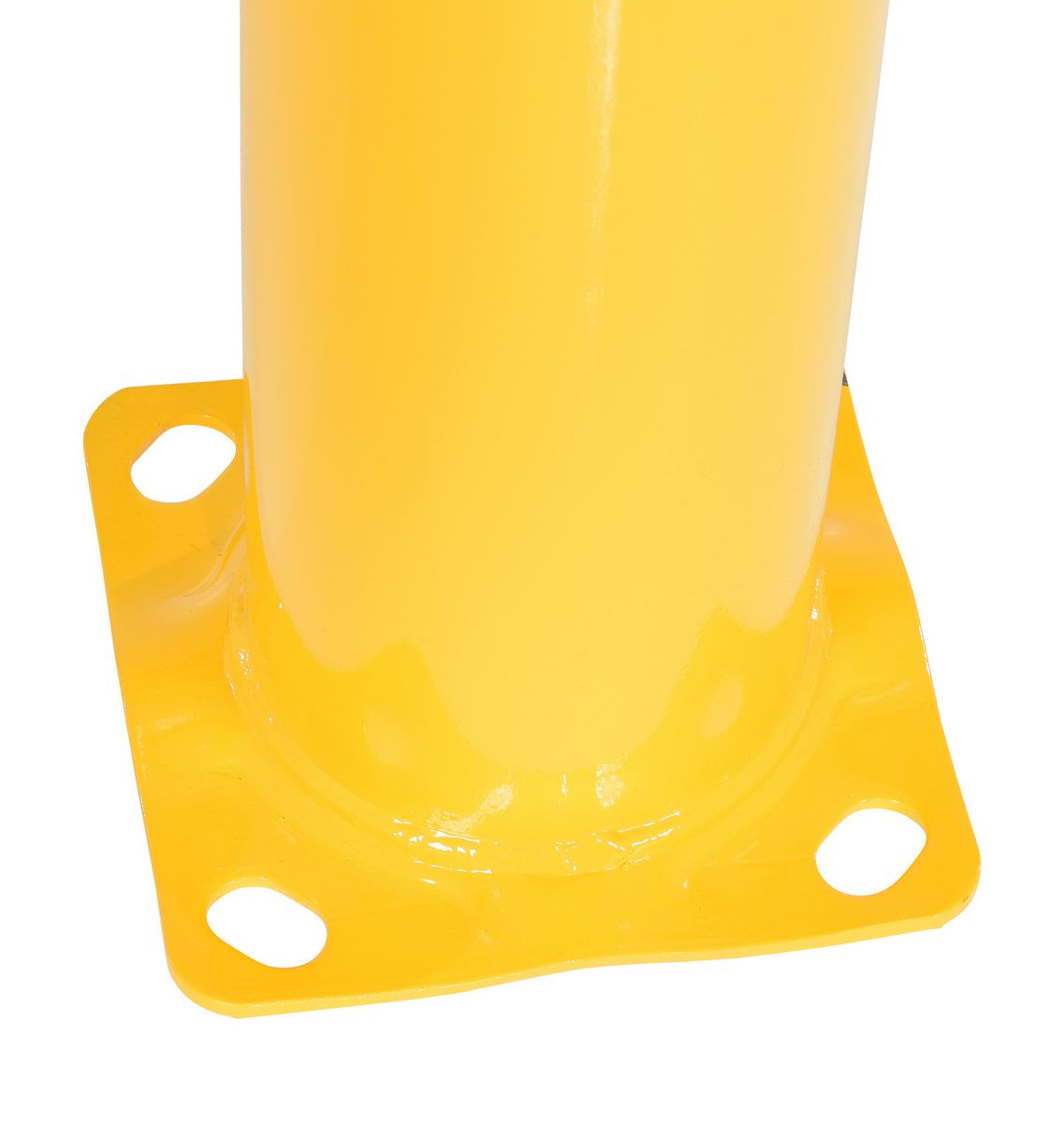

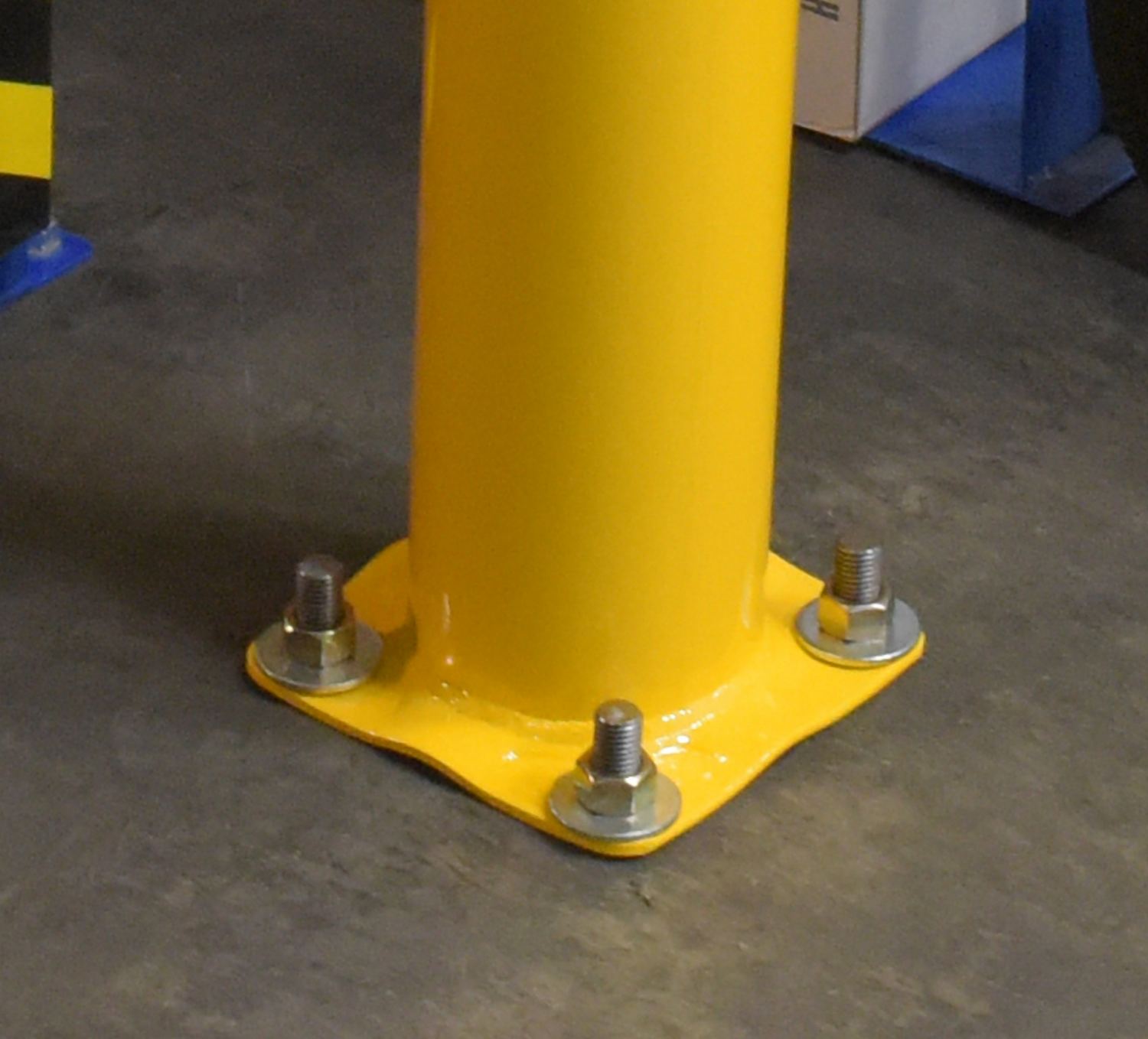

  • Base plate includes four pre-drilled mounting holes for quick and easy installation

Check Out Our FLUORESCENT YELLOW Safety Bollards

BOL Colors

Bollards can be used both indoors and outdoors to protect work areas, racking and personnel. Plastic caps are removable on ,1-3/4", 4-1/2" and 5-1/2" diameter units and bollard may be filled with concrete. Steel caps are welded on the 6-5/8, 8-5/8" diameter units. Base plate includes four (4) pre-drilled mounting holes. Mounting kits and replacement caps available. Baked in powder coat or hot dipped galvanized finish for added toughness.

  • Safety pipe design can be used either inside or out
  • Powder coat safety yellow finish offers an attractive long lasting look
  • Heavy-duty welded steel construction provides long lasting protection
  • Base plate includes four pre-drilled mounting holes for quick and easy installation

Check Out Our FLUORESCENT YELLOW Safety Bollards

BOL Colors

Additional Models In This Family

Steel Pipe Bollard Specialty Colors Available!

BOL Colors

SAFETY YELLOW (standard)


SAFETY YELLOW (standard)
Model Suffix: -YL

RICH BLACK


BLACK
Model Suffix: -BK

ERGONOMIC BLUE


BLUE
Model Suffix: -BU

SHIP GRAY


GRAY
Model Suffix: -GYSG

WARNING ORANGE


ORANGE
Model Suffix: -OR

DANGER RED


RED
Model Suffix: -RED

SILVER


SILVER
Model Suffix: -SL

PURE WHITE


WHITE
Model Suffix: -WT

HOT DIPPED GALVANIZED


Hot Dipped Galvanized
Model Suffix: -HDG

FLOURESCENT YELLOW


Flourescent Yellow
Model Suffix: -FYL


Notice These swatches are a representation of the colors available, and may not be exact.

For a list of Model Numbers of each Color, Go down to the Model chart below and choose your color from the
Alternate Colors Menu alt-colors-icon.jpg

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)

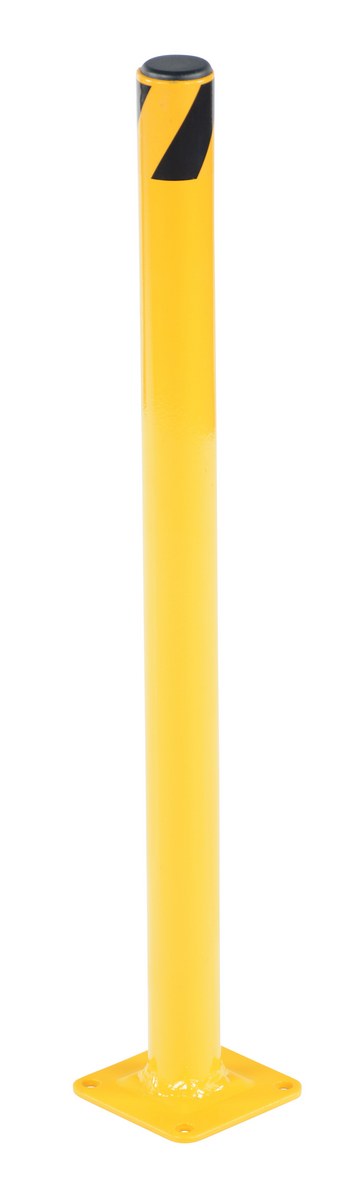

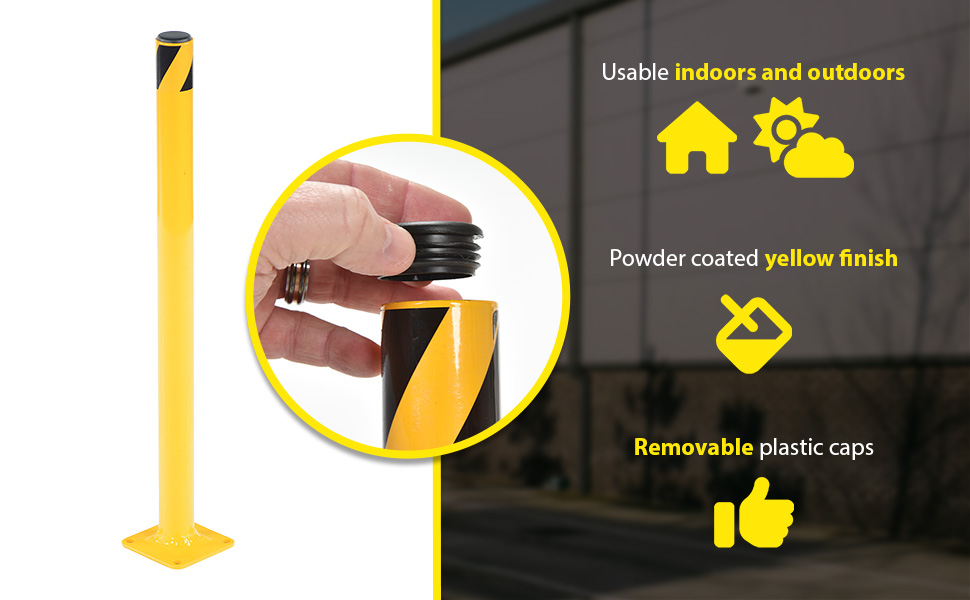

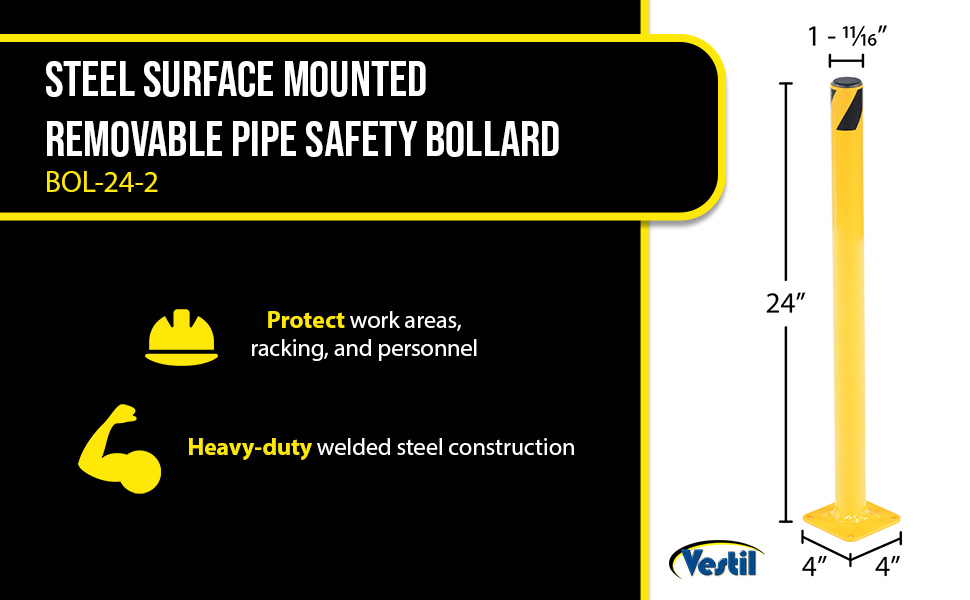

BOL-24-2 BOL-24-290 Days Limited WarrantySteel Pipe Safety Bollard 24 In. x 1-3/4 In. YellowMounting Holes (qty.): 4
Inside Diameter: 1-1/2
6

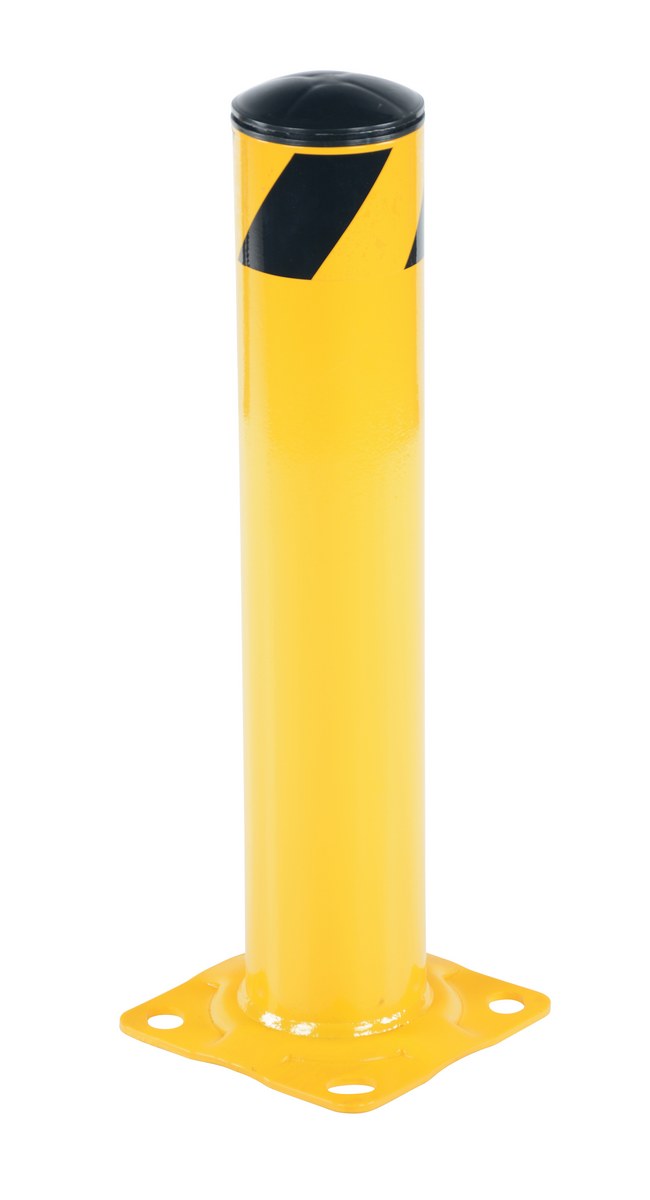

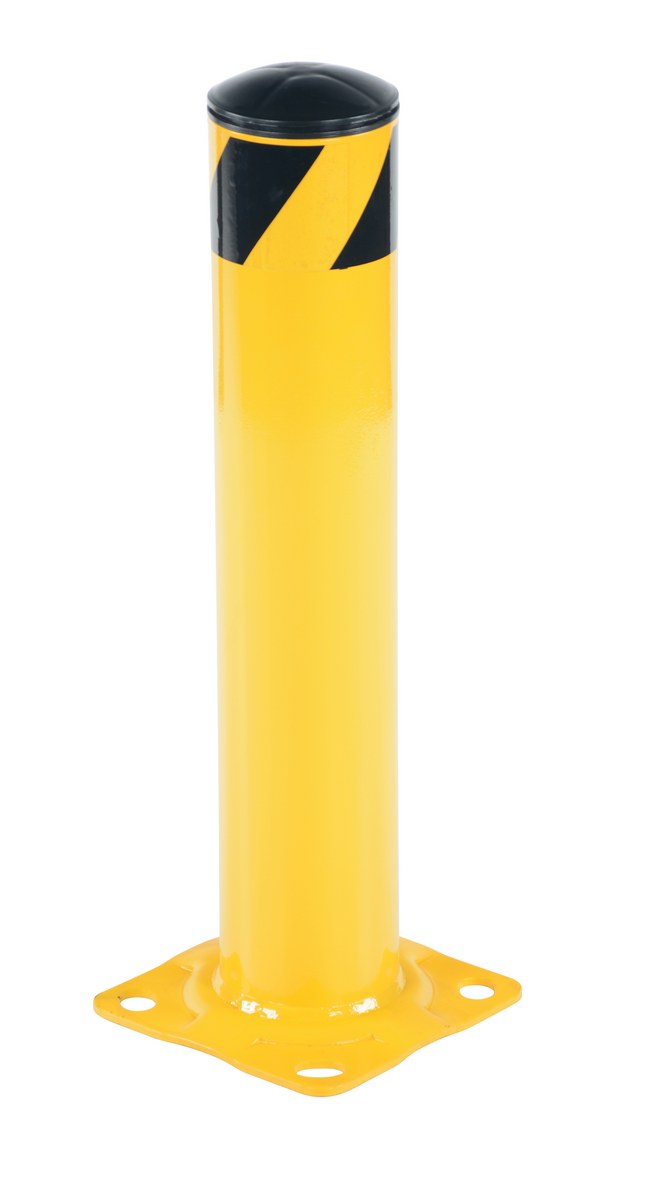

BOL-24-4.5 BOL-24-4.590 Days Limited WarrantySteel Pipe Safety Bollard 24 In. x 4-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 4-1/4
17

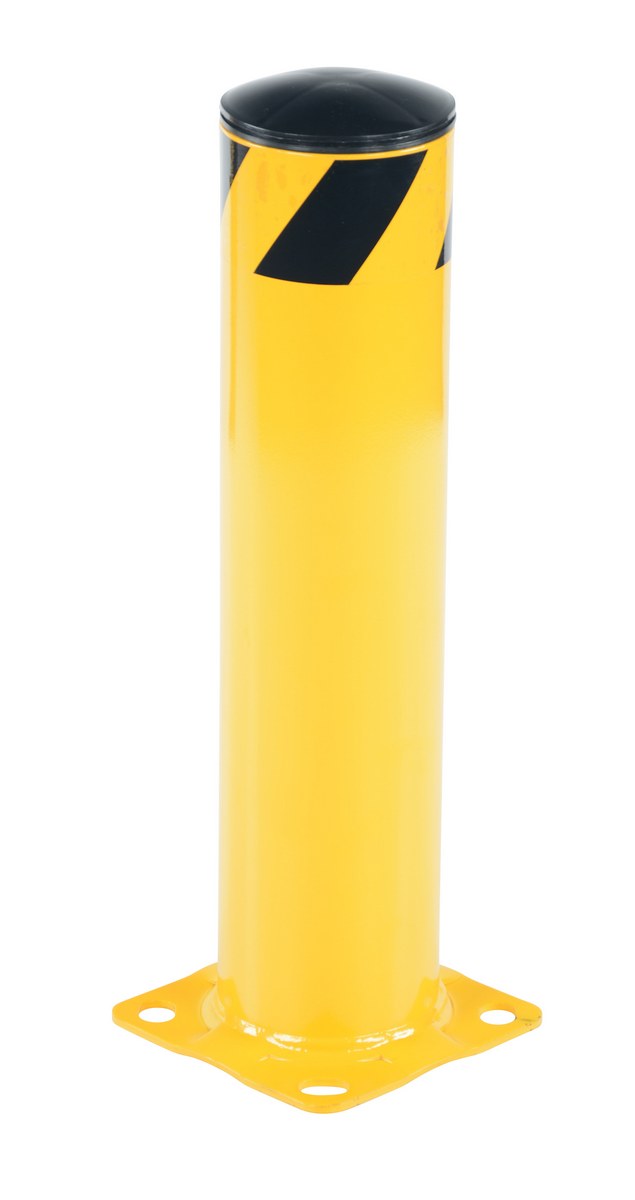

BOL-24-5.5 BOL-24-5.590 Days Limited WarrantySteel Pipe Safety Bollard 24 In. x 5-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 5-1/4
20

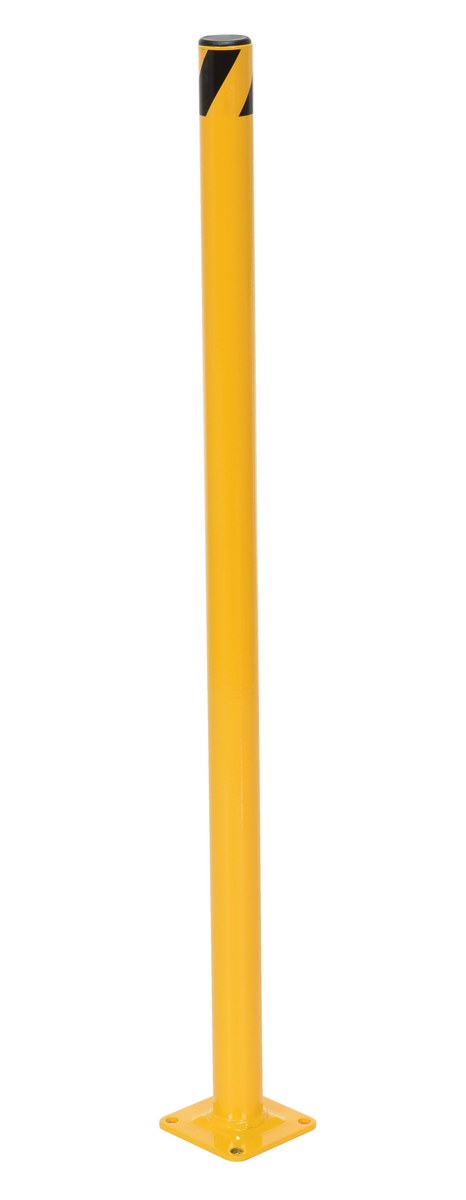

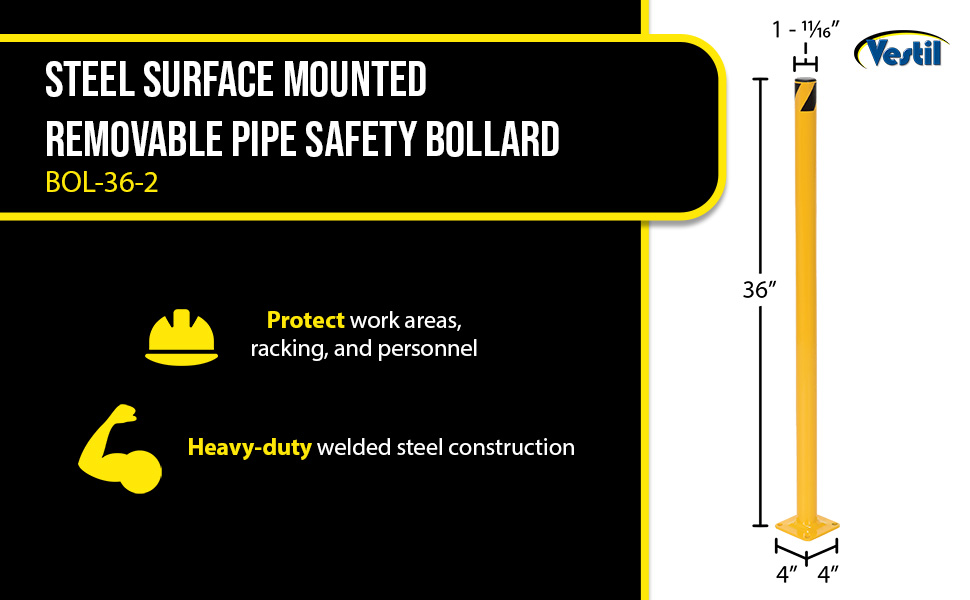

BOL-36-2 BOL-36-290 Days Limited WarrantySteel Pipe Safety Bollard 36 In. x 1-3/4 In. YellowMounting Holes (qty.): 4
Inside Diameter: 1-1/2
9

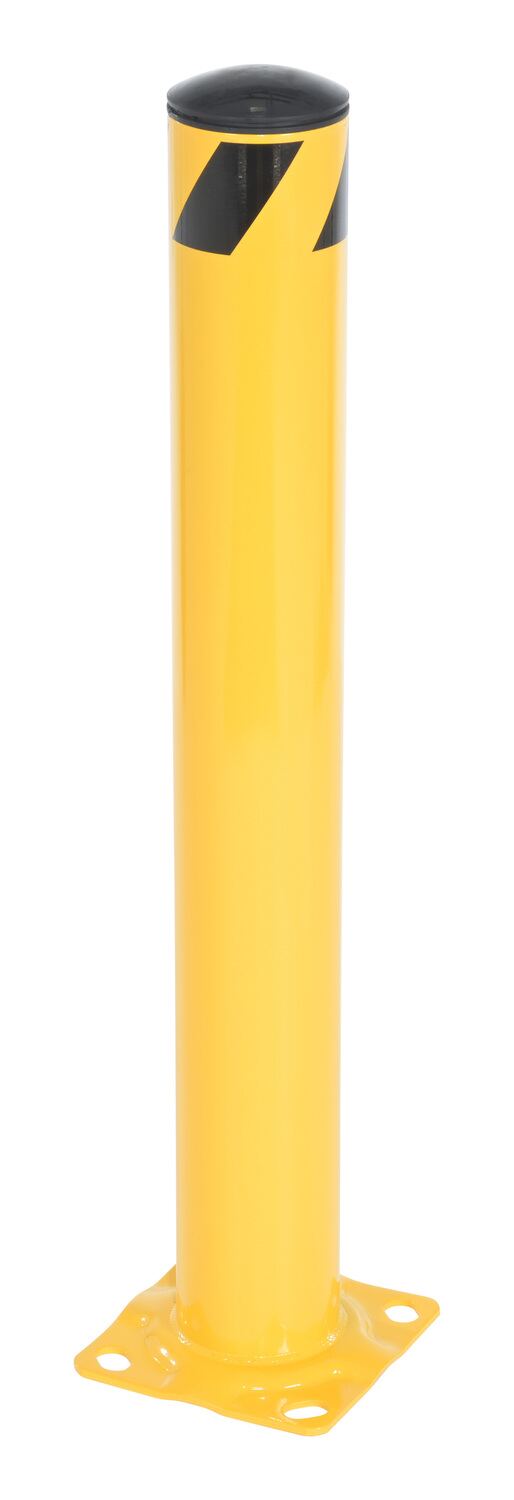

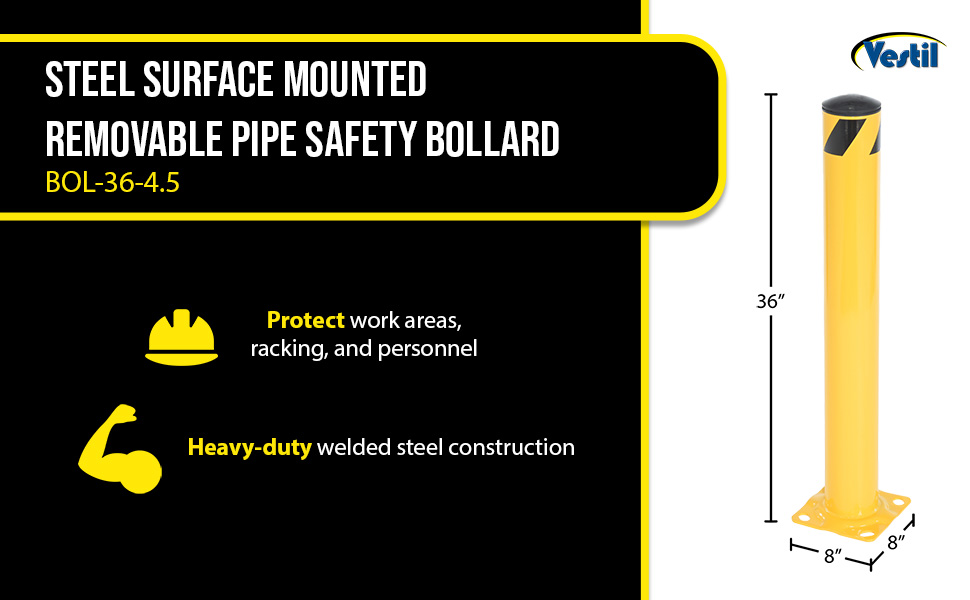

BOL-36-4.5 BOL-36-4.590 Days Limited WarrantySteel Pipe Safety Bollard 36 In. x 4-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 4-1/4
22

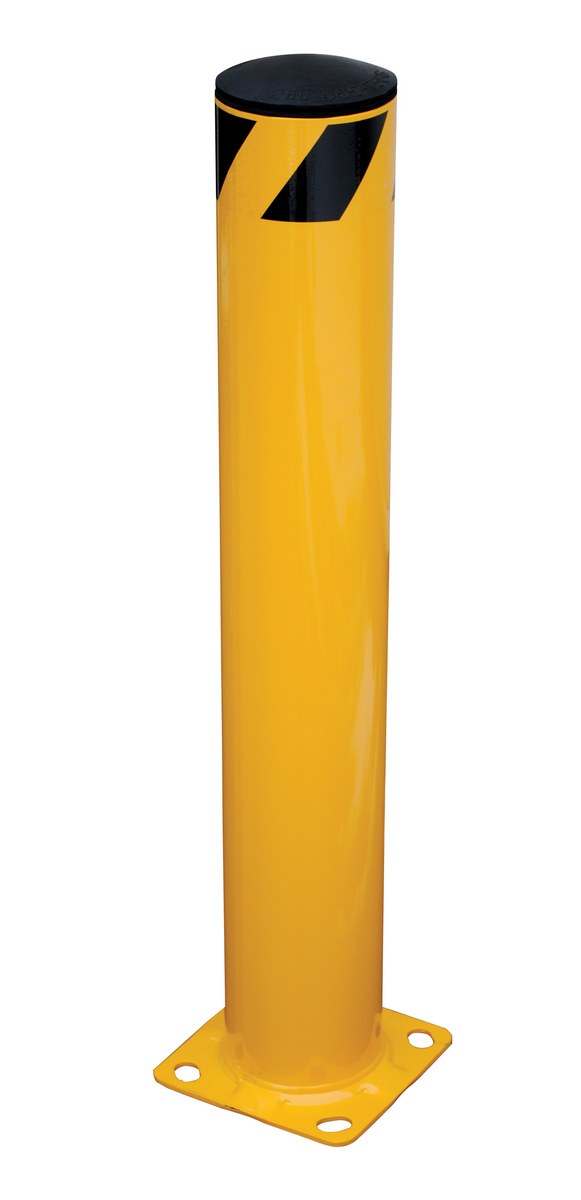

BOL-36-5.5 BOL-36-5.590 Days Limited WarrantySteel Pipe Safety Bollard 36 In. x 5-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 5-1/4
29

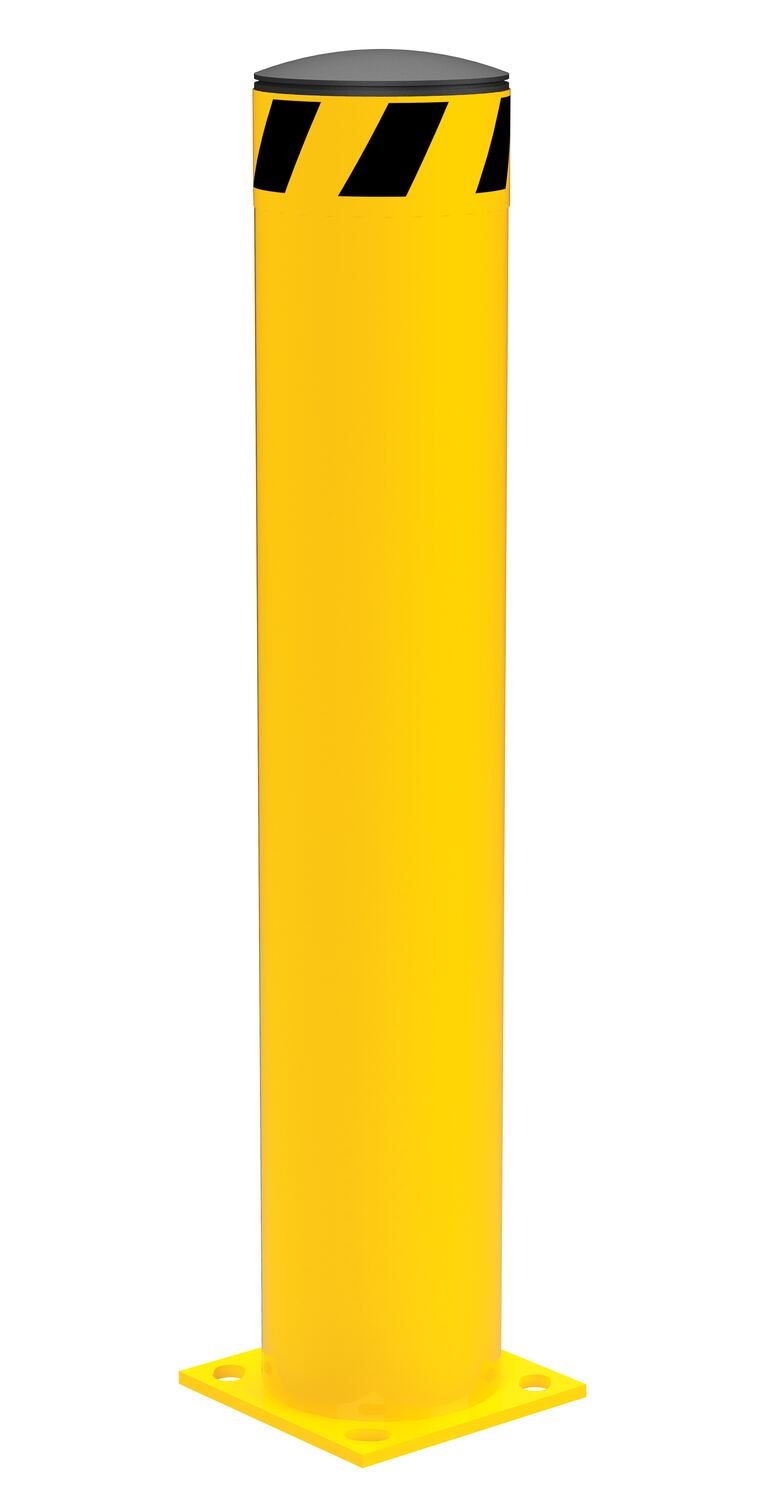

BOL-36-6.5 BOL-36-6.590 Days Limited WarrantySteel Pipe Safety Bollard 36 In. x 6-1/2 In. YellowMounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4
36

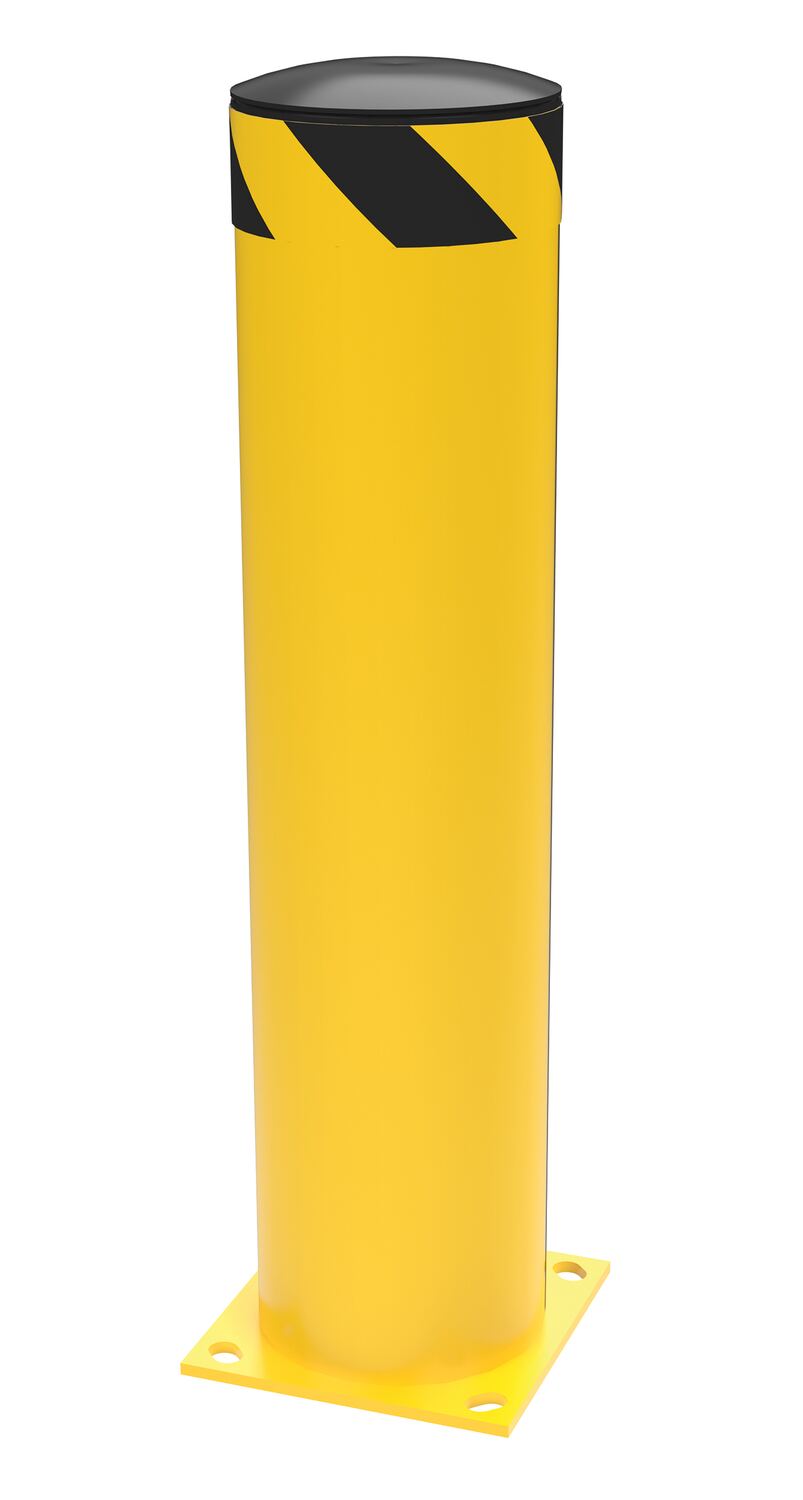

BOL-36-8.5 BOL-36-8.590 Days Limited WarrantySteel Pipe Safety Bollard 36 In. x 8-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 8-1/4
70

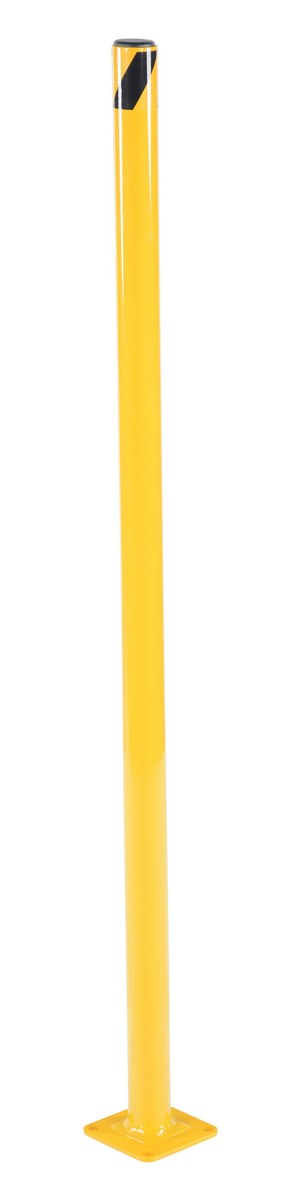

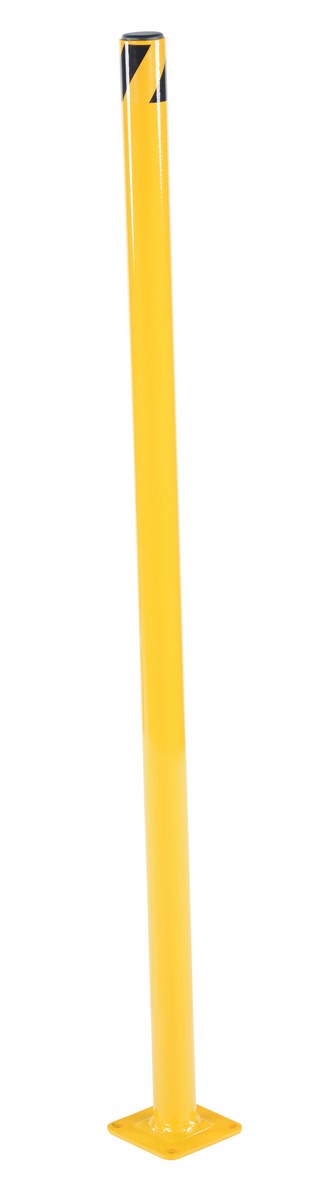

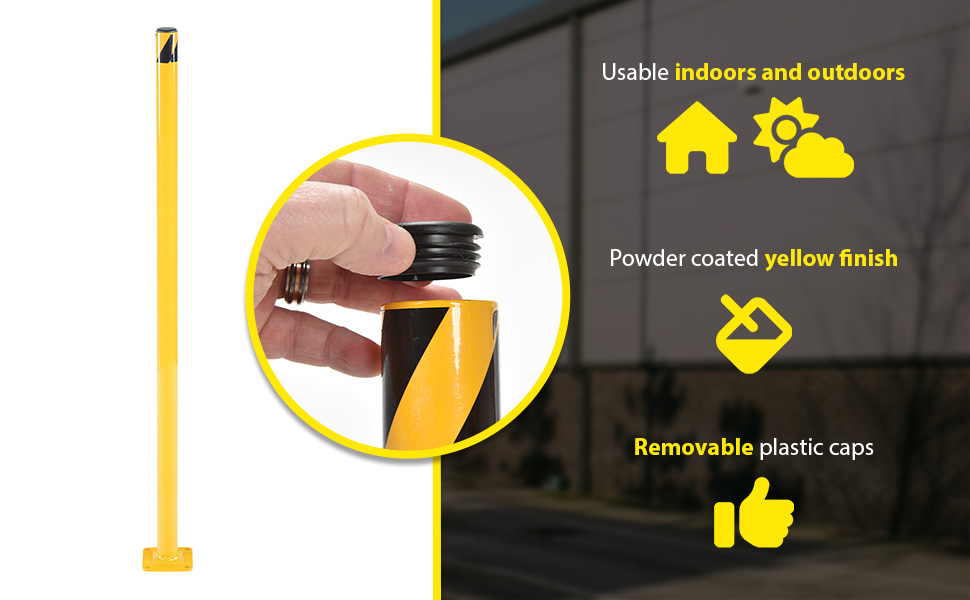

BOL-42-2 BOL-42-290 Days Limited WarrantySteel Pipe Safety Bollard 42 In. x 1-3/4 In. YellowMounting Holes (qty.): 4
Inside Diameter: 1-1/2
9

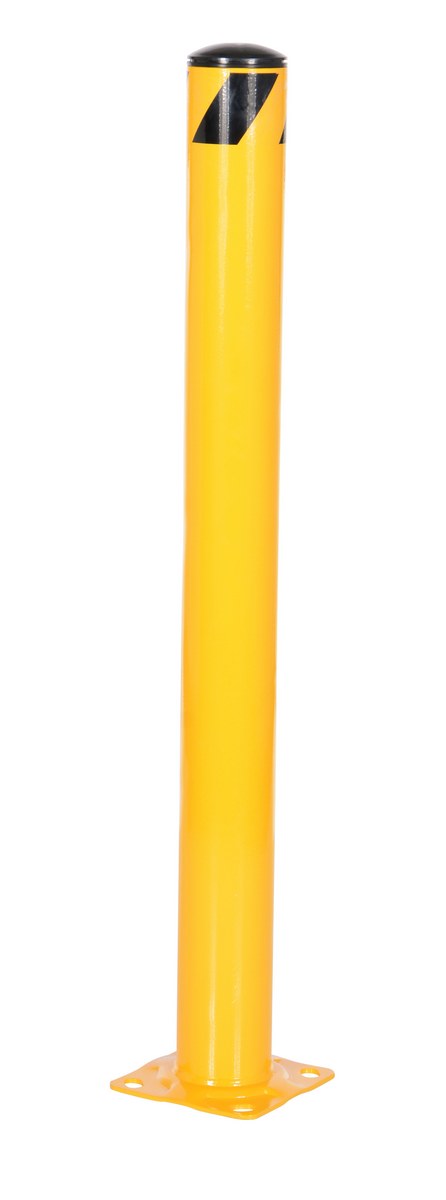

BOL-42-4.5 BOL-42-4.590 Days Limited WarrantySteel Pipe Safety Bollard 42 In. x 4-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 4-1/4
26

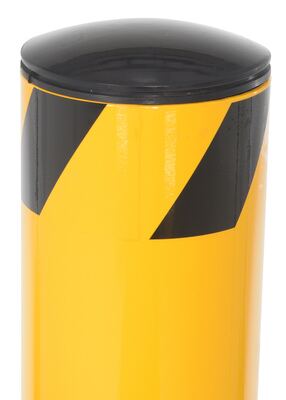

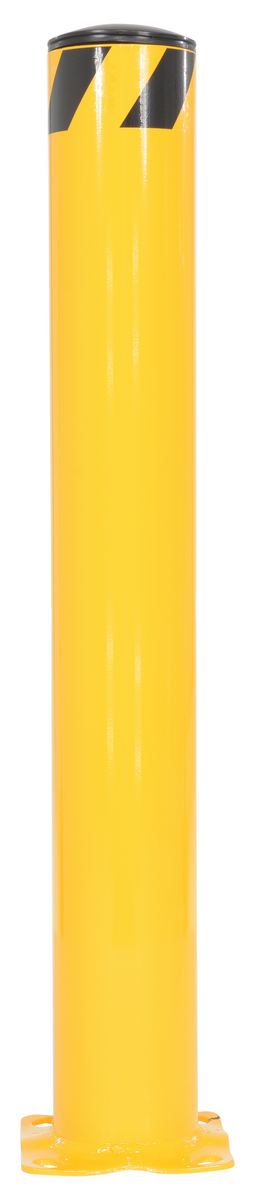

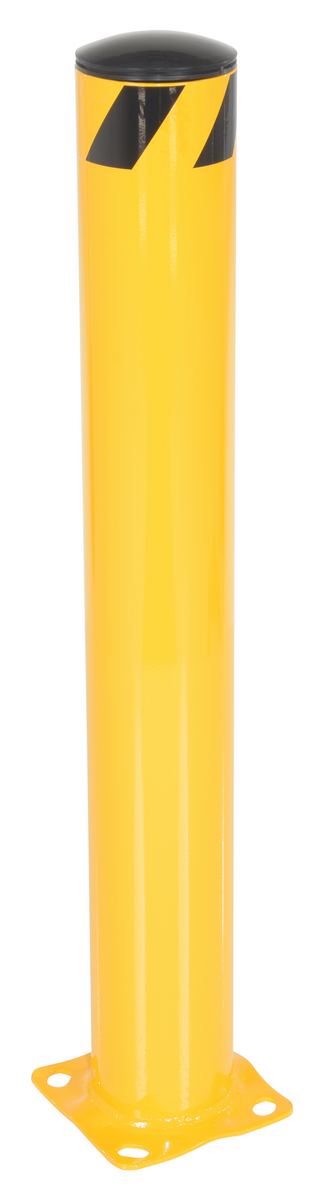

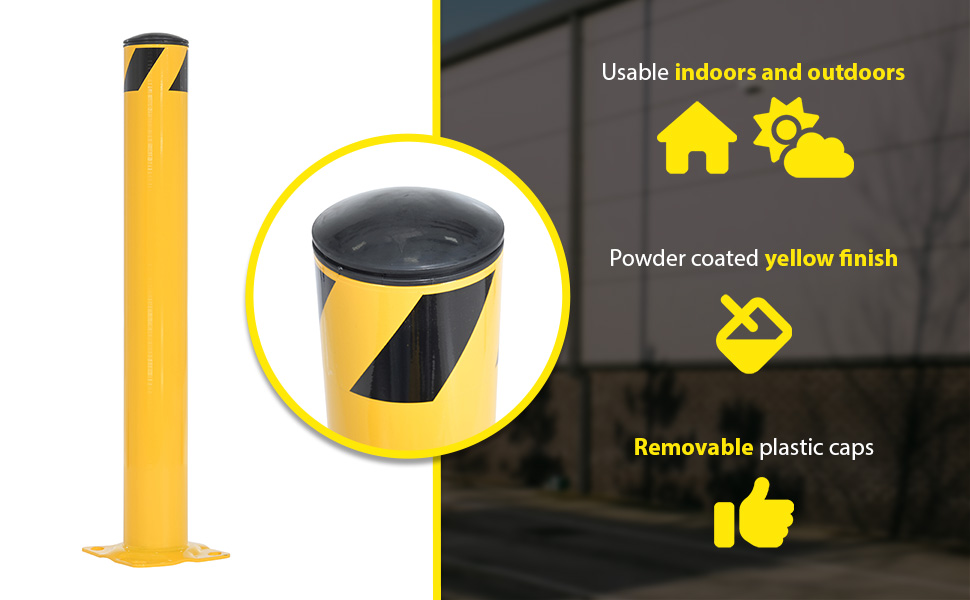

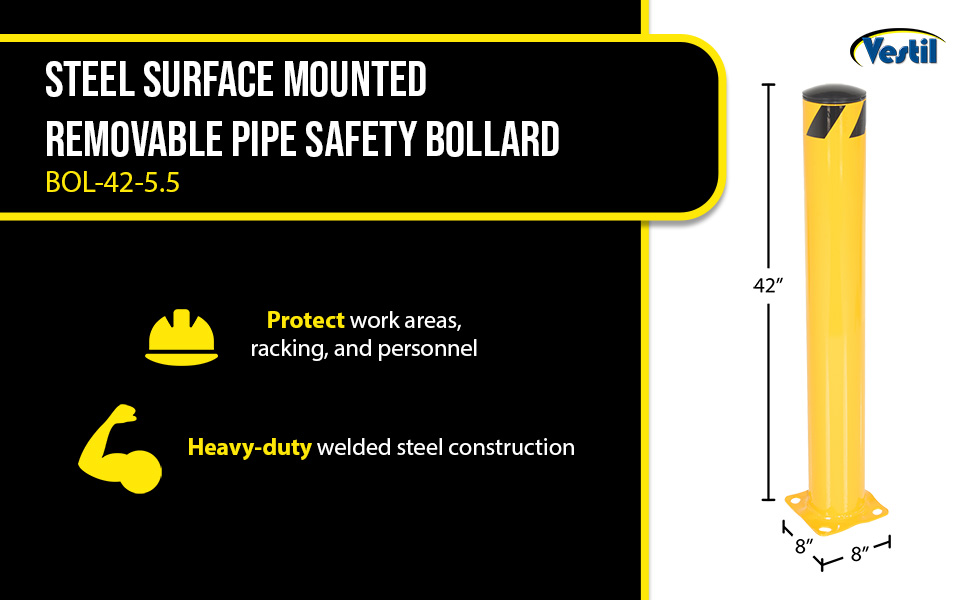

BOL-42-5.5 BOL-42-5.590 Days Limited WarrantySteel Pipe Safety Bollard 42 In. x 5-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 5-1/4
34

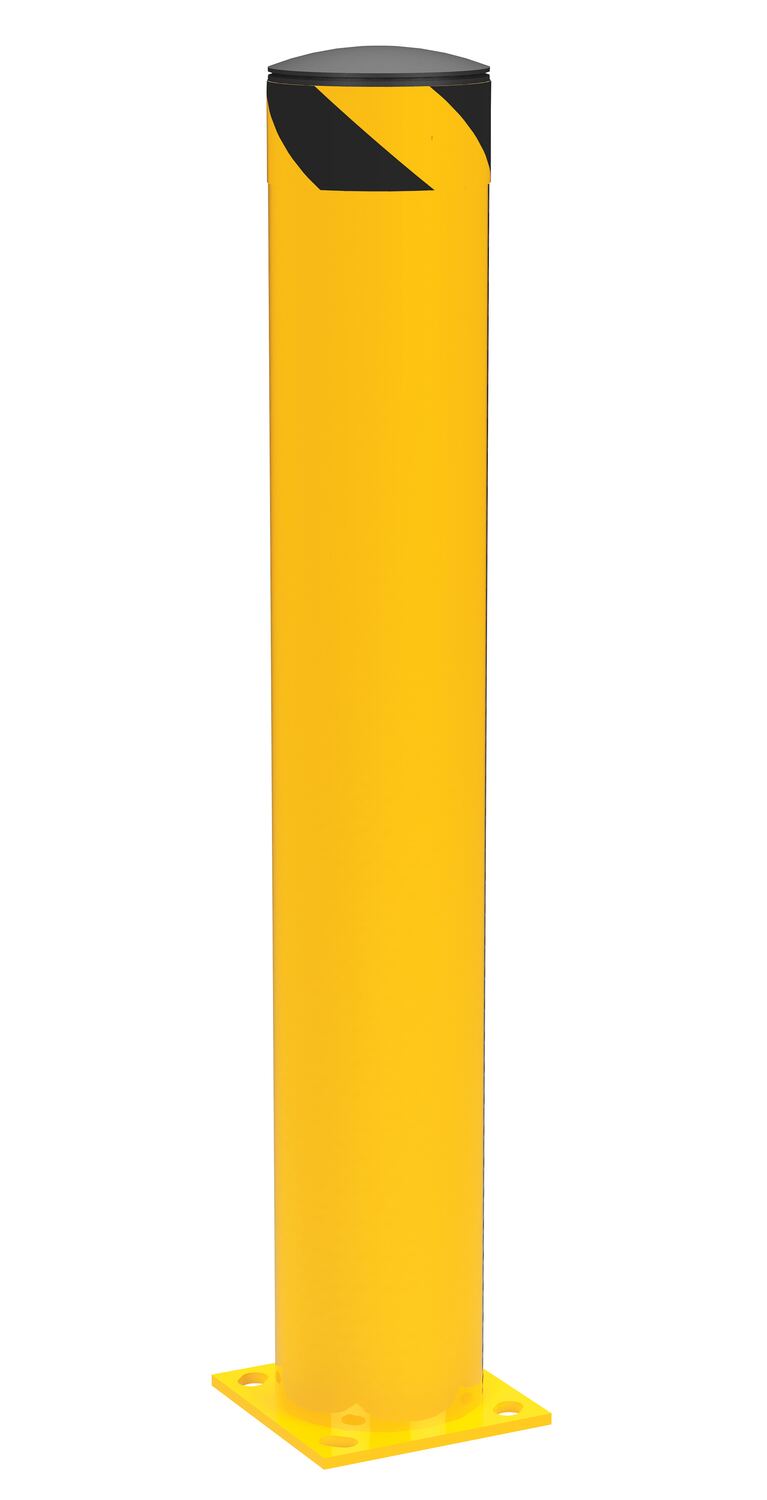

BOL-42-6.5 BOL-42-6.590 Days Limited WarrantySteel Pipe Safety Bollard 42 In. x 6-1/2 In. YellowMounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4
49

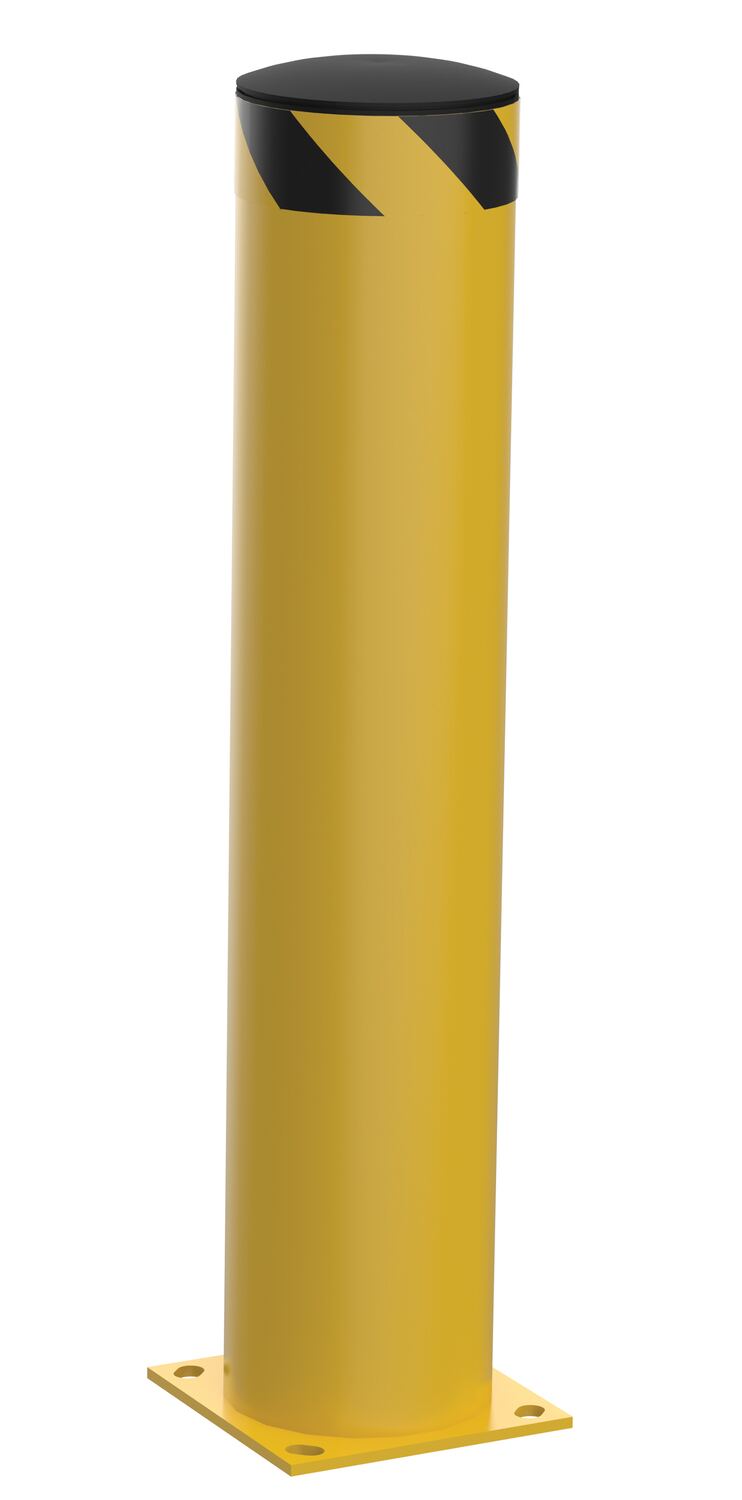

BOL-42-8.5 BOL-42-8.590 Days Limited WarrantySteel Pipe Safety Bollard 42 In. x 8-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 8-1/4
72

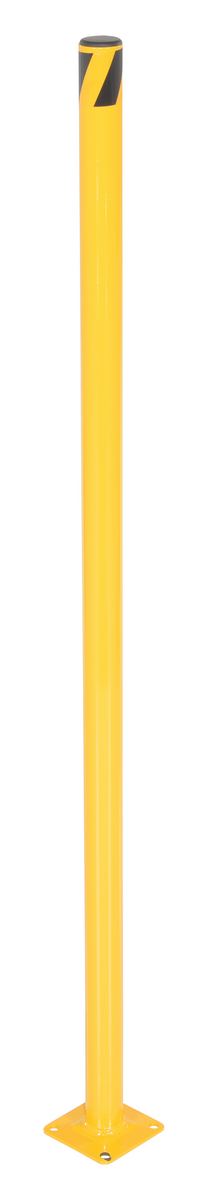

BOL-48-2 BOL-48-290 Days Limited WarrantySteel Pipe Safety Bollard 48 In. x 1-3/4 In. YellowMounting Holes (qty.): 4
Inside Diameter: 1-1/2
11

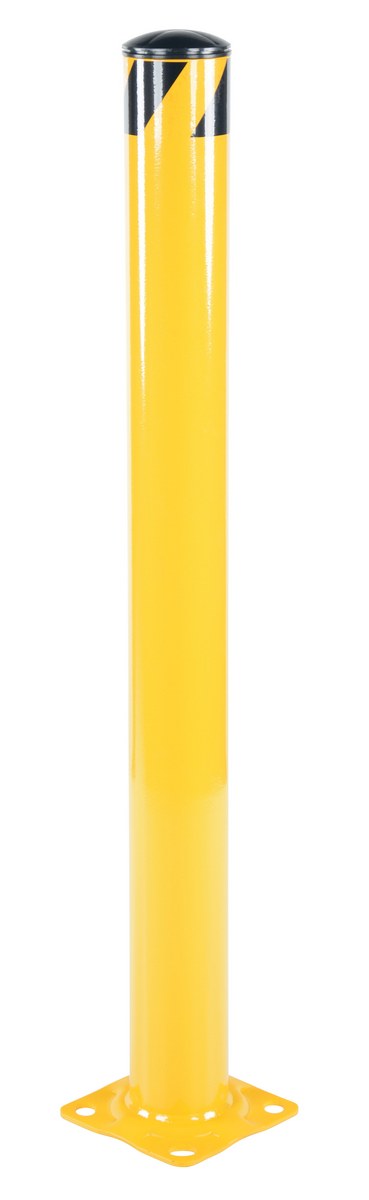

BOL-48-4.5 BOL-48-4.590 Days Limited WarrantySteel Pipe Safety Bollard 48 In. x 4-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 4-1/4
29

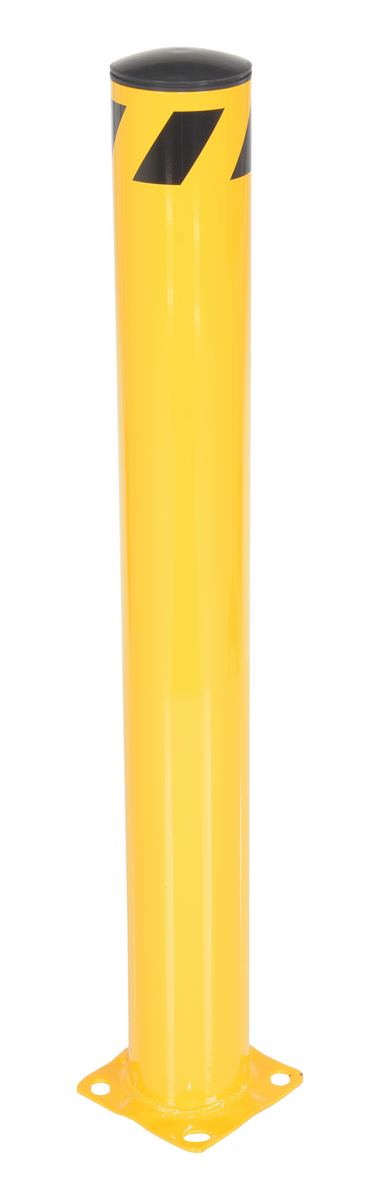

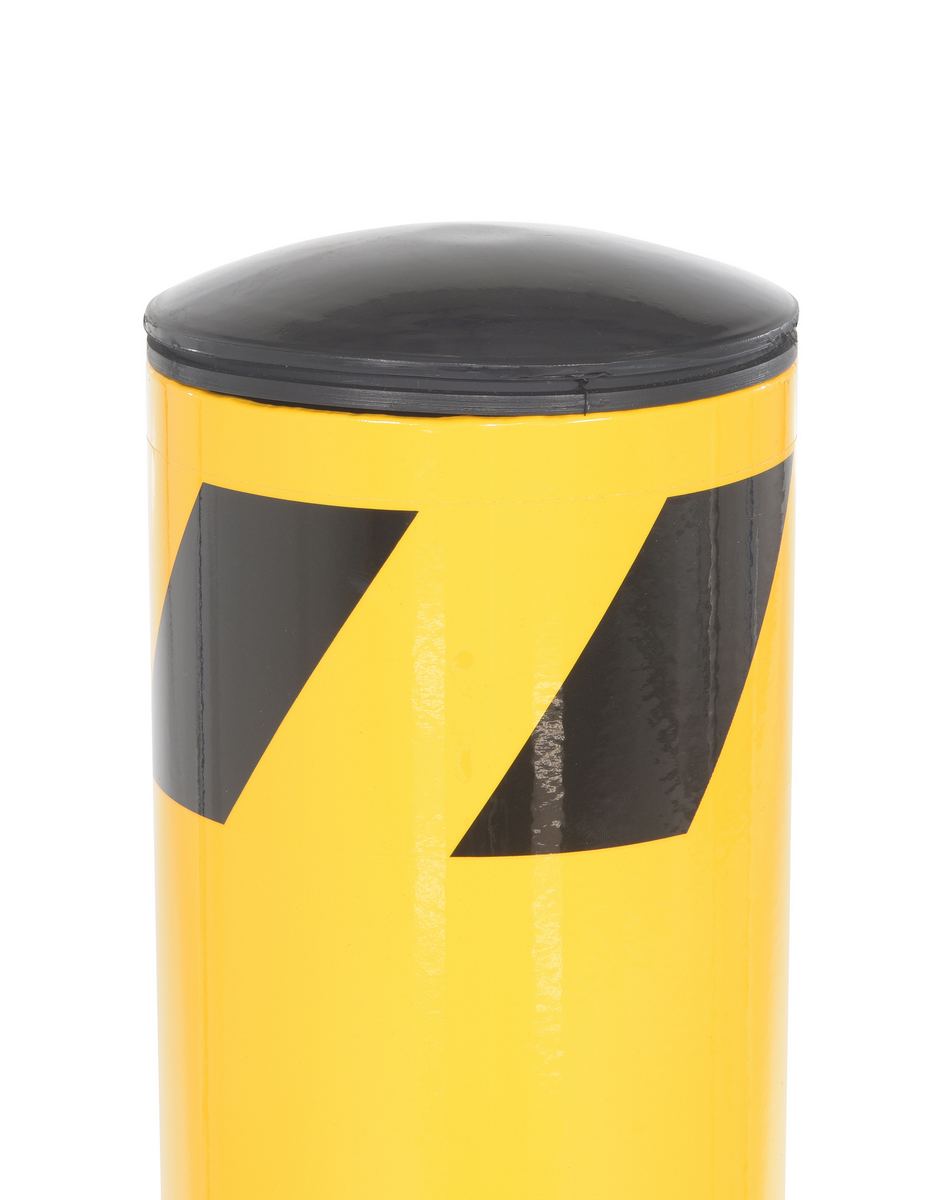

BOL-48-5.5 BOL-48-5.590 Days Limited WarrantySteel Pipe Safety Bollard 48 In. x 5-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 5-1/4
37

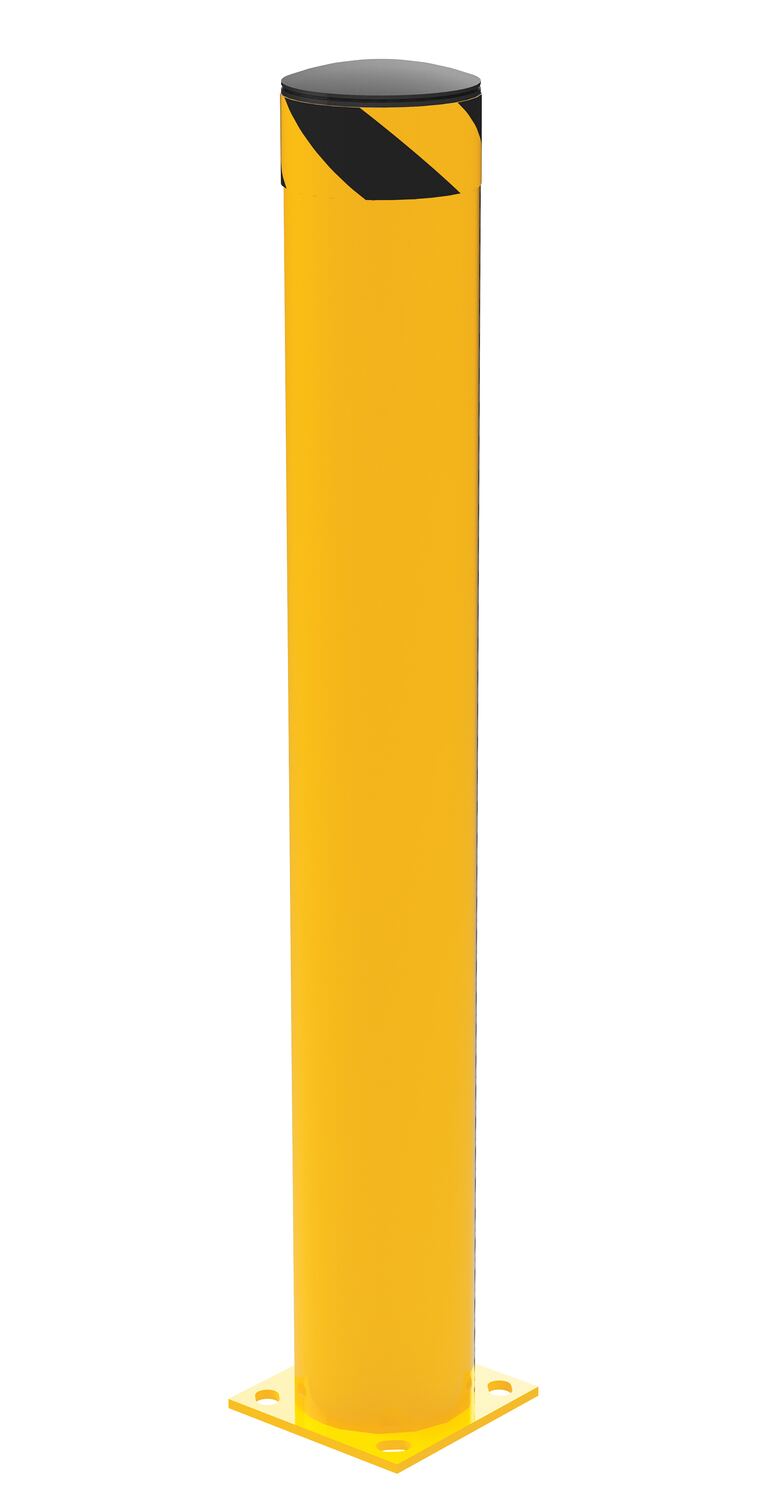

BOL-48-6.5 BOL-48-6.590 Days Limited WarrantySteel Pipe Safety Bollard 48 In. x 6-1/2 In. YellowMounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4
51

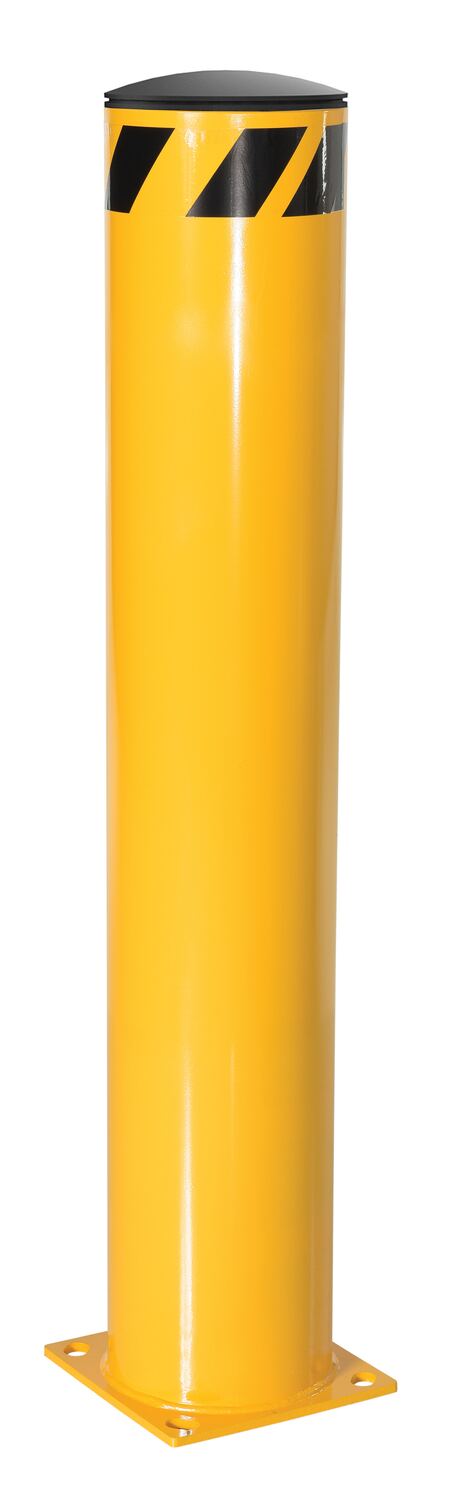

BOL-48-8.5 BOL-48-8.590 Days Limited WarrantySteel Pipe Safety Bollard 48 In. x 8-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 8-1/4
82
BOL-62-4.5 BOL-62-4.590 Days Limited WarrantySteel Pipe Safety Bollard 62 In. x 4-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 4-1/4
39
BOL-62-5.5 BOL-62-5.590 Days Limited WarrantySteel Pipe Safety Bollard 62 In. x 5-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 5-1/4
45

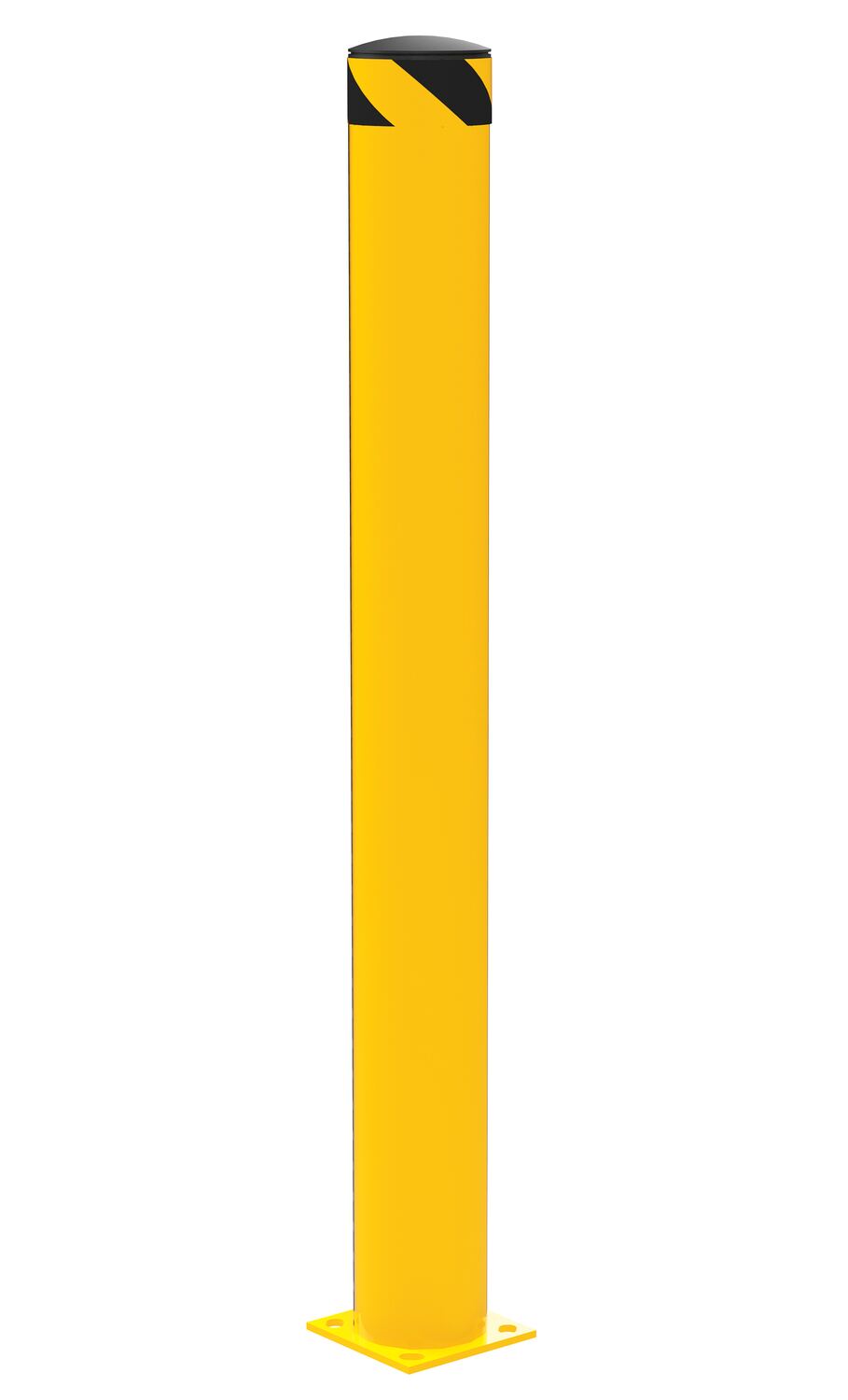

BOL-62-6.5 BOL-62-6.590 Days Limited WarrantySteel Pipe Safety Bollard 62 In. x 6-1/2 In. YellowMounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4
61

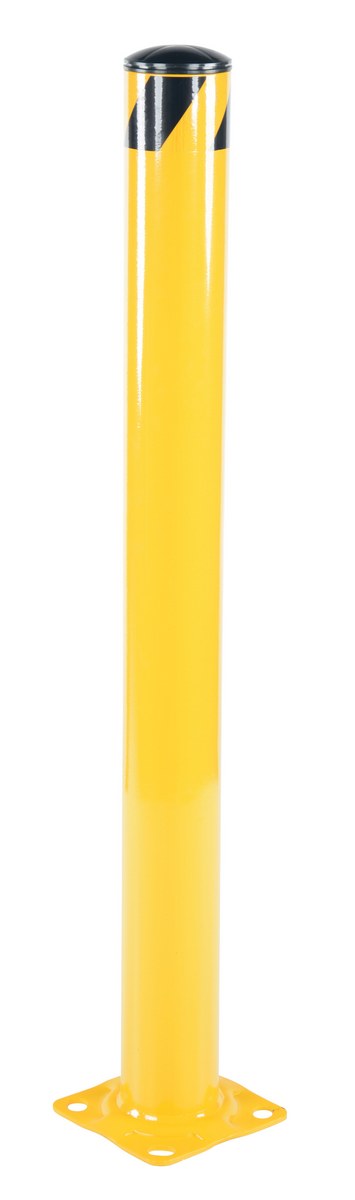

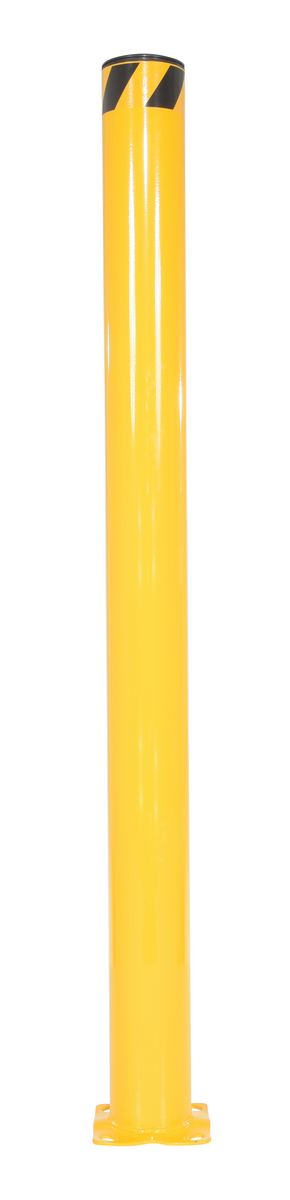

BOL-72-4.5 BOL-72-4.590 Days Limited WarrantySteel Pipe Safety Bollard 72 In. x 4-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 4-1/4
49

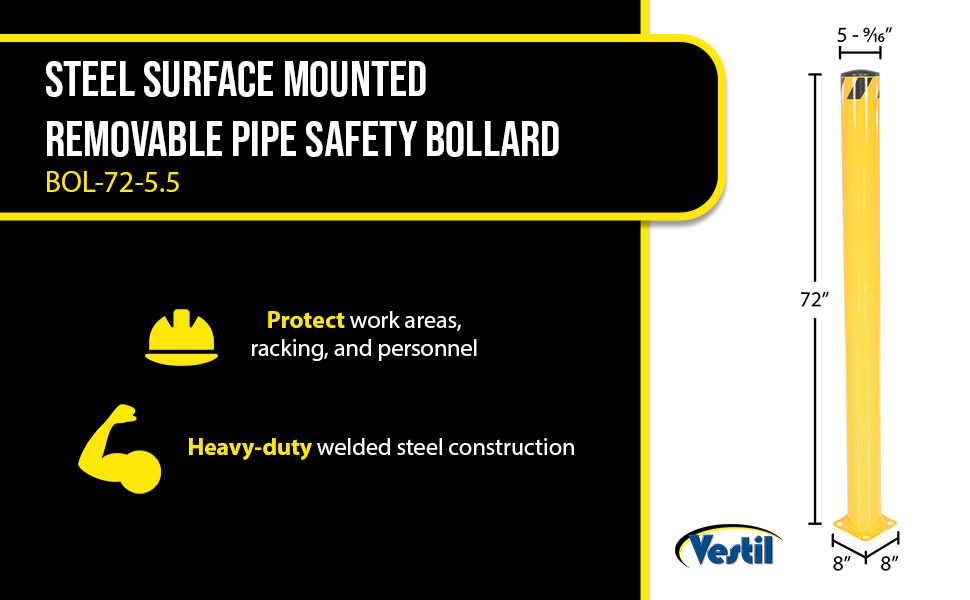

BOL-72-5.5 BOL-72-5.590 Days Limited WarrantySteel Pipe Safety Bollard 72 In. x 5-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 5-1/4
55

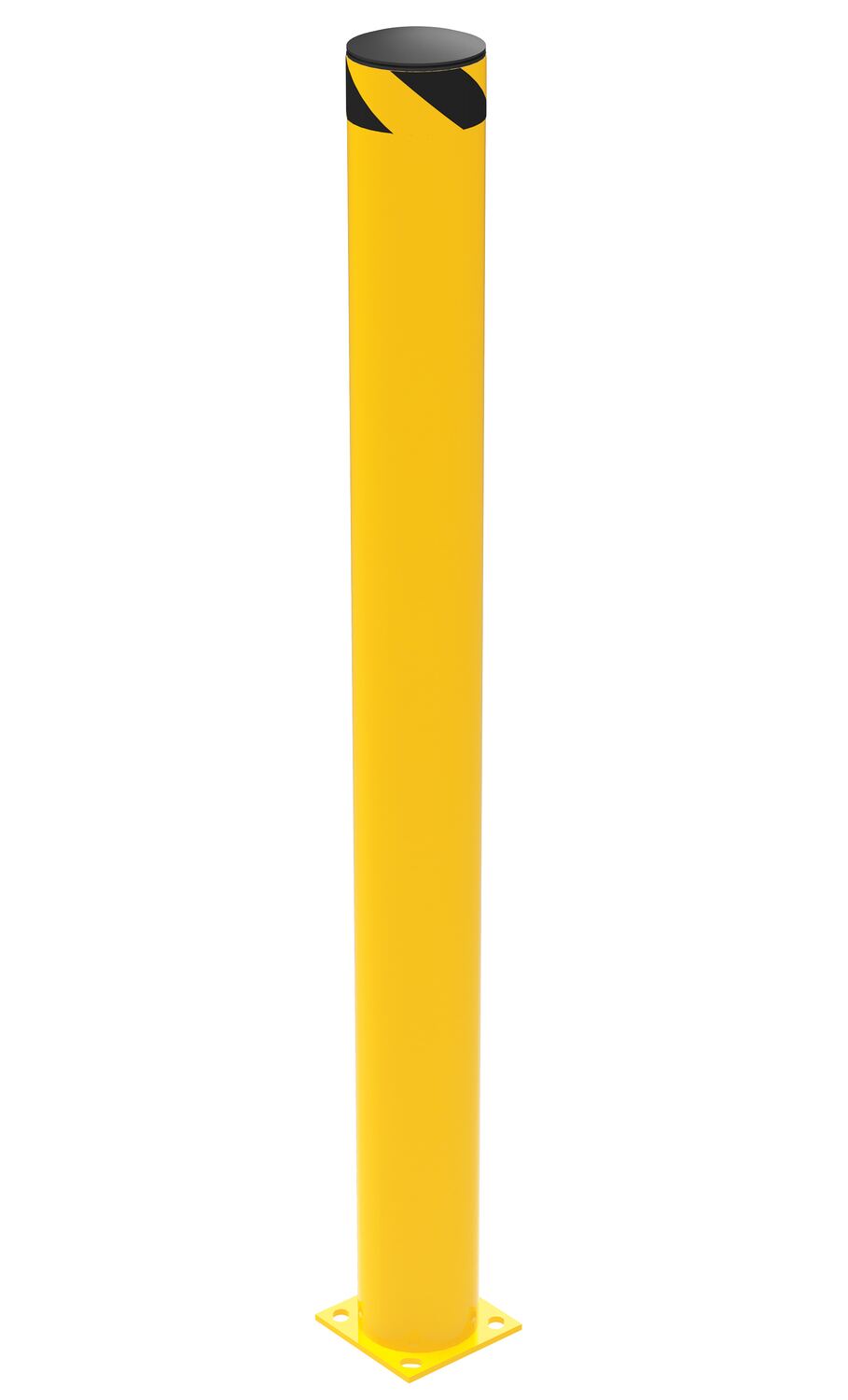

BOL-72-6.5 BOL-72-6.590 Days Limited WarrantySteel Pipe Safety Bollard 72 In. x 6-1/2 In. YellowMounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4
71

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below

BOL-24-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 1-1/2
Mounting Holes (qty.): 4
Inside Diameter: 1-1/2

BOL-24-4.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 4-1/4
Mounting Holes (qty.): 4
Inside Diameter: 4-1/4

BOL-24-5.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 5-1/4
Mounting Holes (qty.): 4
Inside Diameter: 5-1/4

BOL-36-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 1-1/2
Mounting Holes (qty.): 4
Inside Diameter: 1-1/2

BOL-36-4.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 4-1/4
Mounting Holes (qty.): 4
Inside Diameter: 4-1/4

BOL-36-5.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 5-1/4
Mounting Holes (qty.): 4
Inside Diameter: 5-1/4

BOL-36-6.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4
Mounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4

BOL-36-8.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 8-1/4
Mounting Holes (qty.): 4
Inside Diameter: 8-1/4

BOL-42-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 1-1/2
Mounting Holes (qty.): 4
Inside Diameter: 1-1/2

BOL-42-4.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 4-1/4
Mounting Holes (qty.): 4
Inside Diameter: 4-1/4

BOL-42-5.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 5-1/4
Mounting Holes (qty.): 4
Inside Diameter: 5-1/4

BOL-42-6.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4
Mounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4

BOL-42-8.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 8-1/4
Mounting Holes (qty.): 4
Inside Diameter: 8-1/4

BOL-48-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 1-1/2
Mounting Holes (qty.): 4
Inside Diameter: 1-1/2

BOL-48-4.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 4-1/4
Mounting Holes (qty.): 4
Inside Diameter: 4-1/4

BOL-48-5.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 5-1/4
Mounting Holes (qty.): 4
Inside Diameter: 5-1/4

BOL-48-6.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4
Mounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4

BOL-48-8.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 8-1/4
Mounting Holes (qty.): 4
Inside Diameter: 8-1/4

BOL-62-4.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 4-1/4
Mounting Holes (qty.): 4
Inside Diameter: 4-1/4

BOL-62-5.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 5-1/4
Mounting Holes (qty.): 4
Inside Diameter: 5-1/4

BOL-62-6.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4
Mounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4

BOL-72-4.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 4-1/4
Mounting Holes (qty.): 4
Inside Diameter: 4-1/4

BOL-72-5.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Inside Diameter: 5-1/4
Mounting Holes (qty.): 4
Inside Diameter: 5-1/4

BOL-72-6.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Mounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4
Mounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4
For More Details of the Option Click the Red Model Button
Model Image Description WT.
AS-383 Concrete (1) 3/8"x 3" Anchor Bolts (1-3/4" units) 1

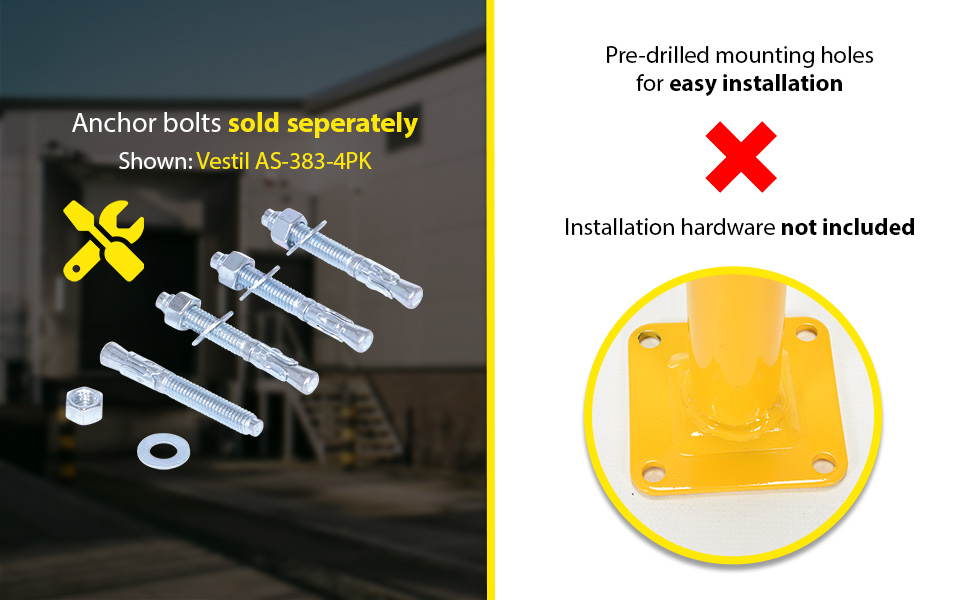

AS-383-4PK Concrete (4) 3/8"x 3" Anchor Bolts (1-3/4" units) 4
AS-344 Concrete (1) 3/4"x 4" Anchor Bolts (Other Units) 1

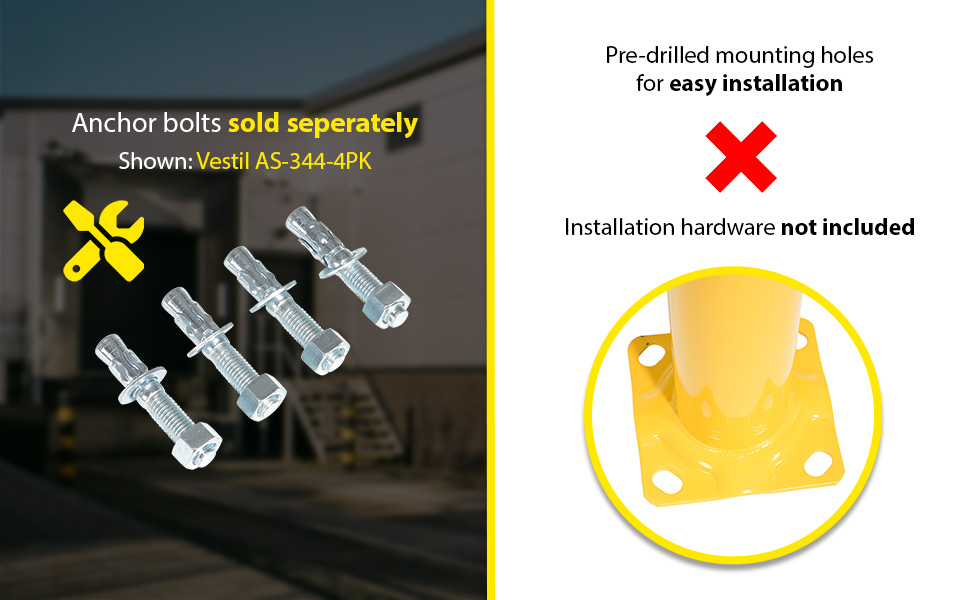

AS-344-4PK Concrete (4) 3/4"x 4" Anchor Bolts (Other Units) 4
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Steel Pipe Safety Bollards PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


BOL-24-2

BOL-24-4.5

BOL-24-5.5

BOL-36-2

BOL-36-4.5

BOL-36-5.5

BOL-36-6.5

BOL-36-8.5

BOL-42-2

BOL-42-4.5

BOL-42-5.5

BOL-42-6.5

BOL-42-8.5

BOL-48-2

BOL-48-4.5

BOL-48-5.5

BOL-48-6.5

BOL-48-8.5

BOL-62-4.5

BOL-62-5.5

BOL-62-5.5-SL

BOL-62-6.5

BOL-62-6.5-SL

BOL-72-4.5

BOL-72-5.5

BOL-72-5.5-SL

BOL-72-6.5

BOL-72-6.5-WT

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products


Q: What is the schedule of the bollard?

A: The 2" bollard is 1 1/4" schedule-10 pipe. (.109" wall)


Q: What is the schedule of the bollard?

A: The 4.5" bollard is 4" schedule-10 pipe. (.120" wall)


Q: What is the schedule of the bollard?

A: The 5.5" bollard is 5" schedule-10 pipe. (.134" wall)


Q: What is the schedule of the bollard?

A: The 6.5" bollard is 6" schedule-10 pipe. (.134" wall)


Q: What is the schedule of the bollard?

A: The 8.5" bollard is 8" schedule-10 pipe. (.148" wall)


Q: What metal are the anchor bolts ?

A: The anchor bolts are zinc plated steel.


Q: What is the impact rating of the bollard?

A: The impact rating for the bollard is 4,000 lbs. force at 4 MPH


Q: What is the impact rating of the bollard?

A: The 5.5" bollard has an impact rating of 4,000 lbs. force at 4 MPH.


Q: What is the impact rating of the bollard?

A: The bollard has an impact rating of 4,000 lbs. of force at 4 MPH.


Q: What is the center to center measurement in the bolt pattern please?

A: The center to center measurement in the bolt pattern is 8".






Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Steel Pipe Safety Bollards




Bollards can be used both indoors and outdoors to protect work areas, racking and personnel. Plastic caps are removable on ,1-3/4", 4-1/2" and 5-1/2" diameter units and bollard may be filled with concrete. Steel caps are welded on the 6-5/8, 8-5/8" diameter units. Base plate includes four (4) pre-drilled mounting holes. Mounting kits and replacement caps available. Baked in powder coat or hot dipped galvanized finish for added toughness.

  • Safety pipe design can be used either inside or out
  • Powder coat safety yellow finish offers an attractive long lasting look
  • Heavy-duty welded steel construction provides long lasting protection
  • Base plate includes four pre-drilled mounting holes for quick and easy installation

Check Out Our FLUORESCENT YELLOW Safety Bollards

BOL Colors



Model # Description Attributes Net Wt.
(lbs)
BOL-24-2 BOL-24-2Steel Pipe Safety Bollard 24 In. x 1-3/4 In. YellowMounting Holes (qty.): 4
Inside Diameter: 1-1/2
6
BOL-24-4.5 BOL-24-4.5Steel Pipe Safety Bollard 24 In. x 4-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 4-1/4
17
BOL-24-5.5 BOL-24-5.5Steel Pipe Safety Bollard 24 In. x 5-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 5-1/4
20
BOL-36-2 BOL-36-2Steel Pipe Safety Bollard 36 In. x 1-3/4 In. YellowMounting Holes (qty.): 4
Inside Diameter: 1-1/2
9
BOL-36-4.5 BOL-36-4.5Steel Pipe Safety Bollard 36 In. x 4-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 4-1/4
22
BOL-36-5.5 BOL-36-5.5Steel Pipe Safety Bollard 36 In. x 5-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 5-1/4
29
BOL-36-6.5 BOL-36-6.5Steel Pipe Safety Bollard 36 In. x 6-1/2 In. YellowMounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4
36
BOL-36-8.5 BOL-36-8.5Steel Pipe Safety Bollard 36 In. x 8-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 8-1/4
70
BOL-42-2 BOL-42-2Steel Pipe Safety Bollard 42 In. x 1-3/4 In. YellowMounting Holes (qty.): 4
Inside Diameter: 1-1/2
9
BOL-42-4.5 BOL-42-4.5Steel Pipe Safety Bollard 42 In. x 4-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 4-1/4
26
BOL-42-5.5 BOL-42-5.5Steel Pipe Safety Bollard 42 In. x 5-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 5-1/4
34
BOL-42-6.5 BOL-42-6.5Steel Pipe Safety Bollard 42 In. x 6-1/2 In. YellowMounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4
49
BOL-42-8.5 BOL-42-8.5Steel Pipe Safety Bollard 42 In. x 8-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 8-1/4
72
BOL-48-2 BOL-48-2Steel Pipe Safety Bollard 48 In. x 1-3/4 In. YellowMounting Holes (qty.): 4
Inside Diameter: 1-1/2
11
BOL-48-4.5 BOL-48-4.5Steel Pipe Safety Bollard 48 In. x 4-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 4-1/4
29
BOL-48-5.5 BOL-48-5.5Steel Pipe Safety Bollard 48 In. x 5-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 5-1/4
37
BOL-48-6.5 BOL-48-6.5Steel Pipe Safety Bollard 48 In. x 6-1/2 In. YellowMounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4
51
BOL-48-8.5 BOL-48-8.5Steel Pipe Safety Bollard 48 In. x 8-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 8-1/4
82
BOL-62-4.5 BOL-62-4.5Steel Pipe Safety Bollard 62 In. x 4-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 4-1/4
39
BOL-62-5.5 BOL-62-5.5Steel Pipe Safety Bollard 62 In. x 5-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 5-1/4
45
BOL-62-6.5 BOL-62-6.5Steel Pipe Safety Bollard 62 In. x 6-1/2 In. YellowMounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4
61
BOL-72-4.5 BOL-72-4.5Steel Pipe Safety Bollard 72 In. x 4-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 4-1/4
49
BOL-72-5.5 BOL-72-5.5Steel Pipe Safety Bollard 72 In. x 5-1/2 In. YellowMounting Holes (qty.): 4
Inside Diameter: 5-1/4
55
BOL-72-6.5 BOL-72-6.5Steel Pipe Safety Bollard 72 In. x 6-1/2 In. YellowMounting Holes (qty.): 4
Mounting Slots (in.): 7/8 x 1-1/4
71

Options


Model Image Description WT.
AS-383 Concrete (1) 3/8"x 3" Anchor Bolts (1-3/4" units) 1
AS-383-4PK Concrete (4) 3/8"x 3" Anchor Bolts (1-3/4" units) 4
AS-344 Concrete (1) 3/4"x 4" Anchor Bolts (Other Units) 1
AS-344-4PK Concrete (4) 3/4"x 4" Anchor Bolts (Other Units) 4

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
