Product Family Overview

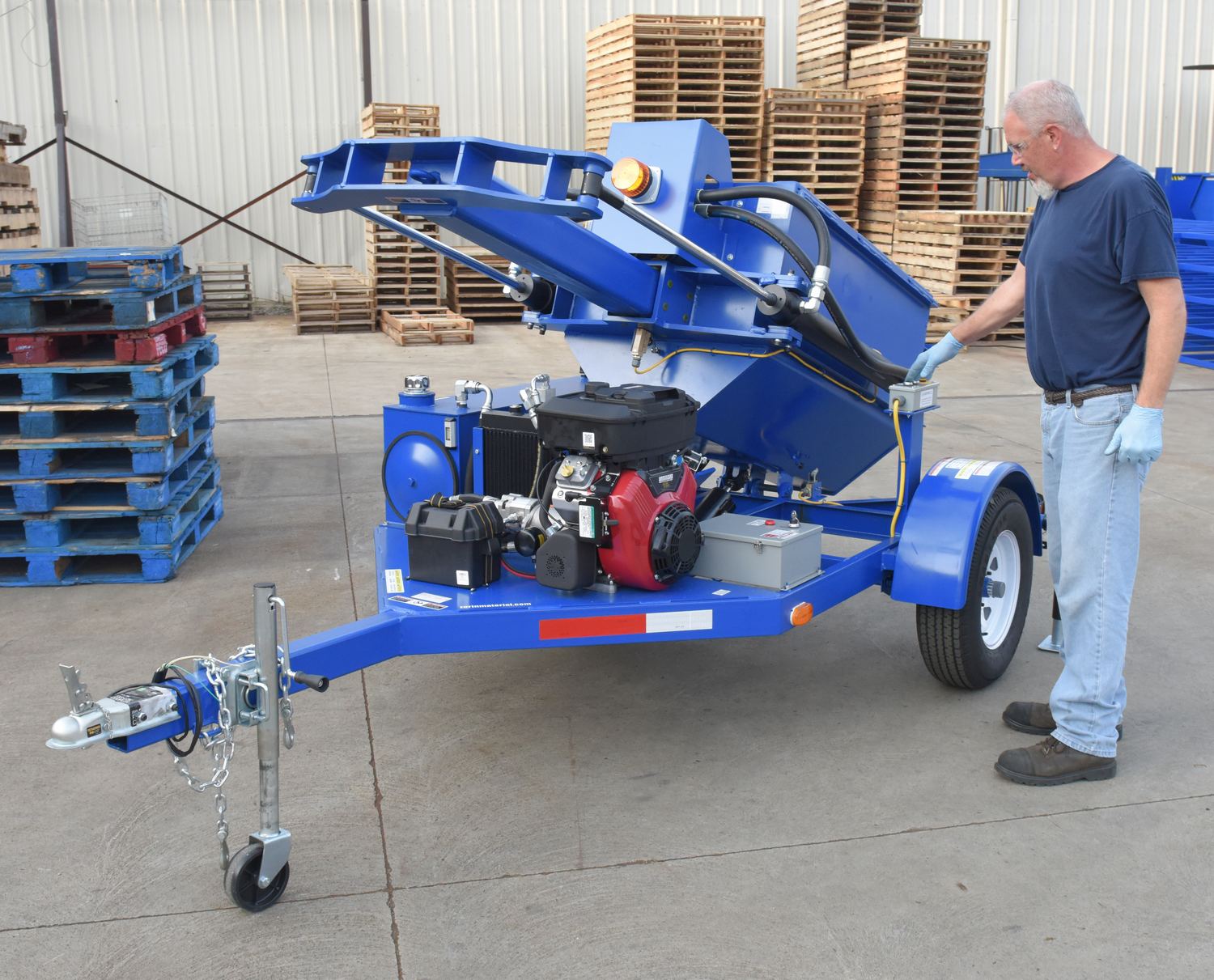

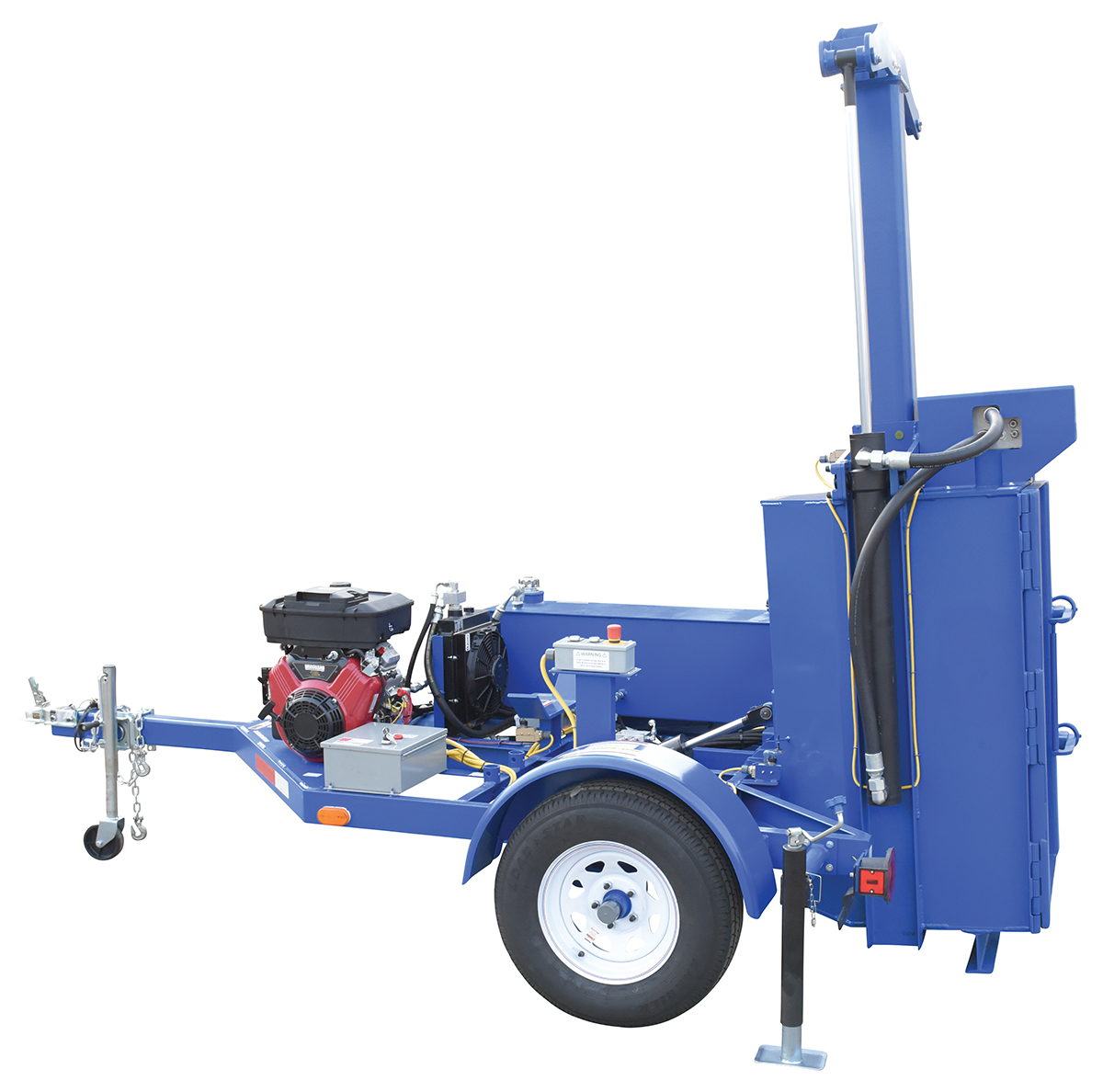

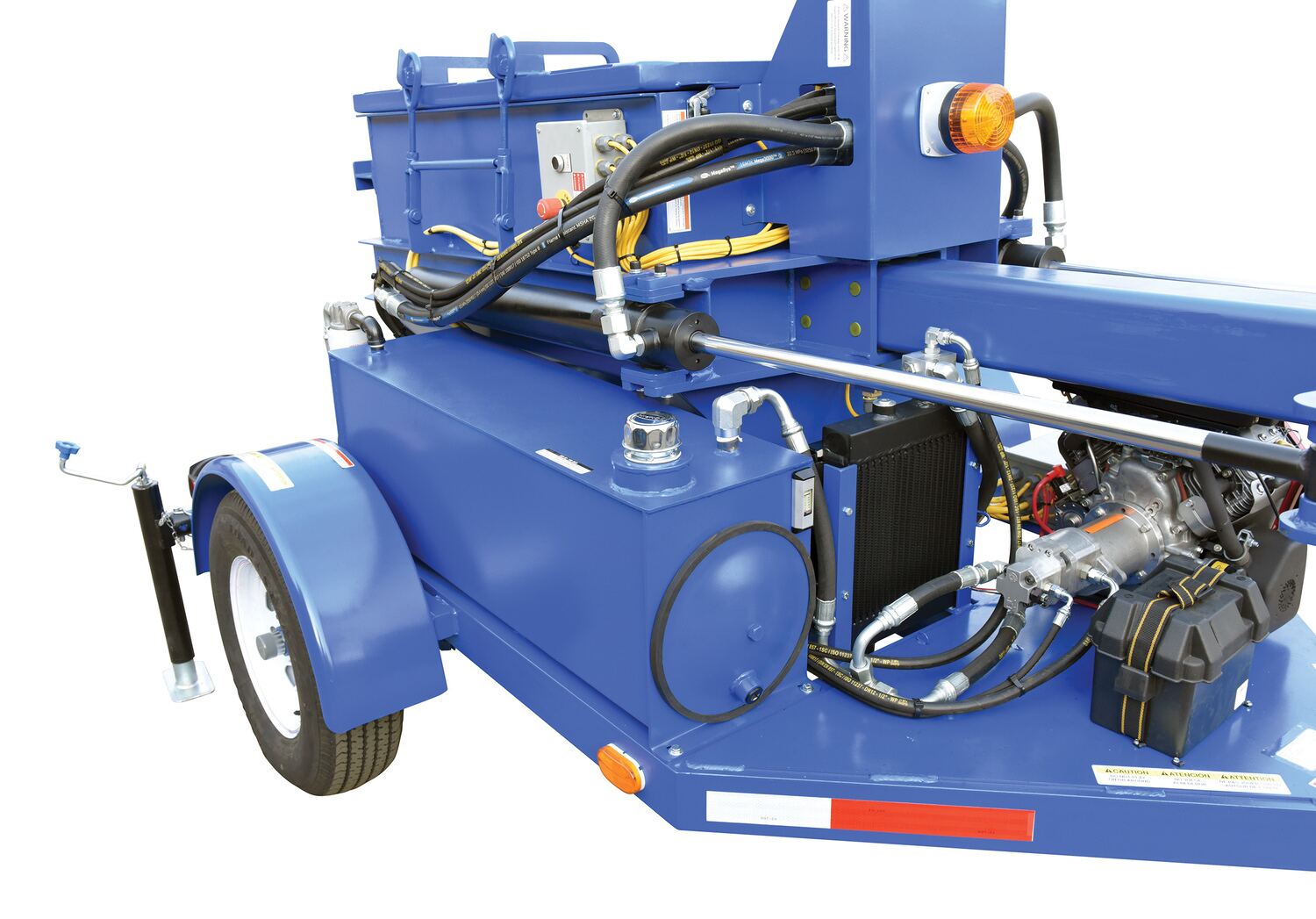

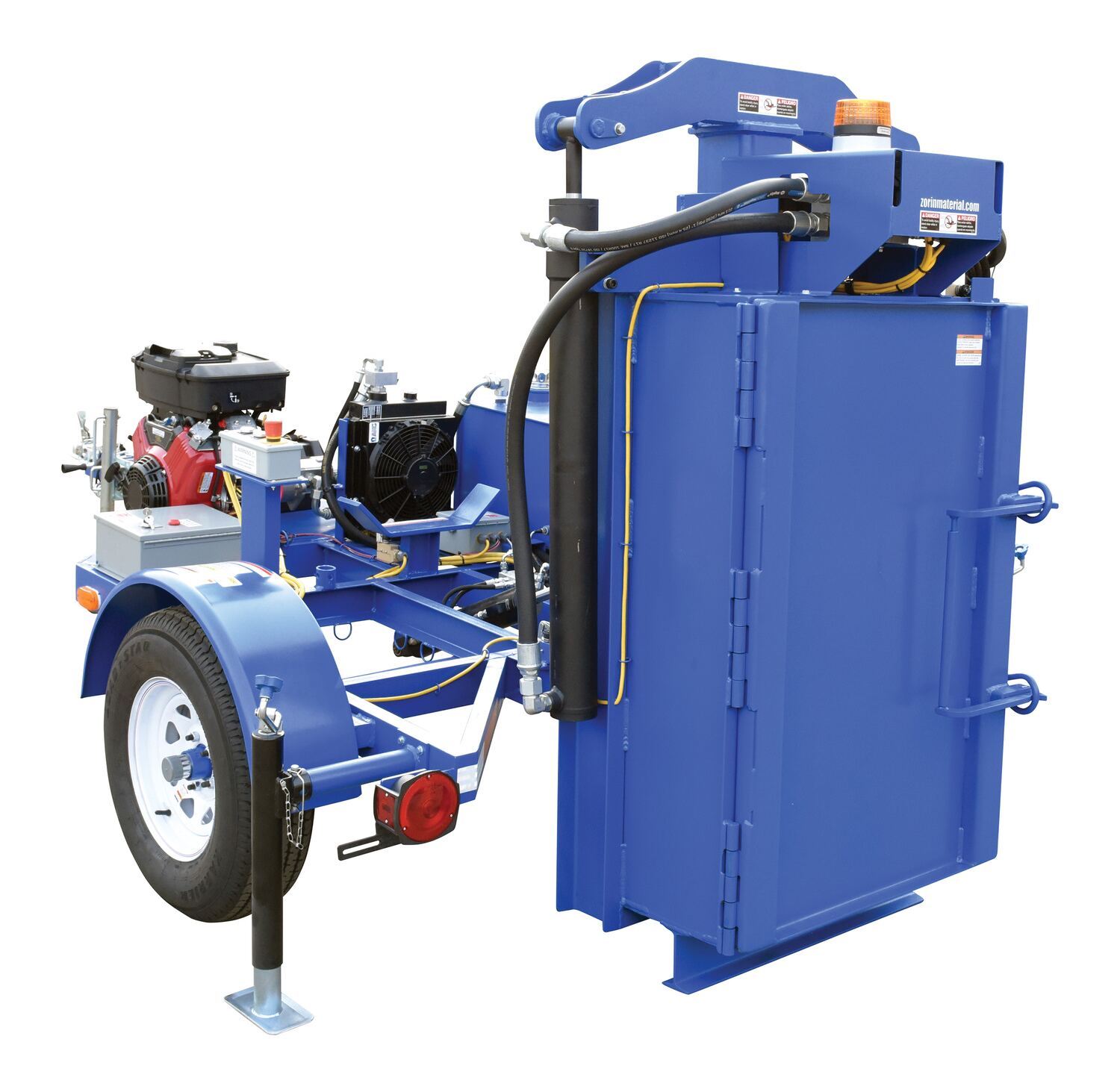

Mobile Gasoline Powered Drum Crusher
SERIES: HDC-900

Take the Drum Crusher to where the drums are! Full cycle time is 25 seconds, crush and retract. Save time and trips by transporting drums that are already crushed. Features an 570cc Briggs & Stratton gasoline engine. Hydraulic reservoir holds up to 30 gallons of hydraulic oil. Power tilt and integral trailer with tail and brake lights is included. Exterior tension mounted twin cylinders eliminate rod buckling and damage. Unit ships flat bed truck.

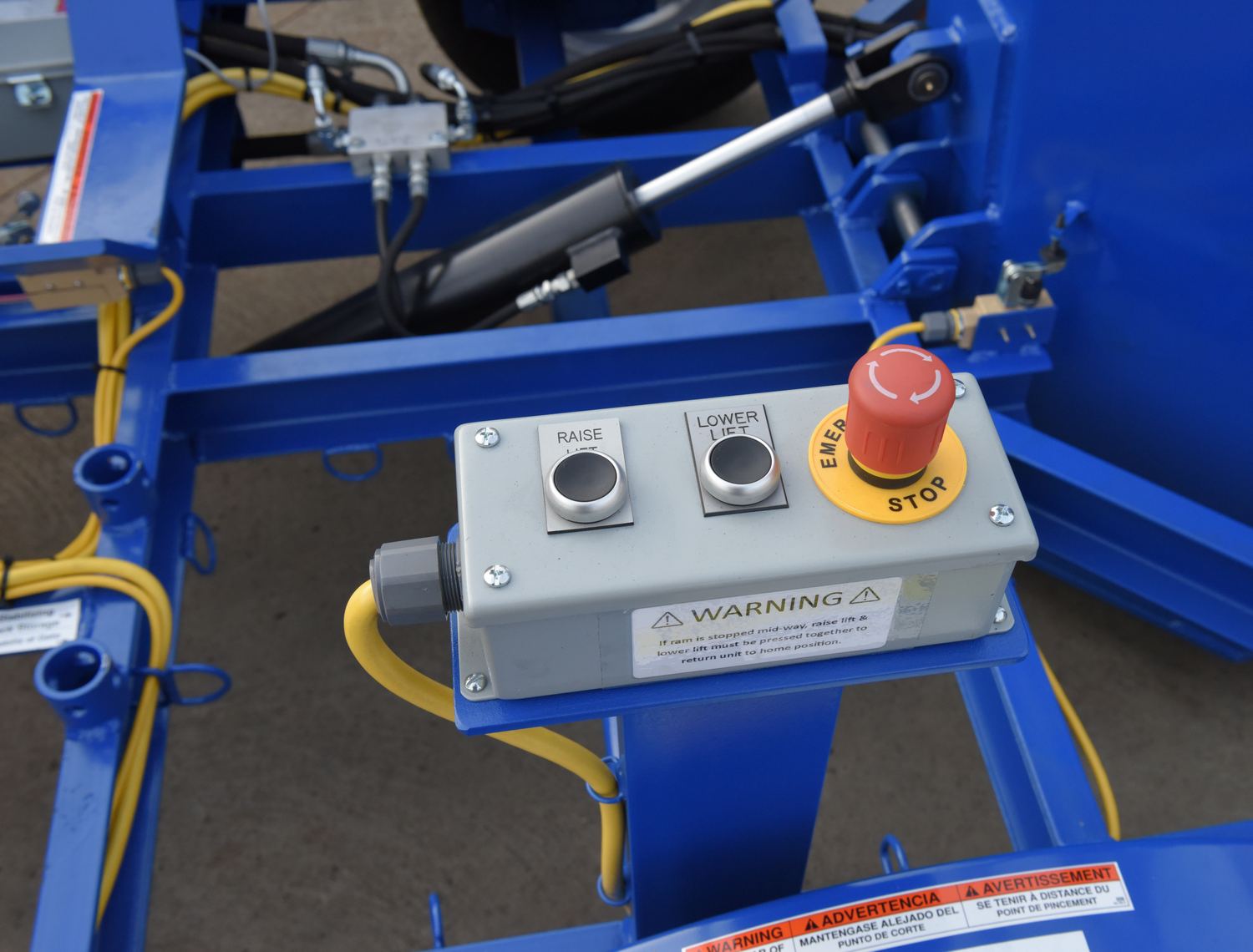

  • Gasoline engine includes an emergency stop button to instantly shut down the unit
  • Exterior tension mounted twin cylinders eliminate rod buckling and damage
  • Includes an air/oil cooler to prevent overheating during continuous operation
  • Operation is fully-automatic for optimal results

Do not attempt to crush smooth-walled drums with this machine. Drums must be ribbed to crush properly.


Take the Drum Crusher to where the drums are! Full cycle time is 25 seconds, crush and retract. Save time and trips by transporting drums that are already crushed. Features an 570cc Briggs & Stratton gasoline engine. Hydraulic reservoir holds up to 30 gallons of hydraulic oil. Power tilt and integral trailer with tail and brake lights is included. Exterior tension mounted twin cylinders eliminate rod buckling and damage. Unit ships flat bed truck.

  • Gasoline engine includes an emergency stop button to instantly shut down the unit
  • Exterior tension mounted twin cylinders eliminate rod buckling and damage
  • Includes an air/oil cooler to prevent overheating during continuous operation
  • Operation is fully-automatic for optimal results

Do not attempt to crush smooth-walled drums with this machine. Drums must be ribbed to crush properly.


Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
HDC-900-GPT HDC-900-GPT1 Year Limited WarrantySteel Mobile Gasoline Powered Drum Crusher 138-3/8 In. x 83-1/4 In. x 105-5/8 In. BlueHydraulic Reservoir Capacity (gal.): 30
Engine: 570cc
3376

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate = 360 Image Warranty

If you did not find an expected Model or SKU # in the table, try the Options Section Below

HDC-900-GPT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hydraulic Reservoir Capacity (gal.): 30
Engine: 570cc
Hydraulic Reservoir Capacity (gal.): 30
Engine: 570cc
For More Details of the Option Click the Red Model Button
Model PDFs Description Wt (lbs.)
HDC-905-DPN Warranty PDFCompliance Certificate Extra Aluminum Drip Pan 4
HDC9-1 Warranty PDFCompliance Certificate Single phase, 3 HP power unit (option for HDC-905-IDC) At 208-230V, cycle time increases to 70 sec. and requires 20A supply circuit -
HDC-905-WD Warranty PDFCompliance Certificate Washdown Motor & NEMA 4 Enclosure -
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Mobile Gasoline Powered Drum Crusher PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


HDC-900-GPT

SDS Sheets


Valve Regulated Lead-Acid Battery SDS Sheet for: HDC-900-GPT
Hydraulic Oil SDS Sheet for: HDC-900-GPT

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: Is there a high cycle option for the HDC-900-GPT?

A: The standard unit comes as a high cycle unit from the factory.






Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Mobile Gasoline Powered Drum C...




Take the Drum Crusher to where the drums are! Full cycle time is 25 seconds, crush and retract. Save time and trips by transporting drums that are already crushed. Features an 570cc Briggs & Stratton gasoline engine. Hydraulic reservoir holds up to 30 gallons of hydraulic oil. Power tilt and integral trailer with tail and brake lights is included. Exterior tension mounted twin cylinders eliminate rod buckling and damage. Unit ships flat bed truck.

  • Gasoline engine includes an emergency stop button to instantly shut down the unit
  • Exterior tension mounted twin cylinders eliminate rod buckling and damage
  • Includes an air/oil cooler to prevent overheating during continuous operation
  • Operation is fully-automatic for optimal results

Do not attempt to crush smooth-walled drums with this machine. Drums must be ribbed to crush properly.




Model # Description Attributes Net Wt.
(lbs)
HDC-900-GPT HDC-900-GPTSteel Mobile Gasoline Powered Drum Crusher 138-3/8 In. x 83-1/4 In. x 105-5/8 In. BlueHydraulic Reservoir Capacity (gal.): 30
Engine: 570cc
3376

Options


Model PDFs Description Wt (lbs.)
HDC-905-DPN Warranty PDFCompliance Certificate Extra Aluminum Drip Pan 4
HDC9-1 Warranty PDFCompliance Certificate Single phase, 3 HP power unit (option for HDC-905-IDC) At 208-230V, cycle time increases to 70 sec. and requires 20A supply circuit -
HDC-905-WD Warranty PDFCompliance Certificate Washdown Motor & NEMA 4 Enclosure -
