Product Family Overview

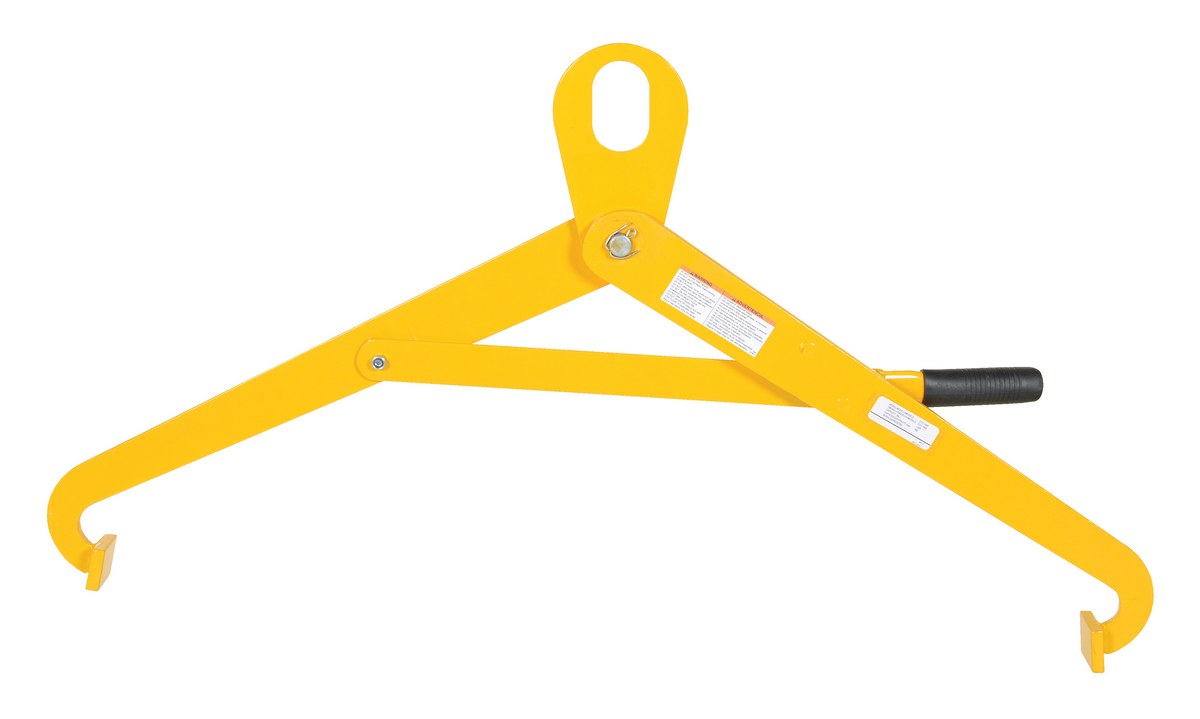

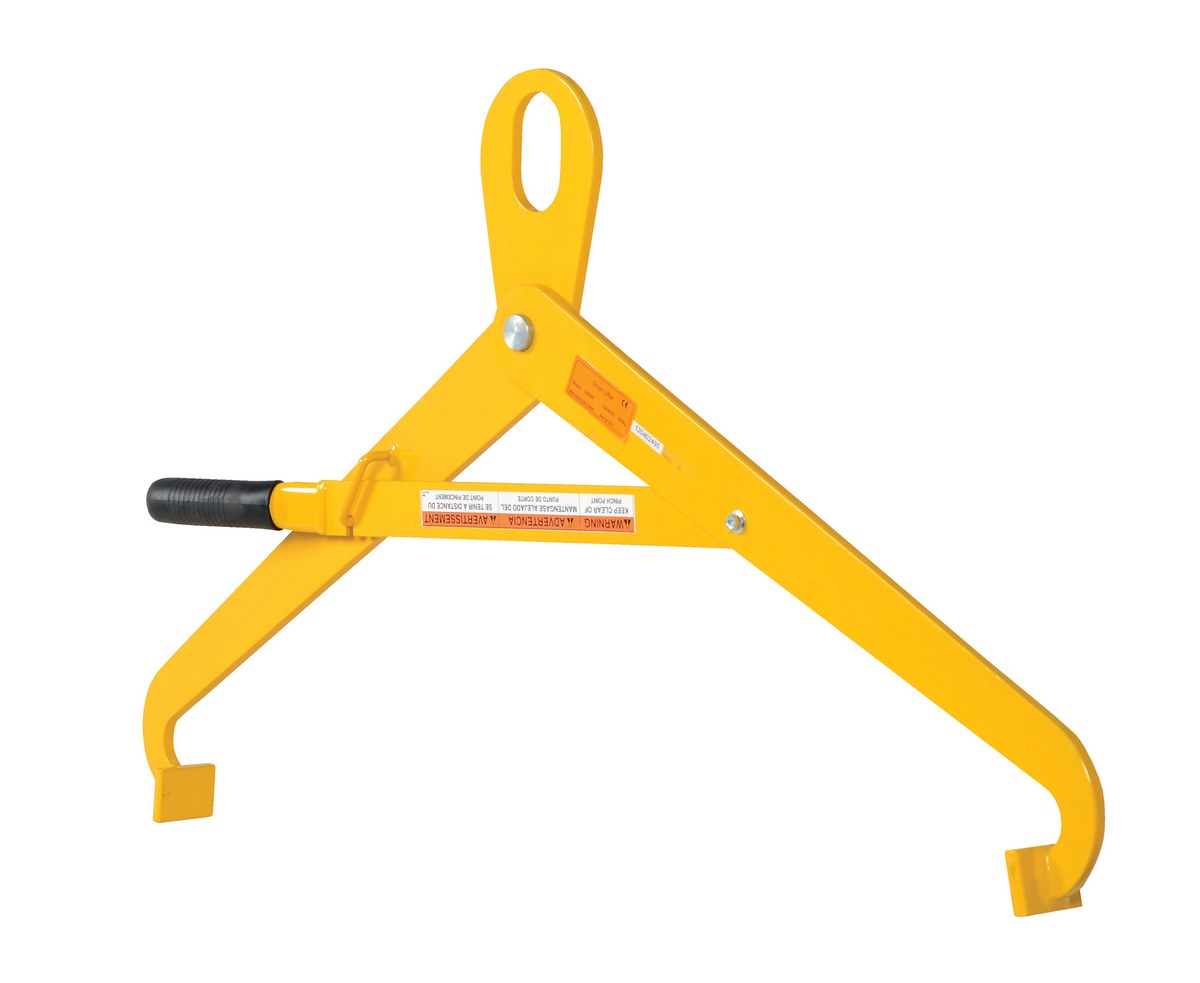

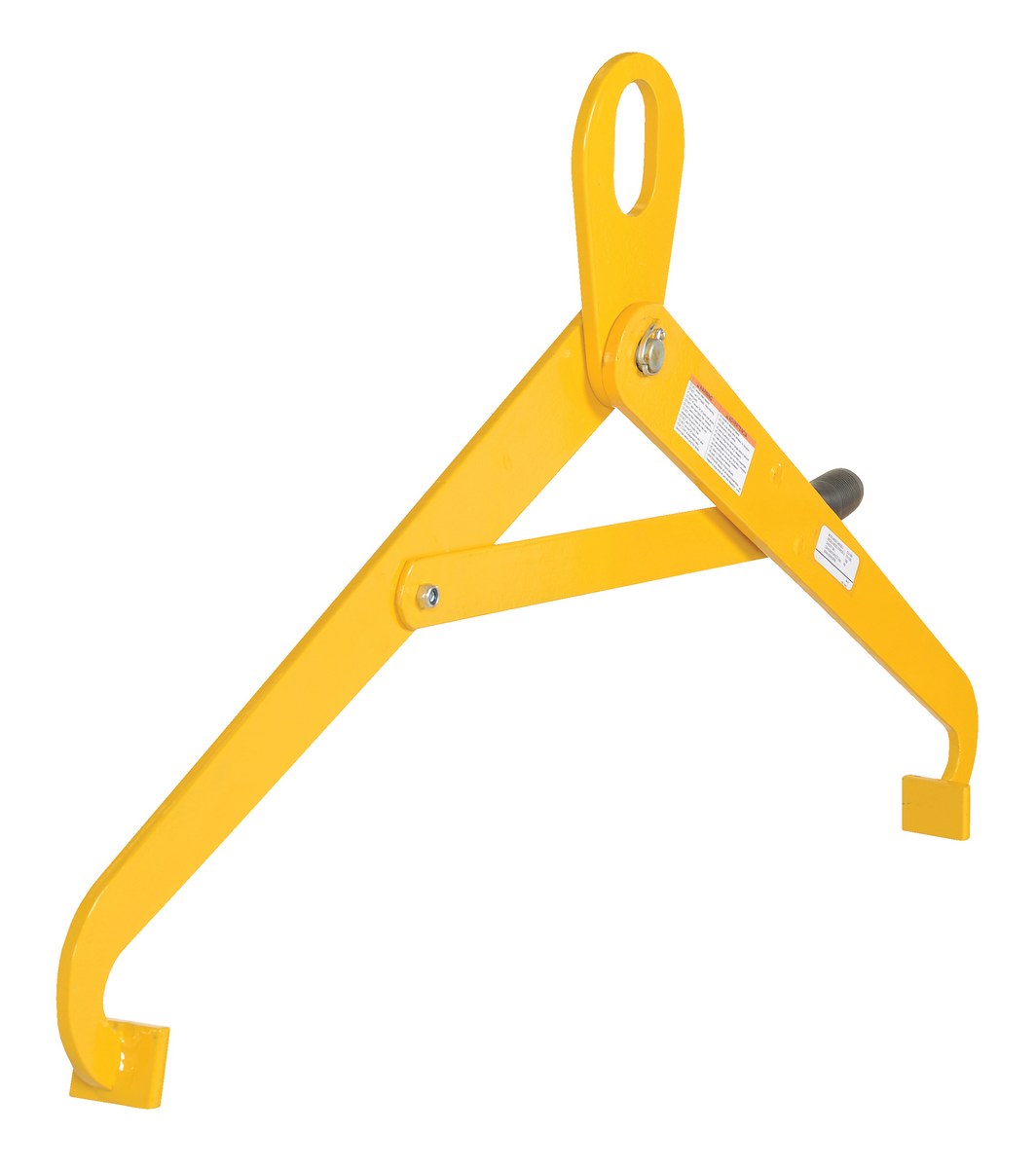

Horizontal Semi-Automatic Drum Tong
SERIES: DTH

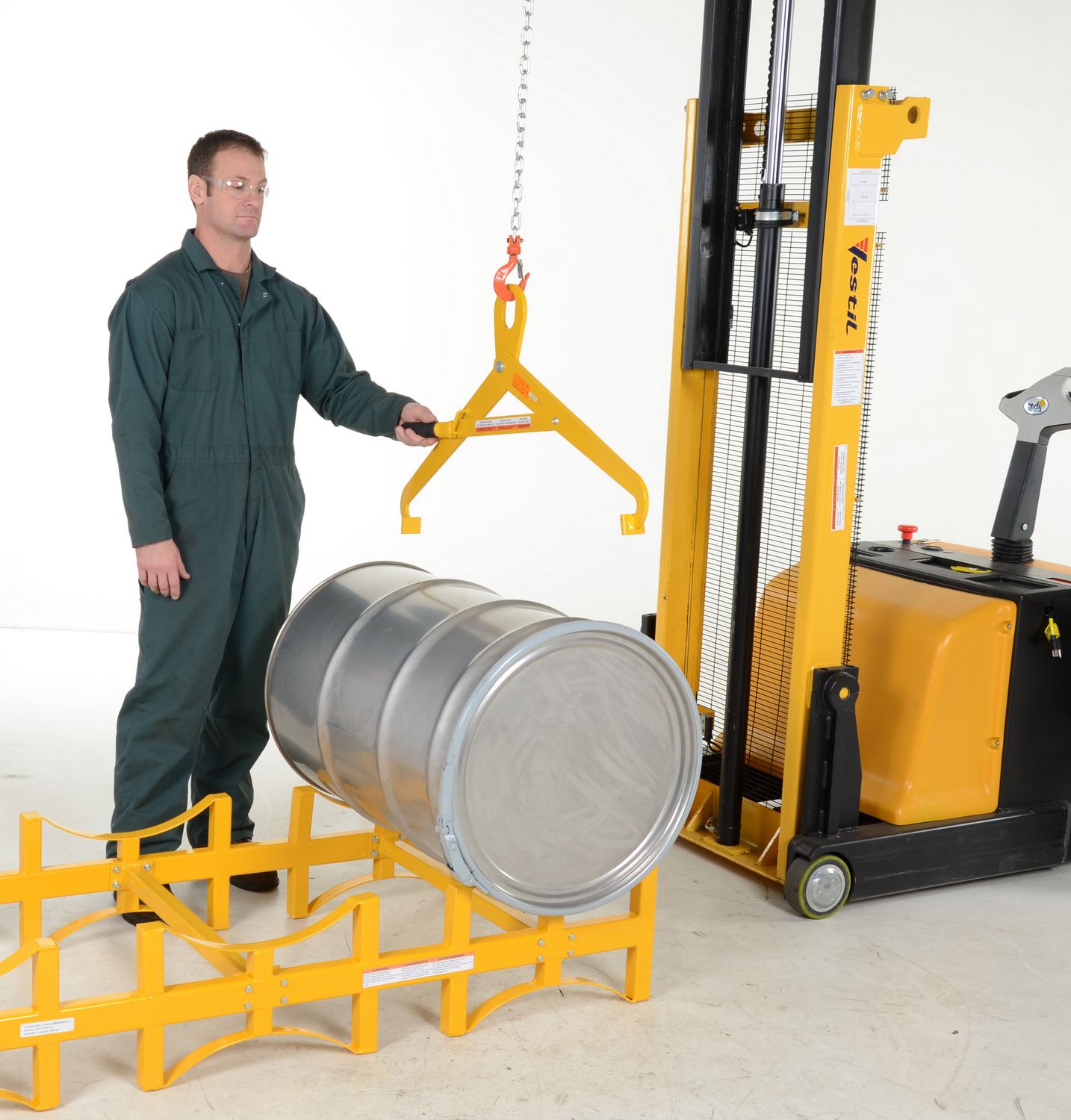

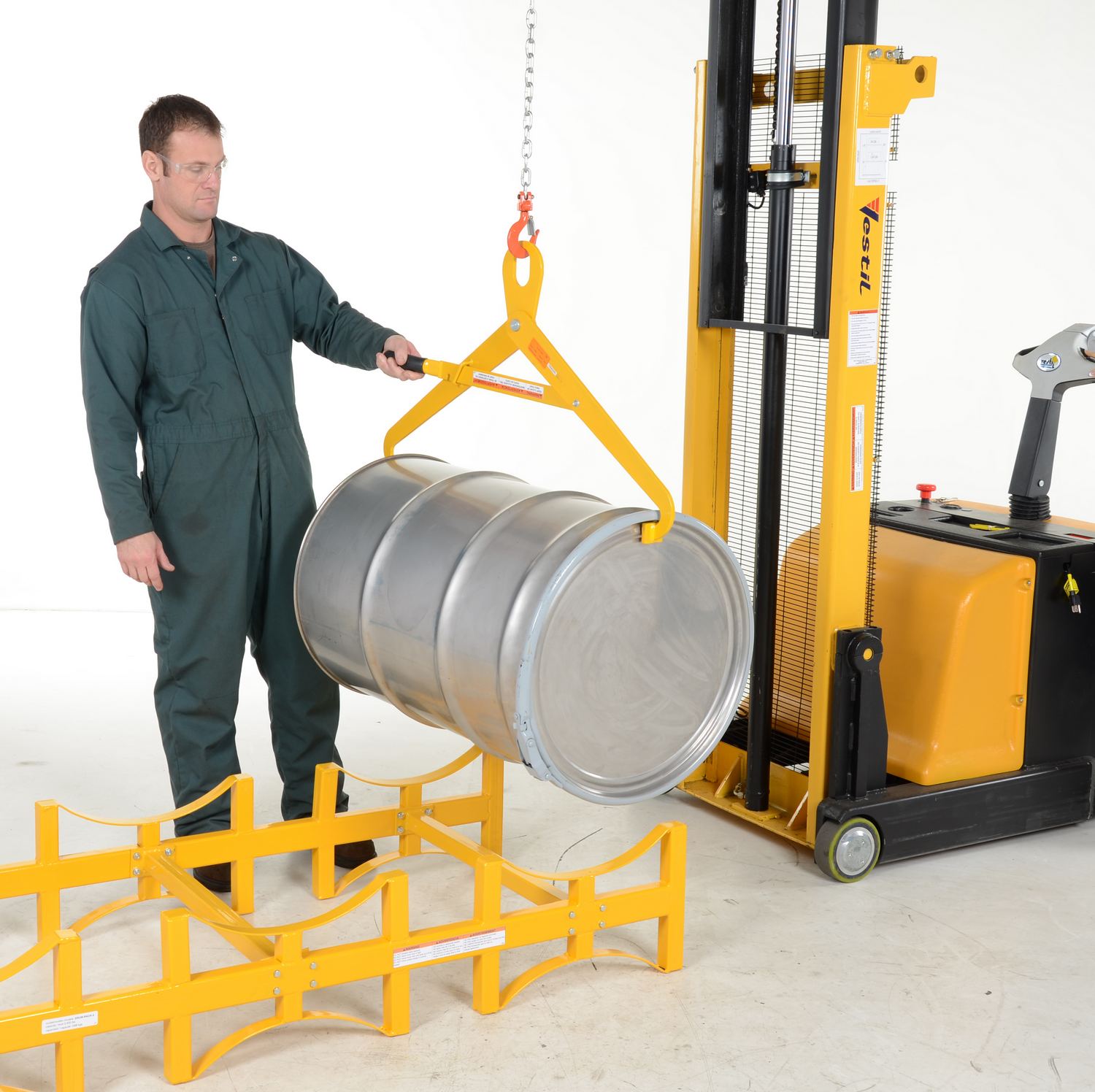

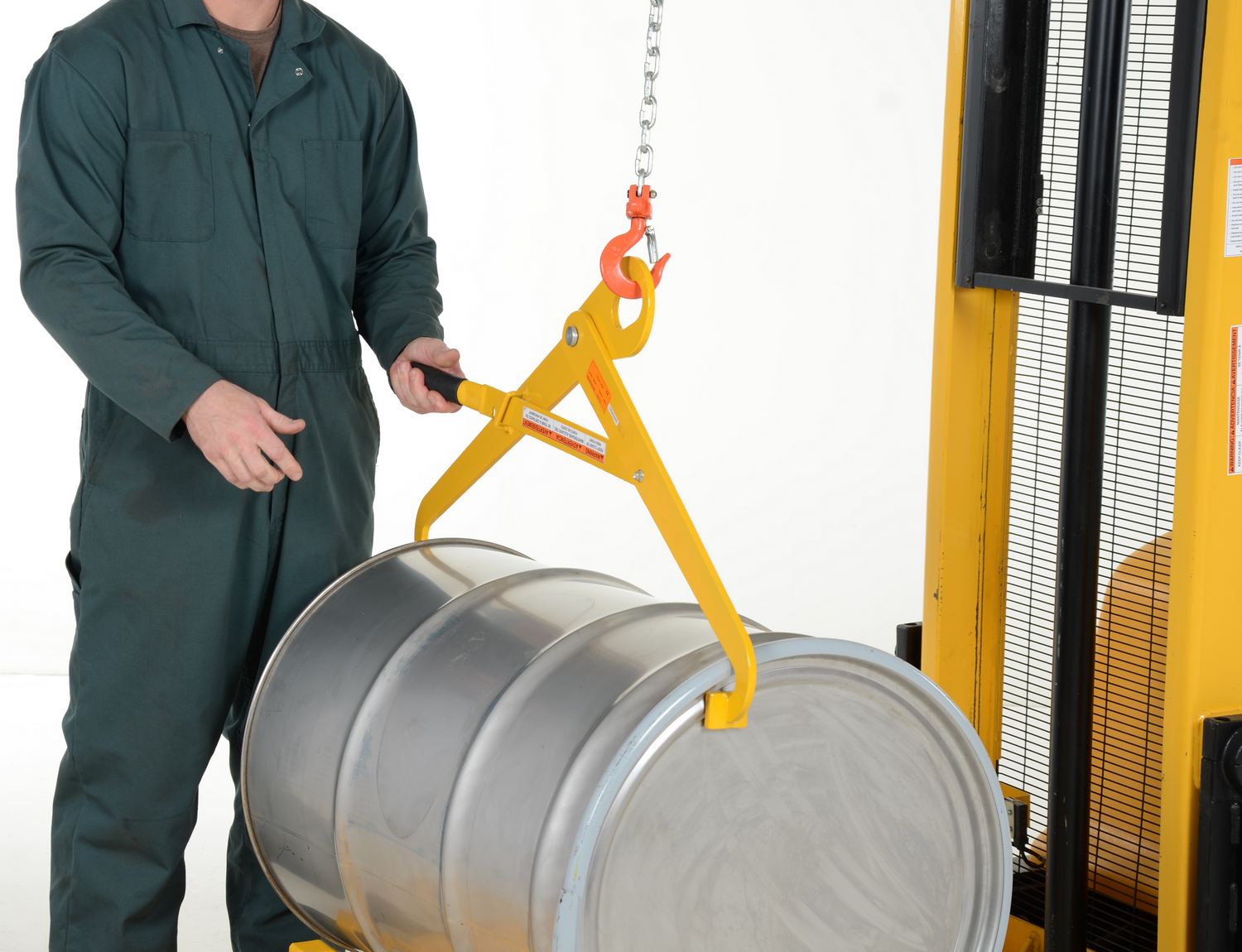

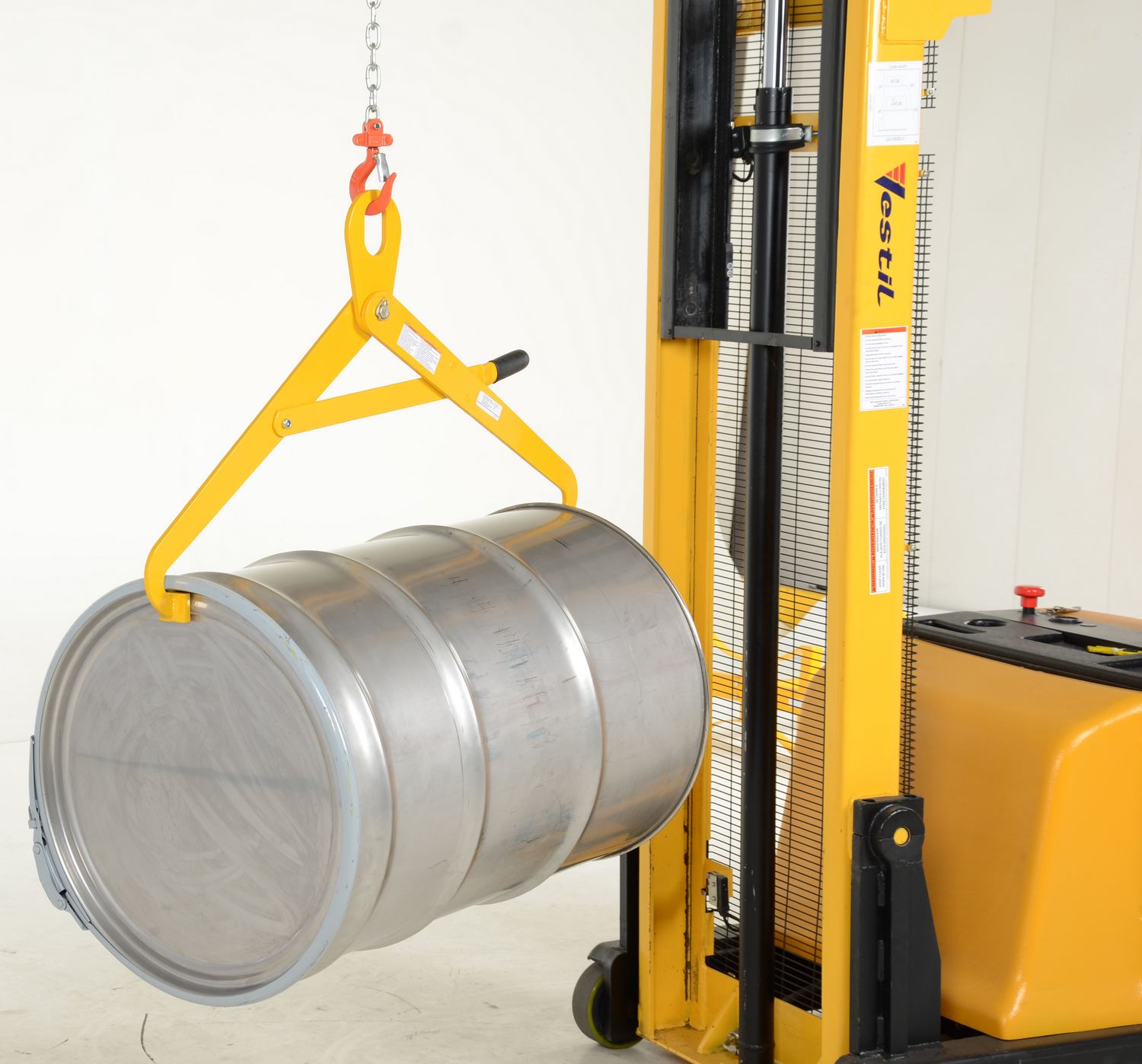

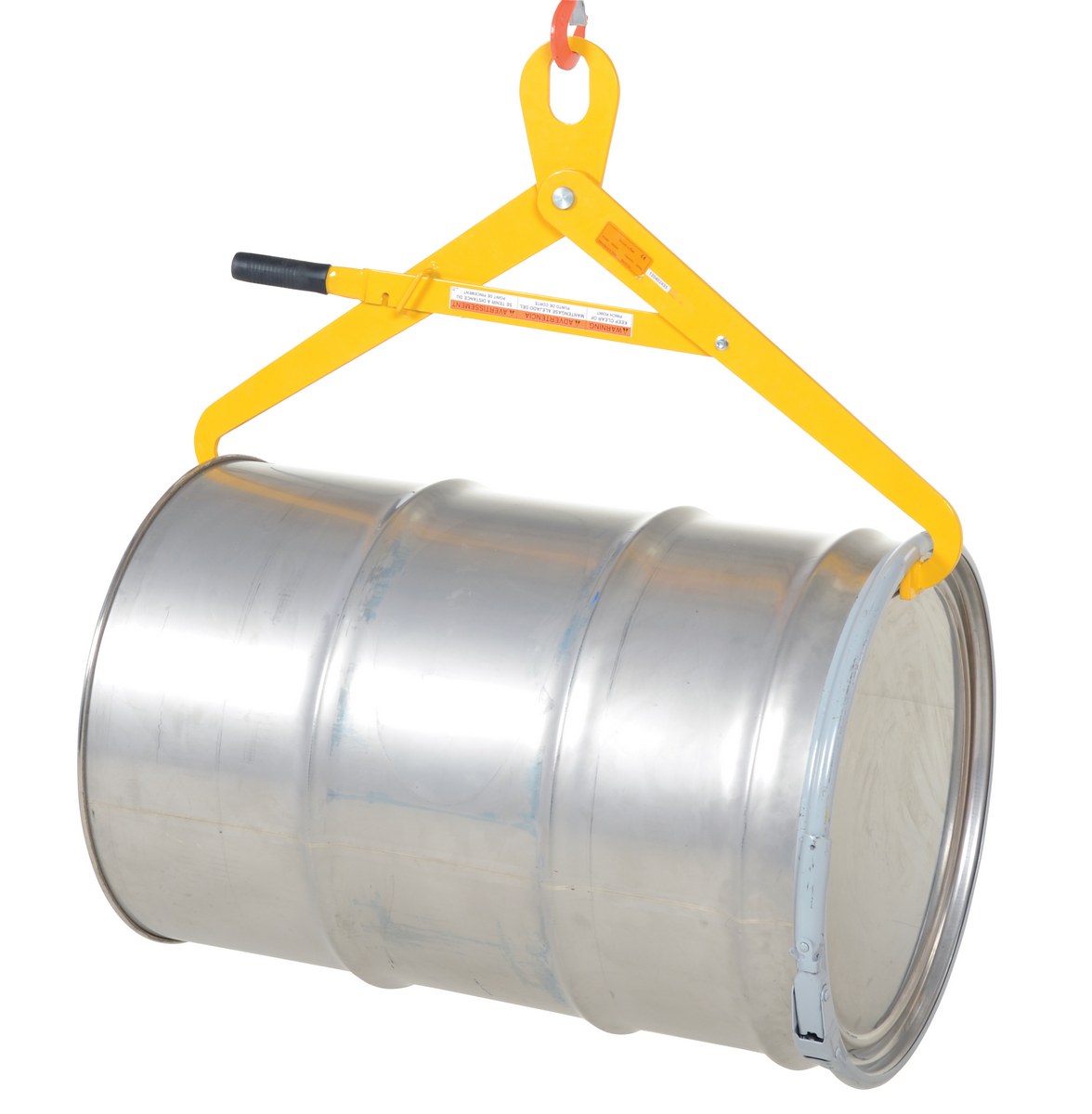

Made to lift 55 gallon steel or fiber drums with an overhead hoist. Suitable for open top or tight head steel drum which have a ring. To operate set locking lever in locked open position. When central over the horizontal drum release lever to allow hooks to fall and locate under both rims. Hook automatically engage as it is lifted and disengage as drum is set down.

  • Tong is made to lift drums with an overhead hoist with ease
  • Ideal for open or closed head steel, fiber drums with ring
  • Release lever allows hooks to fall and locate under both rims
  • Hook engages as it's lifted and disengages as drum is set down

Made to lift 55 gallon steel or fiber drums with an overhead hoist. Suitable for open top or tight head steel drum which have a ring. To operate set locking lever in locked open position. When central over the horizontal drum release lever to allow hooks to fall and locate under both rims. Hook automatically engage as it is lifted and disengage as drum is set down.

  • Tong is made to lift drums with an overhead hoist with ease
  • Ideal for open or closed head steel, fiber drums with ring
  • Release lever allows hooks to fall and locate under both rims
  • Hook engages as it's lifted and disengages as drum is set down

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)
DTH-1000 DTH-100090 Days Limited WarrantySteel Horizontal Semi Automatic Drum Tong 3-1/2 In. x 41-1/4 In. x 21-3/4 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1,000
Clearance Between Legs (in.): 35-7/8
18

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

DTH-1000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Clearance Between Legs (in.): 35-7/8
Uniform Capacity (lb.): 1,000
Clearance Between Legs (in.): 35-7/8

Horizontal Semi-Automatic Drum Tong PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


DTH-1000

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Horizontal Semi-Automatic Drum...




Made to lift 55 gallon steel or fiber drums with an overhead hoist. Suitable for open top or tight head steel drum which have a ring. To operate set locking lever in locked open position. When central over the horizontal drum release lever to allow hooks to fall and locate under both rims. Hook automatically engage as it is lifted and disengage as drum is set down.

  • Tong is made to lift drums with an overhead hoist with ease
  • Ideal for open or closed head steel, fiber drums with ring
  • Release lever allows hooks to fall and locate under both rims
  • Hook engages as it's lifted and disengages as drum is set down


Model # Description Attributes Net Wt.
(lbs)
DTH-1000 DTH-1000Steel Horizontal Semi Automatic Drum Tong 3-1/2 In. x 41-1/4 In. x 21-3/4 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1,000
Clearance Between Legs (in.): 35-7/8
18
