Mechanical Screw Jacks

- - - -

Description
Model Chart
PDF's
Image Gallery

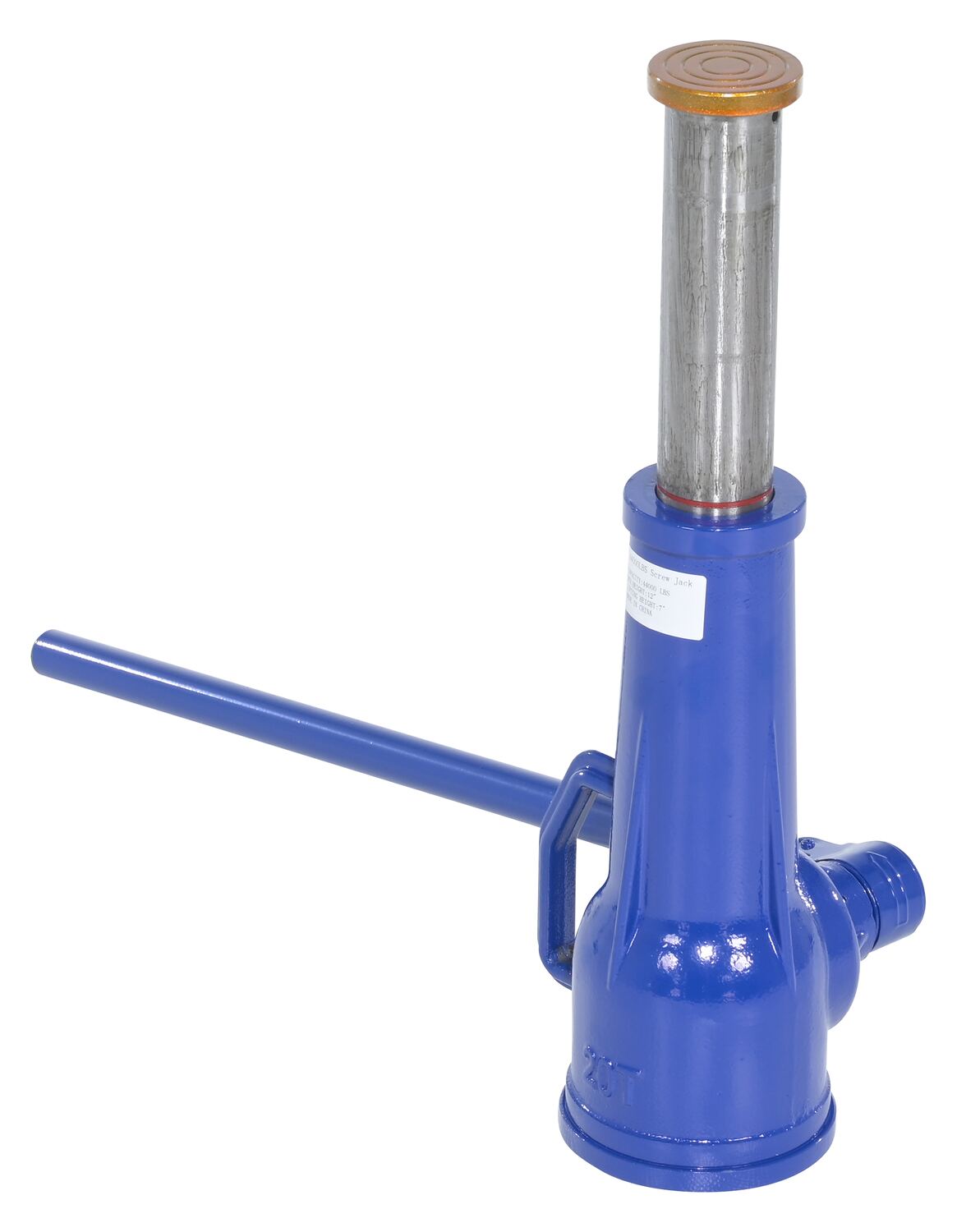

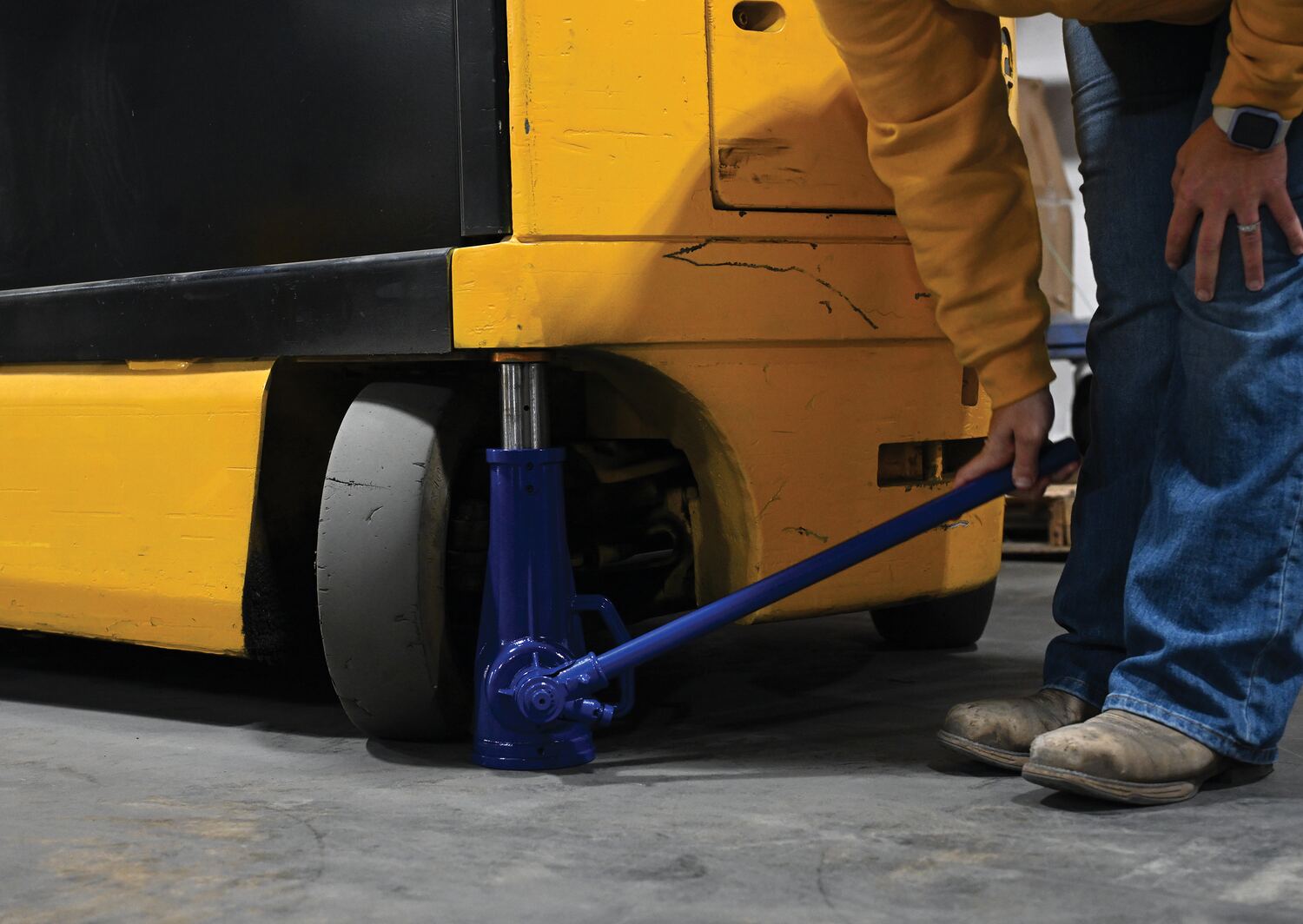

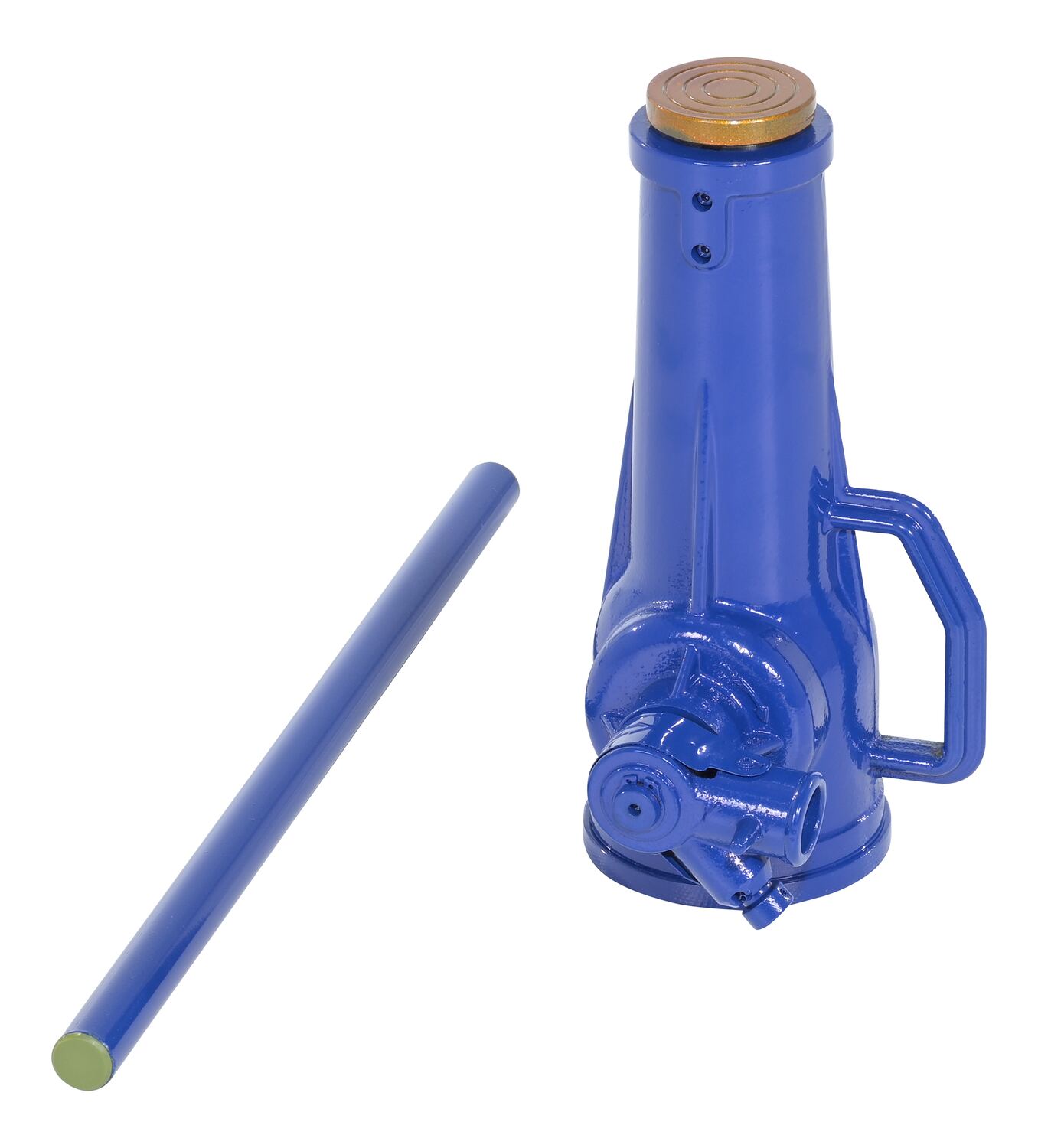

MSJ-20_A.jpg MSJ-20_B.jpg MSJ-20_C.jpg MSJ-20_E.jpg

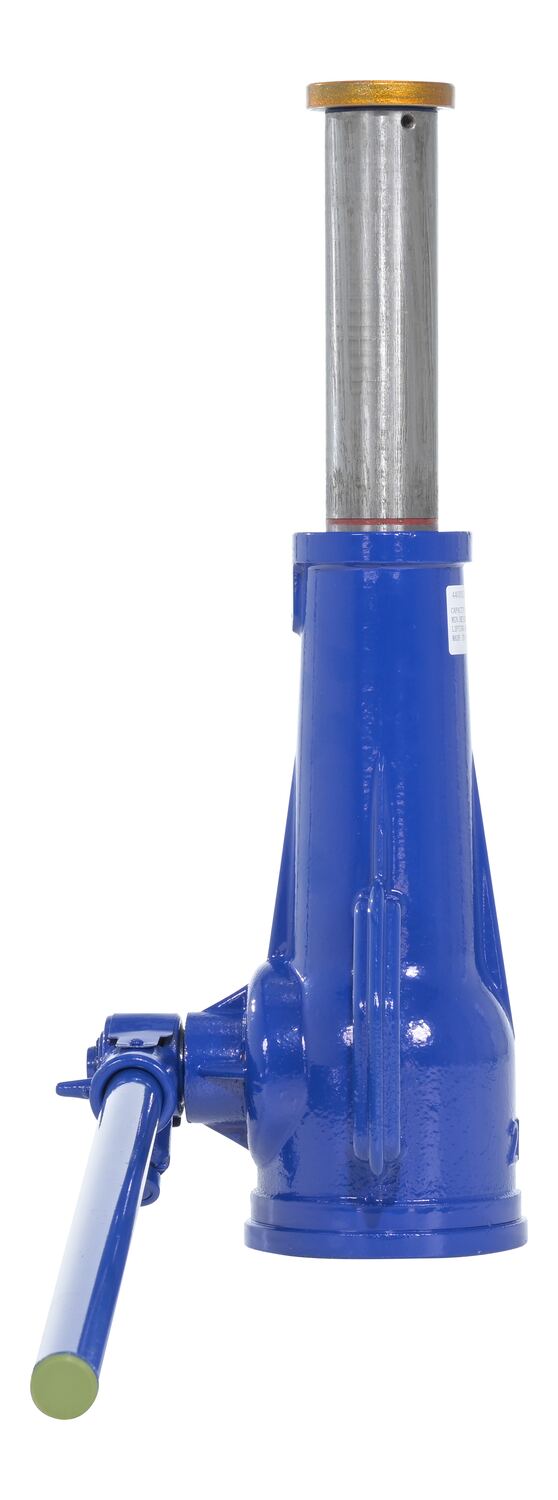

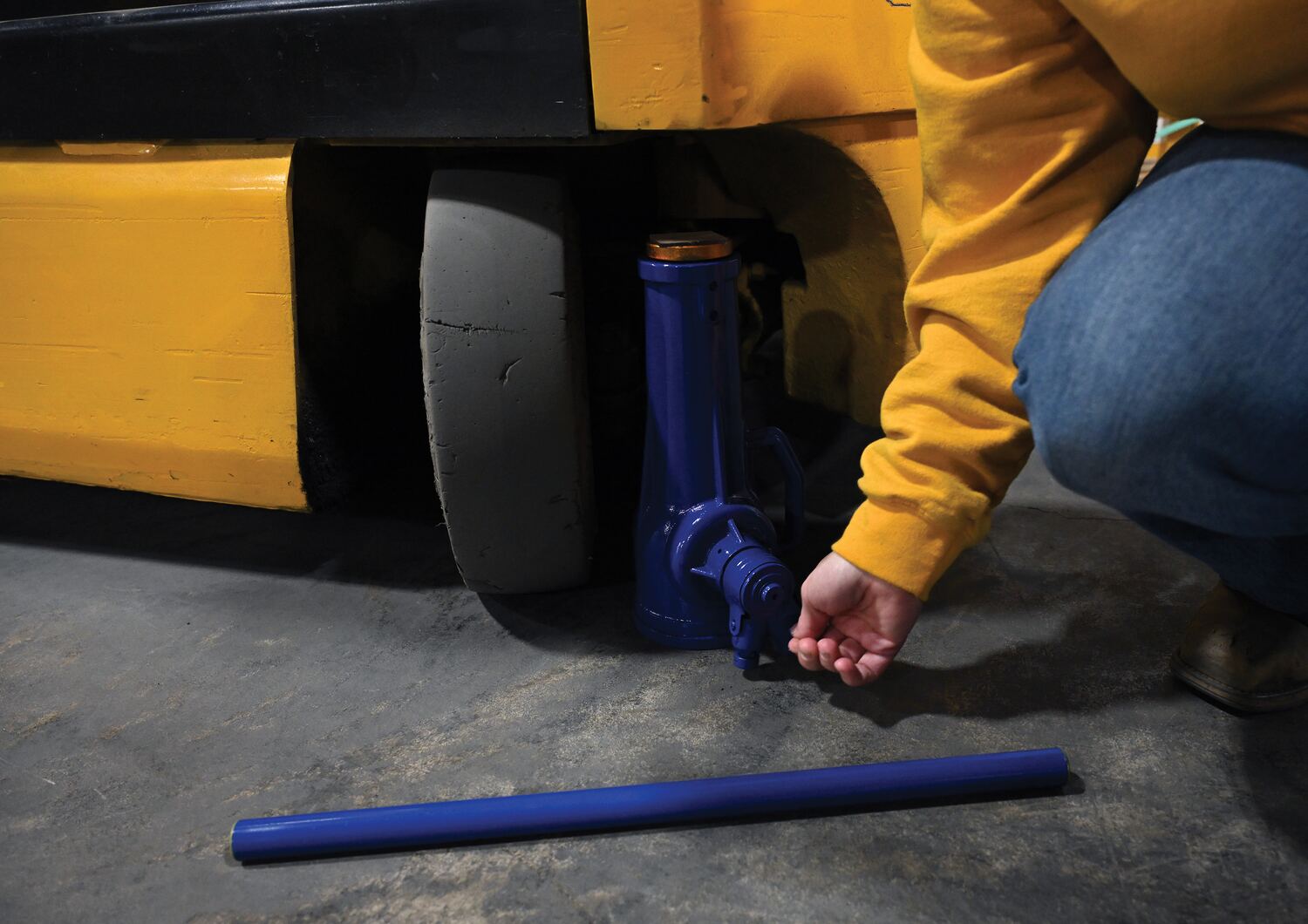

MSJ-20_D.jpg MSJ-20_G.jpg MSJ-20_H.jpg MSJ-20_I.jpg
Mechanical Screw Jacks

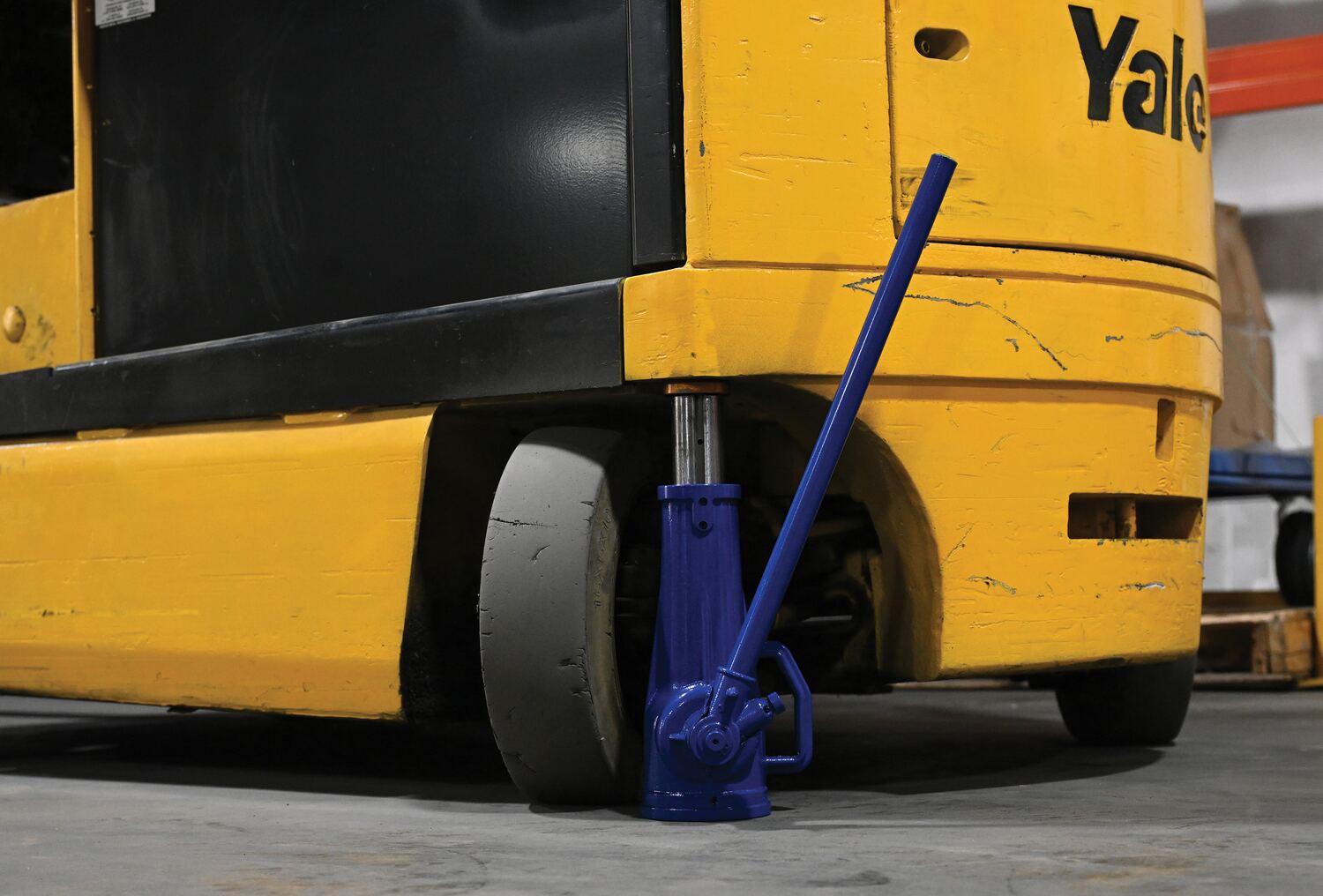

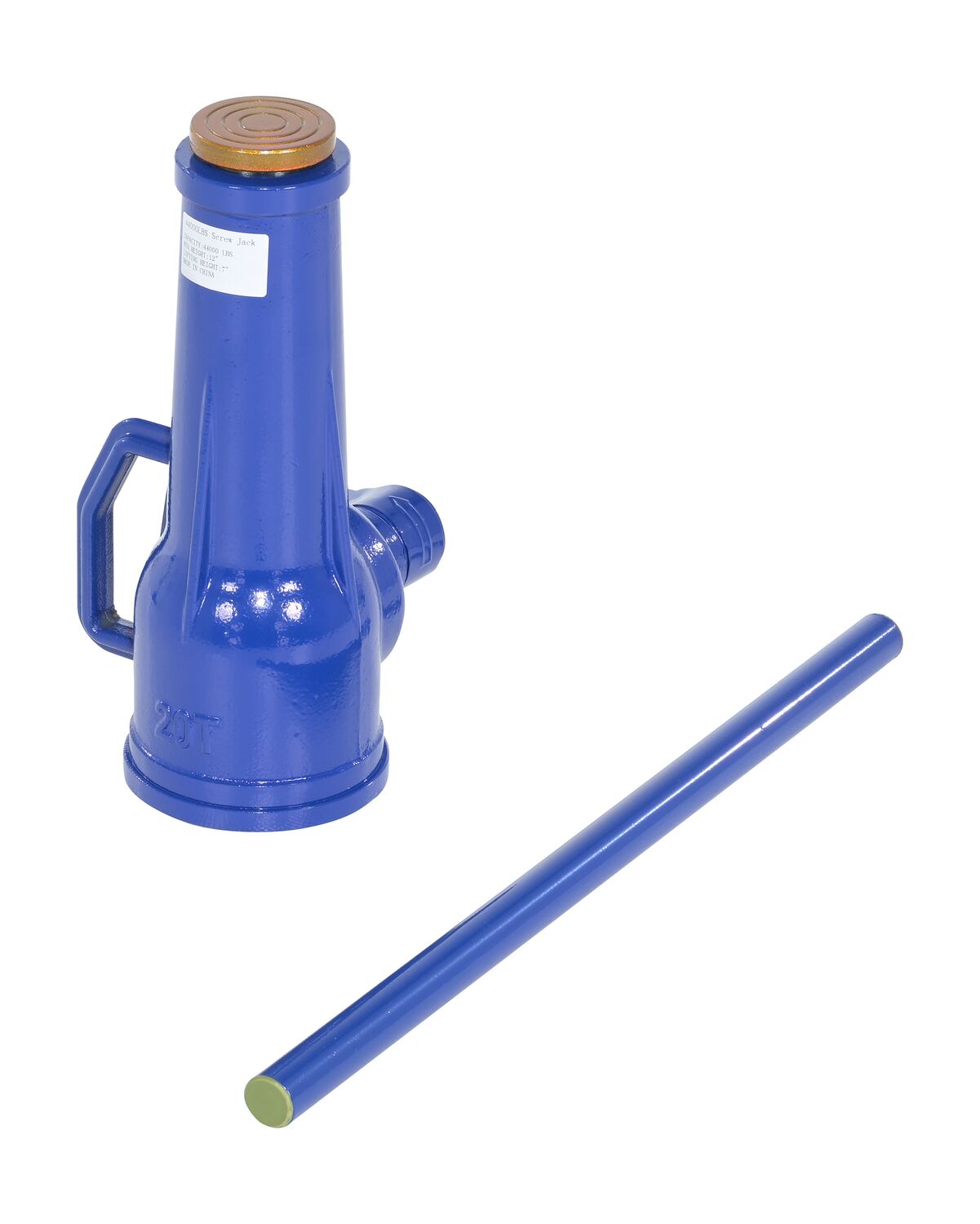

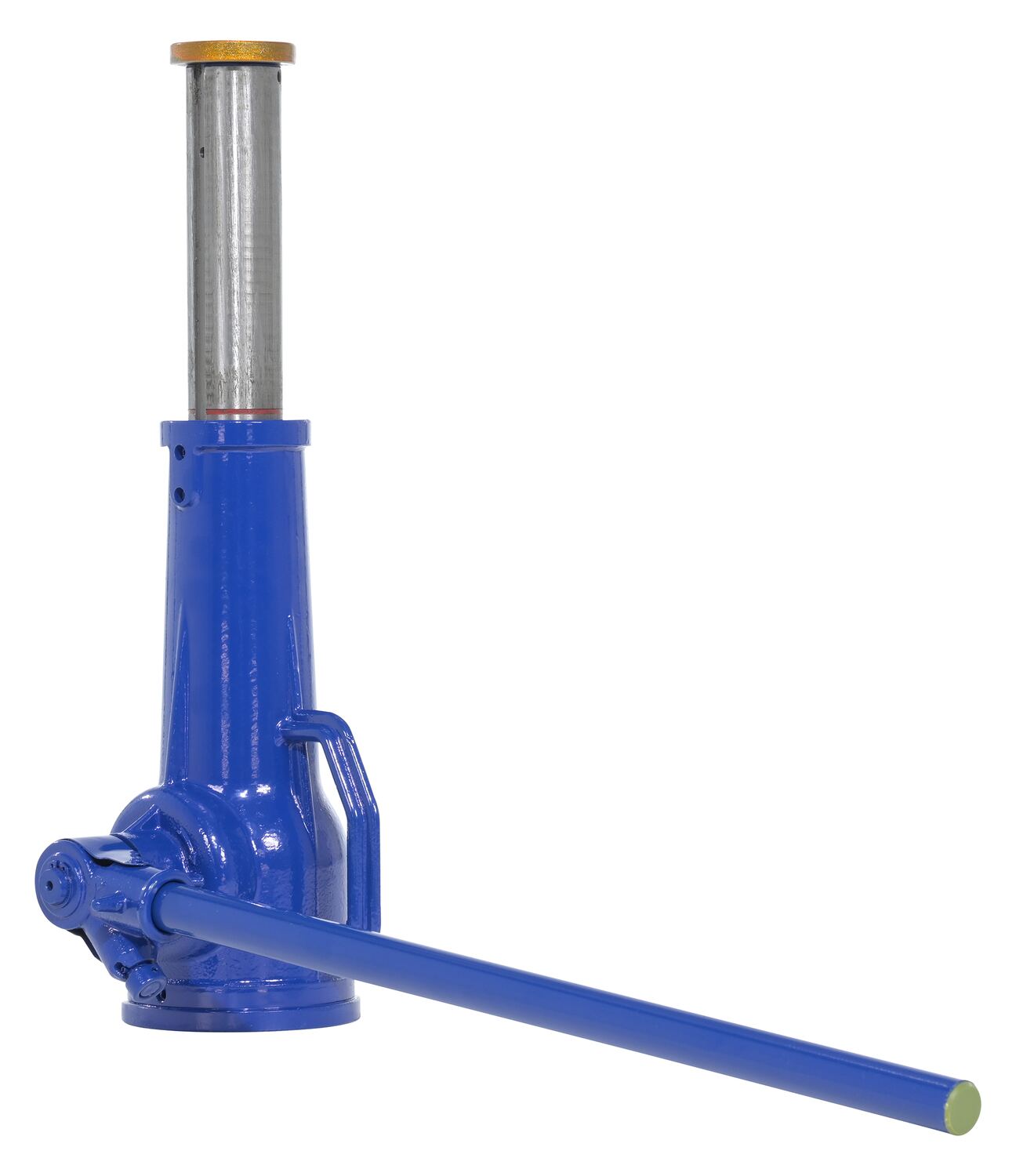

model: MSJ-20



Featured Loading Dock Equipment


Dock Seal/Shelter Combinations
Dock Chain Bollard Barrier Systems
Truck Mounted Strap Winches
Dock Seals
Truck Actuated Dock Levelers
Aluminum Wheel Chocks
Trailer Wheel Locks
Aluminum Hand Truck Dockplates
Dock Safety & Maintenance
model chart

Product Family Overview

Print Friendly
Mechanical Screw Jacks
SERIES: MSJ

The mechanical screw jack is ideal for the manufacturing and maintenance industries. The design allows for an impacting surface area which creates more stability. The steel construction enables the product to be strong and durable. The included handle is removable.

  • Mechanical screw jack is for loading dock equipment for ideal operation
  • Acme thread post that supports the load is for maximum efficiency
  • No seals will leak and will not drift down even after an extended period of time
  • Use in industrial applications for optimal results

The mechanical screw jack is ideal for the manufacturing and maintenance industries. The design allows for an impacting surface area which creates more stability. The steel construction enables the product to be strong and durable. The included handle is removable.

  • Mechanical screw jack is for loading dock equipment for ideal operation
  • Acme thread post that supports the load is for maximum efficiency
  • No seals will leak and will not drift down even after an extended period of time
  • Use in industrial applications for optimal results

Other Trailer Stabilizing Jacks

 Trailer Stabilizing Jacks Heavy Duty Farm Jacks Mechanical Screw Jacks

Additional Models In This Family
view entire Image Gallery

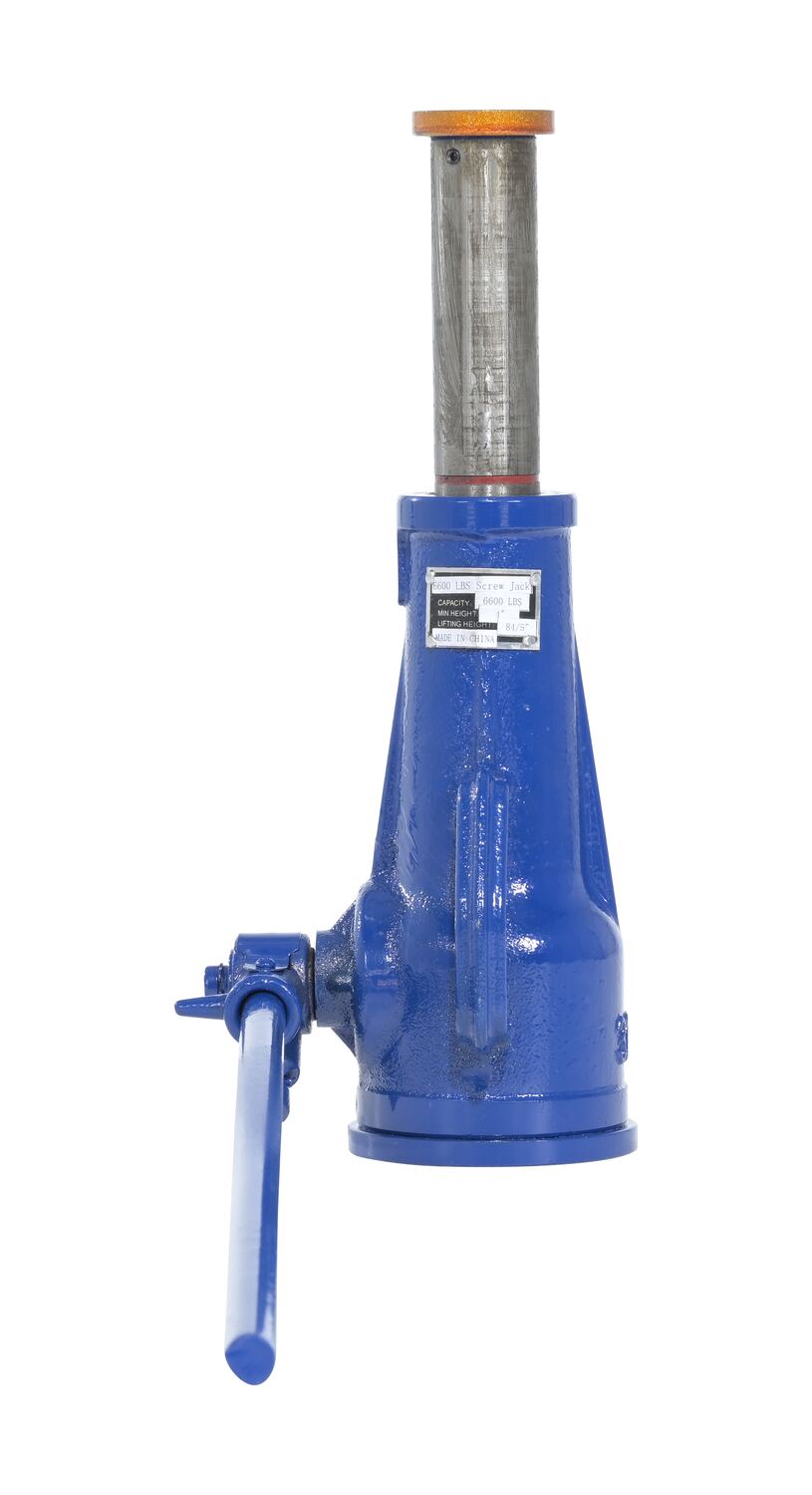

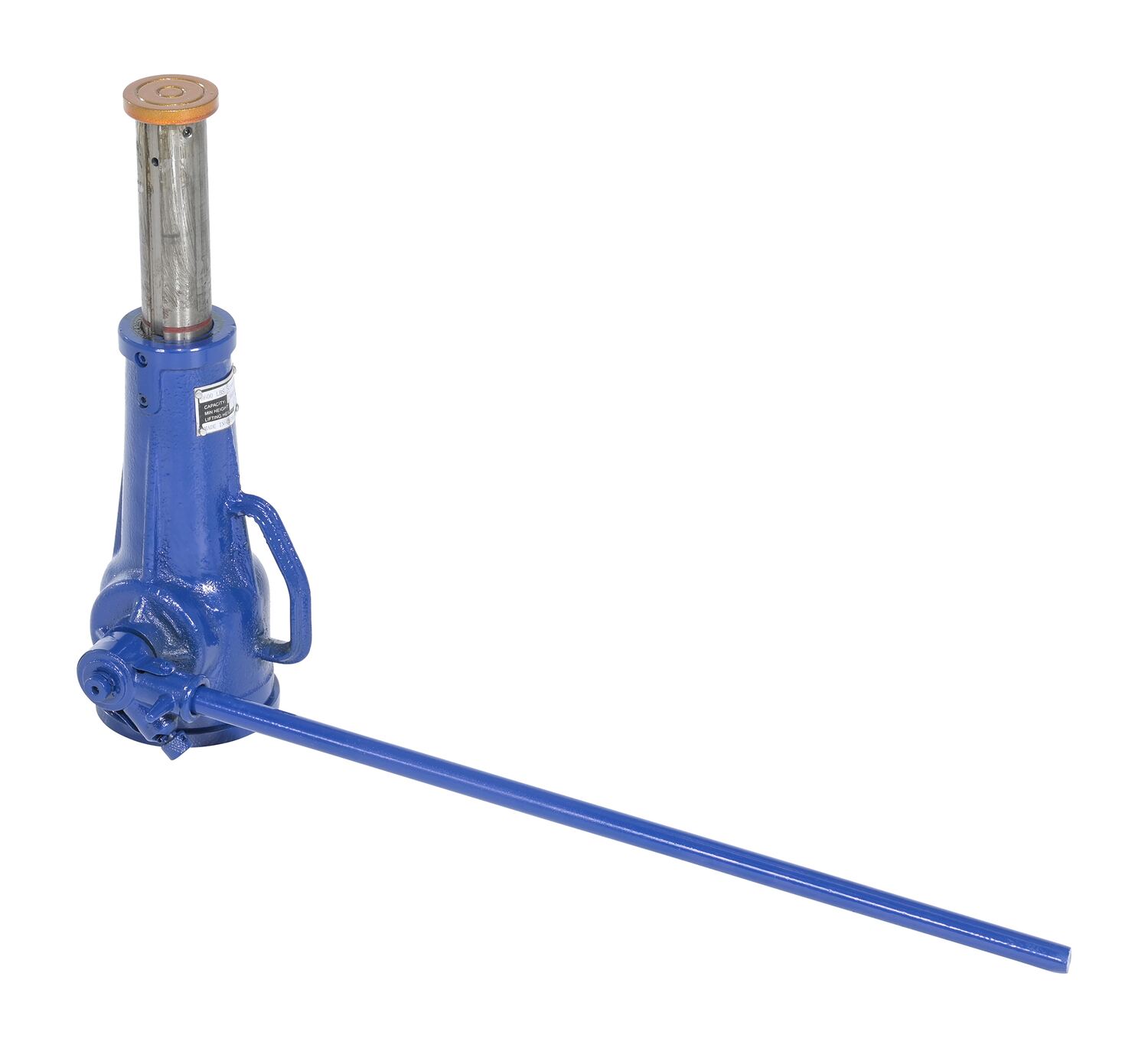

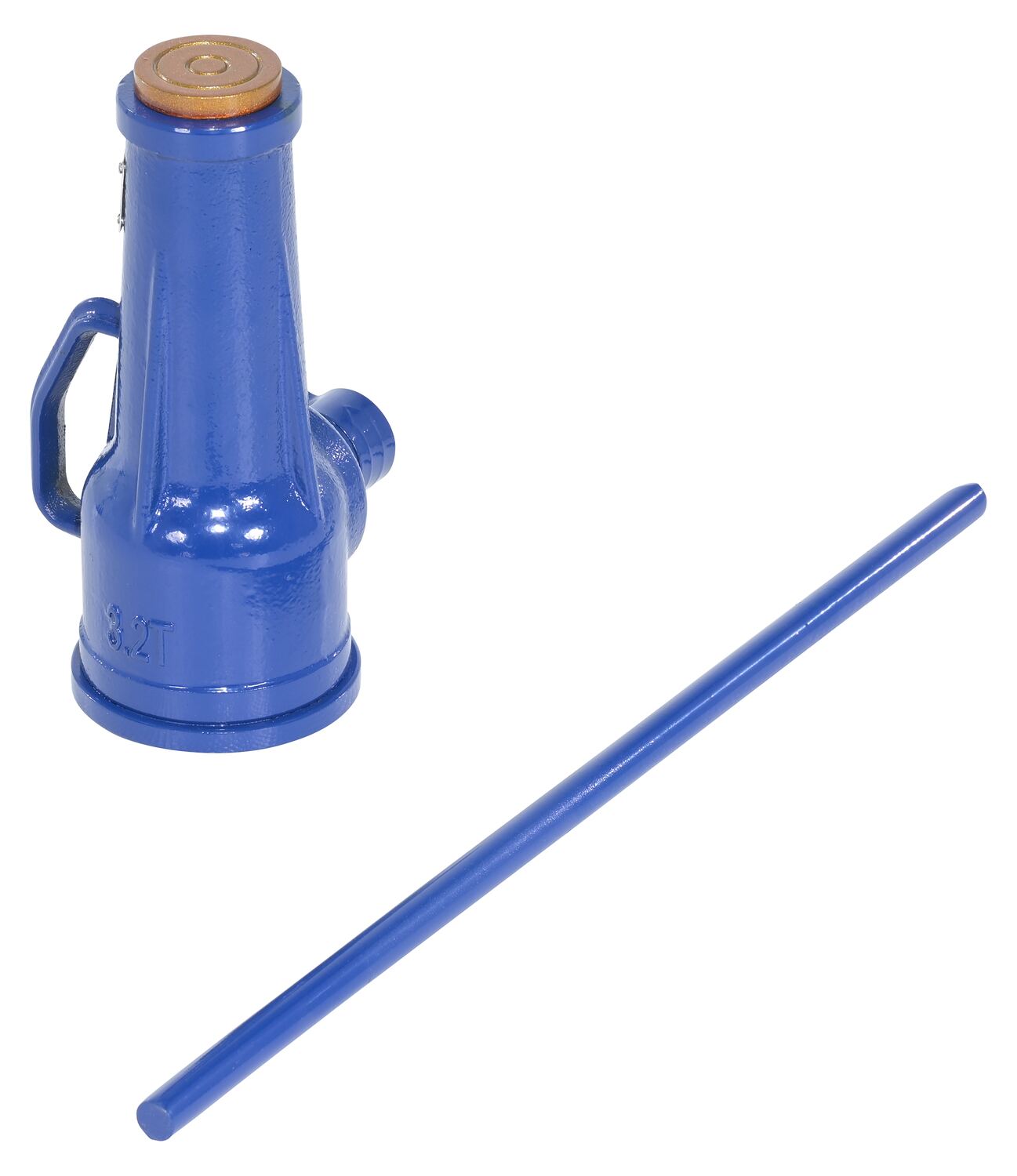

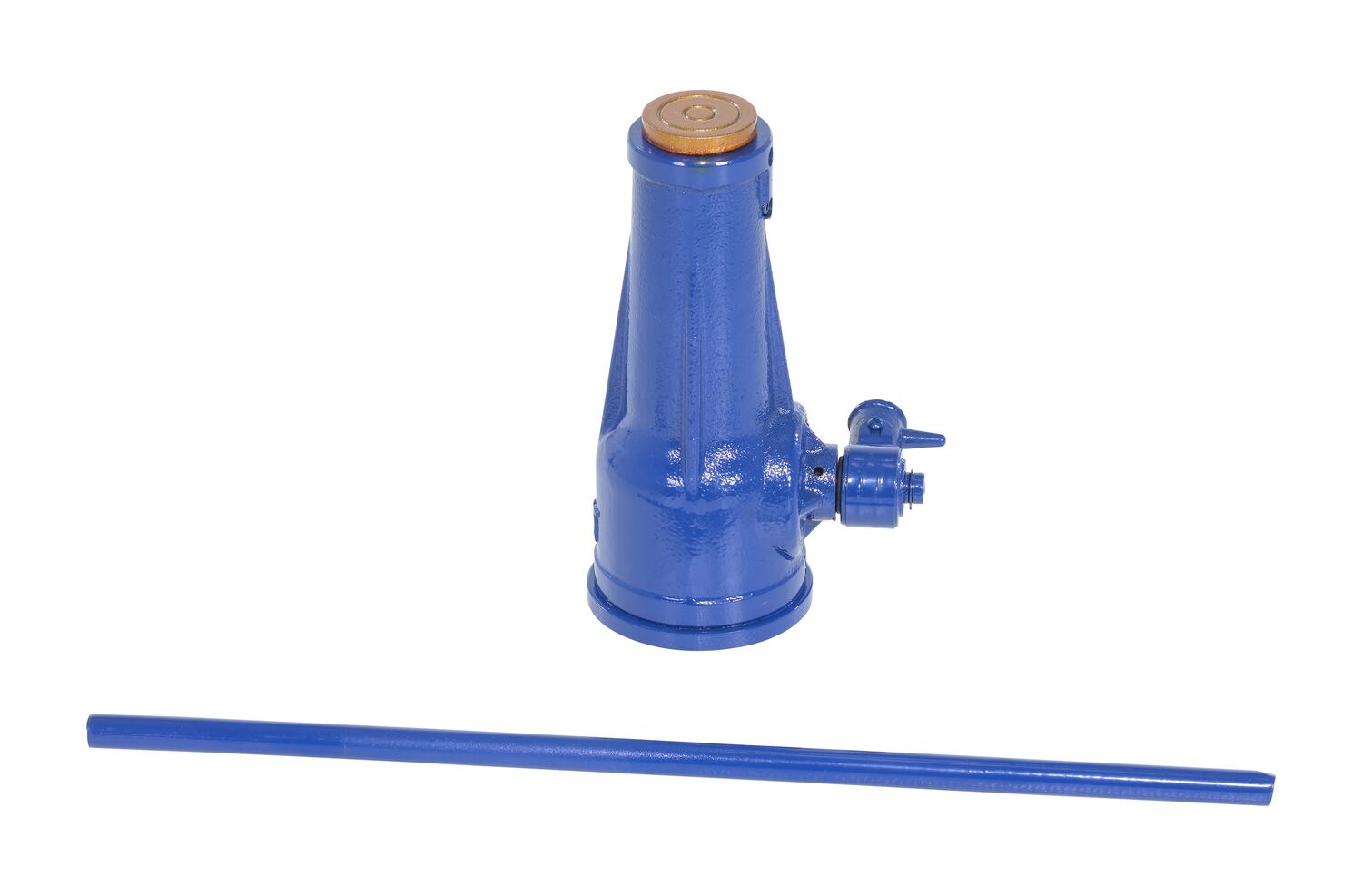

MSJ-3

model MSJ-3

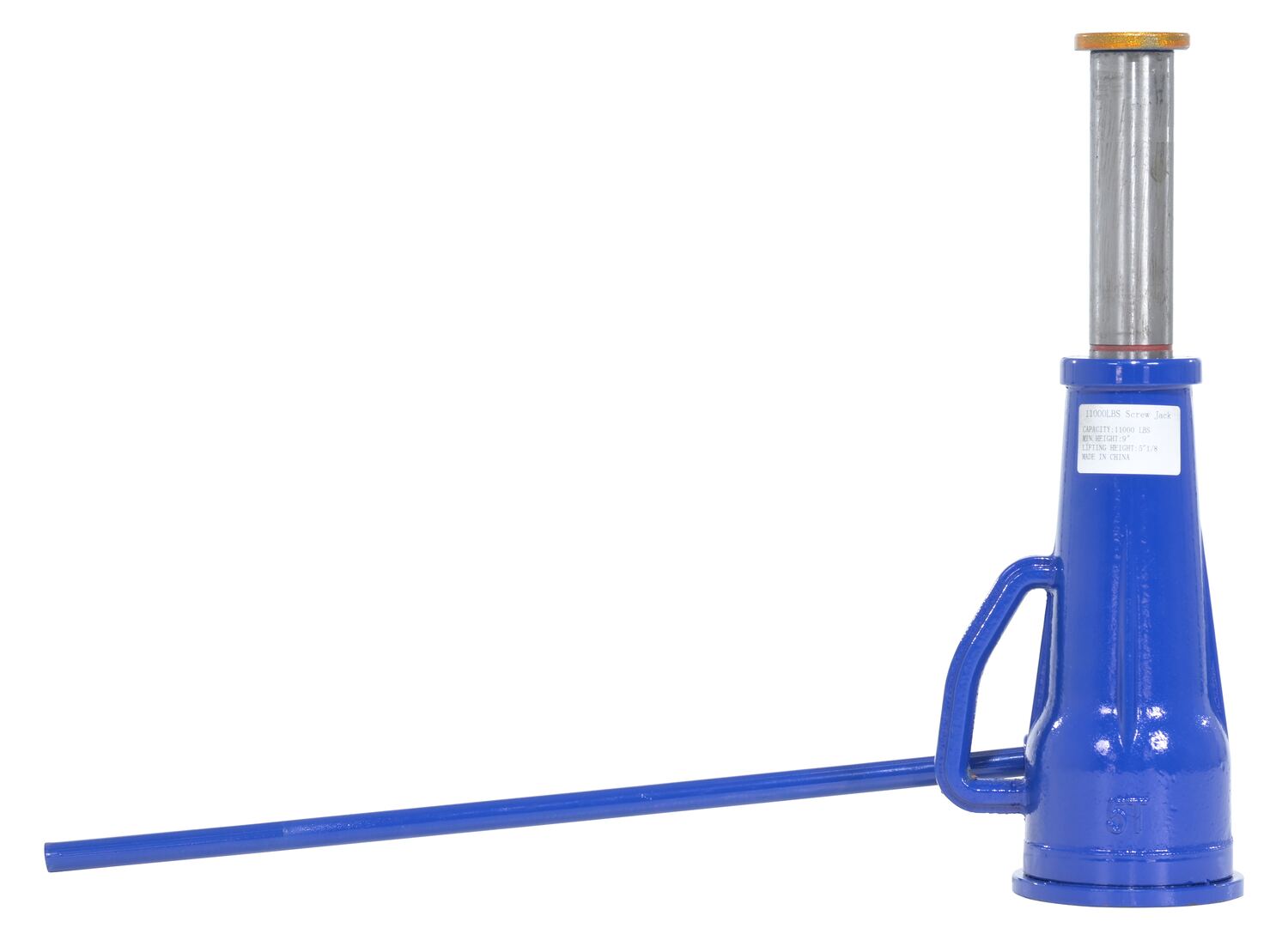

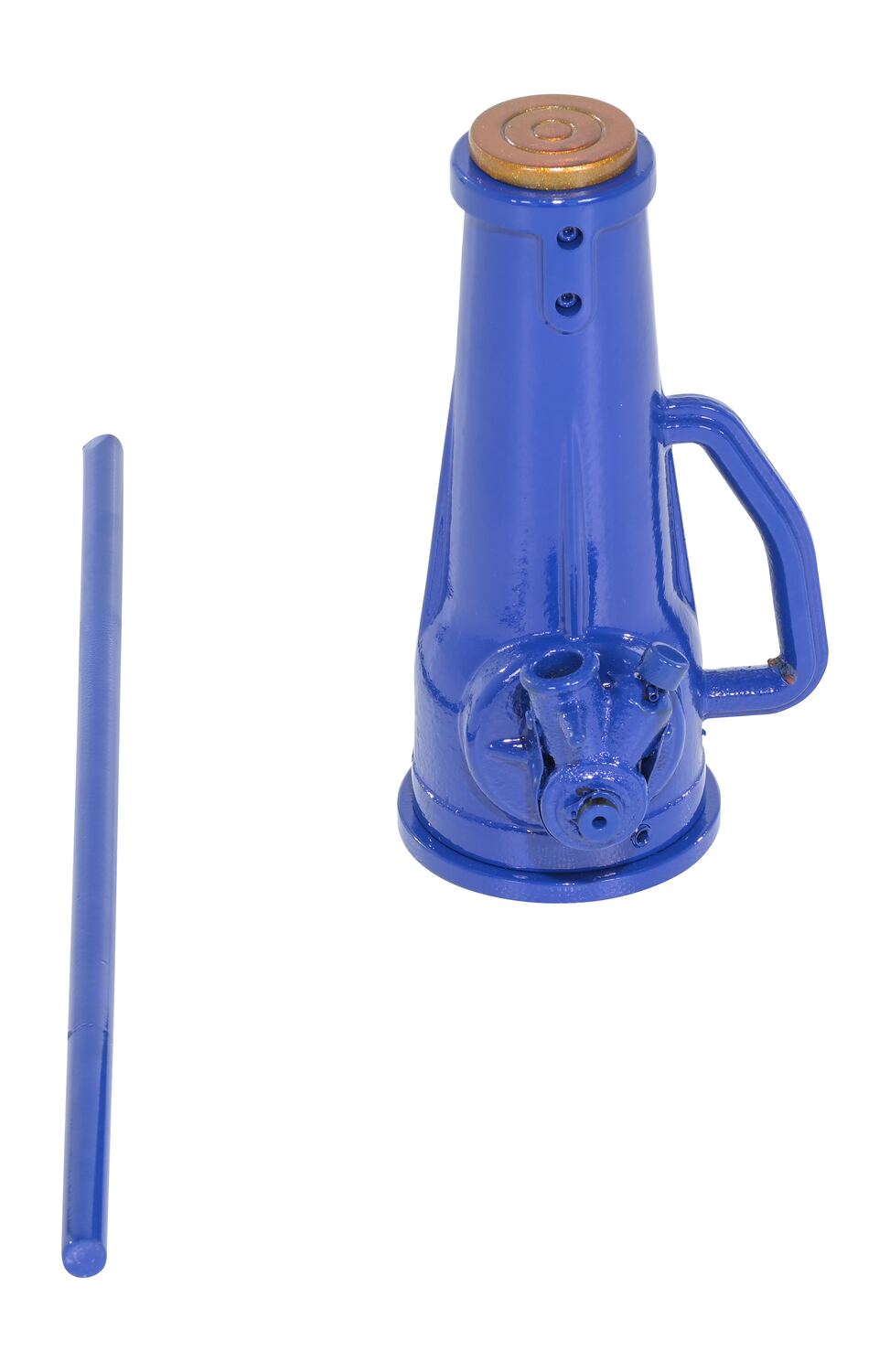

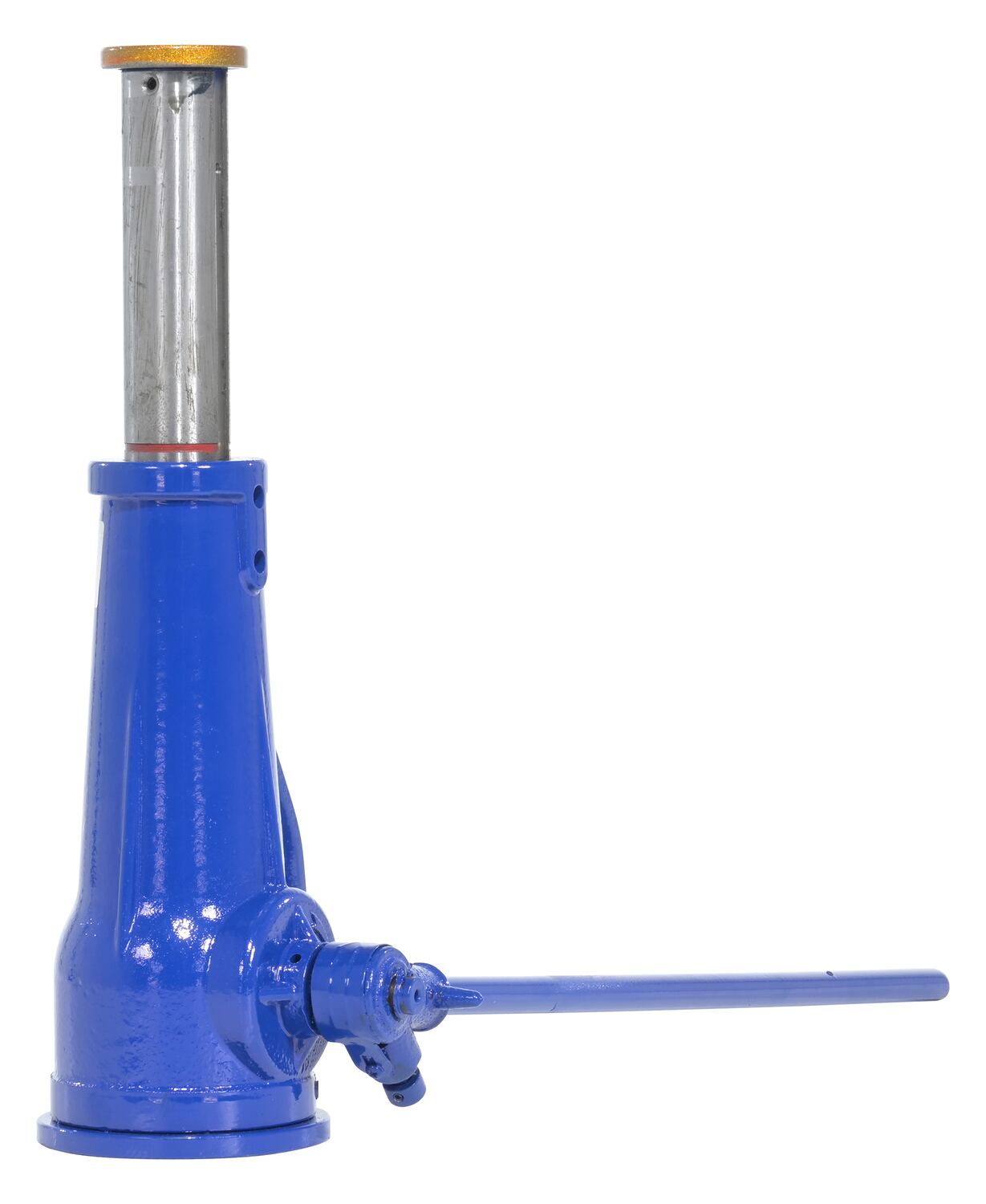

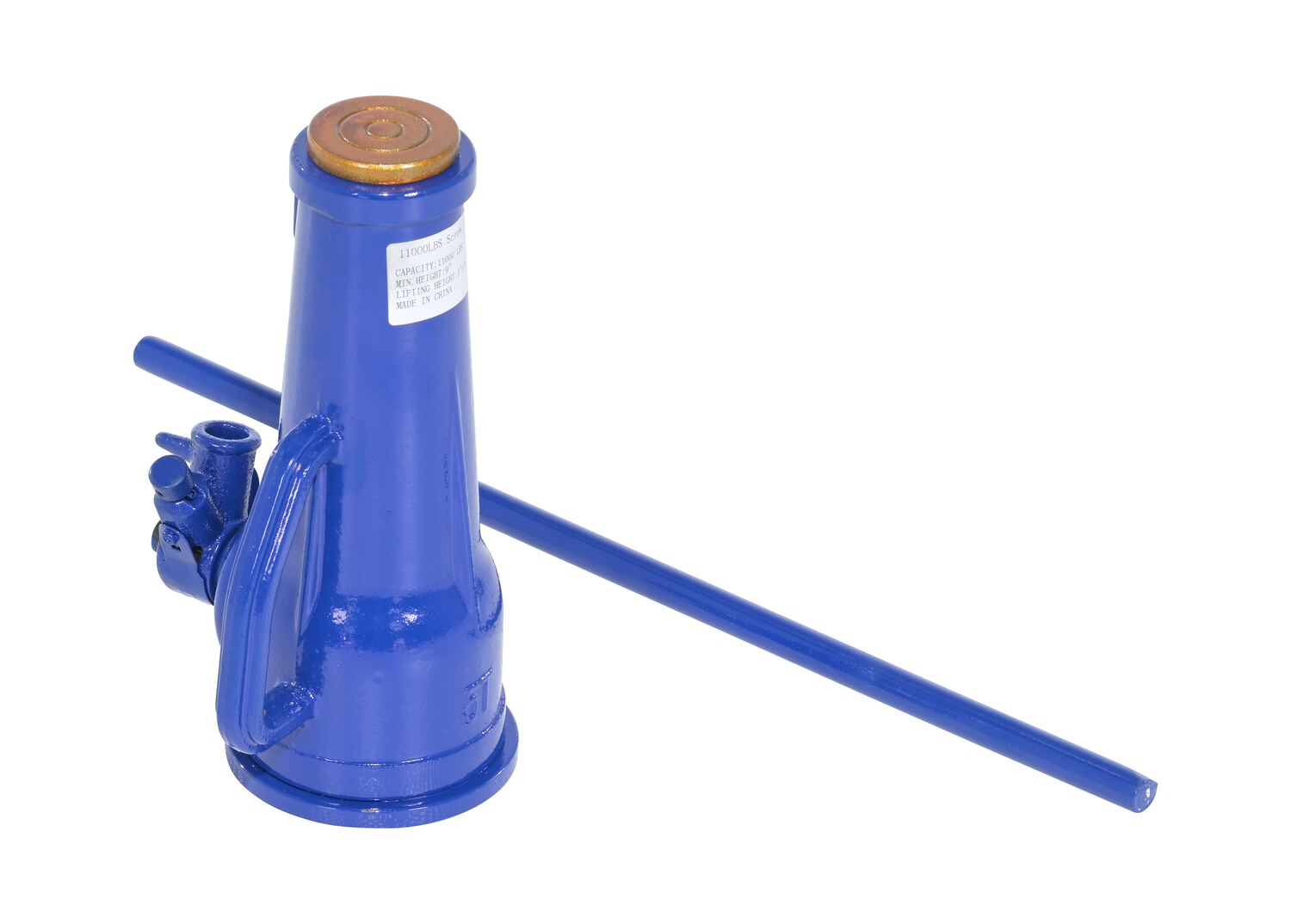

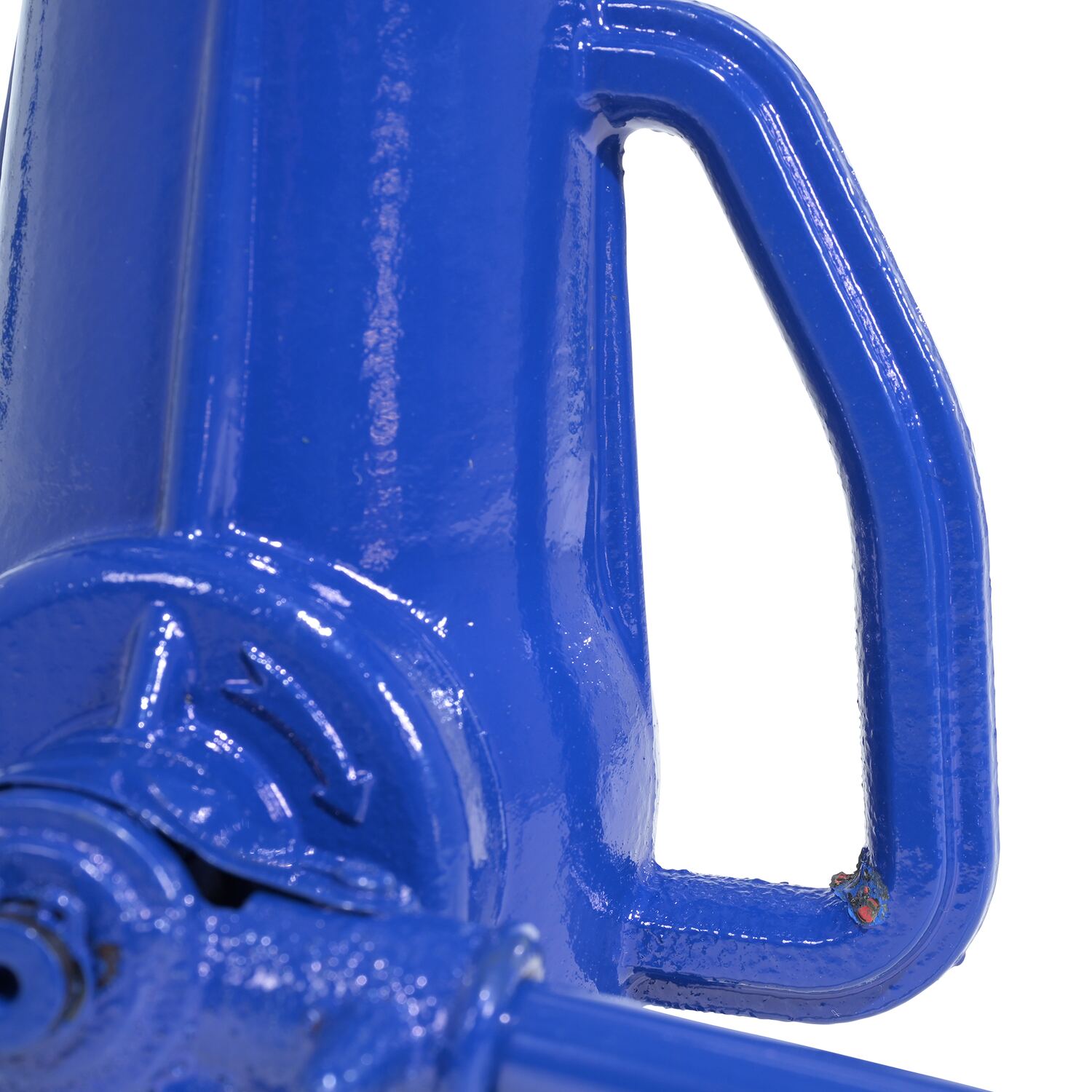

MSJ-5

model MSJ-5

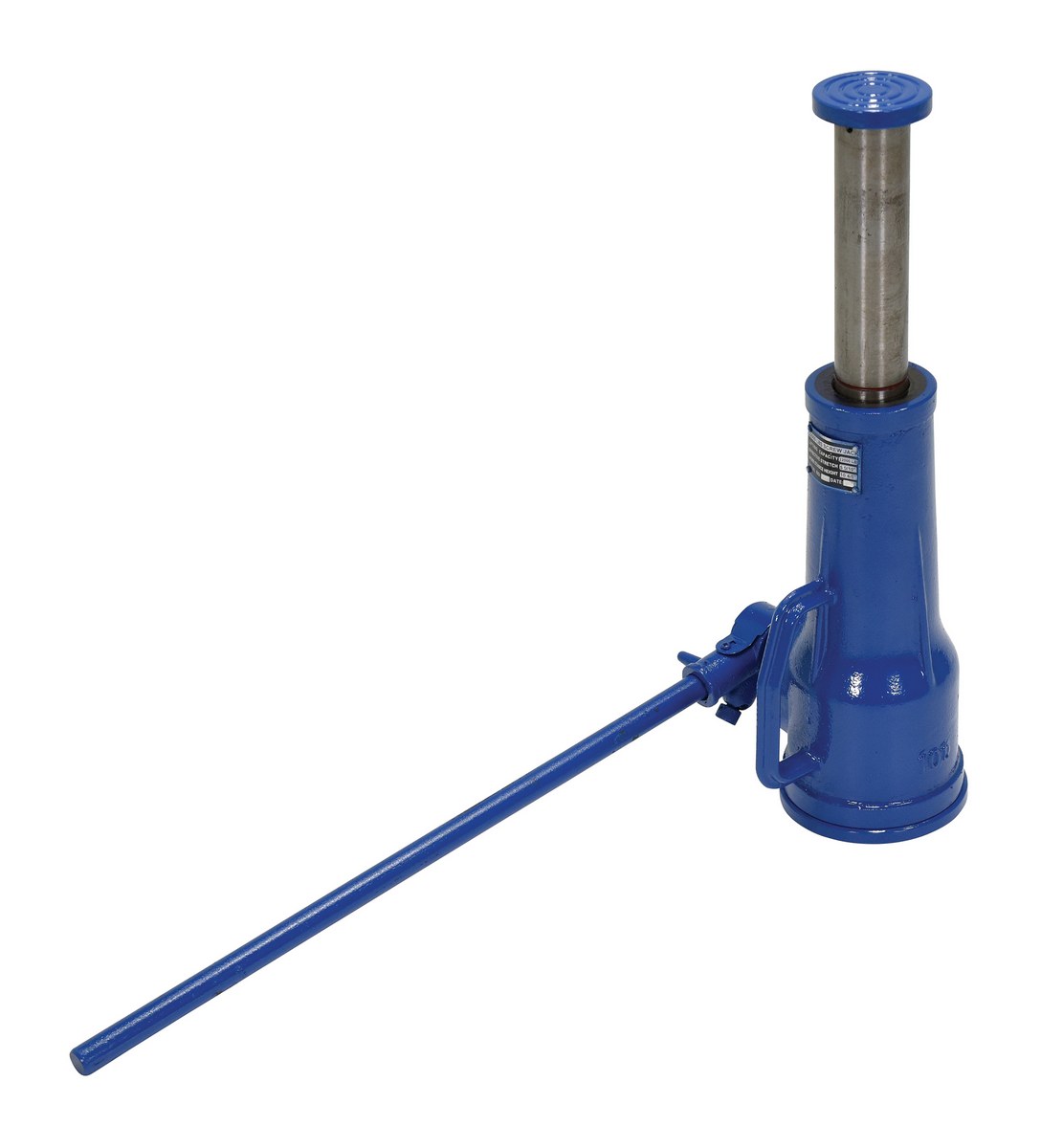

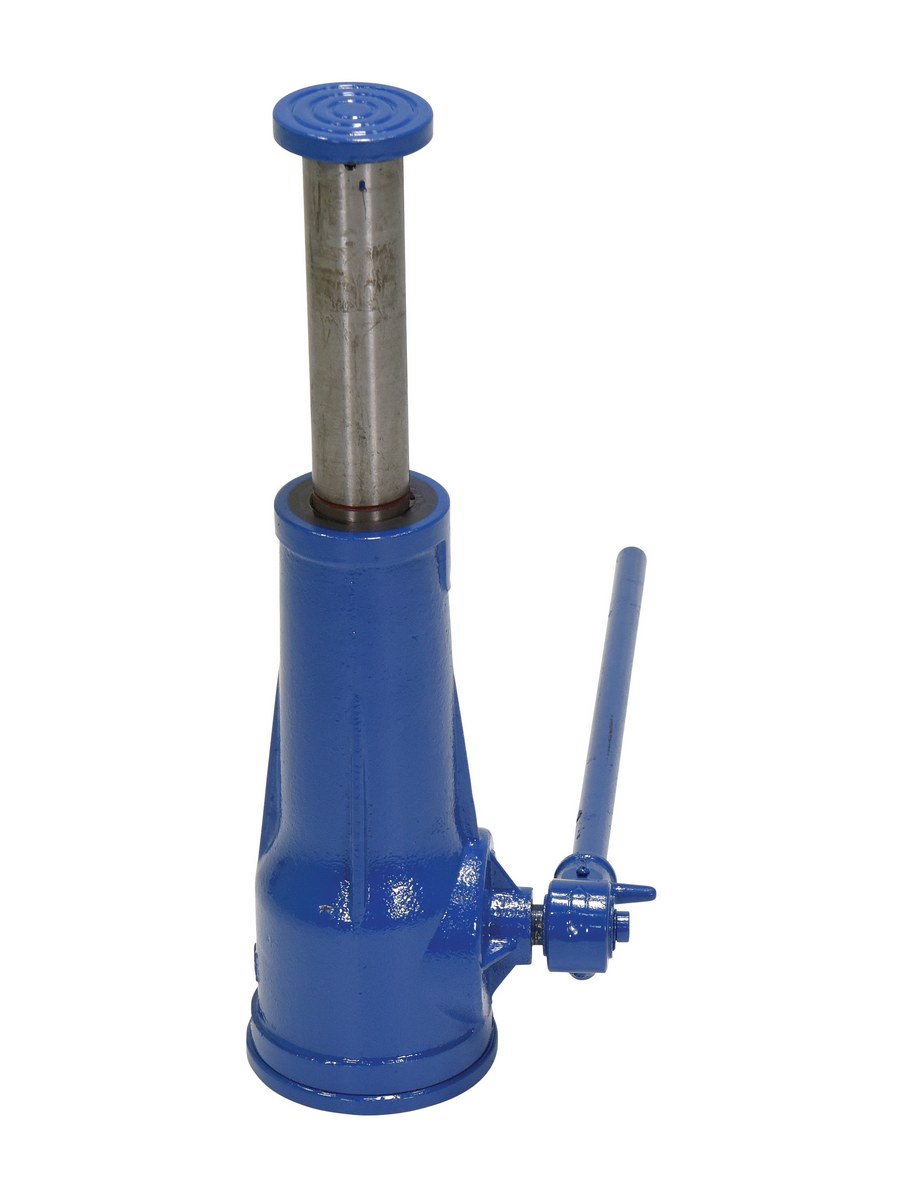

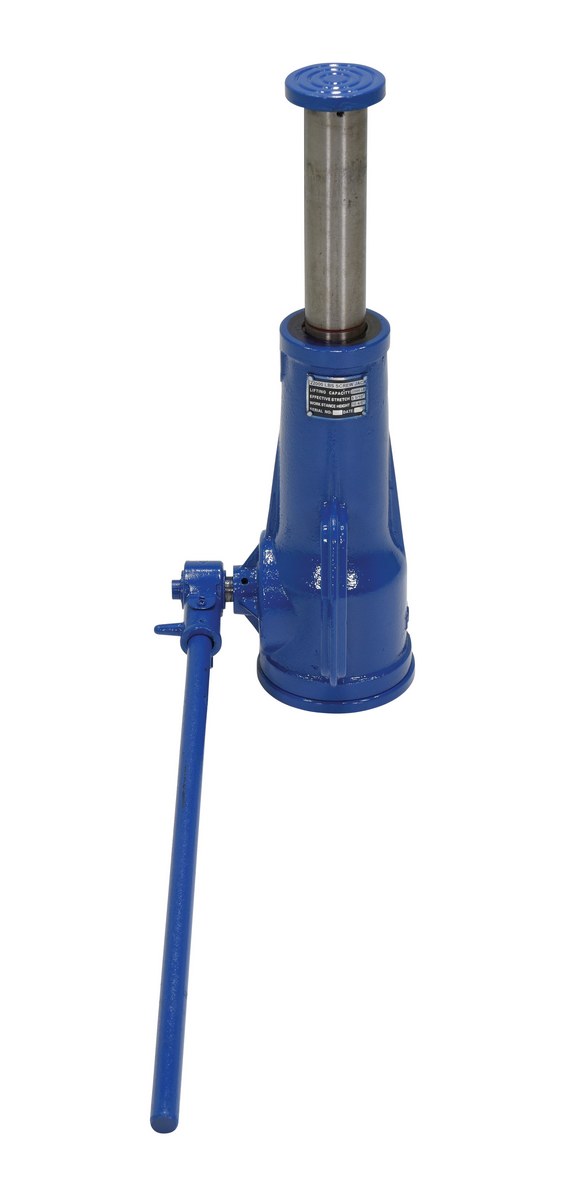

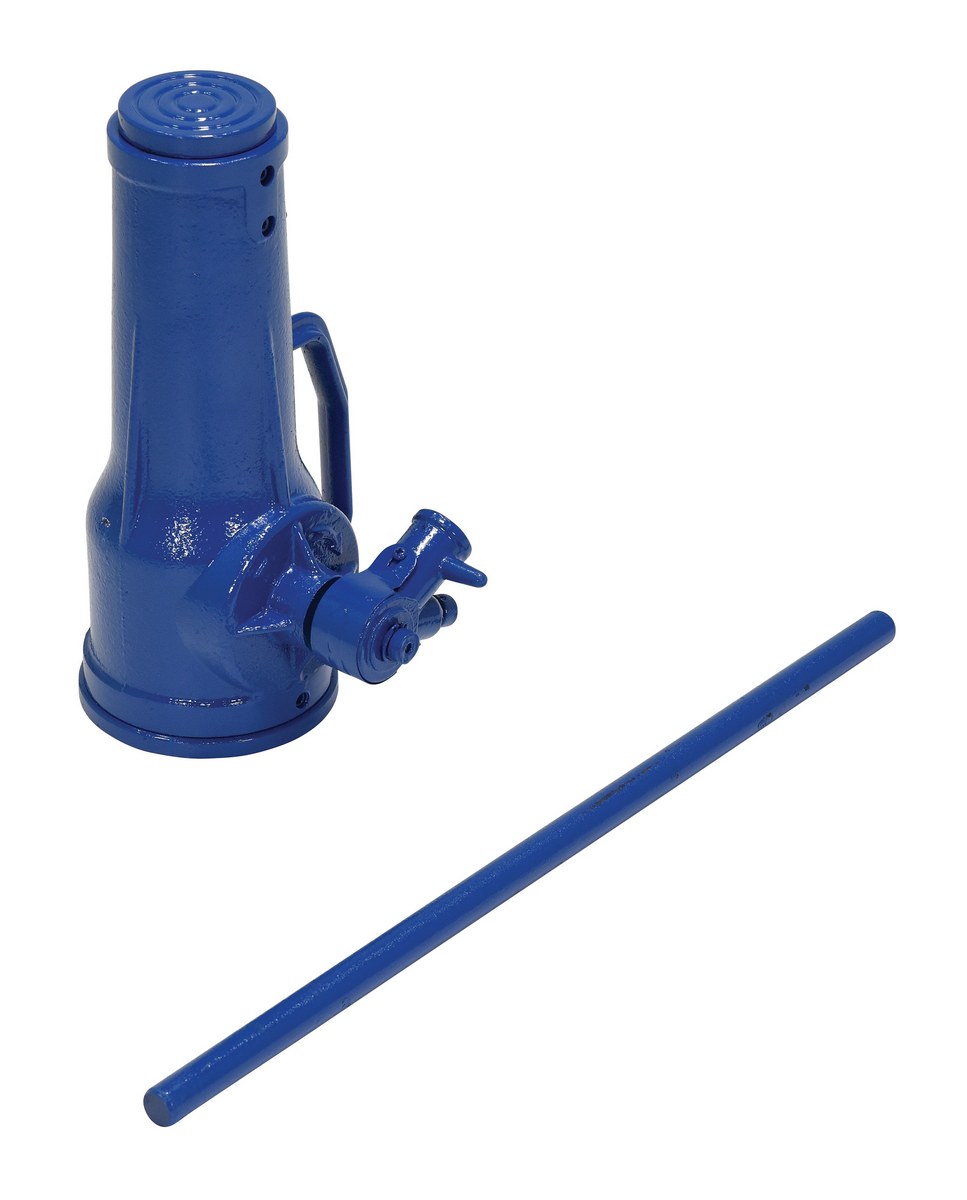

MSJ-10

model MSJ-10

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
MSJ-10 MSJ-1030 Days Limited WarrantySteel Mechanical Screw Jack 6-7/8 In. x 6-1/8 In. x 25-1/16 In. 20,000 Lb. Capacity BlueUniform Capacity (lb.): 20000
Lowered Height (in.): 11		20
MSJ-20 MSJ-2030 Days Limited WarrantySteel Mechanical Screw Jack 8-7/16 In. x 6-5/16 In. x 35-3/4 In. 40,000 Lb. Capacity BlueUniform Capacity (lb.): 40000
Lowered Height (in.): 12-3/4		28
MSJ-3 MSJ-330 Days Limited WarrantySteel Mechanical Screw Jack 5-13/16 In. x 3-11/16 In. x 20-5/8 In. 6,000 Lb. Capacity BlueUniform Capacity (lb.): 6000
Lowered Height (in.): 8-3/4		12
MSJ-5 MSJ-530 Days Limited WarrantySteel Mechanical Screw Jack 6-3/8 In. x 5-9/16 In. x 22-1/4 In. 10,000 Lb. Capacity BlueUniform Capacity (lb.): 10000
Lowered Height (in.): 9-3/4		18

* All jacks are now blue not green

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

MSJ-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Lowered Height (in.): 11
Uniform Capacity (lb.): 20000
Lowered Height (in.): 11

MSJ-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 40000
Lowered Height (in.): 12-3/4
Uniform Capacity (lb.): 40000
Lowered Height (in.): 12-3/4

MSJ-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6000
Lowered Height (in.): 8-3/4
Uniform Capacity (lb.): 6000
Lowered Height (in.): 8-3/4

MSJ-5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10000
Lowered Height (in.): 9-3/4
Uniform Capacity (lb.): 10000
Lowered Height (in.): 9-3/4
Mechanical Screw Jacks PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


MSJ-10

MSJ-20

MSJ-3

MSJ-5

Testing Certificates


MSJ-10

MSJ-20

MSJ-3

MSJ-5

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the diameter of the base and the top pad for MSJ-10?

A: The diameter of the base is 4-5/16". The diameter of the top pad is 2-3/8".

Q: What is the diameter of the base and the top pad for MSJ-20?

A: The diameter of the base is 4-7/8". The diameter of the top pad is 2-11/16".

Q: What is the diameter of the base and the top pad for MSJ-3?

A: The diameter of the base is 3-11/16". The diameter of the top pad is 1-7/8".

Q: What is the diameter of the base and the top pad for MSJ-5?

A: The diameter of the base is 4-1/8". The diameter of the top pad is 2".
