Trailer Crane Bumpers

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
TB-20_A.jpg TB-20_B.jpg TB-20_C.jpg
Trailer Crane Bumpers

model: TB-20



Featured Loading Dock Equipment


Shelter Guard Posts
Aluminum Hand Truck Dockplates
Hose & Cable Crossovers
Economical Overhead Door Warning Barriers
Retractable Dock Shelter
Steel Container Ramps with Flip-Over Bridge
Aluminum Wheel Risers
Urethane Hose & Cable Crossovers
Industrial Rubber Wedges
model chart

Product Family Overview

Print Friendly
Trailer Crane Bumpers
SERIES: TB

Manufactured from fiber reinforced prime rubber containing nylon to resist abrasion, impact, wear and corrosion. Impervious to weather damage. All models have pre-drilled, countersunk mounting holes for easy installation. Installation hardware available separately, see below.

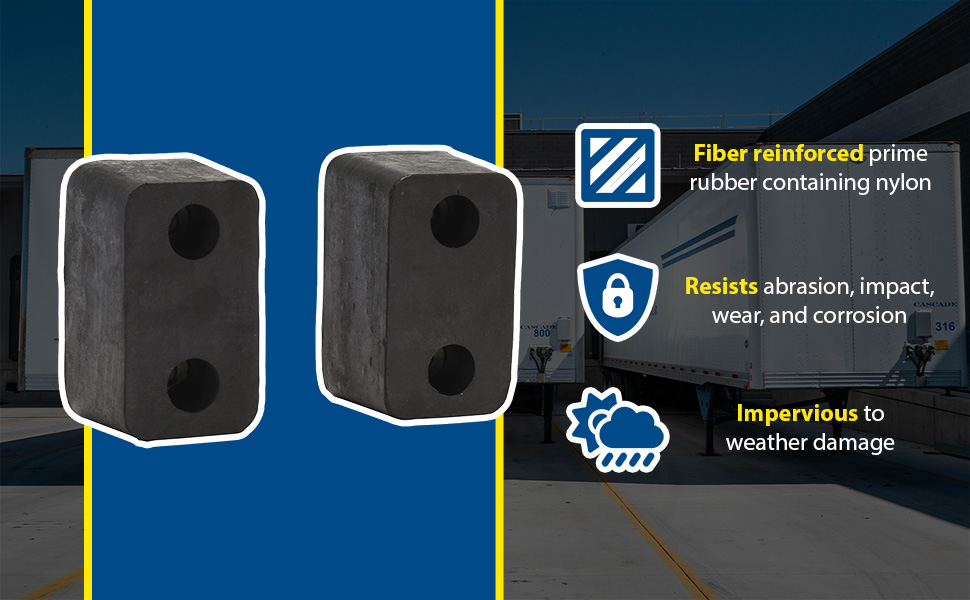

  • Fiber reinforced prime rubber containing nylon resists abrasion, impact, wear and corrosion
  • Unique design protects docks from trailer damage
  • Bumper construction is impervious to weather damage
  • Pre-drilled mounting holes allow for quick and easy installation

Manufactured from fiber reinforced prime rubber containing nylon to resist abrasion, impact, wear and corrosion. Impervious to weather damage. All models have pre-drilled, countersunk mounting holes for easy installation. Installation hardware available separately, see below.

  • Fiber reinforced prime rubber containing nylon resists abrasion, impact, wear and corrosion
  • Unique design protects docks from trailer damage
  • Bumper construction is impervious to weather damage
  • Pre-drilled mounting holes allow for quick and easy installation

Other Dock Bumpers

 Extruded Bumper Stops Specialty Molded Dock Bumpers Extruded Bumpers Trailer Crane Bumpers

Additional Models In This Family
view entire Image Gallery

TB-70

TB-70

TB-70

TB-70

TB-20

TB-20

TB-20-2

TB-20-2

TB-20

TB-20

TB-20-2

TB-20-2

TB-70

TB-70

TB-20

TB-20

TB-10-2

TB-10-2

TB-10

TB-10

TB-10

TB-10

TB-70-Y

TB-70-Y

TB-90

TB-90

TB-10

TB-10

TB-10-2

TB-10-2

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

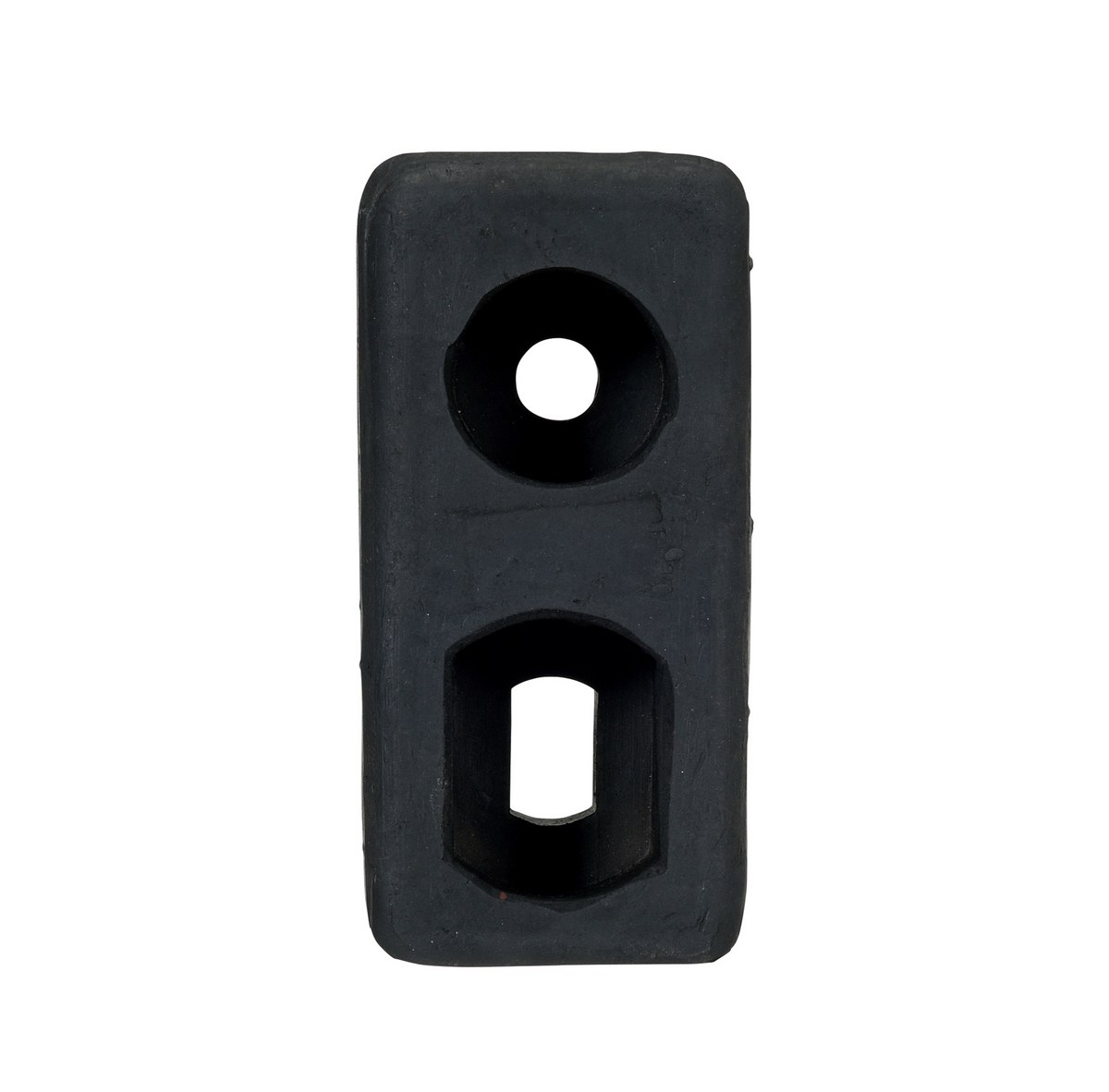

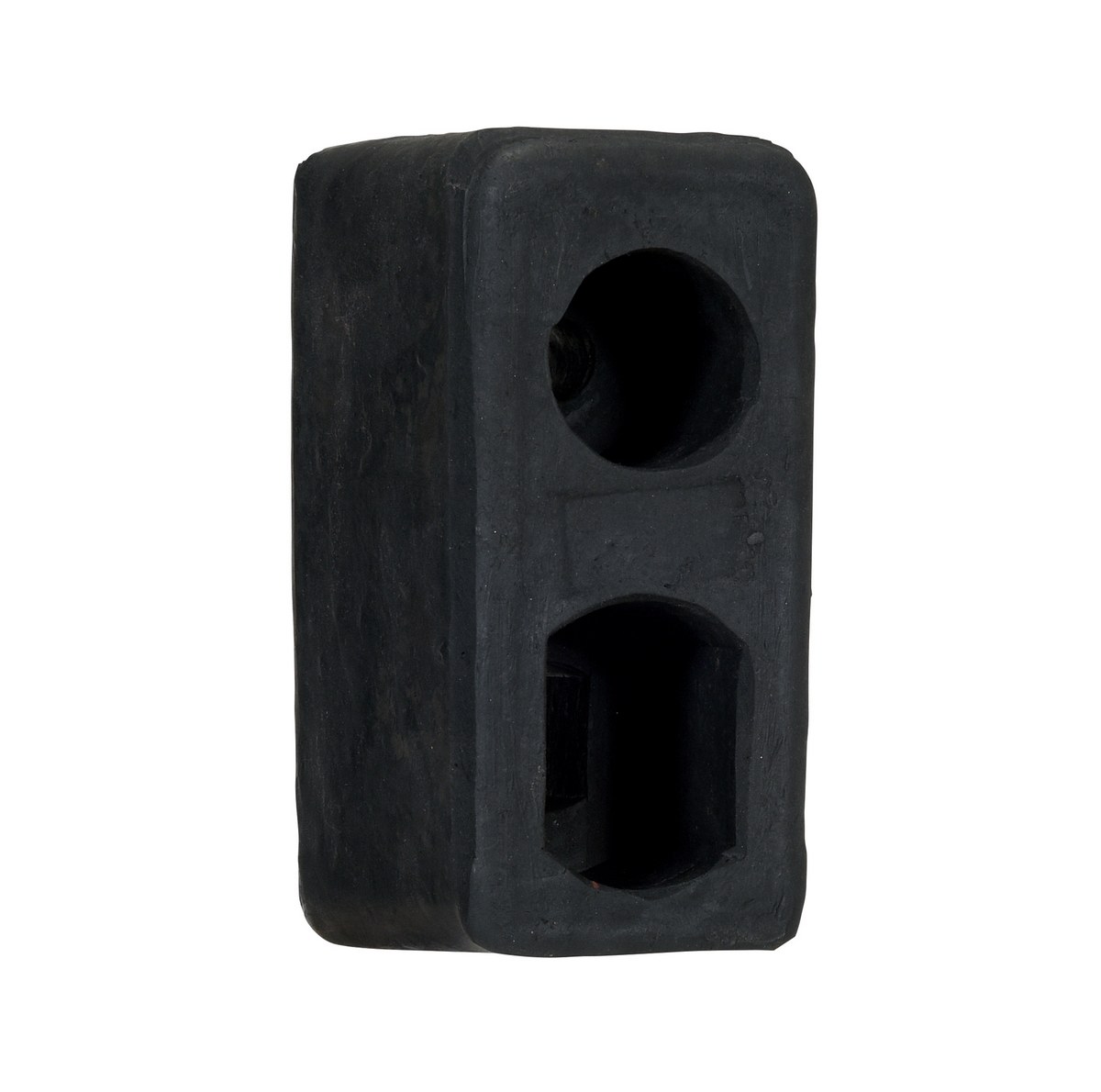

TB-10 TB-1030 Days Limited WarrantyRubber Trailer Crane Bumper 6 In. x 3 In. x 2-7/16 In. BlackBolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 2		3

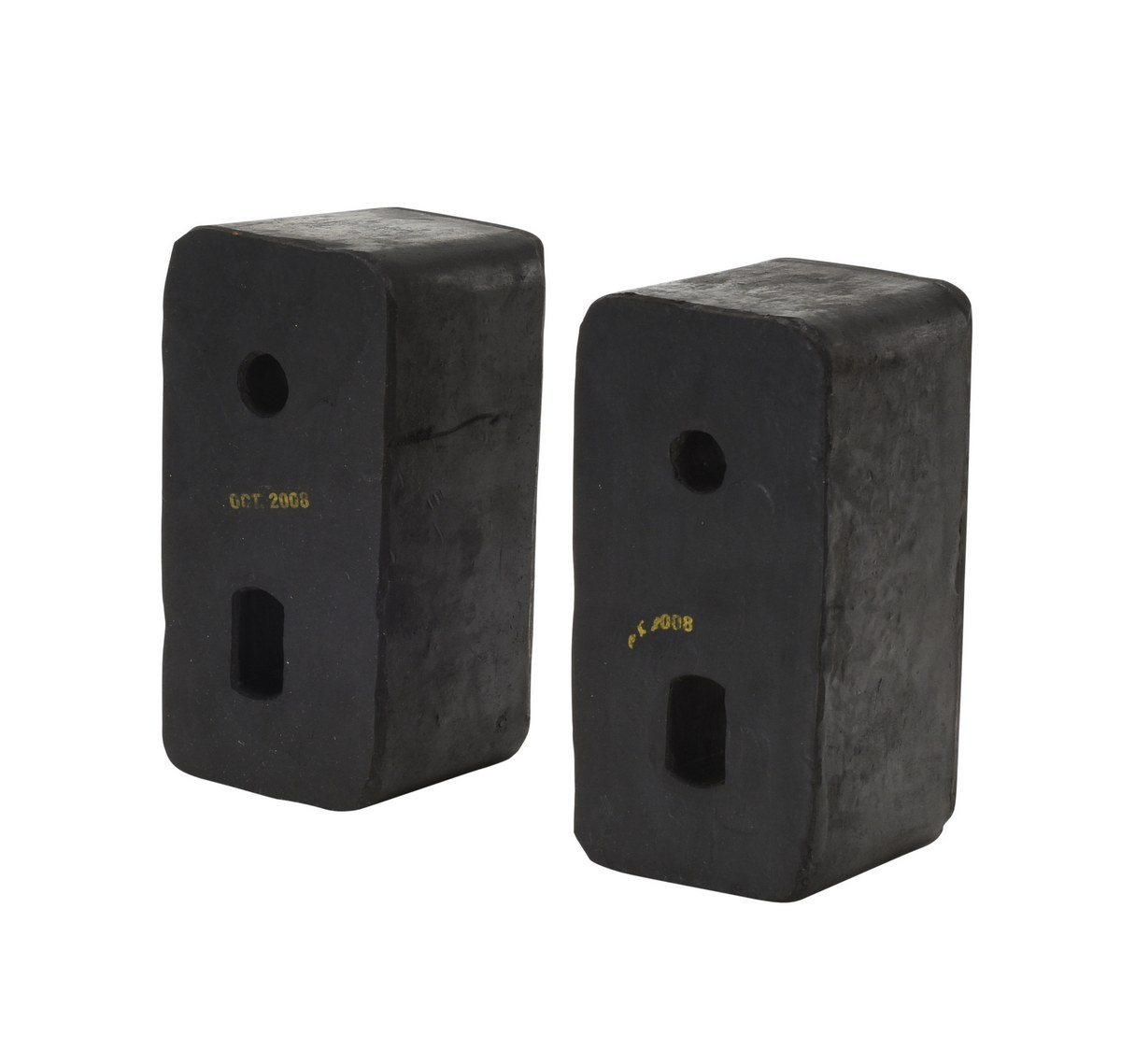

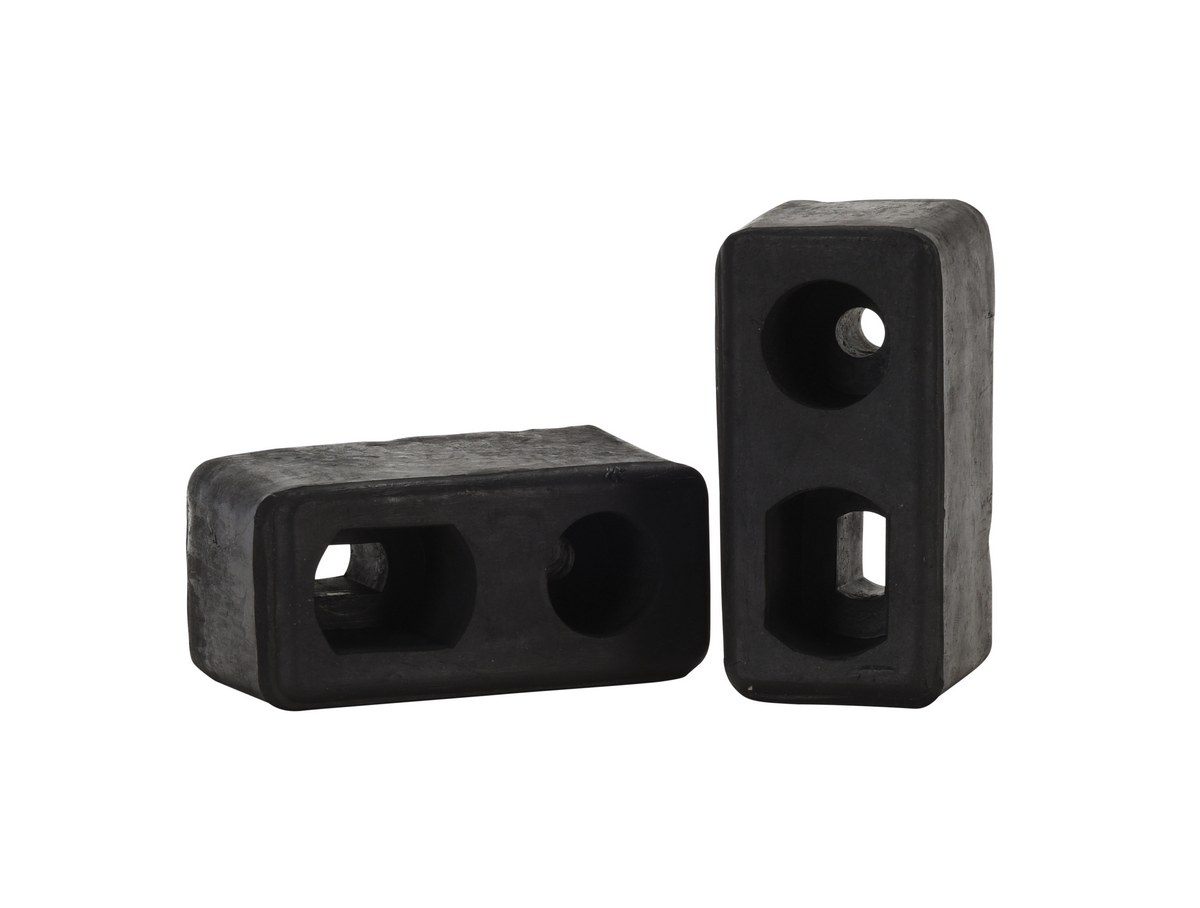

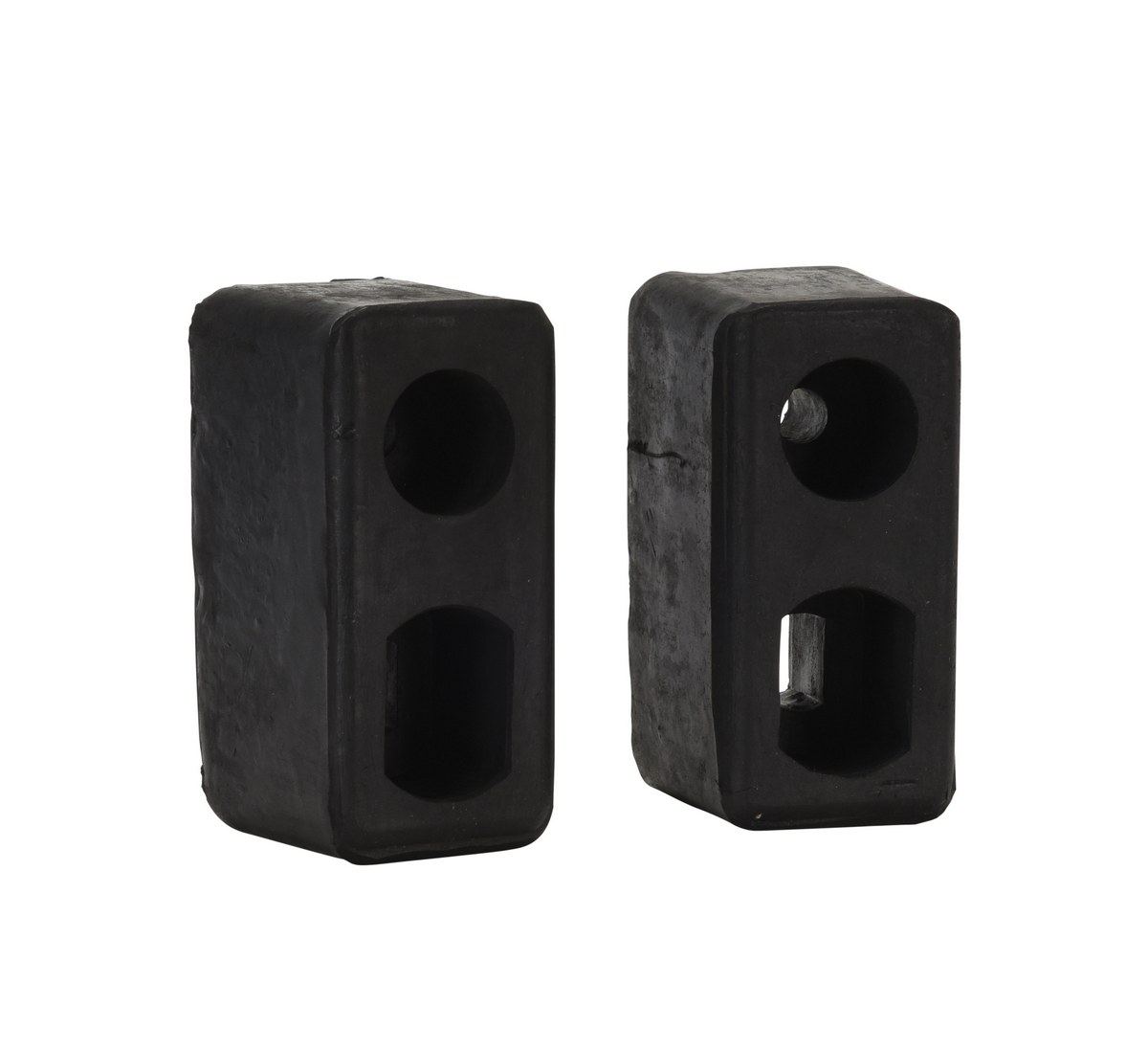

TB-10-2 TB-10-230 Days Limited WarrantyRubber Trailer Crane Bumper 6 In. x 3 In. x 2-7/16 In. 2 Pack BlackBolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 2		5

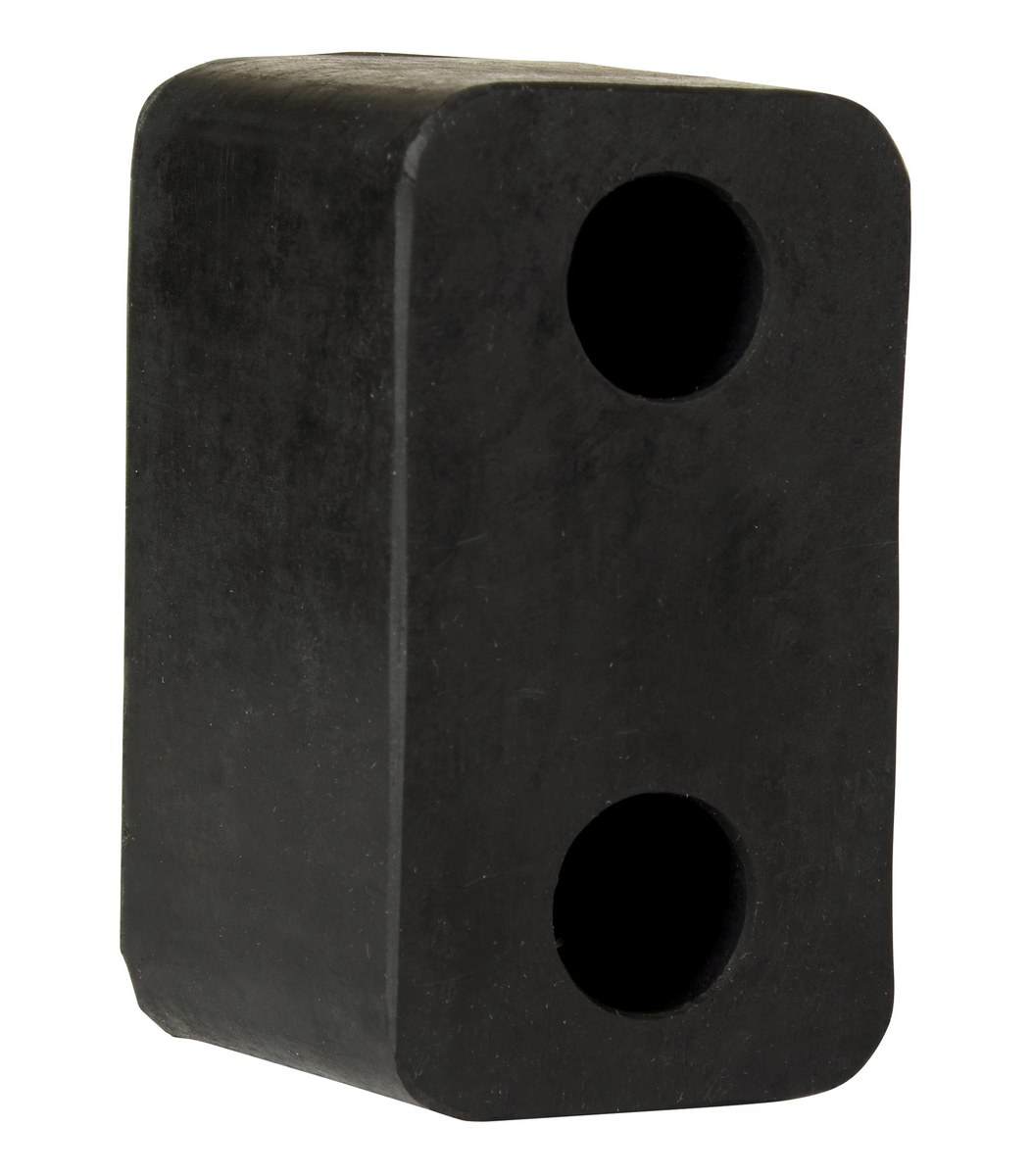

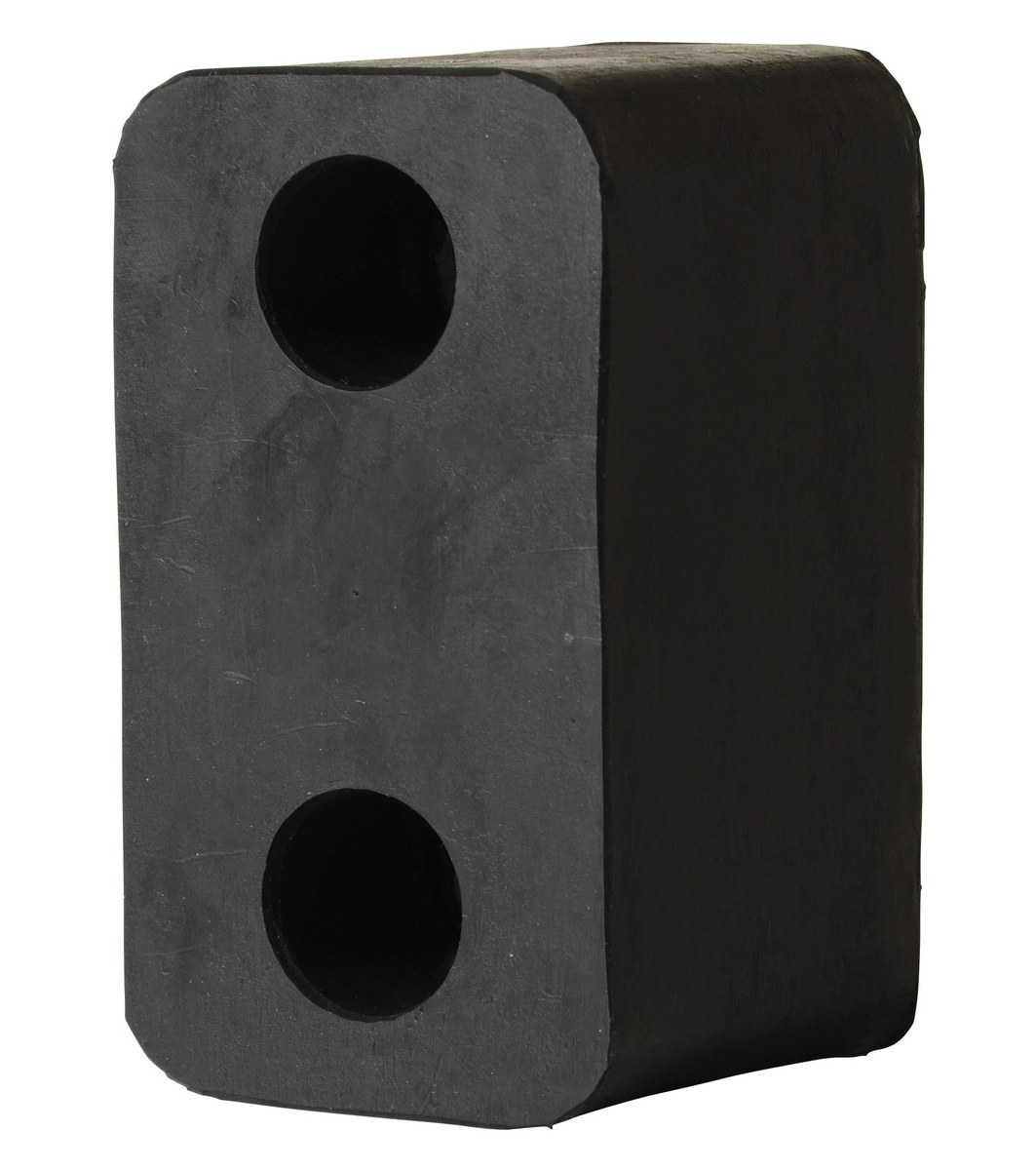

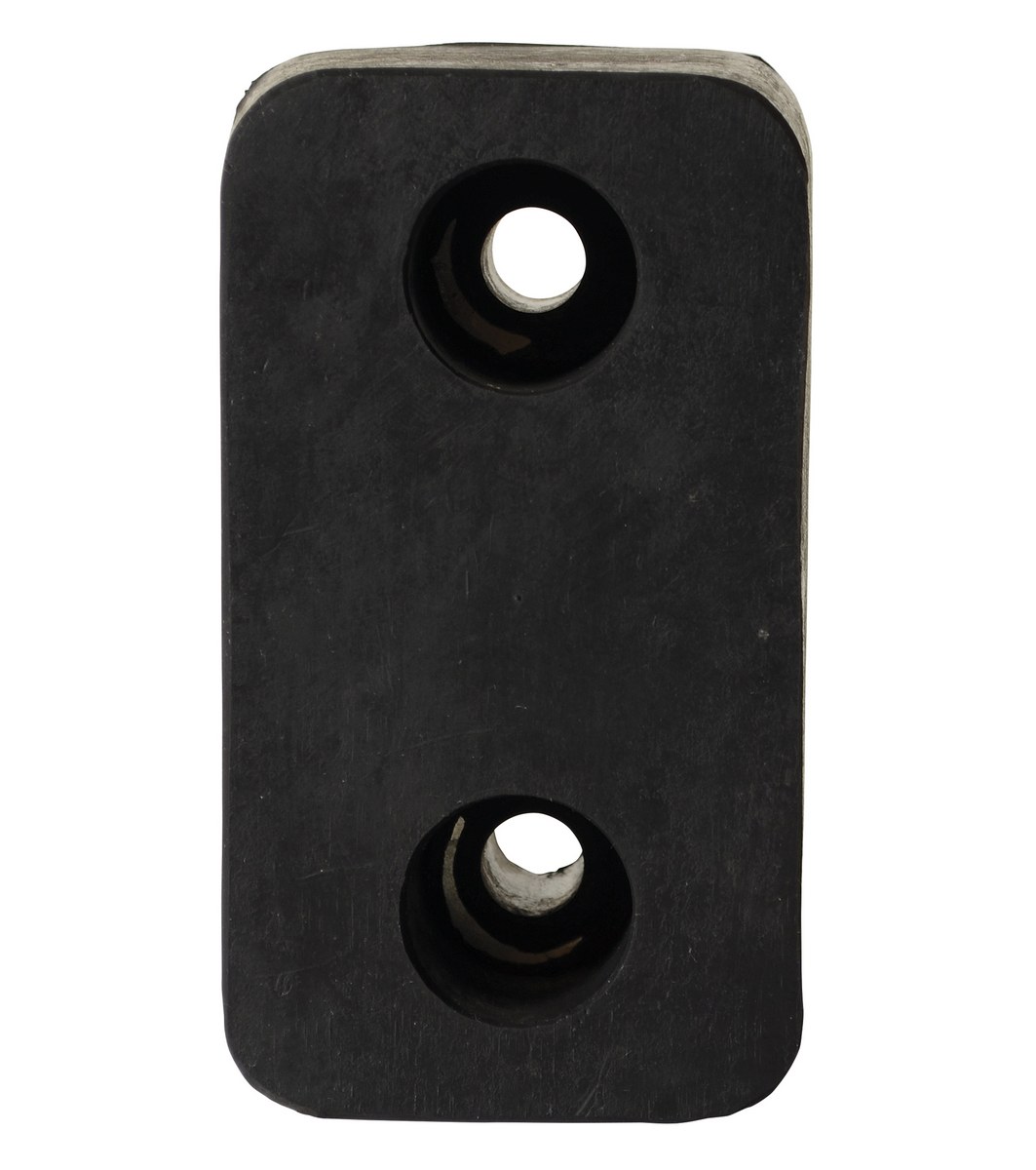

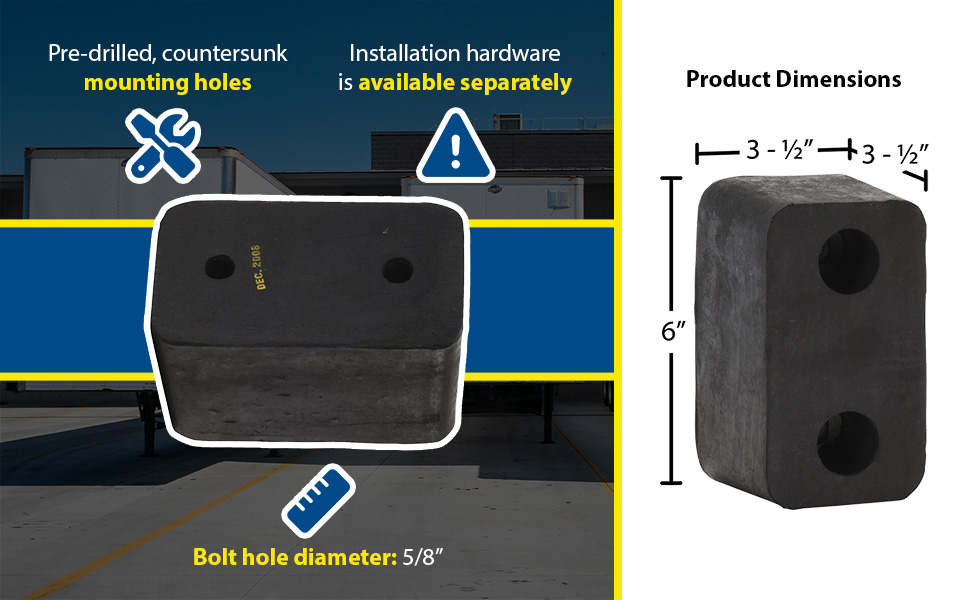

TB-20 TB-2030 Days Limited WarrantyRubber Trailer Crane Bumper 6 In. x 3-1/2 In. x 3-1/2 In. BlackBolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 2		5

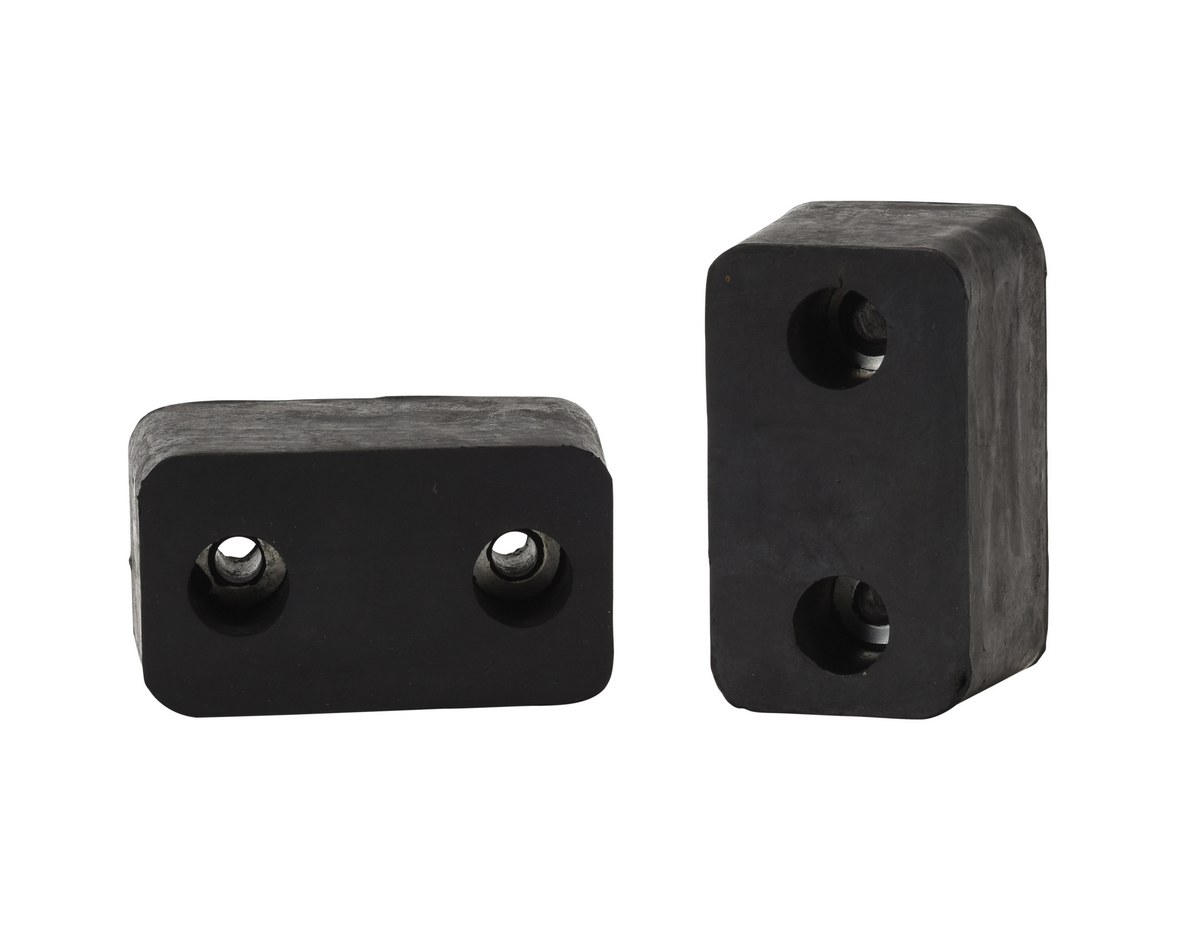

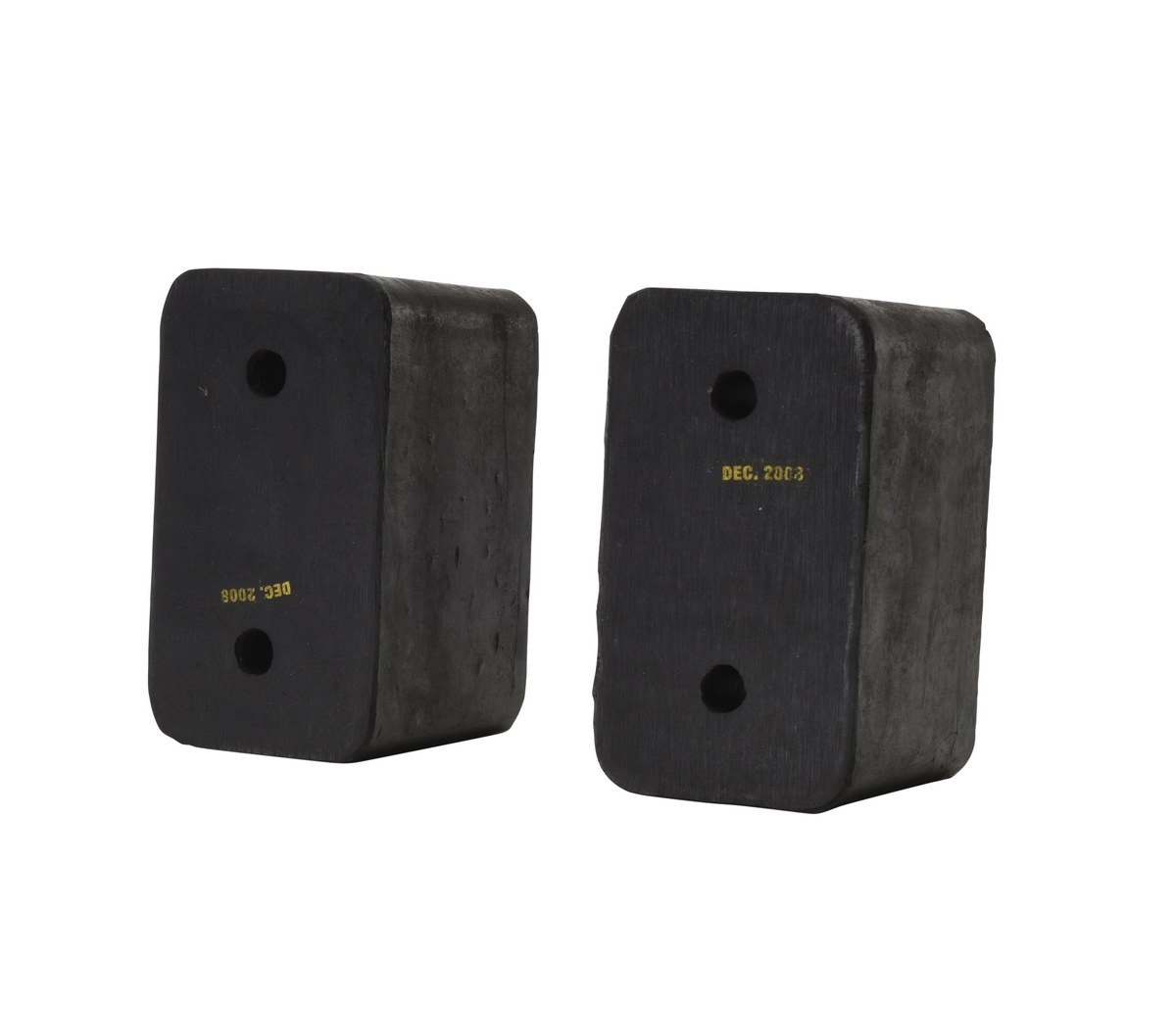

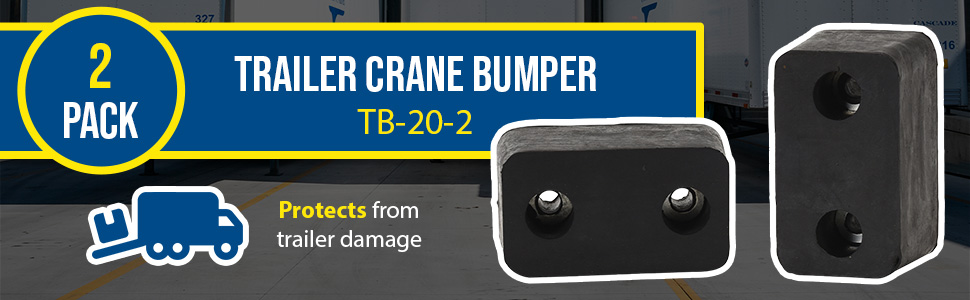

TB-20-2 TB-20-230 Days Limited WarrantyRubber Trailer Crane Bumper 6 In. x 3-1/2 In. x 3-1/2 In. 2 Pack BlackBolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 2		8

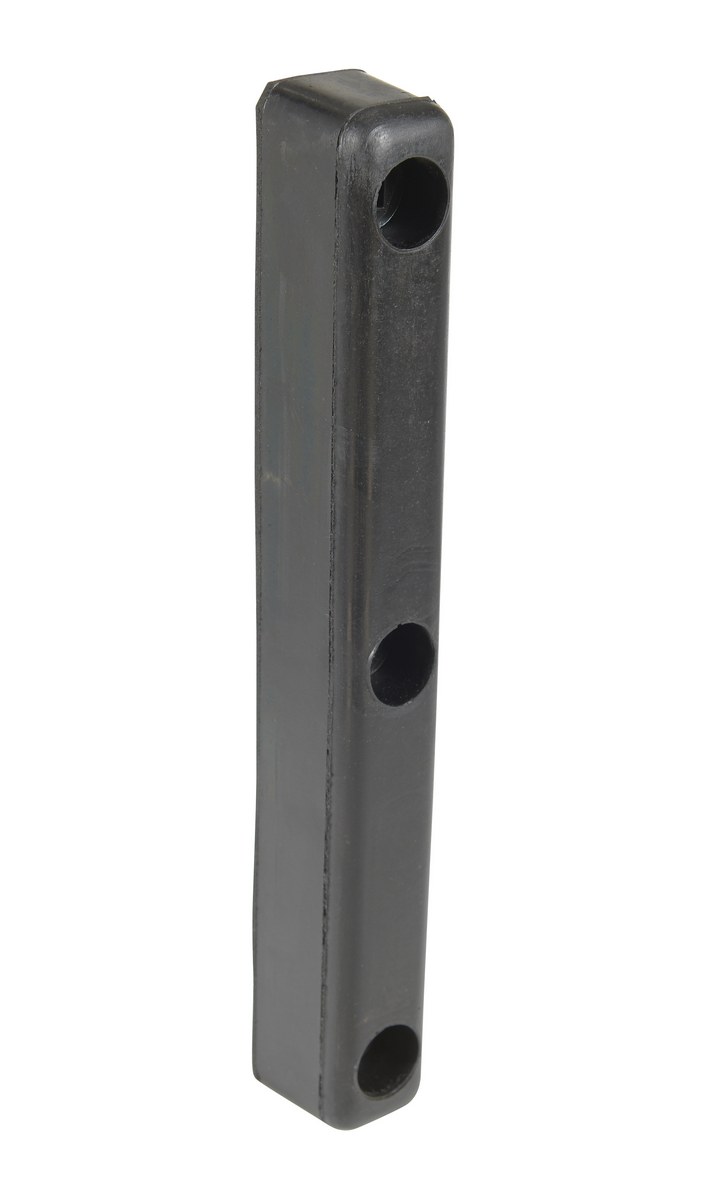

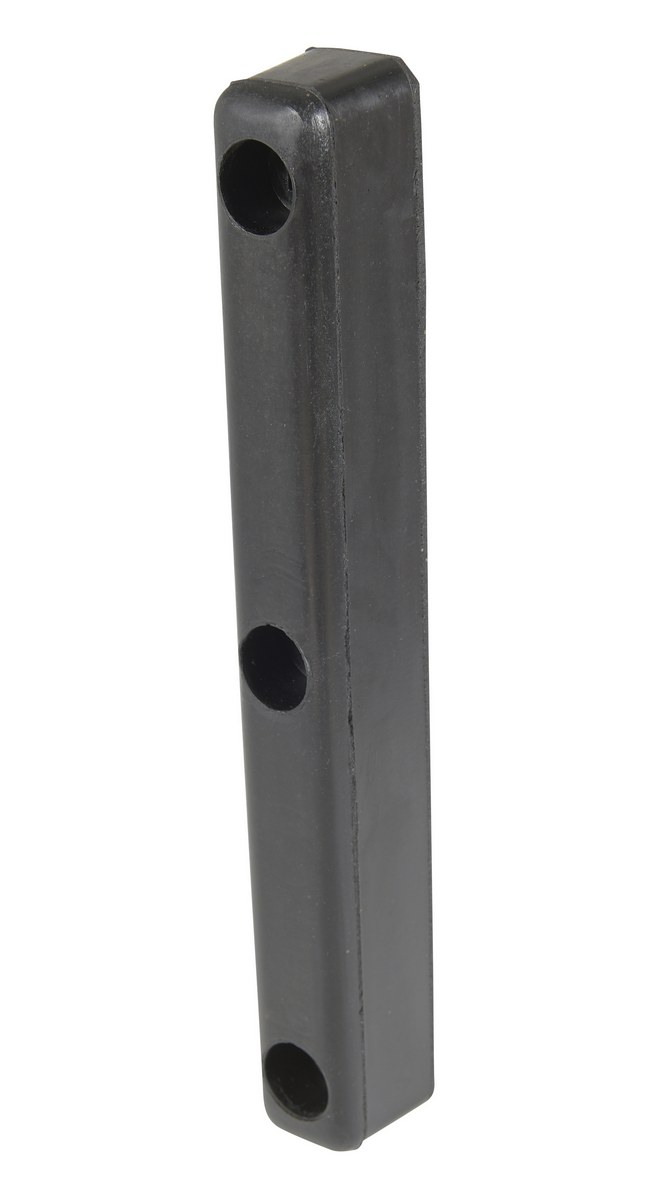

TB-70 TB-7030 Days Limited WarrantyRubber Trailer Crane Bumper 16 In. x 2 In. x 2 In. BlackBolt Hole Diameter (in.): 1/2
Bolt Holes (qty.): 3		3

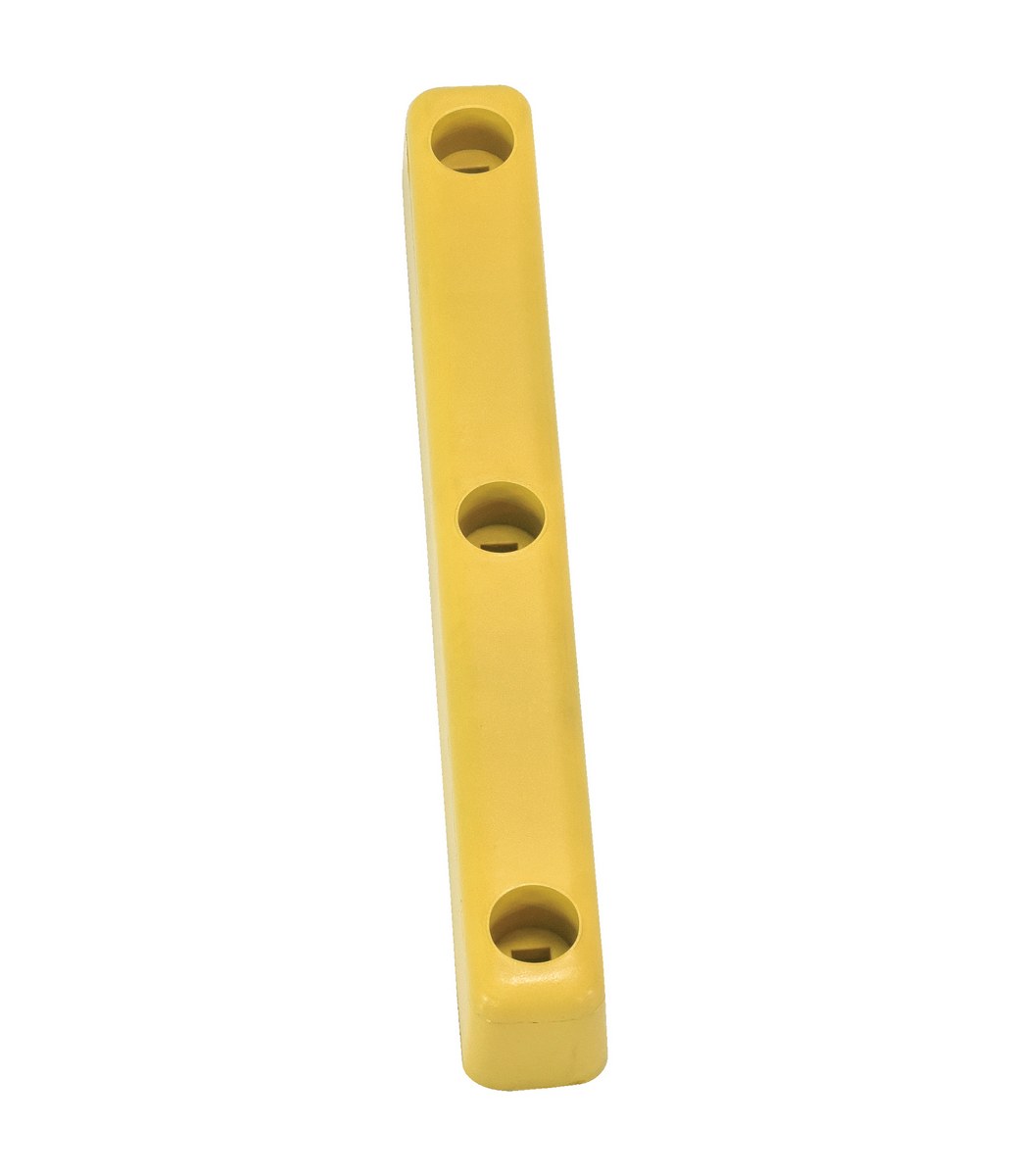

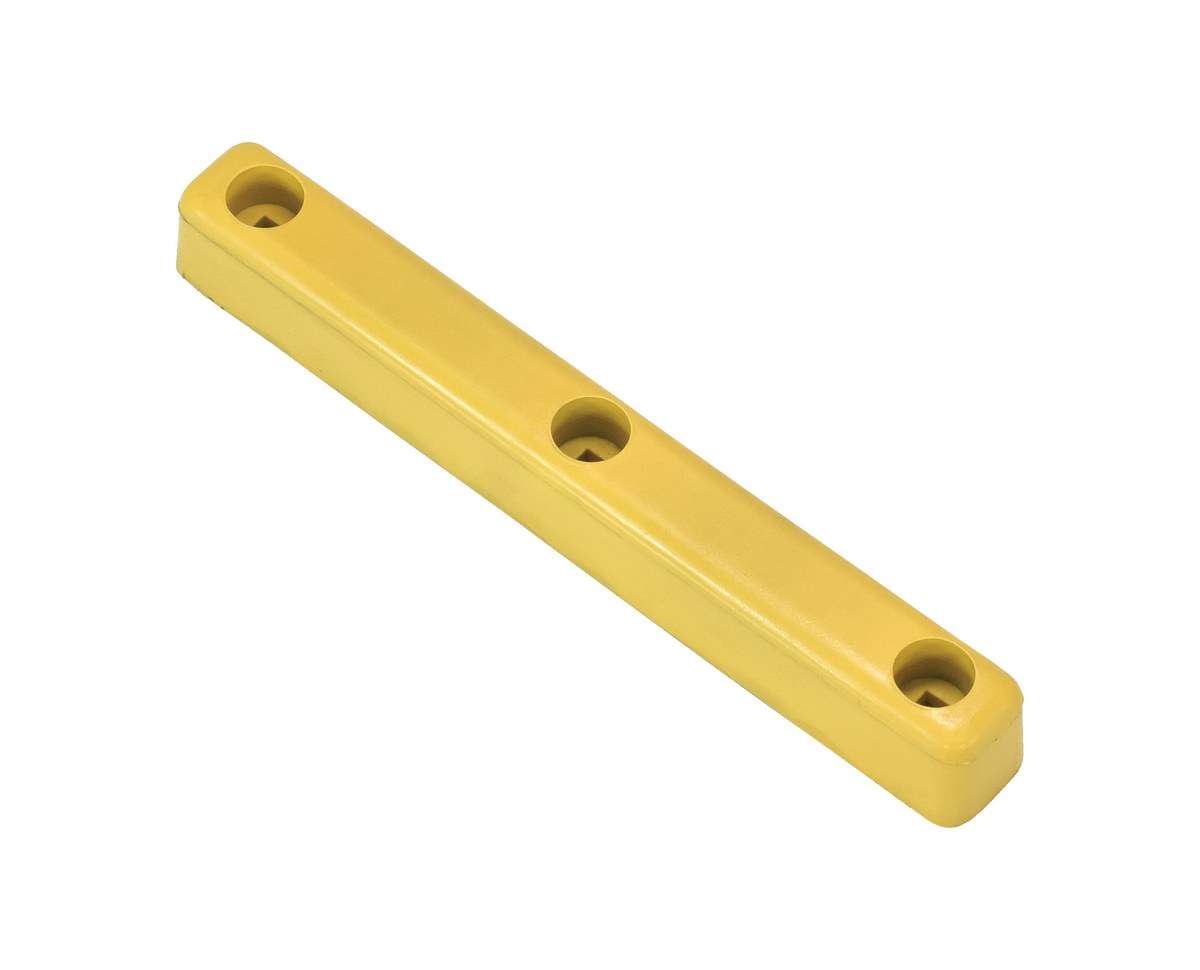

TB-70-Y TB-70-Y30 Days Limited WarrantyRubber Trailer Crane Bumper 16 In. x 2 In. x 2 In. YellowBolt Hole Diameter (in.): 1/2
Bolt Holes (qty.): 3		3

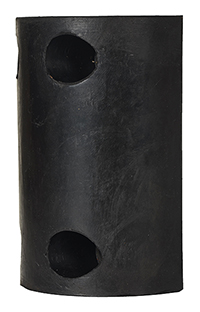

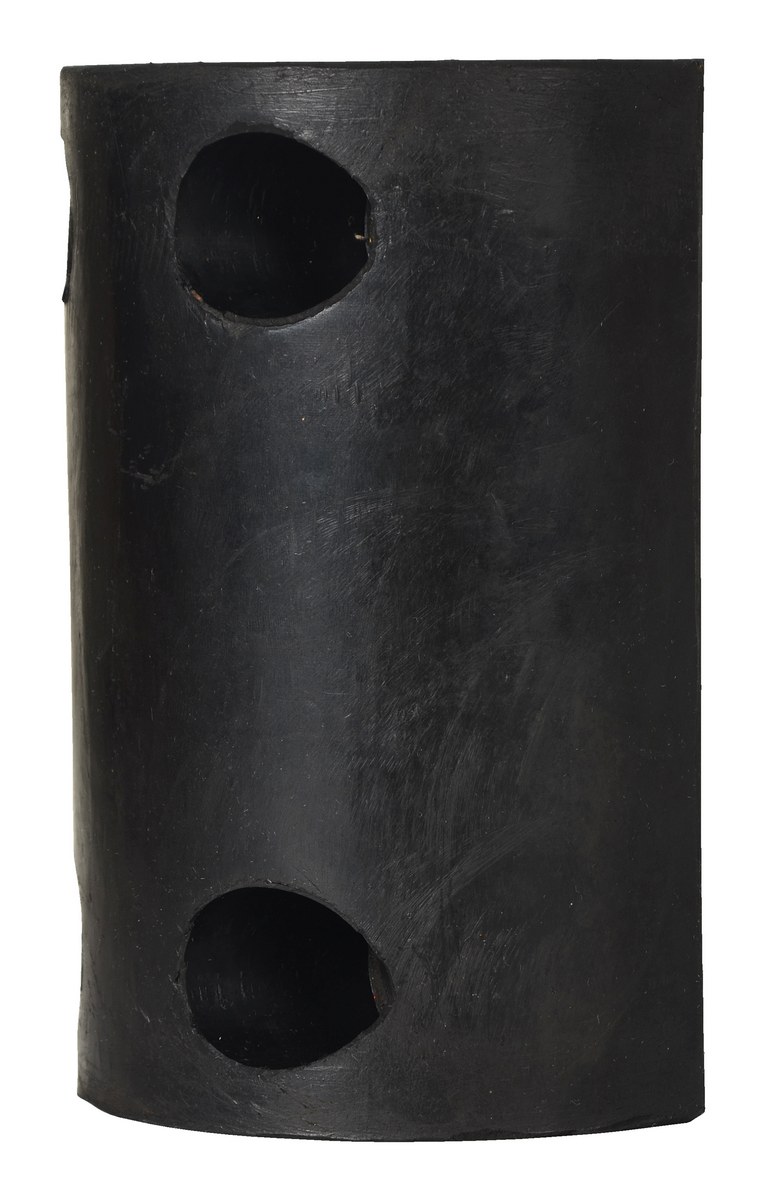

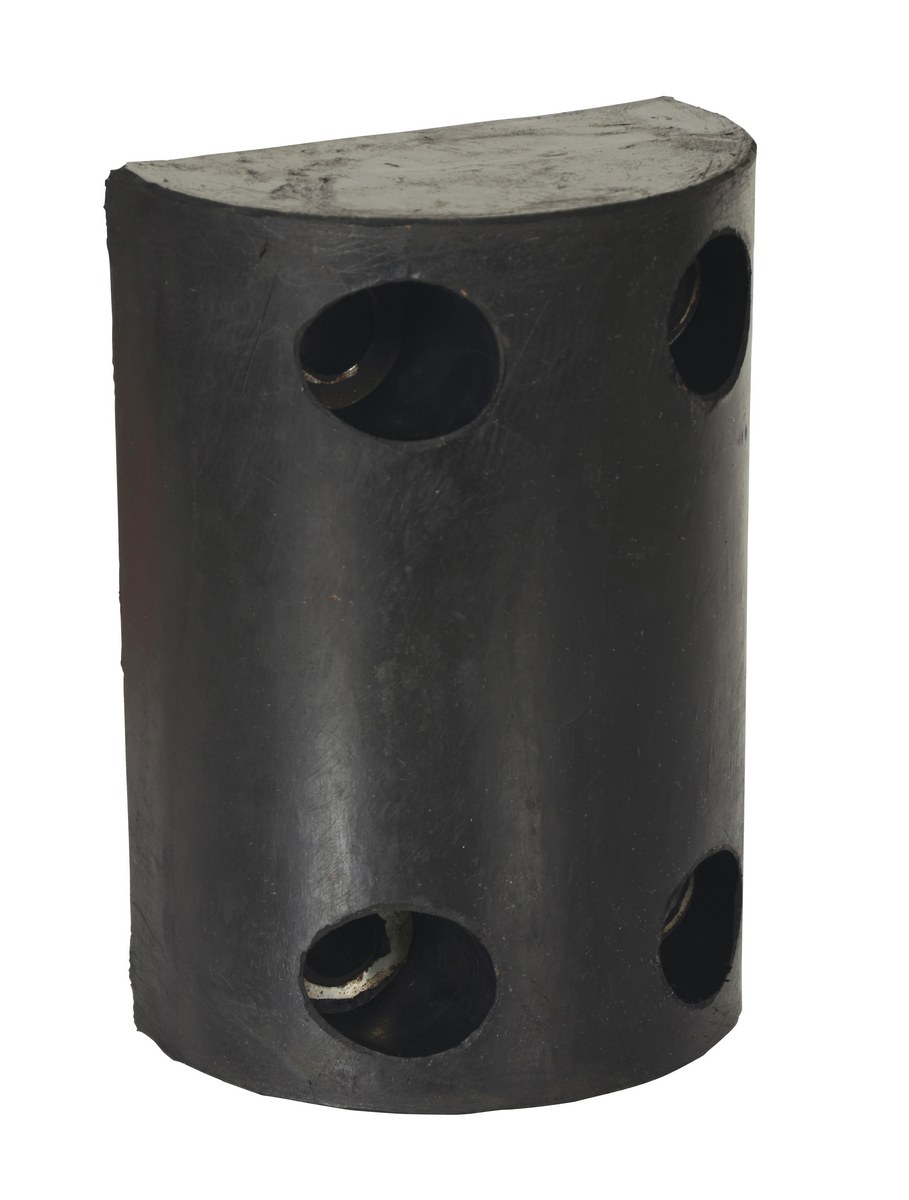

TB-90 TB-9030 Days Limited WarrantyRubber Trailer Crane Bumper 7-5/8 In. x 5-5/8 In. x 3-3/4 In. BlackBolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 4		6

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

TB-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Bolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 2
Bolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 2

TB-10-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Bolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 2
Bolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 2

TB-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Bolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 2
Bolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 2

TB-20-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Bolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 2
Bolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 2

TB-70
Unit:
Size: W x L x H
Weight:
Limited Warranty
Bolt Hole Diameter (in.): 1/2
Bolt Holes (qty.): 3
Bolt Hole Diameter (in.): 1/2
Bolt Holes (qty.): 3

TB-70-Y
Unit:
Size: W x L x H
Weight:
Limited Warranty
Bolt Hole Diameter (in.): 1/2
Bolt Holes (qty.): 3
Bolt Hole Diameter (in.): 1/2
Bolt Holes (qty.): 3

TB-90
Unit:
Size: W x L x H
Weight:
Limited Warranty
Bolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 4
Bolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 4
For More Details of the Option Click the Red Model Button
Anchor Bolts Hardware For Concrete Installation
Model Image Description Quantity
AS-125 1/2" x 5", Use with TB-10, TB-20, TB-70, TB-70-Y 1
AS-125-4PK 1/2" x 5", Use with TB-10, TB-20, TB-70, TB-70-Y 2
AS-584 5/8" x 4", Use with TB-90 1
AS-584-4PK 5/8" x 4", Use with TB-90 4
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Trailer Crane Bumpers PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


TB-10

TB-20

TB-70

TB-90

Testing Certificates


TB-10

TB-10-2

TB-20

TB-20-2

TB-70

TB-70-Y

TB-90

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Hardened Molded Bumpers
Product

Hardened Molded Bumpers

Extruded Bumpers
Product

Extruded Bumpers

Specialty Molded Dock Bumpers
Product

Specialty Molded Dock Bumpers

Laminated Dock Bumpers
Product

Laminated Dock Bumpers

Extruded Bumper Stops
Product

Extruded Bumper Stops

Rounded Dome Bumpers
Product

Rounded Dome Bumpers

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Trailer Crane Bumpers




Manufactured from fiber reinforced prime rubber containing nylon to resist abrasion, impact, wear and corrosion. Impervious to weather damage. All models have pre-drilled, countersunk mounting holes for easy installation. Installation hardware available separately, see below.

  • Fiber reinforced prime rubber containing nylon resists abrasion, impact, wear and corrosion
  • Unique design protects docks from trailer damage
  • Bumper construction is impervious to weather damage
  • Pre-drilled mounting holes allow for quick and easy installation

Model # Description Attributes Net Wt.
(lbs)
TB-10 TB-10Rubber Trailer Crane Bumper 6 In. x 3 In. x 2-7/16 In. BlackBolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 2		3
TB-10-2 TB-10-2Rubber Trailer Crane Bumper 6 In. x 3 In. x 2-7/16 In. 2 Pack BlackBolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 2		5
TB-20 TB-20Rubber Trailer Crane Bumper 6 In. x 3-1/2 In. x 3-1/2 In. BlackBolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 2		5
TB-20-2 TB-20-2Rubber Trailer Crane Bumper 6 In. x 3-1/2 In. x 3-1/2 In. 2 Pack BlackBolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 2		8
TB-70 TB-70Rubber Trailer Crane Bumper 16 In. x 2 In. x 2 In. BlackBolt Hole Diameter (in.): 1/2
Bolt Holes (qty.): 3		3
TB-70-Y TB-70-YRubber Trailer Crane Bumper 16 In. x 2 In. x 2 In. YellowBolt Hole Diameter (in.): 1/2
Bolt Holes (qty.): 3		3
TB-90 TB-90Rubber Trailer Crane Bumper 7-5/8 In. x 5-5/8 In. x 3-3/4 In. BlackBolt Hole Diameter (in.): 5/8
Bolt Holes (qty.): 4		6

Options


Anchor Bolts Hardware For Concrete Installation
Model Image Description Quantity
AS-125 1/2" x 5", Use with TB-10, TB-20, TB-70, TB-70-Y 1
AS-125-4PK 1/2" x 5", Use with TB-10, TB-20, TB-70, TB-70-Y 2
AS-584 5/8" x 4", Use with TB-90 1
AS-584-4PK 5/8" x 4", Use with TB-90 4
