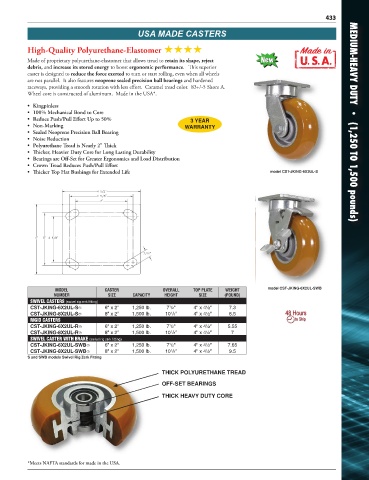

Page 427 - Vestil Catalog 112
P. 427
433
USA MADE CASTERS
High-Quality Polyurethane-Elastomer
Made of proprietary polyurethane-elastomer that allows tread to retain its shape, reject New
debris, and increase its stored energy to boost ergonomic performance. This superior
caster is designed to reduce the force exerted to turn or start rolling, even when all wheels
are not parallel. It also features neoprene sealed precision ball bearings and hardened
raceways, providing a smooth rotation with less effort. Caramel tread color. 83+/-5 Shore A.
Wheel core is constructed of aluminum. Made in the USA*.
• Kingpinless
• 100% Mechanical Bond to Core
• Reduce Push/Pull Effort Up to 50% 3 YEAR
• Non-Marking WARRANTY MEDIUM-HEAVY DUTY • (1,250 TO 1,500 pounds)
• Sealed Neoprene Precision Ball Bearing
• Noise Reduction
• Polyurethane Tread is Nearly 2" Thick
• Thicker, Heavier Duty Core for Long Lasting Durability
• Bearings are Off-Set for Greater Ergonomics and Load Distribution
• Crown Tread Reduces Push/Pull Effort
• Thicker Top Hat Bushings for Extended Life model CST-JKING-6X2UL-S
MODEL CASTER OVERALL TOP PLATE WEIGHT model CST-JKING-6X2UL-SWB
NUMBER SIZE CAPACITY HEIGHT SIZE (POUND)
SWIVEL CASTERS (swivel rig zerk fitting)
1
CST-JKING-6X2UL-S 6" x 2" 1,250 lb. 7 /2" 4" x 4½" 7.3
1
CST-JKING-8X2UL-S 8" x 2" 1,500 lb. 10 /8" 4" x 4½" 8.5
RIGID CASTERS
CST-JKING-6X2UL-R 6" x 2" 1,250 lb. 7 /2" 4" x 4½" 5.55
1
1
CST-JKING-8X2UL-R 8" x 2" 1,500 lb. 10 /8" 4" x 4½" 7
SWIVEL CASTER WITH BRAKE (swivel rig zerk fitting)
1
CST-JKING-6X2UL-SWB 6" x 2" 1,250 lb. 7 /2" 4" x 4½" 7.65
CST-JKING-8X2UL-SWB 8" x 2" 1,500 lb. 10 /8" 4" x 4½" 9.5
1
S and SWB models Swivel Rig Zerk Fitting
THICK POLYURETHANE TREAD
OFF-SET BEARINGS
THICK HEAVY DUTY CORE
*Meets NAFTA standards for made in the USA.
