Model: AHA-4-15-12-TLC

AHA-4-15-12-TLC

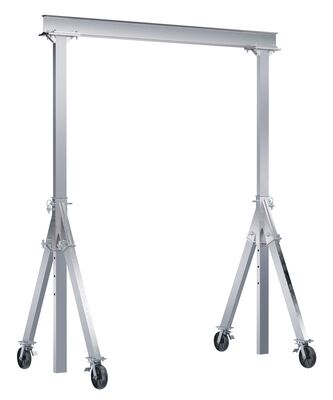

Aluminum Adjustable Height Gantry Crane with Total Locking Glass Filled Nylon Casters 15 Ft. x 12 Ft. 4000 Lb. Capacity Silver

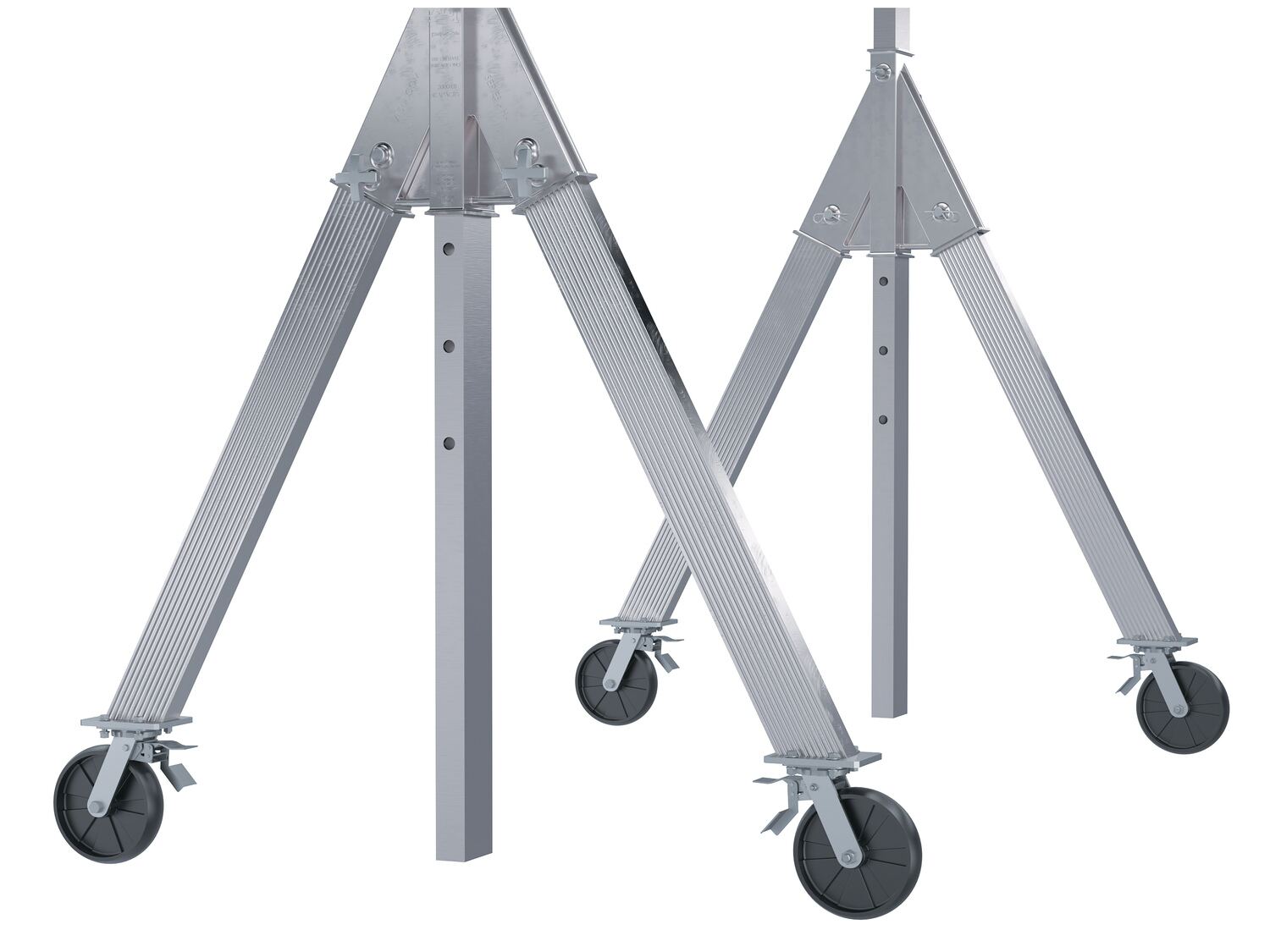

The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two straps, allowing one person to transport the gantry crane in one neat package. Unit comes standard with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating.

  • Heavy-duty welded aluminum construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Ship Weight (lbs.): 394 Size: 53.9375"W x 180"L x 154.125"H Color: Silver

Uniform Capacity (lbs): 4000 Casters Swivel (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 2 Caster Material: Polyurethane

Marketing Specs.

MFG Model # (Series)
AHA-4-15-12-TLC
Product Name
Aluminum Adjustable Height Gantry Crane with Total Locking Glass Filled Nylon Casters 15 Ft. x 12 Ft. 4000 Lb. Capacity Silver
UPC
691215365482
GTIN
00691215365482
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Cranes
Taxonomy 4
Gantry
Assembled Depth (in.)
180
Assembled Width(in.)
53.9375
Assembled Height(in.)
154.125
Assembled Weight(lbs.)
367
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
United States
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
180
Package Width (in.)
29
Package Height (in.)
20
Package Weight (in.)
394
Subclass
5
Freight Class
250
NMFC Code
Cranes or Derricks, NOI
NMFC Number
118900
LTL Freight
LTL Palletized
UNSPSC
24101654
HTSUS Number
8426190000
USMCA HS
8426.19
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery


PDF Documents


Details For Model: AHA-4-15-12-TLC


AHA-4-15-12-TLC

Aluminum Adjustable Height Gantry Crane with Total Locking Glass Filled Nylon Casters 15 Ft. x 12 Ft. 4000 Lb. Capacity Silver

The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two straps, allowing one person to transport the gantry crane in one neat package. Unit comes standard with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating.

  • Heavy-duty welded aluminum construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Dimensions: 53.9375"W x 180"L x 154.125"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215365482 GTIN: 00691215365482
Warranty: -- Shipping Weight: 394 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs): 4000 Casters Swivel (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 2 Caster Material: Polyurethane
