Model Details

← All Products- ← Overhead Lifting- ← Gantry Cranes -← Adjustable Steel Gantry Cranes with Total Locking Casters- AHS-4-15-12-TLC

AHS-4-15-12-TLC

Printer Friendly
Available
AHS-4-15-12-TLC
AHS-4-15-12-TLC AHS-4-15-12-TLC

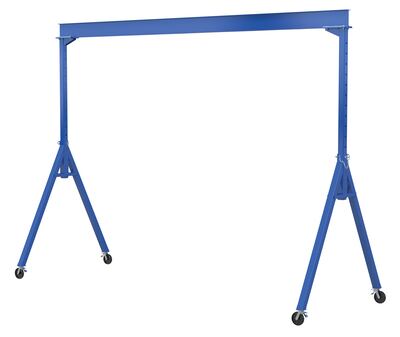

Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity Blue

The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard with total locking casters. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

  • Heavy-duty welded steel construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Assembled Wt.(lbs.): 863 Assembled Size: 76.125"W x 180"L x 152"H

Total Ship Wt.(lbs.): 963 (Multiple Packages: P1: 705 lbs + P2: 258 lbs) Package 1 Size: 77"W x 89"D x 19"H Color: Blue

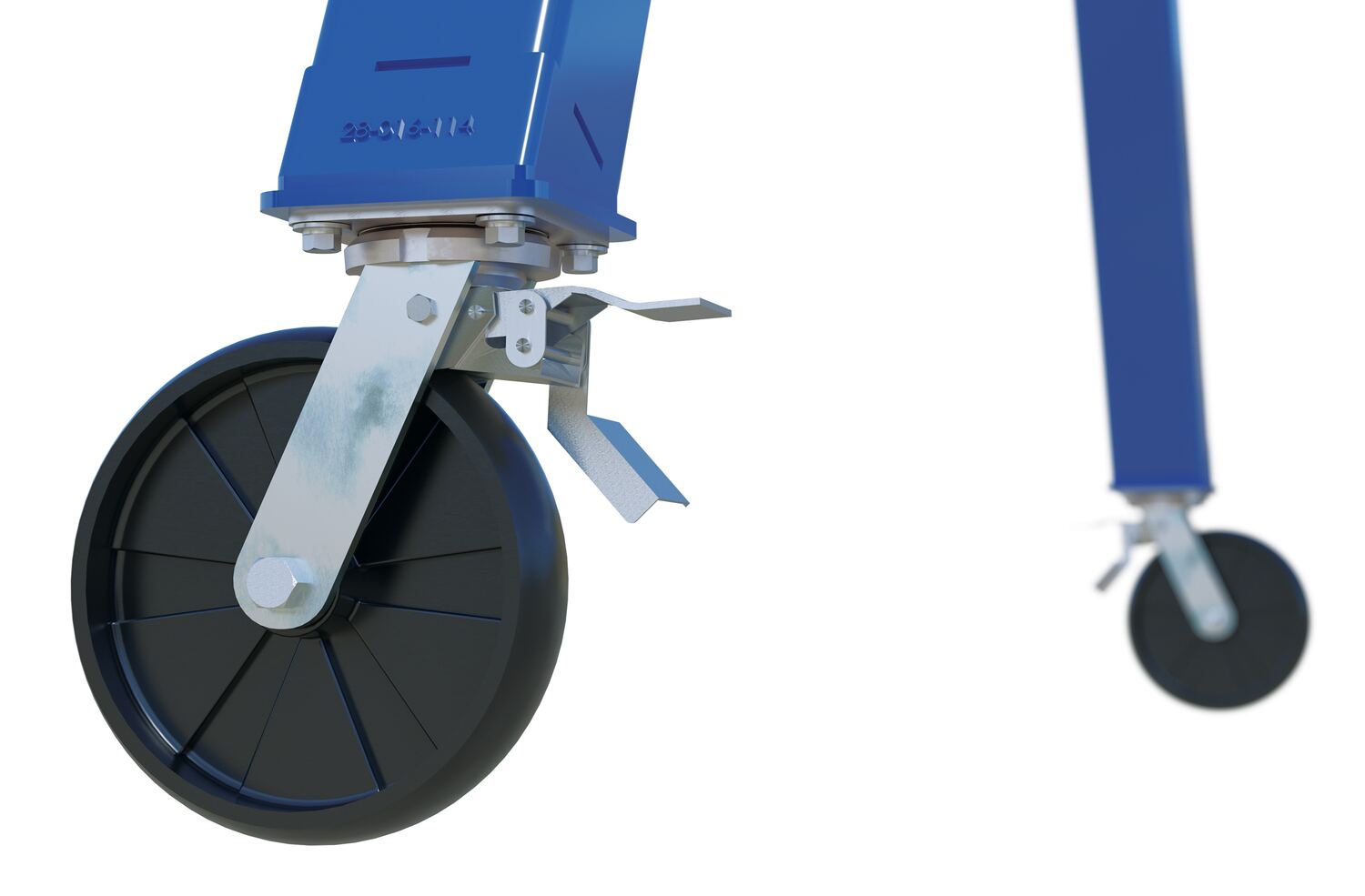

Uniform Capacity (lb.): 4,000 Swivel Casters w/ Brakes (qty.): 4 Caster Diameter/Width (in.): 8 x 2
Caster Material: Glass Filled Nylon Beam Height (in.): 8-1/8 Beam Length (in.): 180
Flange Width (in.): 4 Maximum Clearance (in.): 144 Minimum Clearance (in.): 90
Increment Height Adjustment (in.): 6

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: AHS-4-15-12-TLC
Available
AHS-4-15-12-TLC

Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 15 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity Blue

The industrial steel Gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard with total locking casters. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

  • Heavy-duty welded steel construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Dimensions: 76.125"W x 180"L x 152"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 705 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 4,000 Swivel Casters w/ Brakes (qty.): 4 Caster Diameter/Width (in.): 8 x 2
Caster Material: Glass Filled Nylon Beam Height (in.): 8-1/8 Beam Length (in.): 180
Flange Width (in.): 4 Maximum Clearance (in.): 144 Minimum Clearance (in.): 90
Increment Height Adjustment (in.): 6
