Model Details

AHS-6-20-12-TLC

AHS-6-20-12-TLC

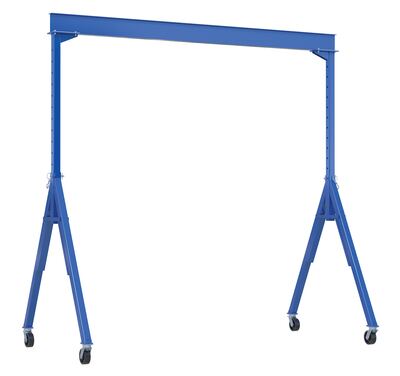

Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 20 Ft. x 12 Ft. 6000 Lb. Capacity Blue

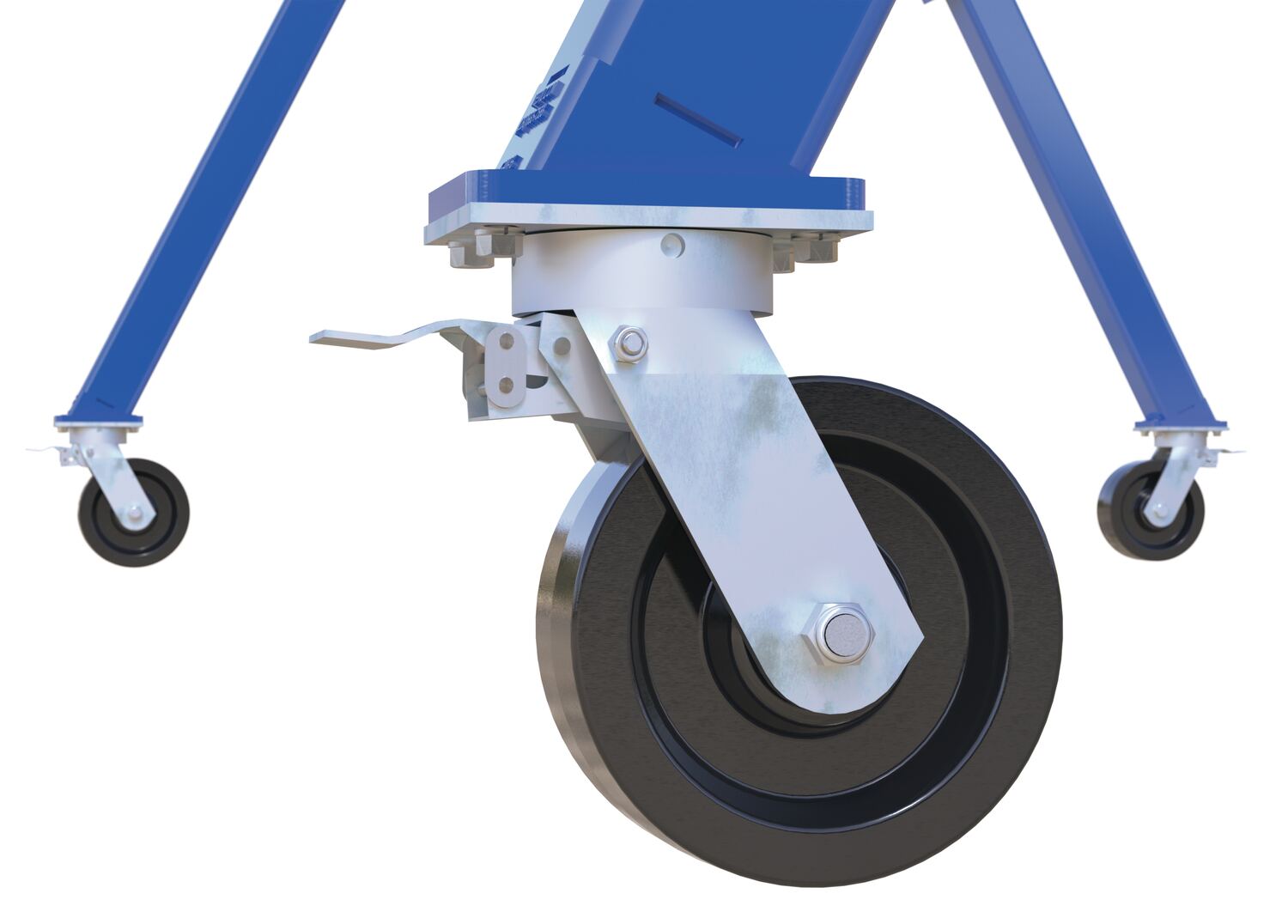

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Facilitate easy mobility from one area to another with total locking casters. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit from rust. Designed for semi-permanent or permanent applications.

  • Sleek painted finish
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Total Ship Wt.(lbs.): 1491 (Multiple Packages: P1: 793 lbs + P2: 698 lbs) Size: 77.375"W x 240"L x 157.25"H Color: Blue QuickShip

Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 3 Caster Material: Polyurethane

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AHS-6-20-12-TLC


AHS-6-20-12-TLC

Steel Adjustable Height Gantry Crane with Total Locking Phenolic Casters 20 Ft. x 12 Ft. 6000 Lb. Capacity Blue

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Facilitate easy mobility from one area to another with total locking casters. Height is adjustable in 6" increments. Do not move units while loaded. Hoist and trolley can be ordered separately. A painted blue finish protects the unit from rust. Designed for semi-permanent or permanent applications.

  • Sleek painted finish
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Dimensions: 77.375"W x 240"L x 157.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215367387 GTIN: 00691215367387
Warranty: -- Shipping Weight: 793 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs): 6000 Casters Swivel with Brakes (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 3 Caster Material: Polyurethane
