Model Details

← All Products- ← Industrial Ladders- ← Step Stands -← Adjustable Step Stands with Handrail- ASP-48-3-HR

ASP-48-3-HR

Printer Friendly
Available
ASP-48-3-HR
ASP-48-3-HR

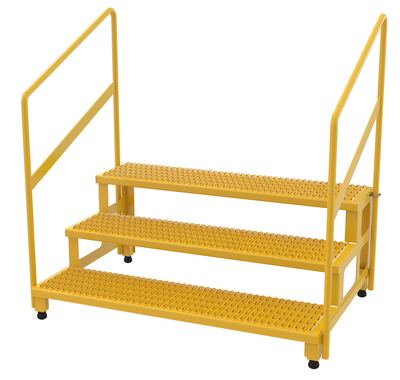

Steel Adjustable Step Stand 48 Inches Wide 3-Step with Handrails 500 Lb Capacity Yellow

The adjustable step-mate stand can be used as either a comfortable worker platform or a semi-permanent step. Step angle is maintained at a stable 30 degrees. Built of powder coated welded steel with schedule 40 steel handrails.

  • Independently adjustable height legs
  • Handrails included for user stability
  • Each leg fitted with rubber tip for better grip & traction
  • Serrated step surface provides excellent traction
Assembled Wt.(lbs.): 149 Assembled Size: 51.125"W x 33.875"L x 52"H

Total Ship Wt.(lbs.): 169 (only 1 package) Package 1 Size: 40"W x 48"D x 38"H Color: Yellow Non-Returnable

Usable Width (in.): 49 Number of Steps: 3 Uniform Capacity (lb.): 500
Bottom Step Height Minimum (in.): 6 Bottom Step Height Maximum (in.): 8-1/4 Middle Step Height Minimum (in.): 13
Middle Step Height Maximum (in.): 15-1/4 Top Step Height Minimum (in.): 20 Top Step Height Maximum (in.): 22-1/4
Step Material: Serrated Steel Step Depth (in.): 11-3/4 Step Angle (degrees): 30
Leg Feature: Anti-Slip Tips Adjustable Legs (Y/N): Yes Handrail Construction: Steel Tubing
Includes: 2 Bolt-On Handrails

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: ASP-48-3-HR
Available
ASP-48-3-HR

Steel Adjustable Step Stand 48 Inches Wide 3-Step with Handrails 500 Lb Capacity Yellow

The adjustable step-mate stand can be used as either a comfortable worker platform or a semi-permanent step. Step angle is maintained at a stable 30 degrees. Built of powder coated welded steel with schedule 40 steel handrails.

  • Independently adjustable height legs
  • Handrails included for user stability
  • Each leg fitted with rubber tip for better grip & traction
  • Serrated step surface provides excellent traction
Dimensions: 51.125"W x 33.875"L x 52"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 169 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Usable Width (in.): 49 Number of Steps: 3 Uniform Capacity (lb.): 500
Bottom Step Height Minimum (in.): 6 Bottom Step Height Maximum (in.): 8-1/4 Middle Step Height Minimum (in.): 13
Middle Step Height Maximum (in.): 15-1/4 Top Step Height Minimum (in.): 20 Top Step Height Maximum (in.): 22-1/4
Step Material: Serrated Steel Step Depth (in.): 11-3/4 Step Angle (degrees): 30
Leg Feature: Anti-Slip Tips Adjustable Legs (Y/N): Yes Handrail Construction: Steel Tubing
Includes: 2 Bolt-On Handrails
