Model Details

← All Products- ← Industrial Ladders- ← Step Stands -← Adjustable Step Stands with Handrail- ASP-72-HR

ASP-72-HR

Printer Friendly
Available
ASP-72-HR
ASP-72-HR

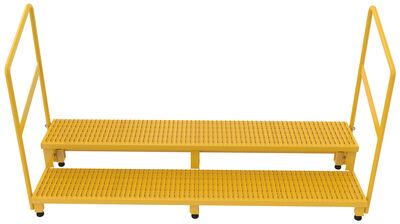

Steel Adjustable Step Stand 72 inch Wide 2-Step with Handrails 500 Lb. Capacity Yellow

The adjustable step-mate stand can be used as either a comfortable worker platform or a semi-permanent step. Step angle is maintained at a stable 30 degrees. Built of powder coated welded steel with schedule 40 steel handrails.

  • Independently adjustable height legs
  • Handrails included for user stability
  • Each leg fitted with rubber tip for better grip & traction
  • Serrated step surface provides excellent traction
Assembled Wt.(lbs.): 141.5 Assembled Size: 74.6875"W x 22.875"L x 45.25"H

Total Ship Wt.(lbs.): 172 (only 1 package) Package 1 Size: 29"W x 92"D x 28"H Color: Yellow Non-Returnable

Usable Width (in.): 72-9/16 Number of Steps: 2 Uniform Capacity (lb.): 500
Bottom Step Height Minimum (in.): 6 Bottom Step Height Maximum (in.): 8-1/4 Top Step Height Minimum (in.): 13
Top Step Height Maximum (in.): 15-1/4 Step Material: Serrated Steel Step Depth (in.): 11-3/4
Step Angle (degrees): 30 Leg Feature: Anti-Slip Tips Adjustable Legs (Y/N): Yes
Handrail Construction: Steel Tubing Includes: 2 Bolt-On Handrails

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: ASP-72-HR
Available
ASP-72-HR

Steel Adjustable Step Stand 72 inch Wide 2-Step with Handrails 500 Lb. Capacity Yellow

The adjustable step-mate stand can be used as either a comfortable worker platform or a semi-permanent step. Step angle is maintained at a stable 30 degrees. Built of powder coated welded steel with schedule 40 steel handrails.

  • Independently adjustable height legs
  • Handrails included for user stability
  • Each leg fitted with rubber tip for better grip & traction
  • Serrated step surface provides excellent traction
Dimensions: 74.6875"W x 22.875"L x 45.25"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 172 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Usable Width (in.): 72-9/16 Number of Steps: 2 Uniform Capacity (lb.): 500
Bottom Step Height Minimum (in.): 6 Bottom Step Height Maximum (in.): 8-1/4 Top Step Height Minimum (in.): 13
Top Step Height Maximum (in.): 15-1/4 Step Material: Serrated Steel Step Depth (in.): 11-3/4
Step Angle (degrees): 30 Leg Feature: Anti-Slip Tips Adjustable Legs (Y/N): Yes
Handrail Construction: Steel Tubing Includes: 2 Bolt-On Handrails
