Model Details

CART-1000-LT

CART-1000-LT

Steel Lift and Tilt Carts with Sequence Select 22 In. x 33-1/2 In. 1000 Lb. Capacity Blue

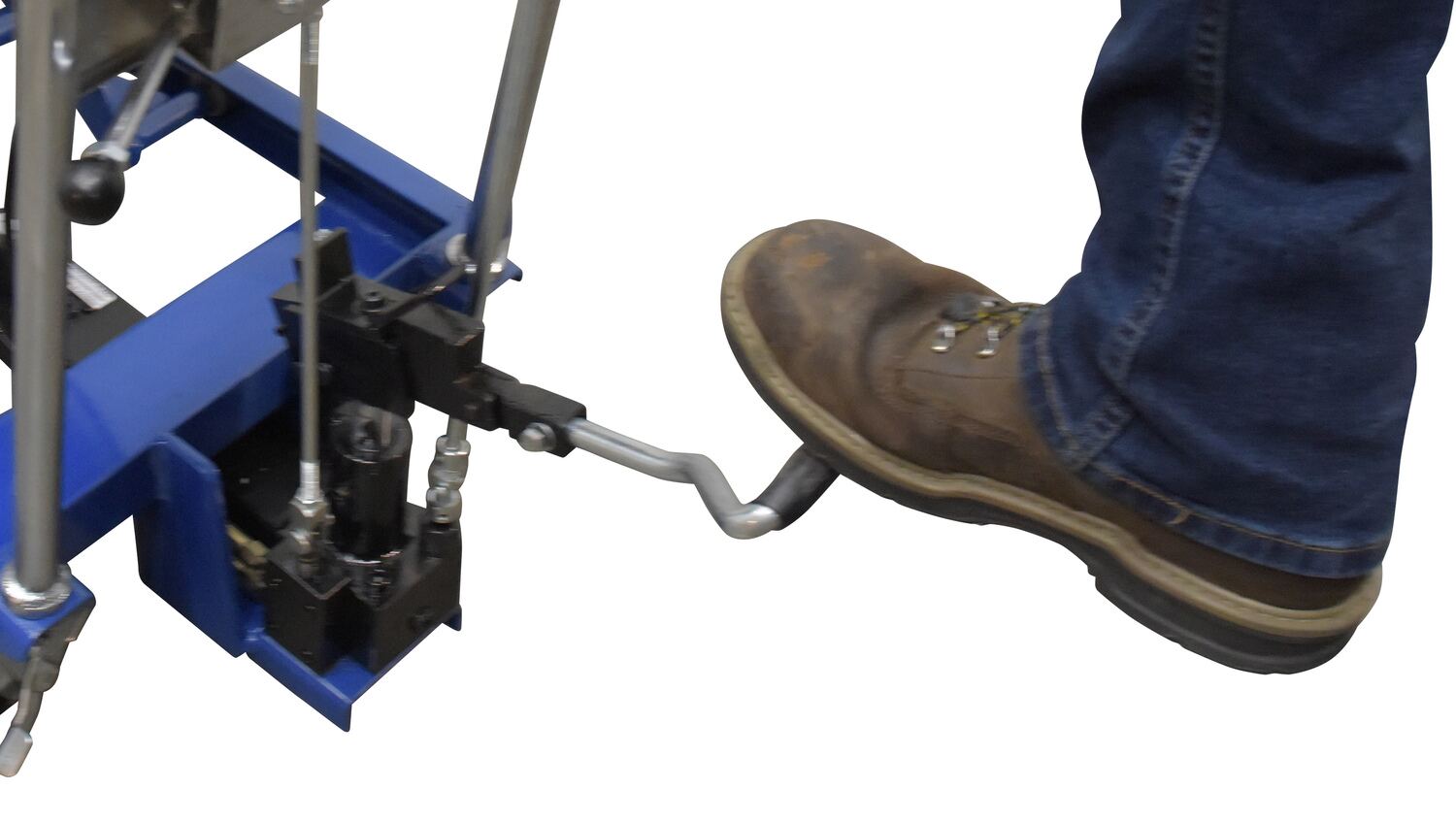

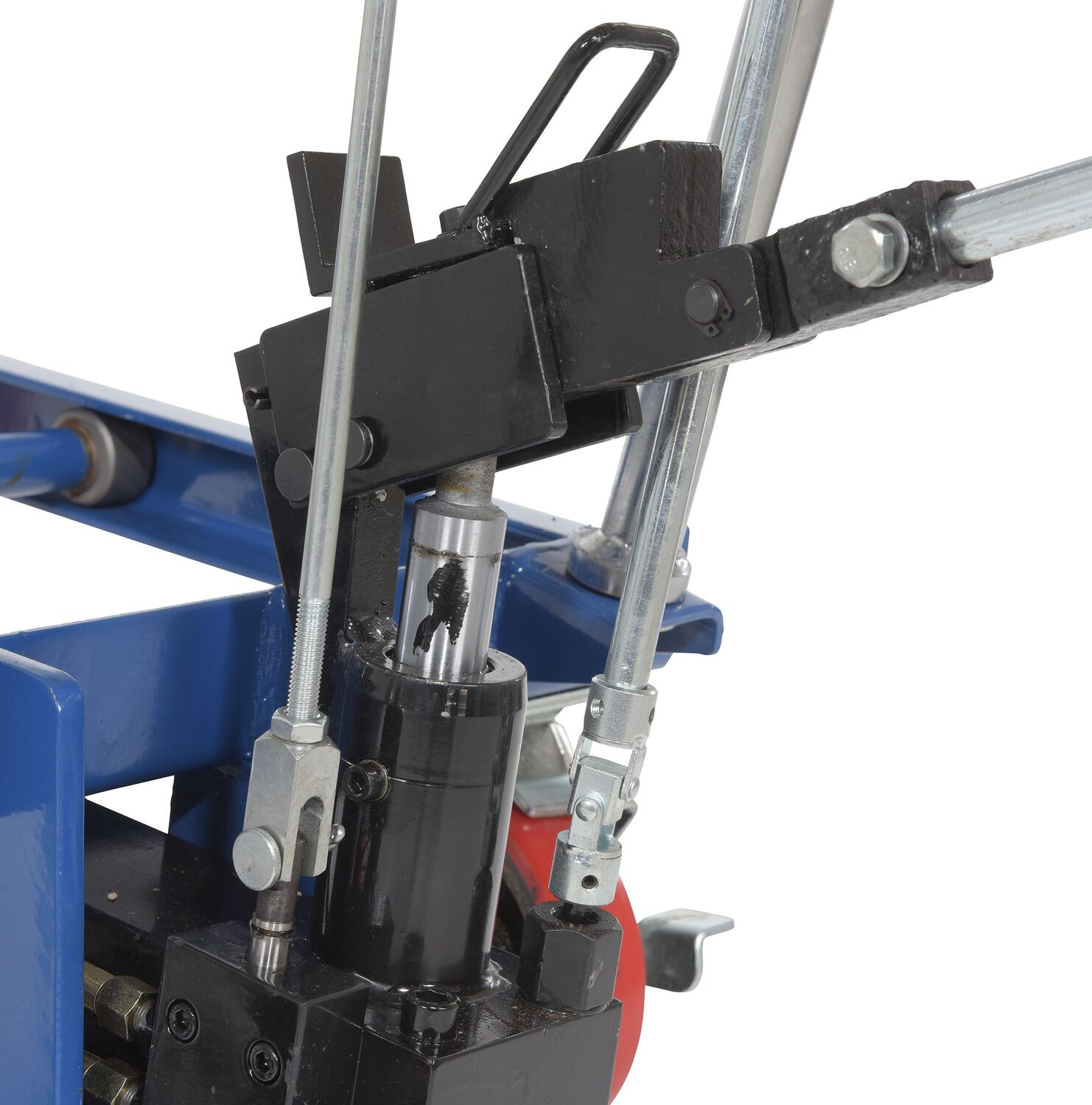

The Lift and Tilt Cart with sequence select has a unique design which allows the user to raise and tilt materials to an ergonomic position for better posture and operator comfort. The manual hydraulic foot pump controls the platform lift, lower, and tilt sequence. The platform includes a retaining lip and four casters that allows the unit to be portable with two rigid and two swivel with brakes. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Total Ship Wt.(lbs.): 340 (only 1 package) Size: 22"W x 39.5"L x 34.25"H Color: Blue QuickShip

Uniform Capacity (lb.): 1000 Platform Width (in.): 22 Platform Length (in.): 33-1/2
Lowered Height (in.): 17-5/8 Raised Height (in.): 34-1/4 Maximum Tilt Degree: 35
Retaining Lip (in.): 7 Frame Material: Steel Caster Quantity/Diameter/Width (in.): (4) 5 x 2
Caster Material: Poly-on-Steel

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CART-1000-LT


CART-1000-LT

Steel Lift and Tilt Carts with Sequence Select 22 In. x 33-1/2 In. 1000 Lb. Capacity Blue

The Lift and Tilt Cart with sequence select has a unique design which allows the user to raise and tilt materials to an ergonomic position for better posture and operator comfort. The manual hydraulic foot pump controls the platform lift, lower, and tilt sequence. The platform includes a retaining lip and four casters that allows the unit to be portable with two rigid and two swivel with brakes. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Dimensions: 22"W x 39.5"L x 34.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215076036 GTIN: 00691215076036
Warranty: -- Shipping Weight: 340 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1000 Platform Width (in.): 22 Platform Length (in.): 33-1/2
Lowered Height (in.): 17-5/8 Raised Height (in.): 34-1/4 Maximum Tilt Degree: 35
Retaining Lip (in.): 7 Frame Material: Steel Caster Quantity/Diameter/Width (in.): (4) 5 x 2
Caster Material: Poly-on-Steel
