Model Details

COL-AL-5-46-23

COL-AL-5-46-23

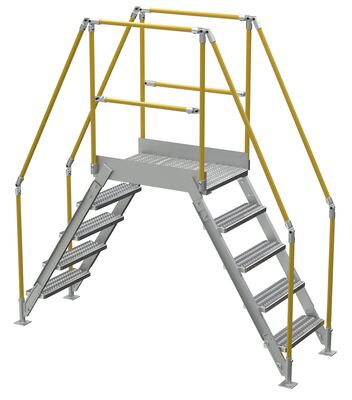

Aluminum Crossover Ladder 5 Step 46 In. Wide 23 In. Top Step 500 Lb. Capacity Silver

In industrial settings, every inch of floor space matters. With the installation of a cross over ladder, all floor space is able to be utilized fully. An aluminum construction and simple mounting, the ladder can be placed in a permanent location to best fit the floor layout. Serrated steps give the user sure footing going up and down the ladder, while the handrails give added security. Mid and top rails give balance and safety support to users while on the upper platform. Hardware is included.

  • Aluminum construction offers long lasting use
  • Pre-drilled holes for secure mounting to surface
  • Secure steps for traversing up or down
  • Highly visible yellow powder coated handrail
Total Ship Wt.(lbs.): 323 (only 1 package) Size: 29.25"W x 91.5"L x 93"H Color: Silver Non-Returnable

Uniform Capacity (lb.): 500 Step Angle: 58 Degrees Step Spacing: 10"
Top Step (HxWxD): 50"x26"x36" Other Step (WxD): 26"x7"

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: COL-AL-5-46-23


COL-AL-5-46-23

Aluminum Crossover Ladder 5 Step 46 In. Wide 23 In. Top Step 500 Lb. Capacity Silver

In industrial settings, every inch of floor space matters. With the installation of a cross over ladder, all floor space is able to be utilized fully. An aluminum construction and simple mounting, the ladder can be placed in a permanent location to best fit the floor layout. Serrated steps give the user sure footing going up and down the ladder, while the handrails give added security. Mid and top rails give balance and safety support to users while on the upper platform. Hardware is included.

  • Aluminum construction offers long lasting use
  • Pre-drilled holes for secure mounting to surface
  • Secure steps for traversing up or down
  • Highly visible yellow powder coated handrail
Dimensions: 29.25"W x 91.5"L x 93"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215340571 GTIN: 00691215340571
Warranty: -- Shipping Weight: 323 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 500 Step Angle: 58 Degrees Step Spacing: 10"
Top Step (HxWxD): 50"x26"x36" Other Step (WxD): 26"x7"
