Model Details

DCBB-42-5.5

Printer Friendly
DCBB-42-5.5

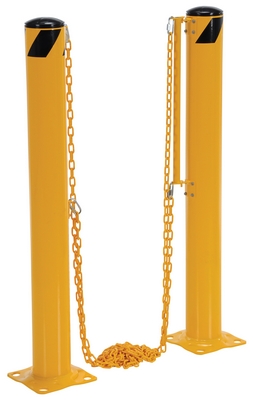

Steel Dock Chain Barrier Bollard 5.5 In. Diameter Yellow

The dock chain barrier system creates a safe environment for both personnel and products. The steel constructed double chain adds extra security for door up to 10'. Unit is designed with a safety yellow finish for clear visibility and a bolt on chain hook-up enabling quick installation or removal. The chain can be cut to a specific size upon request. The barrier system includes (2) two bollards, (2) 127" long chains and (1) one bollard conversion kit. The conversion kit includes four (4) bollard mounting brackets, (16) sixteen self tapping screws, (1) post unfoldment bracket, and (4) four quick links.

  • Dock chain barrier bollard creates a safe environment around the dock area
  • Chains can be mounted at 21" and 39" high on the bollard
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
Total Ship Wt.(lbs.): 98 (Multiple Packages: P1: 49 lbs + P2: 49 lbs) Size: 8"W x 147.75"L x 42.8125"H Color: Yellow QuickShip

Bollard quantity: 2 Bollard Diameter (in.): 5-1/2 Chain Quantity/Length (in.): (2) 127
Mounting Bracket (qty.): 4 Self Tapping Screw (qty.): 16 Chain Post Handle (qty.): 1
Quick Links (qty.): 4 Accommodated Door Width (ft.): 10 Impact Resistance: Each BOL = 4,000 @ 4mph, connecting chain = only rated for personnel barrier of 250 lbs. load
Overall Length (in.): 147-3/4 Overall Width (in.): 8 Overall Height (in.): 42-3/16

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: DCBB-42-5.5
DCBB-42-5.5

Steel Dock Chain Barrier Bollard 5.5 In. Diameter Yellow

The dock chain barrier system creates a safe environment for both personnel and products. The steel constructed double chain adds extra security for door up to 10'. Unit is designed with a safety yellow finish for clear visibility and a bolt on chain hook-up enabling quick installation or removal. The chain can be cut to a specific size upon request. The barrier system includes (2) two bollards, (2) 127" long chains and (1) one bollard conversion kit. The conversion kit includes four (4) bollard mounting brackets, (16) sixteen self tapping screws, (1) post unfoldment bracket, and (4) four quick links.

  • Dock chain barrier bollard creates a safe environment around the dock area
  • Chains can be mounted at 21" and 39" high on the bollard
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
Dimensions: 8"W x 147.75"L x 42.8125"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215106115 GTIN: 00691215106115
Warranty: -- Shipping Weight: 49 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Bollard quantity: 2 Bollard Diameter (in.): 5-1/2 Chain Quantity/Length (in.): (2) 127
Mounting Bracket (qty.): 4 Self Tapping Screw (qty.): 16 Chain Post Handle (qty.): 1
Quick Links (qty.): 4 Accommodated Door Width (ft.): 10 Impact Resistance: Each BOL = 4,000 @ 4mph, connecting chain = only rated for personnel barrier of 250 lbs. load
Overall Length (in.): 147-3/4 Overall Width (in.): 8 Overall Height (in.): 42-3/16
