Model Details

FE-4-72-P-LR

Not Yet Available, Coming Soon, Contact Vestil for Specifics

Printer Friendly
FE-4-72-P-LR

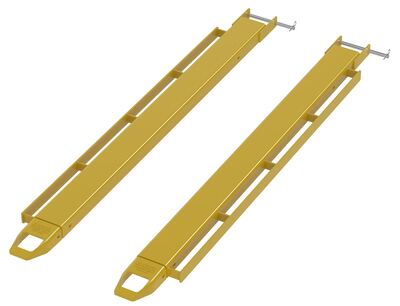

Steel Pin Style Fork Extensions with Load Rails 4" X 72" 4,000 Lb. Capacity Yellow

With a pair of fork extensions, get the extra support you need to lift those long and large items! This unique design provides load rails down the length of each extension. Not only that, but the placements of the rails provide a place to secure the load and limit the amount of product movement allowed. The best part is how simple these are able to attach to existing forks. Simply, remove pin and lay extension over fork. Re-insert the pin behind the heel of the fork to secure extension. OSHA regulations require that extensions are no more than one-hundred and fifty (150) percent of the existing fork length.

  • Cast steel tips
  • Welded steel load rails
  • Multiple tie-down points available
  • To be used with class 2 and class 3 forks only
Total Ship Wt.(lbs.): 138 (only 1 package) Size: 9.5"W x 75.625"L x 2.3125"H Color: Yellow Non-Returnable

Capacity Per Pair Evenly Distributed (lb.): 4000 Width (in.): 5-1/8 Overall Width With Retaining Pin (in.): 9-1/2
Usable Width (in.): 4-1/2 Overall Length (in.): 75-5/8 Usable Length (in.): 72
Fit for Fork Thickness (in.): 4 x 2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FE-4-72-P-LR
FE-4-72-P-LR

Steel Pin Style Fork Extensions with Load Rails 4" X 72" 4,000 Lb. Capacity Yellow

With a pair of fork extensions, get the extra support you need to lift those long and large items! This unique design provides load rails down the length of each extension. Not only that, but the placements of the rails provide a place to secure the load and limit the amount of product movement allowed. The best part is how simple these are able to attach to existing forks. Simply, remove pin and lay extension over fork. Re-insert the pin behind the heel of the fork to secure extension. OSHA regulations require that extensions are no more than one-hundred and fifty (150) percent of the existing fork length.

  • Cast steel tips
  • Welded steel load rails
  • Multiple tie-down points available
  • To be used with class 2 and class 3 forks only
Dimensions: 9.5"W x 75.625"L x 2.3125"H Sell UOM: PR-Pair Color: Yellow
Material: Steel UPC: 691215376877 GTIN: 00691215376877
Warranty: -- Shipping Weight: 138 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: US
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Capacity Per Pair Evenly Distributed (lb.): 4000 Width (in.): 5-1/8 Overall Width With Retaining Pin (in.): 9-1/2
Usable Width (in.): 4-1/2 Overall Length (in.): 75-5/8 Usable Length (in.): 72
Fit for Fork Thickness (in.): 4 x 2
