Model: FHS-8-15-TLC

FHS-8-15-TLC

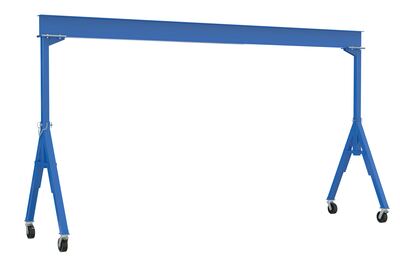

Steel Fixed Gantry Crane with Total Locking Phenolic Casters 15 Ft. 8000 Lb. Capacity Blue

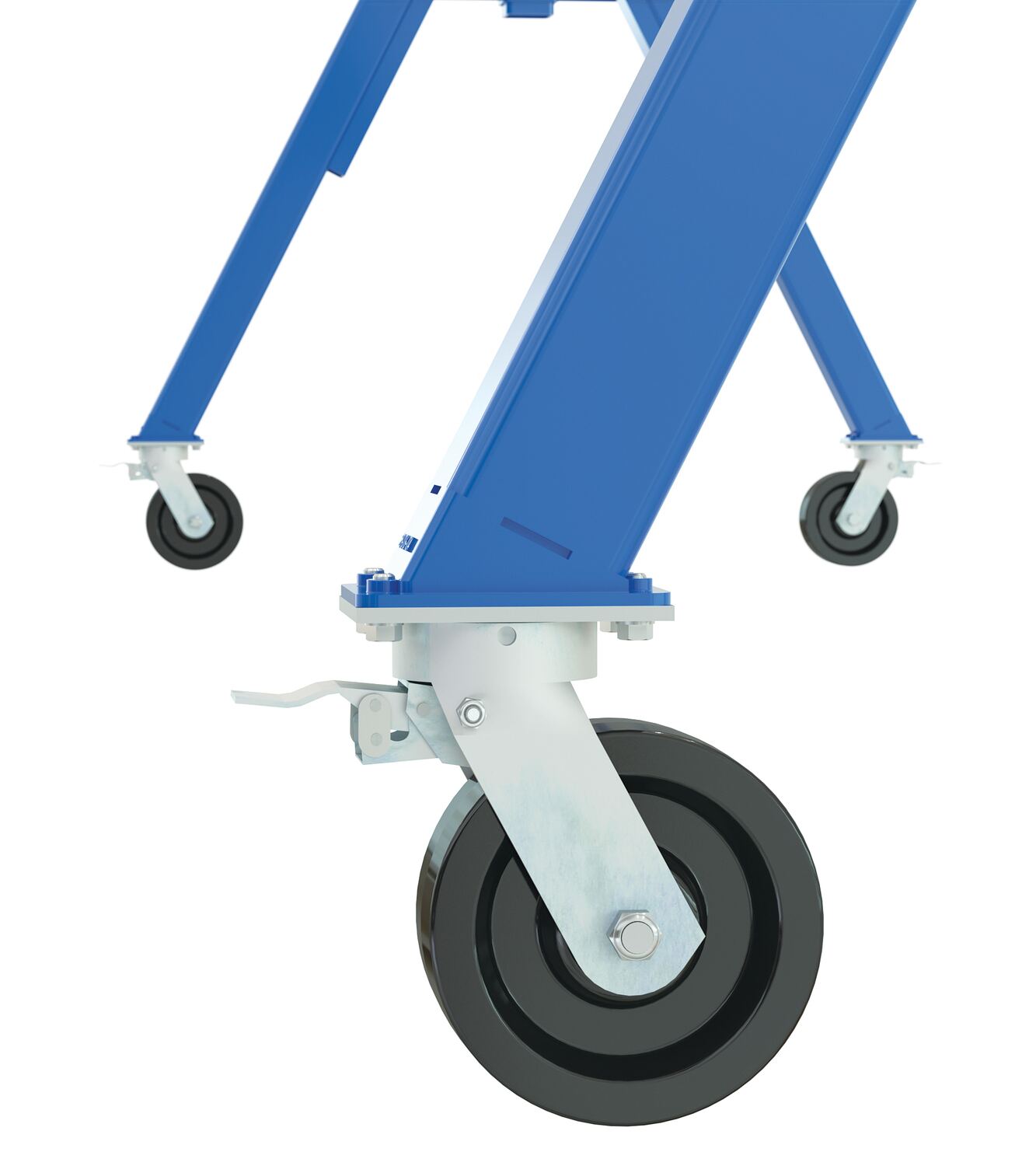

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. Unit comes standard with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.

  • Sleek painted finish
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications
Ship Weight (lbs.): 705 Size: 64.5"W x 180"L x 131.3125"H Color: Blue

Uniform Capacity (lbs.): 8000 Casters Swivel with Brakes(Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 3 Caster Material: Glass Filled Nylon Beam Height (in): 10.125
Beam Length (in): 180 Usable Beam Length (in): 149.75 Flange Width (in): 4
Base Width (in): 64.25 Base Length (in): 169.25 Maximum Overall Height (in): 131.313
Adjustable Height: No Maximum Clearance (in): 121

Marketing Specs.

MFG Model # (Series)
FHS-8-15-TLC
Product Name
Steel Fixed Gantry Crane with Total Locking Phenolic Casters 15 Ft. 8000 Lb. Capacity Blue
UPC
691215367776
GTIN
00691215367776
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Cranes
Taxonomy 4
Gantry
Assembled Depth (in.)
180
Assembled Width(in.)
64.5
Assembled Height(in.)
131.3125
Assembled Weight(lbs.)
961
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
United States
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
77
Package Width (in.)
65
Package Height (in.)
19
Package Weight (in.)
705
Subclass
6
Freight Class
85
NMFC Code
Cranes or Derricks, NOI
NMFC Number
118900
Package 2 Depth (in.)
192
Package 2 Width (in.)
14
Package 2 Height (in.)
10
Package 2 Weight (lbs.)
291
Package 2 Freight Class
50
Package2 NMFC Number
104420
LTL Freight
LTL Palletized
UNSPSC
24101654
HTSUS Number
8426190000
USMCA HS
8426.19
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery


PDF Documents


Details For Model: FHS-8-15-TLC


FHS-8-15-TLC

Steel Fixed Gantry Crane with Total Locking Phenolic Casters 15 Ft. 8000 Lb. Capacity Blue

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. Unit comes standard with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.

  • Sleek painted finish
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications
Dimensions: 64.5"W x 180"L x 131.3125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215367776 GTIN: 00691215367776
Warranty: -- Shipping Weight: 705 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs.): 8000 Casters Swivel with Brakes(Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 3 Caster Material: Glass Filled Nylon Beam Height (in): 10.125
Beam Length (in): 180 Usable Beam Length (in): 149.75 Flange Width (in): 4
Base Width (in): 64.25 Base Length (in): 169.25 Maximum Overall Height (in): 131.313
Adjustable Height: No Maximum Clearance (in): 121
