Model Details

FHSN-2-20-VG

FHSN-2-20-VG

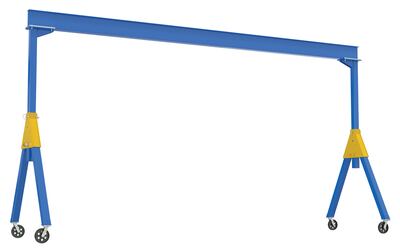

Steel Knockdown Fixed Gantry Crane with V-Groove Cast Iron Casters 20 Ft. 2000 Lb. Capacity Blue

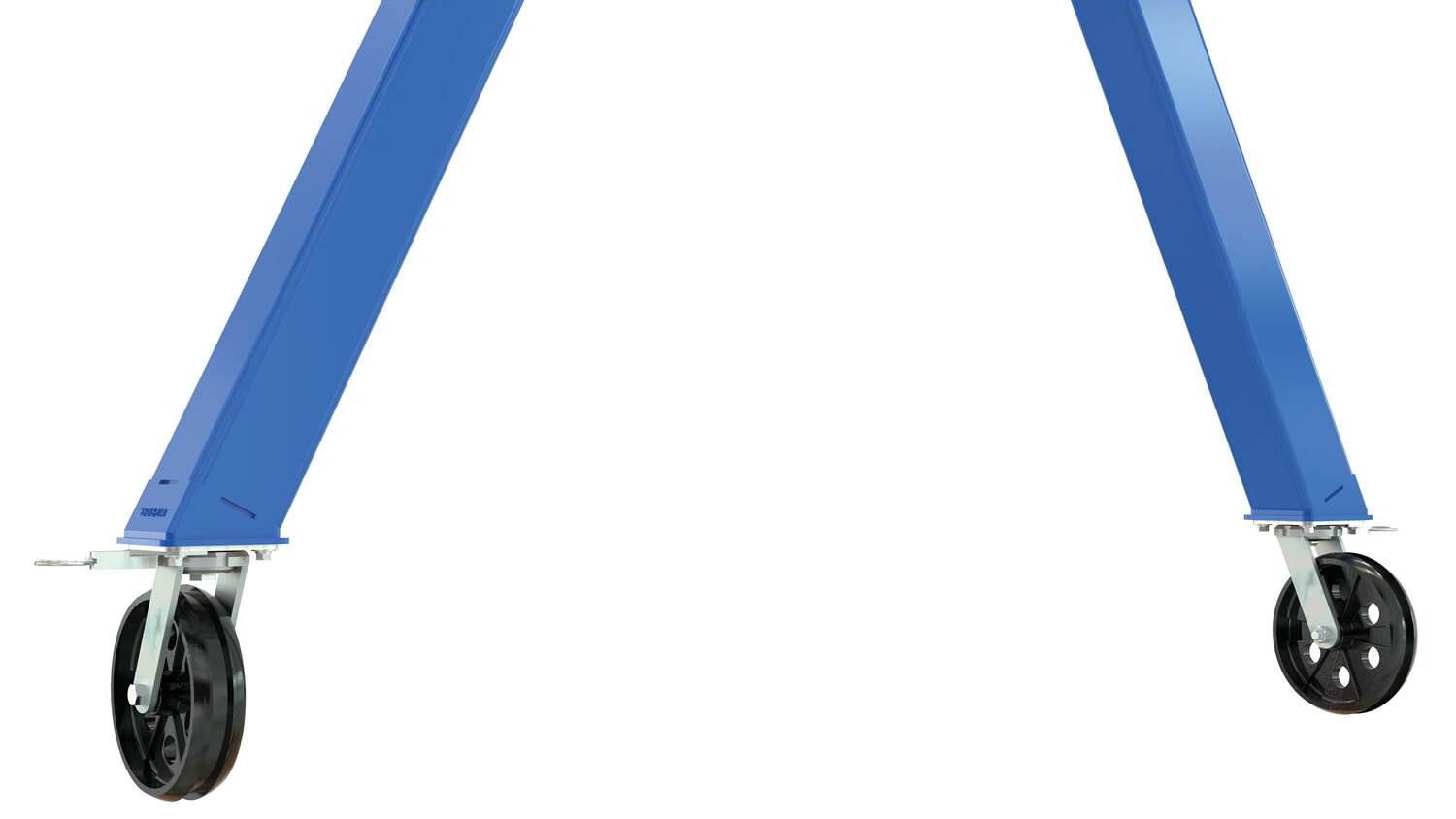

The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with the standard four (4) V-groove casters. These allow for quick movement and positioning adjustments. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Total Ship Wt.(lbs.): 1046 (Multiple Packages: P1: 679 lbs + P2: 367 lbs) Size: 64.5"W x 240"L x 130.5"H Color: Blue

Uniform Capacity (lbs.): 2000 Casters Swivel (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 2 Caster Material: Cast Iron Beam Height (in): 10.125
Beam Length (in): 240 Usable Beam Length (in): 209.75 Flange Width (in): 4
Base Width (in): 65.5 Base Length (in): 229.25 Maximum Overall Height (in): 130.5
Adjustable Height: No Maximum Clearance (in): 120.375

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FHSN-2-20-VG


FHSN-2-20-VG

Steel Knockdown Fixed Gantry Crane with V-Groove Cast Iron Casters 20 Ft. 2000 Lb. Capacity Blue

The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with the standard four (4) V-groove casters. These allow for quick movement and positioning adjustments. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Dimensions: 64.5"W x 240"L x 130.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215367820 GTIN: 00691215367820
Warranty: -- Shipping Weight: 679 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs.): 2000 Casters Swivel (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 2 Caster Material: Cast Iron Beam Height (in): 10.125
Beam Length (in): 240 Usable Beam Length (in): 209.75 Flange Width (in): 4
Base Width (in): 65.5 Base Length (in): 229.25 Maximum Overall Height (in): 130.5
Adjustable Height: No Maximum Clearance (in): 120.375
