Model Details

HPC-40

Printer Friendly
HPC-40

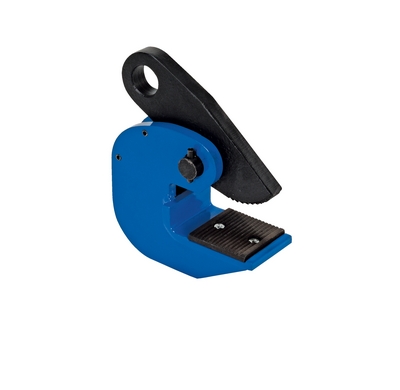

Steel Horizontal Plate Clamp 4,000 Lb. Capacity Blue

Clamp is perfectly designed for lifting plate material in horizontal positions. The heavy-duty steel construction provides years of reliable use. Not designed for use on stainless steel or aluminum plates.

  • Lift only one (1) clean and oil free plate at a time
  • Ribbed surface provides a resilient grip
  • Meets ASME B30.20 specifications
  • For use with materials with a surface hardness to 30 RC (300 HB)

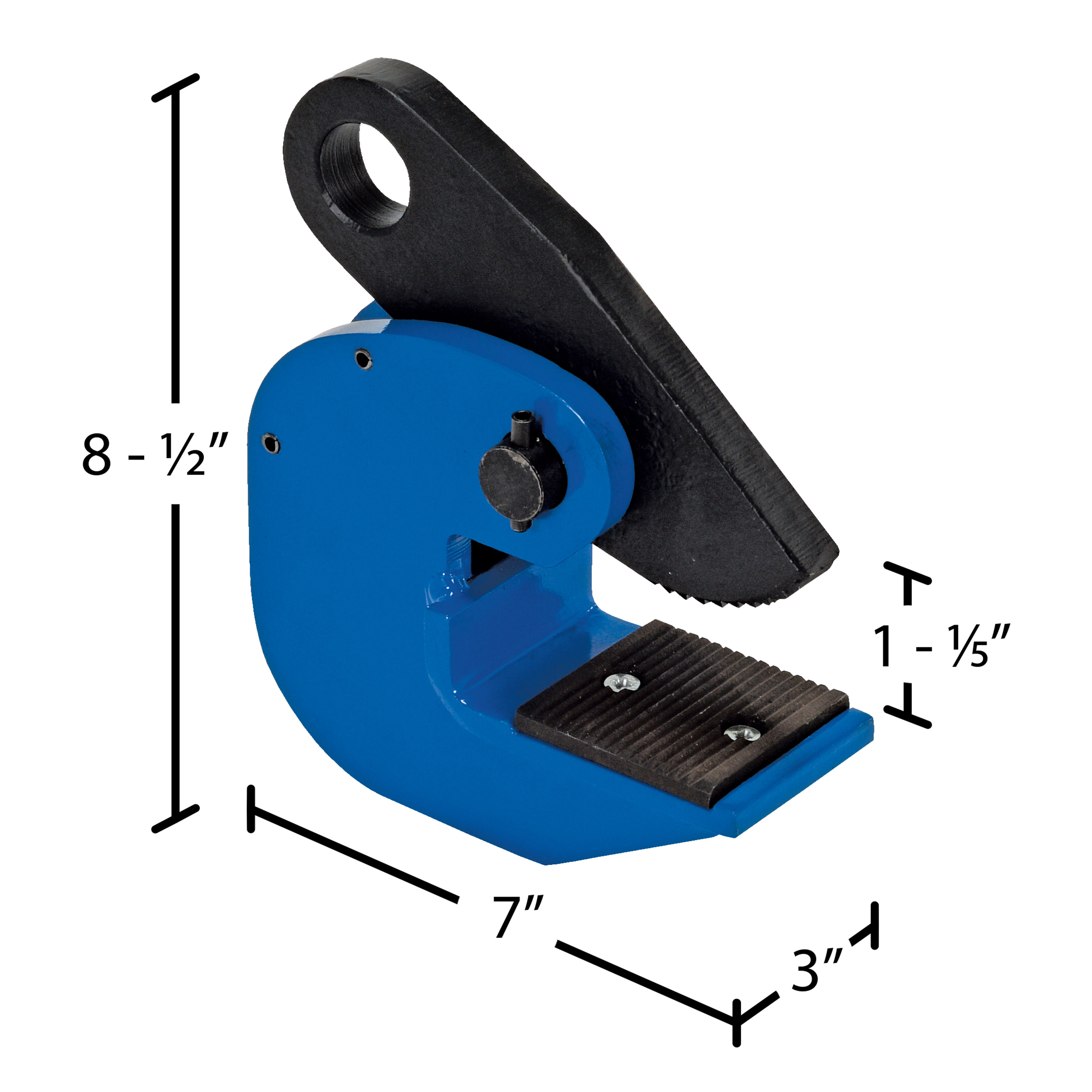

Total Ship Wt.(lbs.): 12 (only 1 package) Size: 3"W x 7"L x 8.5"H Color: Blue QuickShip

Uniform Working Load Limit (lb.): 4,000 Bale Opening (in.): 1.2 Minimum Plate Thickness (in.): 0
Maximum Plate Thickness (in.): 1.25 Min Uniform Plate Weight (lb.): 800

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: HPC-40
HPC-40

Steel Horizontal Plate Clamp 4,000 Lb. Capacity Blue

Clamp is perfectly designed for lifting plate material in horizontal positions. The heavy-duty steel construction provides years of reliable use. Not designed for use on stainless steel or aluminum plates.

  • Lift only one (1) clean and oil free plate at a time
  • Ribbed surface provides a resilient grip
  • Meets ASME B30.20 specifications
  • For use with materials with a surface hardness to 30 RC (300 HB)
Dimensions: 3"W x 7"L x 8.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215054638 GTIN: 00691215054638
Warranty: -- Shipping Weight: 12 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Working Load Limit (lb.): 4,000 Bale Opening (in.): 1.2 Minimum Plate Thickness (in.): 0
Maximum Plate Thickness (in.): 1.25 Min Uniform Plate Weight (lb.): 800
