Model Details

JIB-P-10-6-6

JIB-P-10-6-6

Steel Multi Station Jib Crane 72 In. I-Beam 1000 Lb. Capacity Blue

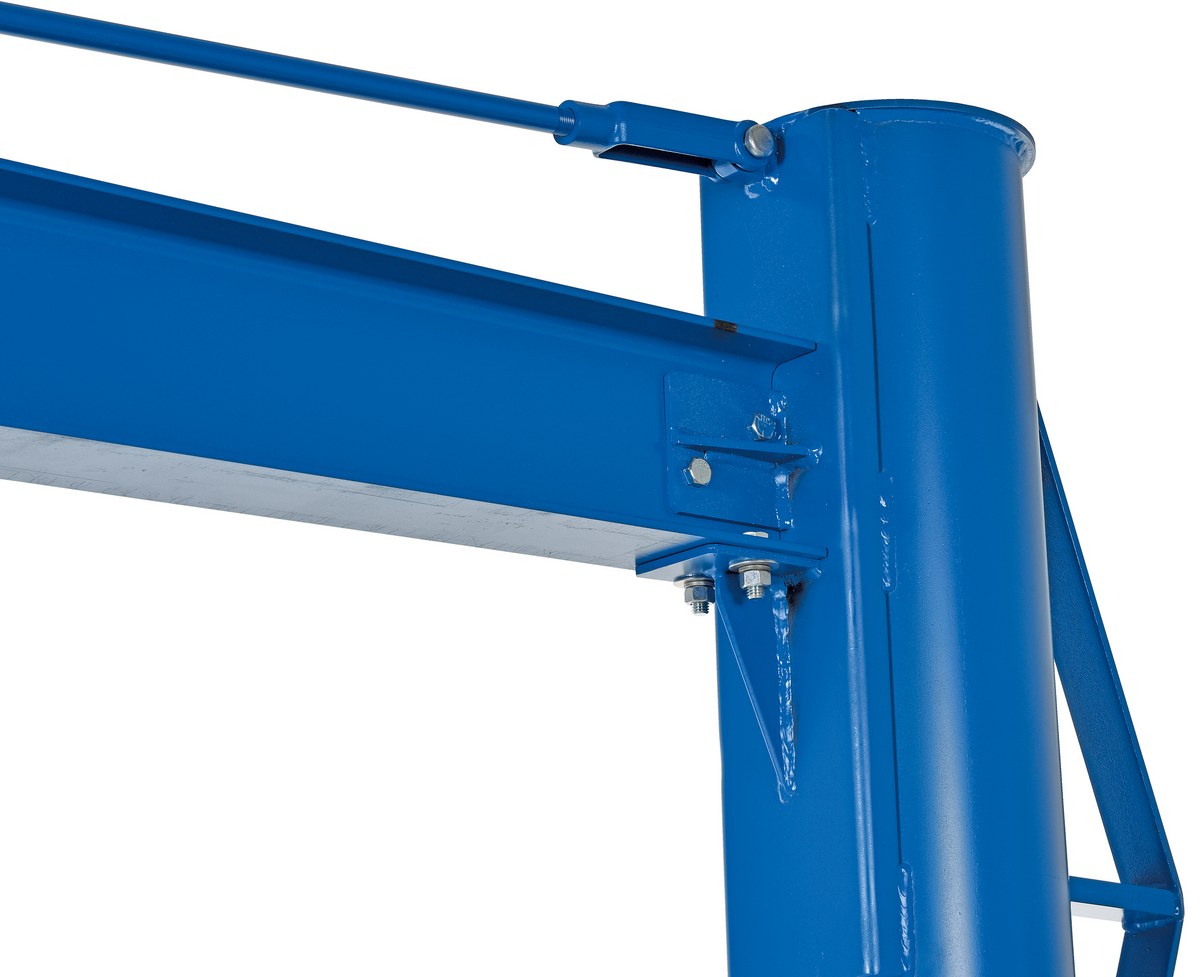

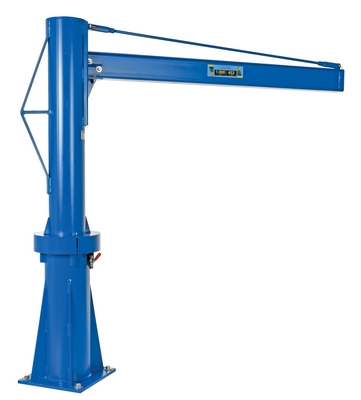

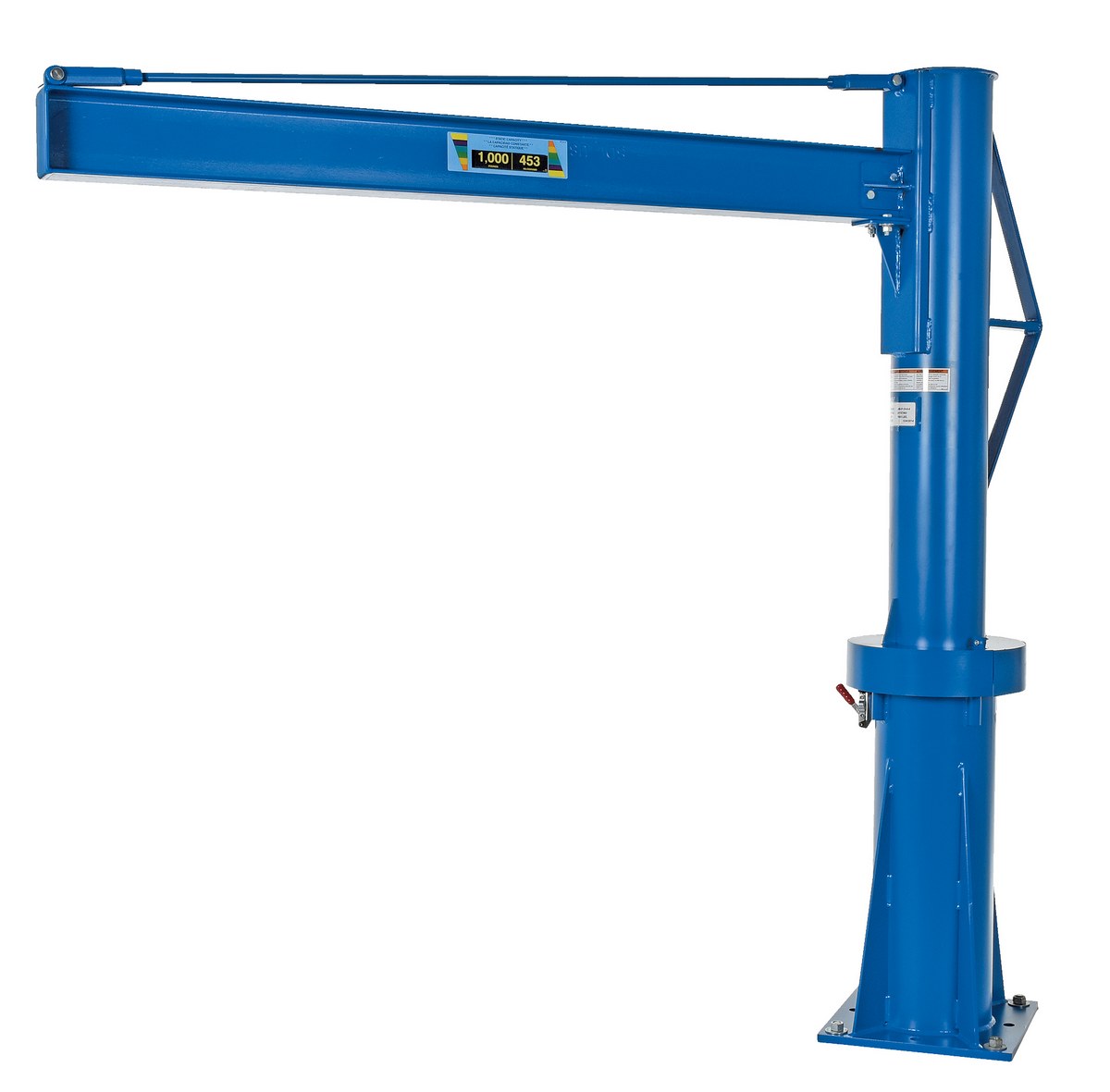

A multi-station transportable Jib crane is designed for use in multiple locations, includes jib crane and one base socket. Extra base sockets may be purchased for use in other locations. Friction brake design allows positive locking and controlled rotation of heavy loads. Standard six (6) inch high I-beam with three (4) inch flange width. Rugged welded steel construction. Requires reinforced concrete pad for installation. Hoist and trolley sold separately.

  • Six (6) inch high I-beam with four (4) inch flange width

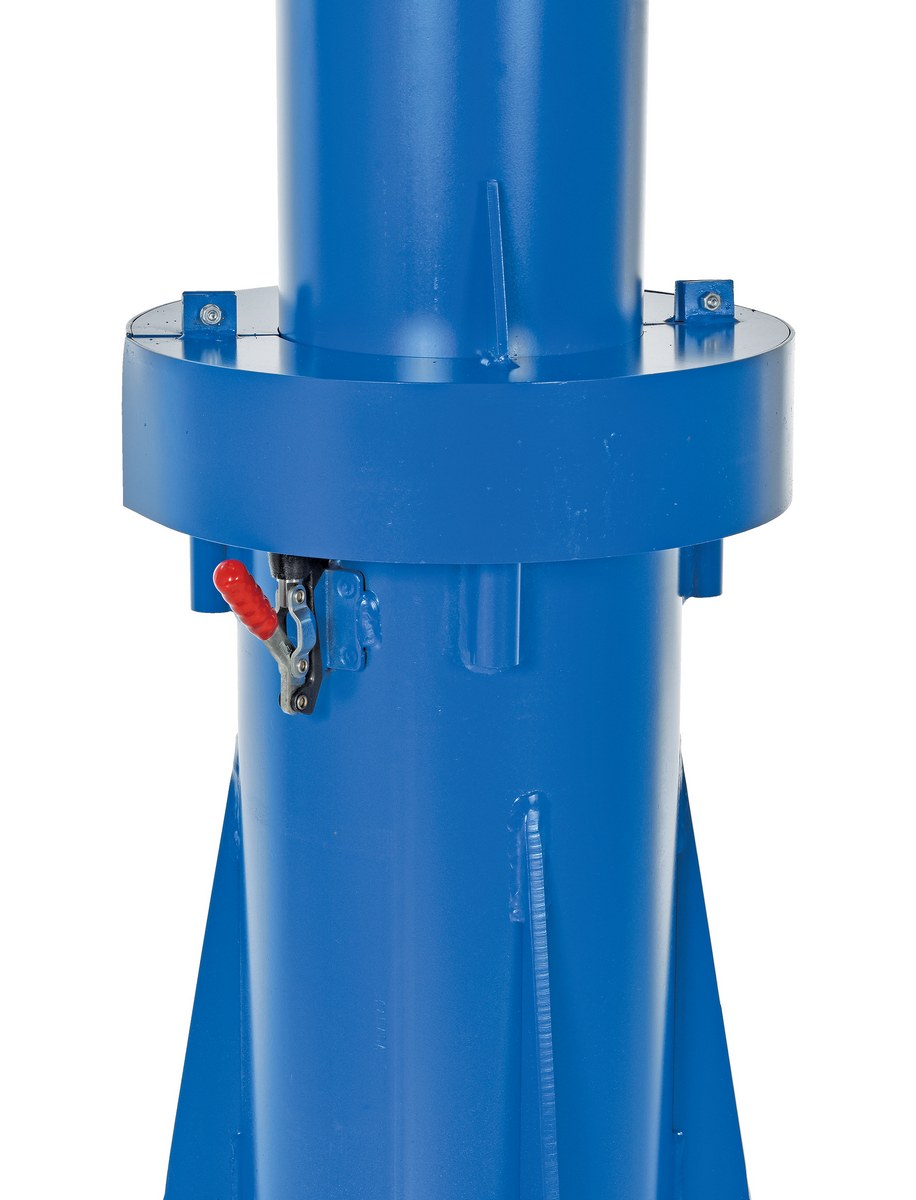

  • Hand operated manual brake
  • Arm manually rotates 360 degrees for maximum versatility
  • Rugged welded steel construction provides long lasting use
Total Ship Wt.(lbs.): 710 (only 1 package) Size: 17"W x 87.375"L x 84.6875"H Color: Blue

Uniform Capacity (lb.): 1,000 Overall I-Beam Span (in.): 72 I-Beam (Flange x Height) (in.): 4 x 6
Rotation Degree: 360 Mounting Plate Width/Length (in.): 17 x 17 Boom Reach (in.): 67-3/4
Usable Boom Height (in.): 71-13/16

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: JIB-P-10-6-6


JIB-P-10-6-6

Steel Multi Station Jib Crane 72 In. I-Beam 1000 Lb. Capacity Blue

A multi-station transportable Jib crane is designed for use in multiple locations, includes jib crane and one base socket. Extra base sockets may be purchased for use in other locations. Friction brake design allows positive locking and controlled rotation of heavy loads. Standard six (6) inch high I-beam with three (4) inch flange width. Rugged welded steel construction. Requires reinforced concrete pad for installation. Hoist and trolley sold separately.

  • Six (6) inch high I-beam with four (4) inch flange width
  • Hand operated manual brake
  • Arm manually rotates 360 degrees for maximum versatility
  • Rugged welded steel construction provides long lasting use
Dimensions: 17"W x 87.375"L x 84.6875"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215024884 GTIN: 00691215024884
Warranty: -- Shipping Weight: 710 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,000 Overall I-Beam Span (in.): 72 I-Beam (Flange x Height) (in.): 4 x 6
Rotation Degree: 360 Mounting Plate Width/Length (in.): 17 x 17 Boom Reach (in.): 67-3/4
Usable Boom Height (in.): 71-13/16
