Model Details

LM-OBNT-6-30

LM-OBNT-6-30

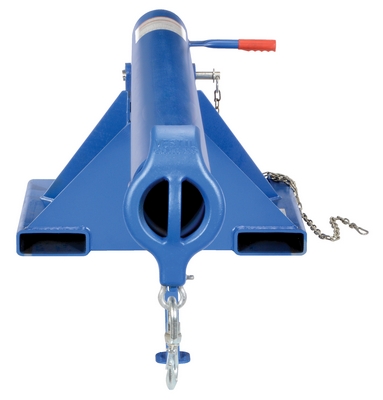

Steel Orbit Non Telescoping Lift Boom 30 In. Fork Pocket Center 6,000 Lb. Capacity Blue

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. A safety restraint secures the boom to the fork truck for safe operation. Includes two (2) lifting hooks.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety
Total Ship Wt.(lbs.): 635 (only 1 package) Size: 38"W x 80.875"L x 26.625"H Color: Blue

Uniform Capacity (lb.): 6,000 Fork Pocket Center (in.): 30 Fork Pocket Width (in.): 7-1/4 x 2-1/4
Restraint Length (in.): 36 Boom Style: Non-Telescoping Minimum/Maximum Hook Point (in.): 36/78
Single-Hook Capacity at 36" (lb.): 6000 Single-Hook Capacity at 48" (lb.): 5000 Single-Hook Capacity at 60" (lb.): 4500
Single-Hook Capacity at 72" (lb.): 4000 Single-Hook Capacity at 78" (lb.): 3500 Overall Extended Height (in.): 57-3/16
Retracted Hook Height (in.): 5-1/2 Extended Hook Height (in.): 38-1/4 Maximum Tilt Degree: 37
Boom Type: Orbit Boom OSHA: 1910.178(a)(4)

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LM-OBNT-6-30


LM-OBNT-6-30

Steel Orbit Non Telescoping Lift Boom 30 In. Fork Pocket Center 6,000 Lb. Capacity Blue

Unique performance, convenience, and safety features are built into every lift master boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. A safety restraint secures the boom to the fork truck for safe operation. Includes two (2) lifting hooks.

  • Unique design converts fork trucks into overhead lifting cranes
  • Fork pockets with safety strap attach & secure boom to fork truck
  • Robotically welded construction provides precision and durability
  • Operations & capacity sticker provide user instructions and safety
Dimensions: 38"W x 80.875"L x 26.625"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215089241 GTIN: 00691215089241
Warranty: -- Shipping Weight: 635 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 6,000 Fork Pocket Center (in.): 30 Fork Pocket Width (in.): 7-1/4 x 2-1/4
Restraint Length (in.): 36 Boom Style: Non-Telescoping Minimum/Maximum Hook Point (in.): 36/78
Single-Hook Capacity at 36" (lb.): 6000 Single-Hook Capacity at 48" (lb.): 5000 Single-Hook Capacity at 60" (lb.): 4500
Single-Hook Capacity at 72" (lb.): 4000 Single-Hook Capacity at 78" (lb.): 3500 Overall Extended Height (in.): 57-3/16
Retracted Hook Height (in.): 5-1/2 Extended Hook Height (in.): 38-1/4 Maximum Tilt Degree: 37
Boom Type: Orbit Boom OSHA: 1910.178(a)(4)
