Model Details

PM5-2748-Y

Printer Friendly
PM5-2748-Y

Steel Pallet Truck 61-11/16 In. x 28-3/4 In. x 48-5/8 In. 5500 Lb. Capacity Yellow

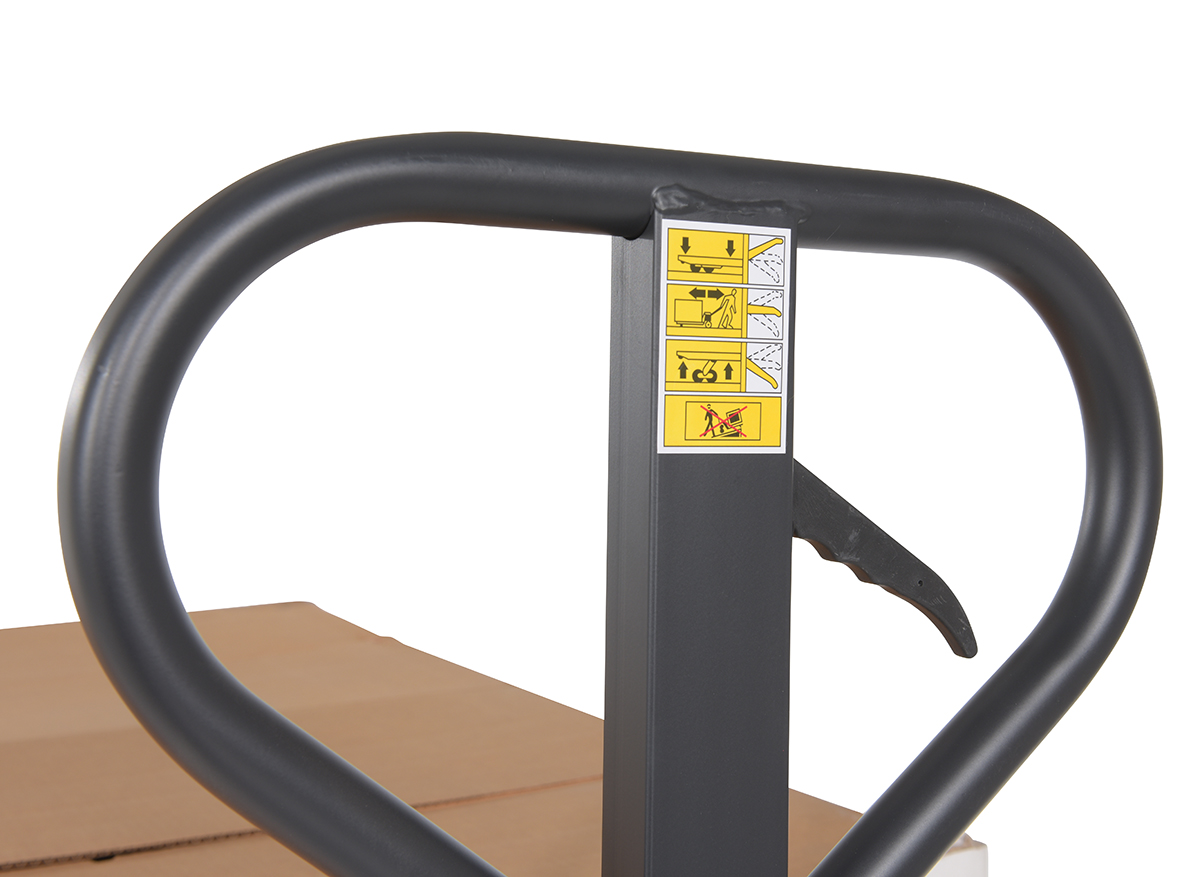

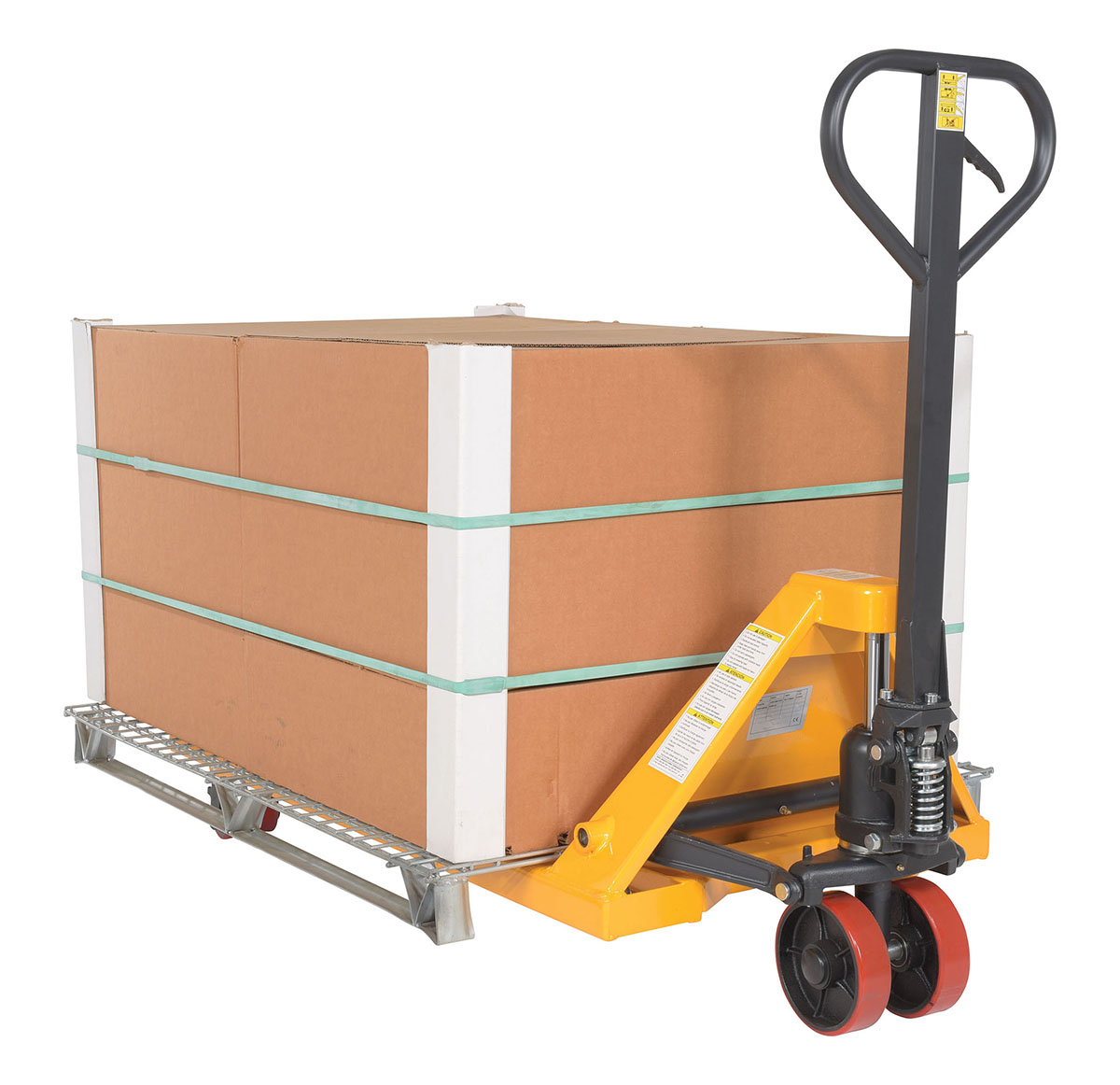

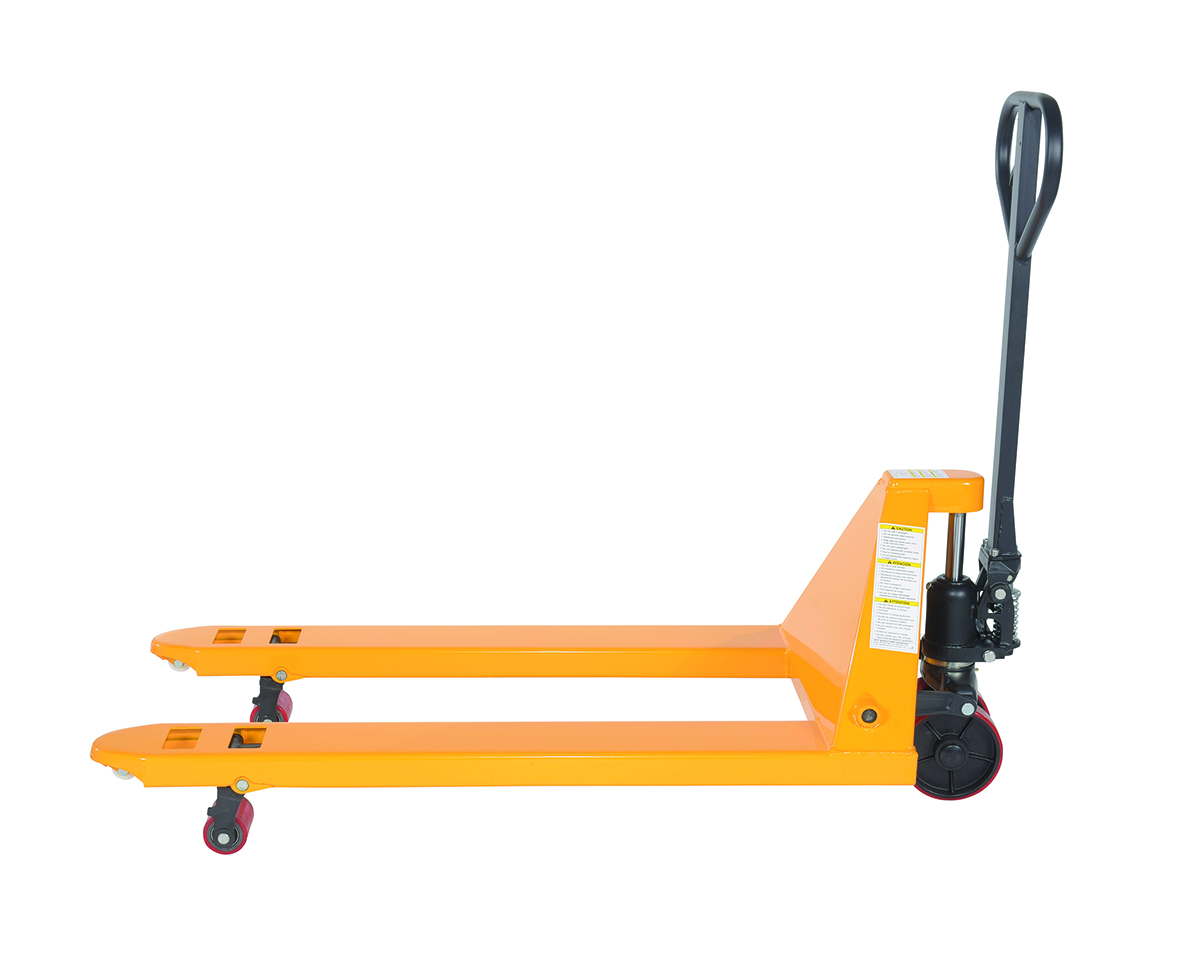

The standard pallet truck has a proven ergonomic design that has been time-tested for providing years of reliable service. It's an economical way for one person to move pallet loads without the use of a fork truck. The ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded. The spring loaded hoop handle automatically returns to vertical position when not in use. Chrome-plated hydraulic pump piston for long seal life. This pallet truck is quality built, user friendly, requires low maintenance, and has a powder coat finish.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life
Total Ship Wt.(lbs.): 216 (only 1 package) Size: 28.75"W x 61.6875"L x 48.625"H Color: Yellow QuickShip

Uniform Capacity (lb.): 5500 Overall Fork Width (in.): 27 Overall Fork Length (in.): 48
Lowered Height (in.): 2-7/8 Raised Height (in.): 7-3/4 Individual Fork Width (in.): 7
Steer Caster Material: Poly-On-Steel Steer Caster Diameter (in.): 6-3/4 Steer Caster Width (in.): 2
Load Roller Material: Polyurethane Load Roller Diameter (in.): 2-7/8 Load Roller Width (in.): 2-1/2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PM5-2748-Y
PM5-2748-Y

Steel Pallet Truck 61-11/16 In. x 28-3/4 In. x 48-5/8 In. 5500 Lb. Capacity Yellow

The standard pallet truck has a proven ergonomic design that has been time-tested for providing years of reliable service. It's an economical way for one person to move pallet loads without the use of a fork truck. The ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded. The spring loaded hoop handle automatically returns to vertical position when not in use. Chrome-plated hydraulic pump piston for long seal life. This pallet truck is quality built, user friendly, requires low maintenance, and has a powder coat finish.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life
Dimensions: 28.75"W x 61.6875"L x 48.625"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215030755 GTIN: 00691215030755
Warranty: -- Shipping Weight: 216 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 5500 Overall Fork Width (in.): 27 Overall Fork Length (in.): 48
Lowered Height (in.): 2-7/8 Raised Height (in.): 7-3/4 Individual Fork Width (in.): 7
Steer Caster Material: Poly-On-Steel Steer Caster Diameter (in.): 6-3/4 Steer Caster Width (in.): 2
Load Roller Material: Polyurethane Load Roller Diameter (in.): 2-7/8 Load Roller Width (in.): 2-1/2
