Model Details

RT-NMS-60-AF

Printer Friendly
RT-NMS-60-AF

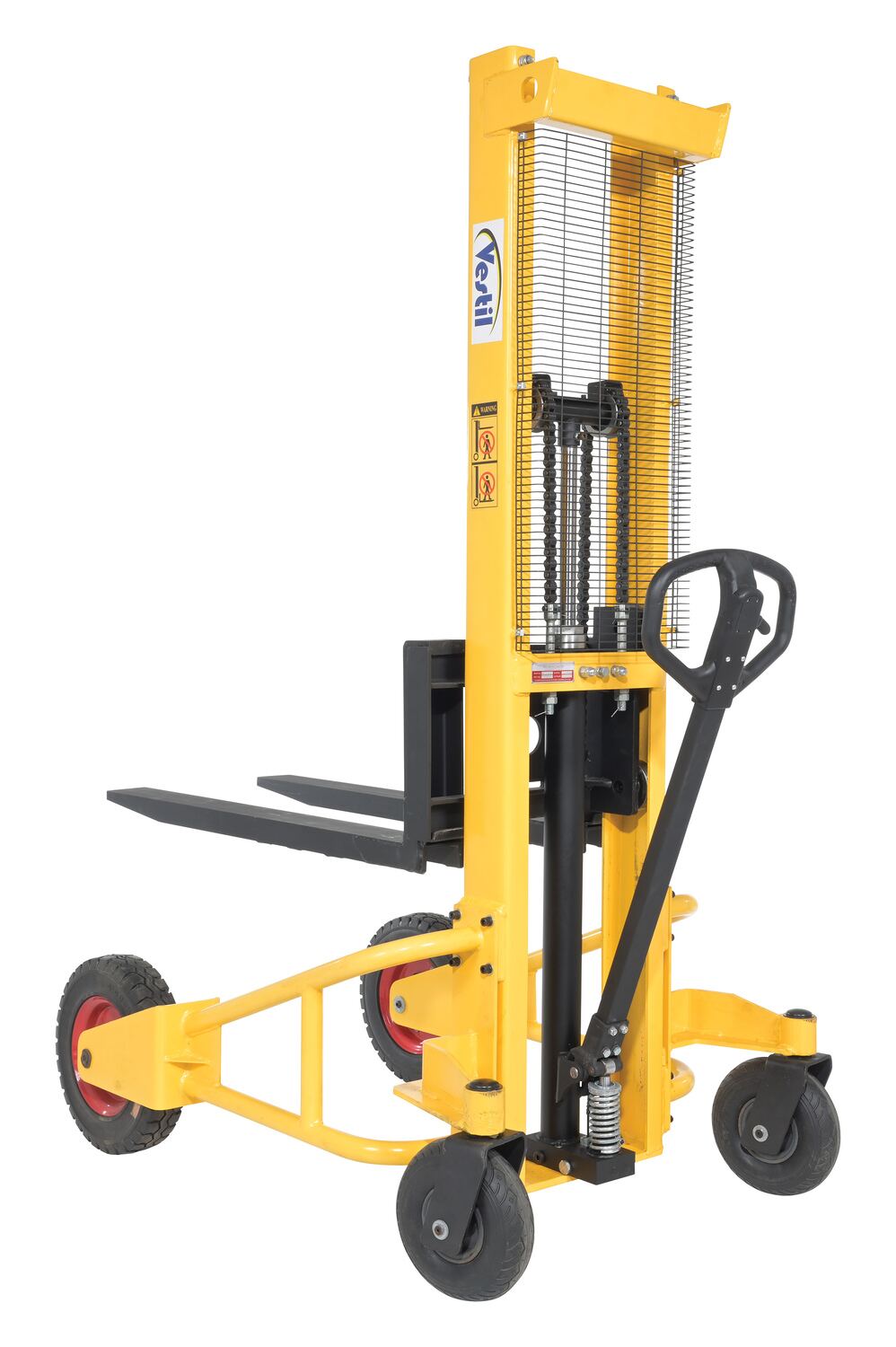

Steel Narrow Manual Rough Terrain Stacker 60 In. Raised Height 1,500 Lb. Capacity Yellow/Black

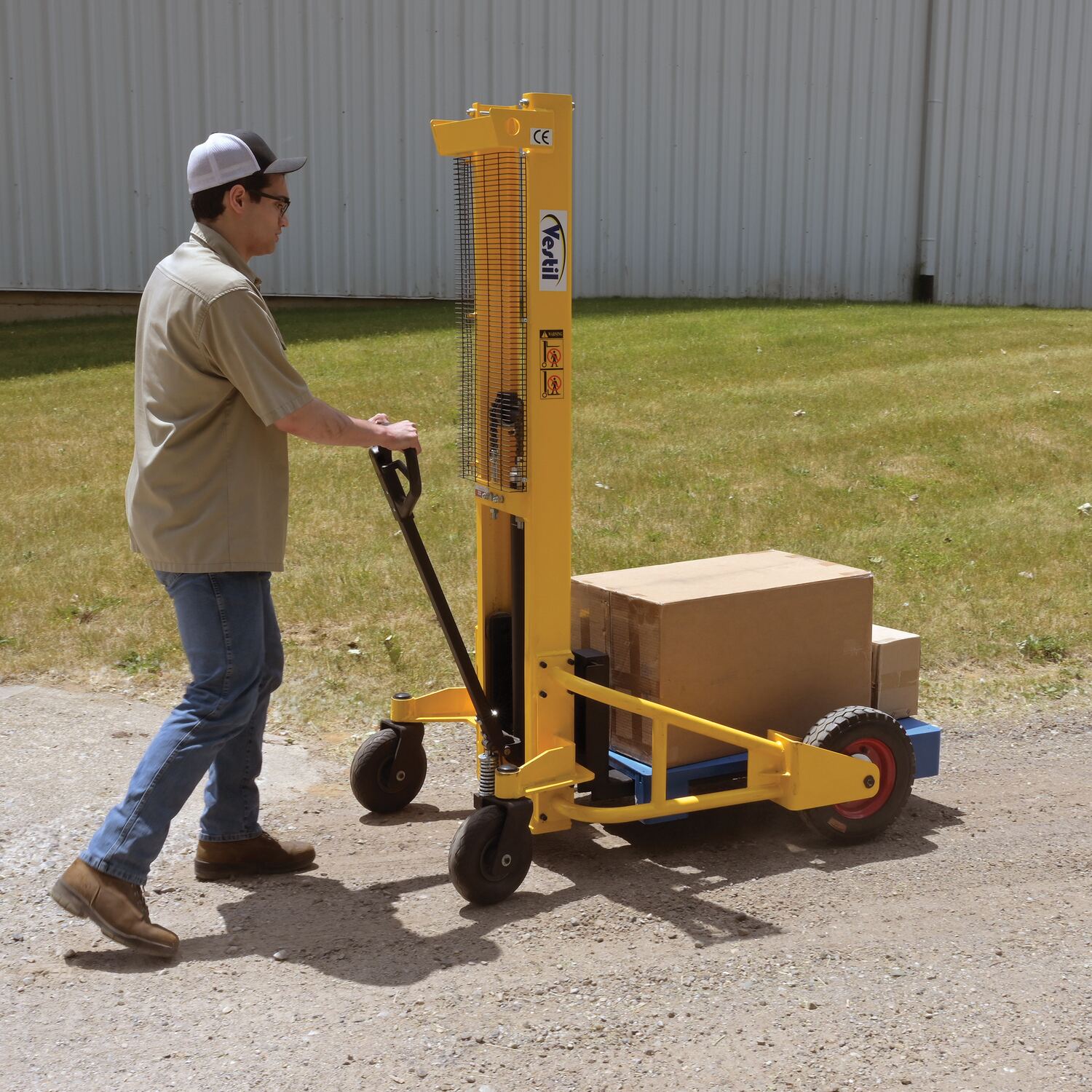

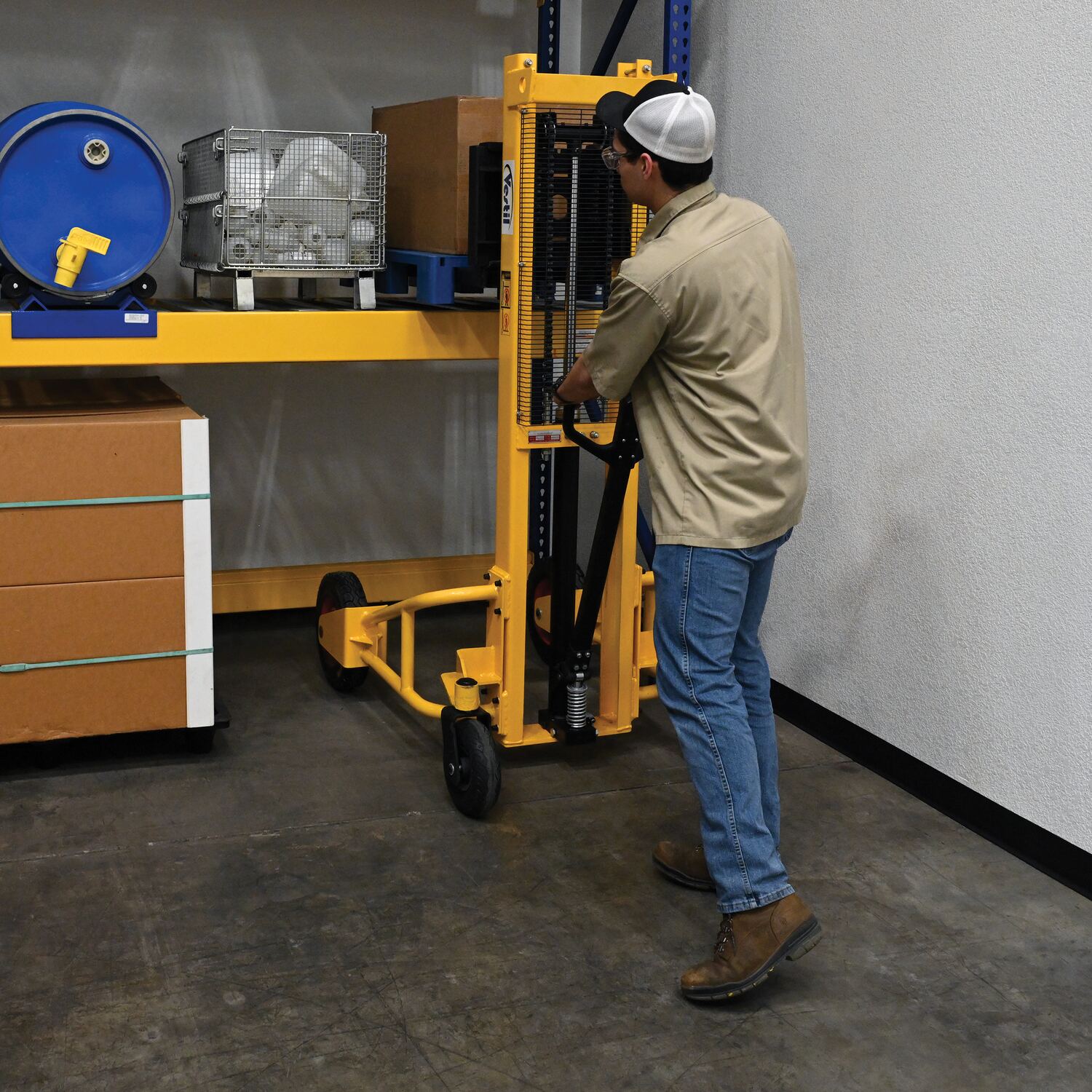

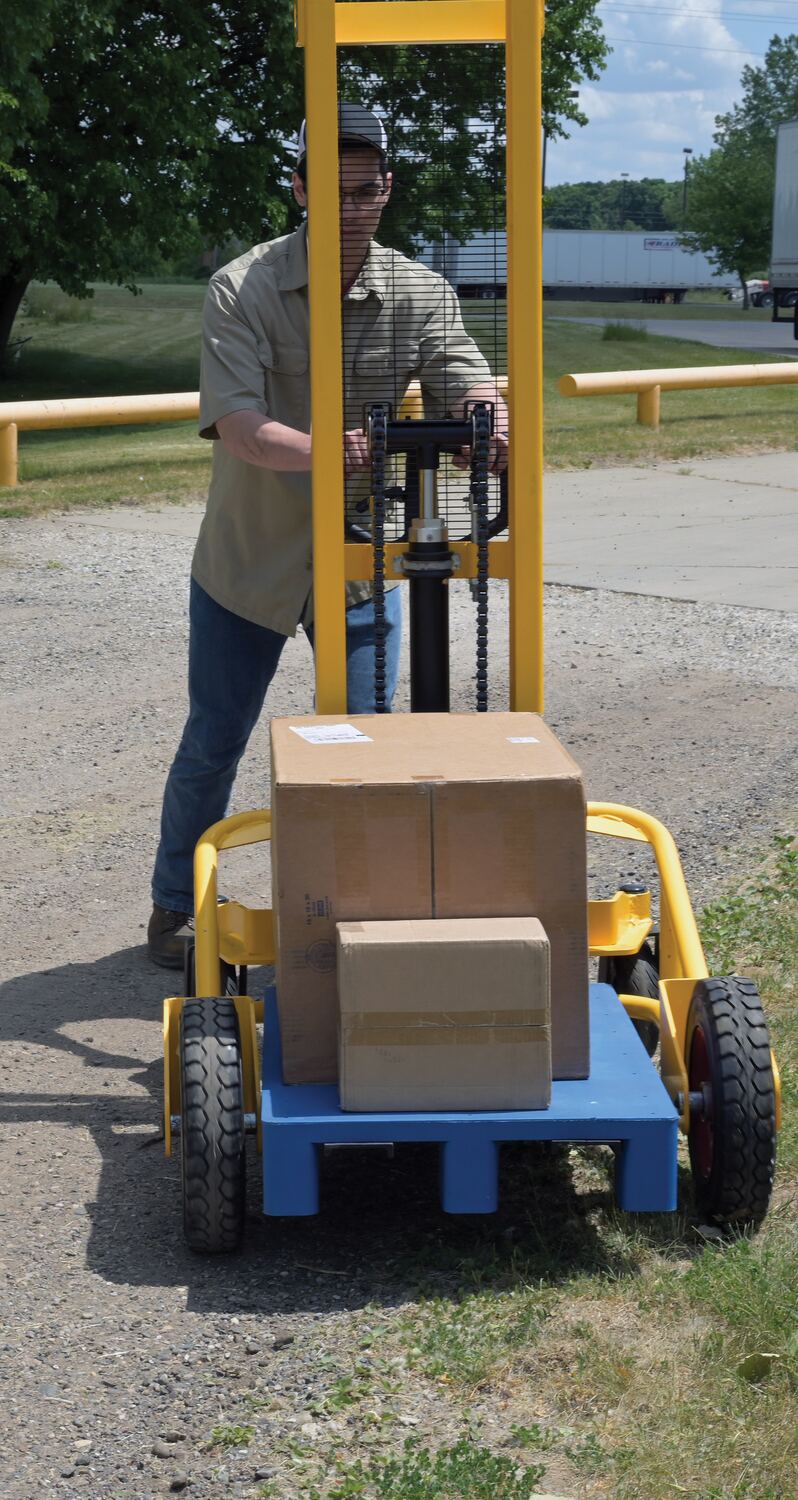

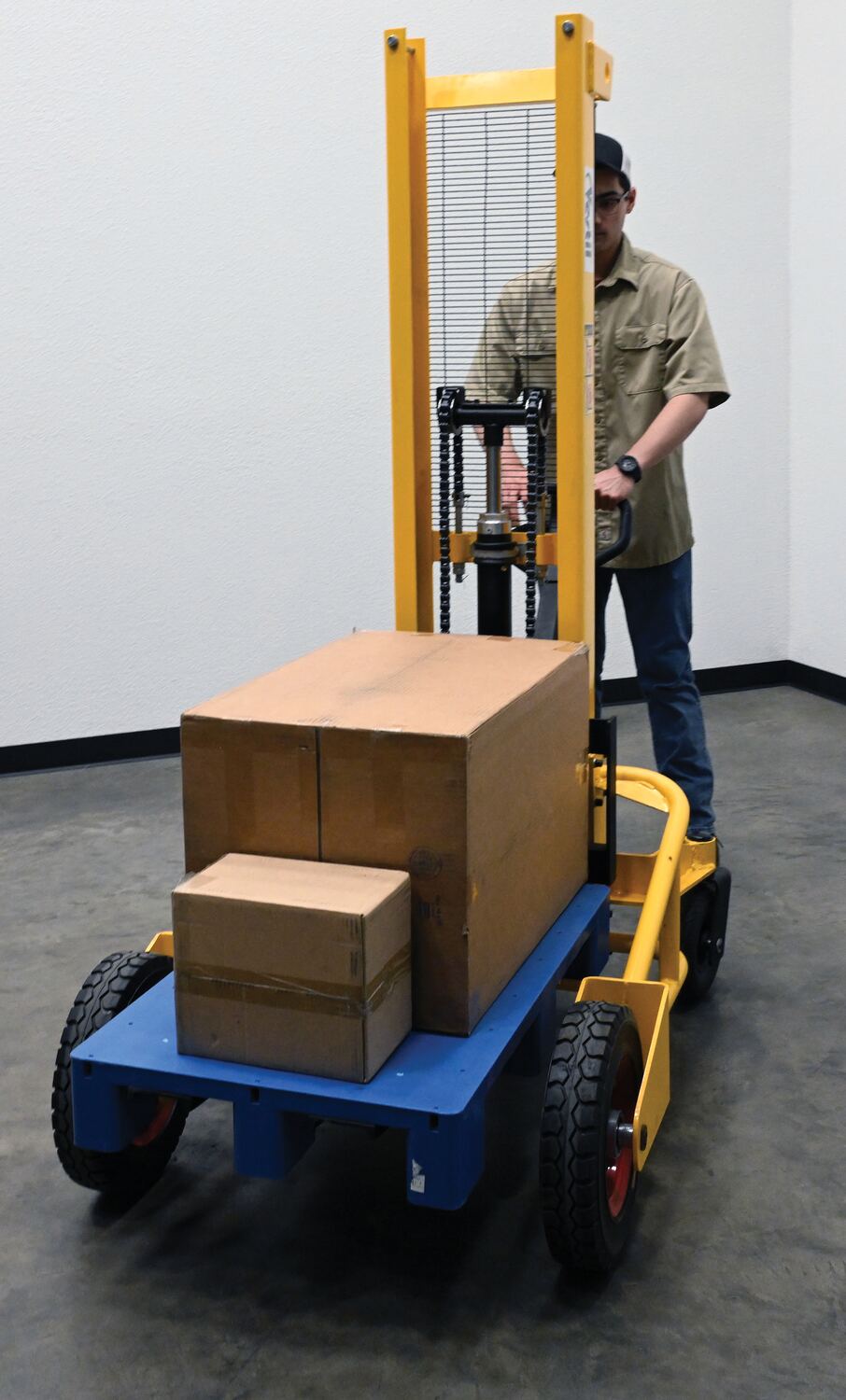

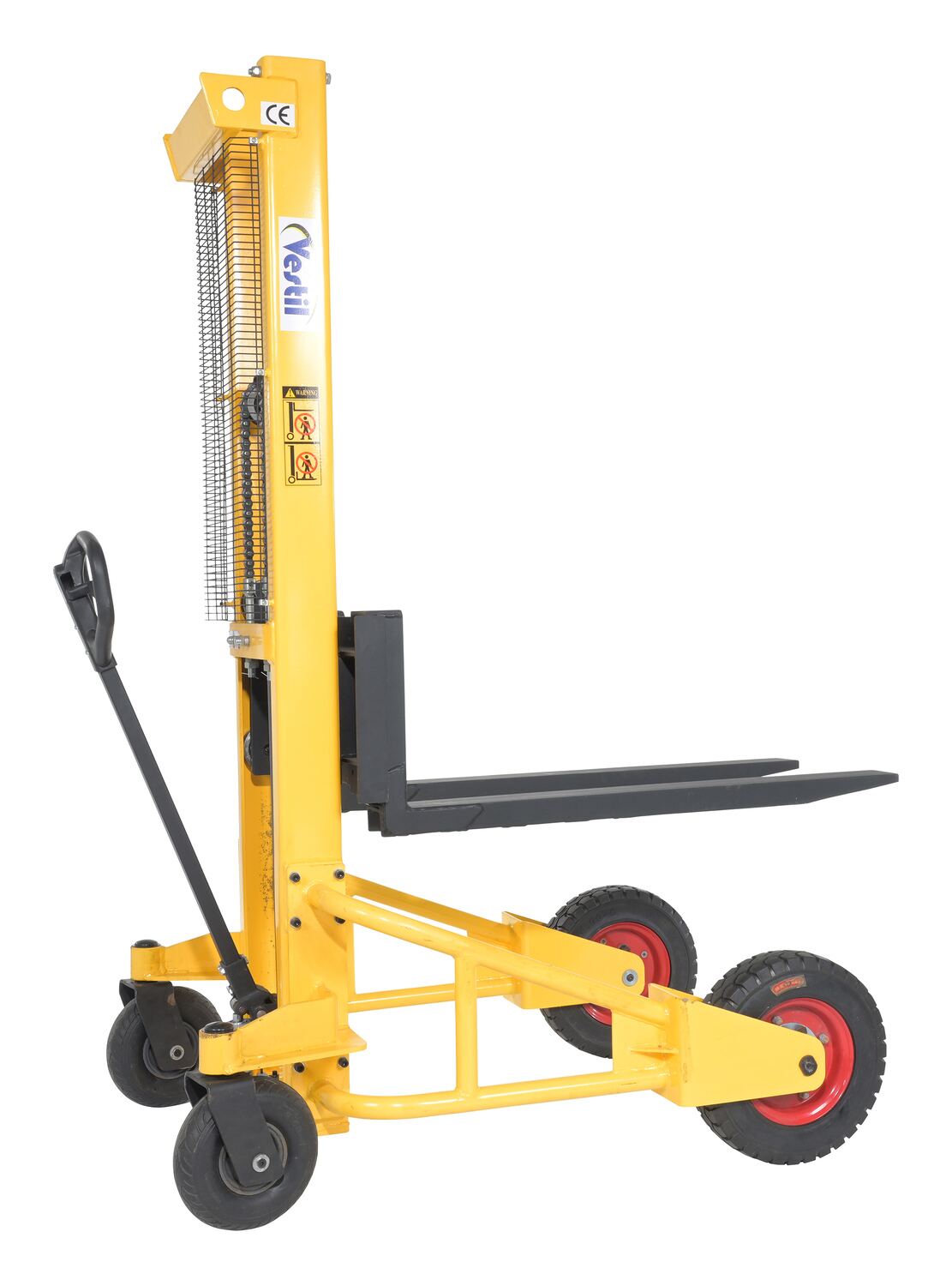

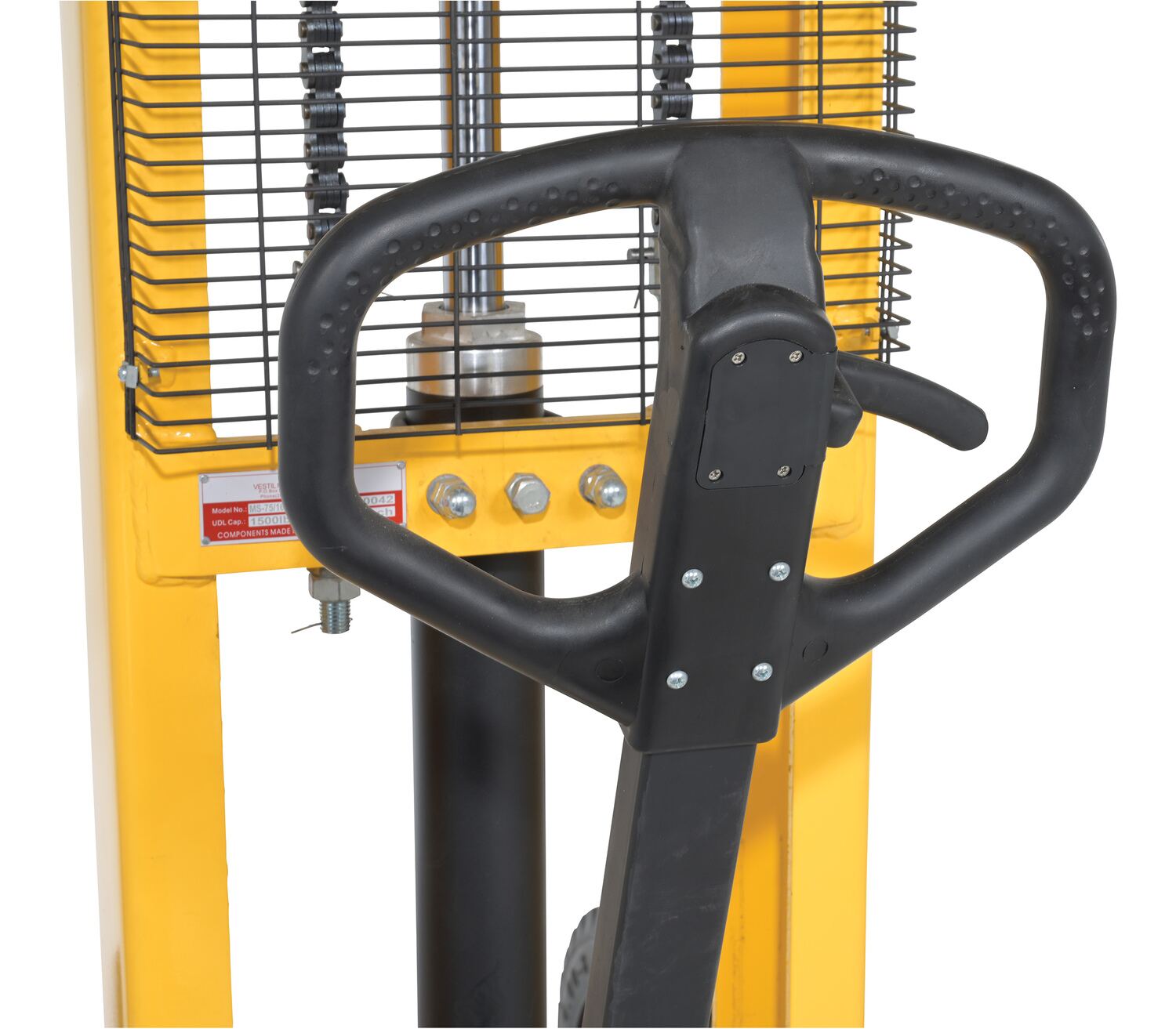

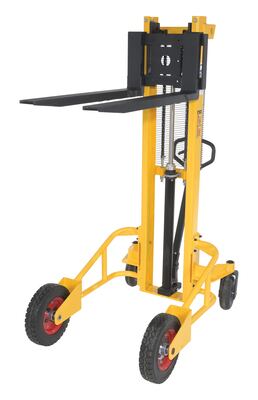

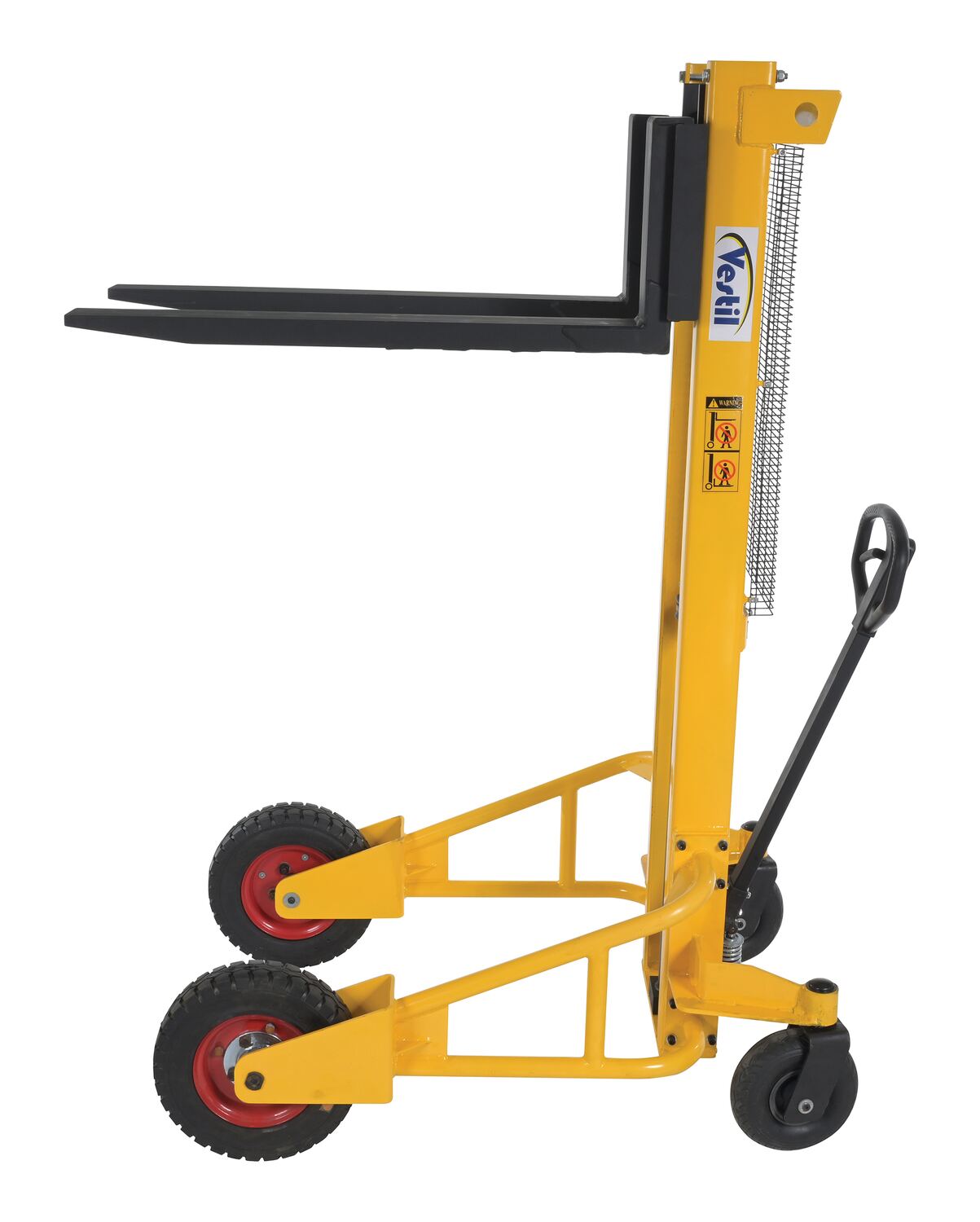

A rough terrain stacker is capable of going where other stackers can't. The narrow design provides precise movement in condensed areas. A handle pump design lifts and lowers, without the need for mechanical power. Just a simple hydraulic action leads the forks up or down to the desired height. The rubber tires provide stability when traversing rough or uneven surfaces. Baked in yellow powder coat finish.

  • 60" raised height
  • Wide, straddle based design

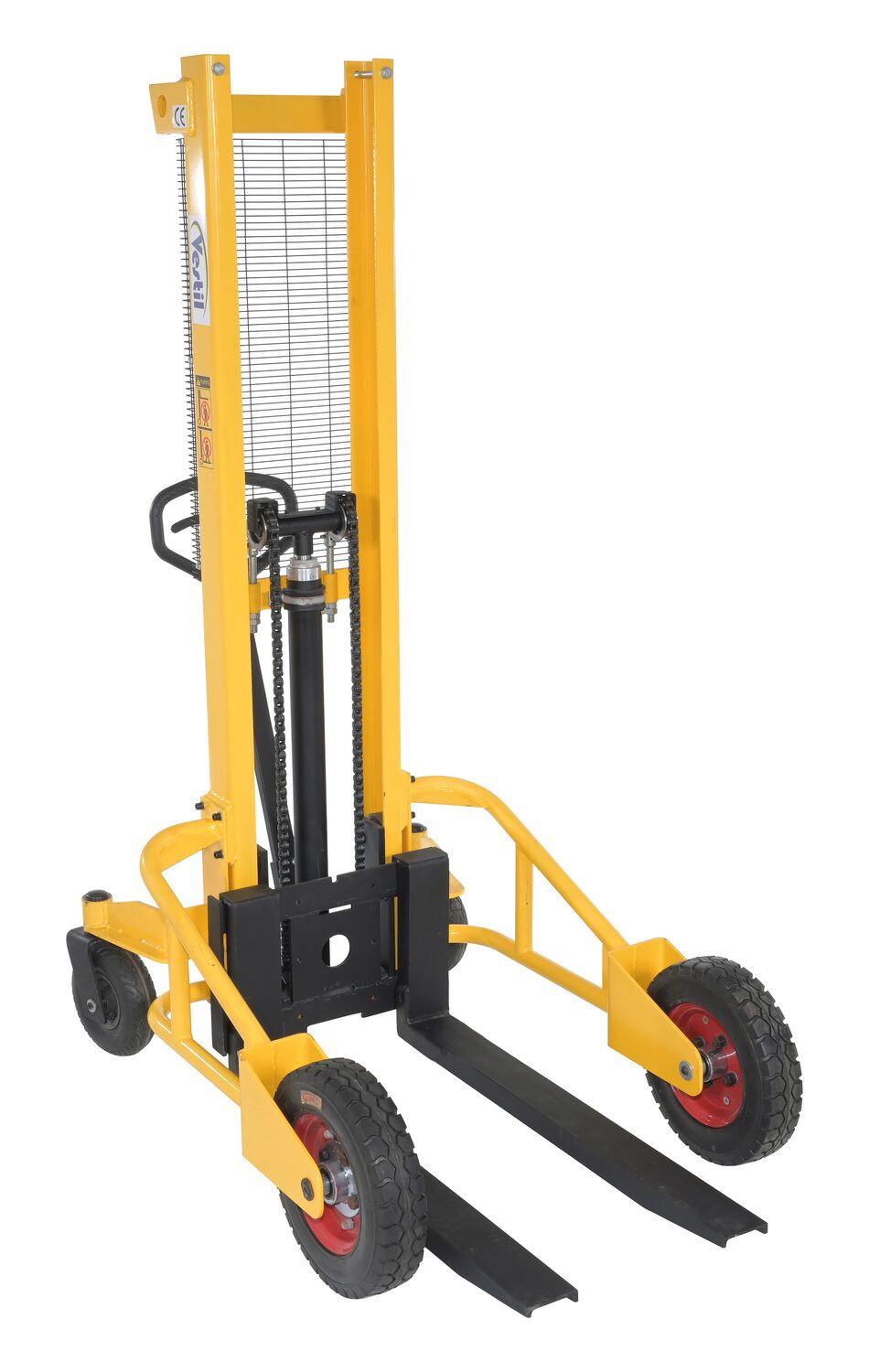

  • Adjustable forks

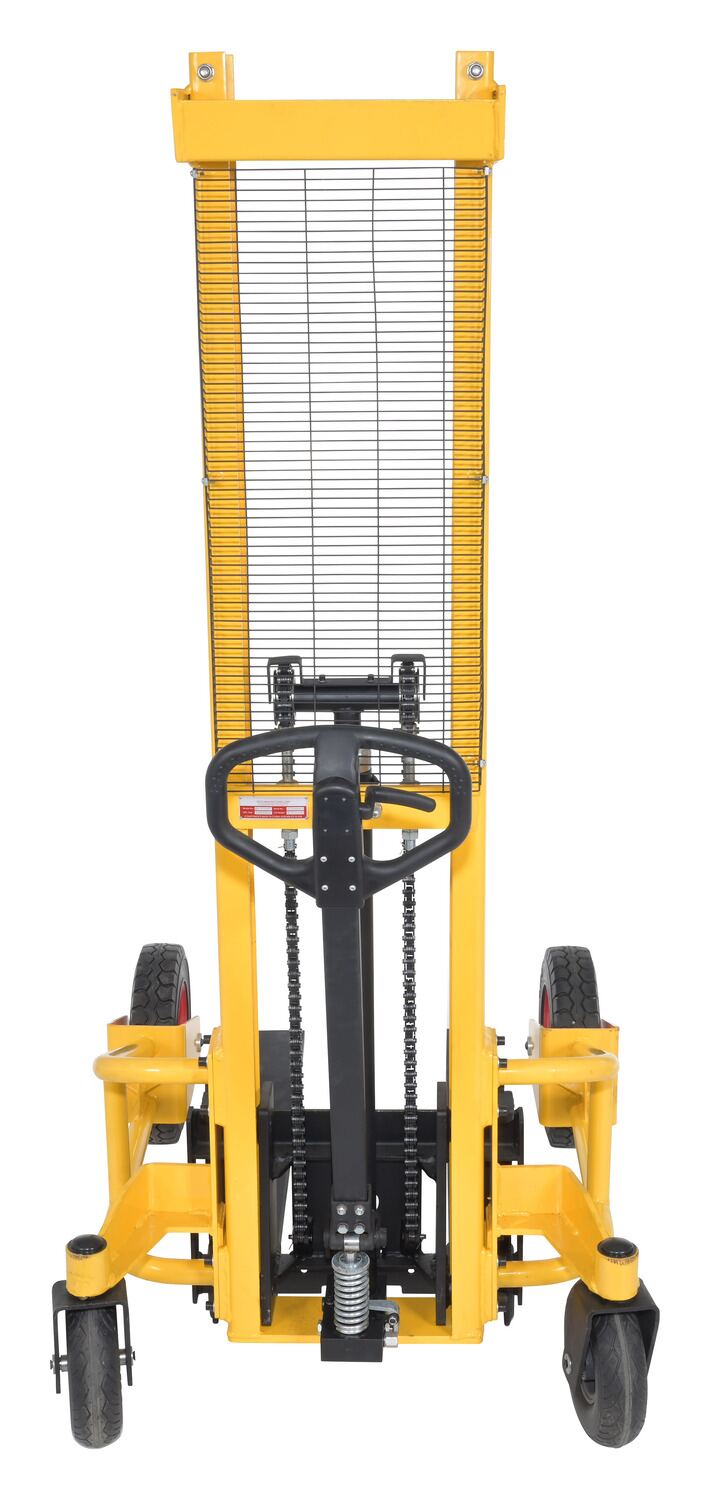

  • Full height wire-mesh back guard
Total Ship Wt.(lbs.): 565 (only 1 package) Size: 38"W x 62"L x 80"H Color: Yellow/Black Non-Returnable

Uniform Capacity (lb.): 1,500 Raised Height: 60" Lowered Height: 3-1/8
Usable Width (in.): 25 Fork (WxL): 4"x40" Fork Center: Adjustable Forks

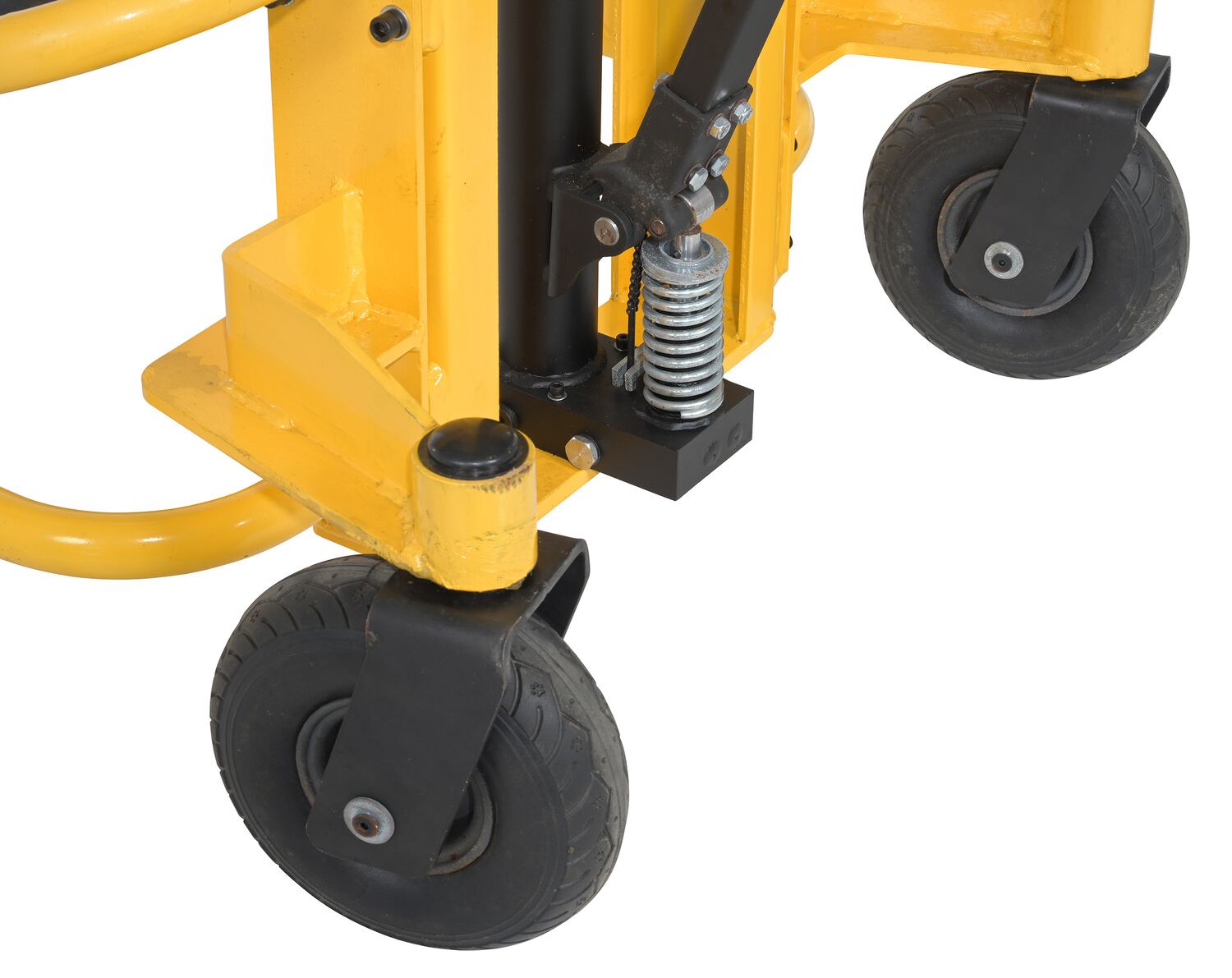

Handle Length (in): 43 Handle Diameter (in.): 1-1/8 Rubber Drive Wheel: (2) 2-3/4"x10"

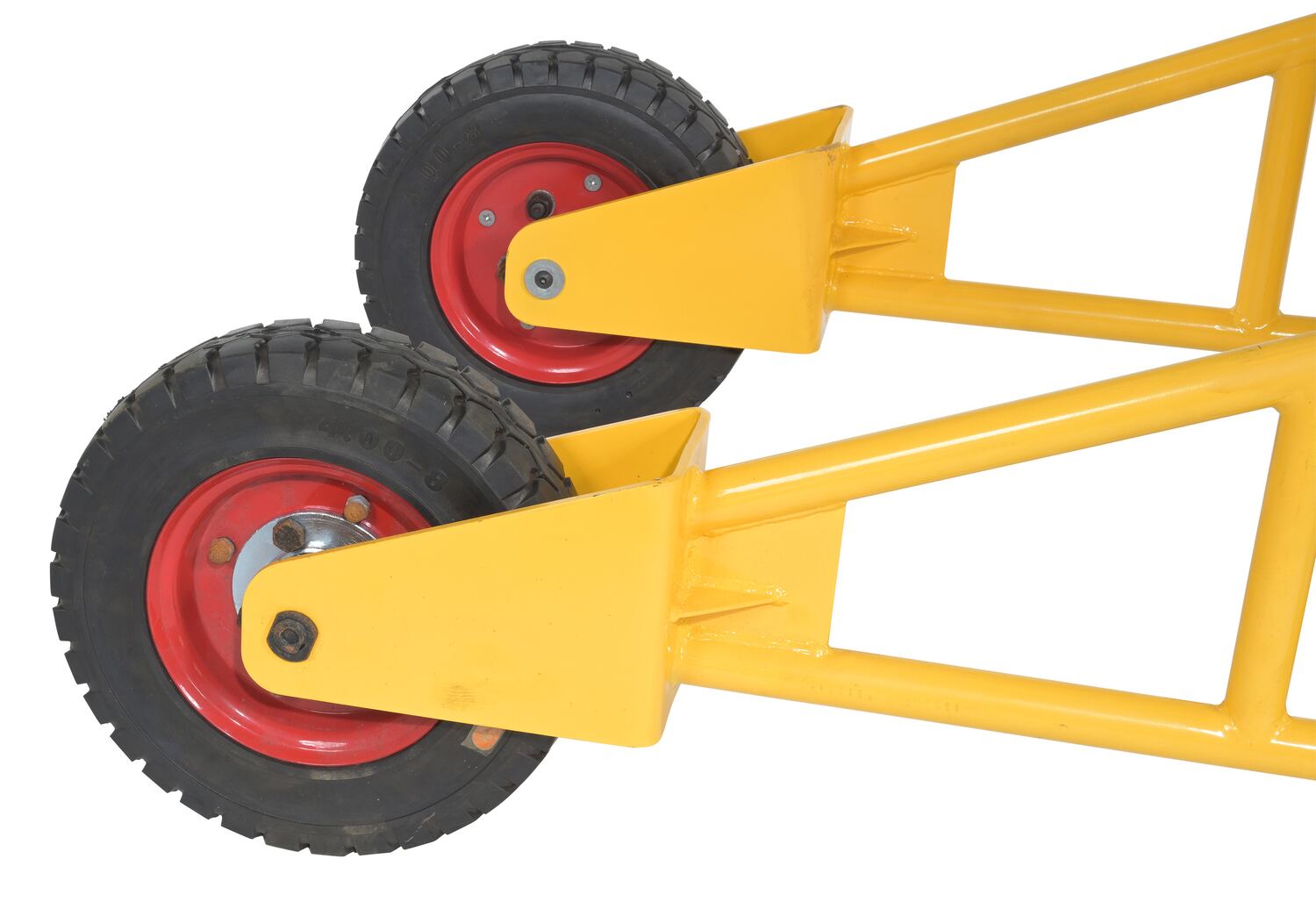

Rubber Front Wheel: (2) 3-1/2"x15" Power/Operation: Hydraulic Hand Pump

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: RT-NMS-60-AF
RT-NMS-60-AF

Steel Narrow Manual Rough Terrain Stacker 60 In. Raised Height 1,500 Lb. Capacity Yellow/Black

A rough terrain stacker is capable of going where other stackers can't. The narrow design provides precise movement in condensed areas. A handle pump design lifts and lowers, without the need for mechanical power. Just a simple hydraulic action leads the forks up or down to the desired height. The rubber tires provide stability when traversing rough or uneven surfaces. Baked in yellow powder coat finish.

  • 60" raised height
  • Wide, straddle based design
  • Adjustable forks
  • Full height wire-mesh back guard
Dimensions: 38"W x 62"L x 80"H Sell UOM: EA-Each Color: Yellow/Black
Material: Steel UPC: 691215376143 GTIN: 00691215376143
Warranty: -- Shipping Weight: 565 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 1,500 Raised Height: 60" Lowered Height: 3-1/8
Usable Width (in.): 25 Fork (WxL): 4"x40" Fork Center: Adjustable Forks
Handle Length (in): 43 Handle Diameter (in.): 1-1/8 Rubber Drive Wheel: (2) 2-3/4"x10"
Rubber Front Wheel: (2) 3-1/2"x15" Power/Operation: Hydraulic Hand Pump
