VHPS-550-AA-F72

Printer Friendly
Out of Stock - Please Contact Sales
VHPS-550-AA-F72
VHPS-550-AA-F72 VHPS-550-AA-F72 VHPS-550-AA-F72 VHPS-550-AA-F72 VHPS-550-AA-F72 VHPS-550-AA-F72 VHPS-550-AA-F72 VHPS-550-AA-F72 VHPS-550-AA-F72 VHPS-550-AA-F72

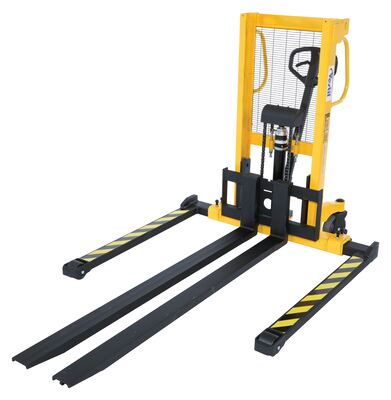

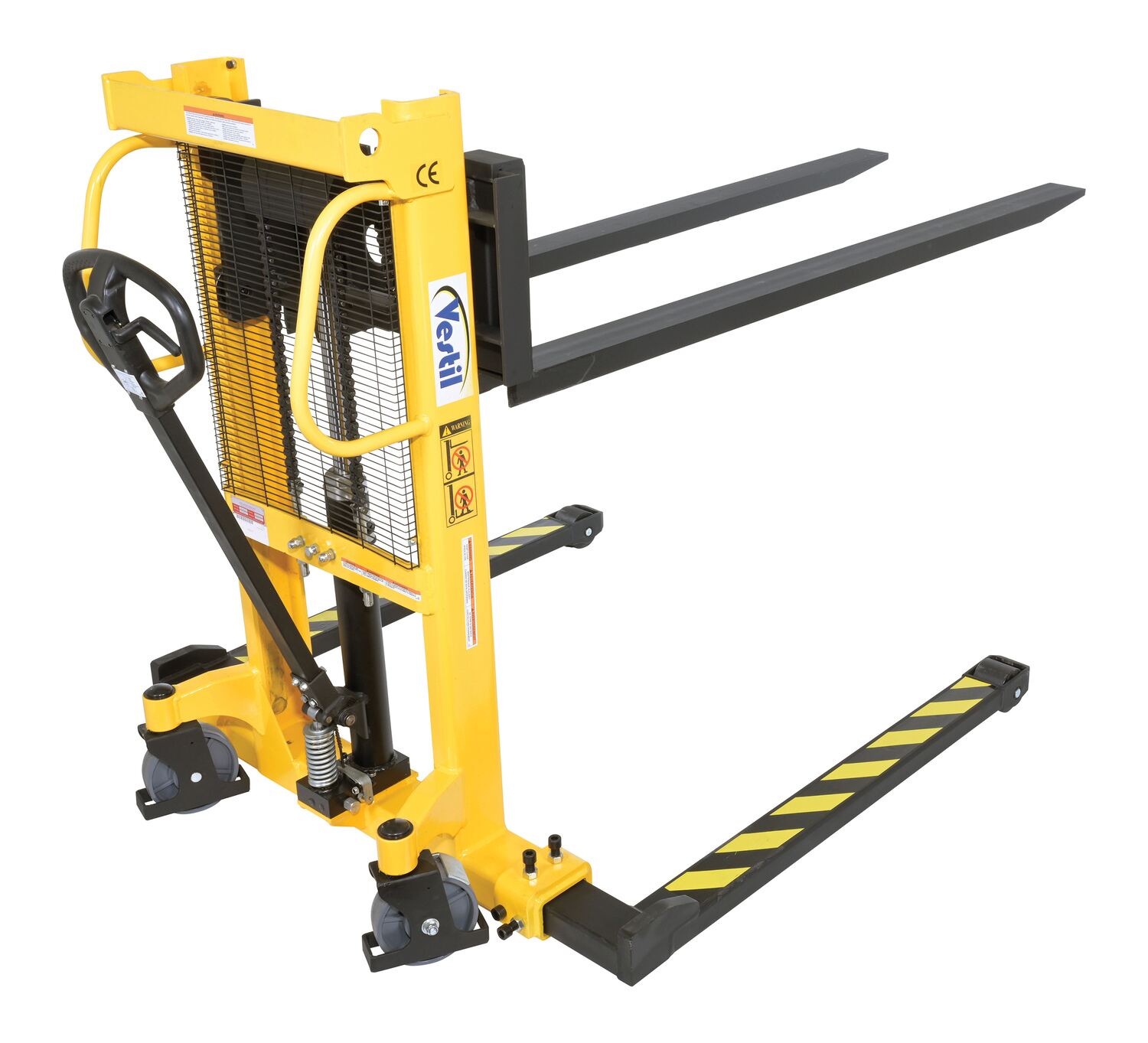

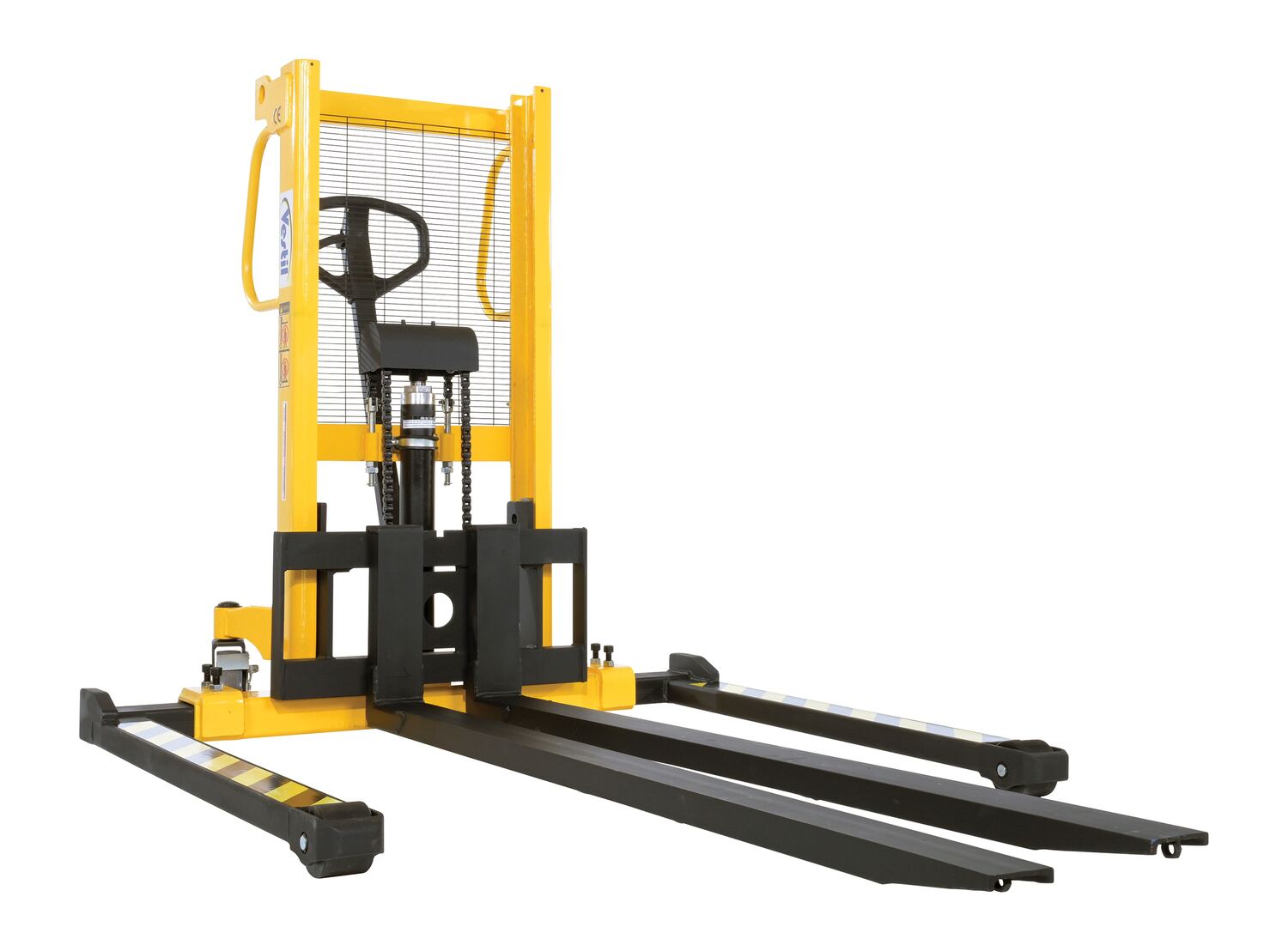

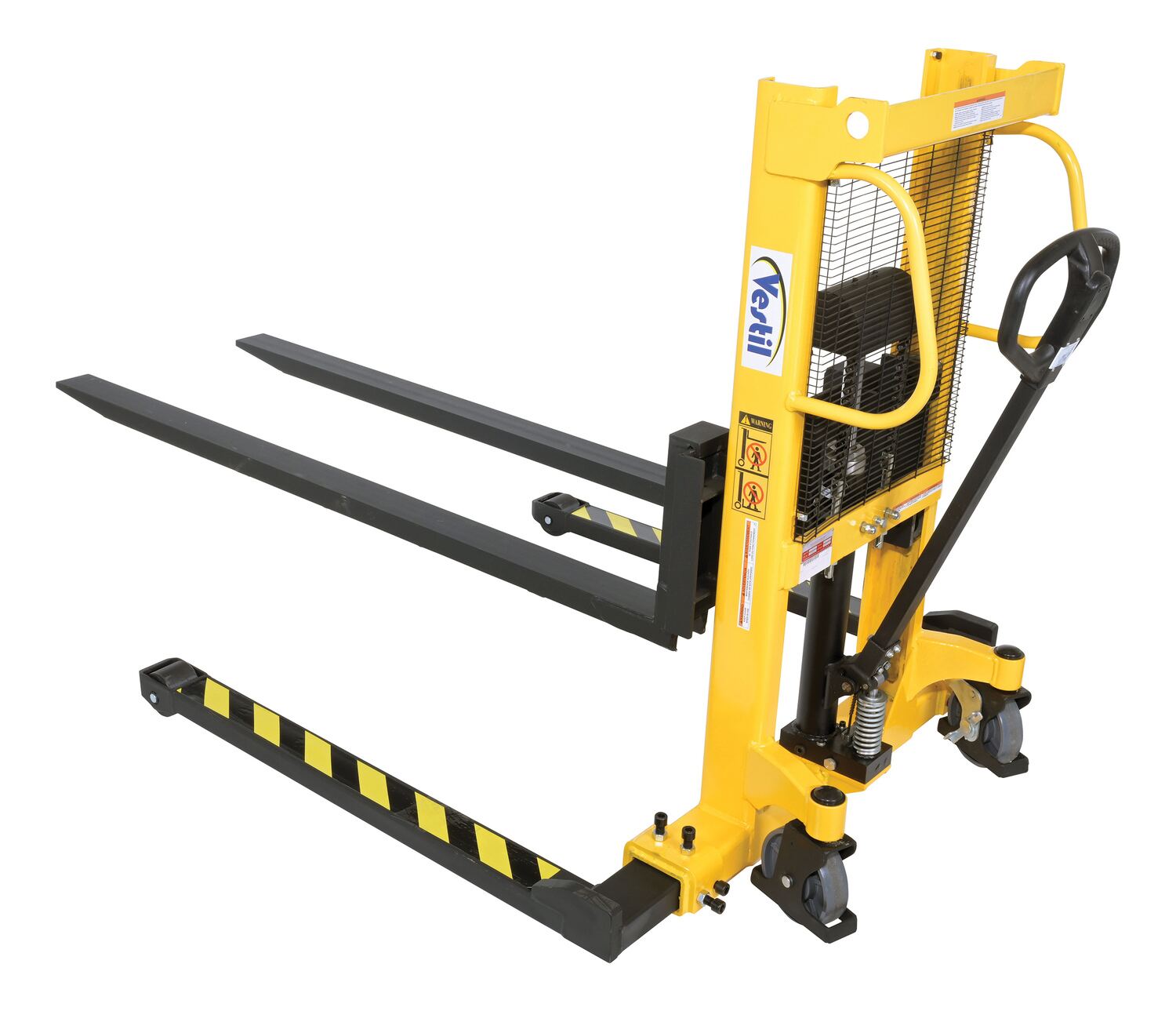

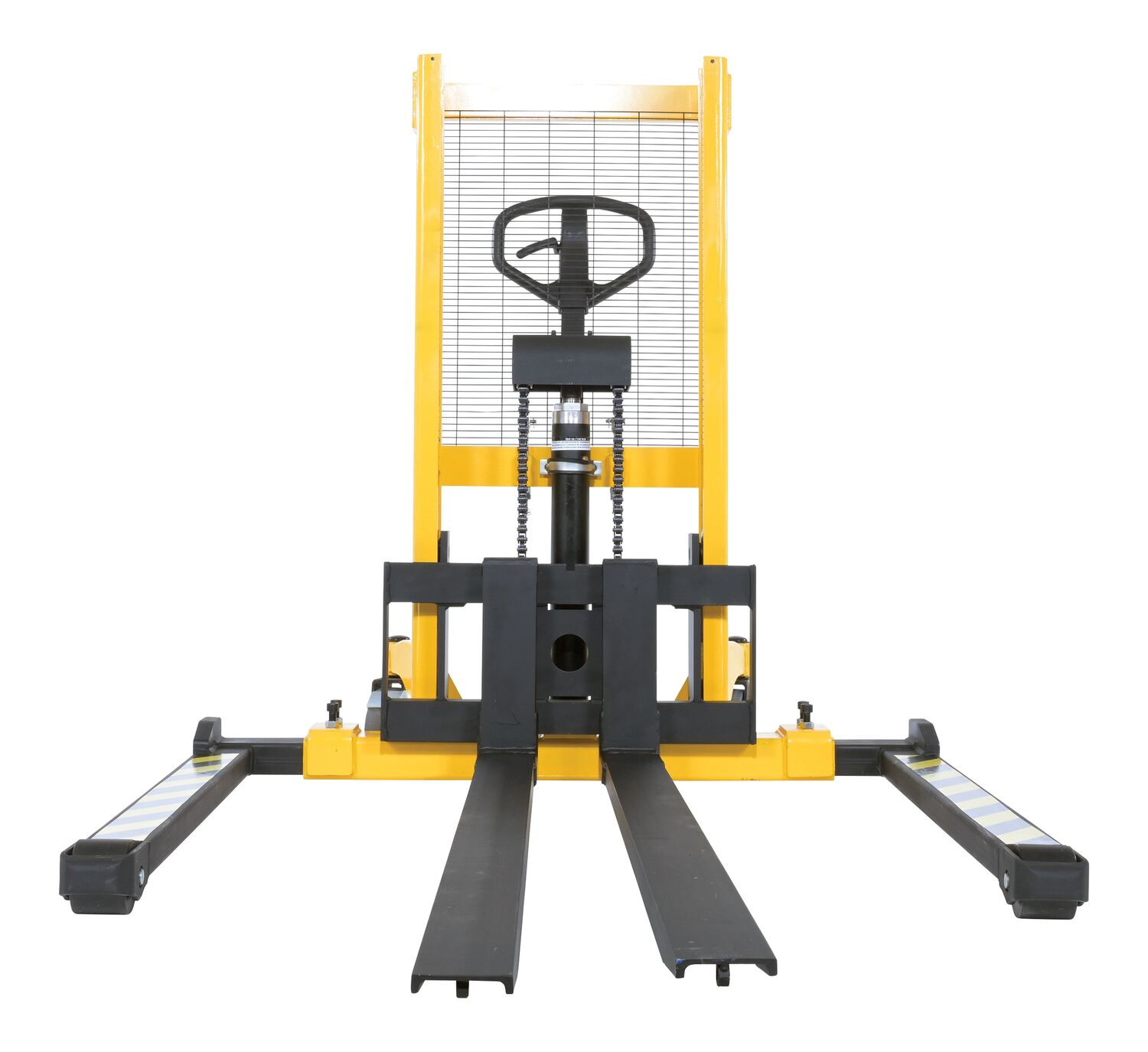

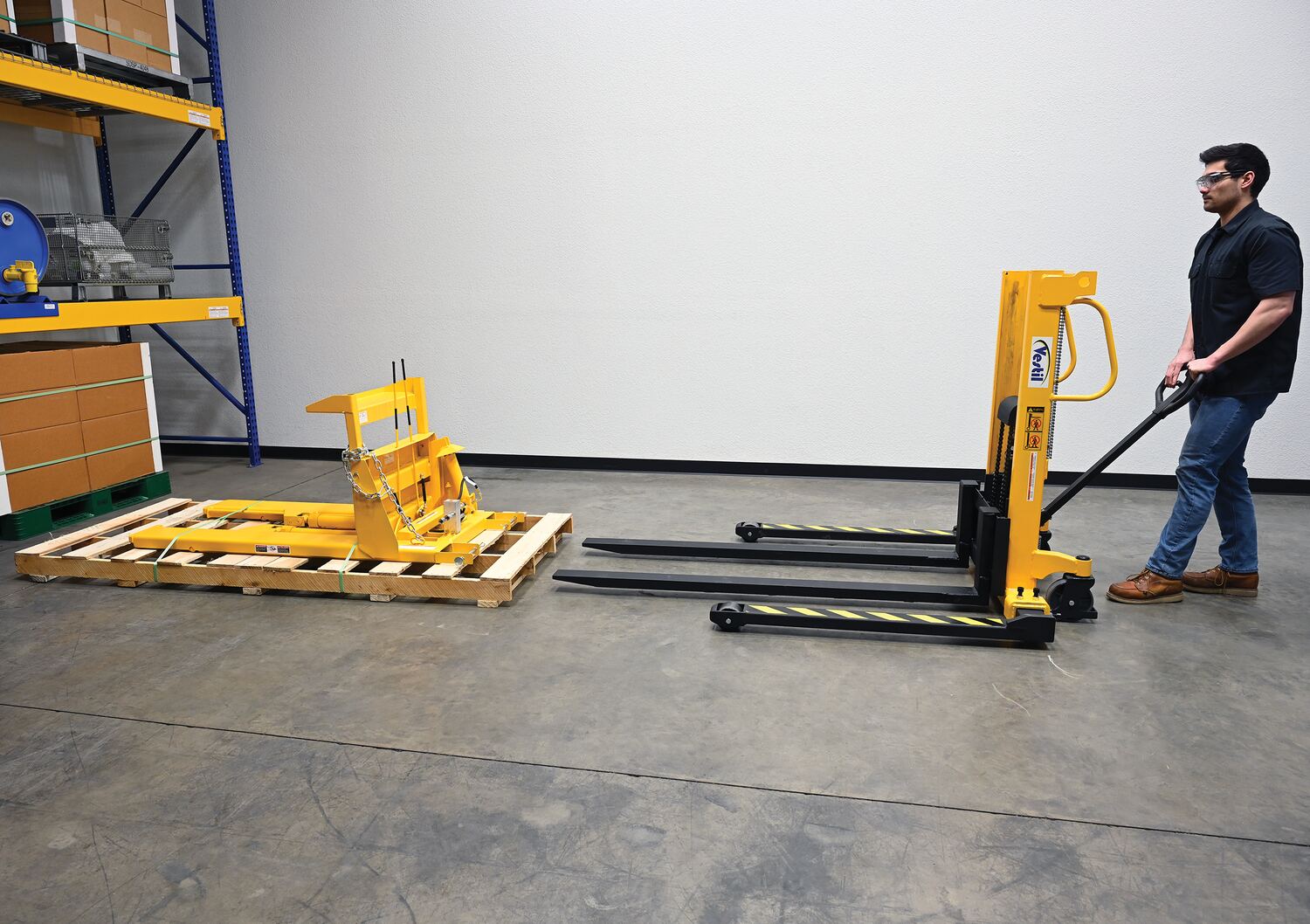

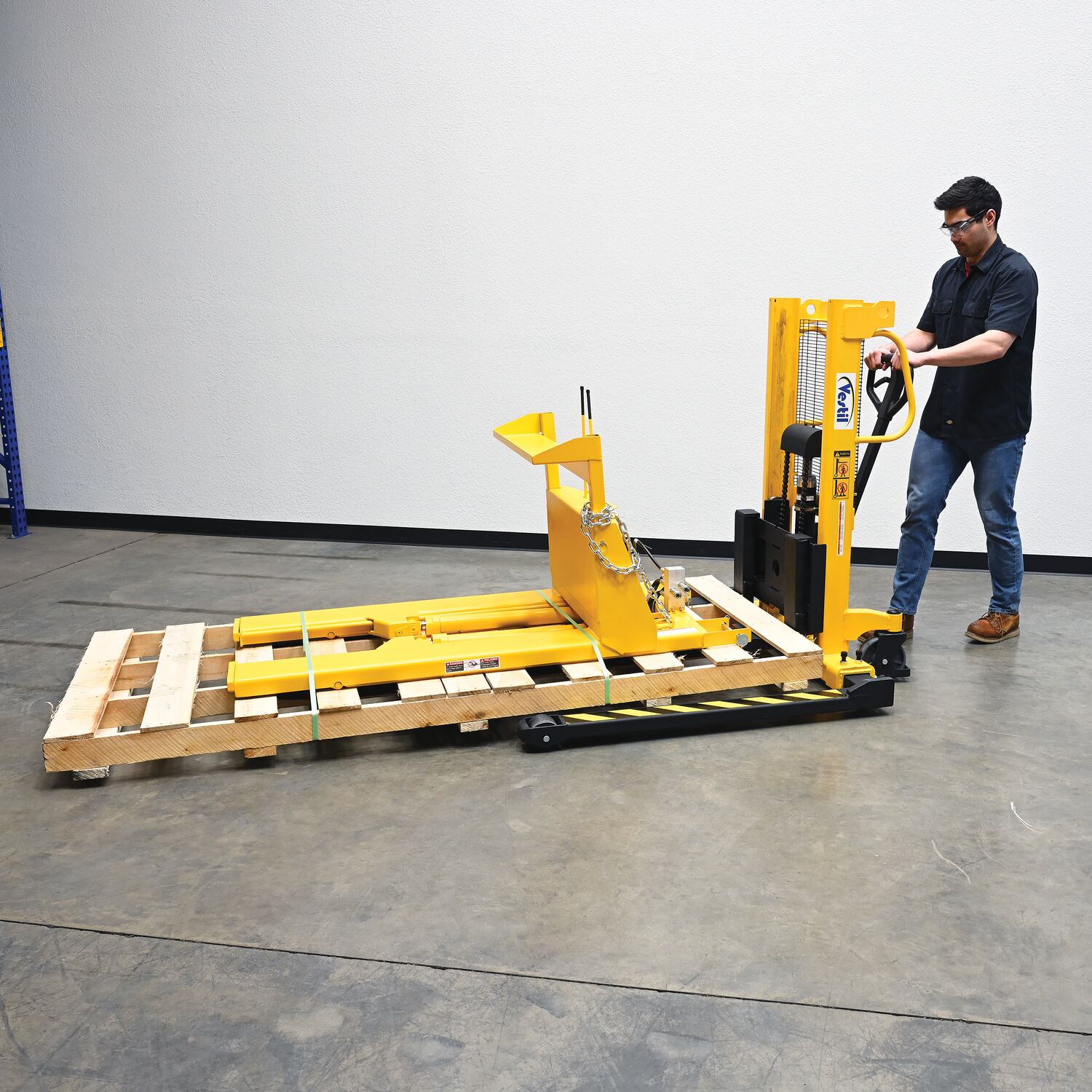

Steel Manual Stacker Adjustable Forks/Legs 550 Lb. Capacity Black / Yellow

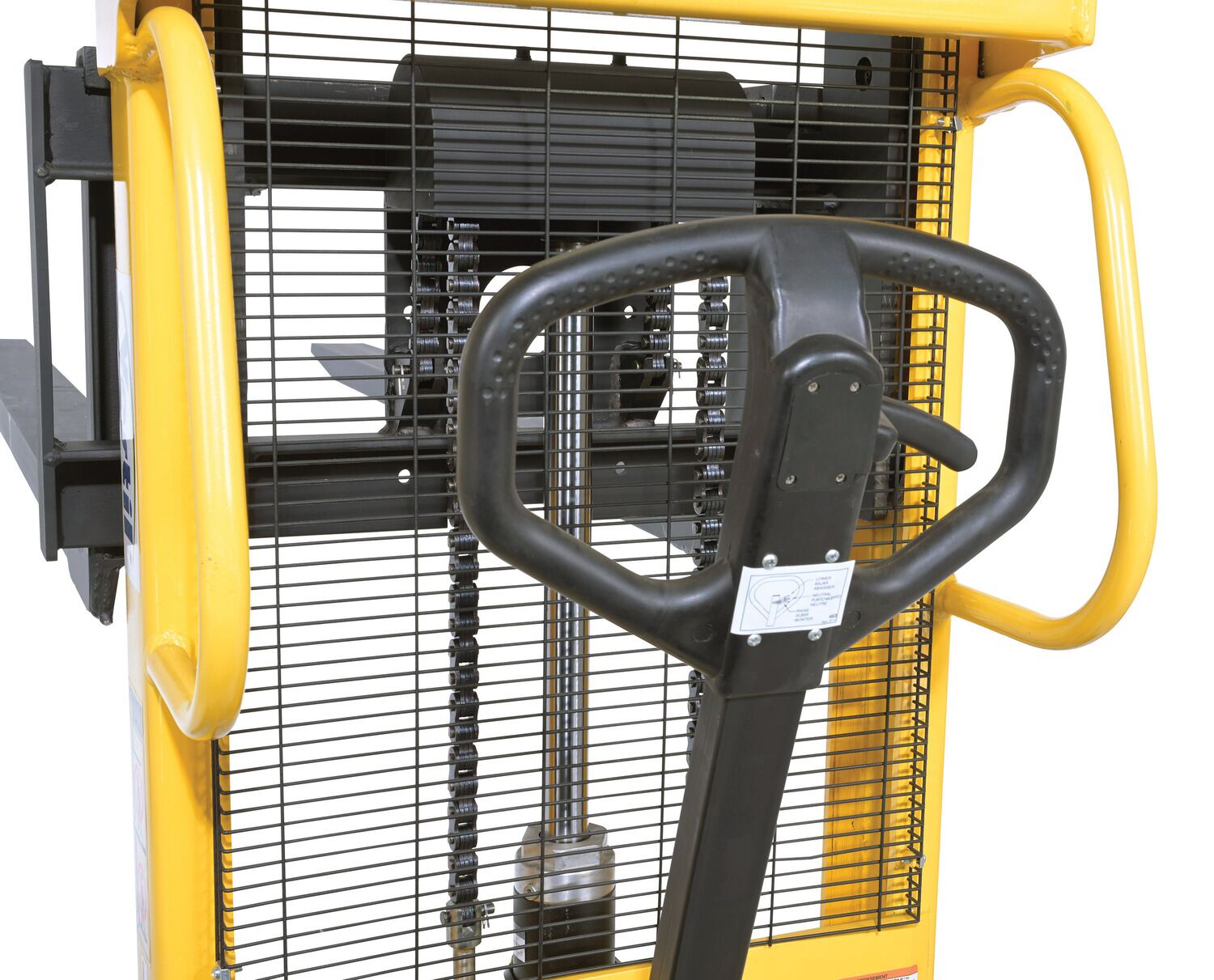

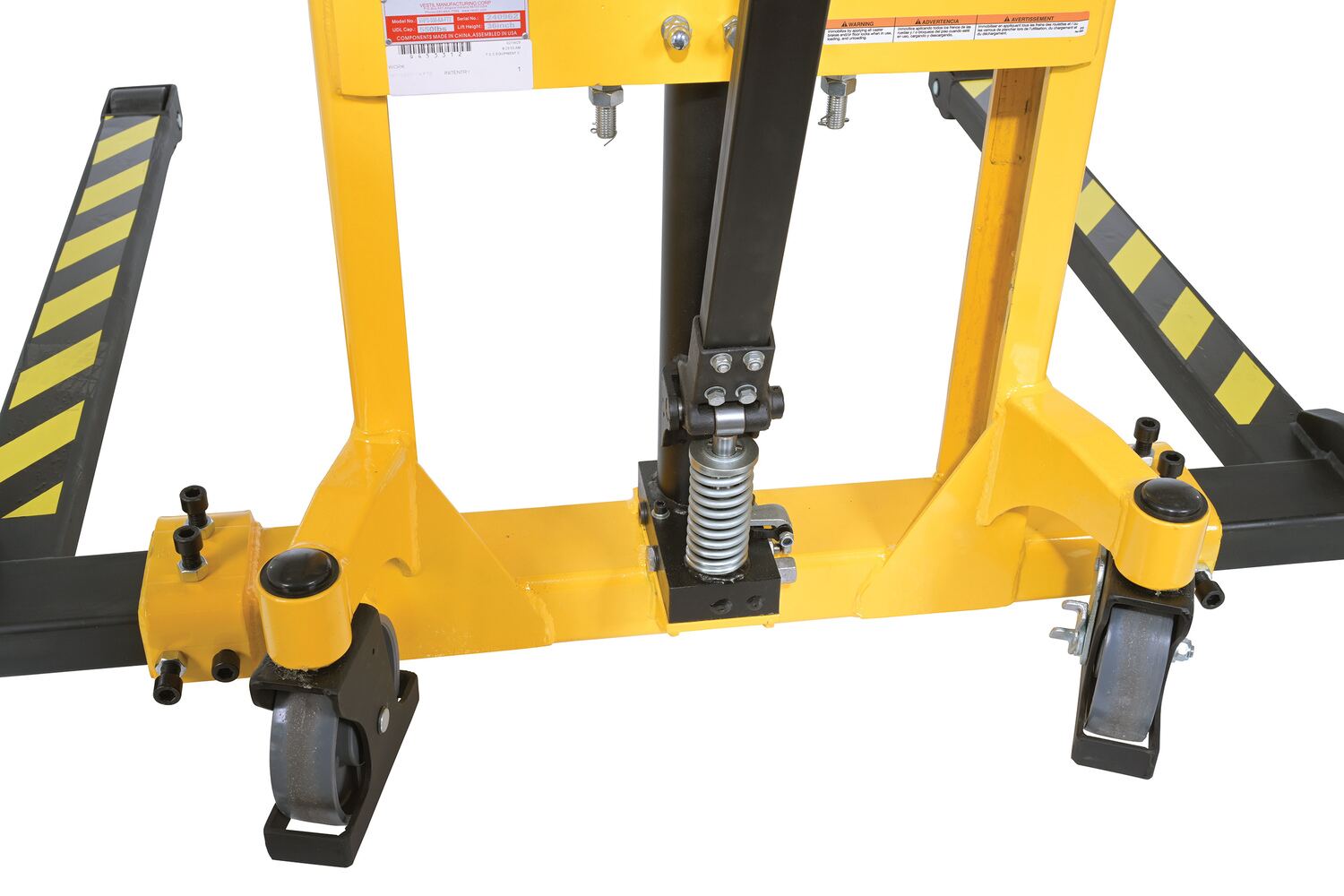

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform also available. It features a heavy-duty mast and a unique winch design for easier and safer lifting. The lifting and lowering is completed by a manual hand pump operation.

  • Single mast structure

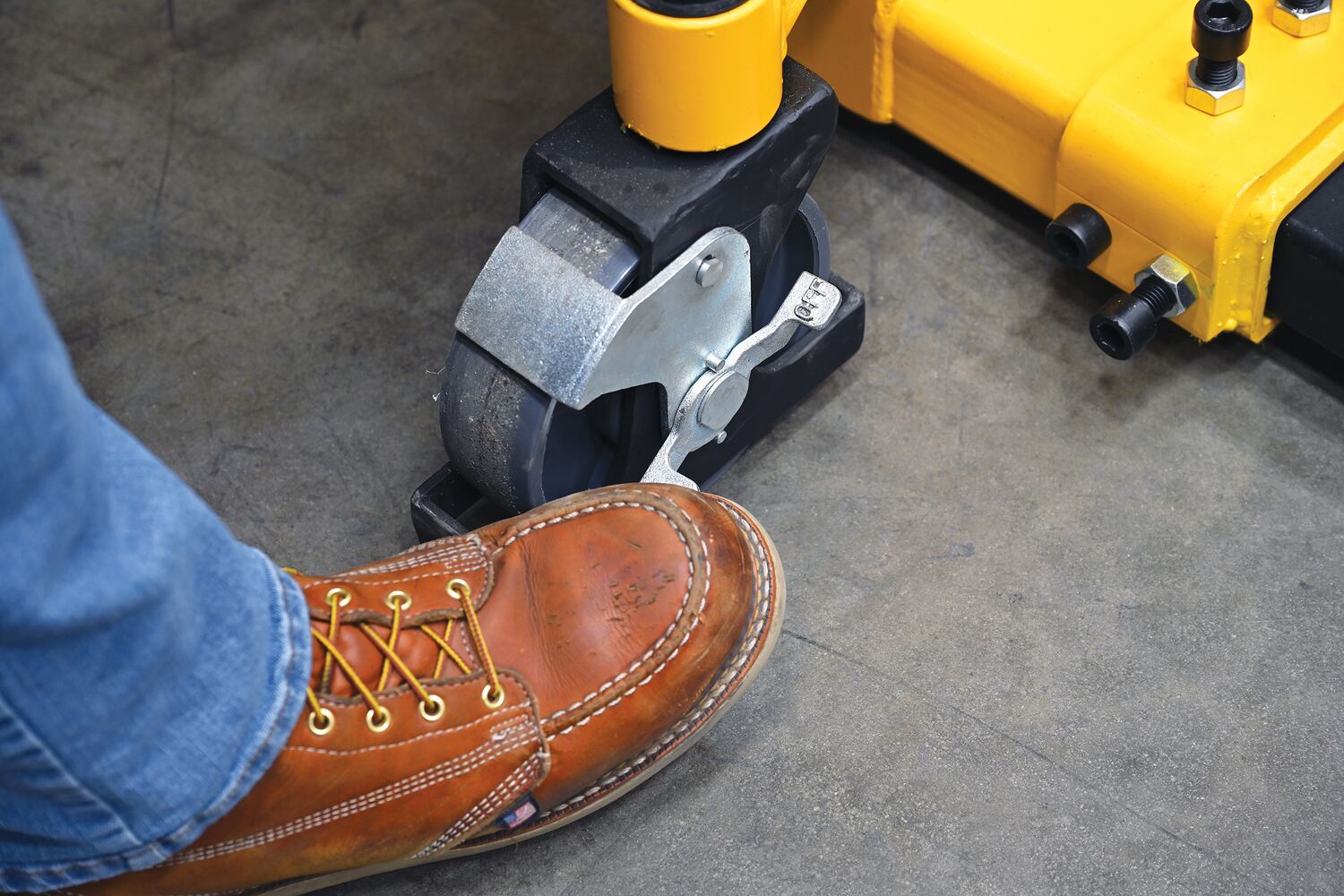

  • Two (2) rigid front rollers and two (2) swivel rear casters
  • Maintenance free design
  • Adjustable forks and legs
Assembled Wt.(lbs.): 840 Assembled Size: 50"W x 93"L x 55"H

Total Ship Wt.(lbs.): 885 (only 1 package) Package 1 Size: 40"W x 96"D x 60"H Color: Black/Yellow

Uniform Capacity (lb.): 550 Fork Length (in.): 72 Power Source: Manual
Adjustable Fork Spacing (in.): 7-7/8 to 26-3/4 Service Range (in.): 3-1/8 to 35-1/2 Adjustable Leg Spacing (in.): 40-1/8 to 50
Leg Width (in.): 4 Caster Material: Nylon Rear Caster Diameter: 7
Front Caster Diameter: 4

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: VHPS-550-AA-F72
Out of Stock - Please Contact Sales
VHPS-550-AA-F72

Steel Manual Stacker Adjustable Forks/Legs 550 Lb. Capacity Black / Yellow

The manual stacker is designed to meet the most challenging tasks. Ideal for use in various workstation and workplace applications. The full height push handle allows for easy steering and excellent visibility through a welded mesh guard with an optional removable platform also available. It features a heavy-duty mast and a unique winch design for easier and safer lifting. The lifting and lowering is completed by a manual hand pump operation.

  • Single mast structure
  • Two (2) rigid front rollers and two (2) swivel rear casters
  • Maintenance free design
  • Adjustable forks and legs
Dimensions: 50"W x 93"L x 55"H Sell UOM: -- Color: Black/Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 885 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 550 Fork Length (in.): 72 Power Source: Manual
Adjustable Fork Spacing (in.): 7-7/8 to 26-3/4 Service Range (in.): 3-1/8 to 35-1/2 Adjustable Leg Spacing (in.): 40-1/8 to 50
Leg Width (in.): 4 Caster Material: Nylon Rear Caster Diameter: 7
Front Caster Diameter: 4
