Model Details

WTJ-20-4-AC-CSA

WTJ-20-4-AC-CSA

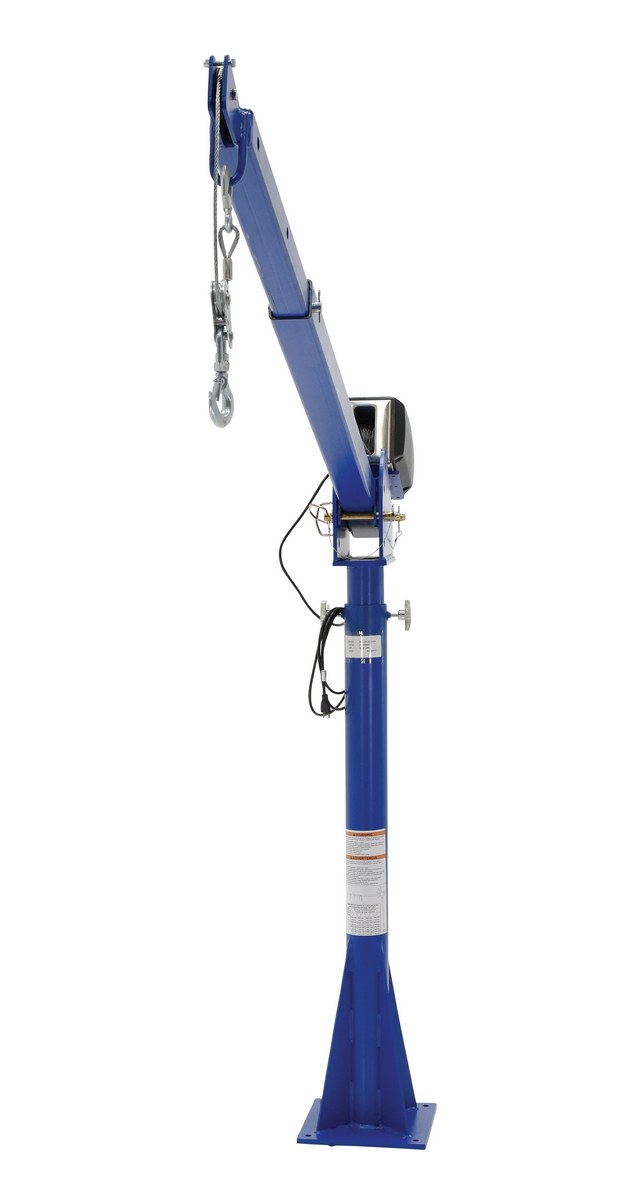

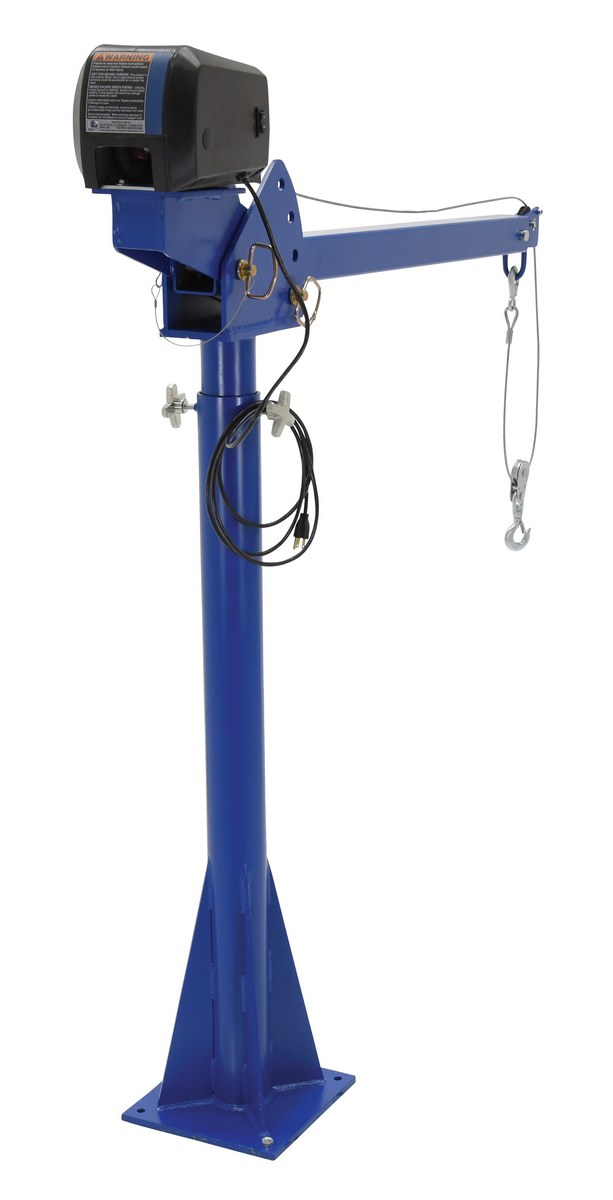

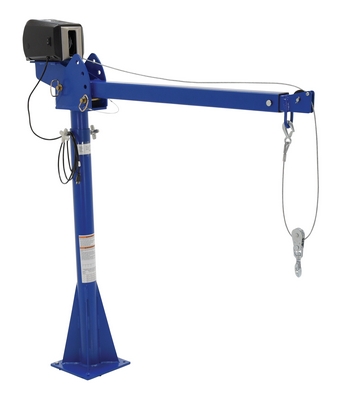

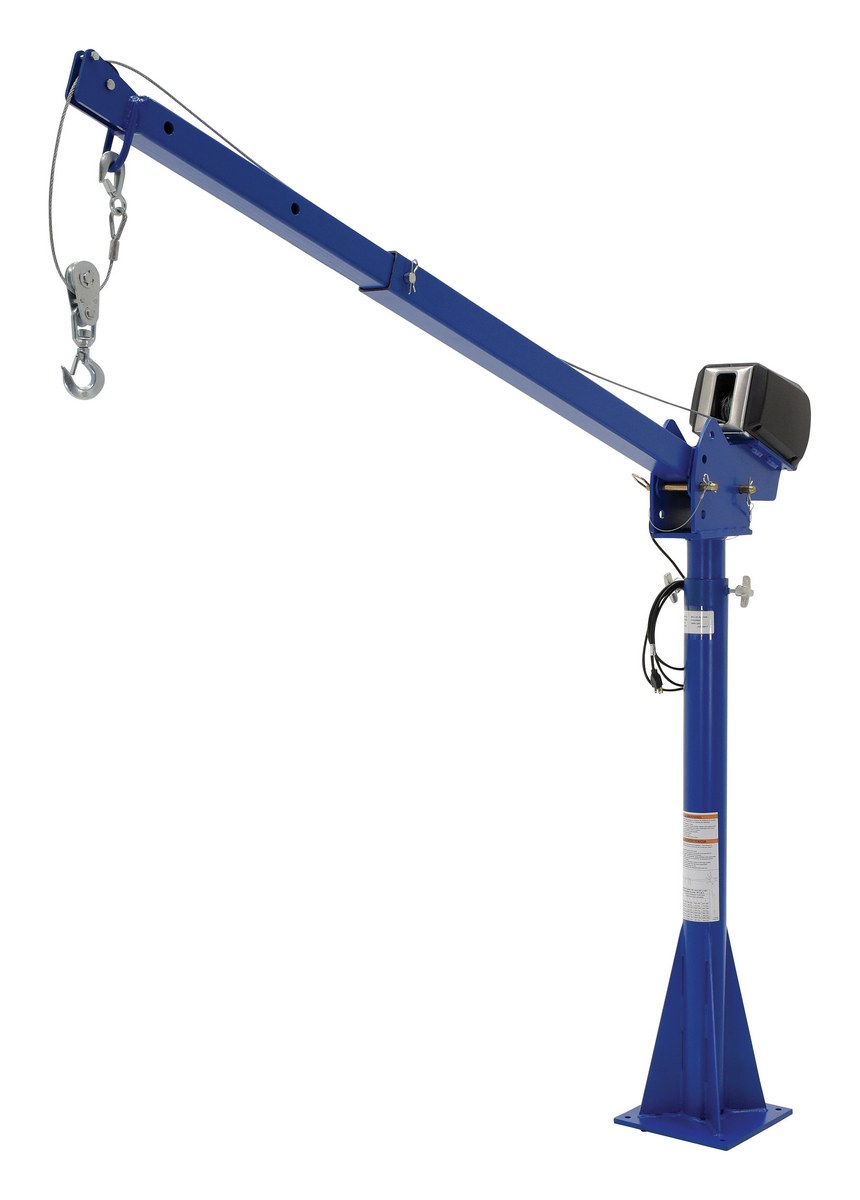

Steel AC Powered Jib Crane CSA Compliant 4-7 Ft. Boom 2,000 Lb. Capacity Blue

A power lift Jib crane is designed for material handling applications on docks, in warehouses or in truck beds. This intermittent unit uses crane feature rotation hand brakes that offer unlimited positioning. The mast mounts permanently. Boom adjusts in one (1) foot increments and can be positioned at four (4) elevations. Fingertip switch to raise and lower hook. Folds for storage. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Total Ship Wt.(lbs.): 275 (only 1 package) Size: 18.6875"W x 87.5"L x 73"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 2,000 Boom Reach (in.): 51-1/4 to 87-1/4 Boom Height (in.): 59-1/2 to 106-1/2
Rotation Degree: 360 Boom Adjustment Increments (in.): 12 Cable Length (ft.): 25
Cable Diameter (in.): 7/32 AC (volts): 115 Horsepower (HP): 1/3
Mounting Plate Length (in.): 12 Mounting Plate Width (in.): 12 Capacity at 58-3/8" Fully Retracted (lbs.): 1,100
Capacity at 58-3/8" Second Position (lbs.): 800 Capacity at 58-3/8" Third Position (lbs.): 600 Capacity at 58-3/8" Fully Extended (lbs.): 250
Capacity at 77-1/8" Fully Retracted (lbs.): 1,500 Capacity at 77-1/8" Second Position (lbs.): 1,200 Capacity at 77-1/8" Third Position (lbs.): 1,000
Capacity at 77-1/8" Fully Extended (lbs.): 600 Capacity at 93-5/16" Fully Retracted (lbs.): 1,850

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: WTJ-20-4-AC-CSA


WTJ-20-4-AC-CSA

Steel AC Powered Jib Crane CSA Compliant 4-7 Ft. Boom 2,000 Lb. Capacity Blue

A power lift Jib crane is designed for material handling applications on docks, in warehouses or in truck beds. This intermittent unit uses crane feature rotation hand brakes that offer unlimited positioning. The mast mounts permanently. Boom adjusts in one (1) foot increments and can be positioned at four (4) elevations. Fingertip switch to raise and lower hook. Folds for storage. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Dimensions: 18.6875"W x 87.5"L x 73"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215096867 GTIN: 00691215096867
Warranty: -- Shipping Weight: 275 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Boom Reach (in.): 51-1/4 to 87-1/4 Boom Height (in.): 59-1/2 to 106-1/2
Rotation Degree: 360 Boom Adjustment Increments (in.): 12 Cable Length (ft.): 25
Cable Diameter (in.): 7/32 AC (volts): 115 Horsepower (HP): 1/3
Mounting Plate Length (in.): 12 Mounting Plate Width (in.): 12 Capacity at 58-3/8" Fully Retracted (lbs.): 1,100
Capacity at 58-3/8" Second Position (lbs.): 800 Capacity at 58-3/8" Third Position (lbs.): 600 Capacity at 58-3/8" Fully Extended (lbs.): 250
Capacity at 77-1/8" Fully Retracted (lbs.): 1,500 Capacity at 77-1/8" Second Position (lbs.): 1,200 Capacity at 77-1/8" Third Position (lbs.): 1,000
Capacity at 77-1/8" Fully Extended (lbs.): 600 Capacity at 93-5/16" Fully Retracted (lbs.): 1,850
