Model Details

WTJ-E-15-3-DC

Printer Friendly
WTJ-E-15-3-DC

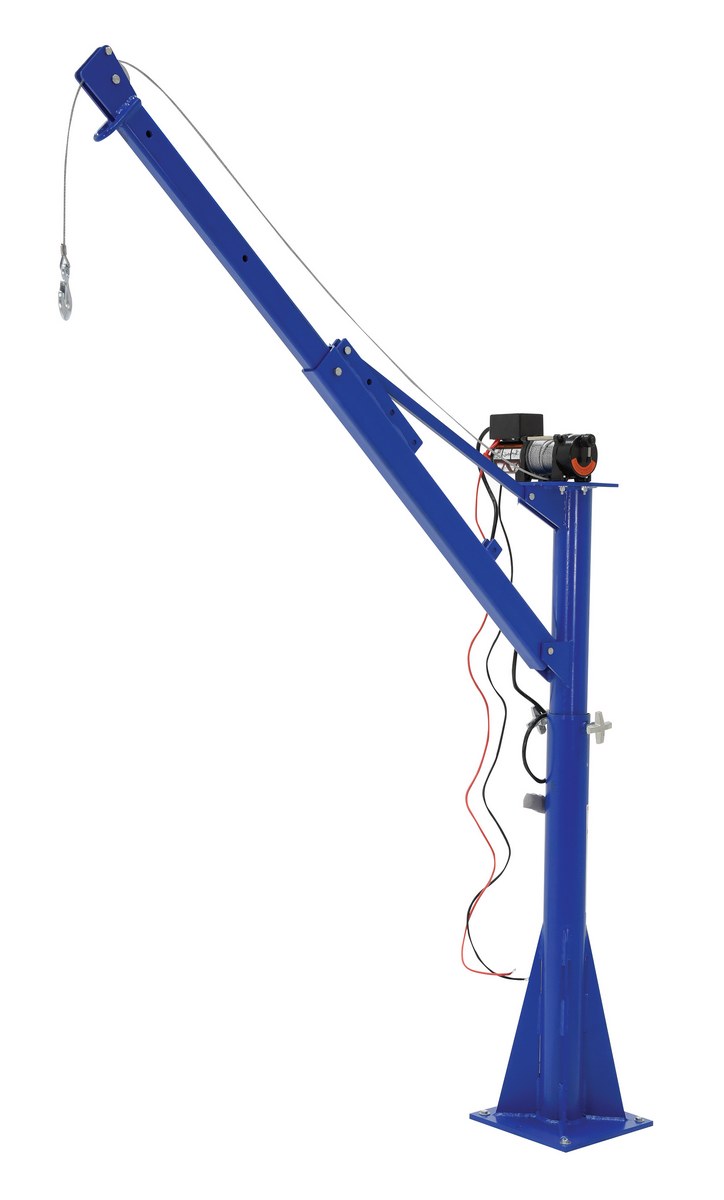

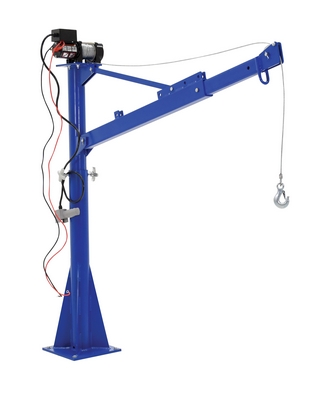

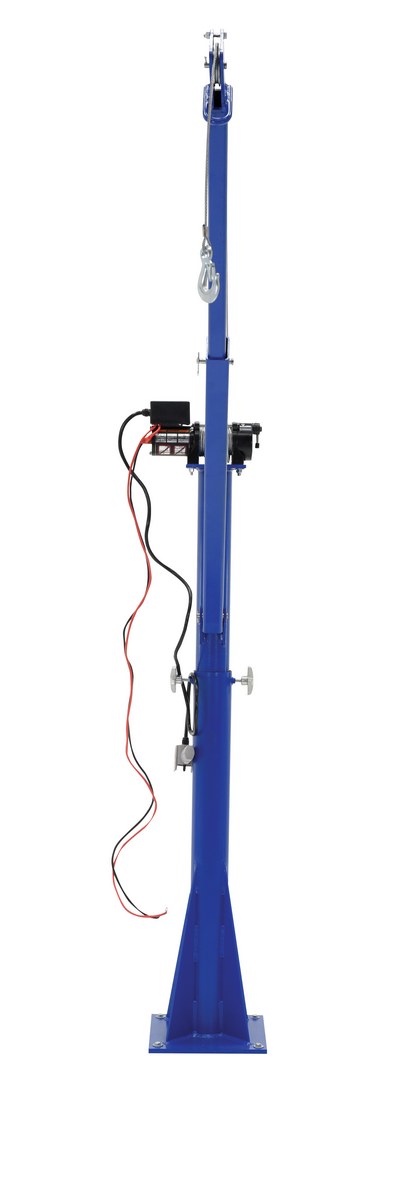

Steel DC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Blue

A power lift Jib crane is designed for material handling applications on docks, in warehouses or in truck beds. This lift jib crane is the economical answer to your material handling problems. It offers light-duty, intermittent use. Locking manual rotation. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Total Ship Wt.(lbs.): 213 (only 1 package) Size: 13.5"W x 51.0625"L x 65.6875"H Color: Blue QuickShip

Uniform Capacity (lb.): 1,500 Boom Reach (in.): 43-1/16 to 66-3/4 Boom Height (in.): 47-1/8 to 73-5/16
Rotation Degree: 360 DC (volts): 12 Horsepower: 1
Wire Rope Length (ft.): 46 Wire Rope Diameter (in.): 3/16 Mounting Plate Length (in.): 12
Mounting Plate Width (in.): 12 1,500 lb. Capacity at Boom Extension (in.): 27-13/16 Capacity at 47-1/8" Fully Retracted (lbs.): 650
Capacity at 47-1/8" Mid-Position (lbs.): 300 Capacity at 47-1/8" Fully Extended (lbs.): 200 Capacity at 56-3/16" Fully Retracted (lbs.): 1100
Capacity at 56-3/16" Mid-Position (lbs.): 650 Capacity at 56-3/16" Fully Extended (lbs.): 550 Capacity at 64-3/4" Fully Retracted (lbs.): 1,250
Capacity at 64-3/4" Mid-Position (lbs.): 850 Capacity at 64-3/4" Fully Extended (lbs.): 650

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: WTJ-E-15-3-DC
WTJ-E-15-3-DC

Steel DC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Blue

A power lift Jib crane is designed for material handling applications on docks, in warehouses or in truck beds. This lift jib crane is the economical answer to your material handling problems. It offers light-duty, intermittent use. Locking manual rotation. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Dimensions: 13.5"W x 51.0625"L x 65.6875"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215048378 GTIN: 00691215048378
Warranty: -- Shipping Weight: 213 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,500 Boom Reach (in.): 43-1/16 to 66-3/4 Boom Height (in.): 47-1/8 to 73-5/16
Rotation Degree: 360 DC (volts): 12 Horsepower: 1
Wire Rope Length (ft.): 46 Wire Rope Diameter (in.): 3/16 Mounting Plate Length (in.): 12
Mounting Plate Width (in.): 12 1,500 lb. Capacity at Boom Extension (in.): 27-13/16 Capacity at 47-1/8" Fully Retracted (lbs.): 650
Capacity at 47-1/8" Mid-Position (lbs.): 300 Capacity at 47-1/8" Fully Extended (lbs.): 200 Capacity at 56-3/16" Fully Retracted (lbs.): 1100
Capacity at 56-3/16" Mid-Position (lbs.): 650 Capacity at 56-3/16" Fully Extended (lbs.): 550 Capacity at 64-3/4" Fully Retracted (lbs.): 1,250
Capacity at 64-3/4" Mid-Position (lbs.): 850 Capacity at 64-3/4" Fully Extended (lbs.): 650
