ATS-14-68-HDG

Galvanized Alternate Tread Stair 68 Degrees 78-3/8 In. x 23-1/2 In. x 209-7/8 In. 350 Lb. Capacity Silver

Alternating-tread stair design is a great addition to a variety of warehouses and workshops. The unique design offers a shorter span than traditional steps. With a handrail on each side of unit and a dual safety chain at the top of the stair, security is the top priority of this ladder style.
Available Non-Returnable
Key Features
  • Two-sided hand railing provides added user safety
  • Steps are constructed of a raised steel surface providing better traction
  • Handrails have a safety yellow powder coat finish
  • Steel steps and platform have a durable hot dip galvanize finish
Product Image

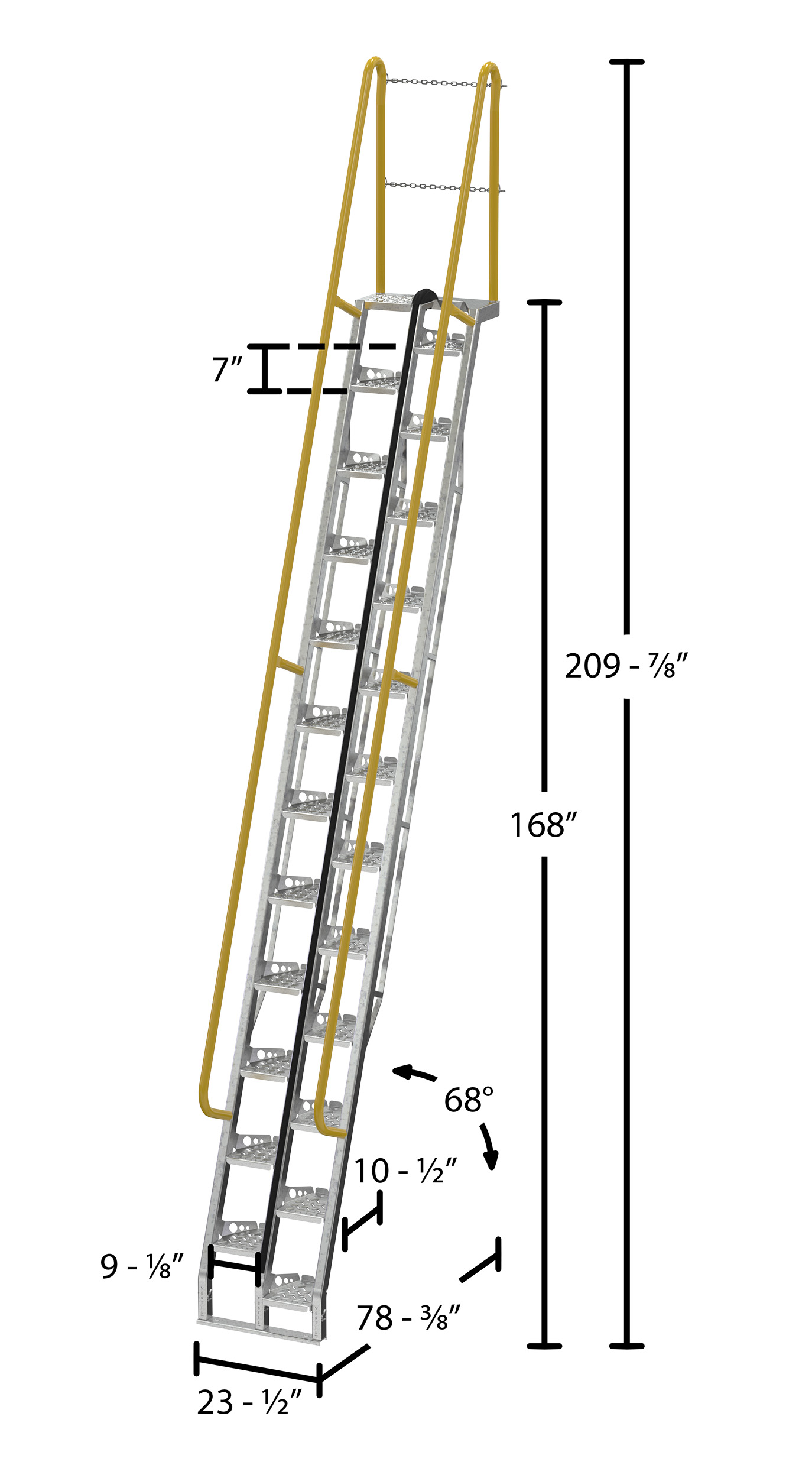

Visual Reference

ATS-14-68-HDG
ATS-14-68-HDG
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 350 lbs
Assembled Size 23.5"W x 78.375"L x 209.875"H
Total Ship Weight 610 lbs
Package 1 Size 29"W x 188"D x 17"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 350
Number of Steps 24
Top Step Height (in.) 168
Step Angle (degrees) 68
Safety Chain (in.) 3/16
Top Step Depth (in.) 9-3/4
Top Step Width (in.) 23-5/8
Step (excluding top step) Depth (in.) 10-1/2
Step (excluding top step) Width (in.) 9-1/8
Step Height Spacing (in.) 7
Handrail Height (in.) 12-1/4
OSHA 29 CFR 1910.25(e`)
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Alternating Tread Stairs   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: ATS-14-68-HDG

ATS-14-68-HDG

Galvanized Alternate Tread Stair 68 Degrees 78-3/8 In. x 23-1/2 In. x 209-7/8 In. 350 Lb. Capacity Silver

Alternating-tread stair design is a great addition to a variety of warehouses and workshops. The unique design offers a shorter span than traditional steps. With a handrail on each side of unit and a dual safety chain at the top of the stair, security is the top priority of this ladder style.

  • Two-sided hand railing provides added user safety
  • Steps are constructed of a raised steel surface providing better traction
  • Handrails have a safety yellow powder coat finish
  • Steel steps and platform have a durable hot dip galvanize finish

Core Data

Assembled Weight: 350 Assembled Size: 23.5"W x 78.375"L x 209.875"H Color: Silver
Total Ship Weight: 610 Package 1 Size: 29"W x 188"D x 17"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 350
Number of Steps: 24
Top Step Height (in.): 168
Step Angle (degrees): 68
Safety Chain (in.): 3/16
Top Step Depth (in.): 9-3/4
Top Step Width (in.): 23-5/8
Step (excluding top step) Depth (in.): 10-1/2
Step (excluding top step) Width (in.): 9-1/8
Step Height Spacing (in.): 7
Handrail Height (in.): 12-1/4
OSHA: 29 CFR 1910.25(e`)
