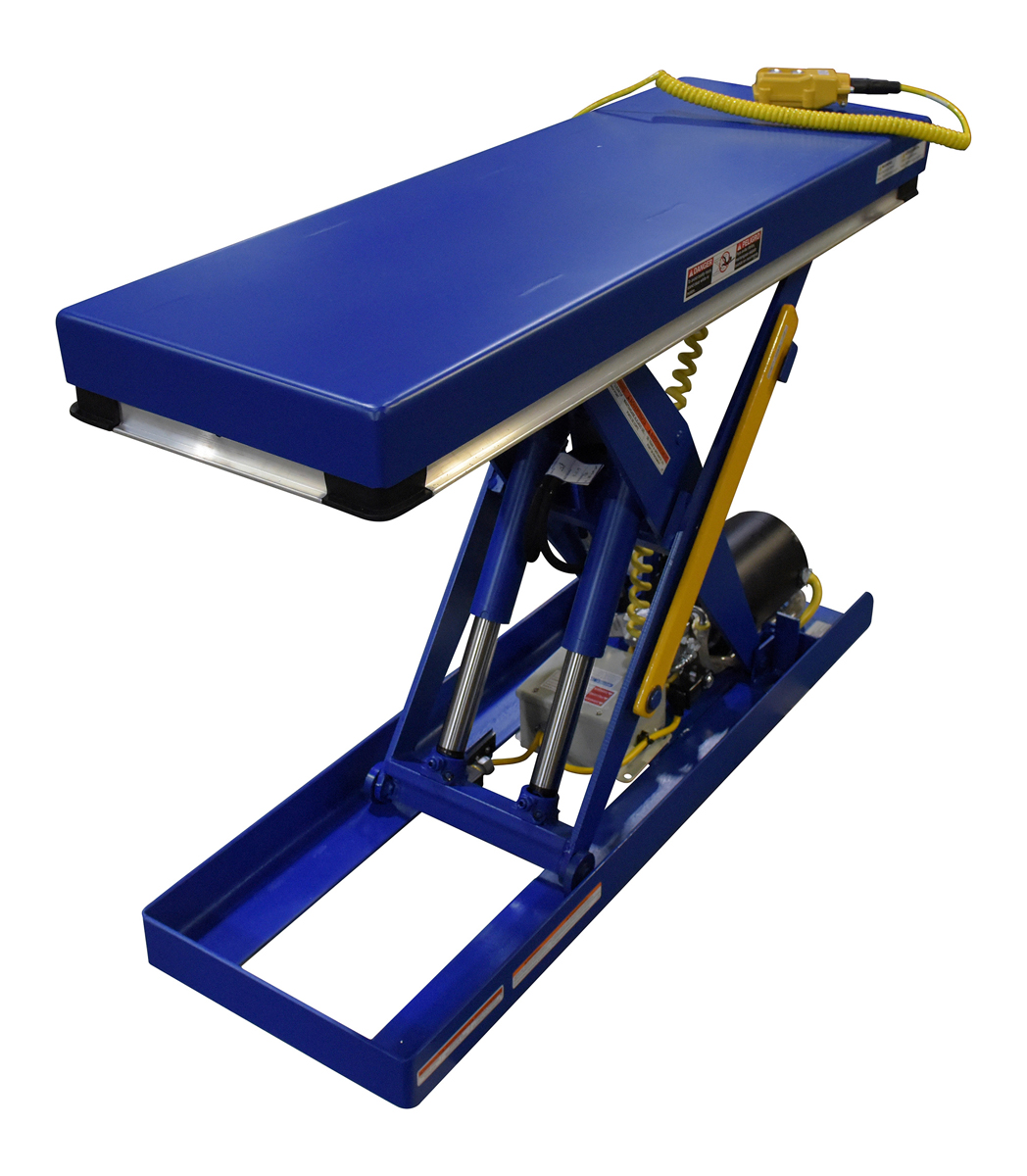

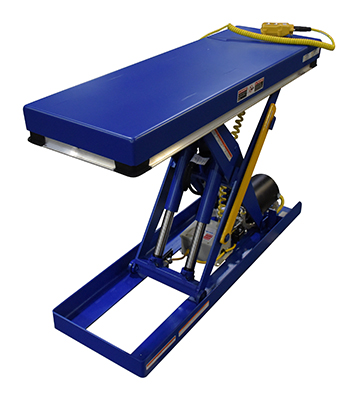

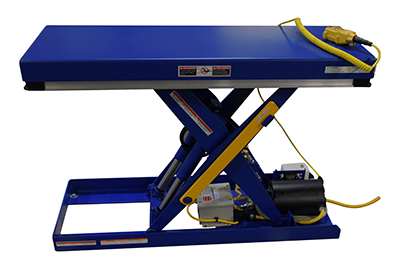

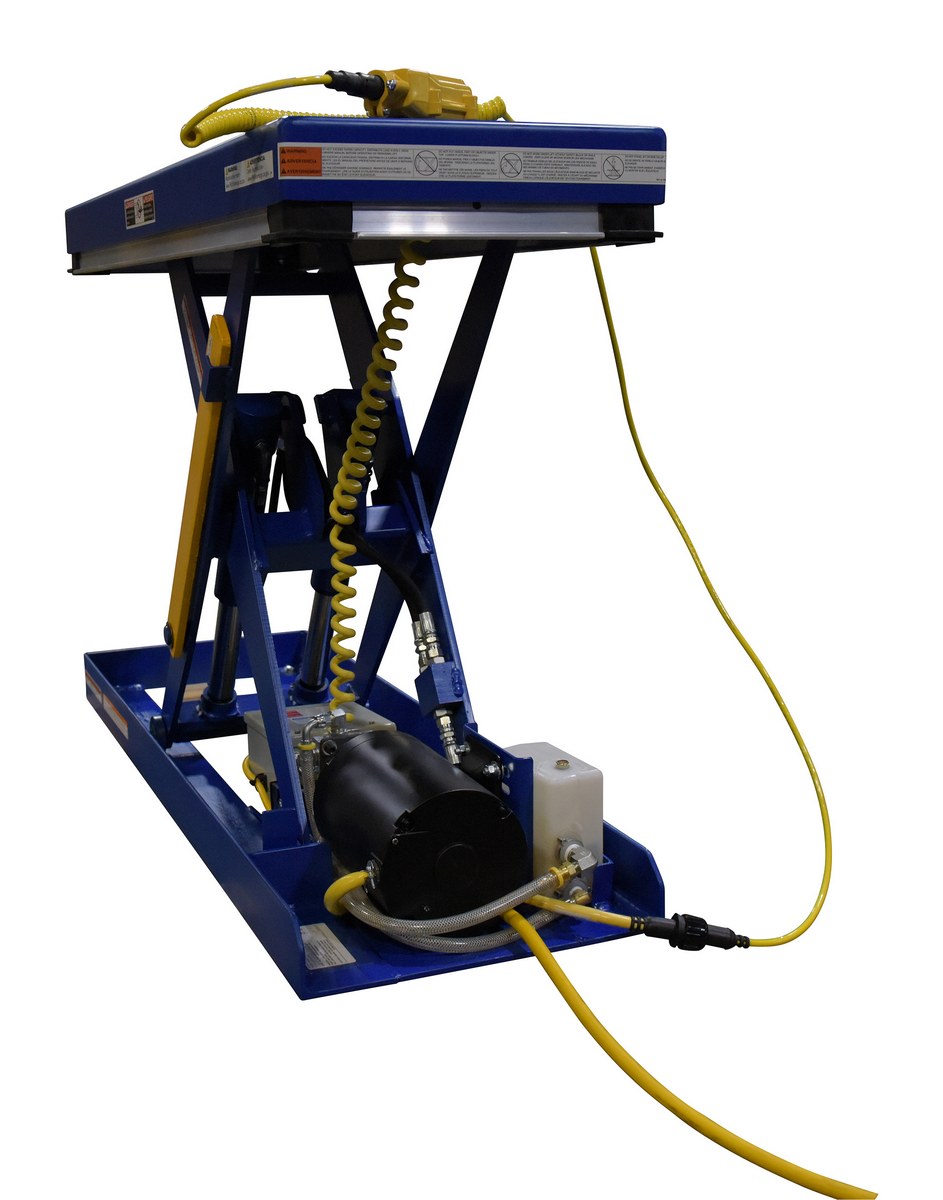

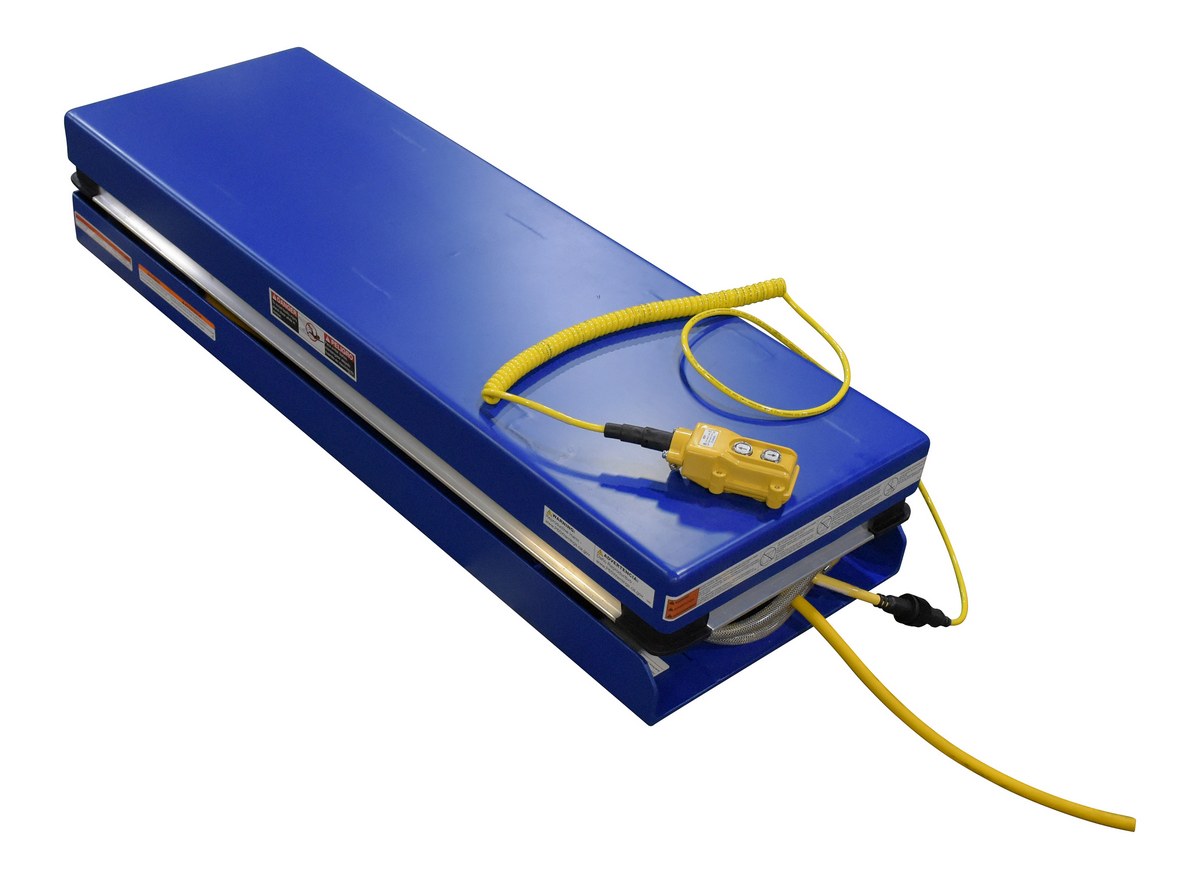

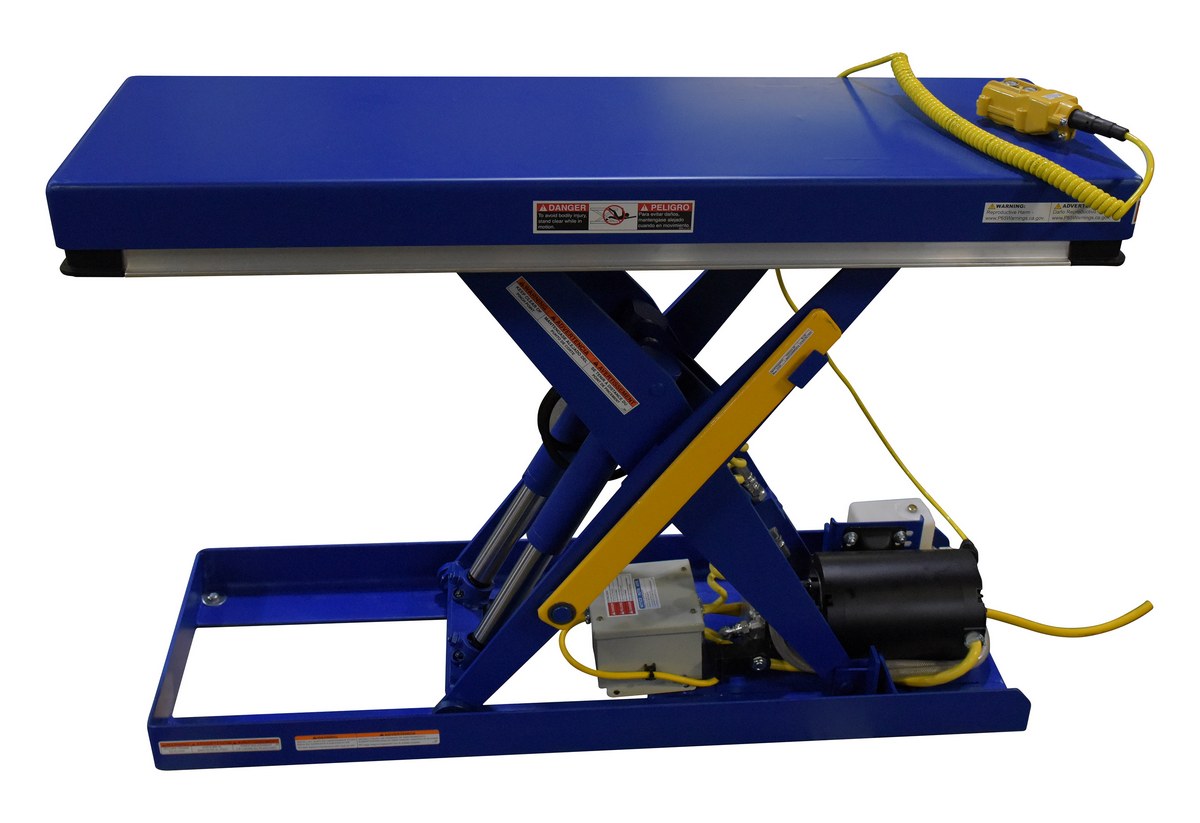

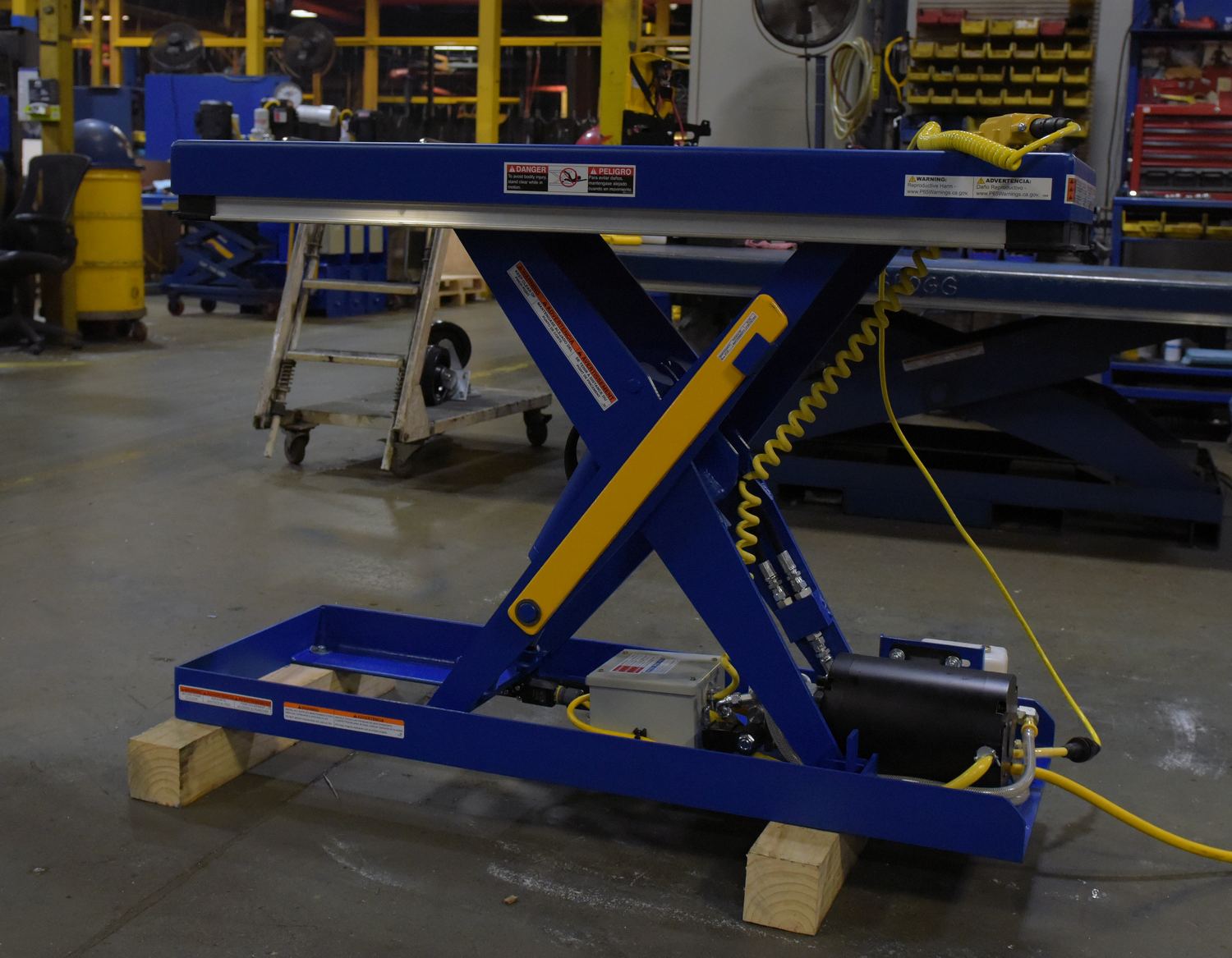

Narrow Scissor Lift TablesThe Narrow Scissor Lift Table is used by all types of manufacturing and warehouse facilities. Safety features include: electric toe guard to protect pinch points while lowering of the table, internal safety velocity fuse to maintain platform height in an event of hose or fitting failure, maintenance prop, upper travel limit switch to stop table at maximum height, and a displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, displacement style hydraulic cylinder, and a state-of-the-art lifetime lubricated bearings. 2HP, 460V, 3 Phase, 60 HZ totally enclosed motor standard, other voltages available.
- Electric toe guard protects pinch points while lowering for maximum safety
- Internal safety velocity fuse maintains platform height in case of hose or fitting failure
- Displacement-style hydraulic cylinders for maximum strength

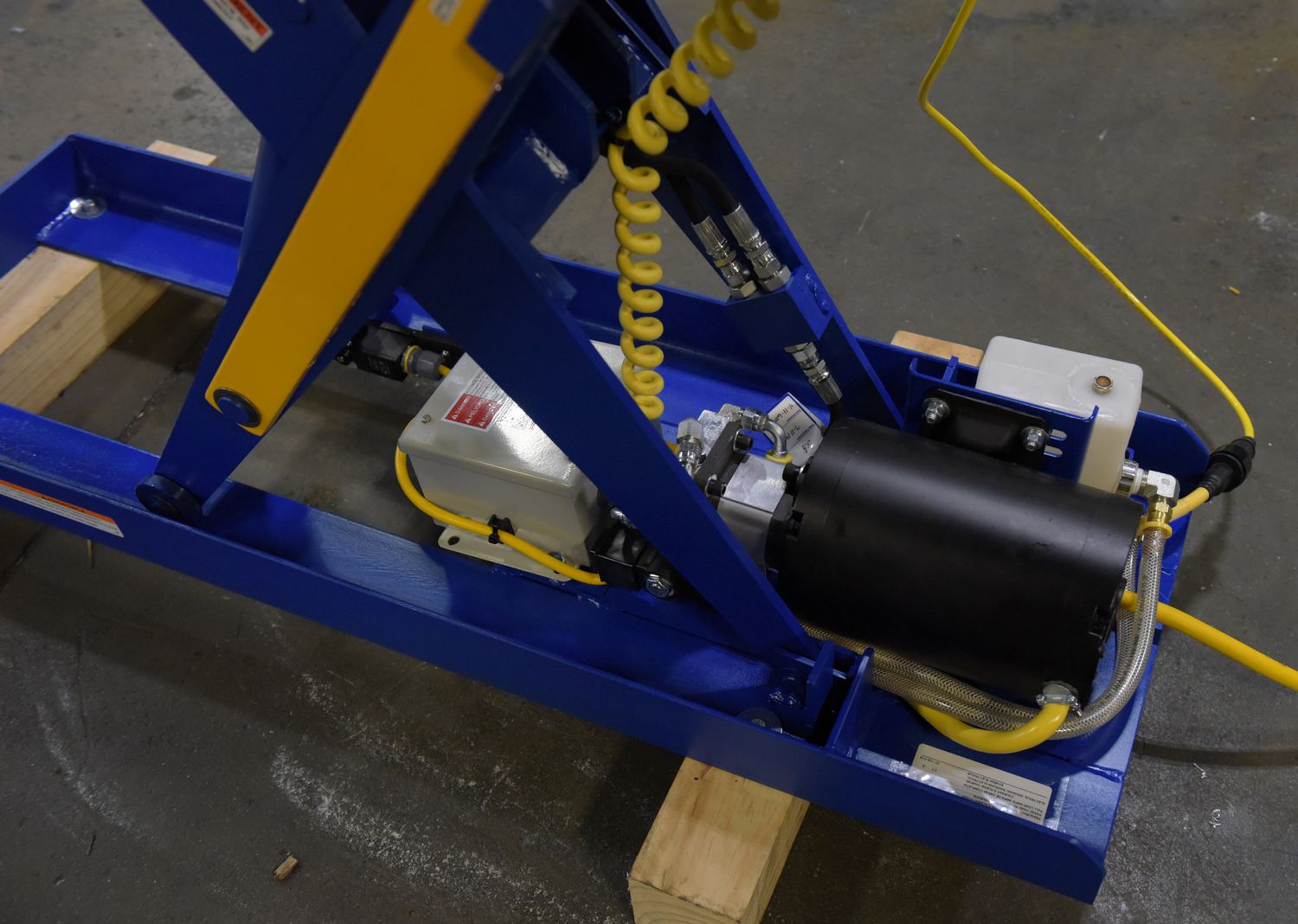

- Standard 56 frame electric motor is a fully enclosed with optional voltages available
Single Scissor Lift & Tilt Tables
Low Profile Electric/Hydraulic Scissor Lift Tables
Integral Scale for Scissor Tables
Heavy-Duty Air Bag Scissor Lift Tables
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| EHLT-N-1648-1-32 | |  | 1 Year Limited Warranty | Steel Electric Hydraulic Narrow Scissor Lift Table 16 In. x 48 In. 1000 Lb. Capacity Blue | Uniform Static Capacity (lb.): 1,000 Raised Height (in.): 32 | 359 | |
| EHLT-N-1648-2-32 | |  | 1 Year Limited Warranty | Steel Electric Hydraulic Narrow Scissor Lift Table 16 In. x 48 In. 2000 Lb. Capacity Blue | Uniform Static Capacity (lb.): 2,000 Raised Height (in.): 32 | 362 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 1,000
Raised Height (in.): 32
Uniform Static Capacity (lb.): 1,000
Raised Height (in.): 32
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Static Capacity (lb.): 2,000
Raised Height (in.): 32
Uniform Static Capacity (lb.): 2,000
Raised Height (in.): 32
Manuals
Survey Sheets
Approval Drawings
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: EHLT-N-1648-1-32
Hydraulic Oil SDS Sheet for: EHLT-N-1648-2-32
Other PDF's
Directory Links Of Available PDF's For All Products
Q: What is the standard voltage and phase? Can the voltage and phase be changed?
A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.
Q: What is the ambient temperature recommended for standard EHLT models?
A: The recommended ambient temperature operating range is -5°C (23°F) to 40°C (104°F).
 |
|||||||||||||||||
