Product Family Overview

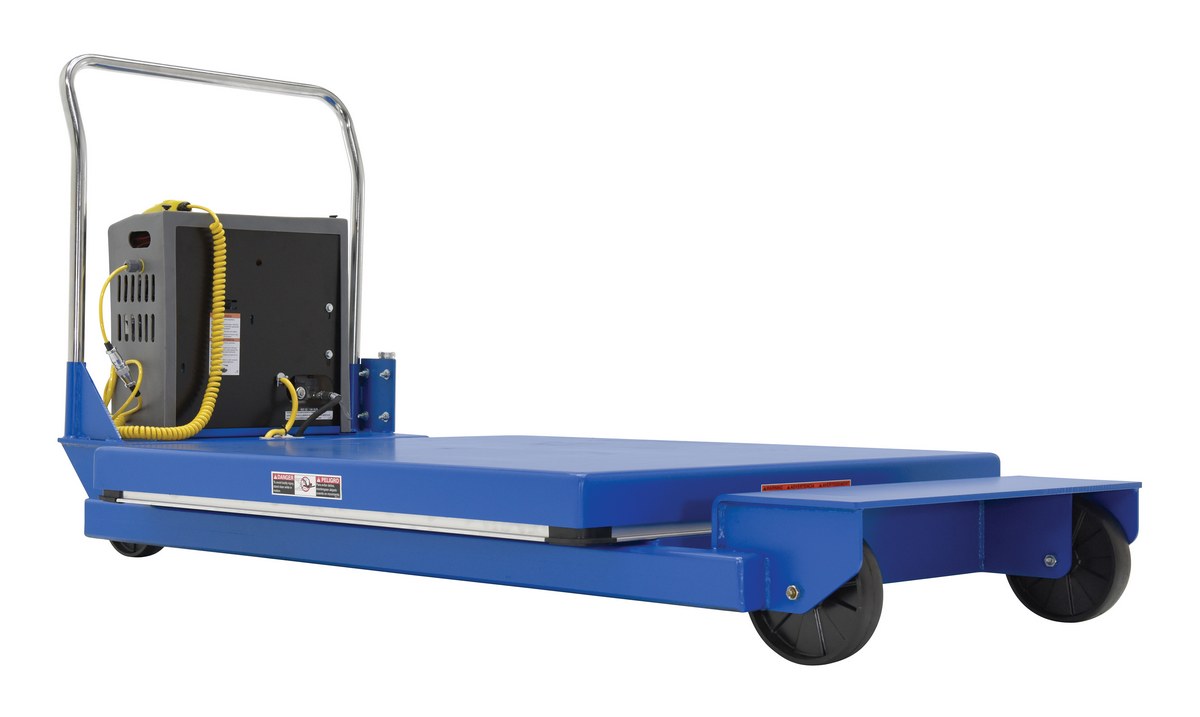

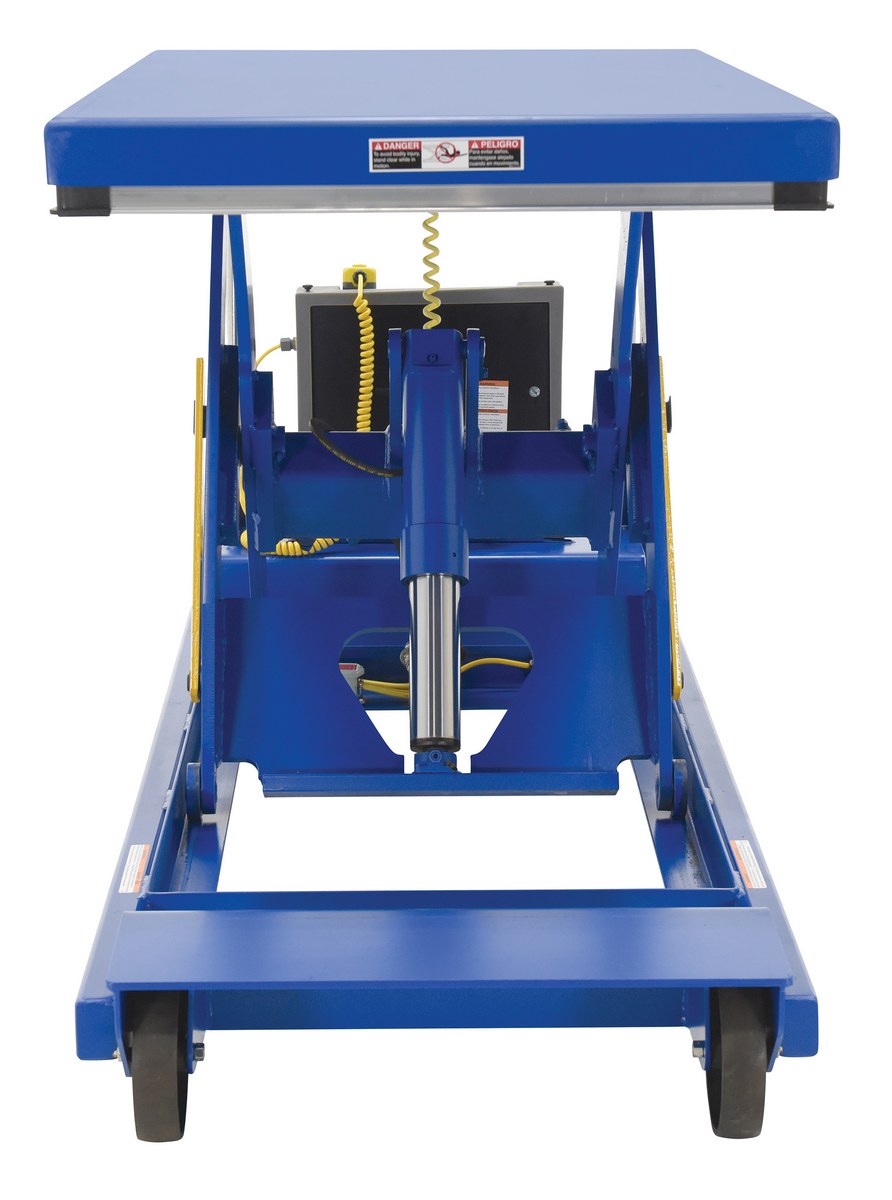

Portable Scissor Lift Tables
SERIES: PST

Portable Scissor Lift Tables are designed to transport and elevate your heaviest loads. A heavy-duty 12V DC power unit with deep cycle battery, an on-board battery charger, and battery charge indicator gauge are standard. Features 8" glass filled nylon casters (two swivel and two rigid) (4 & 5,000 lb. units have phenolic casters), floor lock, and patented electric pinch point guards. Push buttons to raise and lower lift, and the magnetic hand control on an 8 ft. cord are standard. Key-operated ON/OFF control for better security is built into the power unit.

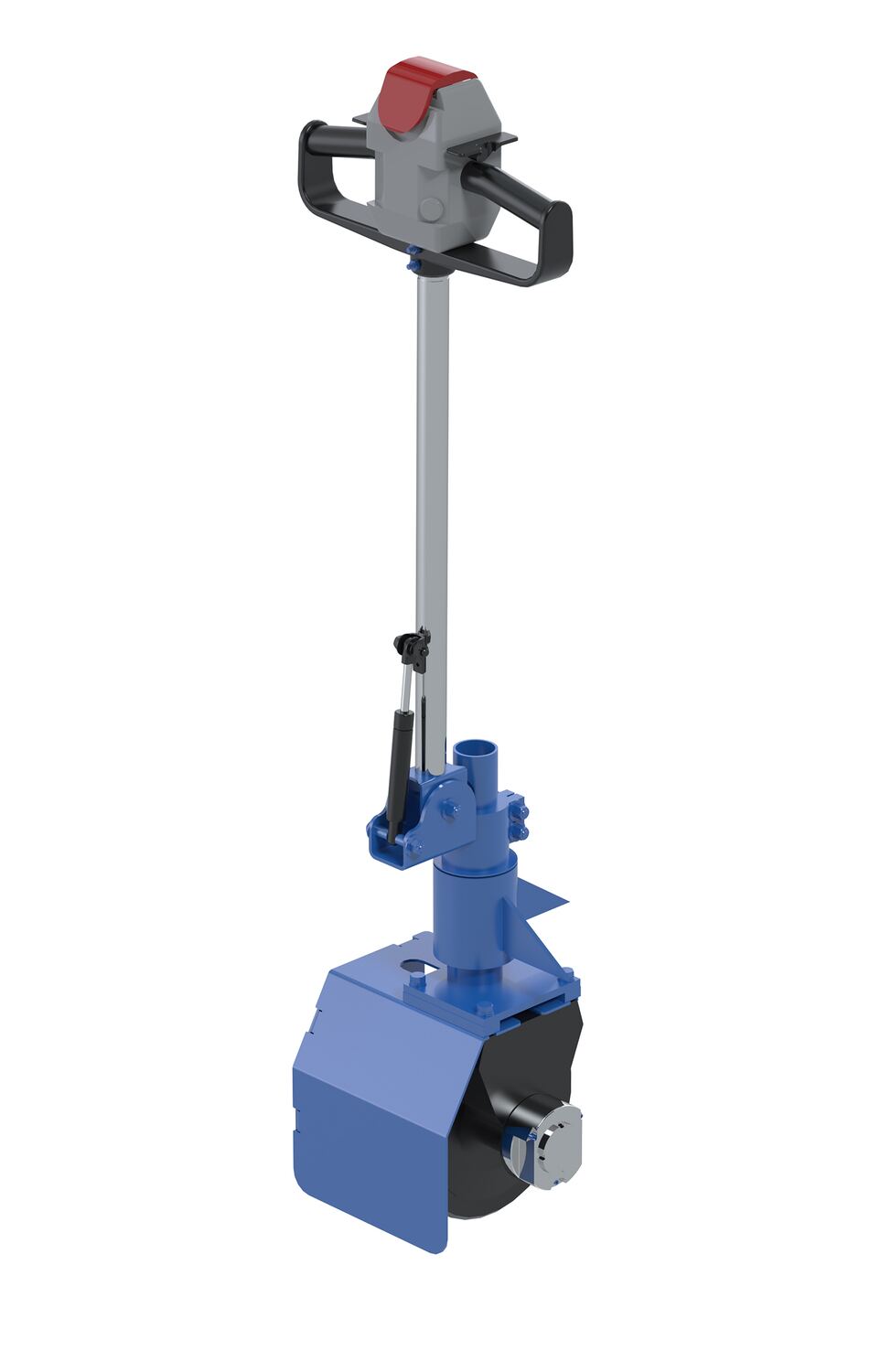

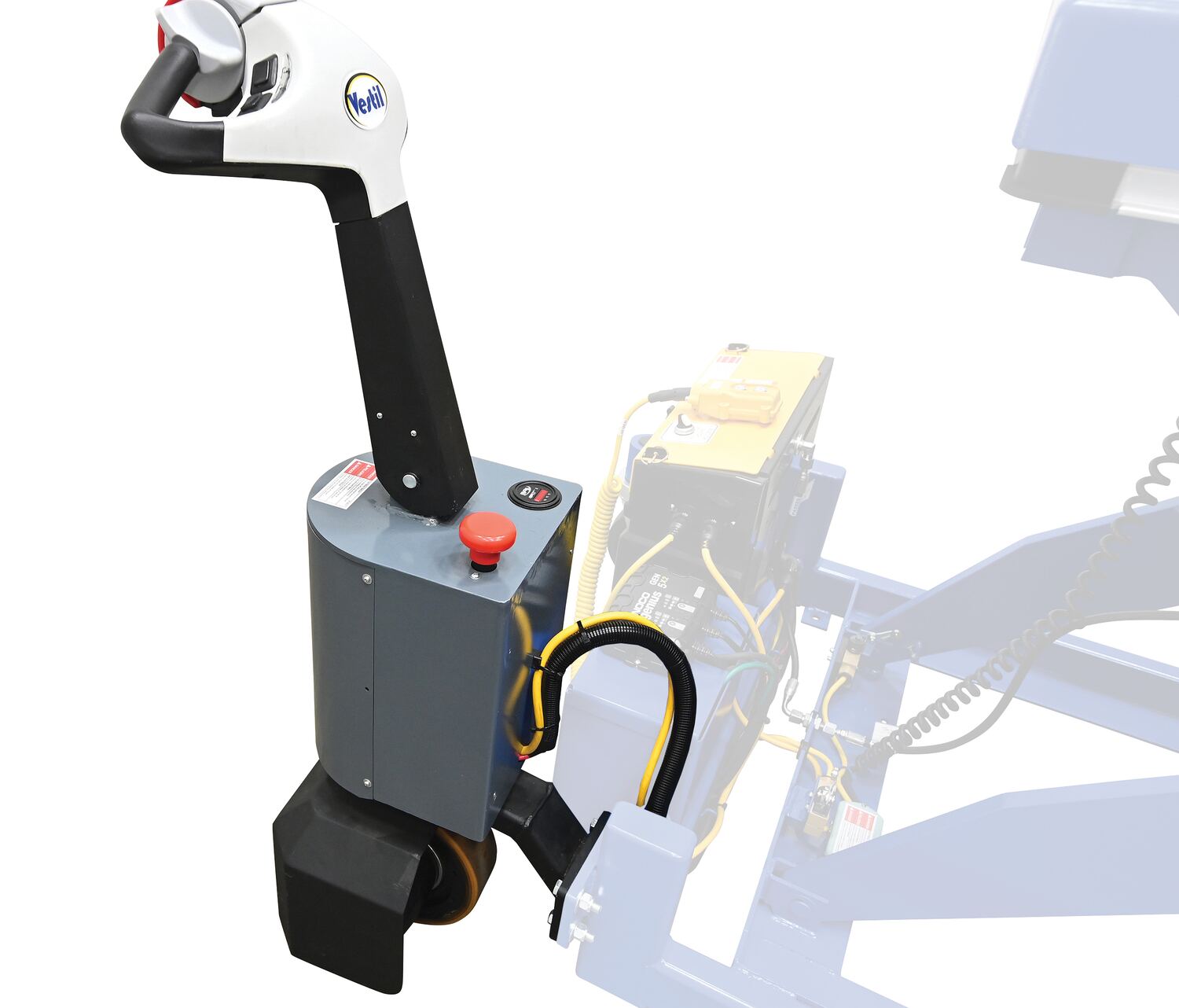

Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h.

PSTPTDS includes:

  • Combination throttle / direction butterfly style controller
  • An adjustable steering yoke
  • An auto reverse emergency "belly switch"
  • (2) 12V batteries

PTDS-E includes:

  • Combination throttle / direction controller
  • An auto reverse emergency "belly switch"
  • (2) 12V batteries

Portable Scissor Lift Tables are designed to transport and elevate your heaviest loads. A heavy-duty 12V DC power unit with deep cycle battery, an on-board battery charger, and battery charge indicator gauge are standard. Features 8" glass filled nylon casters (two swivel and two rigid) (4 & 5,000 lb. units have phenolic casters), floor lock, and patented electric pinch point guards. Push buttons to raise and lower lift, and the magnetic hand control on an 8 ft. cord are standard. Key-operated ON/OFF control for better security is built into the power unit.

Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h.

PSTPTDS includes:

  • Combination throttle / direction butterfly style controller
  • An adjustable steering yoke
  • An auto reverse emergency "belly switch"
  • (2) 12V batteries

PTDS-E includes:

  • Combination throttle / direction controller
  • An auto reverse emergency "belly switch"
  • (2) 12V batteries

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Portable Scissor Tables
Model Number Format
PST - (width)(length) - capacity - raised height
Vertical Travel PDF's Platform Width Platform Length Capacity (lbs) Raised Height Lowered Height Travel Time (Sec.) Wt.
(lbs)
36" Warranty PDF 24"-48" 48"-72" 1,000 46" 10" 9 1046
36" Warranty PDF 24"-48" 48"-72" 2,000 46" 10" 14 1218
36" Warranty PDF 24"-48" 48"-72" 3,000 46" 10" 20 1385
35" Warranty PDF 36"-48" 48"-72" 4,000 47" 12" 28 1770
35" Warranty PDF 36"-48" 48"-72" 5,000 47" 12" 31 1810
48" Warranty PDF 24"-48" 64"-90" 1,000 58" 10" 14 1331
48" Warranty PDF 24"-48" 64"-90" 2,000 58" 10" 20 1363
48" Warranty PDF 24"-48" 64"-90" 3,000 58" 10" 28 1224
48" Warranty PDF 36"-48" 64"-90" 4,000 60" 12" 38 1800
48" Warranty PDF 36"-48" 64"-90" 5,000 60" 12" 38 2266
Drawings For Commonly Ordered Sizes of PST Tables:

PST-2448-1-46

PST-2448-1-46-PTDS-E

PST-2460-1-46

PST-2472-1-46

PST-3648-1-46

PST-3660-1-46

PST-3464-1-46

PST-3648-1-46-PTDS-E

PST-3672-1-46

PST-2464-1-58

PST-3660-4-47

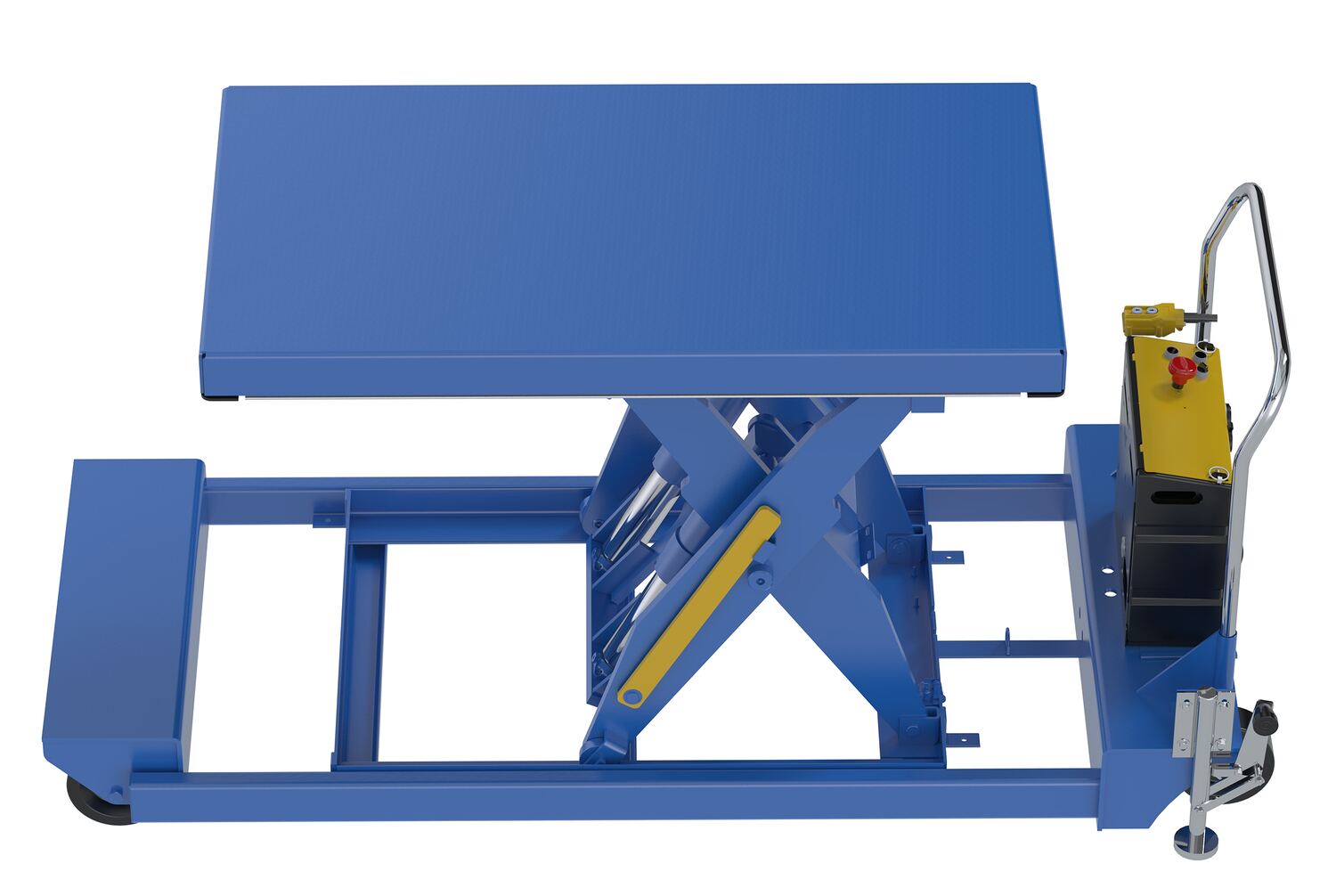

PST-3664-4-47

PST-4472-4-47

PST-4848-4-47

PST-4848-4-47-PTDS

PST-3690-4-60

PST-3660-5-47

PST-3664-5-47

*

PST-4472-5-47

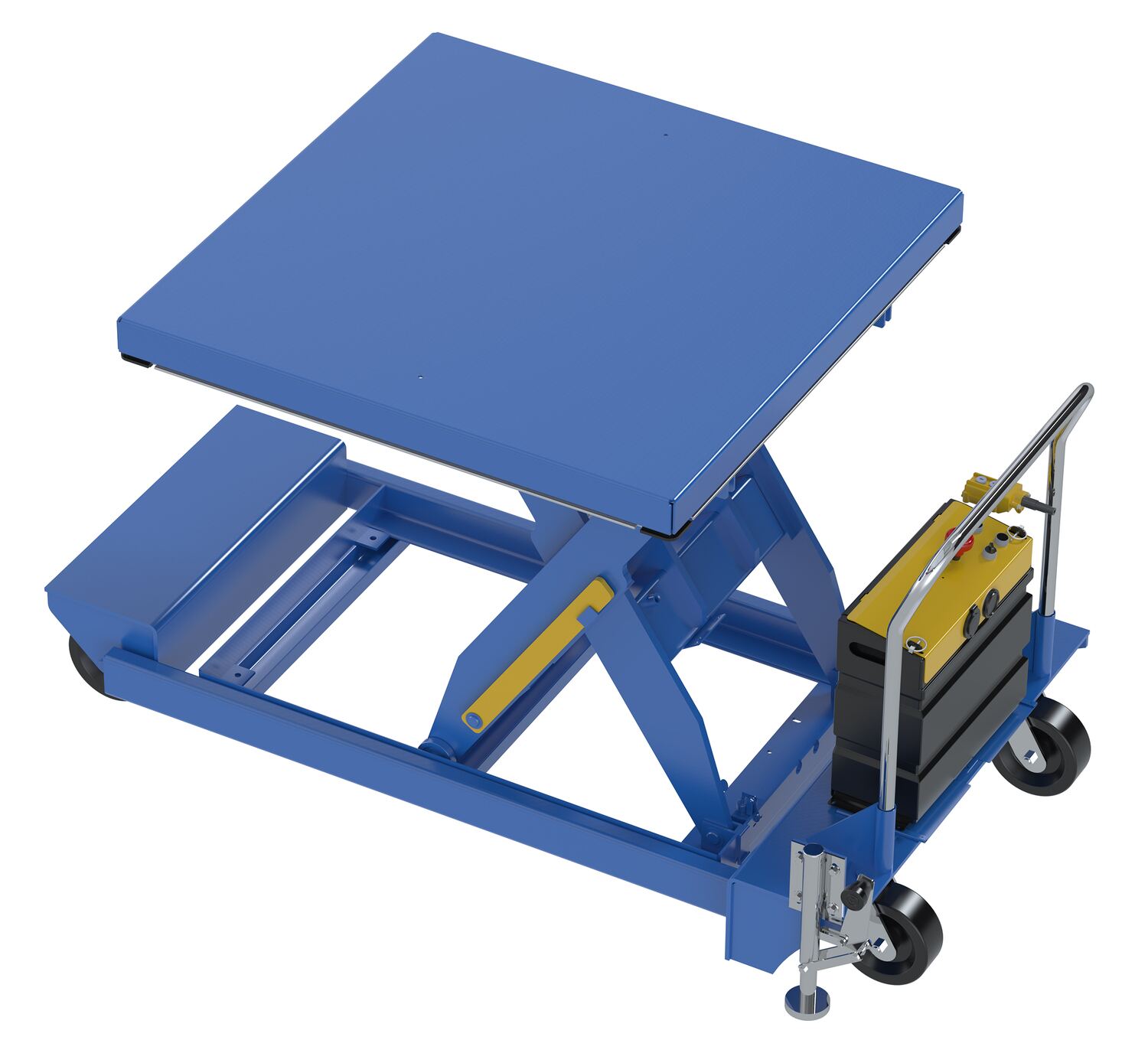

PST-4848-5-47

PST-4848-5-47-PTDS

PST-3690-5-60

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below

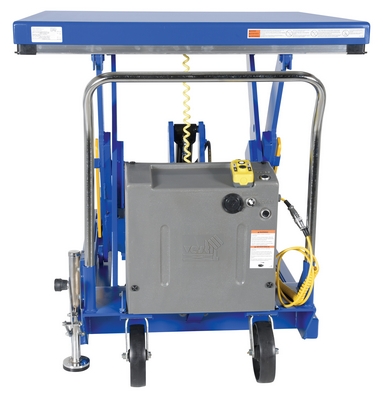

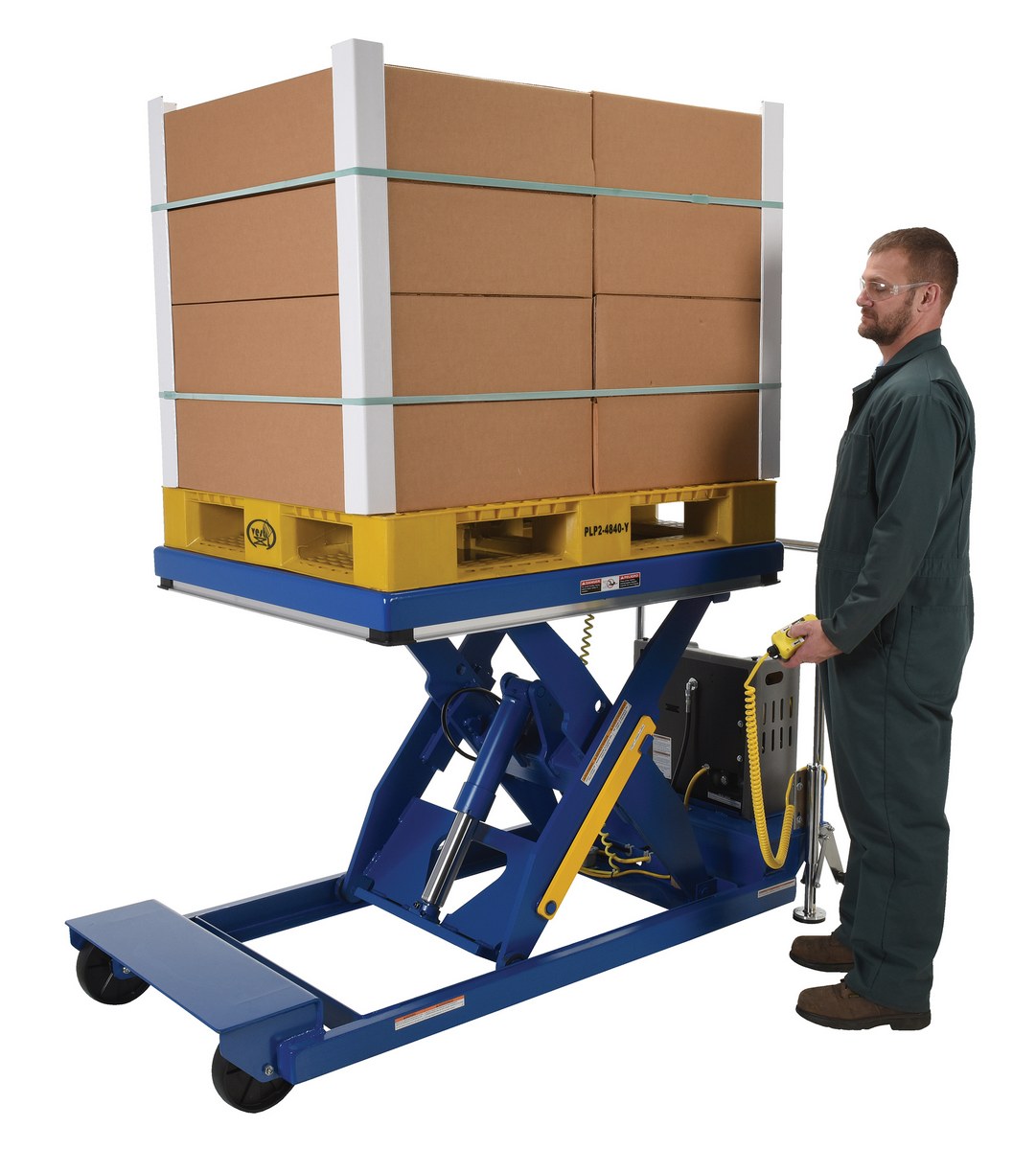

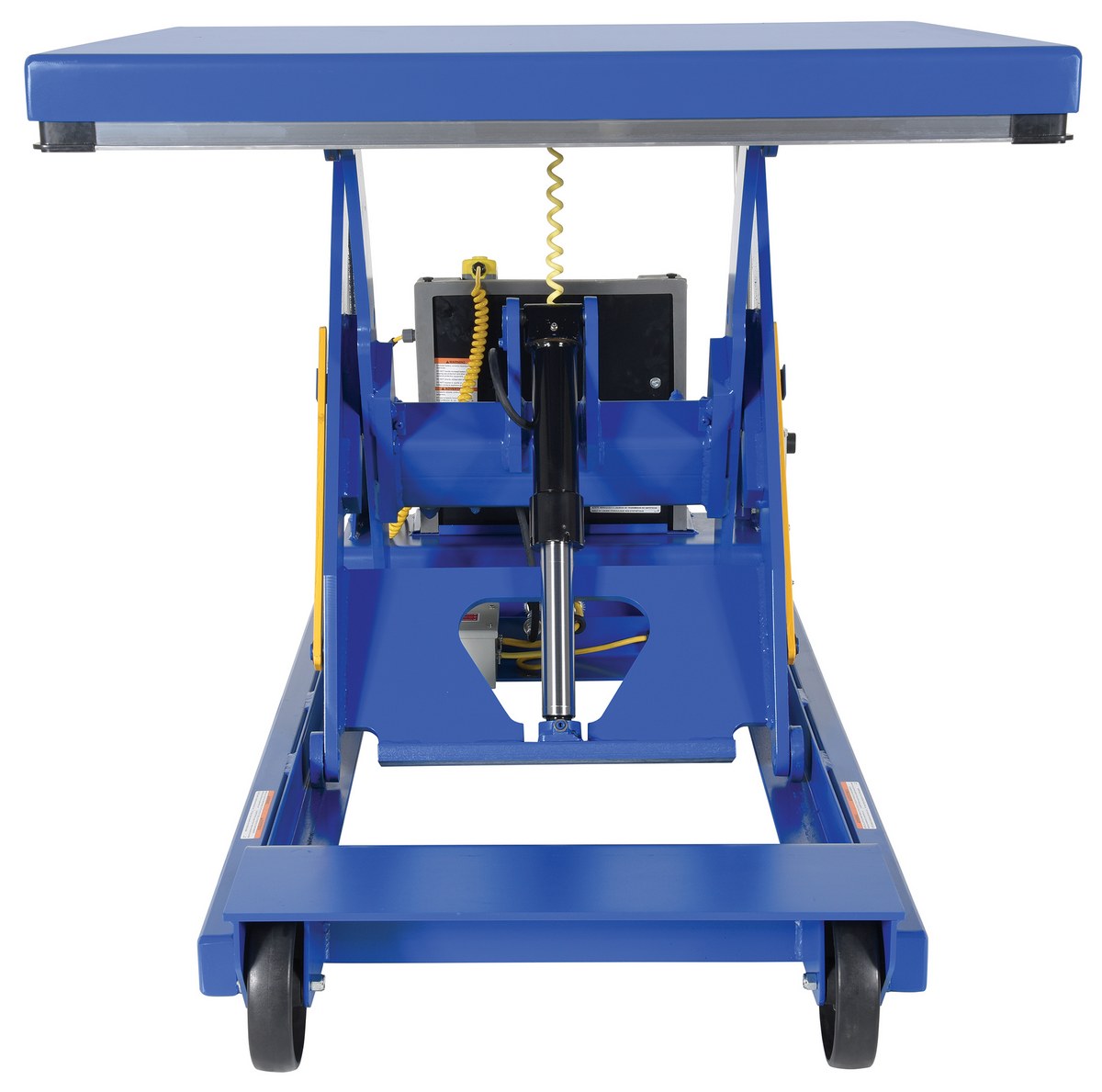

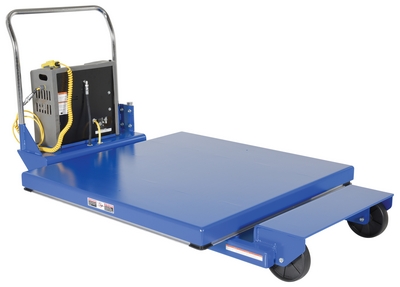

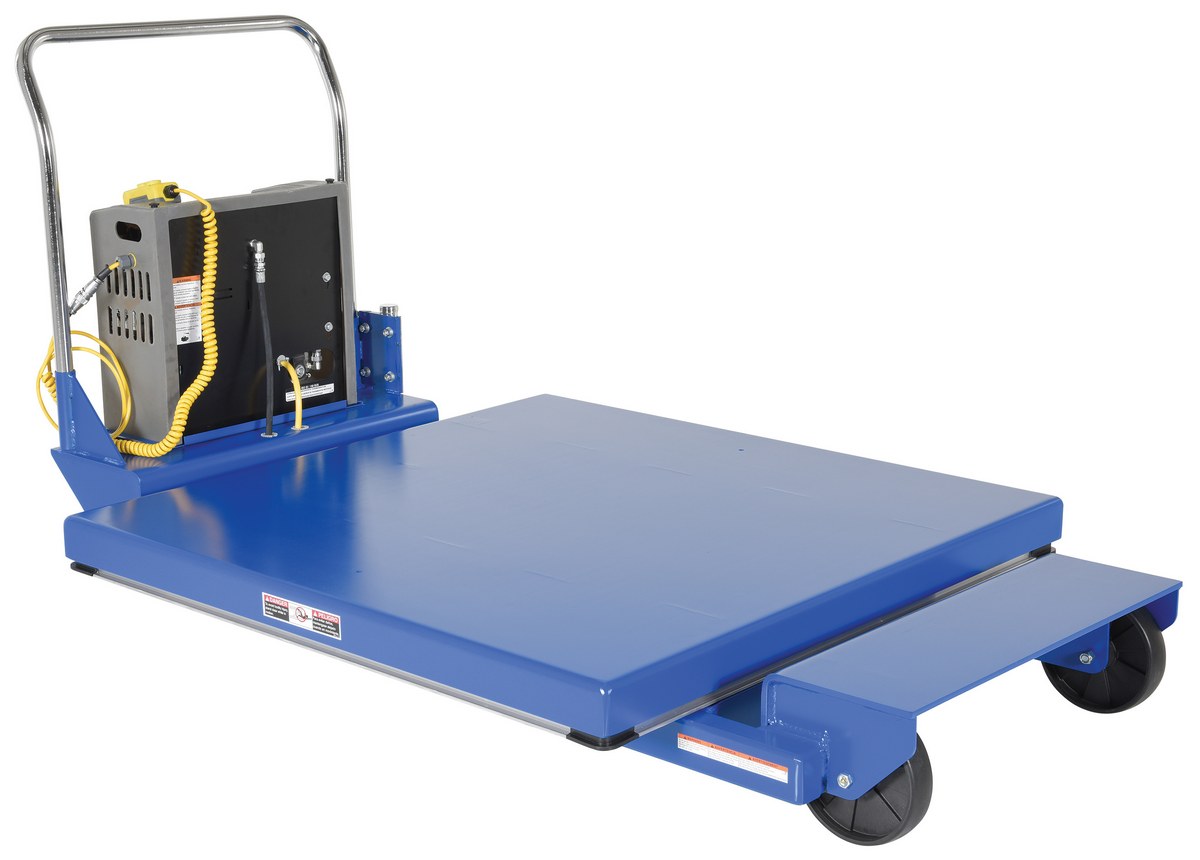

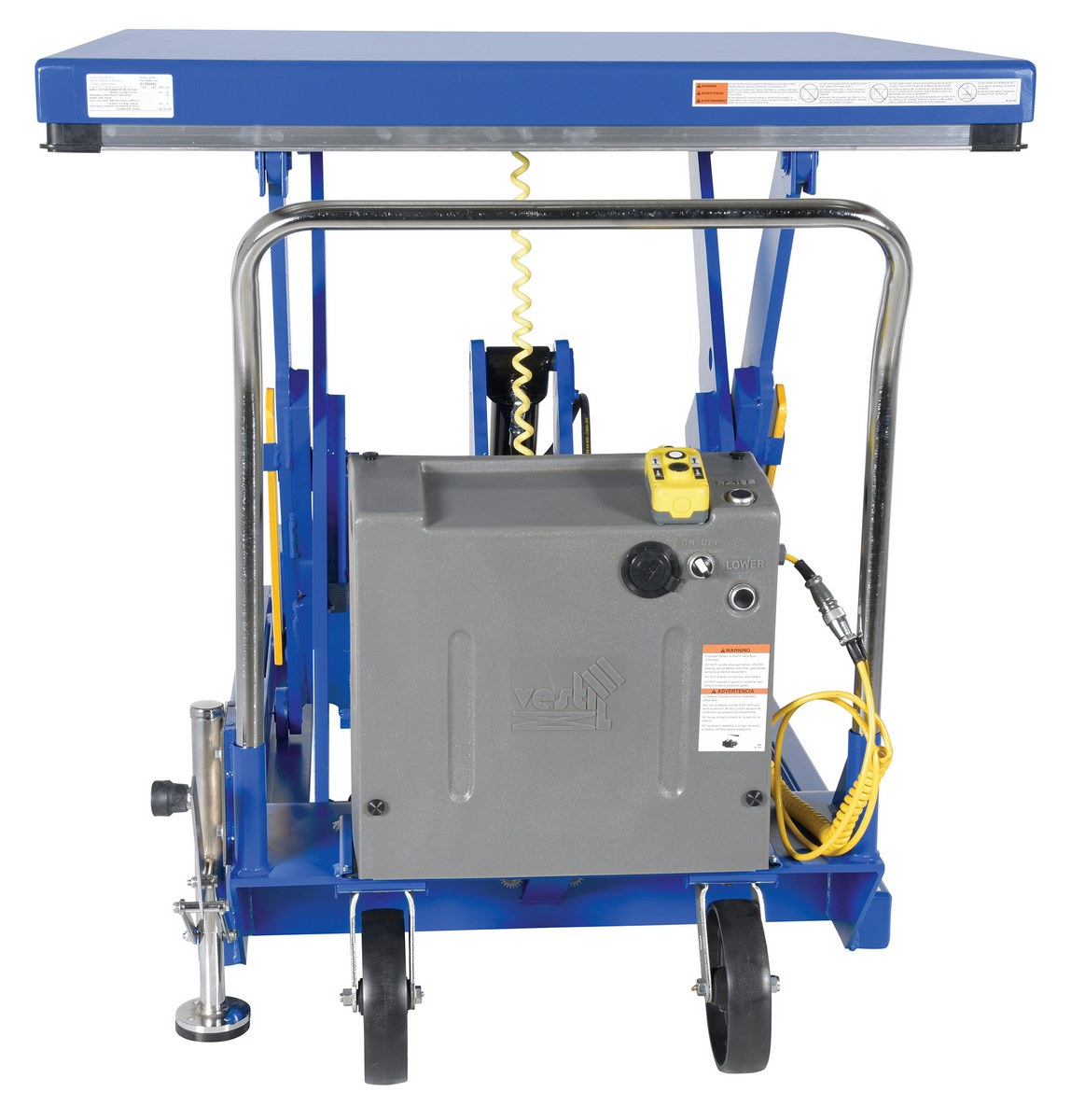

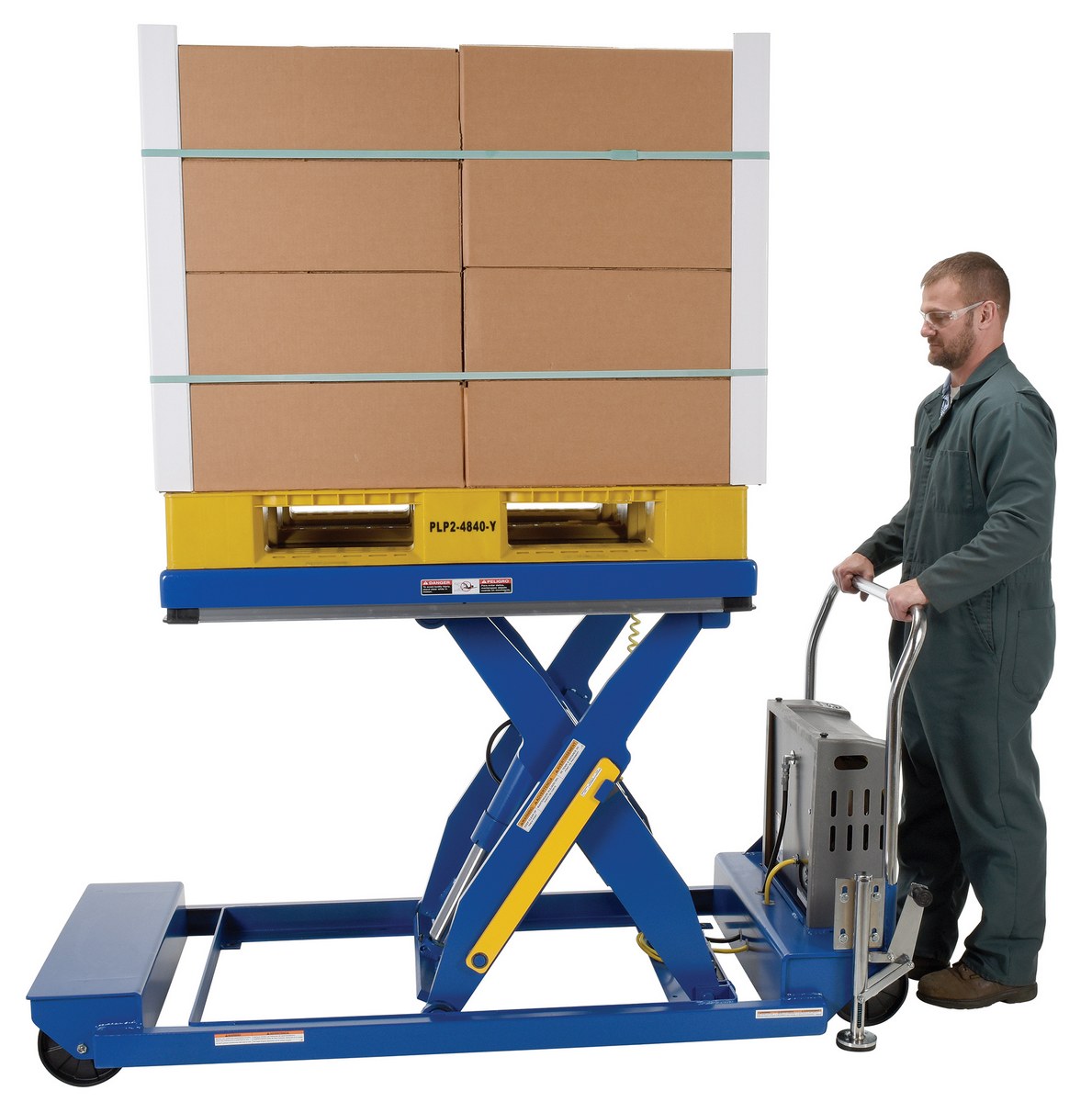

PST-1-46
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width Range (in.): 24 to 48
Uniform Capacity (lb.): 1,000
Platform Width Range (in.): 24 to 48

PST-1-58
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Platform Width Range (in.): 24 to 48
Uniform Capacity (lb.): 1,000
Platform Width Range (in.): 24 to 48

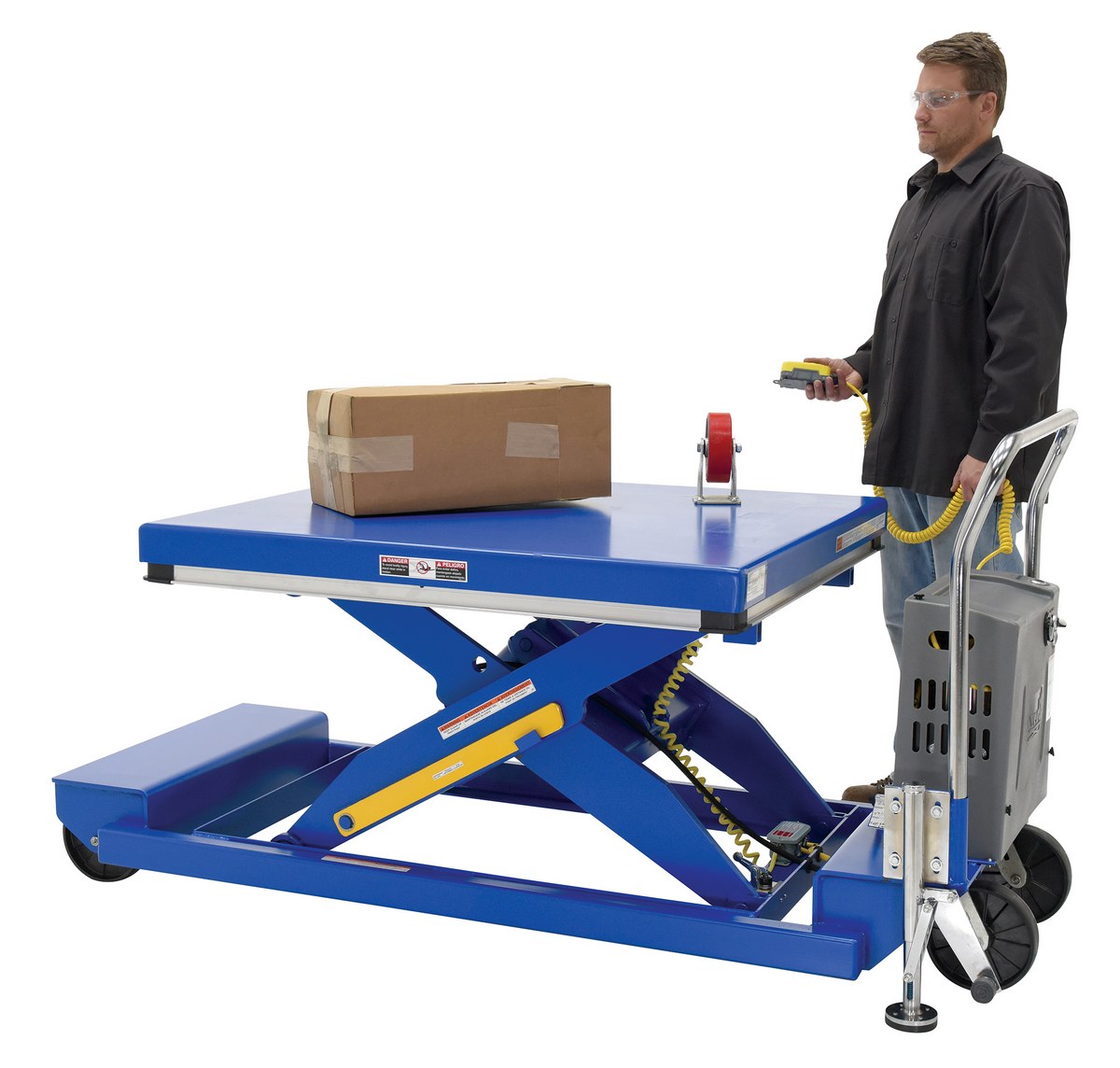

PST-2-46
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Platform Width Range (in.): 24 to 48
Uniform Capacity (lb.): 2,000
Platform Width Range (in.): 24 to 48

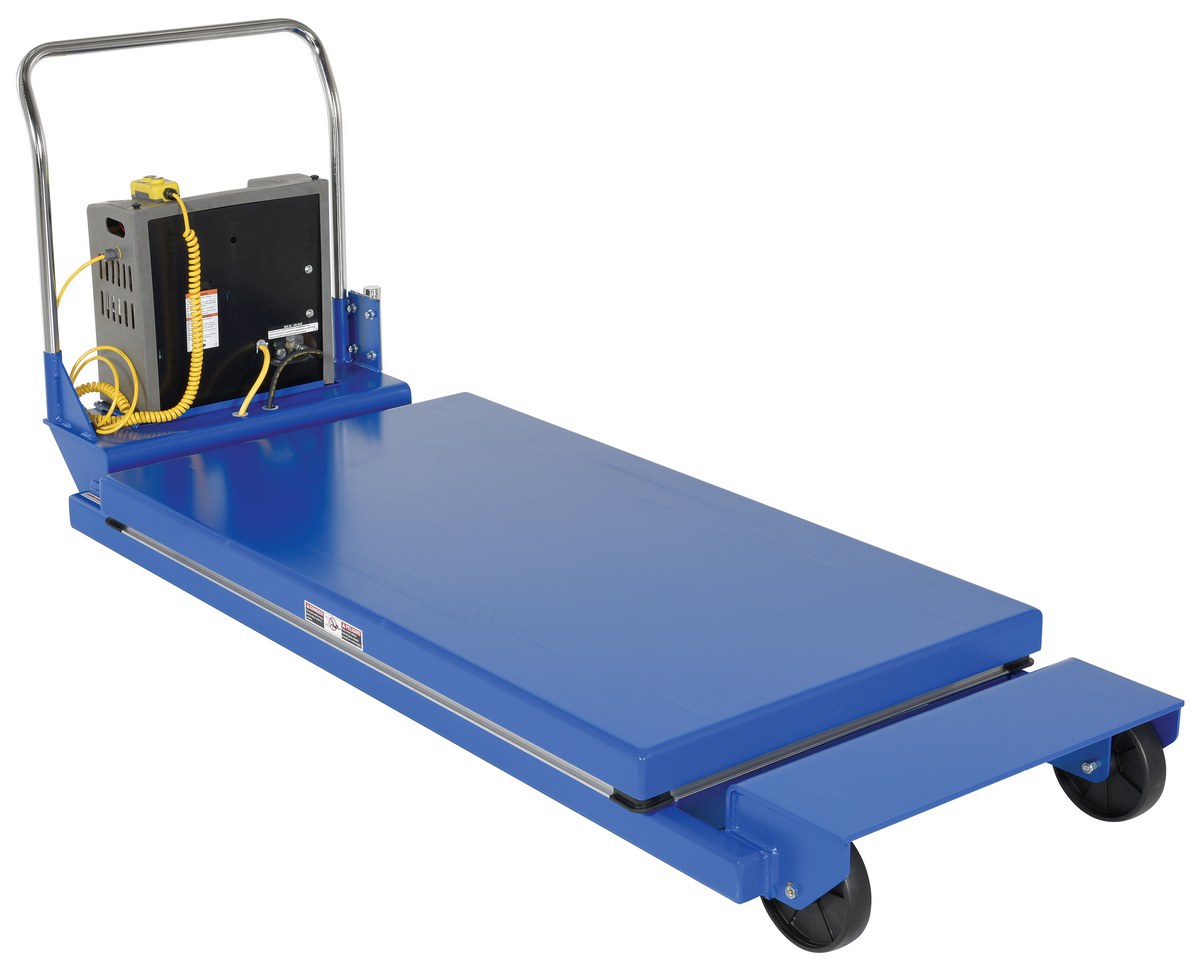

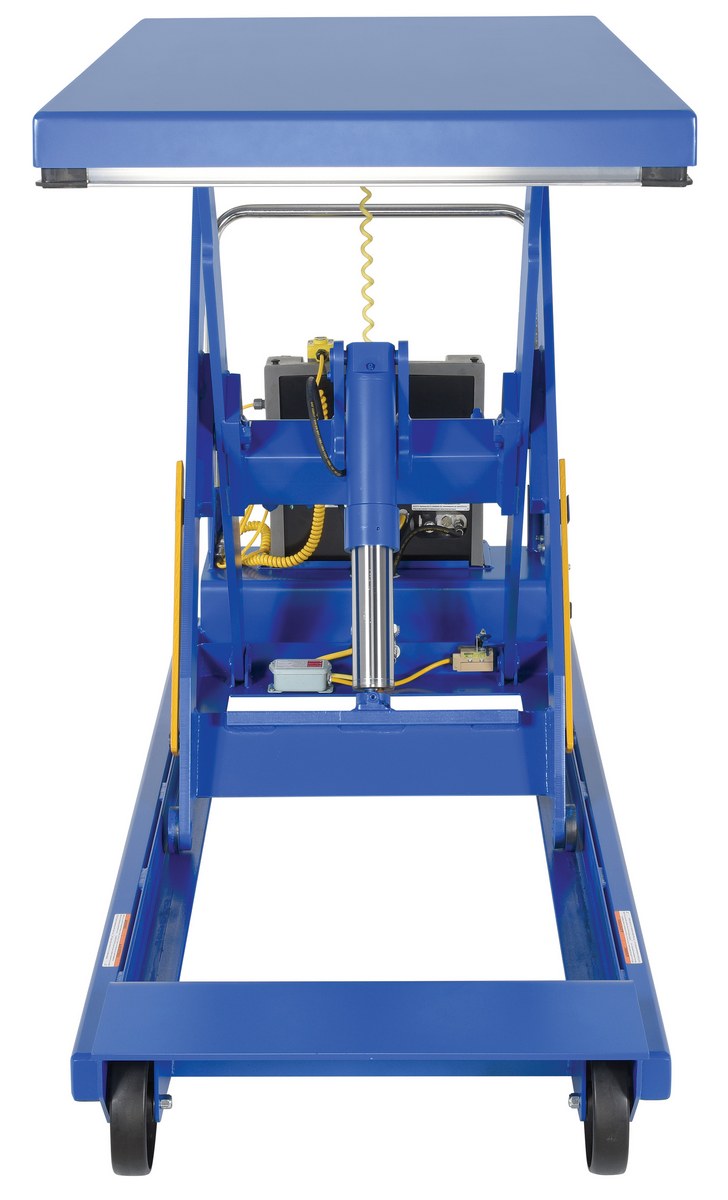

PST-2-58
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Platform Width Range (in.): 24 to 48
Uniform Capacity (lb.): 2,000
Platform Width Range (in.): 24 to 48

PST-2448-1-46
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Raised Height (in.): 46
Uniform Capacity (lb.): 1000
Raised Height (in.): 46

PST-2448-1-46-115-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Lowered Height (in.): 10
Uniform Capacity (lb.): 1000
Lowered Height (in.): 10

PST-2448-2-46
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 46
Uniform Capacity (lb.): 2000
Raised Height (in.): 46

PST-2448-2-46-115-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Lowered Height (in.): 10
Uniform Capacity (lb.): 2000
Lowered Height (in.): 10

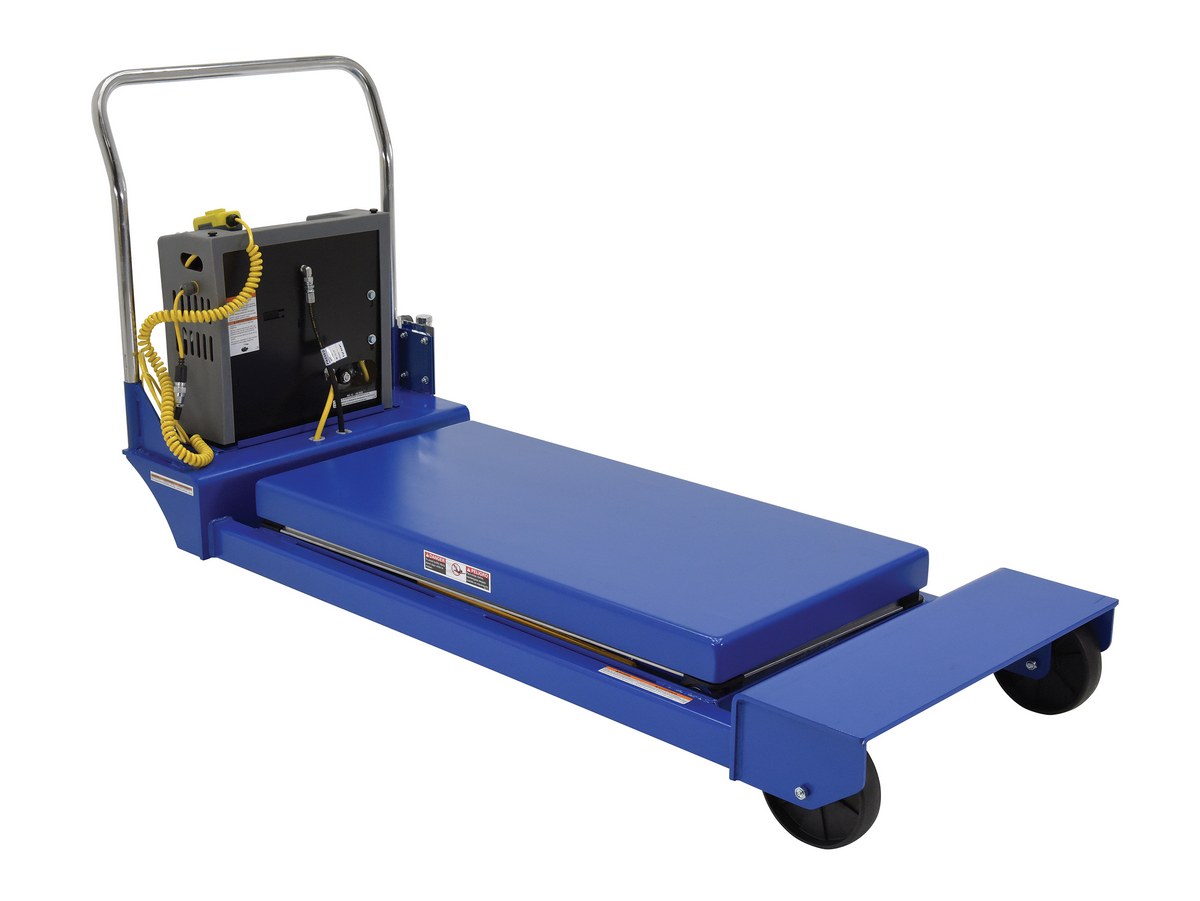

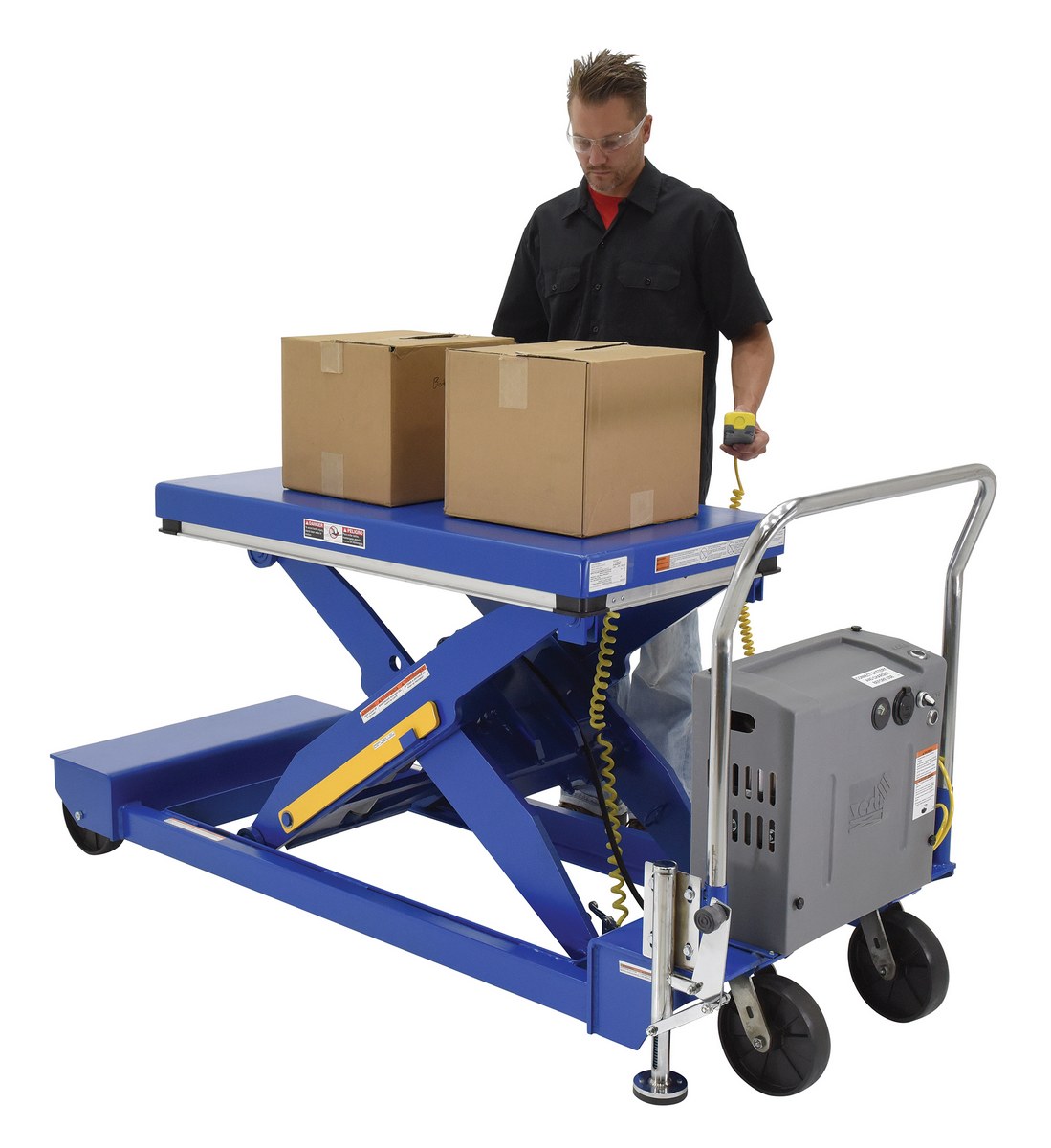

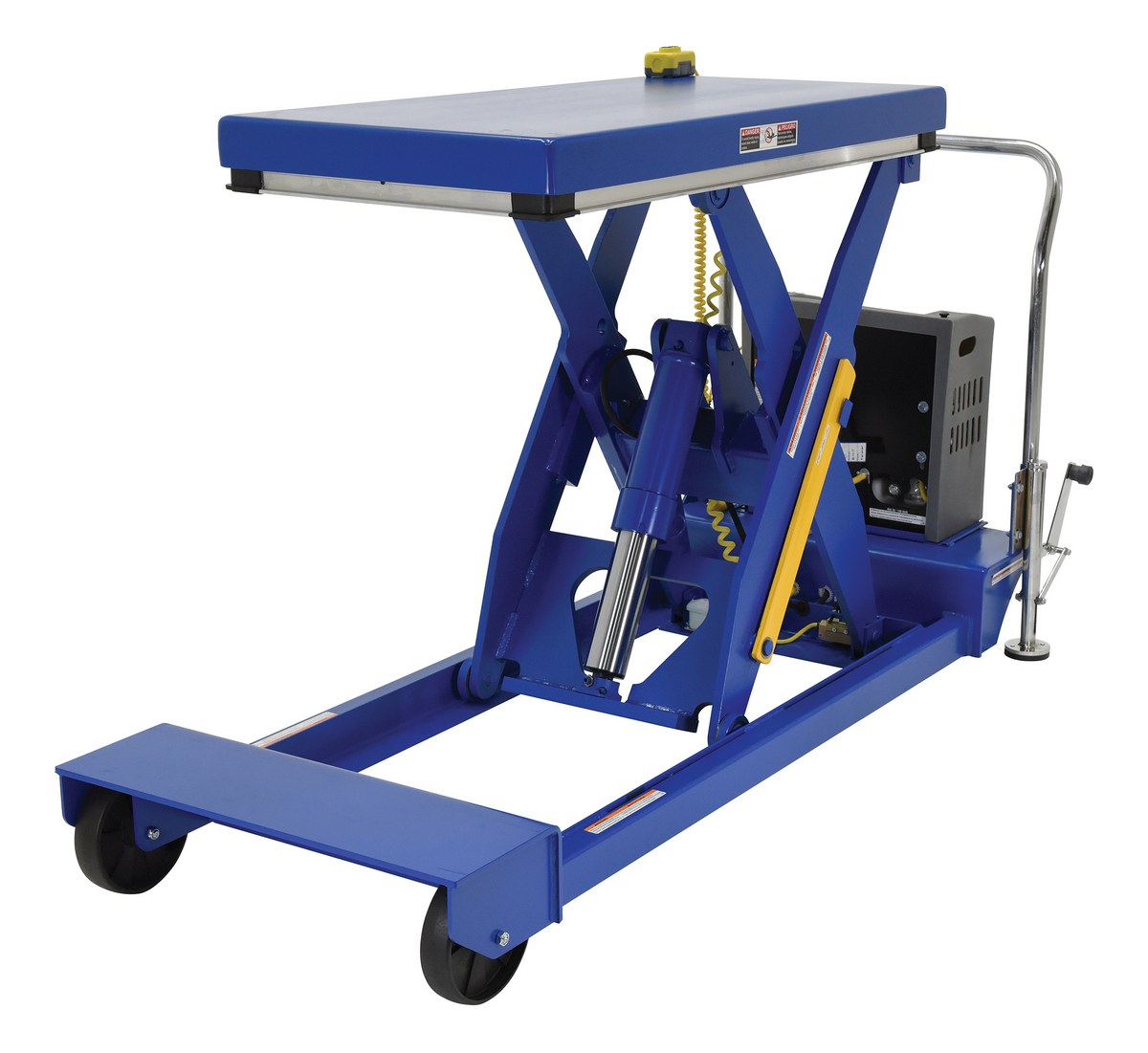

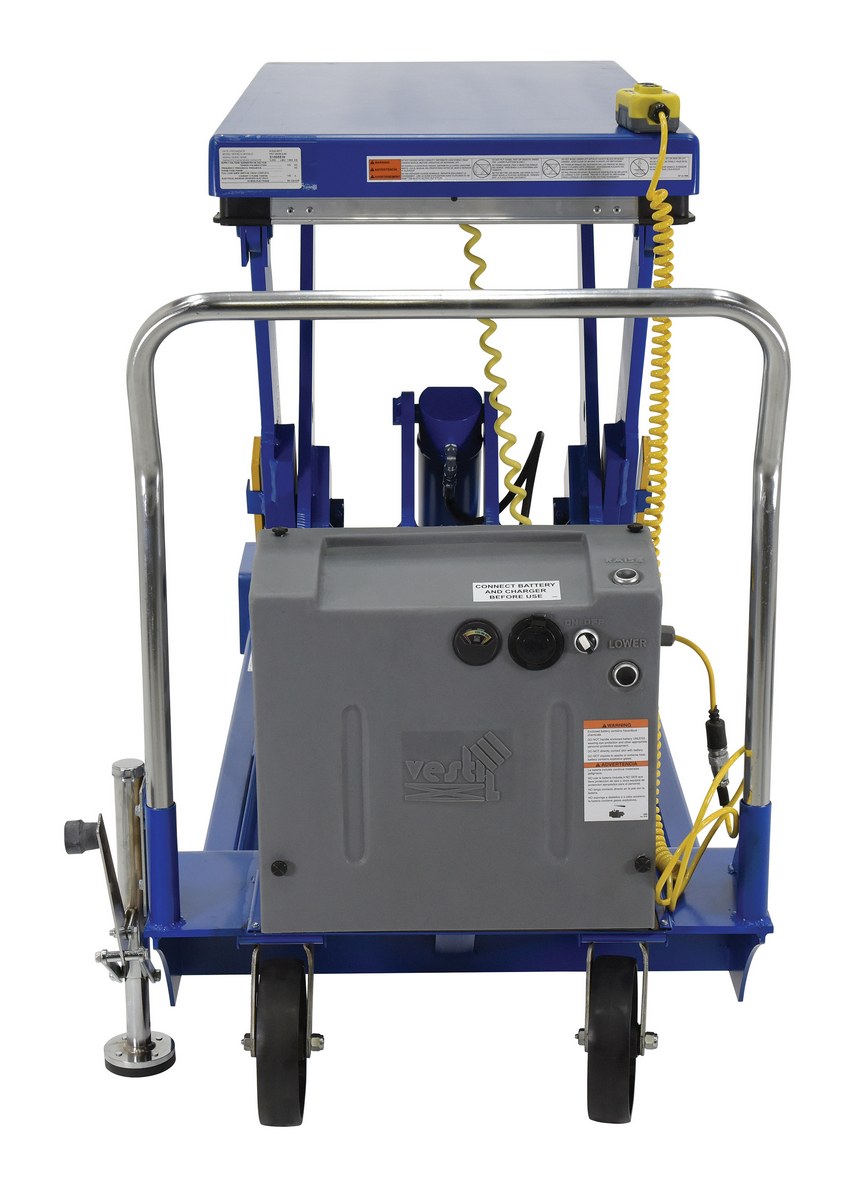

PST-2448-3-46
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Raised Height (in.): 46
Uniform Capacity (lb.): 3000
Raised Height (in.): 46

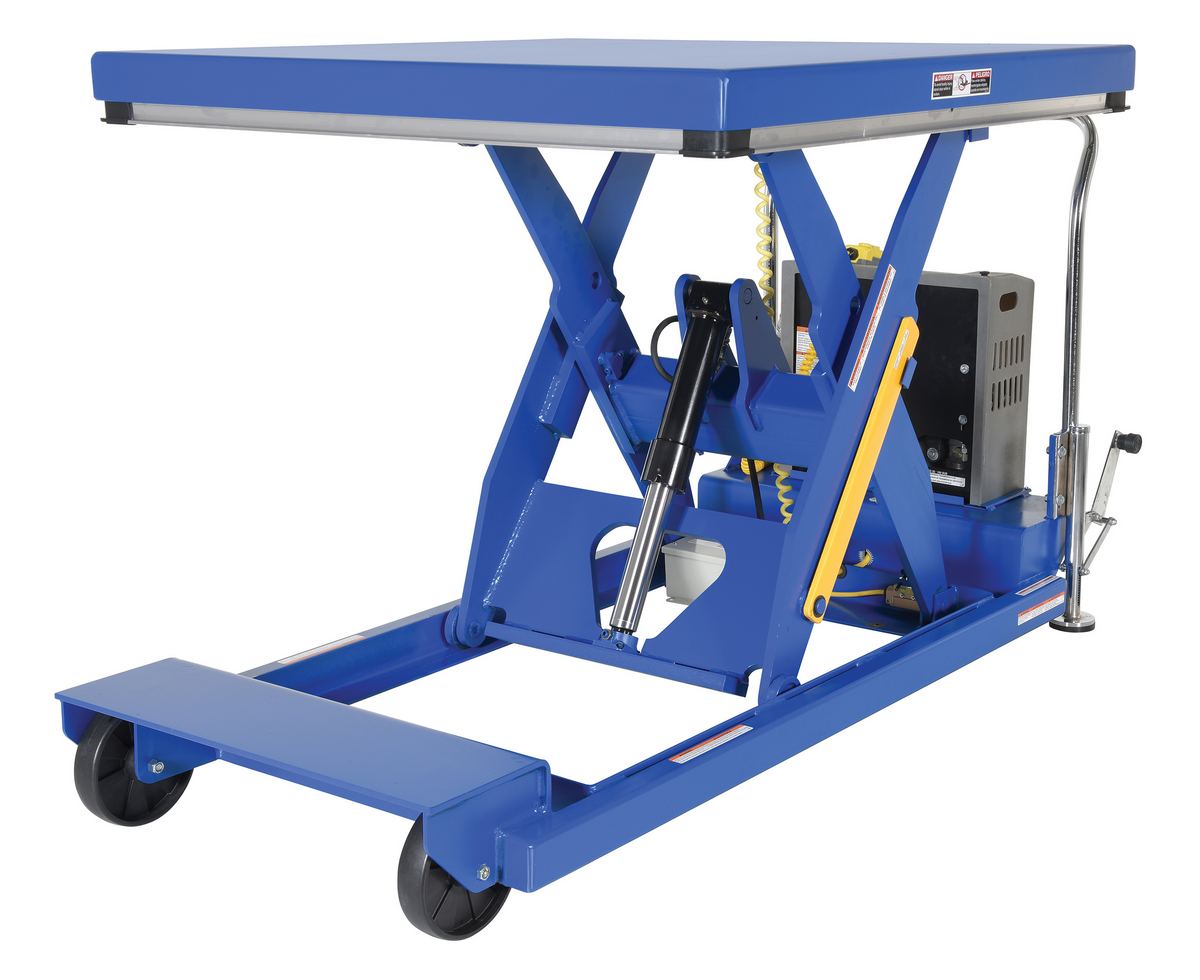

PST-2448-3-46-115-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Lowered Height (in.): 10
Uniform Capacity (lb.): 3000
Lowered Height (in.): 10

PST-2464-1-58
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Raised Height (in.): 58
Uniform Capacity (lb.): 1000
Raised Height (in.): 58

PST-2464-1-58-115-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Lowered Height (in.): 10
Uniform Capacity (lb.): 1000
Lowered Height (in.): 10

PST-2464-2-58
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 58
Uniform Capacity (lb.): 2000
Raised Height (in.): 58

PST-2464-2-58-115-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Lowered Height (in.): 10
Uniform Capacity (lb.): 2000
Lowered Height (in.): 10

PST-2464-3-58
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Raised Height (in.): 58
Uniform Capacity (lb.): 3000
Raised Height (in.): 58

PST-2464-3-58-115-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Lowered Height (in.): 10
Uniform Capacity (lb.): 3000
Lowered Height (in.): 10

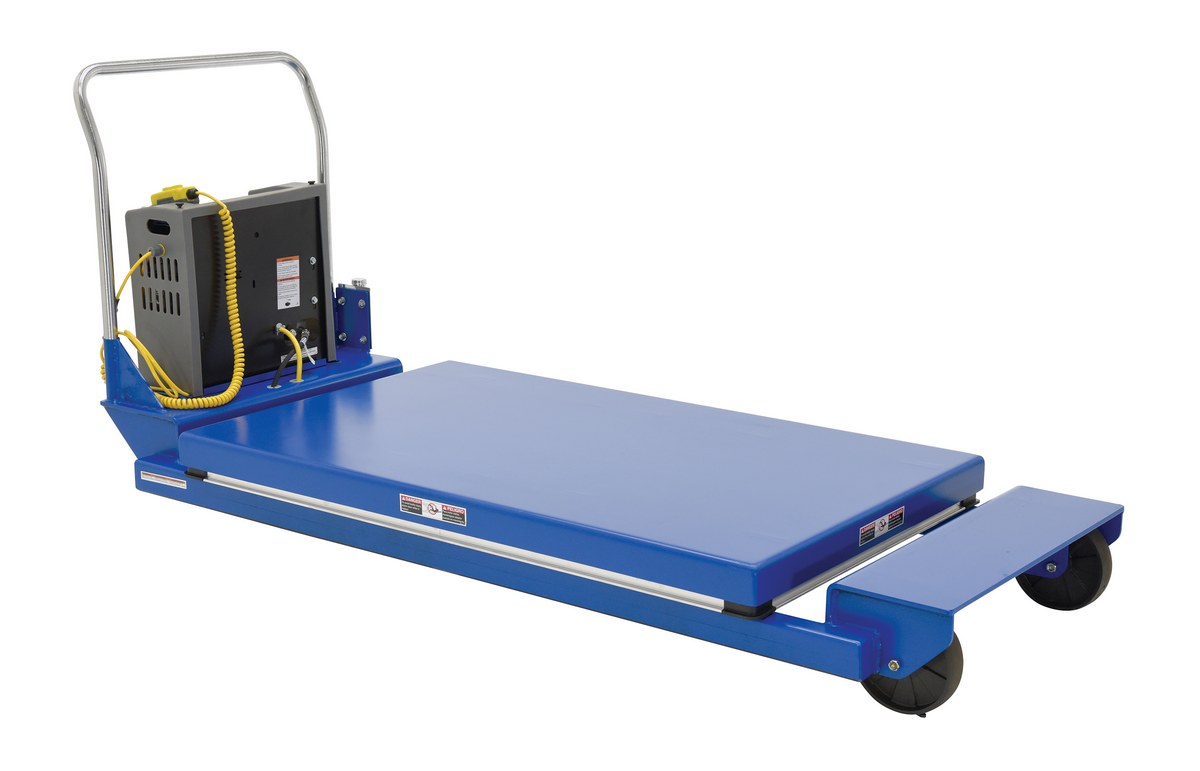

PST-3-46
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Platform Width Range (in.): 24 to 48
Uniform Capacity (lb.): 3,000
Platform Width Range (in.): 24 to 48

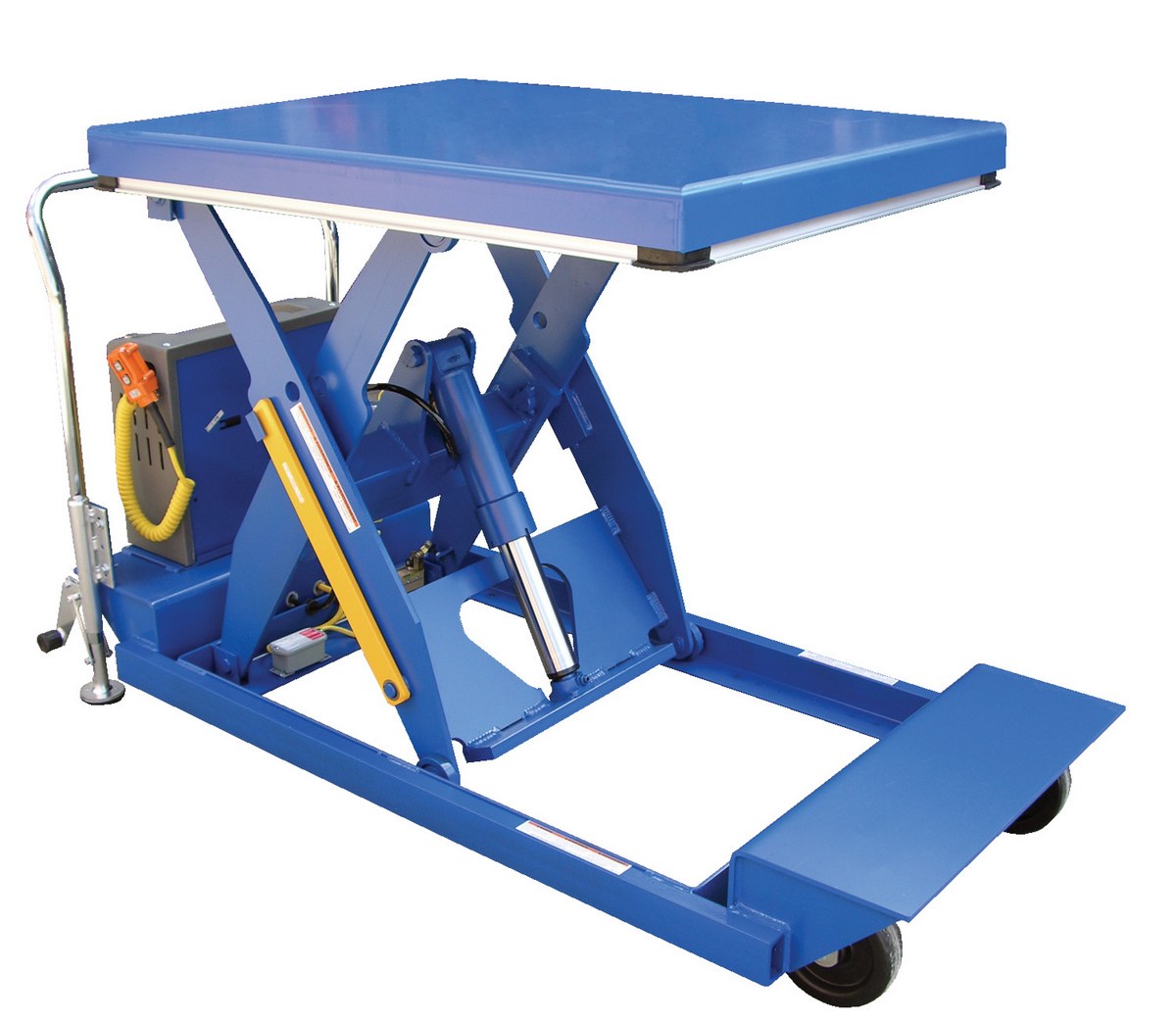

PST-3-58
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Platform Width Range (in.): 24 to 48
Uniform Capacity (lb.): 3,000
Platform Width Range (in.): 24 to 48

PST-4-47
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Platform Width Range (in.): 36 to 48
Uniform Capacity (lb.): 4,000
Platform Width Range (in.): 36 to 48

PST-4-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Platform Width Range (in.): 36 to 48
Uniform Capacity (lb.): 4,000
Platform Width Range (in.): 36 to 48

PST-5-47
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Platform Width Range (in.): 36 to 48
Uniform Capacity (lb.): 5,000
Platform Width Range (in.): 36 to 48

PST-5-60
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 5,000
Platform Width Range (in.): 36 to 48
Uniform Capacity (lb.): 5,000
Platform Width Range (in.): 36 to 48
For More Details of the Option Click the Red Model Button
PST-AIR 90 Days Limited WarrantyFactory Installed Reciprocating Air/Oil Power Unit With Foot Treadle For Portable Lift Scissor TablesPower: Air
847
PST-FP 90 Days Limited WarrantyFactory Installed Manual Foot Pump For Portable Lift Scissor TablesLength Added (in.): 3
13

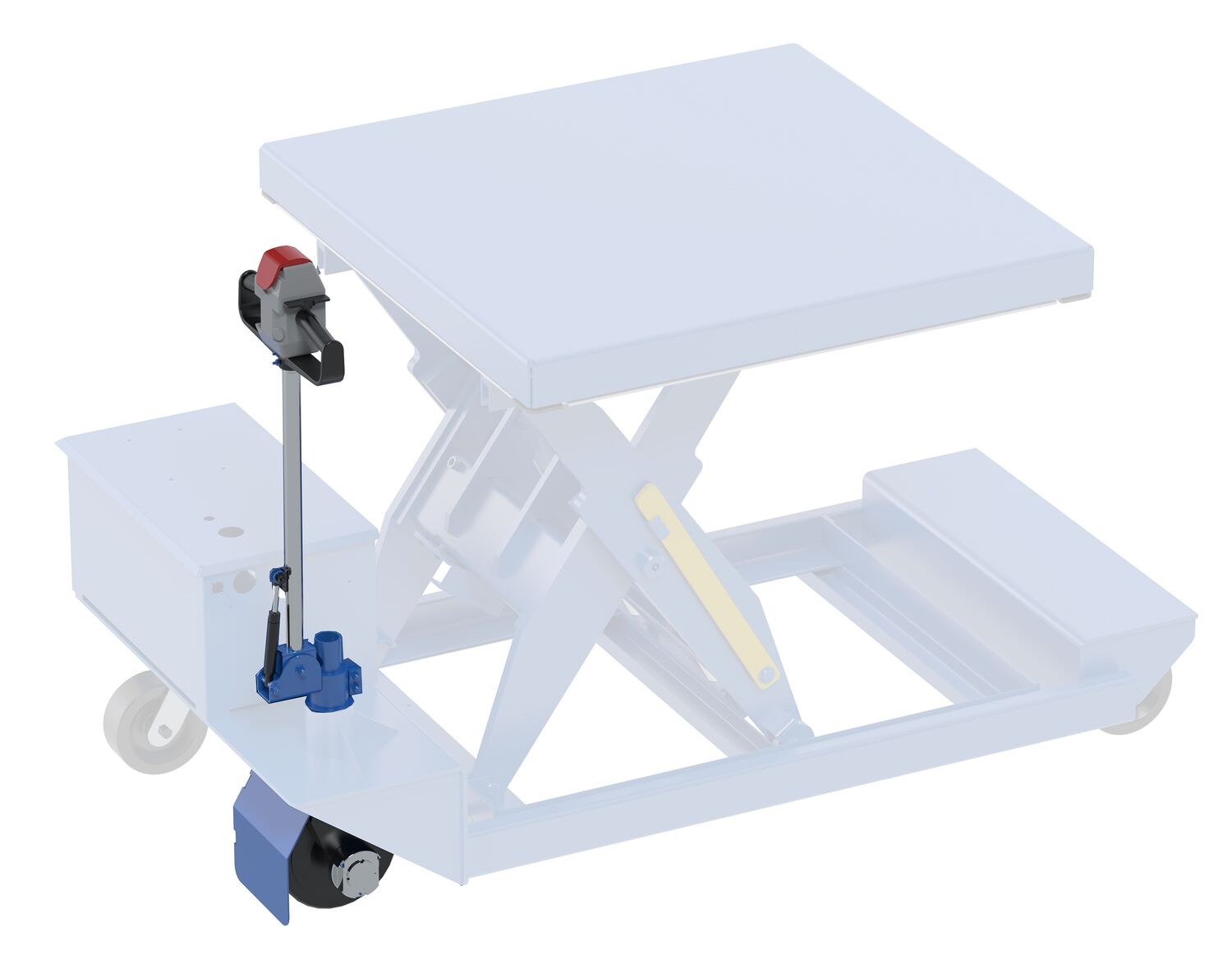

PST-PTDS PST-PTDS1 Year Limited WarrantyFactory Installed Power Traction Drive System 4,000 to 5,000 Lb. Capacity For Portable Lift Scissor TablesUniform Capacity (lb.): 4,000 to 5,000
Wheel Diameter (in.): 10
259

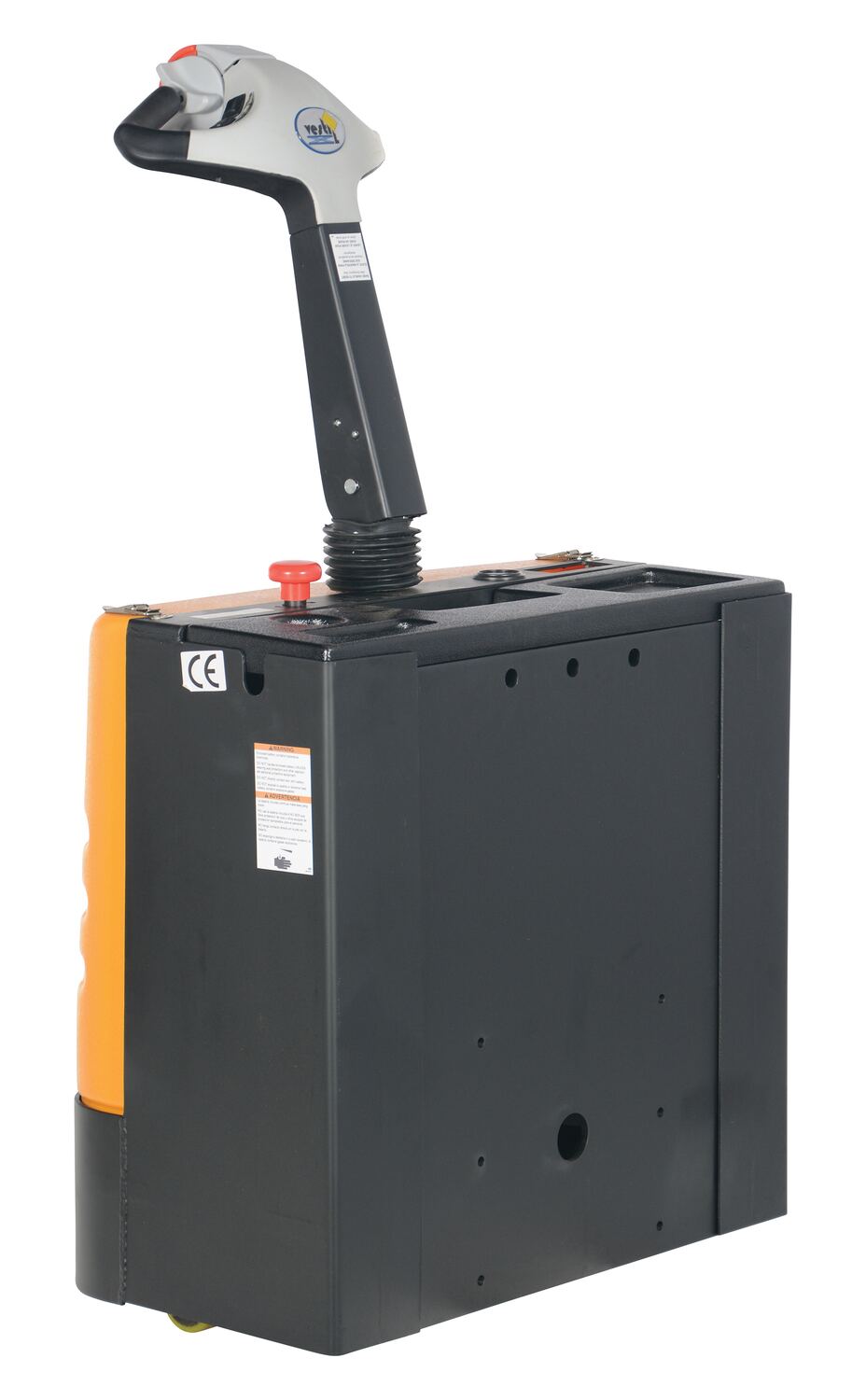

PST-PTDS-E PST-PTDS-E1 Year Limited WarrantyFactory Installed Power Traction Drive System 1,000 to 3,000 Lb. Capacity For Portable Lift Scissor Tables Black / YellowUniform Capacity (lb.): 1,000 to 3,000
517

Options For Electric Hydraulic Equipment

Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.

Model Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
Integeral Scale for Scissor Tables Scales for lift tables
Radio Remote Control Option 2 and 4 button hand controllers
Programmable Height Option Multiple working heights at the touch of a button
Manual Built-In Carousel Option Manual carousel (factory installed on new units only)
Safety Accordion Skirt Keep people and debris from getting under the lift. Customer Installed. Contact factory.
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Portable Scissor Lift Tables PDF's will open in a new window when clicked.

Manuals


Survey Sheets


Approval Drawings

Testing Certificates


PST-1-46

PST-1-58

PST-2-46

PST-2-58

PST-2448-1-46

PST-2448-2-46

PST-2448-3-46

PST-2460-1-46

PST-2464-1-58

PST-2464-2-58

PST-2464-3-58

PST-2472-1-46

PST-3-46

PST-3-58

PST-3464-1-46

PST-3648-1-46

PST-3660-1-46

PST-3672-1-46

PST-4-47

PST-4-60

PST-5-47

PST-5-60

PST-AIR

PST-FP

PST-PTDS

PST-PTDS-E

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PST-1-46
Hydraulic Oil SDS Sheet for: PST-1-46
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PST-1-58
Hydraulic Oil SDS Sheet for: PST-1-58
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PST-2-46
Hydraulic Oil SDS Sheet for: PST-2-46
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PST-2-58
Hydraulic Oil SDS Sheet for: PST-2-58
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PST-3-46
Hydraulic Oil SDS Sheet for: PST-3-46
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PST-3-58
Hydraulic Oil SDS Sheet for: PST-3-58
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PST-4-47
Hydraulic Oil SDS Sheet for: PST-4-47
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PST-4-60
Hydraulic Oil SDS Sheet for: PST-4-60
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PST-5-47
Hydraulic Oil SDS Sheet for: PST-5-47
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PST-5-60
Hydraulic Oil SDS Sheet for: PST-5-60
Hydraulic Oil SDS Sheet for: PST-AIR
Hydraulic Oil SDS Sheet for: PST-FP
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PST-PTDS
Hydraulic Oil SDS Sheet for: PST-PTDS
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PST-PTDS-E
Hydraulic Oil SDS Sheet for: PST-PTDS-E

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: How long does it take to get a full charge from a dead battery on table?

A: Allow 8 hours to charge a dead battery.


Q: How many cycles per full battery?

A: Here are the approximate cycles for the portable scissor lift table. 1 cycle every 5.72 minutes for 7.5 hours. 1 cycle every 11.44 minutes for 15 hours. 1 cycle every 17.16 minutes for 22.5 hours.


Q: I am looking to take my PST up and down a slope. What is the maximum incline a PST can safely travel on?

A: Maximum of a 4 degree angle incline.


Q: Are all the bearings sealed or open on the PST ?

A: The bearings are open.


Q: What is the hydraulic fluid ?

A: The hydraulic fluid is ISO 32.


Q: I am looking at the PST-PTDS-E. Is there a brake with the PTDS?

A: The PST-PTDS includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle. (The PST-PTDS can be found under the options tab)


Q: For the portable scissor table with the power traction drive system, do both units us the PTDS battery or will they each have their own?

A: Both the power traction drive and the lifting portion of the lift will run off of the PTDS batteries.


Q: For the portable scissor table with the power traction drive system does the battery have multiple charging ports?

A: Both the power traction drive and the lifting portion of the lift will run off of the PTDS batteries and have a single charging port.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Portable Scissor Lift Tables




Portable Scissor Lift Tables are designed to transport and elevate your heaviest loads. A heavy-duty 12V DC power unit with deep cycle battery, an on-board battery charger, and battery charge indicator gauge are standard. Features 8" glass filled nylon casters (two swivel and two rigid) (4 & 5,000 lb. units have phenolic casters), floor lock, and patented electric pinch point guards. Push buttons to raise and lower lift, and the magnetic hand control on an 8 ft. cord are standard. Key-operated ON/OFF control for better security is built into the power unit.

Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h.

PSTPTDS includes:

  • Combination throttle / direction butterfly style controller
  • An adjustable steering yoke
  • An auto reverse emergency "belly switch"
  • (2) 12V batteries

PTDS-E includes:

  • Combination throttle / direction controller
  • An auto reverse emergency "belly switch"
  • (2) 12V batteries


Model # Description Attributes Net Wt.
(lbs)
PST-1-46 PST-1-46Steel Heavy Duty Portable Scissor Lift Table 46 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Platform Width Range (in.): 24 to 48
1064
PST-1-58 PST-1-58Steel Heavy Duty Portable Scissor Lift Table 58 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Platform Width Range (in.): 24 to 48
1349
PST-2-46 PST-2-46Steel Heavy Duty Portable Scissor Lift Table 46 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Platform Width Range (in.): 24 to 48
1186
PST-2-58 PST-2-58Steel Heavy Duty Portable Scissor Lift Table 58 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Platform Width Range (in.): 24 to 48
1331
PST-2448-1-46 PST-2448-1-46Steel Heavy Duty Portable Scissor Lift Table 24 In. x 48 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Raised Height (in.): 46
886
PST-2448-1-46-115-1 PST-2448-1-46-115-1Steel Heavy Duty Portable 115 Volt AC Powered Scissor Lift Table 24 In. x 48 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Lowered Height (in.): 10
988
PST-2448-2-46 PST-2448-2-46Steel Heavy Duty Portable Scissor Lift Table 24 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Raised Height (in.): 46
1195
PST-2448-2-46-115-1 PST-2448-2-46-115-1Steel Heavy Duty Portable 115 Volt AC Powered Scissor Lift Table 24 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Lowered Height (in.): 10
1296
PST-2448-3-46 PST-2448-3-46Steel Heavy Duty Portable Scissor Lift Table 24 In. x 48 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Raised Height (in.): 46
1387
PST-2448-3-46-115-1 PST-2448-3-46-115-1Steel Heavy Duty Portable 115 Volt AC Powered Scissor Lift Table 24 In. x 48 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Lowered Height (in.): 10
1429
PST-2464-1-58 PST-2464-1-58Steel Heavy Duty Portable Scissor Lift Table 24 In. x 64 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Raised Height (in.): 58
1180
PST-2464-1-58-115-1 PST-2464-1-58-115-1Steel Heavy Duty Portable 115 Volt AC Powered Scissor Lift Table 24 In. x 64 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Lowered Height (in.): 10
1222
PST-2464-2-58 PST-2464-2-58Steel Heavy Duty Portable Scissor Lift Table 24 In. x 64 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Raised Height (in.): 58
1488
PST-2464-2-58-115-1 PST-2464-2-58-115-1Steel Heavy Duty Portable 115 Volt AC Powered Scissor Lift Table 24 In. x 64 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Lowered Height (in.): 10
1530
PST-2464-3-58 PST-2464-3-58Steel Heavy Duty Portable Scissor Lift Table 24 In. x 64 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Raised Height (in.): 58
1621
PST-2464-3-58-115-1 PST-2464-3-58-115-1Steel Heavy Duty Portable 115 Volt AC Powered Scissor Lift Table 24 In. x 64 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Lowered Height (in.): 10
1663
PST-3-46 PST-3-46Steel Heavy Duty Portable Scissor Lift Table 46 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Platform Width Range (in.): 24 to 48
1353
PST-3-58 PST-3-58Steel Heavy Duty Portable Scissor Lift Table 58 In. 3000 Lb. Capacity BlueUniform Capacity (lb.): 3,000
Platform Width Range (in.): 24 to 48
1192
PST-4-47 PST-4-47Steel Heavy Duty Portable Scissor Lift Table 47 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Platform Width Range (in.): 36 to 48
1170
PST-4-60 PST-4-60Steel Heavy Duty Portable Scissor Lift Table 60 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Platform Width Range (in.): 36 to 48
2068
PST-5-47 PST-5-47Steel Heavy Duty Portable Scissor Lift Table 47 In. 5000 Lb. Capacity BlueUniform Capacity (lb.): 5,000
Platform Width Range (in.): 36 to 48
1778
PST-5-60 PST-5-60Steel Heavy Duty Portable Scissor Lift Table 60 In. 5000 Lb. Capacity BlueUniform Capacity (lb.): 5,000
Platform Width Range (in.): 36 to 48
2234

Options


Options For Electric Hydraulic Equipment

Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.

Model Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
Integeral Scale for Scissor Tables Scales for lift tables
Radio Remote Control Option 2 and 4 button hand controllers
Programmable Height Option Multiple working heights at the touch of a button
Manual Built-In Carousel Option Manual carousel (factory installed on new units only)
Safety Accordion Skirt Keep people and debris from getting under the lift. Customer Installed. Contact factory.

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
