Product Family Overview


Universal Trash Can Dumpers
SERIES: TCD-U

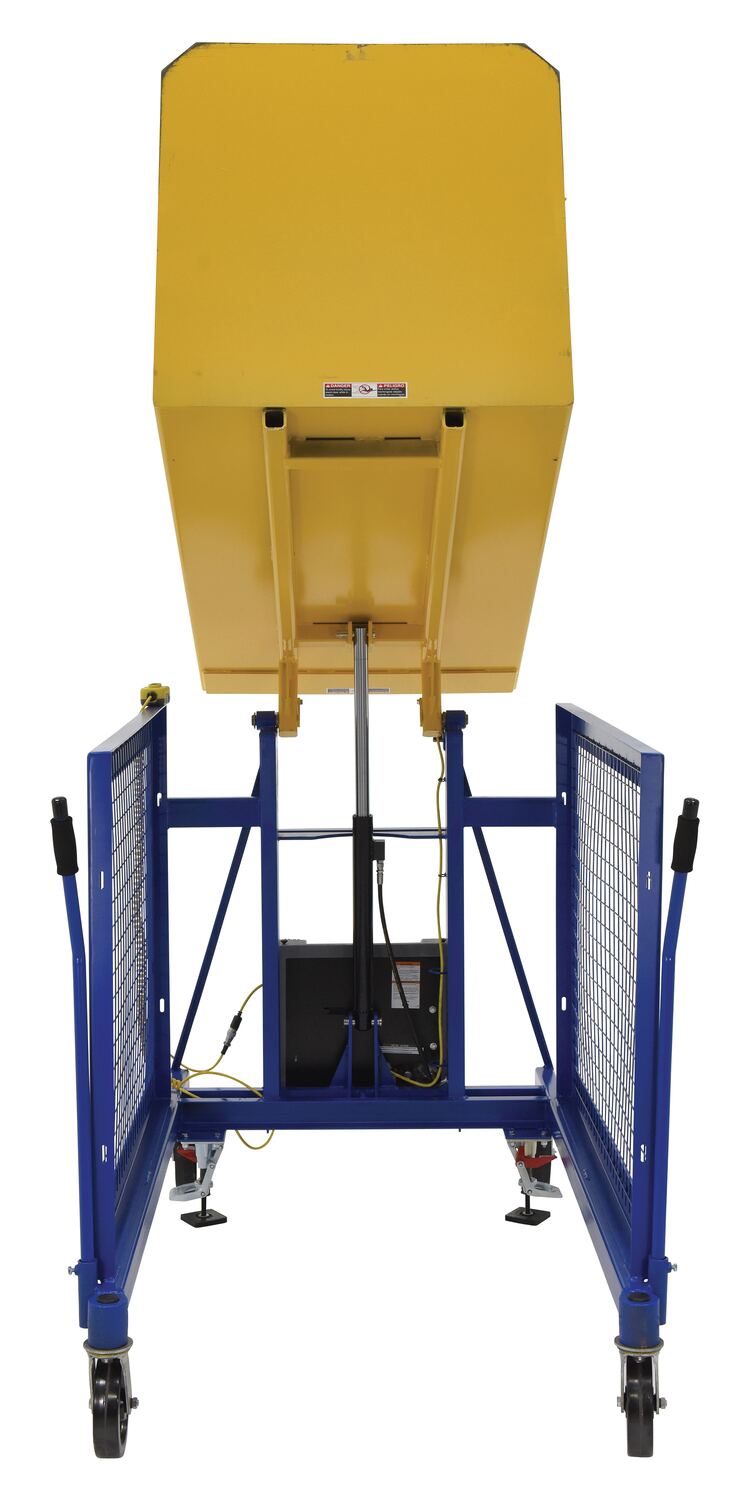

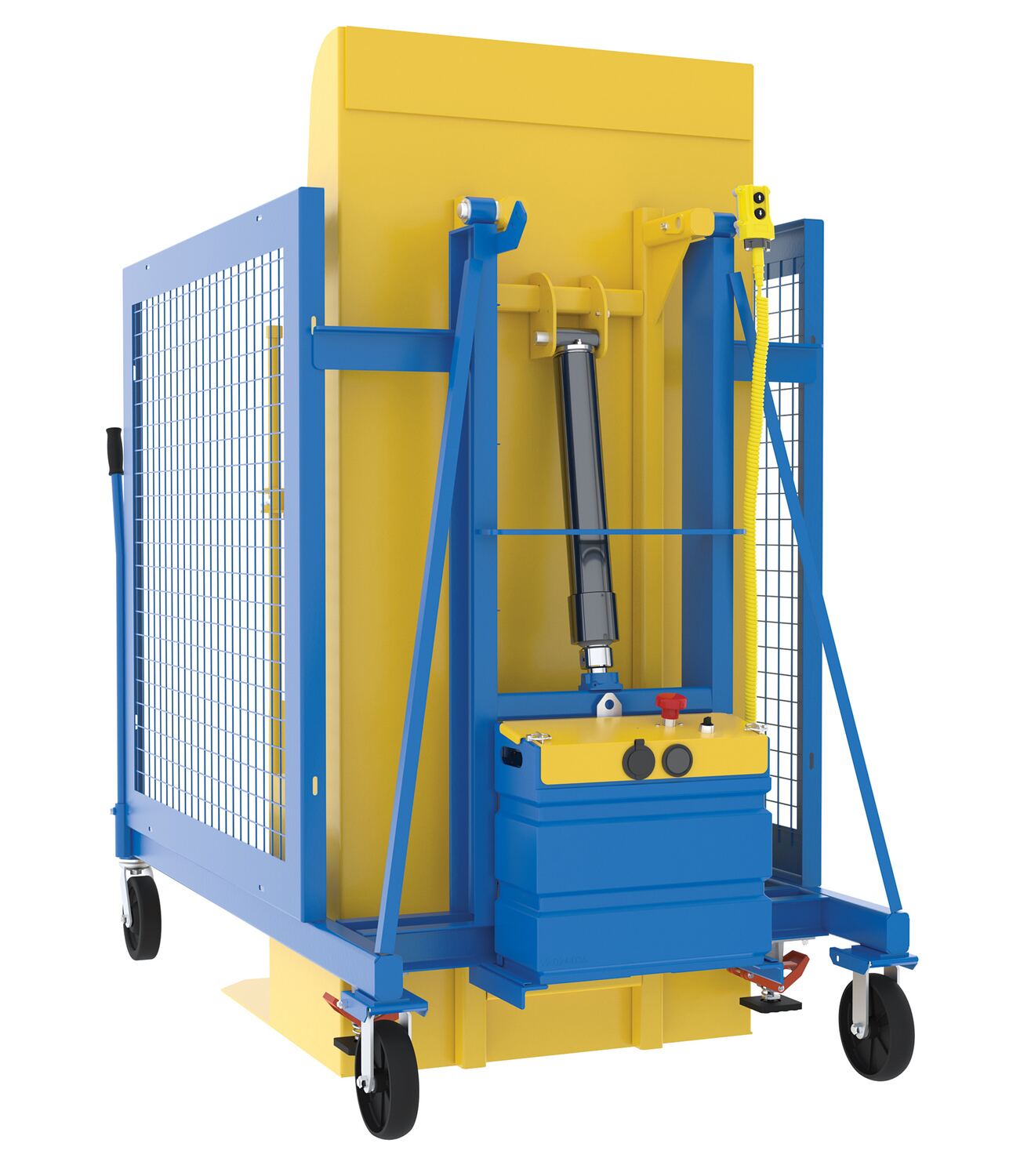

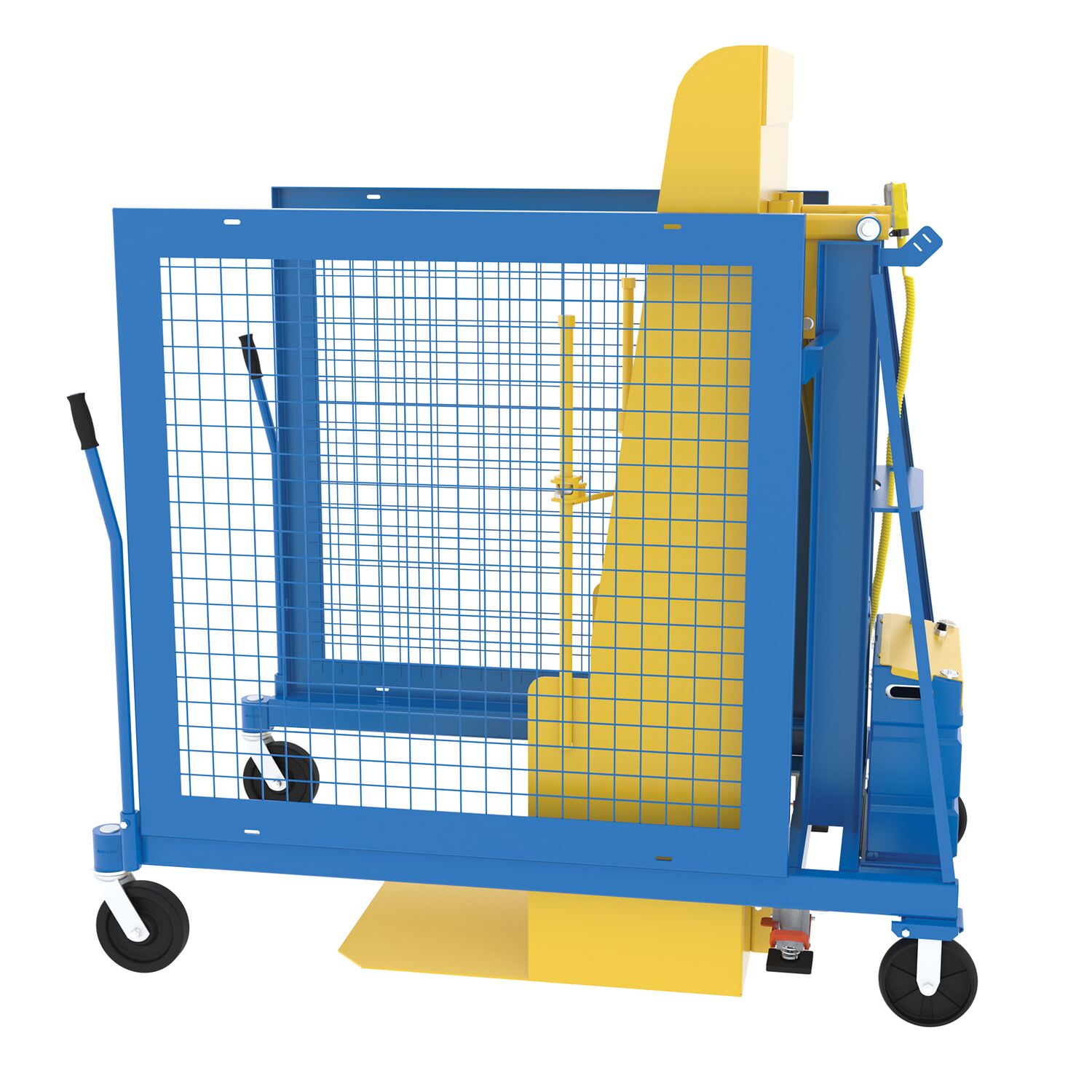

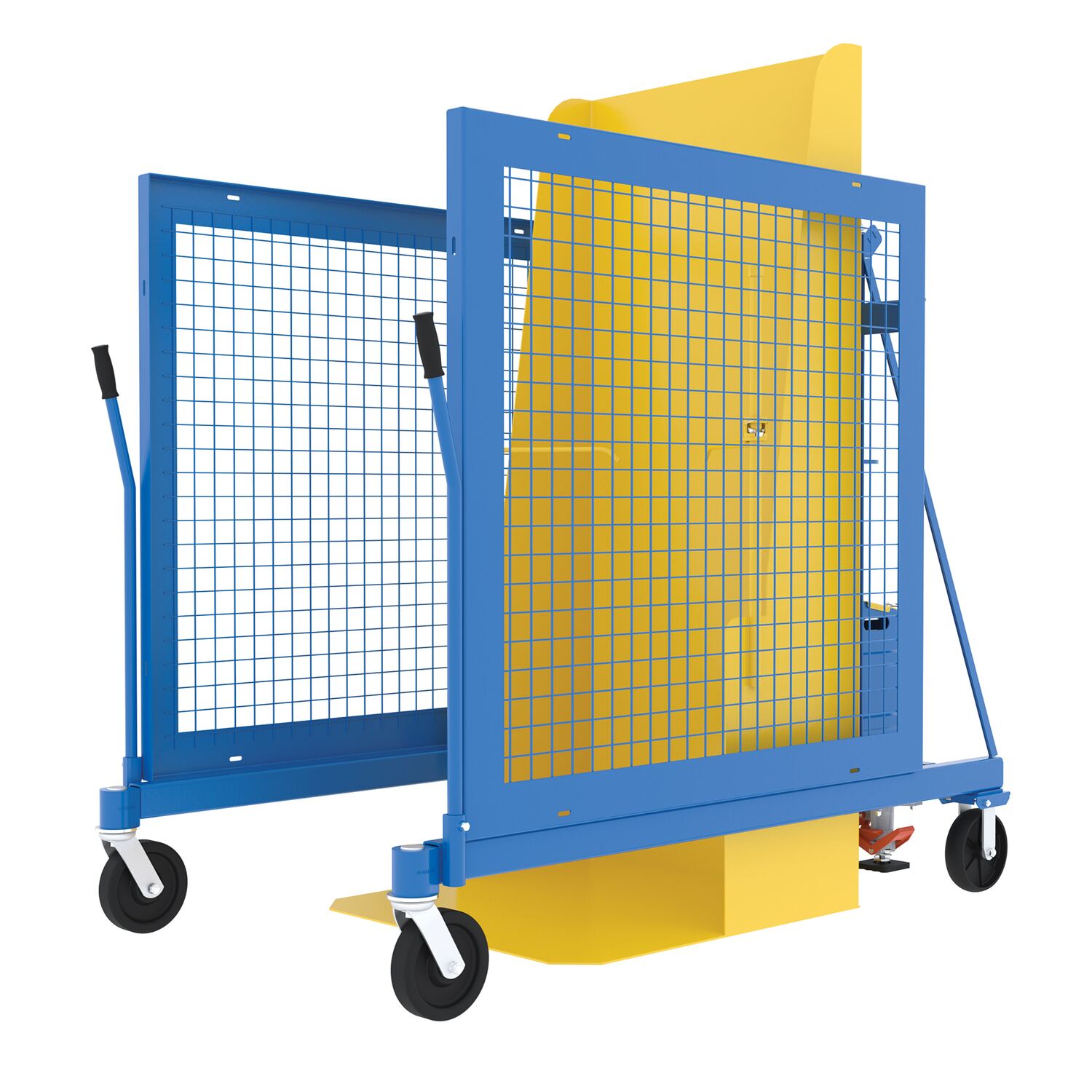

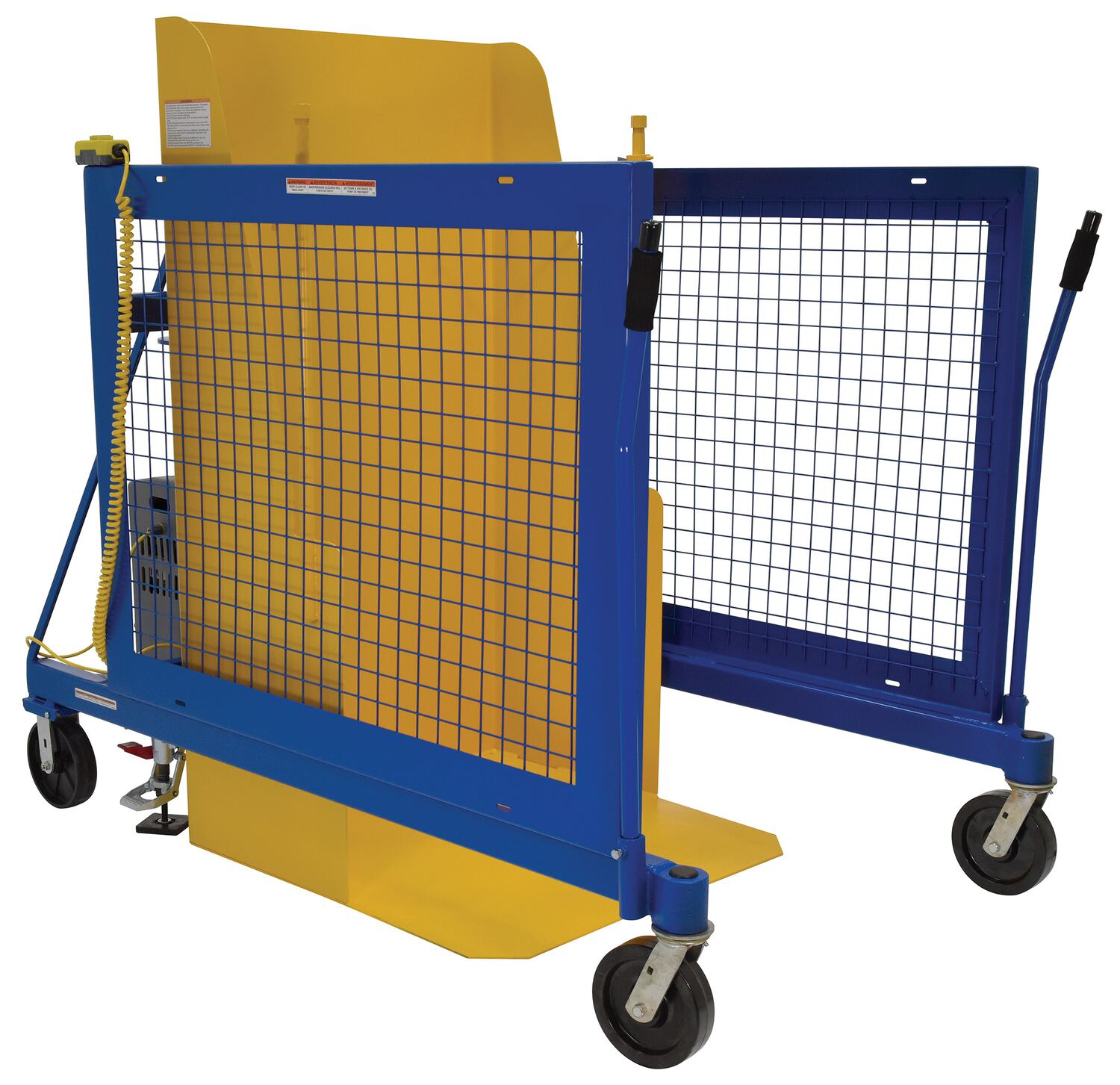

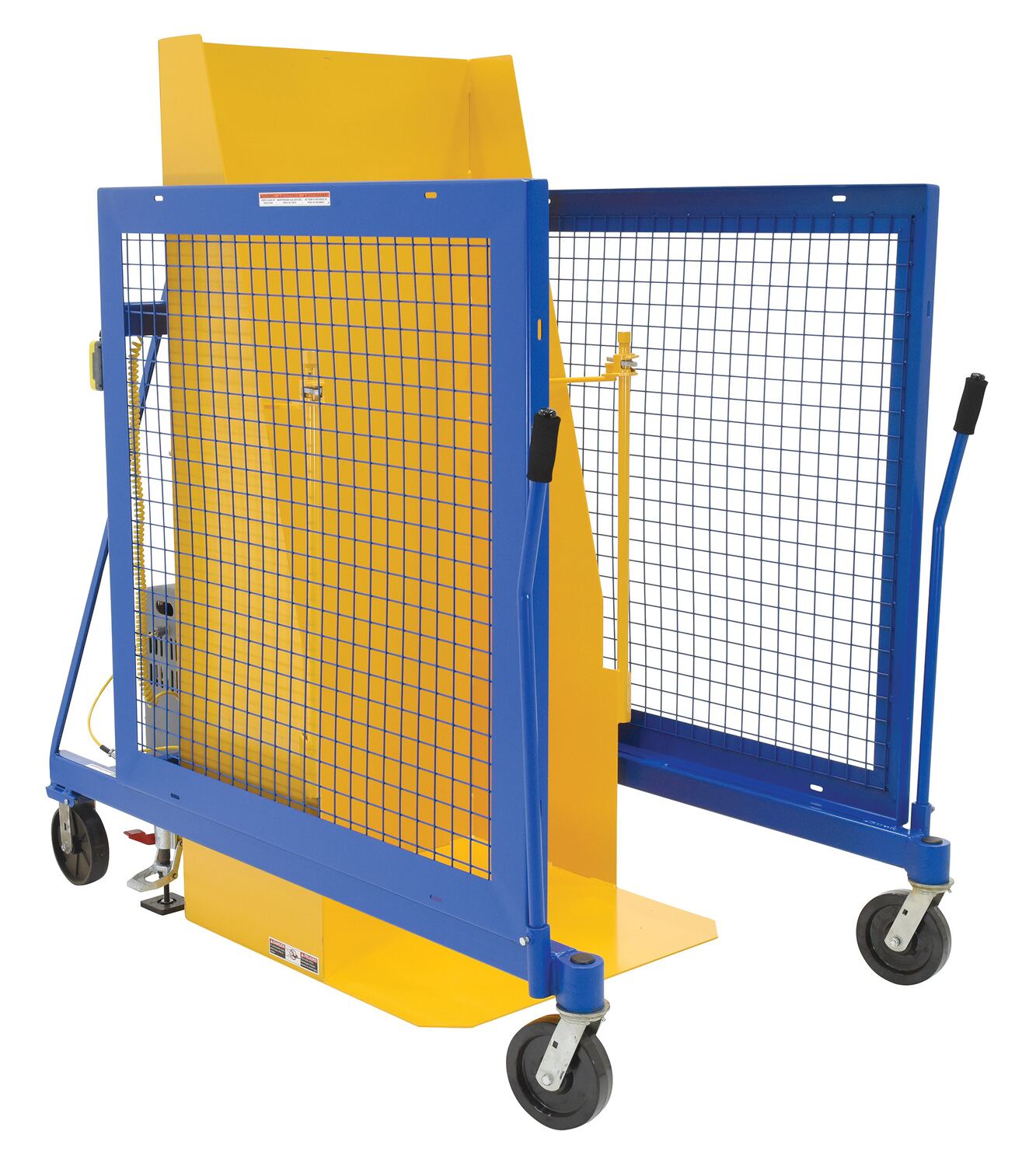

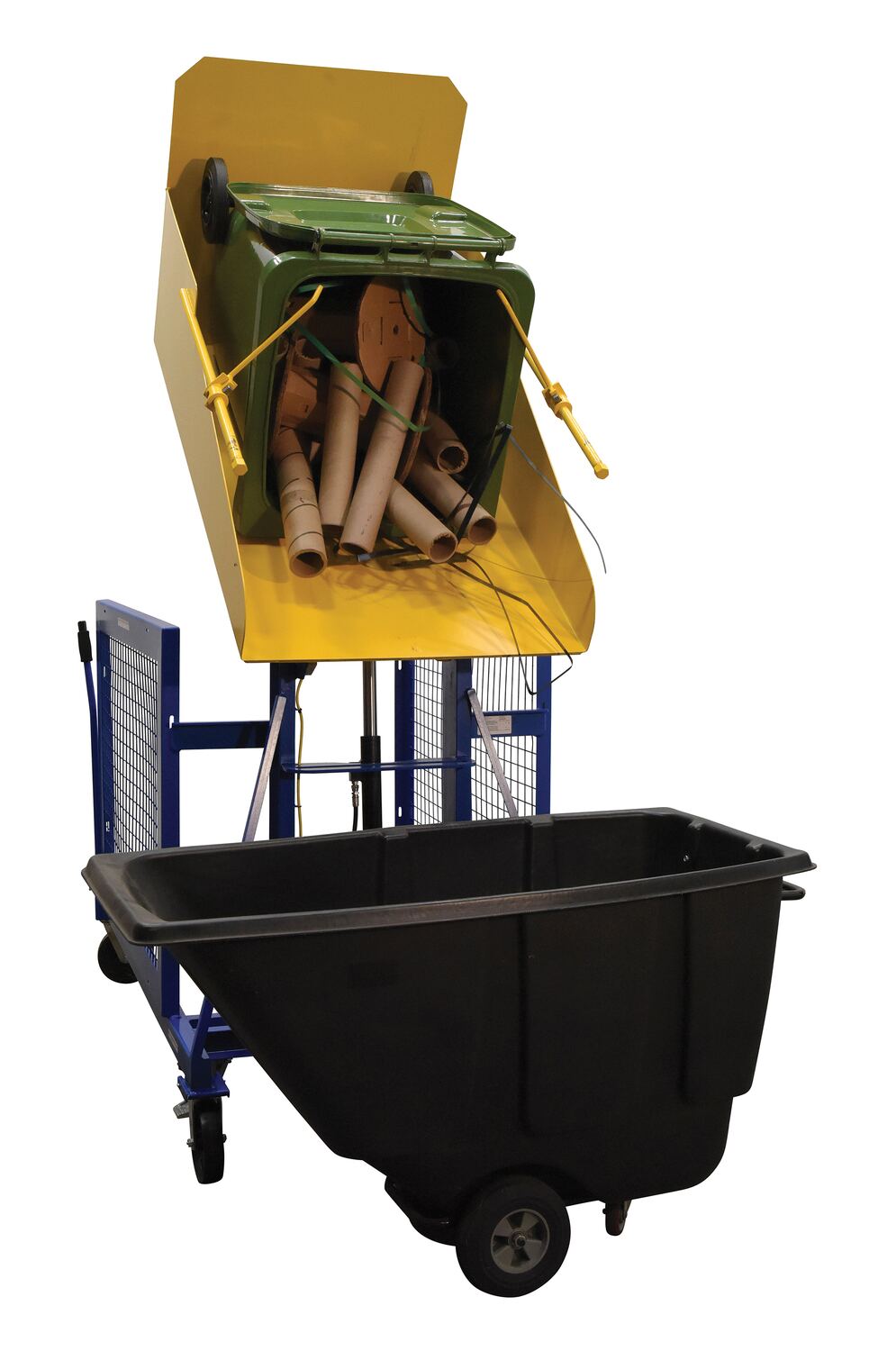

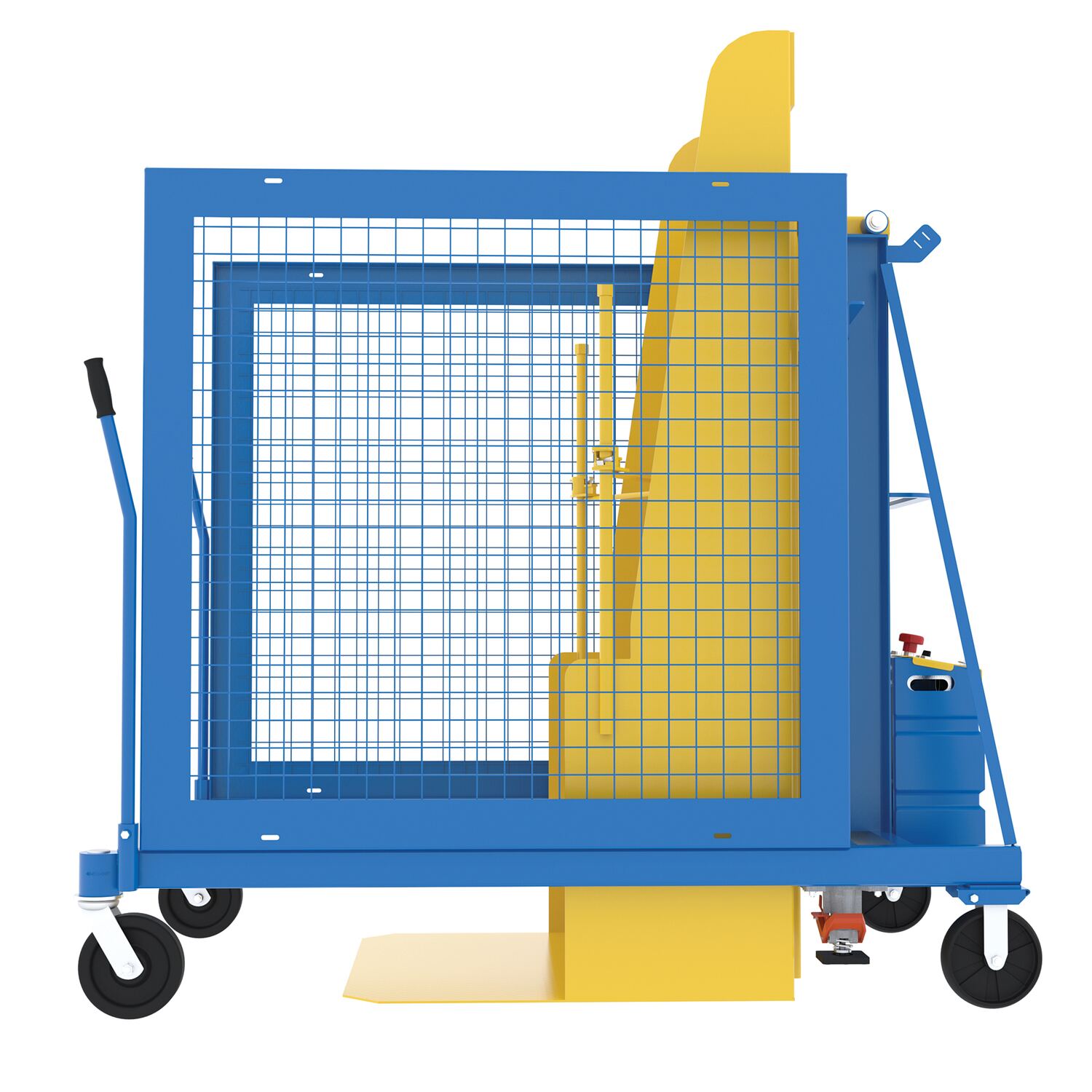

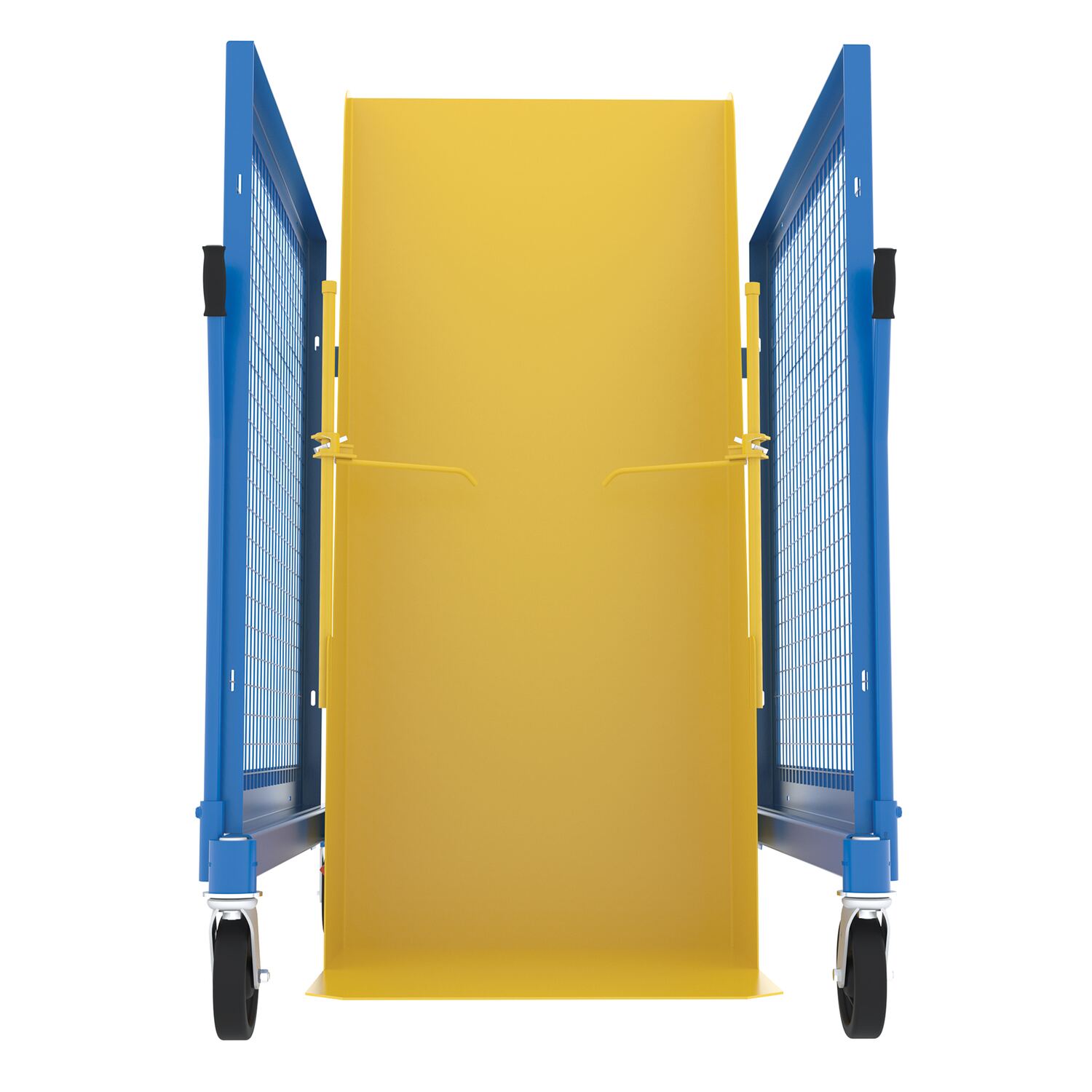

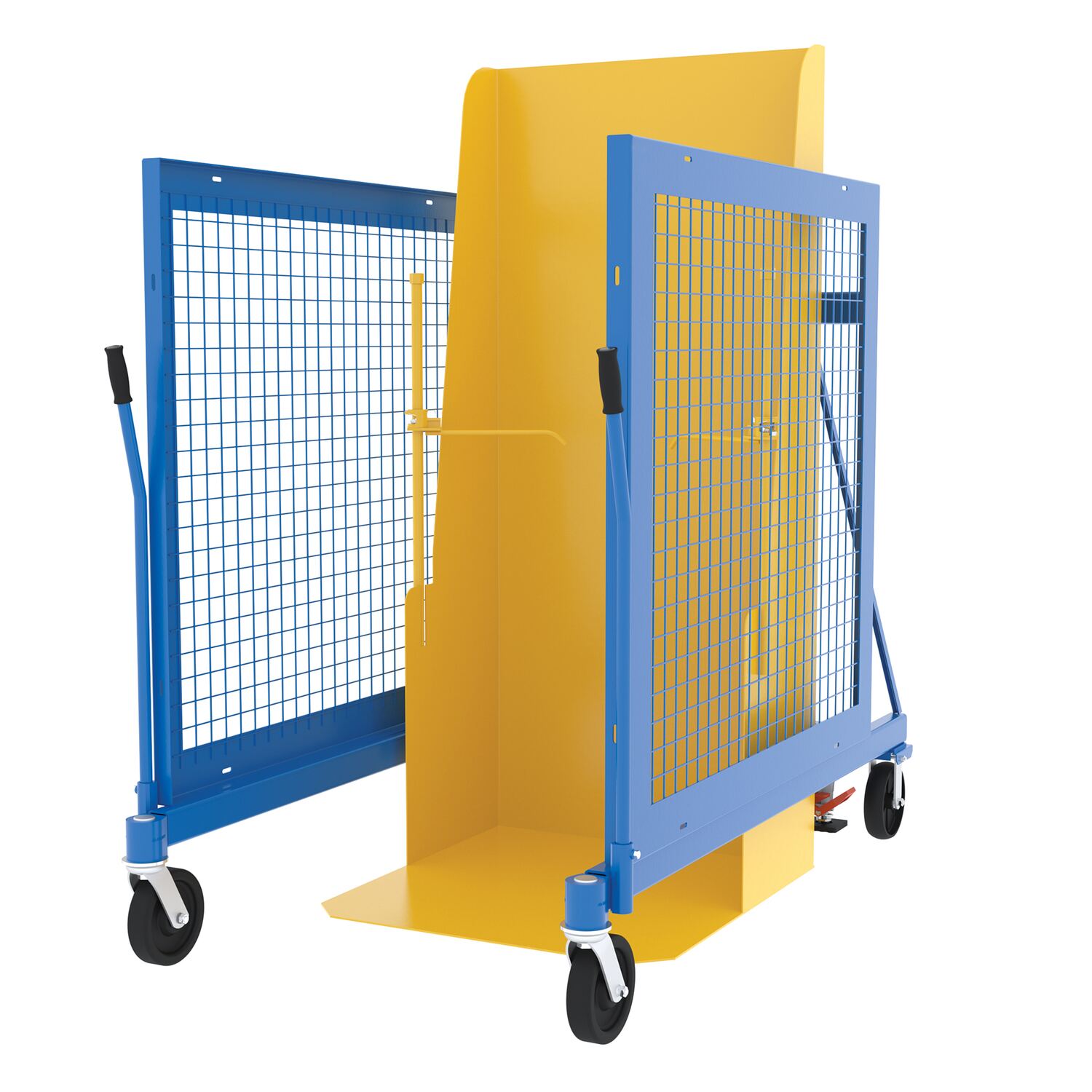

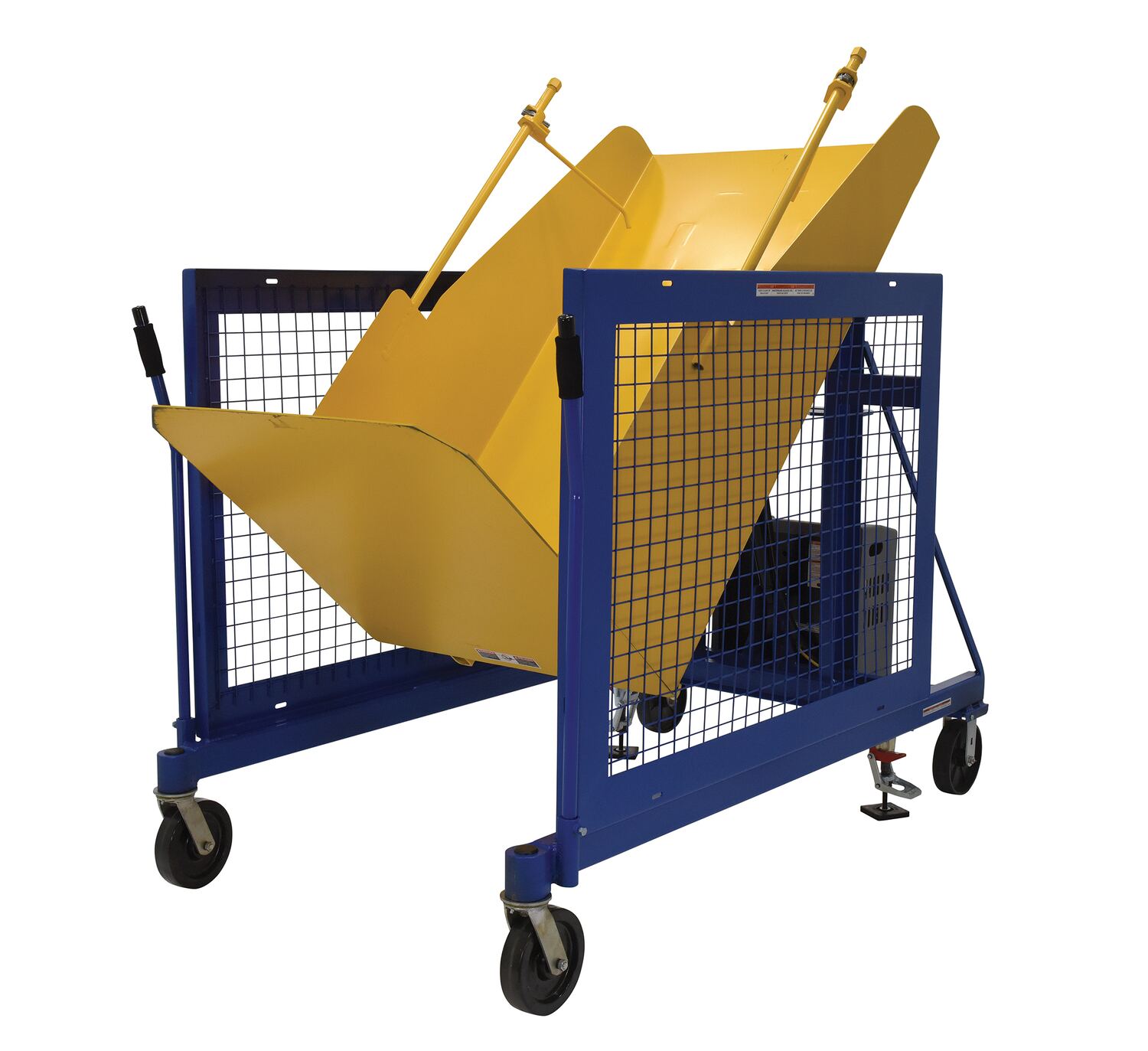

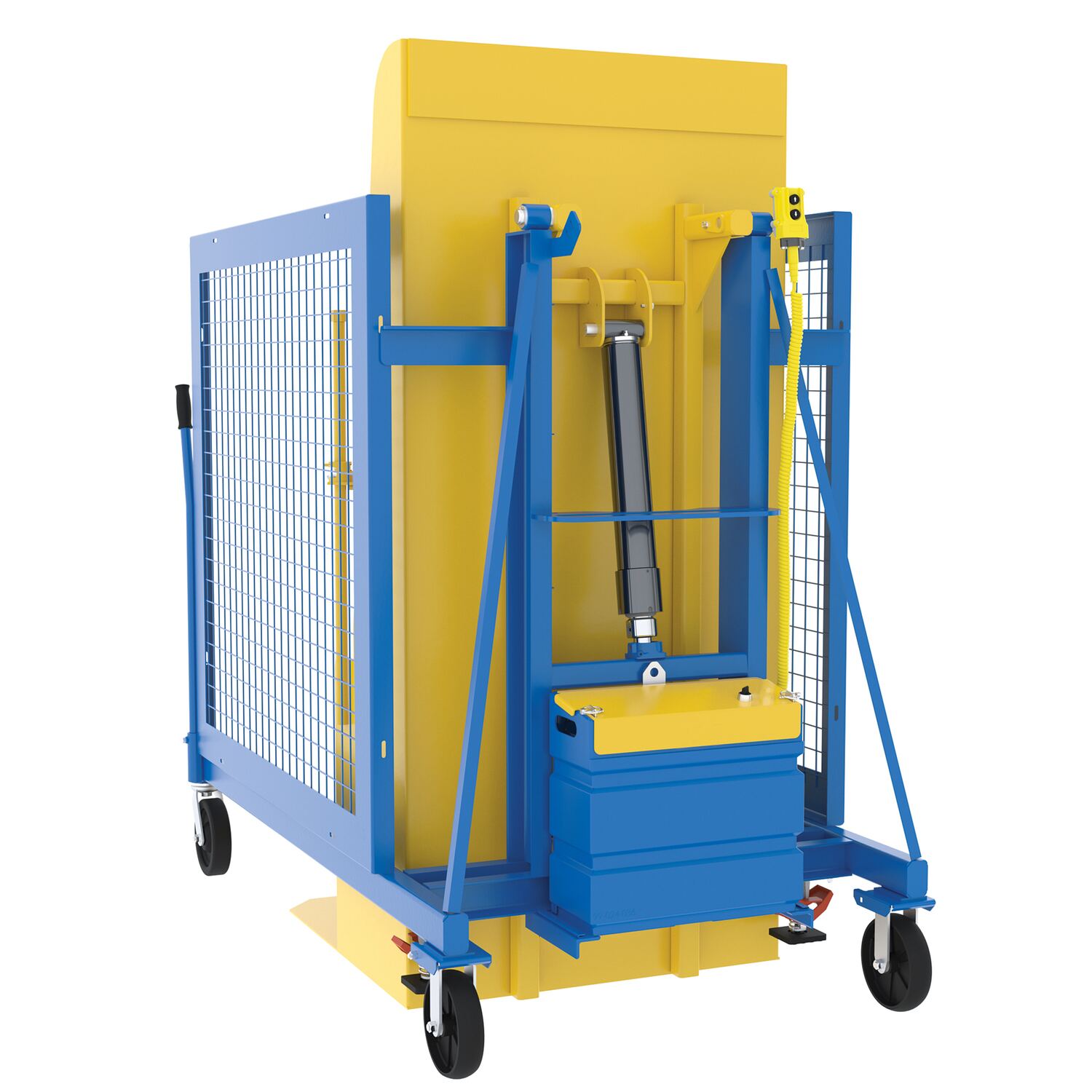

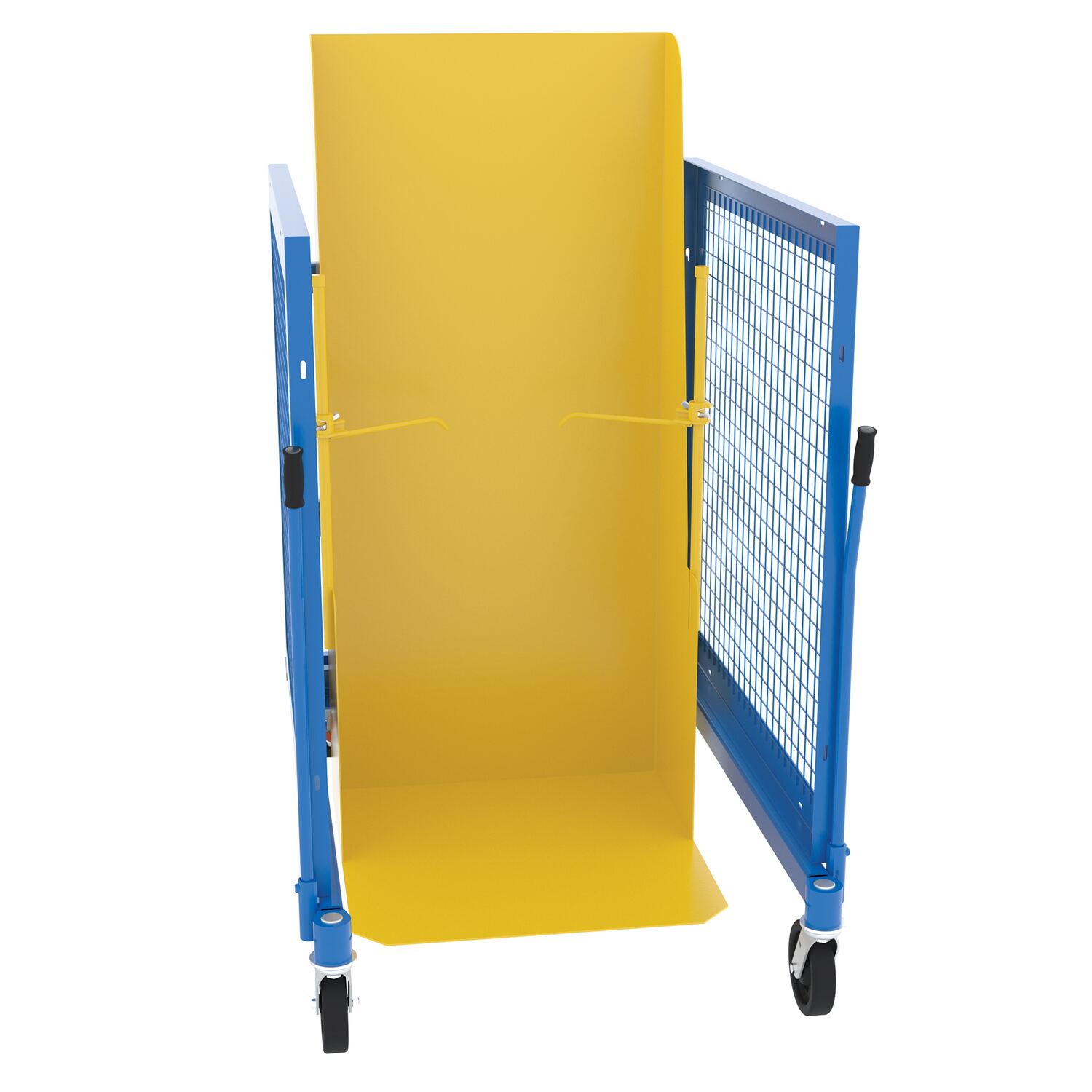

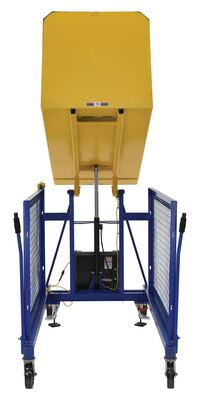

This innovative product allows one person to easily load, maneuver, and dump heavy trash cans of various sizes. The large squared chute and hold-down fingers allow this product to dump and retain most trash cans. Works with trash cans measuring 17-1/2" to 34-3/4" wide, 20-1/2" to 35-7/8" long, and 27" to 50" high. Multiple operations available; 115V AC, and 12V DC power with one (1) battery and an on-board charger, battery charge indicator gauge are standard. Units roll smoothly on (2) two swivel and (2) two rigid 8" x 2" glass filled nylon casters. Two (2) adjustable floor locks are also included. Ships fully assembled.

  • Simple design easily dumps contents out of trash can
  • Caster design makes portability convenient
  • Dump heights allow user to dump trash into tall dumpsters
  • Heavy duty steel construction is built to last

This innovative product allows one person to easily load, maneuver, and dump heavy trash cans of various sizes. The large squared chute and hold-down fingers allow this product to dump and retain most trash cans. Works with trash cans measuring 17-1/2" to 34-3/4" wide, 20-1/2" to 35-7/8" long, and 27" to 50" high. Multiple operations available; 115V AC, and 12V DC power with one (1) battery and an on-board charger, battery charge indicator gauge are standard. Units roll smoothly on (2) two swivel and (2) two rigid 8" x 2" glass filled nylon casters. Two (2) adjustable floor locks are also included. Ships fully assembled.

  • Simple design easily dumps contents out of trash can
  • Caster design makes portability convenient
  • Dump heights allow user to dump trash into tall dumpsters
  • Heavy duty steel construction is built to last

Additional Models In This Family

TCD-U-60-AC

model TCD-U-60-AC

TCD-U-60-DC

model TCD-U-60-DC

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
TCD-U-48-AC TCD-U-48-AC1 Year Limited WarrantySteel Universal AC Powered Trash Can Dumper 48 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-9/16
790
TCD-U-48-DC TCD-U-48-DC1 Year Limited WarrantySteel Universal DC Powered Trash Can Dumper 48 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-9/16
864
TCD-U-60-AC TCD-U-60-AC1 Year Limited WarrantySteel Universal AC Powered Trash Can Dumper 60 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 59-13/16
877
TCD-U-60-DC TCD-U-60-DC1 Year Limited WarrantySteel Universal DC Powered Trash Can Dumper 60 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 59-13/16
942
TCD-U-72-AC TCD-U-72-AC1 Year Limited WarrantySteel Universal AC Powered Trash Can Dumper 72 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 71-15/16
991
TCD-U-72-DC TCD-U-72-DC1 Year Limited WarrantySteel Universal DC Powered Trash Can Dumper 72 In. Maximum Dump Height Blue / YellowUniform Capacity (lb.): 400
Maximum Dump Height (in.): 71-15/16
1071

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate = 360 Image Warranty

TCD-U-48-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-9/16
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-9/16

TCD-U-48-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-9/16
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 48-9/16

TCD-U-60-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 59-13/16
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 59-13/16

TCD-U-60-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 59-13/16
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 59-13/16

TCD-U-72-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 71-15/16
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 71-15/16

TCD-U-72-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 71-15/16
Uniform Capacity (lb.): 400
Maximum Dump Height (in.): 71-15/16

Universal Trash Can Dumpers PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


TCD-U-48-AC

TCD-U-48-DC

TCD-U-60-AC

TCD-U-60-DC

TCD-U-72-AC

TCD-U-72-DC

SDS Sheets

Hydraulic Oil SDS Sheet for: TCD-U-48-AC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: TCD-U-48-DC
Hydraulic Oil SDS Sheet for: TCD-U-48-DC
Hydraulic Oil SDS Sheet for: TCD-U-60-AC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: TCD-U-60-DC
Hydraulic Oil SDS Sheet for: TCD-U-60-DC
Hydraulic Oil SDS Sheet for: TCD-U-72-AC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: TCD-U-72-DC
Hydraulic Oil SDS Sheet for: TCD-U-72-DC

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the cycle time for the TCD-U-48-DC or the TCD-U-60-DC?

A: Speed is approximately 35 seconds to raise and 35 seconds to lower.


Q: How long does it take to charge the battery for the TCD-U-48-DC or the TCD-U-60-DC?

A: It takes approximately 6-8 hours to charge the battery.


Q: How long does the battery last on the TCD-U-48-DC or the TCD-U-60-DC?

A: Under normal conditions, the battery will last approximately 3.5 hours when raised every 5 minutes. The battery will last approximately 7.5 hours when raised every 10 minutes.
