Product Family Overview


Auto-Hite Carts
SERIES: SCSC

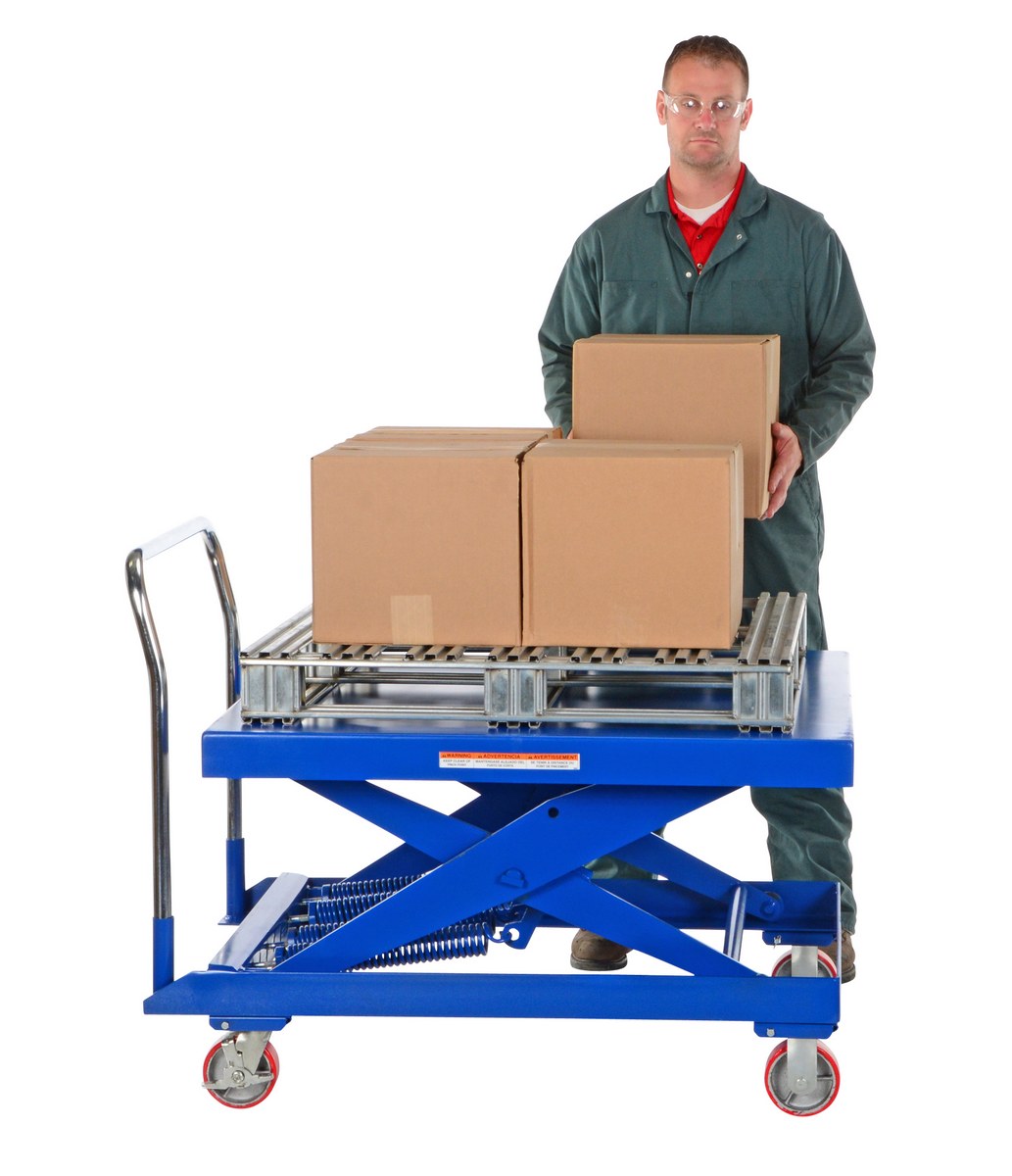

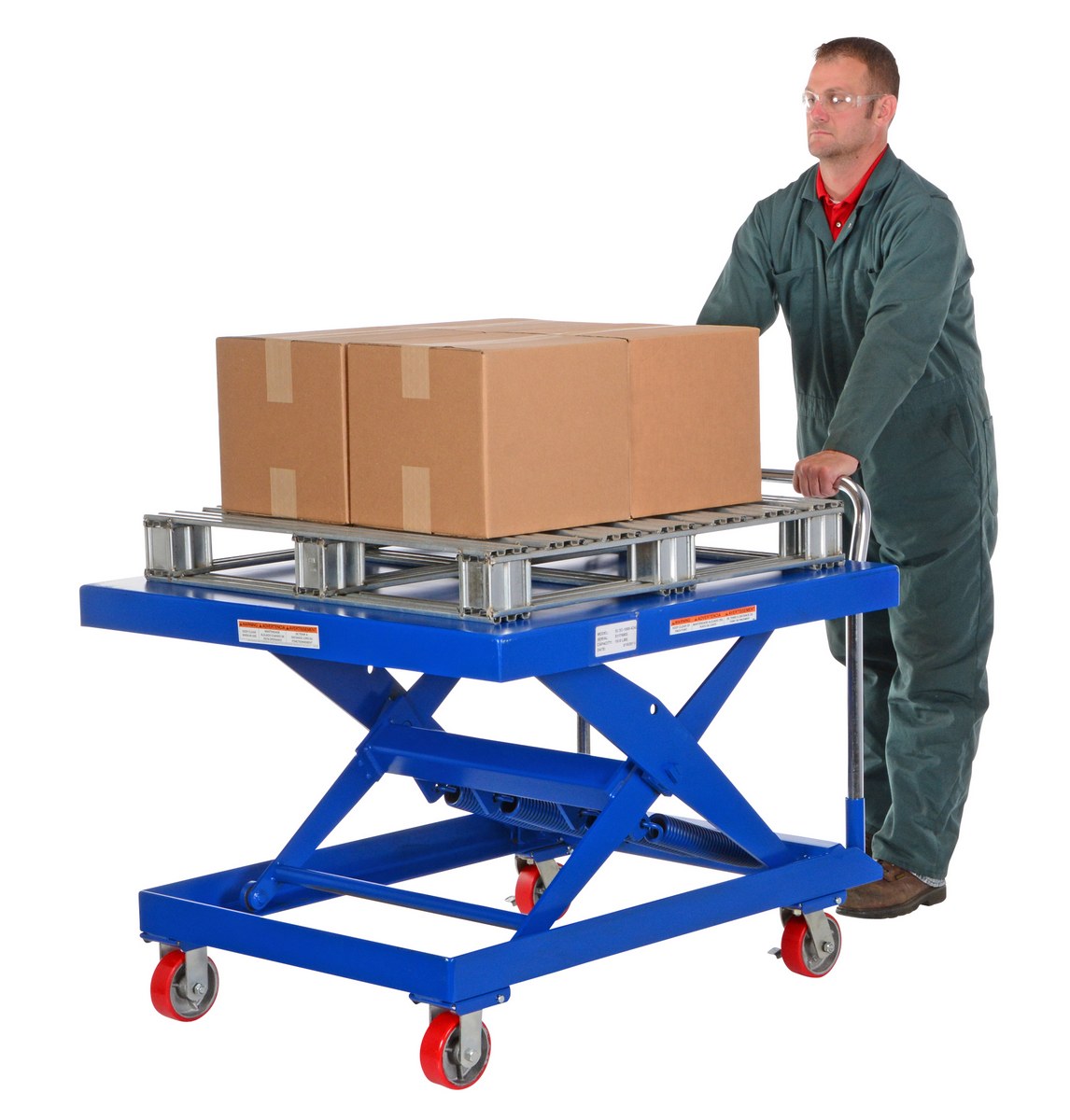

The Auto-Hite Cart raises or lowers as materials are removed or added to the platform, keeping material at an ergonomic work height. Increase efficiency while reducing potentially harmful bending and twisting motions. Carts utilize tension springs which can be adjusted in order to fit each particular application. All steel construction with removable handle. Polyurethane casters are 5" x 2", (2) rigid and (2) swivel with brake casters. *Approximate ratio.

  • Platform automatically moves down as weight is added and up as weight is removed for correct ergonomic heights
  • Simple adjustable spring tension is variable for use with different types of loads
  • Removable handle allows for simple loading and loading
  • Increases efficiency while reducing potentially harmful bending and twisting motions

The Auto-Hite Cart raises or lowers as materials are removed or added to the platform, keeping material at an ergonomic work height. Increase efficiency while reducing potentially harmful bending and twisting motions. Carts utilize tension springs which can be adjusted in order to fit each particular application. All steel construction with removable handle. Polyurethane casters are 5" x 2", (2) rigid and (2) swivel with brake casters. *Approximate ratio.

  • Platform automatically moves down as weight is added and up as weight is removed for correct ergonomic heights
  • Simple adjustable spring tension is variable for use with different types of loads
  • Removable handle allows for simple loading and loading
  • Increases efficiency while reducing potentially harmful bending and twisting motions

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

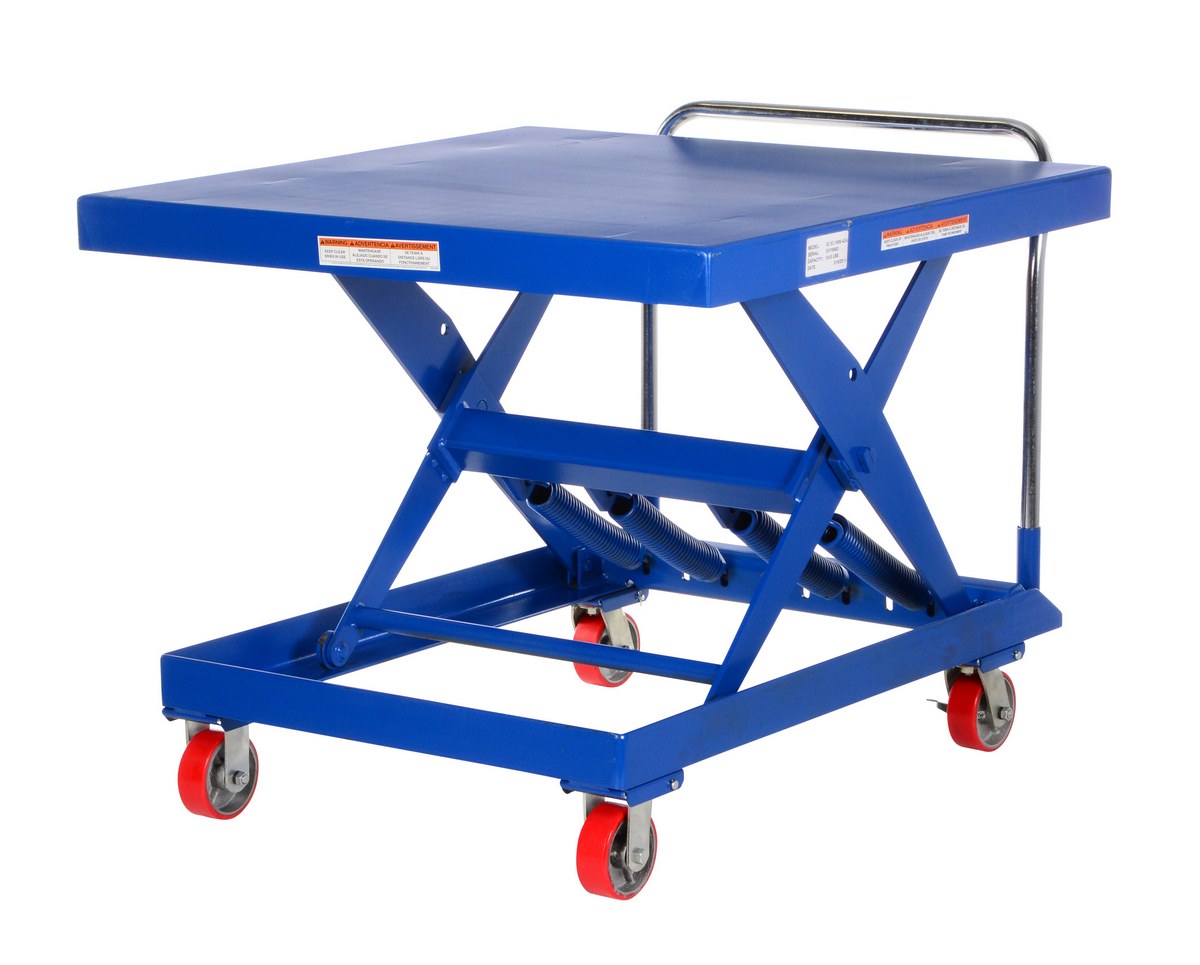

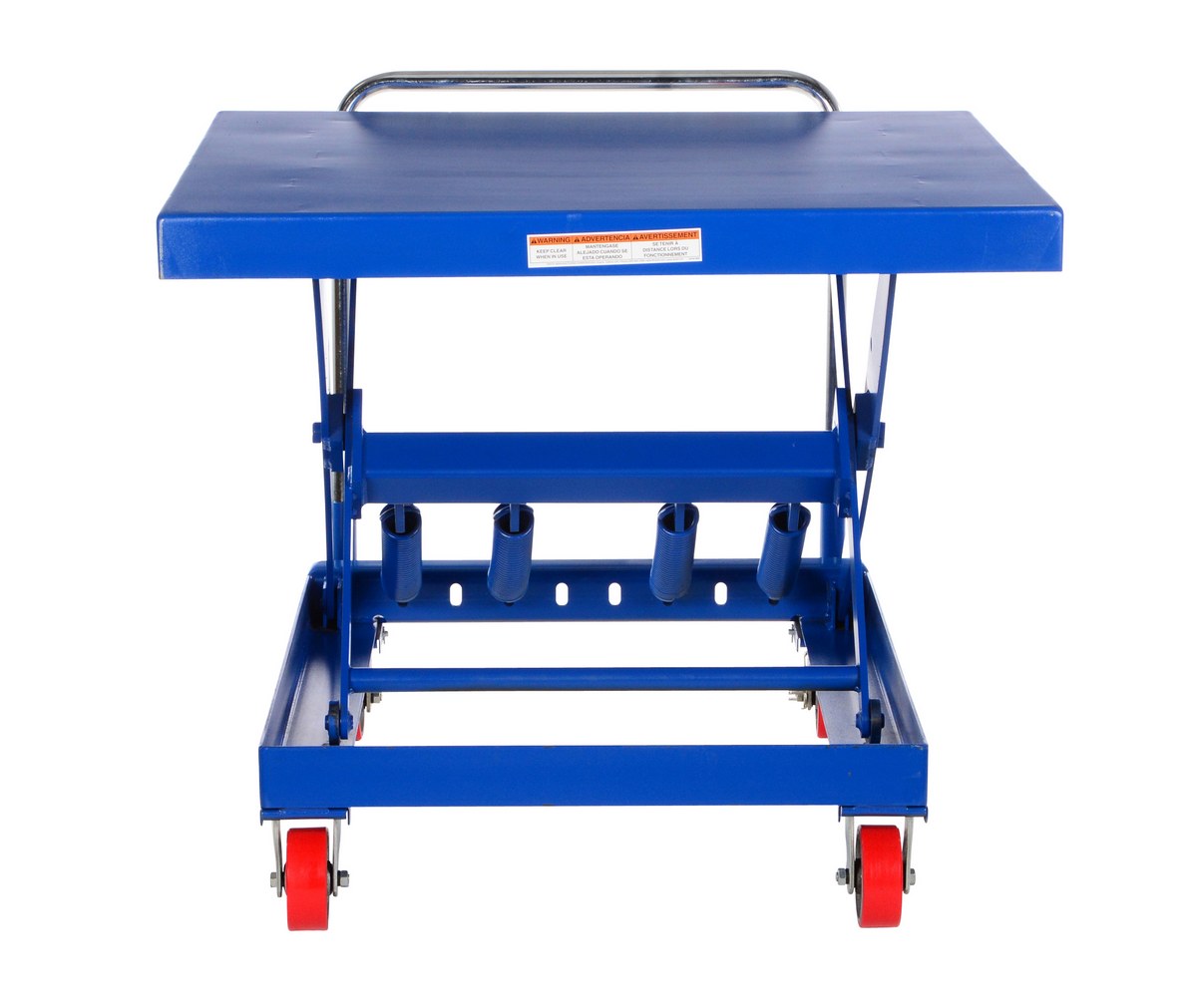

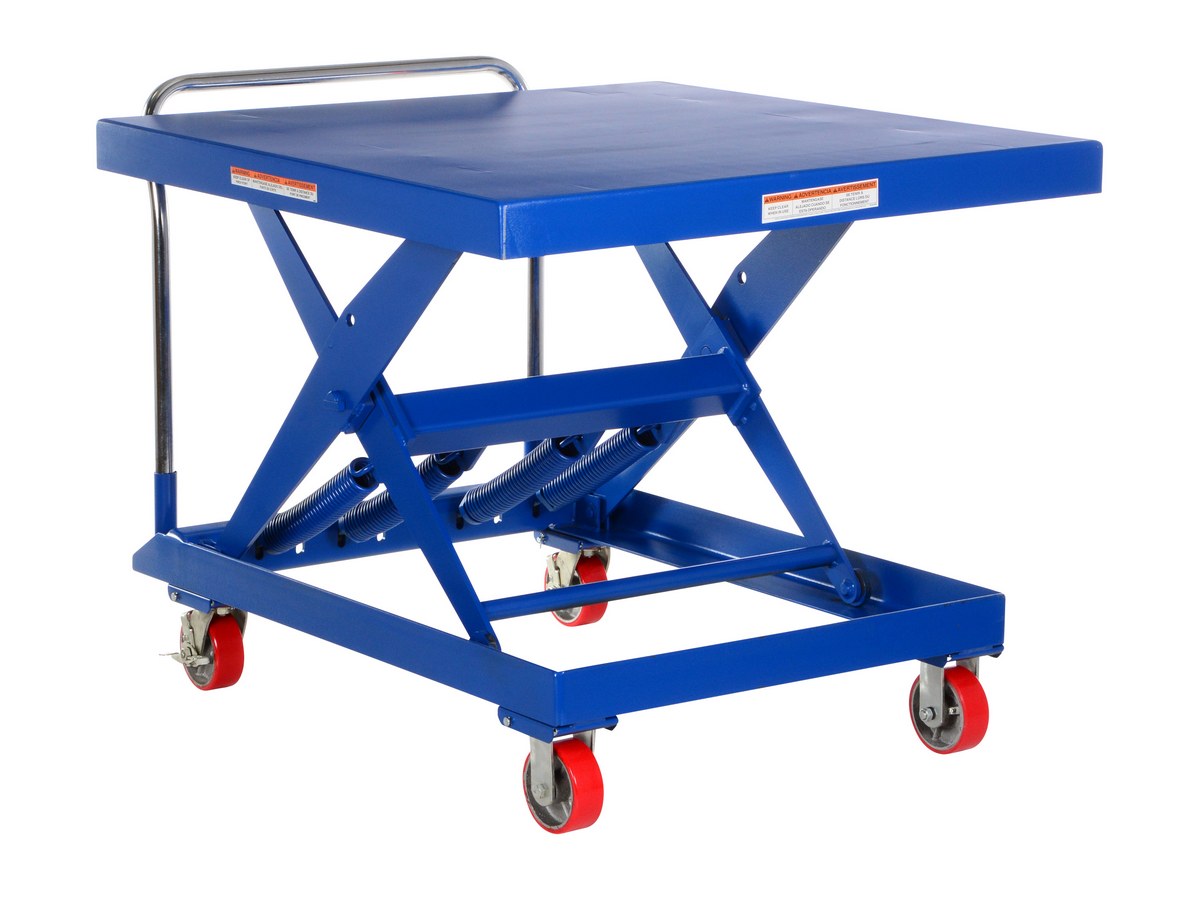

SCSC-1000-4242 SCSC-1000-424290 Days Limited WarrantySteel Auto Hite Cart 47 In. x 42 In. x 37-5/8 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 42
404

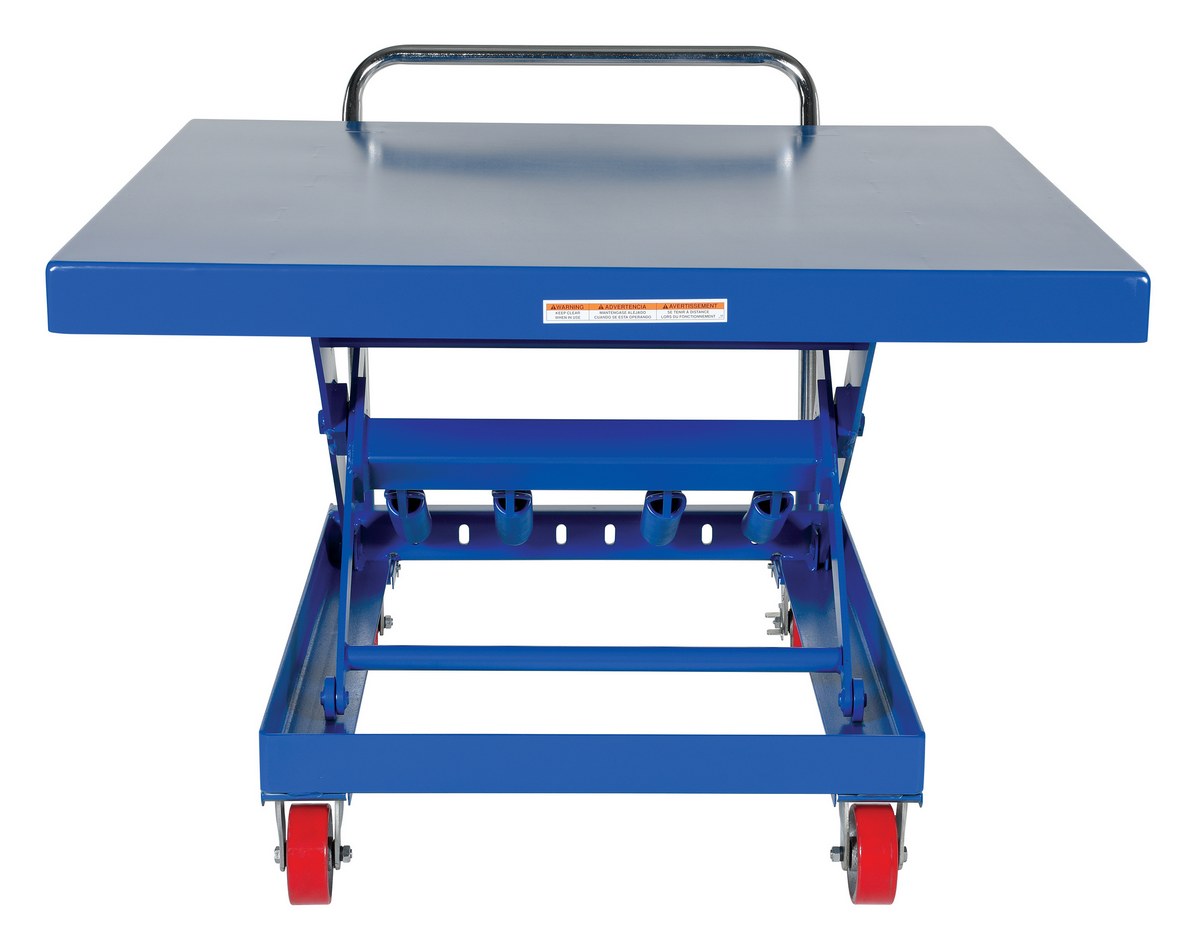

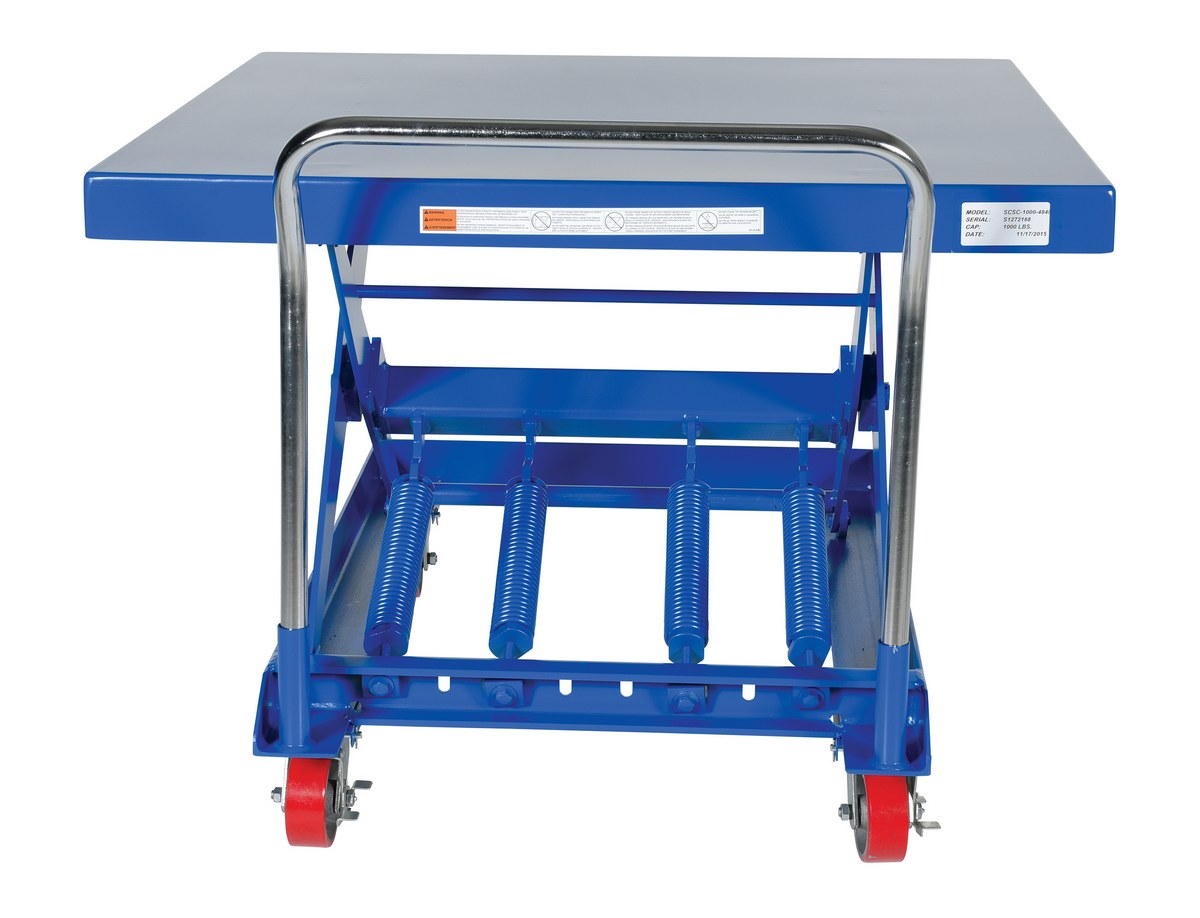

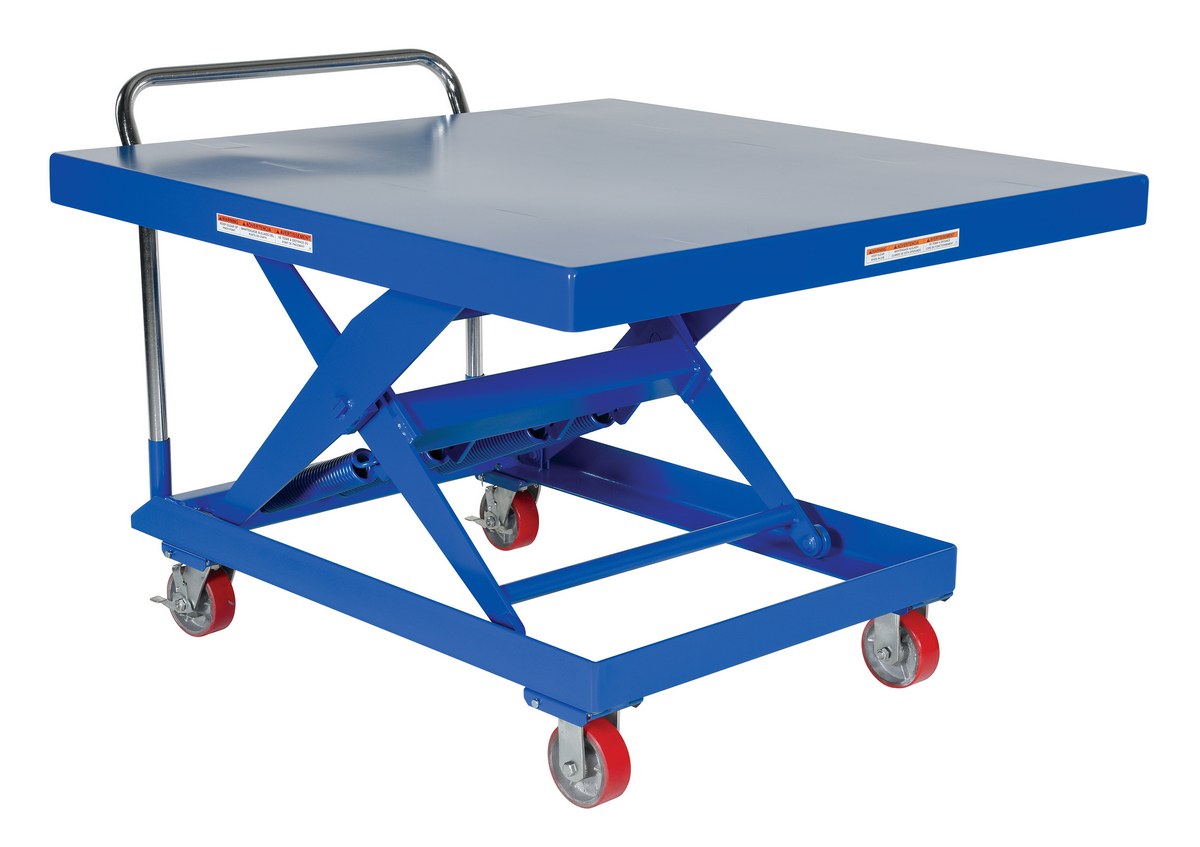

SCSC-1000-4848 SCSC-1000-484890 Days Limited WarrantySteel Auto Hite Cart 50-3/4 In. x 48 In. x 37-5/8 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 48
435

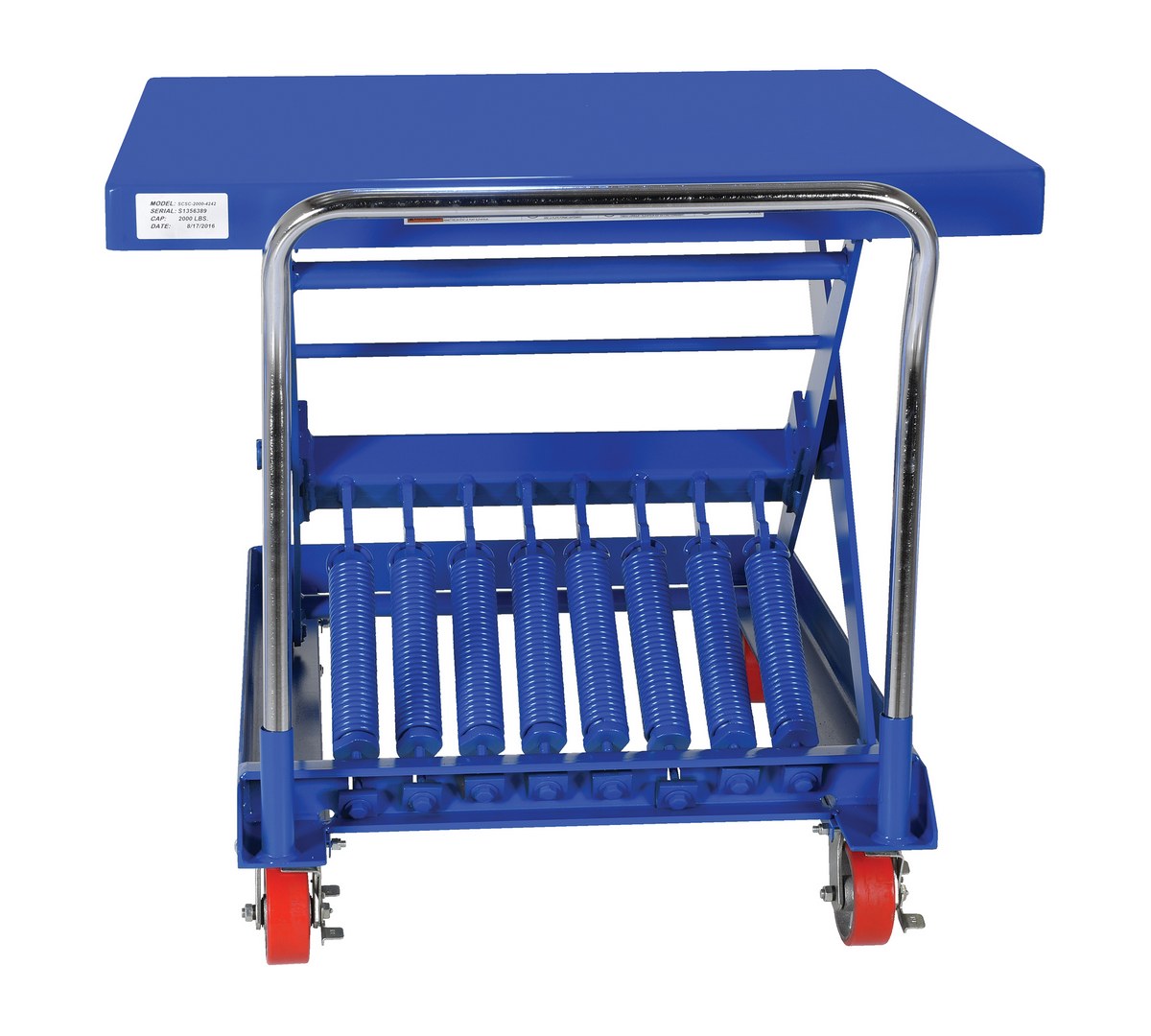

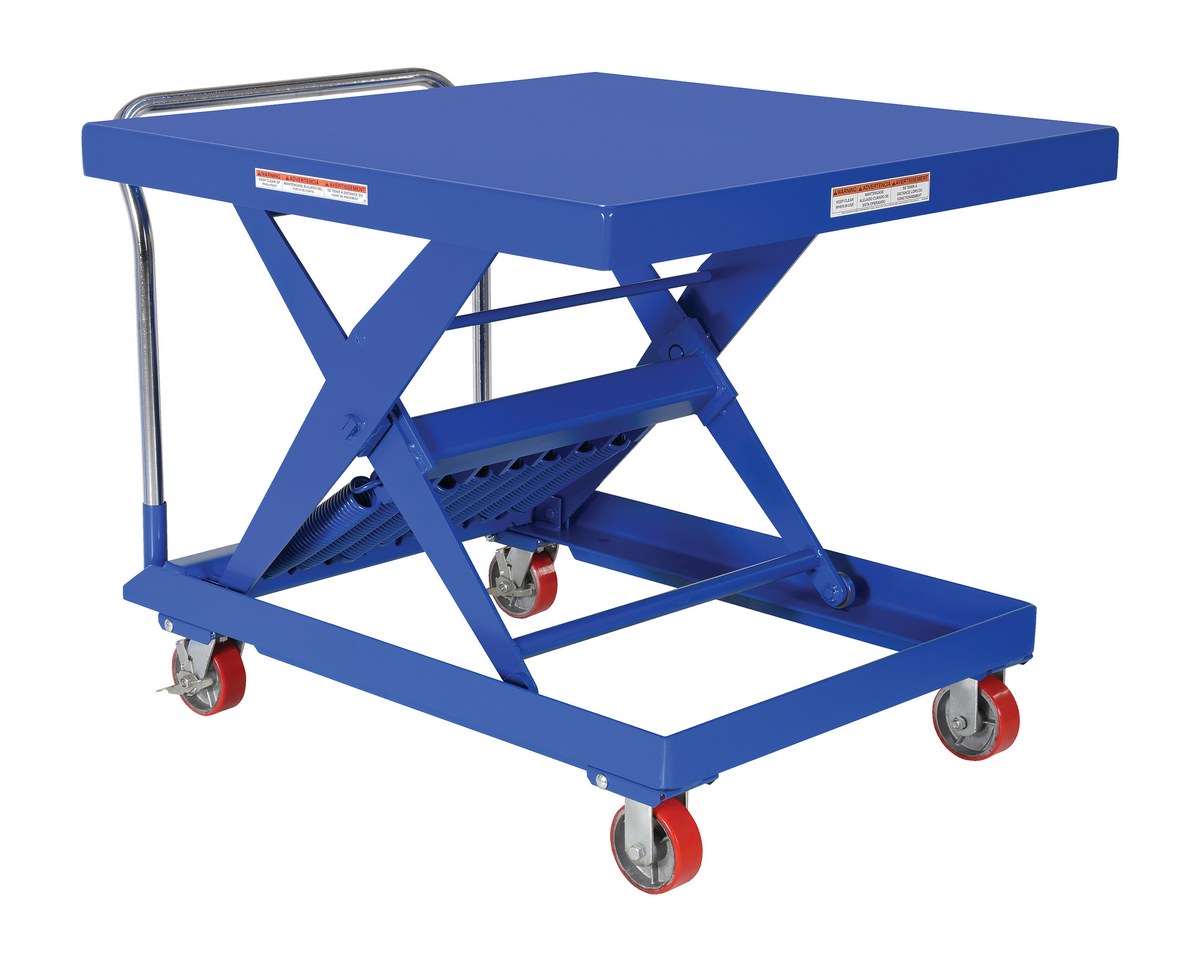

SCSC-2000-4242 SCSC-2000-424290 Days Limited WarrantySteel Auto Hite Cart 48-3/16 In. x 42 In. x 37-5/8 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 42
477

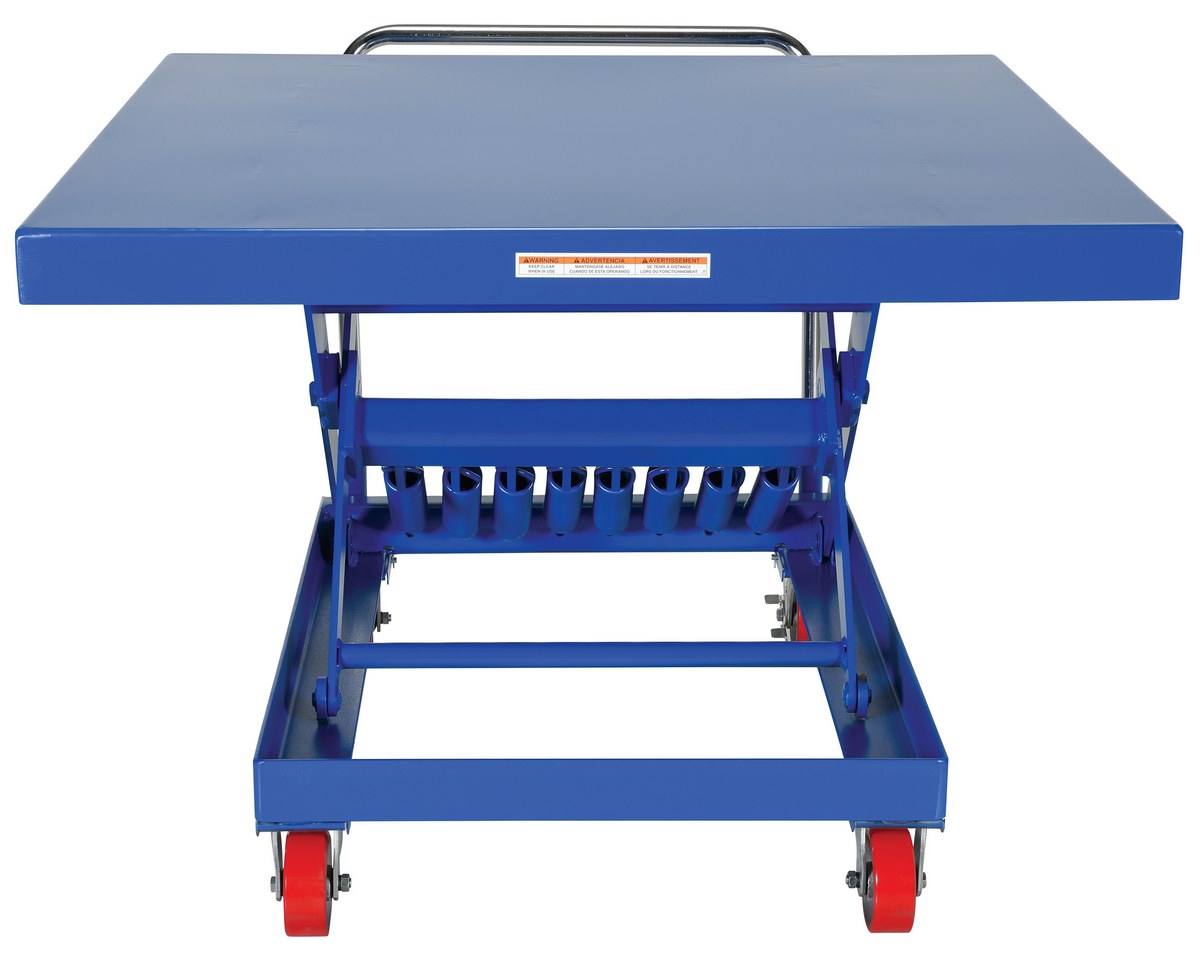

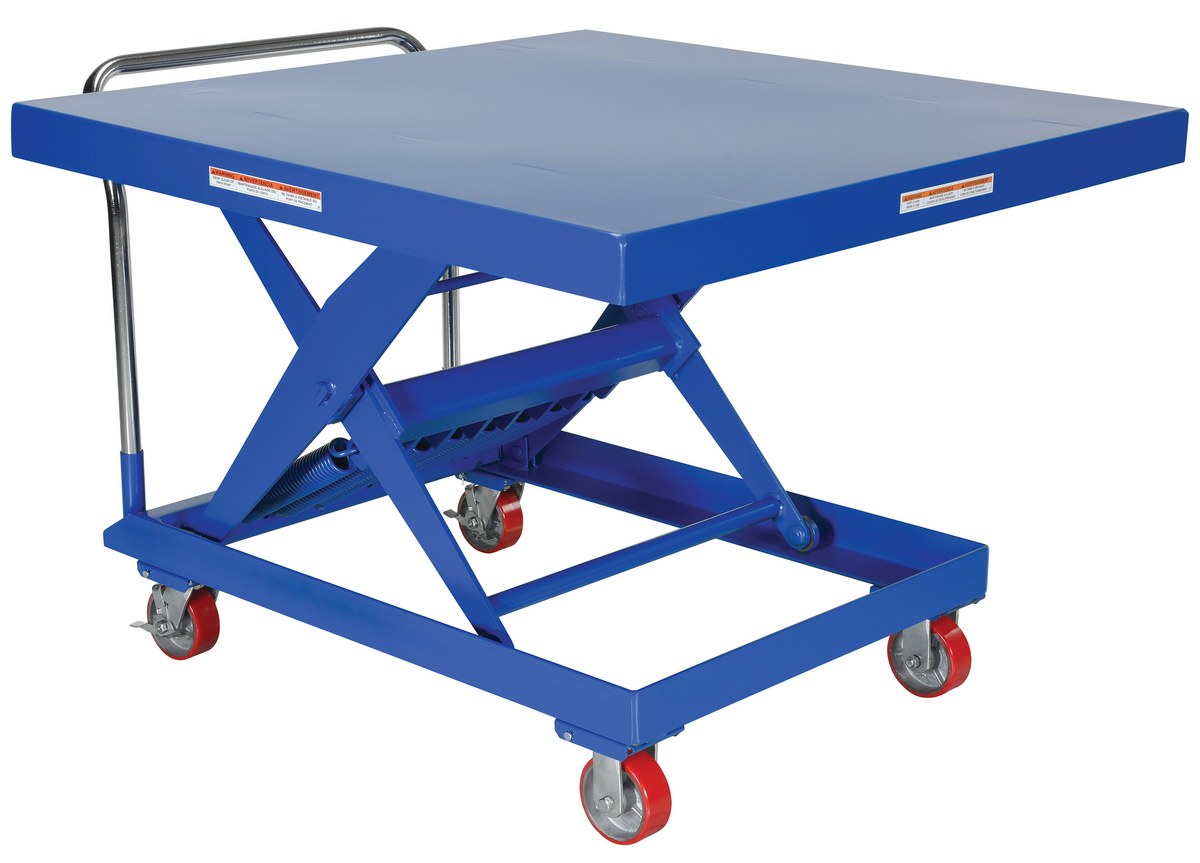

SCSC-2000-4848 SCSC-2000-484890 Days Limited WarrantySteel Auto Hite Cart 50-3/4 In. x 48 In. x 37-5/8 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 48
485

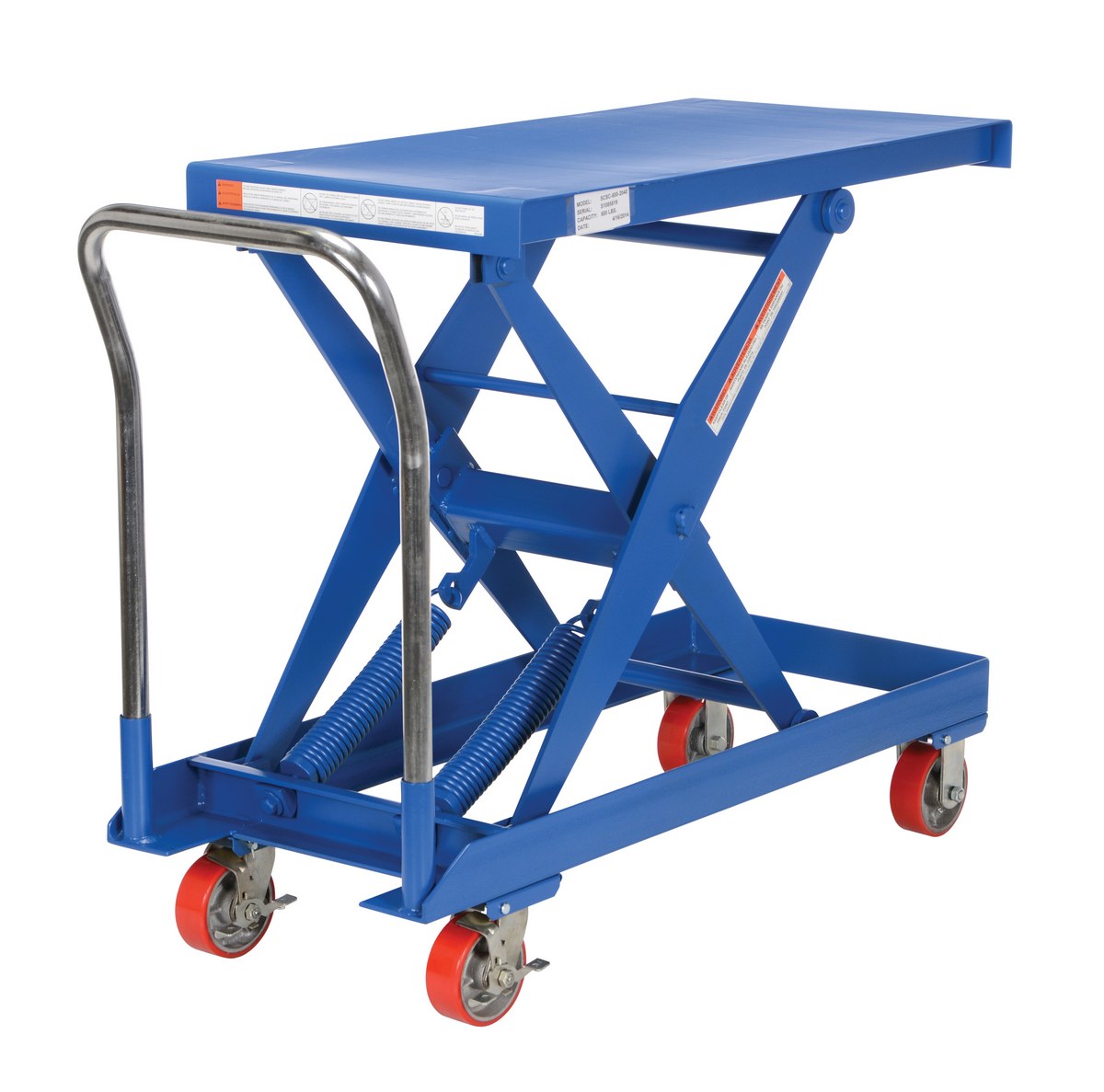

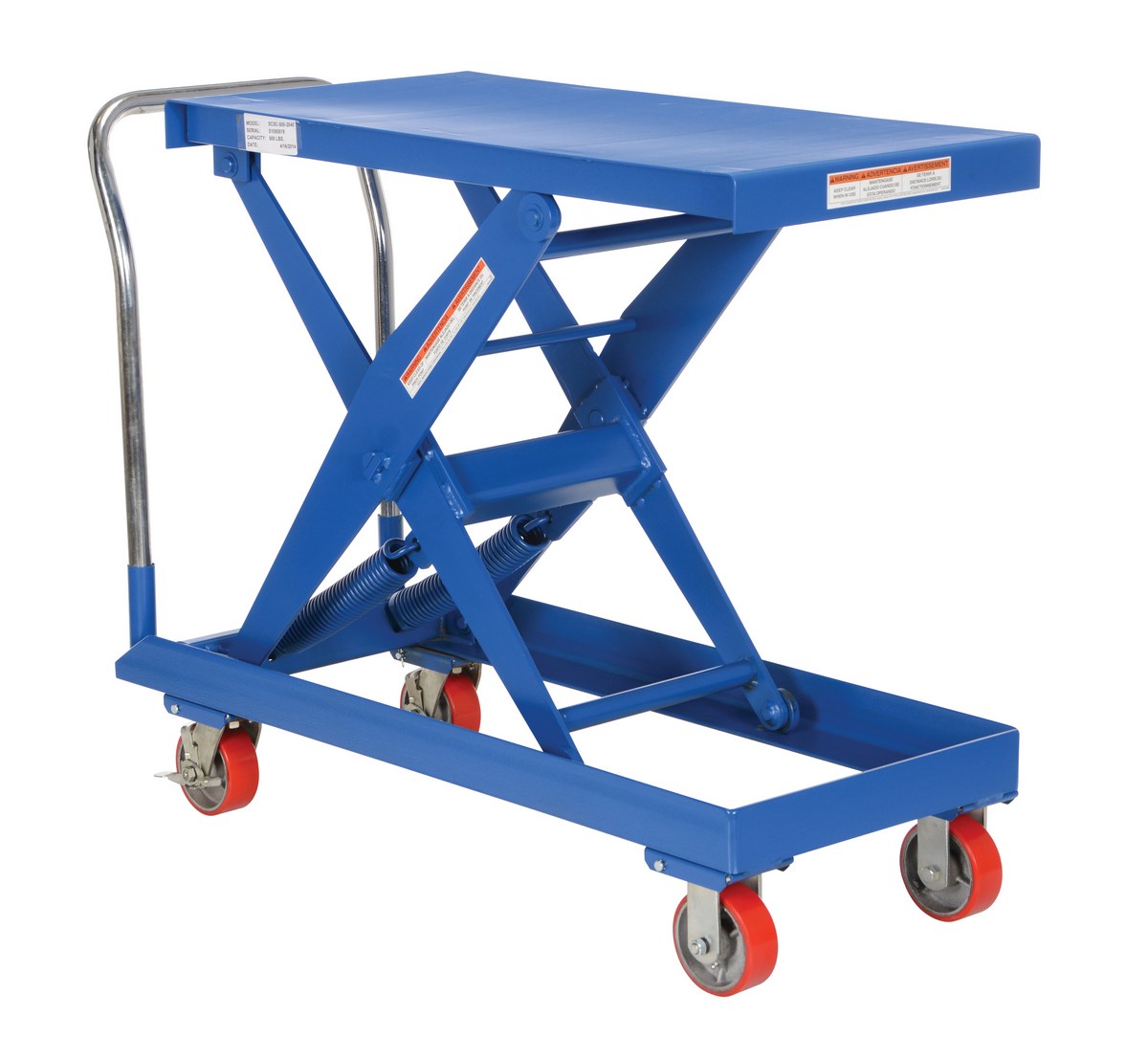

SCSC-500-2040 SCSC-500-204090 Days Limited WarrantySteel Auto Hite Cart 49-1/8 In. x 20-3/8 In. x 37-11/16 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 20-3/8
300

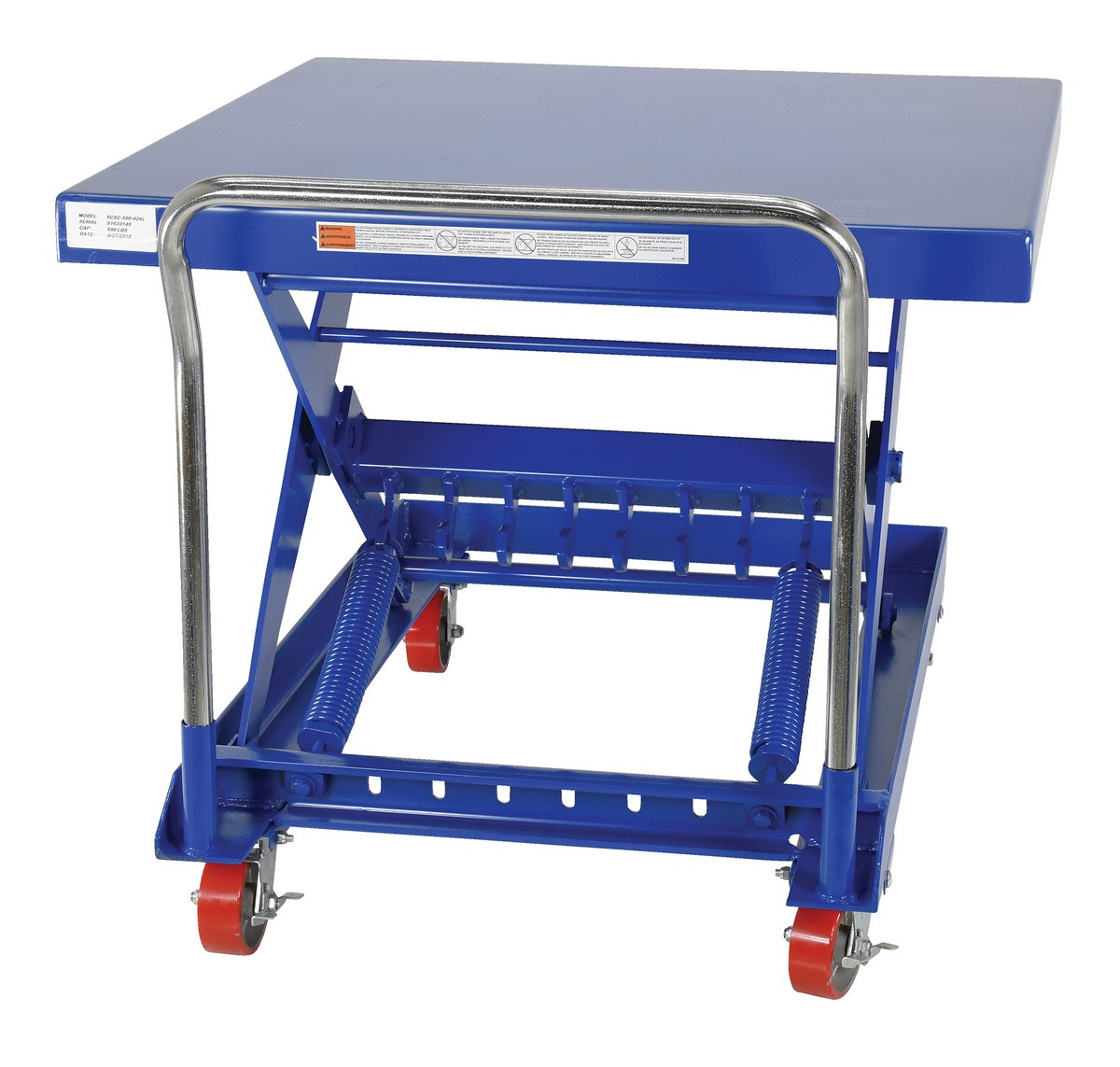

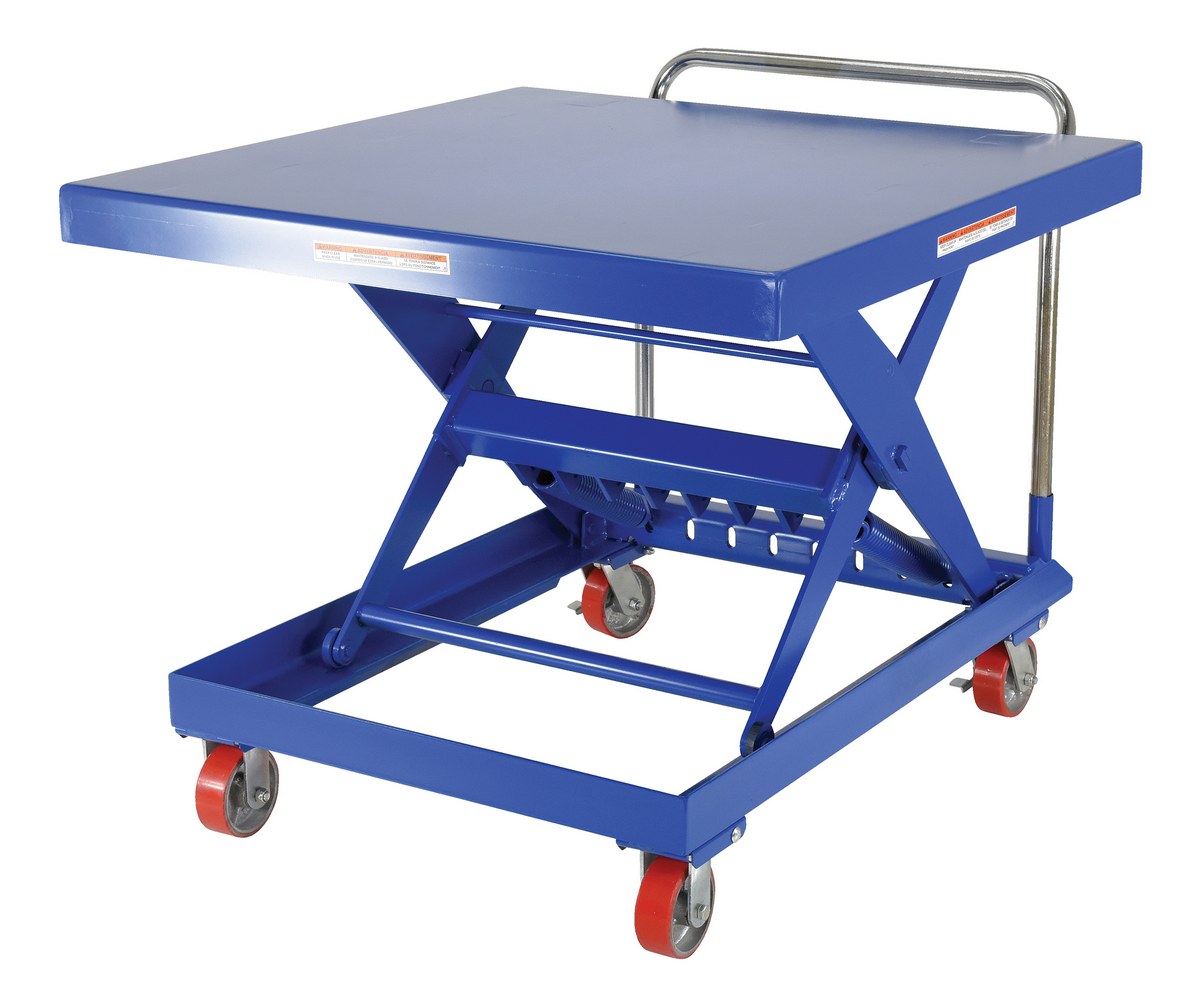

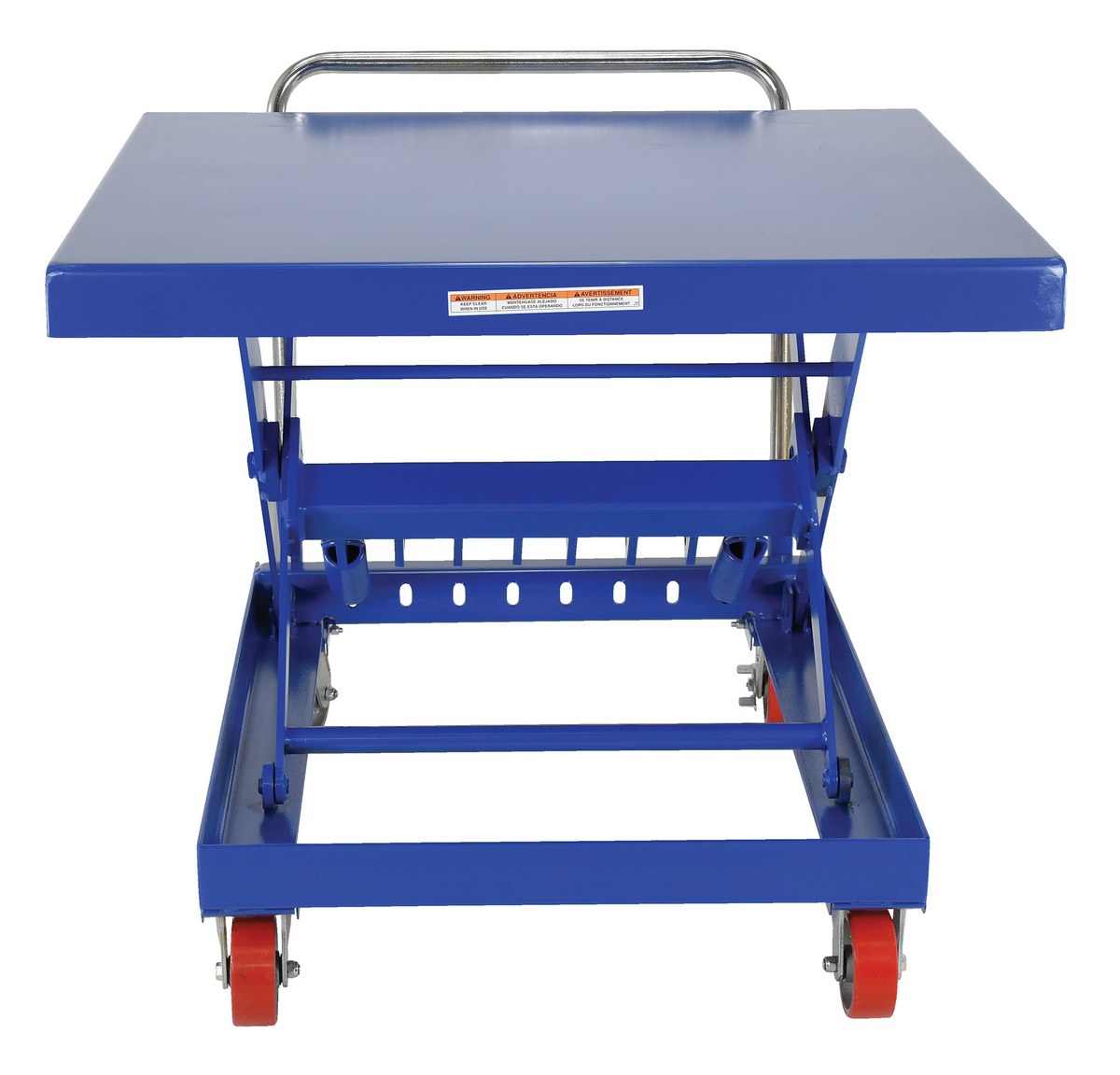

SCSC-500-4242 SCSC-500-424290 Days Limited WarrantySteel Auto Hite Cart 47 In. x 42 In. x 37-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 42
413

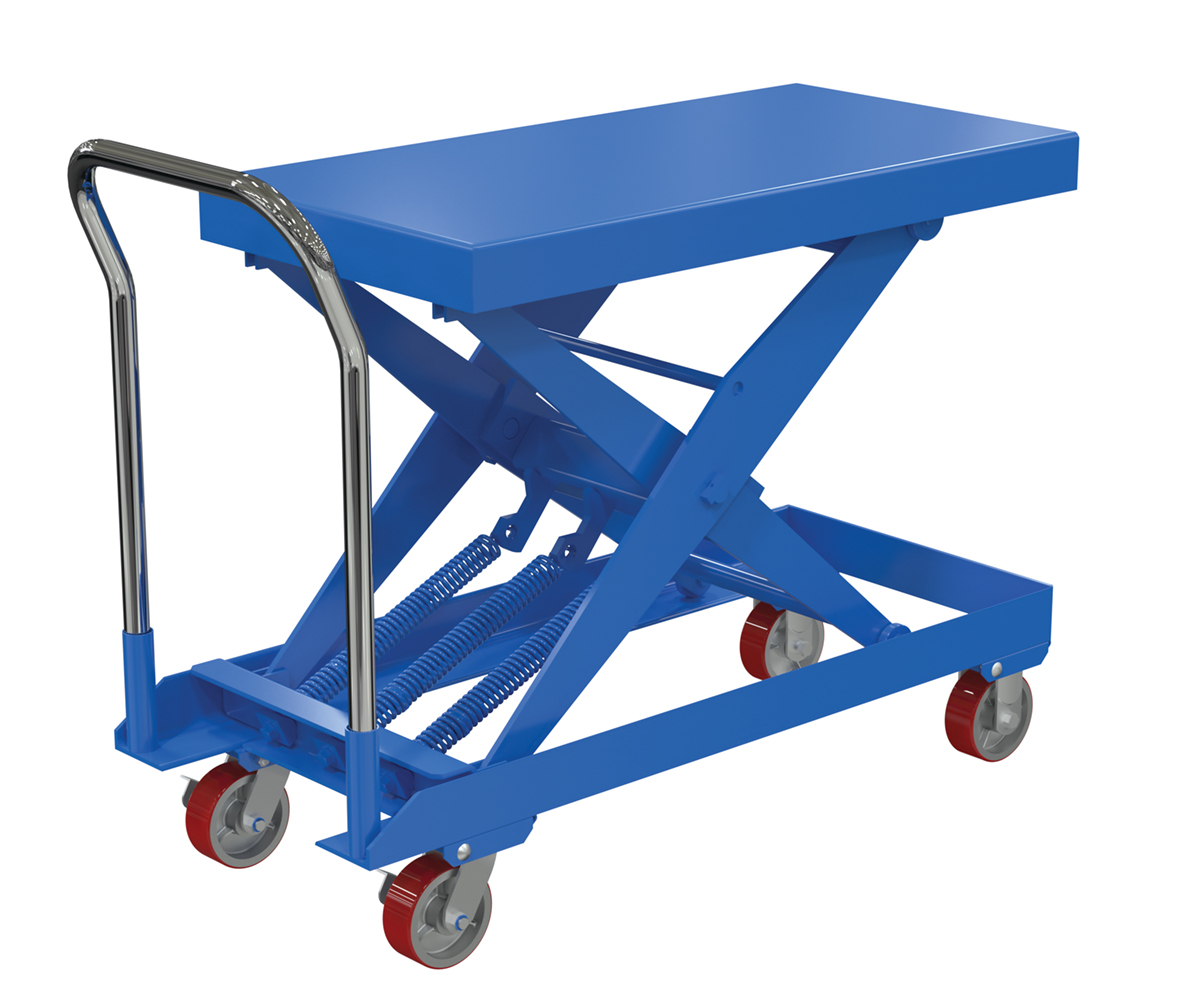

SCSC-750-2040 SCSC-750-204090 Days Limited WarrantySteel Auto Hite Cart 49-1/8 In. x 20-7/16 In. x 37-11/16 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20-3/8
320

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SCSC-1000-4242
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 42
Uniform Capacity (lb.): 1000
Platform Width (in.): 42

SCSC-1000-4848
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 48
Uniform Capacity (lb.): 1000
Platform Width (in.): 48

SCSC-2000-4242
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 42
Uniform Capacity (lb.): 2000
Platform Width (in.): 42

SCSC-2000-4848
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 48
Uniform Capacity (lb.): 2000
Platform Width (in.): 48

SCSC-500-2040
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 500
Platform Width (in.): 20-3/8

SCSC-500-4242
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 42
Uniform Capacity (lb.): 500
Platform Width (in.): 42

SCSC-750-2040
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 750
Platform Width (in.): 20-3/8
For More Details of the Option Click the Red Model Button

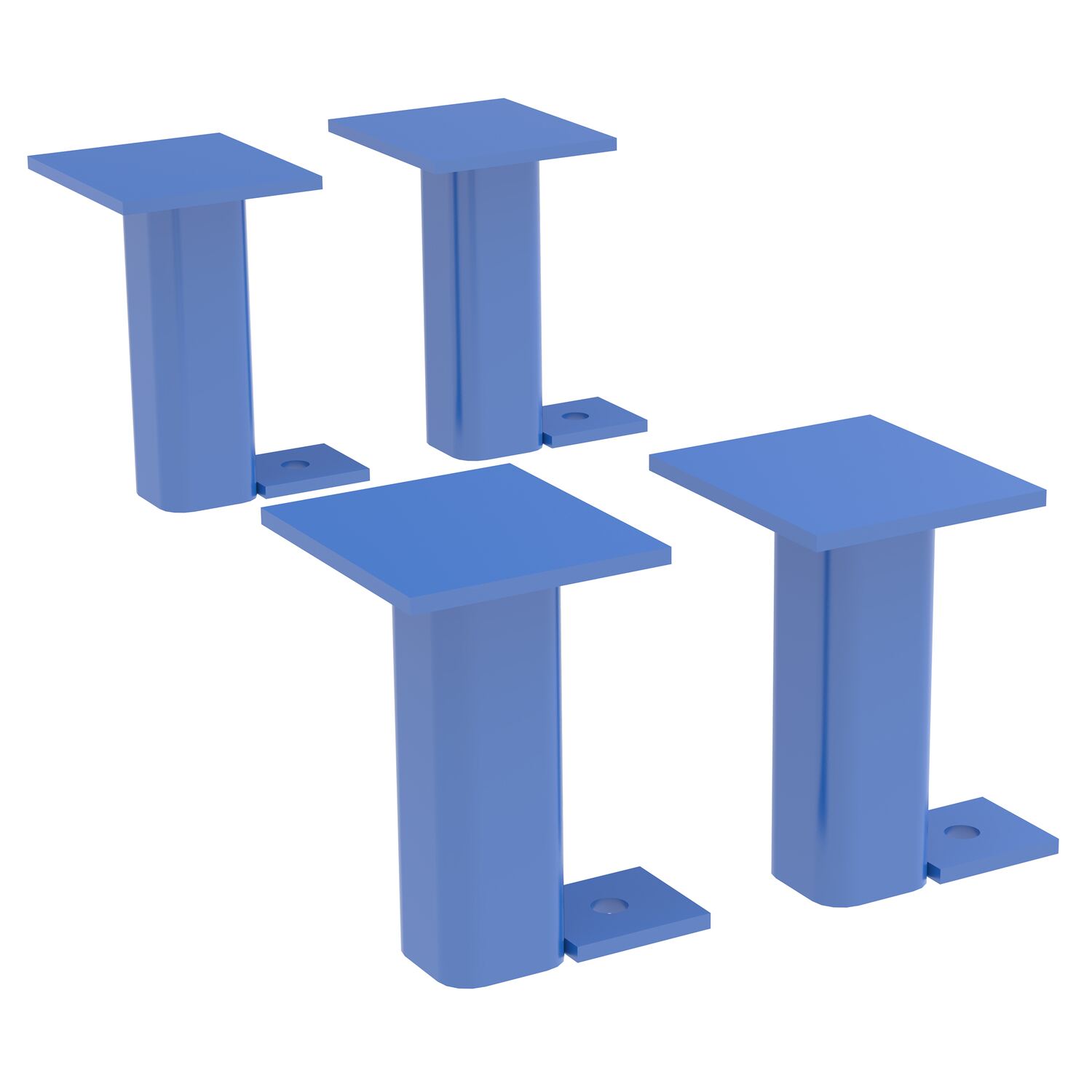

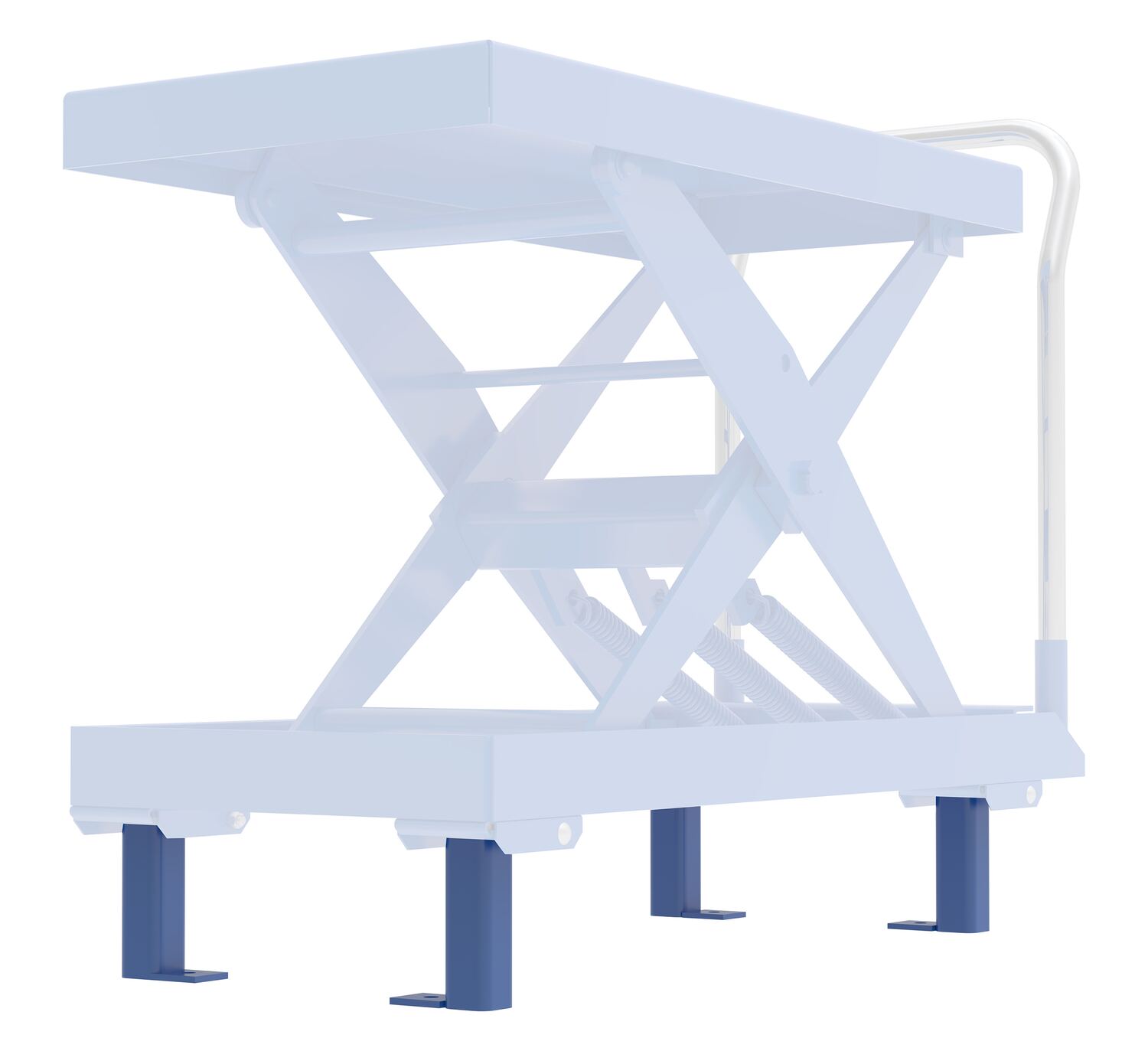

SCSC-SL5-RF SCSC-SL5-RF90 Days Limited WarrantySteel Stationary Legs For Auto Hite Cart Models BlueQuantity per set: 4
Mounting Hole Diameter (in.): 9/16
80

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Auto-Hite Carts PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


SCSC-1000-4242

SCSC-1000-4848

SCSC-2000-4242

SCSC-2000-4848

SCSC-500-2040

SCSC-500-4242

SCSC-750-2040

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Auto-Hite Carts




The Auto-Hite Cart raises or lowers as materials are removed or added to the platform, keeping material at an ergonomic work height. Increase efficiency while reducing potentially harmful bending and twisting motions. Carts utilize tension springs which can be adjusted in order to fit each particular application. All steel construction with removable handle. Polyurethane casters are 5" x 2", (2) rigid and (2) swivel with brake casters. *Approximate ratio.

  • Platform automatically moves down as weight is added and up as weight is removed for correct ergonomic heights
  • Simple adjustable spring tension is variable for use with different types of loads
  • Removable handle allows for simple loading and loading
  • Increases efficiency while reducing potentially harmful bending and twisting motions



Model # Description Attributes Net Wt.
(lbs)
SCSC-1000-4242 SCSC-1000-4242Steel Auto Hite Cart 47 In. x 42 In. x 37-5/8 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 42
404
SCSC-1000-4848 SCSC-1000-4848Steel Auto Hite Cart 50-3/4 In. x 48 In. x 37-5/8 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 48
435
SCSC-2000-4242 SCSC-2000-4242Steel Auto Hite Cart 48-3/16 In. x 42 In. x 37-5/8 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 42
477
SCSC-2000-4848 SCSC-2000-4848Steel Auto Hite Cart 50-3/4 In. x 48 In. x 37-5/8 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 48
485
SCSC-500-2040 SCSC-500-2040Steel Auto Hite Cart 49-1/8 In. x 20-3/8 In. x 37-11/16 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 20-3/8
300
SCSC-500-4242 SCSC-500-4242Steel Auto Hite Cart 47 In. x 42 In. x 37-5/8 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 42
413
SCSC-750-2040 SCSC-750-2040Steel Auto Hite Cart 49-1/8 In. x 20-7/16 In. x 37-11/16 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20-3/8
320
