Product Family Overview


Linear Actuated Elevating Carts
SERIES: CART

Transport material from workstation to workstation with ease. Platform is raised and lowered with an electric linear actuator for precise positioning. Linear actuator will not allow platform to drift down, a common problem with hydraulic carts.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use

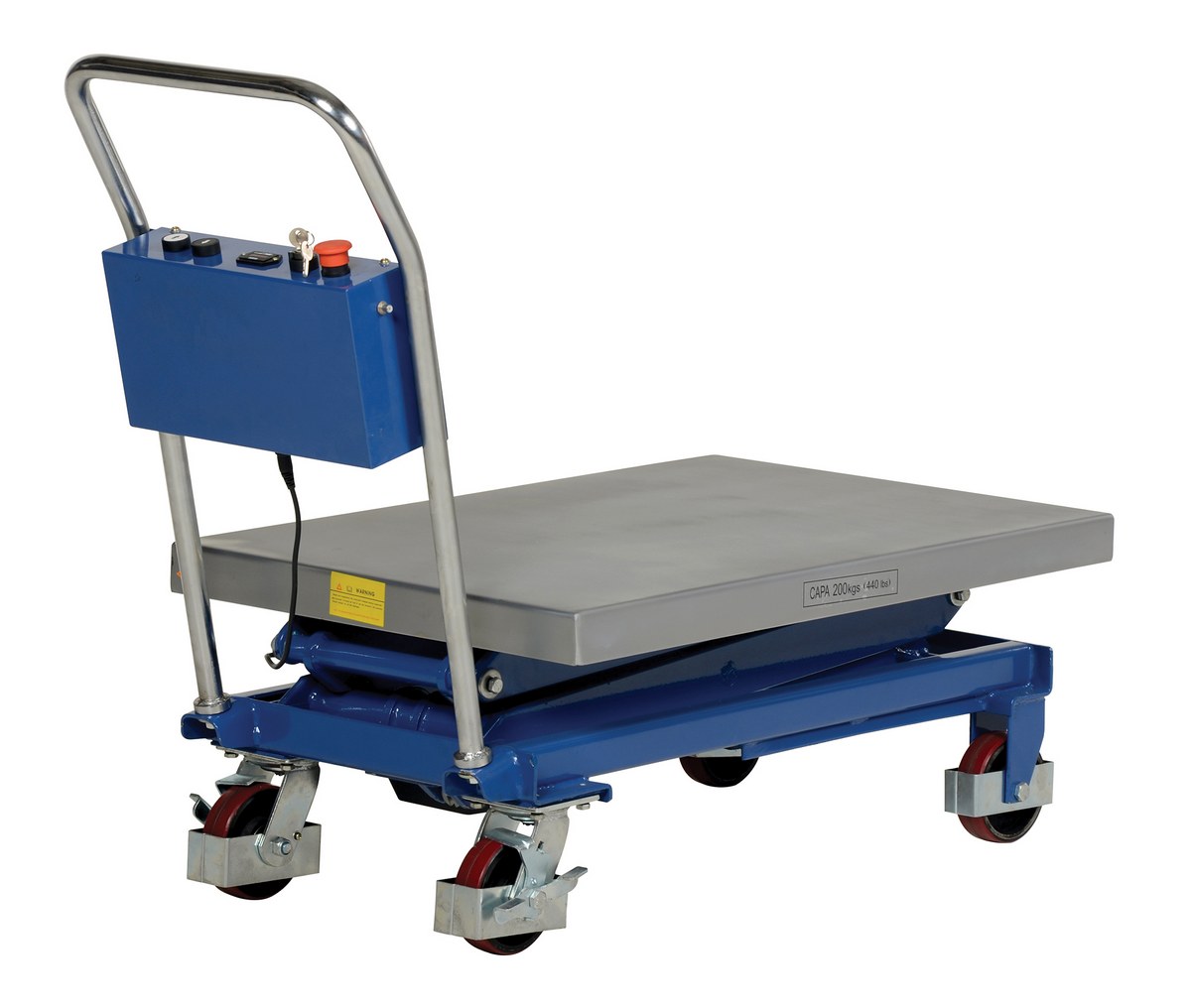

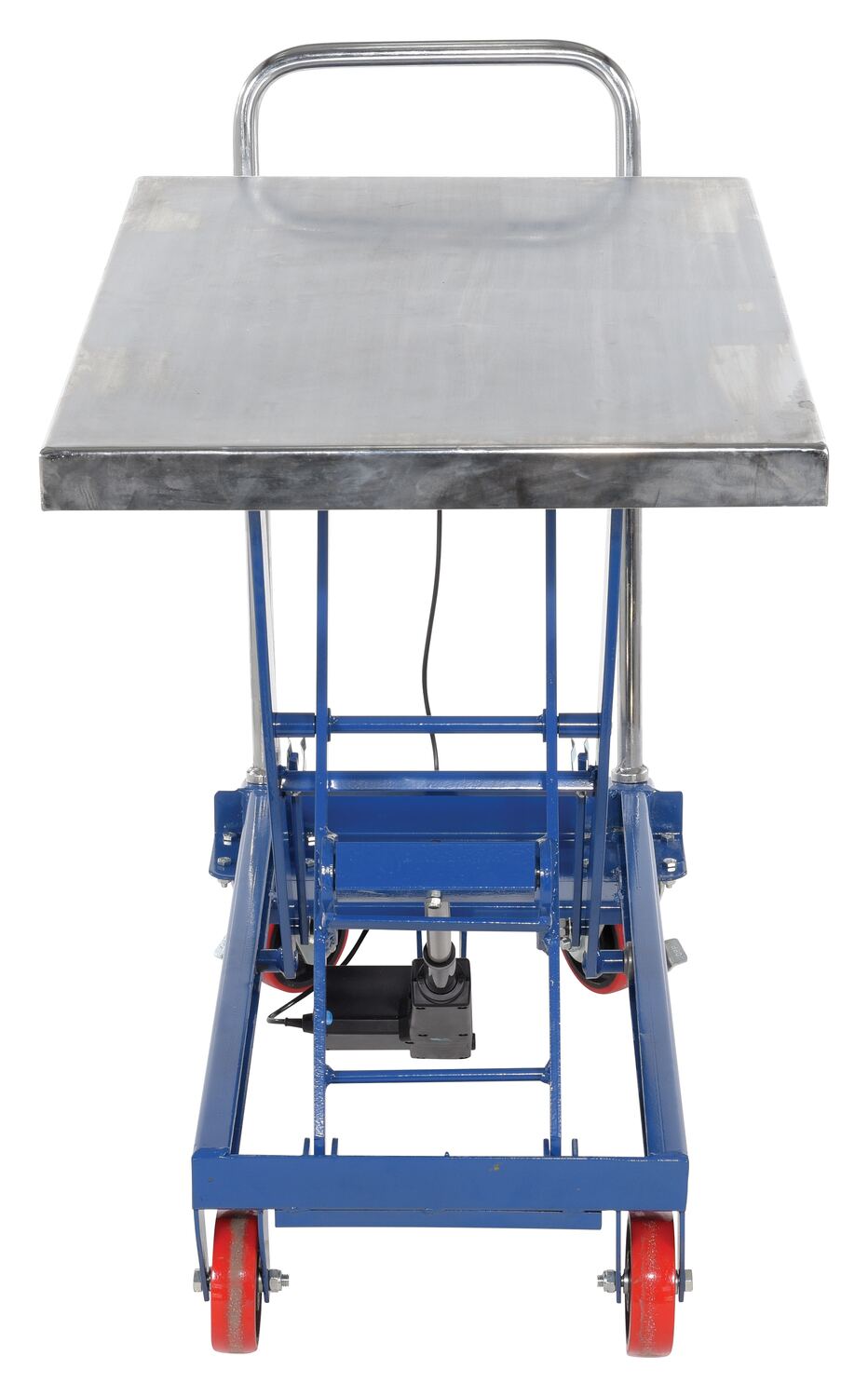

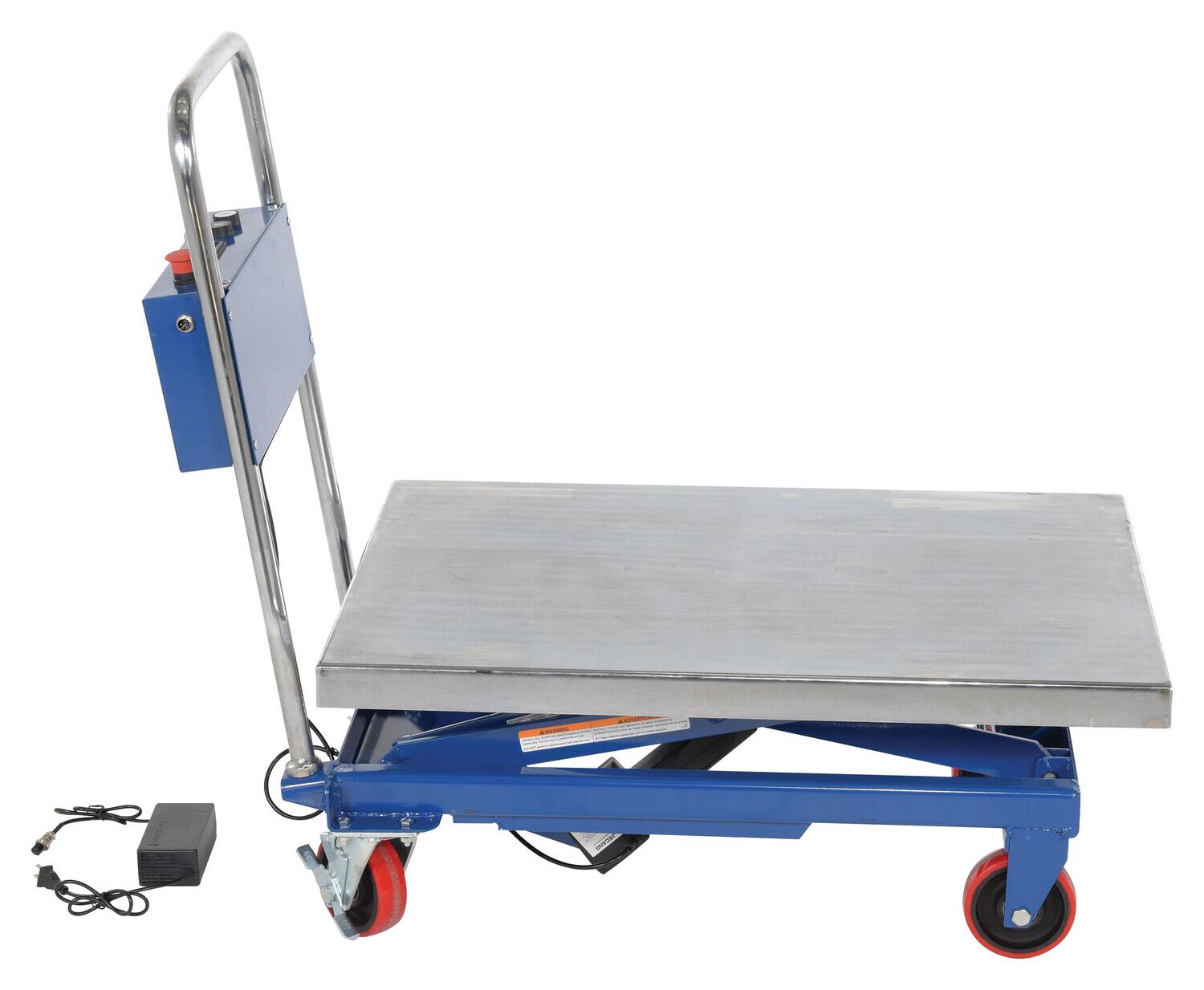

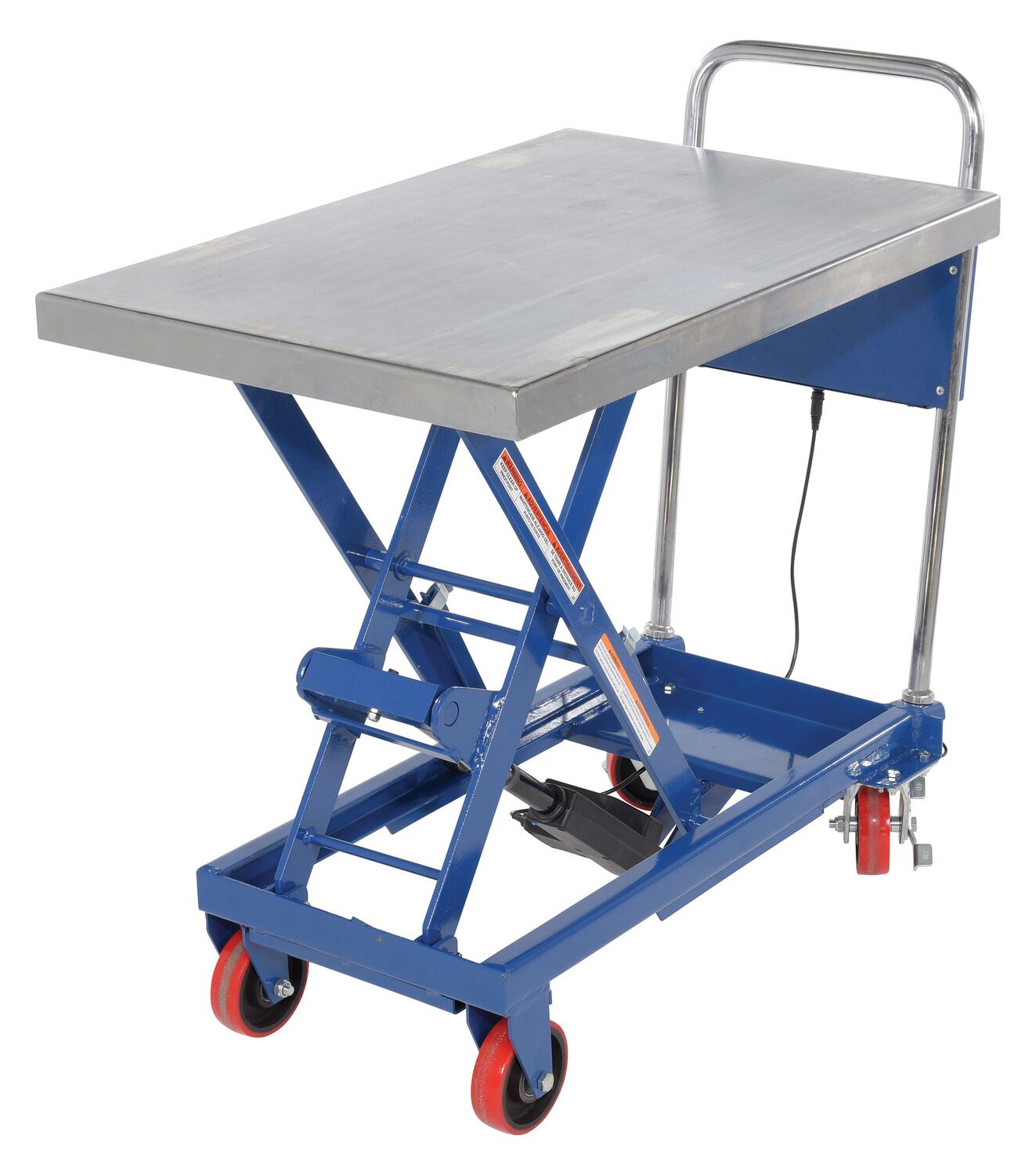

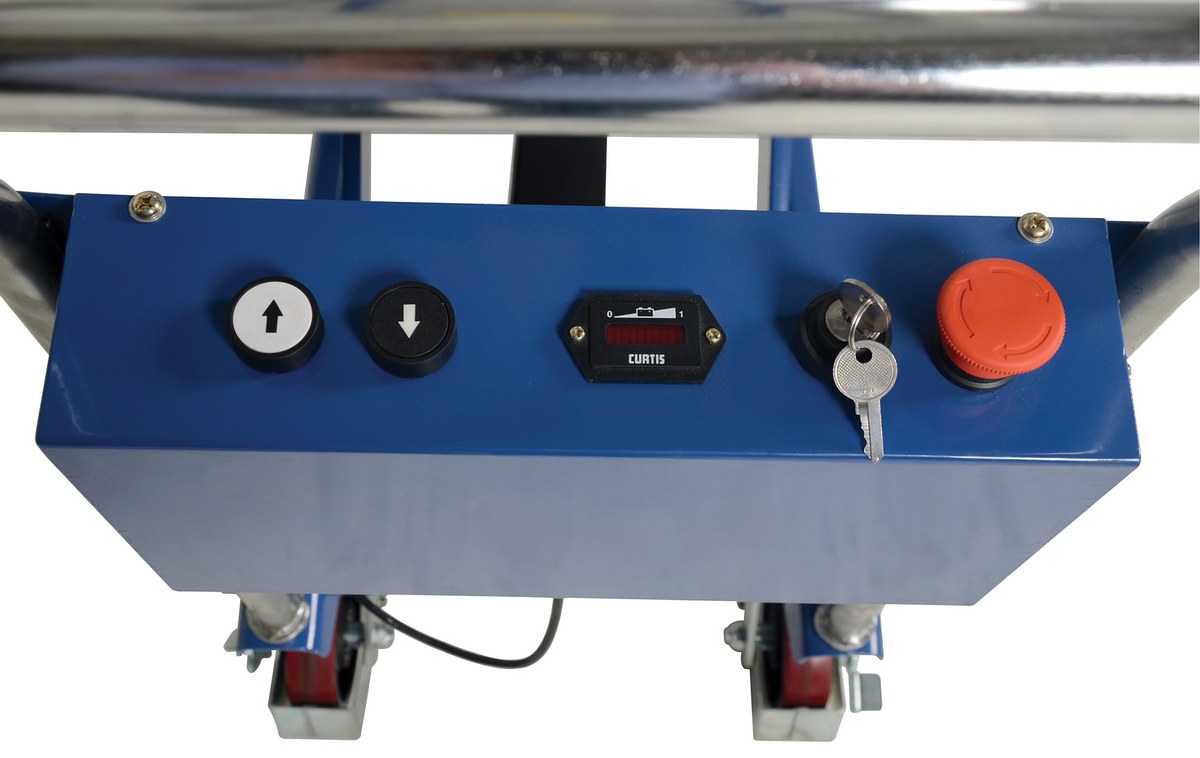

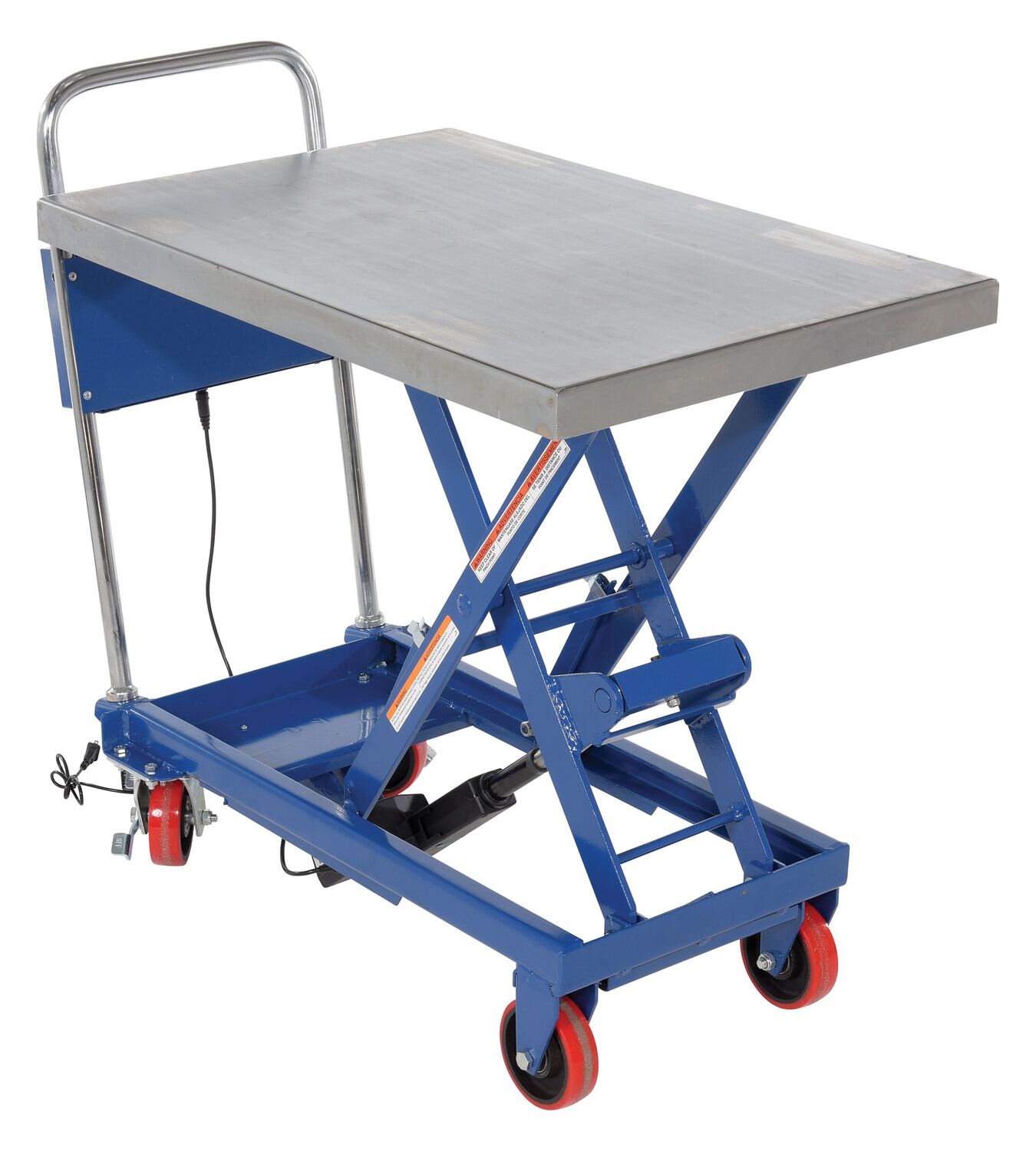

CART-400-LA and CART-400-D-LA linear actuated carts are powered with (2) 12V AGM batteries and features a bench type charger. Emergency stop button on control box is standard.

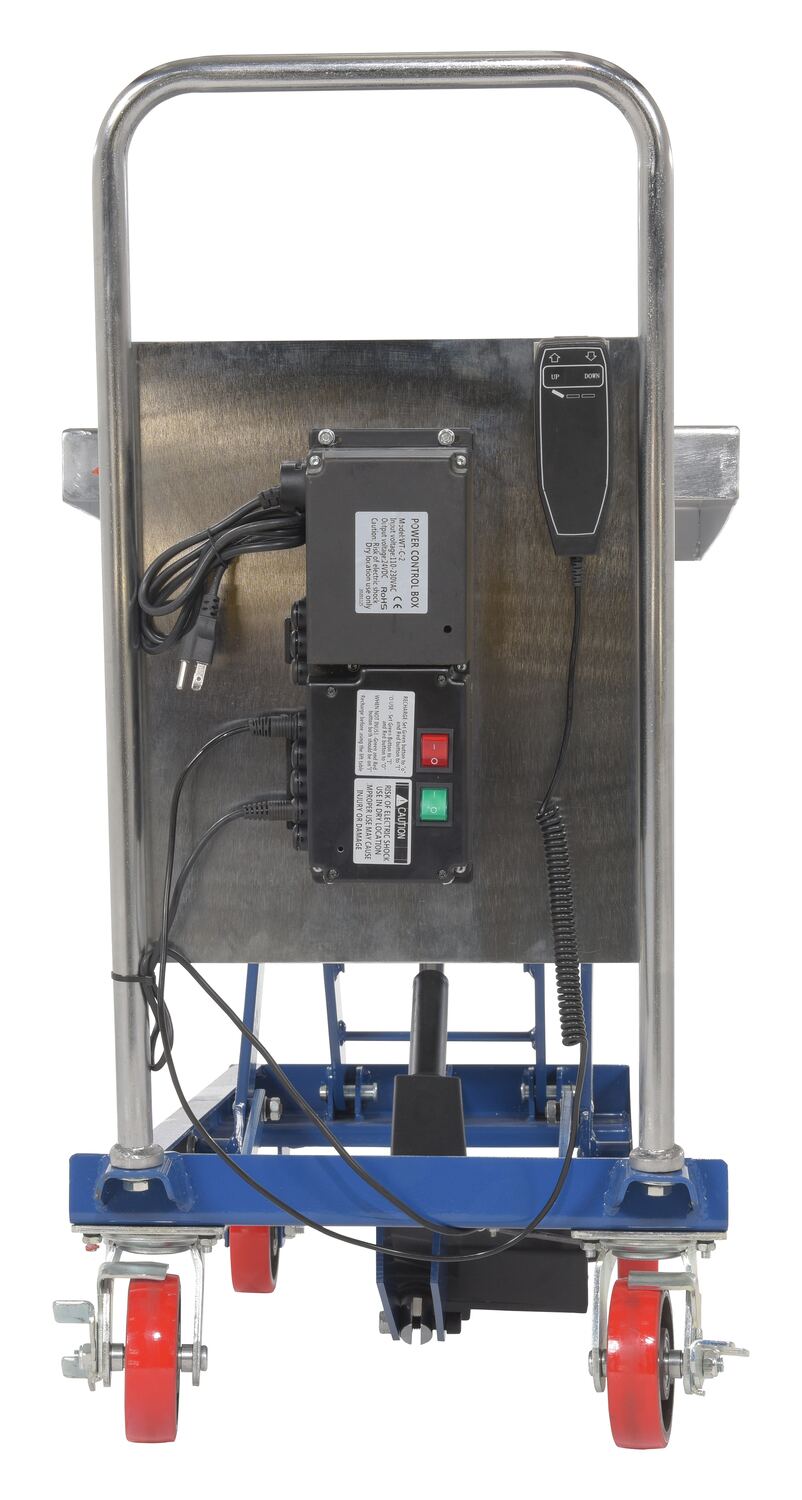

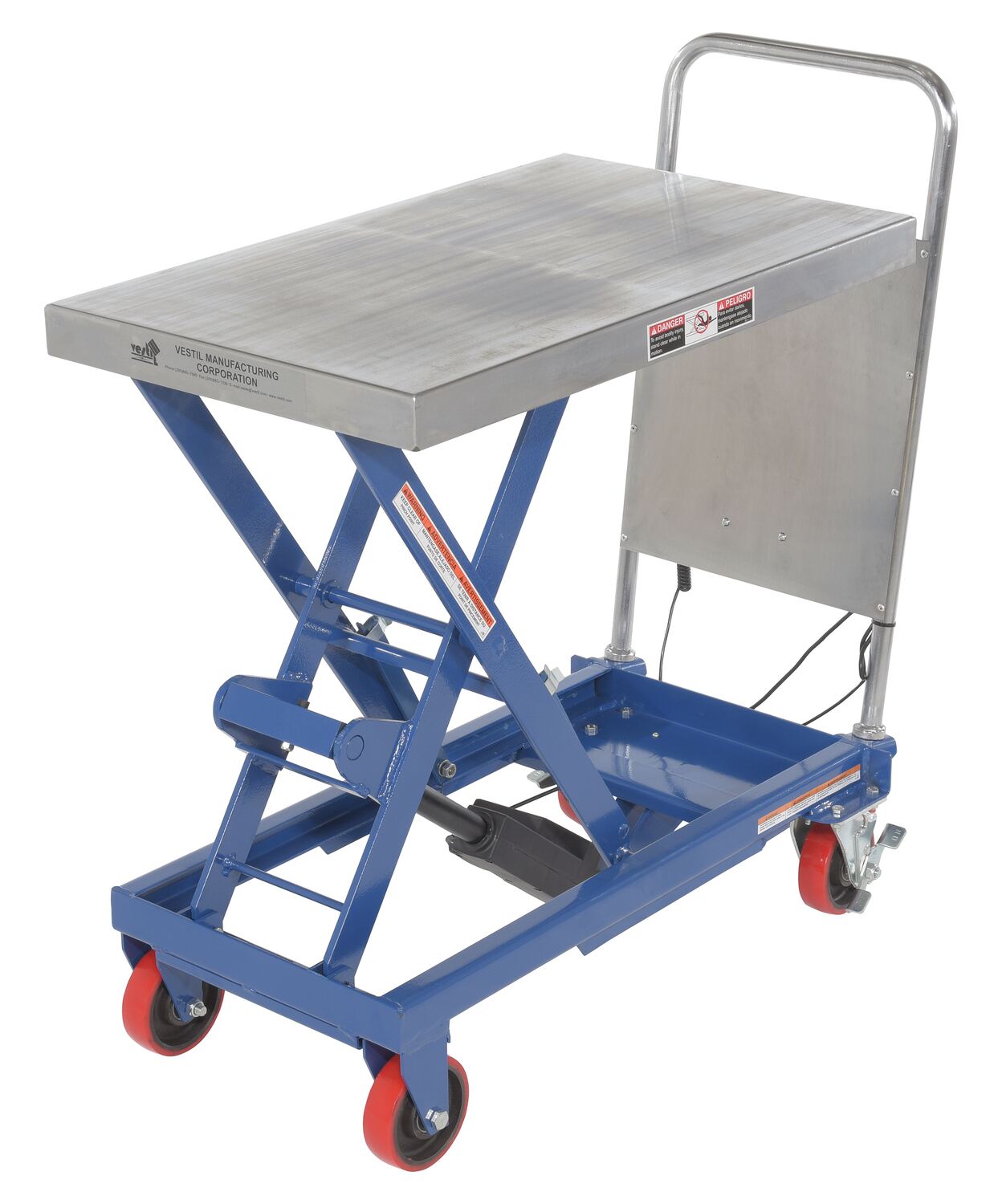

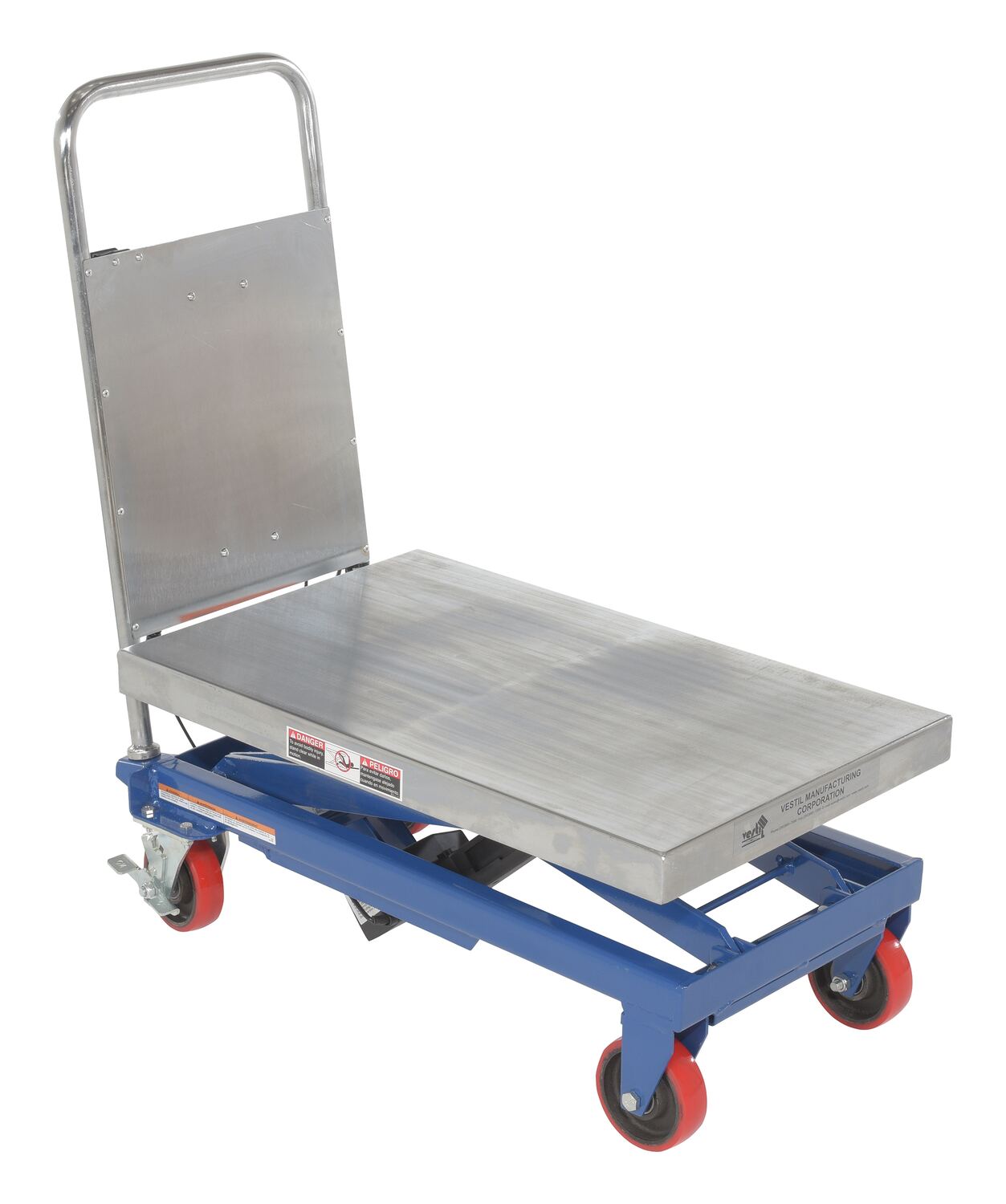

CART-500-LA linear actuator cart is powered with Lithium battery and features an on-board battery charger.

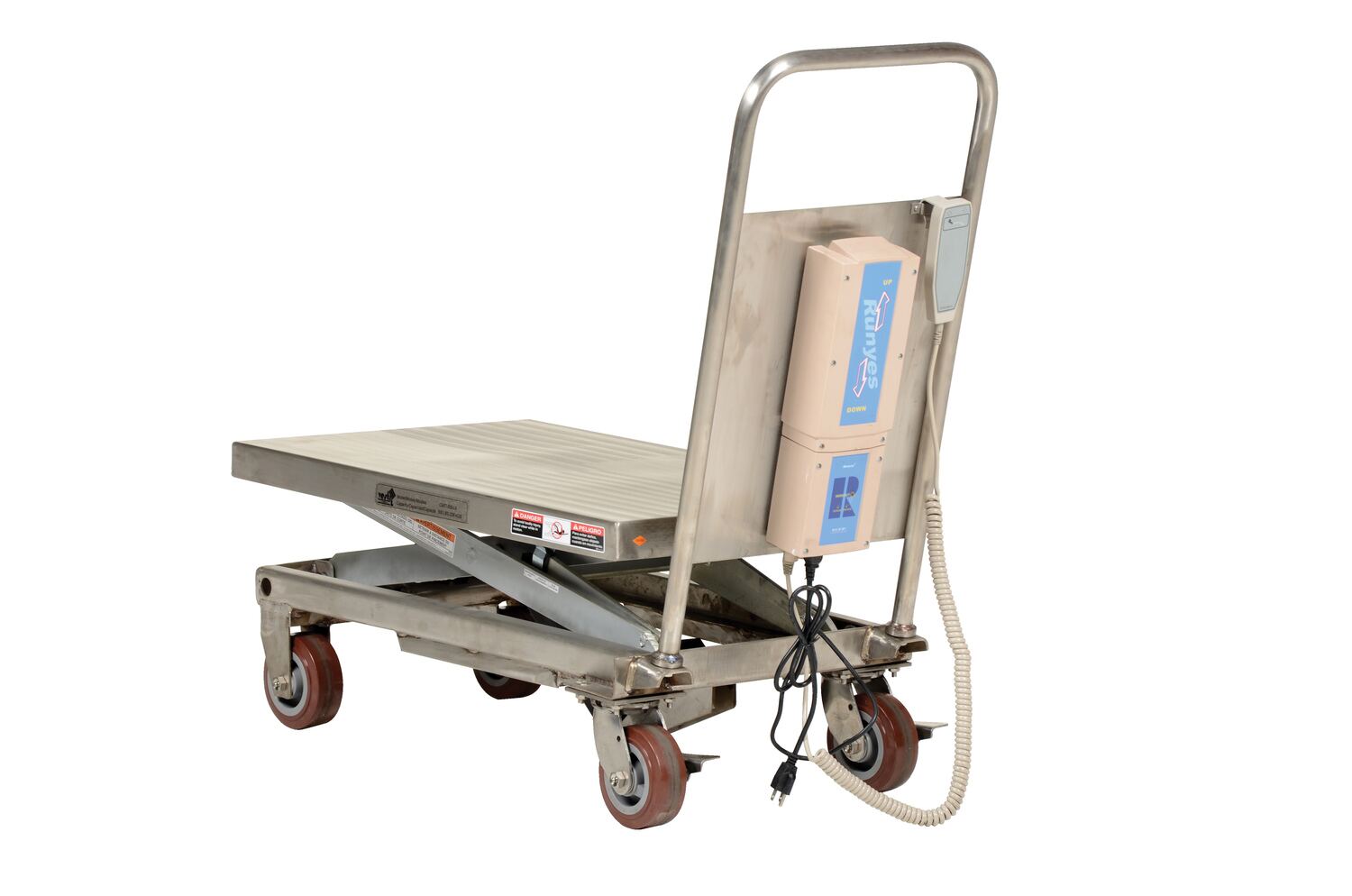

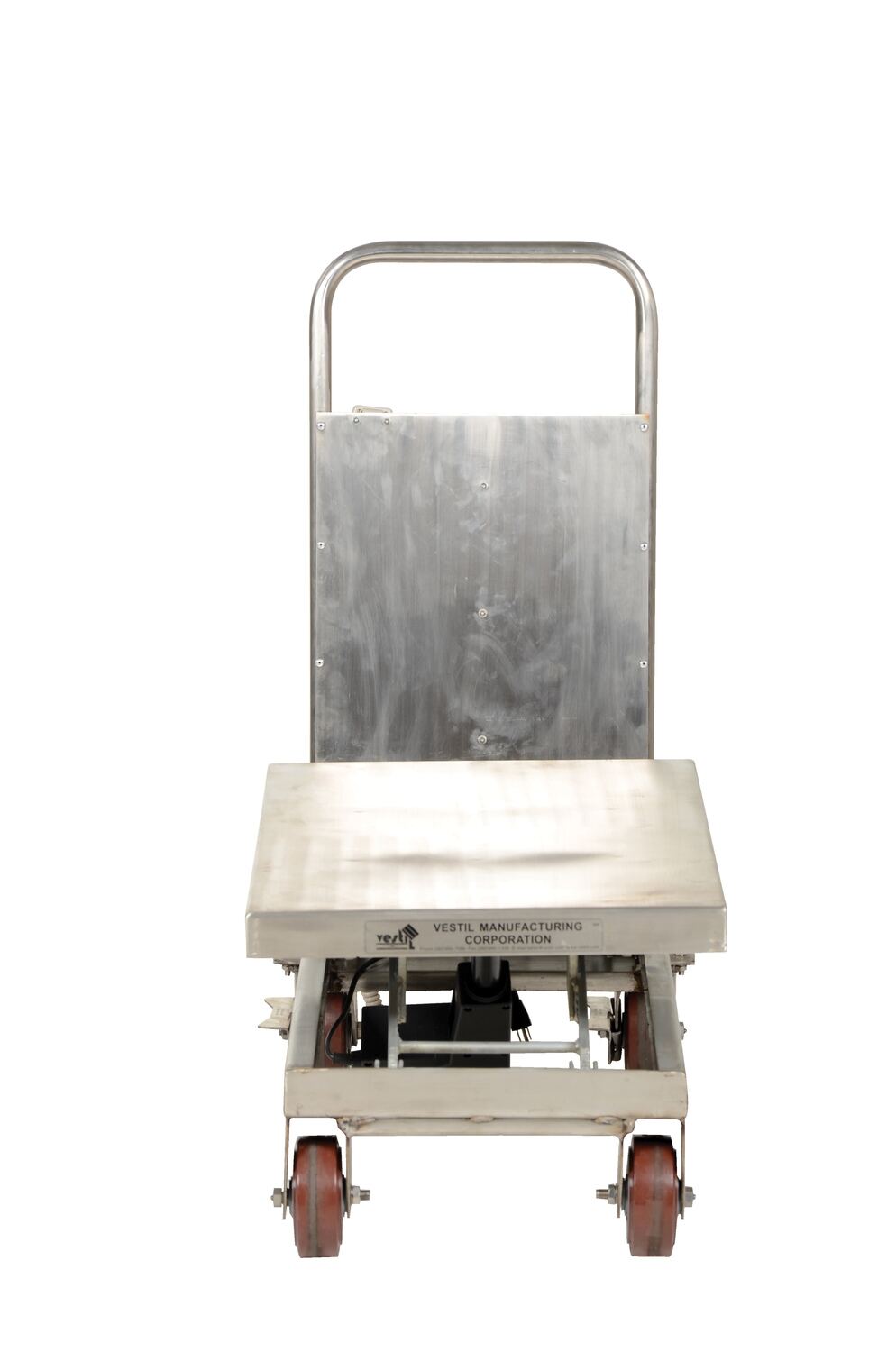

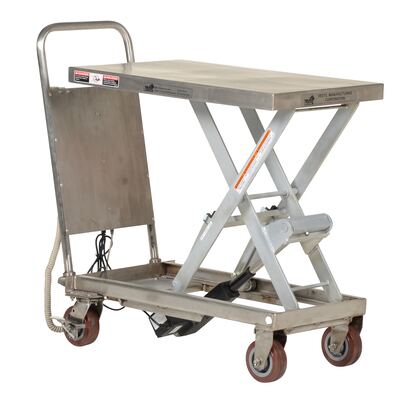

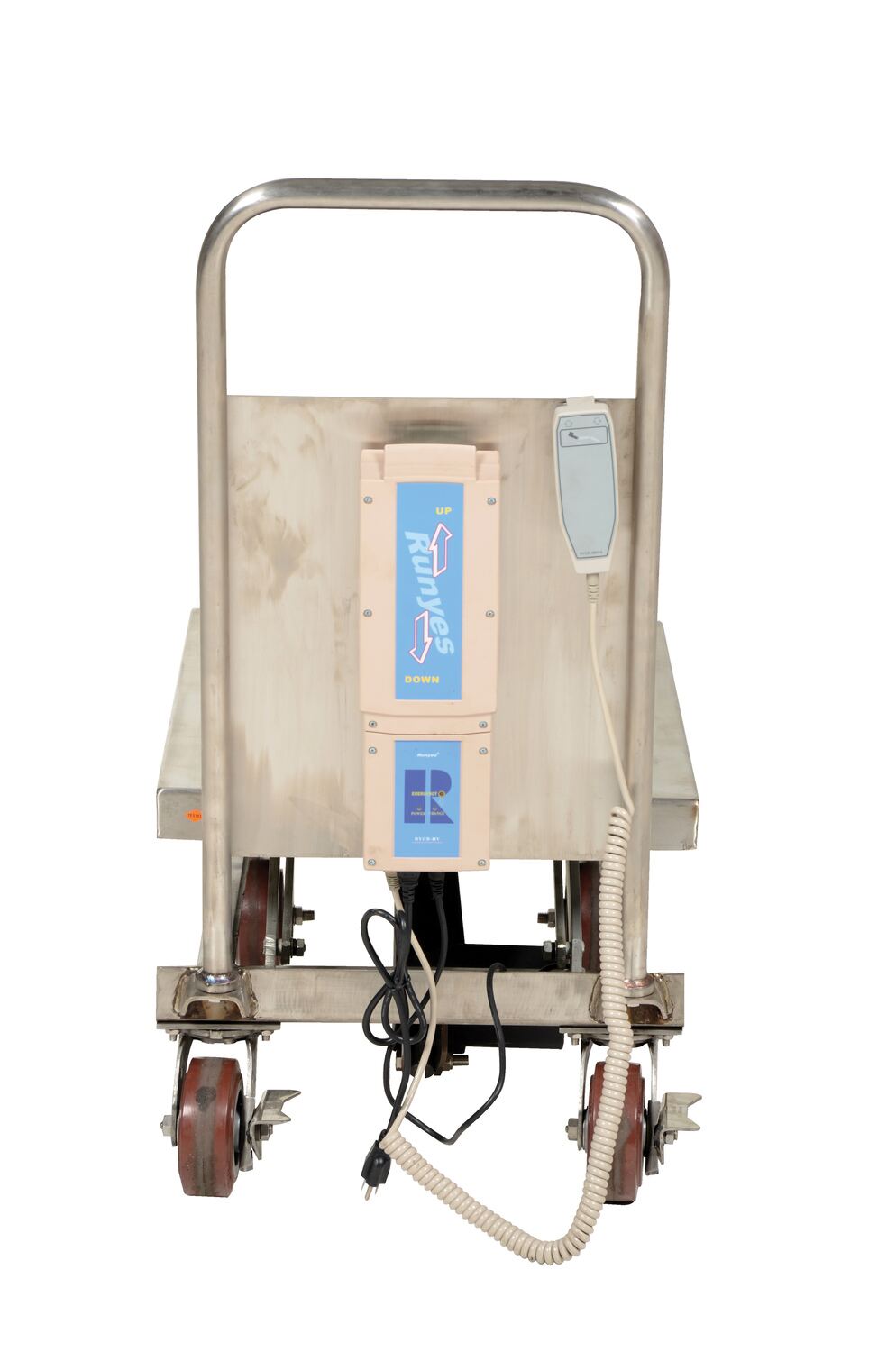

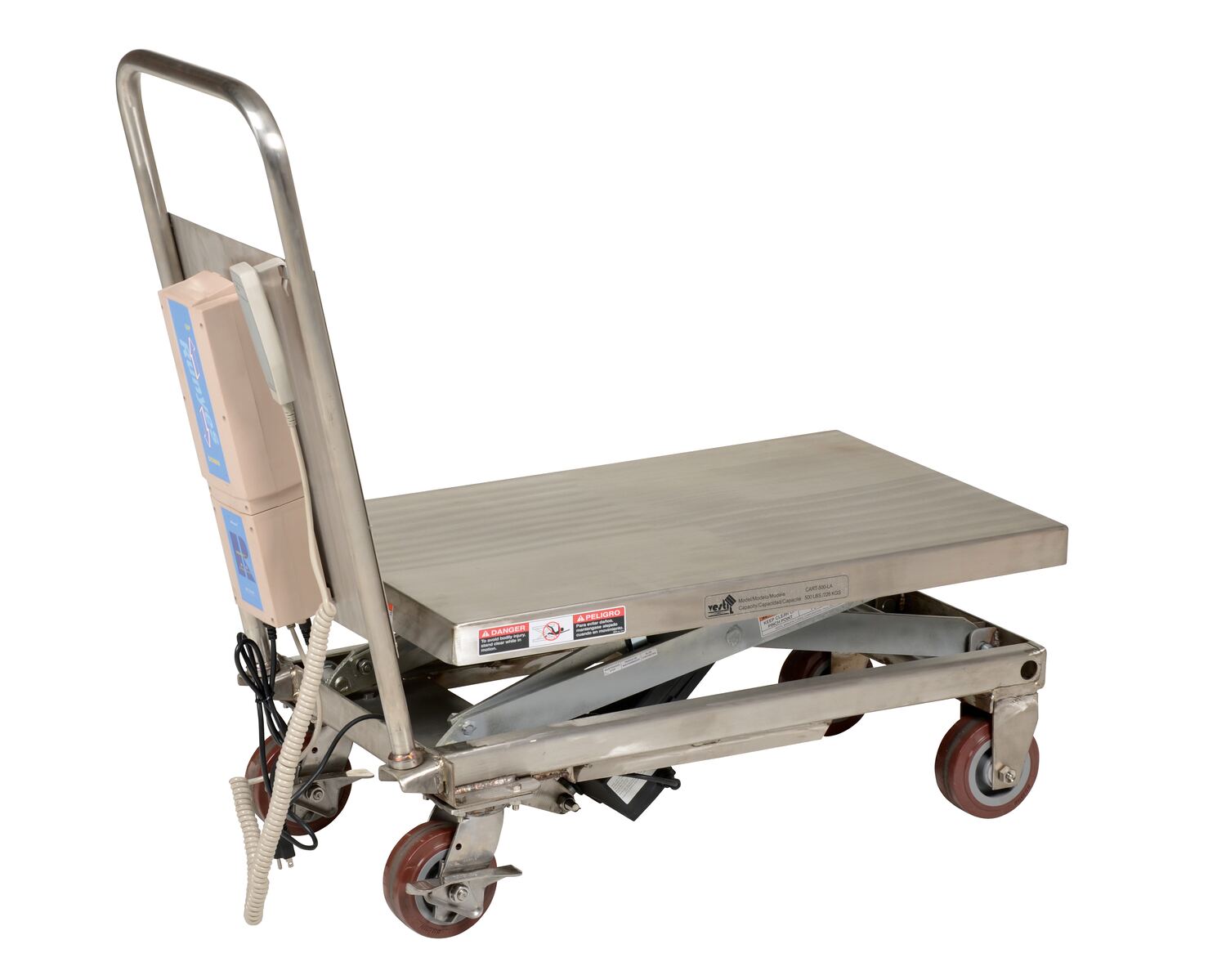

Model CART-500-LA-PSS: Platform, handle, base frame, caster brackets, and hardware are all stainless steel. Scissor legs are zinc plated. Battery pack, charger, and hand control are plastic. Linear actuator is plastic with a chrome-plated piston. Wheels are poly-on-poly.

Transport material from workstation to workstation with ease. Platform is raised and lowered with an electric linear actuator for precise positioning. Linear actuator will not allow platform to drift down, a common problem with hydraulic carts.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use

CART-400-LA and CART-400-D-LA linear actuated carts are powered with (2) 12V AGM batteries and features a bench type charger. Emergency stop button on control box is standard.

CART-500-LA linear actuator cart is powered with Lithium battery and features an on-board battery charger.

Model CART-500-LA-PSS: Platform, handle, base frame, caster brackets, and hardware are all stainless steel. Scissor legs are zinc plated. Battery pack, charger, and hand control are plastic. Linear actuator is plastic with a chrome-plated piston. Wheels are poly-on-poly.

Additional Models In This Family

CART-400-LA

model CART-400-LA

CART-500-LA

model CART-500-LA

CART-500-LA-PSS

model CART-500-LA-PSS

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)

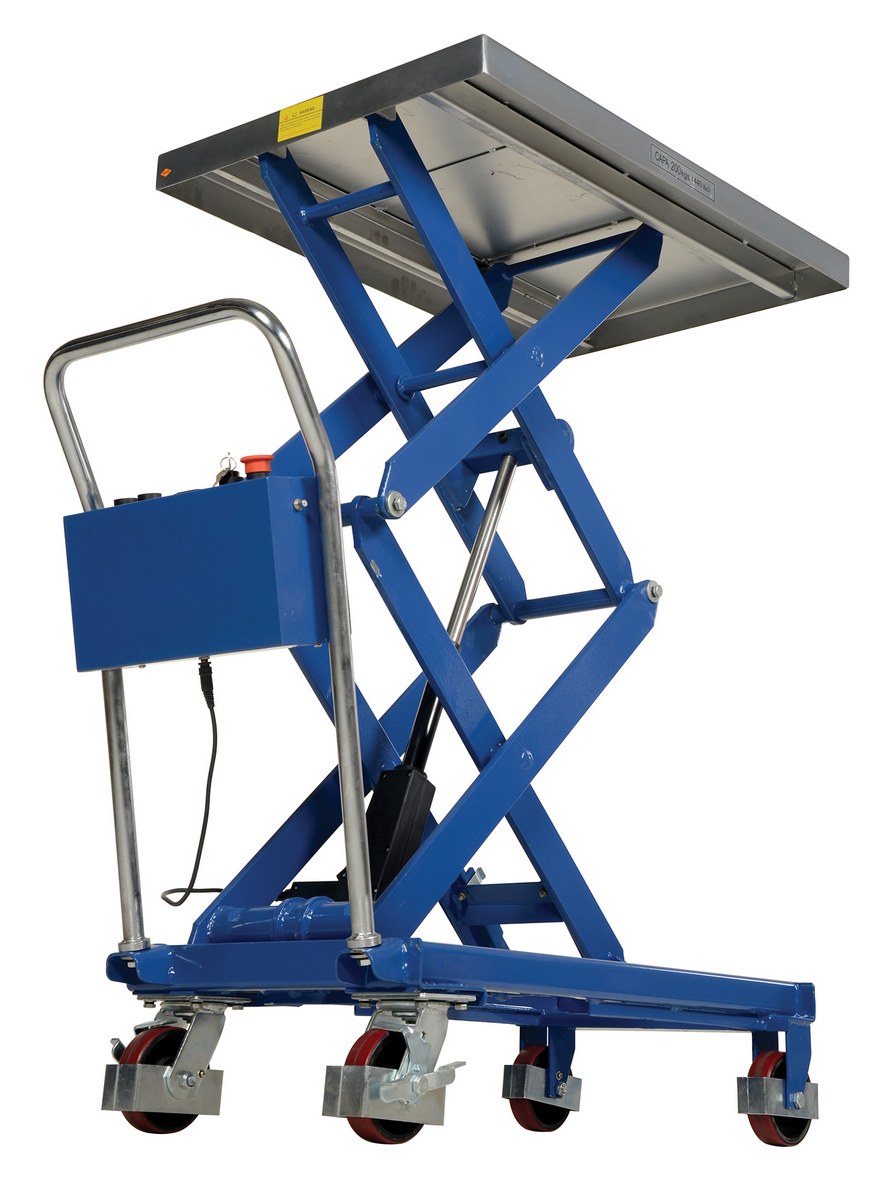

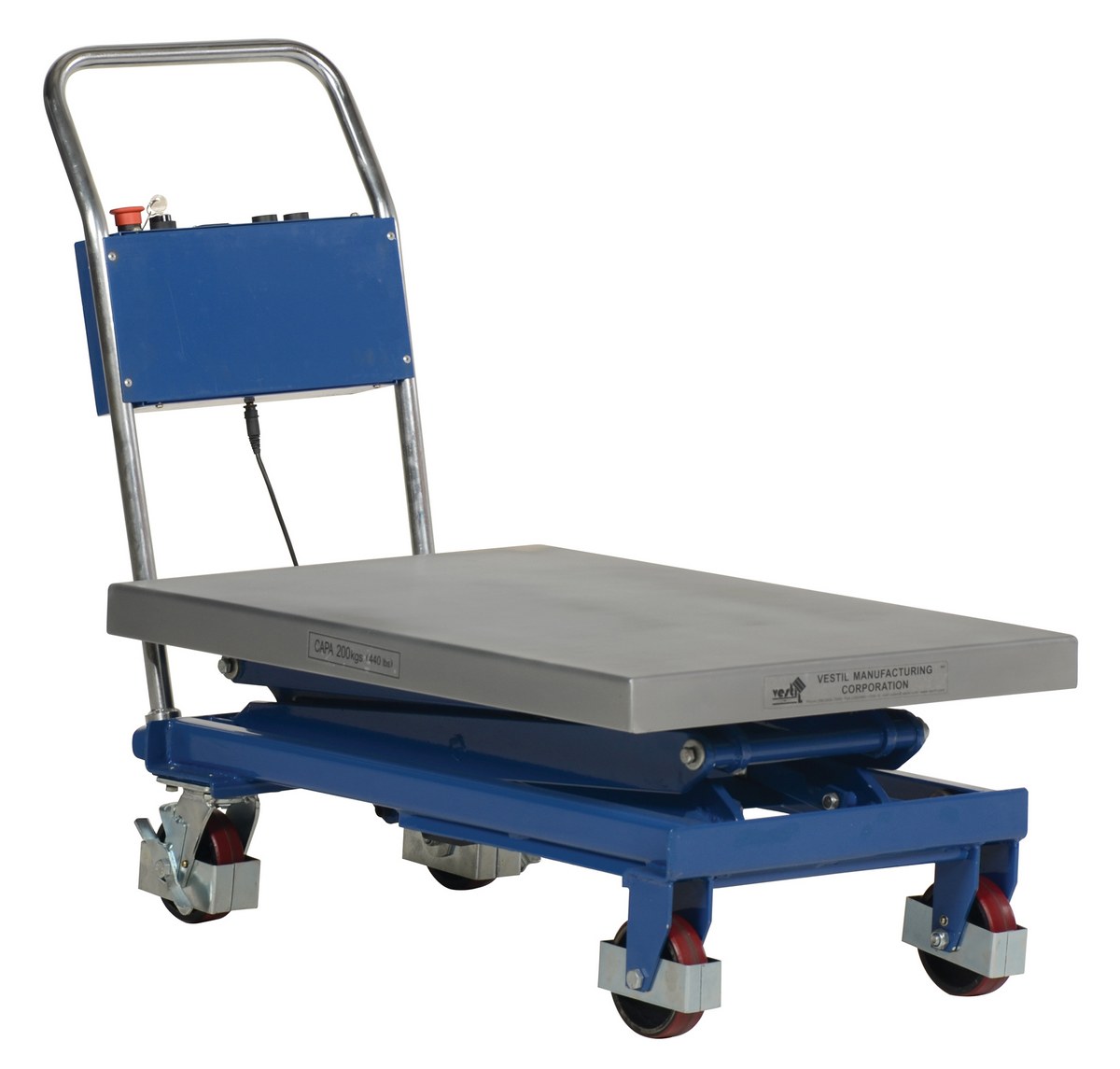

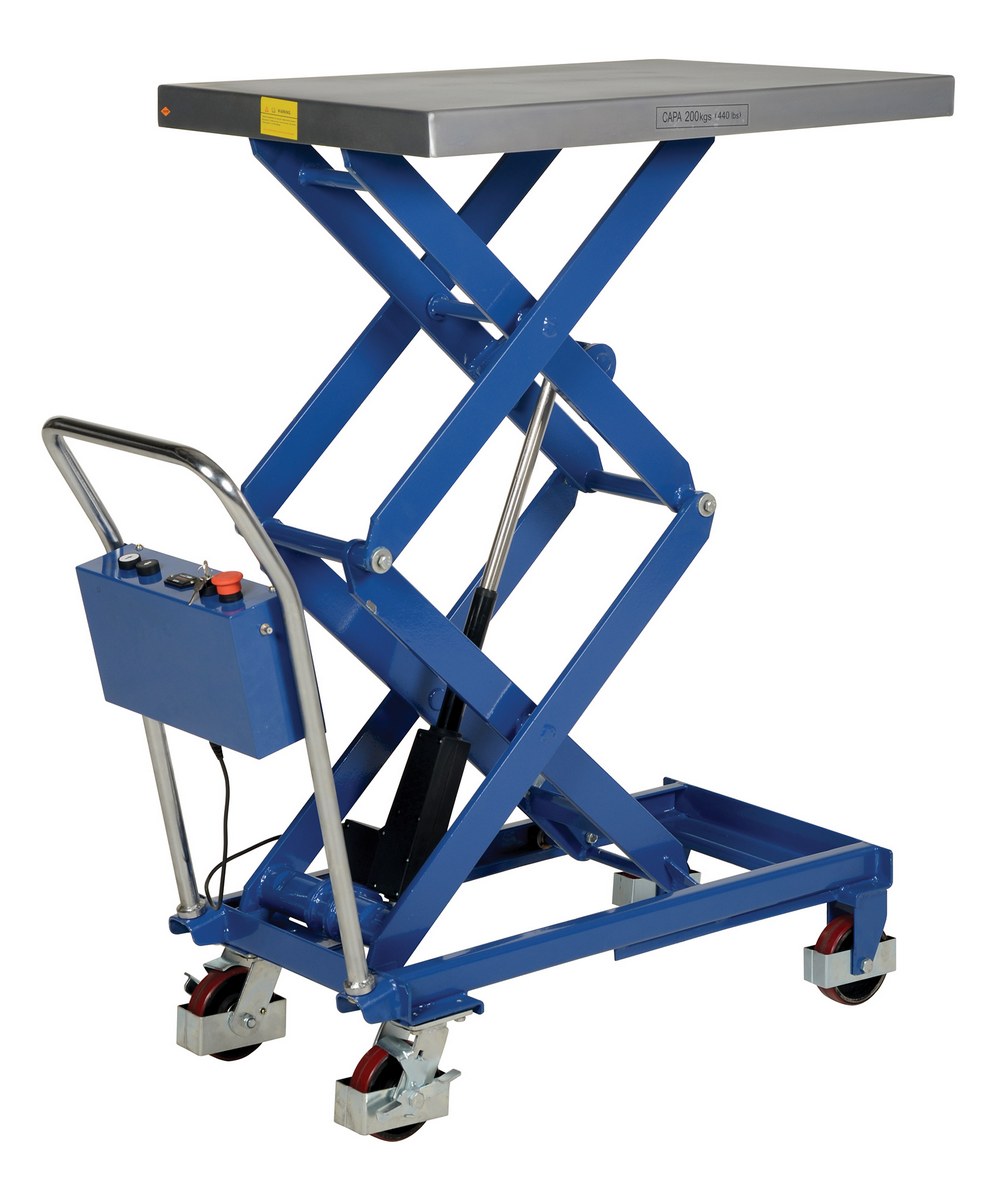

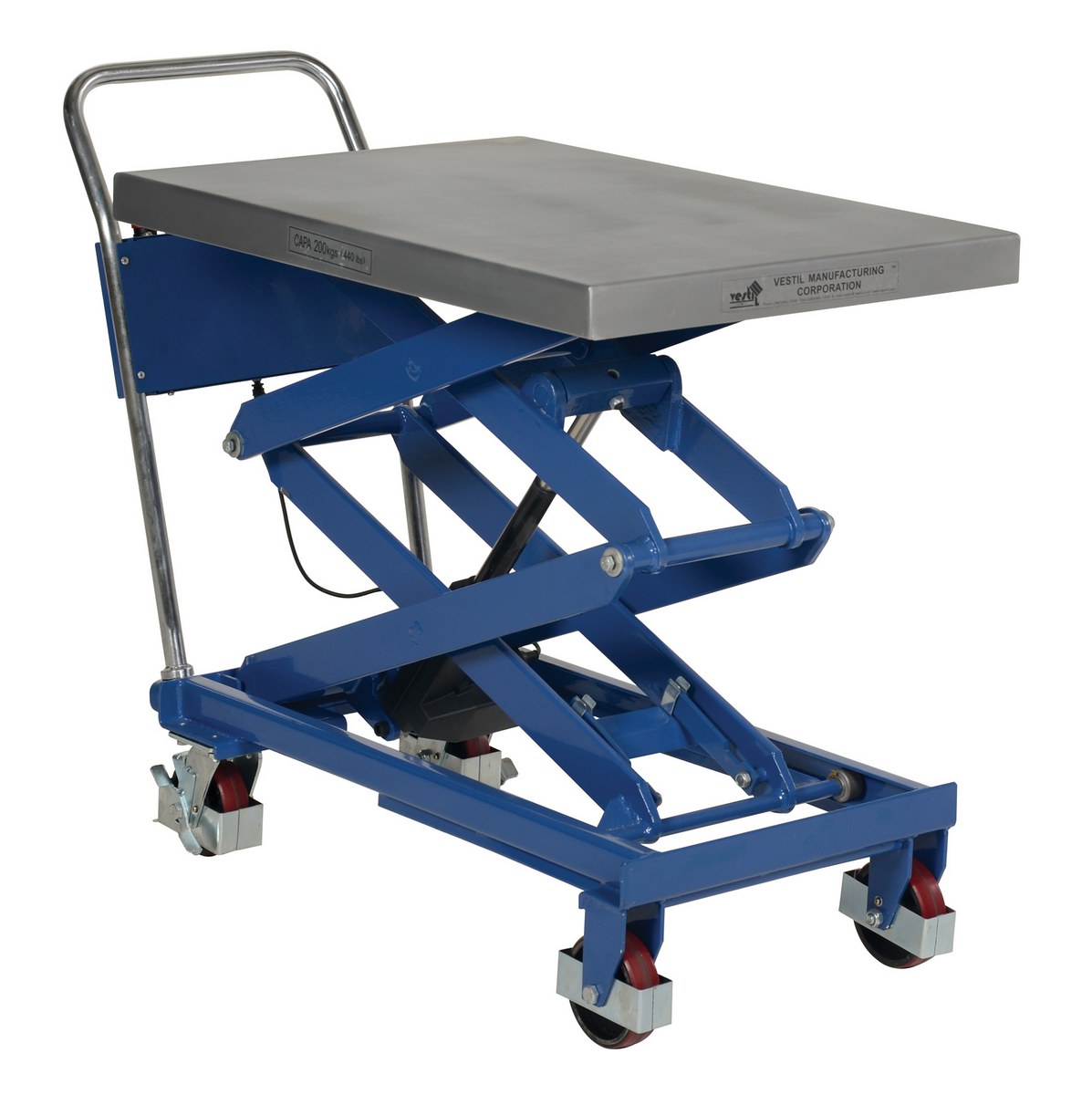

CART-400-D-LA CART-400-D-LA1 Year Limited WarrantySteel Linear Elevating Double Scissor Cart 23-5/8 In. x 35-1/2 In. 400 Lb. Capacity Blue/SilverUniform Capacity (lb.): 400
Platform Width (in.): 23-5/8
174

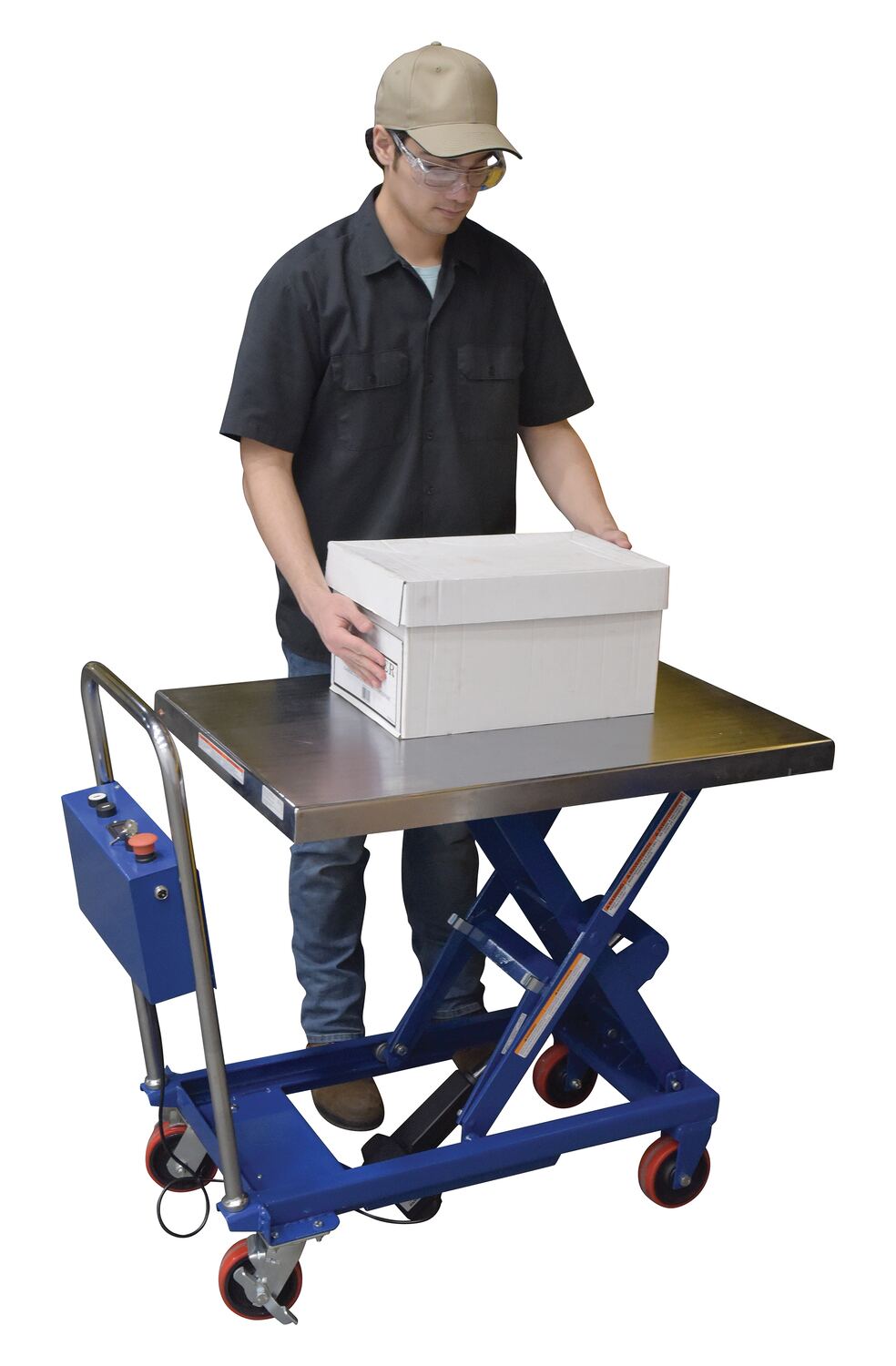

CART-400-LA CART-400-LA1 Year Limited WarrantySteel Linear Elevating Cart 23-5/8 In. x 35-1/2 In. 400 Lb. Capacity Blue/SilverUniform Capacity (lb.): 400
Platform Width (in.): 23-5/8
225

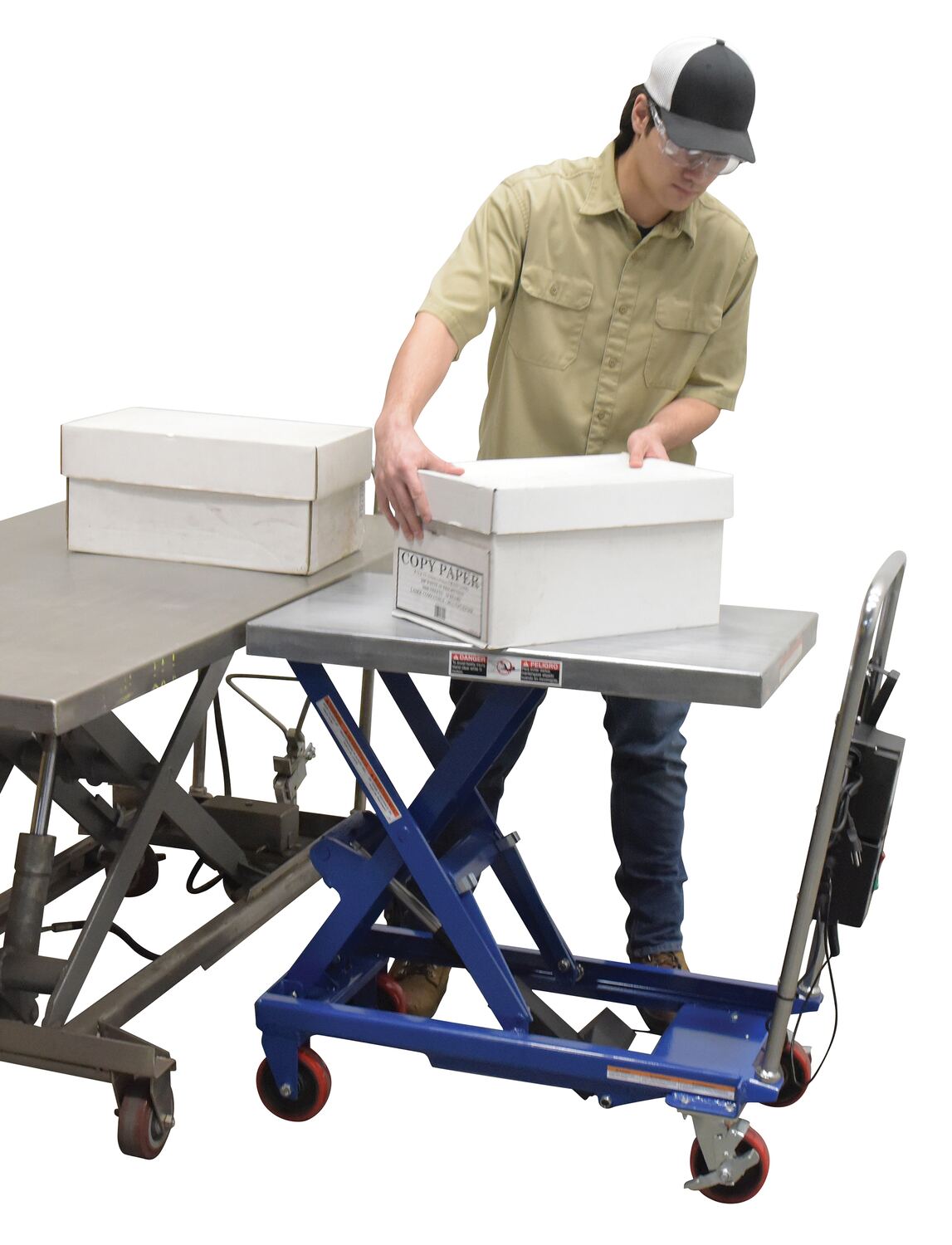

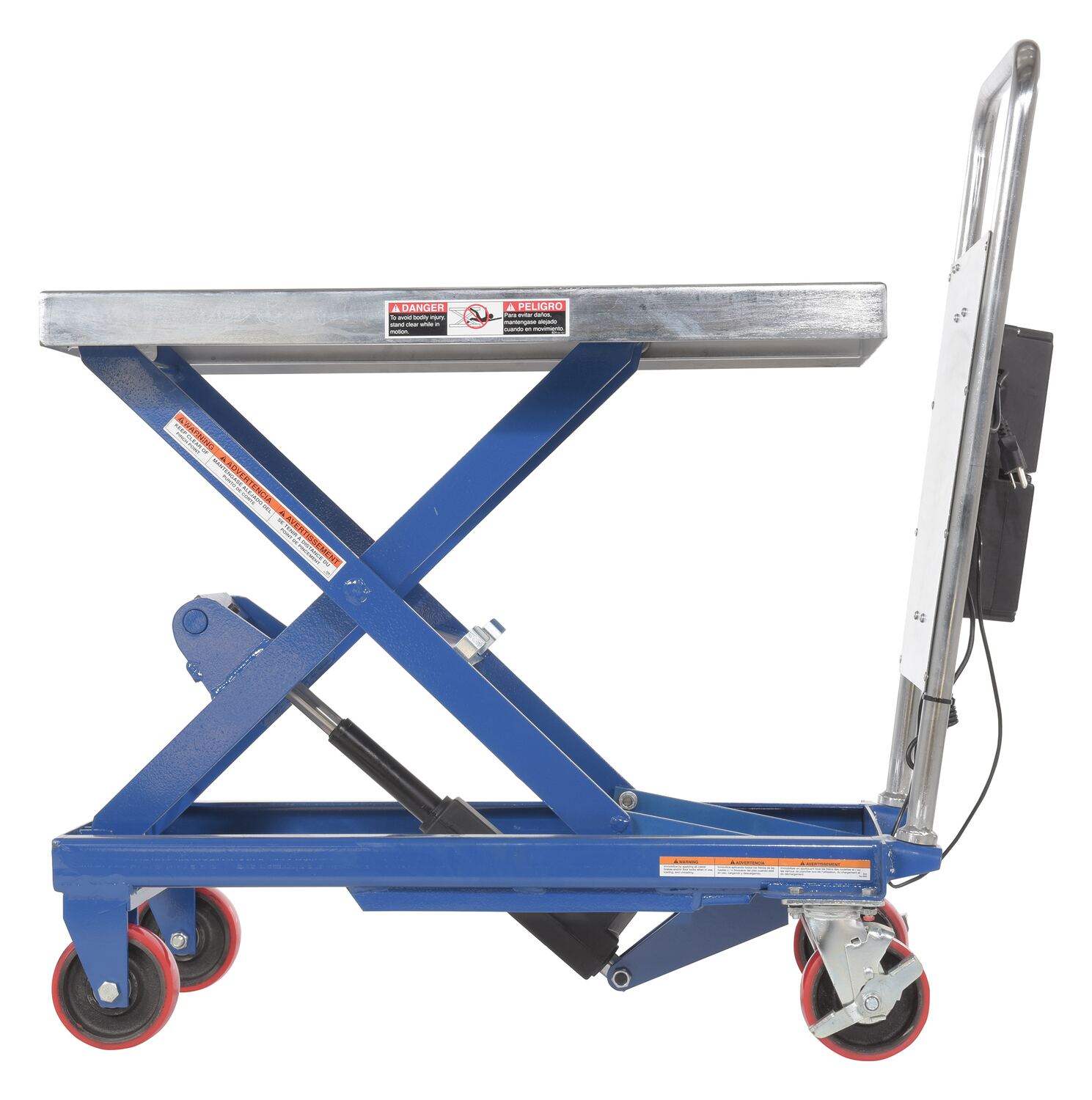

CART-500-LA CART-500-LA1 Year Limited WarrantySteel Linear Actuated Elevating Cart 19-1/2 In. x 32 In. 500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 500
Platform Width (in.): 19-1/2
128
CART-500-LA-PSS CART-500-LA-PSS1 Year Limited WarrantyPartially Stainless Steel Linear Actuated Elevating Cart 19-1/2 In. x 32 In. 500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 500
Platform Width (in.): 19-1/2
146

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

CART-400-D-LA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Platform Width (in.): 23-5/8
Uniform Capacity (lb.): 400
Platform Width (in.): 23-5/8

CART-400-LA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Platform Width (in.): 23-5/8
Uniform Capacity (lb.): 400
Platform Width (in.): 23-5/8

CART-500-LA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 19-1/2
Uniform Capacity (lb.): 500
Platform Width (in.): 19-1/2

CART-500-LA-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 19-1/2
Uniform Capacity (lb.): 500
Platform Width (in.): 19-1/2

Linear Actuated Elevating Carts PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


CART-400-D-LA

CART-400-LA

CART-500-LA

CART-500-LA-PSS

SDS Sheets

Hydraulic Oil SDS Sheet for: CART-400-D-LA
Hydraulic Oil SDS Sheet for: CART-400-LA

Lithium Ion Rechargeable Battery Cell SDS Sheet for: CART-500-LA
Hydraulic Oil SDS Sheet for: CART-500-LA

Lithium Ion Rechargeable Battery Cell SDS Sheet for: CART-500-LA-PSS
Hydraulic Oil SDS Sheet for: CART-500-LA-PSS

Other PDF's


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Linear Actuated Elevating Carts




Transport material from workstation to workstation with ease. Platform is raised and lowered with an electric linear actuator for precise positioning. Linear actuator will not allow platform to drift down, a common problem with hydraulic carts.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use

CART-400-LA and CART-400-D-LA linear actuated carts are powered with (2) 12V AGM batteries and features a bench type charger. Emergency stop button on control box is standard.

CART-500-LA linear actuator cart is powered with Lithium battery and features an on-board battery charger.

Model CART-500-LA-PSS: Platform, handle, base frame, caster brackets, and hardware are all stainless steel. Scissor legs are zinc plated. Battery pack, charger, and hand control are plastic. Linear actuator is plastic with a chrome-plated piston. Wheels are poly-on-poly.



Model # Description Attributes Net Wt.
(lbs)
CART-400-D-LA CART-400-D-LASteel Linear Elevating Double Scissor Cart 23-5/8 In. x 35-1/2 In. 400 Lb. Capacity Blue/SilverUniform Capacity (lb.): 400
Platform Width (in.): 23-5/8
174
CART-400-LA CART-400-LASteel Linear Elevating Cart 23-5/8 In. x 35-1/2 In. 400 Lb. Capacity Blue/SilverUniform Capacity (lb.): 400
Platform Width (in.): 23-5/8
225
CART-500-LA CART-500-LASteel Linear Actuated Elevating Cart 19-1/2 In. x 32 In. 500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 500
Platform Width (in.): 19-1/2
128
CART-500-LA-PSS CART-500-LA-PSSPartially Stainless Steel Linear Actuated Elevating Cart 19-1/2 In. x 32 In. 500 Lb. Capacity Blue/SilverUniform Capacity (lb.): 500
Platform Width (in.): 19-1/2
146
