Product Family Overview


Premium Scissor Lift Carts
SERIES: CART

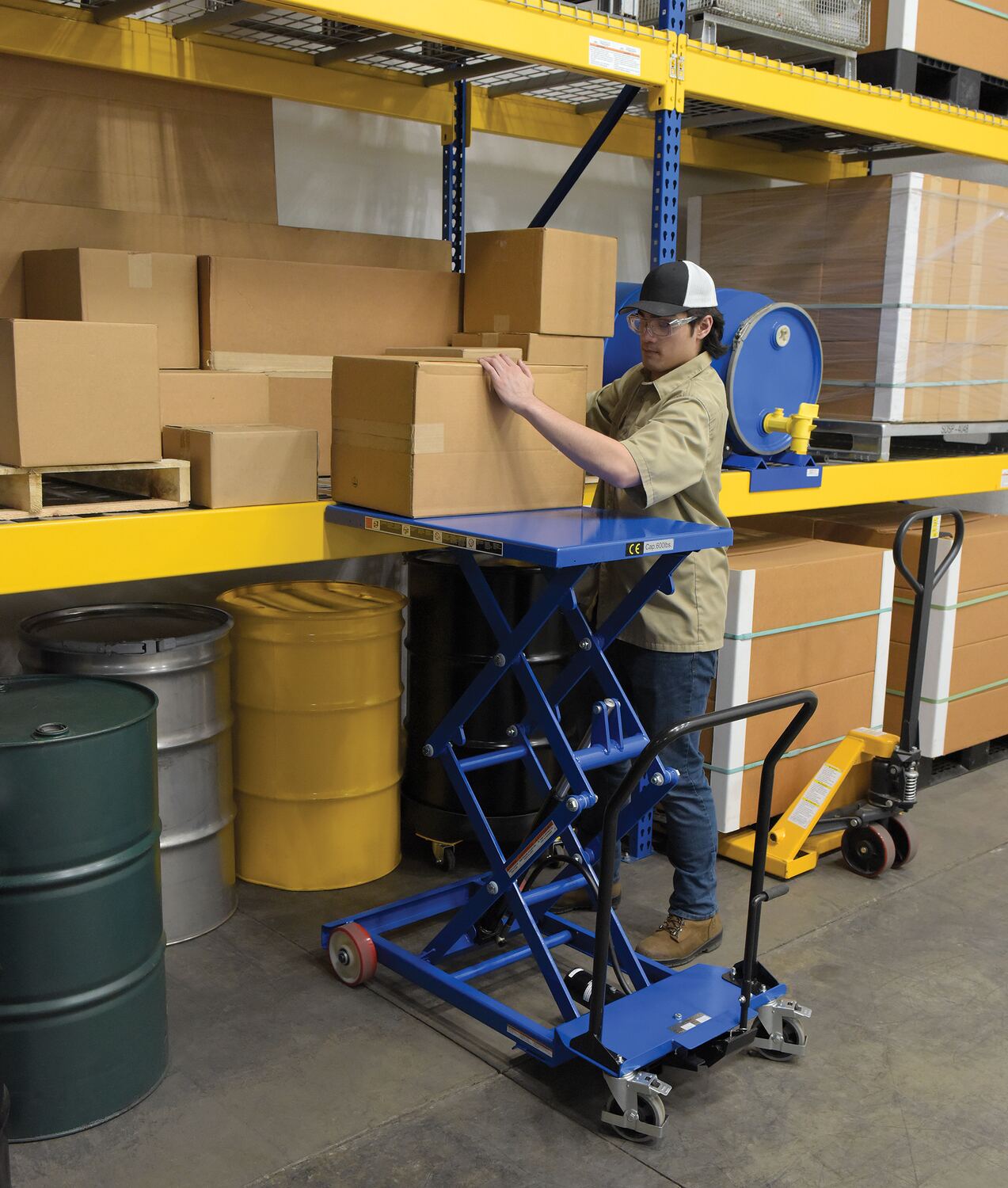

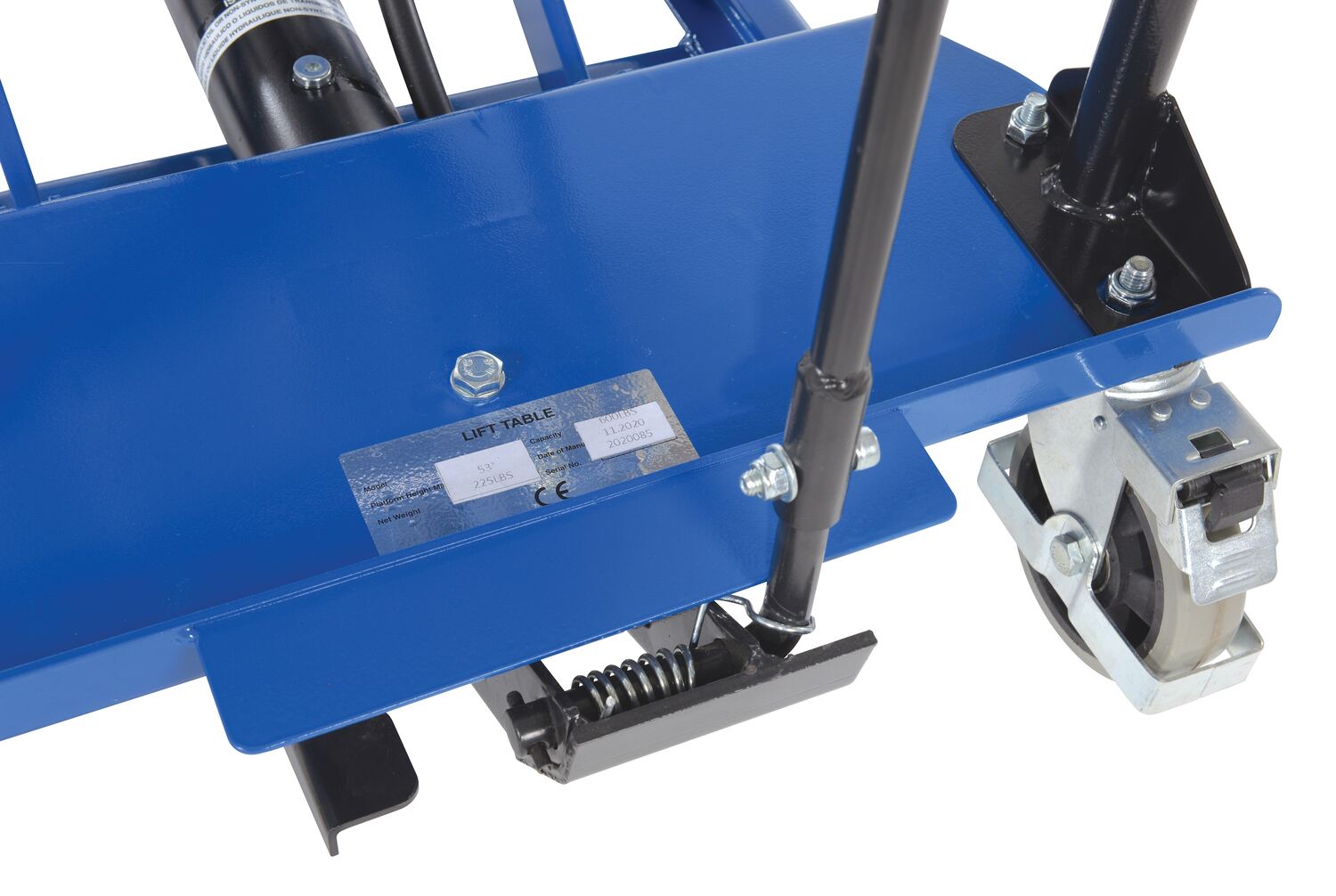

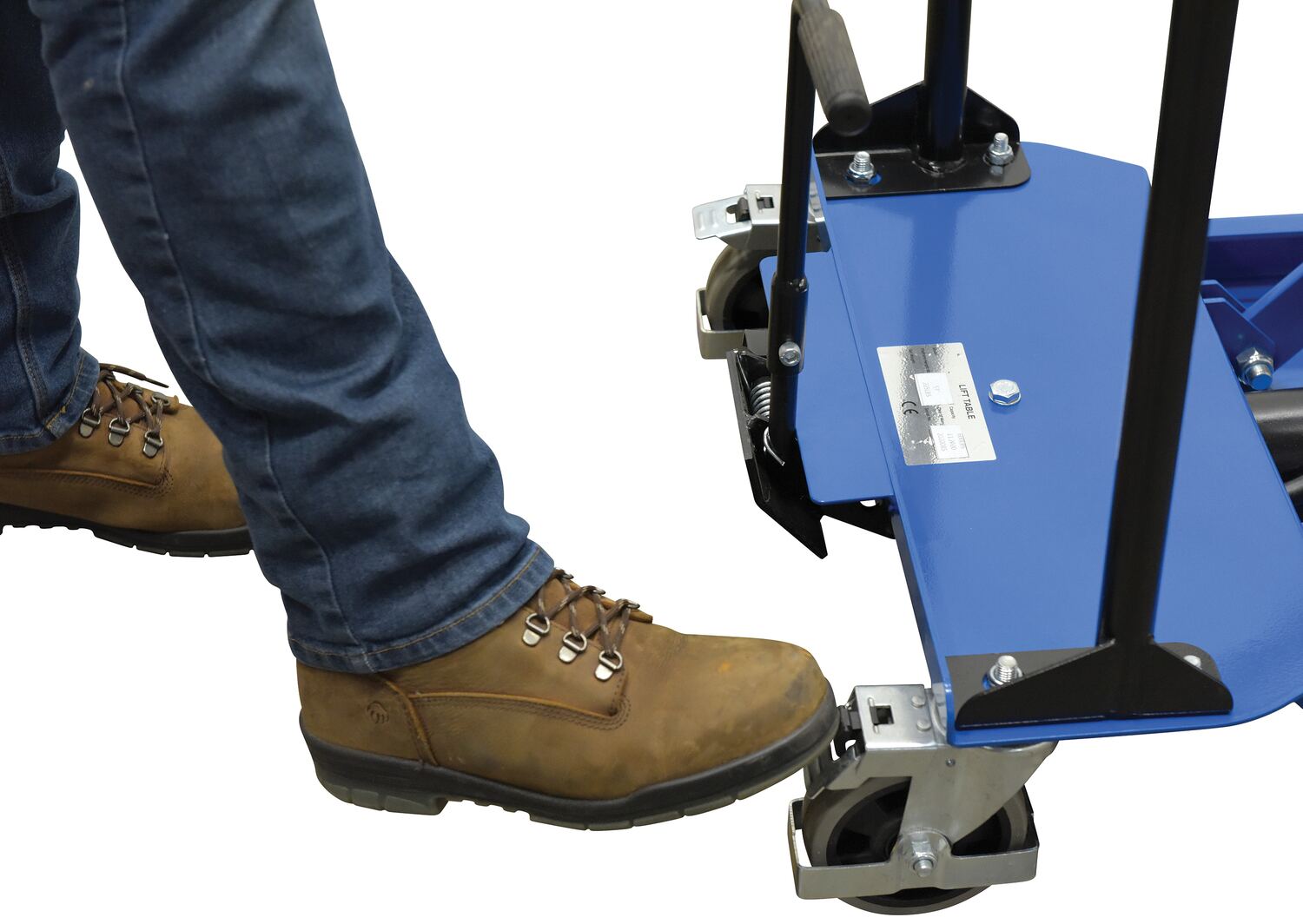

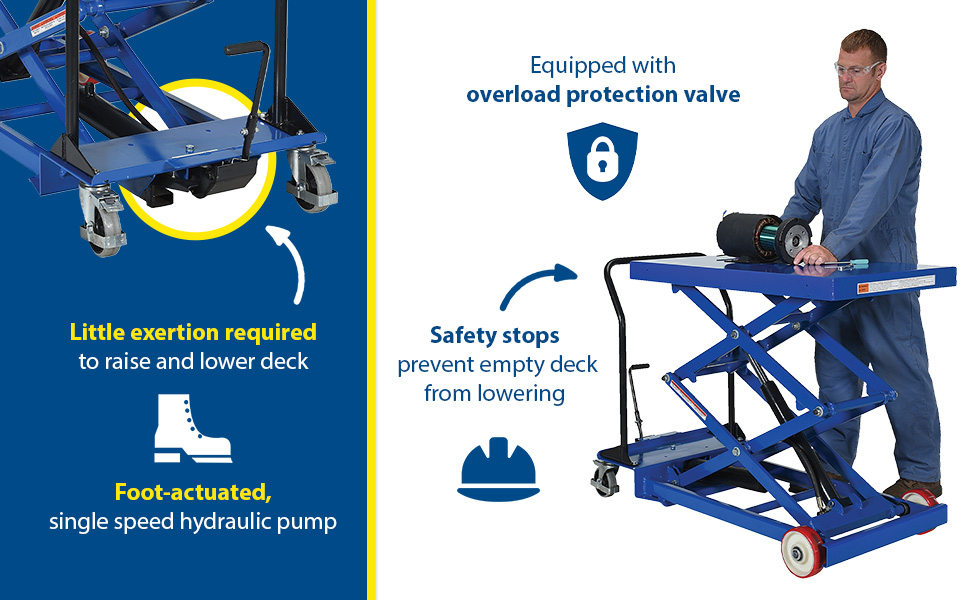

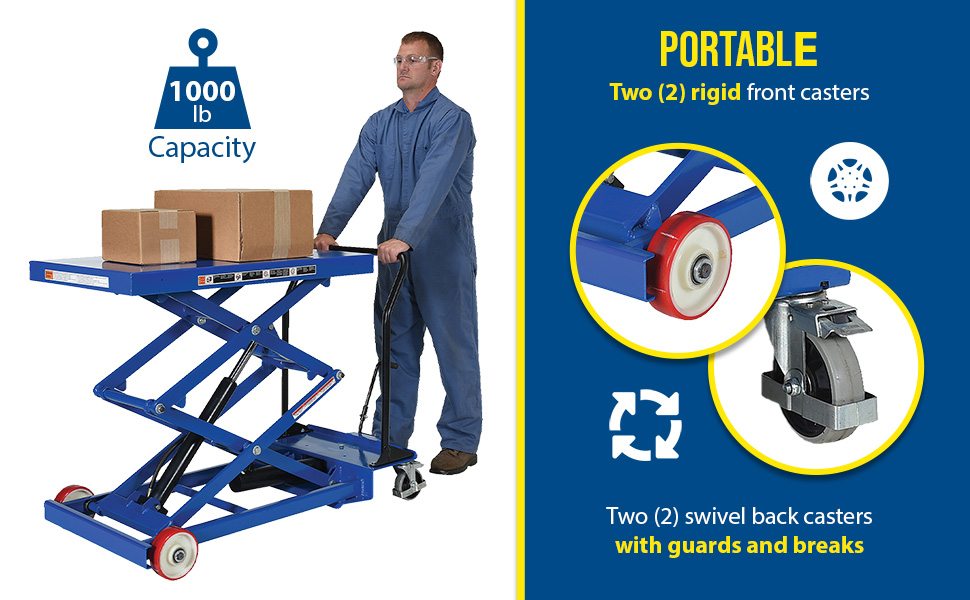

Constructed of heavy duty steel and designed to withstand the most demanding industrial environments. Ideal for lifting and transporting loads, order-picking, die handling, and for use in support of assembly operations. Little exertion is required to raise and lower the deck with the high quality, foot-actuated, single-speed hydraulic pump. The hydraulic system is equipped with an overload protection valve. The hand operated carts have safety stops to prevent an empty deck from lowering while performing maintenance. The foot operated carts have a unique tilt-up table top that allows for safe and easy maintenance. Two (2) rigid front casters and two (2) rear swivel polyurethane casters with brake provide a high degree of maneuverability; each swivel wheel is protected by guards and is equipped with brakes.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use

Constructed of heavy duty steel and designed to withstand the most demanding industrial environments. Ideal for lifting and transporting loads, order-picking, die handling, and for use in support of assembly operations. Little exertion is required to raise and lower the deck with the high quality, foot-actuated, single-speed hydraulic pump. The hydraulic system is equipped with an overload protection valve. The hand operated carts have safety stops to prevent an empty deck from lowering while performing maintenance. The foot operated carts have a unique tilt-up table top that allows for safe and easy maintenance. Two (2) rigid front casters and two (2) rear swivel polyurethane casters with brake provide a high degree of maneuverability; each swivel wheel is protected by guards and is equipped with brakes.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use

Additional Models In This Family

CART-300-D-FR

model CART-300-D-FR

CART-300-S-FR

model CART-300-S-FR

CART-1000-D-FR

model CART-1000-D-FR

CART-600-S-FR

model CART-600-S-FR

CART-400-D-HR

model CART-400-D-HR

CART-1000-S-FR

model CART-1000-S-FR

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)

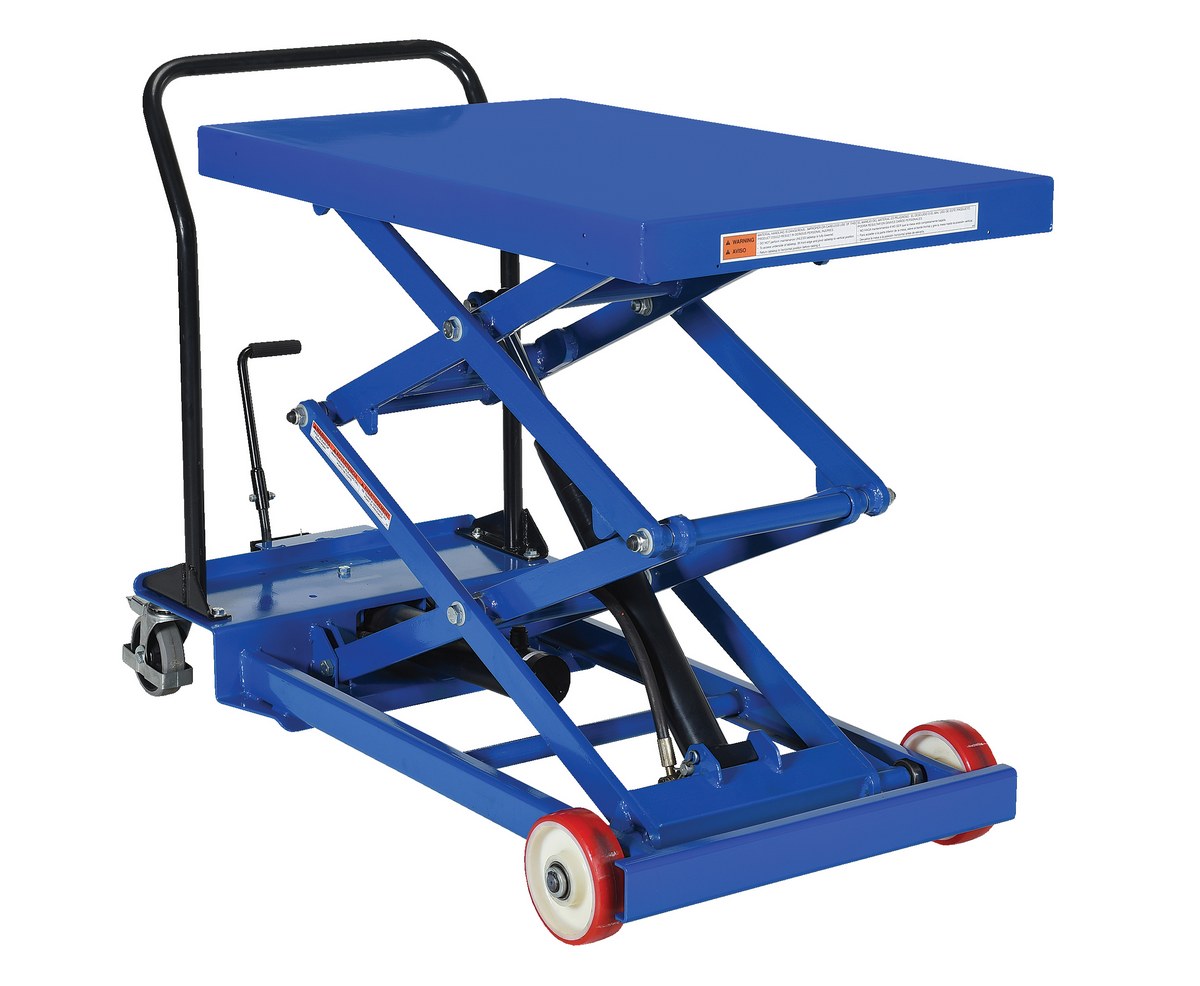

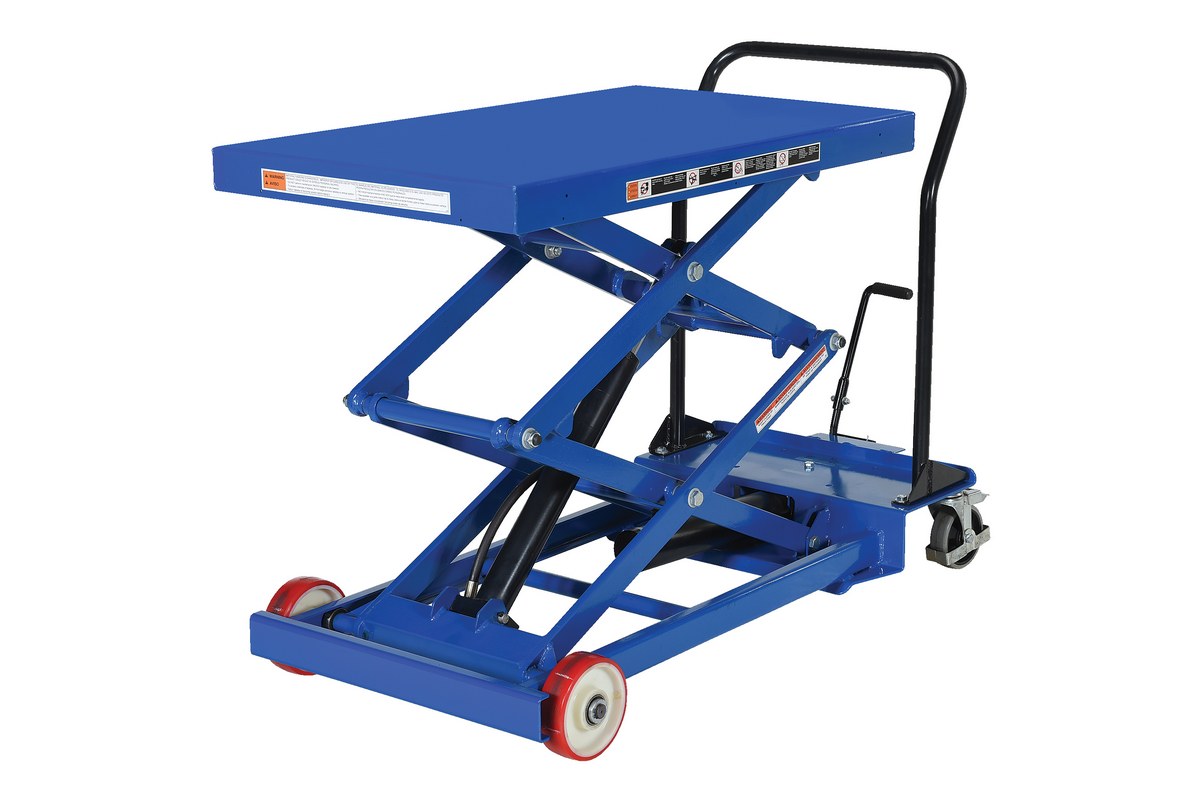

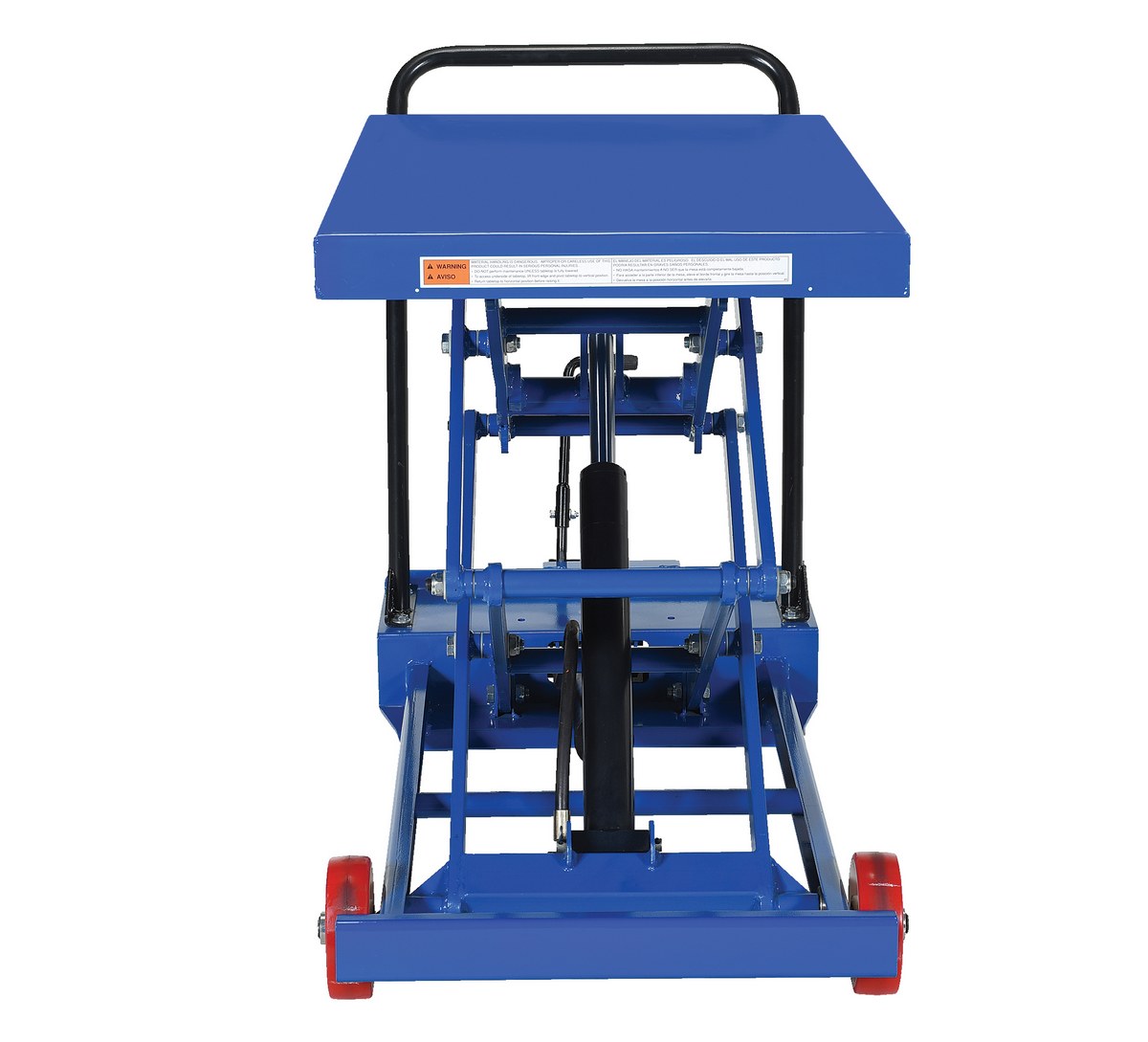

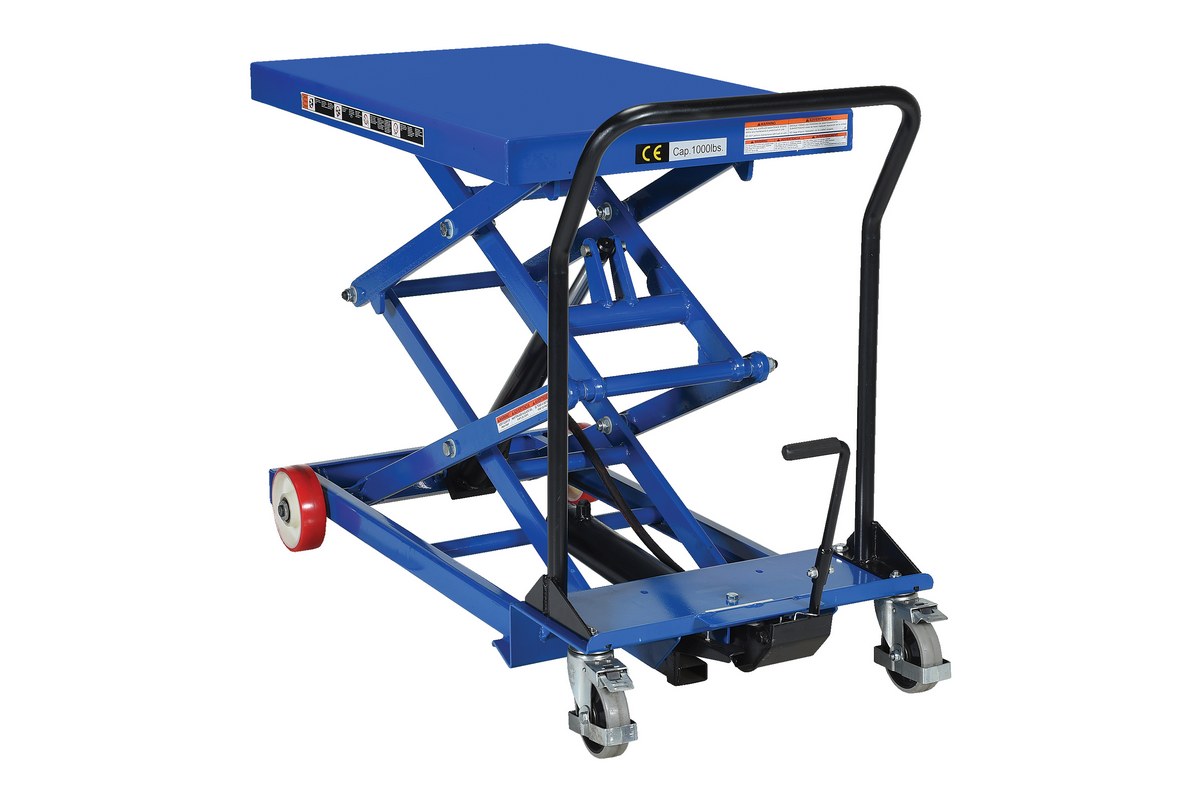

CART-1000-D-FR CART-1000-D-FR1 Year Limited WarrantySteel Premium Double Scissor Lift Cart with Foot Release 24 In. x 40-1/2 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 24
418

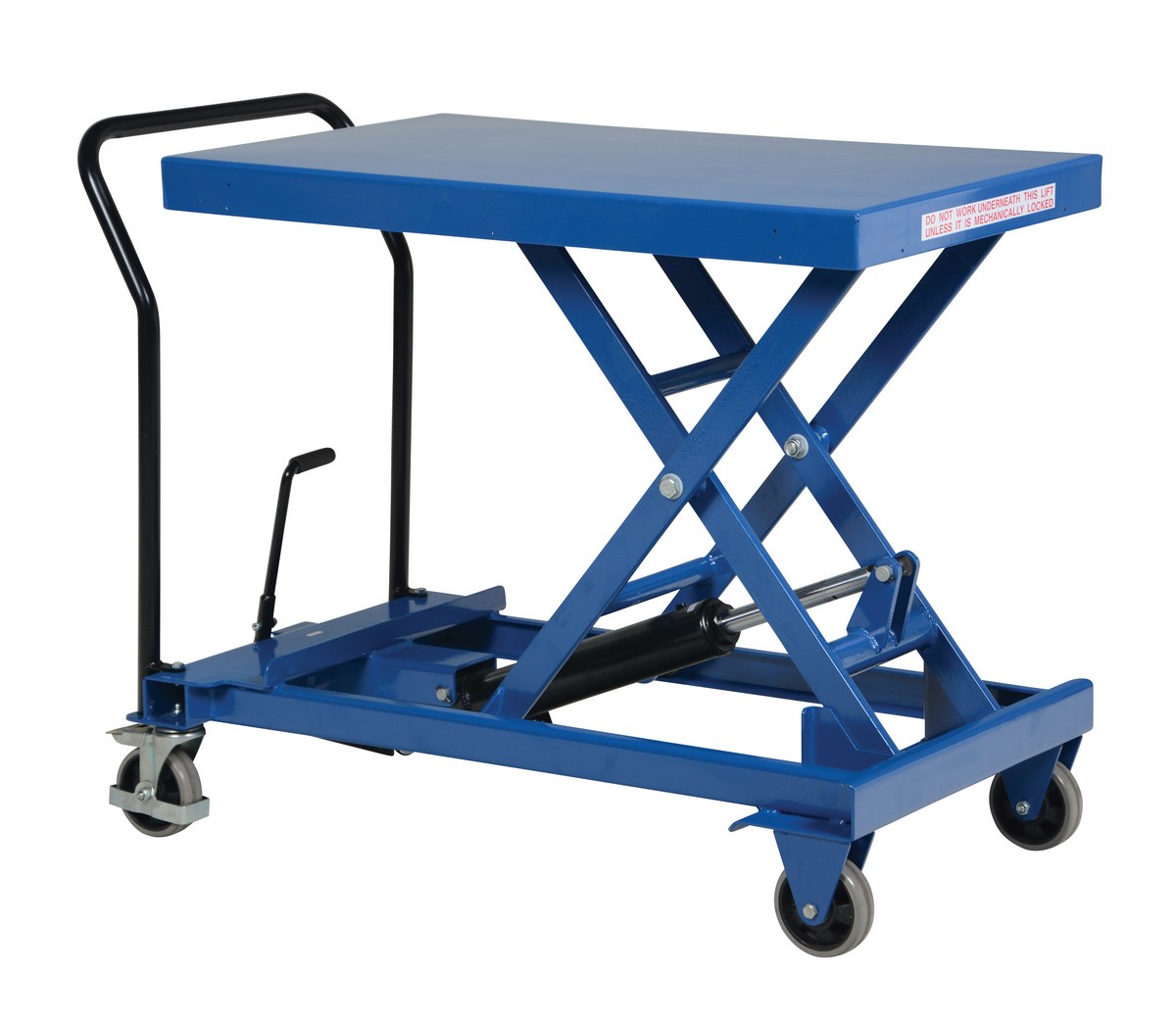

CART-1000-S-FR CART-1000-S-FR1 Year Limited WarrantySteel Premium Scissor Lift Cart with Foot Release 40-1/2 In. x 24 In. 1000 Lb. CapacityUniform Capacity (lb.): 1000
Platform Width (in.): 24
312

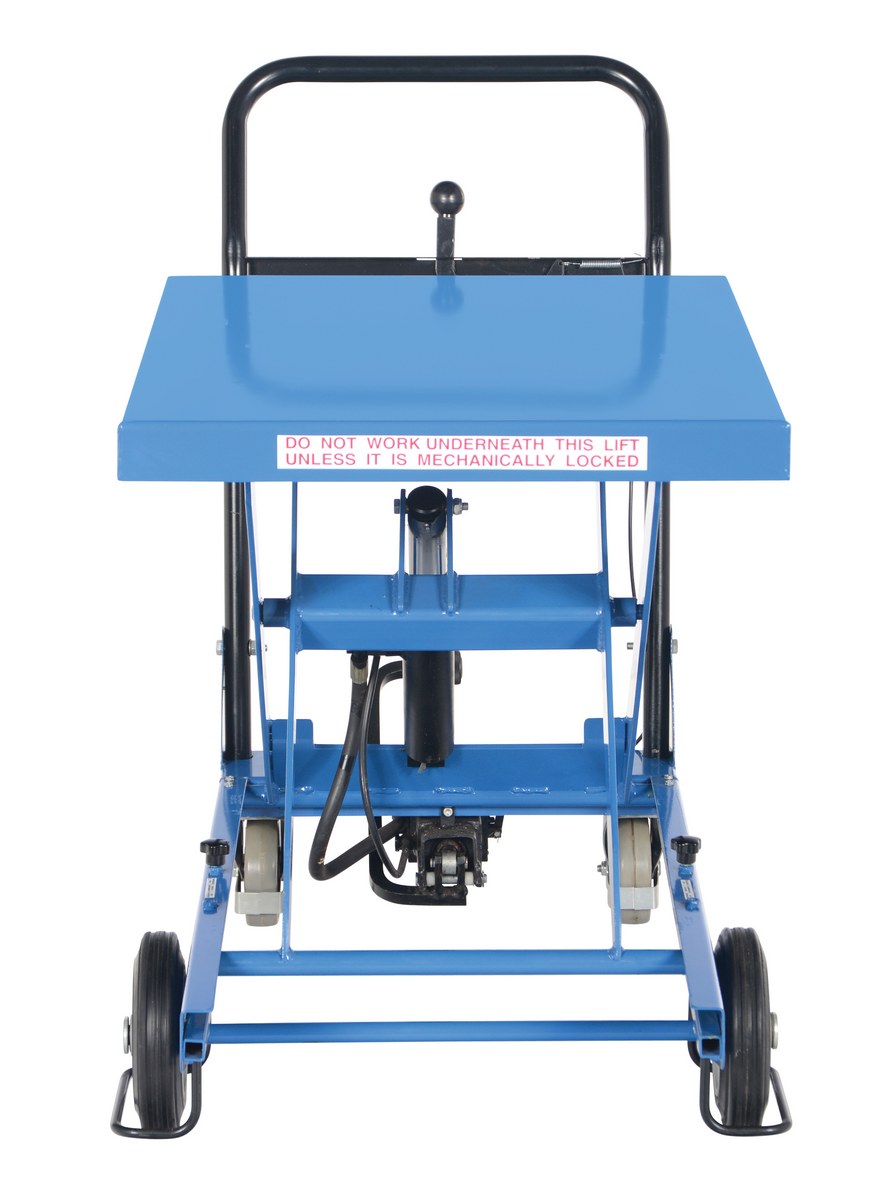

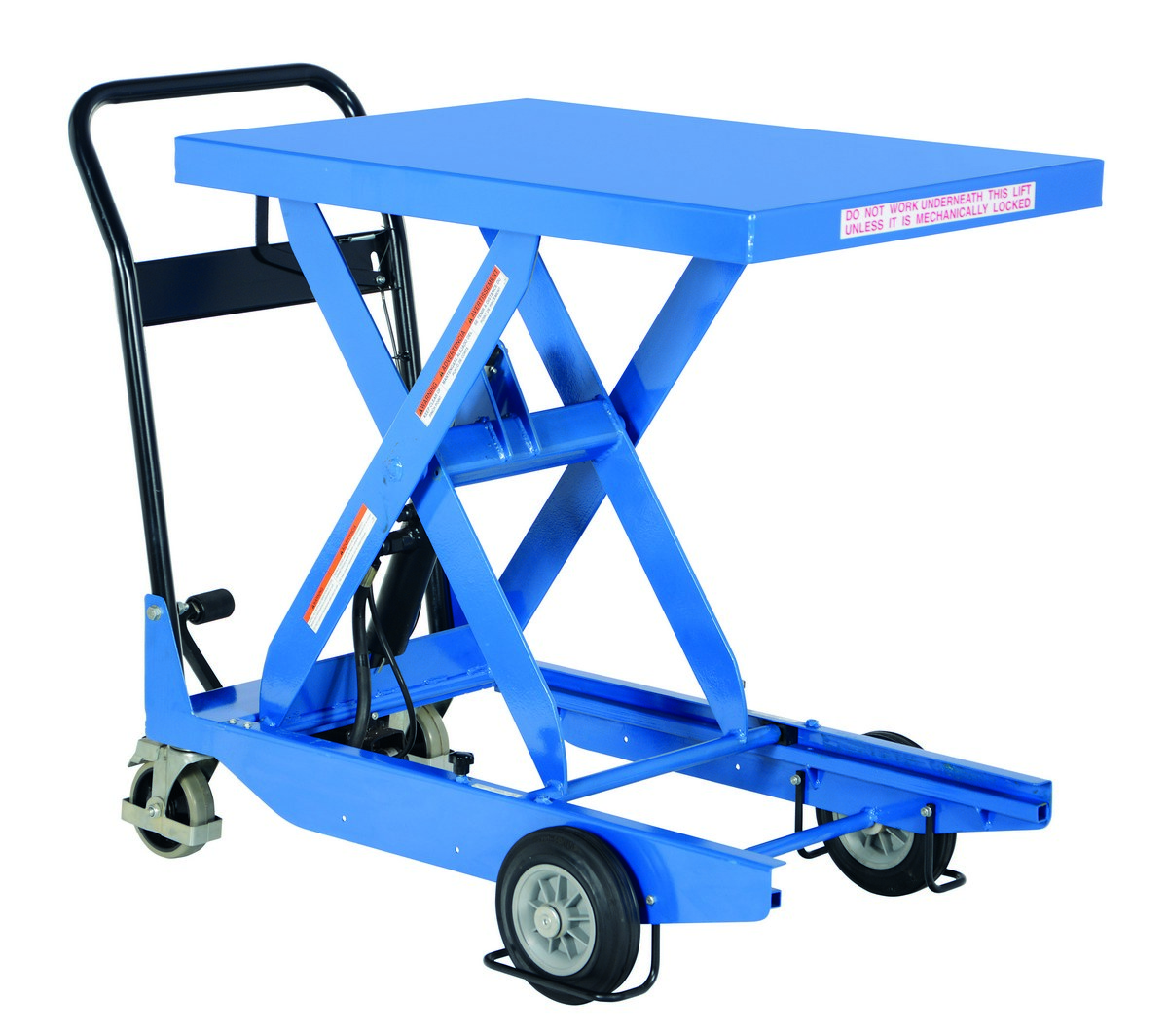

CART-1000-S-HR CART-1000-S-HR1 Year Limited WarrantyPremium Steel Scissor Lift Cart with Hand Release 35-7/16 In. x 23-5/8 In. 1000 Lb. CapacityUniform Capacity (lb.): 1000
Platform Width (in.): 23-5/8
212

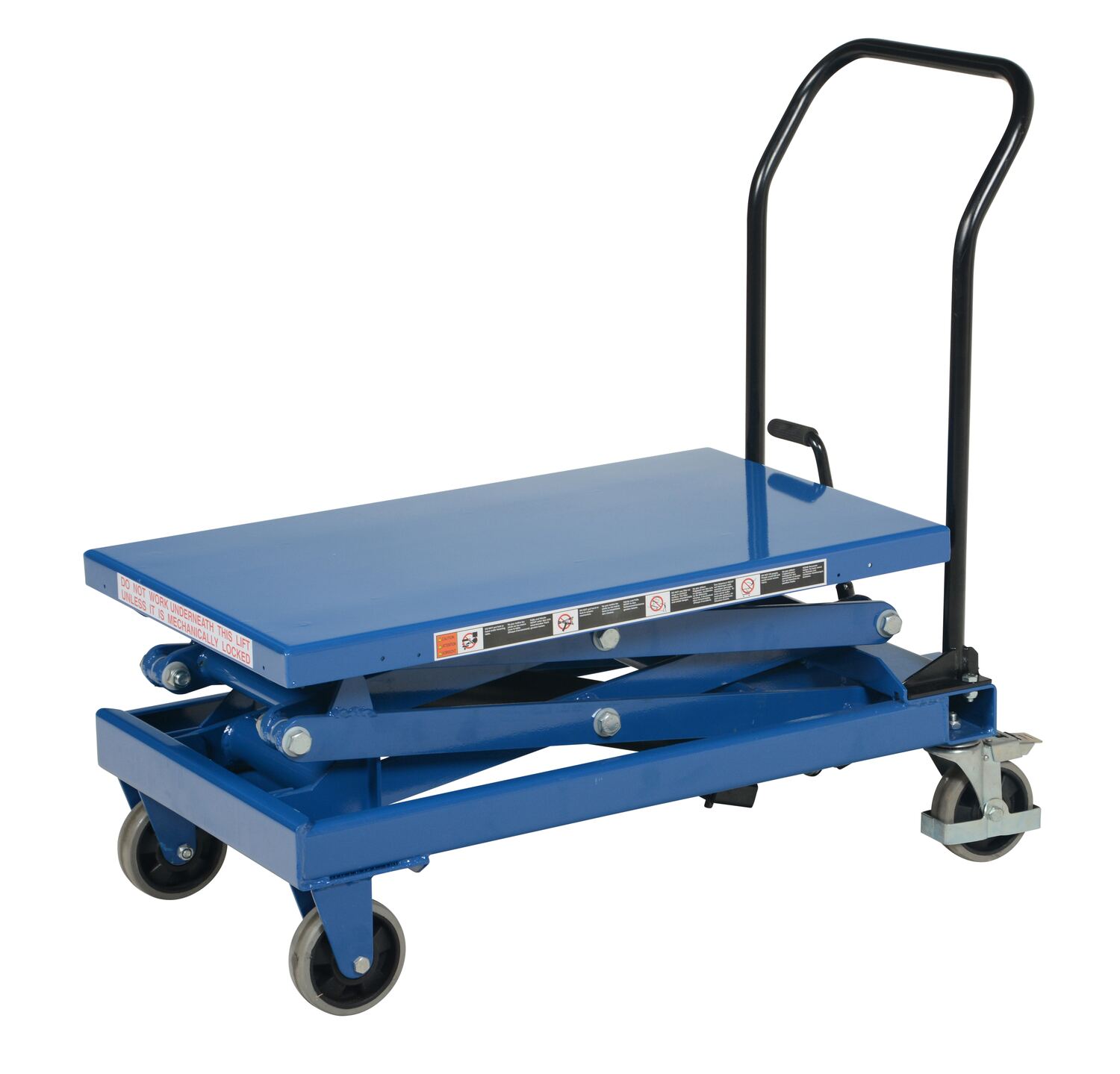

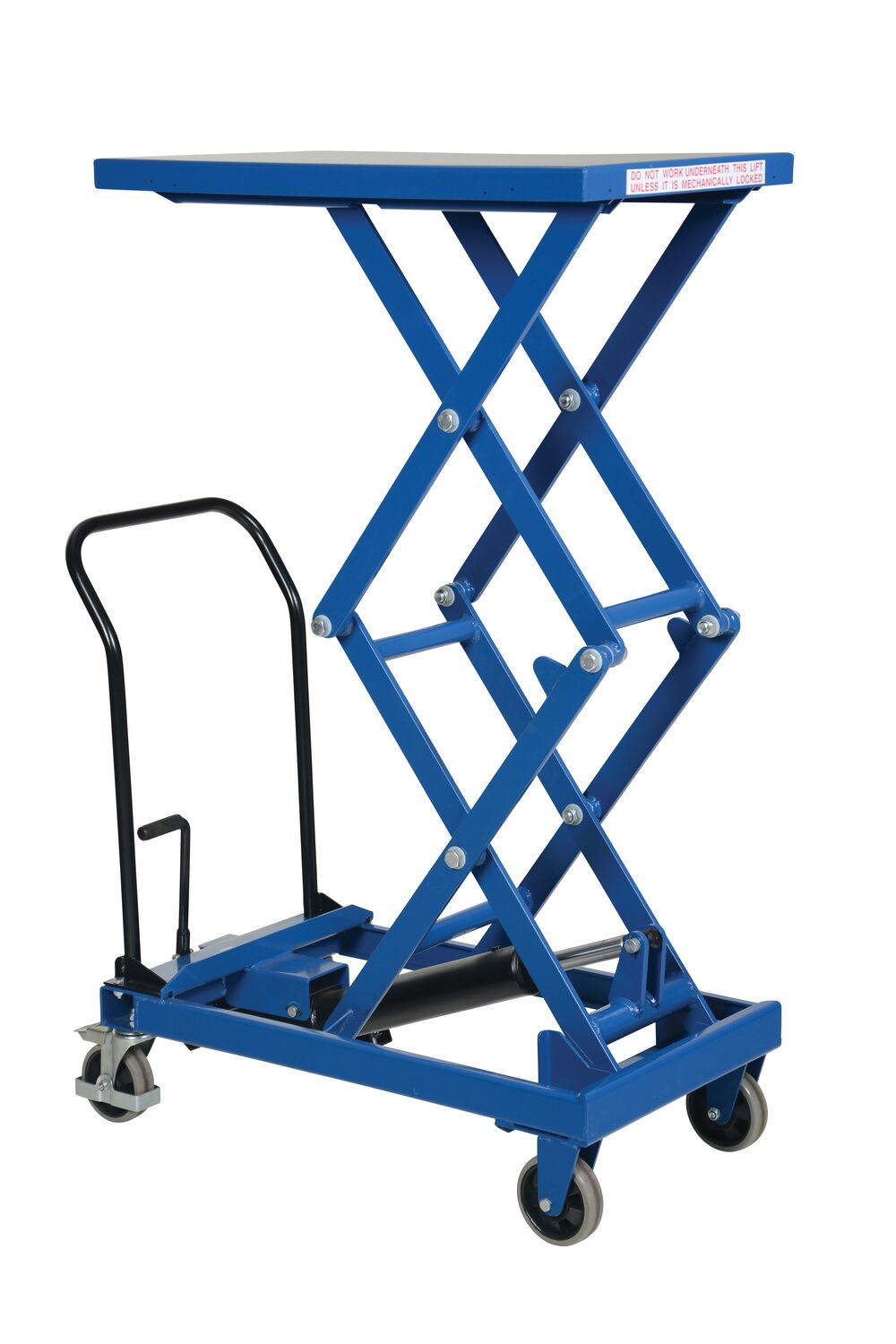

CART-300-D-FR CART-300-D-FR1 Year Limited WarrantySteel Premium Double Scissor Cart with Foot Release 19.5 In. x 33 In. 300 Lb. Capacity BlueUniform Capacity (lb.): 300
Platform Width (in.): 19-1/2
264

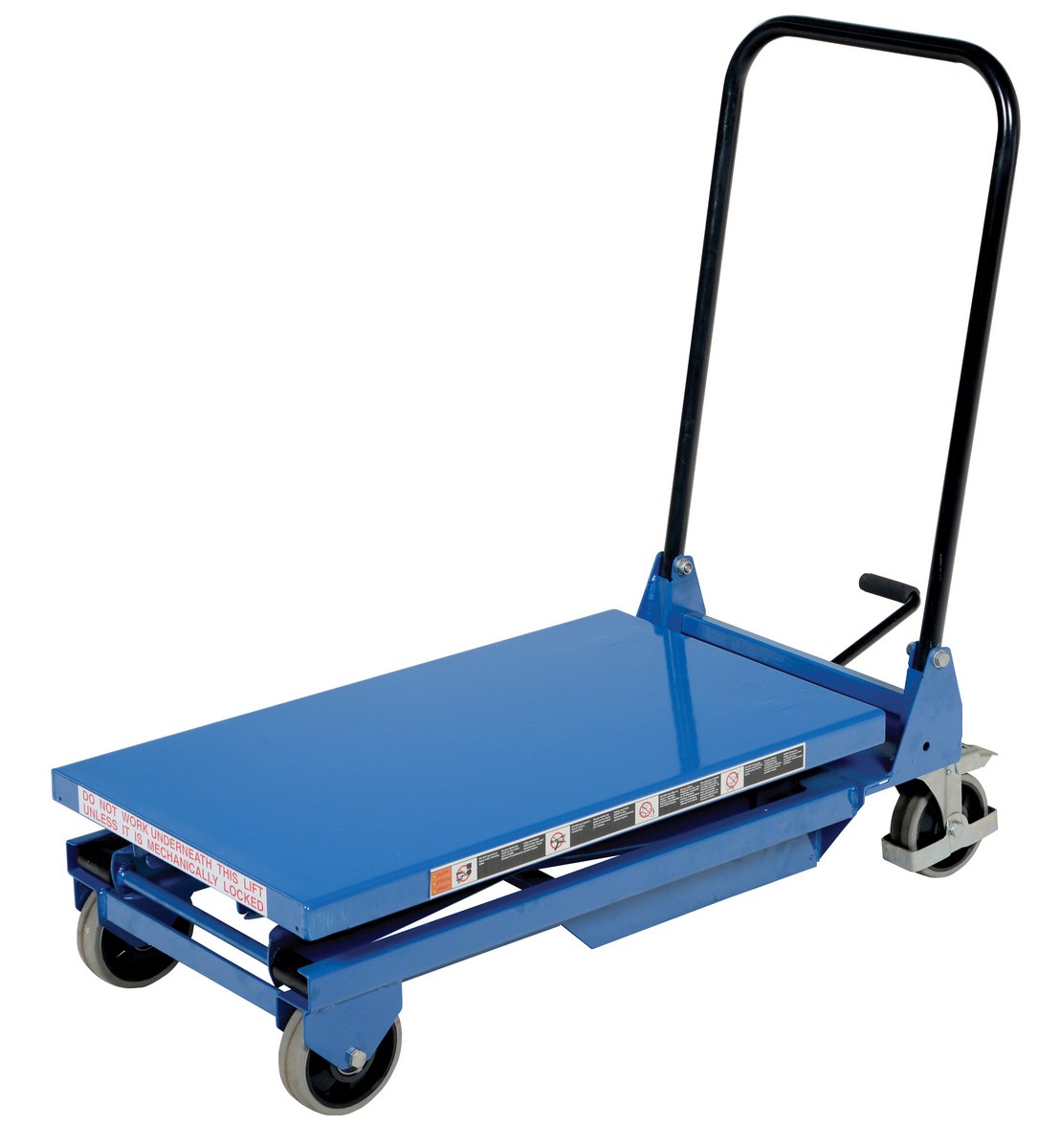

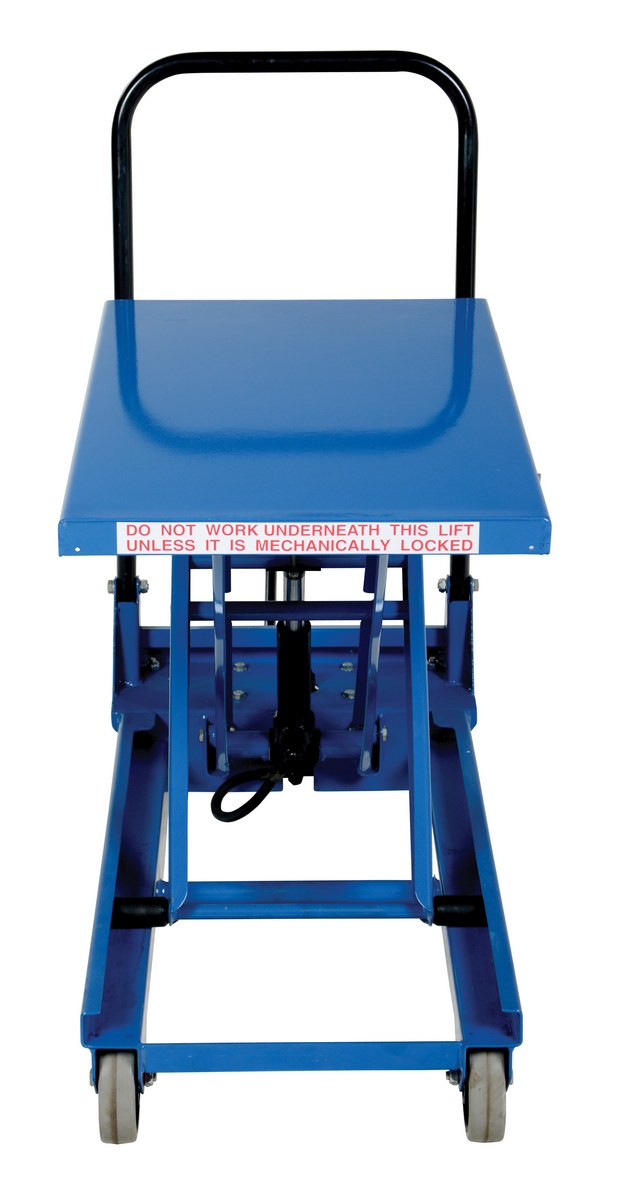

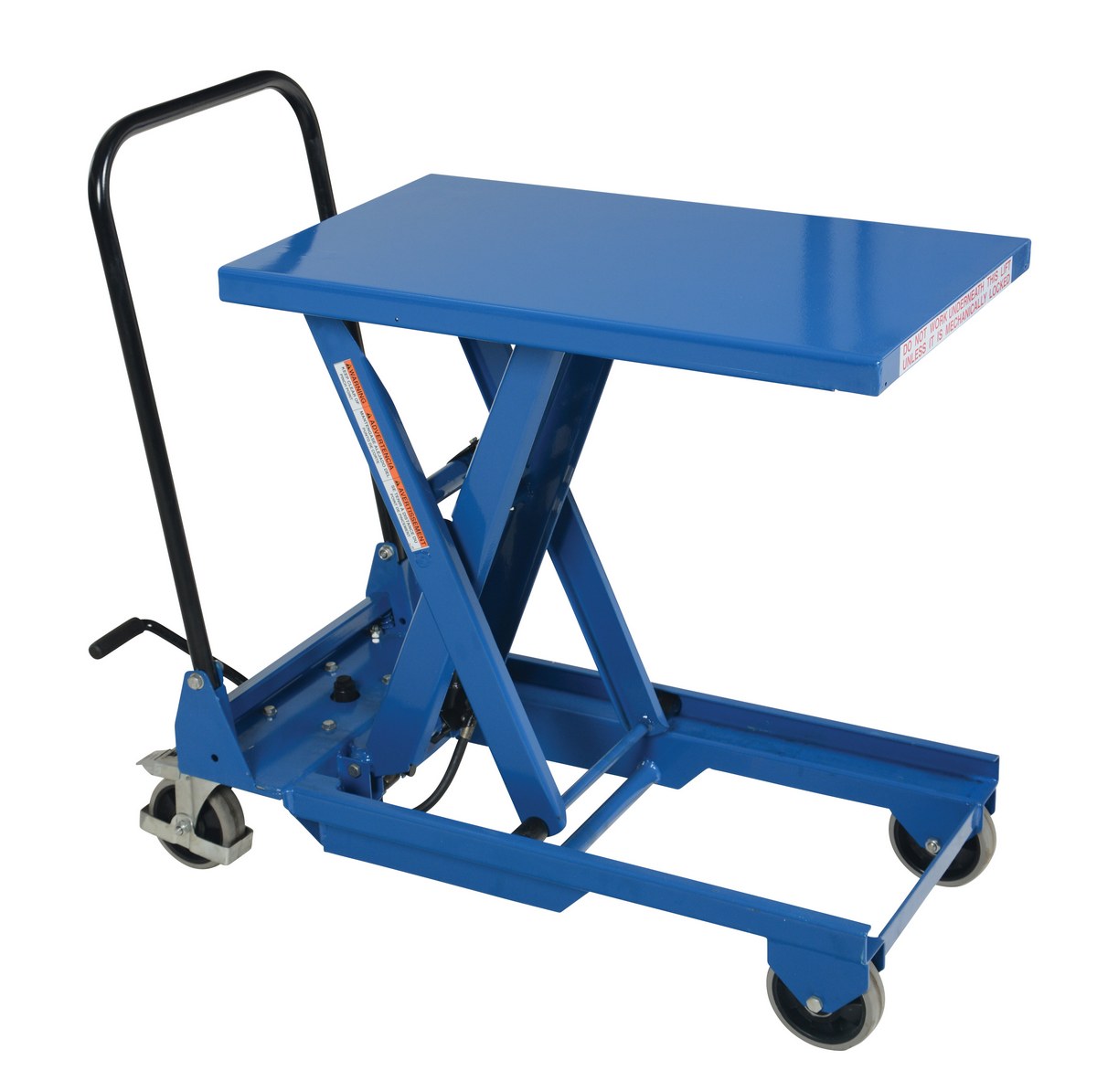

CART-300-S-FR CART-300-S-FR1 Year Limited WarrantySteel Premium Double Scissor Cart with Foot Release 18 In. x 30 In. 300 Lb. Capacity BlueUniform Capacity (lb.): 300
Platform Width (in.): 17-3/4
177

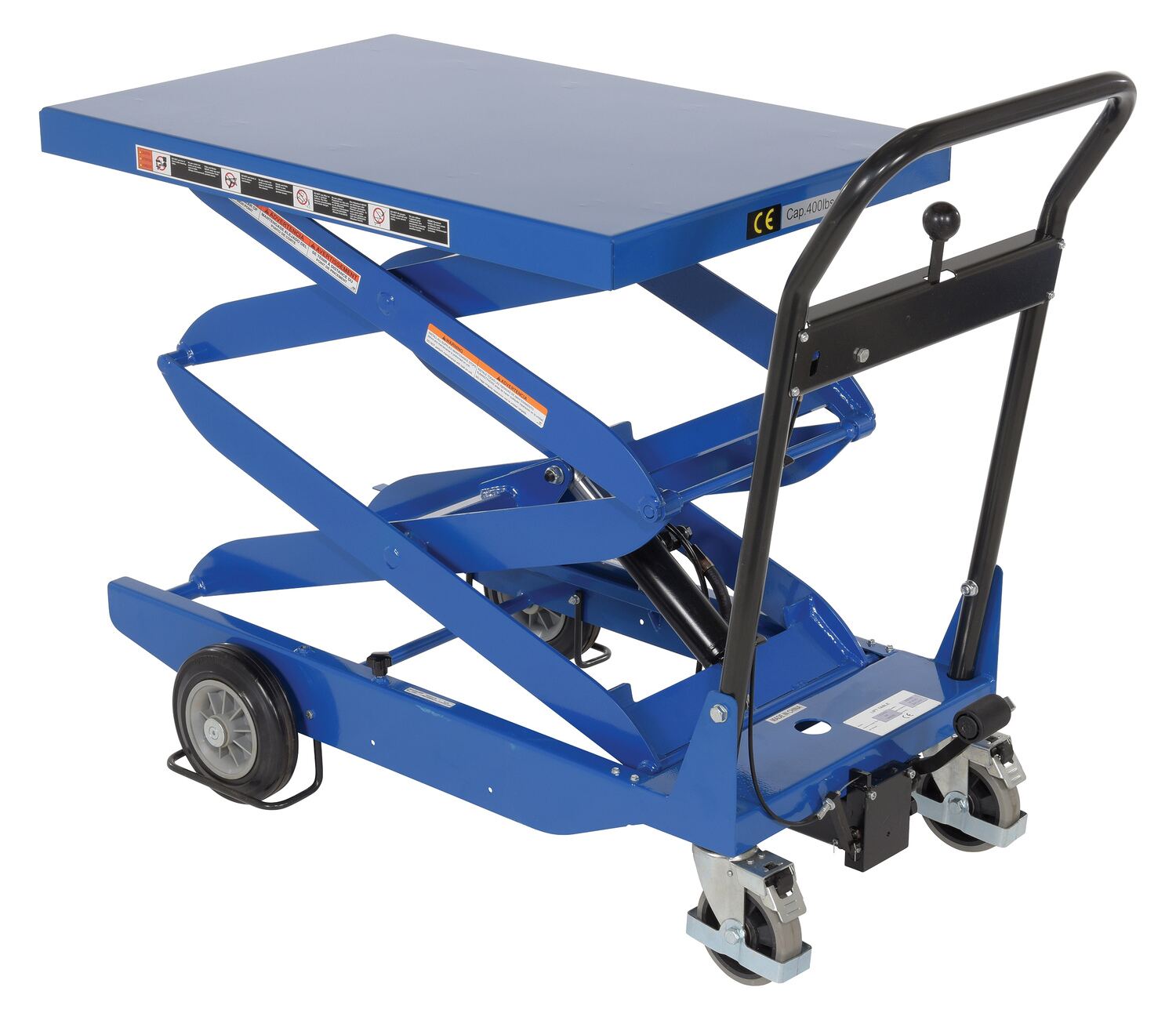

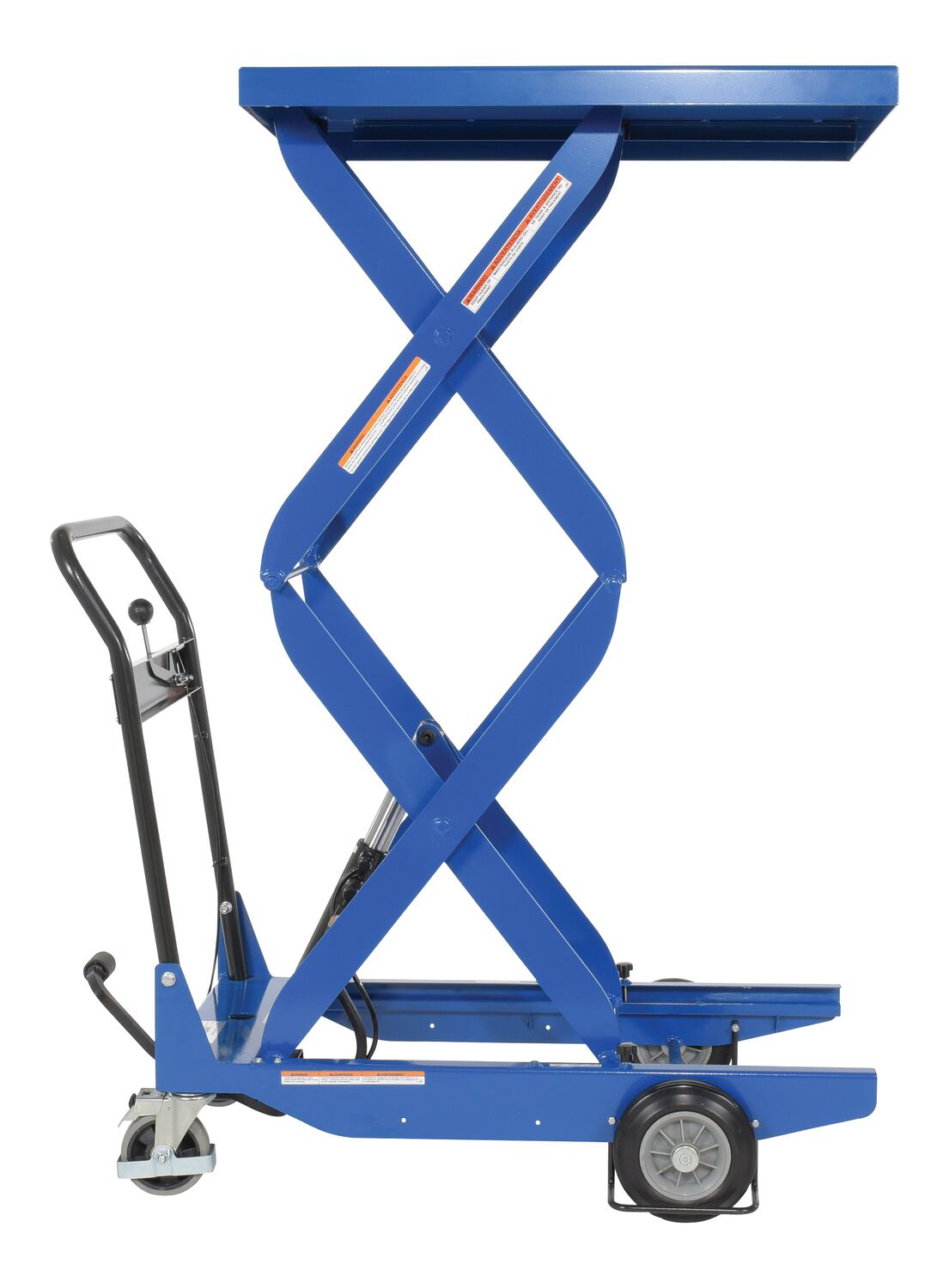

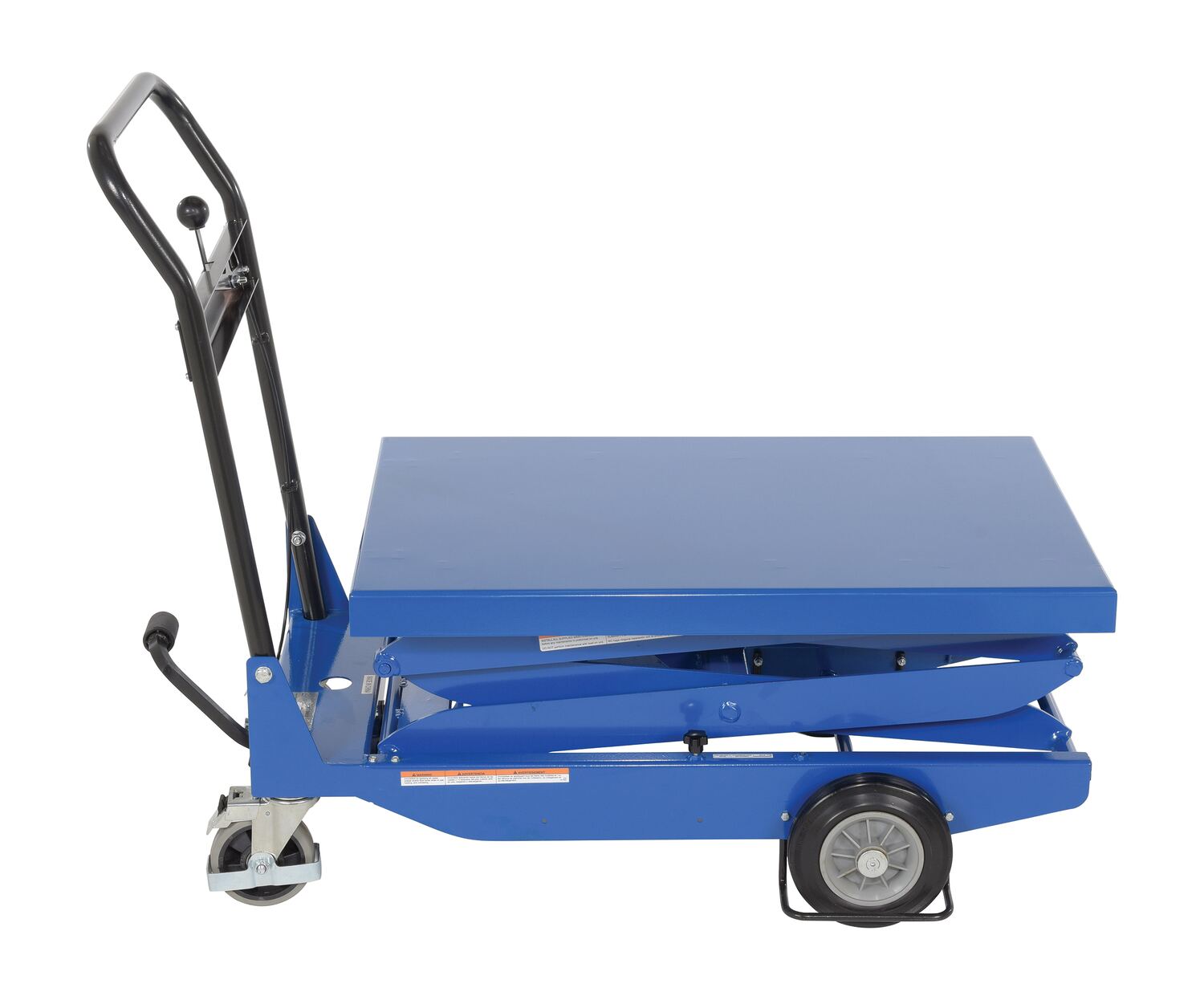

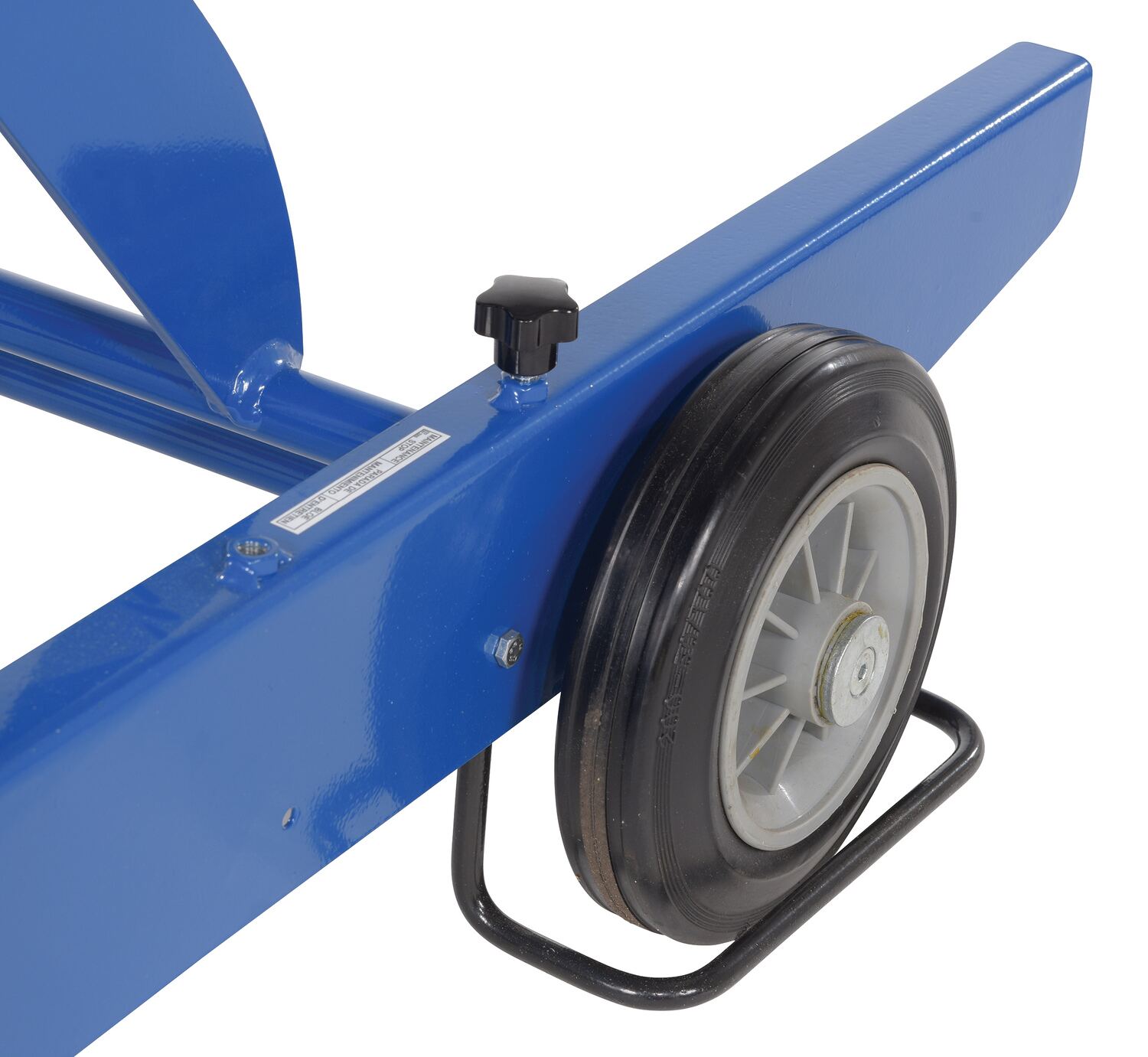

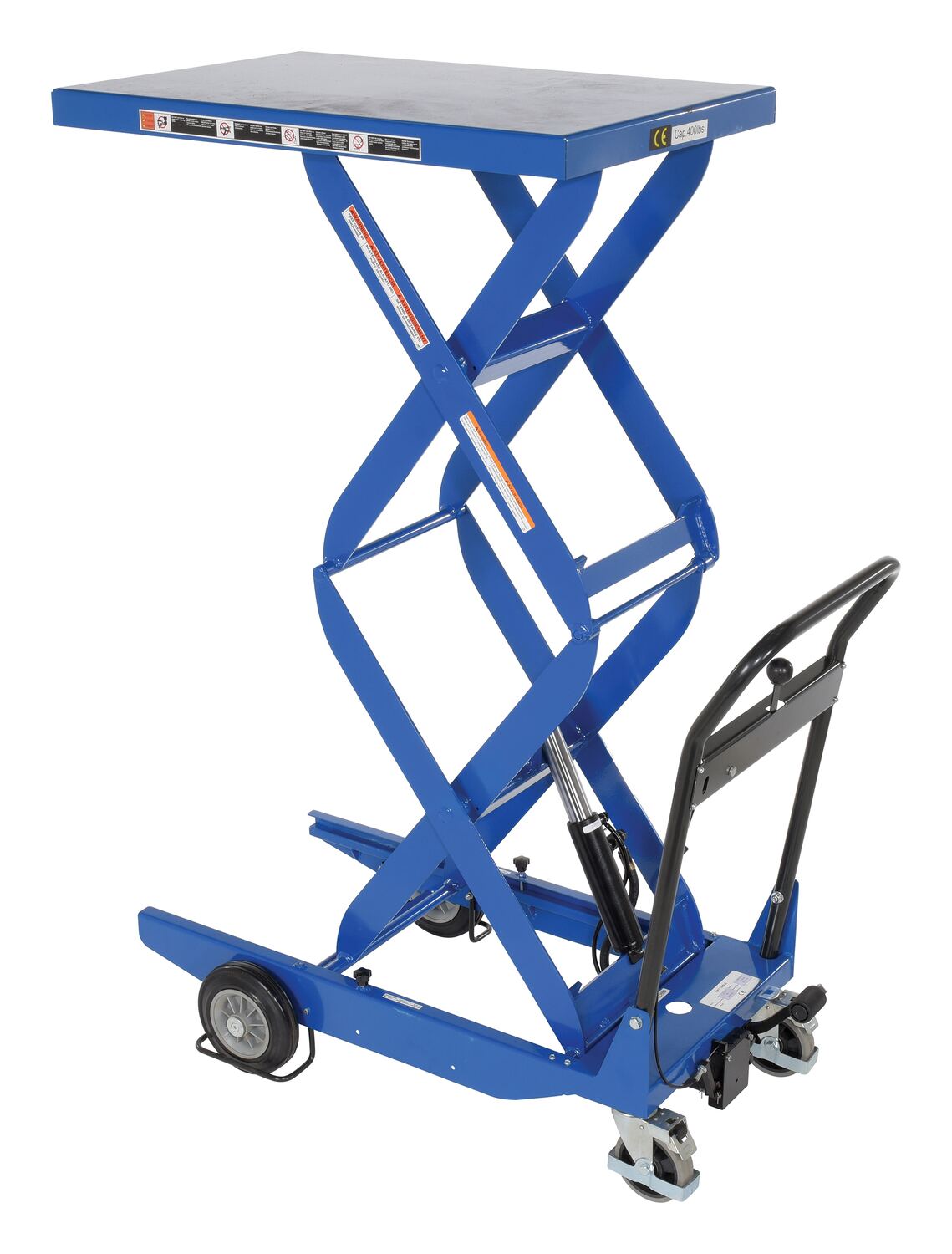

CART-400-D-HR CART-400-D-HR1 Year Limited WarrantySteel Double Scissor Cart with Hand Release 23-5/8 In. x 35-7/16 In. 400 Lb. Capacity BlueUniform Capacity (lb.): 400
Platform Width (in.): 23-5/8
270

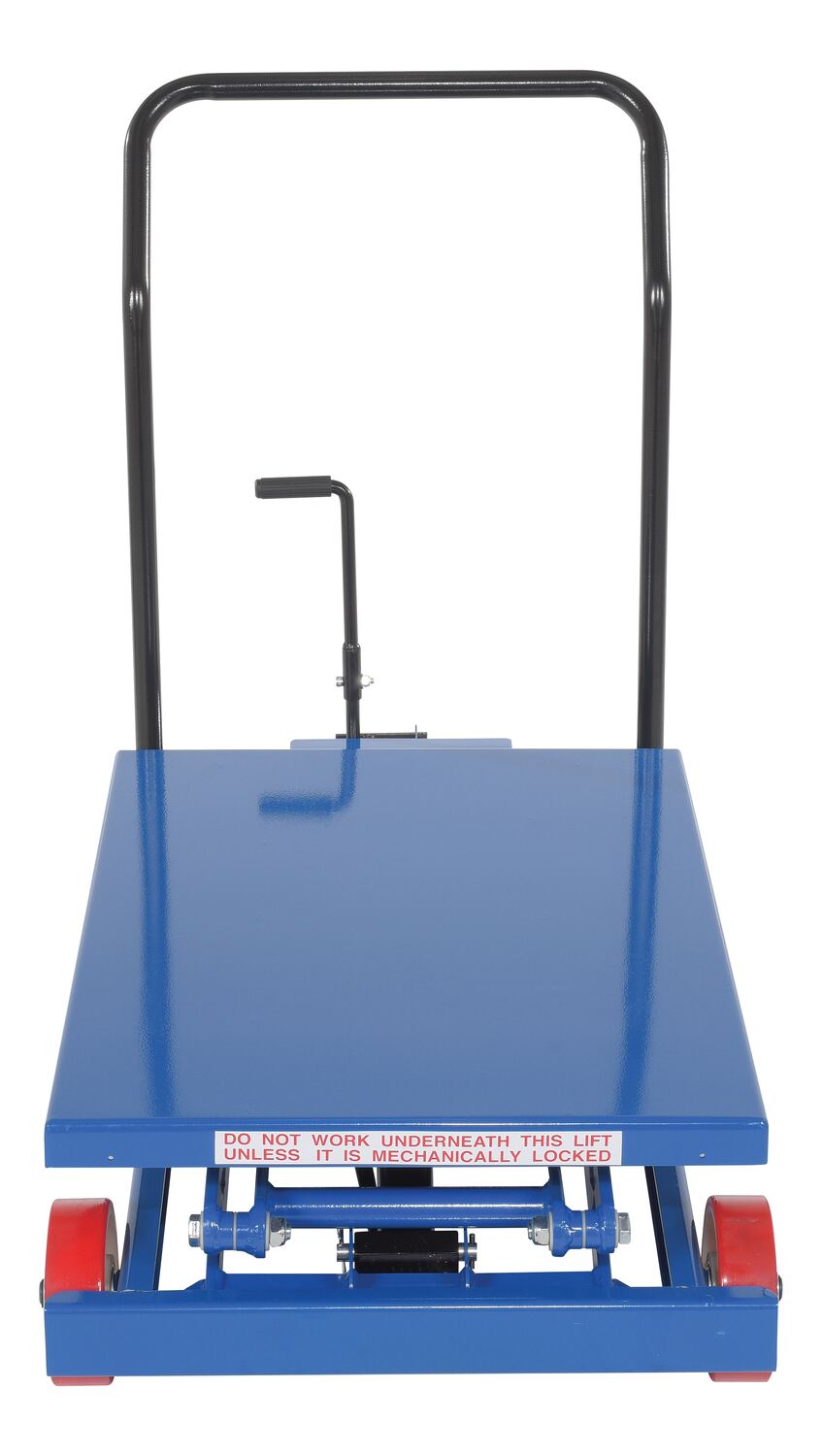

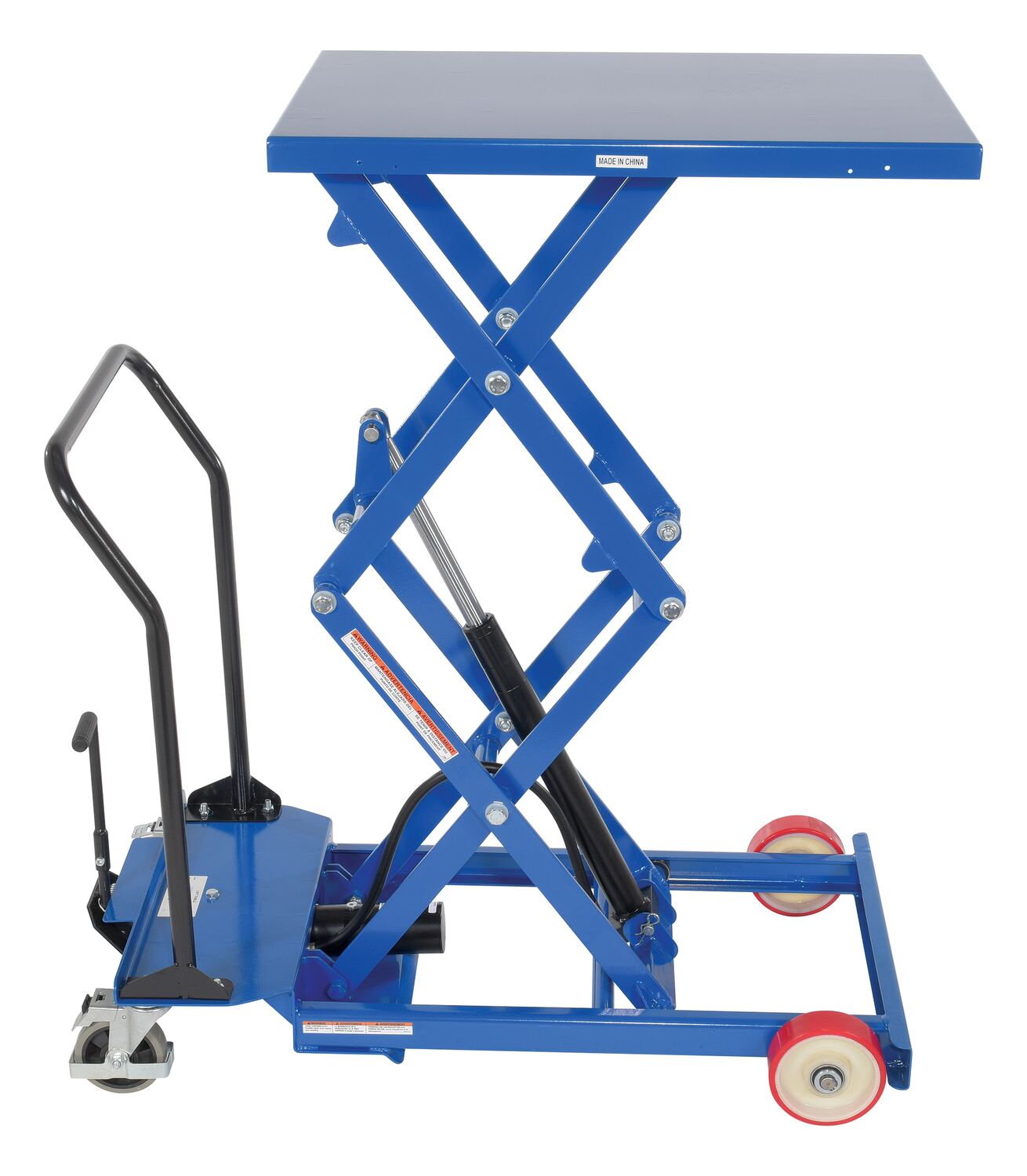

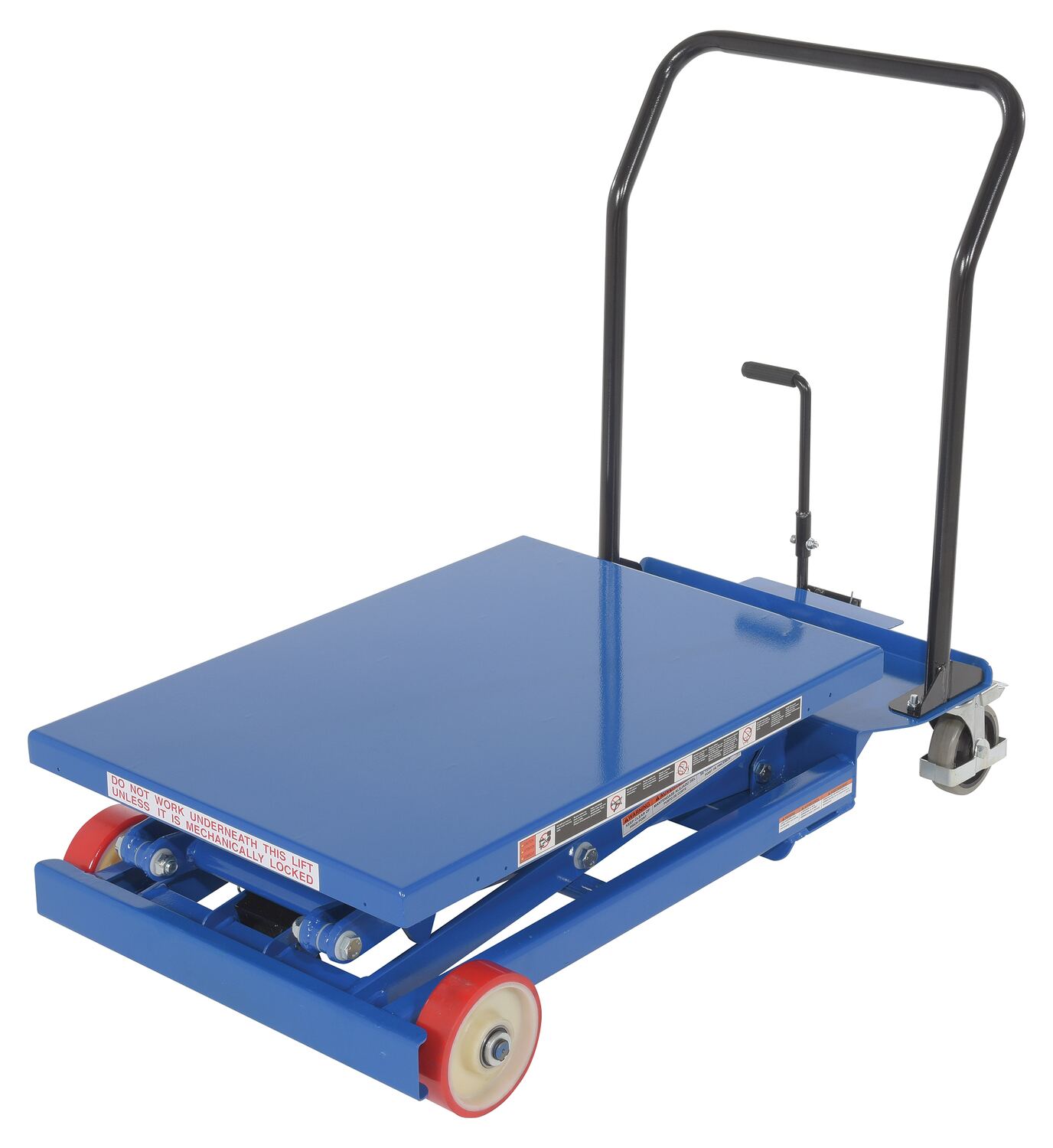

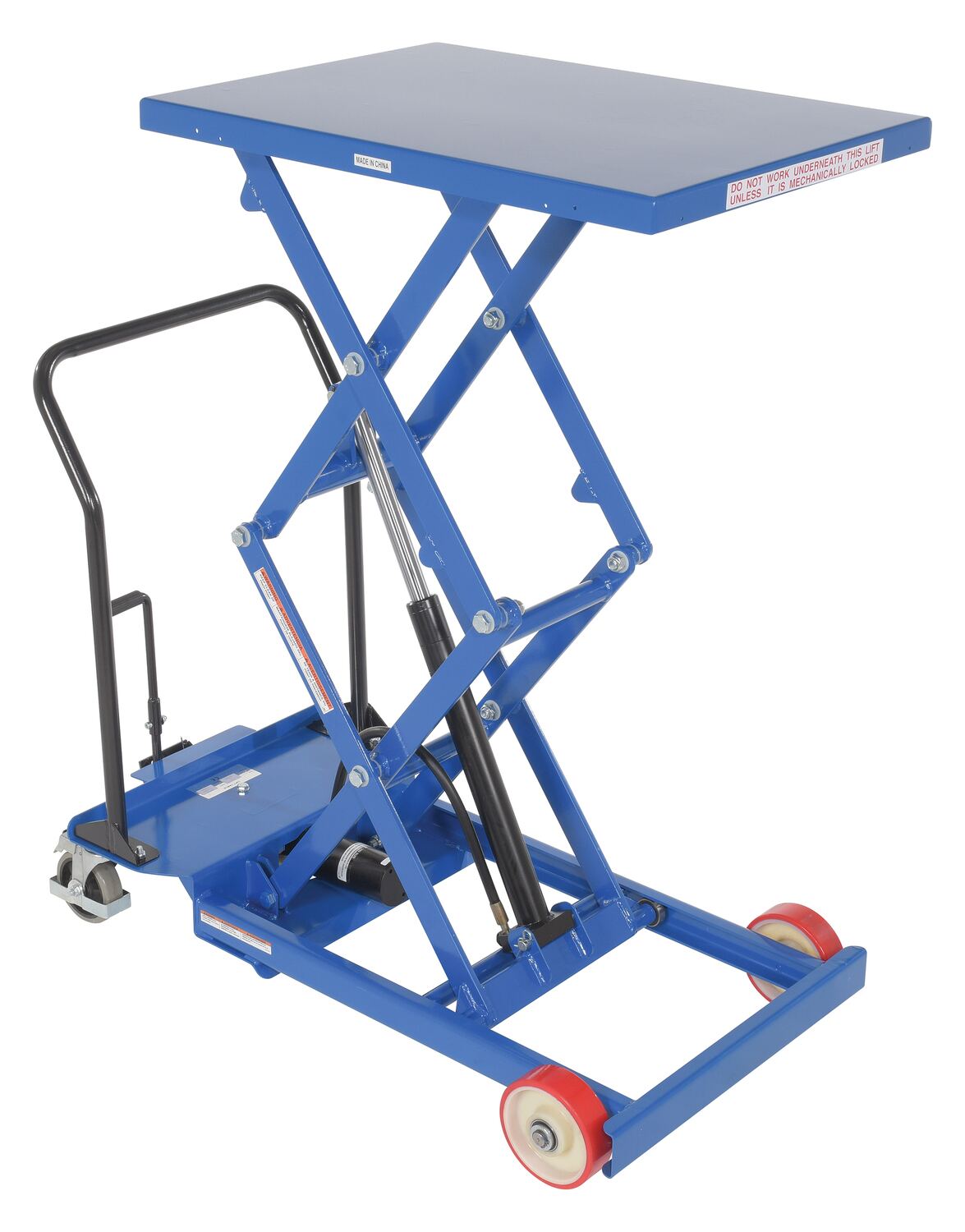

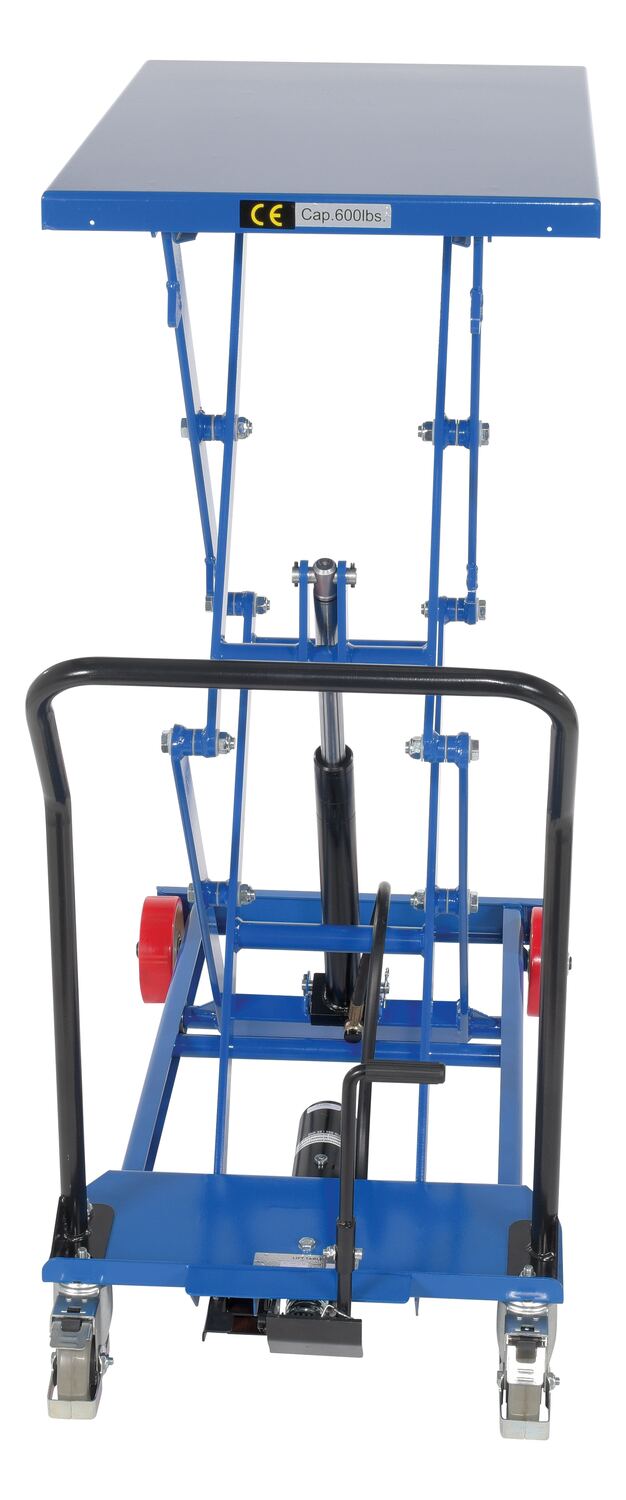

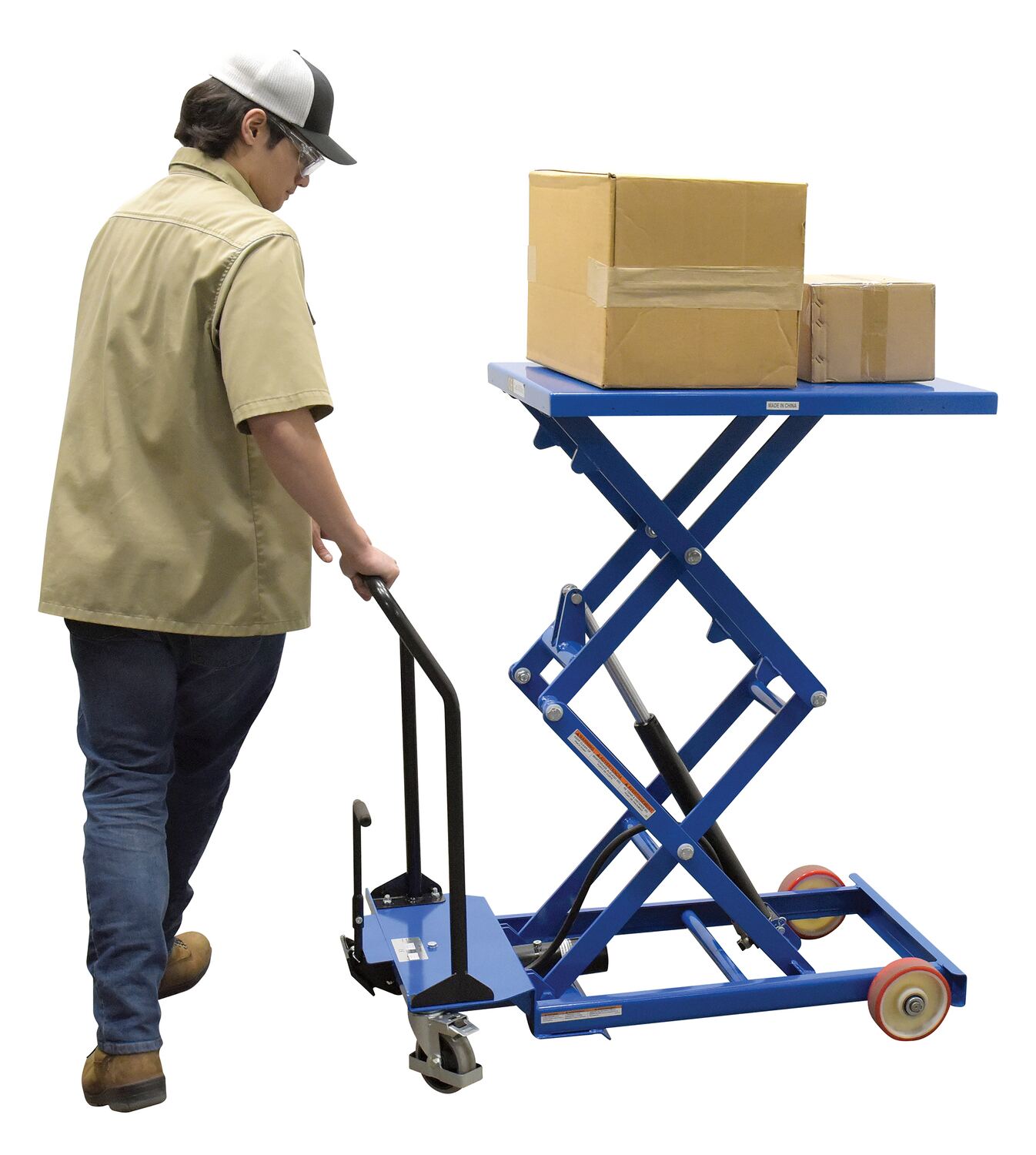

CART-600-D-FR CART-600-D-FR1 Year Limited WarrantySteel Premium Double Scissor Cart with Foot Release 23-1/4 In. x 33 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Platform Width (in.): 23-1/4
301

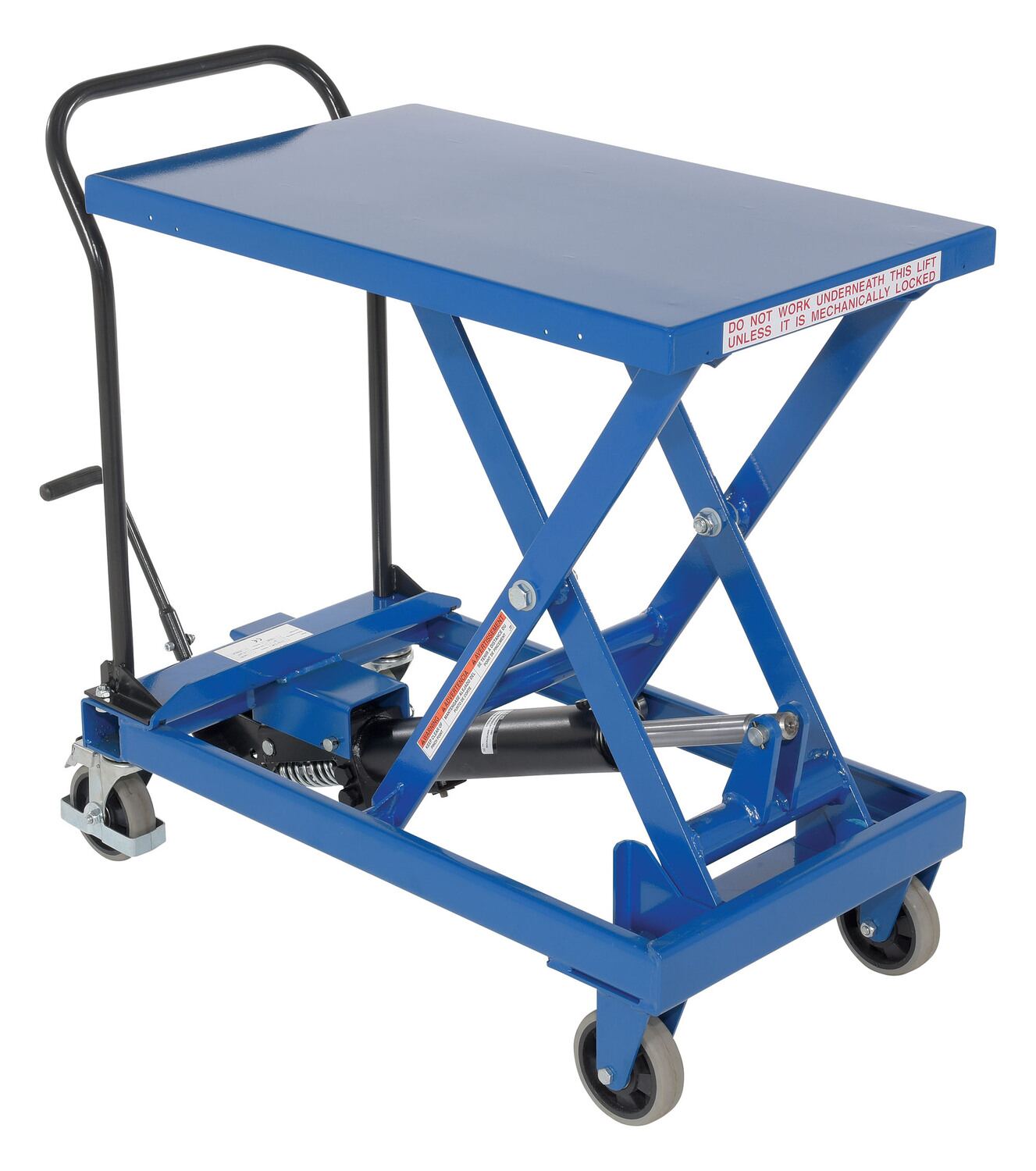

CART-600-S-FR CART-600-S-FR1 Year Limited WarrantySteel Heavy Duty Premium Scissor Cart 19 In. x 33 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Platform Width (in.): 19-3/4
230

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

CART-1000-D-FR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 24
Uniform Capacity (lb.): 1000
Platform Width (in.): 24

CART-1000-S-FR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 24
Uniform Capacity (lb.): 1000
Platform Width (in.): 24

CART-1000-S-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 23-5/8
Uniform Capacity (lb.): 1000
Platform Width (in.): 23-5/8

CART-300-D-FR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 300
Platform Width (in.): 19-1/2
Uniform Capacity (lb.): 300
Platform Width (in.): 19-1/2

CART-300-S-FR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 300
Platform Width (in.): 17-3/4
Uniform Capacity (lb.): 300
Platform Width (in.): 17-3/4

CART-400-D-HR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Platform Width (in.): 23-5/8
Uniform Capacity (lb.): 400
Platform Width (in.): 23-5/8

CART-600-D-FR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Platform Width (in.): 23-1/4
Uniform Capacity (lb.): 600
Platform Width (in.): 23-1/4

CART-600-S-FR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Platform Width (in.): 19-3/4
Uniform Capacity (lb.): 600
Platform Width (in.): 19-3/4

Premium Scissor Lift Carts PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


CART-300-D-FR

CART-300-S-FR

CART-400-D-HR

CART-600-D-FR

CART-600-S-FR

CART-1000-D-FR

CART-1000-S-FR

CART-1000-S-HR

SDS Sheets

Hydraulic Oil SDS Sheet for: CART-1000-D-FR
Hydraulic Oil SDS Sheet for: CART-1000-S-FR
Hydraulic Oil SDS Sheet for: CART-300-D-FR
Hydraulic Oil SDS Sheet for: CART-400-D-HR
Hydraulic Oil SDS Sheet for: CART-600-D-FR
Hydraulic Oil SDS Sheet for: CART-600-S-FR

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

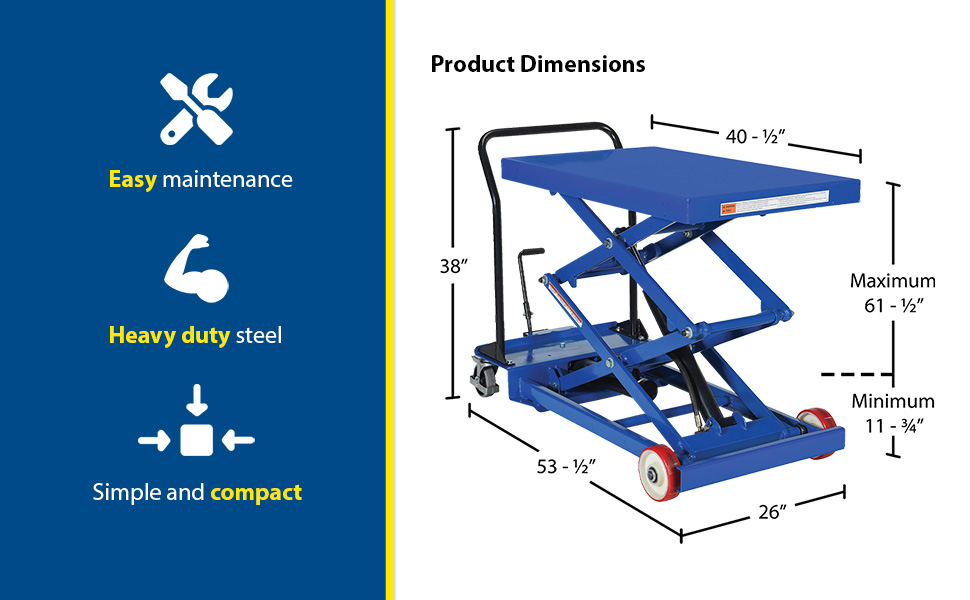

Q: How many pumps to the raised height?

A: Approximately 60-64 pumps to the raised height of 61 1/2".


Q: How much space is there between the front wheels?

A: The space between the front wheels is 20".
