High Profile Machinery Guards
model: HPRO-48-42-4

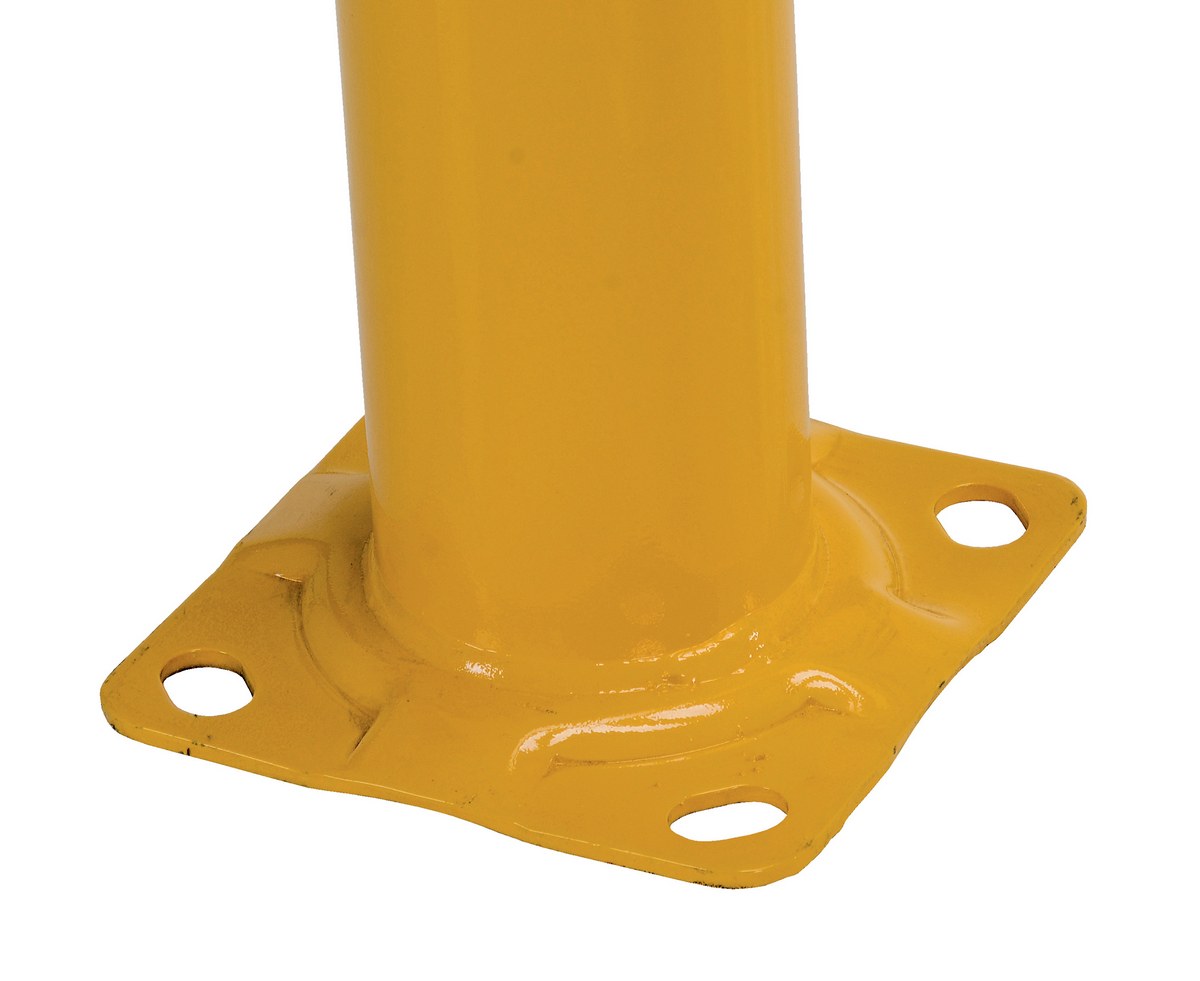

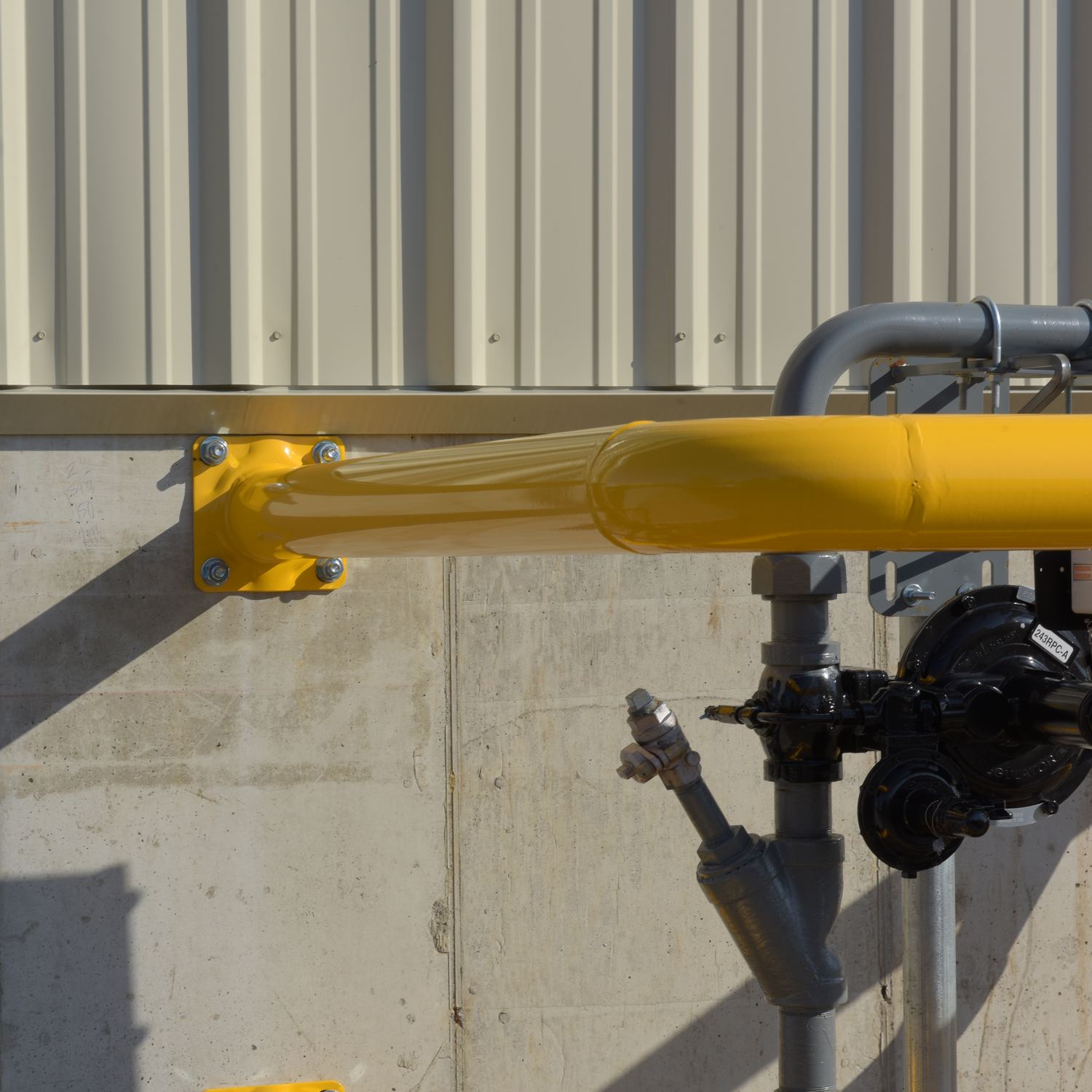

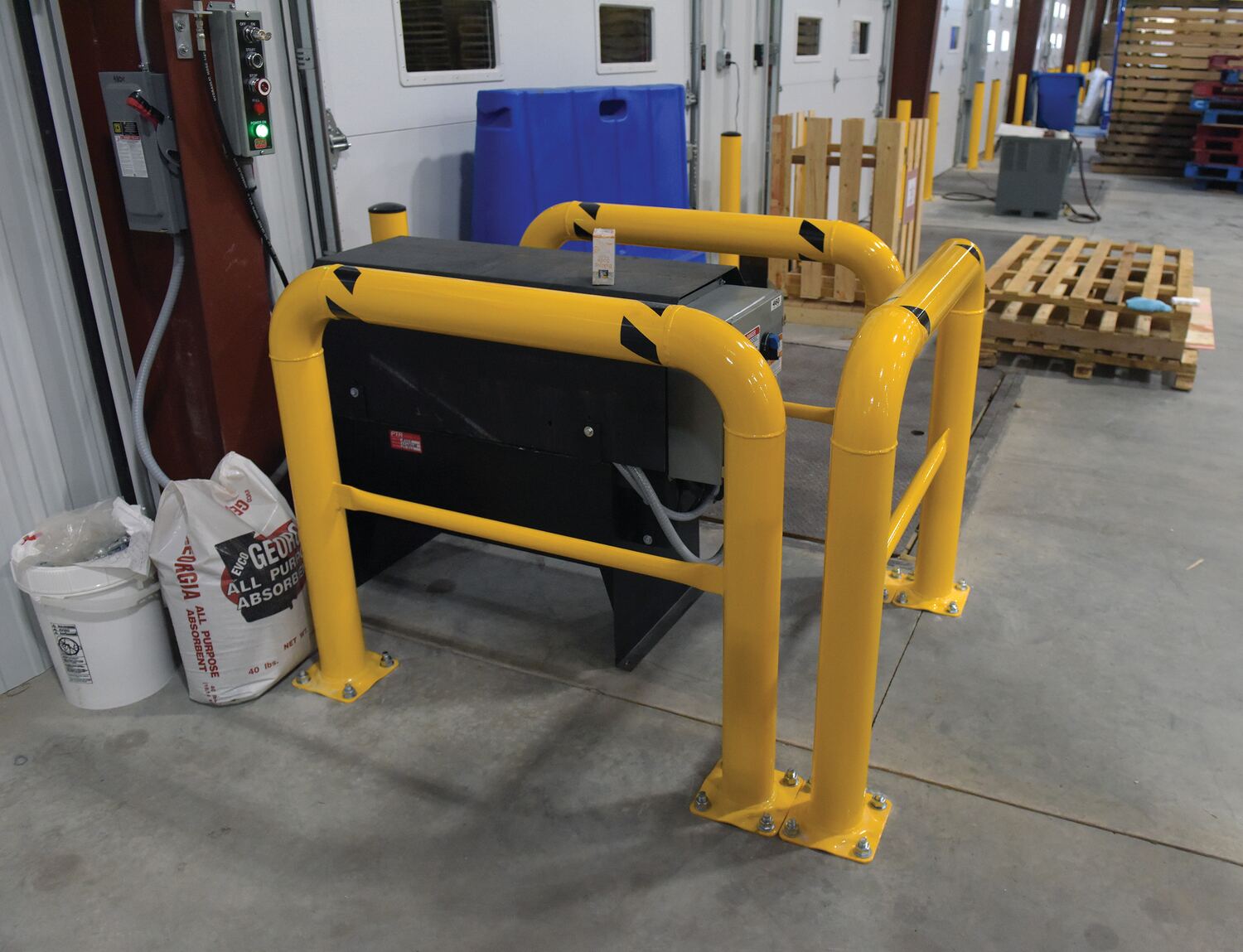

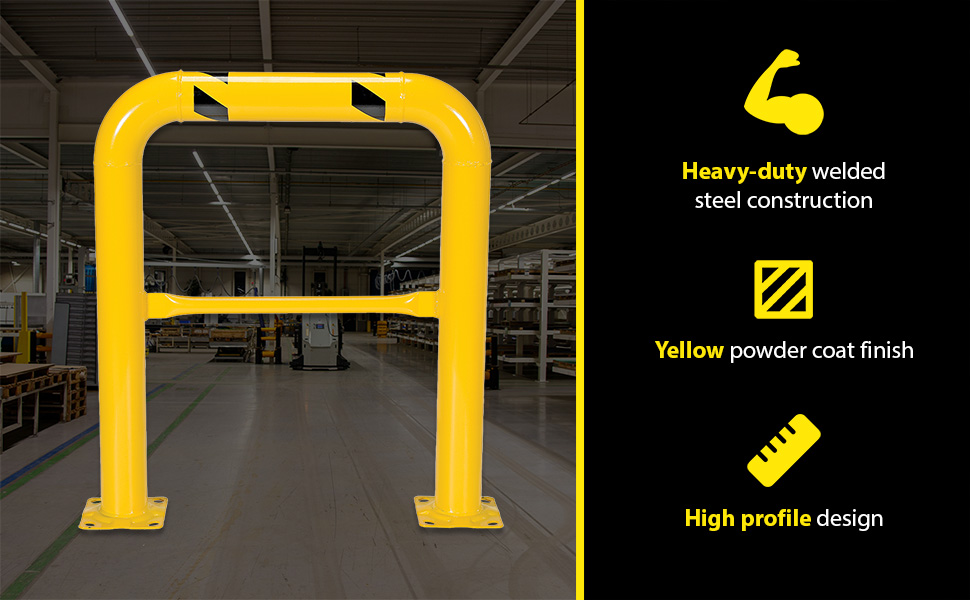

Heavy-duty welded steel construction for protecting racks, building walls, expensive equipment, and hundreds of other applications. All 42" high units include a 21" mid-rail to comply with OSHA requirements. Available with a baked-in yellow powder coated finish for toughness. A 304 stainless steel polished finish is also available. Two base plates with four pre-drilled mounting holes in each plate.
Heavy-duty welded steel construction for protecting racks, building walls, expensive equipment, and hundreds of other applications. All 42" high units include a 21" mid-rail to comply with OSHA requirements. Available with a baked-in yellow powder coated finish for toughness. A 304 stainless steel polished finish is also available. Two base plates with four pre-drilled mounting holes in each plate.
HPRO-SS-48-42-4
HPRO-48-36-4
HPRO-48-42-4
HPRO-48-42-4
HPRO-72-42-4
HPRO-48-24-2
HPRO-36-36-2
HPRO-SQ-36-24-5
HPRO-SS-36-42-4
HPRO-36-36-2
HPRO-SS-48-36-4
HPRO-36-24-2
HPRO-SQ-48-36-5
HPRO-48-36-4
HPRO-48-42-4
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

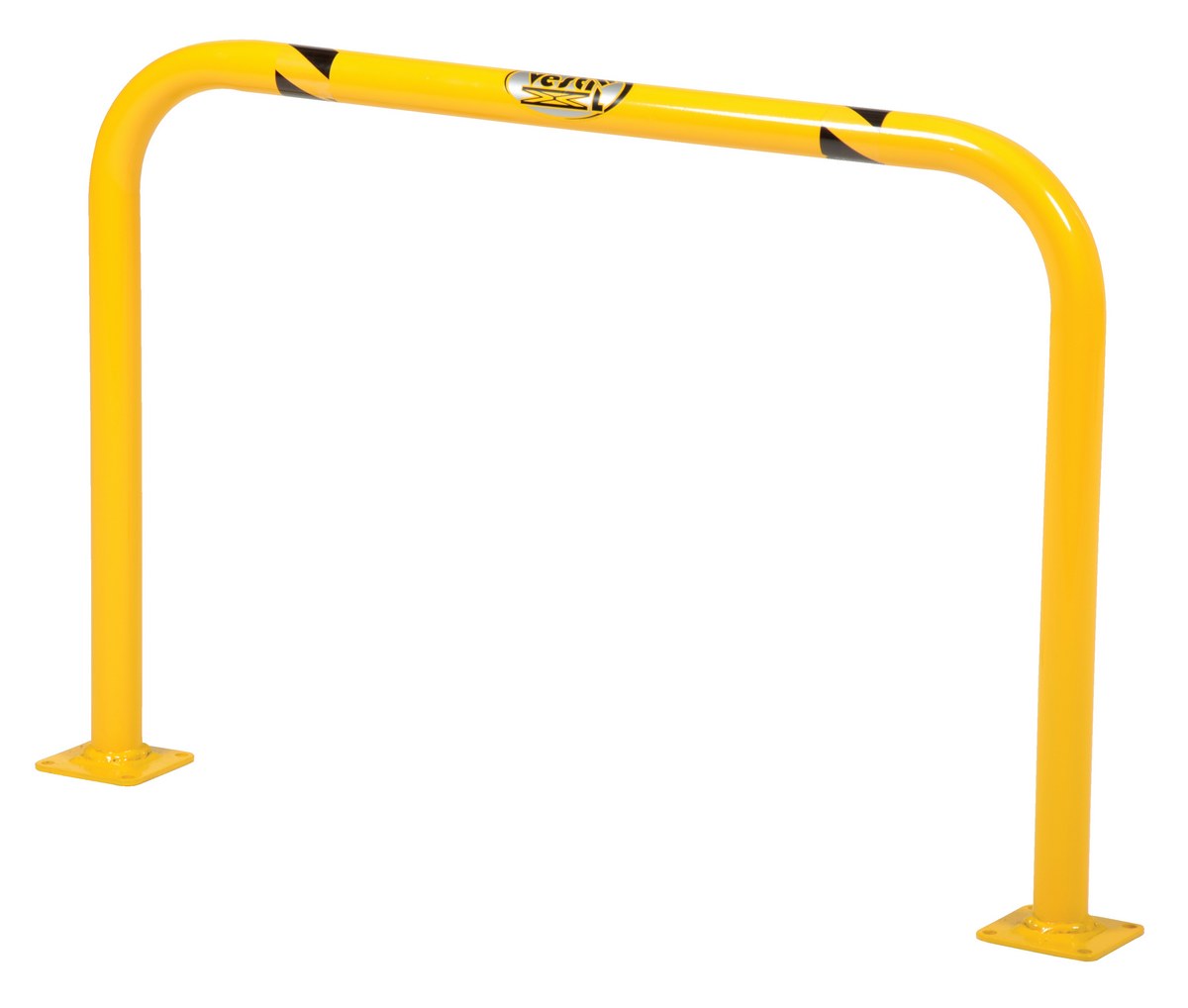

| HPRO-36-24-2 |
 | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 36 In. x 24 In. x 2 In. Yellow | Guard Diameter (in.): 1-11/16 Guard Width (in.): 36 | 12 | ||

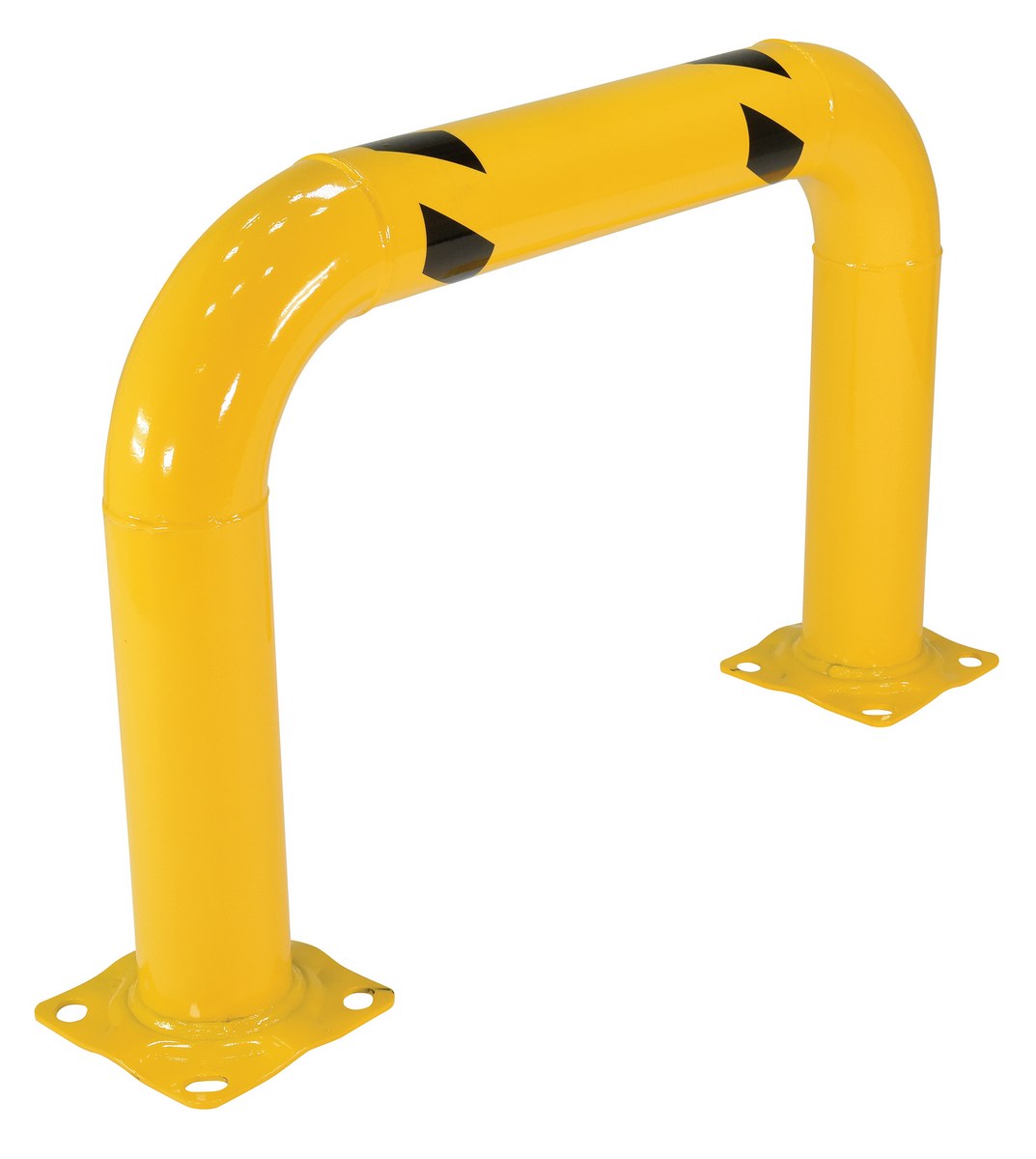

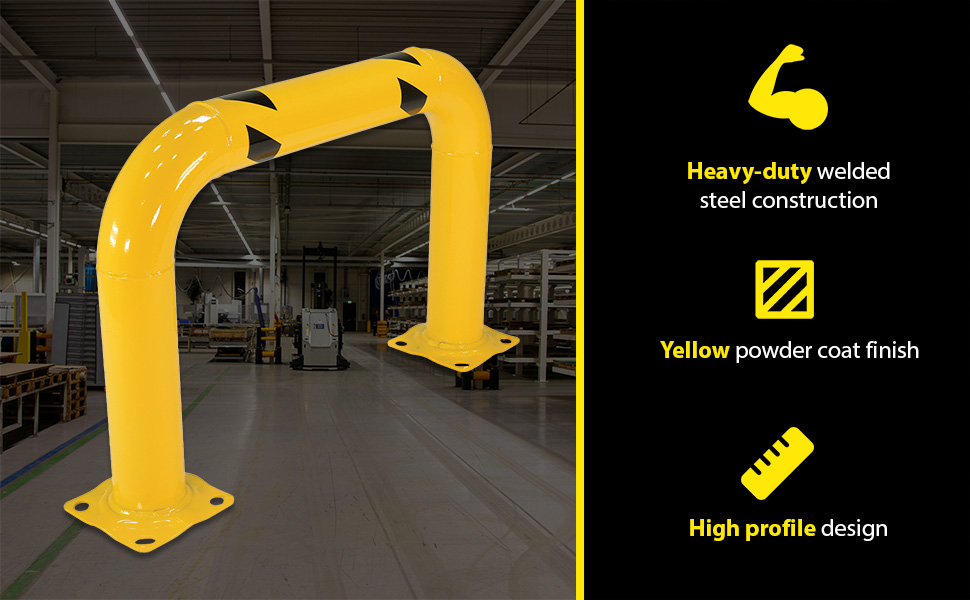

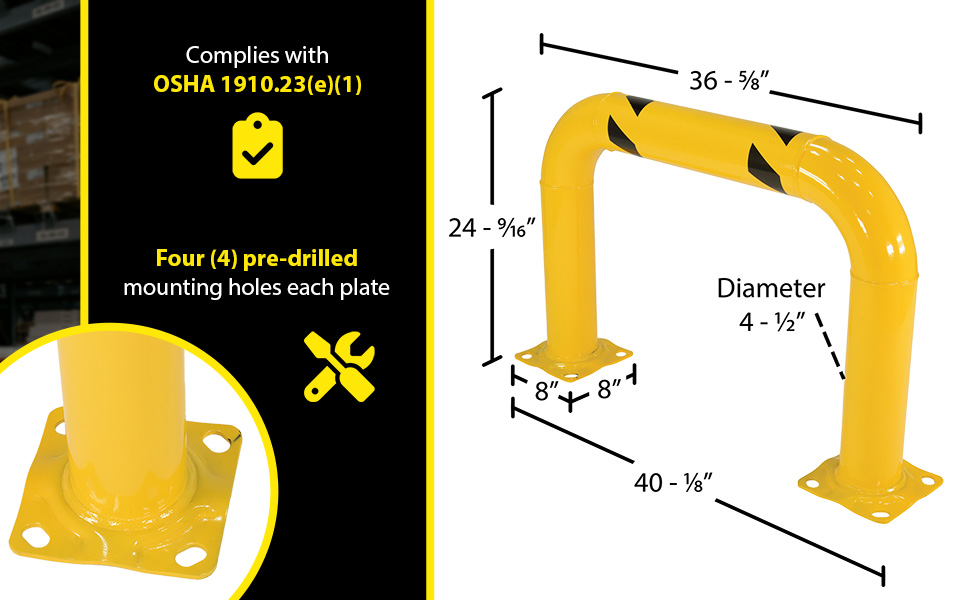

| HPRO-36-24-4 |
 | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 36 In. x 24 In. x 4 In. Yellow | Guard Diameter (in.): 4-1/2 Guard Width (in.): 36-5/8 | 48 | ||

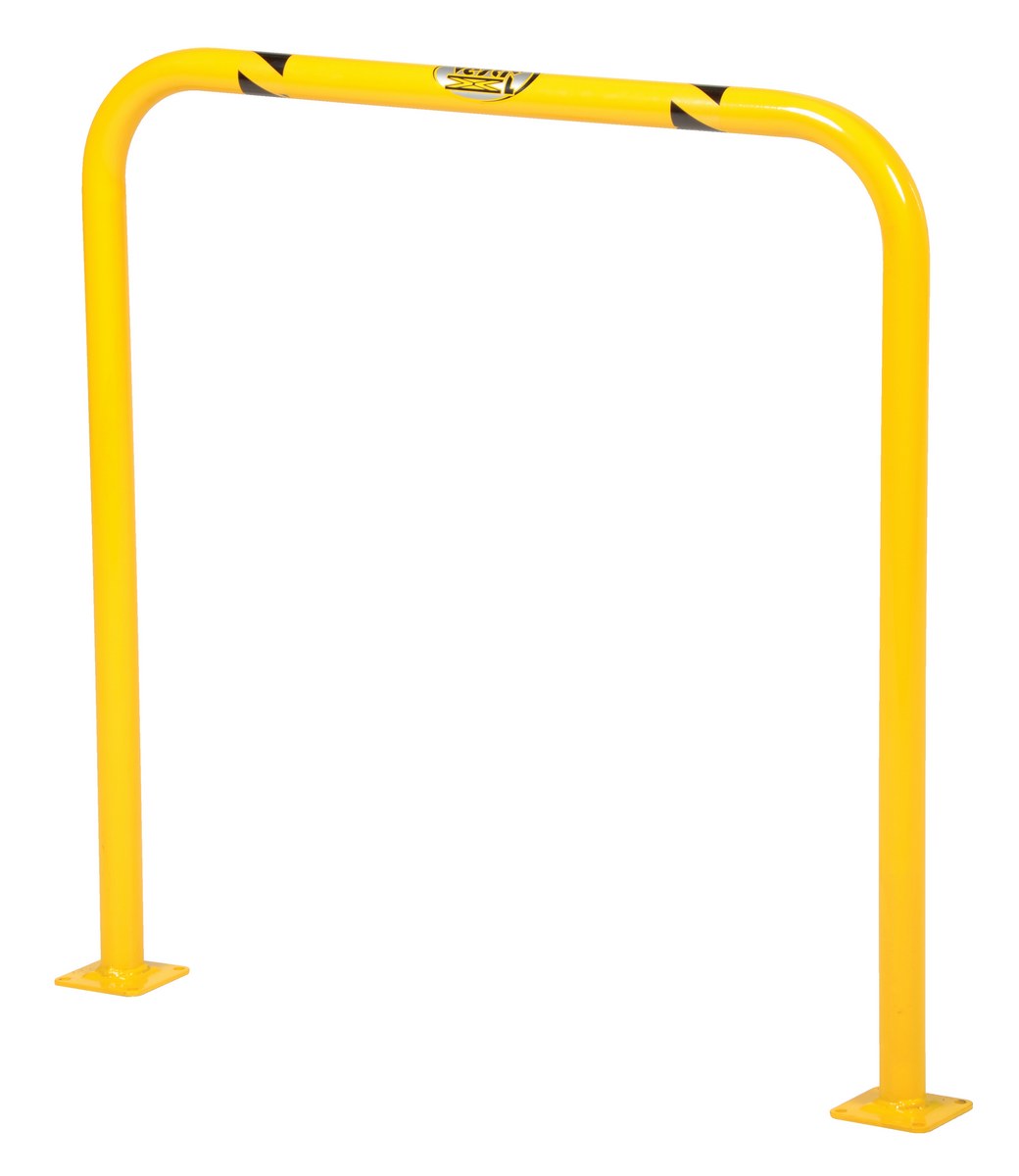

| HPRO-36-36-2 |
| 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 36 In. x 36 In. x 2 In. Yellow | Guard Diameter (in.): 1-11/16 Guard Width (in.): 36 | 18 | ||

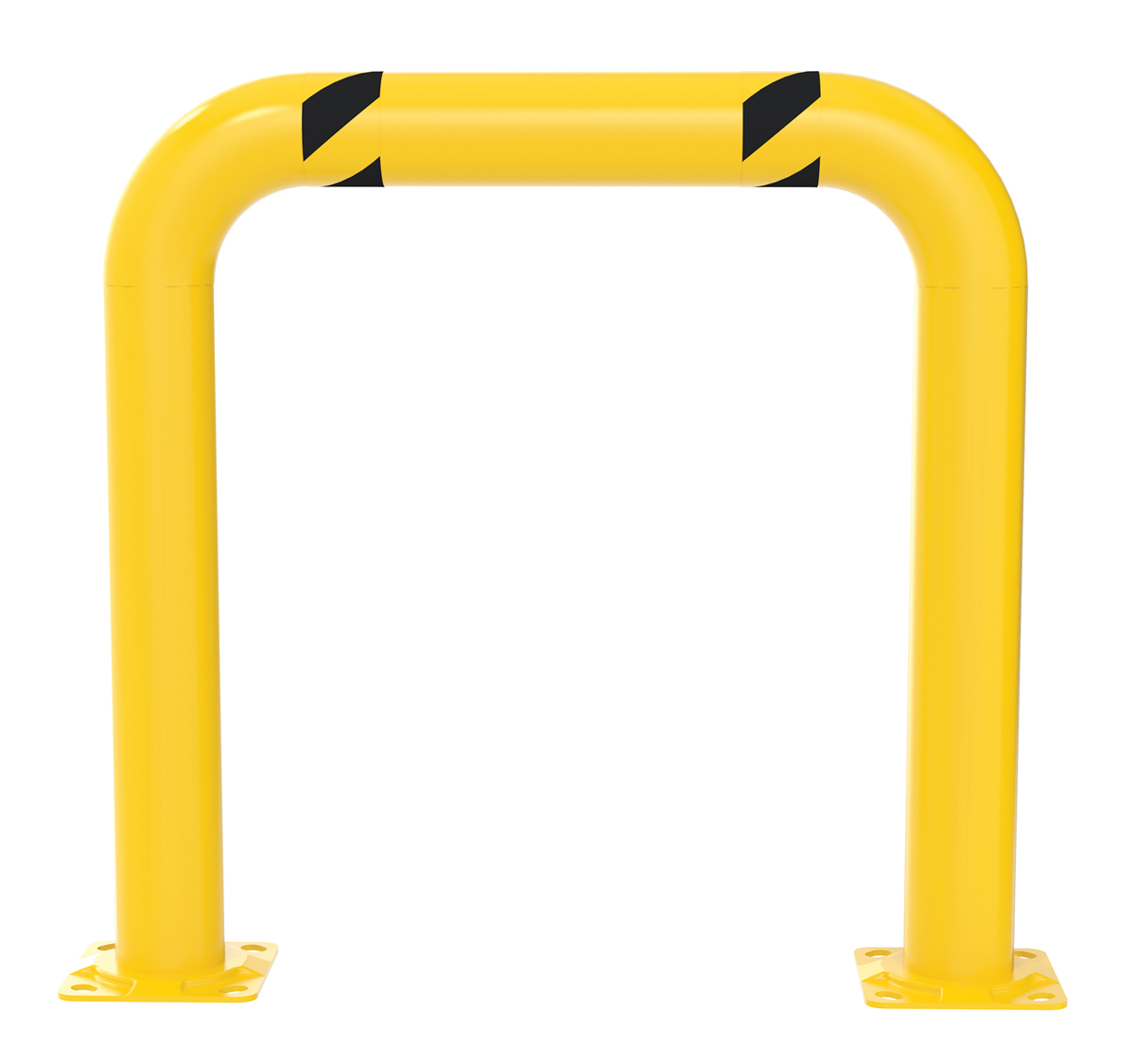

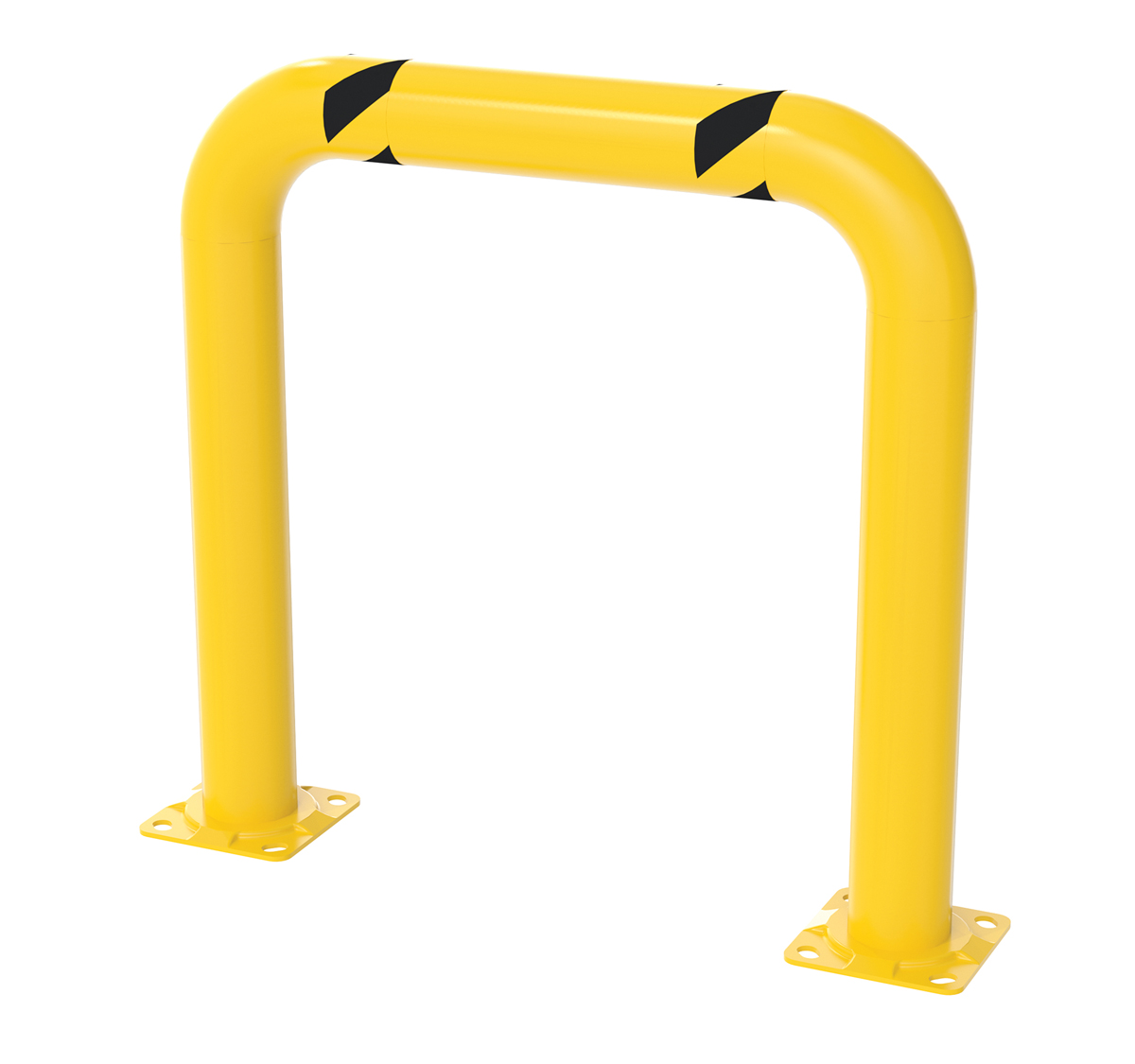

| HPRO-36-36-4 |
 | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 36 In. x 36 In. x 4 In. Yellow | Guard Diameter (in.): 4-1/2 Guard Width (in.): 36-5/8 | 100 | ||

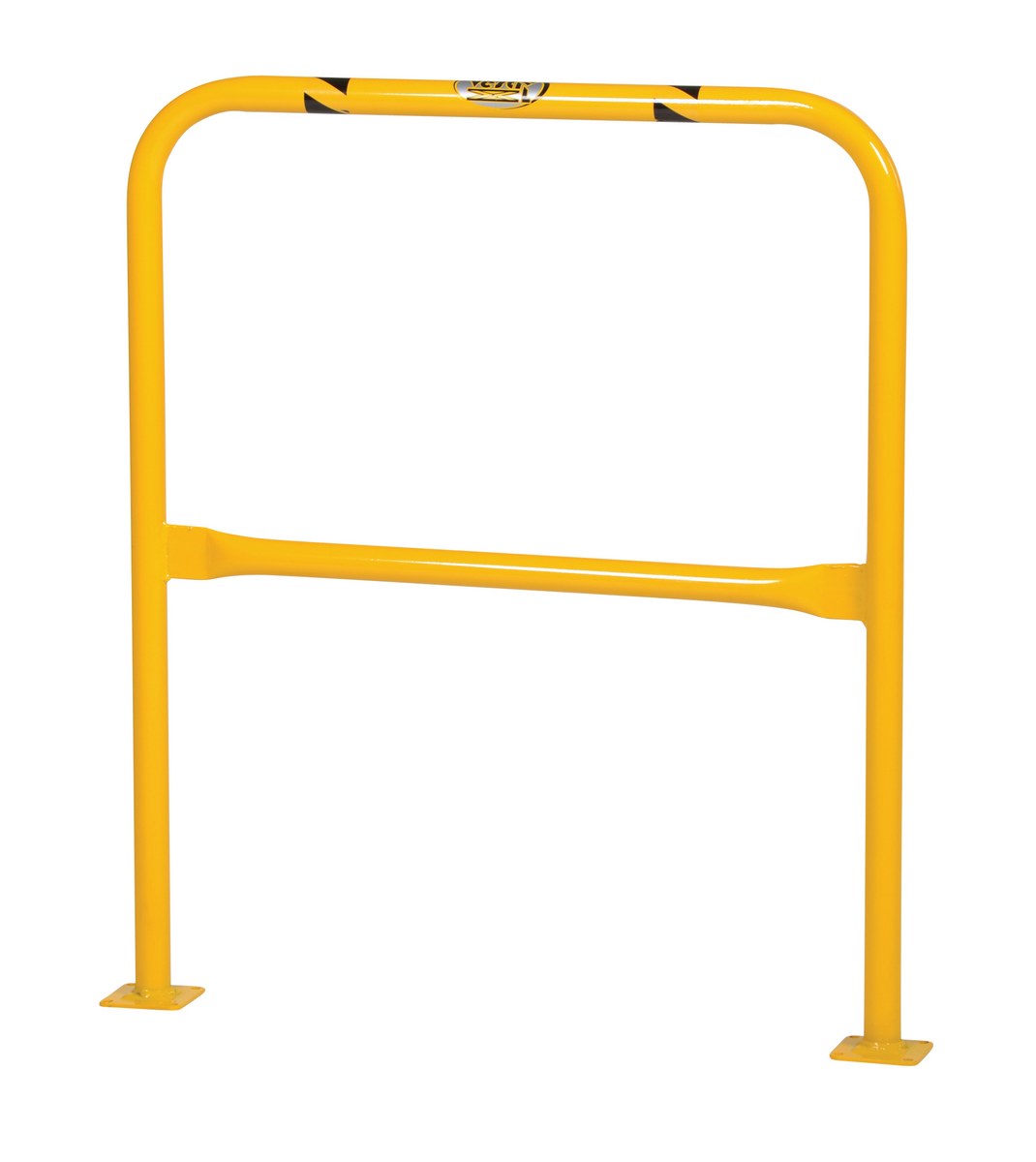

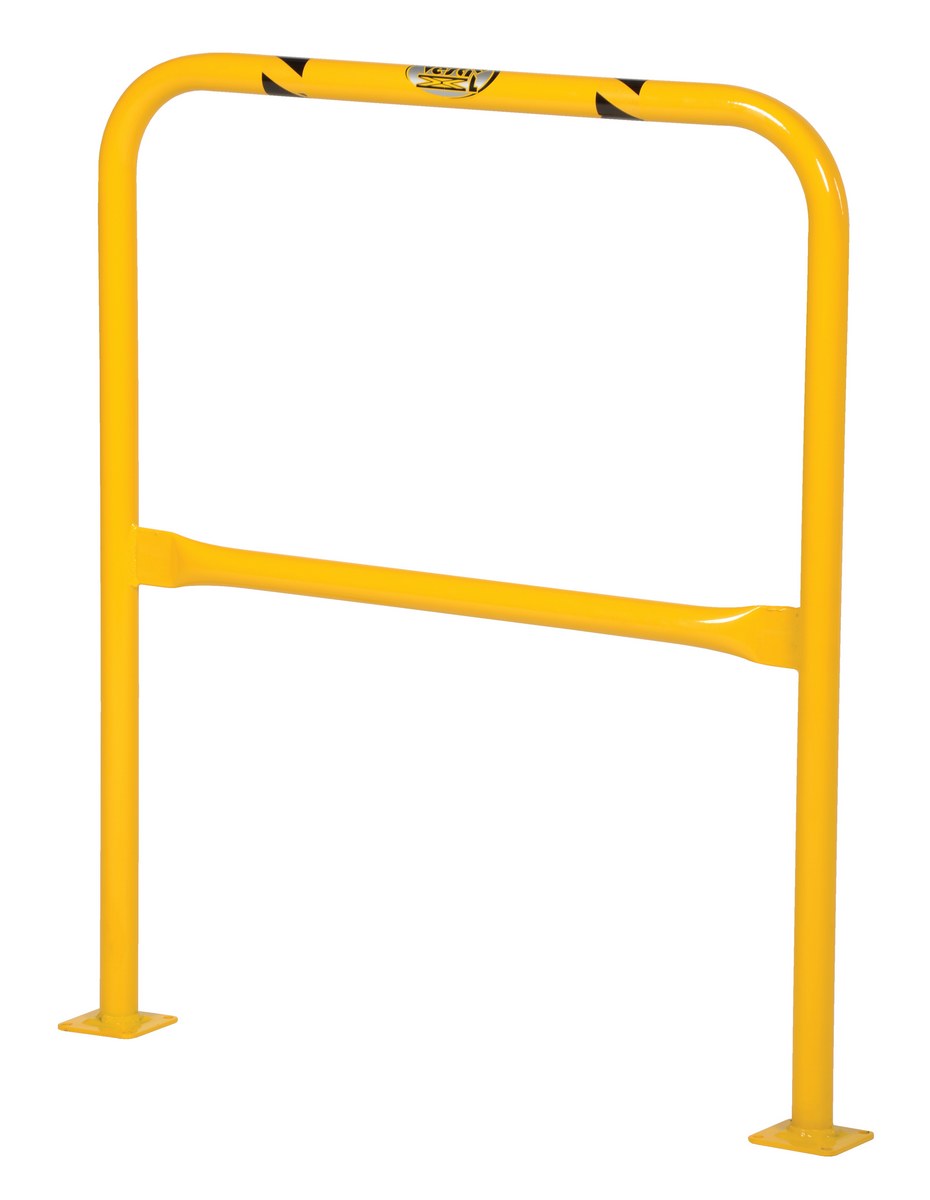

| HPRO-36-42-2 |
 | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 36 In. x 42 In. x 2 In. Yellow | Guard Diameter (in.): 1-11/16 Guard Width (in.): 36 | 20 | ||

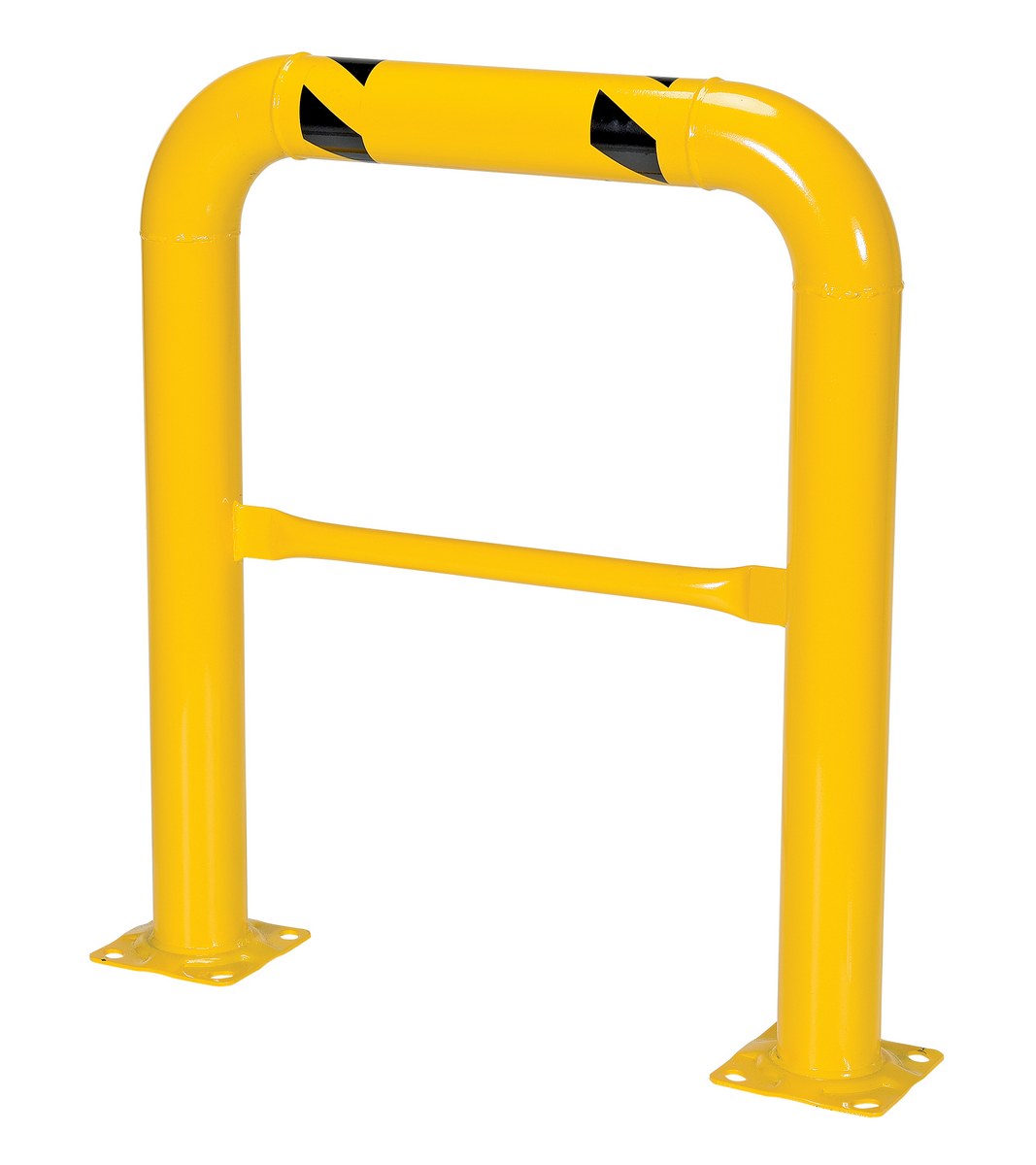

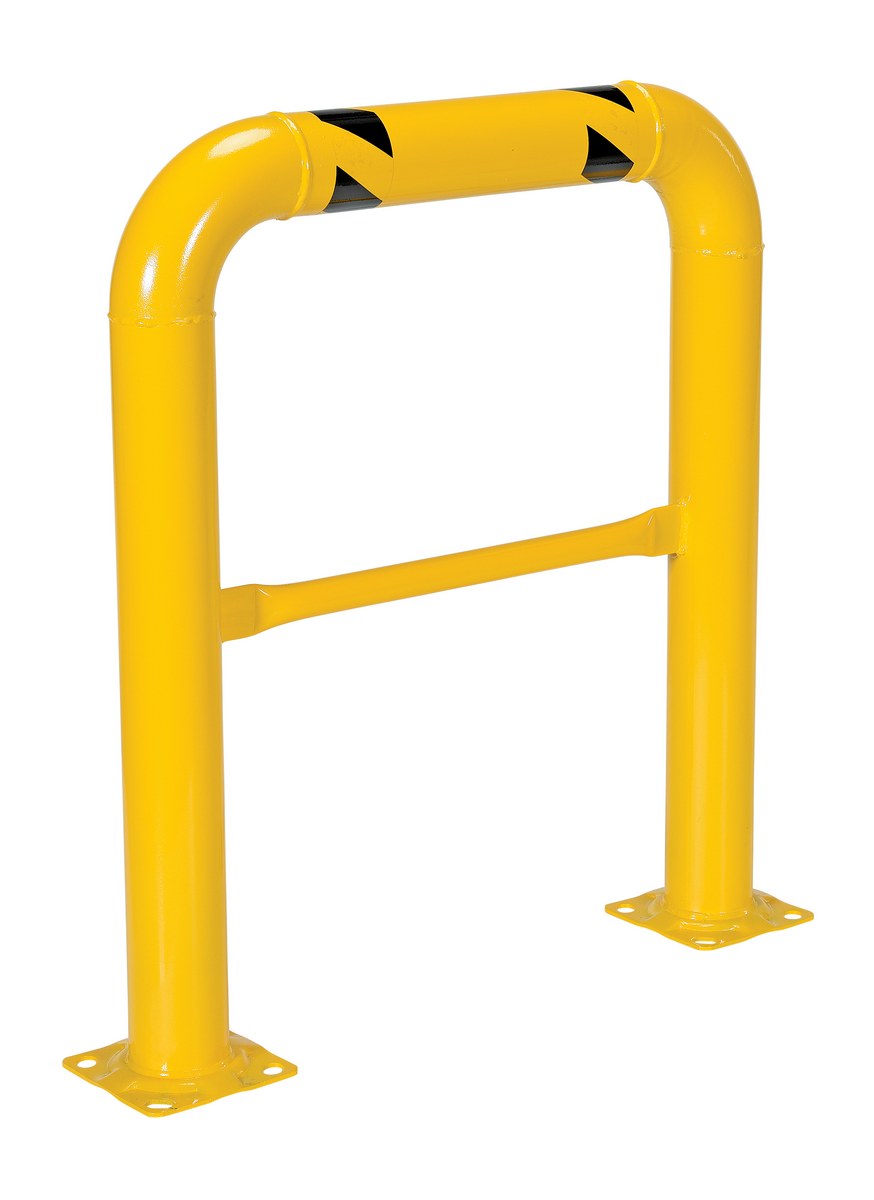

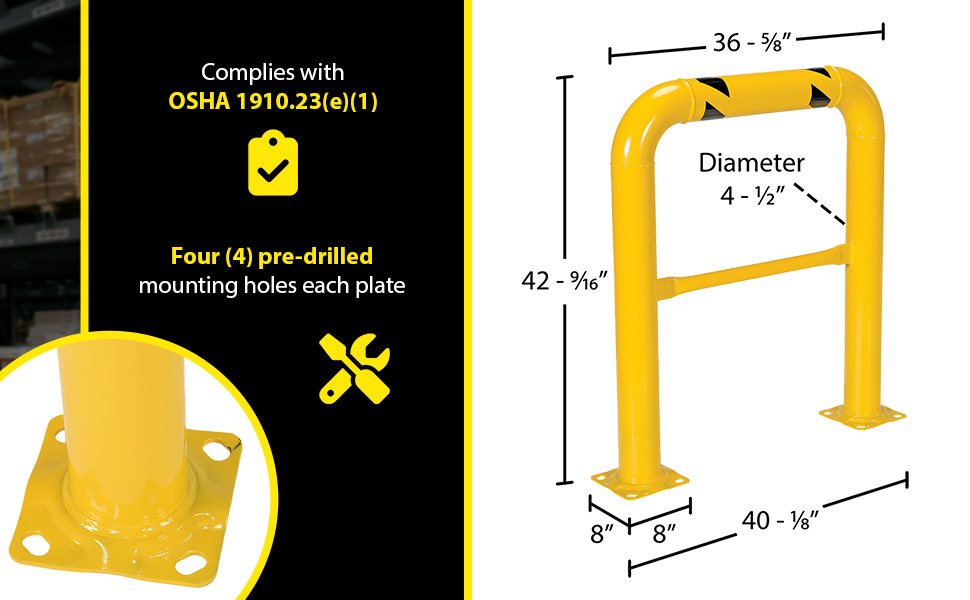

| HPRO-36-42-4 |
 | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 36 In. x 42 In. x 4 In. Yellow | Guard Diameter (in.): 4-1/2 Guard Width (in.): 36-5/8 | 70 | ||

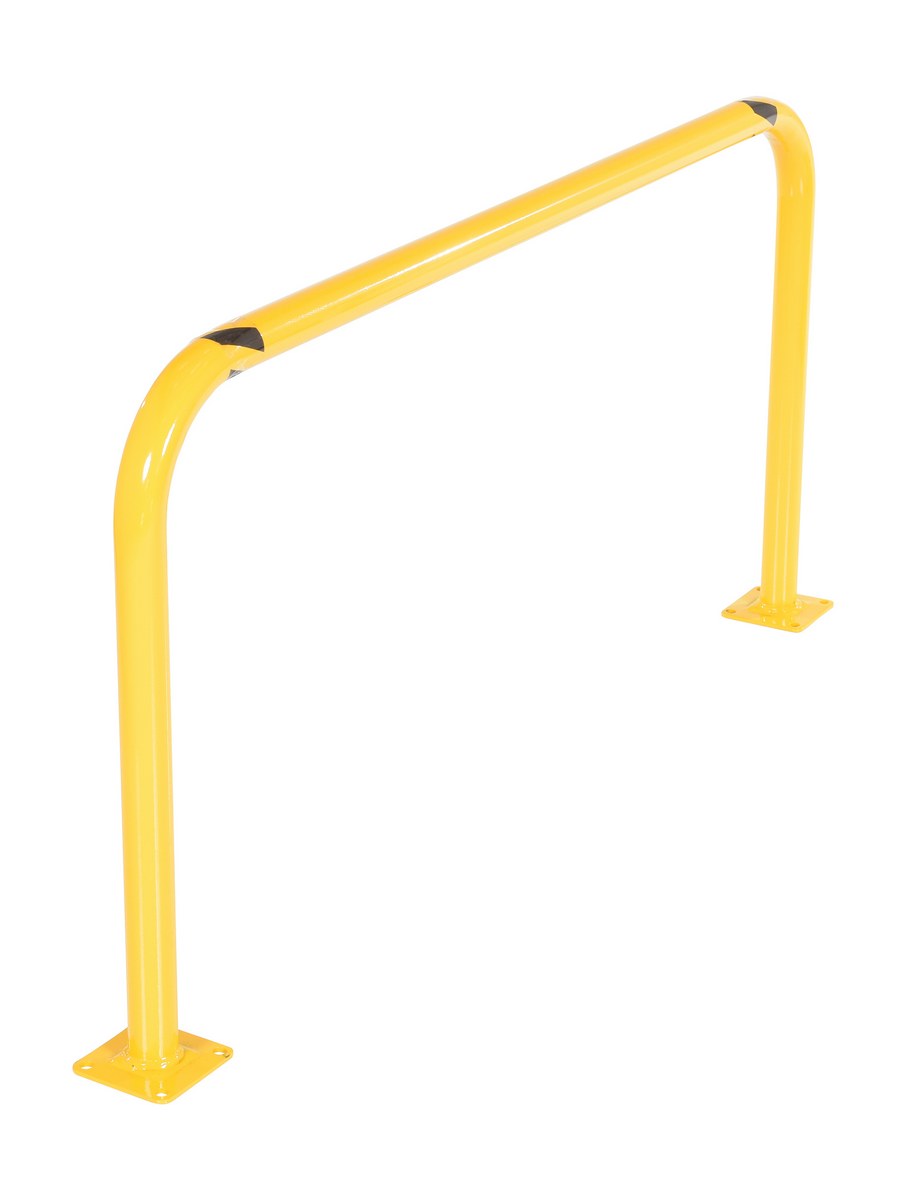

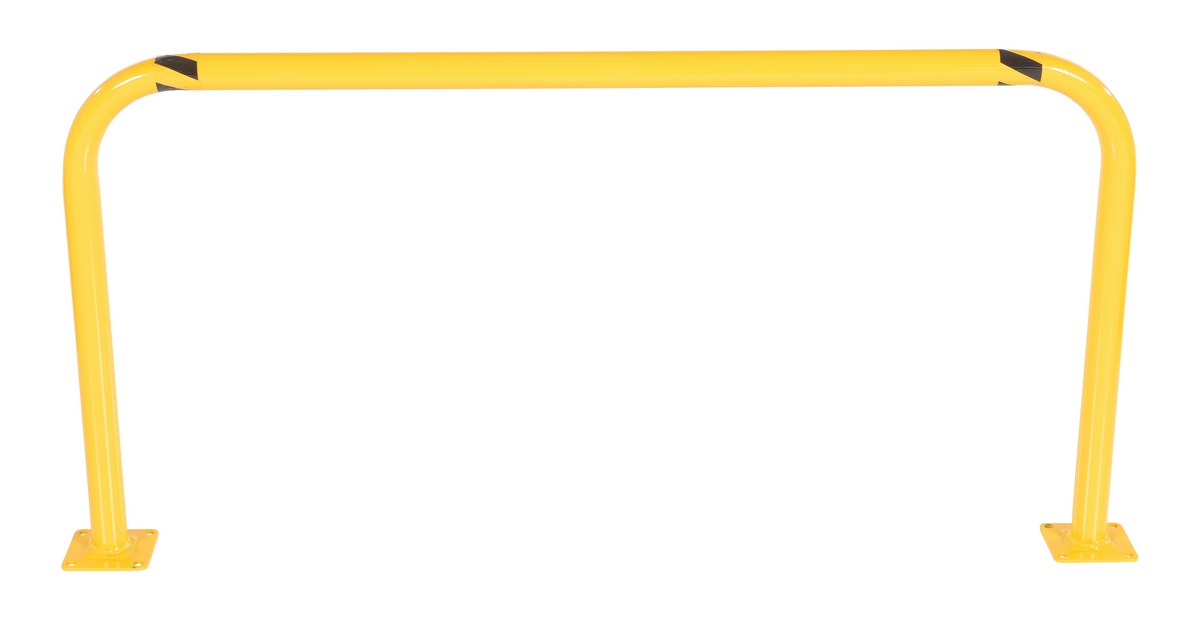

| HPRO-48-24-2 |
 | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 48 In. x 24 In. x 2 In. Yellow | Guard Diameter (in.): 1-11/16 Guard Width (in.): 48 | 19 | ||

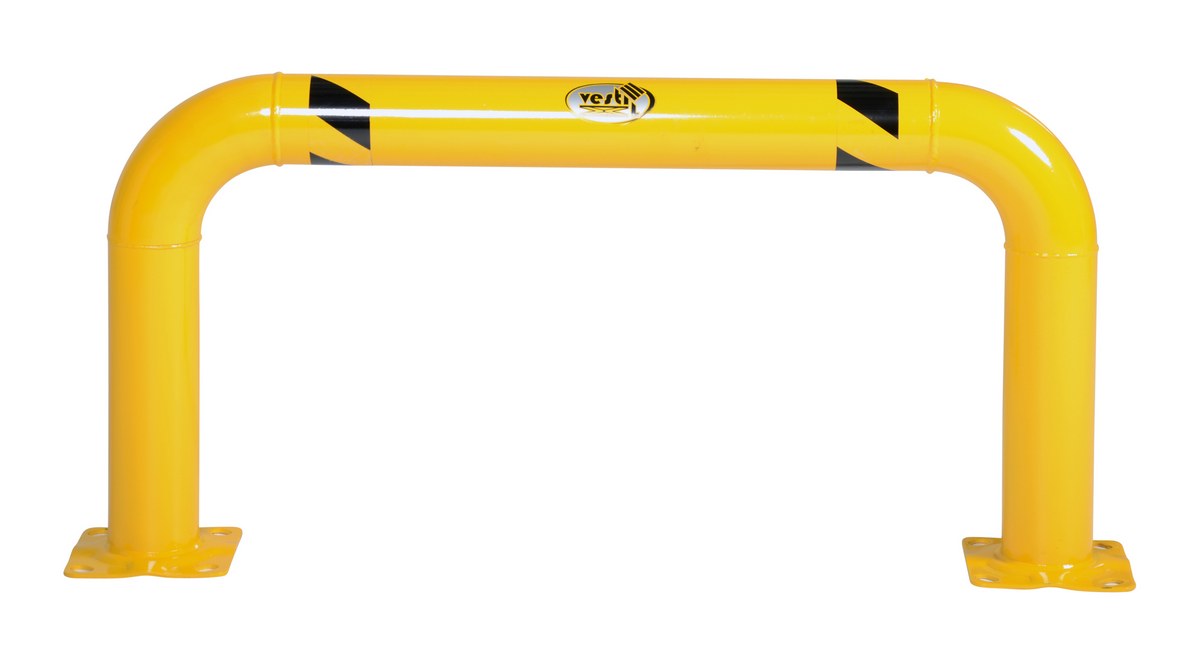

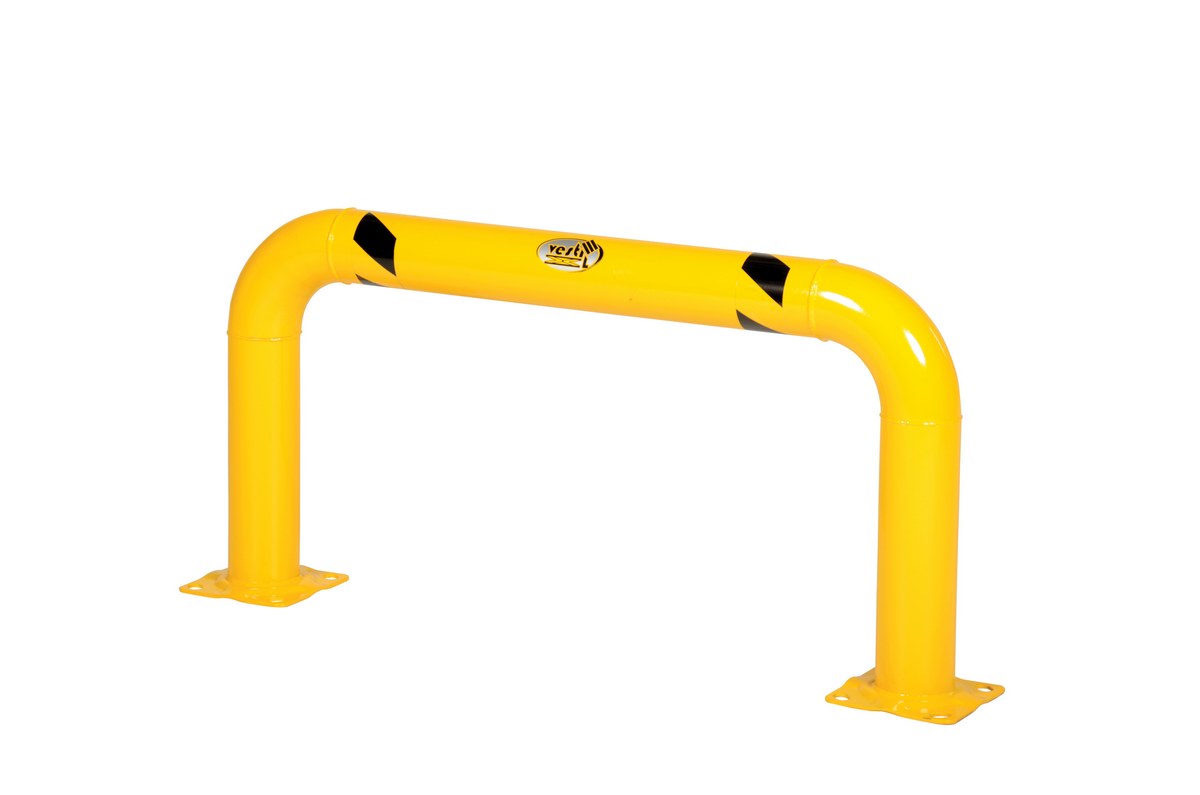

| HPRO-48-24-4 |
 | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 48 In. x 24 In. x 4 In. Yellow | Guard Diameter (in.): 4-1/2 Guard Width (in.): 48-5/8 | 51 | ||

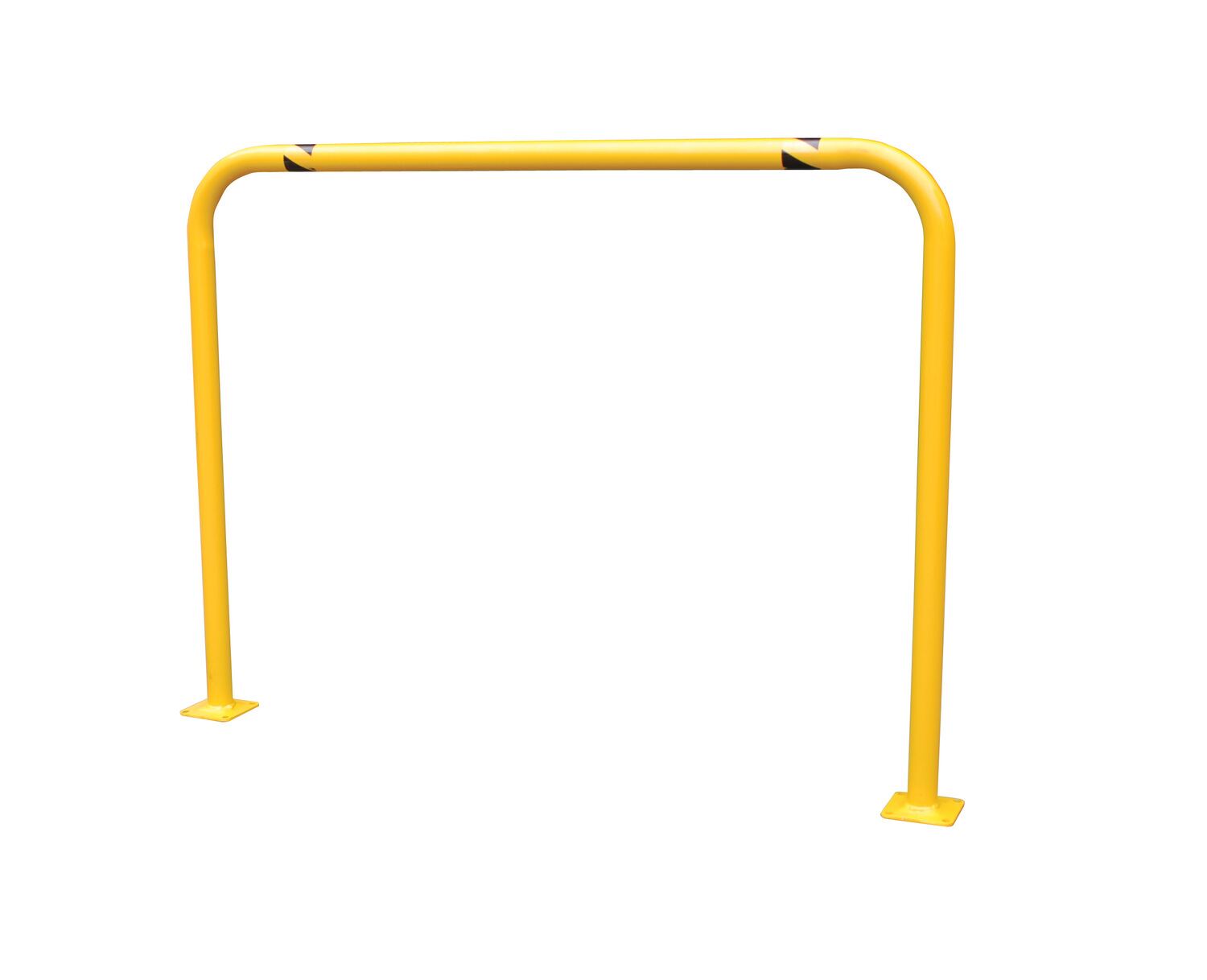

| HPRO-48-36-2 |
 | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 48 In. x 36 In. x 2 In. Yellow | Guard Diameter (in.): 1-11/16 Guard Width (in.): 48 | 21 | ||
| HPRO-48-36-4 |
| 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 48 In. x 36 In. x 4 In. Yellow | Guard Diameter (in.): 4-1/2 Guard Width (in.): 48-5/8 | 62 | ||

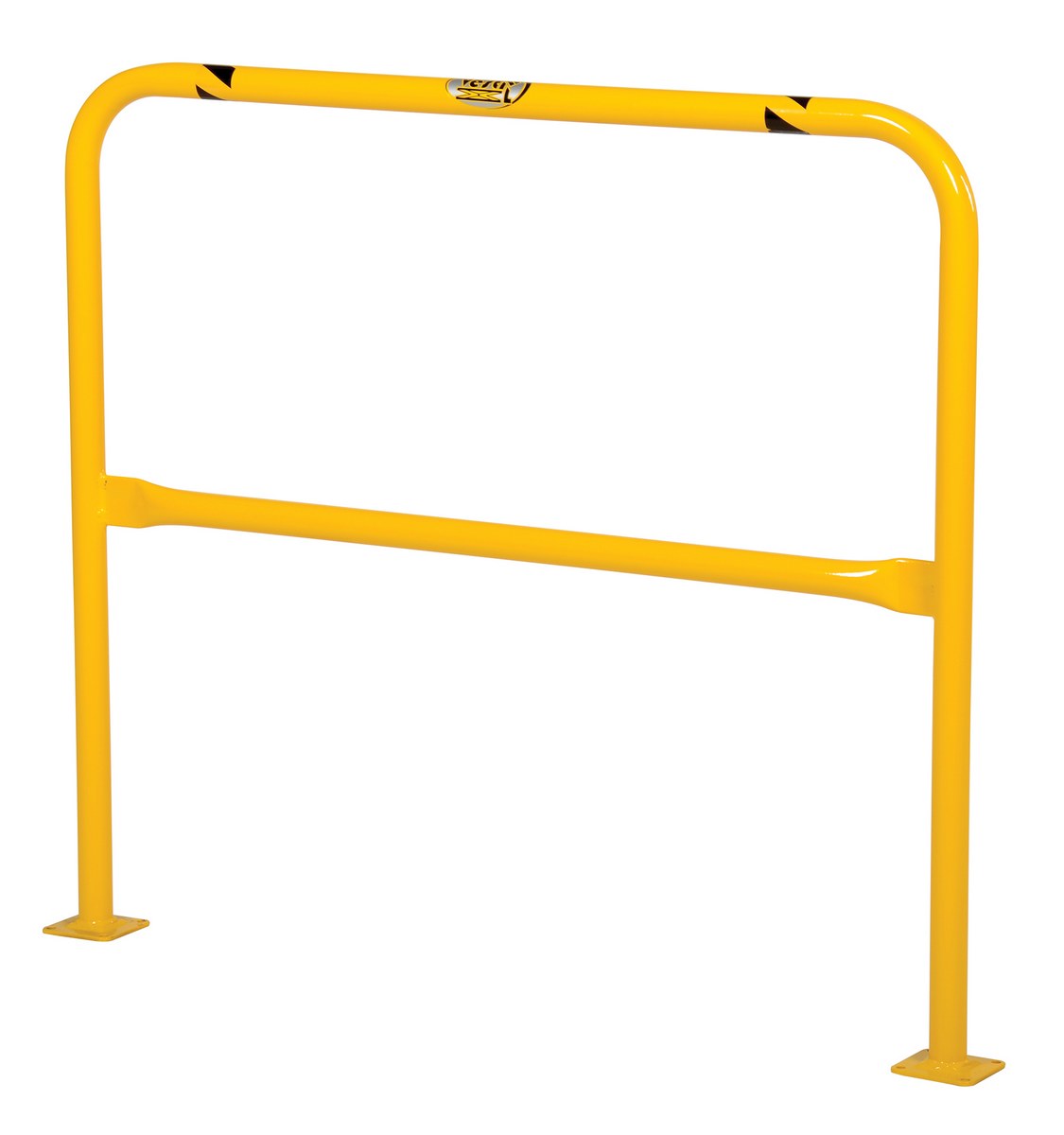

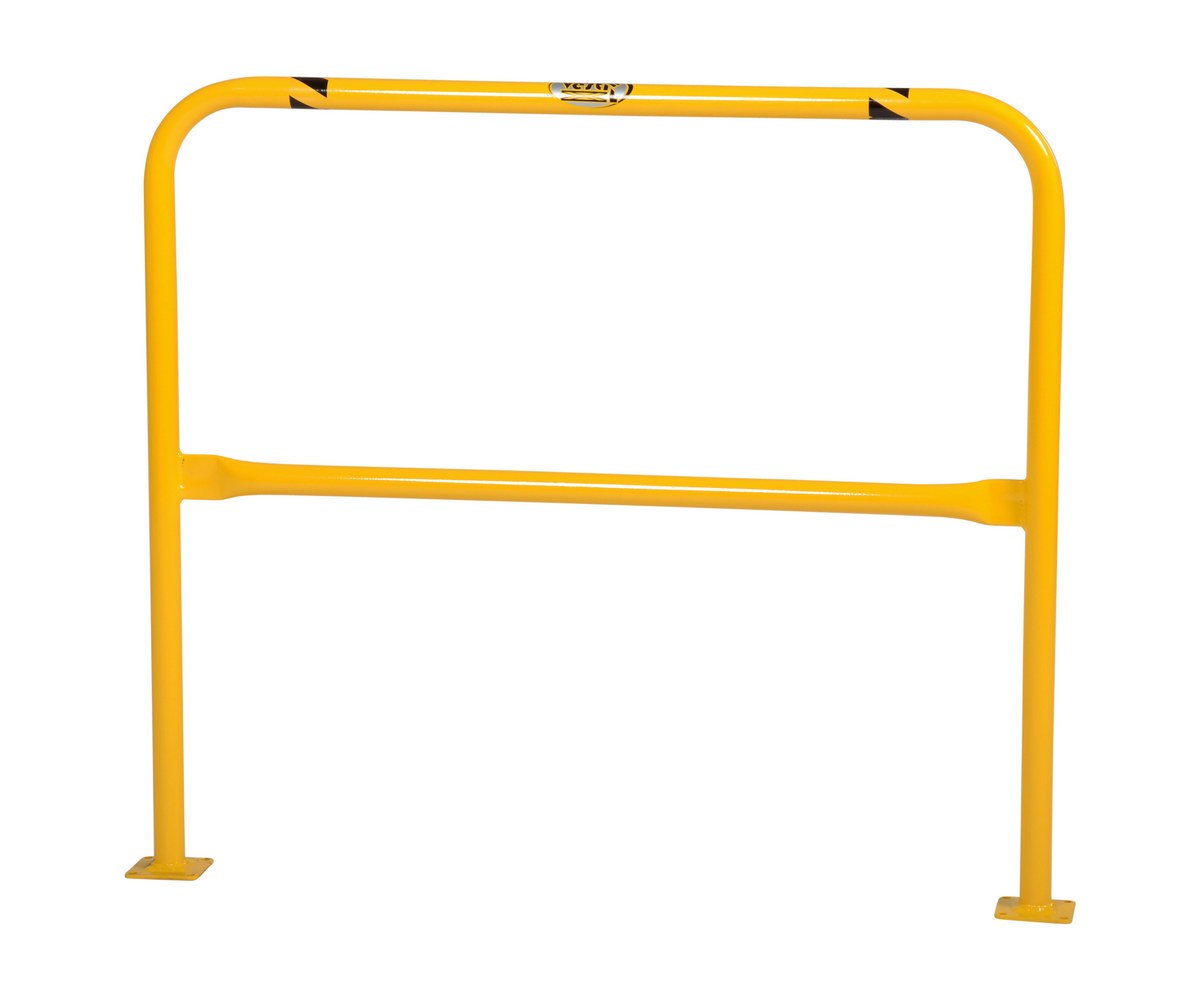

| HPRO-48-42-2 |
 | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 48 In. x 42 In. x 2 In. Yellow | Guard Diameter (in.): 1-11/16 Guard Width (in.): 48 | 26 | ||

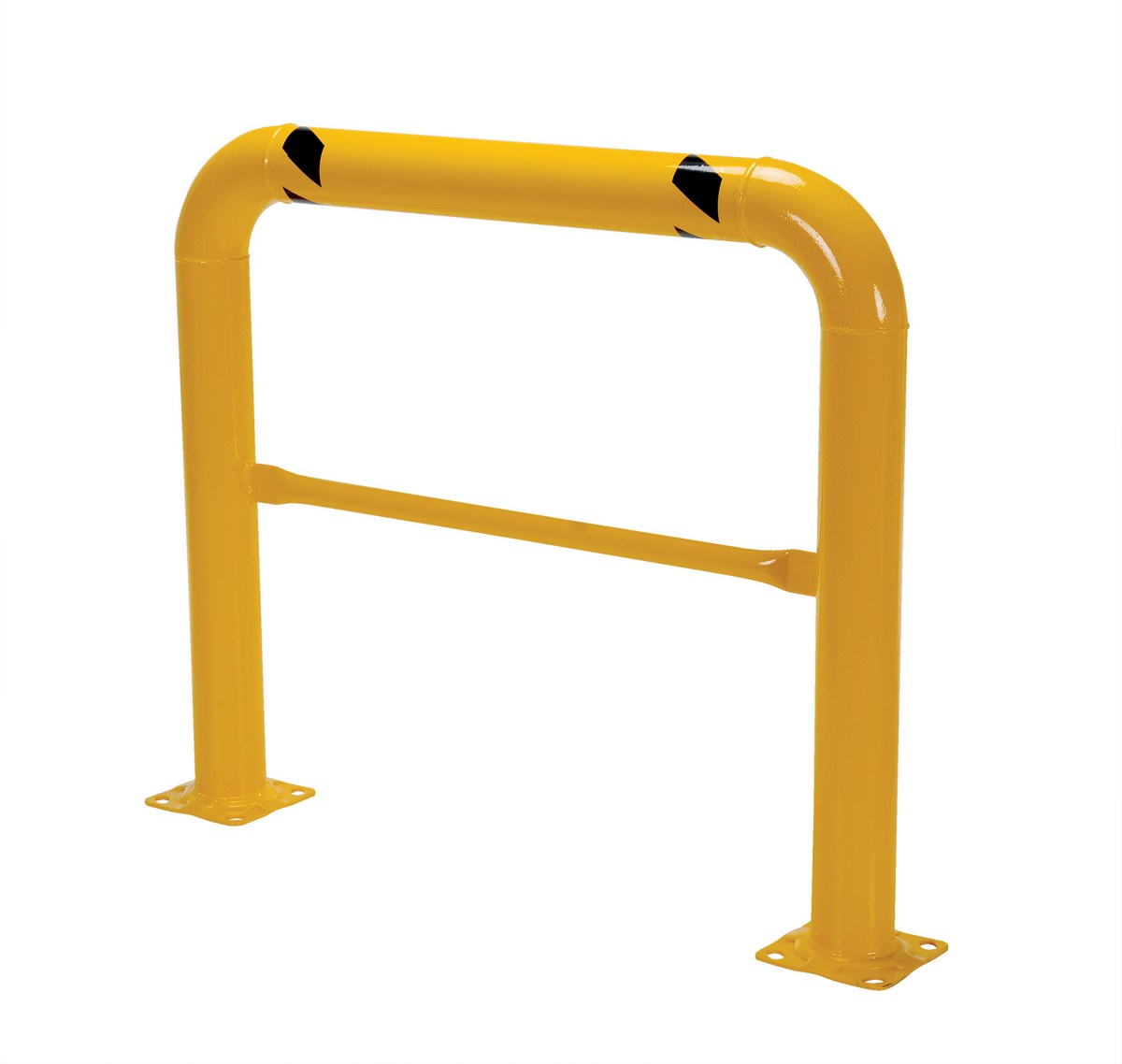

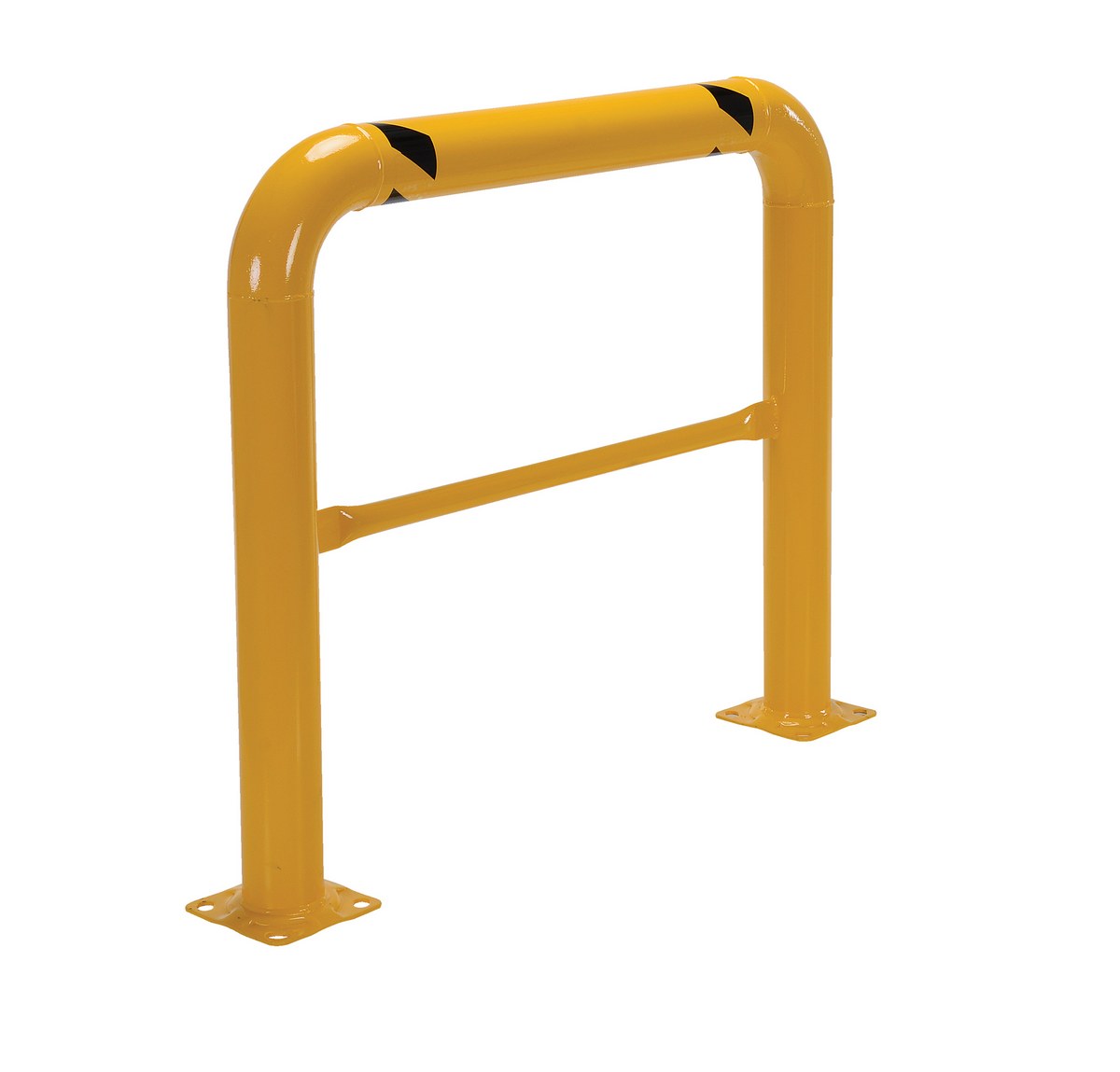

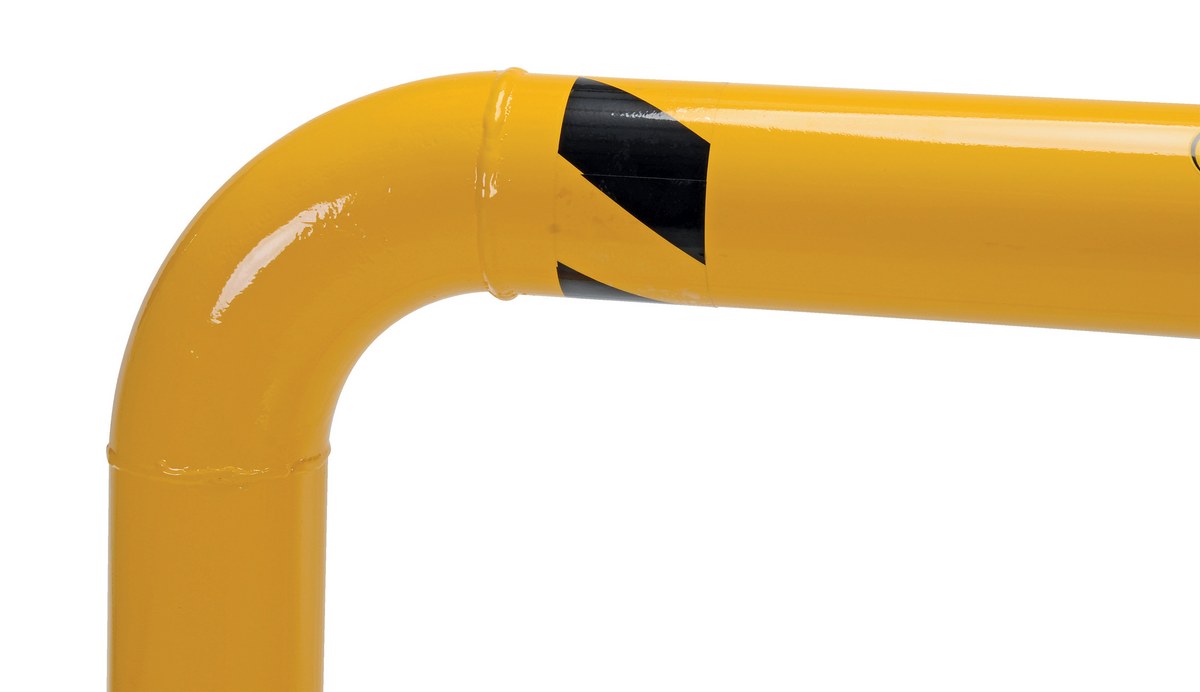

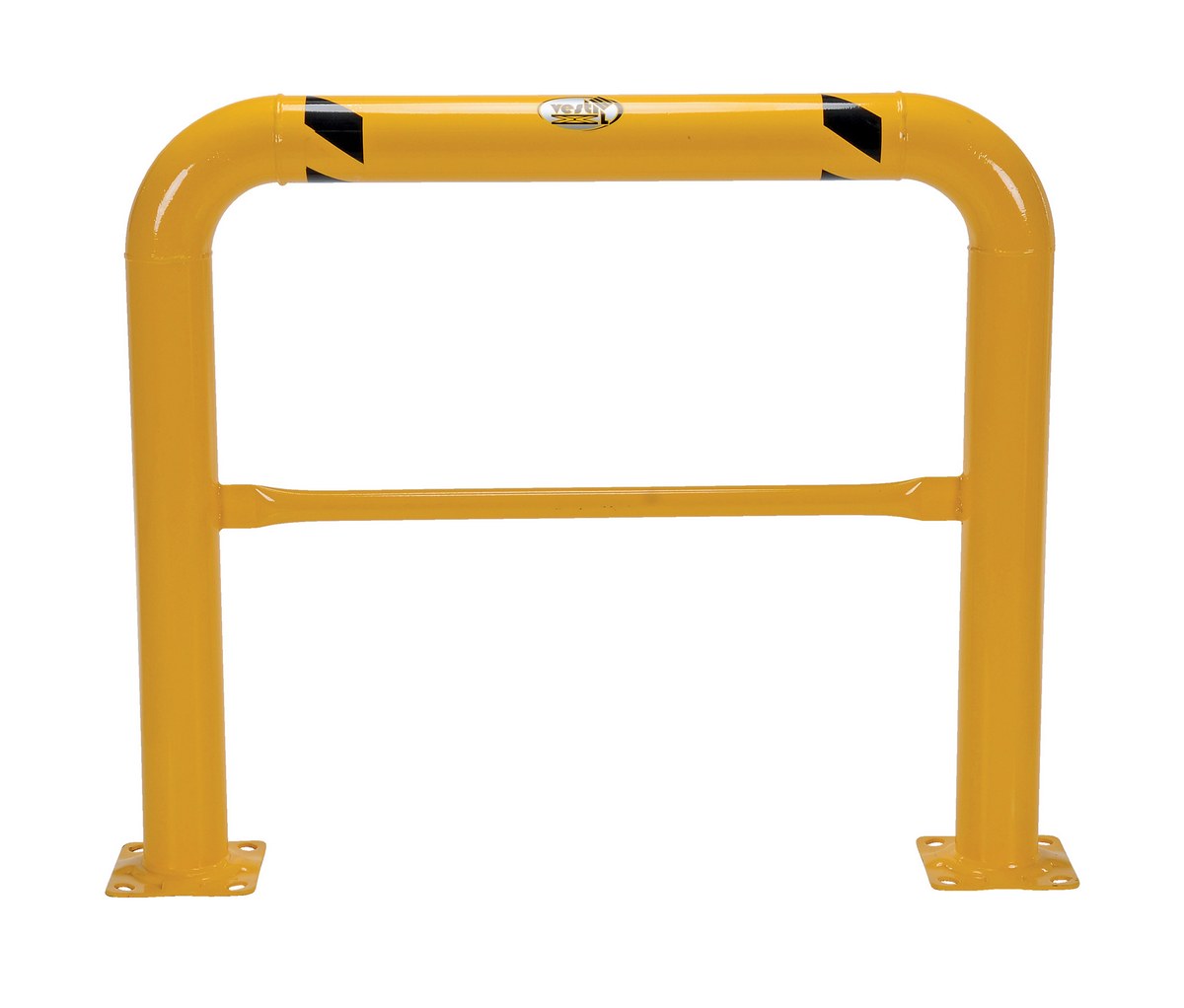

| HPRO-48-42-4 |
| 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 48 In. x 42 In. x 4 In. Yellow | Guard Diameter (in.): 4-1/2 Guard Width (in.): 48-5/8 | 120 | ||

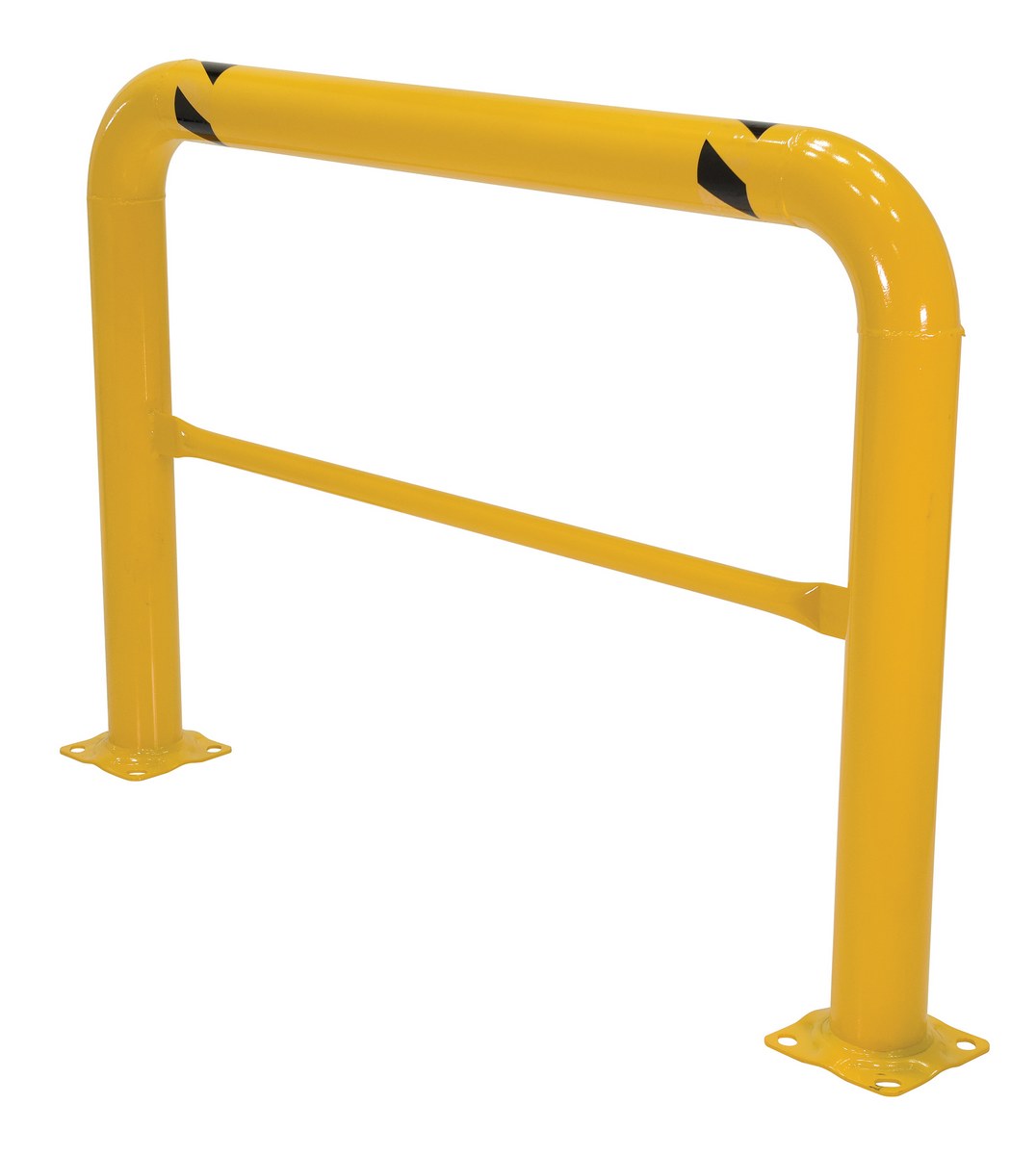

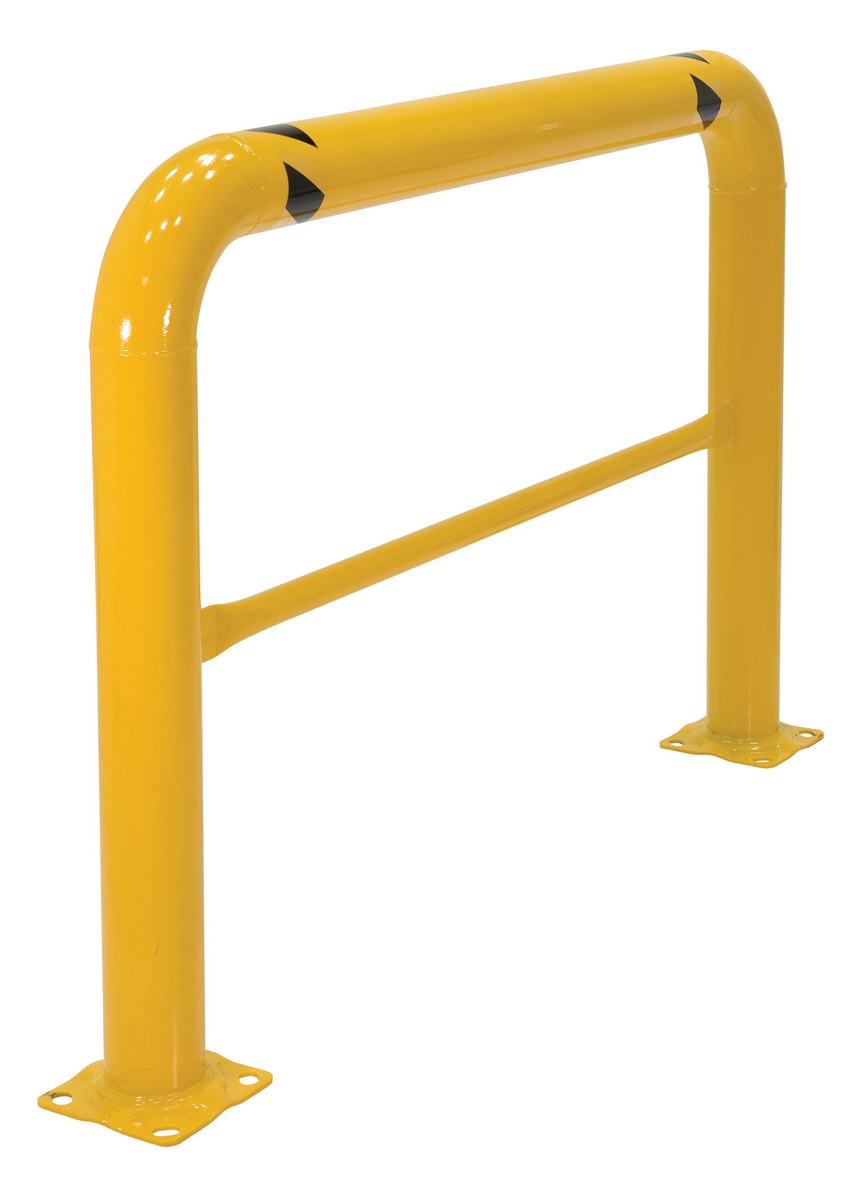

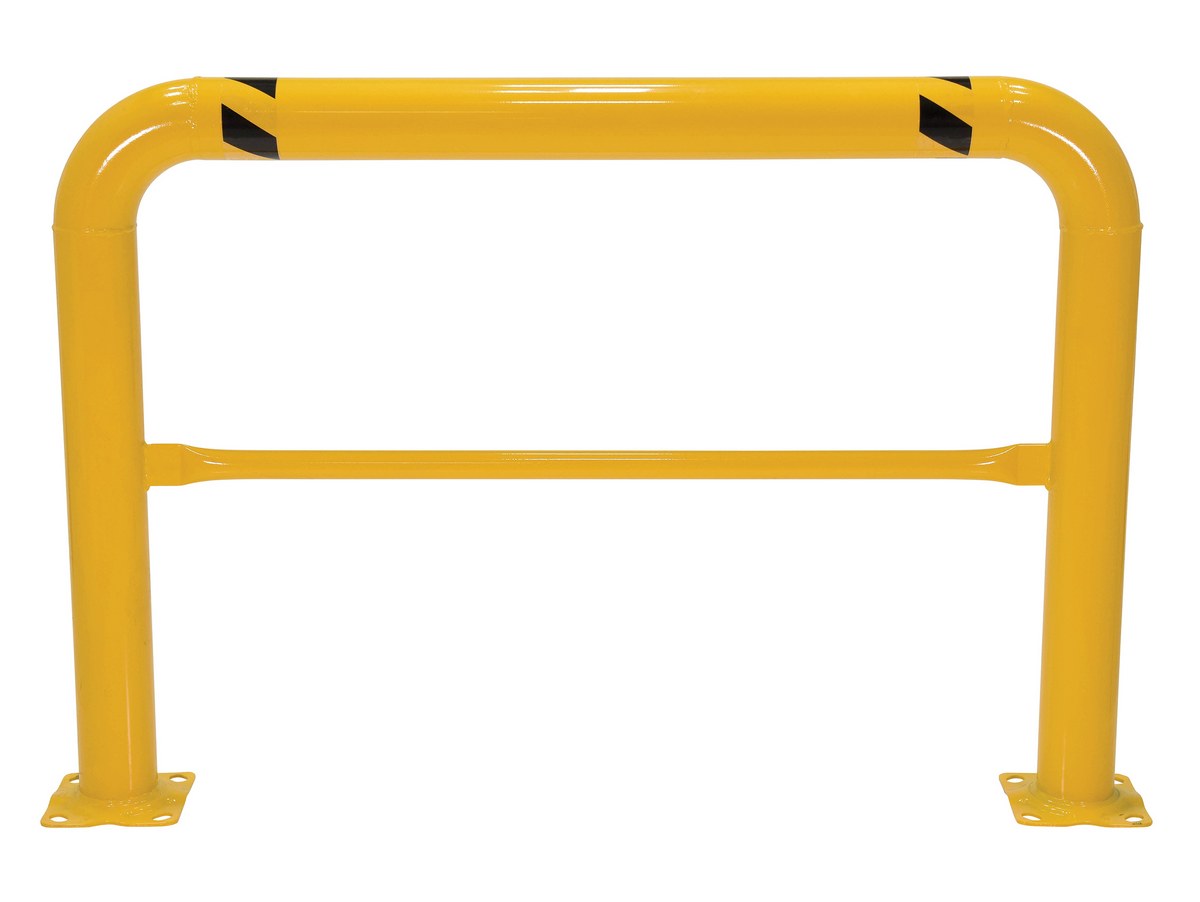

| HPRO-60-42-4 |
 | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 60 In. x 42 In. x 4 In. Yellow | Guard Diameter (in.): 4-1/2 Guard Width (in.): 60-5/8 | 126 | ||

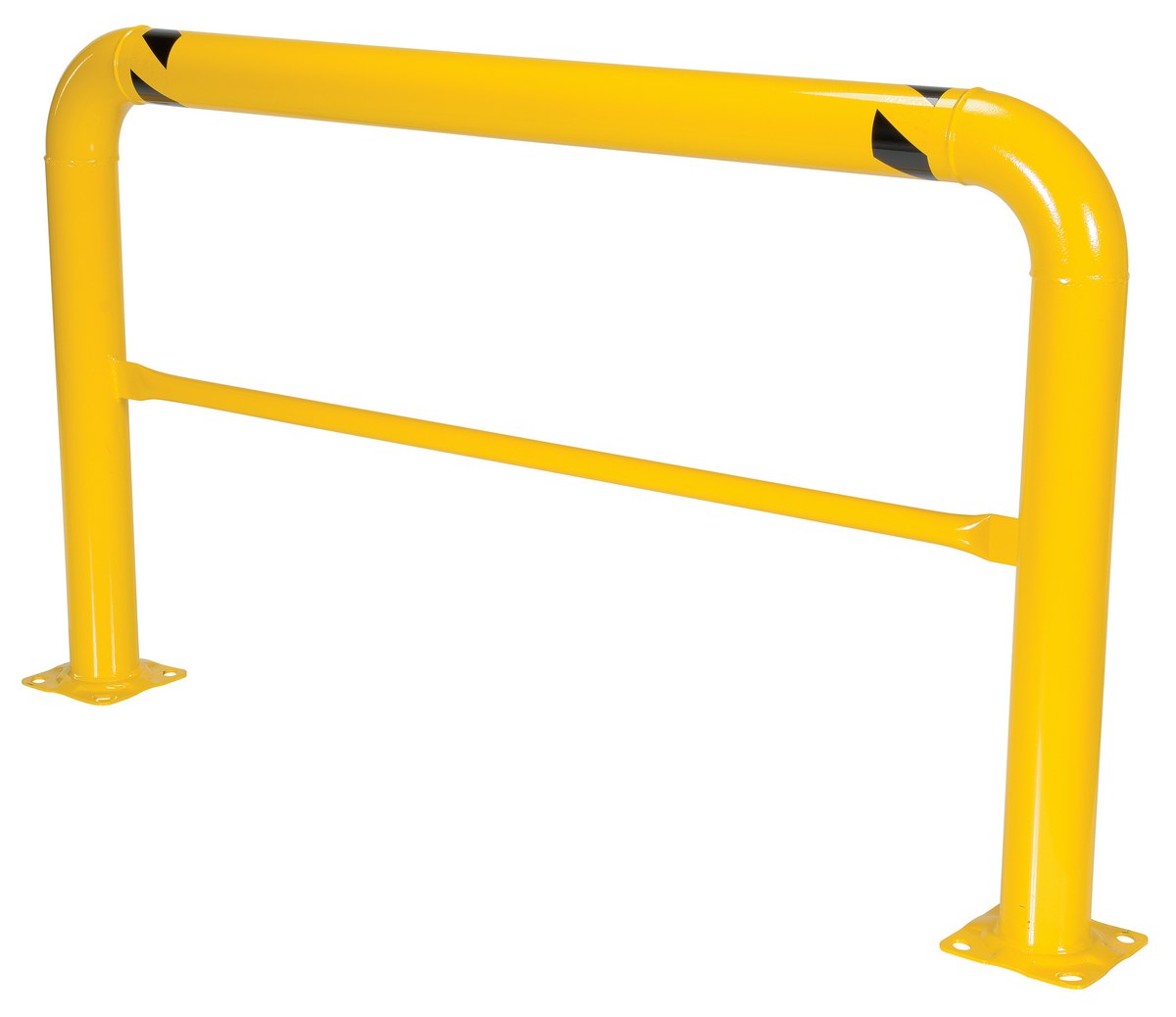

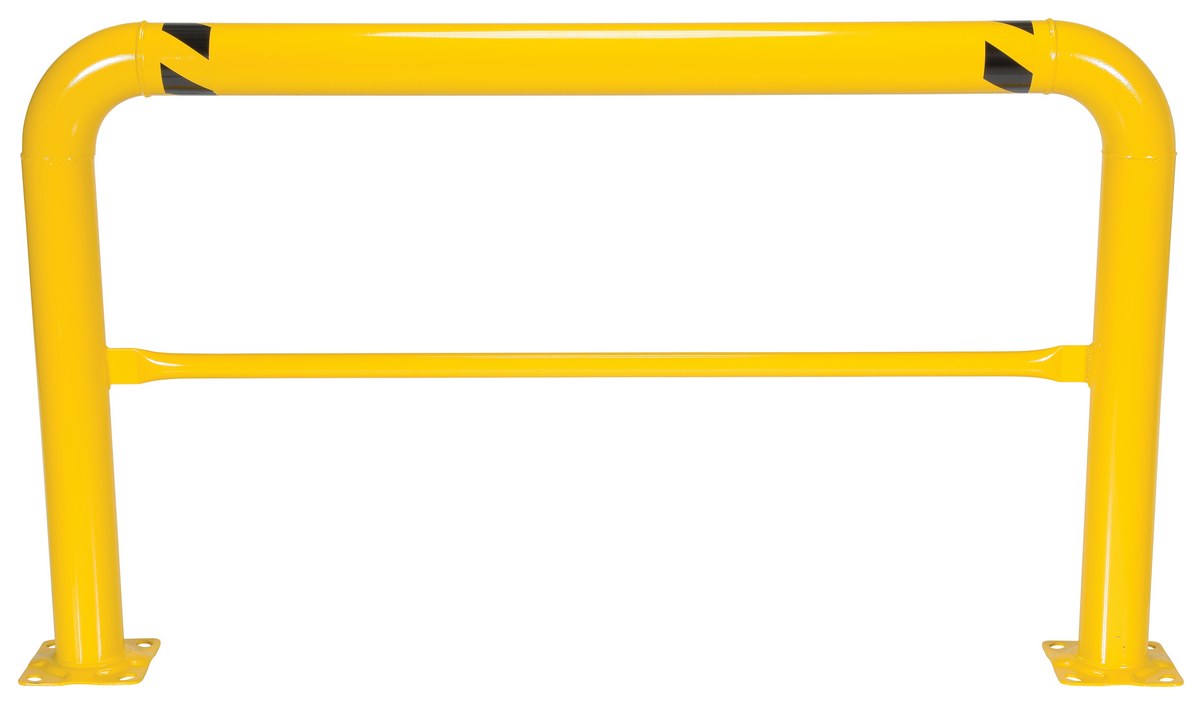

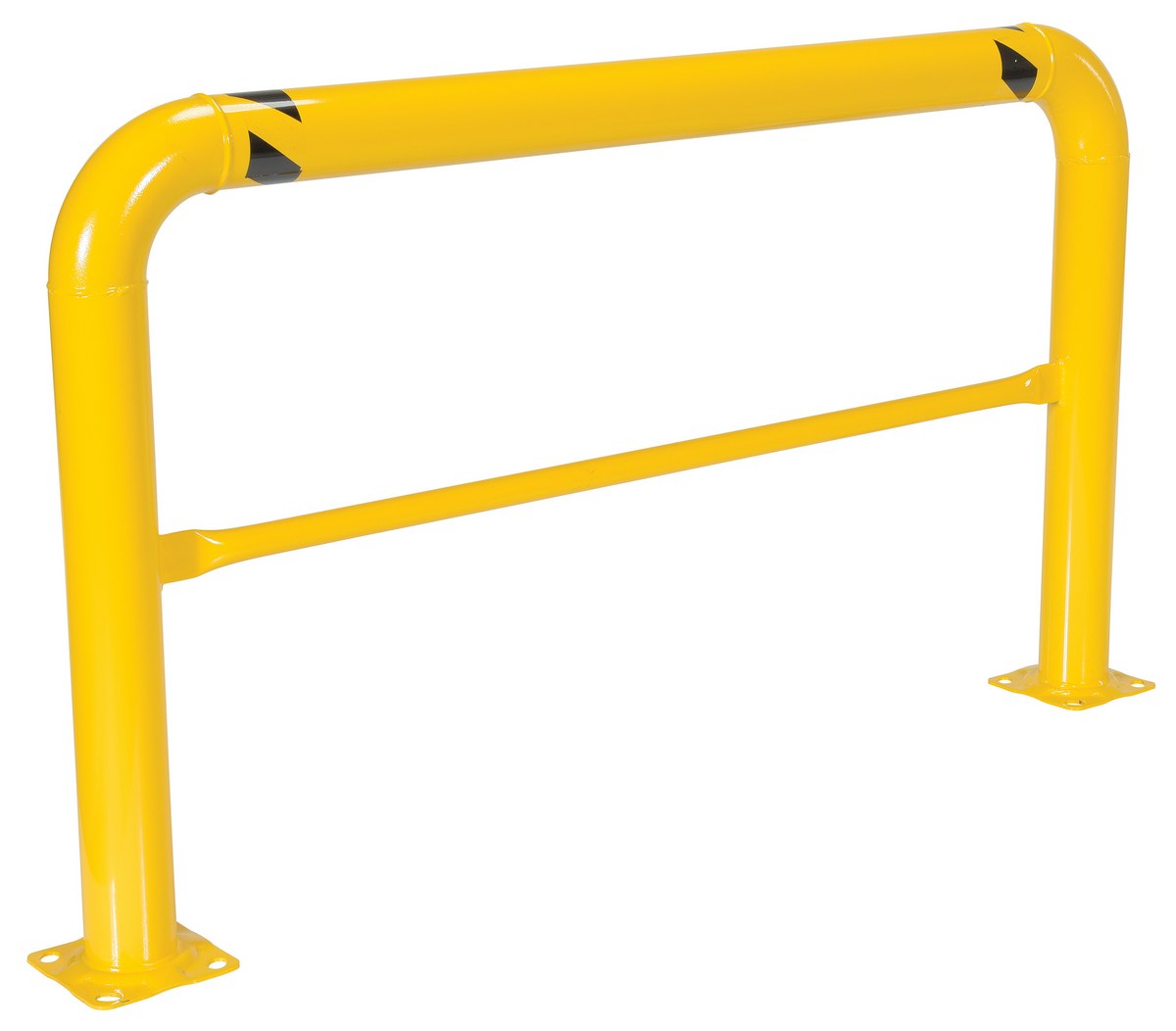

| HPRO-72-42-4 |
 | 90 Days Limited Warranty | Steel High Profile Machinery and Rack Guard 72 In. x 42 In. x 4 In. Yellow | Guard Diameter (in.): 4-1/2 Guard Width (in.): 72-5/8 | 129 | ||

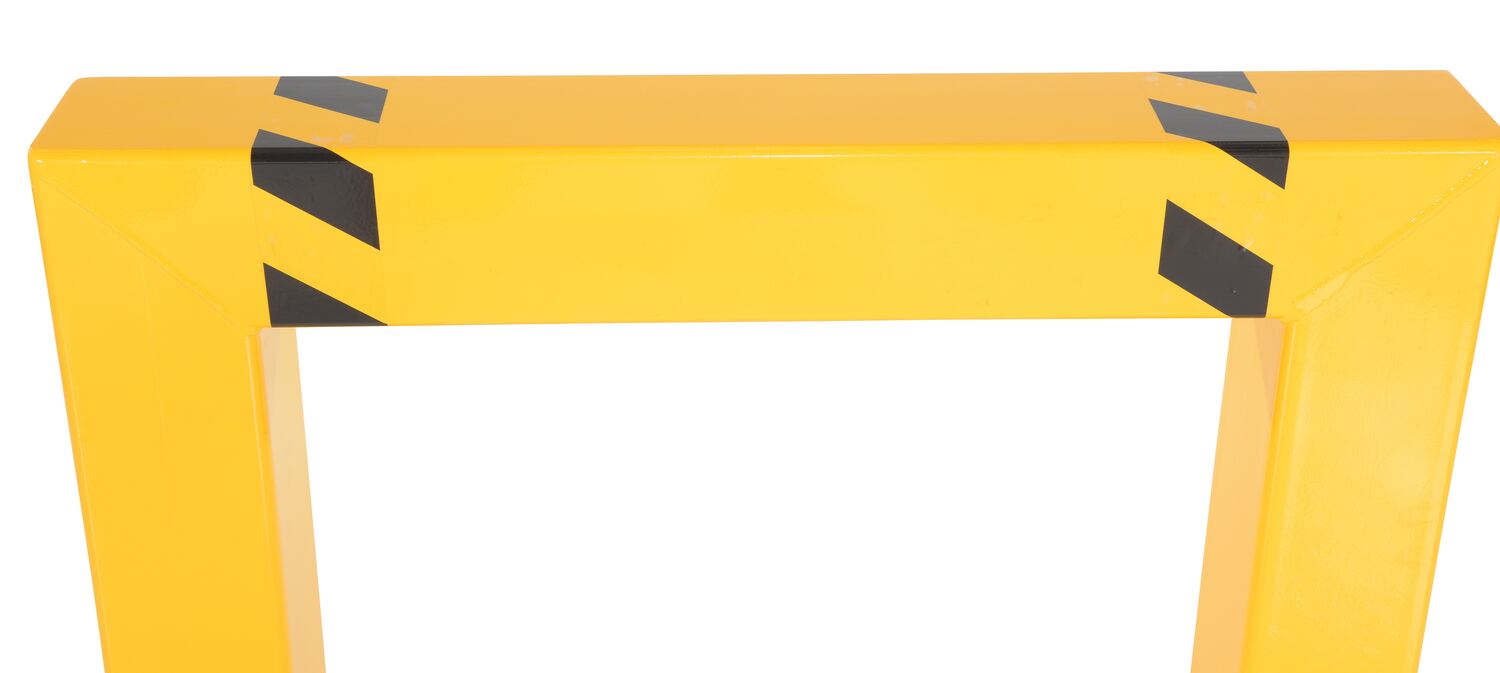

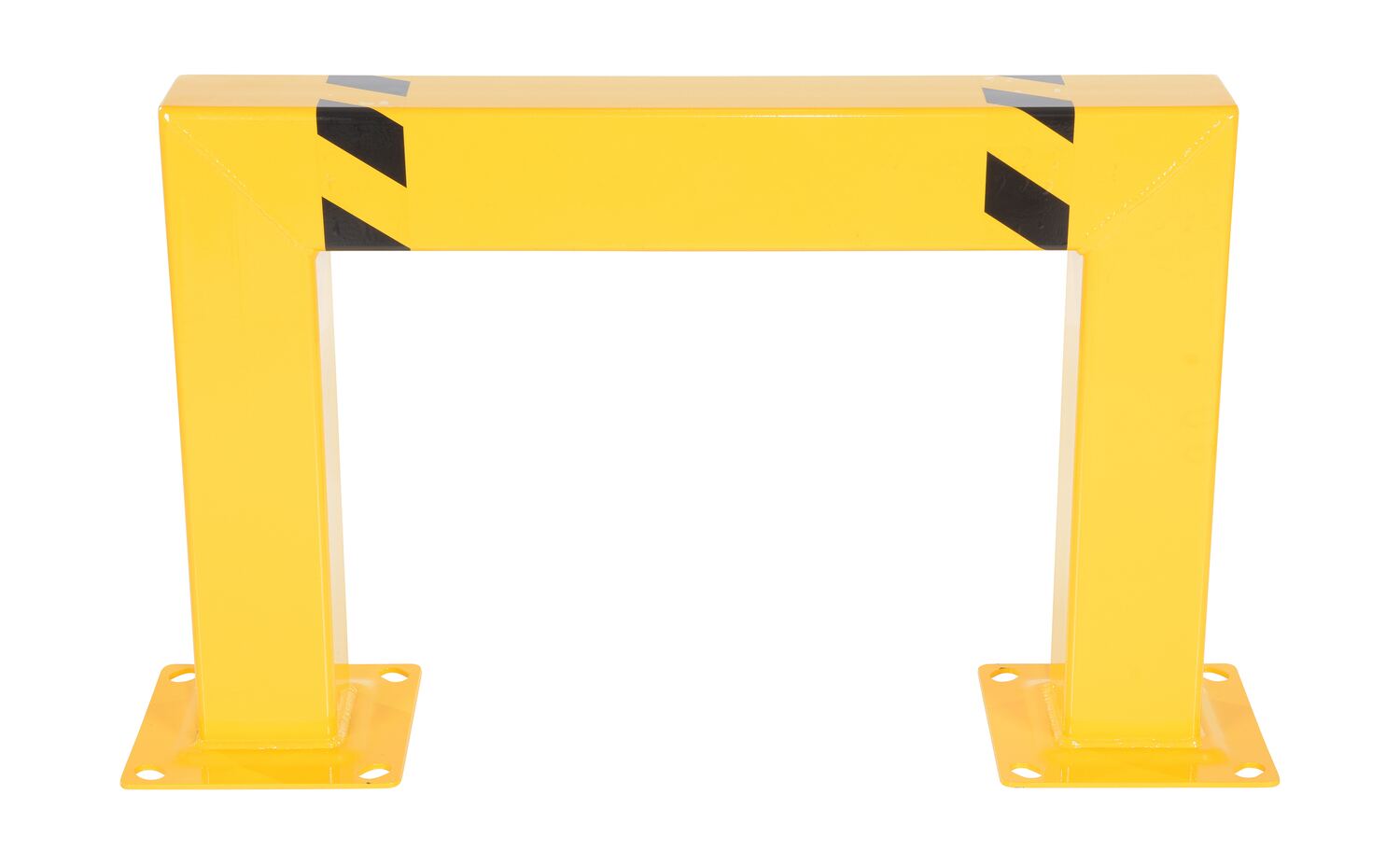

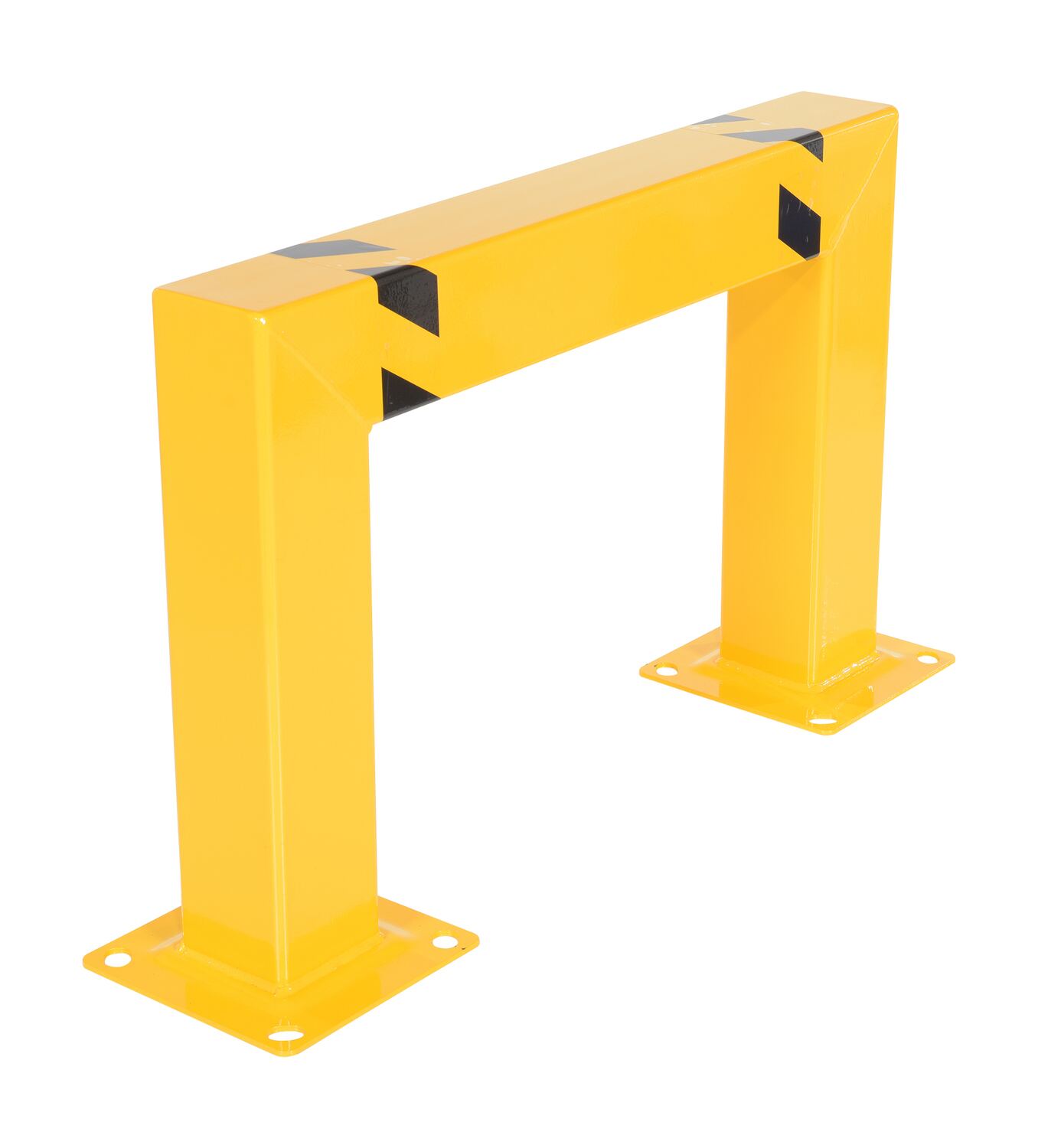

| HPRO-SQ-36-24-5 |
 | 90 Days Limited Warranty | Steel Square High Profile Machinery and Rack Guard 36 In. x 24 In. x 5 In. Yellow | Usable Width (in.): 5 Usable Length (in.): 36 | 84 | ||

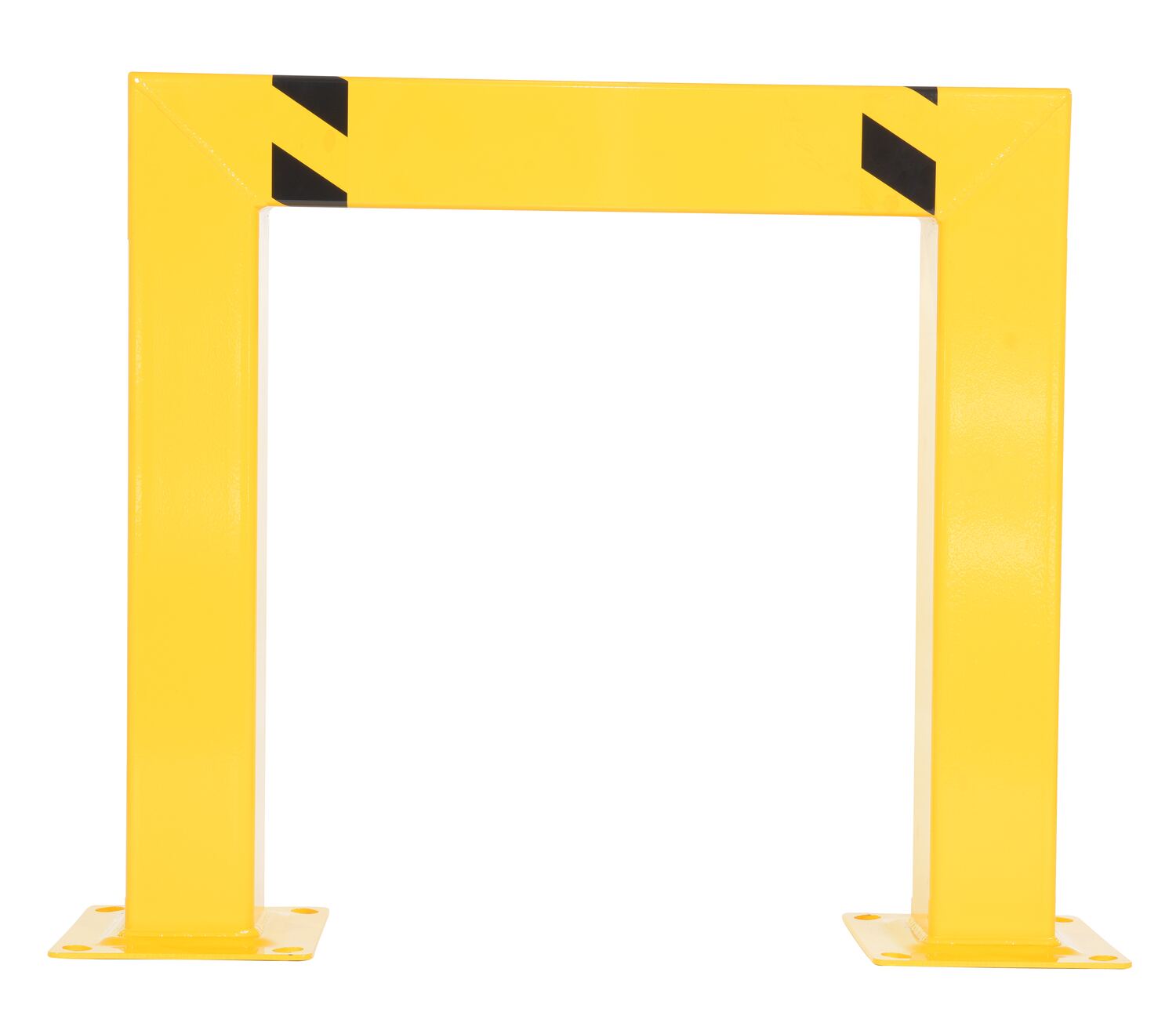

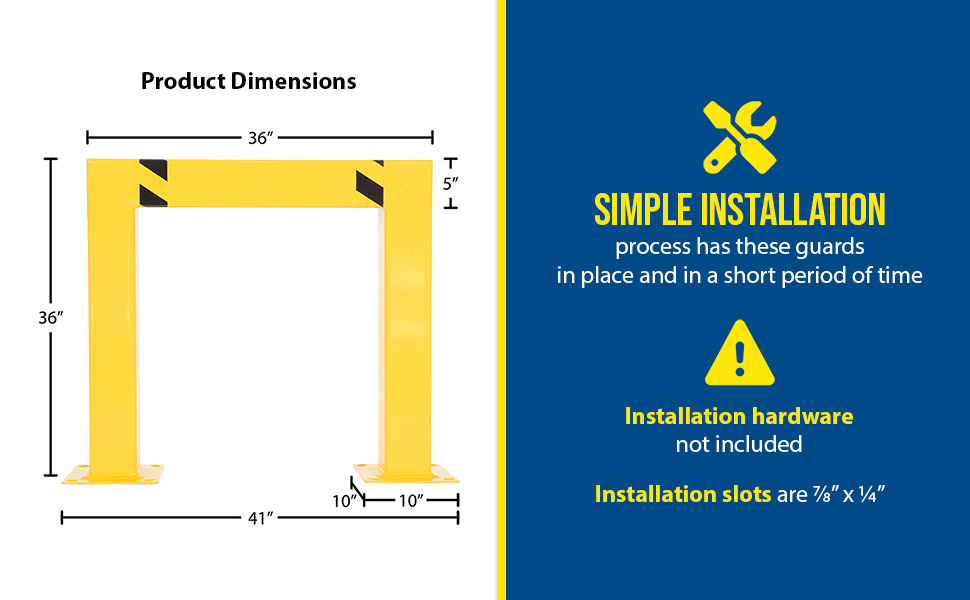

| HPRO-SQ-36-36-5 |
 | 90 Days Limited Warranty | Steel Square High Profile Machinery and Rack Guard 36 In. x 36 In. x 5 In. Yellow | Usable Width (in.): 5 Usable Length (in.): 36 | 108 | ||

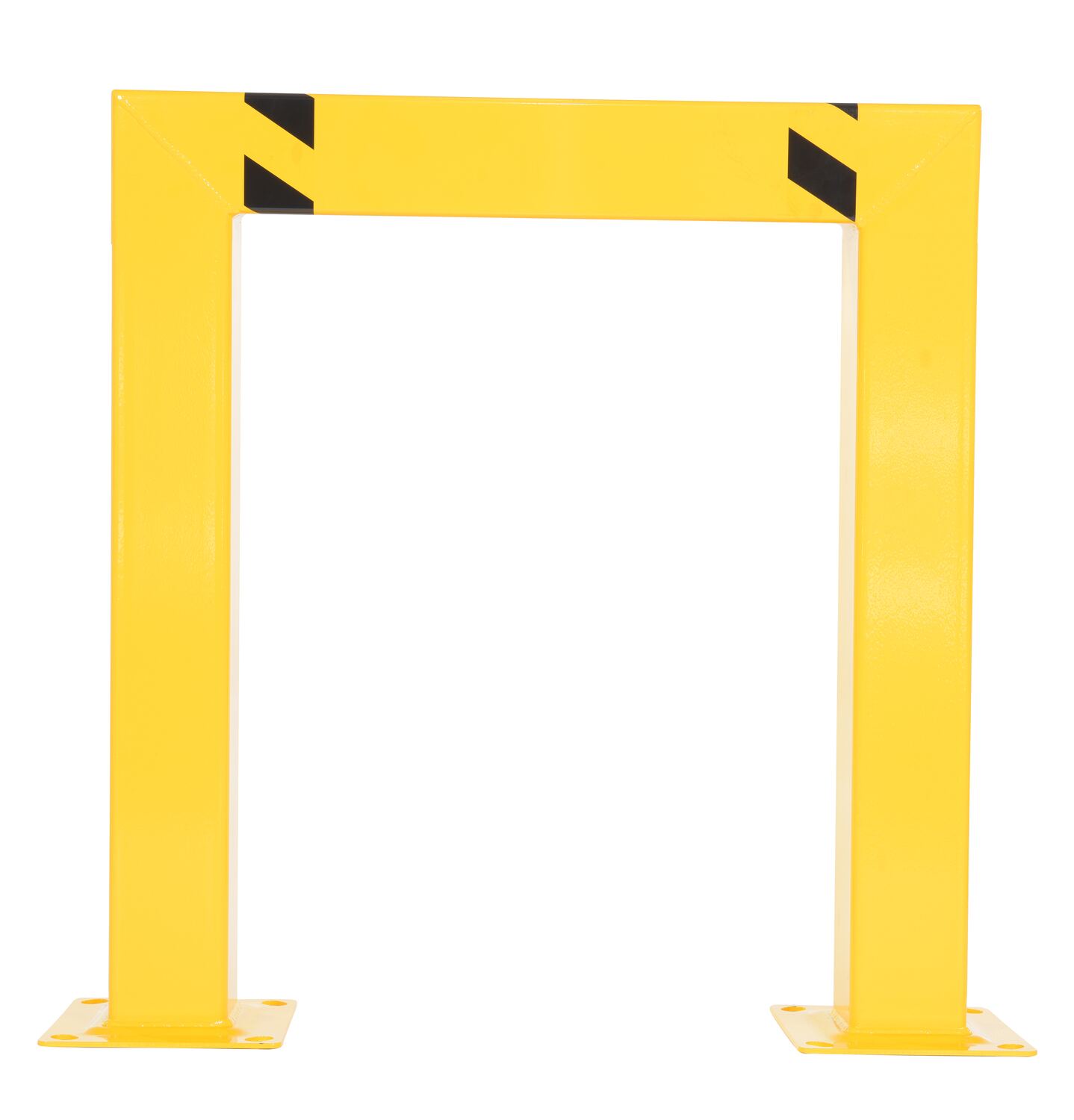

| HPRO-SQ-36-42-5 |
 | 90 Days Limited Warranty | Steel Square High Profile Machinery and Rack Guard 36 In. x 42 In. x 5 In. Yellow | Usable Width (in.): 5 Usable Length (in.): 36 | 120 | ||

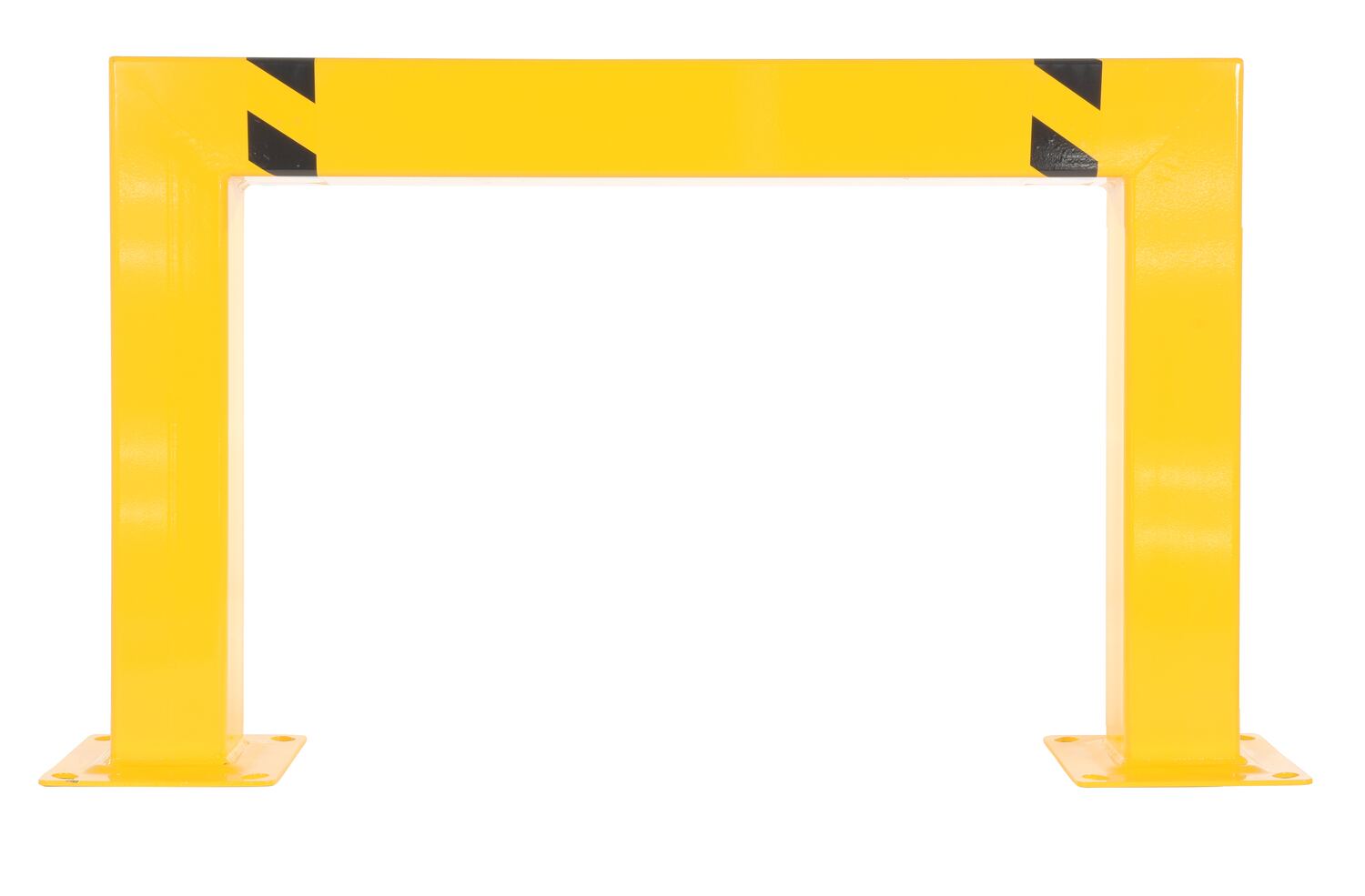

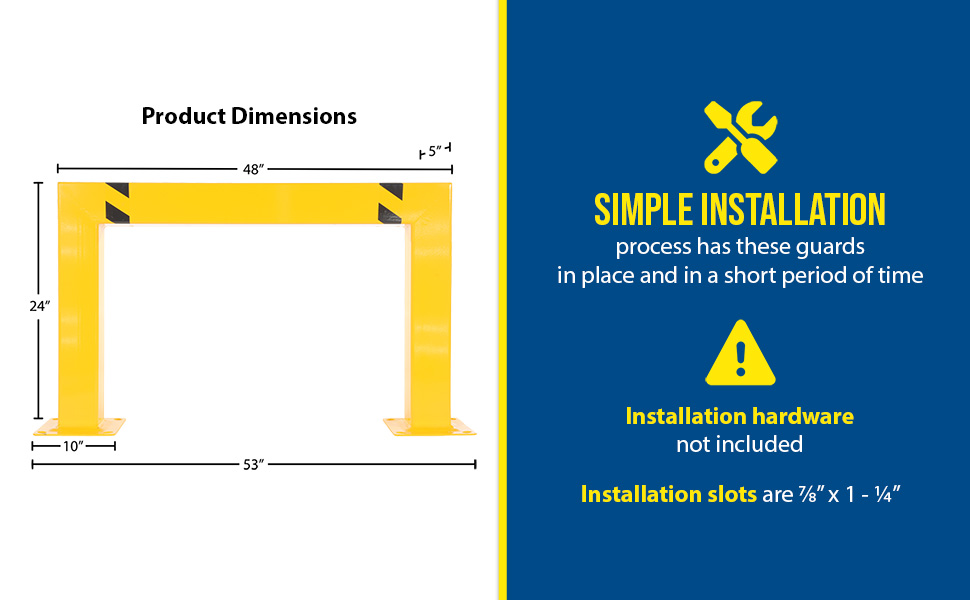

| HPRO-SQ-48-24-5 |
 | 90 Days Limited Warranty | Steel Square High Profile Machinery and Rack Guard 48 In. x 24 In. x 5 In. Yellow | Usable Width (in.): 5 Usable Length (in.): 48 | 96 | ||

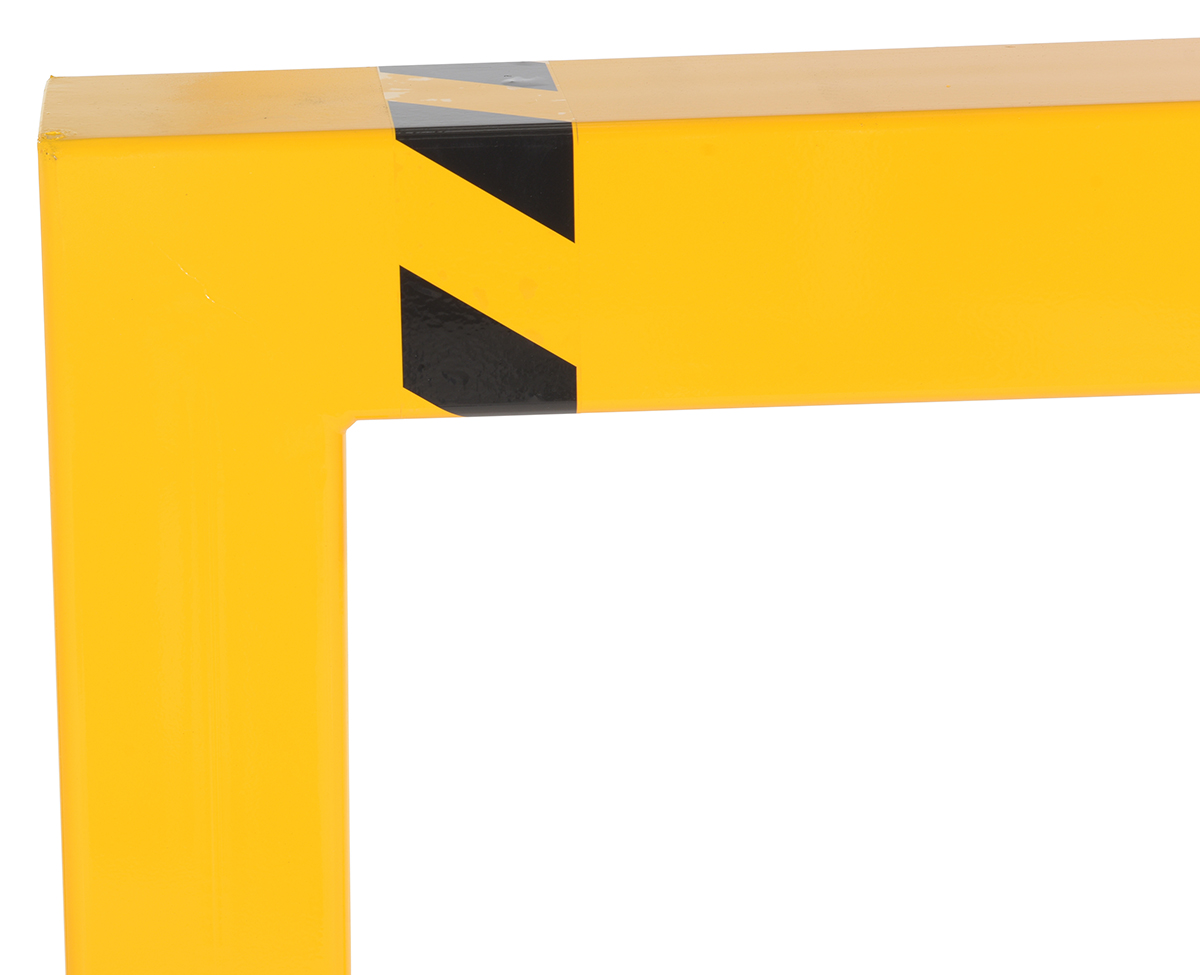

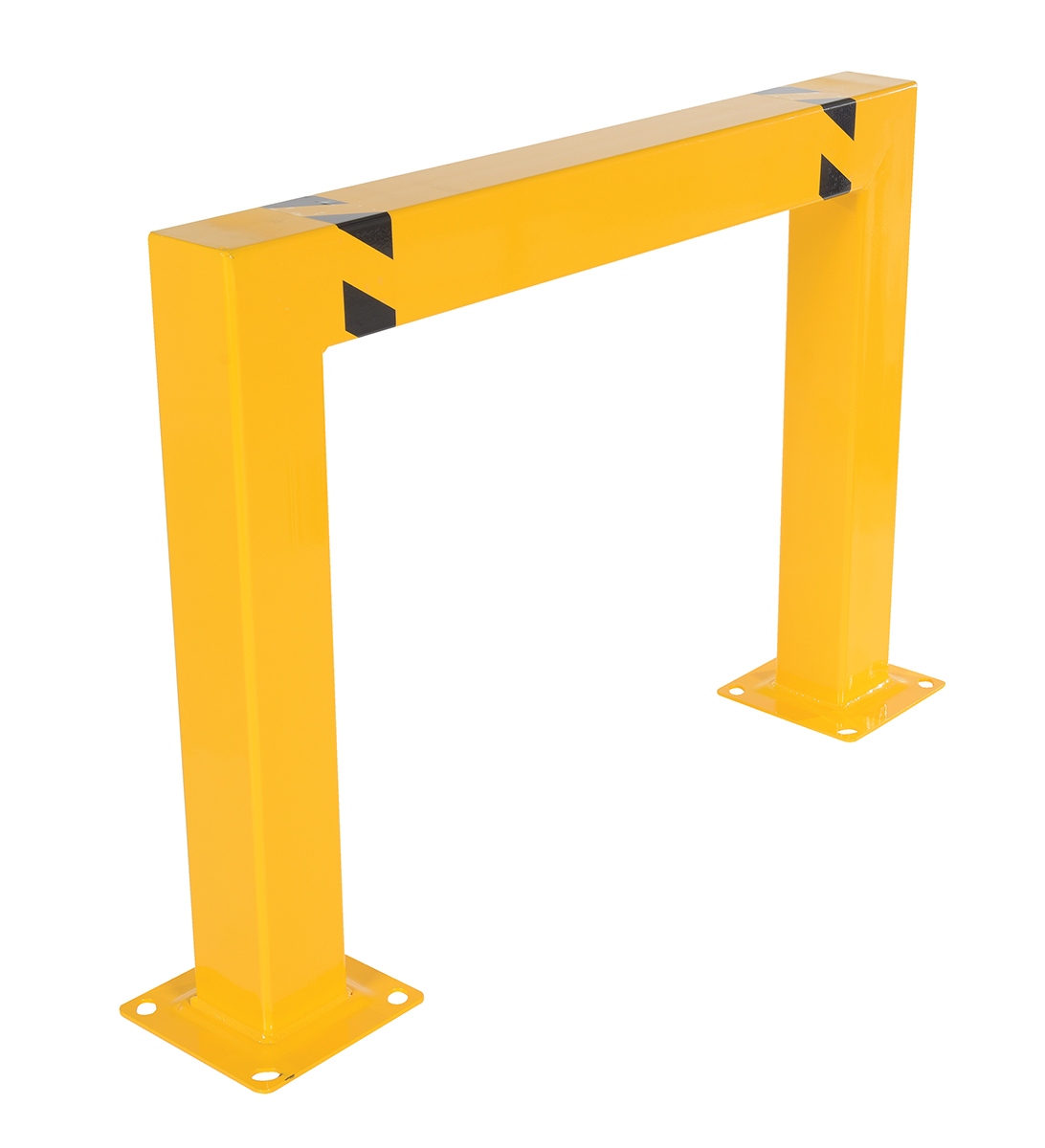

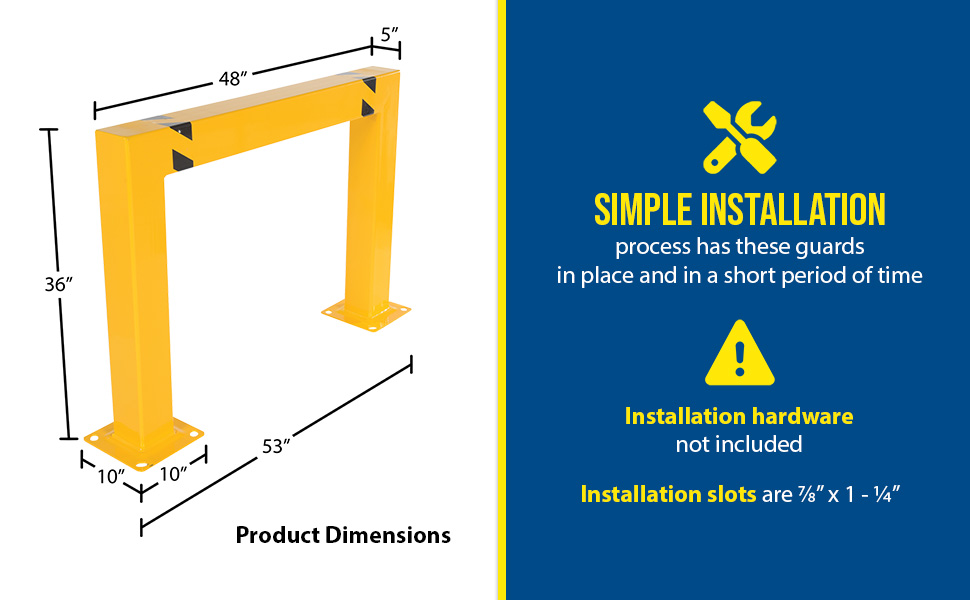

| HPRO-SQ-48-36-5 |
 | 90 Days Limited Warranty | Steel Square High Profile Machinery and Rack Guard 48 In. x 36 In. x 5 In. Yellow | Usable Width (in.): 5 Usable Length (in.): 48 | 120 | ||

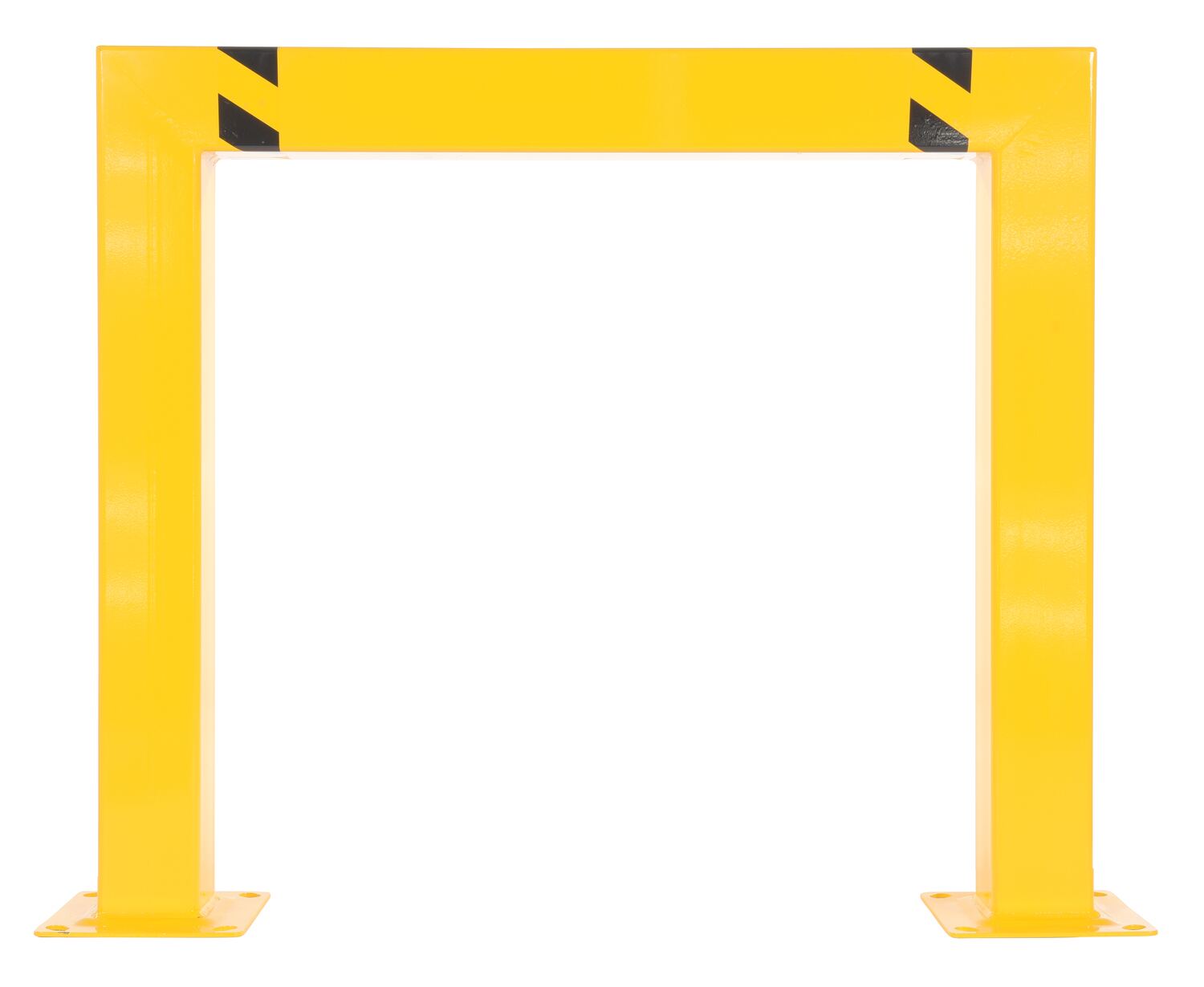

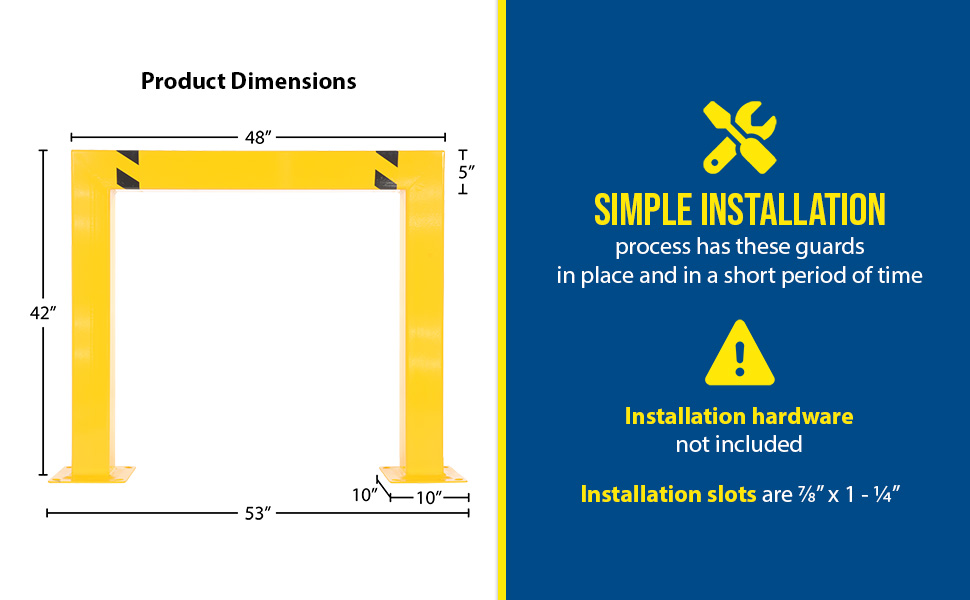

| HPRO-SQ-48-42-5 |
 | 90 Days Limited Warranty | Steel Square High Profile Machinery and Rack Guard 48 In. x 42 In. x 5 In. Yellow | Usable Width (in.): 5 Usable Length (in.): 48 | 132 | ||

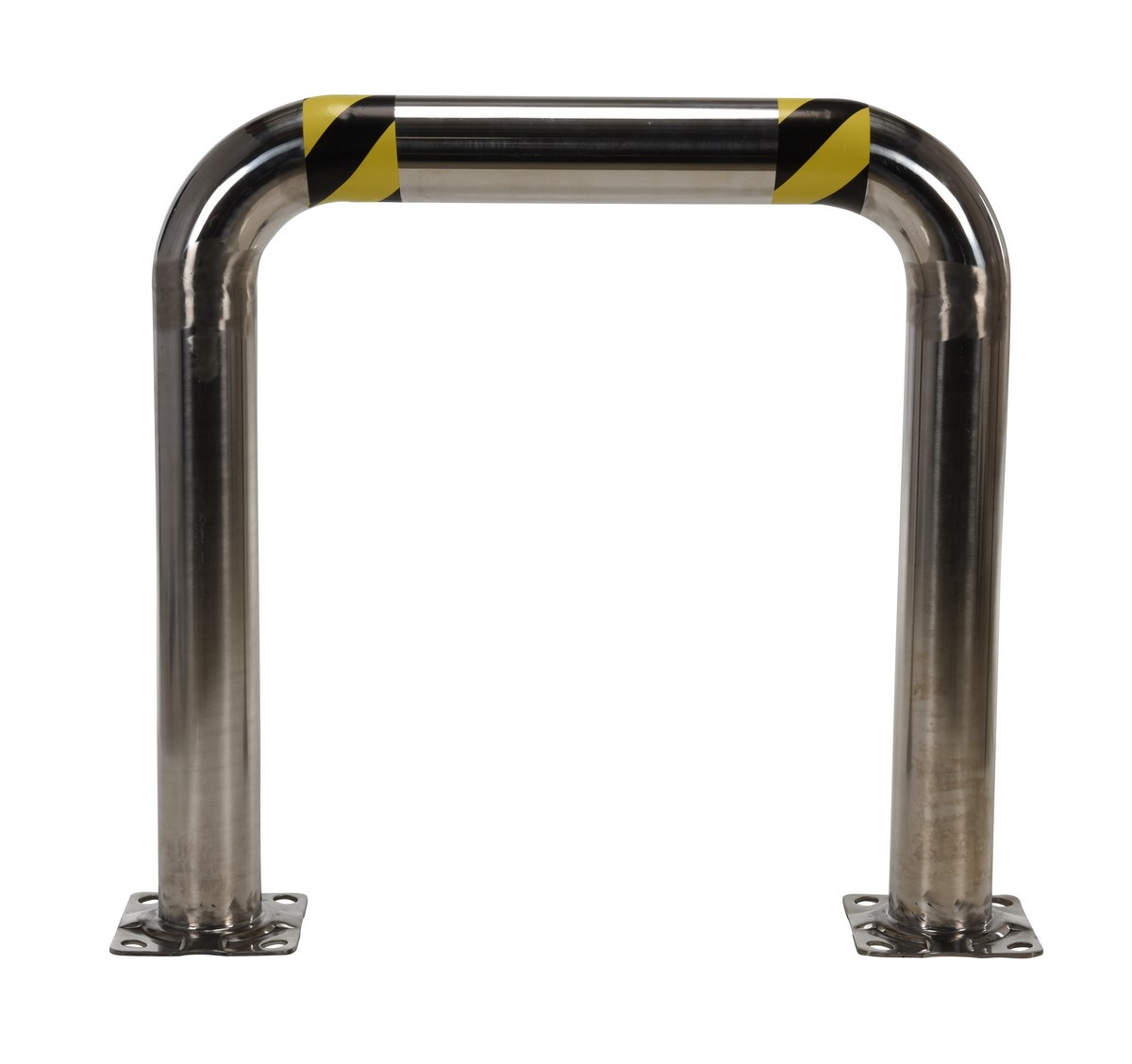

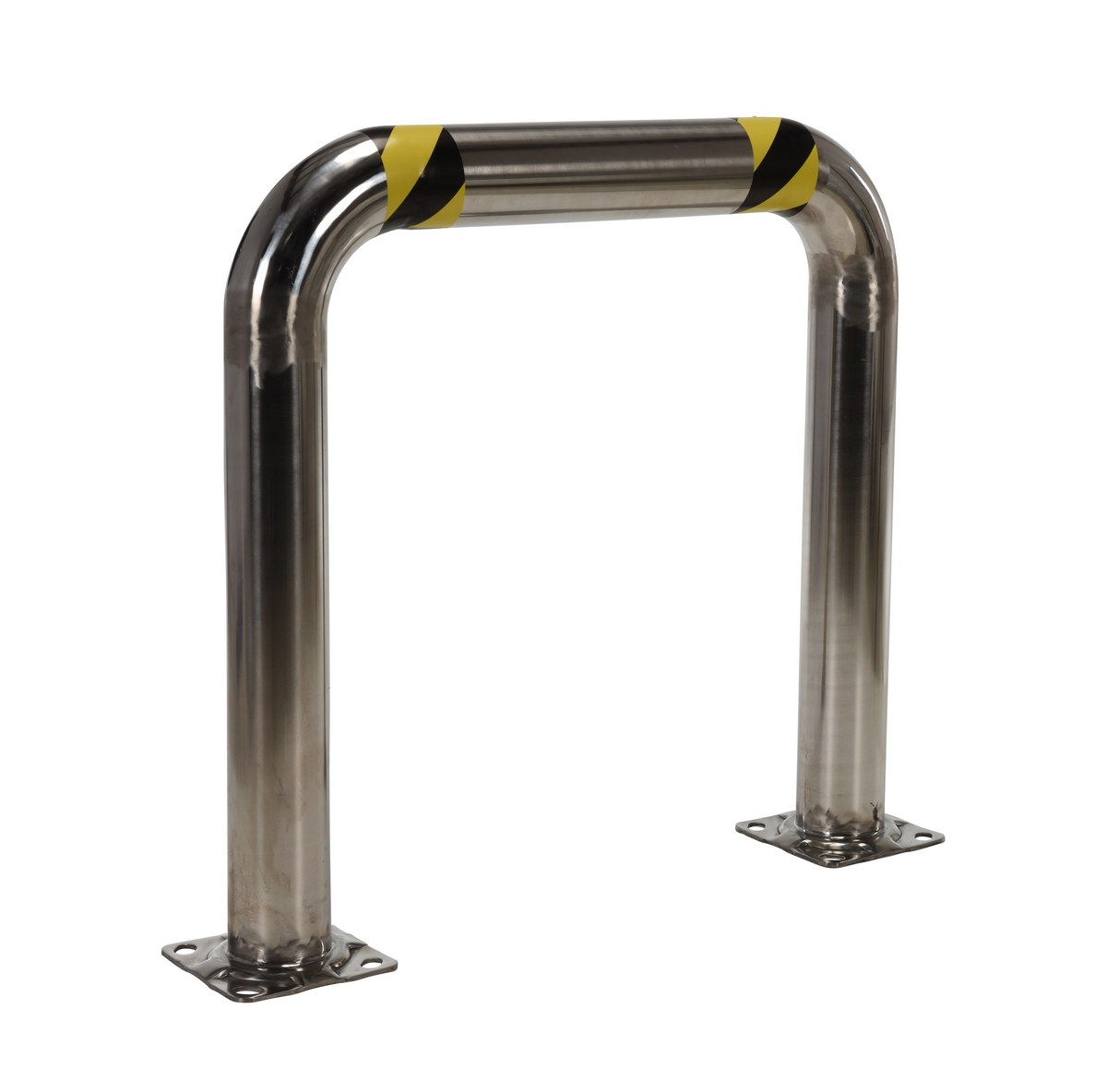

| HPRO-SS-36-36-4 |
 | 90 Days Limited Warranty | Stainless Steel High Profile Rack Guard 36 In. x 36 In. x 4 In. Silver | Guard Diameter (in.): 4-1/2 Guard Length (in.): 36-5/8 | 94 | ||

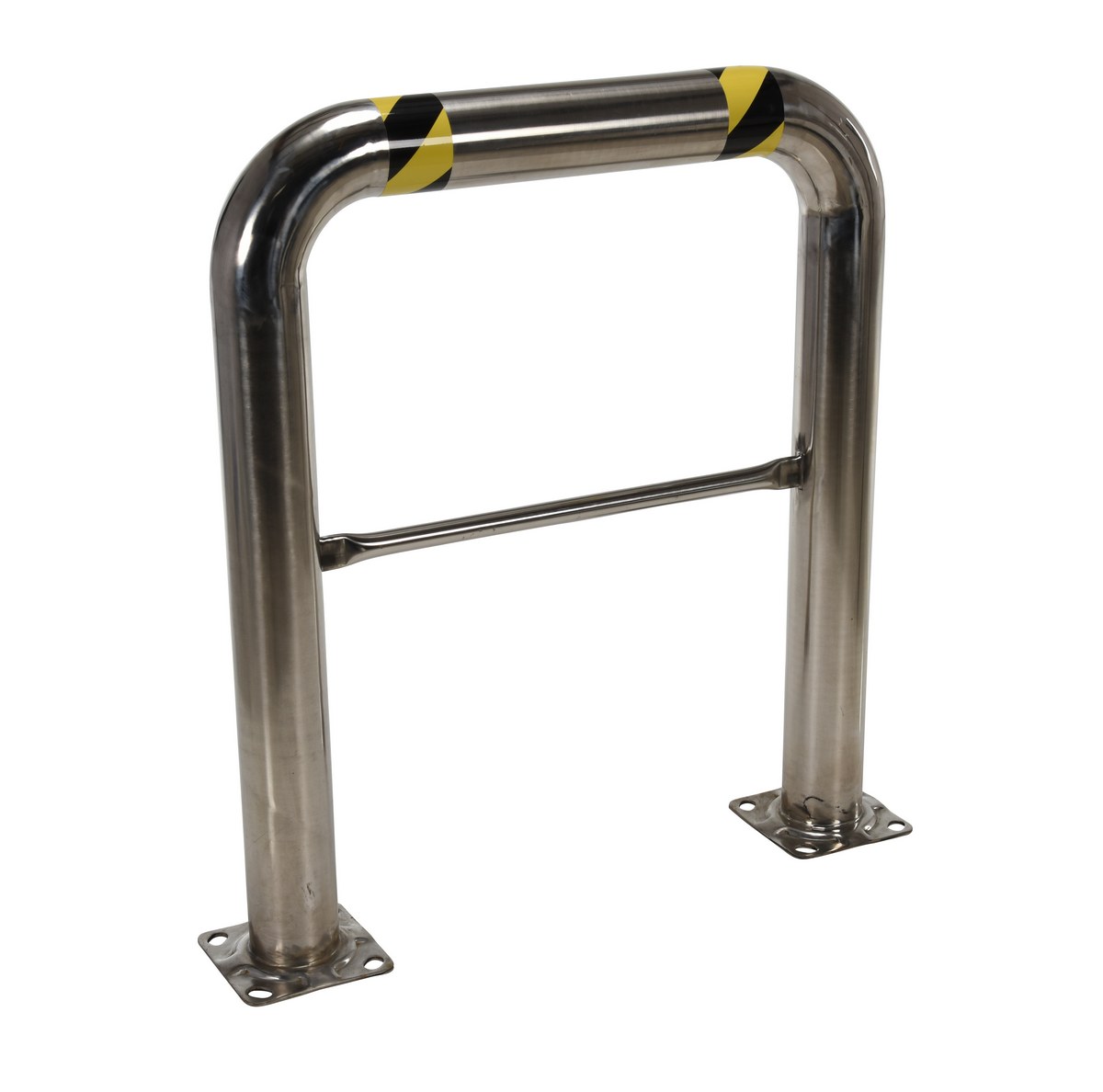

| HPRO-SS-36-42-4 |
| 90 Days Limited Warranty | Stainless Steel High Profile Rack Guard 36 In. x 42 In. x 4 In. Silver | Guard Diameter (in.): 4-1/2 Guard Length (in.): 36-5/8 | 100 | ||

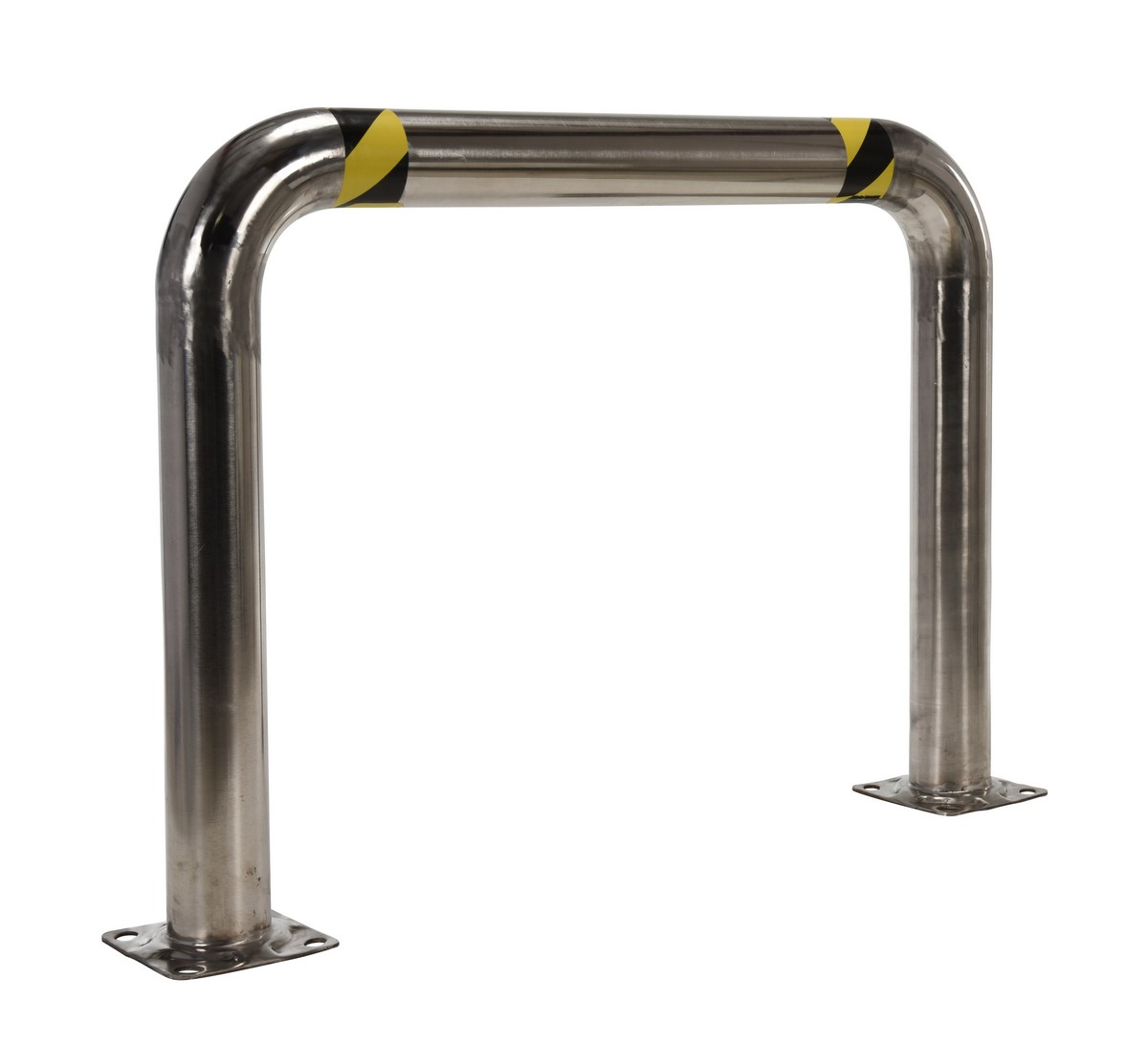

| HPRO-SS-48-36-4 |
 | 90 Days Limited Warranty | Stainless Steel High Profile Rack Guard 48 In. x 36 In. x 4 In. Silver | Guard Diameter (in.): 4-1/2 Guard Length (in.): 48-3/8 | 102 | ||

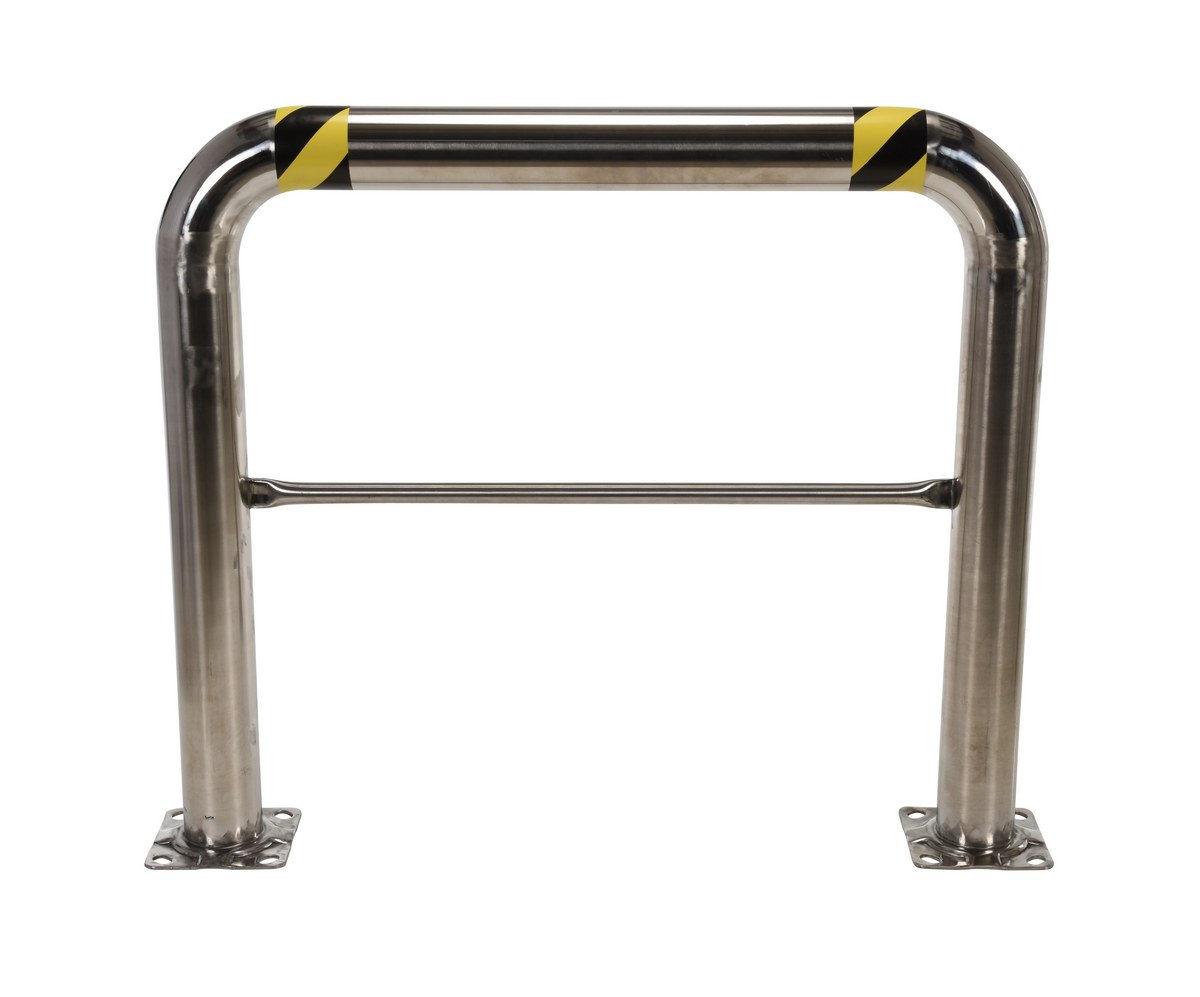

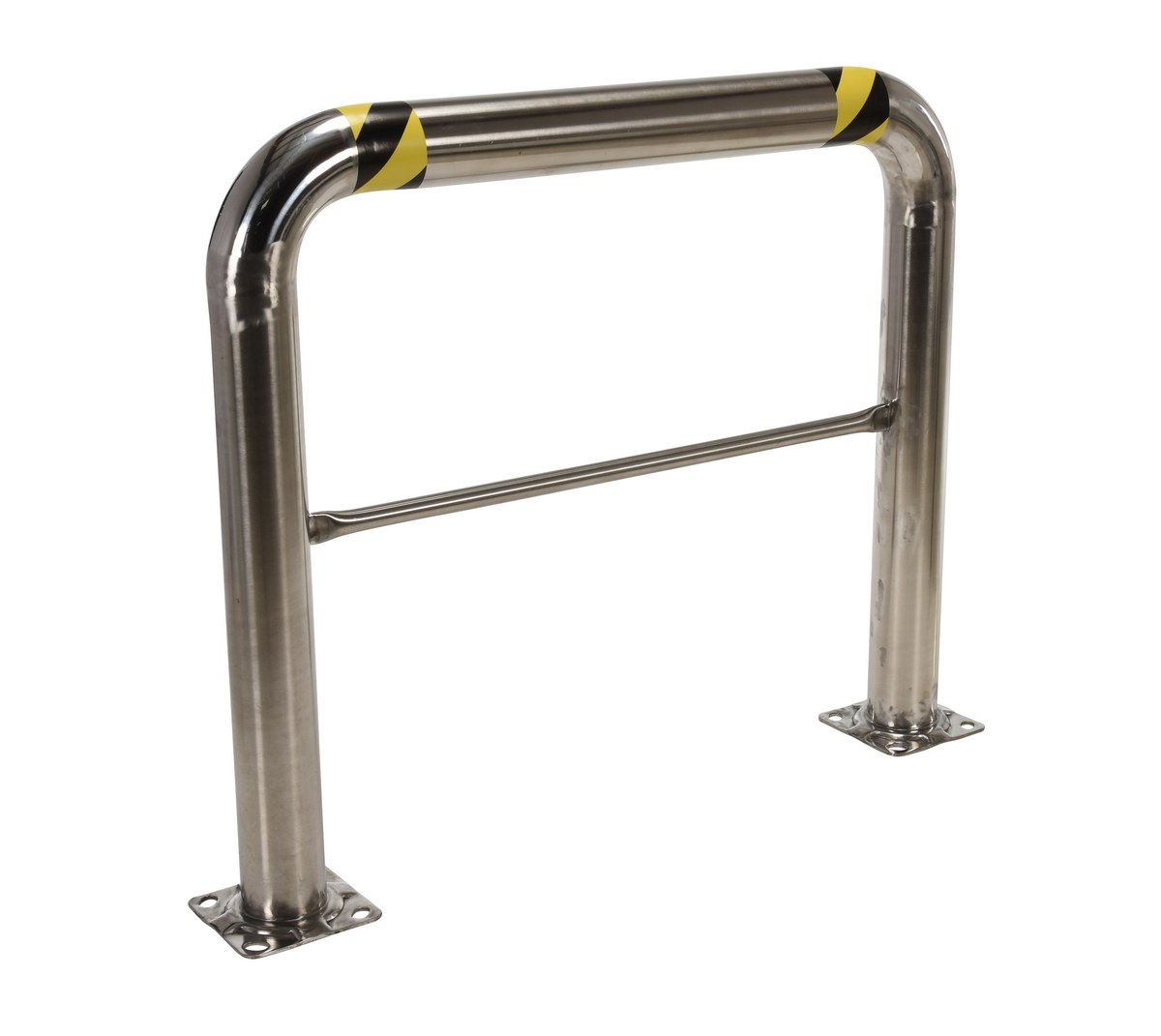

| HPRO-SS-48-42-4 |
 | 90 Days Limited Warranty | Stainless Steel High Profile Rack Guard 48 In. x 42 In. x 4 In. Silver | Guard Diameter (in.): 4-1/2 Guard Length (in.): 48-3/8 | 107 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
| Model | Image | Description | Wt (lbs.) | |||
| AS-383 |  |
Anchor Bolts For Concrete (1) 3/8"x 3" (1-11/16" units) | 1 | |||
| AS-383-4PK |  |
Anchor Bolts For Concrete (4) 3/8"x 3" (1-11/16" units) | 4 | |||
| AS-344 |  |
Anchor Bolts For Concrete (1) 3/4" x 4" (4-1/2" units) | 1 | |||
| AS-344-4PK |  |
Anchor Bolts For Concrete (4) 3/4" x 4" (4-1/2" units) | 4 | |||
A: The HPRO is made from ASTM-A-36 metal and has a wall thickness of .120". (We use 4" schedule-10 pipe to build these.) This is the same for all of our 4.5" diameter HPROs.
A: It is 4,000 lbs. force @ 4 MPH. This is the same for all of our 4.5" diameter HPROs.
A: The walls are made from ASTM-A-36 metal and has a wall thickness of .109". This is the same for all of our 2" HPROs.

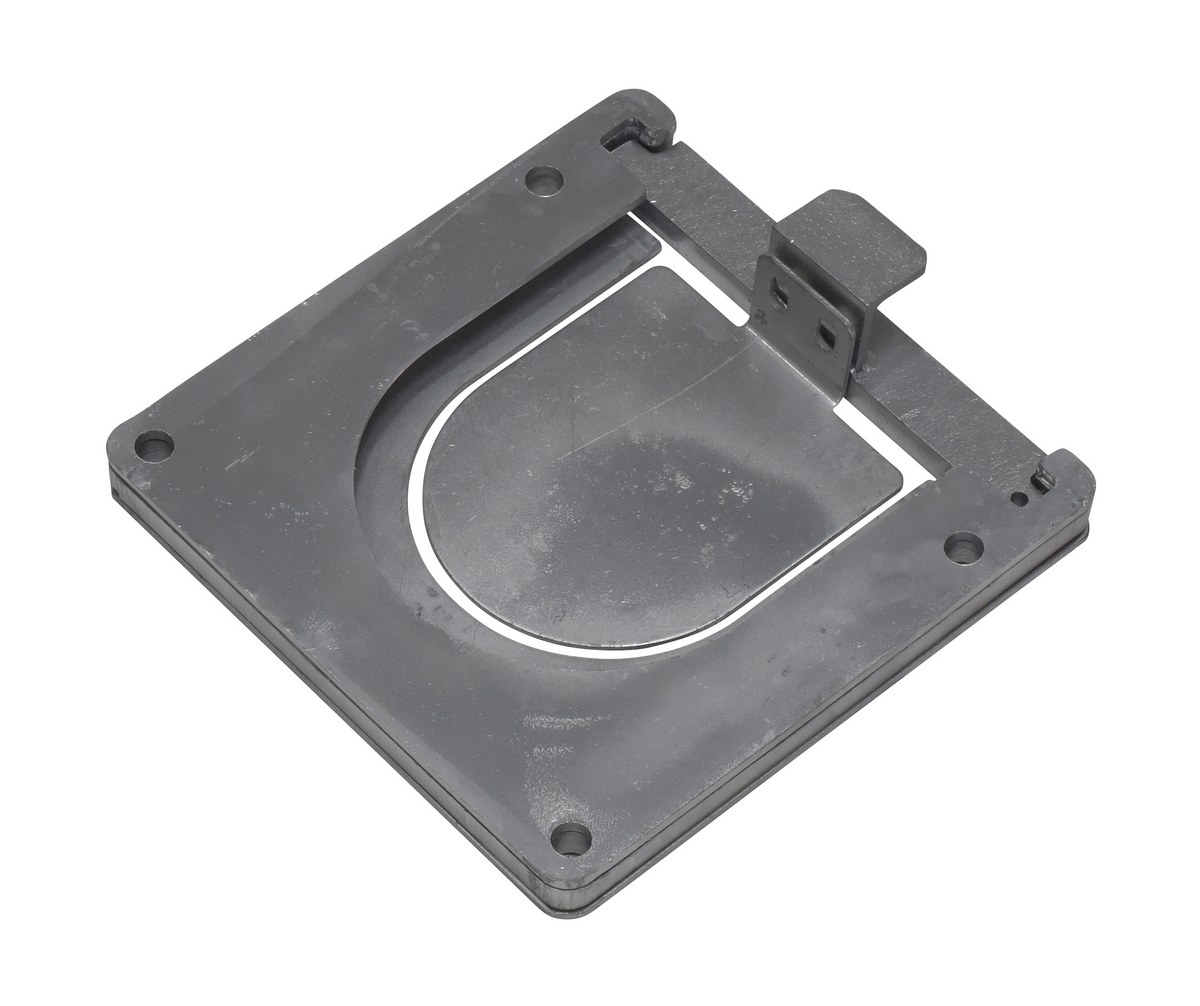

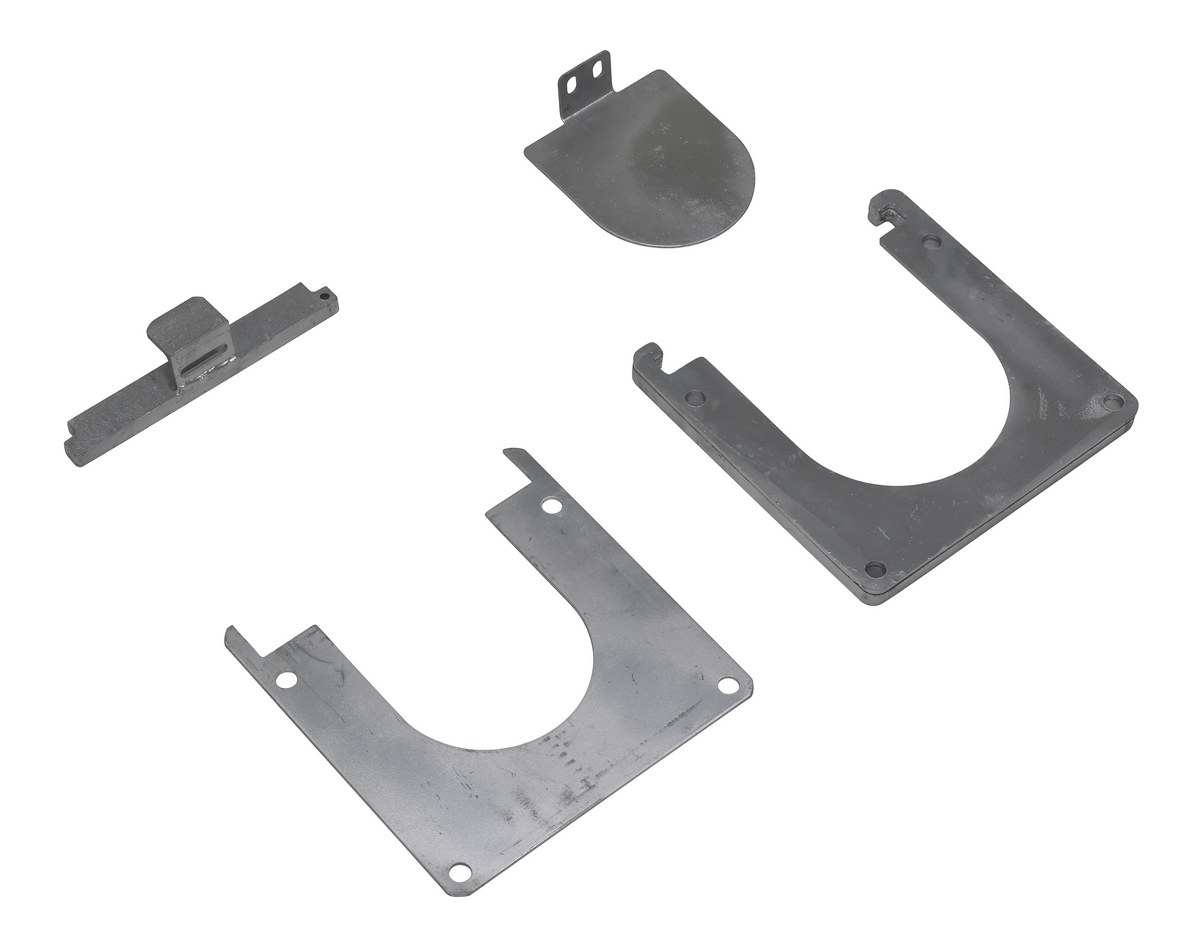

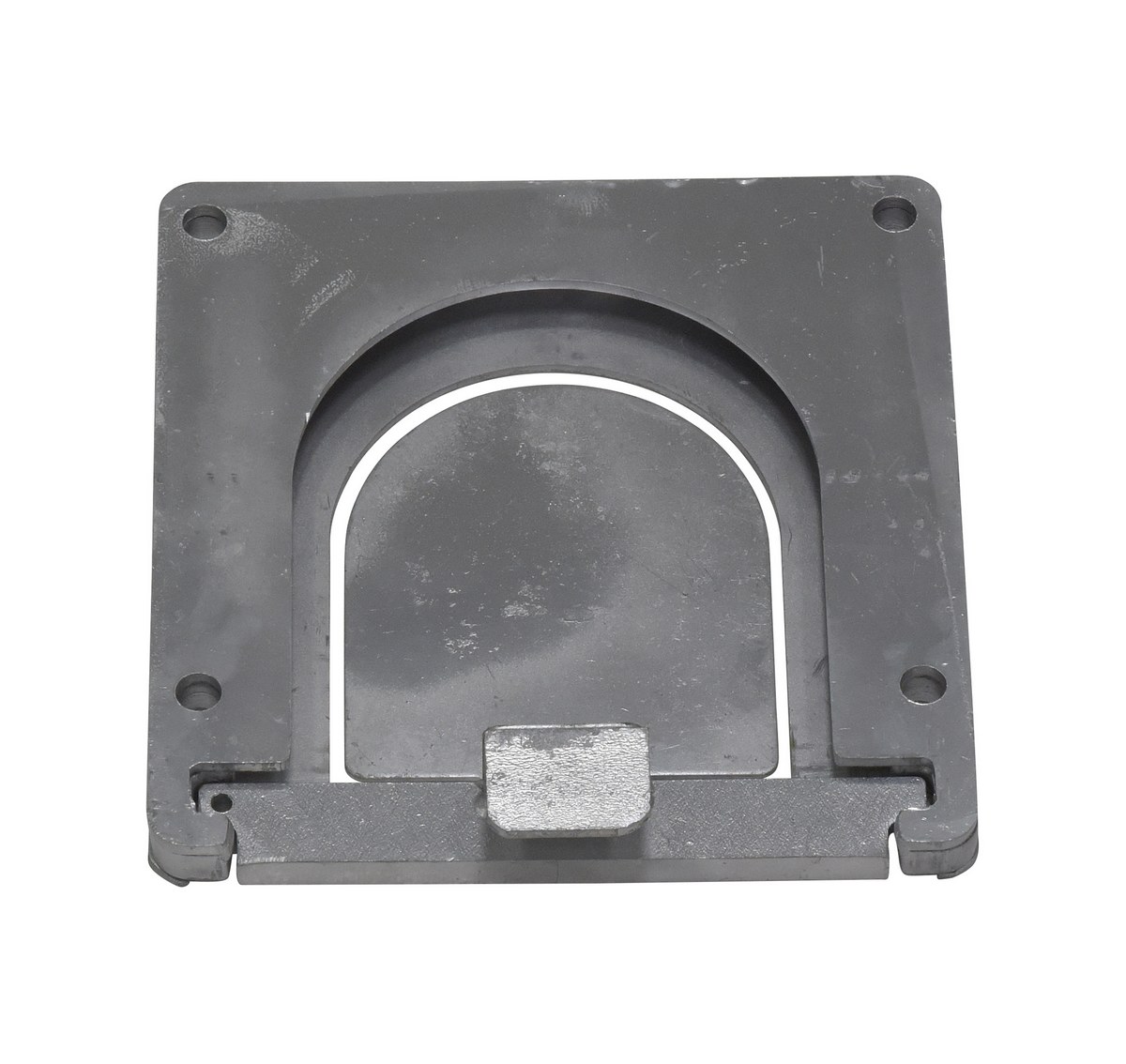

A: Yes. You can purchase the HPRO-RF-BASE for the HPRO-60-42-4.
