Surface Mounted Removable High Profile Machinery Guards
& Low Profile Rack Guards

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

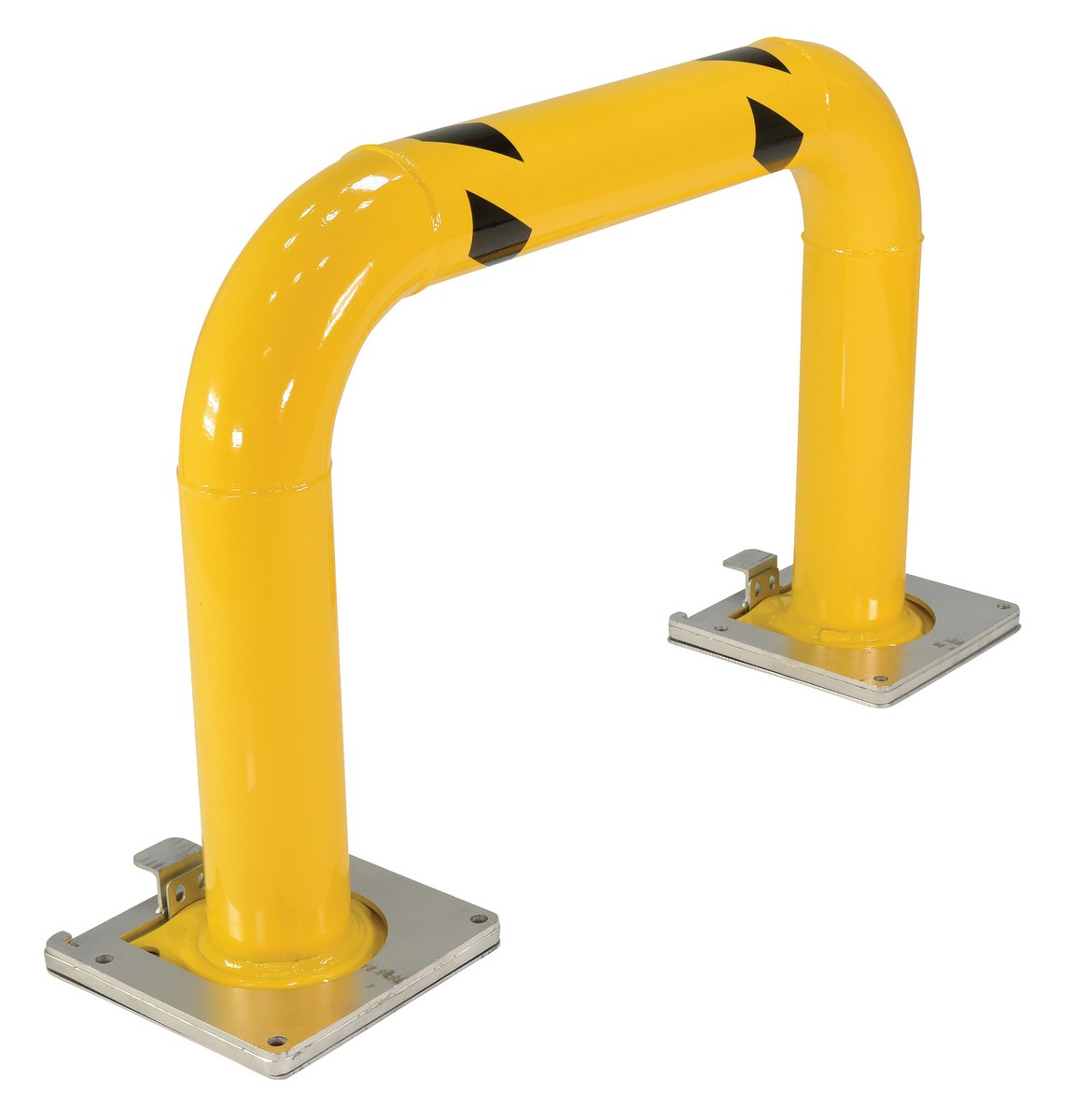

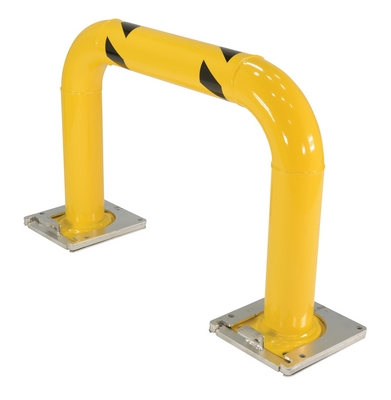

HPRO-RF-36-24-4_A.jpg HPRO-RF-36-24-4_B.jpg HPRO-RF-36-24-4_C.jpg HPRO-RF-36-24-4_D.jpg
Surface Mounted Removable High Profile Machinery Guards & Low Profile Rack Guards

model: HPRO-RF-36-24-4



Surface Mounted Removable High Profile Machinery Guards & Low Profile Rack Guards

model: HPRO-RF-36-24-4

Featured Protective Barriers


Pour In Place Bollards
Aluminum Safety Railings
Machinery Guards
Hexagonal Column Guards
Automatic Overhead Door Lock
Plastic Interlocking Barriers
Stackable Poly Barricades
Galvanized Construction Barrier Systems
Fold Down Bollards
model chart

Product Family Overview

Print Friendly
Surface Mounted Removable High Profile Machinery Guards & Low Profile Rack Guards
SERIES: HPRO,LPRO

Surface-mounted steel base plates allow for quick and easy guard removal. May be used either indoors or outdoors. Steel base plates are bolted in place. Guard is easily inserted into base plates then secured into place. A Padlock may be added to prevent unauthorized removal (padlock not included). Base plate includes four pre-drilled mounting holes. Welded steel construction.

  • Surface-mounted steel base plates allow for quick & easy guard removal
  • Guard is easily inserted into base plates then locked into place
  • Four pre-drilled mounting holes in base plate allow quick lag down installation
  • Heavy-duty welded steel construction protects racks, building walls, expensive equipment, and hundreds of other applications

Surface-mounted steel base plates allow for quick and easy guard removal. May be used either indoors or outdoors. Steel base plates are bolted in place. Guard is easily inserted into base plates then secured into place. A Padlock may be added to prevent unauthorized removal (padlock not included). Base plate includes four pre-drilled mounting holes. Welded steel construction.

  • Surface-mounted steel base plates allow for quick & easy guard removal
  • Guard is easily inserted into base plates then locked into place
  • Four pre-drilled mounting holes in base plate allow quick lag down installation
  • Heavy-duty welded steel construction protects racks, building walls, expensive equipment, and hundreds of other applications

Other Machinery Guards

 Building Column Protectors Hexagonal Column Guards Building Protective Column Pads Surface Mounted Removable High Profile Machinery Guards & Low Profile Rack Guards

Additional Models In This Family
view entire Image Gallery

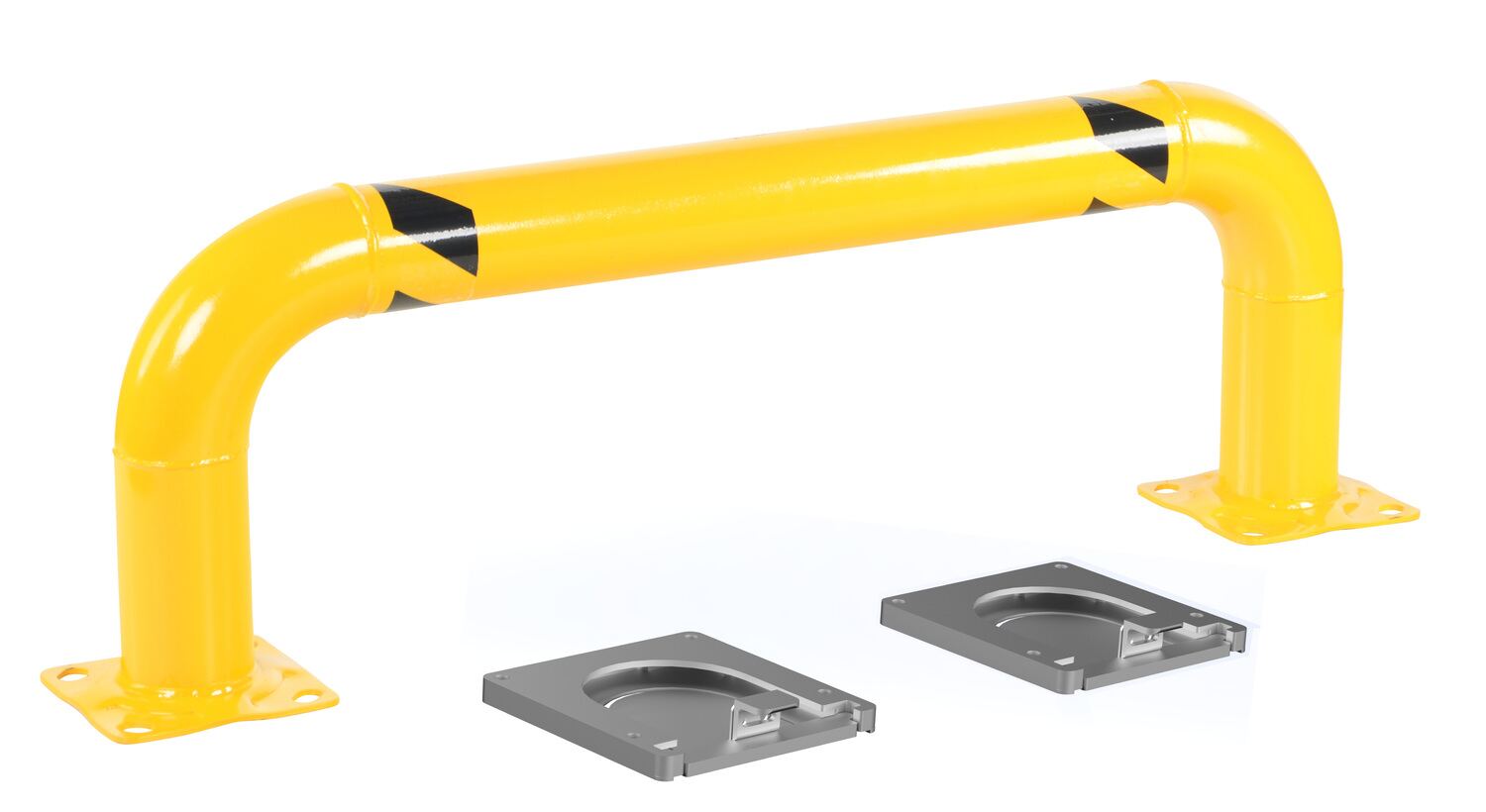

LPRO-RF-48-16-4

LPRO-RF-48-16-4

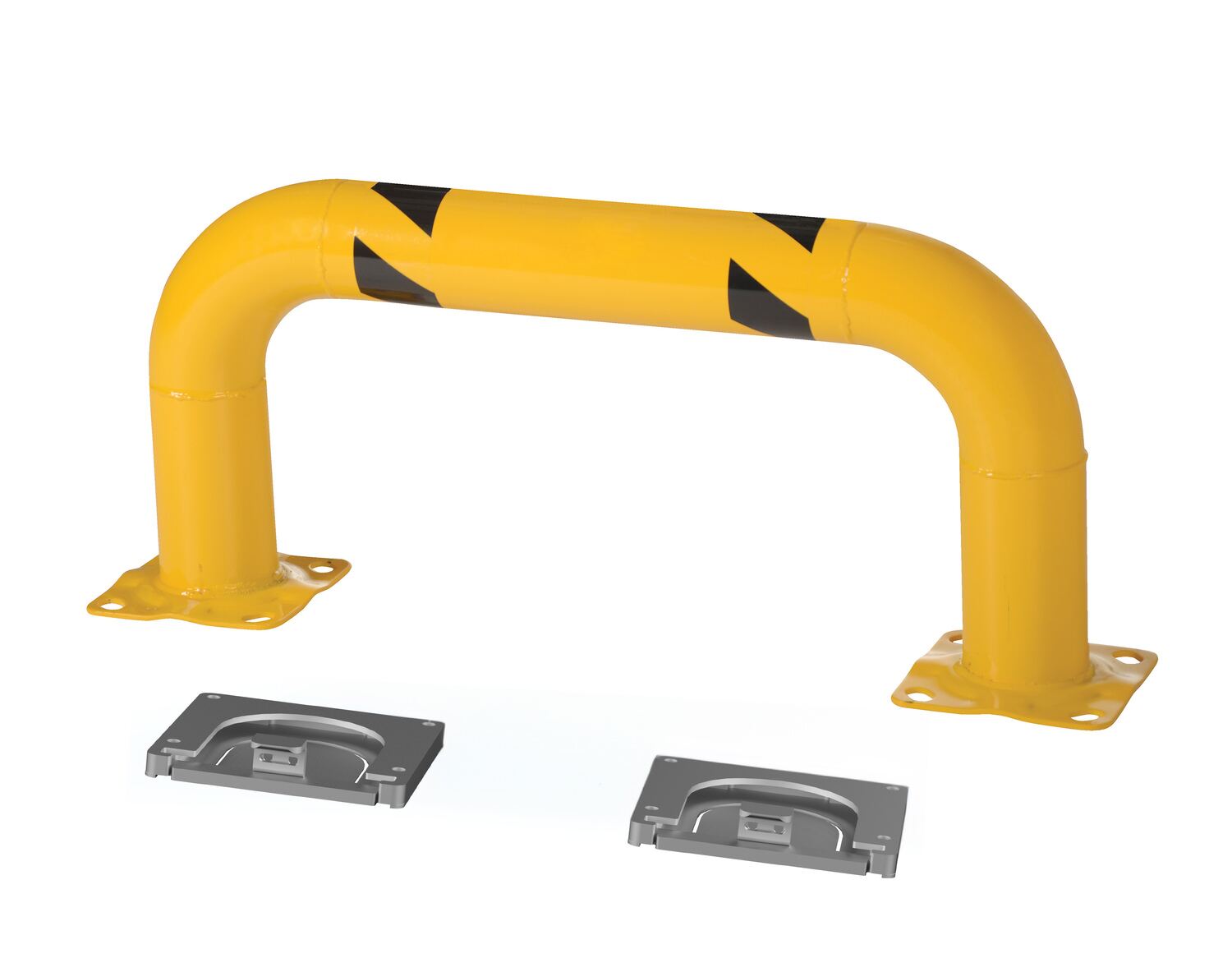

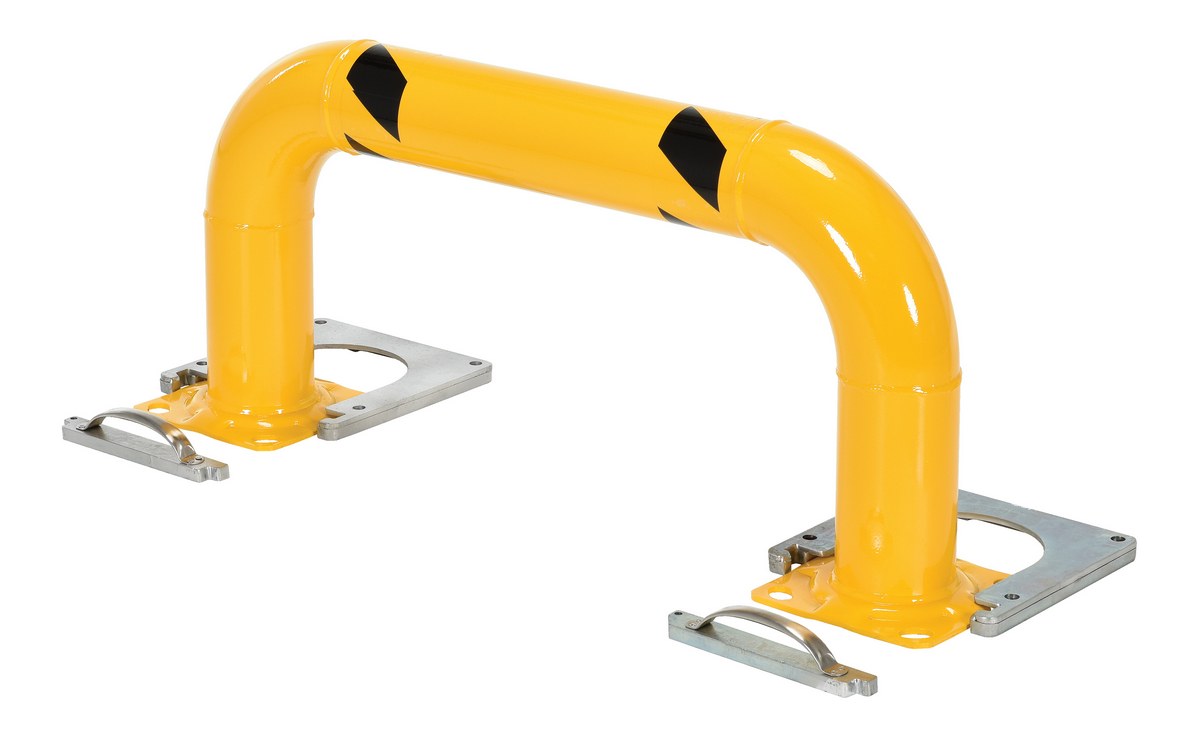

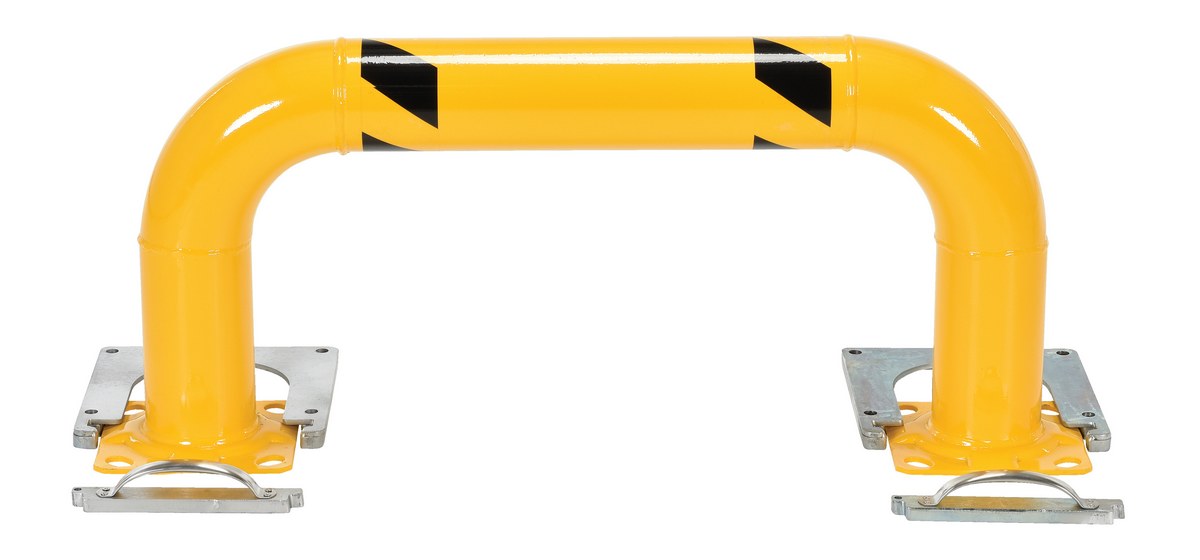

LPRO-RF-36-16-4

LPRO-RF-36-16-4

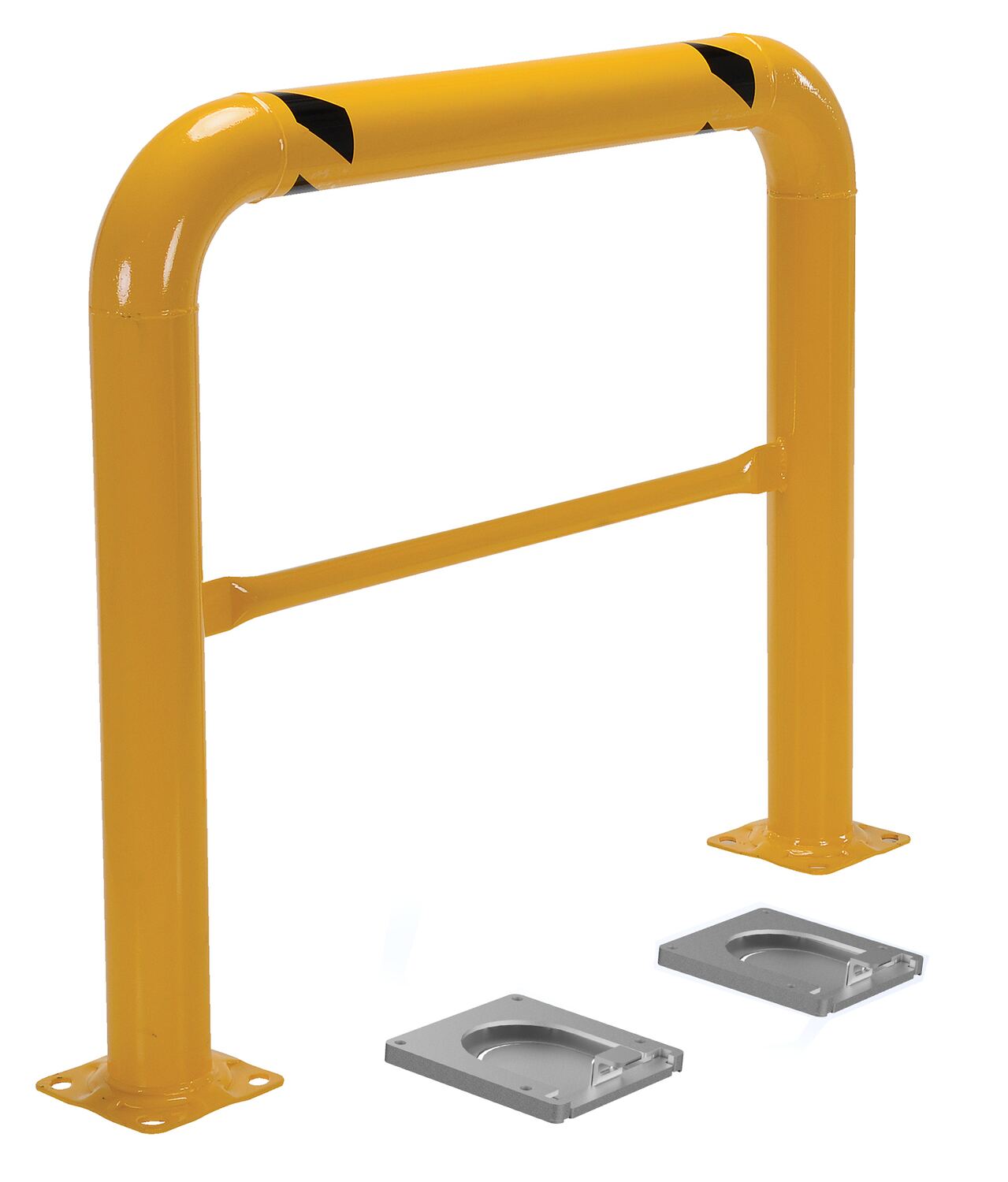

HPRO-RF-48-42-4

HPRO-RF-48-42-4

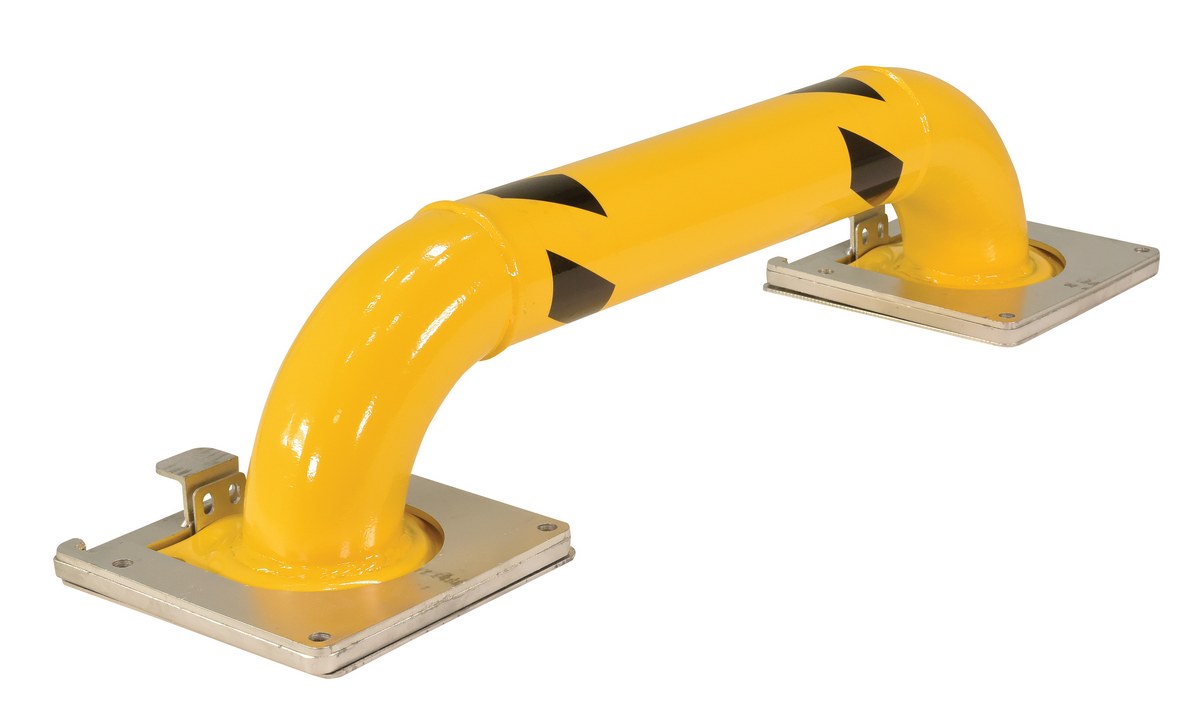

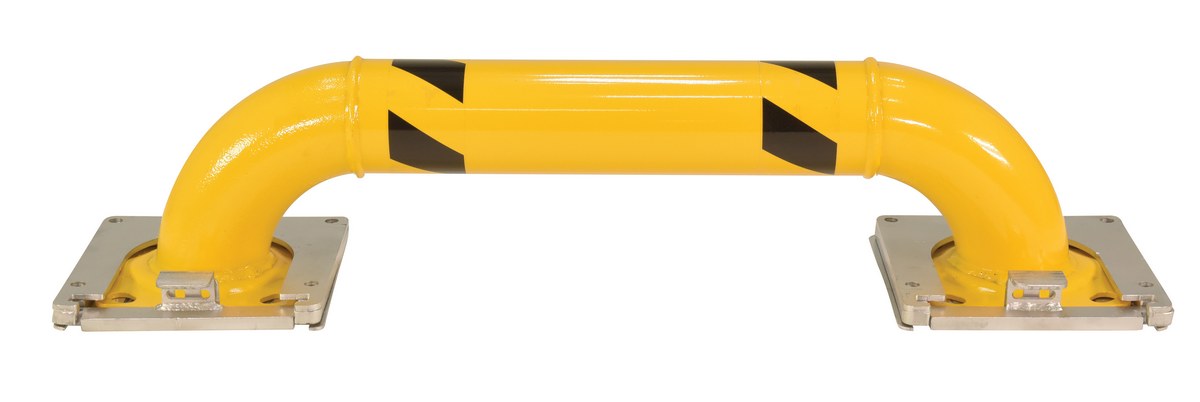

LPRO-RF-36-9-4

LPRO-RF-36-9-4

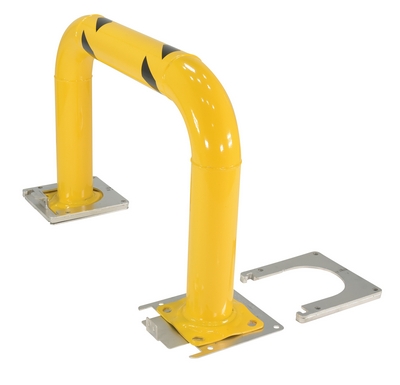

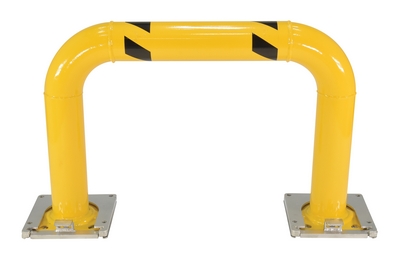

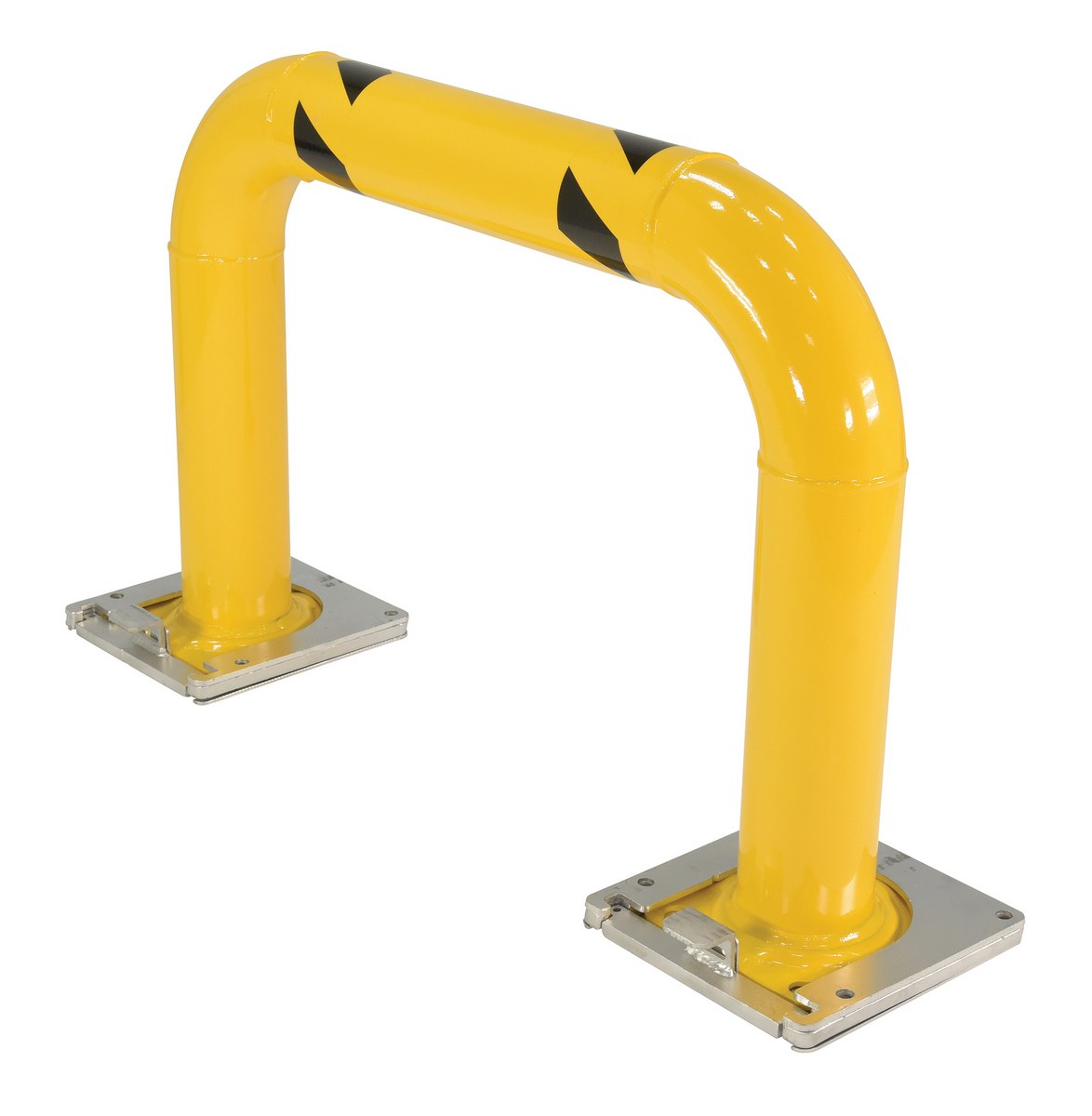

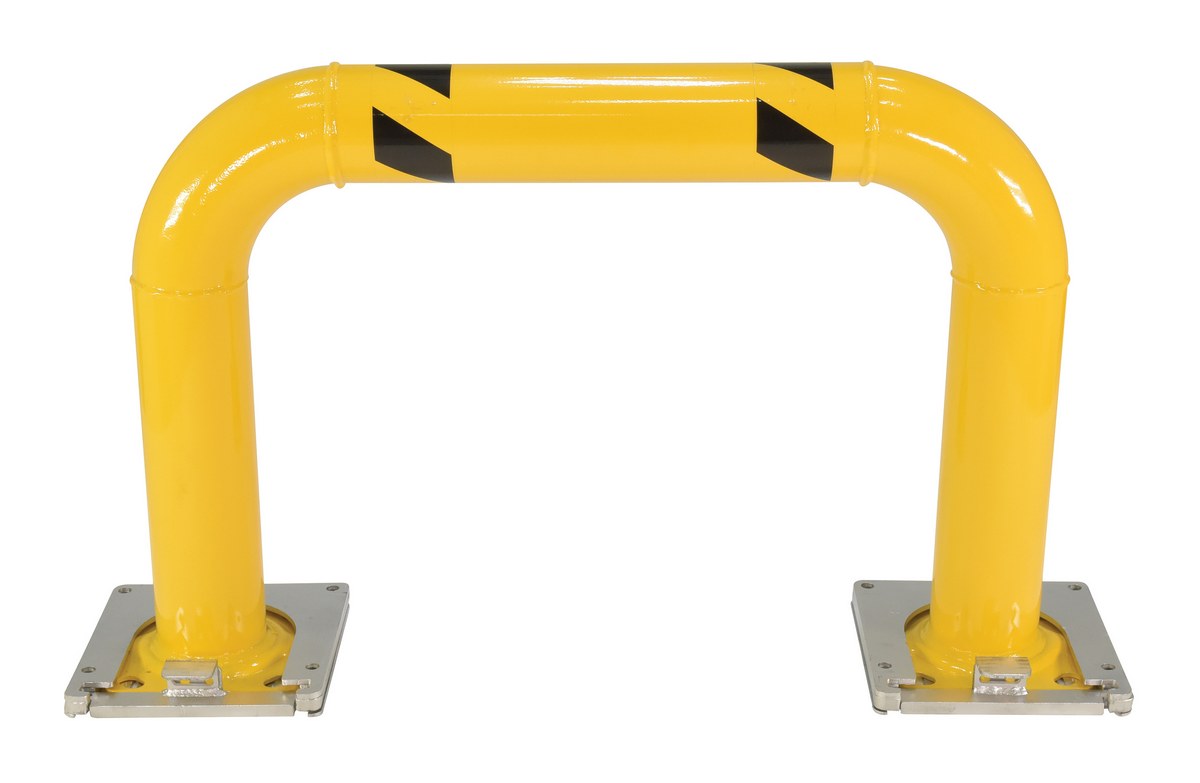

HPRO-RF-36-24-4

HPRO-RF-36-24-4

HPRO-RF-48-42-4

HPRO-RF-48-42-4

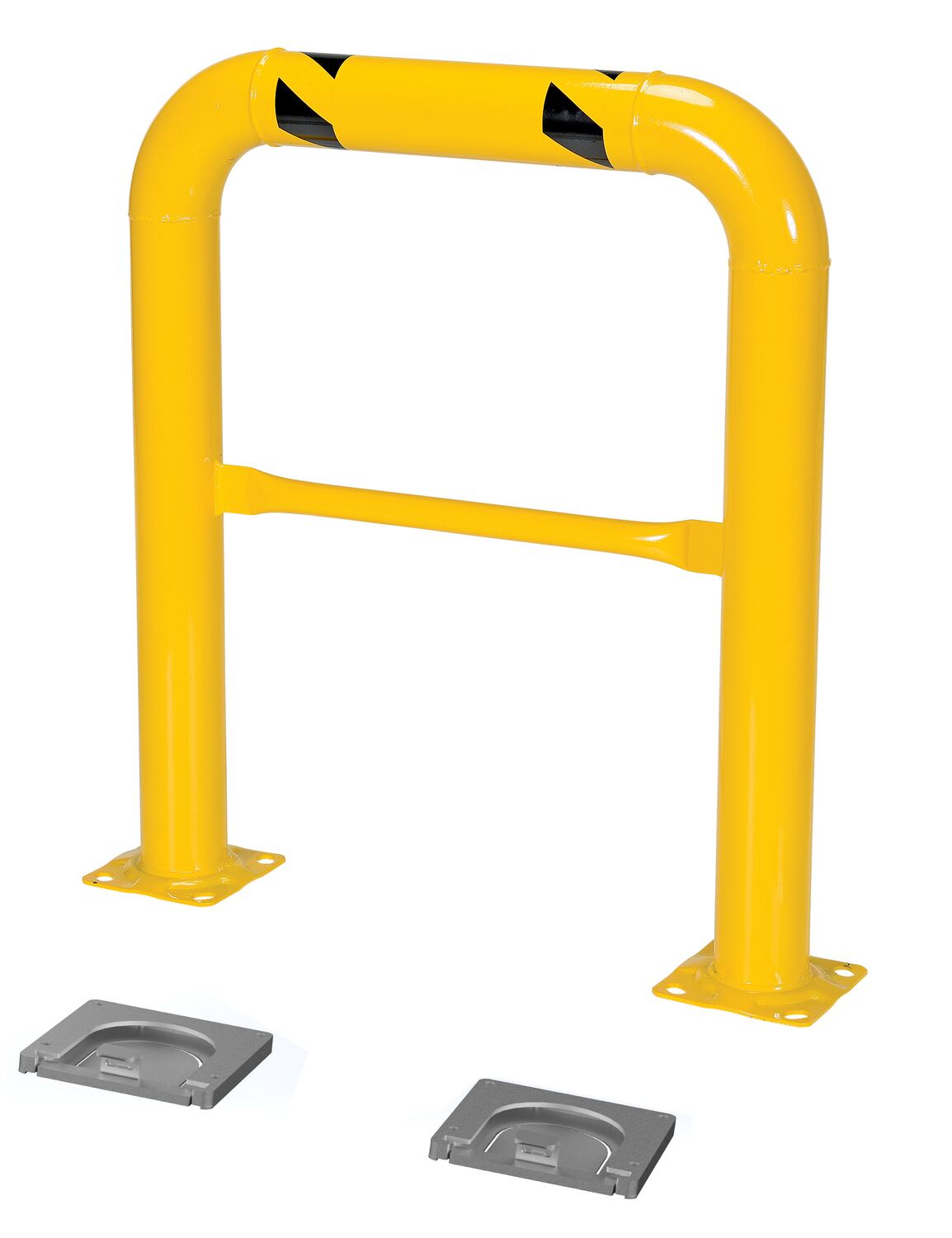

HPRO-RF-36-42-4

HPRO-RF-36-42-4

HPRO-RF-48-24-4

HPRO-RF-48-24-4

LPRO-RF-36-16-4

LPRO-RF-36-16-4

LPRO-RF-48-9-4

LPRO-RF-48-9-4

HPRO-RF-36-24-4

HPRO-RF-36-24-4

LPRO-RF-36-16-4

LPRO-RF-36-16-4

LPRO-RF-36-9-4

LPRO-RF-36-9-4

HPRO-RF-36-36-4

HPRO-RF-36-36-4

HPRO-RF-36-24-4

HPRO-RF-36-24-4

model chart
How To Purchase
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
HPRO-RF-36-24-4 HPRO-RF-36-24-490 Days Limited WarrantySteel Removable High Profile Rack Guard 36 In. x 24 In. YellowGuard Diameter (in.): 4-1/2
Base Plate Width/Length (in.): 8 x 8		55

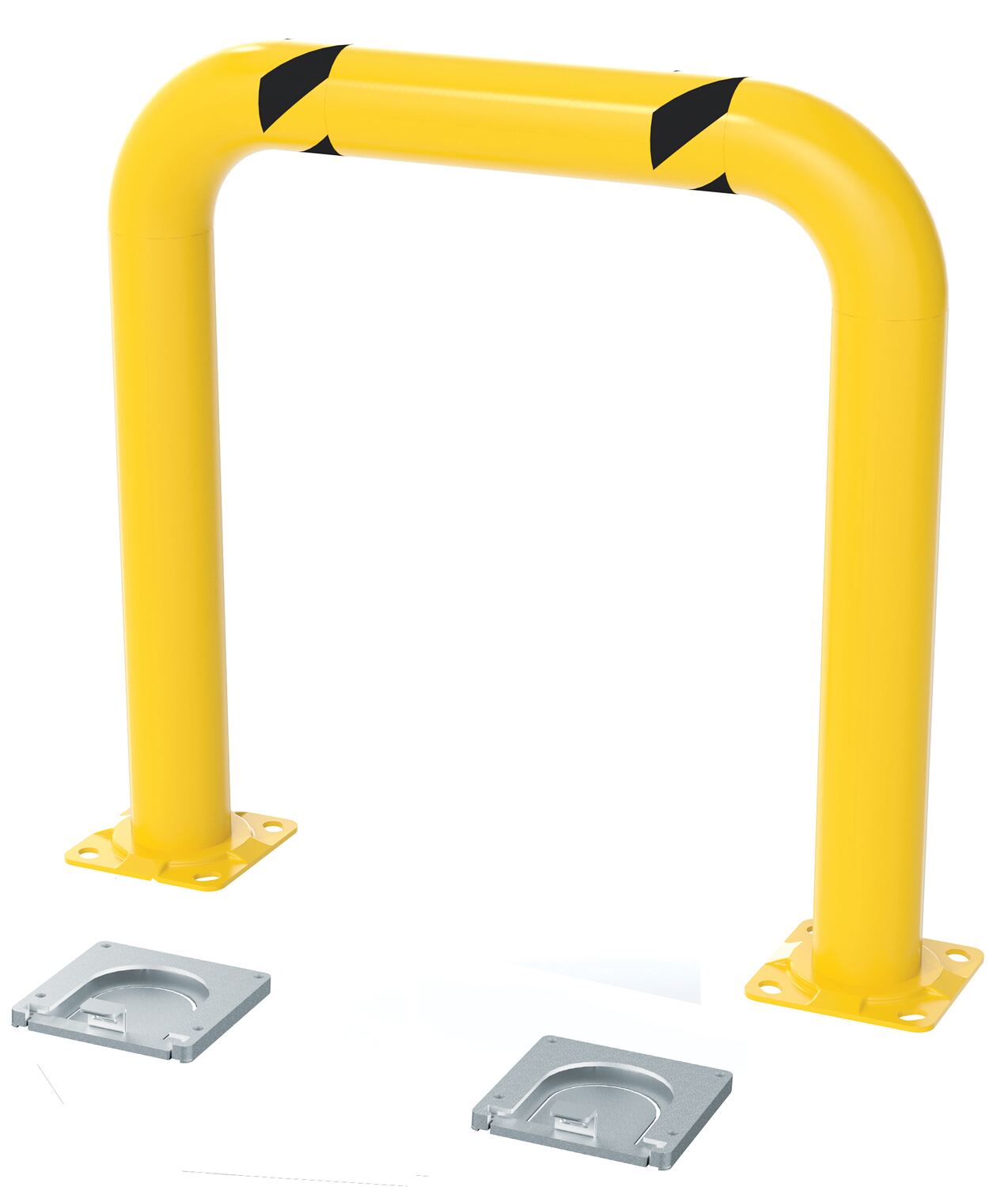

HPRO-RF-36-36-4 HPRO-RF-36-36-490 Days Limited WarrantySteel Removable High Profile Rack Guard 36 In. x 36 In. YellowGuard Diameter (in.): 4-1/2
Base Plate Width/Length (in.): 8 x 8		68
HPRO-RF-36-42-4 HPRO-RF-36-42-490 Days Limited WarrantySteel Removable High Profile Rack Guard 36 In. x 42 In. YellowGuard Diameter (in.): 4-1/2
Base Plate Width/Length (in.): 8 x 8		71
HPRO-RF-48-24-4 HPRO-RF-48-24-490 Days Limited WarrantySteel Removable High Profile Rack Guard 48 In. x 24 In. YellowGuard Diameter (in.): 4-1/2
Base Plate Width/Length (in.): 8 x 8		73

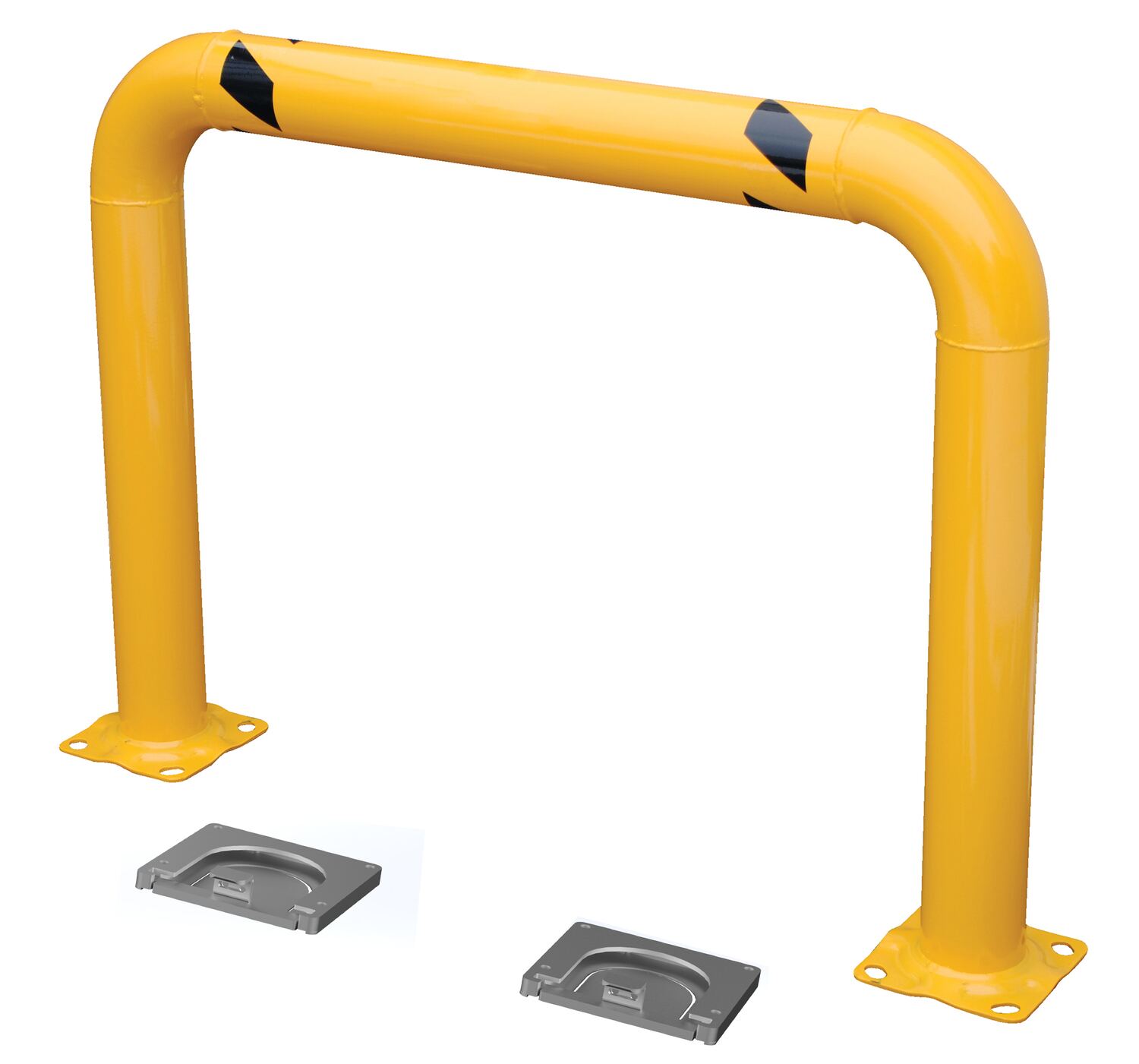

HPRO-RF-48-36-4 HPRO-RF-48-36-490 Days Limited WarrantySteel Removable High Profile Rack Guard 48 In. x 36 In. YellowGuard Diameter (in.): 4-1/2
Base Plate Width/Length (in.): 8 x 8		132
HPRO-RF-48-42-4 HPRO-RF-48-42-490 Days Limited WarrantySteel Removable High Profile Rack Guard 48 In. x 42 In. YellowGuard Diameter (in.): 4-1/2
Base Plate Width/Length (in.): 8 x 8		164
LPRO-RF-36-16-4 LPRO-RF-36-16-490 Days Limited WarrantySteel Low Profile Removable Rack Guard 8 In. x 39-1/2 In. x 16 In. YellowBase Plate Width (in.): 8
Base Plate Length (in.): 8		246

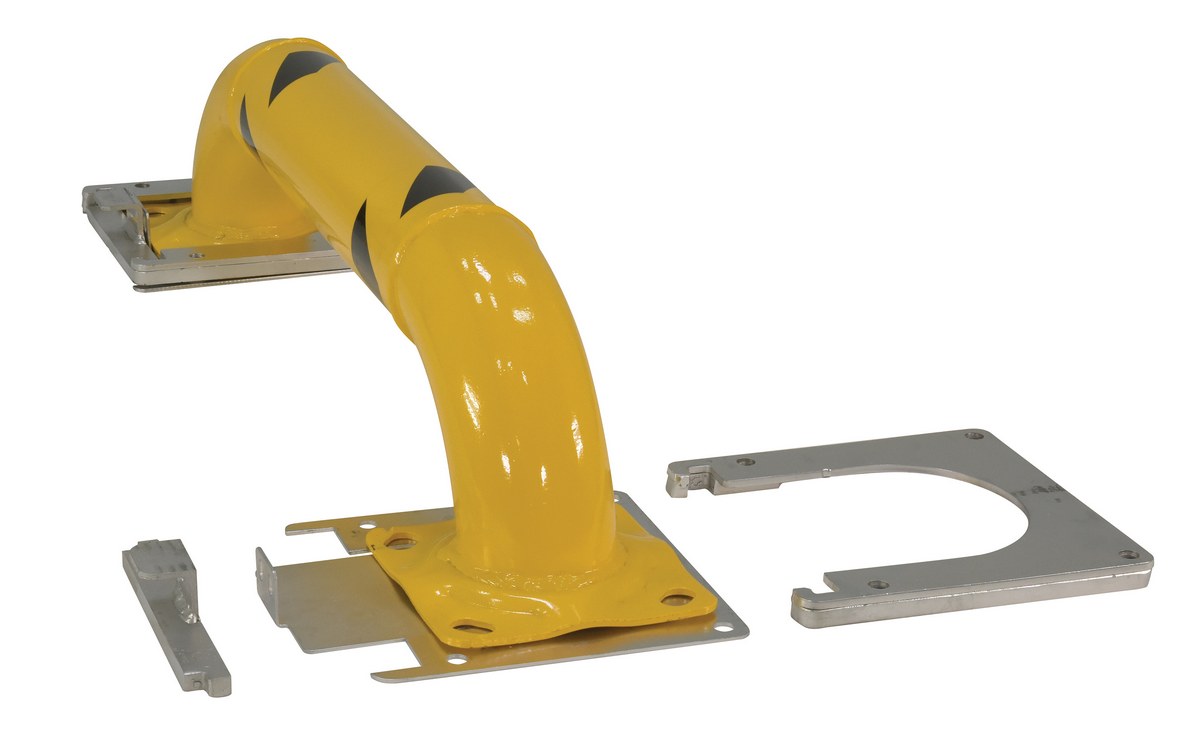

LPRO-RF-36-9-4 LPRO-RF-36-9-490 Days Limited WarrantySteel Low Profile Removable Rack Guard 8 In. x 39-1/2 In. x 9 In. YellowBase Plate Width (in.): 8
Base Plate Length (in.): 8		52
LPRO-RF-48-16-4 LPRO-RF-48-16-490 Days Limited WarrantySteel Low Profile Removable Rack Guard 8 In. x 51-1/2 In. x 16 In. YellowBase Plate Width (in.): 8
Base Plate Length (in.): 8		268
LPRO-RF-48-9-4 LPRO-RF-48-9-490 Days Limited WarrantySteel Low Profile Removable Rack Guard 8 In. x 51-1/2 In. x 9 In. YellowBase Plate Width (in.): 8
Base Plate Length (in.): 8		267

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

HPRO-RF-36-24-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Base Plate Width/Length (in.): 8 x 8
Guard Diameter (in.): 4-1/2
Base Plate Width/Length (in.): 8 x 8

HPRO-RF-36-36-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Base Plate Width/Length (in.): 8 x 8
Guard Diameter (in.): 4-1/2
Base Plate Width/Length (in.): 8 x 8

HPRO-RF-36-42-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Base Plate Width/Length (in.): 8 x 8
Guard Diameter (in.): 4-1/2
Base Plate Width/Length (in.): 8 x 8

HPRO-RF-48-24-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Base Plate Width/Length (in.): 8 x 8
Guard Diameter (in.): 4-1/2
Base Plate Width/Length (in.): 8 x 8

HPRO-RF-48-36-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Base Plate Width/Length (in.): 8 x 8
Guard Diameter (in.): 4-1/2
Base Plate Width/Length (in.): 8 x 8

HPRO-RF-48-42-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Guard Diameter (in.): 4-1/2
Base Plate Width/Length (in.): 8 x 8
Guard Diameter (in.): 4-1/2
Base Plate Width/Length (in.): 8 x 8

LPRO-RF-36-16-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Plate Width (in.): 8
Base Plate Length (in.): 8
Base Plate Width (in.): 8
Base Plate Length (in.): 8

LPRO-RF-36-9-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Plate Width (in.): 8
Base Plate Length (in.): 8
Base Plate Width (in.): 8
Base Plate Length (in.): 8

LPRO-RF-48-16-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Plate Width (in.): 8
Base Plate Length (in.): 8
Base Plate Width (in.): 8
Base Plate Length (in.): 8

LPRO-RF-48-9-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Base Plate Width (in.): 8
Base Plate Length (in.): 8
Base Plate Width (in.): 8
Base Plate Length (in.): 8
For More Details of the Option Click the Red Model Button
Model Image Description Wt (lbs.)
LPRO-RF-BASE Vestil Steel Removable Bollard Base For Low Profile Rack Guards Silver 12

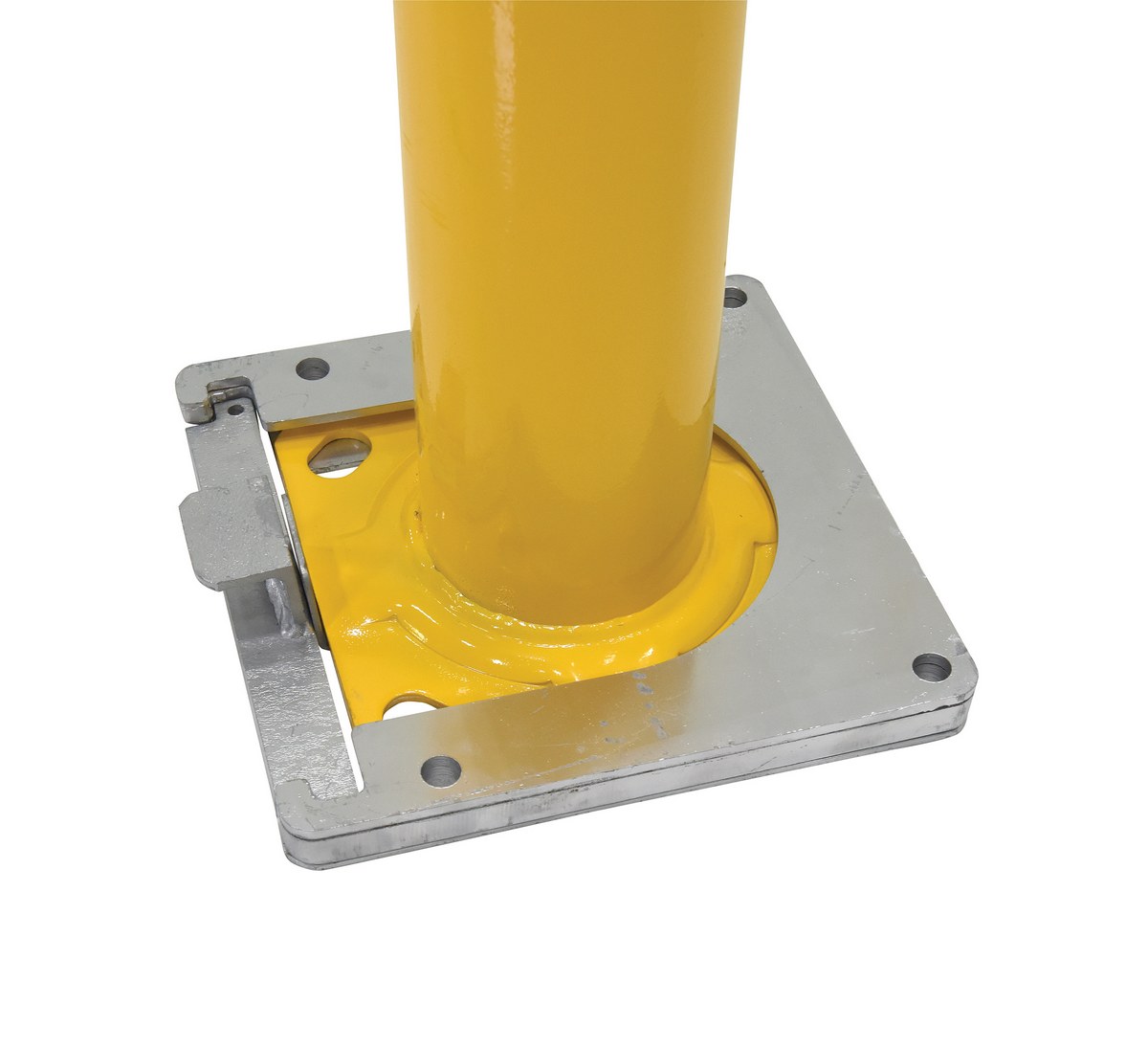

HPRO-RF-BASE Vestil Steel Removable Bollard Base For High Profile Machinery Guards Silver 12
AS-125-4PK Concrete Anchor Bolts (4) 1/2" x 5" 4
AS-125 Concrete Anchor Bolts (1) 1/2" x 5" 1
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Surface Mounted Removable High Profile Machinery Guards & Low Profile Rack Guards PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


HPRO-RF-36-24-4

HPRO-RF-36-36-4

HPRO-RF-36-42-4

HPRO-RF-48-24-4

HPRO-RF-48-36-4

HPRO-RF-48-42-4

LPRO-RF-36-16-4

LPRO-RF-36-9-4

LPRO-RF-48-16-4

LPRO-RF-48-9-4

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: What size anchor bolts do these machine guards use?

A: 1/2" diameter bolt. A suggested would be the AS-125.
