Model Details

CART-400-LA

Printer Friendly
CART-400-LA

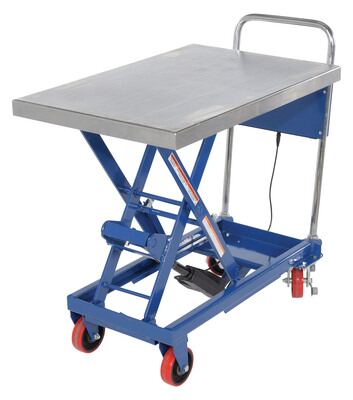

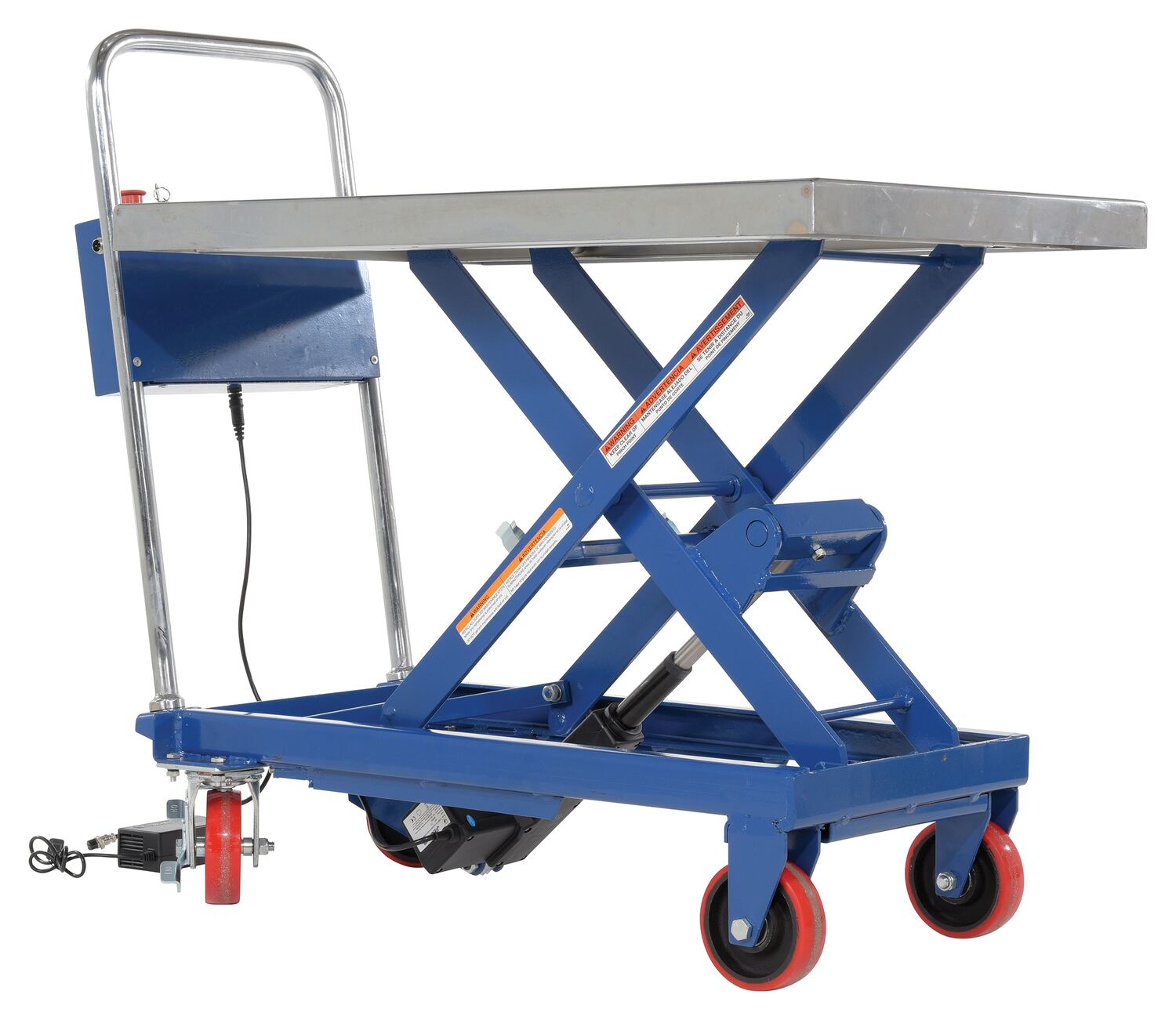

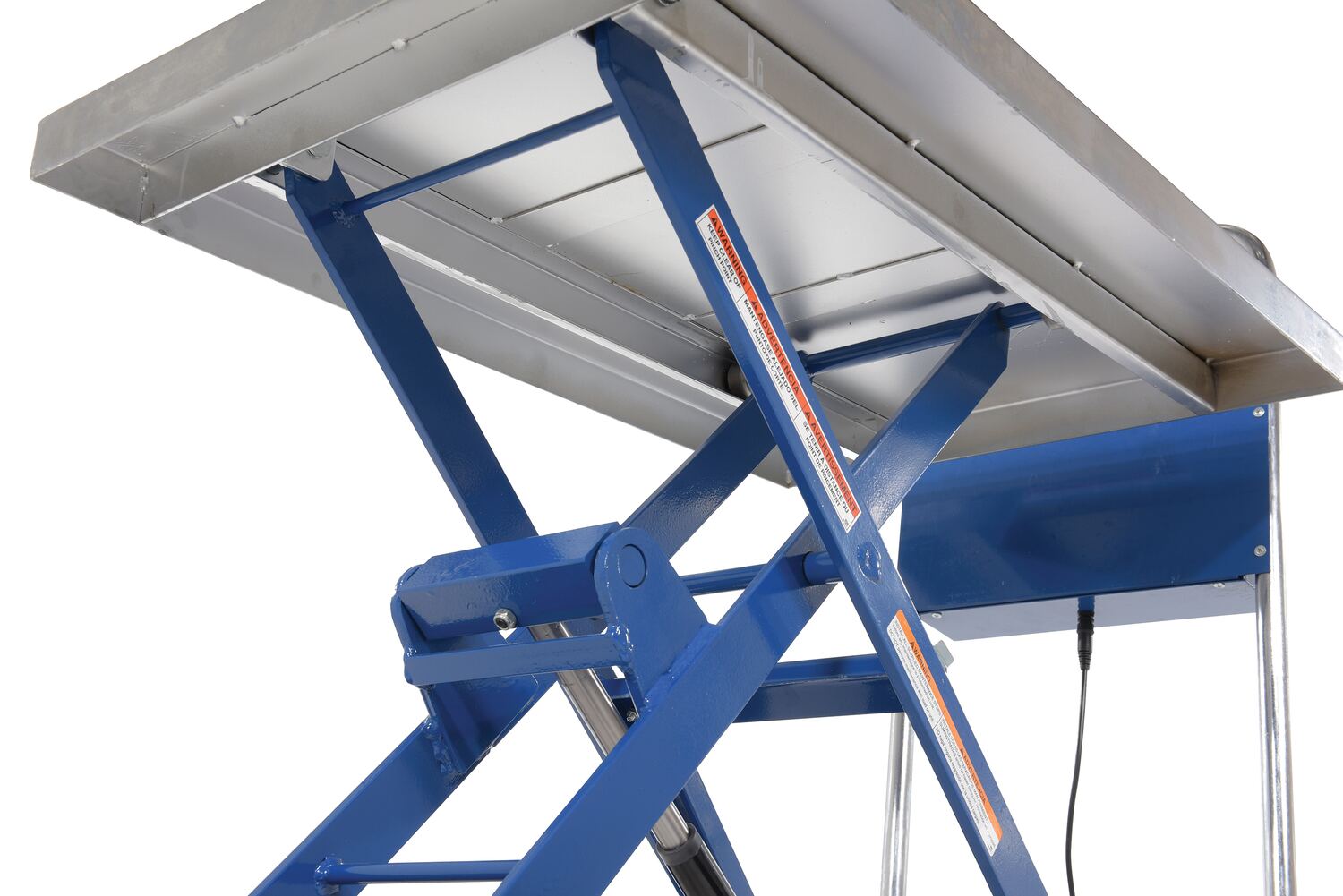

Steel Linear Elevating Cart 23-5/8 In. x 35-1/2 In. 400 Lb. Capacity Blue/Silver

The linear actuated elevating cart transports materials from workstation to workstation with ease. The platform is raised and lowered with an electric linear actuator for precise positioning. Linear actuator will not allow platform to drift down - a common problem with hydraulic carts. This linear actuated cart is powered by (2) 12v AGM batteries and feature bench type charger. Emergency stop button standard on control box. The units rolls smoothly on two rigid and two swivel casters. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Total Ship Wt.(lbs.): 225 (only 1 package) Size: 20.5"W x 34.75"L x 33"H Color: Blue QuickShip

Uniform Capacity (lb.): 400 Platform Width (in.): 23-5/8 Platform Length (in.): 35-1/2
Lowered Height (in.): 15 Raised Height (in.): 34 Lowering Method: 12 Volt Battery
Scissor Design: Single Rear Caster Diameter (in.): 4 Rear Caster Width (in.): 2
Front Caster Diameter (in.): 4 Front Caster Width (in.): 2 Caster (quantity): 4
Caster Material: Poly-on-Steel Front Caster Type: Swivel Rear Caster Type: Rigid
Battery Quantity/Voltage: (2) 12V

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: CART-400-LA
CART-400-LA

Steel Linear Elevating Cart 23-5/8 In. x 35-1/2 In. 400 Lb. Capacity Blue/Silver

The linear actuated elevating cart transports materials from workstation to workstation with ease. The platform is raised and lowered with an electric linear actuator for precise positioning. Linear actuator will not allow platform to drift down - a common problem with hydraulic carts. This linear actuated cart is powered by (2) 12v AGM batteries and feature bench type charger. Emergency stop button standard on control box. The units rolls smoothly on two rigid and two swivel casters. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Dimensions: 20.5"W x 34.75"L x 33"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215104241 GTIN: 00691215104241
Warranty: -- Shipping Weight: 225 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 400 Platform Width (in.): 23-5/8 Platform Length (in.): 35-1/2
Lowered Height (in.): 15 Raised Height (in.): 34 Lowering Method: 12 Volt Battery
Scissor Design: Single Rear Caster Diameter (in.): 4 Rear Caster Width (in.): 2
Front Caster Diameter (in.): 4 Front Caster Width (in.): 2 Caster (quantity): 4
Caster Material: Poly-on-Steel Front Caster Type: Swivel Rear Caster Type: Rigid
Battery Quantity/Voltage: (2) 12V
