Product Family Overview


DC Powered Hydraulic Elevating Carts
SERIES: CART-DC

These carts are ideal for quick lifting and ergonomic material handling. Battery-powered units allow operators to raise and lower platform with the push of a button. *Units roll on two (2) rigid and two (2) swivel polyurethane casters while the others roll on 5" poly-on-steel casters. Includes one (1) 12V battery and an on-board charger.

These carts are ideal for quick lifting and ergonomic material handling. Battery-powered units allow operators to raise and lower platform with the push of a button. *Units roll on two (2) rigid and two (2) swivel polyurethane casters while the others roll on 5" poly-on-steel casters. Includes one (1) 12V battery and an on-board charger.

Additional Models In This Family

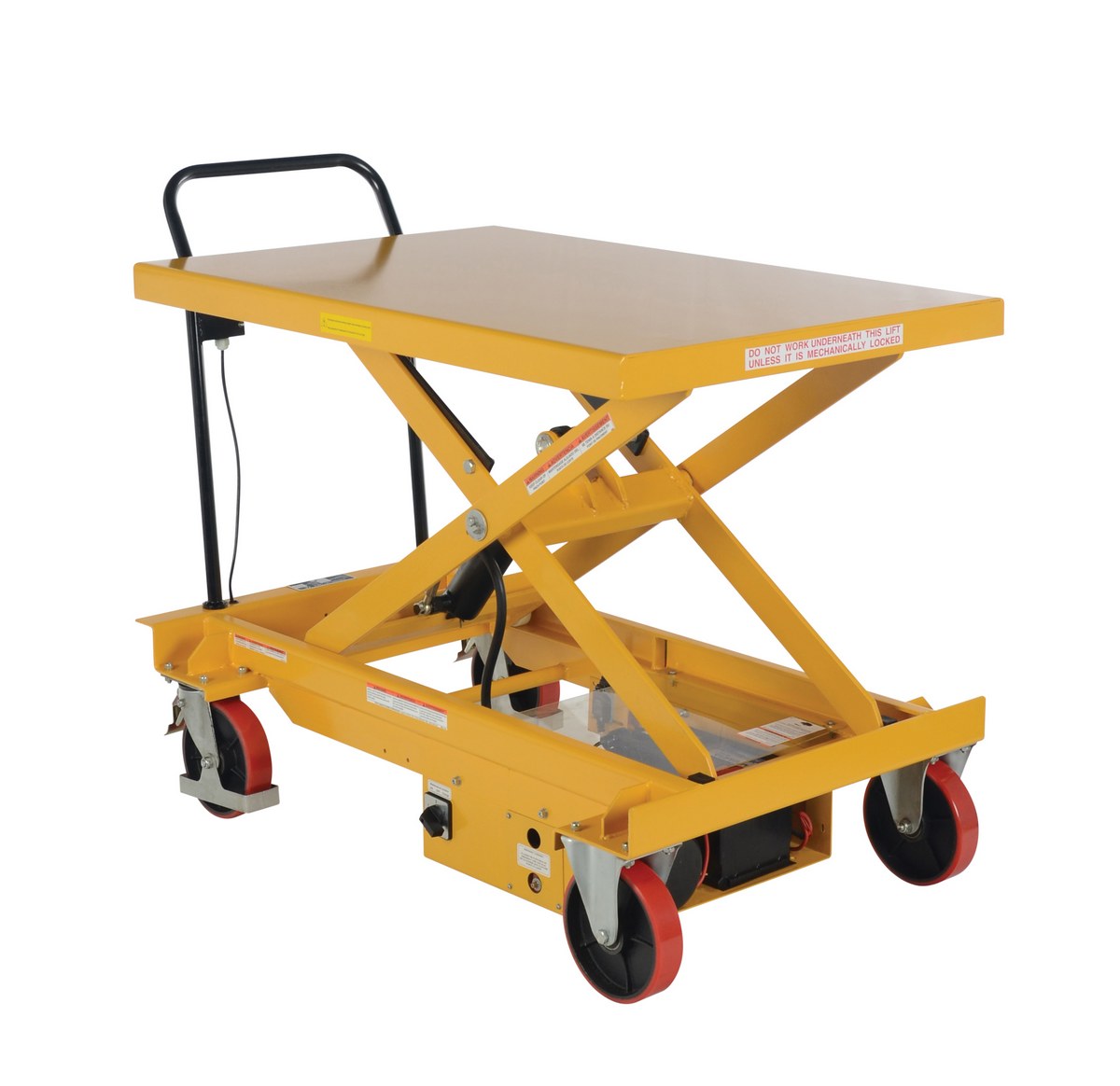

CART-1000-WD-DC

model CART-1000-WD-DC

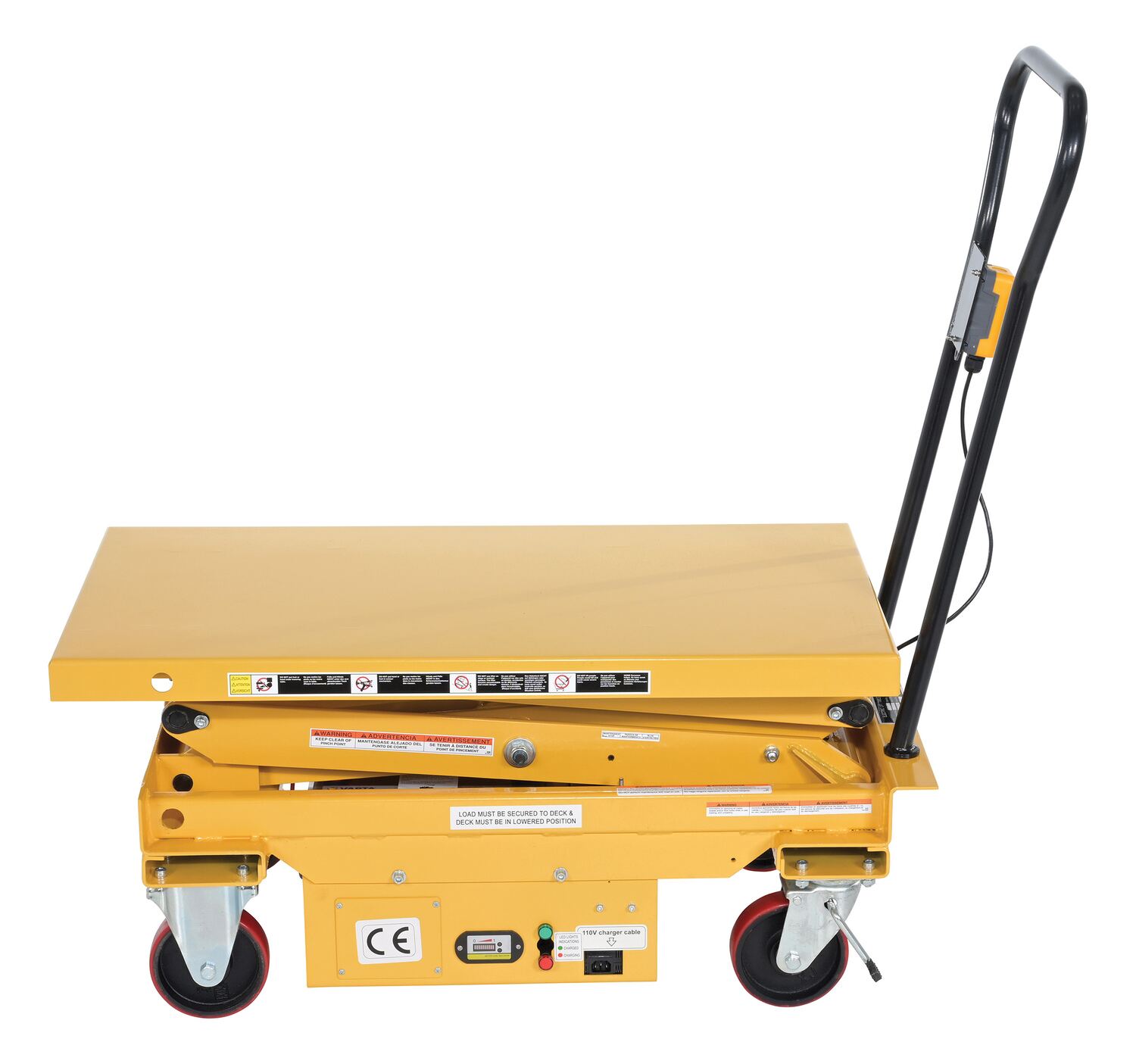

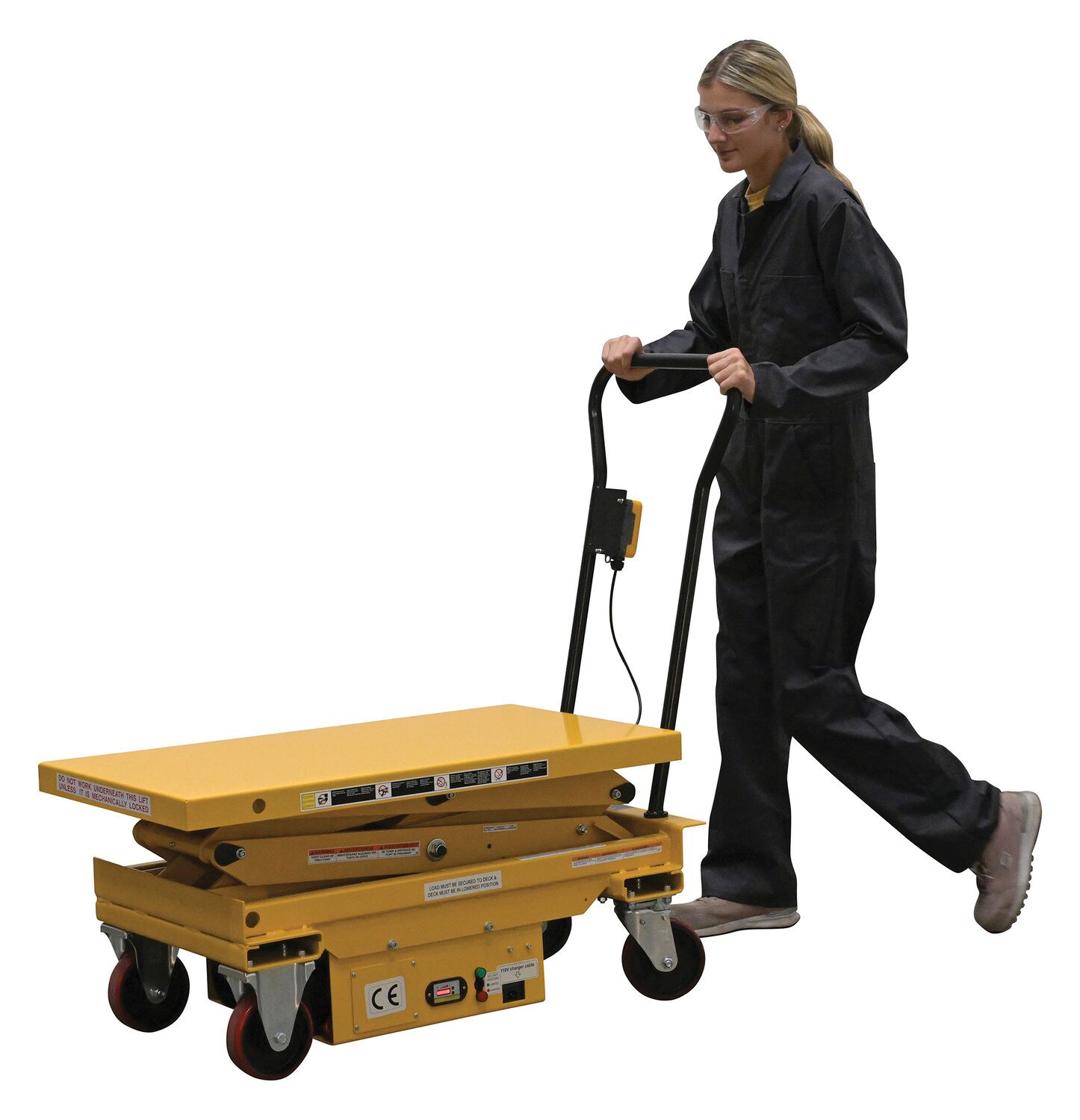

CART-1000D-DC

model CART-1000D-DC

CART-2000-DC-C

model CART-2000-DC-C

CART-500-2033-DC

model CART-500-2033-DC

CART-2000-3240-DC

model CART-2000-3240-DC

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model # PDF's Description Attributes Net Wt.
(lbs)

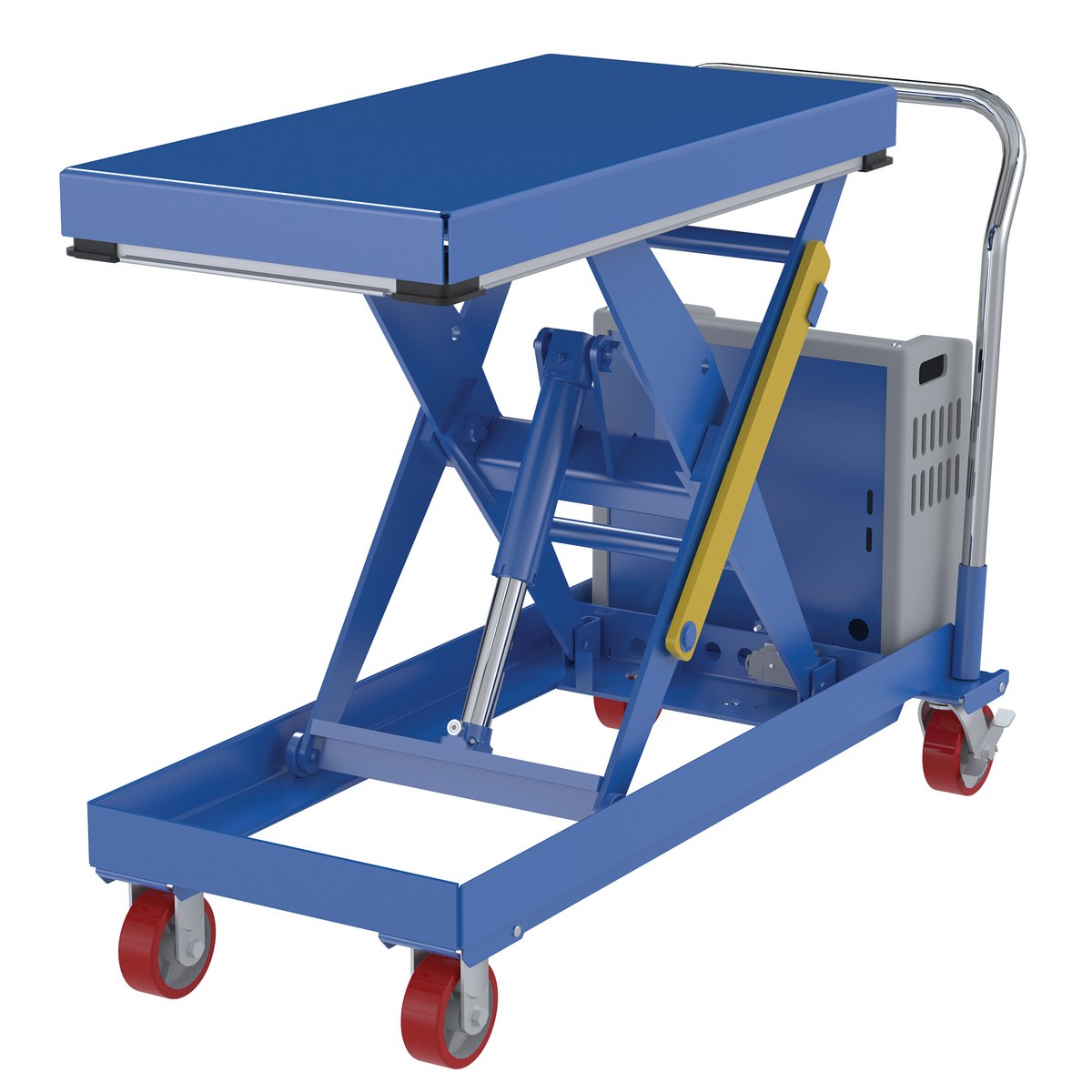

CART-1000-2040-DC CART-1000-2040-DC1 Year Limited WarrantySteel 12V DC Powered Hydraulic Elevating Cart 20 In. x 40 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
413

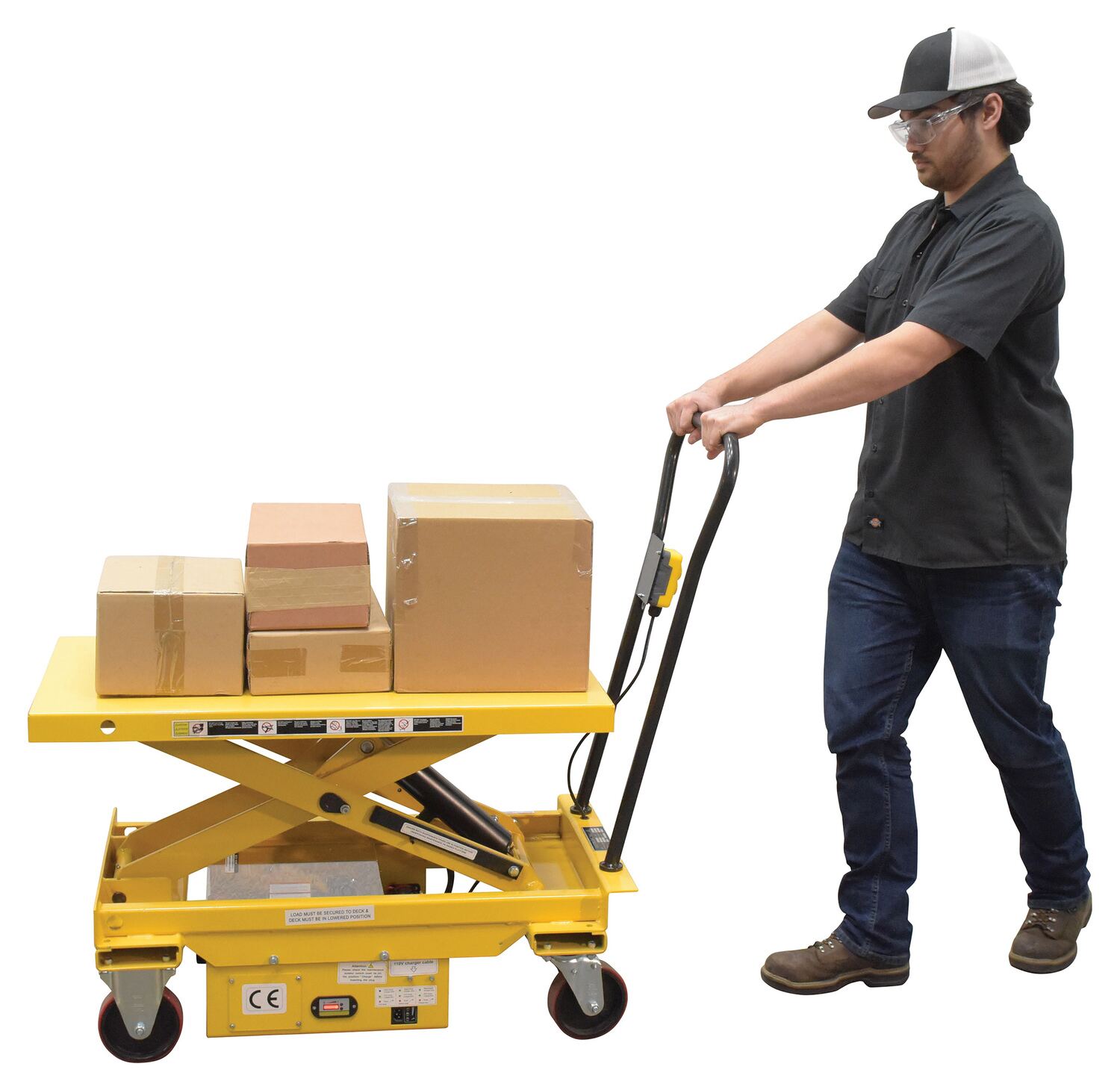

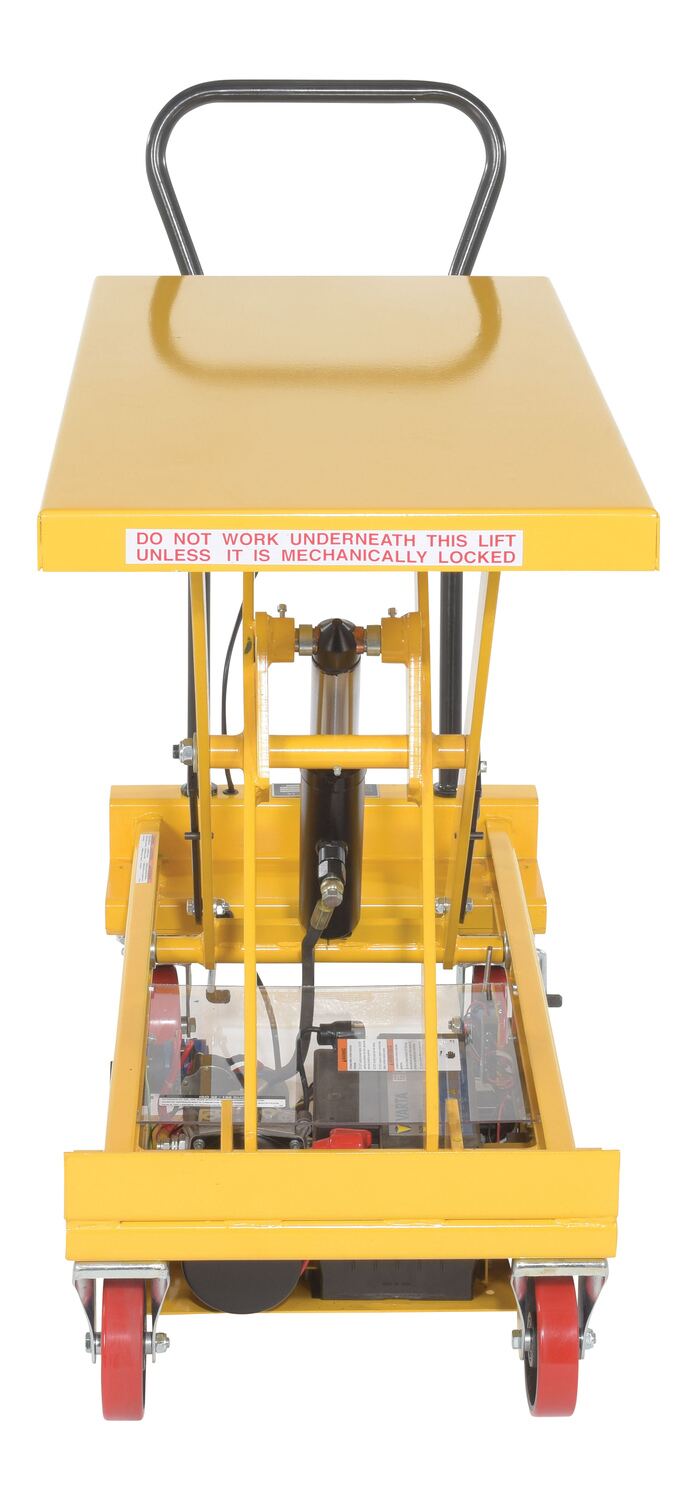

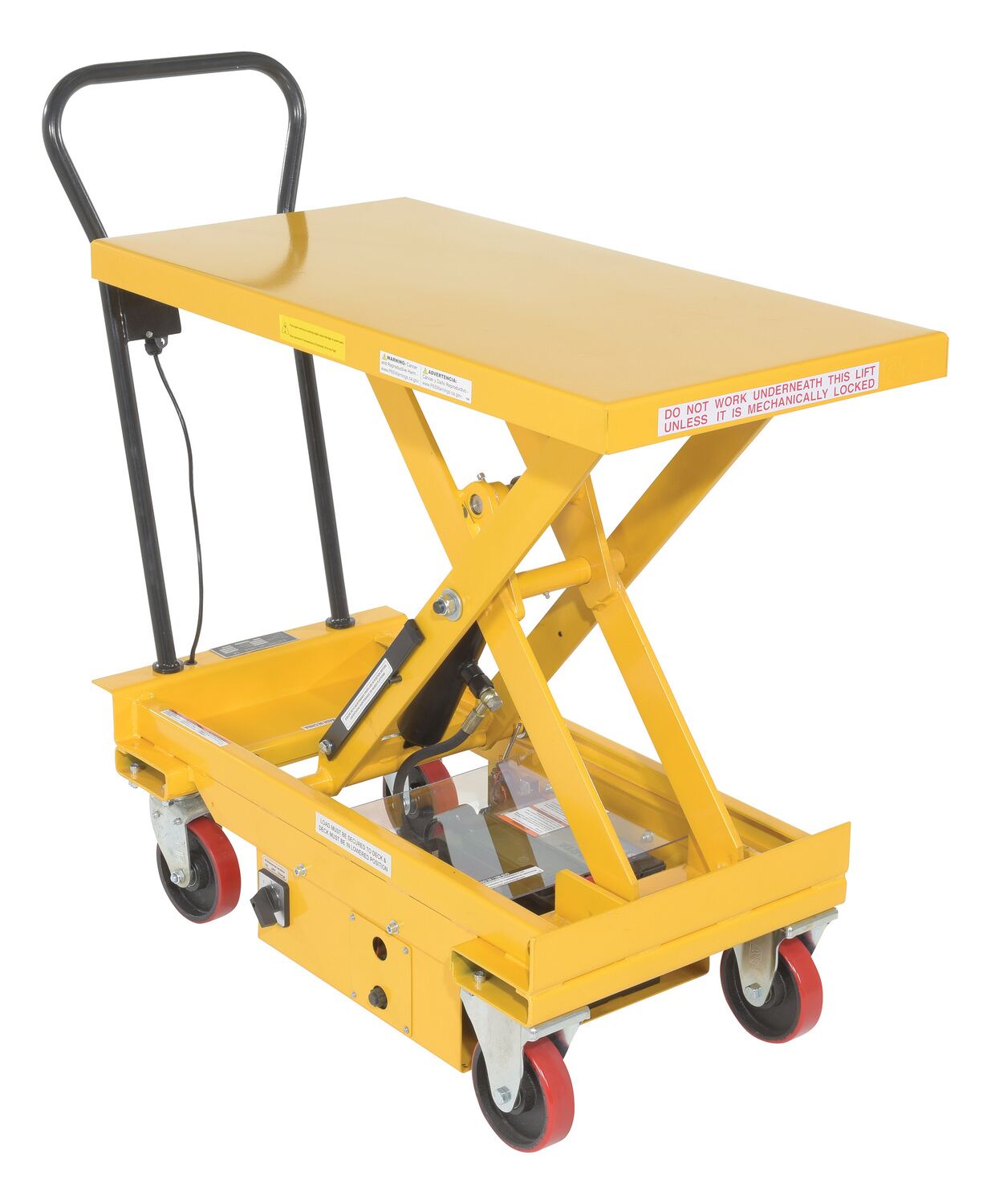

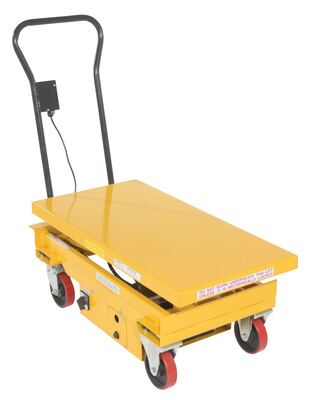

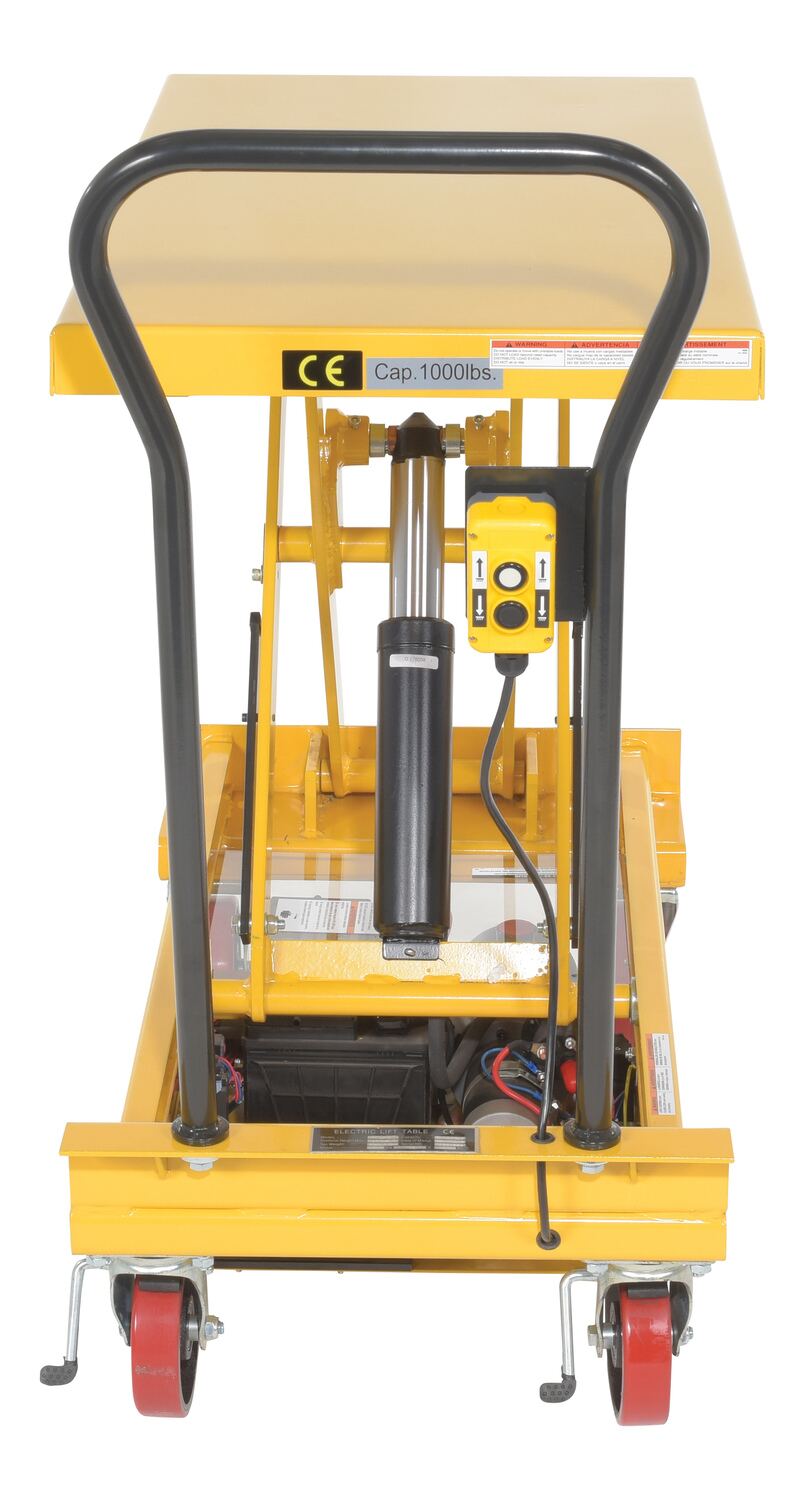

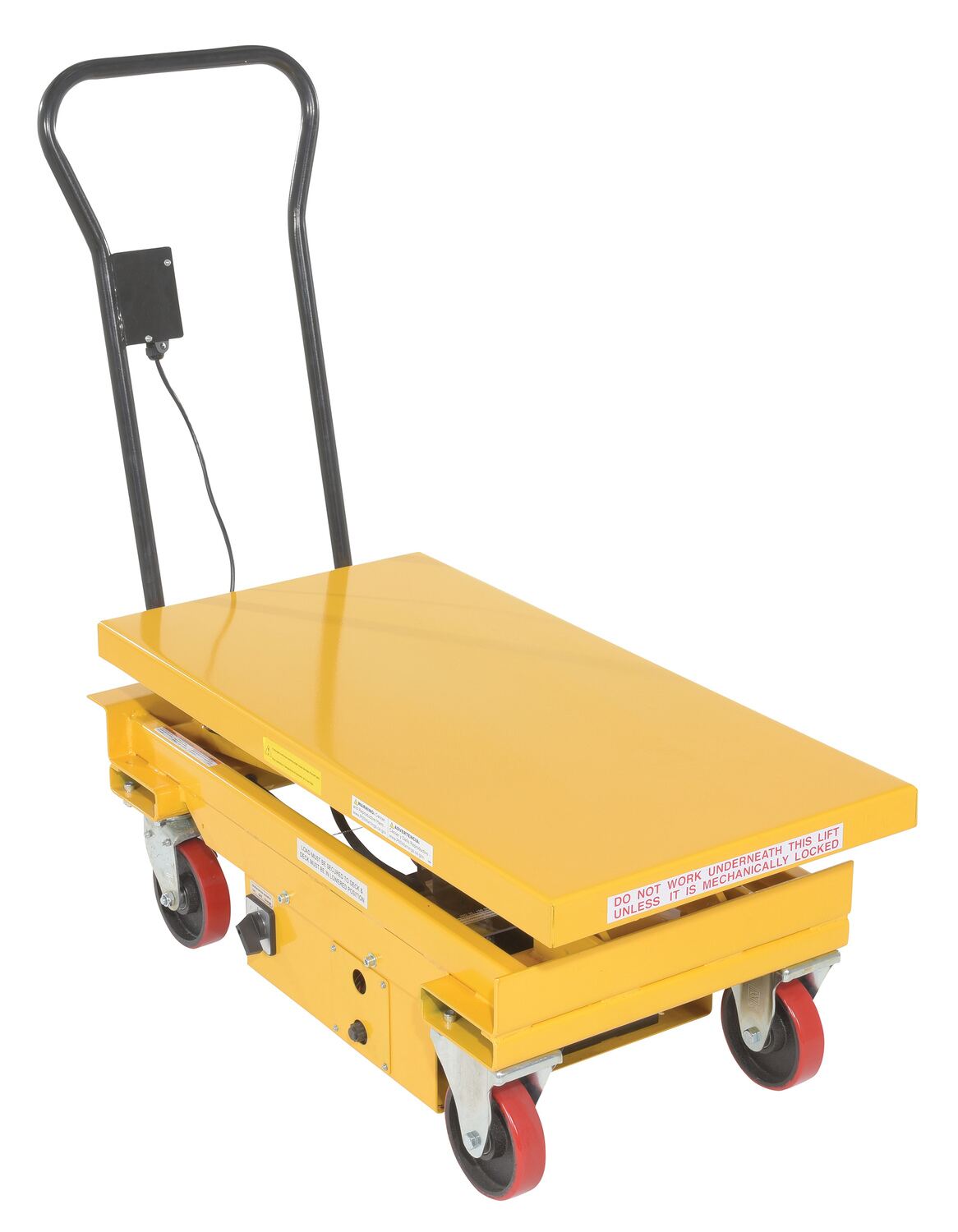

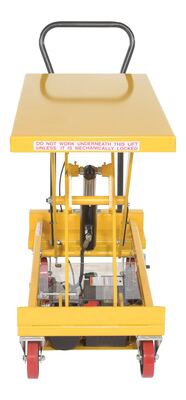

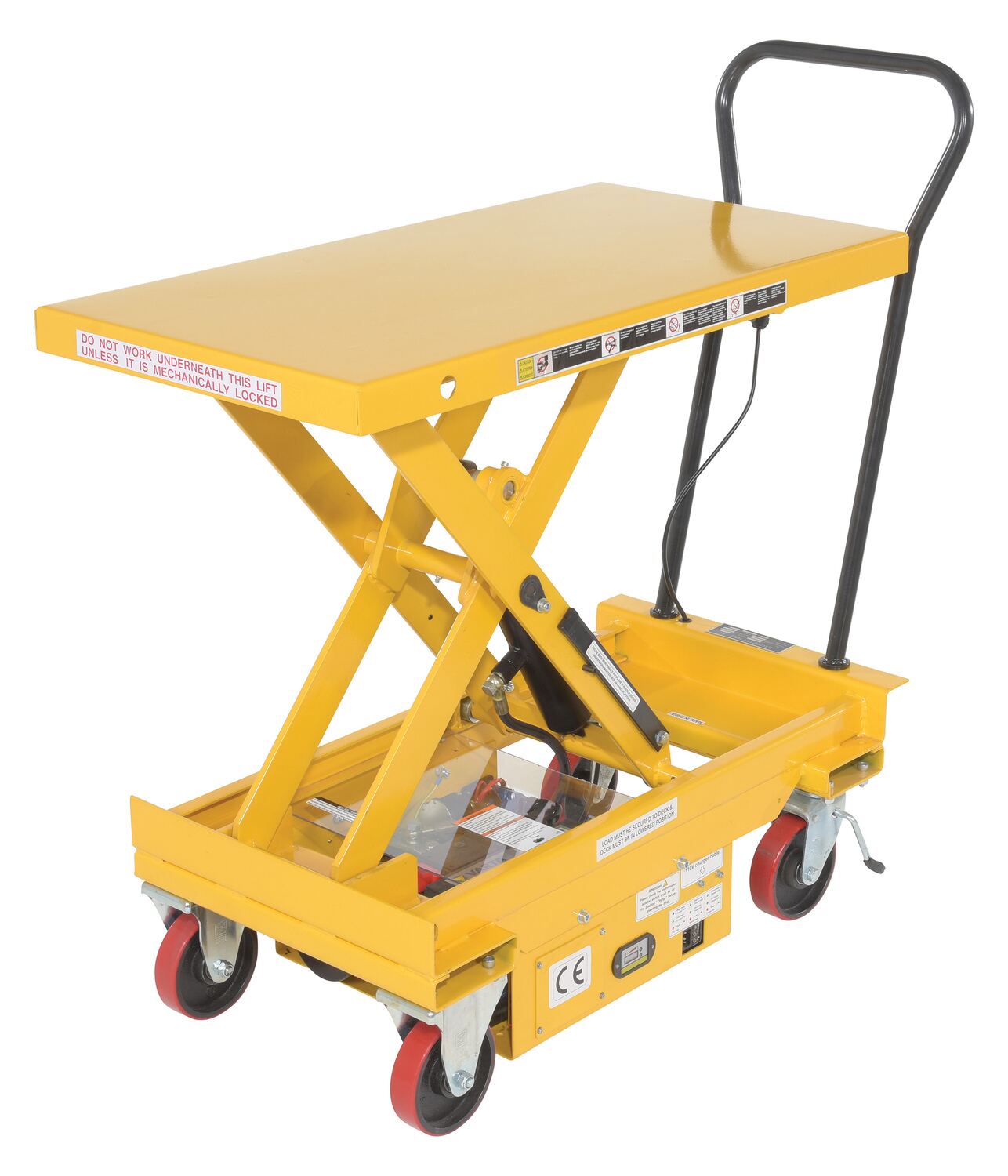

CART-1000-DC CART-1000-DC1 Year Limited WarrantySteel DC Powered Hydraulic Single Scissor Cart 20-1/2 In. x 39-3/4 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1000
Platform Width (in.): 20-1/2
450

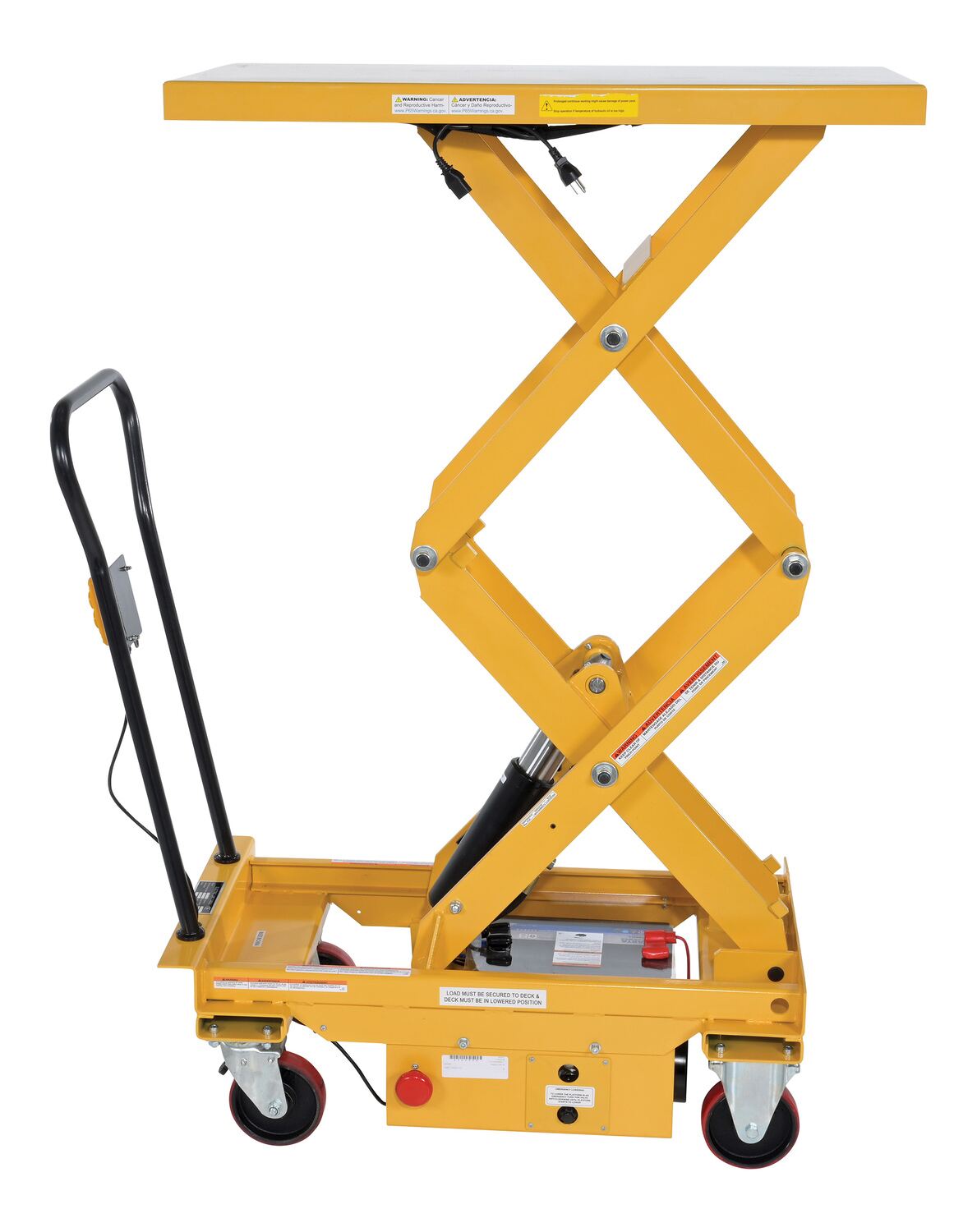

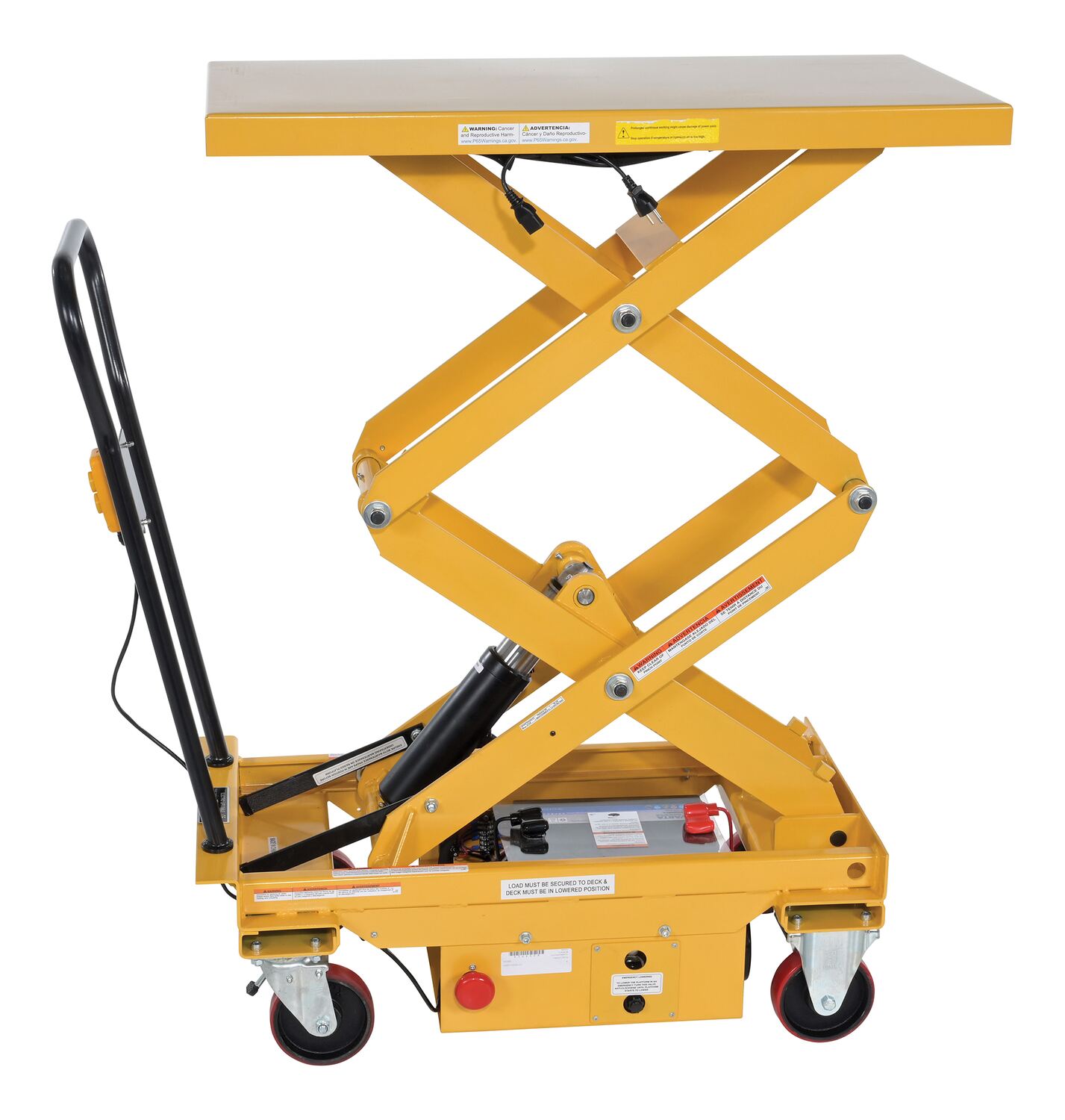

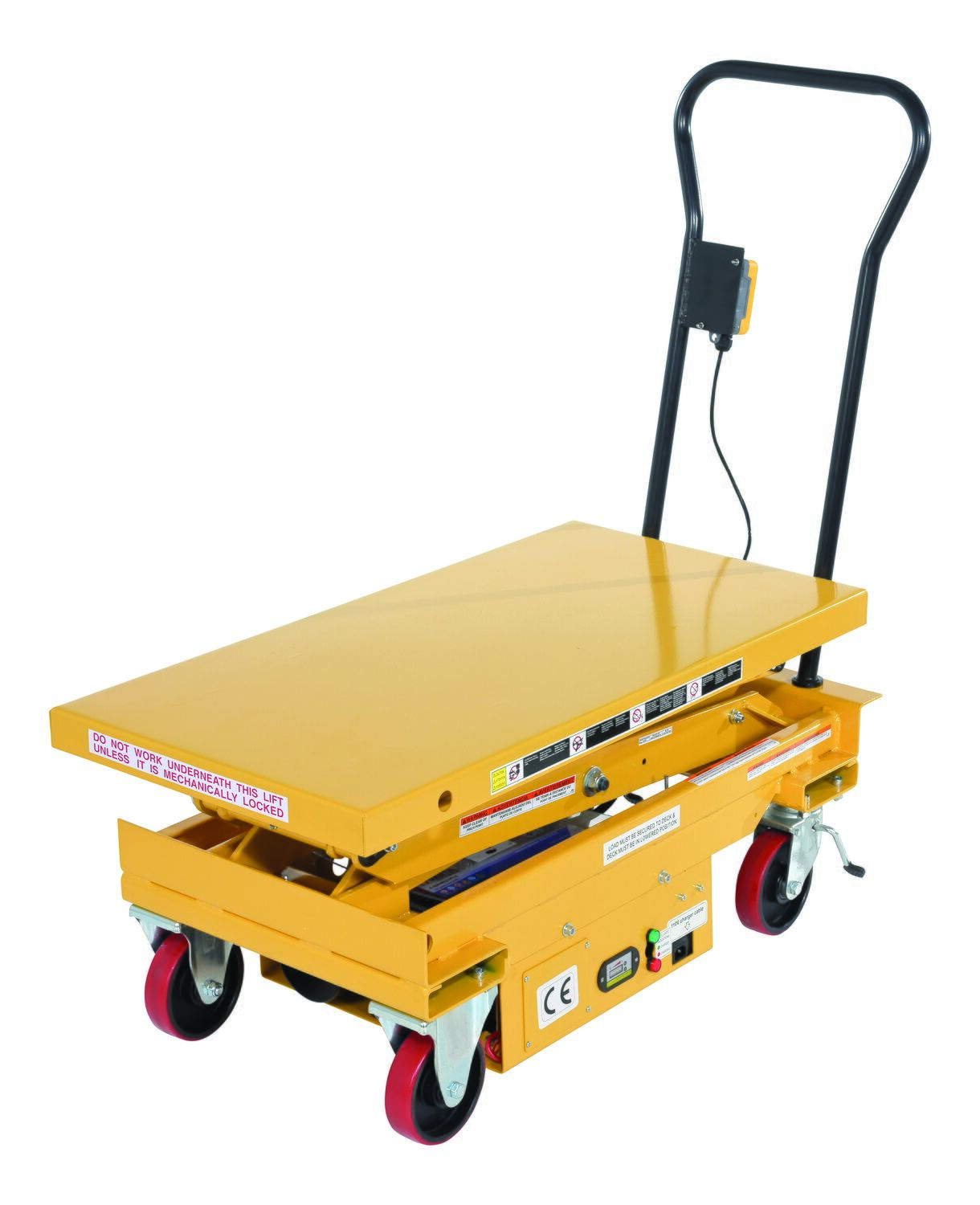

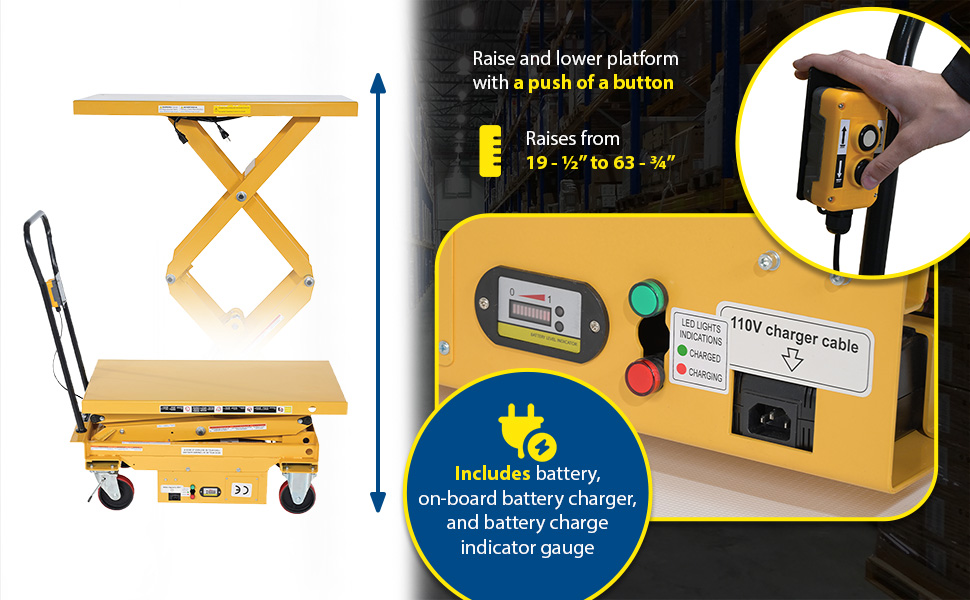

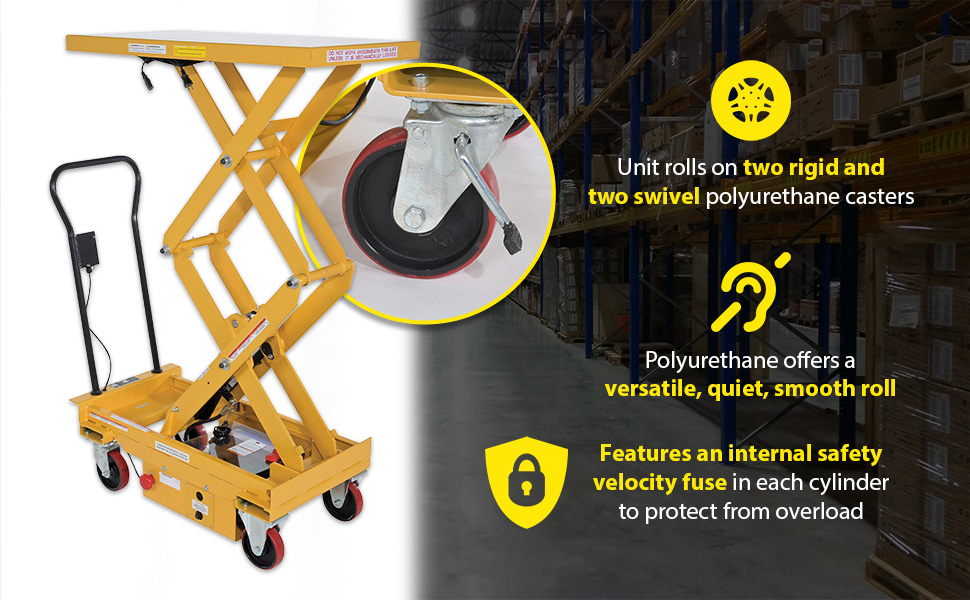

CART-1000D-DC CART-1000D-DC1 Year Limited WarrantySteel DC Powered Hydraulic Double Scissor Cart 20-1/2 In. x 39-3/4 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1000
Platform Width (in.): 20-1/2
489

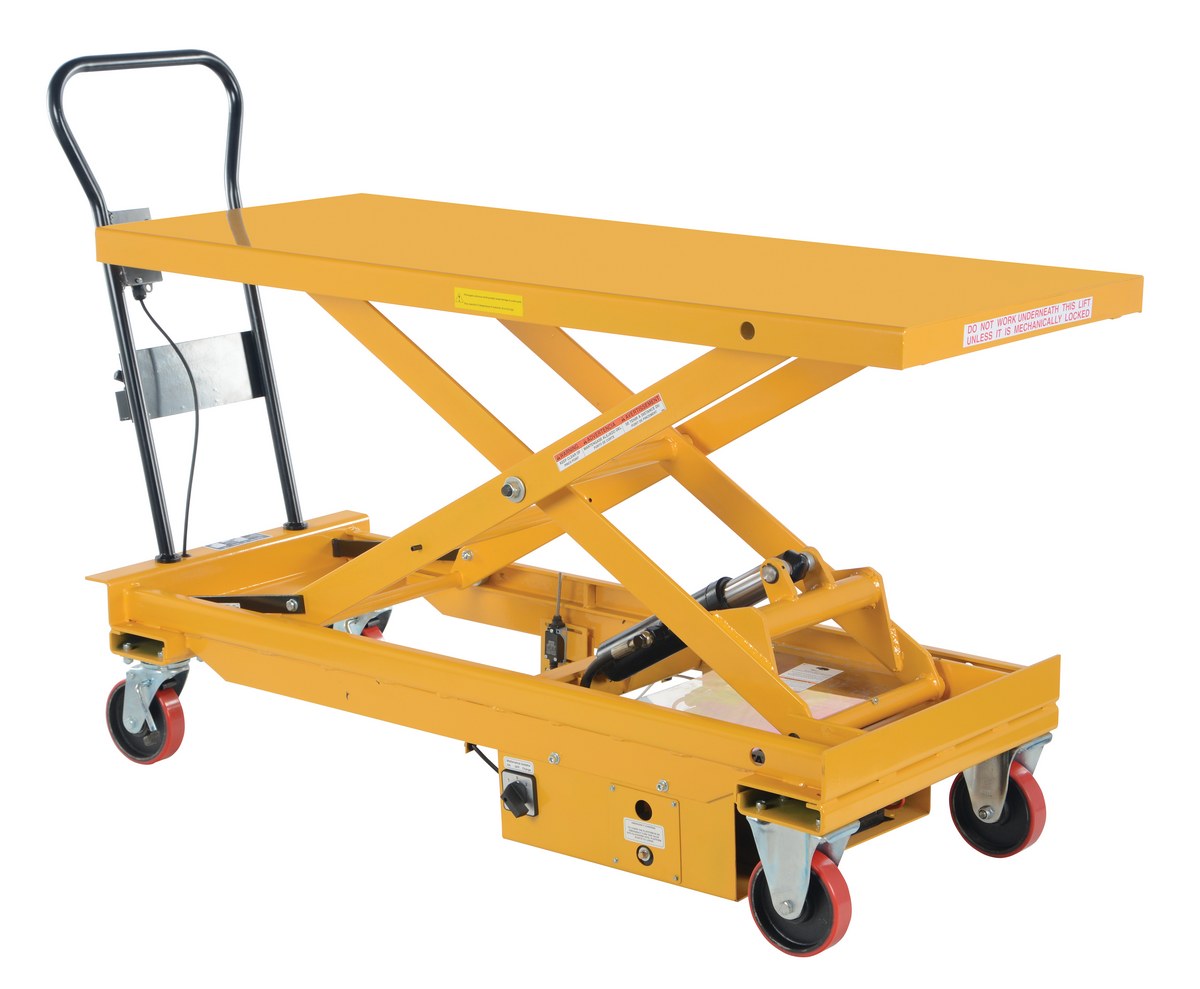

CART-1000-LD-DC CART-1000-LD-DC1 Year Limited WarrantySteel DC Powered Hydraulic Single Scissor Cart 24-1/2 In. x 60 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1000
Platform Width (in.): 24-1/2
509

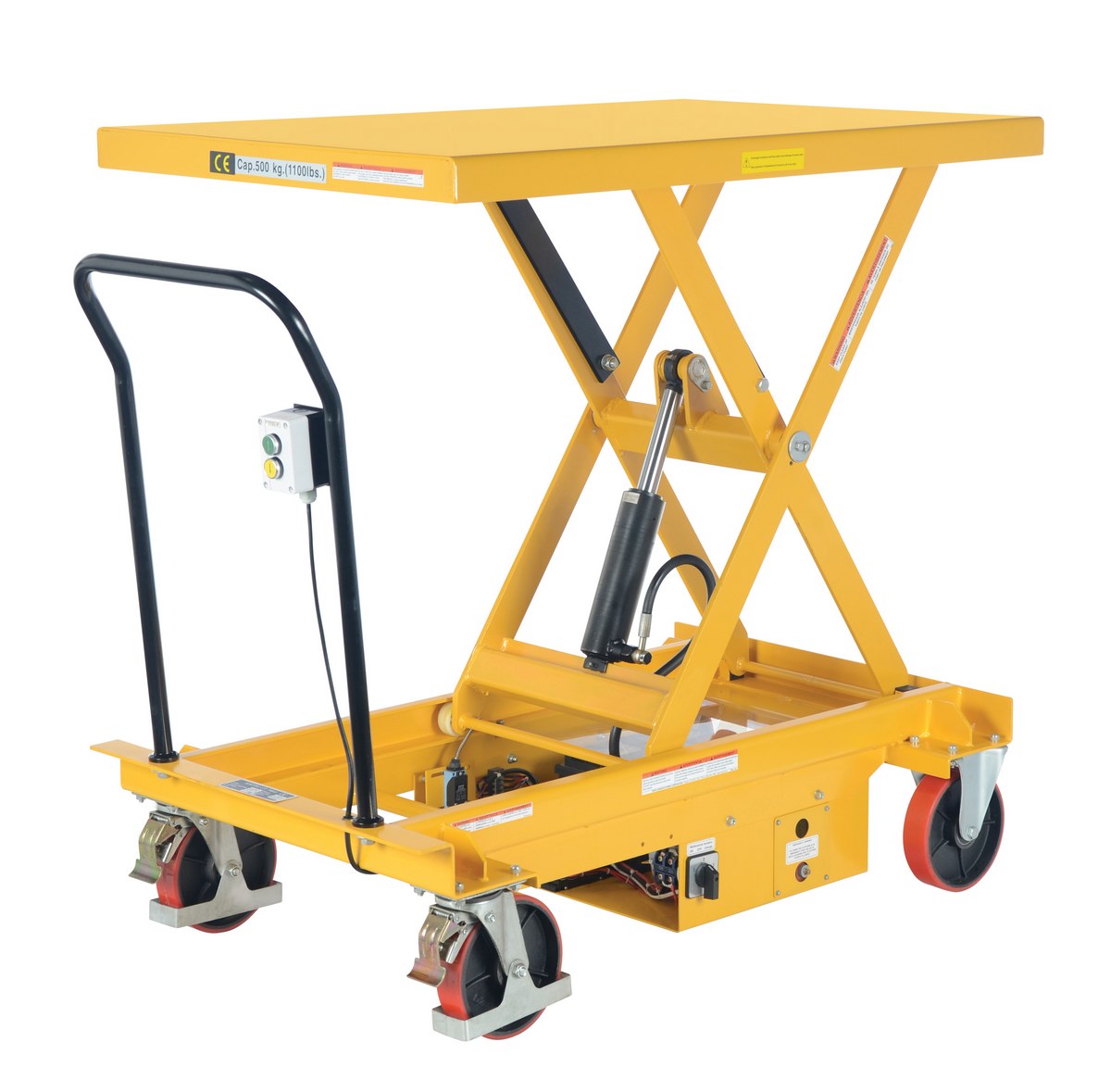

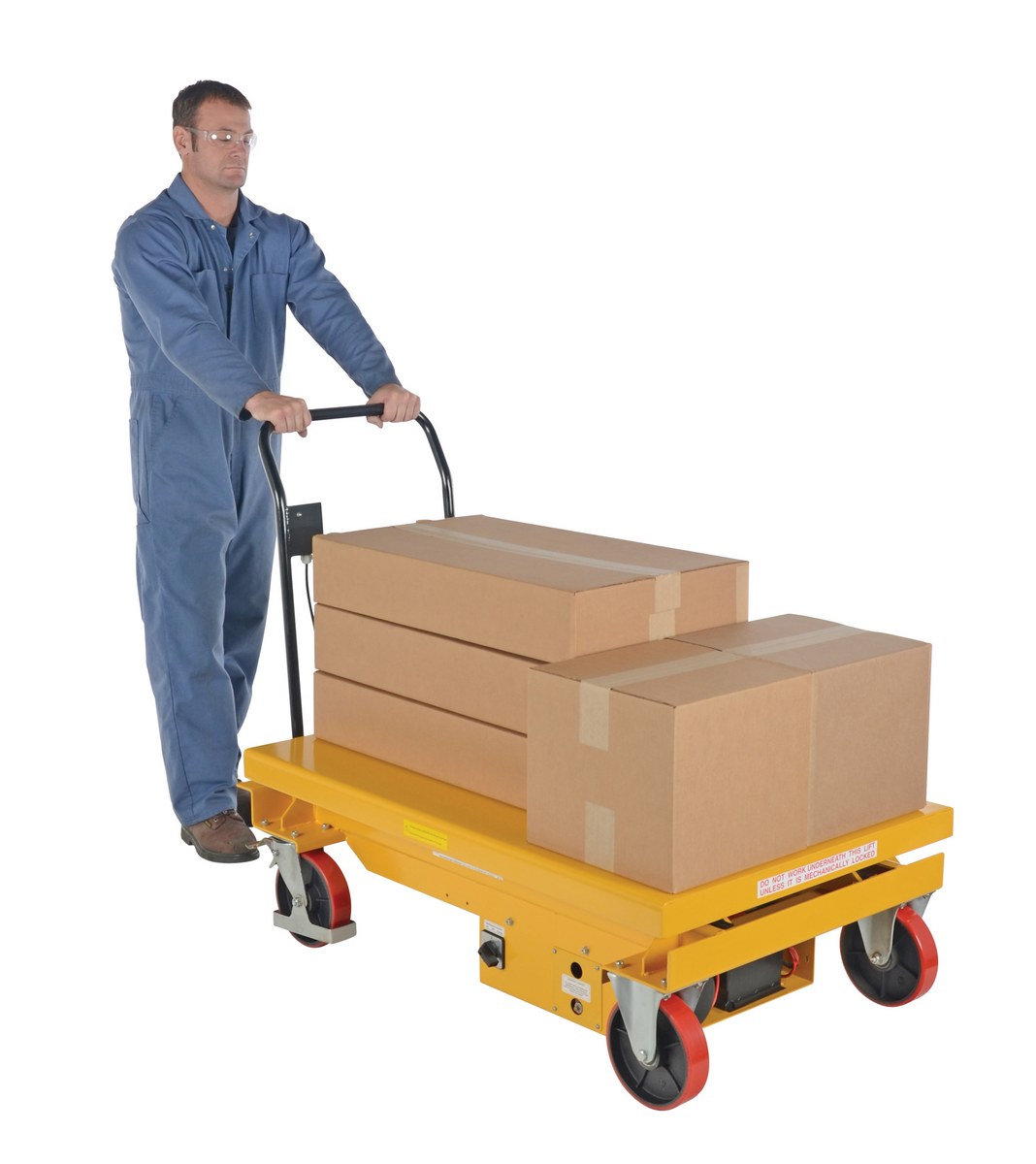

CART-1000-WD-DC CART-1000-WD-DC1 Year Limited WarrantySteel DC Power Hydraulic Single Scissor Cart 47-1/4 In. x 31-1/2 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1000
Platform Width (in.): 31-1/2
498

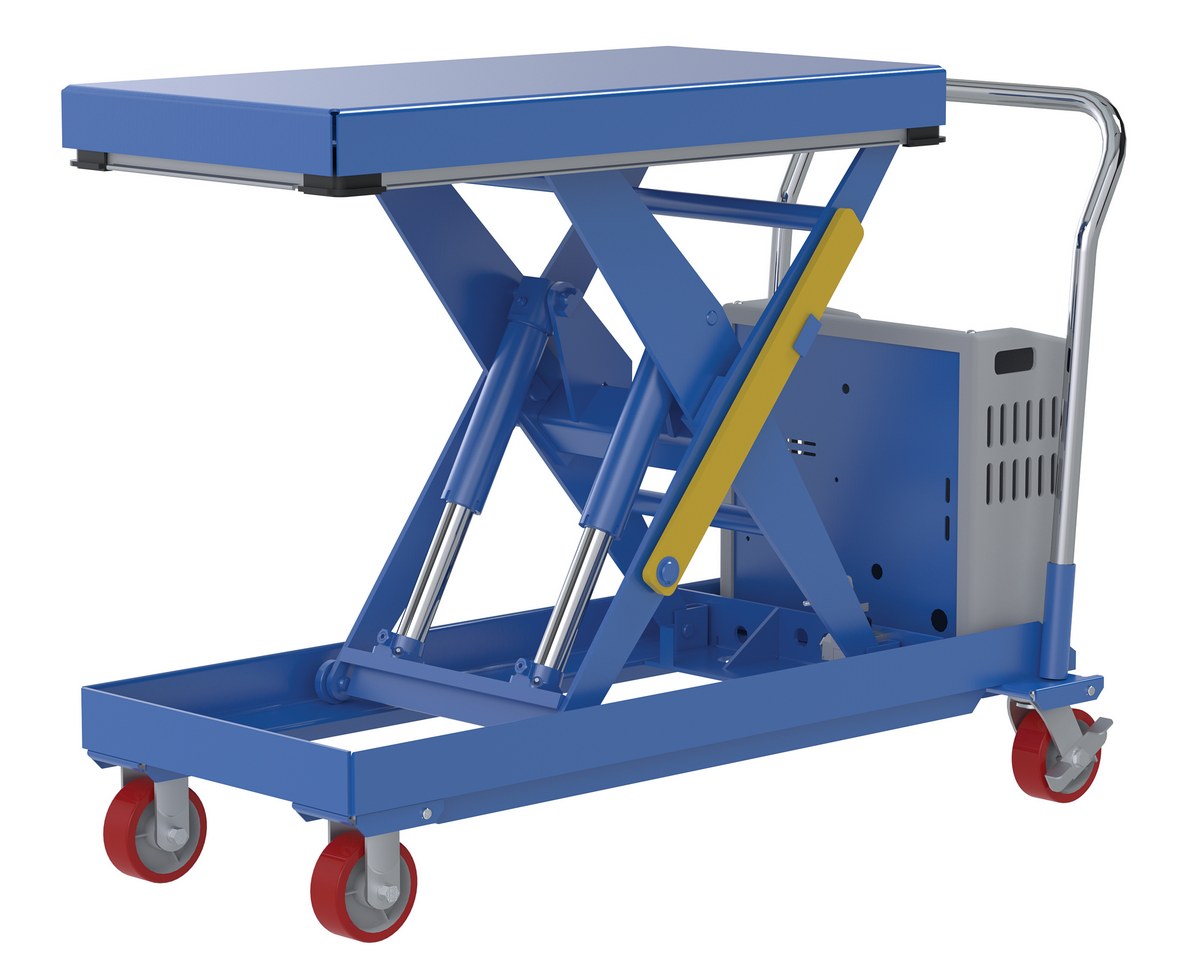

CART-2000-2040-DC CART-2000-2040-DC1 Year Limited WarrantySteel 12V DC Powered Hydraulic Elevating Cart 20 In. x 40 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8
393

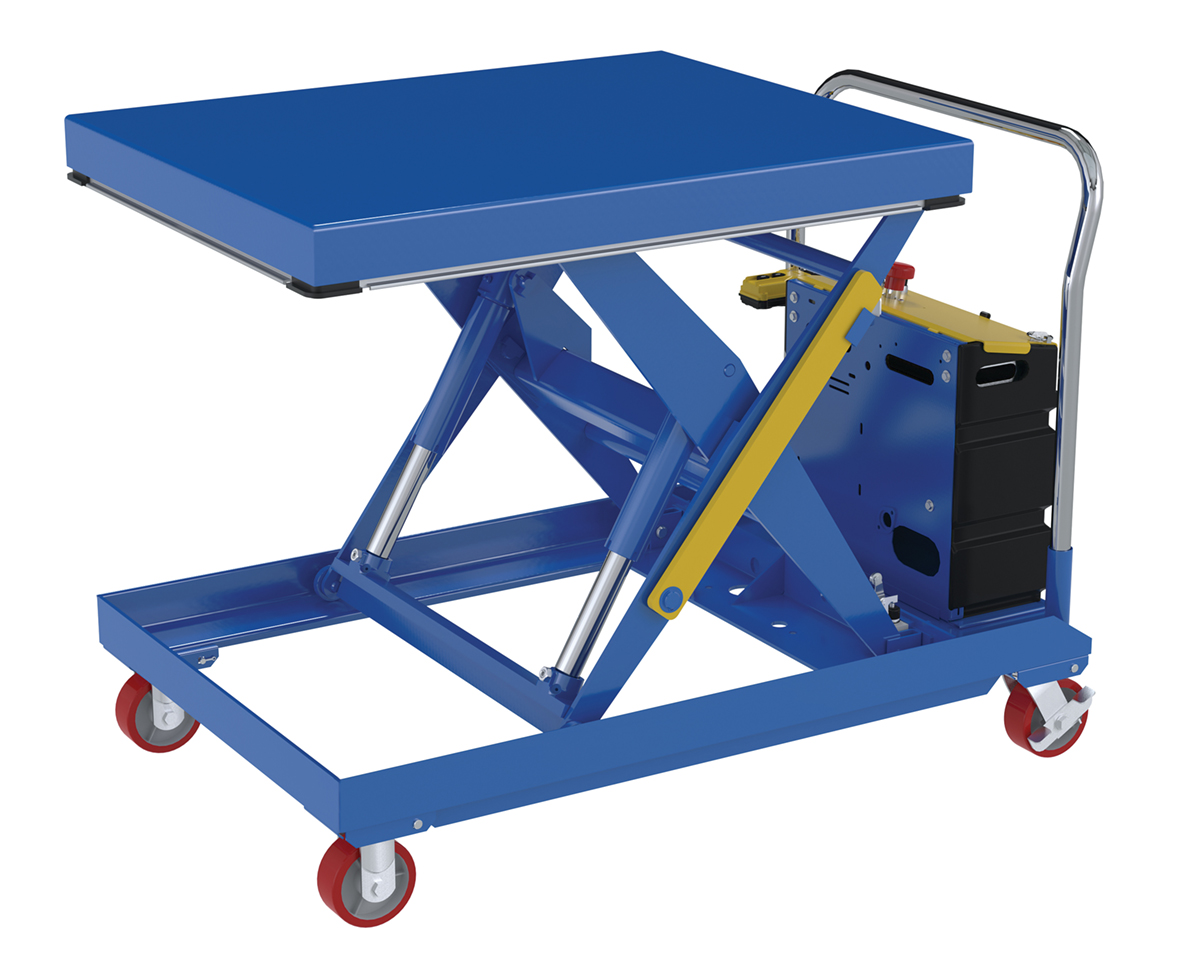

CART-2000-3240-DC CART-2000-3240-DC1 Year Limited WarrantySteel 12V DC Powered Hydraulic Elevating Cart 32 In. x 40 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8
478
CART-2000-4242-DC CART-2000-4242-DC1 Year Limited WarrantySteel 12V DC Powered Hydraulic Elevating Cart 42 In. x 42 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8
528

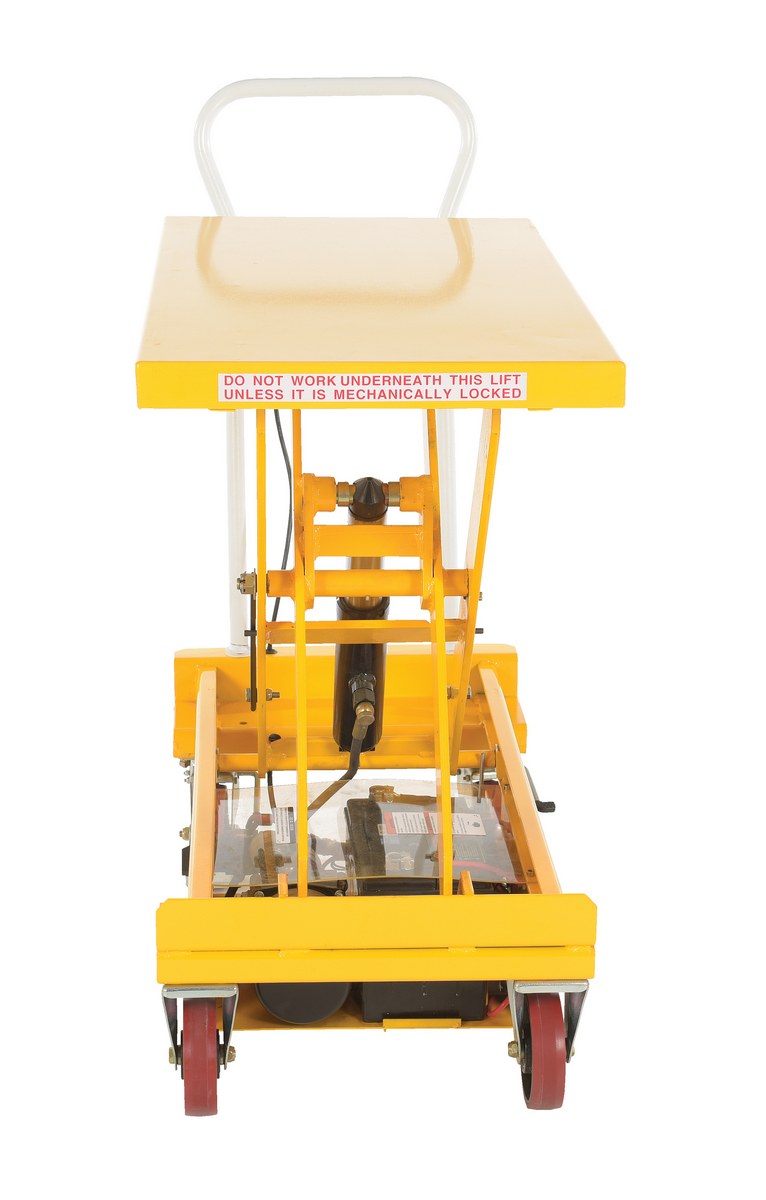

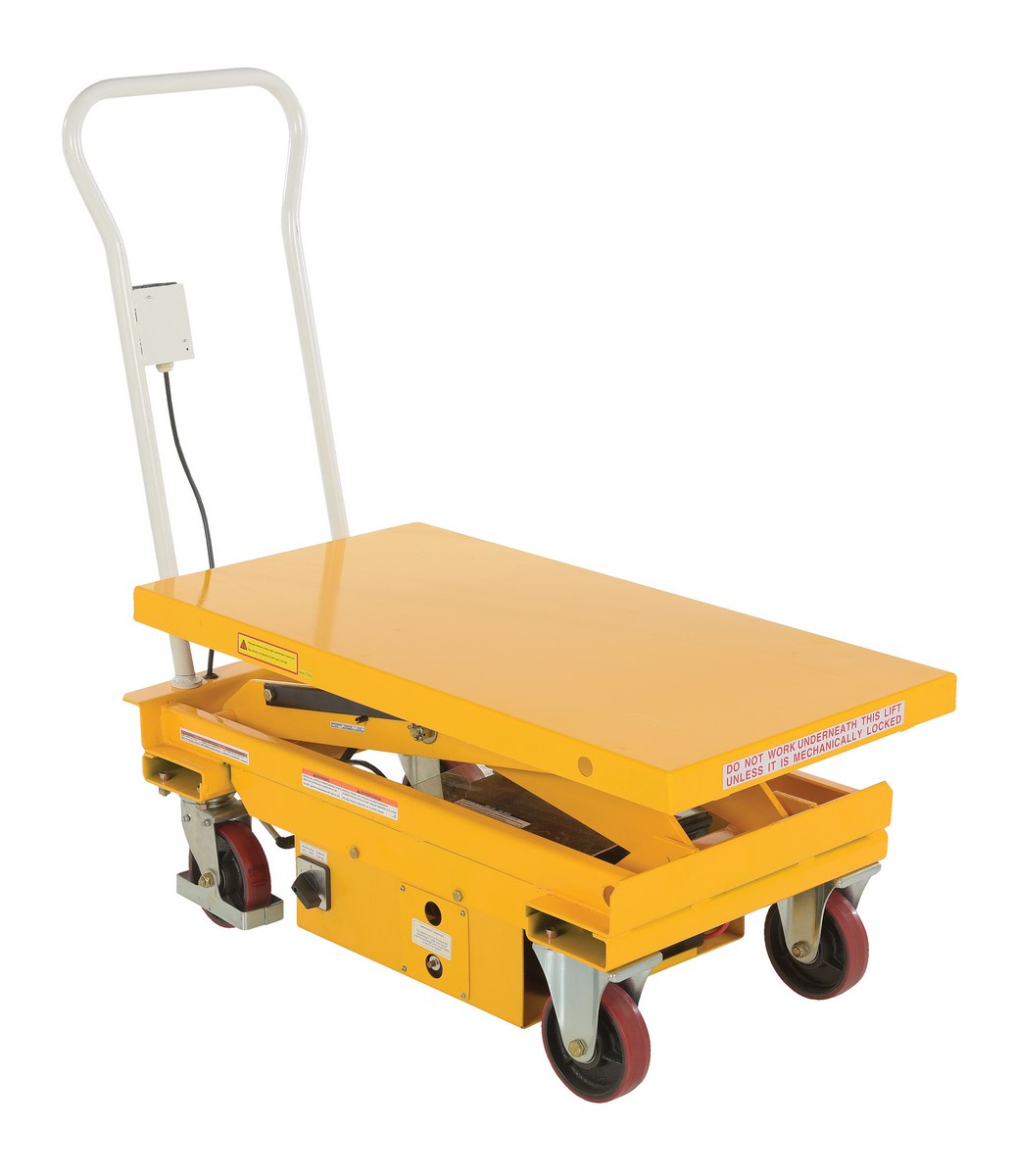

CART-2000-DC-C CART-2000-DC-C1 Year Limited WarrantySteel Hydraulic Elevating Cart 20 In. x 40 In. 2000 Lb. Capacity YellowUniform Capacity (lb.): 2000
Platform Width (in.): 20
315

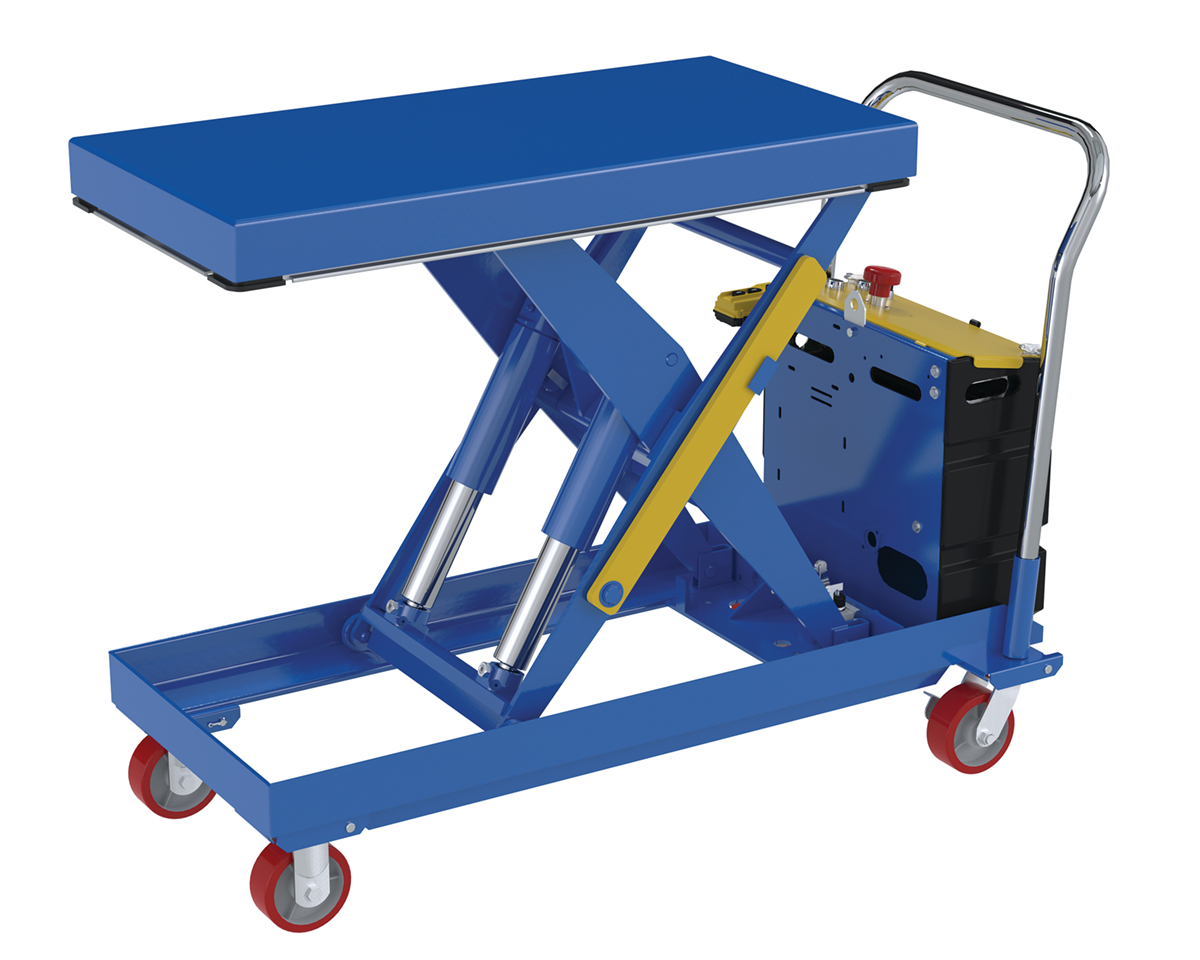

CART-2500-2040-DC CART-2500-2040-DC1 Year Limited WarrantySteel 12V DC Hydraulic Elevating Cart 20 In. x 40 In. 2500 Lb. Capacity BlueUniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8
436

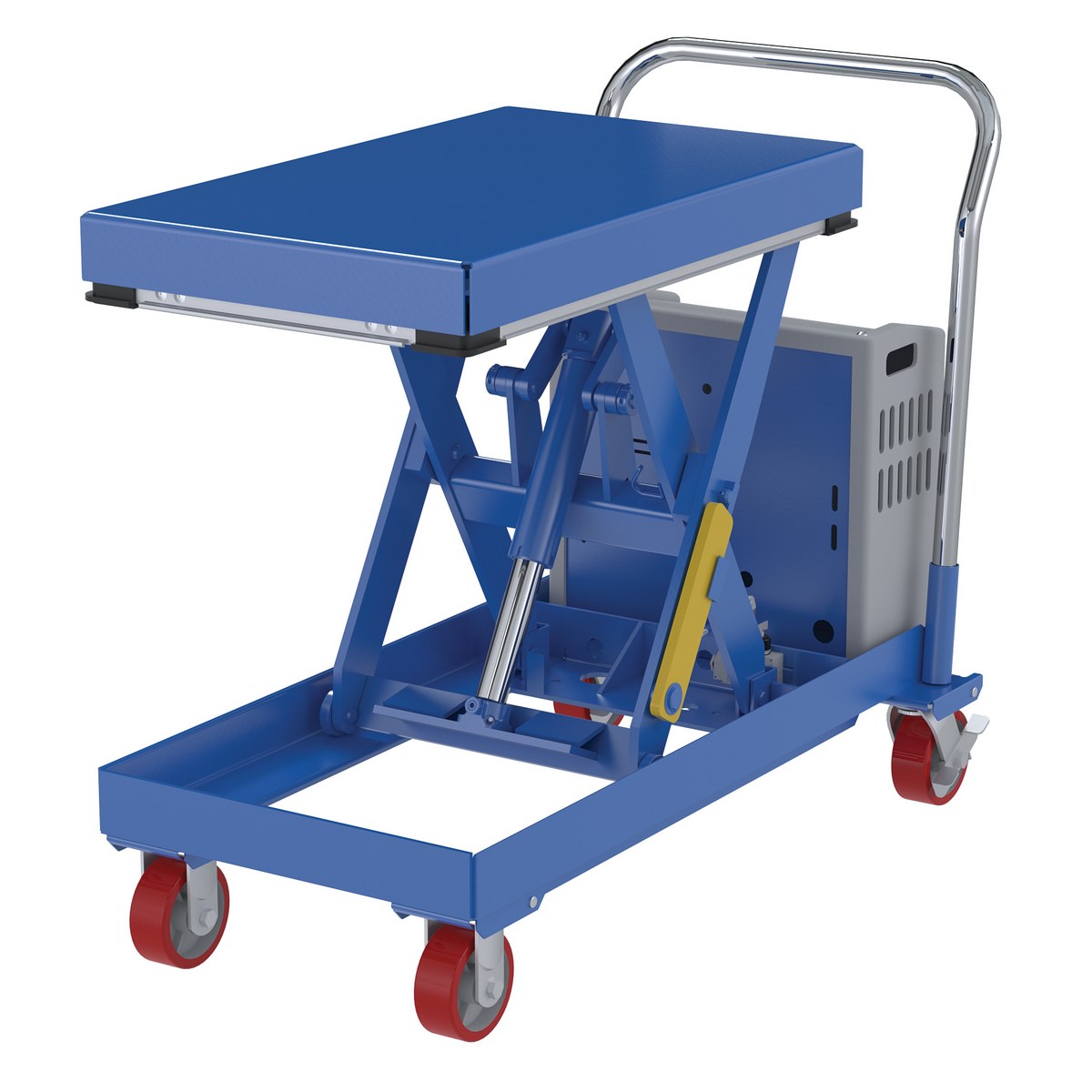

CART-500-2033-DC CART-500-2033-DC1 Year Limited WarrantySteel 12V DC Hydraulic Elevating Cart 20 In. x 33 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 20-3/8
355

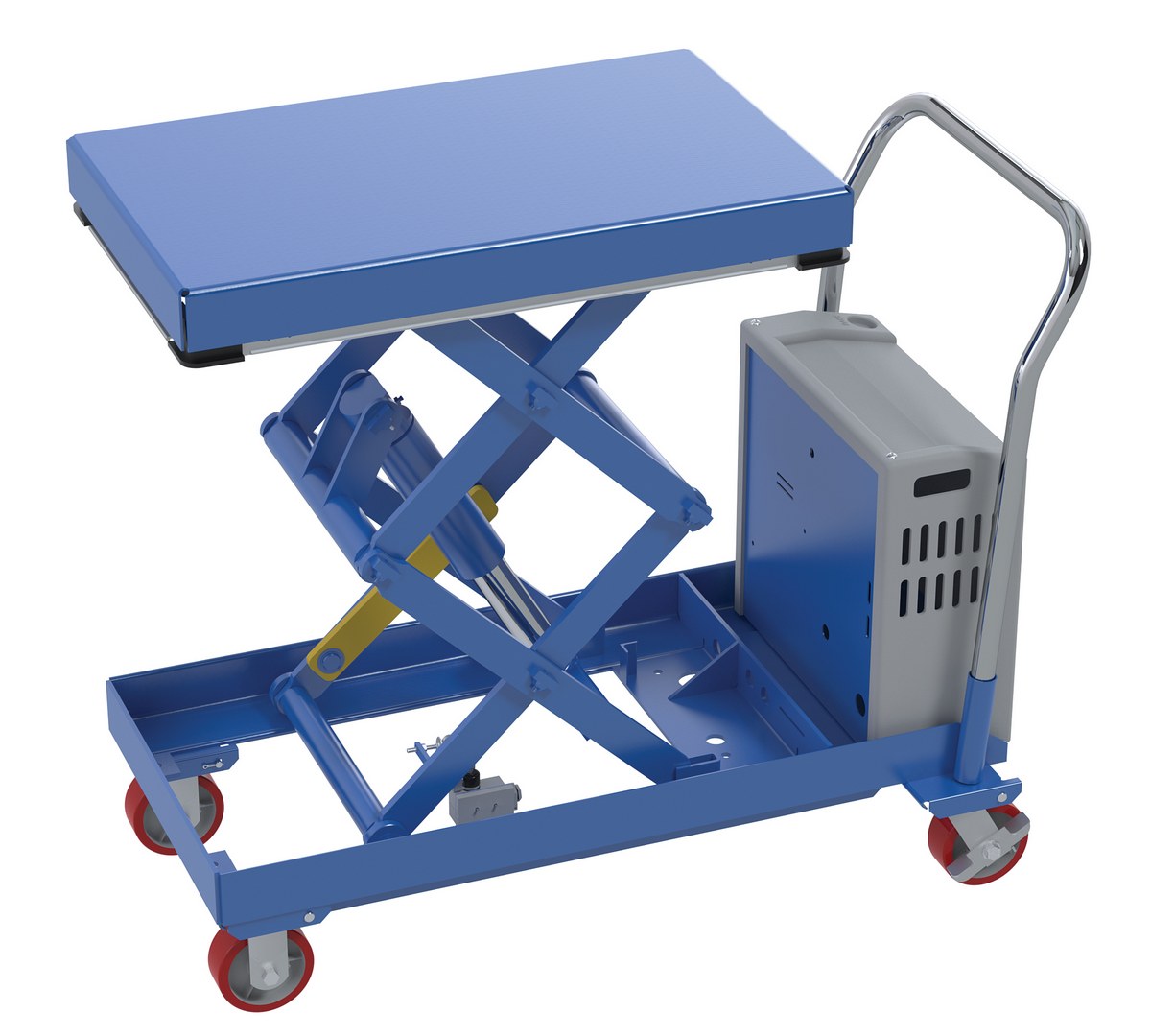

CARTD-1000-2033-DC CARTD-1000-2033-DC1 Year Limited WarrantySteel 12V DC Hydraulic Elevating Cart 20 In. x 33 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
364

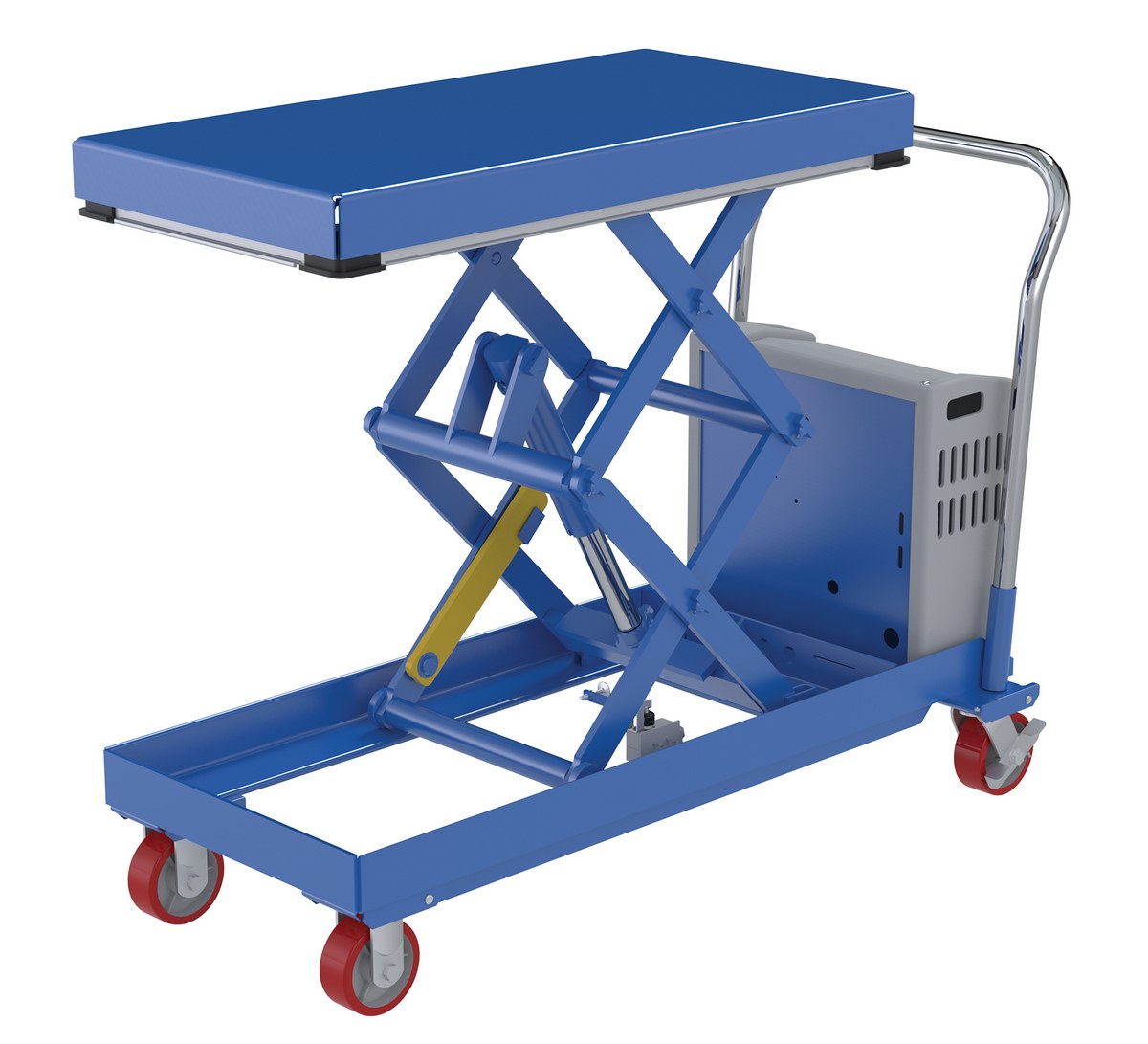

CARTD-750-2040-DC CARTD-750-2040-DC1 Year Limited WarrantySteel 12V DC Hydraulic Elevating Cart 20 In. x 40 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20-3/8
358

KEY: = Expand Model Details = 48hr Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= Approval Drawing = Testing Certificate Warranty

CART-1000-2040-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8

CART-1000-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-1/2
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-1/2

CART-1000-LD-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 24-1/2
Uniform Capacity (lb.): 1000
Platform Width (in.): 24-1/2

CART-1000-WD-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 31-1/2
Uniform Capacity (lb.): 1000
Platform Width (in.): 31-1/2

CART-1000D-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-1/2
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-1/2

CART-2000-2040-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8

CART-2000-3240-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8

CART-2000-4242-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8

CART-2000-DC-C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 20
Uniform Capacity (lb.): 2000
Platform Width (in.): 20

CART-2500-2040-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8

CART-500-2033-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 500
Platform Width (in.): 20-3/8

CARTD-1000-2033-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8

CARTD-750-2040-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 750
Platform Width (in.): 20-3/8

DC Powered Hydraulic Elevating Carts PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


CART-500-2033-DC

CART-1000-2040-DC

CART-1000-DC

CART-1000D-DC

CART-1000-LD-DC

CART-1000-WD-DC

CART-2000-2040-DC

CART-2000-3240-DC

CART-2000-4242-DC

CART-2000-DC-C

CART-2500-2040-DC

CARTD-750-2040-DC

CARTD-1000-2033-DC

SDS Sheets


Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-1000-2040-DC
Hydraulic Oil SDS Sheet for: CART-1000-2040-DC
Lead Acid Battery SDS Sheet for: CART-1000-DC
Hydraulic Oil SDS Sheet for: CART-1000-DC
Lead Acid Battery SDS Sheet for: CART-1000D-DC
Hydraulic Oil SDS Sheet for: CART-1000D-DC

Lead Acid Battery SDS Sheet for: CART-1000-LD-DC
Hydraulic Oil SDS Sheet for: CART-1000-LD-DC

Lead Acid Battery SDS Sheet for: CART-1000-WD-DC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-2000-2040-DC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-2000-3240-DC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-2000-4242-DC
Valve-Regulated Lead Acid Batteries SDS Sheet for: CART-2000-DC-C
Hydraulic Oil SDS Sheet for: CART-2000-DC-C

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-2500-2040-DC
Hydraulic Oil SDS Sheet for: CART-2500-2040-DC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-500-2033-DC
Hydraulic Oil SDS Sheet for: CART-500-2033-DC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CARTD-1000-2033-DC
Hydraulic Oil SDS Sheet for: CARTD-1000-2033-DC

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CARTD-750-2040-DC
Hydraulic Oil SDS Sheet for: CARTD-750-2040-DC

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: On the CART-1000-LD-DC what is the raise and lower time?

A: The raise time is 15 seconds. The lower time is 13 seconds.


Q: Is the battery charger UL listed?

A: Yes the battery charger is UL listed.


Q: What is the amp draw of the hydraulic system on CART-1000-DC?

A: 148 amps with load and 54 amps without load.
