Mini Cable Hoists

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

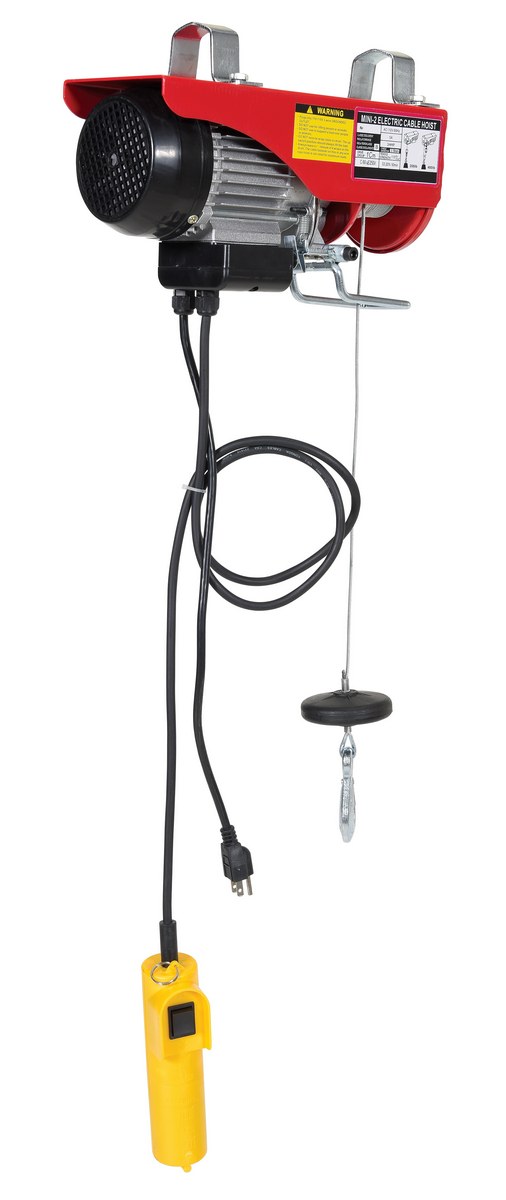

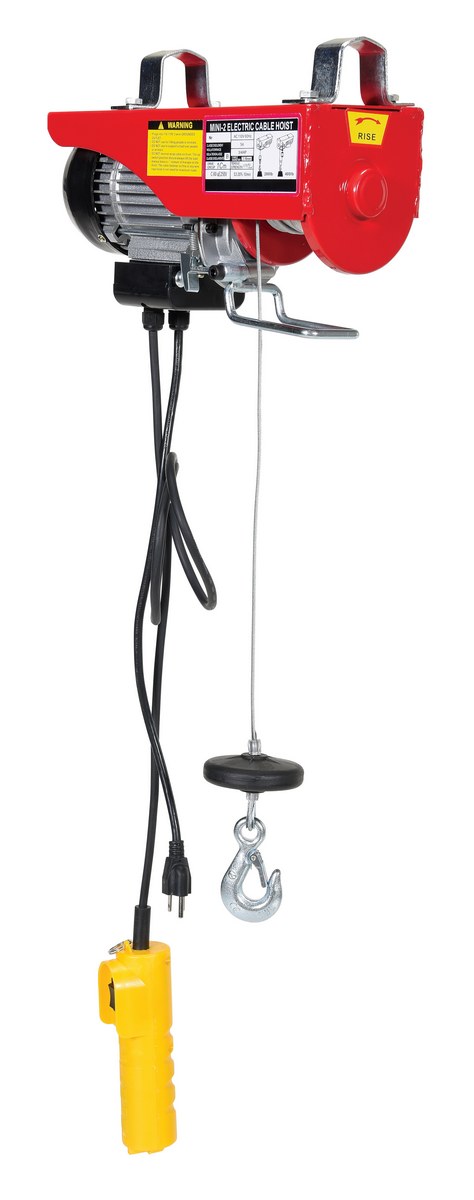

MINI-2_C.jpg MINI-2_A.jpg MINI-2_B.jpg
Mini Cable Hoists

model: MINI-2



Featured Overhead Lifting


Multi-Station Transportable Jib Cranes
Horizontal Plate Clamps
Adjustable Steel Gantry Cranes with V-Groove Casters
Fixed Steel Gantry Cranes
Beam Clamps
Fixed Height Aluminum Gantry Cranes
Magnets
Magnetic Easy Lift
Fixed Steel Gantry Cranes with Pneumatic Casters
model chart

Product Family Overview

Print Friendly
Mini Cable Hoists
SERIES: MINI

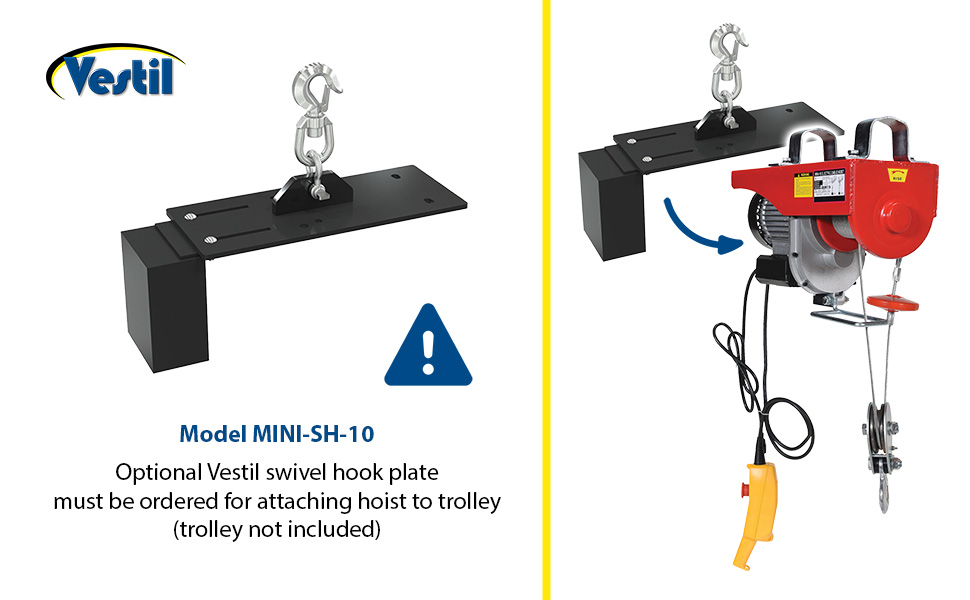

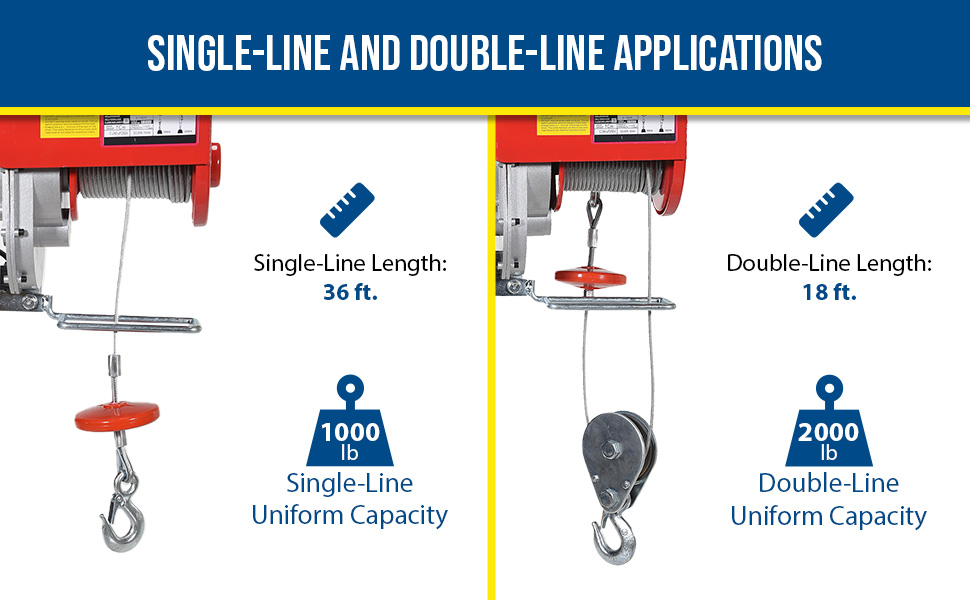

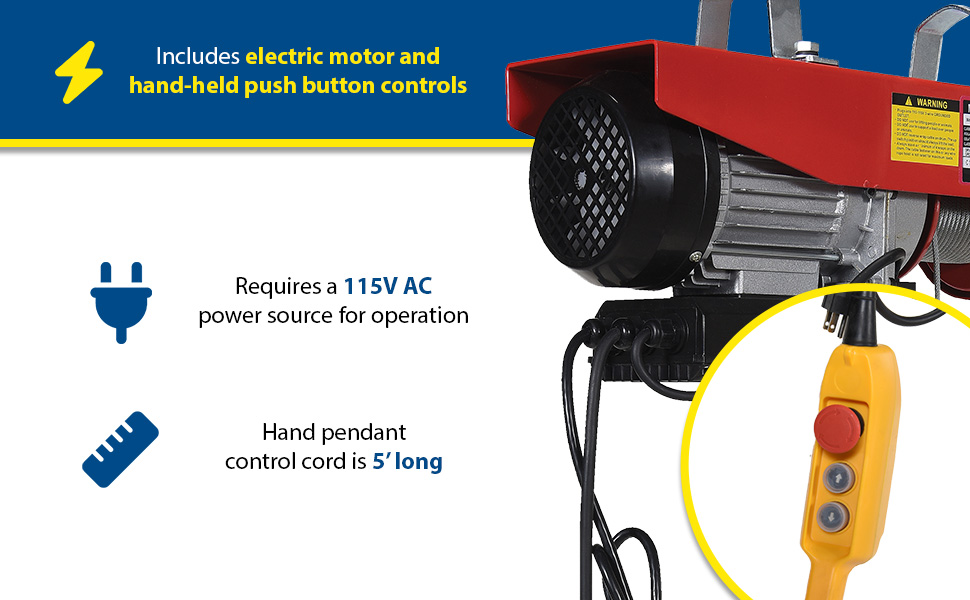

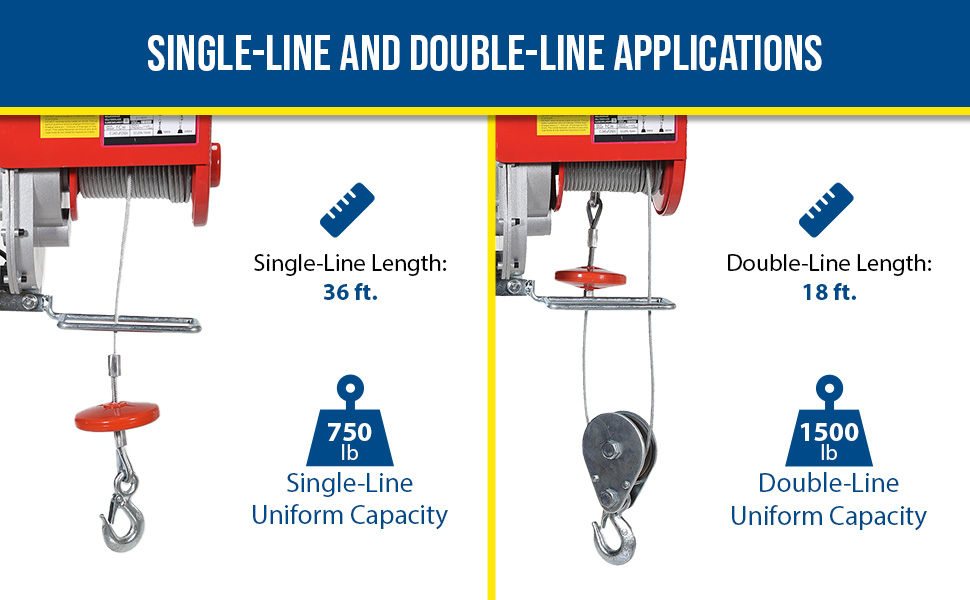

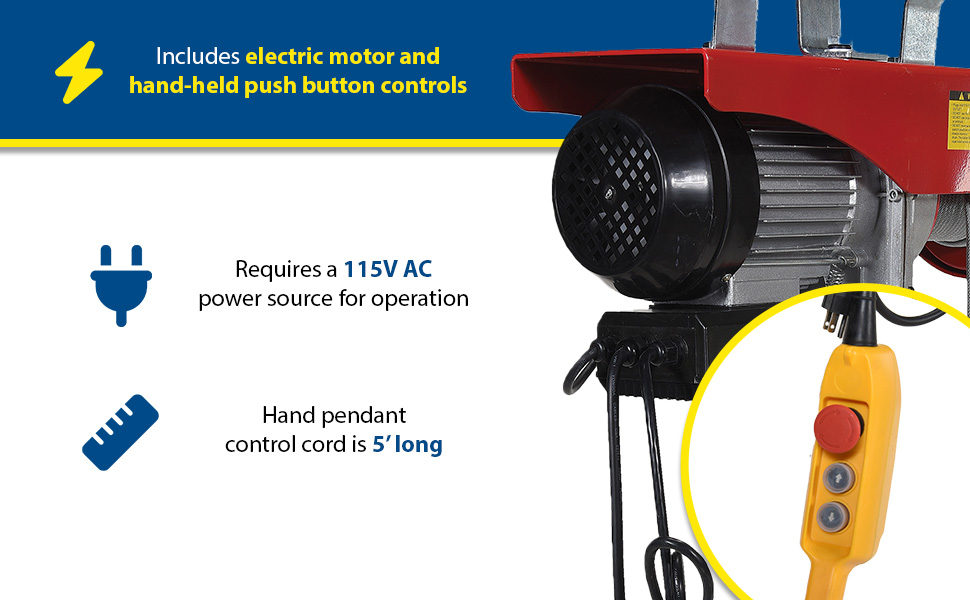

Use in single-line and double-line lifting applications. Cable length is 36' when used as a single-line - 18' when used as a double-line. Includes electric motor and hand-held push button controls. Installation bracket will fit on 1-5/8" round pipe or 1-5/8" square tubing. Optional Swivel Hook Plate must be ordered for attaching hoist to a trolley (trolley not included).

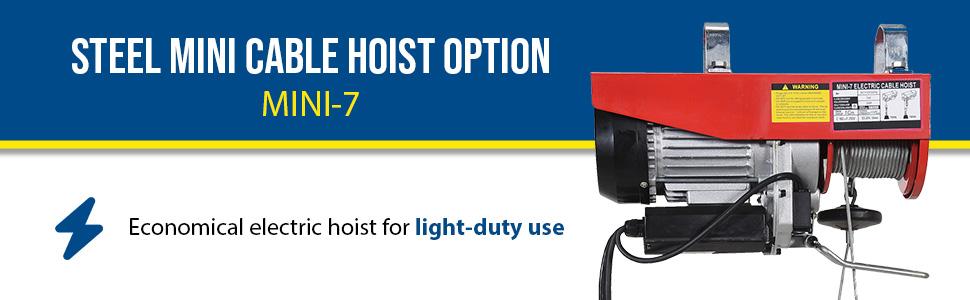

  • Economical electric hoist for light-duty use
  • Both single and double-line lifting applications are easy to configure
  • Hand pendant control cord is 5' long.
  • Requires 115V AC power source for operation

Use in single-line and double-line lifting applications. Cable length is 36' when used as a single-line - 18' when used as a double-line. Includes electric motor and hand-held push button controls. Installation bracket will fit on 1-5/8" round pipe or 1-5/8" square tubing. Optional Swivel Hook Plate must be ordered for attaching hoist to a trolley (trolley not included).

  • Economical electric hoist for light-duty use
  • Both single and double-line lifting applications are easy to configure
  • Hand pendant control cord is 5' long.
  • Requires 115V AC power source for operation

Other Hoists & Trollies

 High Speed Electric Chain Hoist Professional Lever Hoists (disc brake) Air Powered Chain Hoists Electric Chain Hoists

Additional Models In This Family
view entire Image Gallery

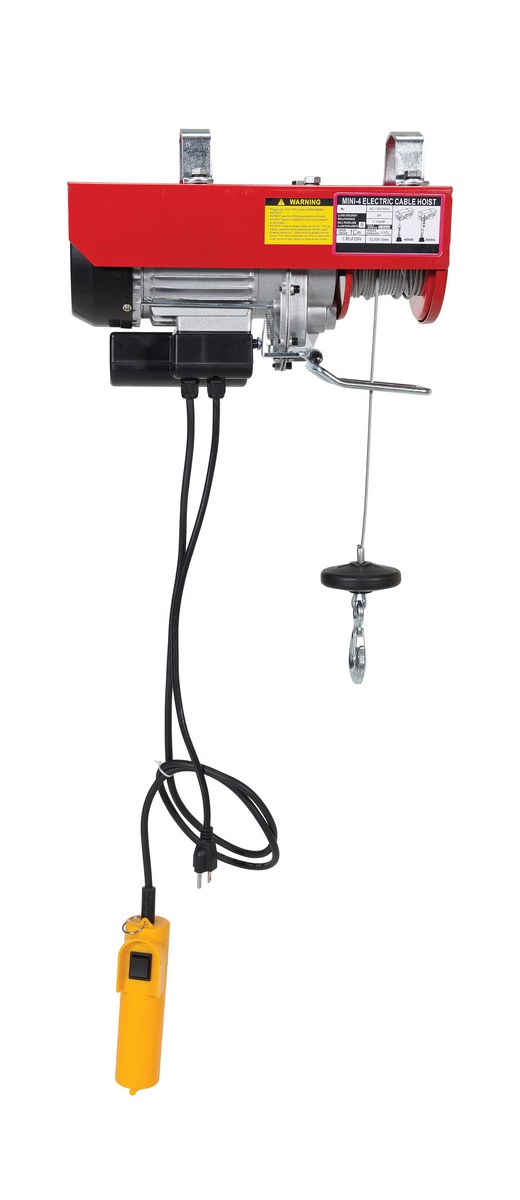

MINI-4

model MINI-4

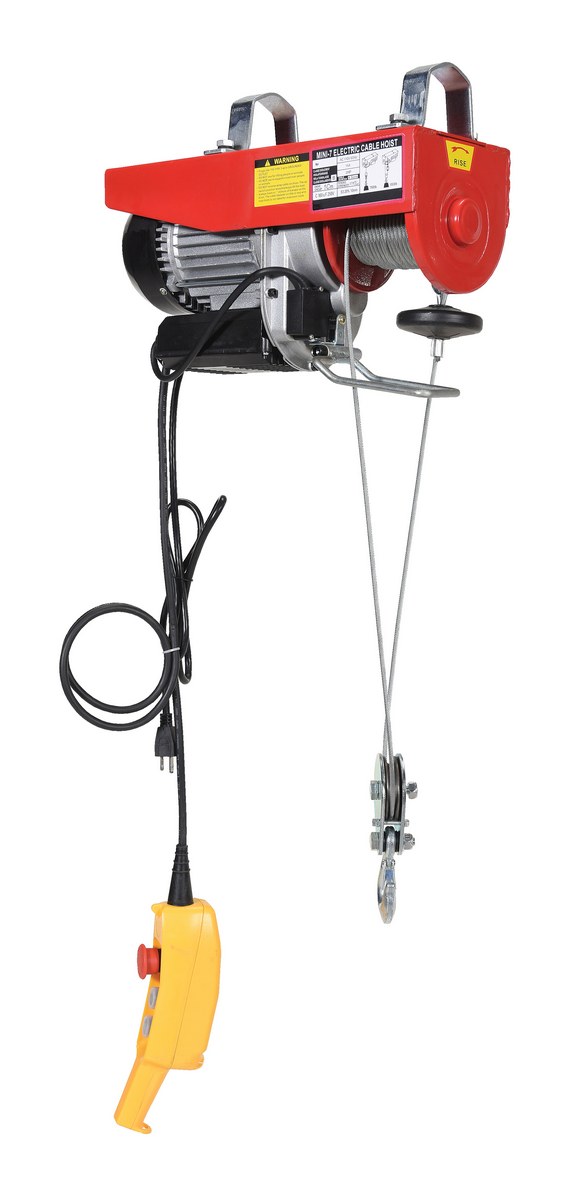

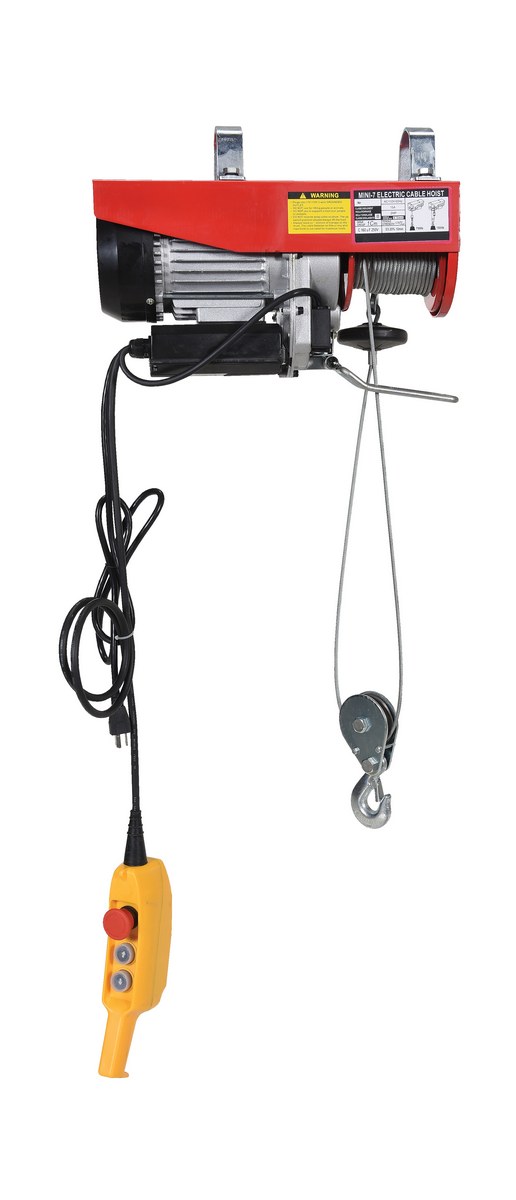

MINI-7

model MINI-7

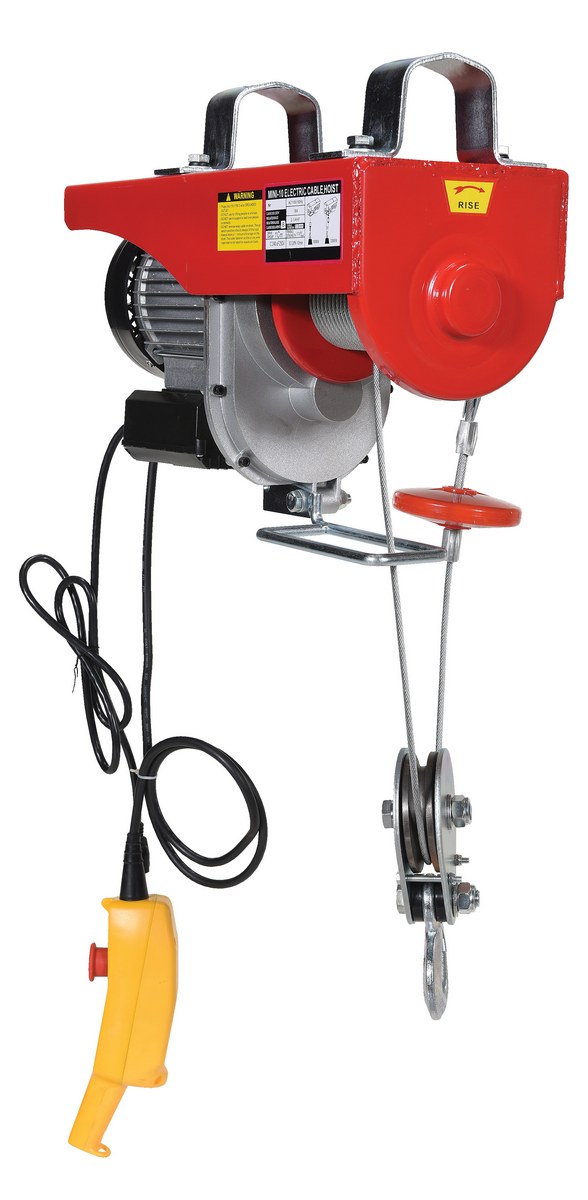

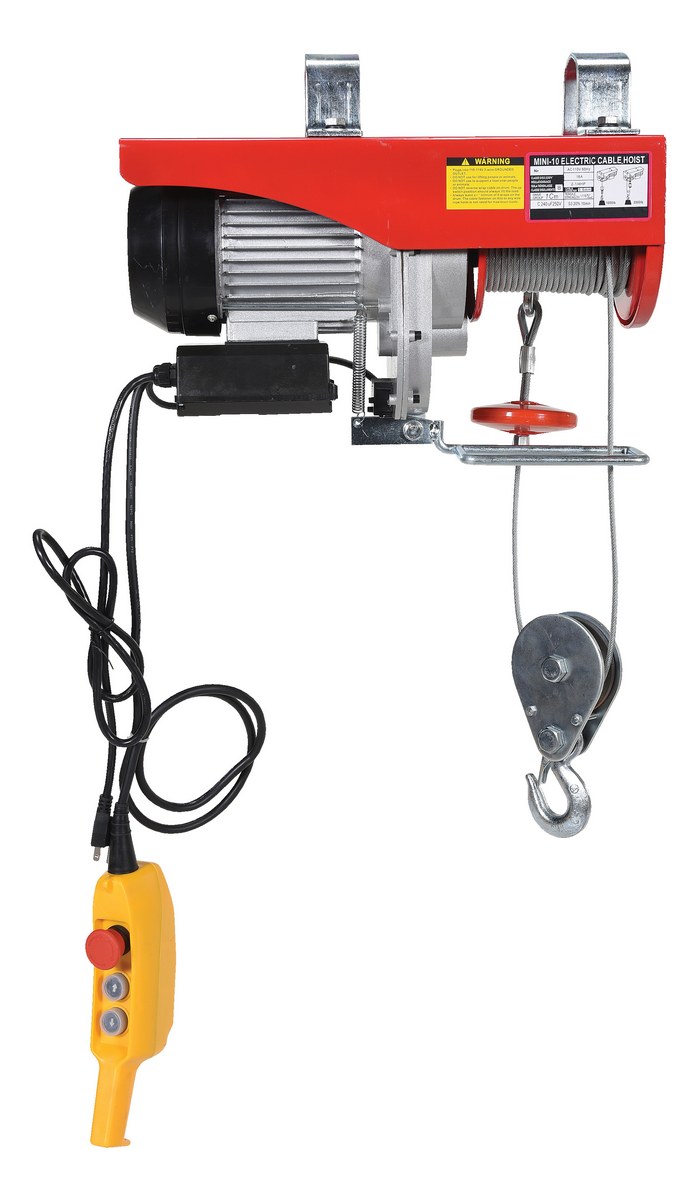

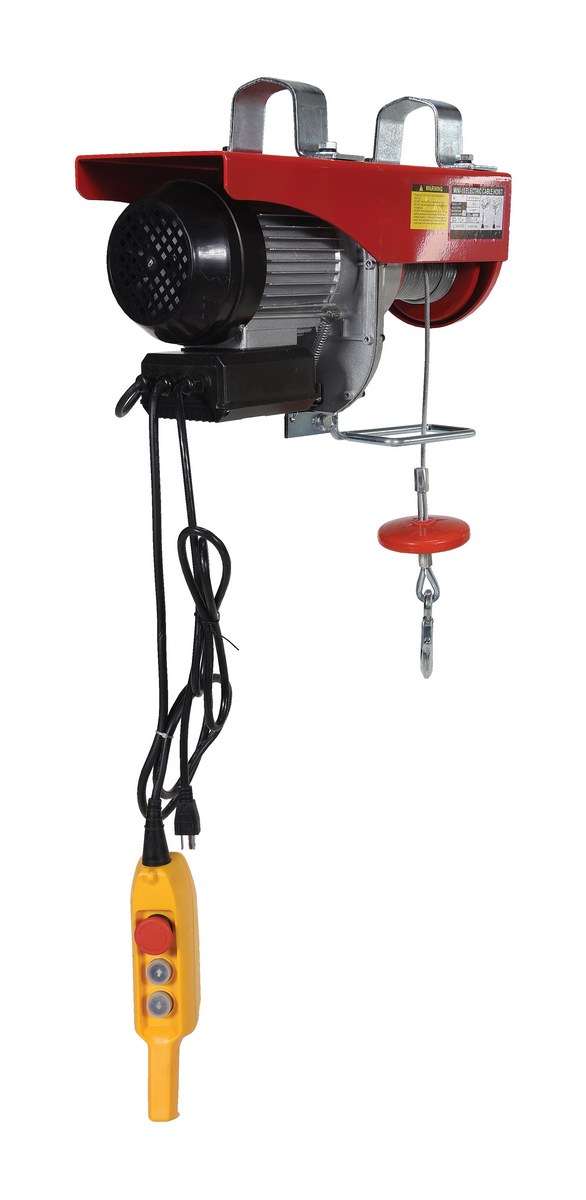

MINI-10

model MINI-10

MINI-SH-2

model MINI-SH-2

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
MINI-10 MINI-1030 Days Limited WarrantySteel Mini Cable Hoist Option 19-1/4 In. x 8 In. x 11-3/4 In. 1000 Lb. Capacity RedSingle-Line Uniform Capacity (lb.): 1000
Double-Line Uniform Capacity (lb.): 2000		83

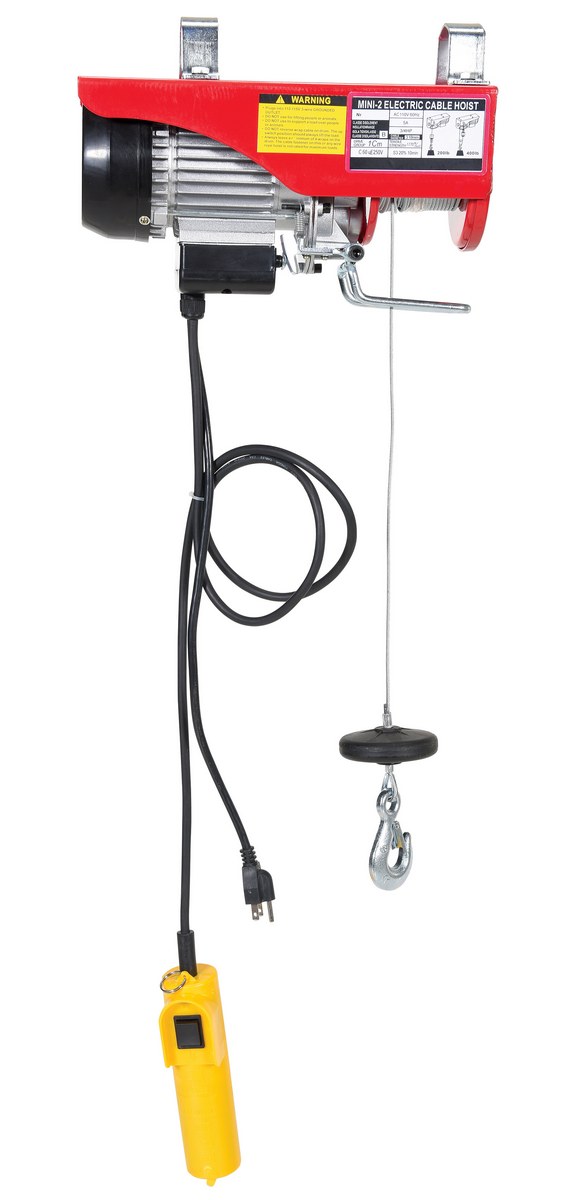

MINI-2 MINI-230 Days Limited WarrantySteel Mini Cable Hoist Option 15-3/16 In. x 5-7/8 In. x 8-13/16 In. 200 Lb. Capacity RedSingle-Line Uniform Capacity (lb.): 200
Double-Line Uniform Capacity (lb.): 400		26

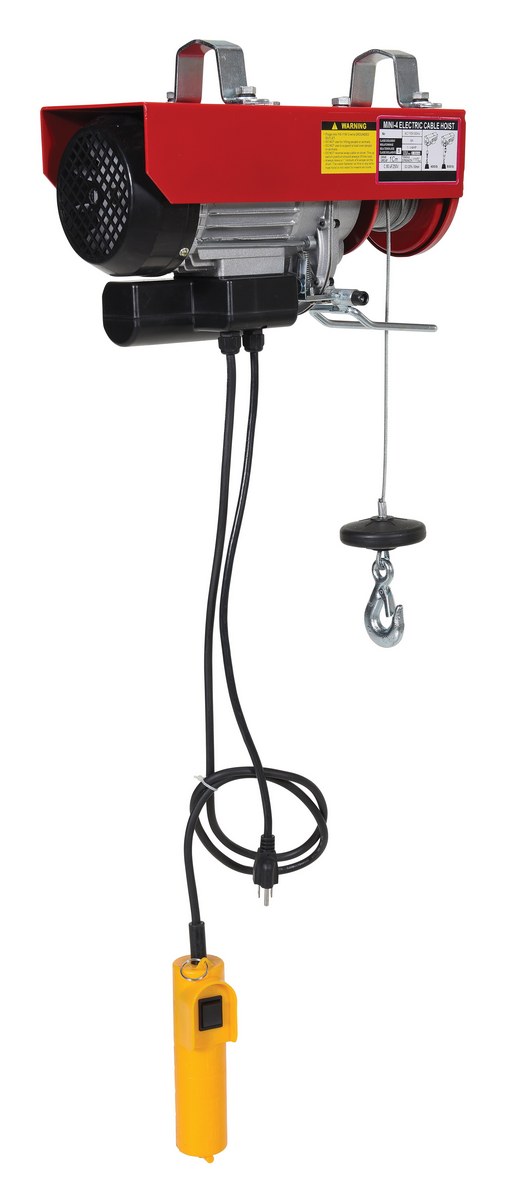

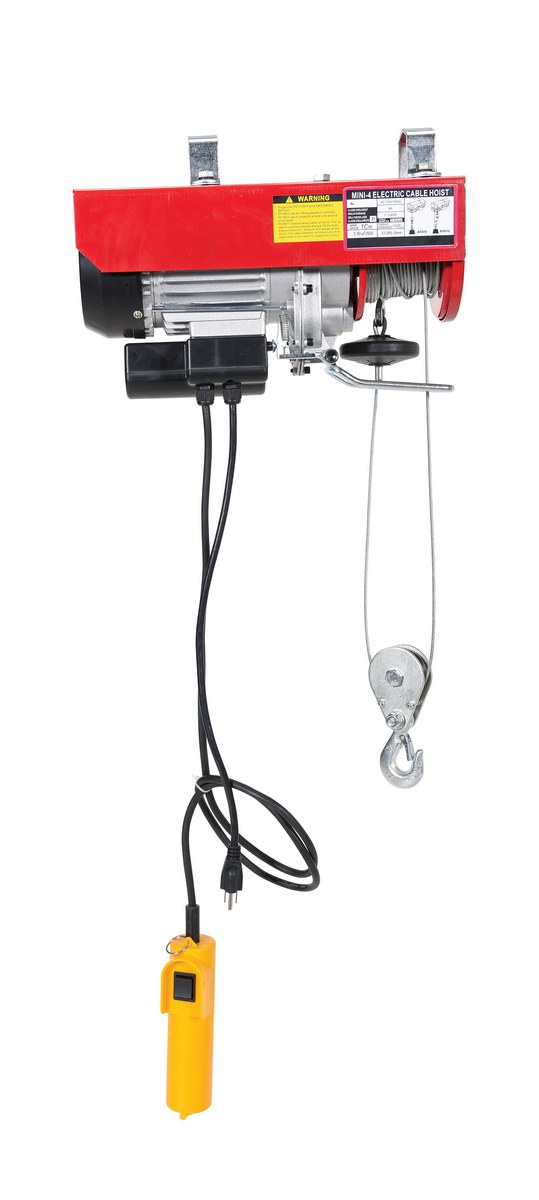

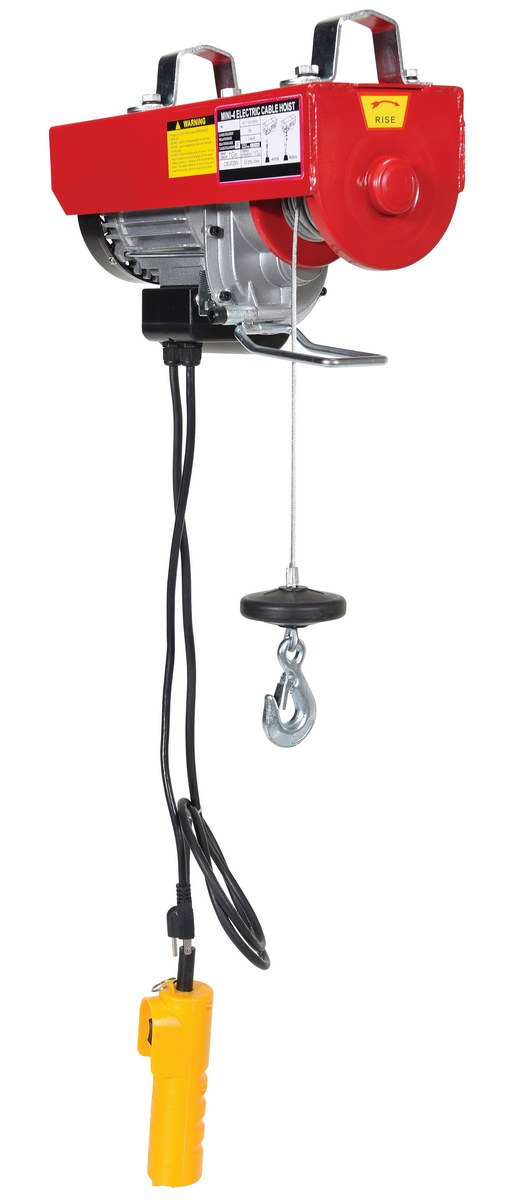

MINI-4 MINI-430 Days Limited WarrantySteel Mini Cable Hoist Option 15-1/8 In. x 5-3/4 In. x 8-7/8 In. 400 Lb. Capacity RedSingle-Line Uniform Capacity (lb.): 400
Double-Line Uniform Capacity (lb.): 800		38

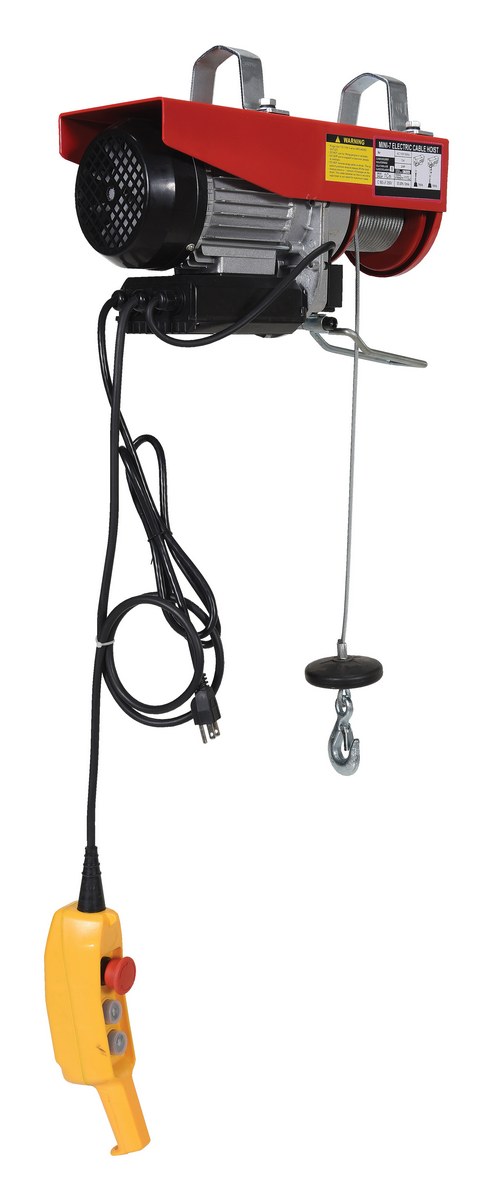

MINI-7 MINI-730 Days Limited WarrantySteel Mini Cable Hoist Option 16 In. x 6-1/4 In. x 10 In. 750 Lb. Capacity RedSingle-Line Uniform Capacity (lb.): 750
Double-Line Uniform Capacity (lb.): 1500		47

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

MINI-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Single-Line Uniform Capacity (lb.): 1000
Double-Line Uniform Capacity (lb.): 2000
Single-Line Uniform Capacity (lb.): 1000
Double-Line Uniform Capacity (lb.): 2000

MINI-2
Unit:
Size: W x L x H
Weight:
Limited Warranty
Single-Line Uniform Capacity (lb.): 200
Double-Line Uniform Capacity (lb.): 400
Single-Line Uniform Capacity (lb.): 200
Double-Line Uniform Capacity (lb.): 400

MINI-4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Single-Line Uniform Capacity (lb.): 400
Double-Line Uniform Capacity (lb.): 800
Single-Line Uniform Capacity (lb.): 400
Double-Line Uniform Capacity (lb.): 800

MINI-7
Unit:
Size: W x L x H
Weight:
Limited Warranty
Single-Line Uniform Capacity (lb.): 750
Double-Line Uniform Capacity (lb.): 1500
Single-Line Uniform Capacity (lb.): 750
Double-Line Uniform Capacity (lb.): 1500
For More Details of the Option Click the Red Model Button

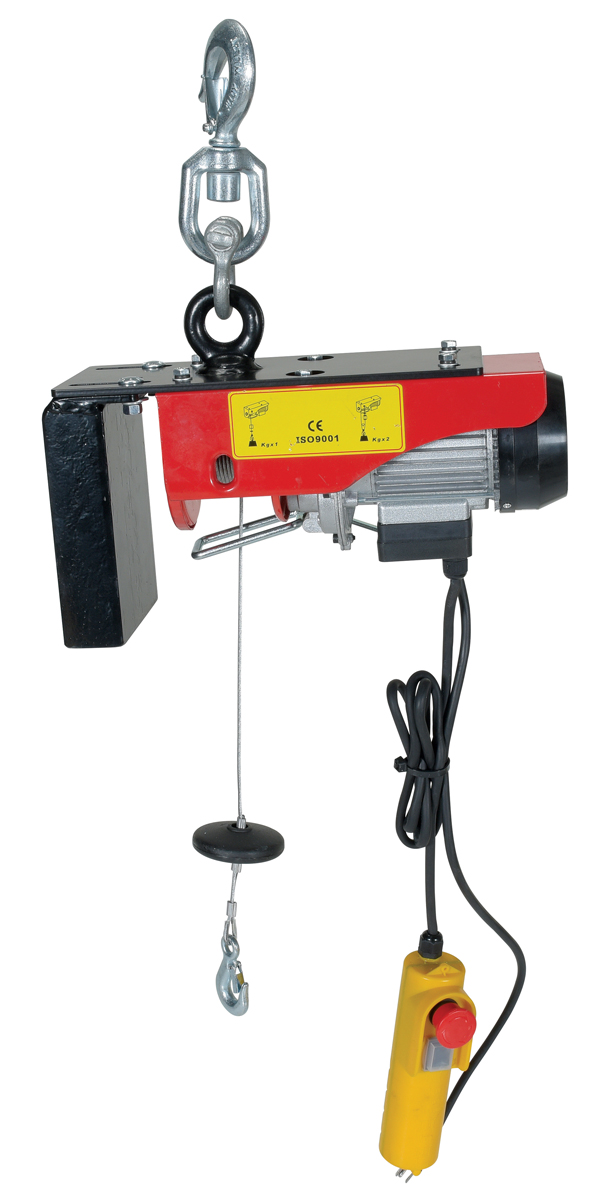

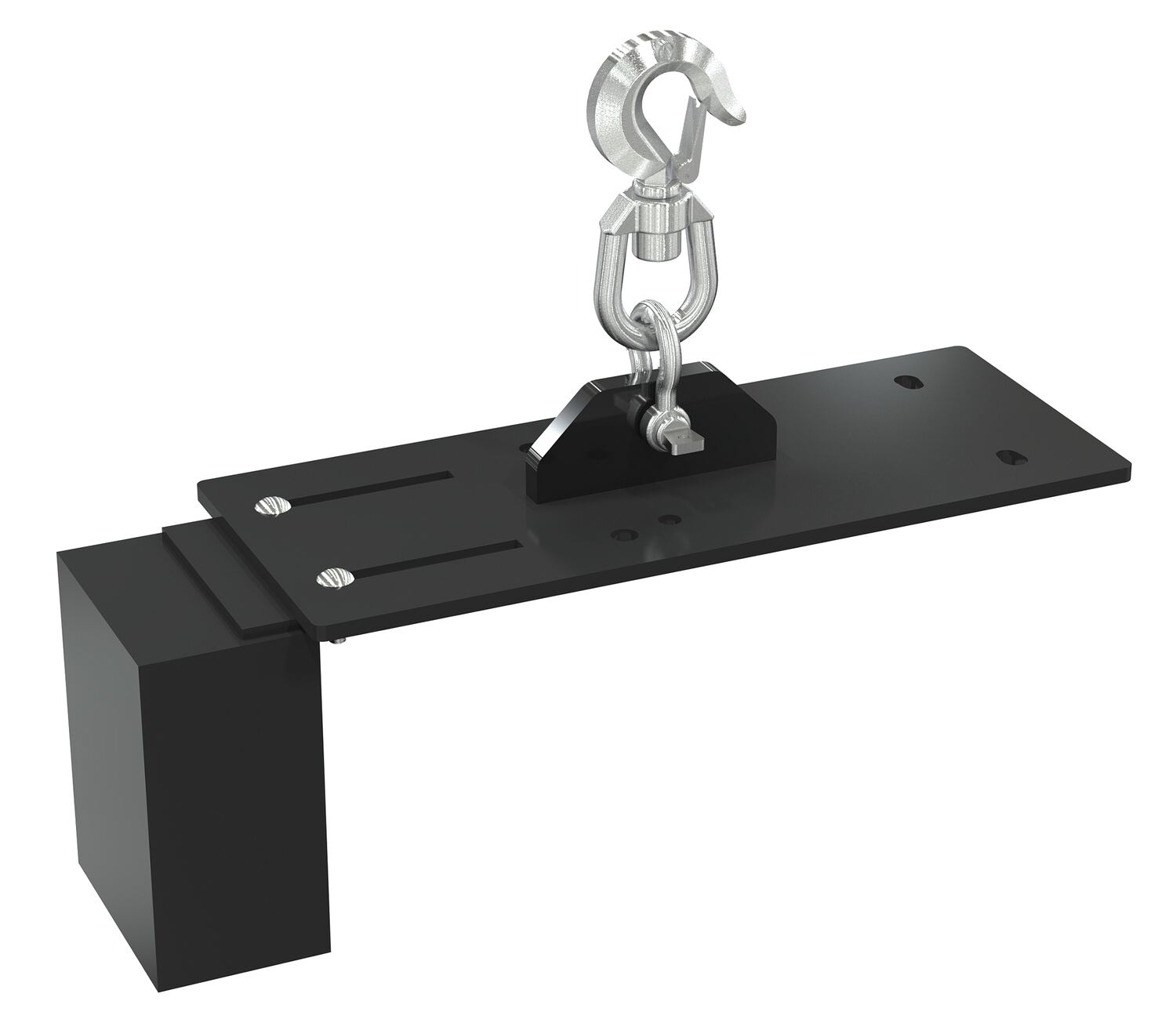

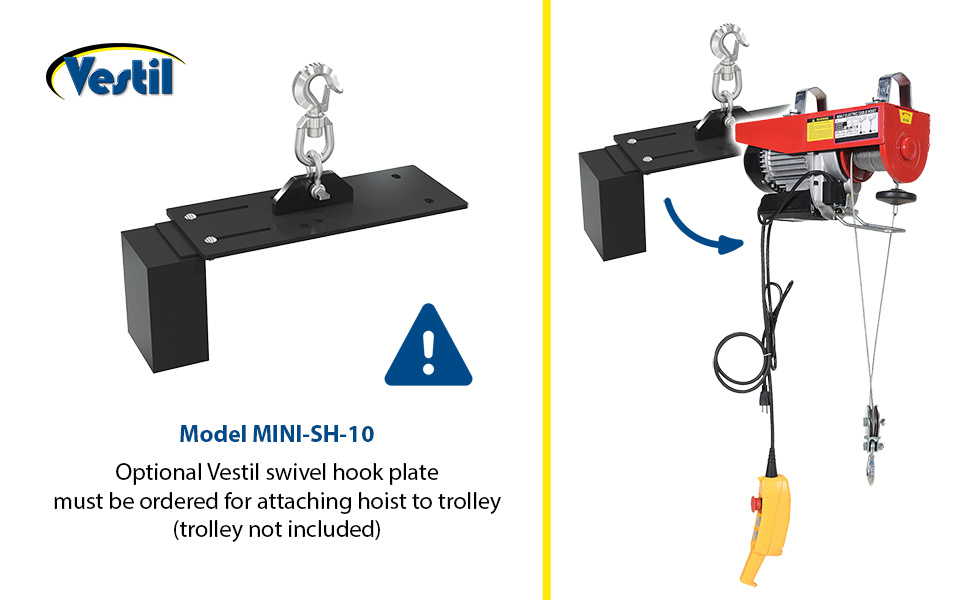

MINI-SH-10 MINI-SH-1030 Days Limited WarrantySwivel Hook Plate 23-9/16 In. x 8 In. x 19-1/8 In. 2000 Lb. Capacity For Mini Cable Hoist BlackUniform Capacity (lb.): 880
For Use With: MINI-10		78

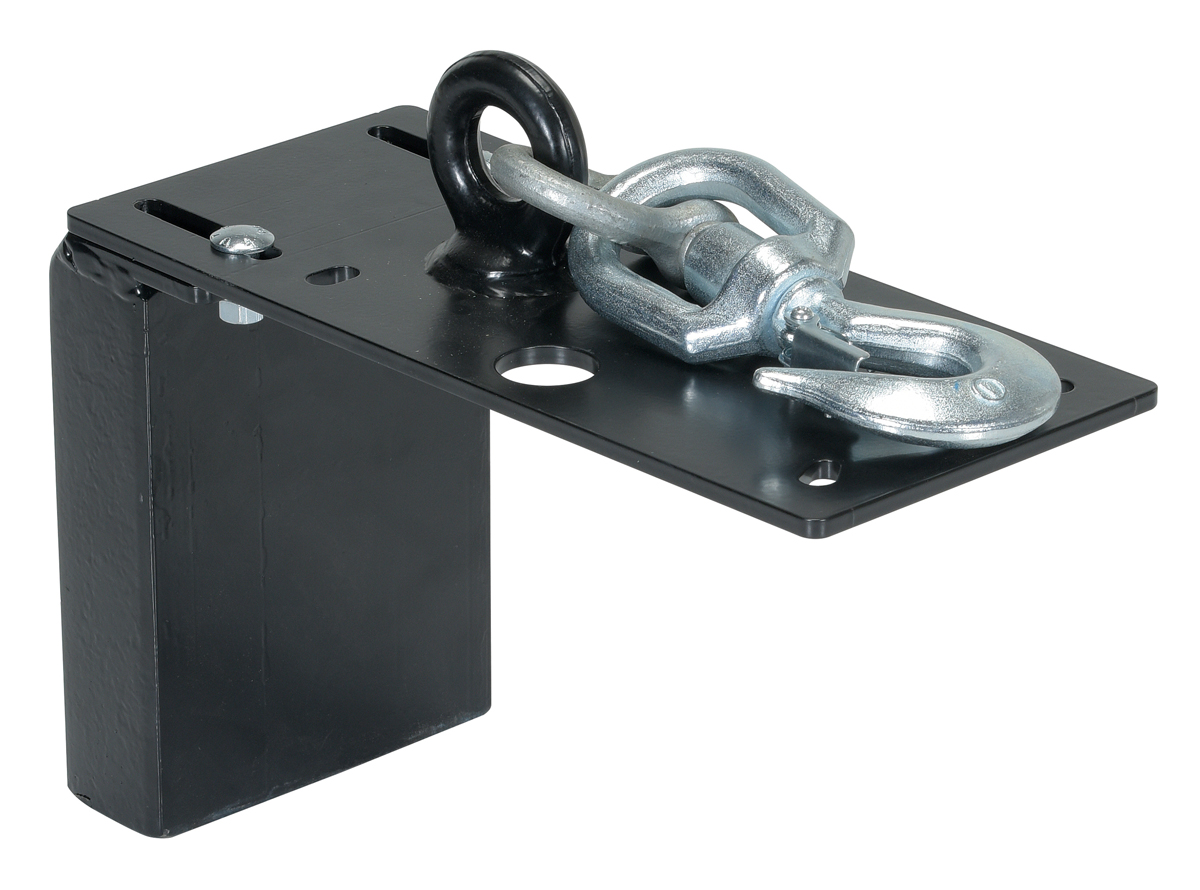

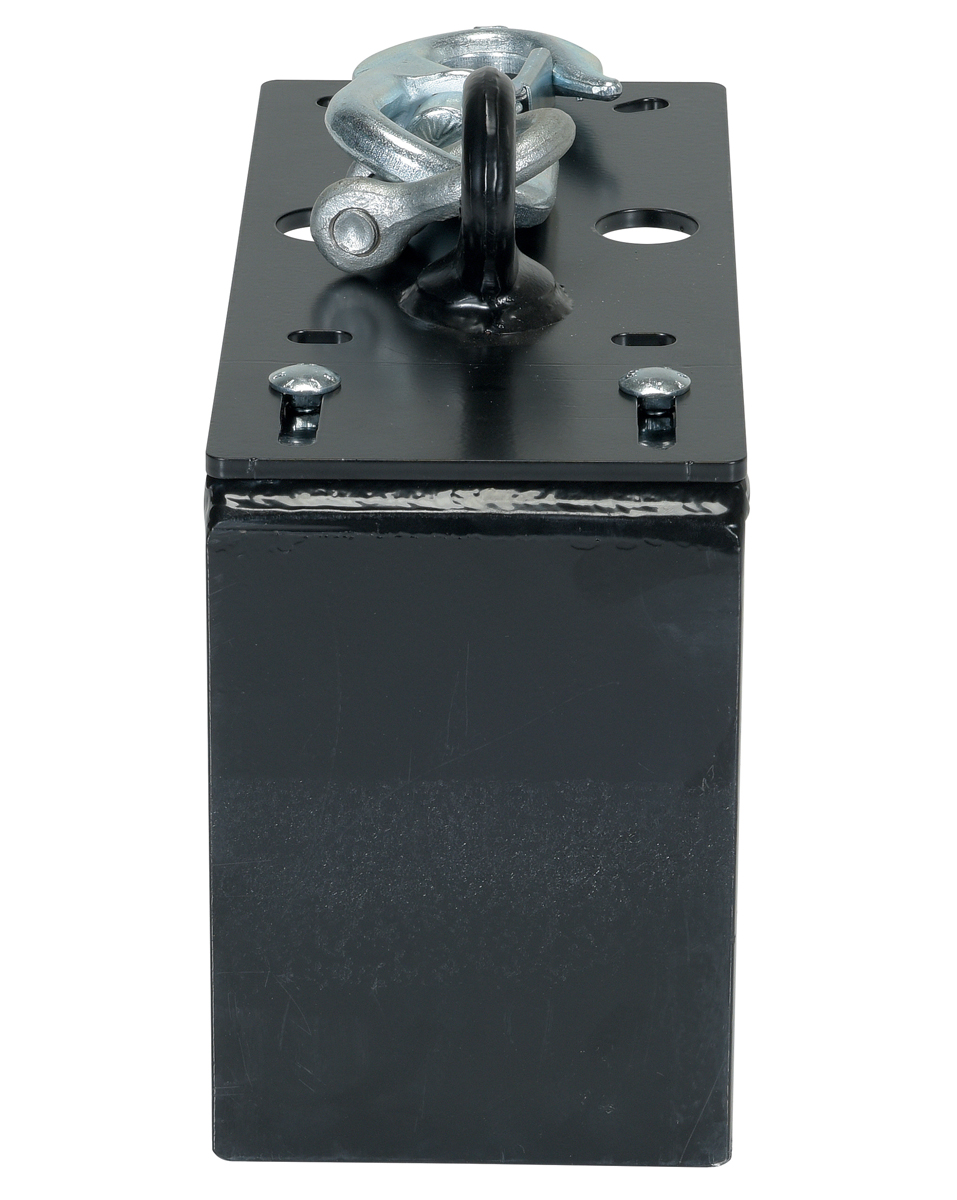

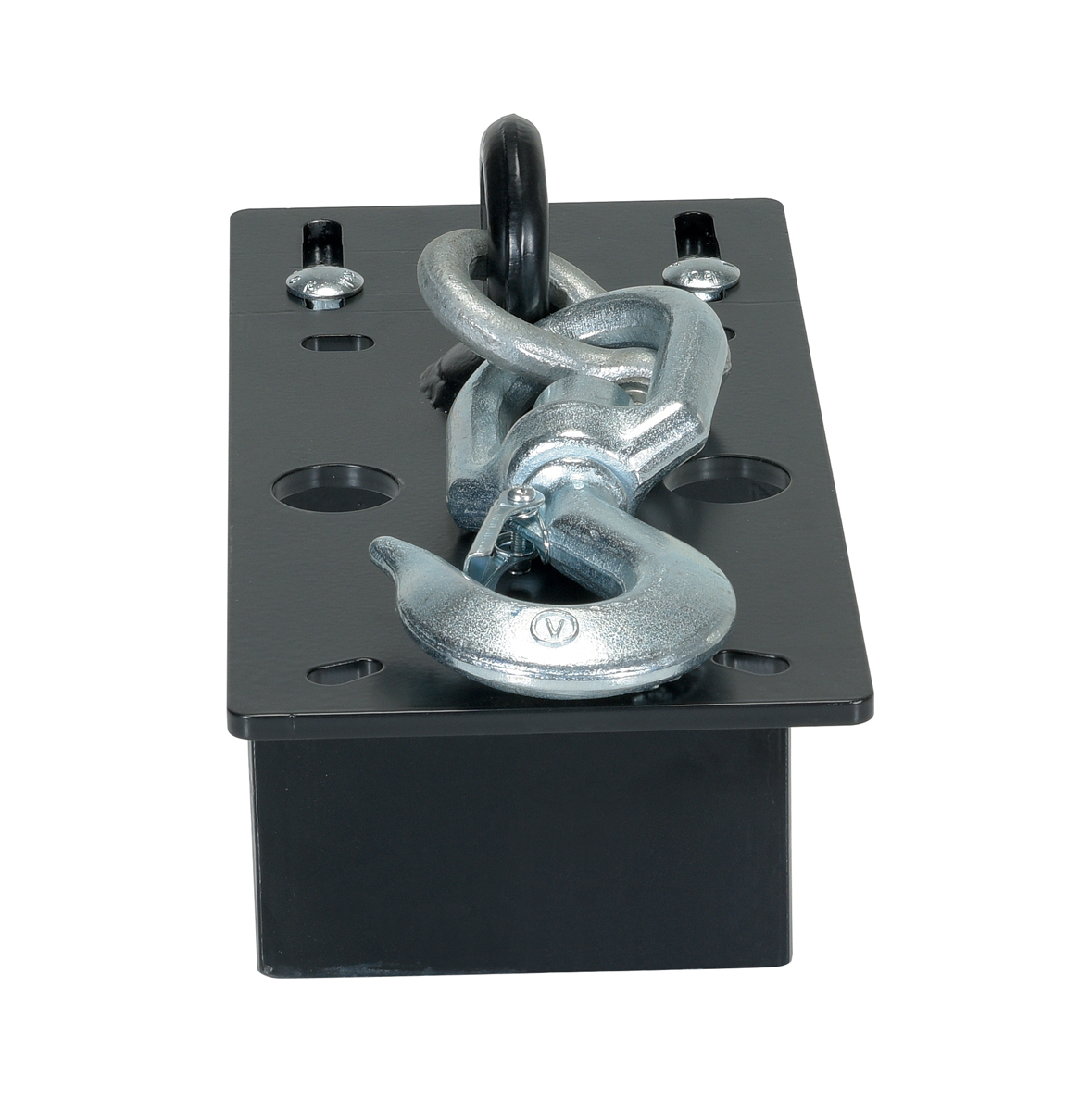

MINI-SH-2 MINI-SH-230 Days Limited WarrantySwivel Hook Plate 15-7/8 In. x 6 In. x 19-1/8 In. 440 Lb. Capacity For Mini Cable Hoist BlackUniform Capacity (lb.): 440
For Use With: MINI-2		42

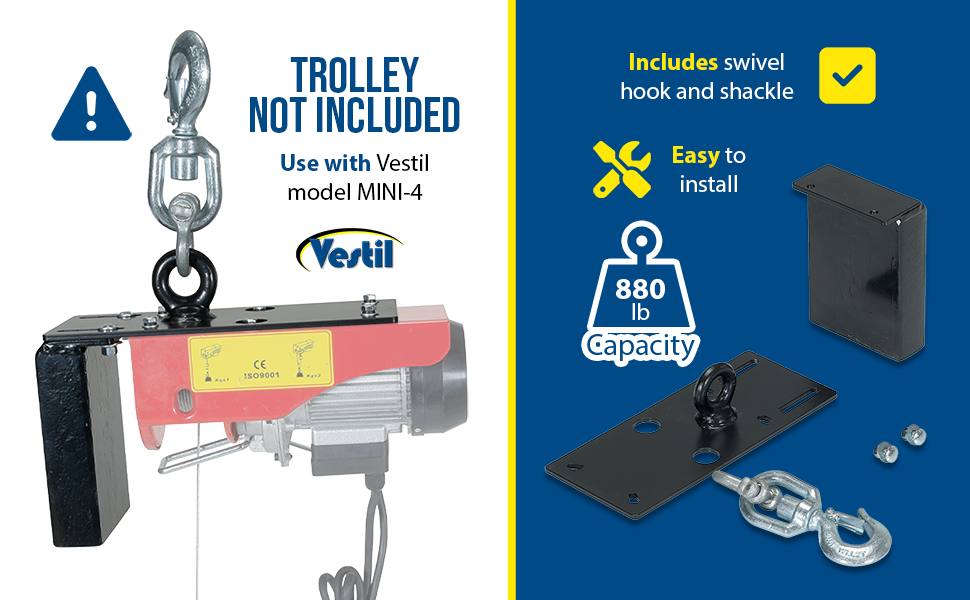

MINI-SH-4 MINI-SH-430 Days Limited WarrantySwivel Hook Plate 15-7/8 In. x 6 In. x 19-1/8 In. 880 Lb. Capacity For Mini Cable Hoist BlackUniform Capacity (lb.): 880
For Use With: MINI-4		42

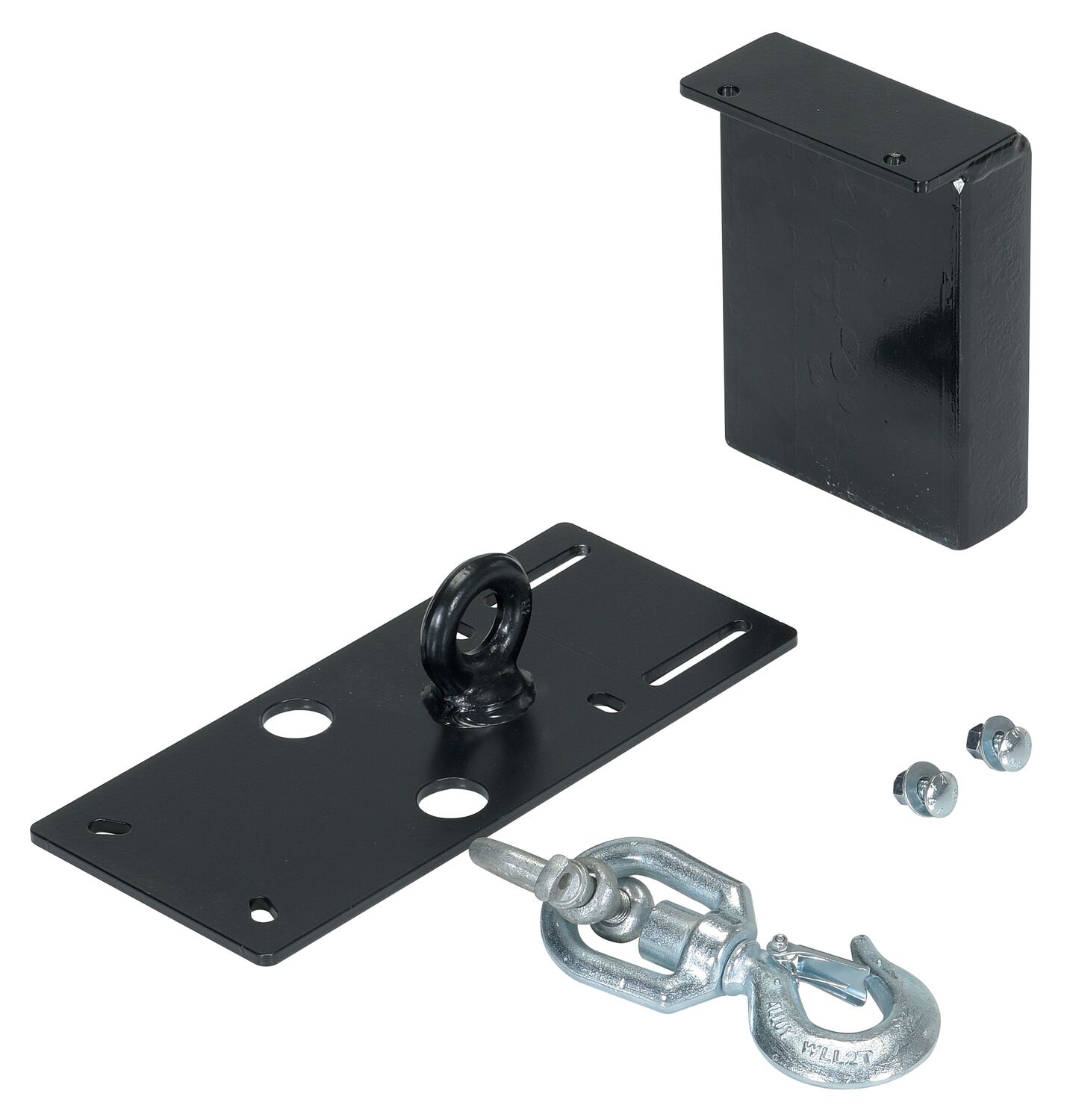

MINI-SH-7 MINI-SH-730 Days Limited WarrantySwivel Hook Plate 21-9/16 In. x 8 In. x 19-1/8 In. 1500 Lb. Capacity For Mini Cable Hoist BlackUniform Capacity (lb.): 1,500
For Use With: MINI-7		50

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Mini Cable Hoists PDF's will open in a new window when clicked.

Manuals


MINI-2
Owners Manual

MINI-SH
Owners Manual

MINI-7
Owners Manual

MINI-4
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


MINI-2

MINI-4

MINI-SH-10

MINI-SH-2

MINI-SH-4

MINI-SH-7

Testing Certificates


MINI-10

MINI-2

MINI-4

MINI-7

MINI-SH-10

MINI-SH-2

MINI-SH-4

MINI-SH-7

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: What is the tubing for the SUPPORT POLE/SQUARE of the MINI-2? 5/8" or 1-5/8" for this hoist?

A: The measurement of the collar on the MINI-2 is 1-7/8" wide X 1-1/2" high.

Q: What is the voltage of the hoist?

A: The hoists are 115V single phase power.
